ASO Fitting User Manual

ELMON KIT FITTING GUIDE

Technical Document Ver 2.0
Valid: 01/01/2018

FITTING GUIDE

So far, the cable of the contact edge (OPEN/CLOSE) had to be installed along the gates entire length
to connect it to the travelling coil core (SPK 54).

A new steel cable with an additional 2 cores is now included in each kit, which helps reduce fiing
time. One end is pre-assembled with connectors for the travelling coil. An extra pair of waterproof
connectors is included at the tensioner to connect the rear travelling safety edge.

This allows safety edges at each end of the gate to be connected to the travelling coil easily, without
the need to run a long connecting cable through or along the gate.

COMPONENTS

1

REQUIRED TOOLS

3

2

Cuers Drill M4 & M6 Tap bits Alen Keys

Web: www.easygatesdirect.co.uk
E-Mail: [e-mail]

Phone: [phone]
Address: Easygates Ltd, Unit 16 James Sco Rd B63 2QT

01

Technical Document Ver 2.0
Valid: 01/01/2018

X=75mm

ELMON KIT FITTING GUIDE

FITTING GUIDE

X=25mmX=25mm

X=25mm

min.35mm

M6

min. 25mm

*x*

M4

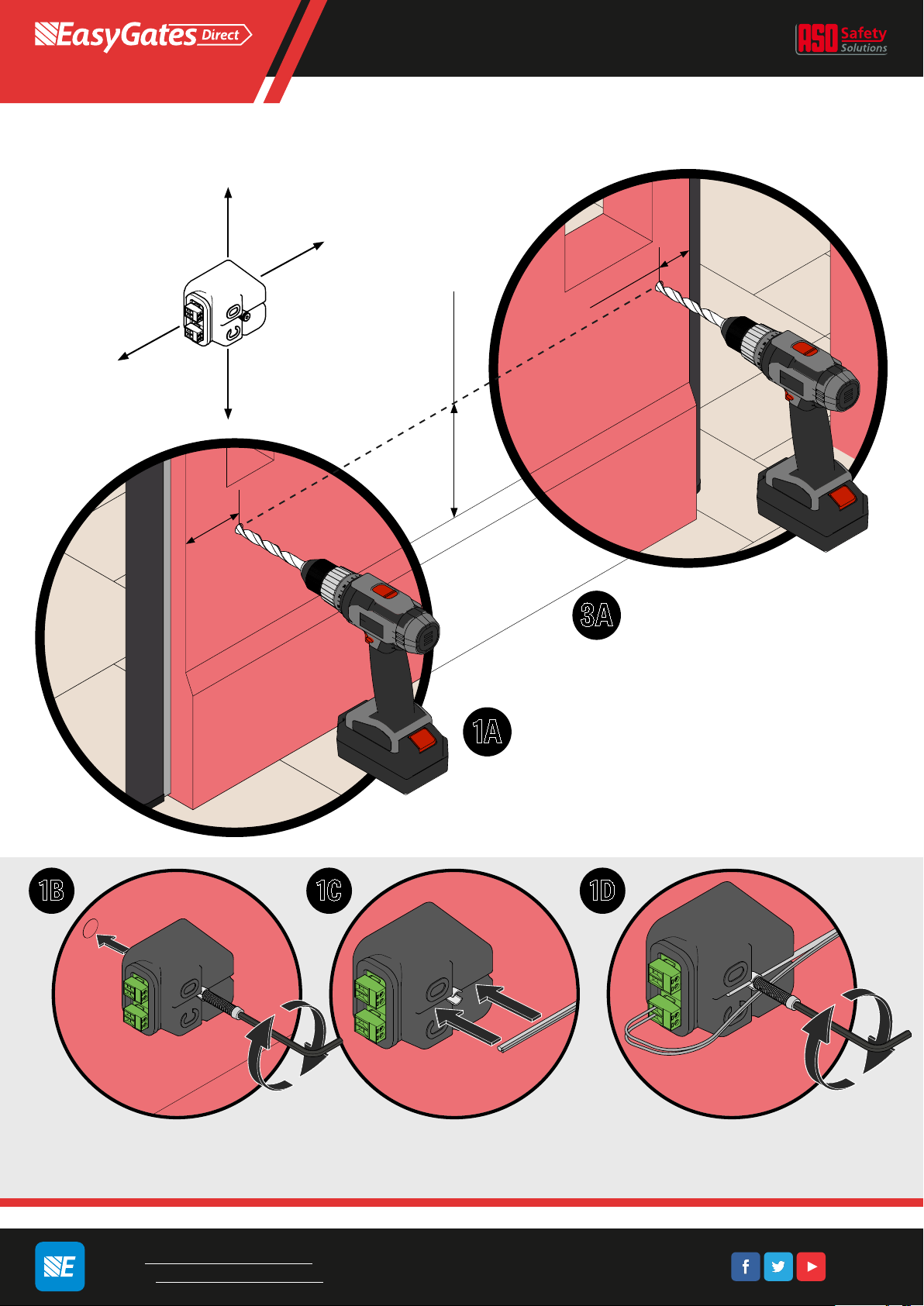

3A

1A

1B 1C 1D

Drill and tap M4 Hole

Drill and tap M6 Hole
or bolt/tek screw

Screw in the provided allen head bolt.

!DO NOT OVER TIGHTEN!

1,5-2 Nm

Web: www.easygatesdirect.co.uk
E-Mail: [e-mail]

Place the transmission cable in

slot gap.

Phone: [phone]
Address: Easygates Ltd, Unit 16 James Sco Rd B63 2QT

Strip back the insulation and plug cable

cores into plug terminals.

!ONLY CLAMP THE STEEL CABLE!

1,5-2 Nm

02

Technical Document Ver 2.0
Valid: 01/01/2018

ELMON KIT FITTING GUIDE

2A

3D

Pass the cable through the

stationary SPK coil.

3B

3E

Fix tension bracket with an M6

or a similar bolt.

1,5-2 Nm

3C

18mm

Fit the clamping unit into the

tension bracket

3F

~ 20mm

Pull the Cable through the tension bracket

and clamp.

!CABLE SHOULD NOT BE LOOSE!

3G

Clamp down the allen head screw.

!DO NOT OVER TIGHTEN!

1,5 Nm

3H

Trim away excess steel cable.

2B

Adjust the clamp unit. Tighten the clamp unit to hold everything

Web: www.easygatesdirect.co.uk
E-Mail: [e-mail]

Phone: [phone]
Address: Easygates Ltd, Unit 16 James Sco Rd B63 2QT

in place.

1,5-2 Nm

Secure SPK coil bracket

appropriately.

03

Technical Document Ver 2.0
Valid: 01/01/2018

ELMON KIT FITTING GUIDE

2C 2D

Adjust for height. Adjust for position and secure

to the ground.

1E

3E

Cover the components for

protection.

Web: www.easygatesdirect.co.uk
E-Mail: [e-mail]

Phone: [phone]
Address: Easygates Ltd, Unit 16 James Sco Rd B63 2QT

04
