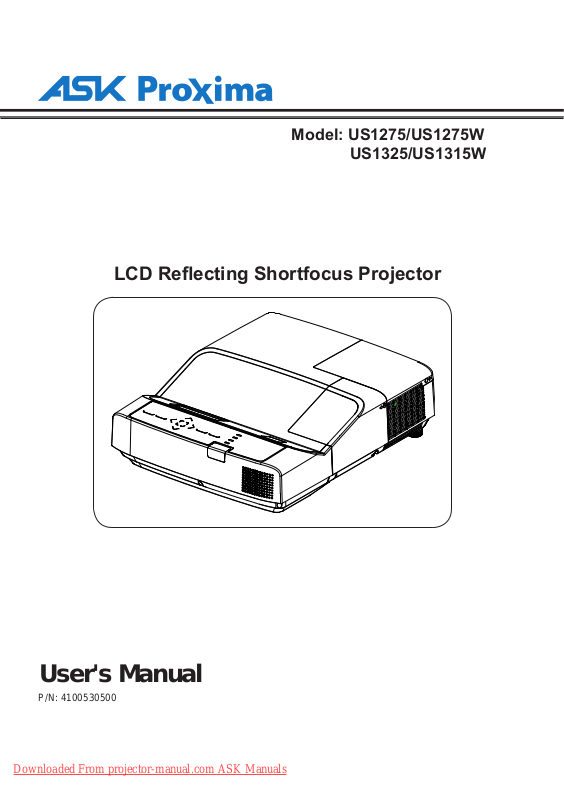

Page 1
Model: US1275/US1275W
US1325/US1315W
LCD Reecting Shortfocus Projector
User's Manual
P/N: 4100530500
Downloaded From projector-manual.com ASK Manuals
Page 2
Statement
The copyright of this manual belongs to ASK Proxima Digital Video Technology Co., Ltd.
and is protected by Copyright Law of the People’s Republic of China and related laws. No unit or
individual is allowed to extract, copy, translate or issue any part of the publication in any form or by
any means without the prior permission of the copyright owner.
ASK Proxima Digital Video Technology Co., Ltd. shall investigate the criminal responsibilities of the
infringing party who have damaged the interests of the copyright owner.
ASK Proxima Digital Video Technology Co., Ltd. reserves the right to modify or improve
the product without prior notice.
ASK Proxima Digital Video Technology Co., Ltd. reserves the right to modify the manual. Please
consult the company or the dealer for any unclear part.
ASK PROXIMA CO., LIMITED
Note:
- The screen menu and pictures in the manual may slightly differ from the real product.
- The manual is subject to change without prior notice.
2
Downloaded From projector-manual.com ASK Manuals
Page 3
Contents
Statement 2
Contents 3
Safety Instructions 4
Safety Guide 5
Air circulation 6
Moving the projector 6
Installing the projector properly 6
Part names and functions 7
Front 7
Back 7
Bottom 7
Terminals 8
Top control and Indicators 9
Remote Control 10
Install remote control batteries 12
Operating range 12
Adjustable feet 12
Adjustable feet 12
Installation 13
Positioning the projector 13
Remove terminal cover 13
Connecting to computer(Digital and analog
RGB) 14
Connecting to video equipment (Video,
S-Video) 15
Connecting to audio equipment 16
Connecting the AC power cord 17
Basic operation 18
Turn on the projector 18
Turn off the projector 19
How to operate the on-screen menu 20
Menu bar 21
Auto setup 22
Keystone correction 22
Sound adjust 23
Remote control operation 24
Computer input 26
Input select(VGA1/VGA2) 26
Computer system select 27
Auto PC adjustment 28
Manual adjustment via PC 29
Image Select 30
Image adjust 31
Screen size adjust 32
Video input 34
Video system select 35
Image Select 36
Image adjust 37
Screen size adjust 38
Setting 39
Setting 39
Advanced setting 41
Advanced setting 41
Information 46
Maintenance and cleaning 47
Warning indicator 47
Cleaning the air lter 48
Clean the project lens 49
Clean the cabinet 49
Replace the lamp 50
Appendix 52
Troubleshooting 52
Indicator and projector state 54
Compatible computer specications 55
Congurations of terminals 56
Content of hazardous substances and
elements 56
Dimensions 57
PIN code memorandum 57
RS232 Control Method 58
LAN control 61
Downloaded From projector-manual.com ASK Manuals
3
Page 4
Safety Instructions
0.7’(20cm)
1.5’(50cm)
3’(1m)
3’(1m)
Please read this manual completely before
installing and operating the projector.
The projector provides many convenient features
and functions. Proper operation may enable you
to fully utilize the features and keep it in good
condition. Otherwise, it will not only shorten
the service life of the unit, but also may cause
malfunction, a re, or other accidents.
If your projector cannot work properly, please read
this manual again, check the operating methods
and cable connection, and try the solutions in the
part of Troubleshooting. If the problem still exists,
contact the dealer or the service center.
The lamp of the projector is a wearing part.
The luminance may decrease after a period of
operation and be weaker than that of a new lamp.
This is normal. Please strictly follow the steps in
Turning on the unit and Turning off the
unit to turn on/off the projector, and the
requirements in Maintaining and cleaning the
projector to service and clean the projector
regularly. Or the high temperature residual heat
may not radiate, greatly shortening the service life
of the projector and lamp, or even damaging them
within a short period.
Caution
ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK NO
USER SERVICEABLE PARTS INSIDE EXCEPT
LAMP REPLACEMENT. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES
THAT DANGEROUS VOLTAGE
CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS
UNIT.
THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
USER’S MANUAL WITH THIS UNIT.
FOR EU USERS
The symbol mark and recycling systems described below apply to EU
countries and do not apply to countries in other areas of the world.
Your product is designed and manufactured with high quality materials
and components which can be recycled and/or reused.
The symbol mark means that electrical and electronic equipment,
batteries and accumulators, at their end-of-life, should be disposed of
separately from your household waste.
Note:
If a chemical symbol is printed beneath the symbol mark, this chemical
symbol means that the battery or accumulator contains a heavy metal
at a certain concentration. This will be indicated as follows: Hg: mercury,
Cd: cadmium, Pb: lead In the European Union there are separate
collection systems for used electrical and electronic
equipment, batteries and accumulators.
Please, dispose of them correctly at your
local community waste collection/recycling centre.
Please help us to conserve the environment we
live in!
Safety precautions
Caution: • The projector must be grounded.
• Do not expose the projector to
raindrops or high humidity to avoid
a re or electric shock.
- This projector produces intense light from the
projection lens. Avoid staring directly into the
lens, otherwise eye damage could be caused.
Be especially careful that children do not stare
directly into the beam.
- Place the projector in a proper position.
Otherwise it may result in re hazard.
- Leave an appropriate space from the top,
sides, and back of the shell in order to
ventilate and cool down the projector. The
gures below indicate the minimum distance
to be left. It must be satised if the projector is
placed in sealed environment like a cabinet.
SIDE and TOP REAR
- Do not cover the vent of the projector. Poor
radiation may shorten the service life or even
cause dangers.
- Remove the AC power plug if the projector
is not to be used for a long time.
- Do not project the same image for a long time;
otherwise, a residual image may appear on
the LCD panel due to its characteristic.
Caution
Do not set the projector in greasy, wet, or smoky
conditions such as in a kitchen, to prevent a
malfunction or accident. If the projector comes
in contact with oil or chemicals, it may become
deteriorated.
Read and keep this manual for future reference.
Environment-friendly use conditions: The environmentfriendly life time of the projector and remote control is 10
years, the lamp (consumable) 5 years, and the provided
batteries (consumable) 5 years.
10
The use conditions of the environment-friendly use period
are the same with that of the product. Properly operate and
effectively maintain the projector according to the requirements
in this manual.
4
Downloaded From projector-manual.com ASK Manuals
Page 5
Safety Guide
All the safety and operating instructions should be
read before the product is operated.
Read all of the instructions given here and retain them
for later use. Unplug this projector from AC power
supply before cleaning. Do not use liquid or aerosol
cleaners.
Use a damp cloth for cleaning.
Never push objects of any kind into this projector
through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a
re or electric shock. Never spill liquid of any kind on
the projector.
Do not install the projector near the ventilation duct of
air-conditioning equipment.
Follow all warnings and instructions marked on the
projector.
For added protection to the projector during a lightning
storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet.
This will prevent damage due to lightning and power
line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool,
etc,.
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart,
stand,or table. The projector may fall, causing serious
injury to a child or adult, and serious damage to the
projector.
Use only with a cart or stand recommended by the
manufacturer, or sold with the projector. Wall or
shelf mounting should follow the manufacturer’s
instructions, and should use a mounting kit approved
by the manufacturers.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
Slots and openings in the back and bottom of the
cabinet are provided for ventilation, to ensure reliable
operation of the equipment and to protect it from
overheating.
The openings should never be covered with cloth or
other materials, and the bottom opening should not be
blocked by placing the projector on a bed, sofa, rug,
or other similar surface. This projector should never
be placed near or over a radiator or heat register.
This projector should be operated only from the type
of power source indicated on the marking label. If you
are not sure of the type of power supplied, consult
your authorized dealer or local power company.
Do not overload wall outlets and extension cords as
this can result in re or electric shock. Do not allow
anything to rest on the power cord. Do not locate this
projector where the cord may be damaged by persons
walking on it.
Do not attempt to service this projector yourself as
opening or removing Covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualied service personnel.
Unplug this projector from wall outlet and refer
servicing to qualied service personnel under the
following conditions:
a. When the power cord or plug is damaged or
frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as improper adjustment of other
controls may result in damage and will often
require extensive work by a qualied technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet
has been damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the
service technician has used replacement parts
specied by the manufacturer that have the same
characteristics as the original part. Unauthorized
substitutions may result in re, electric shock, or injury
to persons.
This projector should not be placed in a built- in
installation such as a book case unless proper
ventilation is provided.
Downloaded From projector-manual.com ASK Manuals
Upon completion of any service or repairs to this
projector, ask the service technician to perform routine
safety checks to determine that the projector is in safe
operating condition.
5
Page 6
Safety Guide
M4x10
10mm
Torque:1.25+0.2Nm
Air circulation
Vents in the cabinet are provided for ventilation.
To ensure reliable operation of the product and
to protect it from overheating, these openings
must not be blocked or covered.
Caution
Hot air is exhausted from the exhaust vent.
When using or installing the projector, the
following precautions should be taken.
- Do not put any ammable objects, or spray
can near the projector. Hot air is exhausted
from the air vents.
- Keep the exhaust vent at least 1 m away from
any objects.
- Do not touch a peripheral part of the exhaust
vent, especially screws and metallic part. This
area will become hot while the projector is
being used.
- Do not put anything on the projector. Objects
put on the cabinet will not only get damaged
but may also cause a re hazard.
Cooling fans are provided to cool down the
projector.
The fan’s running speed is changed according
to the temperature inside the projector.
Installing the projector properly
Be sure to install the projector properly.
Improper installation may reduce the lamp
lifetime and even cause a re hazard.
Do not roll the projector over 20
degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down
to project an image.
Do not put the projector on either
side to project an image.
Caution when mounting the projector
on the ceiling
- Only qualied personal is authorized for ceiling
installation.
- We are not responsible for the hurt and
damage caused by ceiling brakect that
purchased from unauthorized dealer even in
warranty period.
- Remove the ceiling bracket immediately while
not use.
- While installing, torque screwdriver is suggested,
don't use electric or impact-type screwdriver.
Exhaust Vent
Air Intake Vent
Moving the projector
When moving the projector, cover the lens
cap and retract the adjustable feet to prevent
damage to the lens and cabinet. Put it into a
pouch (provided) with the lens facing upwards
if the projector is not in use for a long period.
6
Downloaded From projector-manual.com ASK Manuals
Caution in moving or transporting the
projector
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable
carrying case.
– Do not transport the projector by courier or
any other transport service in an unsuitable
transport case. This may cause damage
to the projector. For information about
transporting the projector by courier or any
other transport service, consult your dealer.
– Do not put the projector in a case before it is
cooled enough.
Page 7
Part names and functions
Front
⑤
① ② ③
Back
Remote control receiver(front)
①
Speaker
②
Terminal cover
③
Exhaust vent
④
Caution
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
Lamp cover
④
⑤
Bottom
⑥
⑨ ⑪
⑦ ⑧
⑩
⑫
Remote control receiver(back)
⑥
Projector lens
⑦
Top control and Indicators
⑧
Anti-theft slot
⑨
Air intake vent
⑩
Focus ring
⑪
Adjustable feet
⑫
Downloaded From projector-manual.com ASK Manuals
7
Page 8
Part names and functions
Terminals
①
②
③ ④
RS232
①
Connect the serial control cable to this
terminal when using RS-232C control the
projector.
VGA1
②
Connect the RGB signal from computer to
this termial.
S-VIDEO
③
Connect the S-VIDEO output from video
equipment to this terminal.
VIDEO/Y
④
- Connect composite video signal (Y) to this
jack.
- Connect component video signal to this
jack.
USB (B type)
⑤
Connect USB device to this terminal to
projector the documents stored.
VGA OUT
⑥
Output the RGB signal from VGA1 or VGA2
to other monitor.
LAN
⑦
Connect wired network cable to this terminal.
⑤ ⑥ ⑦
USB
⑩
⑨
⑪
⑫
⑬
⑧
AUDIO IN (Video)
⑧
- Connect the audio output from video
equipment connected to ③or④to this jack.
- For a mono audio signal (a single audio
jack), connect it to L(MONO) jack.
HDMI 1
⑨
Connect digital output signal from HDMI 1 to
this terminal.
HDMI 2
⑩
Connect digital output signal from HDMI 2 to
this terminal.
AUDIO OUT
⑪
- Connect external audio amplier to this
terminal.
- Output audio signal from equipment
connected to ⑧or ⑬.
VGA2
⑫
Connect the RGB signal from computer to
this termial.
AUDIO IN (PC)
⑬
Connect the audio output from computer
connected to ②or⑫to this jack.
8
Downloaded From projector-manual.com ASK Manuals
Page 9
Top control and Indicators
Part names and functions
④
①
②
POWER button
①
Turn on or turn off the projector.
INPUT button
②
Swicth the input source.
Pointer ▲▼◄►(VOL+/-)
③
- Select item or adjust data in screen menu.
- Adjust the volume.
Move the image in digital zoom mode.
-
OK button
④
- Enter screen menu operation.
- Execute selected item.
Pan the image in the D. Zoom +/- mode.
-
⑦
⑥
POWER indicator
⑦
- Lights red when the projector is in stand-
by mode.
- Lights green during operations.
Flashes green in Power management
-
mode.
ALERT indicator
⑧
Flashes red when the internal temperature
of the projector is too high.
LAMP indicator
⑨
⑨③ ⑤ ⑧
Lights yellow when the life of the project
lamp draws to an end.
MENU button
⑤
Open or close the screen menu.
AUTO button
⑥
- Automatically set the display parameter
while PC signal input.
- Swicth to search input source automatically
when there is no signal input.
Downloaded From projector-manual.com ASK Manuals
9
Page 10
Part names and functions
Remote Control
①
②
④
⑥
S-VIDEO
⑦
⑨
⑫
⑭
MENU
⑯
⑱
⑳
㉒
㉔
㉕
㉘
㉚
HDMI
1
AUTO
SCREEN
BLANK
VOL-
HDMI
POWER
2
YCBCR
MUTE
D.Z +
D.Z -
TIMER
INFO.
OK
VGA 1
VGA 2
VIDEO
SEARCH
BACK
VOL+
Pg Up
Pg Dn
LAMP
①
POWER
Turn on or turn off the projector.
②
HDMI 2
Select HDMI 2 as input source.
VGA 1
③
Select VGA 1 as input source.
③
⑤
⑧
⑩
⑪
⑬
HDMI 1
④
Select HDMI 1 as input source.
VGA 2
⑤
Select VGA 2 as input source.
YCBCR
⑥
Select "Component" as input source.
S-VIDEO
⑦
Select "S-video" as input source.
⑮
VIDEO
⑰
⑲
㉑
⑧
Select "Video" as input source.
AUTO
⑨
Enter auto setup mode.
㉓
MUTE
⑩
㉖
㉗
㉙
Turn off the volume.
SEARCH
⑪
Enter SEARCH adjust mode.
Pointer
⑫
button
- Select item or adjust data in screen menu.
Select the image display area in digital zoom
-
mode.
10
Downloaded From projector-manual.com ASK Manuals
OK button
⑬
Access the menu or select an item in the
menu.
MENU button
⑭
Open or close screen menu.
BACK button
⑮
Back to rst menu.
Page 11
Remote Control
②
④
⑥
S-VIDEO
⑦
⑨
⑫
⑭
MENU
⑯
⑱
⑳
㉒
㉔
㉕
㉘
㉚
HDMI
1
AUTO
SCREEN
BLANK
VOL-
HDMI
POWER
2
YCBCR
MUTE
OK
D.Z +
D.Z -
TIMER
INFO.
Part names and functions
VOL - button
①
③
VGA 1
VGA 2
VIDEO
⑤
⑧
⑩
SEARCH
⑪
⑬
BACK
VOL+
Pg Up
Pg Dn
LAMP
⑮
⑰
⑲
㉑
㉓
㉖
㉗
㉙
⑯
Decrease the volume level.
VOL + button
⑰
Increase the volume level.
Keystone button
⑱
Correct the keystone distortion.
D.Z+ button
⑲
Select the digital zoom + mode.
SCREEN button
⑳
Select the screen size.
Pg Up button
㉑
Page up when project Word,PPT documents.
BLANK button
㉒
Temporarily close the image on the screen.
Pg Dn button
㉓
Page down when project Word, PPT
documents.
D.Z- button
㉔
Select the digital zoom - mode.
Freeze button
㉕
Freeze the project image.
IMAGE button
㉖
Select image mode.
Downloaded From projector-manual.com ASK Manuals
TIMER button
㉗
Enable the timer function.
Test pattern button
㉘
Set the internal signal of the system.
LAMP button
㉙
Select the lamp mode.
INFO. buttom
㉚
Display the projector information.
11
Page 12
Part names and functions
Install remote control batteries
①
Open the battery
compartment lid.
To ensure safe operation, please observe the following precautions:
● Use two (2) AAA or LR03 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid matter.
● Do not expose the remote control to moisture or heat.
● Do not drop the remote control.
● If the battery has leaked on the remote control, carefully wipe the case clean and
install new batteries.
● Risk of explosion if a battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions on the battery or local
regulations or guides.
②
Install new batteries
into the compartment.
Two AAA batteries
For correct polarity
(+ and –), be sure
battery terminals
are in contact
with pins in the
compartment.
③
compartment lid.
Replace the
Operating range
Point the remote control toward
the projector remote receiver
(front and back) when pressing
any button.
The maximum operating range
for the remote control is about 5
meters and 60 degrees.
Adjustable feet
The projection angle can be adjusted up to
10.0 degrees with the adjustable feet.
Rotate the adjustable feet to lift the projector
to a certain height. During lifting, rotate the two
feet clockwise.
To lower or retract the adjustable feet, rotate
the two feet counterclockwise.
Keystone distortion of projected images can
be corrected by auto settings, remote control
operation or menu operation.
12
Downloaded From projector-manual.com ASK Manuals
30°
30°
5m
Adjustable feet
30°
5m
30°
Page 13
Installation
0.632m
0.566m
0.500m
0.434m
0.386m
Fixed
60”
70”
80”
90”
100”
A:B=13:-3
(Center)
(Inch Diagona)
Project distance
Project distance
Project Screen
60”
70”
80”
90”
100”
A:B=14.6:-4.6
0.672m
0.602m
0.532m
0.462m
0.392m
(Center)
(Inch Diagona)
Fixed
Project distance
Project distance
Project Screen
Positioning the projector
Note:
● The brightness in a room has a great inuence on picture quality. It is recommended to limit the
ambient lighting in order to get the best image.
● All measurements are approximate and may vary from the actual sizes.
US1275/US1325:
US1275W/US1315W:
Remove terminal cover
Downloaded From projector-manual.com ASK Manuals
Before connecting to peripheral equipments,
please loosen the three screws to remove the
terminal cover.
Screen size
WxH）mm
（
4:3 ratio
60
70"80"90"100
"
1219x914 1422x1067
1626x1219
1829x1372 2032x1524
Project distance①（m）0.368 0.434 0.500 0.566 0.632
Project distance②（m）0.068 0.134 0.200 0.266 0.332
Note:
Projector distance①as an example in left
figure, Projector distance②shown in the table
above.
Screen size
WxH）mm
（
16:10 ratio
Project distance①（m）0.392 0.462 0.532 0.602 0.672
Project distance②（m）0.092 0.162 0.232 0.302 0.372
Note:
60"70"80
1292x808 1508x942
"
1723x1077
90"100
1939x1212 2154x1346
Projector distance①as an example in left
figure, Projector distance②shown in the table
above.
Termina cover
Screw
"
"
13
Page 14
Installation
Connecting to computer(Digital and analog RGB)
Cables used for connection:
● VGA cable ● Serial crossover cable*
● HDMI cable*
(*=Cables not supplied with the projector)
Serial output PC output Monitor input PC output HDMI terminal
Serial
crossover
cable
VGA
cable
Analog input Analog input Analog input
VGA
cable
VGA
cable
USB
HDMI
cable
HDMI
cable
HDMI HDMIControl port
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting the cables.
14
Downloaded From projector-manual.com ASK Manuals
Page 15
Connecting to video equipment (Video, S-Video)
Cables used for connection:
● Video cable* ● S-Video cable*
● RCA cable* ● HDMI cable*
(*=Cables not supplied with the projector)
Installation
S-VIDEO output
S-VIDEO
cable
S-VIDEO
Composite
video
Video cable
Video
RCA
cable
Audio input
HDMI cable
HDMI
cable
HDMIY Cb/Pb Cr/Pr HDMI
HDMI
cable
USB
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting the cables.
Downloaded From projector-manual.com ASK Manuals
15
Page 16
Installation
Connecting to audio equipment
Cables used for connection:
● Audio cable*
(*=Cables not supplied with the projector)
External audio equipment
Audio cable
Note: The left and right channels
are combined when there
is only the L(mono) is inserted.
(R) (L)
(R) (L)
Audio input
Audio cable
(stereo)
USB
Audio output
Audio output
Audio cable
Audio input
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting the cables.
16
Downloaded From projector-manual.com ASK Manuals
Page 17
Installation
Connecting the AC power cord
This projector uses nominal input voltages of 100–240V AC and it automatically applies to different
input voltages. It is designed to work with a single-phase power system having a grounded neutral
conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.
If you are not sure of the type of power being supplied, consult your authorized dealer or service
station. Connect the projector with all peripheral equipment before turning it on.
Note:
The AC outlet should be near this equipment
and must be easily accessible.
Note:
For safety, unplug the AC power cord when the projector is not in use. When the projector is
connected to an outlet with AC power cord, it is in stand-by mode and consumes a little electric
power.
Note on the power cord
AC power cord must meet the requirements of the country where you use the projector. Conrm the AC
plug type with the chart below and proper AC power cord must be used. If the supplied AC power cord
does not match.
AC outlet side
Projector side
For the U.S.A. and
Canada
Ground
For Continental
Europe
For the U.K.
Ground
To power cord
connector on your
projector.
√ Note:
● Using incorrect power cord may inuence the product performance, or even cause hazards like an
electric shock or re. To ensure the product performance and security, please apply the cable of the
same model with the original one.
● Common connecting cables include the AC power cord, various VGA cables, video cable,and serial
control cable.
To the AC outlet.
(110 V AC)
Downloaded From projector-manual.com ASK Manuals
To the AC outlet.
(200 - 240 V AC)
To the AC outlet.
(200 - 240 V AC)
17
Page 18
Basic operation
Turn on the projector
1.Complete peripheral connections (with a
computer, VCR,etc.) before turning on the
projector.
2. Connect the projector’s AC power cord into
AC outlet.The POWER indicator turns red.
3. Press the POWER button on top control or
on the remote control. The POWER indicator
becomes green and the cooling fans start to
work. The preparation display appears on
the screen and the countdown starts.
4. If the projector is locked with a PIN code, a
PIN code input dialog box appears. Enter
the PIN code as instructed below.
Note:
● When the logo select is set to be "Off,” the
logo will not be displayed on the screen.
● When the Display function is set to be "Off,”
the logo and countdown will not be displayed
on the screen.
● During the countdown period, all operations
are invalid except shutdown.
Enter a PIN code
Select a number by pressing button, and
then press button to fix the number and
move the cursor. The number changes to “*”. If
you fixed an incorrect number, move the cursor
to the number you want to correct by pressing
button, and then select the correct number
by pressing button.
Repeat this step to complete entering a three-
digit number.
After entering the three-digit number, move the
cursor to “Set”, then you can start to operate
the projector.
If you entered an incorrect PIN code, the “PIN
code” and the number (***) turn red. Re-enter
the correct PIN code.
What is PIN code?
PIN (Personal Identification Number) code is a
security code that allows the person who knows
it to operate the projector. Setting the PIN code
can prevent unauthorized use of the projector.
A PIN code consists of a three-digit number.
Refer to the PIN code lock function in the
Advanced setting menu on pages 44-45 for PIN
code lock operation of the projector.
01
PIN code
* 0
Set Clear
Adjust- - - - Move - - - -
PIN code
*
* *
Set Clear
- - - - Move Select
- - - -- - - -
Move the cursor to Set, and press OK.
Caution on handling the PIN code
If you forget your PIN code, the
projector can no longer be started.
Take a special care in setting a
newPIN code. Write down the
number in a column on page 58 of
this manualand keep it properly.
Should the PIN code be missing
or forgotten, consult your dealer
or service center.
*
18
Downloaded From projector-manual.com ASK Manuals
Page 19
Turn off the projector
1. Press the POWER button on top control
or on the remote control, and “Power off?”
appears on the screen.
Basic operation
2. Then, press the POWER button again in 4
seconds. The POWER indicator starts to
ash red, and the cooling fans keep running
(You can select the level of fans’ quietness
and running speed.). Now you can unplug
the AC power cord even if the fans are still
running.
3 When the projector has cooled down enough
to be turned on again, the POWER indicator
stops ashing.
To maintain the lamp life, once you turn
the projector on, wait at least 5 minutes
before turning it off.
Do not operate the projector
continuously without reset.
Continuous use may result in shortening
the lamp life.Turn off the projector and
let it stand for about an hour in every 24
hours.
Note:
● When the On start function is “On” , the
projector is turned on automatically by
connecting the AC power cord to an AC outlet .
● The running speed of cooling fans is changed
according to the temperature inside the
projector.
● Do not put the projector in a case before it has
cooled down enough.
● If the ALERT indicator flashes or emits a red
light, see “Warning Indicator”.
● While the POWER indicator is flashing, the
lamp is being cooled down and the projector
cannot be turned on. Wait until the POWER
indicator turns red to turn on the projector
again.
● The fan rotation will terminate directly if the
AC power cord is unplugged immediately after
the projector is turned off.
● The projector can be turned on after the
POWER indicator turns red. The waiting
time to restart will be shortened when the
normal power-off processing for fan cooling
is completed, compared with the time the AC
power cord is immediately unplugged after the
power-off.
Power off ?
“Power off ? ” disappears after 4 seconds.
Downloaded From projector-manual.com ASK Manuals
19
Page 20
Basic operation
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
VGA 1
VGA 2
How to operate the on-screen menu
The projector can be adjusted or set via the onscreen menu. Each main menu can be divided
into several levels of submenus, and subme
nus are also divided into several levels of subsubmenus.
For each adjustment and setting procedure,
refer to the respective sections in this manual.
Top Control
OK button
MENU button
Menu
1 Press the MENU button on the top control or
the remote control to show the on-screen menu.
2 Press
menu and then press OK or
buttons to select an entry in the main
button to
enter the submenu.
3 Press
and then press OK or
buttons to select your required item,
button to set or enter
the submenu.
4 Press
button to adjust settings or
switch among the items. Press the OK
button for corresponding operation and then
return to the submenu.
5 Press
Press MENU on the remote control again to exit
the on screen menu.
button to return to the previous menu.
Point
buttons
Remote control
OK button
OK
MENU
BACK
MENU button
On-screen menu
PC adj.
Auto PC adj.
Fine sync 16
Total dots 1344
Horizontal 296
Vertical 35
Clamp 1
Display area H 1024
Display area V 768
Reset
Mode free
Stored
Exit Move Next Next- - - -
Point
buttons
20
Downloaded From projector-manual.com ASK Manuals
Page 21
Basic operation
Menu bar
①
② ③ ④
⑤ ⑥
⑦
⑧ ⑨
⑩
Main menu
PC adj.
Auto PC adj.
Fine sync 16
Total dots 1344
Horizontal 296
Sub menu
PC adjust menu
①
Vertical 35
Clamp 1
Display area H 1024
Display area V 768
Reset
Mode free
Stored
Exit Move Next Next- - - -
Adjust computer parameters to match with VGA input signal format: auto PC adj, Fine sync,
Total dots, Horizontal, Vertical, Clamp,Display area H, Display area V.
Screen menu
②
If a computer is selected as a signal source, the following setup options for the image size are
available: Normal, True, Full, Wide, Custom, Digital zoom +/- or keystone.
If video equipment is selected as a signal source, the following setup options for the image size
are available: Normal,Wide, Custom or keystone.
Image select menu
③
The available image modes are: Dynamic, Normal, Cinema, Blackboard (green), Colorboard
or User Image.
Image adjust menu
④
If a computer is selected as a signal source, the following image adjusting options are available:
Contrast, Brightness,Color temp., White balance (R/G/B), Sharpness and Gamma.
If video equipment is selected as a signal source, the following image adjusting options are
available: Contrast, Brightness,Color, Tint, White balance (R/G/B), Sharpness, Gamma,
Noise reduction and Progressive.
Input menu
⑤
Select input source: HDMI 1, HDMI 2, VGA 1, VGA 2, Component, S-Video or Video.
Sound menu
⑥
Adjust the volume level or mute the sound.
Setting menu
⑦
Congure operation settings of the projector.
Advanced setting menu
⑧
Congure advanced operation settings of the projector.
Network menu
⑨
Access the network function.
Infomation menu
⑩
To display the system information of the projector.
Downloaded From projector-manual.com ASK Manuals
21
Page 22
Basic operation
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
BACK
MENU
VOL+
VOL-
VGA 1
VGA 2
OK
Auto setup
This function is available just by pressing the
AUTO button on the top control or on the remote
control. The system then automatically performs
various settings in the setup menu, including input
source search and auto pc adjustment.
Keystone correction
If a projected picture has keystone distortion,
follow the steps below to manually correct the
image.
Press the KEYSTONE button on the remote
control. The keystone dialog box appears.
Correct keystone distortion with buttons.
Keystone adjustment can be stored.
Reduce the upper
width with button.
Reduce the lower
width with button.
Top control
AUTO button
Remote control
AUTO
button
Point
button
Keystone button
Keystone
● The arrows are white when there is no
correction.
● The arrows that are used for correction turns
red.
● The arrows disappear at the maximum
correction.
● If you press the KEYSTONE button on the
remote control once more while the keystone
dialog box is being displayed, the keystone
adjustment is cancelled.
● The adjustable range can be limited
depending on the input signal.
Downloaded From projector-manual.com ASK Manuals
22
Page 23
Sound adjust
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
YCBCR
VGA 1
VGA 2
Direct operation
Volume
Press the VOL +/- button on the top control or on
the remote control to adjust the volume.
Basic operation
Top control
VOL +/- button
Mute
Press the MUTE button on the remote control
and select On to turn off the audio temporarily.
To restore the audio to its previous level, press
the MUTE button again and select Off or press
the VOLUME+/– buttons. Mute function is also
effective for AUDIO OUT jack.
Menu operation
1 Press the MENU button to display the on
screen menu.
Press button to move the cursor to the
Sound menu icon. Press OK or
button
to enter the submenu entry.
2 Press ▲▼ button to move the cursor to the
desired item, and then press the OK button.
Volume
to turn up the volume and to turn
Press
down the volume.
Mute
Press
button to switch the mute function on/
off.
Remote control
MUTE
MENU
AUTO
SEARCH
OK
BACK
VOL-
VOL+
MUTE button
VOL +/- button
Sound menu
Sound
Volume 12
Mute On Off
Exit Move Next Next- - - -
Downloaded From projector-manual.com ASK Manuals
23
Page 24
Basic operation
POWER
Remote control operation
Using the remote control for some frequently used operations is advisable. Just pressing one of the
buttons enables you to make the desired operation quickly without calling up the on-screen menu.
VGA1, VGA2, VIDEO, HDMI1, HDMI2,
S-VIDEO or YCBCR button
Press VGA1, VGA2, VIDEO, HDMI1, HDMI2,
S-VIDEO or YCBCR button on the remote
control to select an input source.
FREEZE button
Press FREEZE button to freeze the picture
on the screen. To cancel the Freeze function,
press the FREEZE button again or press any
other button.
LAMP button
Press LAMP button to select a lamp mode to
change the brightness of the screen.
Normal ... Normal brightness
Auto ....... Adjust the lamp brightness
according to the input signal.
ECO ....... Lower brightness, reducing the
lamp power consumption and
extending the lamp life.
S-VIDEO
FREEZE
button
HDMI
HDMI
S-VIDEO
MENU
1
AUTO
VOL-
SCREEN
BLANK
HDMI
2
YCBCR
MUTE
OK
D.Z +
D.Z -
TIMER
INFO.
VGA
VGA 1
SEARCH
VOL+
Pg Up
Pg Dn
LAMP
VGA 2
VIDEO
BACK
YCBCR
VIDEO
Point
button
LAMP button
24
Downloaded From projector-manual.com ASK Manuals
Note:
See the next page for the description of other
buttons.
Page 25
BLANK button
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
BACK
MENU
VOL+
VOL-
VGA 1
VGA 2
OK
Press BLANK button to black out the image.
To restore to normal, press the BLANK button
again or press any other button.
Blank Image
Blank
Basic operation
The screen changes each time you press the
button as follows:
Black out →Normal →Black out →Normal ...
TIMER button
Press TIMER button. The timer display “00:00”
appears on the screen and the timer starts to
count time (00:00–59:59).
To stop the Timer, press TIMER button. Press
TIMER button again, and then the Timer display
disappears.
IMAGE button
Press IMAGE button on the remote control to
select your required image mode.
SCREEN button
Press SCREEN button on the remote control to
select your required screen mode.
“Blank” disappears after 4 seconds if there is
no other button operation.
02
：
02
Timer display
Remote control
SCREEN
button
BLANK
button
TIMER
button
SCREEN
BLANK
D.Z +
D.Z -
TIMER
INFO.
Pg Dn
LAMP
Pg Up
button
Downloaded From projector-manual.com ASK Manuals
25
Page 26
Computer input
POWER
Input select(VGA1/VGA2)
Direct operation
Top control
Press INPUT button on top control panel or
VGA1/VGA2 button on remote control to select
VGA1 or VGA2.
Remote control
VGA1/VGA2 button
HDMI
1
S-VIDEO
HDMI
2
YCBCR
VGA 1
VGA 2
VIDEO
VGA 1
VGA 2
Menu operation
1 Press MENU button on remote control to
display the screen menu. Press button
to select Input icon, then press button or
OK button.
2 Press button to select VGA 1 or VGA 2,
then press OK button.
Input menu
Input
HDMI 1
HDMI 2
VGA 1
VGA 2
Component
S-video
Video
INPUT
button
HDMI 1
HDMI 2
VGA 1
VGA 2
Component
S-video
Video
26
Downloaded From projector-manual.com ASK Manuals
System 1024x768@60
Exit Move Next Next- - - -
Page 27
Computer input
Computer system select
The projector automatically tunes to various types of computers with its function of Multi-scan system and
Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the
signal format and tunes to project proper images without any additional setting.
One of the following messages may appear when:
Auto
When the projector cannot recognize
the connected signal conforming to
the provided PC systems, Auto is
displayed on the System Menu box
and the Auto PC Adjustment function
works to display proper images. If
the image is not projected properly, a
manual adjustment is required.
There is no signal input from computer.
-----
Check the connection between your
computer and projector.
Select computer system manually
The system can also be selected manually.
1 Press MENU button on the top control or remote
control to display the on screen menu.Press
button to select the input source icon, and
press
2 Press
or OK button.
button to select System and press
the ► or OK button.
3 Press button to select your required
system, and then press the OK button.
VGA system menu
Input
HDMI 1
HDMI 2
VGA 1
VGA 2
Component
S-video
Video
System 1024x768@60
Exit Move Next Next- - - -
The PC system menu displays the selected
system.
Input
System VGA 1
1024x768@60
1366x768@60
- - - -
- - - -
- - - -
Exit Move Next Next
- - - -
Downloaded From projector-manual.com ASK Manuals
27
Page 28
Computer input
Auto PC adjustment
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and
Vertical to conform to your computer.
Menu operation
Auto PC adjustment
1 Press MENU button on top control or remote
control to display the on screen menu.Press
button to select the input source icon and
press
2 Press
or OK button.
button to select Auto PC adj., and
then press OK button.
To store the adjusted parameters
The system parameters adjusted in the Auto PC
Adjustment can be stored in the projector.
PC adjust menu
PC adj.
Auto PC adj.
Fine sync 16
Total dots 1344
Horizontal 296
Vertical 35
Clamp 1
Display area H 1024
Display area V 768
Reset
Mode free
Stored
Exit Move Next Next- - - -
√ Note:
● Total dots and horizontal & vertical positions of some computers cannot be fully adjusted with this Auto
PC Adjustment function. When the image is not provided properly with this function, manual
adjustments are required.
● The Auto PC Adjustment cannot be operated when 480i, 576i, 480p, 576p, 720p, 1035i, or 1080i is
selected in the PC System Menu.
28
Downloaded From projector-manual.com ASK Manuals
Page 29
Computer input
Manual adjustment via PC
Some computers employ special signal formats which may not be tuned by Multi-scan system of this
projector. Manual PC Adjustment is provided for you to precisely adjust several parameters to match
those signal formats. The projector has five independent memory areas to store those parameters
manually adjusted, which allows you to recall the setting for a specic computer.
1 Press MENU button to display the on screen
menu. Press
icon and press
2 Press
adjusted and then OK to pop up the
corresponding dialog box. Press to set the
value.
Fine sync
To cut off flicker from the image displayed by
pressing
Total dots
Press to adjust the total dots for a cycle so
that it can match the image on computer.
Horizontal
Press
Vertical
Press
Clamp
Press
the image has dark bars, try this function for
adjustment.
Display area H
Press
to adjust the horizontal area displayed
by the projector.
Display area V
Press
to adjust the vertical area displayed by
the projector.
Reset
To reset the adjusted data, select Reset and press
OK . A conrmation box appears and then select
Yes. All adjustments will return to their previous
gures.
Mode free
To clear the adjusted data, select Mode free and
then press ► or OK .Move ► or OK to highlight
the Mode you want to clear and then press OK.
Store
To store the adjusted data, select Store and then
press ► or OK. Move the red arrow indicator to
one of the Mode 1 to 5 in which you want to store,
and then press OK.
to select the PC Adjustment
or OK button.
button to select the item to be
to adjust the value.(from 0 to 31).
to adjust the horizontal picture position.
to adjust the vertical picture position.
to adjust the clamp level. When
PC adjustment menu
PC adj.
Auto PC adj.
Fine sync 16
Total dots 1344
Horizontal 296
Vertical 35
Clamp 1
Display area H 1024
Display area V 768
Reset
Mode free
Stored
Exit Move Next Next- - - -
√ Note:
If you select 480i, 576i, 480p, 576p, 720p, 1035i
or 1080i from the system menu, the functions of
both horizontal image and vertical image will be
disabled.
Downloaded From projector-manual.com ASK Manuals
29
Page 30
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
BACK
MENU
VOL+
INFO.
VOL-
VGA 1
VGA 2
OK
Computer input
Image Select
Direct operation
Press the IMAGE button on the remote control
to select your required image quality.
Menu operation
1. Press the MENU button to display the
screen menu. Press to select the Image
select icon and press or OK button.
2. Press to select your required image
mode and then press OK.
Remote control
SCREEN
D.Z +
BLANK
D.Z -
TIMER
Pg Up
Pg Dn
LAMP
IMAGE button
Dynamic
For viewing images in a bright room.
Normal
Normal image quality preset by the system on
the projector.
Cinema
For watching movies with multiple gray scale
levels.
Blackboard (Green)
For viewing the image projected on a
blackboard (green). by enhancing the image
quality. This is mainly effective on a green
colored board instead of a black colored board.
Colorboard
For images projected onto the red, blue, yellow,
or green wallpaper.
User Image
Image quality preset by the user in the Image
adjustment menu.
Image select menu
Image select
Dynamic
Normal
Cinema
Blackboard(Green)
Colorboard
User Image
Exit Move Next Next- - - -
30
Downloaded From projector-manual.com ASK Manuals
Page 31
Image adjust
Exit Move Next Next- - - -
Image adjust
Contrast 32
Brightness 32
Color temp. Mid
Red 32
Green 32
Blue 32
Sharpness 8
Gamma 8
1 Press MENU button to display the screen
menu, press to select image adjust icon
and press or OK button.
2 Press to adjust the setting value, or press
OK button; adjust dialogue box appears.
Press to set the value.
Contrast
Press to decrease the contrast and to
increase it.
Brightness
Press to decrease the brightness and to
increase it.
Color temp
Press to select your desired color
temperature.( Low, Mid and High )
Red(White balance)
Press to lighten the red tone and to
deepen it.
Green(White balance)
Press to lighten the green tone and to
deepen it.
Blue(White balance)
Press to lighten the blue tone and to
deepen it.
Sharpness
Press to decrease the sharpness of an
image and to increase it.
Computer input
Image adjust menu
Gamma
Press to adjust the gray scale level for
better balance of contrast.
Downloaded From projector-manual.com ASK Manuals
31
Page 32
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
VGA 1
VGA 2
Exit Move Next Next- - - -
Screen
Normal
True
Wide
Full
Custom
Advanced
Digital zoom +
Digital zoom -
Keystone Reset Store
Computer input
Screen size adjust
The screen size can be reset to the value as
you desire.
1 Press MENU button to display the screen
menu. Press button to select screen icon
and then press or OK button.
2 Press to select your required item and
then press OK button.
Normal
To project images in the same aspect ratio with
the input signals.
True
Provide images in original size. When
the original image size is larger than the
screen size (1024x768(US1275/US1325)
or 1280x800(US1275W/US1315W)), the
projector enters display area selection mode
automatically. Press
display area. The arrow turns red upon
adjustment and disappears upon the maximum
limit.
Wide
To provide an image with an aspect ratio of
16:9 by expanding the image width uniformly.
Full
To provide an image to t the screen.
Custom
Adjust the proportion and position of the screen
manually.
When selecting this item, press and the
corresponding interface appears on the screen.
Press button to adjust your required item.
H/V scale: Adjust the horizontal/vertical screen
scale.
H&V: When set to “On”, the aspect ratio is
fixed. The Scale V appears dimmed and
becomes unavailable. Adjust Scale H, and
then the screen scale is automatically modied
based on the aspect ratio.
H/V position: Adjust the horizontal/vertical
screen position.
Common: Save the adjusted scale to all the
inputs. Press OK at Common to display a
conrmation box. To save the scale, press OK.
When Custom is selected, the saved scale is
used.
Reset: Reset all the adjusted values. Press OK
at Reset to display a conrmation box. To set,
press OK at “Yes”.
32
Downloaded From projector-manual.com ASK Manuals
to select a
Screen menu
Remote control
OK
button
Screen
button
MENU
SCREEN
VOL-
OK
D.Z +
BACK
VOL+
Pg Up
button
Digital zoom +
After you select the digital zoom +, the on-screen
menu will disappear, while the information on digital
zoom + appears. You can press Select to zoom in the
image size, and press ▲▼◄►to move the image
horizontally and vertically.
The moving is effective only when the image is larger
than the size of the screen.
You can also press D.zoom +or select on the remote
control to zoom in the projected image.
Digital zoom -
After you select the digital zoom -, the on-screen men
will disappear, while the information on digital zoom appears. You can press Select to zoom out the imag
size. You can also press D.zoom - or select on the
remote control to zoom out the projected image.
To exit the "digital zoom +/-" mode, press any button
except the D.ZOOM+/- and the OK button. To return
to Normal size, select "Screen" in the menu to adjust
screen size, or enter a new input source in the menu
"Input". Or use keys▲▼ for digital zoom to adjust the
screen size.
Page 33
Advanced
This function is used to set the horizontal/
vertical position and quantities of the projector
in image segment and mosaics.
Press at "Advanced" to enter the advance
menu. press button to select the item and
press button to set the value.
H total: set the total quantities of the projector
at horizontal direction. Image will be
segmented by vertical direction. setting
value from 1 to 512.(WXGA mode:
1-640)
V total: set the total quantities of the projector
at vertical direction. Image will be
segmented by horizontal direction.
setting value from 1 to 384.(WXGA
mode: 1-400)
Position H: set the horizontal position of the
projector. Setting range: from 1 to the
total quantitiy of projectors at horizontal
direction.
Position V: set the vertical position of the
projector. Setting range: from 1 to the
total quantitiy of projectors at vertical
direction.
Computer input
Note:
Resolution decides the H total and V total.
When resolution is 1024x768, H total from
1-512, V total from 1-384;
When resolution is 1280x800, H total from
1-640, V total from 1-400.
Keystone
This function is used to store or reset keystone
correction after AC power cord is unplugged.
Press button to swicth the options:
Store ...... .. Keep the keystone correction even
when the AC power cord is unplugged.
Reset ...... Release the keystone correction when
the AC power cord is unplugged.
keystone correction menu appears in
screen ,press
keystone distortion.
Note:
• The projector does not support images with resolution higher than 1920*1200. If the resolution of
your PC screen is so, please re- set to lower before connecting to the projector.
• Image data other than XGA (1024 x 768) will be modified to those applicable to the screen size
in the initial mode.
• If no signal is detected in the PC system menu, options of True, Full, and Digital zoom + are not
available.
button to correct
Downloaded From projector-manual.com ASK Manuals
33
Page 34
Video input
POWER
Input select (Video, S-video, Component, HDMI 1, HDMI 2)
Direct operation
Press INPUT button on top control or HDMI
1,HDMI 2, YCBCR, VIDEO or S-VIDEO button
to select "HDMI 1","HDMI 2", ''Component",
"Video" or "S-video".
Top control
INPUT
button
Remote control
HDMI buttons
S-VIDEO
button
S-video
HDMI
HDMI
1
S-VIDEO
YCBCR button
2
YCBCR
VGA 1
HDMI 1
HDMI 2
VGA 2
VIDEO
VIDEO button
Video
Component
Menu operation
1 Press MENU button on remote control to
display the screen menu. Press button
to select Input icon, then press button or
OK button.
2 Press button to select HDMI 1, HDMI 2,
Component, S-video or Video, then press
OK button.
HDMI 1
HDMI 2
Component
When video signal is connect to
HDMI 1 terminal, select HDMI 1.
When video signal is connect to
HDMI 2 terminal, select HDMI 2.
Select it when the input source
is from the video equipment
connected to Y, Cb/Pb, and Cr/Pr
terminals with a VGA cable.
S-video
Select it when the video input
signal is connected to S-Video
terminal.
Video
34
Downloaded From projector-manual.com ASK Manuals
Select it when the video input
signal is connected to VIDEO
terminal.
HDMI 1
HDMI 2
VGA 1
VGA 2
Component
S-video
Video
Input menu
Input
HDMI 1
HDMI 2
VGA 1
VGA 2
Component
S-video
Video
System Auto
Exit Move Next Next- - - -
Page 35
Video system select
Exit Move Next Next
- - - -
Input
Auto
PAL
SECAM
NTSC
NTSC4.43
PAL-M
PAL-N
System Video
Exit Move Next Next- - - -
Input
Auto
1080i
1035i
720p
576p
480p
480i
576i
System Component
1 Press MENU button on remote control to
display the screen menu. Press button
to select Input icon, then press button or
OK button.
2 Press button to select Component,
Video or S-video, and then press OK button.
3 Press button to select System, and press
the ► or OK button.Press
your required system, and then press the OK
button.
button to select
Video input
Video or S-video
Auto
The projector automatically detects an
incoming video system,and adjusts itself to
optimize its performance. When Video System
is PAL-M or PAL-N, select the system manually.
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
If the projector cannot reproduce proper video
images, select a specific broadcast signal
format from PAL, SECAM, NTSC,NTSC 4.43,
PAL-M and PAL-N.
Component
Auto
The projector automatically detects an input
video system,and adjusts itself to optimize its
performance.
Component video signal format
If the projector cannot reproduce proper video
images, select a specific broadcast signal
format from 480i, 576i, 480p, 576p, 720p,
1035i and 1080i.
Video system menu(Video or S-video)
Video system menu(Component)
Note:
• The AV System Menu cannot be selected
when selecting HDMI 1 or HDMI 2.
Downloaded From projector-manual.com ASK Manuals
35
Page 36
Video input
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
BACK
MENU
VOL+
INFO.
VOL-
VGA 1
VGA 2
OK
Image Select
Direct operation
Press the IMAGE button on the remote control
to select your required image quality.
Menu operation
1. Press the MENU button to display the
screen menu. Press to select the Image
select icon and press or OK button.
2. Press to select your required image
mode and then press OK.
Remote control
SCREEN
D.Z +
BLANK
D.Z -
TIMER
Pg Up
Pg Dn
LAMP
IMAGE button
Dynamic
For viewing images in a bright room.
Normal
Normal image quality preset by the system on
the projector.
Cinema
For watching movies with multiple gray scale
levels.
Blackboard (Green)
For viewing the image projected on a
blackboard (green). by enhancing the image
quality. This is mainly effective on a green
colored board instead of a black colored board.
Colorboard
For images projected onto the red, blue, yellow,
or green wallpaper.
User Image
Image quality preset by the user in the Image
adjustment menu.
Image select menu
Image select
Dynamic
Normal
Cinema
Blackboard(Green)
Colorboard
User Image
Exit Move Next Next- - - -
36
Downloaded From projector-manual.com ASK Manuals
Page 37
Exit Move Next Next- - - -
Image adjust
Contrast 32
Brightness 32
Color 32
Tint 32
Red 32
Green 32
Blue 32
Sharpness 8
Gamma 8
Noise reduction On
Progressive L 1
Image adjust
1 Press MENU button to display the screen
menu, press to select image adjust icon
and press or OK button.
2 Press to adjust the setting value, or press
OK button; adjust dialogue box appears.
Press to set the value.
Contrast
Press to decrease the contrast and to
increase it.
Brightness
Press to decrease the brightness and to
increase it.
Color
Press to decrease the color and to
increase it.
Tint
Press to select the appropriate tone for the
image.
Red(White balance)
Press to lighten the red tone and to
deepen it.
Green(White balance)
Press to lighten the green tone and to
deepen it.
Blue(White balance)
Press to lighten the blue tone and to
deepen it.
Sharpness
Press to decrease the sharpness of an
image and to increase it.
Gamma
Press to adjust the gray scale level for
better balance of contrast.
Noise reduction
To reduce snow interference on the screen.
Select the function to get smoother images.
Progressive
An interlaced video signal can be displayed
in a progressive picture. Select one of the
following options:
Off....Disabled.
L1....For an active picture.
L2....For a still picture.
Film...For watching a lm. With this function,
the projector reproduces pictures faithful
to the original lm quality,reducing
distortion.
Downloaded From projector-manual.com ASK Manuals
Video input
Image adjust menu
37
Page 38
Video input
Exit Move Next Next- - - -
Screen
Normal
Wide
Custom
Advanced
Keystone Reset Store
POWER
HDMI
1
HDMI
2
S-VIDEO
VIDEO
SEARCH
YCBCR
MUTE
AUTO
VGA 1
VGA 2
Screen size adjust
The screen size can be reset to the value as
you desire.
1 Press MENU button to display the screen
menu. Press button to select screen icon
and then press or OK button.
2 Press to select your required item and
then press OK button.
Normal
To project images in the same aspect ratio with
the input signals.
Wide
To provide an image with an aspect ratio of
16:9 by expanding the image width uniformly.
Custom
Adjust the proportion and position of the screen
manually.
When selecting this item, press and the
corresponding interface appears on the screen.
Press button to adjust your required item.
H/V scale: Adjust the horizontal/vertical screen
scale.
H&V: When set to “On”, the aspect ratio is
fixed. The Scale V appears dimmed and
becomes unavailable. Adjust Scale H, and
then the screen scale is automatically modied
based on the aspect ratio.
H/V position: Adjust the horizontal/vertical
screen position.
Common: Save the adjusted scale to all the
inputs. Press OK at Common to display a
conrmation box. To save the scale, press OK.
When Custom is selected, the saved scale is
used.
Reset: Reset all the adjusted values. Press OK
at Reset to display a conrmation box. To set,
press OK at “Yes”.
Screen menu
Remote control
OK
button
Screen
button
MENU
SCREEN
VOL-
OK
D.Z +
BACK
VOL+
Pg Up
button
Keystone
This function is used to store or reset keystone
correction after AC power cord is unplugged.
Press button to swicth the options:
Store ...... .. Keep the keystone correction even
when the AC power cord is unplugged.
Reset ...... Release the keystone correction when
the AC power cord is unplugged.
keystone correction menu appears in
screen ,press
button to correct
keystone distortion.
• The projector does not support images with resolution higher than 1920*1200. If the resolution of
your PC screen is so, please re- set to lower before connecting to the projector.
• Image data other than XGA (1024 x 768) will be modified to those applicable to the screen size
in the initial mode.
• If no signal is detected in the PC system menu, options of True, Full and Digital zoom + are not
Note:
available.
38
Downloaded From projector-manual.com ASK Manuals
Page 39
Setting
Setting
The projector has Setup menu that allows you to set the other various function described as
follows.
1 Press MENU button to display the screen
menu. Press button to select Setting
icon and then press or OK button.
2 Press to select the desired item to be
adjusted, and then press to switch the
items.
Blue back
Enable to select the screen background of the
projector when there is no signal detected.
Press to switch on/off.
On ........To enable the blue background for
projection.
Off ........To disable the blue background.
Display
Enable to decide whether to display the onstart displays.
On ............... Display startup screen
Off ............... Display the input image instead
of the on-start screen
Setting menu
Downloaded From projector-manual.com ASK Manuals
39
Page 40
Setting
Rear
When the function is set to On, the picture is left/right reversed.
Enable to project the image to a rear projection screen.
On start
Enable the projector to be turned off automatically just by connecting the AC power cord to an
outlet when this function is set to On.
Standby mode
This function is available when operating the projector via network.
Normal ...... Supply the power to the network function even after turning off the projector. You can turn
on/ off the projector via network, modify network environment while the projector is powered
off.
Eco ........... Select Eco when you do not use the projector via network. The projector’s functions of
network,RS-232C and VGA OUT will stop when turning off the projector.
High land
Enable to control the fan through the Setup menu.
You can select the running speed of the fan according to the altitude of the location where the
projector is installed.
Off......Normal speed. Set it so if the projector is operated at a lower altitude.
On......Faster than Off. Set it so if the projector is operated at a higher altitude because fans will
produce weaker effects.
Ceiling
This function is used to project the image from a ceiling mounted projector.
On.......The picture will be top/bottom and left/right reversed.
Auto.... The projector automatically identies its vertical or inverse state.
Off ......Disable this function.
Cooling fast
This function provides the following options in the cooling fans’ operation after turning off the
projector.
Normal... Normal operation.
60s ........ Faster and lounder than Normal, cooling time is shorter.
0s .......... Enable you directly unplug the AC power cord after turning off the projector,no cooling
period is required.
Lamp control
Change the brightness of the screen.
Normal ... Normal brightness.
Auto........ Adjust the lamp brightness according to the input signal.
Eco ... .....Lower brightness, reducing power consumption and extending the lamp life.
40
Downloaded From projector-manual.com ASK Manuals
Page 41
Advanced setting
Exit Move Next Next- - - -
Advanced setting
Language
Menu position
Auto setup
Logo
Power management
Security
Closed caption
Test pattern
Filter counter
Warning log
Factory default
Advanced setting
You can access advanced functions stated below through the "Advanced setting" menu of the
projector.
1 Press MENU button to display the screen
menu. Press button to select Advanced
setting icon and then press or OK button.
2 Press to select the desired item to be
adjusted, and then press or OK enter the
item.
3 Press to select the item, press
button.
Language
The language used in screen menu is available
in English,Frech, Spanish,Portuguese, Dutch,
Italian, Japanese, Korean, Russian, Finnish,
Dutch, Thai, Vietnamese, T urkish, Afrikaans,
Bahasa Indonesia, Farsi, Arabic, Chinese.
Menu position
You can use this function to change the
position of screen menu.
Press select Menu position and press
or OK to enter the menu position.
Press to switch the items: Upper left,
Upper right, Center, Lower left, Lower right.
Auto setup
Allows you to perform input search, auto PC
adjustment automatically, press the AUTO
button on the top control or remote control. The
functions can be switched based on the steps
below.
Input search
Allows you to automatically detect input
signals. It stops when a signal is found.
Press to select an option from:
On........Enabled. This function is used to
detect input signals automatically
and stops when nding a signal.
Off........Disabled.
Auto PC adj
Downloaded From projector-manual.com ASK Manuals
On........Press the AUTO button on the top
control or remote control to enable
Auto PC adj function automatically.
Off........Disable.
Advanced setting menu
Note:
Only the last selected input source can be
detected.
If INPUT button on the top control or the
VGA 1/VGA 2 buttons, VIDEO or S-video or
YCBCR button on the remote control is
pressed during Input search is in progress,
Input search will stop and go back to the
previous input signal.
Fine sync, Total dots, Horizontal and Vertical
position of some computers cannot be fully
adjusted with the Auto PC Adjustment
function. When the image is not provided
properly with this operation, manual
adjustments are required.
41
Page 42
Advanced setting
Logo (Logo and Logo PIN code lock settings)
This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code
lock and Logo PIN code change functions.
Logo select
This function decides on the starting-up display from among following options.
User ........ Show the image you captured.
Default .... Show the factory-set logo.
Off ........... Show the countdown display only.
Screen Capture
This function enables you to capture an image being projected to use it for a starting-up display or
interval of presentations.
Select Screen Capture and press the OK button. A confirmation box appears and select Yes to
capture the projected image.
After capturing the projected image, go to the Logo select function and set it to User. Then the
captured image will be displayed the next time you turn on the projector.
√ Note:
Screen Capture can be operated on the resolutions from VGA(640x480) to XGA ( 1024x768) only.
Logo PIN code lock
This function prevents an unauthorized person from changing the screen logo.
Off ...... .....The screen logo can be changed freely from the Logo Menu.
On ...... .....The screen logo cannot be changed without a Logo PIN code.
If you want to change the Logo PIN code lock setting, press the OK button and the Logo PIN code
dialog box appears. Enter a Logo PIN code by following the steps below.
Logo PIN code lock
Use the Point ▲▼ buttons to enter a number. Press the Point ► button to x the number and move the
red frame pointer to the next box. The number changes to “*”. If you xed an incorrect number, use the
Point ◄ button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a three-digit number.
After entering the three-digit number, move the pointer to Set. Press the OK button so that you can start
to operate the projector.
If you entered an incorrect Logo PIN code, Logo PIN code and the number (***) will turn red for a
moment. Enter the correct Logo PIN code all over again.
Change the Logo PIN code lock setting
Use the Point ▲▼ buttons to switch No or Yes , and then press the OK button to make a choice.
Logo PIN code change
Logo PIN code can be changed to your desired three- digit number. Press the OK button to select Logo
PIN code change. Logo Pin code dialog box appears, use the Point ▲▼ buttons to enter the correct
code. The New Logo PIN code input dialog box appears. Set a new Logo PIN code, conrmation box
appears, choose yes to set the new Logo Pin code.
Be sure to note the new Logo PIN code and keep it on hand. If you lose the number, you can no longer
change the Logo PIN code setting.
CAUTION:
WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE
IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 58, AND KEEP IT SECURELY.
SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING
CAN NO LONGER BE CHANGED.
42
Downloaded From projector-manual.com ASK Manuals
Page 43
Advanced setting
No signal
01 : 20
Power management
Reduce power consumption as well as maintain the lamp life, the Power management function
turns off the projection lamp when the projector is not operated for a certain period.
Select one of the following options:
Ready .................. When the lamp has been fully cooled down, the POWER indicator changes to
green blinking.In this condition, the projection lamp will be turned on if the input
signal is reconnected or any button on the side control or remote control is
pressed.
Shut down .......... When the lamp has been fully cooled down, the power will be turned off.
Off ....................... Power management function is off.
Timer ................... If the input signal is interrupted and no button is pressed for more than 30
seconds, the timer display with No signal appears. It starts the countdown until
the lamp is turned off. Press
buttons to set the Timer(1~30min.)
√ Note:
Factory default is Ready: 5 Min.
Closed Caption
Allows the subtitle to be displayed for the audio contents or other information. If the input source
contains closed caption, you can enable this function and change the channel. Press to select
OFF, CC1, CC2, CC3 or CC4.
If Closed Caption is not clear, you can change the text color to white from the original.
√ Note:
Only under the following circumstances can you select Closed Caption:
● The input is composite video signal or S-Video in the N TSC system.
● The system should be set to NTSC or Auto in the video system.
● The icon of Closed Caption appears dimmed when unavailable.
● Closed Caption cannot be selected when the screen menu and Timer is displayed.
Power management
Time left before Lamp is off.
Downloaded From projector-manual.com ASK Manuals
43
Page 44
Advanced setting
Security (Key lock and PIN code lock)
This function allows you to use the Key lock and PIN code lock function to set the security for the
projector operation.
Key lock
This function locks the side control and remote control buttons to prevent operation by
unauthorized persons. Select Key lock and then press the OK button, and select the desired item
by pressing
If the side control accidentally becomes locked and you do not have the remote control nearby or
there is something wrong with your remote control, contact the dealer where you purchased the
projector or the service center.
PIN code lock
This function prevents the projector from being operated by unauthorized persons and provides
the following setting options for security.
Off ............ Unlocked.
On ........... Enter the PIN code every time turning on the projector.
Whenever you change the PIN code lock setting or the PIN code (the three-digit number), you are
required to enter the PIN code. The “111” is set as the initial PIN code at the factory.
If you want to change the PIN code lock setting, press OK button and the PIN code dialog box
appears.
button.
Off ......................... Unlocked.
Projector ............... Lock the operation of the side control. To unlock, use the remote control.
Remote Control ..... Lock the operation of the remote control. To unlock, use the side control.
44
Downloaded From projector-manual.com ASK Manuals
Page 45
Advanced setting
Enter a PIN code
Press buttons to enter a number. Press button to x the number and move the red frame
pointer to the next box. The number changes to “*”. If you fixed an incorrect number, press
button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a three-digit number.
After entering the three-digit number, move the pointer to “Set”. Press the OK button so that you
can start to operate the projector.
If you entered an incorrect PIN code, PIN code and the number (***) will turn red for a moment.
Enter the correct PIN code all over again.
Change the PIN code lock setting
buttons to select Yes or No,and then press the OK button to make a choice.
Press
Change the PIN code lock setting
Press buttons to select Yes or No,and then press the OK button to make a choice.
PIN code change
The PIN code can be changed to your desired three-digit number. Press button to select PIN
code change. Pin code dialog box appears, Press buttons to enter the correct code. The New
PIN code input dialog box appears. Set a new PIN code.
CAUTION:
WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN
COLUMN OF THE PIN CODE NO. MEMO ON PAGE 58, AND KEEP IT SECURELY. IF YOU
FORGET YOUR PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.
Test Pattern
This function is used to set the internal test signal.
Filter counter
This function is used to set a frequency for the lter cleaning.
When the projector reached a specied time between cleanings, a Filter warning icon appears on
the screen, notifying the cleaning is necessary. After cleaning the lter, be sure to select RESET
and set the timer. The Filter warning icon will not turn off until the lter counter is reset.
Warning log
Records abnormal operations, to diagnose errors. The log lists the latest 9 warning messages in
time sequence.
Note:
When Factory Default is selected, all log records will be deleted.
Factory default
This function returns all setting values except for the User logo, PIN code lock, Logo PIN code
lock, Lamp counter and Filter counter to the factory default settings.
Downloaded From projector-manual.com ASK Manuals
45
Page 46
Information
Lamp counter 36 H
Displaying input source
The information menu is used to detect signal of projected image and running state.
Menu operation
Press MENU button to display the screen
menu. Press to select information icon,
the information menu will appear and the
information is displayed. As shown in the
picture on the right.
See below for displayed information.
Input
The selected input source is displayed.
H-sync freq .
The horizontal frequency of the input signal is
displayed in KHz or - - - -KHz when no signal.
V-sync freq .
The vertical frequency of the input signal is
displayed in Hz or - - - - Hz when no signal.
Numbers of Hz doubles when during Interlace.
Screen
The selected screen size is displayed.
Language
The selected language is displayed.
Information
Input S-video
H-sync freq. ---- KHz
V-sync freq. ---- Hz
Screen Normal
Language English
Lamp status
Power managementter Off
5 Min
Key lock
Exit - - - - Move - - - - - - - -
Auto
Lamp Mode
The selected lamp mode is displayed.
Lamp Time
Dispaly the cumulative used time of the lamp.
Power management
Off, Ready or Shut down is displayed.
Key lock
Display Off, Remote Control or the Projector.
46
Downloaded From projector-manual.com ASK Manuals
Page 47
Maintenance and cleaning
Warning indicator
The ALERT indicator shows the state of the function which protects the projector. Check the state
of the ALERT indicator and the POWER indicator to take proper maintenance.
The projector is shut down and the ALERT
indicator is blinking red.
When the temperature inside the projector
exceeds the normal temperature, the projector
is automatically shut down to protect internal
components. The POWER indicator is blinking
while the projector is being cooled down. When
the projector has cooled down enough (to its
normal operating temperature), it can be turned
on again by pressing the POWER button.
Note:
The ALERT indicator continues to blink
even after the temperature inside the
projector returns to normal. When the
projector is turned on again, the ALERT
indi cator stops blinking.
Check the items below:
– Did you provide appropriate space for the
projector to be ventilated?
Check the installing condition to ensure
ventilation slots are not blocked.
– Has the projector been installed near the
duct or vent of an airconditioning?
Move the installation of the projector away
from the duct or vent.
– Are the air lters clean? Clean the air lters
periodically.
Top control
ALERT indicator
Blinks red
The projector is shut down and the ALERT
indicator lights red.
When the projector detects an abnormal
condition, it is automatically shut down to
protect the internal components and the
ALERT indicator lights red. In this case, unplug
the AC power cord and plug it in again, and
then turn on the projector once again to verify
operation. If the projector cannot be turned on
and the ALERT indicator lights red, unplug the
AC power cord and contact the service station
for servicing and maintenance.
Caution
Do not leave the projector with the AC power cord connected under an abnormal condition.
It may result in re or electric shock.
Downloaded From projector-manual.com ASK Manuals
Top control
ALERT indicator
lights red
47
Page 48
Maintenance and cleaning
Cleaning the air lter
The air filter prevents dust from accumulating on the surface of the optical elements inside
the projector. Should the air filter become clogged with dust particles, it will reduce cooling
fans’ effectiveness and may result in a buildup of internal heat and adversely affect the life of
the projector. If the Filter warning icon appears on the screen, the air filter should be cleaned
immediately. Clean the air lter following the steps below.
1 Turn off the projector, and unplug the AC
power cord from the AC outlet.
2 Remove the air lter.
3 Gently clean the lter with a brush.
4 Reinstall the lter into the projector properly.
Caution
Do not operate the projector with
the air filter removed. Dust may
accumulate on the optical elements,
degrading picture quality.
Do not put any small objects into the
air intake vents. Otherwise, it may
result in malfunction of the projector.
Air lter
Resetting the lter counter
Be sure to reset the lter counter after cleaning
or replacing the lter.
1. Press Menu on the remote control to display
the on screen menu. Press to select the
icon for the setting menu. Then press or
press OK.
2. Press to select Filter counter, and then
press or press Select. Press to select
Reset Filter, then press OK. At the time, you
will see the prompt information “Reset the
lter counter ?” displayed on the screen.
Select Yes.
3. When another dialog box pops up, you
should select Yes and reset the lter.
48
Downloaded From projector-manual.com ASK Manuals
Recommendation
We recommend avoiding dusty/smoky
environments when you operate the projector.
Usage in these environments may cause poor
image quality.
When you use the projector under dusty or
smoky conditions, dust may accumulate on the
lens, LCD panels, or optical elements inside the
projector. When the symptoms above are
noticed, contact your authorized dealer or
service station for proper cleaning.
Page 49
Clean the project lens
Unplug the AC power cord before cleaning.
Gently wipe the projection lens with a cleaning
cloth that contains non-abrasive camera
lens cleaner, or use a lens cleaning paper or
commercially available air blower to clean the
lens.
Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents, or other harsh
chemicals might scratch the surface of lens.
Clean the cabinet
Unplug the AC power cord before cleaning.
Gently wipe the projector surface with a soft
dry cleaning cloth. When the cabinet is heavily
soiled, use a small amount of mild detergent
and nish with a soft dry cleaning cloth. Avoid
using an excessive amount of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals
might scratch the surface of the cabinet.
Maintenance and cleaning
When the projector is not in use, put the
projector in a pouch to protect it from dust and
scratches.
Downloaded From projector-manual.com ASK Manuals
49
Page 50
Maintenance and cleaning
Replace the lamp
When the projection lamp of the projector
reaches its end of life,the Lamp replacement
icon appears on the screen and LAMP
indicator ashes yellow. Replace the lamp with
a new one of the same type promptly. The
timing when the LAMP indicator should light is
depending on the lamp mode.
Top control
Lamp replacement icon
Lamp replace
݁സ
When the projection
lamp of the projector
reaches its end of
life, LAMP indicator
ashes yellow.
Note
As temperature inside the projector is high,
you should cool the projector for at least 45
minutes before you open the lamp cover.
Note
When the lamp isn’t illuminated, it may indicate that the lamp has been damaged.
When you replace the lamp in a projector installed on the ceiling, you should stand beside
the lamp cover but not under it; for the broken glass may fall down to hurt you. To do that,
remove the lamp cover gently to avoid being hurt by the dropped glass. If glass drops into
your eyes or mouth, you should see the doctor immediately.
To replace the lamp, follow the steps below:
1. Power off the projector and unplug the
power cord. Then let the project cool for at
least 45 minutes.
2. Loosen the screws on the lamp cover and
open the cover.
3. Make sure the lamp is well protected and
remove two screws. Hold the handle and
take out the lamp.
4. Install a new lamp with the same model and
tighten the two screws. Make sure the
installation is correct. Put lamp cover in
place and then tighten the screws.
Note
For the sake of safety, only use the lamp of
the same model. Never drop the lamp onto the
ground nor touch the glass bulb! The glass can
shatter and hurt.
Handle
Screws
Screw
Lamp cover
5. Plug the AC power cord and power on the
projector.
50
Downloaded From projector-manual.com ASK Manuals
Page 51
Maintenance and cleaning
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the
following information to the dealer.
Replacement Lamp Type No.:APP-R-L(US1275/US1325/US1275W)
APP-R-H(US1315W)
LAMP HANDLING PRECAUTIONS
This projector uses a high-pressure lamp which must be handled carefully and properly.
Improper handling may result in accidents, injury, or create a re hazard.
● Lamp life may differ from lamp to lamp and according to the environment of use. There is
no guarantee of the same life for each lamp. Some lamps may fail or terminate their life
in a shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE
indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector
has cooled down. (Follow carefully the instructions in the Lamp Replacement section of
this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lit may
increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of
use as its lifetime draws to an end. Risk of explosion may differ according to the
environment or conditions in which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD
BE TAKEN .
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately.
Contact an authorized service station for a checkup of the unit and replacement of the
lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of
glass around the projector or coming out from the cooling air circulation holes. Any broken
shards found should be cleaned up carefully. No one should check the inside of the projector
except those who are authorized trained technicians and who are familiar with projector
service. Inappropriate attempts to service the unit by anyone, especially those who are not
appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
Downloaded From projector-manual.com ASK Manuals
51
Page 52
Appendix
Troubleshooting
Before calling your dealer or service center for assistance, check the items below once again.
- Make sure you have properly connected the projector to peripheral equipment.
- Make sure all equipment is connected to the AC outlet and the power is turned on.
- If the projector does not project an image when it is connected to a PC, restart the PC.
Problems – Solutions
No power - Plug the power cord of the projector into the AC power outlet.
No initial display - Make sure both display and count-down functions are enabled.
Initial display is inconsistent
with factory defaults
Input signals are automatically
switched (can’t be switched)
When input is pressed during
startup, a non-Lamp icon
appears.
An icon of non-input mode or
lamp mode appears
Ambiguous images - Adjust the focus.
Image turns over leftward/
rightward
Image turns over upward/
downward
Image not bright enough - Check whether the contrast or brightness is adjusted correctly.
Some information can’t be seen
in the operation.
Automatic adjustment through
PC can’t be effective.
Settings can’t be saved after the
system is powered off.
- Check whether the power indicator turns red.
- Only when the power indicator turns red can you power on the
projector again.
- Check the Warning Temp indicator. If it is illuminated red, you
can’t power on.
- Check the projection lamp.
- Unlock the “key lock” function.
- Make sure the item User or OFF is not selected in the startup
animation.
- Adjust the search function of input source properly.
-This icon warns that the lter needs to be replaced.
-This icon indicates the replacement of lamp or warns for the
lter.
- Set a more proper projection distance.
- Check whether the lens needs to be cleaned.
- When moved from a environment with low temperature to
the one with higher temperature, water will be condensed
on the lens. If so, you have to wait till the condensed water
disappears.
- Check the function of “ceiling/rear”.
- Check the function of “ceiling”.
- Check whether the image mode is properly selected.
- Check the function of lamp brightness adjusting.
- Check the lamp and replace the indicator. If the indicator is
illuminated, it means the service life of the lamp is over. You
should replace the lamp with a new one of the same model
immediately.
- Check the display function.
- Check the signal of input source. Automatic adjustment through
PC won’t be effective when 480p, 575p, 720p,480i, 575i, 1035i
or 1080i is selected.
- Make sure you have selected “store” after you changed the
settings. Some settings can’t be saved if “ ” is not selected.
52
Downloaded From projector-manual.com ASK Manuals
Page 53
Appendix
Problems – Solutions
No image - Check the connection between PC or video equipment
Ineffective power control - When the system is standstill, or no-display function is enabled,
Ineffective icon selection - Check the wiring and the signal of input source, and make sure
Ineffective automatic setting - Make sure all functions in automatic setting are enabled.
Distorted image or no image - Check and adjust the PC menu or on-screen menu.
The PIN code dialog box pops
up in the startup process
Remote control doesn’t work - Check the battery.
The indicator is illuminated or
ashes
Exclamatory mark appears on
the screen
The side control panel doesn’t
work
PIN code lock for startup
animation, key lock and PIN
code lock can’t be unlocked.
- Check that the signal from PC is correct. If connected to
certain laptops, the settings of their video adapters need to be
changed.You can refer to the operating instructions of the PC
for such modication.
- Images can show up only about 20 seconds after the projector
is powered on.
- Check the input signal, color system, video system or PC
system mode.
- Make sure that the temperature doesn’t exceed the permitted
operating temperature (41
- If non-displaying function is enabled, no image will appear on
the screen. You can then press the non-display key or other
keys.
the power control is ineffective.
there is signal.
- Make sure the function of ceiling is not enabled.
- A PIN code is set for locking.
- Make sure there is no obstacle between the projector and the
remote control.
- To use the remote control, keep it within 5 meters away from
the projector.
- Make sure the code of the remote control is consistent with the
projector.
- Unlock the key through the setup menu.
- Check the state of the projector according to the indicator.
- Ineffective operation. You should operate the system correctly.
- Unlock the keys on the side control panel through the item
“security” in the setup menu.
- Contact the local distributor or the repair center.
˚
F–95˚F [5˚C–35˚C]).
Warning:
Is operated with high voltage. Do not open its casing!
If the problem still exists after you take the aforesaid measures, you should contact the local distributor
or the repair center and state the machine model. The projector will tell you how to handle the issue.
Downloaded From projector-manual.com ASK Manuals
53
Page 54
Appendix
Indicator and projector state
Check the indicator to know about the state of projector.
Indicator
POWER
green/red
WARNING
red
LAMP REPLACE
yellow
In power-off state (AC power cord not connected).
In standby state. Press POWER to power on the projector.
In normal working state.
Ready to be in standby mode or the projection lamp is being
cooled. Before you power on the projector, you should wait till
the lamp is cool enough and the power indicator ashes.
In suspension state.
Internal temperature too high. can’t be powered on. When the
projector is cool enough, the temperature is restored to the
normal value and the power indicator is illuminated red, you
can then power on the projector (The ALERT indicator keeps
on ashing).
When the projector is cool enough, the temperature is restored
to the normal value and the power indicator is illuminated red,
you can then power on the projector, At the time, the ALERT
indicator stops ashing.
Can’t be powered on because error is detected. You should
unplug the power cord. Then insert it again and power on the
projector. If the projector is powered off again, you should cut
off the power and contact the local distributor or repair center.
In this case, stop the projector. Otherwise, electric shock or re
may occur.
The service life of the lamp is over. You should
replace it with a new one in time.
State of projector
...Green
...Flash green
54
Downloaded From projector-manual.com ASK Manuals
...Red
...Flash red
...Yellow ...Off
Page 55
Appendix
Compatible computer specications
This projector can receive all analog computer formats that DCLK less than 160MHz and digital
computer formats that DCLK less than 140MHz.
Signal format Resolution
640x400 60
640x400 70
640x400 85
VGA
640x480 60
640x480 65
640x480 72
640x480 75
640x480 85
800x600 50
800x600 60
800x600 65
SVGA
800x600 72
800x600 75
800x600 85
800x600 120
832x624 75
1024x768 60
1024x768 65
1024x768 70
1024x768 72
XGA
1024x768 75
1024x768 80
1024x768 85
1024x768 120
1152x864 70
1035i - 60
1080i - 60
1080i - 50
Field
Frequceny(Hz)
Signal format Resolution
Field
Frequceny(Hz)
1152x900 65
1152x900 75
1280x1024 60
SXGA
1280x1024 65
1280x1024 70
1280x1024 72
1280x1024 75
1280x1024 85
1280x768 60
1280x768 75
1280x768 85
1280x768 120
1360x768 60
WXGA
1360x768 72
1366x768 60
1280x800 60
1280x800 75
1280x800 85
1280x800 120
1080psf24 1920x1080 24
1080psf25 1920x1080 25
1080psf30 1920x1080 30
480i - 60
576i - 50
480p - 60
576p - 50
720p - 50
720p - 60
√ Note:
The specication is subject to change without any prior notice.
Downloaded From projector-manual.com ASK Manuals
55
Page 56
Appendix
Congurations of terminals
VGA 1/VGA 2/VGA OUT (Analog)
Terminal: Analog RGB (D-sub 15 pin)
2
34
9 678
13
9 7 5 3
8
1
1112
1 ----2 RXD
3 TXD
4 ----5 GND
6 ----7 ----8 ----9 -----
1
246
5
10
15
14
RS232 terminal (D-SUB-9 pin)
HDMI terminal (HDMI Type A 19 pin)
19
17 15 13 11
12141618
10
1 Red (Input/output) 9 ----2 Green (Input/output) 10 Grounding (eld synchronizing)
3 Blue (Input/output) 11 Grounding
4 ----- 12 DDC data
5 Grounding (line synchronizing) 13
6 Grounding (red) 14 Vertical synchronizing input/output
7 Grounding (green) 15 DDC Clock
8 Grounding (blue)
Horizontal synchronizing
(compound sync.) input/output
LAN terminal
1 TX + 5 ----2 TX - 6 RX 3 RX + 7 -----
876 543 2 1
4 ----- 8 -----
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock–
3 TMDS Data2– 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1– 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5V Power
9 TMDS Data0– 19 Hot Plug Detect
10 TMDS Clock+
Content of hazardous substances and elements
Name of parts
Pb Hg Cd Cr6+ PBB PBDE
Plastic parts ○ ○ ○ ○ ○ ○
Metal parts ○ ○ ○ ○ ○ ○
Body
Optical parts × × ○ ○ ○ ○
PCB assembly
○
Other parts × ○ ○ ○ ○ ○
Accessorie
Remote control × ○ ○ ○ ○ ○
Cable × ○ ○ ○ ○ ○
○: It means that contents of hazardous substances in all homogeneous materials in this part don’t
exceed “Required Limitations” specied in SJ/T11363-2006.
×: It means that contents of hazardous substances in at least one homogeneous material in this part
exceed “Required Limitations” specied in SJ/T11363-2006.
56
Downloaded From projector-manual.com ASK Manuals
Hazardous substances and elements
○ ○ ○ ○ ○
Page 57
Appendix
Dimensions
Screw Holes for Ceiling Mount
Screw: M4
Depth: 10.0(0.39)
80
Unit: mm
349.4
424.7
80
106
50
210
190
50
50
195
M4.0X10
170
68
PIN code memorandum
Write down the PIN code in the blank below and keep it, please contact the repair center.
PIN code lock
Locking startup-animation PIN code
Downloaded From projector-manual.com ASK Manuals
Factory default PIN code 111*
Factory default PIN code 111*
*If this 3-digit number is changed,
the factory default number will be ineffective.
57
Page 58
Appendix
RS232 Control Method
1. Connection
1.1 Port Setting
Item Value
Method Asynchronous communication
Bits per seconds 19200
Data bits 8
Parity none
Stop bits 1
Flow control none
1.1 Wiring
Connect the computer and projector with RS232 cross cable.
PC Projector
COM Control Port
（D-Sub 9 Pin） （D-Sub 9 Pin）
2
Basic command
Case sensitive, each command end by[CR](Carriage).
Command Item Command Item
A00 POWER ON A06 VGA2
A01 POWER OFF (Power OFF) A07 Component
A02 POWER OFF A33 Video
A03 HDMI 2 A34 S-Video
A05 VGA1 A36 HDMI 1
58
Downloaded From projector-manual.com ASK Manuals
Page 59
2.1 POWER ON
Command “A00”[CR] (Hex: 41 30 30 0d)
Details Power ON the projector in standby mode.
Appendix
Return
2.2 POWER OFF (Power Off)
Command “A01”[CR] (Hex: 41 30 31 0d)
Details Power off the projector immediately.
Return
2.3 POWER OFF
Command “A02”[CR] (Hex: 41 30 32 0d)
Details
Return
2.4 HDMI 2
Command “A03”[CR] (Hex: 41 30 33 0d)
Details Select HDMI 2 as input source.
OK [ACK] [CR]
NG “?” [CR]
OK [ACK] [CR]
NG “?” [CR]
"Power off?" displays for the command, resend the command to power off the
projector.
OK [ACK] [CR]
NG “?” [CR]
Return
2.5 VGA1
Command “A05”[CR] (Hex: 41 30 35 0d)
Details Select Computer1 as input source.
Return
OK [ACK] [CR]
NG “?” [CR]
OK [ACK] [CR]
NG “?” [CR]
Downloaded From projector-manual.com ASK Manuals
59
Page 60
Appendix
2.6 VGA2
Command “A06”[CR] (Hex: 41 30 36 0d)
Details Select Computer 2 as input source.
Return
2.7 Component
Command “A07”[CR] (Hex: 41 30 37 0d)
Details Select Component as input source.
Return
2.8 Video
Command “A33”[CR] (Hex: 41 33 33 0d)
Details Select Video as input source.
Return
2.9 S-Video
Command “A34”[CR] (Hex: 41 33 34 0d)
Details Select S-Video as input source.
Return
OK [ACK] [CR]
NG “?” [CR]
OK [ACK] [CR]
NG “?” [CR]
OK [ACK] [CR]
NG “?” [CR]
OK [ACK] [CR]
NG “?” [CR]
2.10 HDMI 1
Command “A36”[CR] (Hex: 41 33 36 0d)
Details Select HDMI 1 input source.
Return
Note:[ACK] [CR] is the effective return for commands received.
60
Downloaded From projector-manual.com ASK Manuals
OK [ACK] [CR]
NG “?” [CR]
Page 61
Appendix
Exit Move Next Next- - - -
Network
Network setting
Network information
Exit Move Next Next- - - -
Network
Network setting
Network information
LAN Network setting
DHCP On
Set Cancel
IP address . . .
Subnet . . .
Gateway . . .
DNS . . .
LAN control
Function : PC controls projector via LAN.
Preparation:
1. Equipments: PC, projector, cables
2. Connection procedures:
Connect the projector to routers or switches of the LAN by direct or cross cable. If it fails to
connect PC and projector by parallel cable, please switch to cross cable as suggested.
3. After the computer is booted and the projector is plugged in, indicator lights of LAN interface
and computer interface will ash continuously.
Operation procedures:
1 Turn on the projector.
2 Obtain network address. DHCP set is displayed as on and obtain network address
automatically. If familiar with network, you can set DHCP as close and obtain network
address manually.
3 Enter network settings menu.
(1) Press MENU button on top control
or remote control to display screen
menu. Press button to select
network icon.
(2) Press OK or button to enter the
network menu.
(3) Press button to select Network
settings and press OK button.
(4) Press button to set DHCP as on.
(5) Press button to "Set" and press
OK button."Please wait..." appears.
Downloaded From projector-manual.com ASK Manuals
61
Page 62
Appendix
4 Check IP address
Enter network menu and select network settings. Press OK to check IP address.
5 Input the IP address into the address bar.
Format: http:// IP address/.
6 Set the corresponding items of the projector by the website:
Standby: on/off
PCAdj: PC adjustment
Screen: adjustment of screen size
Image: adjustment of image mode
Image Adj: image selection
Input: selection of input
Sound: settings of sound
Setting: other settings
62
Downloaded From projector-manual.com ASK Manuals
Page 63
Downloaded From projector-manual.com ASK Manuals
63
Page 64
Downloaded From projector-manual.com ASK Manuals
Loading...
