Desktop Projector 9280

■

PRESENTATIONS

■

WORKING SESSIONS

■

TRAINING

■

MULTIMEDIA

■

VIDEO

■

ANIMATION

TENTATIVE

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector. Minimum distance should be taken. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

● The Remote Control Unit, supplied to this projector, emits the laser beam as the Laser Pointer function from the Laser Light Window while pressing the LASER button (for 1 minute). Do not look into the Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP

REAR

20cm

50cm 50cm

50cm

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

COMPLIANCES

Federal Communication Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

GROUND

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 15

COMPUTER MODE 24

VIDEO MODE 32

SETTING 36

APPENDIX 38

PREPARATION 7

NAME OF EACH PART OF THE PROJECTOR 7 SETTING-UP THE PROJECTOR 8

CONNECTING THE AC POWER CORD 8 POSITIONING THE PROJECTOR 9 ADJUSTABLE FEET 10 MOVING THE PROJECTOR 10

CONNECTING THE PROJECTOR

TERMINALS OF THE PROJECTOR 11 CONNECTING TO THE VIDEO EQUIPMENT 13 CONNECTING TO THE COMPUTER 14

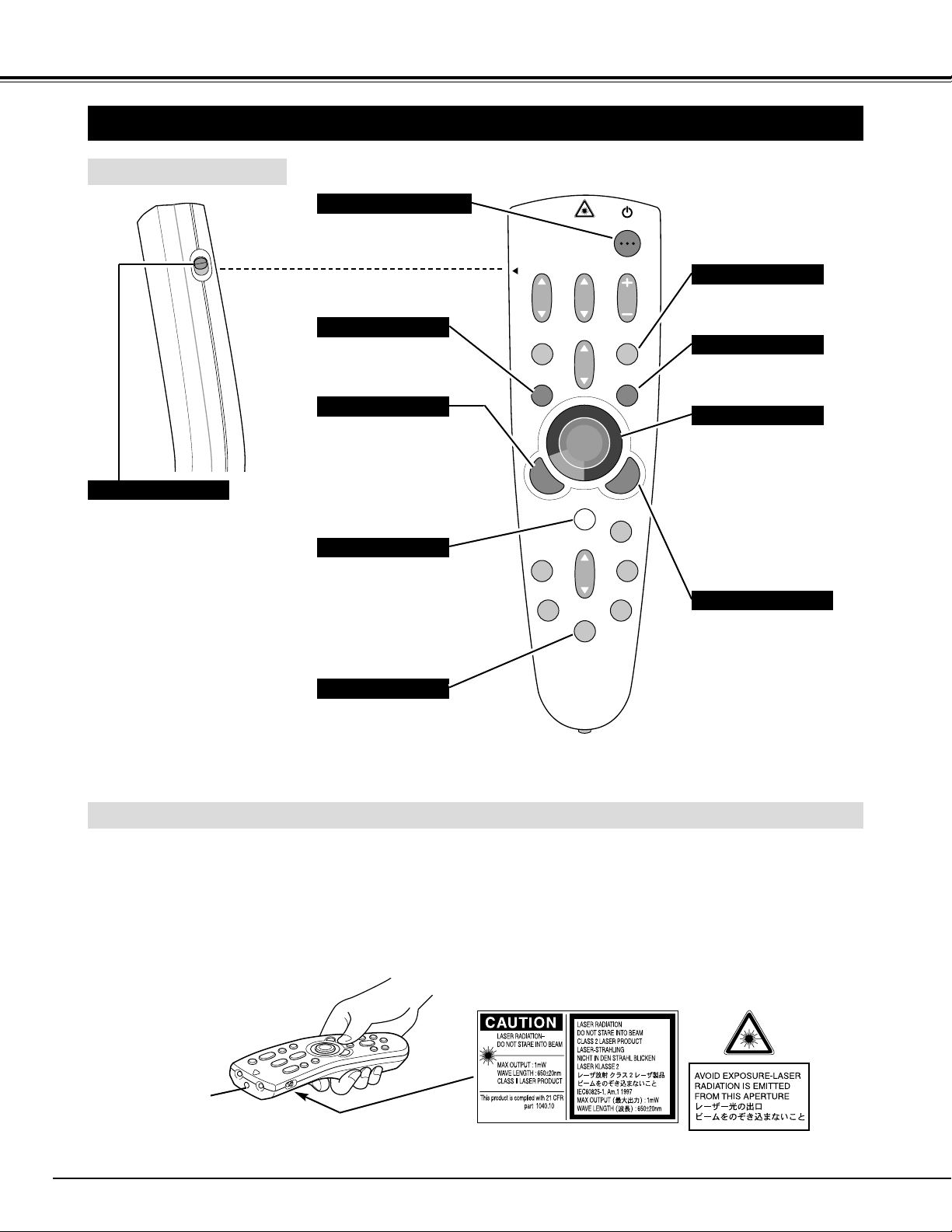

TOP CONTROLS AND INDICATORS 15 OPERATION OF THE REMOTE CONTROL 16

OPERATING RANGE 16 REMOTE CONTROL BATTERIES INSTALLATION 17

OPERATING ON-SCREEN MENU 18

HOW TO OPERATE THE ON-SCREEN MENU 18 FLOW OF ON-SCREEN MENU 18 MENU BAR 19

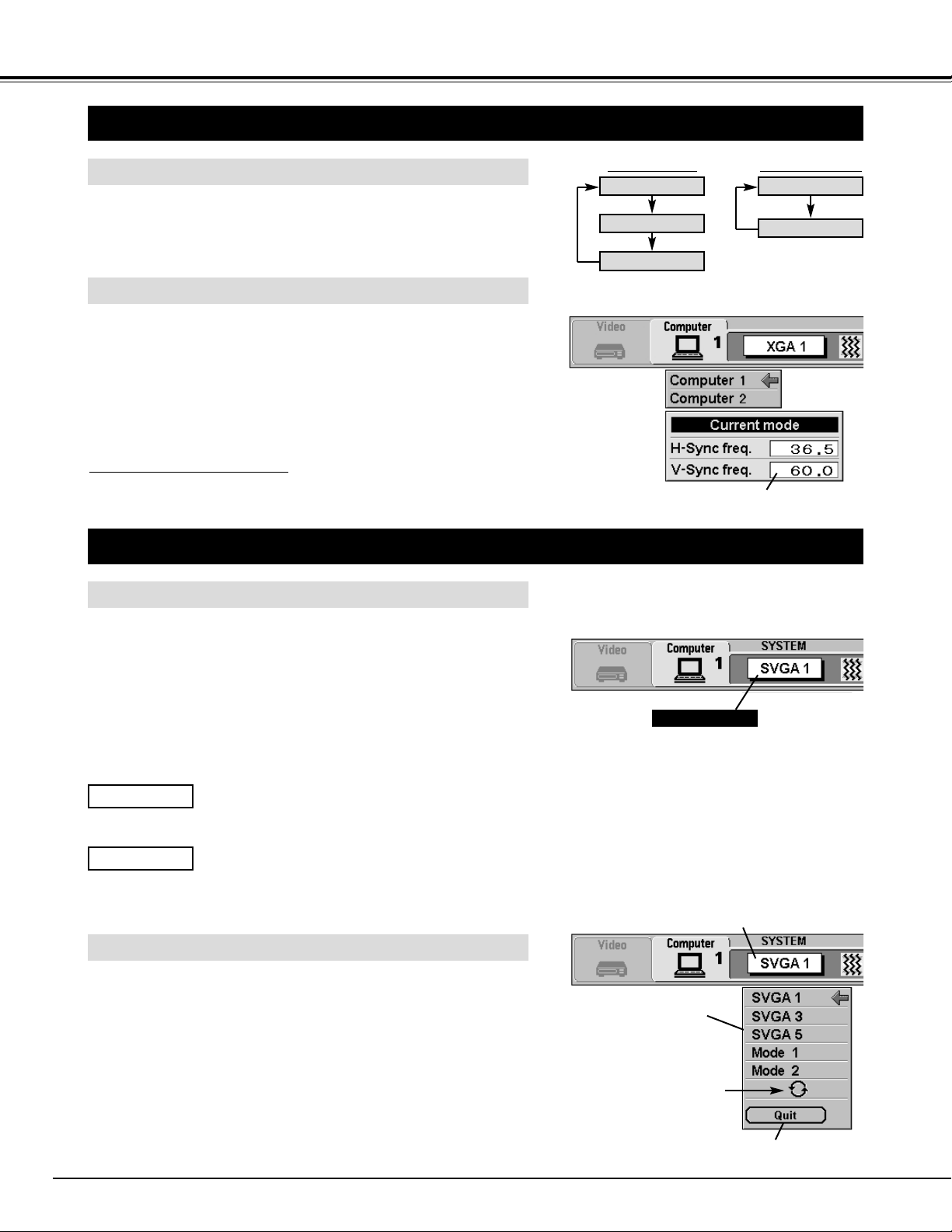

SELECTING COMPUTER MODE 24 SELECTING COMPUTER SYSTEM 24

COMPATIBLE COMPUTER SPECIFICATIONS 25

PC ADJUSTMENT 26 PICTURE IMAGE ADJUSTMENT 28

NORMAL FUNCTION 29 AUTO IMAGE FUNCTION 29

PICTURE POSITION ADJUSTMENT 30 PICTURE SCREEN ADJUSTMENT 31

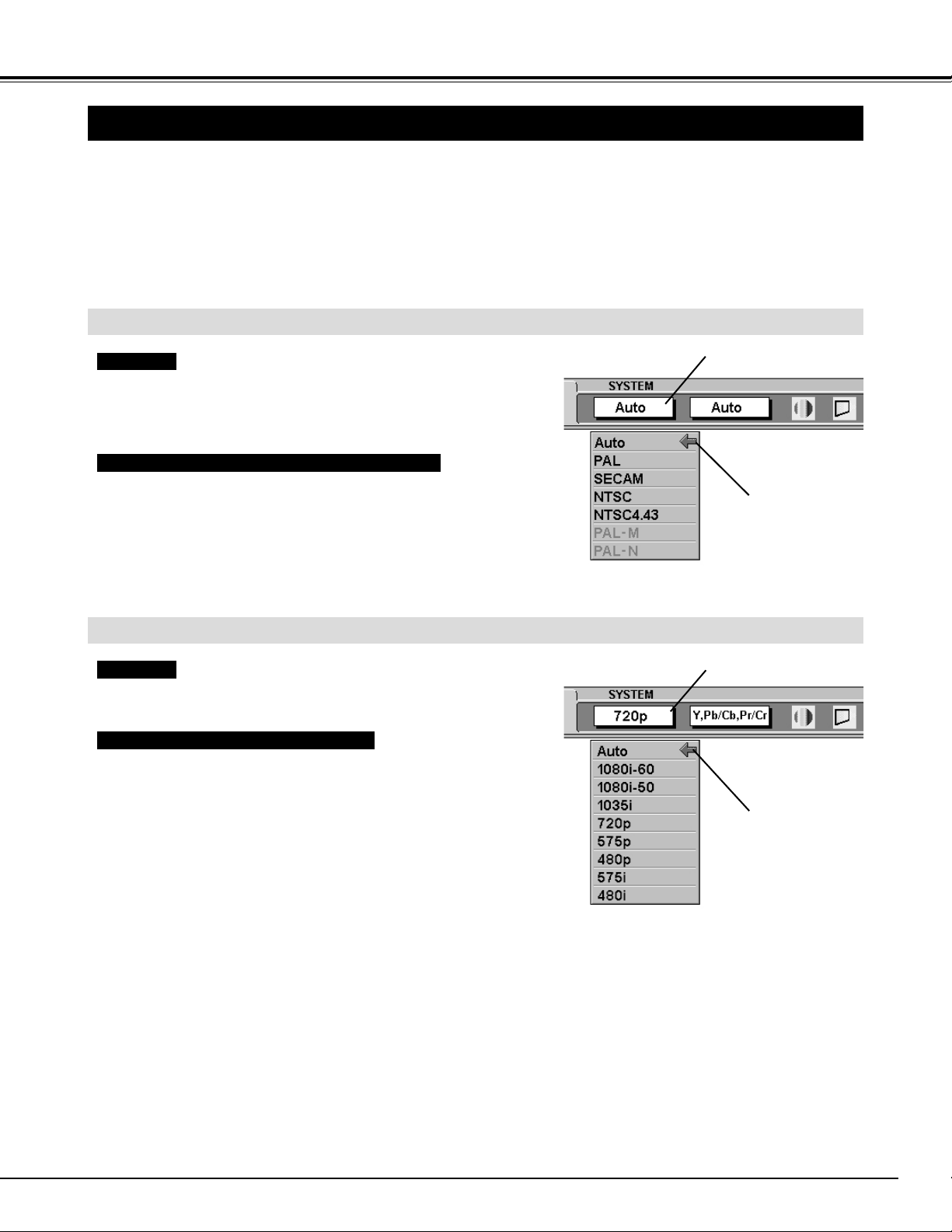

SELECTING VIDEO MODE 32 SELECTING VIDEO SOURCE 32

VIDEO SIGNAL FROM VIDEO OR S-VIDEO JACK 32 VIDEO SIGNAL FROM Y, Pb/Cb, Pr/Cr JACKS 32

SELECTING COLOR SYSTEM 33 PICTURE IMAGE ADJUSTMENT 34

NORMAL FUNCTION 35

PICTURE SCREEN ADJUSTMENT 35

SETTING MENU 36 SETTING LANGUAGE 37

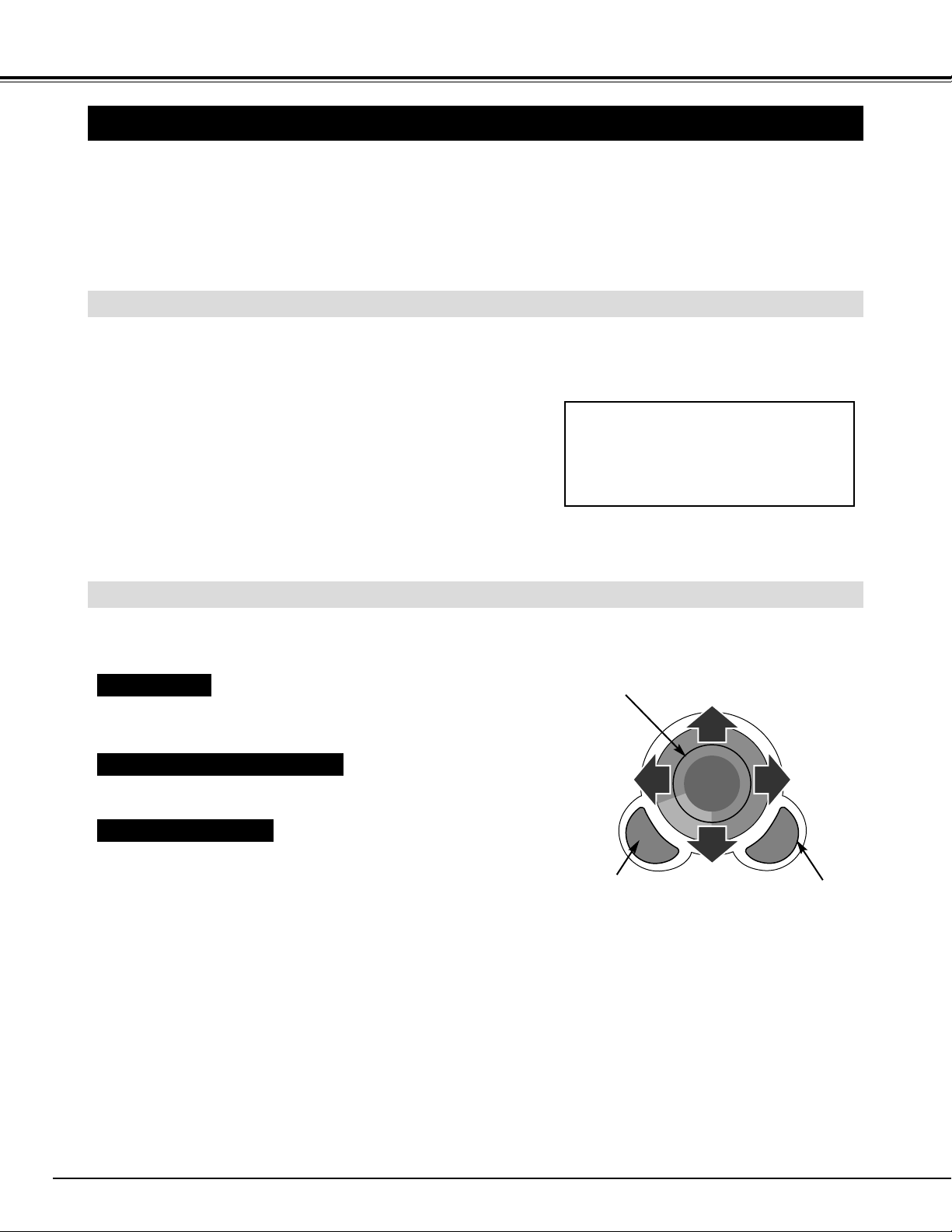

OPERATING WIRELESS MOUSE 38 MAINTENANCE 39

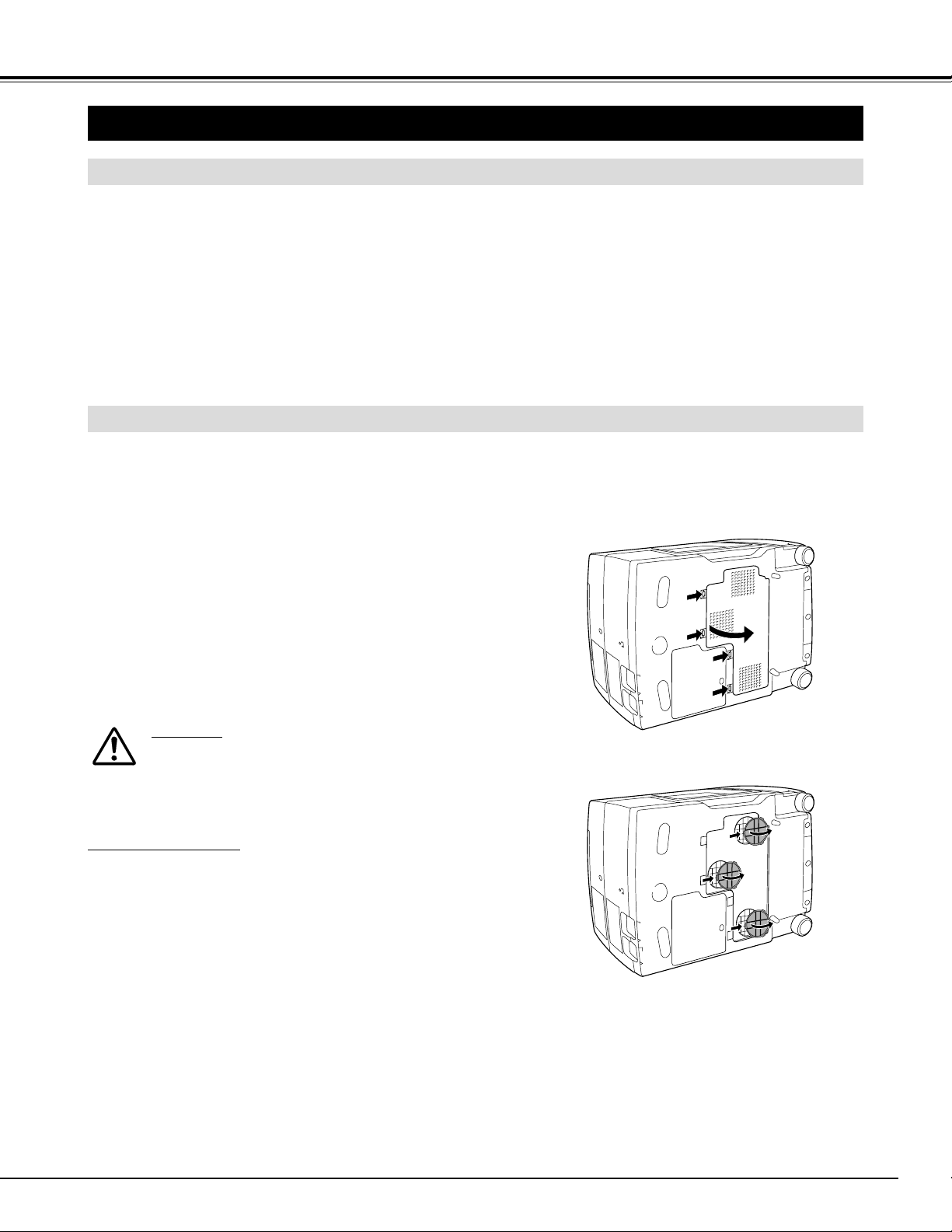

TEMPERATURE WARNING INDICATOR 39 AIR FILTER CARE AND CLEANING 39 LAMP REPLACEMENT 40 LAMP REPLACEMENT MONITOR TIMER 40 CLEANING THE PROJECTION LENS 41

TROUBLESHOOTING 42 TECHNICAL SPECIFICATIONS 44

BASIC OPERATION 20

TURNING ON / OFF THE PROJECTOR 20 ADJUSTING THE IMAGE 21

ZOOM ADJUSTMENT 21 FOCUS ADJUSTMENT 21 LENS SHIFT ADJUSTMENT 21 KEY STONE ADJUSTMENT 22 NO SHOW FUNCTION 22 PICTURE FREEZE FUNCTION 22 P-TIMER FUNCTION 22

SOUND ADJUSTMENT 23

DIRECT OPERATION 23 MENU OPERATION 23

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible and Macintosh computers up to 1280 x 1024 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.

● Component Video

Component video signals, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i, 1080i-50 or 1080i60, can be connected.

● S-Video

S-Video signals, such as a S-VHS VCR output signals, can be connected.

◆ High Resolution Image

This projector provides 1024 x 768 dots resolution for computer input and 700 horizontal TV lines. The resolution from the computer between XGA (1024 x 768) and SXGA (1280 x 1024) is compressed into 1024 x 768 dots. This projector cannot display image of over 1280 x 1024 dots. When the resolution of your computer is over than 1280 x 1024, reset the computer output for lower resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

◆ Keystone Correction

Positioning height of the projector may result in distorted images being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering the projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, Deutsch, Français, Italiano, Español, or Japanese.

◆ One-Touch Auto Imaging

Incoming computer video signals are recognized and the best setting is automatically selected by the Auto Image function. No complicated setup is necessary and projection is always precise.

◆ Digital Zoom (Computer Mode only)

The Digital Zoom magnifies the image up to 49 times, allowing you to focus on crucial information at a presentation.

◆ Power Management

Power Management function is provided to reduce power consumption while the projector is not in use. This Power Management function operates to turn the Projection Lamp off when the projector detects signal interruption and any button is not pressed over 5 minutes. The Projection Lamp is automatically turned on again when the projector detects the signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Wireless Mouse

The Remote Control Unit supplied with this projector has Wireless Mouse function for the connected computer. This function enables you to operate both projector and computer with this Remote Control Unit only.

◆ Motor-driven Lens Shift

The projection lens can be moved up and down with the motor-driven lens shift function. This function makes it easy to provide the projected image where you want. The zoom and focus can be also adjusted with motordriven operation.

◆ Laser Pointer Function

The Remote Control Unit supplied with this projector includes the Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

◆ Progressive Scan Function

This function converts interlace video signals into progressive scan signals and provide fine picture quality.

◆ Digital Visual Interface

This projector is equipped with the DVI 24-pin terminal for connecting DVI output of the computer.

PREPARATION

NAME OF EACH PART OF THE PROJECTOR

BOTTOM OF THE CABINET

BACK OF THE CABINET

HOT AIR EXHAUSTED !

Air blown from the exhaust vent is hot. When using or installing the projector, the following precautions should be taken.

● Do not put a flammable object near this vent.

● Keep the rear grills at least 3’(1m) away from

any object, especially heat-sensitive object.

● Do not touch this area, especially screws and metallic parts. This area will become hot while the projector is used.

This projector detects the internal temperature and automatically controls the operating power of the Cooling Fans.

FRONT OF THE CABINET

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

This projector is equipped with cooling fans for protection from overheating. Pay attention to the following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover the vent slots.

● Keep bottom clear of any objects.

Obstructions may block cooling air.

AIR INTAKE VENTS

(Side and Bottom)

PROJECTION LENS

SPEAKERS

INFRARED

REMOTE RECEIVERS

LENS COVER

POWER CORD CONNECTOR

EXHAUST VENT

TERMINALS

AND CONNECTORS

MAIN ON / OFF SWITCH

TOP CONTROLS

AND INDICATORS

SETTING-UP THE PROJECTOR

PREPARATION

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. The projector automatically selects the correct input voltage. It is designed to work with singlephase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of the type of power supply being in use. Connect the projector with the peripheral equipment before turning the projector on. (Refer to pages 11 ~ 14 for connection.)

CAUTION

For safety, unplug the AC Power Cord when the appliance is not used. When this projector is connected to the outlet with the AC Power Cord, the appliance is in Stand-by Mode and consumes a little electric power.

CONNECTING THE AC POWER CORD

Connect the AC Power Cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

To the POWER CORD CONNECTOR on the projector.

Projector side AC Outlet side

Ground

NOTE ON THE POWER CORD

The AC Power Cord must meet the requirement of the country where you use the projector. Confirm the AC plug type with the chart below. The proper AC power cord must be used. If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

To the AC Outlet.

(200 - 240 V AC)

PREPARATION

POSITIONING THE PROJECTOR

● This projector is designed to project on a flat projection surface.

● The projector can be focused from 4.6’ (1.4m) ~ 47.3’ (14.4m).

● Refer to the figure below to adjust the screen size.

Screen Size

Distance

40” 31”

4.6’ (1.4m)

47.3’ (14.4m)

35.4’ (10.8m)

23.6’ (7.2m)

11.8’ (3.6m)

4.6’ (1.4m)

ROOM LIGHT

The brightness in the room has a great influence on the picture quality. It is recommended to limit ambient lighting in order to provide the best image.

Max. Zoom

Min. Zoom

Max. Zoom

100”

77”

11.8’ (3.6m)

150” 115”

17.7’ (5.4m)

200” 154”

23.6’ (7.2m)

250” 192”

29.5’ (9.0m)

300” 231”

35.4’ (10.8m)

400” 308”

47.3’ (14.4m)

LENS SHIFT ADJUSTMENT

The projection lens can be moved up and down with the motor-driven lens shift function. This function makes it easy to provide the projected image where you want. The U/D ratio can be adjusted 10 : 0 ~ 1 : 3 (refer to the figure below.). Refer to P 21 for operation.

Highest (10 : 0) Lowest (1 : 3)

10 : 0

100”

77”

40”

31”

200” 154”

300”

231”

400”

308”

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump the projector, otherwise damages or malfunctions may result.

● When carrying the projector, use a suitable carrying case.

● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer for best way.

MOVING THE PROJECTOR

Use the Carry Handle when moving the Projector. When moving the projector, replace the lens cover and retract the feet to prevent damage to the lens and cabinet. When this projector is not in use for an extended period, put it into the case (dust cover) supplied with this projector.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating the ADJUSTABLE FEET. Projection angle can be adjusted to 9.0 degrees.

Lift the front of the projector and pull the FEET LOCK LATCHES on both sides of the projector.

ADJUSTABLE FEET

FEET LOCK LATCHES

Release the FEET LOCK LATCHES to lock the ADJUSTABLE FEET and rotate the ADJUSTABLE FEET to fine tune the position and the tilt.

To shorten the ADJUSTABLE FEET, lift the front of the projector and pull and undo the FEET LOCK LATCHES.

The position and the keystone distortion of the image can be adjusted using the Menu Operation. (Refer to P 22, 31 and 35.)

CONNECTING THE PROJECTOR

TERMINALS OF THE PROJECTOR

When controlling the computer with the Remote Control of this projector, connect the mouse port of your personal computer to these terminals. (Refer to P14.)

Connect the S-VIDEO output from the video equipment to this jack. (Refer to P13.)

Connect the audio output (stereo) from the computer to these jacks. (Refer to P14.)

Connect the audio output from the video equipment to these jacks. (Refer to P13.)

CONTROL PORT (1/2) CONNECTORS

COMPUTER AUDIO INPUT (1/2) JACKS

AUDIO INPUT JACKS

VIDEO INPUT JACKS

(Y/VIDEO, Pb/Cb, Pr/Cr)

S-VIDEO INPUT JACK

Connect the composite video output from the video equipment to the VIDEO/Y jack or connect the component video outputs to the Y/VIDEO, Pb/Cb and Pr/Cr jacks. (Refer to P13.)

Connect the computer output to these terminals. (Refer to P14.)

COMPUTER INPUT-2

TERMINALS (BNC x 5)

Connect the computer output to one of these terminals. (Refer to P14.)

COMPUTER INPUT-1

TERMINALS (

DIGITAL/ANALOG

)

INPUT TERMINALS

OUTPUT TERMINALS

This projector has INPUT TERMINALS and OUTPUT TERMINALS on its side for connecting computers and video equipment. Refer to the figure on pages 11 to 14 and connect properly.

PC IN-1

analog dig it a l PC control 1

PC IN-2

RGBHV

PC IN-1

analog digital PC control 1

PC IN-2

RGBHV

monitor OUT

RGBHV

PC control 2

reset R/C jac k

PC control 2

AV IN

S-video

audio 1

–

audio–L

(stereo)

(mono)

–

Cb/Pb–Cr/Pr

audio 2

Y/video

(stereo)

–

audio–L video

audio 1

(stereo)

audio 2

AV IN

Y/video

–

audio–L

–

S-video

(mono)

Cb/Pb–Cr/Pr

(stereo)

CONNECTING THE PROJECTOR

Connect an external audio amplifier to these jacks. (Refer to P13, 14.)

AUDIO OUTPUT JACKS

This projector uses a micro processor to control the unit. Occasionally, the micro processor may malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

RESET BUTTON

When using the Wired / Wireless Remote Control Unit as the Wired Remote Control, Connect the Wired Remote Control Unit to this jack with the Remote Control Cable (supplied). (Refer to page 21.)

R/C JACK

COMPUTER MONITOR OUTPUT

JACKS (BNC x 5)

These jacks output the signal from the COMPUTER INPUT terminals (except the digital input signal). Connect an external monitor to these jacks. (Refer to P14.)

VIDEO MONITOR OUTPUT JACK

This terminal outputs the composite video signal or the signal from the S-VIDEO INPUT JACK. Connect an external monitor to this jack. (Refer to P13.)

OUTPUT TERMINALS

monitor OUT

RGBHV

reset R/ C j ack

–

audio–L video

CONNECTING THE PROJECTOR

CONNECTING TO THE VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder Video Disc Player

Video Cable

(RCA x 1) ✽

S-VIDEO

Cable

Audio Amplifier Audio Speaker (stereo)

Audio Cable

(Stereo)

Terminals

of the Projector

Use any of VIDEO jack Y-Pb/CbPr/Cr jacks or S-VIDEO jack.

• When both VIDEO jack and SVIDEO jack are connected, the SVIDEO jack has priority over the VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, the Y-Pb/Cb-Pr/Cr jacks has priority over the S-VIDEO jack.

S-VIDEO Output

Audio Input

Cables used for connection (✽ = Cables are not supplied with this projector.)

• Video Cable (RCA x 1

✽ or RCA x 3)

• S-VIDEO Cable

• Audio Cable (RCA x 2 - Mini Plug (stereo))

• Audio Cable (RCA x 2)

✽

NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

Audio Output

Y Pb/Cb Pr/Cr R L

External Audio Equipment

AV AUDIO IN

S-VIDEO

Y-Pb/Cb-Pr/Cr

VIDEO

AUDIO OUT

Component video output equipment.

(such as DVD player or

high-definition TV source.)

Composite

Video Output

Component Video Output

External Monitor

Monitor Input

MONITOR OUT

Video Cable ✽

Audio Cable

(Stereo) ✽

Video Cable

(RCA x 3)

PC IN-1

analog digita l PC control 1

PC IN-2

RGBHV

monitor OUT

RGBHV

audio 1

(stereo)

PC control 2

audio 2

(stereo)

reset R /C ja ck

AV IN

–

audio–L

Y/video

–

audio–L video

(mono)

–

Cb/Pb–Cr/Pr

S-video

CONNECTING THE PROJECTOR

CONNECTING TO THE COMPUTER

IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA)

VGA Cable

Monitor Output

Desktop type Laptop type

Control Cable for Serial Port

Audio Cable

(stereo)

Terminal

Serial port PS/2 port Audio Output

Audio Input

CONTROL PORT 1 or 2

AUDIO OUT

COMPUTER

AUDIO IN 1 or 2

COMPUTER IN 1

Use one of these Control Cables corresponding with the terminal of your computer.

MAC Adapter

Set the slide switches following the chart below.

ADB port

Cables used for connection (✽ = Cables are not supplied with this projector.)

• VGA CABLE (HDB 15 pin)

•

CONTROL CABLE FOR PS/2 PORT, SERIAL PORT, or ADB PORT

• MAC ADAPTER

• DVI CABLE (24 pin)

✽

• BNC CABLE (BNC x 5) ✽

• AUDIO CABLE (RCA X 2 - Mini Plug (stereo))

• AUDIO CABLE (Mini Plug (stereo))

✽

Control Cable

for PS/2 Port

Control Cable

for ADB Port

Terminal Terminal

Audio Cable

(stereo)

✽

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

Terminals of the Projector

Audio Amplifier

Audio Speaker

(stereo)

External Audio EquipmentExternal Monitor

MONITOR OUT

Monitor Input

COMPUTER IN 1COMPUTER IN 2

BNC Cable ✽

Monitor Output

Use any of COMPUTER INPUT jacks.

• When both ANALOG jack and DIGITAL jack are connected, the DIGITAL jack has priority over the ANALOG jack.

DVI Cable

✽

BNC Cable ✽

Use either VGA Cable or DVI Cable corresponding with your computer.

Monitor Output

PC IN-1

analog digital PC control 1

PC IN-2

RGBHV

monitor OUT

RGBHV

PC control 2

reset R/C jack

AV IN

audio 1

(stereo)

audio 2

(stereo)

–

audio–L

(mono)

Y/video

–

audio–L video

S-video

Cb/Pb–Cr/Pr

power

volume

lens shift

mode

normal

zoom

focus

auto image

select

lamp

replace

warning

temp.

ready

lamp

status

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

Used to adjust zoom. (P21)

Used to open or close the MENU operation. (P18, 19)

MENU BUTTON MODE BUTTON

READY INDICATOR

POWER ON–OFF BUTTON

FOCUS BUTTONS

VOLUME BUTTONS

WARNING TEMP. INDICATOR

LAMP INDICATOR

LAMP REPLACE INDICATOR

Used to select input source either Computer or Video. (P24, 32)

Used to operate AUTO IMAGE function. (P29)

Used to adjust focus. (P21)

This indicator lights green when the projector is ready to be turned on. And it flashes green in Power Management mode. (P36)

This indicator is dim when the projector is turned on. And bright when the projector is in stand-by mode.

This indicator turns to yellow when the life of the projection lamp draws to an end. (P40)

This indicator flashes red when internal projector temperature is too high. (P39)

Used to adjust volume. (P23)

Used to reset to normal picture adjustment preset by factory. (P29, 35)

Used to select an item or adjust the value in the MENU. It is also used to pan the image in DIGITAL ZOOM mode. (P31)

Used to execute the item selected.

It is also used to expand the image in DIGITAL ZOOM mode. (P31)

Used to turn the projector on or off. (P20)

ZOOM BUTTONS

Used to adjust lens shift. (P21)

AUTO IMAGE BUTTON

SELECT BUTTON NORMAL BUTTONPOINT BUTTONS

LENS SHIFT BUTTONS

INDICATORS

TOP CONTROL

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

ALL-OFF SWITCH

Left Side

When using the Remote Control Unit, turn this switch to “ON.” And turn it to “ALL OFF” when it is not used.

This remote control emits a laser beam as the Laser Pointer from the Laser Light Window. When the LASER button is pressed, the laser light goes on. And when the button is pressed more than 1 minute or the button is released, light goes off. Laser light is emitted with the RED light which tells the laser beam being emitted. The laser emitted is a class II laser; therefore, do not look into the Laser Light Window or shine the laser beam on yourself or other people. The three marks bellow are the caution labels for the laser beam.

CAUTION : Use of controls or adjustments or performance of procedures other than those specified herein may result

hazardous radiation exposure.

Laser Light Window

These caution labels are put on the remote control.

LASER POINTER FUNCTION

Used to select COMPUTER input source. (P24)

Used to select VIDEO source. (P32)

Used to execute the item selected or to expand the image in DIGITAL ZOOM mode. (P31) It is also used as a PC mouse in Wireless Mouse Operation. (P38)

POWER ON-OFF BUTTON

Used to turn the projector on or off. (P20)

MENU BUTTON

Used to select MENU operation. (P18, 19)

SELECT BUTTON

VIDEO BUTTON

COMPUTER BUTTON

LASER BUTTON

Used to operate the laser pointer function. The laser beam is emitted while pressing this button within 1 minute. When using the laser pointer for more than 1 minute, release the button and press it again.

Used to move the pointer on the MENU, to adjust the item, or to pan the image in DIGITAL ZOOM mode. (P31) It is also used as a PC mouse in Wireless Mouse Operation. (P38)

✽ When pressing the center of this

button, it works as the SELECT button.

POINT BUTTON

Used to compress the image in DIGITAL ZOOM mode. (P31) It is also used as a PC mouse in Wireless Mouse Operation. (P38)

RIGHT CLICK BUTTON

P-TIMER BUTTON

Used to operate P-TIMER function. (P22)

ALL OFF

lock

zoom

mute

focus

d.zoom

power

volume

computer

video

blank

auto image

laser

keystone

p-timer

lens shift

freeze

normal

Used to adjust zoom. (P21)

BEFORE OPERATION

To insure safe operation, please observe the following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the Remote Control Unit to moisture, or heat.

● Do not drop the remote control unit.

● If batteries have leaked on the remote control, carefully wipe the case clean and load new batteries.

Press the lid downward and slide it.

Remove the battery compartment lid.

Slide the batteries into the compartment.

Replace the compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure the battery terminals are in contact with the pins in the compartment.

Remote Control Batteries Installation

1 2 3

Operating Range

Point the remote control toward the projector (Receiver Window) whenever pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front and rear of the projector.

16.4’ (5 m)

60°

16.4’ (5 m)

MUTE BUTTON

Used to mute sound.(P23)

ZOOM BUTTON

FOCUS BUTTON

Used to adjust focus. (P21)

NO SHOW BUTTON

Used to turn the picture into black image. (P22)

AUTO IMAGE BUTTON

Use to operate AUTO IMAGE function. (P29)

VOLUME BUTTON

Used to adjust volume. (P23)

D.ZOOM BUTTON

Used to select DIGITAL ZOOM mode and resize the image. (P31)

KEYSTONE BUTTON

Used to correct the keystone distortion. (P21, 29, 35)

FREEZE BUTTON

Used to freeze the picture. (P22)

NORMAL BUTTON

Used to reset to normal picture adjustments preset by the factory. (P29, 35)

WIRED REMOTE JACK

When using as the Wired Remote Control, connect the Remote Control Cable to this jack. (The battery installation is required when using as the Wired Remote Control.

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P21)

zoom

lock

mute

blank

auto image

focus

d.zoom

laser

keystone

p-timer

power

volume

computer

video

lens shift

freeze

normal

BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU

Display ON-SCREEN MENU

Press MENU button to display the ON-SCREEN MENU (MENU BAR). The red frame is the POINTER.

Select the ITEM by pressing SELECT button. The dialog box of the ITEM appears.

Move the POINTER (red frame) to the ITEM ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

Move the POINTER to the ITEM that you want to adjust and adjust the ITEM by pressing SELECT button. Refer to the following pages for details of respective adjustments.

Move the POINTER downward by pressing POINT DOWN button. (The shape of the POINTER becomes an arrow.)

Select the Item

Control and adjust through ON-SCREEN MENU

2 3

You can control and adjust this projector through the ON-SCREEN MENU. Refer to the following pages to operate each adjustment in the ON-SCREEN MENU.

1 MOVING THE POINTER

2 SELECT THE ITEM

Move the pointer (see the NOTE below) by pressing POINT button(s) on the TOP CONTROL or the REMOTE CONTROL.

Select the item by pressing SELECT button.

Used to select the item.

SELECT BUTTON

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTON

WIRELESS REMOTE CONTROL

OPERATING ON-SCREEN MENU

NOTE : Pointer is the icon on the ON-SCREEN Menu to

select the item. See the figures on the section "FLOW OF ON-SCREEN MENU" below.

Used to select the item.

SELECT BUTTON

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

SELECT BUTTON

POINT DOWN

BUTTON

MENU BAR

POINTER (red frame)

ITEM ICON

POINTER (red frame)

POINTER

mode

select

auto image

normal

BEFORE OPERATION

MENU BAR

SYSTEM MENU

Used to select a computer system. (Refer to P24)

IMAGE MENU

Used to adjust the computer image. [Fine sync / Total dots / White Balance / Contrast / Brightness / Sharpness] (Refer to P28)

PC ADJUST MENU

Used to adjust the parameters to match with the input signal format. (Refer to P26, 27)

SETTING MENU

Used to set the Display Menu and reset Lamp Replacement Monitor Timer. (Refer to P36, 37)

MODE MENU

Used to select the Computer input mode. (Refer to P24)

POSITION MENU

Used to adjust the position of the image. (Refer to P30)

SCREEN MENU

Used to adjust the size of the image or to correct the Keystone distortion. (Refer to P31)

AUTO IMAGE MENU

Used to adjust Fine sync, Total dots, and Picture Position automatically. (Refer to P29)

MENU BAR IN COMPUTER MODE

Press MENU BUTTON while in Computer mode.

SYSTEM MENU

Used to select a color system of the selected video source. (Refer to P33)

IMAGE MENU

Used to adjust the picture image. [Color / Tint / White Balance / Contrast / Brightness/ Sharpness / Noise Reduction / Progressive] (Refer to P34)

SCREEN MENU

Used to set the size of the image either Regular or Wide, or to correct the Keystone distortion. (Refer to P35)

MENU BAR IN VIDEO MODE

Press MENU BUTTON while in Video mode.

Same function as the Computer Mode.

MODE MENU

Used to select the Video input. (Refer to P32)

VIDEO SOURCE MENU

Used to select a video source among [

Video, S-Video, and Y,

Pb/Cb, Pr/Cr

(Refer to P32)

LANGUAGE MENU

Used to select the language used in the Menu. (Refer to P37)

SOUND MENU

Used to adjust or mute the Volume. (Refer to P23)

BASIC OPERATION

TURNING ON THE PROJECTOR

Connect the projector's AC Power Cord into a wall outlet and turn the MAIN ON / OFF SWITCH to ON. The LAMP indicator lights RED, and the READY indicator lights GREEN.

Press the POWER ON-OFF button on the Remote Control Unit or on the Top Control to ON. The LAMP indicator dims, and the Cooling Fans start to operate. The Preparation Display appears on the screen and the count-down starts. The signal from the source appears after 30 seconds.

2 3

TURNING OFF THE PROJECTOR

Press the power ON-OFF button on the Remote Control Unit or on the Top Control, and the message "Power off?" appears on the screen.

Press the power ON-OFF button again to turn off the projector. The LAMP indicator lights bright and the READY indicator turns off. The Cooling Fans operate for 2 minutes after the projector is turned off. (For first 1 minute of this "Cooling Down" period, this appliance cannot be turned on.)

1 2

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

TURNING ON / OFF THE PROJECTOR

When the TEMPERATURE WARNING indicator flashes red, the projector is automatically turned off. Wait at least 5 minutes before turning the projector on again.

When the TEMPERATURE WARNING indicator continues to flash, follow procedures below:

1. Turn the MAIN ON / OFF SWITCH to OFF and disconnect the AC power cord from the AC outlet.

2. Check the air filters for dust accumulation.

3. Clean the Air Filter. (See "AIR FILTER CARE AND CLEANING" section on page 39.)

4. Turn the Projector on again. If the TEMPERATURE WARNING indicator should still continue to flash, contact the sales dealer where you purchased this

projector or service center.

Complete the peripheral connections (with Computer, VCR, etc.) before turning on the projector. (Refer to "CONNECTING TO THE PROJECTOR" on Pages 11~14 for connecting that equipment.)

When the projector has cooled down, the READY indicator turns to green again and you can turn the projector on. After cooling down completely, turn the MAIN ON / OFF SWITCH to OFF and disconnect the AC power cord.

The Preparation Display disappears after 30 seconds.

NOTE: The Cooling Fan may work for cooling while the projector is turned off. When the Cooling Fan is

working, TEMPERATURE WARNING INDICATOR flashes red.

Power off?

The message disappears after 4 seconds.

When the Power Management function is ON, the Projector detects the signal interruption and turns the Projection Lamp off automatically. Refer to “Power Management” on page 33.

BASIC OPERATION

ADJUSTING THE IMAGE

The message disappears after 4 seconds.

Zoom

Focus

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Press the ZOOM ▲/▼ button(s) on the Top Control or on the Remote Control Unit. The message “Zoom” is displayed.

Press the ZOOM ▲ button or the POINT UP button to make the image larger, and press the ZOOM ▼ button or the POINT DOWN button to make the image smaller.

Press the FOCUS ▲/▼ button(s) on the Top Control or on the Remote Control Unit. The message “Focus” is displayed.

Adjust the focus of the image by pressing the FOCUS ▲/▼ button(s) or the POINT UP/DOWN button(s) .

The message disappears after 4 seconds.

Lens shift

LENS SHIFT ADJUSTMENT

Press the LENS SHIFT ▲/▼ button(s) on the Top Control or the LENS SHIFT button on the Remote Control Unit. The message “Lens shift” is displayed.

Press the LENS SHIFT ▲ button or the POINT UP button to move the image up, and press the LENS SHIFT ▼ button or the POINT DOWN button to move the image down. Refer to P9 for operating range.

KEYSTONE ADJUSTMENT

Press the KEYSTONE ▲/▼ button on the Remote Control Unit or select the Keystone on the SCREEN menu. (Refer to page 31, 35.) The message “Keystone” is displayed.

Correct the Keystone distortion by pressing the KEYSTONE ▲/▼ button or the POINT UP/DOWN button(s). Press the KEYSTONE ▲ button or the POINT UP button to reduce the upper part or the image, and press the KEYSTONE ▼ button or the POINT DOWN button to reduce the lower part.

The message disappears after 4 seconds.

Reduce the upper width with the KEY STONE ▲ button or the POINT UP button.

Reduce the lower width with the KEY STONE ▼ button or the POINT DOWN button.

Keystone

If the picture has keystone distortion, correct image with KEYSTONE adjustment.

BASIC OPERATION

Press the FREEZE button on the Remote Control Unit to freeze the picture on-screen. This function is cancelled when the FREEZE button is pressed again or any other function button is pressed.

Press the NO SHOW button on the Remote Control Unit to black out the image. This function is cancelled when the NO SHOW button is pressed again or any other function button is pressed.

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

The message disappears after 4 seconds.

No show

Press the P-TIMER button on the Remote Control unit. The timer display “00 : 00” appears on the screen and the timer starts to count the time (00 : 00 ~ 59 : 59). To stop the P-TIMER, press the P-TIMER button. And then, press the P-TIMER button again to cancel the P-TIMER function.

P-TIMER FUNCTION

BASIC OPERATION

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SOUND and press the SELECT button. Another dialog box SOUND ADJUST Menu will appear.

Sound Volume Adjustment

Press the VOLUME (+/–) button(s) on the Top Control or on the Remote Control Unit to adjust the volume. The Volume dialog box appears on the screen for a few seconds. (+) button to increase the volume, and (–) button decreasing.

Sound Mute Setting

Press the MUTE button on the Remote Control Unit to cut off the sound. To restore the sound to its previous level, press the MUTE button again or press Volume (+/–) button(s).

Move the arrow to ▲ or ▼ of "Volume" by pressing the POINT UP/ DOWN buttons. To increase the volume, point the arrow to ▲ and then press the SELECT button. To decrease the volume point the arrow to ▼ and then press the SELECT button.

To cut off the audio sound, point the arrow to "Mute" and then press the SELECT button. The Mute display is changed On from Off and the sound is cut off. To restore the sound to its previous volume level, set the Mute to Off.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to select by pressing the POINT UP/DOWN buttons.

Indicates the roughly level of the volume.

Press the MUTE button to set the Mute function On or Off.

The display disappears after 4 seconds.

Move the arrow to ▲

or ▼

and press the

SELECT button.

Indicate the roughly level of the item.

Move the arrow to the item and then press the SELECT button.

Close the Sound Menu.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Mute

COMPUTER button

COMPUTER MODE

SELECTING COMPUTER MODE

MENU OPERATION

When selecting the Computer Mode, the Current Mode display appears to show the information of the computer being selected.

CURRENT MODE DISPLAY

COMPUTER 1

COMPUTER 2

SELECTING COMPUTER SYSTEM

AUTOMATIC MULTI-SCAN SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 25). When selecting Computer, this projector automatically tunes to the incoming signal and projects the proper image without any special settings. (Setting of the Computer System may be required when connecting some computers.)

Note : The projector may display one of the following messages.

The projector cannot discriminate or detect the input signal from the computer. Adjust and set the computer system manually. (Refer to page 26.)

There is no signal input from the computer. Make sure the connection of the computer and the projector is set correctly. (Refer to TROUBLESHOOTING on page 42.)

Go to PC adj.

No signal

SELECT COMPUTER SYSTEM MANUALLY

To set the Computer system manually, select the mode on the ON-SCREEN MENU.

Display the SYSTEM being selected.

SYSTEM BOX

The system being selected.

The systems on this dialog box can be selected.

Close the SYSTEM Menu.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SYSTEM and press the SELECT button. Another dialog box COMPUTER SYSTEM Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the system that you want to set, and then press

SELECT button.

DIRECT OPERATION

Select COMPUTER mode by pressing the MODE button on the Top Control or the COMPUTER button on the Remote Control Unit.

When this mark is displayed as black, more computer system modes will be available. Move the arrow to this mark and then press the SELECT button, and the other modes will be displayed.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select Computer and press the SELECT button.

Another dialog box

COMPUTER MODE

Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the mode either Computer 1 or Computer 2, and then press the SELECT button.

MODE button COMPUTER 1

COMPUTER 2

VIDEO

Providing the information of the computer detected by the projector.

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency mentioned below and less than 180 MHz of Dot Clock.

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88 VGA 2 720 x 400 31.47 70.09 VGA 3 640 x 400 31.47 70.09 VGA 4 640 x 480 37.86 74.38 VGA 5 640 x 480 37.86 72.81 VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08 MAC 21

1152 x 870

68.68 75.06

MAC 1280 x 960 75.00 75.08 MAC 1280 x 1024 80.00 75.08

SVGA 1 800 x 600 35.156 56.25 SVGA 2 800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 10 1024 x 768

XGA 11

1024 x 768

XGA 12

1024 x 768

(Interlace)

XGA 13 1024 x 768

62.04 77.07

XGA 14 1024 x 768

61.00 75.70

XGA15 1024 x 768

35.522 43.48

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

(Interlace)

58.03 72.0

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

63.48 79.35

SXGA 3

1280 x 1024

36.00 43.59

SXGA 4 1280 x 1024

64.20 70.40

SXGA 5 1280 x 1024

62.50 58.60

SXGA 6 1280 x 1024

63.90 60.00

SXGA 7 1280 x 1024

63.34 59.98

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11 1152 x 900

71.69 67.19

SXGA 12 1152 x 900

81.13 76.107

SXGA 13

1280 x 1024

(Interlace)

63.98 60.02

SXGA 14

1280 x 1024

(Interlace)

61.20 65.20

71.40 75.60

50.00 43.00

HDTV720p

––––––––

50.00 47.00

45.00 60.00

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.47 70.07

48.50 60.02

44.00 54.58

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

SXGA 15 1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18

1280 x 1024

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

46.43 43.35

SXGA 19 1280 x 1024 63.79 60.18

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

RGB

––––––––

(Interlace)

15.625 25

RGB

––––––––

(Interlace)

15.734 30

HDTV1080i

–––––––– (Interlace)

33.75 30.00

HDTV1035i

–––––––– (Interlace)

33.75 30.00

SVGA 10 800 x 600 32.70 51.09

SXGA 20 1280 x 1024 91.146 85.024

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

640 x 480 31.469 59.940

D-SVGA 800 x 600 37.879 60.317

D-XGA 1024 x 768 48.363 60.004

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-SXGA 1

1280 x 1024

D-SXGA 2

1280 x 1024

D-SXGA 3

1280 x 1024

63.981 60.020

60.276 58.069

31.65 29.8

When the input signal is from the COMPUTER INPUT-1 (DIGITAL) terminal, refer to the chart below.

COMPUTER MODE

PC ADJUSTMENT

This Projector can automatically tune to the display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from the standard ones and may not be tuned by the Multi-Scan system of this projector. If this happens, the projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. This projector has a PC ADJUSTMENT function to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 8 independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUSTMENT function cannot be operated when the input signal is from the COMPUTER INPUT-1

(DIGITAL) terminal or “RGB” is selected on the SYSTEM MENU (P24 and 25).

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT RIGHT/LEFT button to select PC ADJUST and press the SELECT button. Another dialog box “Where to reserve” Menu will appear.

In this dialog box, you can store the parameter into the area from “Mode 1” to “Mode 8.” When memorizing the new computer parameter, select the Mode with the message “Free” by pressing the POINT UP/DOWN button and the SELECT button. To change the parameters of the Mode previously set, select the Mode with “Stored.”

When the Mode is selected, Parameter adjustment dialog box appears. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN button, and adjust each item by pressing the SELECT button to match with your computer.

Move the arrow to “Stored” and press the SELECT button. The parameter is memorized in the selected Mode.

This Mode has parameters being stored.

Close the PC ADJUSTMENT Menu.

The Vacant Mode.

Manual set Computer Mode (1 to 8).

Move the arrow to ▲ or ▼ and press SELECT button.

To activate the Mode manually adjusted in this PC ADJUSTMENT Menu, select the Mode at the SYSTEM SELECT Menu. (Refer to page 24.)

COMPUTER MODE

The number of the total vertical lines. Adjust the number to match the image of your personal computer.

Total lines

Recalls the parameter data that was previously adjusted.

Reset

Stores the parameters in the memory.

Stored

Clears the parameter data previously set.

Mode free

Closes the PC ADJUST Menu.

Quit

The number of the total dots in one horizontal period. Adjust the number to match the image of your computer.

Total dots

Adjustment of the horizontal or vertical picture position. When the image is not centered on the screen, adjust each of those items.

Horizontal / Vertical

Adjustment of the clamp level. When the image has a dark bar(s), try this adjustment.

Clamp

Adjustment of the area displayed with this projector. Select the resolution at the Display area dialog box, or adjust the number at the column of “H” or “V” to match the resolution of the image.

Display area

Adjustment of the horizontal height or vertical width of the image.

Horizontal Scale / Vertical Scale

Each of the keys operates as follow.

Press the SELECT button at this column to adjust “Clamp,” “Fine sync,” “Display area,” “Horiz. scale” or “Vert. scale” .

Adjust the picture as necessary to eliminate flicker from the display.

Fine sync

NOTE : The Display area, the Horiz. scale and the Vert. scale

cannot be adjusted when “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P24 and 25).

Point the arrow at the Display area and press the SELECT button. The Display area dialog box appears.

COMPUTER MODE

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button. Another dialog box PICTURE IMAGE ADJUSTMENT Menu will appear.

When selecting “▼,” the custom setting dialog box will appear. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN button, and adjust each value by pressing the SELECT button to match with the image.

Adjust the picture as necessary to eliminate flicker from the display. (From 0 to 127.)

The number of the total dots in one horizontal period. Adjust the number to match your PC image.

Point to ▼ to decrease contrast, and select ▲ to increase contrast. (From 0 to 63.)

Point to ▼ to adjust the image darker, and select ▲ to adjust brighter. (From 0 to 63.)

Close the PICTURE IMAGE ADJUSTMENT Menu.

Move the arrow to ▲ or ▼ and press SELECT button.

Recalls the data previously adjusted.

Reset

Stores the adjusted data in the memory.

Stored

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Quit

Move the arrow to the color that you want to adjust. Point to ▼ to lighten the color and select ▲ to deepen the color. (From 0 to 63.)

Each of the keys operates as follow.

Fine sync

Total dots

White balance (Red / Green / Blue)

Contrast

Brightness

Point to ▼ to soften the image, and select ▲ to sharpen the image. (From 0 to 15.)

Sharpness

PICTURE IMAGE ADJUSTMENTS

NOTE : The Fine sync and the Total dots cannot

be operated when the input signal is from the COMPUTER INPUT-1 (DIGITAL) terminal or “RGB” is selected on the SYSTEM MENU (P24 and 25). The Fine sync and the Total dots cannot be fully adjusted when “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P24 and 25).

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT button.

Normal picture level preset on this projector. This picture level can be set by pressing the NORMAL button.

Standard

Picture level adjusted for the picture with fine tone.

Real

Picture level adjusted manually in the custom setting dialog box.

Custom

Move the arrow to the level and press the SELECT button.

Press the SELECT button at “▼” to adjust the picture level manually.

The level being selected.

COMPUTER MODE

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The “Standard” display will be displayed on the screen for a few seconds.

NORMAL FUNCTION

Standard

The Auto Image function is provided to automatically adjust Fine sync., Total dots, and Picture Position for most computers.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select AUTO IMAGE and press the SELECT button. Another dialog box AUTO IMAGE Menu will appear.

Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN button. Change the setting On or Off by pressing the SELECT button.

Move the arrow to “Go!” and press the SELECT button to start the Auto Image function. This adjustment can be executed by pressing AUTO IMAGE button on the Top Control or on the Remote Control Unit.

NOTE : This menu cannot be operated when the input signal is from the COMPUTER INPUT-1 (DIGITAL) terminal or

“RGB,” “HDTV720p,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P24 and 25). The Fine sync., Total dots, and Picture Position of some computers may not be fully adjusted with the Auto Image Function. In that case, manual adjustment is required to make fine image. (Refer to page 28 to adjust "Fine sync." or "Total dots" and page 30 to adjust Picture Position.)

Terminates the AUTO IMAGE ADJUSTMENT Menu.

Move the arrow to the item and then press the SELECT button.

Starts the adjustment on the item set to "On".

Adjust the picture as necessary to eliminate flicker from the display. This item can be adjusted manually. (Refer to page 28.)

The number of the total dots in one horizontal period. This item can be adjusted manually. (Refer to page 28.)

Adjustment of the position of the image. This item can be adjusted manually. (Refer to page 30.)

Fine sync

Total dots

Position

Stores the On/Off setting of each item.

Stored

Starts the Auto Image Adjustment.

Go!

Closes the AUTO IMAGE ADJUSTMENT Menu.

Quit

AUTO IMAGE ADJUSTMENT

COMPUTER MODE

PICTURE POSITION ADJUSTMENT

The position of the image can be adjusted vertically and horizontally through PICTURE POSITION ADJUSTMENT.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select POSITION and press the SELECT button. The PICTURE POSITION dialog box will appear.

Select the arrow to the direction (described as , , or ) that you want to adjust by pressing the POINT UP/DOWN/ LEFT/RIGHT buttons, and then press the SELECT button.

Select the arrow to the direction (described as

, , or ),and then press the SELECT button.

Each of the keys operates as follow.

Recalls the setting data previously set.

Reset

Stores the setting data in the memory.

Stored

Closes the PICTURE POSITION Menu.

Quit

COMPUTER MODE

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN Menu will appear.

To adjust the image size or pan the image, select Digital zoom in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears, and the magnifying glass icon and the message “D. Zoom” is displayed. This projector also enters Digital Zoom mode by pressing the D.ZOOM ▲/▼ button on the Remote Control Unit.

Refer to the following for operation.

Expand function

To expand the image size, press the D.ZOOM ▲ button or the SELECT button. The image is magnified by degrees.

Compress function

To compress the image size, press the D.ZOOM ▼ button or the RIGHT CLICK button. The size of image is reduced by degrees.

Panning function

To pan the image, press the POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size.

To cancel Digital Zoom mode, press any button except D.ZOOM ▲/▼, SELECT, RIGHT CLICK, or POINT button. To adjust the image to 1024 x 768, press NORMAL button.

To make the image into its original size, select True in the dialog box. When the original image size is larger than the screen size (1024 x

768), the image can be panned by pressing the POINT UP/DOWN/LEFT/RIGHT buttons.

Move the arrow to the function and press the SELECT button.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT button.

True

Digital Zoom

Keystone

When the image is distorted vertically, select Keystone in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears and the message “Keystone” is displayed. Correct the Keystone distortion by pressing the KEYSTONE ▲/▼ button or the POINT UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page 20.

NOTE

● The True and the Digital Zoom cannot be operated when “RGB,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P24 and 25).

● This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting the projector.

● The image data in other than XGA (1024 x 768) is modified to fit the screen size in the initial mode.

● The normal "Panning Operation" may not function properly if the computer system prepared with the "PC Adjust" is used.

VIDEO MODE

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select Video and press the SELECT button.

SELECTING VIDEO MODE

DIRECT OPERATION

Select VIDEO mode by pressing the MODE button on the Top Control or the VIDEO button on the Remote Control Unit.

MENU OPERATION

This projector automatically detects the signal from the VIDEO INPUT JACK(s) or the S-VIDEO INPUT JACK. When those jacks are connected at the same time, select the type of Video source in VIDEO SOURCE Menu.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select VIDEO SOURCE and press the SELECT button. Another dialog box VIDEO SOURCE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the source that you want to select, and then press the

SELECT button.

This box indicates the Video source being selected.

SELECTING VIDEO SOURCE

Video / S-Video / Y, Pb/Cb, Pr/Cr

The projector automatically detects the incoming Video source, and adjusts itself to optimize its performance.

• When both VIDEO jack and S-VIDEO jack are connected, the SVIDEO jack has priority over the VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, the Y-Pb/Cb-Pr/Cr jacks have priority over the S-VIDEO jack.

Auto

When the VIDEO INPUT JACK(s) and the S-VIDEO INPUT JACK are connected at the same time, or if the projector cannot chose the proper video source, it is necessary to select a specific video source among Video, S-Video and Y, Pb/Cb, Pr/Cr.

MODE button

VIDEO

COMPUTER 1

COMPUTER 2

VIDEO MODE

SELECTING COLOR SYSTEM

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SYSTEM and press the SELECT button. Another dialog box VIDEO SYSTEM Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to "Auto", and then press the

SELECT

button.

The projector automatically detects the incoming Video system, and adjusts itself to optimize its performance. When the Video System is PAL-M or PAL-N, select the system manually.

If the projector cannot reproduce the proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move the arrow to the Mode and press the SELECT button.

This box indicates the system being selected.

Move the arrow to the Mode and press the SELECT button.

This box indicates the system being selected.

Auto

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

The projector automatically detects the incoming Video signal, and adjusts itself to optimize its performance.

If the projector cannot reproduce the proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO SIGNAL FROM VIDEO JACK OR S-VIDEO JACK

VIDEO SIGNAL FROM Y, Pb/Cb, Pr/Cr JACKS

VIDEO MODE

PICTURE IMAGE ADJUSTMENT

Each of the keys operates as follow.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button. Another dialog box PICTURE IMAGE ADJUSTMENT Menu will appear.

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Point to ▼ button to lighten the image, and select ▲ to deepen the image. (From 0 to 63.)

Point to ▼ button to increase purple, and select ▲ to increase green. (From 0 to 63.)

Point to ▼ button to decrease contrast, and select ▲ to increase contrast. (From 0 to 63.)

Point to ▼ button to darken the image, and select ▲ to brighten the image. (From 0 to 63.)

Recalls the data previously adjusted.

Reset

Stores the data in the memory.

Stored

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Quit

Point to ▼ button to soften the image, and select ▲ to sharpen the image. (From 0 to 31.)

Color

Tint

Contrast

Brightness

Sharpness

Move the arrow to the color that you want to adjust. Point to ▼ to lighten the color and select ▲ to deepen the color. (From 0 to 63.)

White balance (Red / Green / Blue)

Set “On” to reduce the noise (rough parts) of the image.

Noise reduction

When selecting “▼,” the custom setting dialog box will appear. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN button, and adjust each value or change the setting On or Off by pressing the SELECT button to match with the image.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT button.

Normal picture level preset on this projector. This picture level can be set by pressing the NORMAL button.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

Picture level adjusted manually in the custom setting dialog box.

Custom

Move the arrow to ▲ or ▼ and press SELECT button.

NOTE : The Noise Reduction cannot be operated

when the video signal is from the Y, Pb/Cb, Pr/Cr jacks. The Progressive cannot be operated when “480p,” “575p,” “720p,” “1035i,” “1080i-50” or “1080i-60” is selected on the SYSTEM MENU (P33).

Move the arrow to the item and press the SELECT button.

Press the SELECT button at “▼” to adjust the picture level manually.

Press the SELECT button to set the function “On” or “Off.”

Set “On” to provide progressive scan mode.

Progressive

The level being selected.

VIDEO MODE

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The "Standard" display will be displayed on the screen for a few seconds.

NORMAL FUNCTION

Standard

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN ADJUSTMENT DISPLAY will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the screen size that you want to set, and then press the

SELECT button.

Normal Video Image size with 4 x 3 aspect ratio.

Resizes the image for wide screen size with 16 x 9 aspect ratio.

Move the pointer to the function and press the SELECT button.

Regular

Wide

Keystone

When the image is distorted vertically, select Keystone in the dialog box. Correct the Keystone distortion by pressing KEYSTONE ▲/▼ button or POINT UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page 20.

NOTE : The Regular and the Wide cannot be

operated when “720p,” “1035i,” “1080i-50” or “1080i-60” is selected on the SYSTEM MENU (P33).

On start

When this function is “On,” the projector is automatically turned on just by switching the MAIN ON / OFF SWITCH on.

Note ; Be sure to turn the projector off properly (refer to the section

“TURNING OFF THE PROJECTOR” on page 20.). If the projector is turned off in the wrong steps, the On Start function does not operate properly.

SETTING

SETTING MENU

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT button. Another dialog box SETTING Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to set, and then press the

SELECT button to set it "On" or "Off" or press the

POINT LEFT/RIGHT button to adjust the value.

Blue back

When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when the input source is unplugged or turned off.

Display

This function decides whether to display the On-Screen Displays.

On1 ···shows all the On-Screen Displays. On2 ···shows the On-Screen Displays except the Preparation

Display (Our Logo).

Off ···· sets the On-Screen Displays disappeared except;

● ON SCREEN MENU

● “Power off?” message

● P-TIMER

Set the Pointer to the item and press the SELECT button.

This function turns the Projection Lamp off when the projector detects signal interruption and the projector is not used for a certain period in order to reduce power consumption and maintain the Lamplife. (This projector is shipped with this function ON.)

Power Management function operates to turn the Projection Lamp off when the input signal is interrupted and the projector is not operated over 5 minutes. This function operates as follows;

1. When the signal is interrupted, “No signal” and the counting down (5 minutes) display appears.

2. When the Projection Lamp turned off, the READY indicator turns off. The Cooling Fans operate for 90 seconds after the Projection Lamp is turned off. (During this "Cooling Down" period, the Lamp cannot be turned on.)

3. When the Lamp has cooled down, the READY indicator flashes and the Lamp can be turned on again (Power Management mode). In this Power Management mode, the Projection Lamp is automatically turned on when the input signal connected or the projector is operated with any button on the Top Control or the Remote Control.

Power management

Time left until Lamp off.

SELECTING LANGUAGE

Press the MENU button and the ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select LANGUAGE and press the SELECT button. Another dialog box LANGUAGE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the language that you want to set, and then press the

SELECT button.

The language used in the ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish and Japanese.

Move the Pointer to the language that you want to set, and then press the SELECT button.

SETTING

Ceiling

When this function is “On,” the top / bottom and the left / right reversed picture is provided to project the image from a ceiling mounted projector.

Rear

When this function is “On,” the left / right reversed picture is provided to project the image to a rear projection screen.

Ceiling function

Rear function

Split wipe

Turn this function “On” in the SETTING menu. The picture will change into next one by sliding black image side ways like drawing the black curtains when the input source is turned into another one.

Remote control

The Lamp age function is designed to reset the lamp replacement monitor timer. When replacing the lamp, reset the lamp replacement monitor timer by using this function. (Refer to page 40.)

Lamp age

This projector has two different remote transmit codes; the factoryset normal code (Mode 1) and the secondary code (Mode 2). This switching function prevents the remote control operation mixture (jam) when operating several projectors or video equipment together. When operating the projector in “Mode 2,” both projector and Remote Control must be switched to “Mode 2.”

To change the code of the projector;

Set the Remote control in the SETTING menu to “Mode 2.”

To change the code of the Remote Control;

Press both the MENU and the NORMAL buttons on the Remote Control together for over 10 seconds.

After changing the code, make sure the Remote Control operates properly. To return to the normal code (Mode 1), operate both projector and Remote Control in the ways above again.

NOTE : When the ALL-OFF switch on the Remote Control Unit is

turned to “ALL-OFF,” the remote transmit code automatically returns to the normal code (Mode 1).

APPENDIX

OPERATING WIRELESS MOUSE

INSTALLATION

The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for most Personal Computers. The POINT buttons and the two CLICK buttons are used for the wireless mouse operation. The wireless mouse is available only when PC mouse pointer is displayed on the screen. When the menu or the indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used.

Connect the mouse port of your computer to the Control Port of the projector with the Control Cable. (Refer to page 11 to 14 for connection.)

Turn the projector on first, and then turn on your computer. When the computer is switched on first, the Wireless Mouse may not work properly.

1 2

To use the Wireless Remote Control Unit as the Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse port of the computer connected to Control Port is activated.

OPERATING WIRELESS MOUSE

When controlling the pointer of the computer, operate the Wireless Mouse with POINT button, SELECT button, and RIGHT CLICK button on the Wireless Remote Control Unit.

Used to move the pointer. The pointer is moved corresponding with the direction you are pressing.

POINT button

This button has the same function as the left button in a PC mouse.

SELECT (LEFT CLICK) button

This button has the same function as the right button in a PC mouse. Pressing this button does not affect any operation when in Menu mode.

RIGHT CLICK button

Note : When the computer has no

mouse port, connect the Serial Port of the computer to Control Port of the projector with the Control Cable for Serial Port.

POINT button (Move the pointer)

SELECT button (left button of the mouse)

RIGHT CLICK button (right button of the mouse)

APPENDIX

MAINTENANCE

TEMPERATURE WARNING INDICATOR

The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops flashing when the temperature of the projector returns to normal. When the TEMPERATURE WARNING Indicator continues to flash, check the items listed below.

The Ventilation slots of the projector may be blocked. In such an event, reposition the appliance so that the ventilation slots are not obstructed.

AIR FILTER CARE AND CLEANING

Air filters may be clogged with dust particles. Clean the air filters by following the section AIR FILTER CARE AND CLEANING below.

1 2

If the TEMPERATURE WARNING Indicator remains on after performing the above checks, the Cooling Fans or the Internal Circuits may be malfunctioning. Contact service a personnel from an authorized dealer or service station.

Turn the power off, and disconnect the AC power cord from the AC outlet.

Turn the projector upside down and remove the Air Filter Cover by pressing four latches sideways and pulling up. Remove three Air Filters by pulling up the latches.

1 2

The Removable Air Filter prevents dust from accumulating on the surface of the Projection Lens and the Projection Mirror. Should the Air Filter become clogged with dust particles, it will reduce the Cooling Fans' effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the Air Filter following the steps below:

Clean the Air Filters with brush or wash out the dust and particles. Be sure to dry them out.

Replace the Air Filters and Air Filter Cover properly. Make sure that they are fully set.

CAUTION

Do not operate the projector with the Air Filter removed. Dust may accumulate on the LCD Panel and the Mirror degrading picture quality. Do not put small parts into the Air Intake Vents. It may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on the liquid crystal panel, lens, or optical elements inside it. This condition may degrade the quality of the projected image. When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

Press the latches sideways and pull up.

Remove three Air Filters by pulling up the latches.

APPENDIX

LAMP REPLACEMENT

When the life of the Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights yellow. When the image becomes dark or the color of the image becomes unnatural, replacement of the Lamp is required.

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

Remove the two screws with a screwdriver and pull out the Lamp Assembly by grasping the handle.

LAMP REPLACEMENT MONITOR TIMER

Replace the Lamp Assembly with a new one and tighten the two screws. Make sure that the Lamp Assembly is set properly. Replace the Lamp Cover and tighten the screw.

Remove the screw with a screwdriver and remove the Lamp Cover.

CAUTION

●For continued safety, replace with a lamp assembly of the same type.

●Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector

can become very hot.

●Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury.

Be sure to reset the Lamp Replacement Monitor Timer when the Lamp Assembly is replaced. When the Lamp Replacement Monitor Timer is reset, the LAMP REPLACEMENT indicator stops lighting.

Turn the projector on, and press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT button (refer to the page 36, 37). Another dialog box SETTING MENU will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to “Lamp age,” and then press the SELECT button. The message "Lamp replace monitor Reset?" is displayed.

Do not reset the Lamp Replacement Monitor Timer, except after the lamp is replaced.

Connect the AC Power Cord to the projector and turn the projector on.

Follow these steps to replace the lamp assembly.

Reset the Lamp Replacement Monitor Timer (refer to the section “Lamp Replacement Monitor Timer” below).

Select [Yes] to reset the Timer.

LAMP ASSEMBLY

HANDLE

LAMP COVER

NOTE : Do not reset the LAMP REPLACEMENT MONITOR

TIMER when the lamp is not replaced.

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering the Lamp, give the following information to the dealer.

● Model No. of your projector : Desktop Projector 9280

● Replacement Lamp Type No. : POA-LMP28 (Proxima Lamp No. : LAMP-025)

(Service Parts No. 610 285 4824)

APPENDIX

CLEANING THE PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

When the projector is not in use, replace the lens cover.

Lightly wipe the cleaning cloth over the lens.

Follow these steps to clean the projection lens:

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check the matters below once again.

1. Make sure you have connected the projector to your equipment as described in the section "CONNECTING THE PROJECTOR" on pages 11 ~ 14.

2. Check cable connection. Verify that all computer, video and power cords are properly connected.

3. Verify that all power is switched on.

4. If the projector still does not produce an image, re-start the computer.

5. If the image sill does not appear, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before you power up the projector. Power the equipment back on in order of : Projector and computer.)

6. If the problem still exists, check the following chart.

No power.

● Plug the projector into the AC outlet.

● Be sure READY Indicator light is On.

● Wait 1 minute after the projector is turned OFF before turning the projector back on.

NOTE : After pressing the power ON-OFF switch to OFF, make sure the projector works

as follows:

1. The LAMP indicator will light and the READY indicator will turn off.

2. After 1 minute, the READY indicator will light green again and the projector may be turned on by pressing the power ON-OFF button.

● Check the TEMPERATURE WARNING indicator. If the indicator flashes red, the projector cannot be turned on. (See "TURNING ON/OFF THE PROJECTOR" section on page 20.)

● Check the Projection Lamp. (Refer to page 40.)

Image is out of focus.

● Adjust the focus

● Make sure the projection screen is at least 4.6’ (1.4m) from the projector.

● Check the projection lens to see if it needs cleaning.

NOTE : Moving the projector from a cool temperature location to a warm temperature

location may result in moisture condensation on the lens. In such an event, leave the projector OFF and wait until condensation disappears.

Picture is Left/Right reversed.

● Check Ceiling / Rear feature. (See “SETTING” section on page 36.)

Problem: Try these Solutions

Picture is Top/Bottom reversed.

● Check Ceiling feature. (See “SETTING” section on page 36.)

Some displays are not seen during the Operation.

● Check Display feature. (See “SETTING” section on page 36.)

No image.

● Check the connection between the computer or video equipment and the projector.

● When turning the projector on, it takes about 30 seconds to display the image.

● Check the system that you select is corresponding with the computer or the video

equipment.

● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

No sound.

● Check audio cable connection from audio input source.

● Adjust the audio source.

● Press VOLUME (+) button.

● Press MUTE button.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

APPENDIX

WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet.

If the problem still persists

after following all operating instructions,

contact the sales dealer where you

purchased the projector or the service center.

Give the model number and explain the difficulty. We will advise

you how to obtain service.

Remote Control Unit does not work.

● Check the batteries.

● Check the ALL-OFF switch on the Remote Control Unit is set to “ON.”.

● Make sure nothing is between the Remote Receiver and the Remote Control Unit.

● Make sure you are not too far from the projector when using the Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Make sure the code of the Remote Control is set to conform to the projector.

(See “SETTING” section on page 36, 37.)

Problem: Try these Solution

Wireless Mouse function does not work.

● Check the cable connection between the projector and the computer.

● Check the mouse setting on your computer.

● Turn the projector on before you turn on the computer.

APPENDIX

1.3" TFT Active Matrix type, 3 panels

TECHNICAL SPECIFICATIONS

Desktop Projector 9280

20.3 lbs (9.2 kg)

12.44" x 6.57" x 18.9" (316mm x 167mm x 480mm)

1024 x 768 dots 2,359,296 (1024 x 768 x 3 panels) PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz Adjustable from 31” to 400” 700 TV lines

2 speakers, 1.57" x 2.76" (40mm x 70mm)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C) 14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Owner’s Manual AC Power Cord Wired/Wireless Remote Control Transmitter and Batteries VGA Cable MAC Adapter Control Cable for PS/2 port Control Cable for Serial port Control Cable for ADB port Video Cable (RCA x 3) S-VIDEO Cable Audio Cable (RCA x 2 - Mini plug (stereo)) Remote Control Cable Dust Cover Lens Cover

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency Projection Image size

(Diagonal)

Horizontal Resolution

Built-in Speakers

Operating Temperature Storage Temperature

Accessories

LCD Panel System

● The specifications are subject to change without notice.

F 1.8 ~ 2.1 lens with f 48.4 mm ~ 62.5 mm with motor zoom, focus and shift

4.6’ ~ 47.2’ (1.4 m ~ 14.4 m) 250 W RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)

Projection Lens Throw Distance Projection Lamp AV Input Jacks

RCA Type x 2

AV Audio Input Jacks

(VGA) HDB 15 Terminal x 1, DVI 24 pin x 1, and BNC jack x 5 Mini Jack (stereo) x 2 Mini DIN 8 pin x 2

RCA Type x 2

2.0 W RMS (stereo)

Computer Input Jacks Computer Audio Input Jacks Control Port Jacks

Audio Output Jacks Internal Audio Amp

0˚ to 9.0˚

Feet Adjustment

Power Source : AA, UM3 or R06 Type x 2 Operating Range : 16.4’ (5m) / ±30˚ Dimensions : 2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm) Net Weight : 0.36 lbs (165 g) (including batteries) Laser Pointer : Class II Laser

(Max. Output : 1mW / Wave length : 650±20nm)

Remote Control Transmitter

480i, 480p, 575i, 575p, 720p, 1035i, 1080i-50 and 1080i-60

High Definition TV Signal

BNC jack x 5 (Computer) and RCA Type x 1(Video)

Monitor Output Jacks

AC 100 ~ 120 V (4.4 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (2.2 A Max. Ampere), 50 / 60 Hz

(Continental Europe and The U.K.)

Voltage and Power Consumption

APPENDIX

CONFIGURATIONS OF THE TERMINALS

COMPUTER INPUT-1 TERMINAL (ANALOG)

Terminal : HDB15-PIN

Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied). When connecting the Macintosh computer, the MAC Adapter (supplied) is required.

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

No Connect

Horiz. sync.

Ground (Vert.sync.)

Sense 1

Sense 0

Vert. sync. Reserved

14 15

Pin Configuration

Terminal : Mini DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this terminal with the Control Cable (supplied).

Pin Configuration

CONTROL PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial ADB 1 2 3 4 5 6 7 8

COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal : DVI 24-pin

Connect the display output terminal of the computer to this terminal with the DVI cable (not supplied).

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data No Connect

6 7 8

Pin Configuration

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

MAC ADAPTER

Set the switches as shown in the table below depending on the RESOLUTION MODE that you want to use before you turn-on the projector and computer.

13” MODE (640 x 480) 16” MODE (832 x 624) 19” MODE (1024 x 768) 21” MODE (1152 x 870)

OFF OFF

ON ON ON ON

OFF OFF

ON ON

OFF

OFF OFF OFF OFF

1 2 3 4 5 6

9 678

8 7 6

OFF

2 3 4 5 6

DIP

10 / 2000 610 xxx xxxx (1AA6P1Pxxxx-- MM6F)

Printed in Japan

Part No. 710-00861

For Americas: Proxima Corporation

9440 Carroll Park Drive San Diego, CA 92121

Ph: (858) 457-5500

(800) 447-7692 (U. S. and Canada.)

Fax. (858) 457-9647 www.proxima.com <http://www.proxima.com>

For Europe, Asia, Africa, Australia: ASK Proxima ASA

K. G. Meldahlsvei 9 Postboks 1403 N-1602 Fredrikstad tel. +47-69 34 01 55 fax. +47-69 34 06 32

Technical Support & Service Horsterweg 24 6191 RX Beek The Netherlands tel. +31-43 358 5210 fax. +31-43 358 5202

Proxima Corporation warrants that the Proxima® Multimedia Projector product manufactured by Proxima is free from defects in materials and workmanship under normal use during the Warranty Per iod. The Warranty Period commences on the day of purchase by the end-user. The Warranty Period is two years. The projector lamp is not covered by this Warranty. Each Proxima product is manufactured from new parts, or new and some used parts. In some cases, the product may have been delivered to another end-user and then returned. In all cases, the product has undergone testing and quality inspection, and Proxima's full warranty terms apply. The end-user's sales receipt or invoice showing the date of purchase of the product and the name of the Reseller is proof of the date of purchase. The Warranty extends only to the original purchaser and is not transferable. During the Warranty Per iod, Proxima will, at no additional charge, repair or replace defective parts or at the option of Proxima, replace the entire unit. This Limited Warranty does not extend to any Proxima product that has been damaged or been rendered defective (a) as a result of accident, misuse, or other abuse; (b) by the use of parts not manufactured or sold by Proxima; or (c) by modification of the product; or (d) as a result servicing by non-authorized personnel.

Warranty

Limitation of Warranties

The foregoing warranty is expressly in lieu of any other express or implied warranties, including, without limitation, warranties of merchantability or fitness for a particular pur pose. To the extent not prohibited by law, all statutor y warranties are hereby waived and excluded from this warranty. Proxima expressly disclaims all warranties not stated in this Limited Warranty.

Ask Proxima DP9300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
