Ask Proxima C170 User Manual

> > > >> >>

User’s
Guide

WARNING: The power cord and cables associated

with this product contain lead, a chemical

known to the state of California to cause bir th

defects or other reproductive harm. Wash

hands after handling.

WARNING: This product has a lamp which

contains a very small amount of mercury.

Dispose of it as required by local, state, or

federal ordinances and regulations. For more

information, see www.eiae.org

qЬбл=ЙенбкЙ=млЙкЫл=ЦмбЗЙ=бл=~о~бд~ДдЙ=зе=нЬЙ=ЙеЕдзлЙЗ=`a=~л=~е=^ЗзДЙ=^ЕкзД~н=йЗС=СбдЙ=бе=нЬЙ=СзддзпбеЦ=д~еЦм~ЦЙлW=aмнЕЬI=bеЦдблЬI=cкЙеЕЬI=dЙкг~еI=fн~дб~еI=kзкпЙЦб~еI=
mзкнмЦмЙлЙI=pй~еблЬI=oмллб~еI=g~й~еЙлЙI=hзкЙ~еI=qк~Збнбзе~д=`ЬбеЙлЙI=pбгйдбСбЙЗ=`ЬбеЙлЙK=_ЙСзкЙ=млбеЦ=нЬбл=йкзаЙЕнзкI=йдЙ~лЙ=кЙ~З=нЬЙлЙ=белнкмЕнбзелK=

aЙтЙ=Ь~еЗдЙбЗбеЦ=бл=бе=тбае=ЦЙЬЙЙд=ДЙлЕЬбвД~~к=зй=ЗЙ=ДбаЦЙозЙЦЗЙ=ЕЗ=бе=ЗЙ=озкг=о~е=ЙЙе=йЗСJДЙлн~еЗ=E^ЗзДЙ=^ЕкзД~нFI=Йе=пЙд=бе=ЗЙ=оз дЦЙеЗЙ=н~дЙеW=bеЦЙдлI=cк~елI=
aмбнлI=fн~дб~~елI=kззклI=mзкнмЦЙЙлI=pй~~елI=k ЙЗЙкд~еЗлI=oмллблЕЬI=g~й~елI=hзкЙ~~елI=нк~ЗбнбзеЙЙд=`ЬбеЙЙлI=оЙкЙЙеозмЗбЦЗ=`ЬбеЙЙлK=iЙЙл=зеЗЙклн~~еЗЙ=белнкмЕнбЙл=
оззкЗ~н=м=ЗЙтЙ=йкзаЙЕнзк=ЦЙДкмбвнK

iЙ=гзЗЙ=ЗDЙгйдзб=ЕзгйдЙн=Йлн=ЗблйзебДдЙ=лмк=дЙ=`a=азбен=лзмл=СзкгЙ=ЗЙ=СбЕЬбЙк=йЗС=ЗD^ЗзДЙ=^ЕкзД~н=З~ел=дЙл=д~еЦмЙл=лмбо~енЙл=W=Ьздд~еЗ~блI=~еЦд~блI=Ск~е´~блI=
~ддЙг~еЗI=бн~дбЙеI=езко¨ЦбЙеI=йзкнмЦ~блI=Йлй~Ц ездI=кмллЙI=а~йзе~блI=Езк¨ЙеI=ЕЬбезбл=нк~ЗбнбзееЙдI=ЕЬбезбл=лбгйдбСб¨K=^о~ен=ЗDмнбдблЙк=ЕЙ=йкзаЙЕнЙмкI=оЙмбддЙт=дбкЙ=
ЕЙл=белнкмЕнбзелK=

aбЙ=озддлн®еЗбЦЙ=_ЙемнтЙк~едЙбнмеЦ=блн=~мС=ЗЙк=бг=iбЙСЙкмгС~еЦ=ЙенЬ~днЙеЙе=`a=~дл=^ЗзДЙ=^ЕкзД~н=macJa~нЙб=бе=ЗЙе=СздЦЙеЗЙе=pйк~ЕЬЙе=оЙкСΩЦД~кW=kбЙЗЙкд®еЗблЕЬI=
bеЦдблЕЬI=cк~ет∏лблЕЬI=aЙмнлЕЬI=fн~дбЙеблЕЬI=kзкпЙЦблЕЬI=mзкнмЦбЙлблЕЬI=pй~еблЕЬI=oмллблЕЬI=g~й~еблЕЬI=hзкЙ~еблЕЬI=qк~ЗбнбзеЙддЙл=`ЬбеЙлблЕЬ=меЗ=sЙкЙбеС~ЕЬнЙл=`ЬбеЙJ
лблЕЬK=_бннЙ=дЙлЙе=pбЙ=ЗбЙлЙ=^епЙблмеЦЙе=озк=ЗЙк=sЙкпЙеЗмеЦ=ЗЙл=mкзаЙвнзклK=

i~=йкЙлЙенЙ=ЦмбЗ~=≠=ЗблйзебДбдЙ=лмд=`a=~ддЙЦ~нзI=ЕзгЙ= СбдЙ=^ЗзДЙ=^ЕкзД~н=йЗСI=еЙддЙ=лЙЦмЙенб=дбеЦмЙW=зд~еЗЙлЙI=беЦдЙлЙI=Ск~еЕЙлЙI=нЙЗЙлЕзI=бн~дб~езI=езкоЙЦЙлЙI=
йзкнзЦЬЙлЙI=лй~ЦездзI=кмллзI=Цб~ййзеЙлЙI=ЕзкЙ~езI=ЕбеЙлЙ=нк~Збтбзе~дЙ=Й=Еб еЙлЙ=лЙгйдбСбЕ~нзK=mкбг~=Зб=мл~кЙ=имЙлнз=йкзбЙннзкЙI=дЙЦЦЙкЙ=дЙ=лЙЦмЙенб=блнкмтбзебK=

eЙдЙ=ЗЙееЙ=ДкмвЙкЬ™еЗДзвЙе=СбееЙл=й™=ЗЙе=оЙЗд~ЦнЙ=`aJЙе=л зг=Йе=^ЗзДЙ=^ЕкзД~н=йЗСJСбд=й™=С›дЦЙеЗЙ=лйк™вW=kЙЗЙкд~еЗлвI=ЙеЦЙдлвI=Ск~елвI=нулвI=бн~дбЙелвI=езклвI=
йзкнмЦблблвI=лй~елвI=кмллблвI=а~й~елвI=взкЙ~елвI=нк~Зблаз еЙдд=зЦ=СзкЙевдЙн=вбеЙлблвK=iЙл=Зблл=~еоблебеЦЙеЙ=С›к=йкзаЙвнзкЙе=н~л=б=ДкмвK=

bлнЙ=Цмб~=Зз=млм•кбз=ЕзгйдЙнз=Йлн•=Зблйзе∞ оЙд=ез=`a=~еЙсзI=Езгз=мг=~кимбоз=йЗС=Зз=^ЗзДЙ=^ЕкзД~н=езл=лЙЦмбенЙл=бЗбзг~лW=Ьзд~еЗ ЖлI=беЦдЖлI=Ск~еЕЖлI=~дЙг©зI=
бн~дб~езI=езкмЙЦмЖлI=йзкнмЦмЖлI=Йлй~еЬздI=кмллзI=а~йзеЖлI =ЕзкЙ~езI=ЕЬб еЖл=нк~ЗбЕбзе~дI=ЕЬбеЖл=лбгйдбСбЕ~ЗзK=^енЙл=ЗЙ=мнбдбт~к=ЙлнЙ=йкзаЙнзкI=дЙб~=Йлн~л=белнкм´πЙлK=

bлнЙ=г~ем~д=ЗЙ=млз=Йлн•=ЗблйзебДдЙ=Йе=лм=нзн~дбЗ~З=Йе=Йд=`a=беЕдмбЗзI=Езгз=~кЕЬбоз=йЗС=ЗЙ=^ЗзДЙ=^ЕкзД~нI=Йе=дзл=лбЦмбЙенЙл=бЗбзг~лW=Ьзд~еЗ¨лI=беЦд¨лI=Ск~еЕЙлI=
~дЙг•еI=бн~дб~езI=езкмЙЦзI=йзкнмЦмЖлI=Йлй~¥здI=кмлзI =а~йзе¨лI=ЕзкЙ~езI=ЕЬбез=нк~ЗбЕбзе~дI=ЕЬбез=лбгйдбСбЕ~ЗзK=^енЙл=ЗЙ=мл~к=Йд=йкзуЙЕнзкI=дЙ~=Йлн~л=белнкмЕЕбзеЙлK

Данное руководство пользователя в полном объеме представлено на прилагаемом компакт-диске в виде pdf-файла Adobe Acrobat на следующих языках:
английском, голландском, французском, немецком, итальянском, норвежском, португальском, испанском, русском, японском, корейском, традиционном и
упрощенном китайском. Перед использованием проектора, прочитайте данные инструкции.

このユーザーズ=ガイドは、プロジェクタに付属している `a に ^ÇçÄÉ=^ÅêçÄ~í の mac ファイル形式として収録されています。次の言語のユーザーズ=ガイドをご利用いただ
けます。オランダ語、英語、フランス語、ドイツ語、イタリア語、ノルウェー語、ポルトガル語、スペイン語、ロシア語、日本語、韓国語、簡体中国語、繁体中国語。この

プロジェクタを使用する前に、ユーザーズ=ガイドを必ずお読みください。

동봉된 CD 에는 Adobe Acrobat PDF 파일 형식의 사용 설명서가 : 네델란드어 , 영어 , 프랑스어 , 독일어 , 이탈리아어 , 노르웨이어 , 포르투갈어 , 스페인어 , 러시아어 ,
일본어 , 한국어 , 중국어 ( 번체 및 간체 ) 로 제공됩니다 . 프로젝터를 사용하기 전에 다음 지침을 읽으십시오 .

附带的 CD 上有 Adobe Acrobat pdf 格式的整本 《使用者指南》，包括下列各种语言版本：荷兰文、英文、法文、德文、意大利文、挪威文、葡萄牙文、西班牙文、俄文、日文、
韩文、繁体中文、简体中文。请在使用投影仪之前先阅读这些说明。

所附的光碟片上，有 Adobe Acrobat (PDF) 格式的這本 《使用者手冊》；所提供的不同語言版本包括：荷蘭文、英文、法文、德文、意大利文、挪威文、葡萄牙文、西班牙文、
俄文、日文、韓文、繁體中文，以及簡體中文。開始使用本投影機之前，請先詳細閱讀這些說明。

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon
97070 USA
European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands
We declare under our sole responsibility that this projector conforms to the following
directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024

EN 61000-3-2

EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 2000

May, 2004

Trademarks

Apple, and Macintosh are trademarks or registered trademarks of Apple Computer,
Inc. Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered
trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or regis­tered trademarks of Adobe Systems Incorporated. InFocus, ASK Proxima, LiteShow,
LitePort, and LP are trademarks or registered trademarks of InFocus Corporation.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro­vide reasonable protection against harmful interference when the equipment is oper­ated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruc­tion manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, TUV, GOST
Other specific Country Approvals may apply, please see product certification label.

This user’s guide applies to models C170 and GEN205.

InFocus reserves the right to alter product offerings and specifications at any time.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.

2

Table of Contents

Introduction 5
Connecting a computer 7

Required computer connections 7

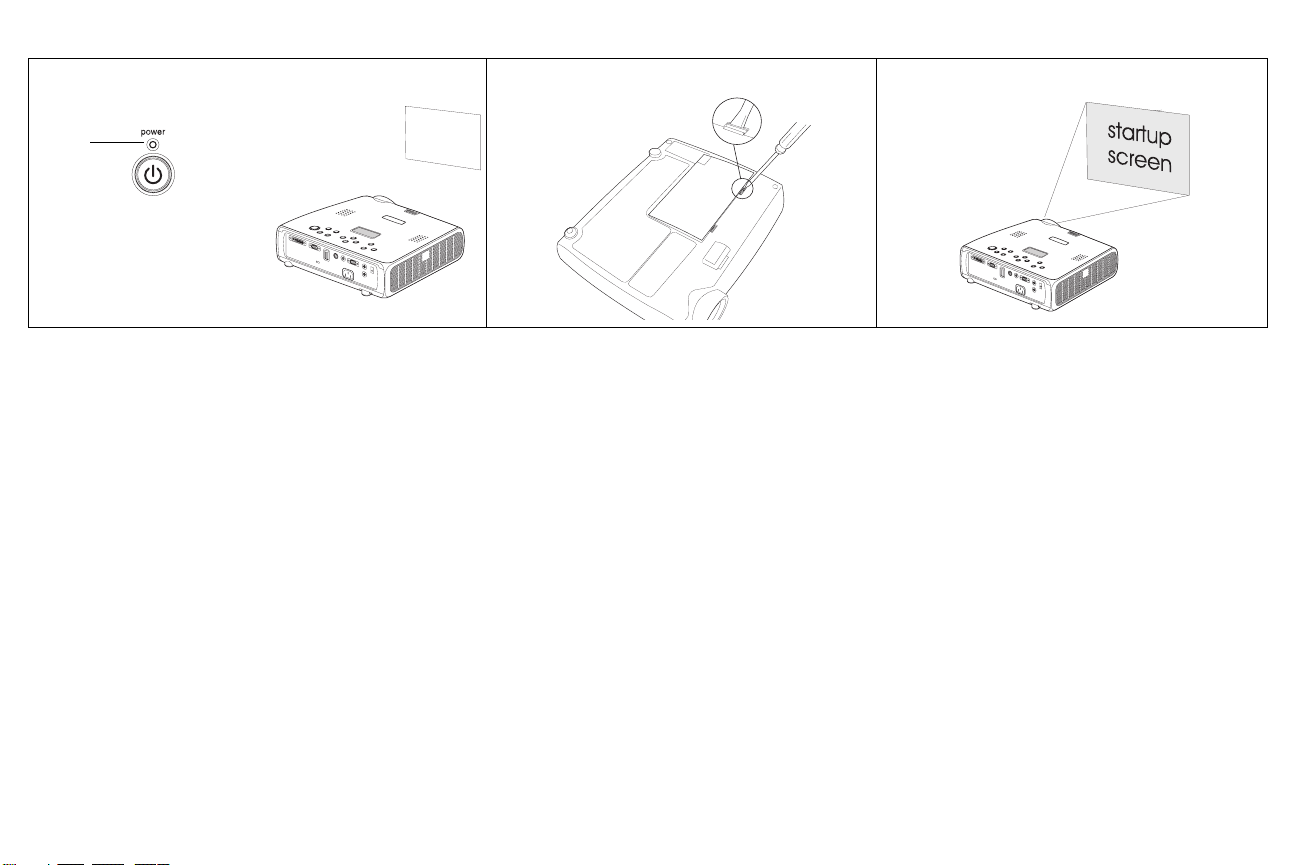

Displaying a computer image 9

First-time projector use with Windows 98 10

Adjusting the image 12
Connecting a video device 13
Displaying a video image 14

Shutting down the projector 16

Troubleshooting your setup 16

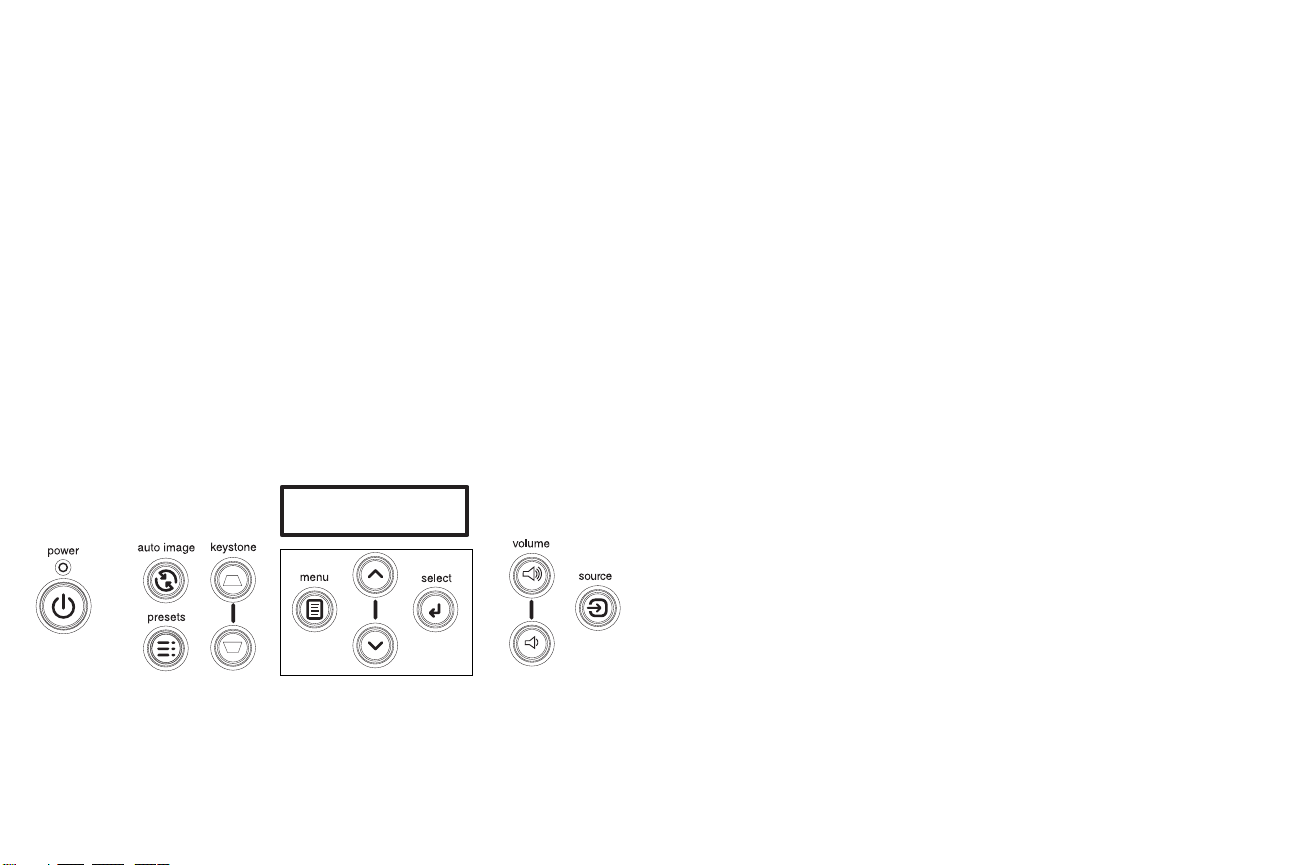

Using the keypad buttons 25
Using the remote control 26
Using the LitePort player 27
Using the audio 28

Optimizing computer images 29
Presentation features 29
Optimizing video images 29
Customizing the projector 29

If you are experienced in setting up presentation systems, use the included
Quick Set Up card. For complete details on connecting and operating the
projector, refer to this User’s Guide. Electronic versions of this User’s Guide
in multiple languages are available on the included CD and on our website.
The most current versions can be found on our website.

The website also has technical specifications (an interactive image size cal­culator, laptop activation commands, connector pin outs, a glossary, the
product data sheet), a web store to buy accessories, and a page for online
registration. See the inside of the back cover for a list of all relevant web
addresses.

Using the menus 30

Picture menu 31

Settings menu 34

Maintenance 39

Cleaning the lens 39

Using the security lock 39

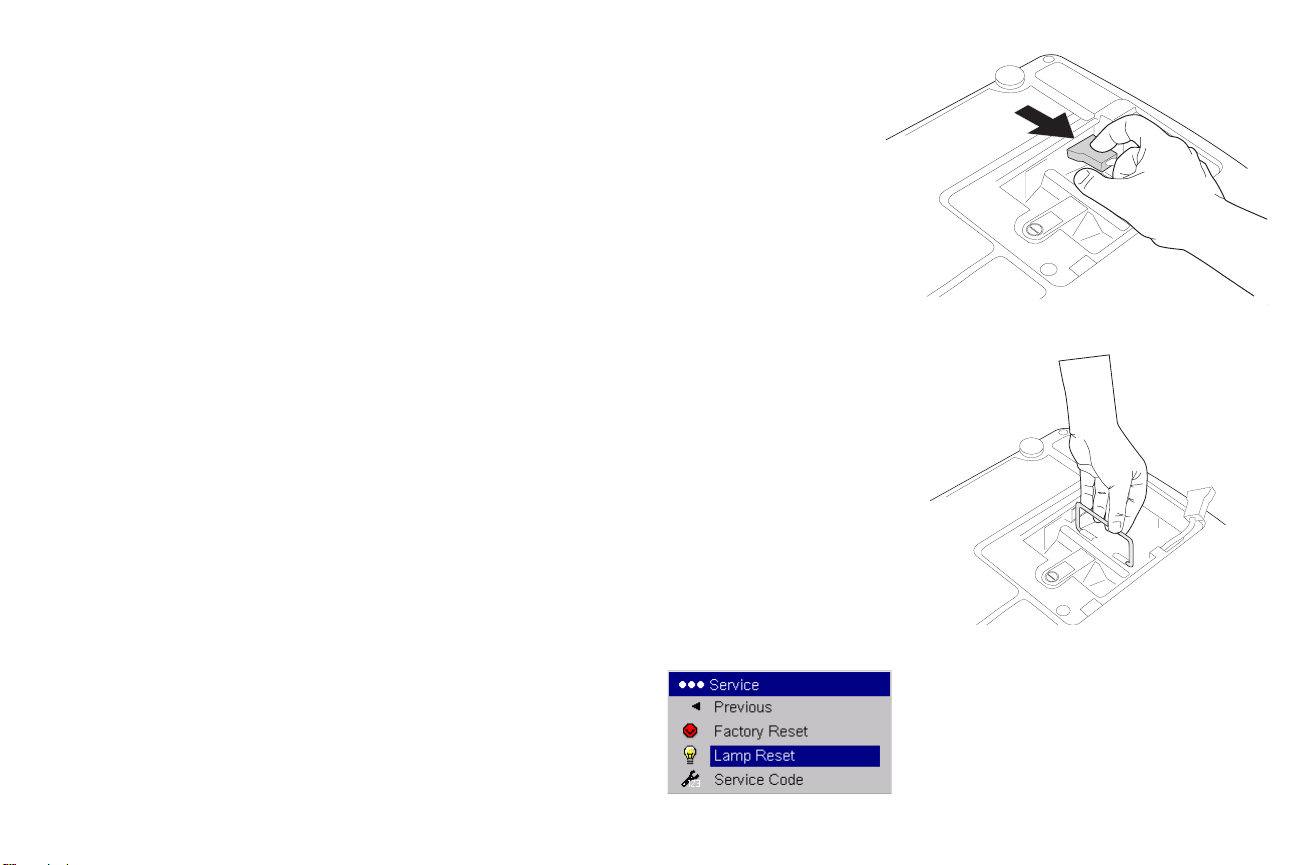

Replacing the projection lamp 40

Cleaning the lamp filter screens 42

Appendix 43

Accessories 43

Red LED behavior and projector errors 44

Projected image size 44

3

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or
other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this manual for proper startup and shutdown procedures.

• In the unlikely event of the lamp rupturing, discard any edible items

placed in the surrounding area and thoroughly clean the area along all
sides of the projector. Wash hands after cleaning the area and handling
the ruptured lamp. This product has a lamp which contains a very
small amount of mercury. Dispose of it as required by local, state or fed­eral ordinances and regulations. For more information see

www.eiae.org

.

Follow these instructions to help ensure image quality and lamp life over
the life of the projector. Failure to follow these instructions may affect the
warranty. For complete details of the warranty, see the Warranty section at
the end of this user's guide.

Do not place objects or people in the 2 foot (.6m) area along the side of the projector.
For ceiling mount applications, this area should be 5 feet (1.5m).

2 ft (.6m)

5 ft (1.5m)

4

Introduction

Your new digital projector provides computer and video inputs and has
XGA 1024x768 resolution. The projector is easy to connect, easy to use, and
easy to maintain. An Interactive Display on the top of the projector gives
you constant feedback on the status of the projector.

Online Registration

Register your projector on our website to receive product updates,
announcements, and registration incentives. See the inside of the back cover
for the web address.

Included items

carry case

Projector components and features

remote
control
receiver (IR)

elevator foot release

focus

keypad

speaker

zoom

projector

lens cap

lens cap tether*

computer
cable

*The lens cap tether ships in the Documentation Pack. Attach it to the lens cap and
the projector if desired.

remote

video cable

documentation

audio cable
adapter

audio cable

power
cable

5

Interactive display

connectors

leveling
foot

IR receiver

heat vent

IR receiver

Connector Panel

The projector provides computer and video connectors:

• one M1-D/A (HD, DVI, and computer)

• one VESA (HD, HD component, and computer)

• one S-video

• one composite RCA video

• one audio in/one audio out

It also has an RS-232 serial connector for serial control. The Command Line
Interface (CLI) specifications and commands are on our website.

TM

The projector also has a LitePort
JPEG (Joint Photographic Experts Group, .jpg, .jpe, or .jpeg) images. This
allows you to display any JPEG image automatically, without a computer
connected. Use your own JPEGs from your digital camera, or convert your



files, such as Microsoft

PowerPointTM, WordTM, or ExcelTM files, into
JPEGs using LitePort Utility (included on the CD), which allows you to eas­ily generate the highest quality JPEG images possible. Then transfer the
JPEG images from your computer to the projector using a USB mass storage
device and your images are ready to be displayed. (Please refer to the Ser­vice and Support section of our website for advanced specifications on the
USB device and JPEG files.) You can use the remote control to select which
JPEGs to view (page 27) or you can set up the LitePort player using the Lite­Port onscreen menu to select display preferences and automatically display
and advance your JPEGs (page 36).

USB connector (Type A) and player for

Connector panel

M1-D/A
computer

VESA in/
monitor out

USB JPEG

s-video

composite
video

RS-232 serial control

power
connector

lock

audio

external
speaker
(audio out)

Wireless Projection

You can use the projector’s M1 connector along with the InFocus

LiteShow
Contact an authorized InFocus dealer or visit the website listed on the back
inside cover of this User’s Guide for more information.



wireless adapter and software for cable-free digital projection.

6

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector
on the projector. Connect the blue end to the video port on your computer. If
you are using a desktop computer, you first need to disconnect the monitor
cable from the computer’s video port.
Some Macintosh computers do not have a standard VESA-out video port.
If the supplied computer cable will not connect to your computer, purchase
the appropriate adapter from your Apple reseller.

Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

connect computer cable

connect power cable

Optional computer connections

To advance slides in a PowerPoint™ presentation using the remote, plug the
USB connector on the computer cable into the USB mouse connector on
your computer. USB drivers must be installed to use the USB feature. For
more information, see page 11.

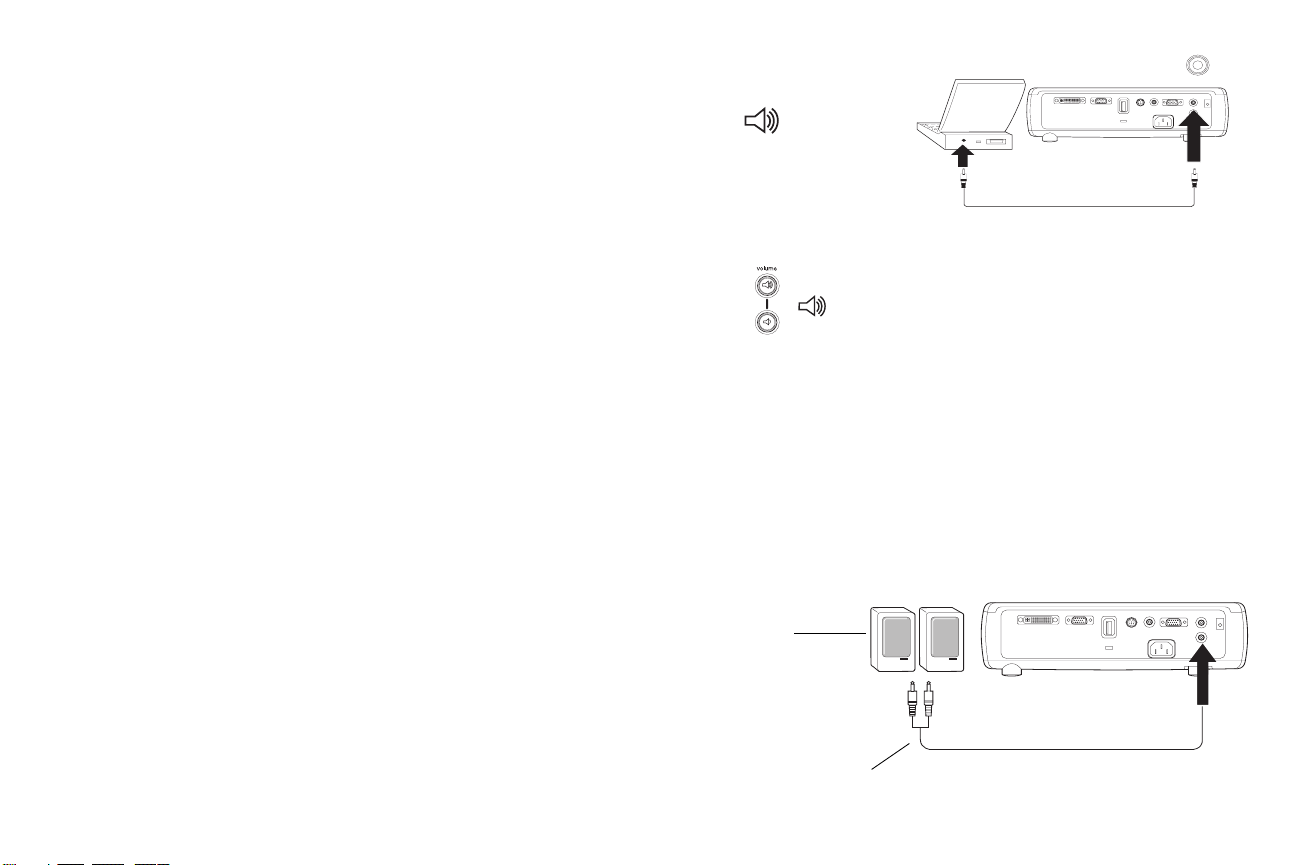

To have sound with your presentation, connect the audio cable to your com­puter and to the Audio In connector on the projector.

connect computer cable

connect audio cable

7

If you are using a desktop computer and want to see the image on your
computer screen as well as on the projection screen, plug the monitor cable
to the black Computer 2 connector on the projector. This connector can be
used as monitor out or VESA in. The default is VESA in, so you must
change this option in the menu to use monitor out. See page 34 to switch
between the two functions.

If you prefer connecting your projector to your computer with an optional
VESA cable, connect one end of the cable to the VESA port on your com­puter, and connect the other end of the cable to the blue Computer 2 con­nector on the projector.

This connector can be used as monitor out or VESA in. The default is VESA
in.

You can control the projector from an LCD control panel or computer by
connecting an RS-232 cable to the projector’s Serial Control connector. Spe-
cific RS-232 commands can be found in the Service and Support section of
our website.

connect monitor cable

connect VESA cable

connect RS-232 cable

You can play JPEGs using the LitePort USB connector and LitePort player.
You need a USB mass storage device to use this connector. See page 27 for
details.

connect USB mass storage device

8

Displaying a computer image

Remove the lens cap.

remove lens cap

Press the Power button on the top of the projector or the remote.

The LED flashes green and the fans start to run. When the lamp comes on,
the startup screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness. The Interactive Display on
the projector indicates the startup status.

? No startup screen? Get help on page 17.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,
press the Source button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a
projector is connected. Usually a key combination like FN + F8 or CRT/LCD
key turns the external display on and off. Locate a function key labeled
CRT/LCD or a function key with a monitor symbol. Press FN and the
labeled function key simultaneously. Refer to your laptop’s documenta-

tion to learn your laptop’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 17.

press Power button

turn on computer

activate laptop’s external port

9

First-time projector use with Windows 98

If you are running Windows 2000, Windows ME, or Window XP, skip these
steps and go to “Adjusting the image” on page 12.

The first time you connect a computer running Windows 98 to the projector,
the computer recognizes the projector as “new hardware” and the Add
New Hardware Wizard appears. Follow these instructions to use the Wiz­ard to load the correct driver (which was installed with your Windows
operating system).

a Click Next to begin searching for the driver.

b Make sure “Search for the best driver” is selected, then click Next.

c Uncheck any checked boxes, then click Next. Windows automatically

locates the driver. If this driver has been removed, reload the driver using
your Windows operating system CD.

a

b

c

d When Windows finds the driver, you are ready to install it. Click Next.

d

10

Skip this page if you did not connect the USB portion of the M1 com­puter cable

For Windows 98:

• If you connected the USB cable, the Add New Hardware Wizard

appears again. Drivers must be installed to use the USB functionality.

• The Wizard launches two times.

The first time it detects a USB Human Interface Device (for the key­board).

The second time it detects a USB Human Interface Device (for the
mouse).

For Windows 2000, Windows ME, and Windows XP:

• The USB drivers are automatically installed.

11

Adjusting the image

l

Adjust the height of the projector, if necessary, by pressing the release but­ton to extend the elevator foot.

Rotate the leveling foot (located at the bottom back right corner), if neces­sary.

Position the projector the desired distance from the screen at a 90 degree
angle to the screen.

See page 44 for a table listing screen sizes and distances.

adjust height

elevator
foot

adjust distance

re

ease button

rotate
leveling
foot

Adjust the zoom or focus rings by rotating them until the desired image size
and focus are produced.

The projector has an Auto Keystone option that is turned on by default. But
if the image is not square, adjust the vertical digital keystone by using the
buttons on the keypad. Press the upper Keyston e button to reduce the
upper part of the image, and press the lower Keystone button to reduce the
lower part.
You can also adjust the keystone via the menus, or turn off Auto Keystone.
See page 31.

Adjust the Contrast or Brightness in the Picture menu.

See page 30 for help with the menus.

adjust zoom and focus

zoom

focus

adjust keystone

adjust Contrast or Brightness

contrast

brightness

12

Connecting a video device

Standard video connections

Plug the video cable into the video-out connector on the video device. Plug
the other yellow connector into the yellow Video 2 connector on the projec­tor.

Plug the white connector of the audio adapter into the left audio out con­nector on the video device and plug the red connector into the right audio
out connector on the video device.

Plug the audio cable into the other end of the audio cable adapter and into
the audio in connector on the projector.

connect video and audio cables

Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.

NOTE: Always use the power cable that shipped with the projector.

Optional video connections

If the video device uses a round, four-prong S-video connector, plug an
S-video cable (sold separately) into the S-video connector on the video
device and into the S-Video 1 connector on the projector. Use the audio con­nectors as described directly above.

To connect a progressive scan EDTV or HD source, use the Component to
M1 adapter (sold separately).

connect power cable

connect S-video and audio cables

13

Displaying a video image

Remove the lens cap.

remove lens cap

Press the Powe r button on the top of the projector or the remote.
The LED flashes green and the fans start to run. When the lamp comes on,
the startup screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness. The Interactive Display on
the projector indicates the startup status.

? No startup screen? Get help on page 16.

Plug in and turn on the video device.

The video device’s image should appear on the projection screen. If it
doesn’t, press the Source button on the keypad.

Adjust the height of the projector by pressing the release button to extend
the elevator foot. Rotate the leveling foot, if necessary.

Position the projector the desired distance from the screen at a 90 degree
angle to the screen. See page 44 for a table listing screen sizes and distances
to the screen.

press Power button

turn on video device

adjust height

elevator
foot

adjust distance

release button

rotate
leveling
foot

14
