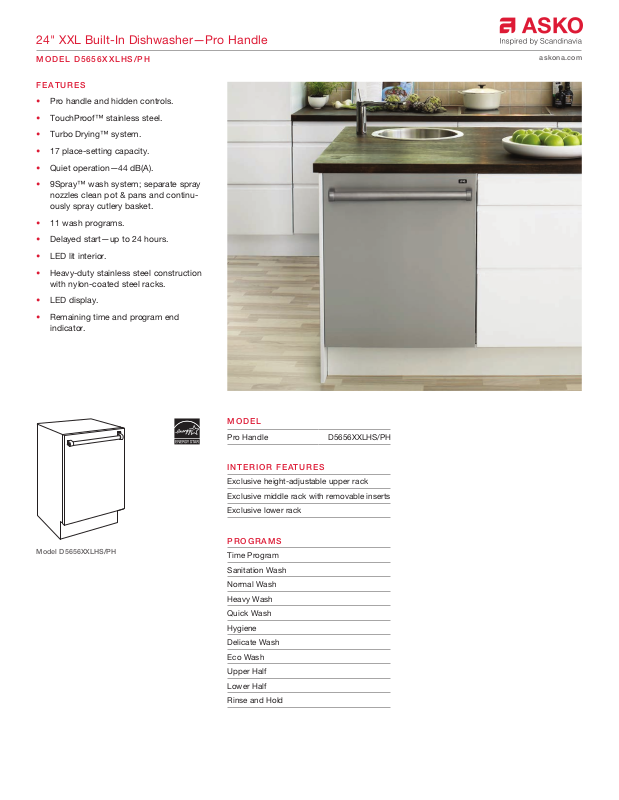

Asko D5656XXLPH Specification Sheet
24" XXL Built-In Dishwasher—Pro Handle
MODEL D5656XXLHS/PH
FEATURES
• Pro handle and hidden controls.
• TouchProof™ stainless steel.
• Turbo Drying™ system.
• 17 place-setting capacity.
• Quiet operation—44 dB(A).
• 9Spray™ wash system; separate spray
nozzles clean pot & pans and continuously spray cutlery basket.
• 11 wash programs.
• Delayed start—up to 24 hours.
• LED lit interior.
• Heavy-duty stainless steel construction
with nylon-coated steel racks.
• LED display.
• Remaining time and program end
indicator.
askona.com
Model D5656XXLHS/PH
MODEL
Pro Handle D5656XXLHS/PH
INTERIOR FEATURES
Exclusive height-adjustable upper rack
Exclusive middle rack with removable inserts
Exclusive lower rack
PROGRAMS
Time Program
Sanitation Wash
Normal Wash
Heavy Wash
Quick Wash
Hygiene
Delicate Wash
Eco Wash
Upper Half
Lower Half
Rinse and Hold
24" XXL Built-In Dishwasher—Pro Handle
*D
SIDE
NOTE:
W
OPENING WIDTH
341/2"
(876)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.
31/2" (89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W
W
OPENING WIDTH
24" (610)
OPENING
DEPTH
TOP VIEW
MODEL D5656XXLHS/PH
askona.com
SPECIFICATIONS
PRODUCT
Width 237/8"
Height 34"– 353/4"
7
Depth 22
Door Clearance 24
/8"
5
/8"
Weight 115 lb
MAX LOADING HEIGHT
Upper Rack 9"
Lower Rack 111/2"
ELECTRICAL
Supply 115 VAC, 60 Hz
Service 15 amp circuit
PLUMBING
Supply
1
/4" OD copper, braided
stainless steel or PEX tubing
Pressure
4.2–140 psi
Electrical supply, plumbing supply and drain
should be located in an adjacent cabinet. If
not, they must be located within the shaded
area shown in the illustrations.
Specifications are subject to change without
notice. Visit askona.com/specs for the most
up-to-date information.
Dimensions may vary ±
1
/8" (3). Dimensions in
parentheses are millimeters unless otherwise
specified.
DIMENSIONS
237/8" (606)
34" (864)
353/4" (908)
OPEN DOOR
imension will vary with product height.
23/8"
H
TO
245/8"
(625)
(60)
4" (102)*
227/8" (581)
3"
(76)
53/8"
(137)
ELECTRICAL
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
PLUMBING
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
53/8"
(137)
53/8"
(137)
INSTALLATION
341/2"
(876)
OPENING
HEIGHT
VIEW FRONT VIEW
31/2"
(89)
finished returns will be visible and should be finished to match cabinetry.
OPENING WIDTH
24" (610)
OPENING
DEPTH
TOP VIEW
24" (610)
W
31/2" (89)
FINISHED
RETURN
24"
W
(610)
FRAMELESS CABINETRY
31/2" (89)
FINISHED
RETURN
24"
W
(610)
FRAMED CABINETRY
TYPICAL
FILLER
3
(19)
/4"
©Asko, Inc. all rights reserved. 3/2016
