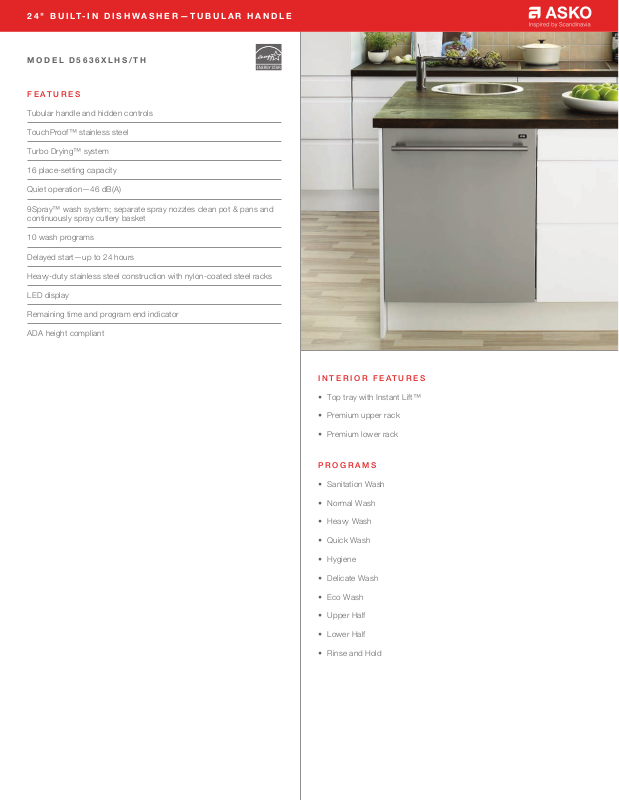

Asko D5636XLHS, D5636XLTH Specification Sheet

24" BUILT-IN DISHWASHER—TUBULAR HANDLE

MODEL D5636XLHS/TH

FEATURES

Tubular handle and hidden controls

TouchProof™ stainless steel

Turbo Drying™ system

16 place-setting capacity

Quiet operation—46 dB(A)

9Spray™ wash system; separate spray nozzles clean pot & pans and
continuously spray cutlery basket

10 wash programs

Delayed start—up to 24 hours

Heavy-duty stainless steel construction with nylon-coated steel racks

LED display

Remaining time and program end indicator

ADA height compliant

INTERIOR FEATURES

• Top tray with Instant Lift™

• Premium upper rack

• Premium lower rack

PROGRAMS

• Sanitation Wash

• Normal Wash

• Heavy Wash

• Quick Wash

• Hygiene

• Delicate Wash

• Eco Wash

• Upper Half

• Lower Half

• Rinse and Hold

24" BUILT-IN DISHWASHER—TUBULAR HANDLE

SIDE

NOTE:

W

OPENING WIDTH

341/2"

(876)

OPENING

HEIGHT

24" (610)

OPENING

DEPTH

TOP VIEW

SIDE VIEW FRONT VIEW

NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.

31/2" (89)

FINISHED

RETURN

FILLER

FRAMED CABINETRY

W

W

OPENING WIDTH

24"

(610)

OPENING

DEPTH

TOP VIEW

*D

PRODUCT SPECIFICATIONS

Model D5636XLHS/TH

7

Width 23

3

Height 32

/4"**– 343/4"

Depth 22

Door Clearance 24

/8"

7

/8"

5

/8"

Weight 112 lb

Max Loading Height Upper Rack 9"

1

Max Loading Height Lower Rack 12

/4"

Electrical Supply 115 VAC, 60 Hz

Electrical Service 15 amp circuit

1

Plumbing Supply

/4" OD copper, braided stainless

steel or PEX tubing

Pressure 4.2–140 psi

Electrical supply, plumbing supply and drain should be
located in an adjacent cabinet. If not, they must be located
within the shaded area shown in the illustrations below.

DIMENSIONS

237/8" (606)

OPEN DOOR

23/8"

(60)

323/4" (832)**

H

TO

343/4" (883)

4" (102)*

245/8"

(625)

227/8" (581)

3"

(76)

53/8"

(137)

ELECTRICAL | PLUMBING

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

53/8"

(137)

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

53/8"

(137)

imension will vary with product height.

**Can be reduced to 321/4" (819) by removing top trim and lowering side trim.

INSTALLATION

24" (610)

OPENING

DEPTH

TOP VIEW

341/2"

(876)

OPENING

HEIGHT

VIEW FRONT VIEW

31/2" (89) finished returns will be visible and should be finished to match cabinetry.

24" (610)

W

OPENING WIDTH

31/2" (89)

FINISHED

RETURN

24"

W

(610)

FRAMELESS CABINETRY

31/2" (89)

FINISHED

RETURN

24"

W

(610)

FRAMED CABINETRY

TYPICAL

FILLER

3

(19)

/4"
