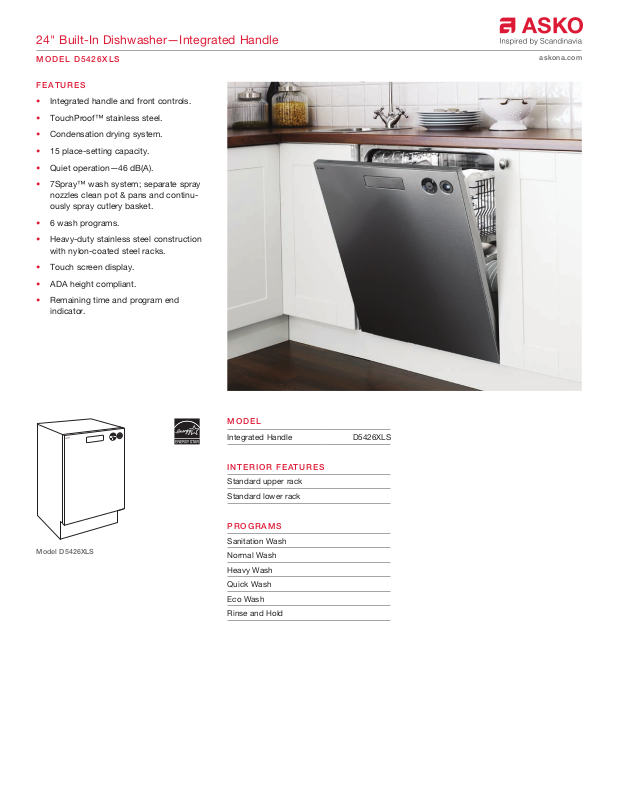

Asko D5426XLS Specification Sheet
24" Built-In Dishwasher—Integrated Handle
MODEL D5426XLS
FEATURES
• Integrated handle and front controls.
• TouchProof™ stainless steel.
• Condensation drying system.
• 15 place-setting capacity.
• Quiet operation—46 dB(A).
• 7Spray™ wash system; separate spray
nozzles clean pot & pans and continuously spray cutlery basket.
• 6 wash programs.
• Heavy-duty stainless steel construction
with nylon-coated steel racks.
• Touch screen display.
• ADA height compliant.
• Remaining time and program end
indicator.
askona.com
Model D5426XLS
MODEL
Integrated Handle D5426XLS
INTERIOR FEATURES
Standard upper rack
Standard lower rack
PROGRAMS
Sanitation Wash
Normal Wash
Heavy Wash
Quick Wash
Eco Wash
Rinse and Hold
24" Built-In Dishwasher—Integrated Handle
*D
SIDE
NOTE:
W
OPENING WIDTH
341/2"
(876)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.
31/2" (89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W
W
OPENING WIDTH
24" (610)
OPENING
DEPTH
TOP VIEW
MODEL D5426XLS
askona.com
SPECIFICATIONS
PRODUCT
Width 237/8"
Height 323/4"**– 343/4"
7
Depth 22
Door Clearance 24
/8"
5
/8"
Weight 115 lb
MAX LOADING HEIGHT
Upper Rack 9"
Lower Rack 121/4"
ELECTRICAL
Supply 115 VAC, 60 Hz
Service 15 amp circuit
PLUMBING
Supply
1
/4" OD copper, braided
stainless steel or PEX tubing
Pressure
4.2–140 psi
Electrical supply, plumbing supply and drain
should be located in an adjacent cabinet. If
not, they must be located within the shaded
area shown in the illustrations.
Specifications are subject to change without
notice. Visit askona.com/specs for the most
up-to-date information.
Dimensions may vary ±
1
/8" (3). Dimensions in
parentheses are millimeters unless otherwise
specified.
DIMENSIONS
237/8" (606) 227/8" (581)
323/4" (832)**
H
TO
343/4" (883)
4" (102)*
3"
(76)
OPEN DOOR
imension will vary with product height.
**Can be reduced to 321/4" (819) by removing top trim and lowering side trim.
245/8"
(625)
53/8"
(137)
ELECTRICAL
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
PLUMBING
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
53/8"
(137)
53/8"
(137)
INSTALLATION
341/2"
(876)
OPENING
HEIGHT
VIEW FRONT VIEW
31/2"
(89)
finished returns will be visible and should be finished to match cabinetry.
OPENING WIDTH
24" (610)
OPENING
DEPTH
TOP VIEW
24" (610)
W
31/2" (89)
FINISHED
RETURN
24"
W
(610)
FRAMELESS CABINETRY
31/2" (89)
FINISHED
RETURN
24"
W
(610)
FRAMED CABINETRY
TYPICAL
FILLER
3
(19)
/4"
©Asko, Inc. all rights reserved. 3/2016
