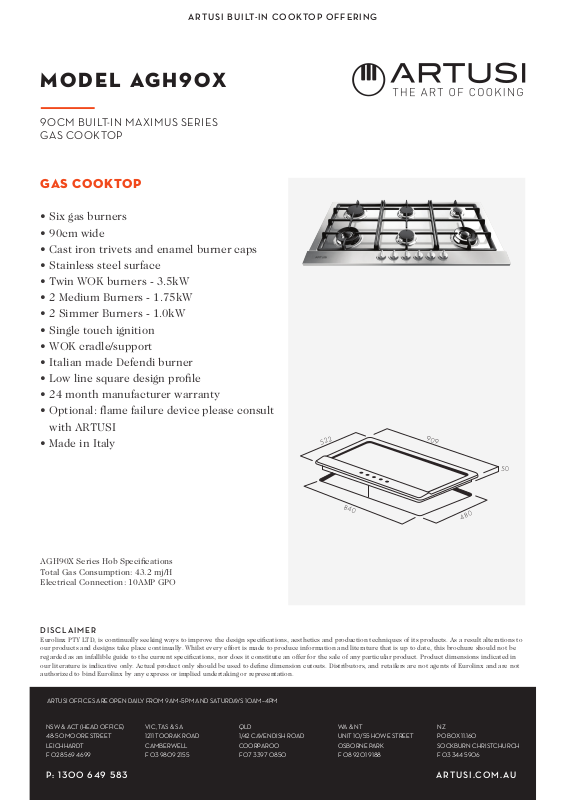

Artusi AGH90X Specifications Sheet

ARTUSI bUIlT-In cookTop offeRIng

Model agh90x

90CM bUiLT-iN MAxiMUS SerieS
gAS COOkTOp

gas cooktop

• Six gas burners

• 90cm wide

• Cast iron trivets and enamel burner caps

• Stainless steel surface

• Twin WOK burners - 3.5kW

• 2 Medium Burners - 1.75kW

• 2 Simmer Burners - 1.0kW

• Single touch ignition

• WOK cradle/support

• Italian made Defendi burner

• Low line square design profile

• 24 month manufacturer warranty

• Optional: flame failure device please consult
with ARTUSI

• Made in Italy

AGH90X Series Hob Specifications
Total Gas Consumption: 43.2 mj/H
Electrical Connection: 10AMP GPO

52 2

90 9

50

84 0

48 0

DISclAImeR

Eurolinx PTY LTD, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to
our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in
our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of Eurolinx and are not
authorized to bind Eurolinx by any express or implied undertaking or representation.
