Artisan ARTPCSB2M Specifications

ARTP-SB2
UNIT

ARTPC-SB2M ADAPTER
PLATE INSTALLED

14 1/4"

INCLUDES

ADAPTER

12 3/8"

10 1/16"

ELECTRICAL
CORD 8 FT.
NEMA 5-15
90° PLUG

3/4"

1 3/16"

26 1/4"

21 13/16"

14 1/4"

INCLUDES

ADAPTER

9/16"
POWER
CORD

26 1/4"

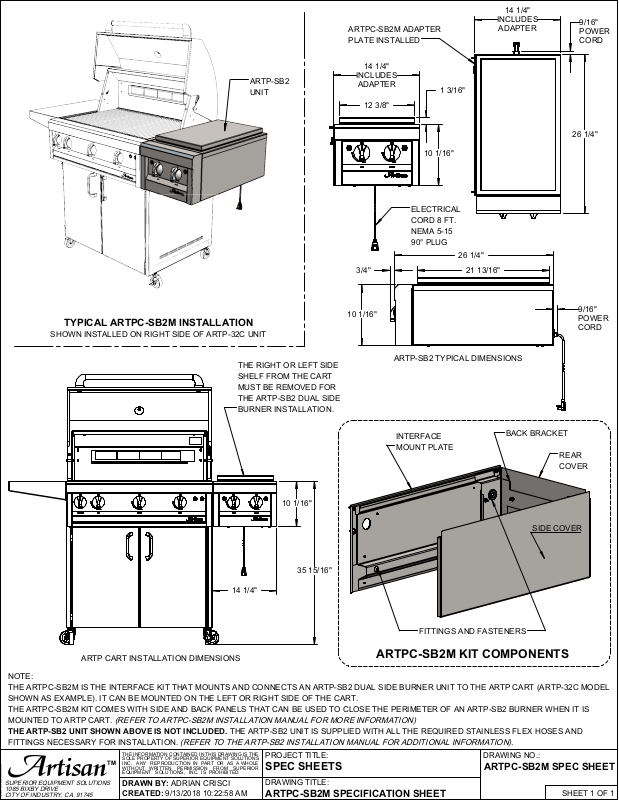

TYPICAL ARTPC-SB2M INSTALLATION

SHOWN INSTALLED ON RIGHT SIDE OF ARTP-32C UNIT

THE RIGHT OR LEFT SIDE
SHELF FROM THE CART
MUST BE REMOVED FOR
THE ARTP-SB2 DUAL SIDE
BURNER INSTALLATION.

14 1/4"

10 1/16"

35 15/16"

10 1/16"

ARTP-SB2 TYPICAL DIMENSIONS

INTERFACE
MOUNT PLATE

BACK BRACKET

9/16"
POWER
CORD

REAR
COVER

SIDE COVER

FITTINGS AND FASTENERS

ARTP CART INSTALLATION DIMENSIONS

NOTE:

THE ARTPC-SB2M IS THE INTERFACE KIT THAT MOUNTS AND CONNECTS AN ARTP-SB2 DUAL SIDE BURNER UNIT TO THE ARTP CART (ARTP-32C MODEL
SHOWN AS EXAMPLE). IT CAN BE MOUNTED ON THE LEFT OR RIGHT SIDE OF THE CART.
THE ARTPC-SB2M KIT COMES WITH SIDE AND BACK PANELS THAT CAN BE USED TO CLOSE THE PERIMETER OF AN ARTP-SB2 BURNER WHEN IT IS
MOUNTED TO ARTP CART.

THE ARTP-SB2 UNIT SHOWN ABOVE IS NOT INCLUDED.

FITTINGS NECESSARY FOR INSTALLATION.
