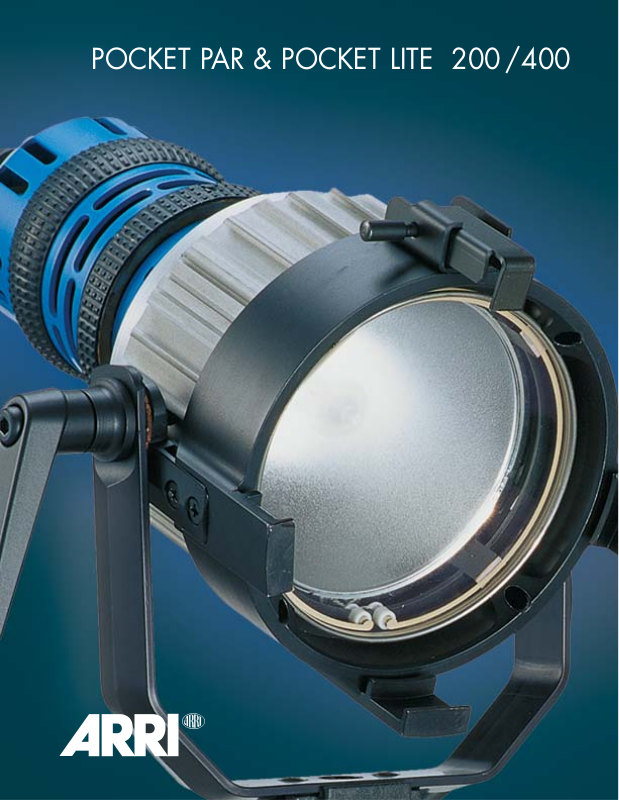

POCKET PAR & POCKET LITE 200 /400
Page 2
The Pocket Par and
Pocket Lite – two
new systems from
ARRI for the ultimate
in production
performance and
versatility. Simply
choose the wattage,
the reflector system
and the accessories
for the ultimate
small location
lighting fixture.
POCKET PARS & POCKET LITES
The ultimate in choice, performance,
versatility and safety.
POCKET PAR
– Superior light and precise beam control make ARRI Pocket Pars ideal where space is limited and
high performance is required.
ARRI’s custom designed Dichroic Glass Facetted Reflector and matching spread lenses ensure maximum beam
control in all situations. The 200W Par has a four lens set and the 400 Par adds a fifth lens for even more
control. Both systems utilize ARRI’s unique Frosted Super Wide lens for smooth and even coverage.
P
OCKET LITE
– For newsgathering or field production where portability is the key, Arri’s Pocket Lite offers the
perfect solution. A lensless daylight fixture, the Pocket Lite’s high quality Micro-Stippled Dichroic reflector
provides a smooth and powerful beam. A unique focus mechanism quickly adjusts beam angles from 17° to 85°
on the 400 and 17° to 59° on the 200. The Pocket Lite - for fast set ups with Arri’s traditional performance and
durability.
LIGHTHOUSE SYSTEM
- Add another dimension to lighting applications with ARRI’s Lighthouse and Shutter system.
The Lighthouse has a sharp variable beam from very narrow up to 180°. The clear double glass envelope gives
a bright even field for hard lighting applications and the frosted glass lighthouse gives a soft-edged smooth
finish. Use the lighthouse on its own or with chinese lanterns or Chimera Lightbanks for a soft source.
2
Page 3

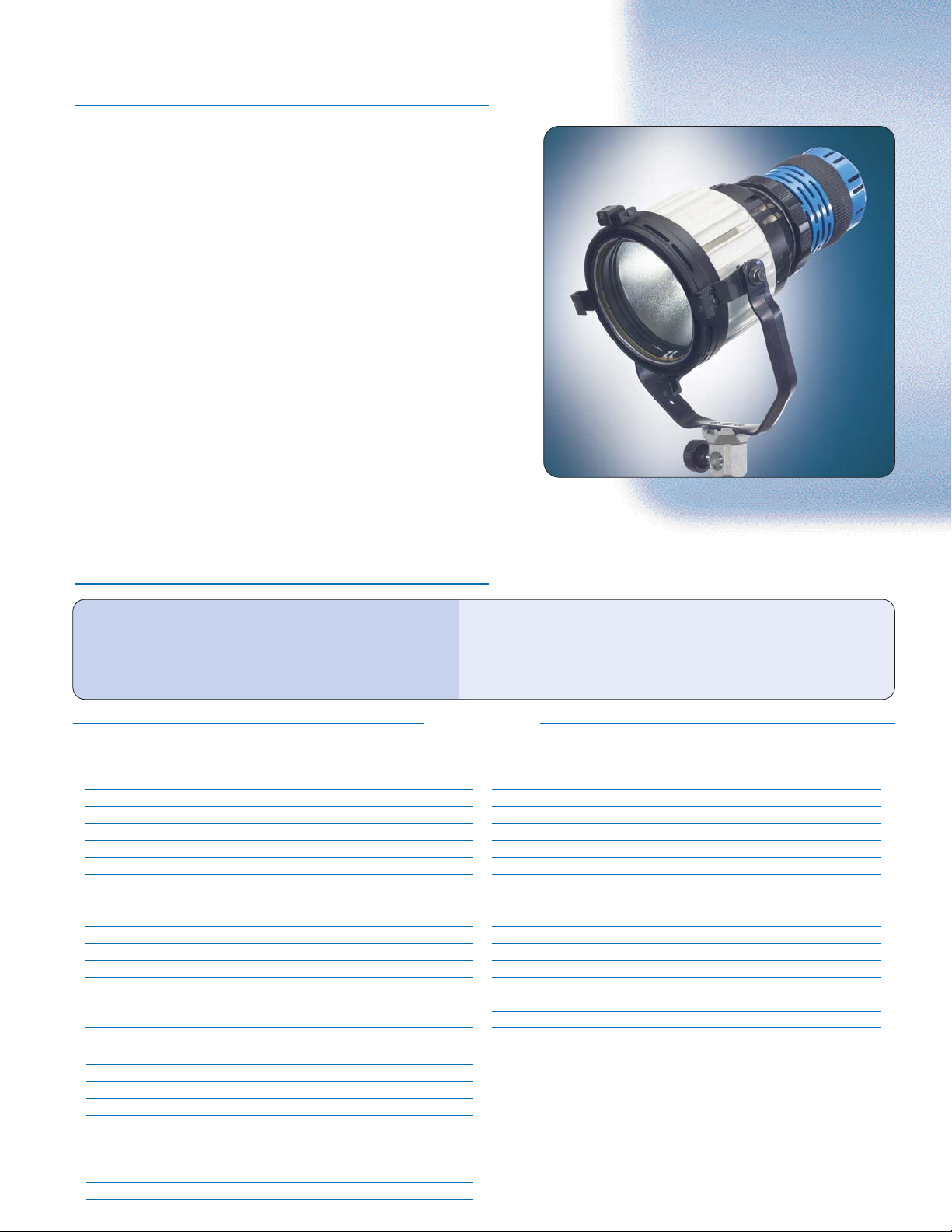

Designed for fast set-up
and safe operation the
Pocket Par & Pocket
Lite 200 & 400
represent Arri’s latest
high performance
daylight lampheads.
Both models offer
interchangeable
reflector systems and
accessories to cover a
wide range of
production situations.
P
OCKETPERFORMANCE
• Superior output
• Coated double UV glass
• Easy spot flood adjustment
• Cold light reflector technology
• Compact design
• Positive bayonet lock system
• Color coded drop–in lenses
B
ALLASTOPTIONS
• 125/200W AC Ballast with Active Line Filtering
• 125/200W 20-34V DC Ballast
• 400/575W AC Ballast with Active Line Filtering
• 400/575W AC Ballast with DMX option
• 200/400W 20-34V DC Ballast
3
P
OCKETSAFETY
• Patented locking lampholder
• Double UV protection system
• Safety interlock system
Page 4
4
Pocket Par 200 / Pocket Lite 200
502500 POCKET PAR 200 Head
502501 POCKET LITE 200 Head
502201 25’ Head/Ballast Cable
502202 50’ Head/Ballast Cable
531310 Four-Leaf Barndoor
502525 Four-Lens Set (Medium, Wide, Super Wide, Frosted)
502232 Lens Bag
502245 200W Single Ended HMI Lamp
531350 5” Full Single Scrim
531352 5” Full Double Scrim
531354 5” Full Triple Scrim
502521 3/4 CTO Glass Filter
502558 5” Chimera Speed Ring
571659 Chimera XS Video Pro Bank
502557 Chimera Lantern Adapter
504558 Chimera 20” Lantern
571660 Hand Grip
502511 Lighthouse Assembly, Clear
502512 Lighthouse Assembly, Frosted
502513 Lighthouse Stirrup
502514 Shutter
502806 125/200W Electronic Ballast 120/220V, 50/60Hz
502808 125/200W DC Electronic Ballast, 24-30V
502595 Case for POCKET PAR/LITE 200 System
POCKET PAR 200 / POCKET LITE 200
PHOTOMETRIC DATA
DISTANCE 10 ft. 15 ft. 20 ft. 25 ft.
(3m
) (4.6m) (6.1m) (7.6m)
LENS TYPE (BEAM ANGLE) FOOTCANDLES
Super Spot (6°) 4,698 2,088 1,175 752
Spot (10°) 2,025 900 506 324
Spot - max focus (24.5°) 459 204 115 73
Wide (20°) 678 301 169 108
Wide- max focus (41.5°) 194 86 49 31
Super Wide (44.5°) 179 80 45 29
Super Wide - max focus (61°) 102 45 25 16
Frosted Super Wide (37°) 143 64 36 23
Frosted Super Wide- max focus (59°) 76 34 19 12
POCKET LITE 200
Spot (17.5°) 758 337 189 121
Flood (59.5°) 136 60 34 22
10 ft. 15 ft. 20 ft. 25 ft.
(3m
) (4.6m) (6.1m) (7.6m)
LENS TYPE (BEAM ANGLE) BEAM SIZE (IN FT.)
Super Spot (6°) 1.0 1.6 2.1 2.6
Spot (10°) 1.7 2.6 3.5 4.4
Spot - max focus (24.5°) 4.3 6.5 8.7 10.9
Wide (20°) 3.5 5.3 7.1 8.8
Wide - max focus (41.5°) 7.6 11.4 15.2 18.9
Super Wide (44.5°) 8.2 12.3 16.4 20.5
Super Wide - max focus (61°) 11.8 17.7 23.6 29.5
Frosted Super Wide (37°) 6.7 10.0 13.4 16.7
Frosted Super Wide- max focus (59°) 11.3 17.0 22.6 28.3
POCKET LITE 200
Spot (17.5°) 3.1 4.6 6.2 7.7
Flood (59.5°) 11.4 17.1 22.9 28.6
PHOTOMETRICS
MAX FOOTCANDLES AT ANY DISTANCE
Super Spot (6°) 469,800 ÷ distance
2
Spot (10°) 202,500 ÷ distance
2
Wide - max focus (20°) 67,730 ÷ distance
2
Super Wide (44.5°) 17,910 ÷ distance
2
Frosted Super Wide (37°) 14,310 ÷ distance
2
POCKET LITE 200
Spot (17.5°) 75,780 ÷ distance
2
Flood (59.5°) 13,590 ÷ distance
2
NOTE: POCKET PAR OR POCKET LITE Head
consists of a lamphouse and reflector assembly.
If required, these may be ordered separately.
502506 POCKET 200 Lamphouse
502507 POCKET PAR 200 Reflector Assembly
502508 POCKET LITE 200 Reflector Assembly
Page 5
5
504506 POCKET 400 Lamphouse
502507 POCKET PAR 400 Reflector Assembly
502508 POCKET LITE 400 Reflector Assembly
POCKET PAR 400 / POCKET LITE 400
PHOTOMETRIC DATA
DISTANCE 10 ft. 15 ft. 20 ft. 25 ft.
(3m) (4.6m) (6.1m) (7.6m)
LENS TYPE (BEAM ANGLE) FOOTCANDLES
Super Spot (5°) 11,500 5,111 2,875 1,840
Spot (8°) 6,150 2,733 1,538 98
Spot -max focus (17°) 1,675 744 419 268
Medium (10° x 21°) 2,375 1,056 594 380
Medium - max focus (21° x 27°) 913 406 228 146
Wide (17° x 35°) 938 417 234 150
Wide - max focus (42°x 55°) 300 133 75 48
Super Wide (33°) 550 244 138 88
Super Wide - max focus (60°) 200 89 50 32
Frosted Super Wide (30°) 375 167 94 60
Frosted Super Wide - max focus (70°) 113 50 28 18
POCKET LITE 400
Spot (17°) 1,625 722 406 260
Flood (85°) 150 67 38 24
10 ft. 15 ft. 20 ft. 25 ft.
(3m) (4.6m) (6.1m) (7.6m)
LENS TYPE (beam angle) BEAM SIZE (IN FT.)
Super Spot (5°) 0.9 1.3 1.7 2.2
Spot (8°) 1.4 2.1 2.8 3.5
Spot - max focus (17°) 3.0 4.5 6.0 7.5
Medium (10° x 21°) 1.8 x 3.7 2.6 x 5.6 3.5 x 7.4 4.4 x 9.3
Medium - max focus (21° x 27°) 3.7 x 5.1 5.6 x 7.6 7.4 x 10.2 9.3 x 12.7
Wide (17° x 35°) 3.0 x 6.3 4.5 x 9.5 6.0 x 12.6 7.5 x15.8
Wide - max focus (42° x 55°) 7.7 x 10.4 11.5 x 15.6 15.4 x 20.8 19.2 x 26
Super Wide (33°) 5.9 8.9 11.8 14.8
Super Wide - max focus (60°) 11.5 17.3 23.1 28.9
Frosted Super Wide (30°) 5.4 8.0 10.7 13.4
Frosted Super Wide- max focus (70°) 14.0 21.0 28.0 35.0
POCKET LITE 400
Spot (17°) 3.0 4.5 6.0 7.5
Flood (85°) 18.3 27.5 36.7 45.8
MAX FOOTCANDLES AT ANY DISTANCE
Super Spot (5°) 1,150,000 ÷ distance
2
Spot (8°) 615,000 ÷ distance
2
Medium (10° x 21°) 237,500 ÷ distance
2
Wide - max focus (17° x 35°) 93,750 ÷ distance
2
Super Wide (33°) 55,000 ÷ distance
2
Frosted Super Wide (30°) 37,500 ÷ distance
2
POCKET LITE 200
Spot (17.5°) 162,500 ÷ distance
2
Flood (59.5°) 15,000 ÷ distance
2
NOTE: POCKET PAR OR POCKET LITE Head
consists of a lamphouse and reflector assembly.
If required, these may be ordered separately.
Pocket Par 400 / Pocket Lite 400
504500 POCKET PAR 400 Head
504501 POCKET LITE 400 Head
504502 25’ Head/Ballast Cable
504503 50’ Head/Ballast Cable
531610 Four-Leaf Barndoor
502325
Five-Lens Set (Spot, Medium, Wide, Super Wide, Frosted)
502232 Lens Bag
504545 400W Single Ended HMI Lamp
531650 6 5/8” Full Single Scrim
531652 6 5/8” Full Double Scrim
531654 6 5/8” Full Triple Scrim
504521 3/4 CTO Glass Filter
531658 6 5/8” Chimera Speed Ring
571159 Chimera Video Pro Bank, Small
504557 Chimera Lantern Adapter
504558 Chimera 20” Lantern
571660 Hand Grip
504511 Lighthouse Assembly, Clear
504512 Lighthouse Assembly, Frosted
502513 Lighthouse Stirrup
504514 Shutter
504806 400/575W Electronic Ballast, 120/220V, 50/60Hz
504807 400/575W Electronic Ballast w/ DMX,
120/220V, 50/60Hz
504808 200/400W DC Electronic Ballast, 24-30VDC
504596 Case for POCKET PAR/LITE 400
504595 Case for POCKET PAR/LITE 400 + Lighthouse System
PHOTOMETRICS
Page 6
502960 POCKET PAR 200 AC KIT
(1) 502500 POCKET PAR 200 Head
(1) 502201 25’ Head/Ballast Cable
(1) 531310 Four-Leaf Barndoor
(1) 502525 Four-Lens Set
(1) 502323 Lens Bag
(1) 502245 200W SE HMI Lamp
(1) 531350 5” Full Single Scrim
(1) 531352 5” Full Double Scrim
(1) 502558 Chimera Speed Ring
(1) 571659 Chimera Video Pro Bank XS
(1) 571660 Hand Grip
(1) 502806 125/200W Electronic Ballast
(1) 502595 Case, Pocket Par/Lite 200 system
502961 POCKET PAR 200 AC/DC KIT
All of the above, plus
(1) 502808 125/200W DC Electronic Ballast
502966 POCKET PAR 200 LIGHTHOUSE AC KIT
(1) 502500 POCKET PAR 200 Head
(1) 502201 25’ Head/Ballast Cable
(1) 531310 Four-Leaf Barndoor
(1) 502525 Four-Lens Set
(1) 502323 Lens Bag
(1) 502245 200W SE HMI Lamp
(1) 531350 5” Full Single Scrim
(1) 531352 5” Full Double Scrim
(1) 502557 Chimera Lantern Adapter
(1) 502558 Chimera Speed Ring
(1) 571659 Chimera Video Pro Bank XS
(1) 571660 Hand Grip
(1) 502511 Lighthouse Assembly, Clear
(1) 502513 Lighthouse Stirrup
(1) 502514 Shutter
(1) 502806 125/200W Electronic Ballast
(1) 502595 Case, Pocket Par/Lite 200 system
502967 POCKET PAR 200 LIGHTHOUSE AC/DC KIT
All of the above, plus
(1) 502808 125/200W DC Electronic Ballast
502962 POCKET LITE 200 AC KIT
(1) 502501 POCKET LITE 200 Head
(1) 502201 25’ Head/Ballast Cable
(1) 531310 Four-Leaf Barndoor
(1) 502245 200W SE HMI Lamp
(1) 531350 5” Full Single Scrim
(1) 531352 5” Full Double Scrim
(1) 502521 3/4 CTO Glass Filter
(1) 502558 Chimera Speed Ring
(1) 571659 Chimera Video Pro Bank XS
(1) 571660 Hand Grip
(1) 502806 125/200W Electronic Ballast
(1) 502595 Case, Pocket Par/Lite 200 system
502963 POCKET LITE 200 AC/DC KIT
All of the above, plus
(1) 502808 125/200W DC Electronic Ballast
502968 POCKET LITE 200 LIGHTHOUSE AC KIT
(1) 502501 POCKET LITE 200 Head
(1) 502201 25’ Head/Ballast Cable
(1) 531310 Four-Leaf Barndoor
(1) 502245 200W SE HMI Lamp
(1) 531350 5” Full Single Scrim
(1) 531352 5” Full Double Scrim
(1) 502521 3/4 CTO Glass Filter
(1) 502557 Chimera Lantern Adapter
(1) 502558 Chimera Speed Ring
(1) 571659 Chimera Video Pro Bank XS
(1) 571660 Hand Grip
(1) 502511 Lighthouse Assembly, Clear
(1) 502513 Lighthouse Stirrup
(1) 502514 Shutter
(1) 502806 125/200W Electronic Ballast
(1) 502595 Case, Pocket Par/Lite 200 system
502969 POCKET LITE 200 LIGHTHOUSE AC/DC KIT
All of the above, plus
(1) 502808 125/200W DC Electronic Ballast

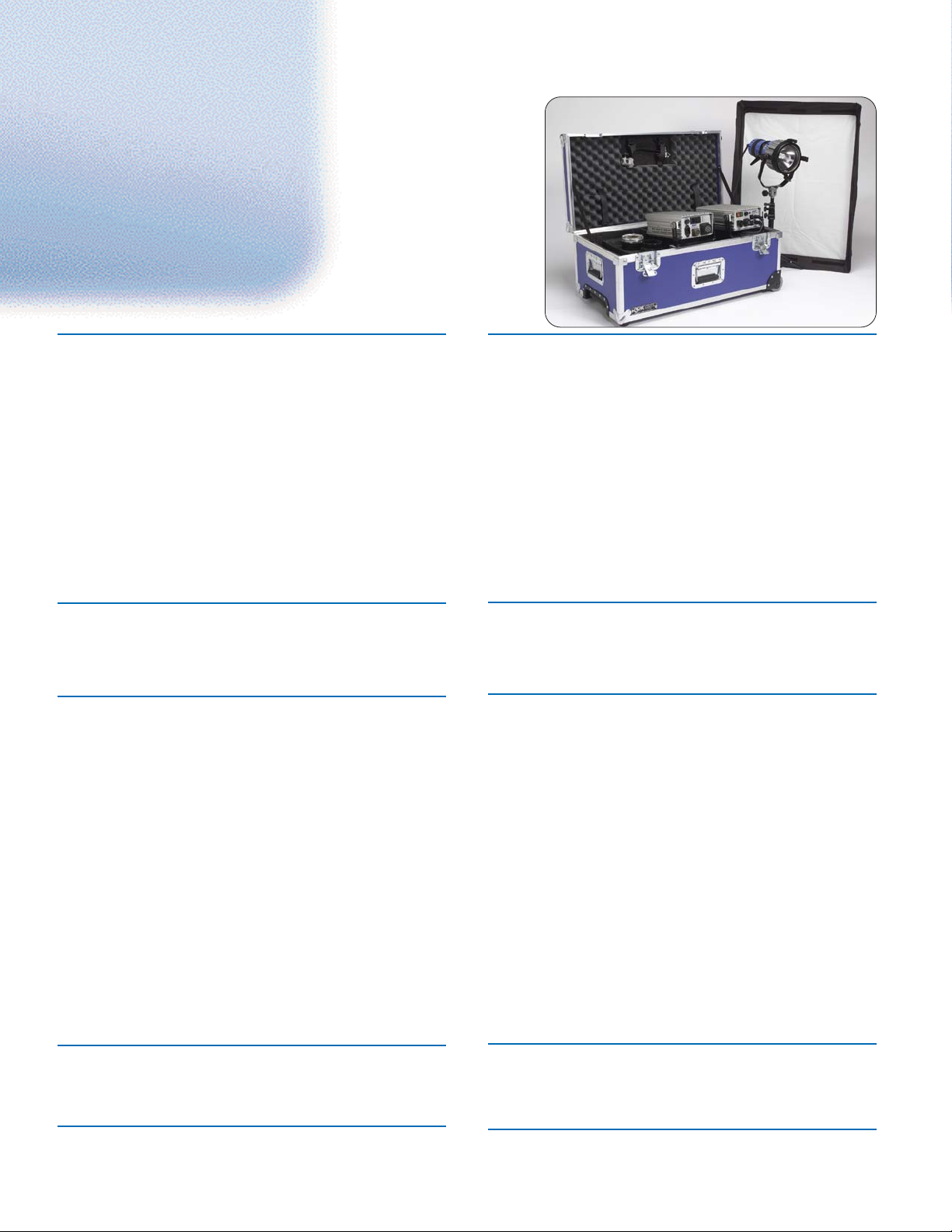

POCKET PAR & POCKET LITE KITS
6
Pocket Par & Pocket
Lite Kits package
lampheads, ballasts
and accessories in
rugged custom
designed cases.
Page 7
7
504960 POCKET PAR 400 AC KIT
(1) 504500 POCKET PAR 400 Head
(1) 504502 25’ Head/Ballast Cable
(1) 531610 Four-Leaf Barndoor
(1) 502325 Five-Lens Set
(1) 502323 Lens Bag
(1) 504545 400W SE HMI Lamp
(1) 531650 6 5/8” Full Single Scrim
(1) 531652 6 5/8” Full Double Scrim
(1) 531658 6 5/8” Chimera Speed Ring
(1) 571159 Chimera Video Pro Bank, Small
(1) 571660 Hand Grip
(1) 504806 400/575W Electronic Ballast
(1) 504596 Case, Pocket Par/Lite 400
504961 POCKET PAR 400 AC/DC KIT
All of the above, plus
(1) 504808 200/400W DC Electronic Ballast
504966 POCKET PAR 400 LIGHTHOUSE AC KIT
(1) 504500 POCKET PAR 400 Head
(1) 504502 25’ Head/Ballast Cable
(1) 531610 Four-Leaf Barndoor
(1) 502325 Five-Lens Set
(1) 502323 Lens Bag
(1) 504545 400W SE HMI Lamp
(1) 531650 6 5/8” Full Single Scrim
(1) 531652 6 5/8” Full Double Scrim
(1) 504557 Chimera Lantern Adapter
(1) 531658 6 5/8” Chimera Speed Ring
(1) 571159 Chimera Video Pro Bank, Small
(1) 571660 Hand Grip
(1) 504511 Lighthouse Assembly, Clear
(1) 502513 Lighthouse Stirrup
(1) 504514 Shutter
(1) 504806 400/575W Electronic Ballast
(1) 504595 Case, Pocket Par/Lite 400 system
504967 POCKET PAR 400 LIGHTHOUSE AC/DC KIT
All of the above plus
(1) 504808 200/400W DC Electronic Ballast
504962 POCKET LITE 400 AC KIT
(1) 504501 POCKET LITE 400 Head
(1) 504502 25’ Head/Ballast Cable
(1) 531610 Four-Leaf Barndoor
(1) 504545 400W SE HMI Lamp
(1) 531650 6 5/8” Full Single Scrim
(1) 531652 6 5/8” Full Double Scrim
(1) 504521 3/4 CTO Glass Filter
(1) 531658 6 5/8” Chimera Speed Ring
(1) 571159 Chimera Video Pro Bank, Small
(1) 571660 Hand Grip
(1) 504806 400/575W Electronic Ballast
(1) 504596 Case, Pocket Par/Lite 400
504963 POCKET LITE 400 AC/DC KIT
All of the above plus
(1) 504808 200/400W DC Electronic Ballast
504968 POCKET LITE 400 LIGHTHOUSE AC KIT
(1) 504501 POCKET LITE 400 Head
(1) 504502 25’ Head/Ballast Cable
(1) 531610 Four-Leaf Barndoor
(1) 504545 400W SE HMI Lamp
(1) 531650 6 5/8” Full Single Scrim
(1) 531652 6 5/8” Full Double Scrim
(1) 504521 3/4 CTO Glass Filter
(1) 504557 Chimera Lantern Adapter
(1) 531658 6 5/8” Chimera Speed Ring
(1) 571159 Chimera Video Pro Bank, Small
(1) 571660 Hand Grip
(1) 504511 Lighthouse Assembly, Clear
(1) 502513 Lighthouse Stirrup
(1) 504514 Shutter
(1) 504806 400/575W Electronic Ballast
(1) 504595 Case, Pocket Par/Lite 400 system
504969 POCKET LITE 400 LIGHTHOUSE AC/DC KIT
All of the above plus
(1) 504808 200/400W DC Electronic Ballast
The Pocket
Par/Pocket Lite 400
Lighthouse Kit
includes a
retractable handle
and integral casters.
Page 8
ARRI INC. • 617 Route 303, Blauvelt, NY 10913 • Ph: 845-353-1400 • Fx: 845-425-1250
600 North Victory Blvd., Burbank, CA 91502 • Ph: 818-841-7070 • Fx: 818-848-4028
e-mail: lighting@arri.com • Website: http://www.arri.com
SPECIFICATIONS
Fixture: POCKET PAR/LITE 200 Ballast: 125/200W AC
Reflector (Pocket Par): Faceted Dichroic Glass Lamp Power: 125/200W
Reflector (Pocket Lite): Micro Stippled Dichroic Glass Dimming: Yes
Lampholder: G2Y9.5 Low Noise Switch: No
Mounting: 5/8” (16mm stand mount) Input Voltage:
90-130V /180-250V, 50/60Hz
Scrim Size: 6 5/8” (168mm) Nom Input Current:1.9A @120V
Input Apparent Power: 225VA
Input Real Power: 235W
Power Factor: Approx. 0.98
Efficiency: >85%
Dimensions Dimensions
Length: 10.0” (255mm) / 10.5” (265mm) Height: 2.8” (70mm)
Height: 5.7” (145mm) / 5.7” (147mm) Width: 5.1” (130mm)
Width: 8.1” (207mm) / 8.1” (205mm) Depth: 9.5” (241mm)
Weight: 4.6 / 4.7 lbs. (2.1kg) Weight: 5.1 lbs. (2.3kg)
SPECIFICATIONS
Fixture: Pocket Par/Lite 400 Ballast: 400/575W
Reflector (Pocket Par): Faceted Dichroic Glass Lamp Power: 400/575W
Reflector (Pocket Lite): Micro Stippled Dichroic Glass Dimming: Yes
Lampholder: G2Y9.5 Low Noise Switch: No
Mounting: 5/8” (16mm stand mount) Input Voltage: 90-130V/180-250V
Scrim Size: 6 5/8” (168mm) Nom Input Current: 5.6A @ 120V
Input Apparent Power: 667VA Max
Input Real Power: 655W
Power Factor: Approx. 0.98
Efficiency: >85%
Dimensions Dimensions
Length: 11.4” (290mm) / 10.6” (270mm) Height: 3.6” (91mm)
Height: 7.1” (180mm) / 7.1” (180mm) Width: 6.1” (155mm)
Width: 8.8” (225mm) / 8.8” (225mm) Depth: 10.4” (265mm)
Weight: 6.1 / 6.3 lbs. (2.9kg) Weight: 5.7 lbs (2.6kg)
* For more details, please see the Arri Lighting Catalog
©ARRI BDA/WSG-5K 10/02
Loading...
