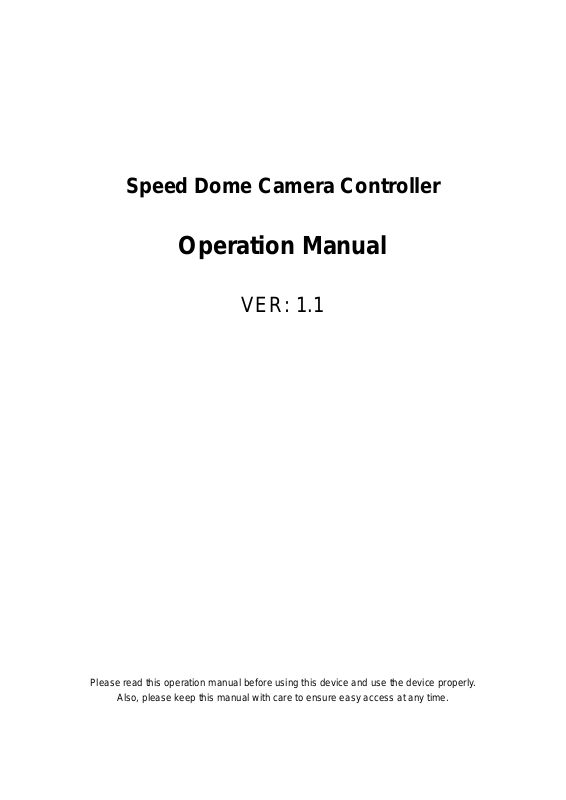

Speed Dome Camera Controller
Operation Manual
VER: 1.1
Please read this operation manual before using this device and use the device properly.
Also, please keep this manual with care to ensure easy access at any time.
SAFETY PRECAUTIONS
CAUTION:
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO DOT
OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SE RV ICE PER SONN EL
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN!
The lighting flash with a arrowhead symbol, in an
equilateral triangle, is intended to alert the user.
There is uninsulated “dangerous vol tage” presence
near by the product's enclosure which may be risk of
to persons .
The exclamation point within an equilateral
triangle is intended to alert the user to reference
of the important operating and maintenance
(servicing ) instructions .
THE PRODUCT CODE MARKED ON THE BOTTOM COVER. PLEASE
FILL THE CODE IN THE FOLLOWING BLANK. PLEASE SAVING
THIS SPECIFICATION CAREFULLY, SO THAT CHECKING.
MODEL:________________________
PRODUCT CODE:________________________
INDEX
I. Summary ---------------------------------------------------------------------1
Introduction of Functions -----------------------------------------------------1
II.
III. Introduction of the Keyboard Panel --------------------------------------------1
¾ The Sketch of the Front Panel and Description of Buttons---------------------------------1
¾ Rear Panel-------------------------------------------------------------------------------------------3
IV. Setting of the Keyboard --------------------------------------------------------3
¾ 4.1 Setup of the Protocol and the Default Baud Rate -------------------------------------3
¾ 4.2 Setup of the Baud Rate of Communication----------------------------------------------3
V. Operation of the Keyboard ----------------------------------------------------4
Installation and Connection ---------------------------------------------------6
VI.
VII.
Technical Specifications -------------------------------------------------------8
VIII. Points for Attention -------------------------------------------------------------8
I. Summary
The keyboard controller is used for terminal receivers such as the intelligent speed dome and the decoder etc.
Taking the EIA/RS-485 electrical interface between the keyboard and the receiver, one keyboard can control
as much as 32 speed dome and decoders without driving the bus and the maximum communication distance
between the keyboard and the receiver is up to 1.2 km. It is very easy for operating and setting the speed
dome camera. The controller is also to control the terminal receiver to achieve the function of controlling
pan/tilt, lens and etc.
Main Functions:
Set the address range of the dome camera and the decoder：0～255.
To directly control full functions of speed dome camera. For example: turn ON/OFF camera BLC.
To operate the pan/tilt of speed dome camera moving in different speed level
To set up 128 preset positions and 6 cruising tracks for speed dome camera and call any of them. Each
cruising track contains up to 16 preset positions. You can set up the staying period and moving speed for
each preset position.
To control speed dome camera by manual/auto operation. It is possible to change the initial set through
setting the speed dome camera menu.
Manually control the focus, zoom and iris of the camera.
II. Introduction of Functions
Select Camera（0~255）
Joystick Control Control Pan/Tilt direction and speed of the Speed Dome.
Lens Control Control the focus, zoom and iris of the camera
Operation of Preset Position （1~128）
Set Preset Position
Call Preset Position
Operation of Cruise Track（1~6）
Set Cruise Track
Run Cruise Track
Auto Pan Control of Speed Dome (including speed and direction of Auto Pan)
Self-Learning Track of Intelligent Speed Dome
Function Setting of Menu of Speed Dome
Control of Multiplexer
Direct Control on Decoder Control front devices such as the decoder etc.
III. Introduction of the Keyboard Panel
1. The Sketch of the Front Panel and Description of Buttons (Figure 1)
There are speed joystick, buttons and LCD on the front panel of the control keyboard. The display is used to
show the status of the system as well as operation information. The joystick controls the upward, downward,
leftward and rightward speed motion of the speed dome. The description of buttons is as follows:
ON
LIVE
OFF
TAPE
CurrentC am ID:001
F1 F2
F3
SEQ PTZ/MULX
CALL PRESET SHOT
FUNC
89
7
456
123
Enter
0
Clear
WIDE TELE FAR NEAR
CAM/ID AUTO OPEN CLOSE
PTZ & Multiplexer
(Figure 1)
z Func（1 cam）：Set special function of the system together with other buttons.
z
Zoom（Full screen）：Show picture of the camera in full screen. Press Zoom again to review a 2
Zoom of the selected camera.
z
PIP（up arrow）：Show picture of the camera in PIP mode (Picture-in-Picture).
z
2×2（down arrow）：Show picture of the camera in 4-frame.
z
3×3（left arrow）：Show picture of the camera in 9-frame.
z
4×4（right arrow）：Show picture of the camera in 16-frame.
z
Live：Show live picture of the camera at current mode.
z
Tape：Playback pictures； Function + Tape: Playbac k vide o information of VCR.
z
CAM: in multiplexer mode: Used with camera buttons to select cameras to display in the full,
PIP, 2×2,3×3,4×4 formats. in speed dome mode :Select address of the intelligent speed dome.
z F2: in multiplexer mode: Start automatic switching of cameras. This button is also used during
setup to turn on all motion detection targets. in speed dome mode :Auxiliary control buttons.
z
CALL: To call the preset position.
z PRESET：To set the preset position.
z
SHOT： To set up or call cruising track.
z AUTO：To control auto-horizontal rotation for pan/tilt.
z
WIDE：To a wide angle.
z
TELE：To turn to a telescopic range.
z
FAR：To make focus far manually.
z
NEAR：To make focus near manually.
z
OPEN：To open iris.
z
CLOSE：To close iris.
z
ON：Switch on the setting of function.
z
OFF：Switch off the setting of function.
z
F1：Auxiliary control buttons.
z
F3：Switching control between intelligent speed dome and multiplexer.
z
[0]-[9]：Number key
z
[Clear]：To clear inputted data
z
[Enter]：To confirm
2. Rear Panel (Figure 2)
(Figure 2)
A. Power input connector: input DC12V power.
B. ID-Code switch: Used to set the protocol in use and the baud rate of communications.
C. Communication connector RS485: The controller is connected to adapter box by specific cable.
IV. Setting of the Keyboard
a) The protocol in use and the baud rate of communication of the keyboard are set by the
ID-CODE in Figure 2. DIP1-DIP4 are used to select type of the communication protocol as
per following table：
Protocols
COP-2 ON OFF OFF OFF OFF ON
Santachi OFF ON OFF OFF OFF ON
PELCO-D ON ON OFF OFF OFF OFF
PELCO-P/4800 ON OFF
PELCO-P/9600
PANASONIC ON OFF ON OFF OFF ON
Reserved OFF ON ON OFF OFF ON
HUNDA600 ON ON ON OFF OFF ON
LILIN OFF OFF OFF ON OFF ON
Reserved ON OFF OFF ON ON OFF
Reserved OFF ON OFF ON OFF ON
KALATEL ON ON OFF ON ON OFF
Reserved OFF OFF ON ON OFF ON
Reserved ON OFF ON ON OFF ON
COP-1 OFF ON ON ON OFF ON
Ultrak ON ON ON ON OFF ON
COP-03 OFF ON ON OFF OFF ON
COP-04 ON OFF ON ON OFF ON
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
OFF OFF ON OFF
DIP status Normal Baud Rate
OFF ON
b) DIP5 and DIP6 are used to select the baud rate, shown as following table (DIP7 and DIP8
are not used)：
Baud
Rate
2400bps OFF OFF
4800bps ON OFF
9600bps OFF ON
19200bps ON ON
DIP1 DIP2 DIP3 DIP4 DIP5 DIP6 DIP7 DIP8
Status of ID-CODE
c) Some of the ID-CODE of the protocols are set as follows:
COP-2/9600Bps
12345678ON
PELCO-D/2400Bps
ON
12345678
PELCO-P/4800Bps
ON
12345678
PELCO-P/9600Bps
ON
12345678
d)
Switching control between speed dome and multiplexer：The controller can be operated in two
modes: Speed Dome and Multiplexer. When power supply is on it is operated on the default mode,
namely, the Speed Dome. Press [F3] to make switch between two modes. When it is under the mode of
the Multiplexer, you can control it via “Address Box”. At this time, the LCD will display “Mulx
Addr:001”. Alternatively you can control it by pressing [F3] down until the LCD displays
“CONTROLLING MULX ”, then control the multiplexer by the RS-232 output of the keyboard. The
RS-485 output of the keyboard cannot be used to control the multiplexer. When operation, please pay
attention to the information on the LCD.
V. Operation of the Keyboard
1. Select Address of the Speed Dome Camera：[CAM]+[N]+[Enter]
Display: Current CamID：001
Description：N –– No. of camera from 0 to 255
Function：Select the address of the camera to be controlled. When the value N is in conformity with the
address of the Speed Dome Camera, it will be under control.
2. Set the Preset Position：[PRESET]+[N]+[ Enter]
Display：Preset No：001
Description：N –– No. of preset position from 1 to 128.
Function：Store current position and refer it as No. N position.
3. Call the Preset Position：[CALL]+[N]+[ Enter]
Display：Call Number：001
Description:：N –– No. of preset position from 1 to 128.
Function： Transfer the camera to the position of No. N preset position.
4. Cancel the Preset Position:[PRESET]+[N]+[OFF]
Display：Preset No：001
Description：N –– No. of preset position from 1 to 128.
Function：Delete the No. N preset position stored.
5. Set the Cruise Track (COP-2, PELCO-D, PELCO-P Available)：
z Enter the Status of Track Setting：[SHOT]+[N]+ [ON] (N：No. of track from 1 to 6).
Display：Track = 01 Sum = 06
Description：Track No.1 is currently setting, in which there are 6 preset points.
z Edit Track：Press [TELE] to edit down page and press [WIDE] to edit up page. Each track involves
16 preset points and the running speed and the dwelling time of each preset position.
Display：No.：01 Point：001 → Description：The 1st preset position in the track is 001.
Display：No.：01 Speed：001 → Description：The speed of the 1st preset point in the track is
the 1st class.
Display：No.：01 Time： 004 → Description：The dwelling time of the 1st preset point in the
track is 4 seconds
z Speed Range：1 to 8 from the fastest to the lowest. Any speed outside the range will be referred as
the 1st class; the range of the dwelling time is：1 to 255.
z When the No. N preset point is set as No. 0, then all preset points before the No. N preset point in
the track will be valid however all numbers of preset points afterward and their speed and dwelling
time shall be set as 0 automatically.
z After tracks are edited, press OFF to store and exit while push the joystick to exit without storage.
6. Run Cruise Track: [SHOT]+[N]+ [Enter]
Display：Input Tour No：01
Description：N –– No. of the track from 1 to 6.
Function：Tour the No. N track and stop tour by pushing the joystick.
7. Stop Cruise Track: [SHOT]+[N]+ [OFF]
Display：Input Tour No：01
Description：N –– No. of the track from 1 to 6.
Function：Stop the No. N track or stop tour by pushing the joystick.
8. Cancel Cruise Track: [SHOT]+[N]+ [OFF] (Pressing [OFF] down until “ Clear Tour OK ”appears)
Display：Input Tour No：01
Description：N –– No. of the track from 1 to 6.
Function：Delete the No. N track
9. Auto Pan ON (Operation of COP-2 Protocol): [AUTO]+[P1]+[ON]+[P2]+[OFF]
Display：Input 1st No：001
Description：P1–––– the starting scan No. of preset point from 1 to 128, which should be set already.
Display：Input 2nd No：002
Description：P2–––– the ending scan No. of preset point from 1 to 128, which should be set already.
If P1 = P2 or P1 and P2 are coincided, the speed dome will make scan in range of 360°.
Note:
(1) For PELCO-D and PELCO-P Protocols the way of operation is as follows:
Set the Starting Scan Position: Transfer the speed dome to the starting scan position, operation
[AUTO]+[ON]
Set the Ending Scan Position: Transfer the speed dome to the ending scan position, operation
[AUTO]+[OFF]
Run Auto Pan：[AUTO]+[ENTER]
(2) Auto Pan operation takes the following parameters. You must set these parameters before using a
Auto Pan command to begin the scan operation. You can use the scan Stop command or PT scan stop
command to stop the scan. Setting scan condition:
z Auto Pan Position(First specify position, second specify position)
z Auto Pan Speed and Direction.
10. Stop Auto Pan：[AUTO]+[OFF] (only for
COP-2 protocol)or push the joystick to stop scan.
11. Control the Zoom of the Camera：[WIDE]/[TELE]
12. Control the Focus of the Camera：[FAR]/[NEAR]
13. Control the Iris of the Camera：[OPEN]/[CLOSE]
14. Auxiliary Control of the Camera： By combination of [F1] and [ON], [OFF] buttons, you can set some
data of the camera, and functions are listed as follows：
No. of
Value N
Control Object
0 Camera Power Supply/Reset Control
Definition of Keyboard Operation
[F1]+N+[ON] [F1]+N+[OFF]
Power ON/OFF
Switching
Camera Reset
1 Back Light Compensation ON OFF
W
2 Zero Illumination ON OFF
3 Display ON OFF
4 Digital Zoom ON OFF
5 Back Light of Keyboard Screen ON OFF
6 Focus Automatic Manual
7 Iris Automatic Manual
8 Automatic Manual
White Balance Mode（WB）
9 Indoor Mode Outdoor Mode
10
ATW Mode One Push WB
11 Black & White/Color Switching Color Black & White
12 < 180°, low speed > 180°, low speed
13 < 180°, middle speed > 180°, middle speed
14
Set Auto Pan (Only conditions for scan. If
start scan, operate as Item 9 in this
paragraph)
< 180°, high speed > 180°, high speed
15. Use the Joystick to control the speed dome camera：
You can use the speed joystick to control the
UP
Pan/Tilt direction and speed of the speed dome
randomly. The speed of pan/tilt is decided by the
angle of the joystick you operated (Figure 3).
LEFT
Change the tilting angle of the joystick you can
adjust the speed evenly and the camera can be
focused automatically in the course of scan to
keep images being distinct.
DOWN
SLOW
FAST
RIGHT
UP
LEFTRIGHT
DOWN
16. In case error operation occurs, normal display
will be recovered after “Error Operation” appears
Figure 3
for 1 second.
VI. Installation and Connection:
Attention： Please read the operation manual of the keyboard and the speed dome carefully before connecting
wires. Any incorrect connections can cause permanent damage of the device. When connecting wires, first switch
off the power supply of all devices. The communication wires between devices should be shielded twisted cable.
When installing cables they should be far away from high voltage lines or other
possible interference circuits as can as possible.
1. The marking of wires of the transfer box (Figure 4)
2. Connections of the keyboard controller controlling multiple speed dome `
cameras (Figure 5)
3. Connections between the keyboard and the speed dome camera (Figure 6)
4. Connection Drawing between the keyboard and the multiplexer via the
address box (Figure 7)
5. System Connection Drawing between the keyboard and the dome camera
and the multiplexer (Figure 8)
RED
BLACK
REDㄩRS485+
BLACKㄩRS485GREENㄩGND
YELLOWㄩRS232 OUT
Figure 4
GREEN
YELLO
Figure5
Figure6
Figure 7
Figure 8
VII. Technical Specifications：
Communication between Speed Dome Camera and Controller：Port to multi-port and half duplex
function.
Communication connector: RS-485.
Baud Rate of Communication：Four baud rates i.e. 2400bps, 4800bps, 9600bps and 19200bps.
Distance of Communication：1200m in maximum
Power Supply：DC12V/1A
Size：315 × 165 × 57（mm）
Weight：2 Kg
Number of controlled speed dome camera up to 32.
VIII. Points for Attention：
Please read the operation manual of the keyboard carefully before using it.
The operation manual is mainly focused on all functions of PELCO-D, PELCO-P and COP-2
Protocols. For other different protocols, operations could be something different and those different
parts will be listed on “Supplementary Description of the Keyboard Controller” in details.
The keyboard takes DC12V power supply. Please confirm the voltage and polarity before the power
supply is switched on.
Do not place the keyboard under the rain or on wet place so as to avoid short circuit or electrical shock.
As the keyboard is a sophisticated electronic device, you should never open the case so as to avoid the
occurrence of trouble.
The keyboard has integrated multiple protocols, and you are pleased to select correct protocol and the
baud rate. When switching on power supply, take care of the selected protocol and the baud rate on the
first screen.
In case the keyboard controls the multiplexer, the operation of combination buttons is as follows:
Press one button first, and press the other button after release the first one.
For example：When enter/exit setting of the menu (Function + Zoom), press Function button first, and
press Zoom button after Function button is released. While use Func alone, please put it down until
“Motion Detect OK” appears.
When control the multiplexer through adapter box, select the multiplexer address:
N + CAM/ID (N: multiplexer address 1--128).
In case the keyboard controls the multiplexer, select the camera (1-16): N + Enter N: channel
Number (1--16).
When the keyboard controls the multiplexer, please refer to concerned operation manual of the
multiplexer.
ZOOM CAMERA CONTROL OPERATION FOR 15-CZ45 & 15-CZ55
一. .15-CZ45: ZOOM CAMERA
1. PROTOCOL OF 15-CZ45 (COP-03): SEE PAGE 3. IV. SETTING OF THE KEYBOARD
2. CAMERA ADDRESS : [CAM]+[N1]+ON+[N2]+OFF
2-1. N1: EYBOARD CONT ROLLER DISPLAY CURRENTLY CAMERA NO.
2-2. N2: INPUT NEW CAMERA NO.
2-3. CAMERA NO. FROM 1 TO 7
3. CHOOSE CAMERA NUMBER: [CAM]+N+[ENTER]
4. ZOOM: [WIDE] OR [TELE]
5. FOCUS: [FAR] OR [ NEAR]
6. IRIS: [OPEN] OR [ CLOSE]
二. 15-CZ55: ZOOM CAMERA
1. PROTOCOL OF 15-CZ55 (COP-04): SEE PAGE 3. IV. SETTING OF THE KEYBOARD
2. CAMERA ADDRESS : [CAM]+[N1]+ON+[N2]+OFF
2-1. N1: EYBOARD CONT ROLLER DISPLAY CURRENTLY CAMERA NO.
2-2. N2: INPUT NEW CAMERA NO.
2-3. CAMERA NO. FROM 1 TO 239
7. CHOOSE CAMERA NUMBER: [CAM]+N+[ENTER]
8. ZOOM: [WIDE] OR [TELE]
9. FOCUS: [FAR] OR [ NEAR]
10. IRIS: [OPEN] OR [ CLOSE]
Loading...
