Arjo MultiClean User guide

MultiClean

INSTRUCTIONS FOR USE

04.BP.00_7EN • /2019

WARNING

To avoid injury, always read this Instruction for Use and accompanying
documents before using the product.

Mandatory to read the Instructions for Use

Design Policy and Copyright
® and ™ are trademarks belonging to the Arjo group of companies.
© Arjo 2019.
As our policy is one of continuous improvement, we reserve the right to modify designs without
prior notice. The content of this publication may not be copied either whole or in part without the
consent of Arjo.

Contents

Foreword ...................................................................................4

Intended Use ............................................................................. 5

Safety Instructions .................................................................... 6

Parts Designation ...................................................................... 8

Product Description/Functions .................................................. 9

Operating Instructions ............................................................. 10

Disinfectant Replenishment ....................................................14

Cleaning and Disinfection Instructions .................................... 15

Care and Preventive Maintenance .......................................... 16

Troubleshooting ...................................................................... 17

Technical Specifications .........................................................18

Labels .....................................................................................20

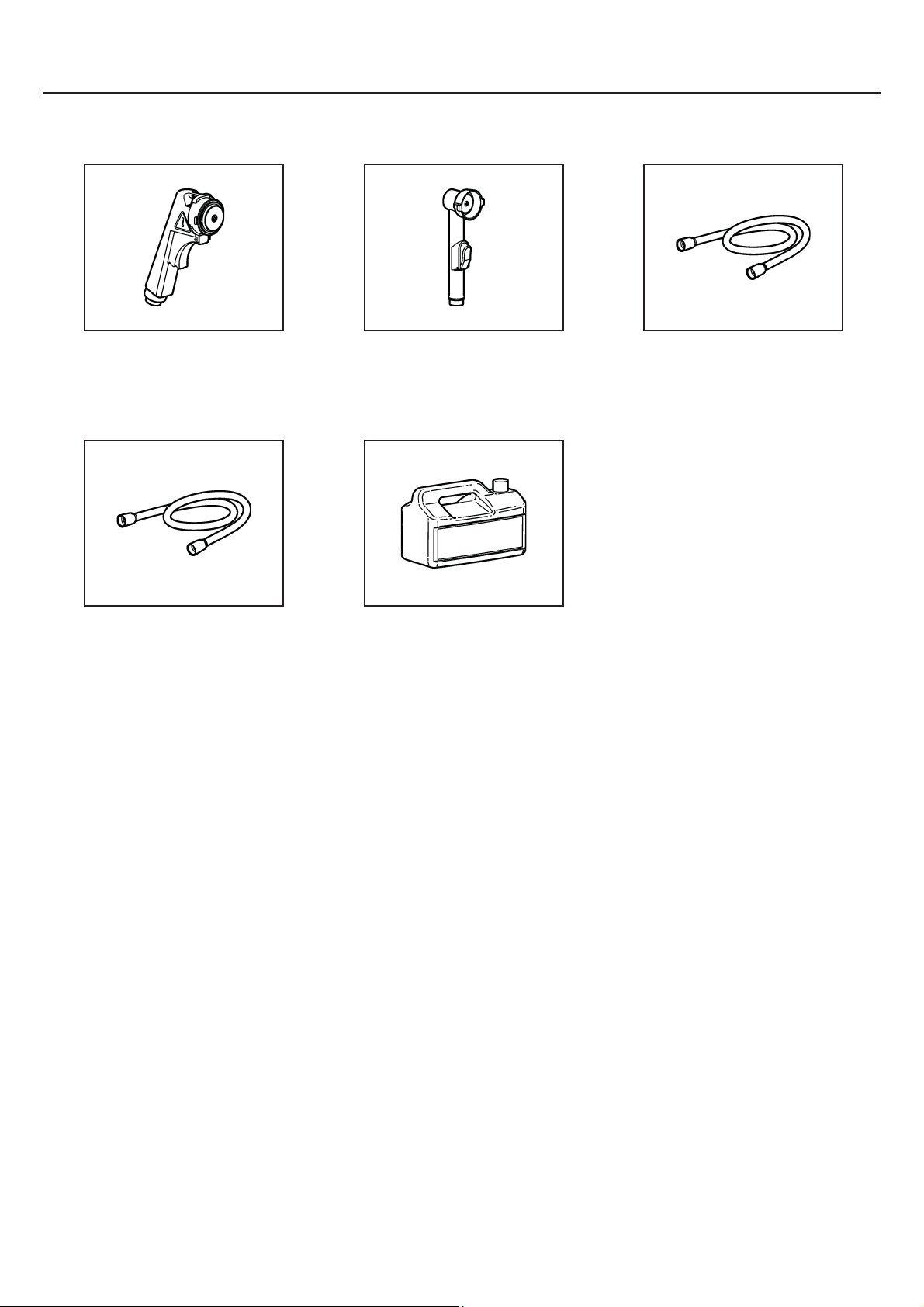

Parts and Accessories ............................................................ 22

3

Foreword

Thank you for purchasing Arjo equipment.

Your MultiClean™ disinfection system is part of a
series of quality products designed especially for
hospitals, nursing homes and other health care use.

Please contact us if you have any questions about the
operation or maintenance of your Arjo equipment.

Please read this Instructions for Use
thoroughly!

Please read this Instructions for Use (IFU) in its entirety
before using your MultiClean disinfection system.
Information in this IFU is crucial to the proper
operation and maintenance of the equipment, and will
help protect your product and ensure that equipment
performs to your satisfaction. Some of the information
in this IFU is important for your safety and must be read
and understood to help prevent possible injury. Arjo
strongly advise and warn that only Arjo designed parts,
which are designed for the purpose, should be used on
equipment and other appliances supplied by Arjo, to
avoid injuries attributable to the use of inadequate parts.

Unauthorized modifications on any Arjo equipment
may affect its safety. Arjo will not be held responsible
for any accidents, incidents or lack of performance that
occur as a result of any unauthorized modification to its
products.

Serious incident

If a serious incident occurs in relation to this medical
device, affecting the user, or the patient then the user or
patient should report the serious incident to the medical
device manufacturer or the distributor. In the European
Union, the user should also report the serious incident to
the Competent Authority in the member state where
they are located.

Contact your local Arjo representative for replacement
parts. Contact information is found on the last page of
the IFU.

Definitions in this IFU

WARNING

Means:
Safety warning. Failure to understand and obey this
warning may result in injury to you or to others.

CAUTION

Means:
Failure to follow these instructions may cause damage
to all or parts of the system or equipment.

NOTE

Means:
This is important information for the correct use of this
system or equipment.

Means:
The name and address of the manufacturer.

Service and Support

A service routine must be performed on your
MultiClean disinfection system every year by Arjo
authorized service personnel to ensure the safety and
daily operation of your product. See section Care and
Preventive Maintenance on page 16.

If you require further information, please contact Arjo
for comprehensive support and service programs to
maximize the long-term safety, reliability and value of
the product.

4

Intended Use

This equipment is intended for disinfection
and cleaning of bathing and showering
equipment in hospital or care facilities. The
MultiClean disinfection system is designed for
use only with Arjo disinfectant/cleaners such
as Arjo baths, air spas, showering equipment
and other Arjo bathing accessories.

The MultiClean disinfection system is intended to be

used by appropriately trained caregivers with adequate
knowledge of the care environment, its common
practices and procedures, and in accordance with the
guidelines in the Instructions for Use.

The MultiClean disinfection system should only be

used for the purpose specified in the Instructions for
Use. Any other use is prohibited.

Resident Assessment

This equipment is not intended for residents.

Indication for Use

Installation and Service Requirements

The MultiClean disinfection system must be installed by

suitable qualified personnel according to the Assembly
and Installation Instructions which only can be superseded
by local code.

Expected Lifetime

The expected life of the MultiClean disinfection system
is unless otherwise stated ten (10) years, if subject to
preventive maintenance being carried out in accordance
with the instruction found in section Care and
Preventive Maintenance on page 16.

The MultiClean disinfection system equipped with
Arjo disinfectant/cleaner is a disinfecting system
intended to process noncritical medical devices and
equipment surfaces located in bathing / showering
rooms and similar environments.

It is suitable to be used on noncritical medical devices
that make only topical contact with intact skin.

Contra Indications

The MultiClean disinfection system is not to be used to
clean / disinfect critical or semicritical medical devices
that are used in surgical or invasive procedures.

5

Safety Instructions

WARNING

To avoid eye and skin damage, always use
protective glasses and gloves. If contact
occurs rinse with plenty of water. If eyes or
skin becomes irritated, contact a physician.
Always read the IFU and the Material Safety
Data Sheet (MSDS) of the disinfectant.

WARNING

If disinfectant liquid is ingested, DO NOT
induce vomiting. Give milk or water to
drink. Seek medical advice as necessary.

WARNING

To avoid eye or skin irritation, never
disinfect in the presence of a patient.

WARNING

Never use the MultiClean disinfection
system or disinfectant on people.

WARNING

To avoid electric shock, make sure that the
equipment is connected to:

• Continuously powered supply mains with
protective earth.

• Separate fuse and ground fault circuit
interrupter (GFCI)

• A mains disconnection device

• Equipotential bonding point

All installations must be in accordance
with local codes and regulations.

NOTE
Modifications made to the equipment without

the express acknowledgement of Arjo will
invalidate supplier’s product liability.

6

Intentionally left blank

7

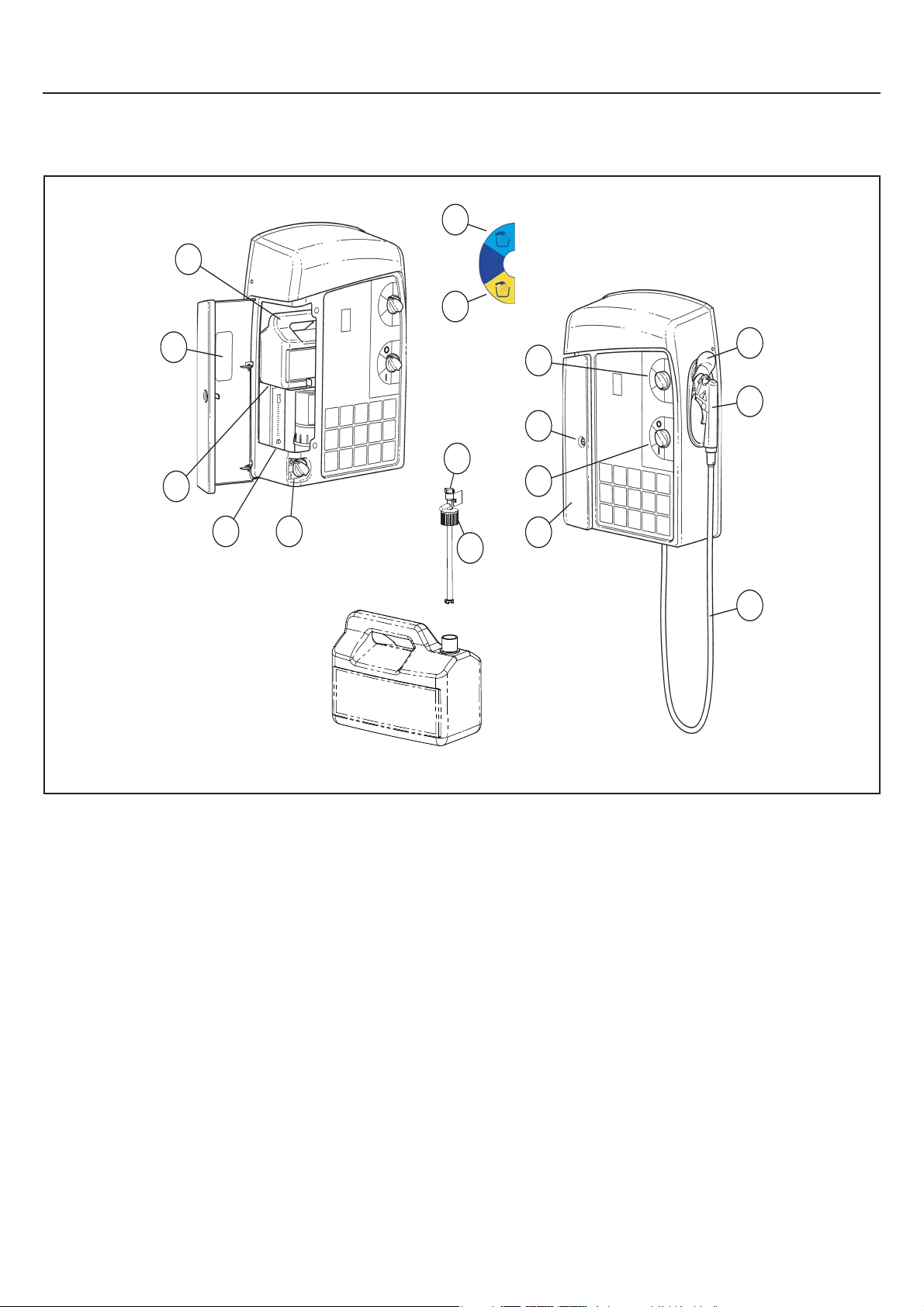

Parts Designation

1

10B

10A

10

11

12

13

14

45

3

2

6

9

8

7

1 Disinfectant Bottle

3 l (101 fl.oz)

2 Viewing Window

3 Disinfectant Storage Tray

4 Flowmeter

5 Isolation Valve (shut off) Control

I = Open
O = Closed

6 Bottle Connector

7 Access door

8 ON/OFF Control

I = On
O = Off

9 Door Lock

10 Function Selection Control

A (Yellow) = Disinfect
B (Blue) = Rinse

11 Spray Handle Holder

12 Spray Handle

13 Shower Hose 2 m (79")

3 m (118") available

14 Adjustment Screw

To adjust concentration setting

8

Fig. 1

Fig. 2

Product Description/Functions

NOTE
The information in this manual was correct at the time

of printing. However, Arjo reserves the right to
incorporate changes or modifications to the
specifications without prior notice.

The MultiClean disinfection system addresses the concerns over
the effective cleaning and disinfection of bathing and showering
products for hospitals, nursing homes and other health care
environments.

When used with the Arjo range of disinfectants, the MultiClean
disinfection system delivers a solution of diluted disinfectant at
a preset concentration.

A wall mounted unit, the MultiClean disinfection system is
intended for use in bath and shower rooms. It is designed for use
with Arjo baths, air spas, showering equipment and other supplied
bathing accessories. (See Fig. 1)

The MultiClean disinfection system is not to be used as a patient
shower. (See Fig. 2)

The MultiClean disinfection system features a trigger spray
handle with a 2 m (79”) hose. The spray handle stores
conveniently and safely in a holder at the side of the unit. Two
controls on the main panel enable the user to activate the unit and
select between disinfecting and rinsing modes.

A lockable door gives access to the 3 l (101 fl.oz) disinfectant
supply bottle, isolation valve and concentration setting cap.

The MultiClean disinfection system is available in two models:

• Standard (Mains Water Fed)

• Pumped (Electric Pump Operated)

These are supplied according to installation conditions and local
plumbing code requirements.

The Standard system incorporates an in line back flow prevention
device (vacuum breaker DA device - USA/Canada, pipe
interrupter DB device - Europe), with a positive leakage to drain.

The pumped system is protected from the mains water supply by
an integral water tank with type AA air gap.

9

Operating Instructions

WARNING

To avoid eye and skin damage, always use
protective glasses and gloves. If contact occurs
rinse with plenty of water. If eyes or skin becomes
irritated, contact a physician. Always read the IFU
and the Material Safety Data Sheet (MSDS) of the
disinfectant.

General Disinfection Instructions for Arjo
Bathing Equipment

Where multiple use of bathing equipment is undertaken, there are
real risks of cross-contamination from one person to the next. By
definition, the users of these products are high risk persons and
challenges from hostile micro-organisms should be avoided. Arjo
bathing systems rely upon a strict cleaning regime using the
MultiClean disinfection system. The following schedule has been
devised to optimise the hygienic cleaning of bathing or showering
products after each occupant has been removed and the water
drained to waste.

Usage

We recommend that bathing, showering equipment and
accessories should be disinfected/cleaned at the following times.

Start of day

Equipment should be disinfected and rinsed thoroughly before the
first use of the day.

After each use

Equipment should be disinfected and rinsed thoroughly after each
use.

End of each day

Equipment should be disinfected, wiped and dried after the last
use of the day. This is of particular importance to ensure that
soiled water/surfaces are not left to stand overnight.

Setting the Disinfectant Concentration

(10 steps)

1 Unlock and open the access door and with the bottle

connector secured in place, place a bottle of Arjo
disinfectant/cleaner onto the disinfectant storage tray.

10

Continue with the steps on the next page.

2 Make sure all services are connected to the MultiClean

disinfection system.

3 Open the water supply by turning the isolation valve

control to the open position.

Fig. 1

e.g. ArjoClean setting 30-35

Fig. 2

4 Switch the unit on by turning the ON/OFF control to the ON

position.

5 Remove the spray handle from its holder and direct it

against the bottom of the bath or an appropriate drainage
point, but always away from the user.

6 Turn the function selection control to the disinfect setting.

7 Press the trigger on the spray handle.

8 Check the liquid value on the flowmeter setting so it is in

accordance with the settings table Disinfectant flowmeter/
mix ratio table on page 11. (See Fig. 1)

If necessary, adjust using the adjustment screw on the bottle
connector - clockwise to decrease the value, anti clockwise
to increase. (See Fig. 2)

9 Put the spray handle back in its holder. Close and lock the

access door.

10 Switch the unit off by turning the ON/OFF control to the

OFF position.

Contact Times

The contact time of the disinfectant can be varied depending on
the specific environmental circumstances. Arjo recommend that
10 minutes is the optimum contact time to insure best disinfection.
This should be practised at the start and end of the day and after
each time the bath or shower is used.

However, it may be appropriate for the contact time to be a
minimum of 2 minutes where risk of cross-contamination is
considered low.

Disinfectant flowmeter/mix ratio table

DISINFECTANT

FLOWMETER

SETTING

MIX RATIO

ArjoClean (EU) 30–35 16 ml/1 l – 1440 ppm

CenKleen IV (USA) 25–30 60 ml/4 l 2fl.oz/US gallon 873 ppm

$UMR Disinfectant Cleaner IV (CA) 40–45 32 ml/4 l 1fl.oz/US gallon 868 ppm

KILL

STRENGTH

$UMR General Purpose
Disinfectant (CA)

25–30 32 ml/4 l 1fl.oz/US gallon 868 ppm

11

Disinfect and Clean

Fig. 1

Fig. 2
Fig. 3

Fig. 4

Fig. 5

(13 steps)

This instruction follows the yellow workflow illustrated on the
MultiClean disinfection system cover.

According to Fig. 1

1 Close the waste outlet of the bath.

2 Close the suction if fitted.

3 Turn the function selection control to the disinfection

setting.

4 Remove the spray handle from the holder and direct the

spray handle into the product and turn the ON/OFF control
to the ON position.

According to Fig. 2

5 Secure the spray handle into the injection port.

6 Depress the spray handle trigger until disinfectant solution

is flowing from all air-jets/nozzles.

7 Continue injecting disinfectant for 30 s before

disconnecting the spray handle.

According to Fig. 3

8 Apply disinfectant to all inner surfaces of the product using

the spray handle.

9 Make sure all surfaces are wetted by the disinfectant

solution.

10 Similarly, apply disinfectant to all accessories and

attachments, behind and under the seat (where applicable)
by spraying with the spray handle.

According to Fig. 4

11 Scrub the surface of the product with a soft bristle brush or

cloth to remove any build up of bio-film which may have
been deposited.

According to Fig. 5

12 Allow an appropriate contact time for sanitization or

disinfection according to the instructions for the
disinfectant.

13 While waiting, wipe all other contact areas and accessories

with a disposable cloth soaked in disinfectant solution.

12

Rinse

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

(10 steps)

This instruction follows the blue workflow illustrated on the front
of the MultiClean disinfection system cover.

According to Fig. 6

1 Turn the function selection control to the rinse setting.

2 Open the waste outlet and the suction if fitted and drain the

bath of residual disinfectant solution.

According to Fig. 7

3 Reconnect the spray handle to the injection port.

4 Close the suction if fitted.

5 Depress the spray handle trigger until water is seen flowing

from all air-jets/nozzles.

6 Repeat the rinsing procedure (steps 1 – 6) until all

disinfectant in the system is carried away.

According to Fig. 8

7 Rinse all parts clean.

According to Fig. 9

8 Activate and run the air spa (where fitted) for 30 s to purge

the system of any remaining water.

According to Fig. 10

9 After the last disinfection of the day, dry the bathing product

and any accessories.

10 Switch the unit off by turning the ON/OFF control to the

OFF position.

NOTE
At the end of the day close the isolation valve to prevent

unauthorized use.

13

Disinfectant Replenishment

Follow these 13 steps for proper replenishment.

WARNING

To avoid eye and skin damage, always use
protective glasses and gloves. If contact
occurs rinse with plenty of water. If eyes or
skin becomes irritated, contact a physician.
Always read the IFU and the Material Safety
Data Sheet (MSDS) of the disinfectant.

NOTE
Use only $UMR disinfectant. If you require
further information regarding the $UMR
disinfectant please contact your local
service department.

1 Make sure the ON/OFF control is switched to the

OFF position. For location of parts, see section
Parts Designation on page 8.

2 Using the key provided, open the access door.

1 1 Check the liquid value on the flowmeter to make

sure it is in accordance with the setting range in
the recommendations. If necessary, adjust the
adjustment screw on the bottle connector ­clockwise to decrease the value, anti clockwise to
increase. See section Setting the Disinfectant
Concentration on page 10.

12 Put the spray handle back in its holder.

13 Switch the unit off by turning the ON/OFF control

to the closed position.

3 Partially withdraw the empty bottle from the

disinfectant storage tray. Unscrew and remove
the bottle connector.

4 Remove the empty bottle and use the lid from the

new bottle to seal. Dispose of the used container
safely.

5 Refit and tighten the bottle connector. Place the

new bottle of ARJO disinfectant onto the
disinfectant storage tray and close and lock the
door.

6 Wipe any residual disinfectant from the unit.

7 Switch the unit on by turning the ON/OFF control

to the ON position.

8 Remove the spray handle from its holder and

direct it against the bottom of the bath or an
appropriate drainage point.

9 Turn the function selection control to the

disinfectant setting.

10 Press the trigger on the spray handle.

14

Cleaning and Disinfection Instructions

WARNING

To avoid eye and skin damage, always use
protective glasses and gloves. If contact
occurs rinse with plenty of water. If eyes or
skin becomes irritated, contact a physician.
Always read the IFU and the Material Safety
Data Sheet (MSDS) of the disinfectant.

CAUTION

Do not use phenol, citric acid or petroleum­based solvents, trichloroethylene, chlorine
and hydrogen peroxide or similar
disinfectant as these may damage the
plastic material.

Steam, ethylene oxide sterilization or high
pressure wash can not be used either.

WARNING

To avoid cross-contamination be aware
that alcohol has limited disinfection effect
on bacterial and fungal spores.

WARNING

To avoid eye or skin irritation, never
disinfect in the presence of a patient.

Cleaning

Clean the MultiClean disinfection system with a soft
cloth soaked with diluted disinfectant dispensed from
the handset. Alternatively, use a soap or synthetic
detergent and water soaked cloth ensuring that the unit
is dried after cleaning.

15

Care and Preventive Maintenance

The MultiClean disinfection system is subject to wear and tear, and the following actions must be performed when
specified to make sure the product remains within its original manufacturing specification.

WARNING

To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow
the recommended maintenance schedule. In some cases due to heavy use of the product and
exposure to aggressive environment more frequent inspections should be carried out. Local
regulations and standards may be more stringent than the recommended maintenance
schedule.

The equipment is a subject for wear and tear and the following maintenance instructions must be performed when
specified to ensure that the equipment remains within its original manufacturing specification.

Preventive Maintenance Schedule: MultiClean Disinfection System

CUSTOMER OBLIGATION Action/Check Every DAY Every WEEK Every YEAR

Cleaning X

Examine for damage X

Check flowmeter setting X

Examine for leaks X

Yearly checks by qualified personnel only X

Yearly Checks by Qualified Personnel Only

The MultiClean disinfection system must be serviced once a year in accordance with the Maintenance and Repair
Manual.

Contact your local Arjo service representative to sign for a service agreement.

WARNING

To avoid injury and/or unsafe product, the maintenance activities must be carried out at the
correct frequency by qualified personnel using correct tools, parts and knowledge of
procedures. Qualified personnel must have documented training in maintenance of this
device.

NOTE

All Caregiver Obligations are to be checked when performing the Qualified Personnel Service. For
details, see separate service instructions.

16

Troubleshooting

NOTE
Only suitably qualified personnel should be consulted for any plumbing and electrical problems or

faults. For service or additional technical information please contact your local Arjo service
department.

PROBLEM ACTION

No fluid from handset when trigger is
pressed.

Lack of disinfectant in fluid mix (the
presence of disinfectant can be gauged
by checking the flowmeter or the state of
the fluid mix - foam, citrus smell).

Reduced flow rate from handset. • Check the strainers and inlet /outlet fittings are not

• Check water and electrical services for signs of
interruption. Reinstate supply where necessary.

• Make sure the isolation valve is set to the open
position.

• Make sure the ON/OFF control is set to the ON
position.

• Check shower hose for damage or kinks.

• Make sure the strainers and inlet / outlet fittings
are not blocked.

• Check the function selector is set to the disinfect
setting.

• Check fluid level in disinfection bottle.

• Check the position of adjustment screw on bottle
connector. Unscrew and recalibrate the flowmeter
as required.

• Check disinfectant supply hose for damage or
kinks.

blocked.

• Make sure the supply pressure/flow rate is high
enough.

Fluid leaks from handset / hose or main
body of unit.

• Tighten any loose fittings

• Seal wear or damage - contact your local Arjo
service department.

17

Technical Specifications

MultiClean Disinfection System – Pumped Version

MEASUREMENTS, VOLUME AND WEIGHTS

Unit height 578 mm (22 3/4 inches)
Unit width 484 mm (19 inches)

Unit depth 200 mm (8 inches)

Total weight (excluding ArjoClean Disinfectant/Cleaner) 13 kg (29 lbs)

Total weight (including ArjoClean Disinfectant/Cleaner) 16 kg (35 1/2 lbs)

CONNECTION DEMANDS

Inlet Coupling (Cold Water) 15 mm (1/2 inches)

Overflow 19 mm (3/4 inches)

Minimum Flow Rate - Inlet 6 l/minute (1.6 US gallon/minute)

Minimum Flow Rate - Outlet 5 l/minute (1.3 US gallon/minute)

Minimum Dynamic Pressure 0.3 bar (2.9 PSI)

Maximum Static Pressure 6 bar (87 PSI)

ENVIRONMENTAL LIMITATIONS

Maximum ambient temperature 40 ºC (104 ºF)

Maximum relative humidity (non-condensing) 80%

Disinfectant Storage within unit minimum 0° C – maximum 30 °C

(minimum 32 °F – maximum 86 °F)

WARNING

To avoid injury, always follow the allowed combinations listed in this IFU. No other
combinations are allowed.

Allowed Combinations

Arjo Baths
(Connection to bath system option: air spa inlet)

Freedom Bath All models

Parker (500) UK market only

Model

18

MultiClean Disinfection System – Standard Version

MEASUREMENTS, VOLUME AND WEIGHTS

Unit height 578 mm (22 3/4 inches)
Unit width 484 mm (19 inches)

Unit depth 200 mm (8 inches)

Total weight (excluding ArjoClean Disinfectant/Cleaner) 11 kg (24 1/2 lbs)

Total weight (including ArjoClean Disinfectant/Cleaner) 14 kg (31 lbs)

CONNECTION DEMANDS

Inlet Coupling (Cold Water) 15 mm (1/2 inches)

Overflow 15 mm (1/2 inches)

Minimum Flow Rate - Inlet 6 l/minute (1.6 US US gallon/minute)

Minimum Flow Rate -Outlet 5 l/minute (1.3 US gallon/minute)

Minimum Dynamic Pressure 2 bar (29 PSI)

Maximum Static Pressure 6 bar (87 PSI)

ENVIRONMENTAL LIMITATIONS

Maximum ambient temperature 40 ºC (104 ºF)

Maximum relative humidity (non-condensing) 80%

Disinfectant Storage within unit minimum 0° C – maximum 30 °C

(minimum 32 °F – maximum 86 °F)

Environmental Conditions

Operating

Ambient temperature 10 °C – 40 °C (50 °F – 104 °F) Operating

Relative humidity 15-100% at 20 °C (68 °F) Operating

Atmospheric pressure 800 hPa – 1060 hPa Operating

Transport and Storage Conditions

Ambient temperature -20 °C to 70 °C (-4 °F to 158 °F)

Relative humidity 10% - 80% at 20 °C (68 °F)

Atmospheric pressure 500-1100 hPa

End of Life Disposal

• Equipment that has electrical and electronic components should be disassembled and recycled
per Waste of Electrical and Electronic Equipment (WEEE) or in accordance with local or national
regulation.

• Disinfection liquids – if you have extra liquid, it’s safe to pour it down the drain with running water.
These products are water soluble and usually mixed with water when used for cleaning, your
municipality will treat these cleaners the same way they would if you used them for cleaning.

• The packaging containers should be recycled according to the national or local regulations.

19

Labels

Label Explanation

Data Label States technical performance and

requirements, for example
classified safety standard and input
voltage.

Identification
Label

States the product identification;
serial number, year and month of
manufacturing.

Power Supply
Label

Water
Connection
Label

States IP-rate, fuse information
and wiring diagram.

States the minimum/maximum
temperature and pressure
requirement of inlet water.

Symbol Explanation

Read the IFU before use.

Separate electrical and electronic
components for recycling in
accordance with the European
Directive 2012/19/EU (WEEE)

Name and address of the
manufacturer.

Label for equipotential connection
point (bonding lug).

Classified by Underwriters
Laboratories Inc. with respect to
electric shock, fire, mechanical
hazards and other specified hazards
only in accordance with:

UL 2601-1 and CAN/CSA ­C 22.2 No 601.1-M90.
UL marking
(US-models 120 V– 60 Hz)

Water Regulations Advisory Scheme.
The product, when installed correctly,
complies with the requirements of
United Kingdom Water regulations/
Byelaws (Scotland)

CE marking indicating conformity
with European Community
harmonised legislation
Figures indicate Notified Body
supervision.

Indicates the product is a Medical
Device according to EU Medical
Device Regulation 2017/745

20

Power Supply Label

Equipotential Bonding
Label

Water Connection
Label

(Pumped model only)

Identification Label

Data Label

21

Parts and Accessories

6303097
Arjo Spray Handle
(Yellow)

PS1557
Oras Spray Handle
(White with Yellow
Shroud)

600.00.00.03
Hose 3 m
(Yellow)

PRB2000
ArjoClean Disinfectant/
Cleaner

PP0998
Hose 2 m
(Grey)

22

AUSTRALIA
Arjo Australia Pty Ltd
78, Forsyth Street
O’Connor
AU-6163 Western Australia
Tel: [phone]
Free: [phone]
Fax: + 61 89337 9077

BELGIQUE / BELGIË
Arjo NV/SA
Evenbroekveld 16
BE-9420 ERPE-MERE
Tél/Tel: [phone]
Fax: [phone]
E-mail: [email protected]

BRASIL
Arjo Brasil Equipamentos Médicos Ltda
Rua Marina Ciufuli Zanfelice, 329 PB02 Galpão

- Lapa
São Paulo – SP – Brasil
CEP: 05040-000
Phone: [phone]
E-mail: [email protected]
E-mail: [email protected]

CANADA
Arjo Canada Inc.
90 Matheson Boulevard West
Suite 300
CA-MISSISSAUGA, ON, L5R 3R3
Tel/Tél: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]

ýESKÁ REPUBLIKA
Arjo Czech Republic s.r.o.
Na Strzi 1702/65
140 00 Praha
Czech Republic
Phone No: [phone]
e-mail: [email protected]

DANMARK
Arjo A/S
Vassingerødvej 52
DK-3540 LYNGE
Tel: [phone]
Fax: [phone]
E-mail:
[email protected]

DEUTSCHLAND
Arjo GmbH
Peter-Sander-Strasse 10
DE-55252 MAINZ-KASTEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

ESPAÑA
Arjo Ibérica S.L.
Parque Empresarial Rivas Futura, C/Marie
Curie 5
Edi cio Alfa Planta 6 o cina 6.1-.62
ES-28521 Rivas Vacia, MADRID
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

FRANCE
Arjo SAS
2 Avenue Alcide de Gasperi
CS 70133
FR-59436 RONCQ CEDEX
Tél: [phone]
Fax: [phone]
E-mail: [email protected]

HONG KONG
Arjo Hong Kong Limited
Room 411-414, 4/F, Manhattan Centre,
8 Kwai Cheong Road, Kwai Chung, N.T.,
HONG KONG
Tel: [phone]
Fax: [phone]

ITALIA
Arjo Italia S.p.A.
Via Giacomo Peroni 400-402
IT-00131 ROMA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

MIDDLE EAST
Arjo Middle East FZ-LLC
Of ce 908, 9th Floor,
HQ Building,North Tower,
Dubai Science Park,
Al Barsha South
P.O Box 11488, Dubai,
United Arab Emirates
Direct [phone]
Fax [phone]
Email: [email protected]

NEDERLAND
Arjo BV
Biezenwei 21
4004 MB TIEL
Postbus 6116
4000 HC TIEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

NEW ZEALAND
Arjo Ltd
34 Vestey Drive
Mount Wellington
NZ-AUCKLAND 1060
Tel: [phone]
Free Call: 0800 000 151
Fax: [phone]
E-mail: [email protected]

NORGE
Arjo Norway AS
Olaf Helsets vei 5
N-0694 OSLO
Tel: [phone]
Faks: [phone]
E-mail: [email protected]

ÖSTERREICH
Arjo GmbH
Lemböckgasse 49 / Stiege A / 4.OG
A-1230 Wien
Tel: [phone]
Fax: [phone]

POLSKA
Arjo Polska Sp. z o.o.
ul. Ks Piotra Wawrzyniaka 2
PL-62-052 KOMORNIKI (PoznaĔ)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

PORTUGAL
Arjo em Portugal
MAQUET Portugal, Lda.
(Distribudor Exclusivo)
Rua Poeta Bocage n.º 2 - 2G
PT-1600-233 Lisboa
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

SUISSE / SCHWEIZ
Arjo AG
Fabrikstrasse 8
Postfach
CH-4614 HÄGENDORF
Tél/Tel: [phone]
Fax: [phone]

SUOMI
Arjo Scandinavia AB
Riihitontuntie 7 C
02200 Espoo
Finland
Puh: [phone]
E-mail: Asiakaspalvelu. [email protected]

SVERIGE
Arjo International HQ
Hans Michelsensgatan 10
SE-211 20 MALMÖ
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

UNITED KINGDOM
Arjo UK and Ireland
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

USA
Arjo Inc.
2349 W Lake Street Suite 250
US-Addison, IL 60101
Tel: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]

-$3$1
$UMR-DSDQ..
㨀℻掌䂾◉壝ካ栏ₘₐ䥽䟹⚆ᇫ዆ዐኤኀአ
ኌ䶻壝ካ栏ኰወ椝
榊崀᧶

Address page - REV 24: 04/2019

www.arjo.com

At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges.
With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective
prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise

WKHVWDQGDUGRIVDIHDQGGLJQL¿HGFDUH(YHU\WKLQJZHGRZHGRZLWKSHRSOHLQPLQG

ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö, Sweden

www.arjo.com
