Arjo MAXI-Lift Parts List

Maxi Lift

TM

Parts List

Parts List

DX27760.GB

MX04580

Issue X

Issue 1

June 2002

August 2004

Introduction

© ARJO Med. AB LTD

ARJO products are patented or patent pending. Patent
information is available by contacting ARJO Med. AB
LTD.

Our policy is one of continuous development and we
therefore reserve the right to make technical alterations
without notice. The content of this publication may not
be copied either whole or in part without the consent of
ARJO Med. AB LTD.

ARJO Med. AB LTD. strongly advise and warn that only
ARJO Company Designated Parts, which are designed
for the purpose, should be used on equipment and other
appliances supplied by ARJO, to avoid injuries
attributable to the use of inadequate parts

Un-authorised modifications on any ARJO Med. AB
LTD. equipment may affect it’s safety and are in breach
of any warranty on it. ARJO Med. AB LTD. will not be
held responsible for any accidents, incidents or lack of
performance that occur as a result of any un-authorised
modification to it’s products.

The ARJO Company’s Conditions of sale make specific
provision confirming no liability in such circumstances

Product names are a trademark of the ARJO Group.

Serial Number Label: Bar code type from November 1994 onwards.

ARJO sales
package number

Complete
serial number

Country of
manufacture

Week of
manufacture

Year of
manufacture

Serial Number Label: Bar code type from Feburary 2004 onwards.

ARJO sales
package number

Unit number
within batch

Works order /
Batch number

Complete
serial number

The vertical and horizontal lines printed in the margins
adjacent to the text/illustrations in these instructions are
for ARJO use only and should be disregarded by the
reader.

Some of the information contained in these instructions
may become outdated, due to improvements made to the
product in the future. If you have any questions
regarding these instructions or your lifter, please contact
ARJO or their approved distributor.

When ordering spare parts it may be necessary to quote
the main lifter serial number this number is to be found
on the ‘bar code’ label.

The date of manufacture is shown in the first 6 digits of
the serial number. On machines with 15 digit serial
numbers the date is shown as e.g. GB1302 981556 007.
(GB = country of manufacture, 13 = 13th week of that
year and 02= year 2002), the remaining digits, are the
machine identification number.

From Feburary 2004 the barcode is of the new 12 digit
format. This breaks down as follows. The first two digits
are the manufacturers code, where GB = Arjo Gloucester
and 88 = Pertinax. The next four digits are the week and
year, where 0504 = week 5 and year 2004. The next five
digits are a unique sequence of numbers. And the last
digit identifies the type of product, where T = Top level
component (e.g. the whole lifter), 1 = Modular
component, and 8 = Slings.

Company
code

Week of
manufacture

Year of
manufacture

Note: Bar code labels shown are only typical and not specific to this product.

Type
Identifier

Unique serial
number

2

Contents

SECTION

A Pillar
B Chassis

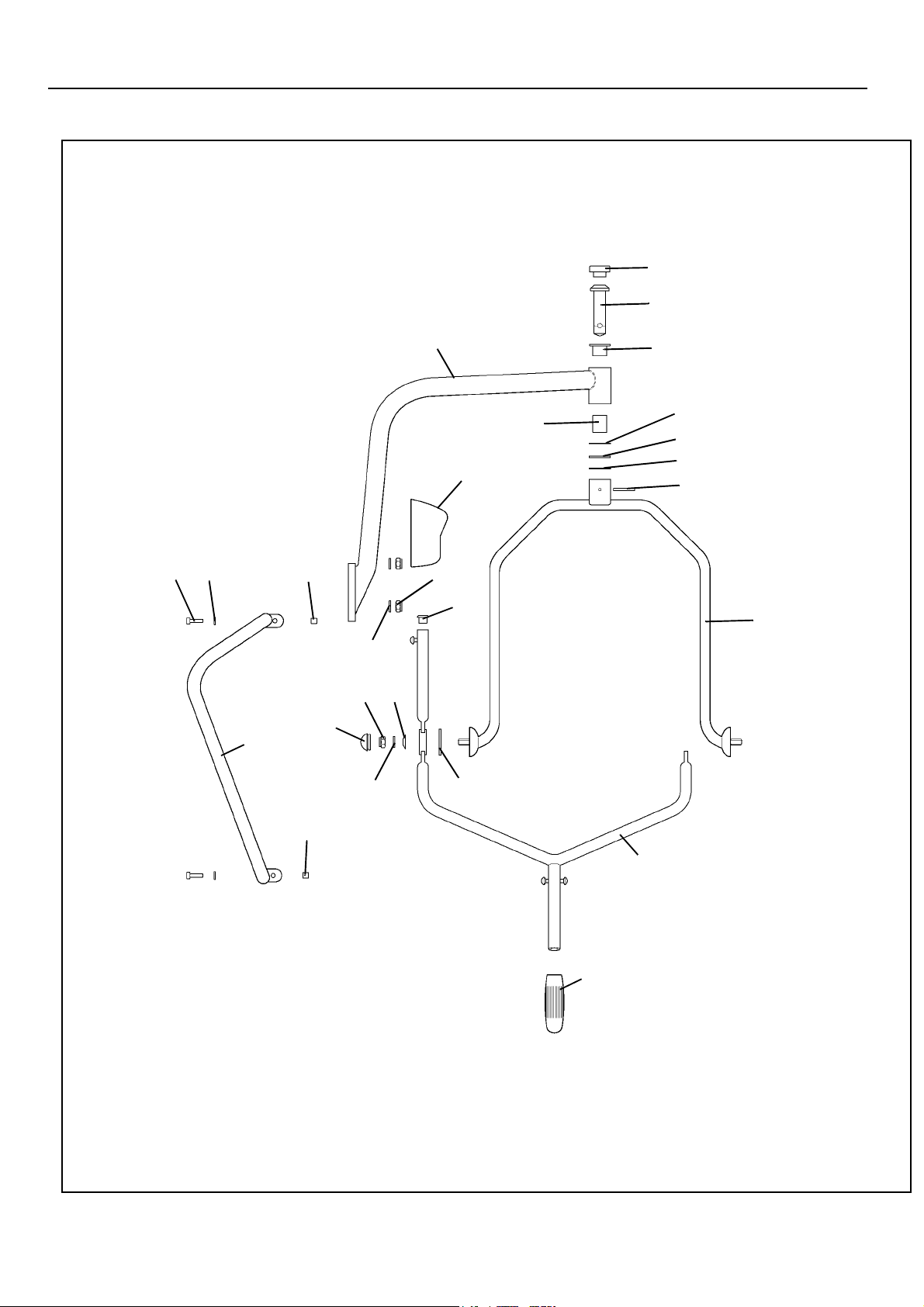

C Lift Arm and Handle
D Accessories

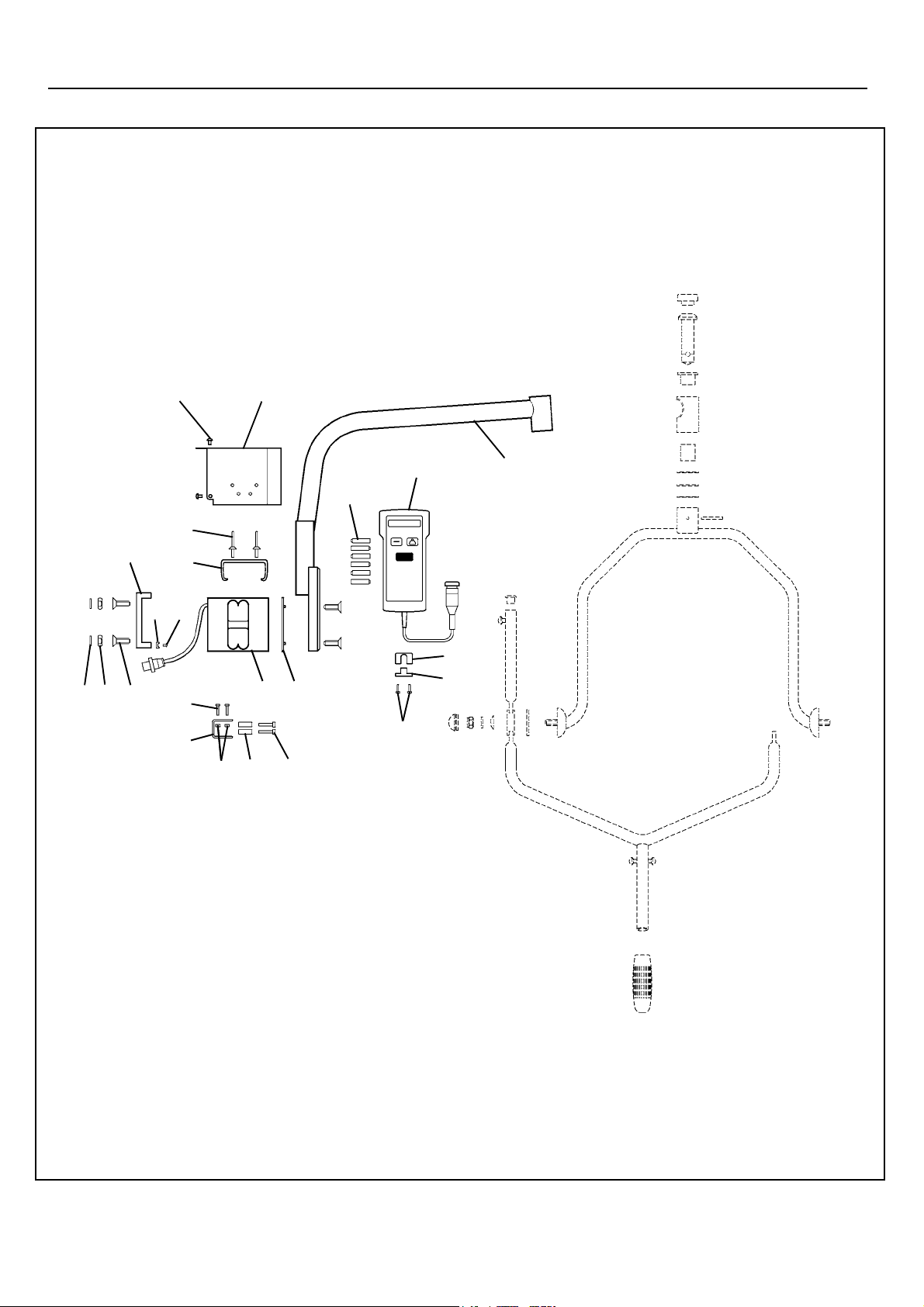

E Maxi Scale
F Electric Chassis
G Electric Chassis, Electrical
H Additions to Maxi Lift Mast

I Labels

Page
No.

4
10
14
16
18
20
26
28
30

3

A - Pillar

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

MX01800.0 1 Motor cable (black)

2

MX01930.0 1 Motor cable (red)

3

MX01630.0 1 Motor

4

MX01490.0 1 Linear actuator, complete

5

MX01861.0 1 Pillar cap

6

MX02690.0 2 Screw, slot cheese head, M3 x 16mm long

7

MX01620.0 1 Microswitch, complete

8

MX01600.0 1 Microswitch, plate

9

MX04200.0 2 Circlip

10

MX01570.0 2 Shaft

11

MX01720.0 1 PCB holder
MX05110.0 4 PCB holder

12

MS1015 1 PCB Upgrade Kit

13

MX02770.0 1 Double sided tape

14

MX01681.0 1 Mounting plate with seal

15

MX02740.0 2 Rivet M4

16

MX02520.0 1 Battery box cable
MX05250.0 1 Battery box cable, USA

17

MX02500.0 1 Pin

18

MX01850.06 1 Battery, complete

19

MX01670.0 1 Battery clip

20

MX02730.0 2 Washer M4

21

MX02380.0 1 Control unit

22

MX02700.0 1 Push button

23

6370146 1 Grommet (cable entry)

24

MX01710.06 1 Bracket

25

MX02030.06 1 Battery box

26

MX01030.0 2 Guide piece

27

MX03080.0 1 LED clip

28

MX02800.0 4 Screw, M6 x 60mm long

Continued...

4

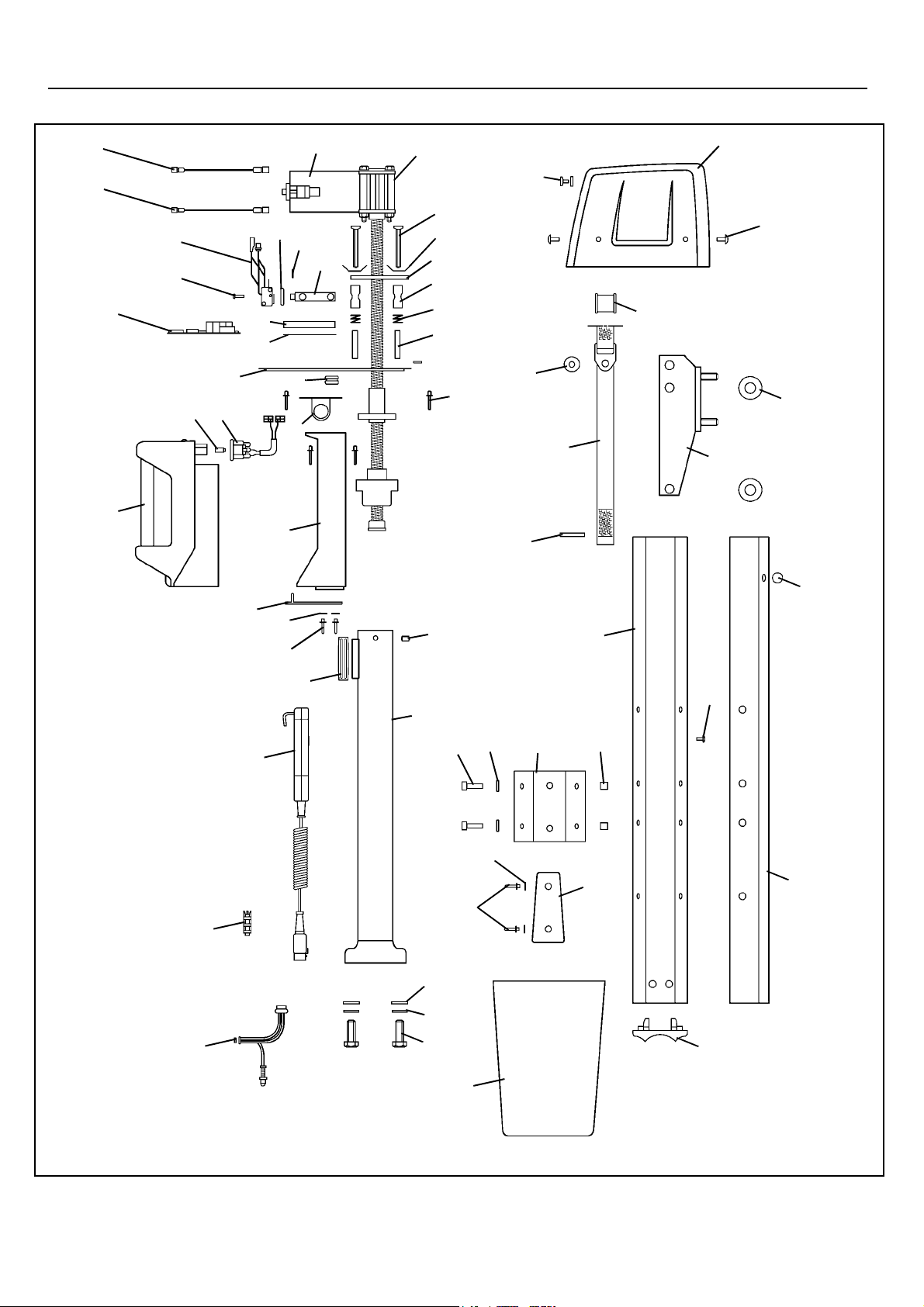

A - Pillar

43

5

29

42

44

P1487.

25

20

15

3

8

9

10

23

24

4, 61, 62

28
56

30

31
32
33

60

39

27

41

35

36

37

46

1

2

7

6

12

17 16

18

11
13

14

19

38

22

21

26

40

64

65
63

50

55

57

54

51

52

56

45

53

47, 48

49

Continued...

5

A - Pillar

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

29

MX03100.0 4 Screw, M6 x 12mm long

30

MX01590.0 1 Motor plate

31

MX01580.0 4 Bearer

32

MX02790.0 4 Spring

33

MX01550.0 4 Guide

34

MX03390.0 4 Lock washer

35

MX01210.0 4 Spacer

36

MX01520.0 2 Liftband, complete

37

MX02710.0 2 Pin

38

MX02490.0 1 Cable harness (No Longer Available) Use MS1015

39

MX03070.0 1 Stop screw, M8 x 12mm long

40

MX01000.06 1 Bottom mast assembly (inner tube)

41

MX01560.0 2 Roller

42

MX01220.0 4 Wheel

43

MX01150.0 1 Carriage
KMX01010.0 1 Carriage

44

MX01080.0 2 Cover disc (black)

45

MX02840.0 1 Screw, M4 x 8mm long

46

MX01110.0 1 Top mast assembly (outer tube)
MX02830.0 1 Top mast assembly (outer tube)

47

MX01060.06 1 Cover strip, right

48

MX01070.06 1 Cover strip, left

49

MX02480.0 1 Lower bearing

50

MX03190.0 4 Screw, socket button head, M6 x 20mm long
EX40220.0 4 Screw, socket button head, M6 x 20mm long

51

DX09690.0 4 Washer, M6

52

MX02150.06 1 Bracket, panel socket

53

AX10910.0 8 Spacer

54

HX33940.0 2 Washer, M5

55

MX02750.0 2 Rivet

56

MX03390.0 4 Conical Lock Washer

Continued...

6

A - Pillar

43

5

29

42

44

P1487.

25

20

15

3

8

9

10

23

24

4, 61, 62

28
30

31
32
33

60

39

27

41

34

35

36

37

46

1

2

7

6

12

17 16

18

11
13

14

19

38

22

21

26

40

64

65
63

50

55

57

54

51

52

56

53

45

49

47, 48

67

Continued...

7

A - Pillar

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

56

AX04350.0 1 Dovetail

57

AX04280.06 1 Sling holder

58

WJ0010 1 Velcro loop, white 50mm wide (not illustrated)

59

WJ0011 1 Velcro loop, white 30mm wide (not illustrated)

60

DX25360.0 2 Rivet

61

KMX00760.0 1 Interface filter

62

MX05130.0 3 Bolt, hex head, M6 x 80mm long

63

EX38870.0 2 Screw, hex head, M12 x 35mm long

64

EX40350.0 2 Washer, M12, spring

65

EX60840.0 2 Washer, M12

66

KAX00010.0 1 Velcro strap (not illustrated)

67

KMX01100.0 2 Plug

MS1002 .......................... Spares package, Battery retaining clip assembly

Comprising items, 15*2, 19, 20*2

MS1004 .......................... Spares package, Maxilift 24 month service kit

Comprising items, 26*2, 34*4, 36*2, 37*2, 44*2

MS1005 .......................... Spares package, Maxi Power Panel socket kit

Comprising items, 52, 54*2, 56, 60*2
See also, “Additions to Maxilift Mast” section in the manual

MS1006 .......................... Spares package, Maxi cover strip change kit

Comprising items, 44*2, 47, 48
See also, “Labels” section in this manual

MS1007 .......................... Spares package, Battery box sub-assembly-USA

Comprising items, 15*2, 16, 17, 19, 20*2, 23, 25

MS1008 .......................... Spares package, Pillar cap spares kit

Comprising items, 5, 27
See also,”Labels2 section in this manual

MS1009 .......................... Spares package, Cover Strip Spares Kit - Right hand

Comprising items, 44, 47
Se also, “Labels” section in this manual

MS1010 .......................... Spares package, Cover Strip Spares Kit - Left hand

Comprising items, 44, 48
See also, “Labels” section in this manual

8

A - Pillar

MS1020.GB .................... Spares package, Pillar exp (Pre GB0295)

MS1012........................... Spares package, Maxi Mast Manual/Power Conversion Kit

MS1013........................... Spares package, SX Maxilift Mast Assembly

MS1019........................... Spares package, Maxilift Top Mast Sub-Assembly

Comprising items, 5, 29*4, 59, 60, 61, 67

Comprising items, 52, 54*2, 56, 58, 59, 60*2
See also, “Additions to Maxilift Mast” section in this manual
See also, “Labels” section in this manual

Comprising items, 4, 5, 6*2, 8, 9*2, 10*2, 12, 13, 14, 15*2, 16,

17, 18, 19, 20*2, 21, 22, 23, 25, 26*2, 27, 28*4,
30, 31*4, 32*4, 33*4, 34*4, 35*4, 36*2, 37*2,
39*2, 40, 41*2, 43, 44*2, 45, 46, 47, 48, 49,
50*4, 51*4, 52, 53*8, 54*2, 55*2, 56, 57, 58,

59, 60*4, 62*3, 63*2, 64*2, 65*2, 67*2
See also, “Lift arm and Handle” section in this manual
See also, “Additions to Maxilift Mast” section in this manual
See also “Labels” section in this manual

Comprising items, 44*2, 47, 48, 49, 67*2, 69
See also, “Labels” section in this manual

MS1020-GB.................... Spares package, Pillar Cap (preGB0295)

Comprising items, 5, 29*4
See also, “Labels” section in this manual

9

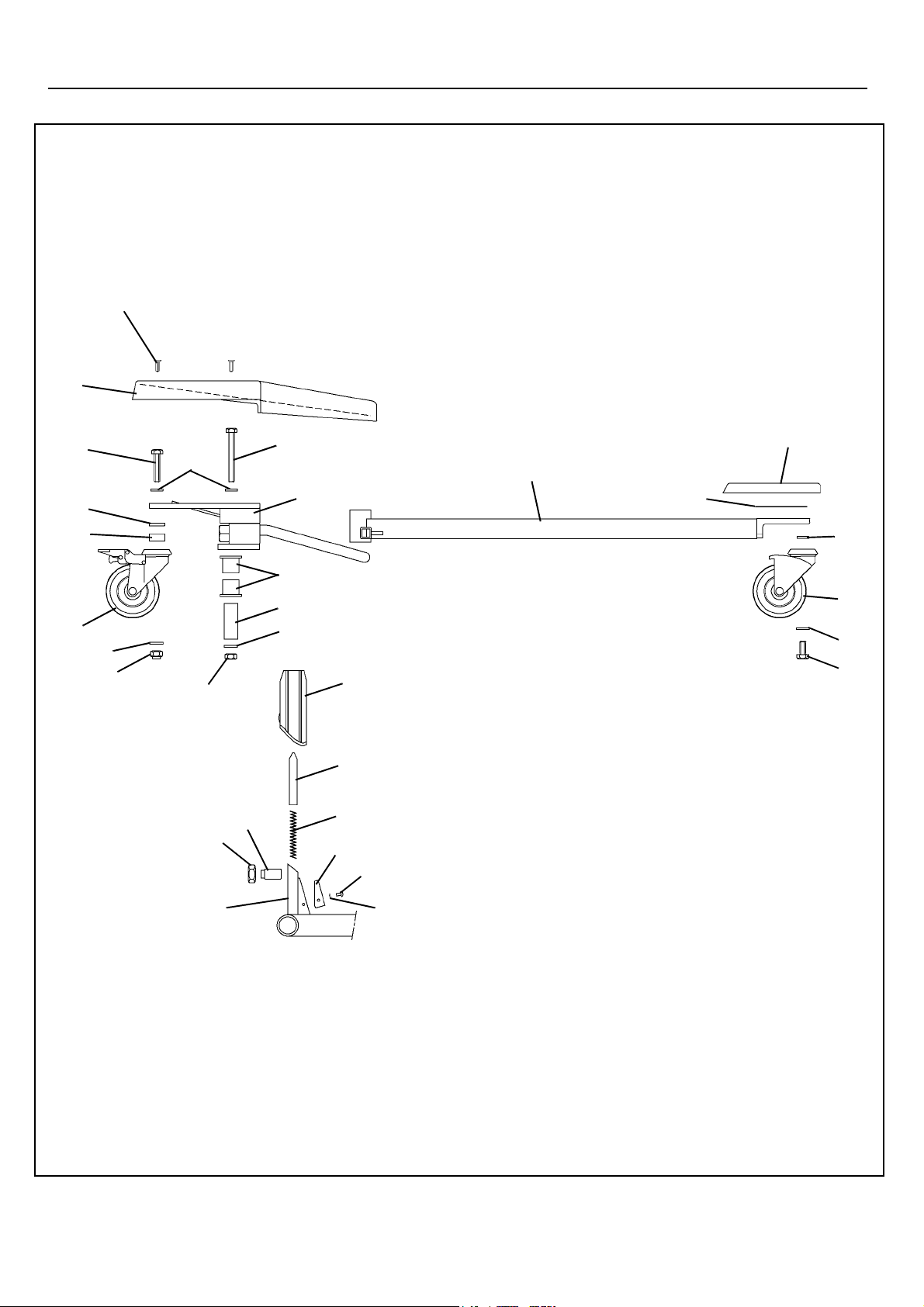

B - Chassis (Manual)

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

DX08780.0 4 Screw, socket countersunk head, M6 x 20mm long

2

GX24460.06 1 Foot support

3

KX54310.0 2 Screw

4

EX60840.0 6 Washer

5

GX24410.06 1 Chassis assembly

6

KX54290.0 2 Distance piece

7

KX54390.0 2 Castor (braked)

8

EX44080.0 2 Nut, nyloc, M12

9

KX54360.0 4 Bearing

10

KX54300.0 2 Bolt

11

MX04600.06 1 Leg, left hand

12

MX04590.06 1 Leg, right hand

13

KKX10470.04 2 Foot moulding - white
KKX10470.06 2 Foot moulding - beige
KX54281.06 2 Foot moulding - beige

14

AX02171.0 2 Castor (unbraked)s

15

DX08830.0 4 Washer, M10

16

AX27090.0 2 Screw, M10 x 35mm long
KRX26160.0 2 Screw, M10 x 35mm long

17

KX54190.0 2 Head

18

KX54200.0 2 Locking head

19

KX54340.0 2 Pressure spring

20

KX54230.0 2 Adjusting device

21

KX54240.0 2 Nut, M20

22

KX54350.0 2 List / edging

23

EX42960.0 2 Washer, M4

24

KX54400.0 2 Blind rivet

25

KX54370.0 2 Bushing

26

DX08820.0 4 Washer, M12

10

Continued...

B - Chassis (Manual)

1

2

P1488

28

7

13

29

14

15
16

20

10

9

25
26

11, 12

5

17

18

19

22

24

30

3

6

4

8

4

27

21

11, 12

23

11

B - Chassis (Manual)

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

27

EX45250.0 2 Nut, M12

28

DX08580.0 2 Washer

29

GX20620.0 2 Spacer

30

KKX10700.0 2 Pad, self adhesive

31

KPX11550.03 2 Castor, unbraked, 100mm dia., “Colson” (not illustrated)

32

KPX26080.03 2 Castor, braked, 100mm dia., “Colson” (not illustrated)

33

KPX26160.0 2 Bolt (not illustrated)

34

KMX01160.0 2 Screw, hex head, M12 x 25mm long (not illustrated)

35

KPX11550.04 2 Castor, 100mm dia., twin unbraked (not illustrated)

36

KKX10480.0 2 Castor, 100mm dia., braked (not illustrated)

KMS1000-04.................. Spares package, Maxilift Large Castor Package-white

Comprising items, 13, 30*2, 34*2, 35*2, 36*2

KMS1000-06....................... Spares package, Maxilift Large Castor Package-beige

Comprising items, 13*2, 32*2, 33*2

KMS1000-03.................. Spares package, Colson Castors for Maxilift

Comprising items, 31*2, 32*2, 33*2

MS1017 .......................... Spares package, SP Maxi Pilot chassis

Comprising items, 1*4, 2, 3*2, 4*4, 5, 6*2, 7*2, 8*2, 9*4, 10*2,

11, 12, 13*2, 14*2, 15*4, 16*2, 17*2, 18*2,
19*2, 20*2, 21*2, 22*2, 23*2, 24*2, 25*2,
26*4, 27*2, 28*2, 29*2

12

B - Chassis (Manual)

1

2

P1488

28

7

13

29

14

15
16

20

10

9

25
26

11, 12

5

17

18

19

22

24

30

3

6

4

8

4

27

21

11, 12

23

13

C - Liftarm and Handle

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

MX01370.0 1 Cap

2

MX01480.0 1 Pintle

3

MX02470.0 1 Bearing

4

MX01981.06 1 Lift arm

5

MX02460.0 1 Bearing sleeve

6

MX05020.0 1 Washer

7

MX05030.0 2 or A/R Shim

8

MX02450.0 1 Spring pin

9

DX08830.0 4 Washer

10

AX01201.0 4 Nut, M10 “Nyloc”

11

MX01290.06 1 Cover

12

MX02350.0 2 Plug

13

MX01961.06 1 Lift support

14

MX02160.06 1 Handle - Lifter manoeuvring

15

DX09690.0 4 Washer

16

MX04530.0 4 Screw

17

AX10910.0 4 Spacer

18

MX01460.0 2 Lid

19

MX01450.0 2 Washer

20

GX20460.0 2 Plate spring

21

MX01440.0 2 Friction washer

22

MX01940.0 1 Lift frame

23

AX09300.0 1 Handle

24

DX27490.0 2 Nut, M10, nyloc

MS1001.......................... Spares package, Maxilift 4 point hanger assembly- Retro

Comprising items, 1, 2, 3, 4, 5, 6, 7 A?R, 8, 10*6, 13

MS1013.......................... Spares package, SX Maxilift Mast Assembly

Comprising items, 14, 16*4
See also, “Pillar” section in this manual
See also, “Addititons to Maxilift Mast” section in this

manual
See aslo “Labels” section in this manual

14

C - Liftarm and Handle

P1489

1

2

16

15

14

17

18

24

9

19

20

4

10

12

21

11

3

5

7

6
7

8

13

17

22

23

15

D - Accessories

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

NDA1000-EU European Plug
NDA2000-GB Great British and Hong Kong Plug
NGA4000-US United States and Canadian Plug
NDA6000-AU Austrailian Plug

2

MA1100 Spare Battery

3

MS1021 Replacement Buckle Kit

Battery Charger with country specific plug, beige

16

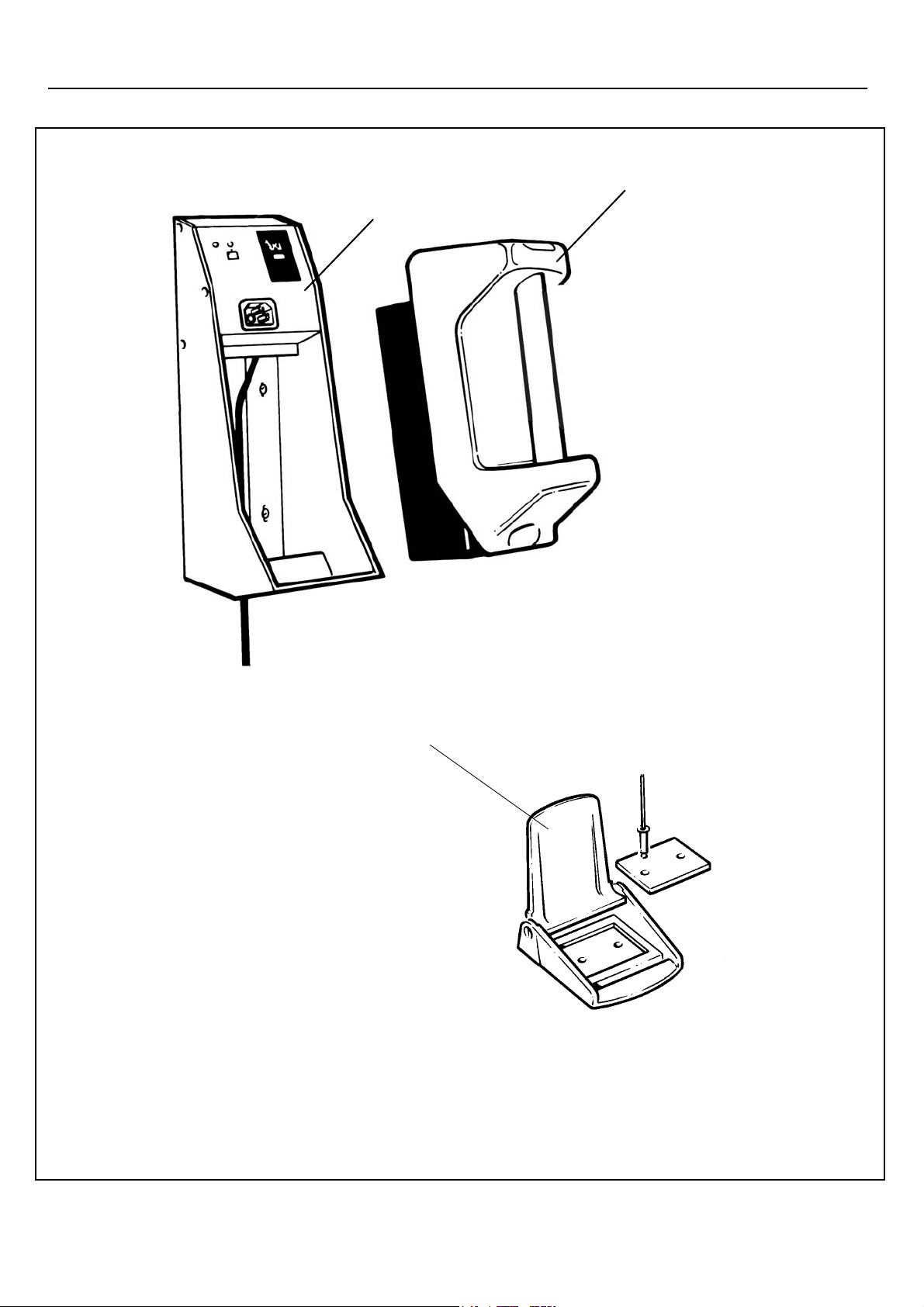

D - Accessories

P1052b

2

1

3

17

E- Maxi Scale

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

6120508 4 Screw

2

8236370-04 1 Cover - white - KRX21070.04
8236370-06 1 Cover - beige - KRX21080.06

3

6311081 8 Washer

4

6210019 4 Nut

5

6151025 4 Screw

6

8236350-04 1 Mounting plate - white - KRX21080.04
8236350-06 1 Mounting plate - beige - KRX21080.06

7

6314025 2 Rivet

8

8436360 1 Bracket

9

KMX00950.0 1 Load cell

10

6190184 4 Screw

11

8426887 1 Bracket

12

6210040 4 Locking nut

13

8437034 2 Distance

14

6130535 2 Screw

15

6361009 6 Battery

16

KMX00940.0 1 Patient scale

17

KMX00870.04 1 Lift arm - white
KMX00870.06 1 Lift arm - beige

18

8430674 1 Bracket

19

8436371 1 Bracket

20

6190196 2 Screw

21

8437044 1 Scale plate

22

6305054 2 Bracket

23

6120310 2 Screw

18

E - Maxi Scale

P1492

12

13

2

94321

14

15

20

16

17

18
19

1

7

6

5

22

8

23

10

11

19

Continued...

F - Electric Chassis

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

MX04000.06 1 Chassis - centre member welded assembly

2

MX04070.06 1 Leg, right hand welded assembly(not illustrated)

3

MX04120.06 1 Leg, left hand welded assembly

4

MX04130.0 4 Bearing

5

MX04140.0 2 Spacer

6

EX60840.0 2 Washer, M12

7

DX08820.0 4 Washer, M12

8

MX04150.0 2 Bolt, hex head, M12 x 110mm long

9

EX44080.0 4 Nut, M12, nyloc

10

MX04160.0 2 Screw, socket set, M12 x 20mm long

11

MX04640.0 2 Protection plug

12

MX04180.0 1 Bracket, fulcrum

13

JX68390.0 2 Screw, hex head set, M8 x 20mm long

14

DX27560.0 2 Washer, M8

15

MX04190.0 3 Bush

16

MX04200.0 3 Circlip

17

MX04210.0 1 Washer, nylon

18

MX04220.0 2 Link

19

MX04230.0 1 Pivot lever

20

MX04240.0 2 Washer, nylon

21

MX04250.0 2 Pin, linkage

22

MX04260.0 5 Washer, nylon

23

MX04270.0 2 Circlip

24

MX04280.06 1 Cover

25

DX08780.0 4 Screw, socket countersunk head, M6 x 20mm long

26

KX54330.0 4 Washer, cap

27

KX54250.0 4 O-ring

28

KX54320.0 4 Washer

29

KKX10470.04 2 Foot moulding - white
KKX10470.06 2 Foot moulding - beige

20

Continued...

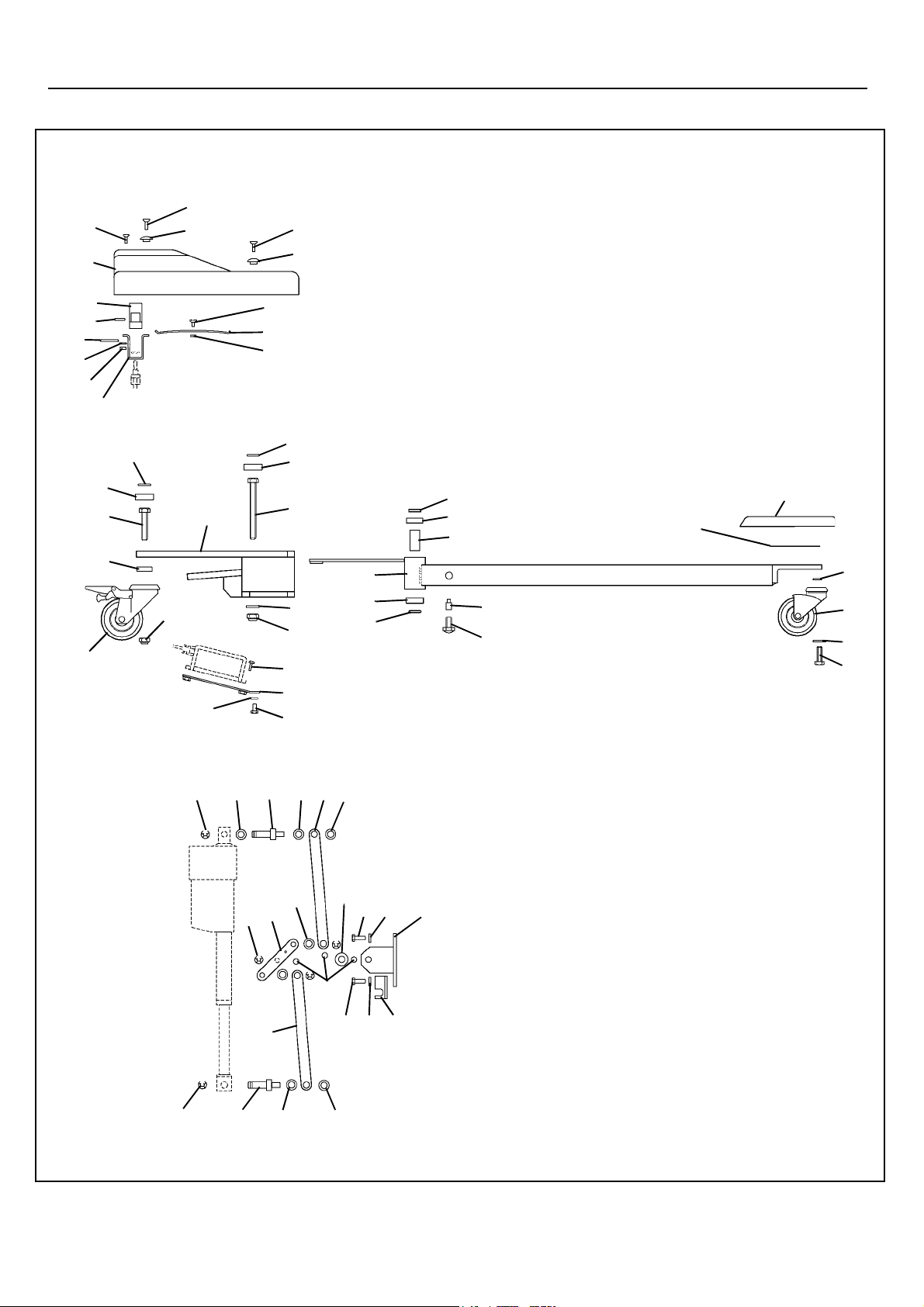

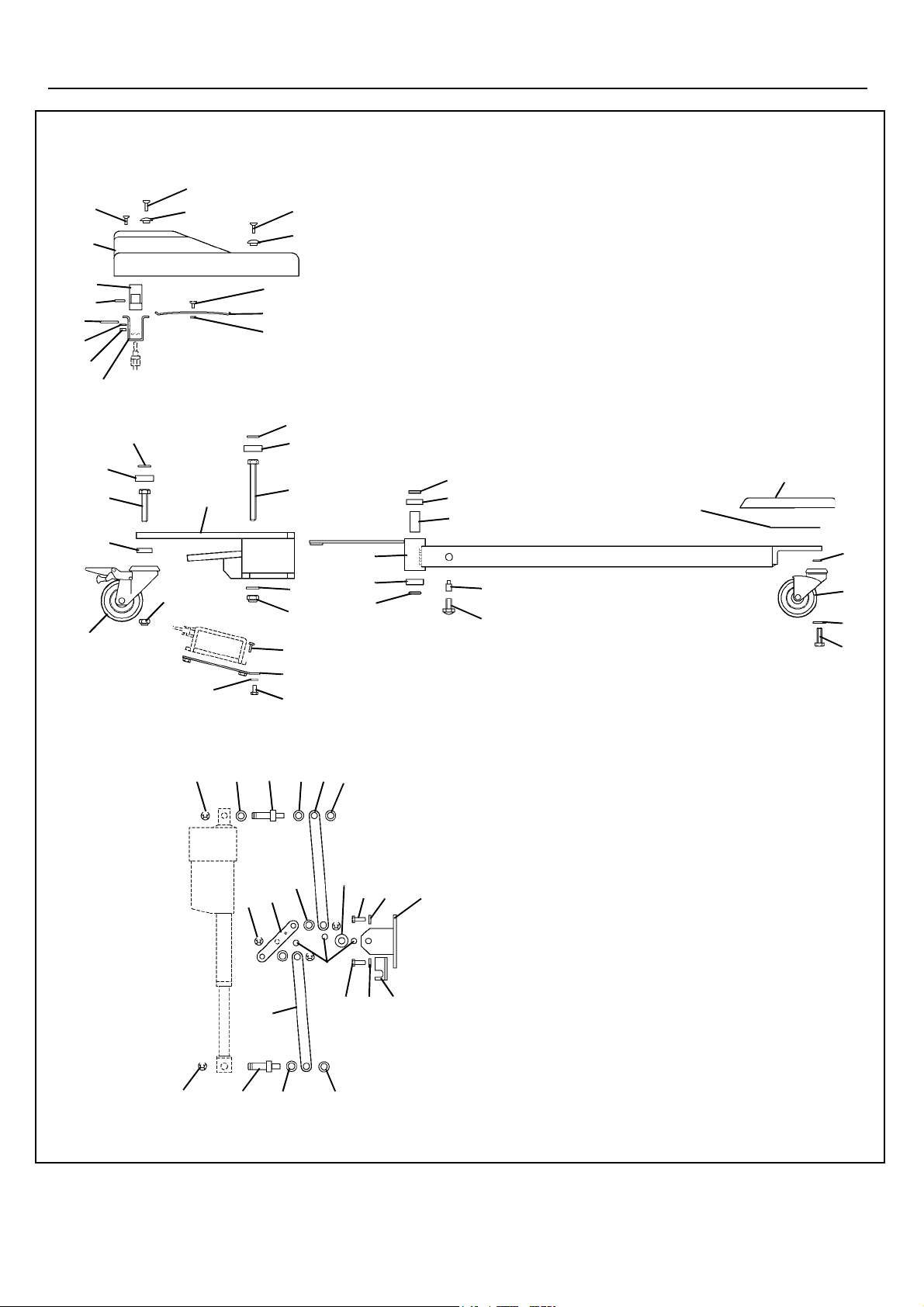

F - Electric Chassis

25

44

24

26

25
26

P815/2

40

45

46

34

37
41

42

28
35

36

27

47
38

39

27

28

6
4

5

10

11

43

49

48
50

8

3

7

9

4

7

1

9

51

29

32

33

30
31

23

23

22

16

21

21

22

20

19

18

22 22

37

15

22

17

13 14

1413

12

53

Continued...

21

F - Electric Chassis

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

30

DX08830.0 4 Washer, M10

31

AX27090.0 4 Set screw, hex head, M10 x 35mm long

32

GX20620.0 2 Spacer

33

AX02171.0 2 Castor, unbraked, 75mm dia. twin
KRX11550.03 2 Castor, unbraked

34

KX54390.0 2 Castor, braked, 80mm dia. single
KRX26080.03 2 Castor, braked

35

MX05100.0 2 Screw

36

MX01470.0 2 Spacer

37

MX04300.0 1 Foot switch

38

MX04310.0 1 Spring

39

MX04320.0 1 Nut

40

MX04330.0 1 Pin

41

MX04340.0 2 Pin

42

MX04350.0 1 Bracket, switch

43

KKX10700.0 2 Pad, self adhesive

44

EX44310.0 1 Screw, socket countersunk head, M5 x 20mm long

45

EX41520.0 2 Washer, M5

46

EX42900.0 2 Nut, M5

47

MX04370.0 1 Screw, slot countersunk head, M4 x 10mm long

48

MX04380.0 1 PCB bracket

49

HX33070.0 4 Screw, pan head slot, M4 x 10mm long

50

DX09680.0 2 Screw, hex head set, M6 x 10mm long

51

DX09690.0 2 Washer, M6

52

KX50710.0 2 Spirol pin (not illustrated)

53

Mx04290.0 1 Cable support bracket

KMS1000-04.................. Spares package, Maxilift Large Castor package- white

Comprising items, 129*2, 31*2, 33*2, 34*2, 43*2

KMS1000-06.................. Spares package, Maxilift Large Castor package- beige

Comprising items, 29*2, 31*2, 33*2, 34*2, 43*2

Continued...

22

F - Electric Chassis

25

44

24

26

25
26

P815/2

40

45

46

34

37
41

42

28
35

36

27

47
38

39

27

28

6
4

5

10

11

43

49

48
50

8

3

7

9

4

7

1

9

51

29

32

33

30
31

23

23

22

16

21

21

22

20

19

18

22 22

37

15

22

17

13 14

1413

12

?

Continued...

23

F - Electric Chassis

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

KMS1001-03................... Spares package, Coloson Castors for Maxilift

Comprising items, 31*2, 33*2, 34*2

MS1003........................... Spares package, Foot operated switch (power chassis)

Comprising items, 37, 38, 39, 40, 41*2, 47, 52*2
See also “H. Electrical Chassis, Electroical” section in this

manual

MS1018........................... Spares package, SP Maxilift Electric chassis

Comprising items, 1, 2, 3, 4*4, 5*2, 6*2, 7*4, 8*2, 9*4, 10*2,
11*2, 12, 13*2, 14*2, 15*3, 16*3, 17, 18*2, 19, 20*2, 21*2,
22*5, 23*2, 24, 25*4, 26*4, 27*4, 28*4, 29*2, 30*4, 31*2, 32*2,
33*2, 34*2, 35*2, 36*2, 37, 38, 39, 40, 41*2, 42, 44*2, 45*2,
46*2, 47, 48, 49*4, 50*2, 51*2, 52*2

See also, “Electric chassis Electrica”l section in this manual

24

F - Electric Chassis

25

44

24

26

25
26

P815/2

40

45

46

34

37
41

42

28
35

36

27

47
38

39

27

28

6
4

5

10

11

43

49

48
50

8

3

7

9

4

7

1

9

51

29

32

33

30
31

23

23

22

16

21

21

22

20

19

18

22 22

37

15

22

17

13 14

1413

12

?

25

G - Electric Chassis, Electrical

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

MX04360.0 1 Switch

2

MX04410.0 1 Limit switch box, "linak"

3

MX04420.0 1 Limit switch, "linak"

4

MX04430.0 1 Cable assembly (PCB actuator)

5

MS1014 1 Cable assembly (PCB to mast)

6

MX04470.0 1 Cable assembly (PCB to switch)

7

MX04480.0 1 Actuator, "linak"

8

MX04490.0 1 Adaptor

9

MX04500.0 1 Cable strain relief

10

EX40410.0 4 Cable tie

11

JX70840.0 1 Plug, 2 way (not illustrated)

12

MX04450.0 1 Curly cable (not illustrated)

13

MX04460.0 1 Free plug (not illustrated)

14

JX70710.0 2 Contact pin (not illustrated)

26

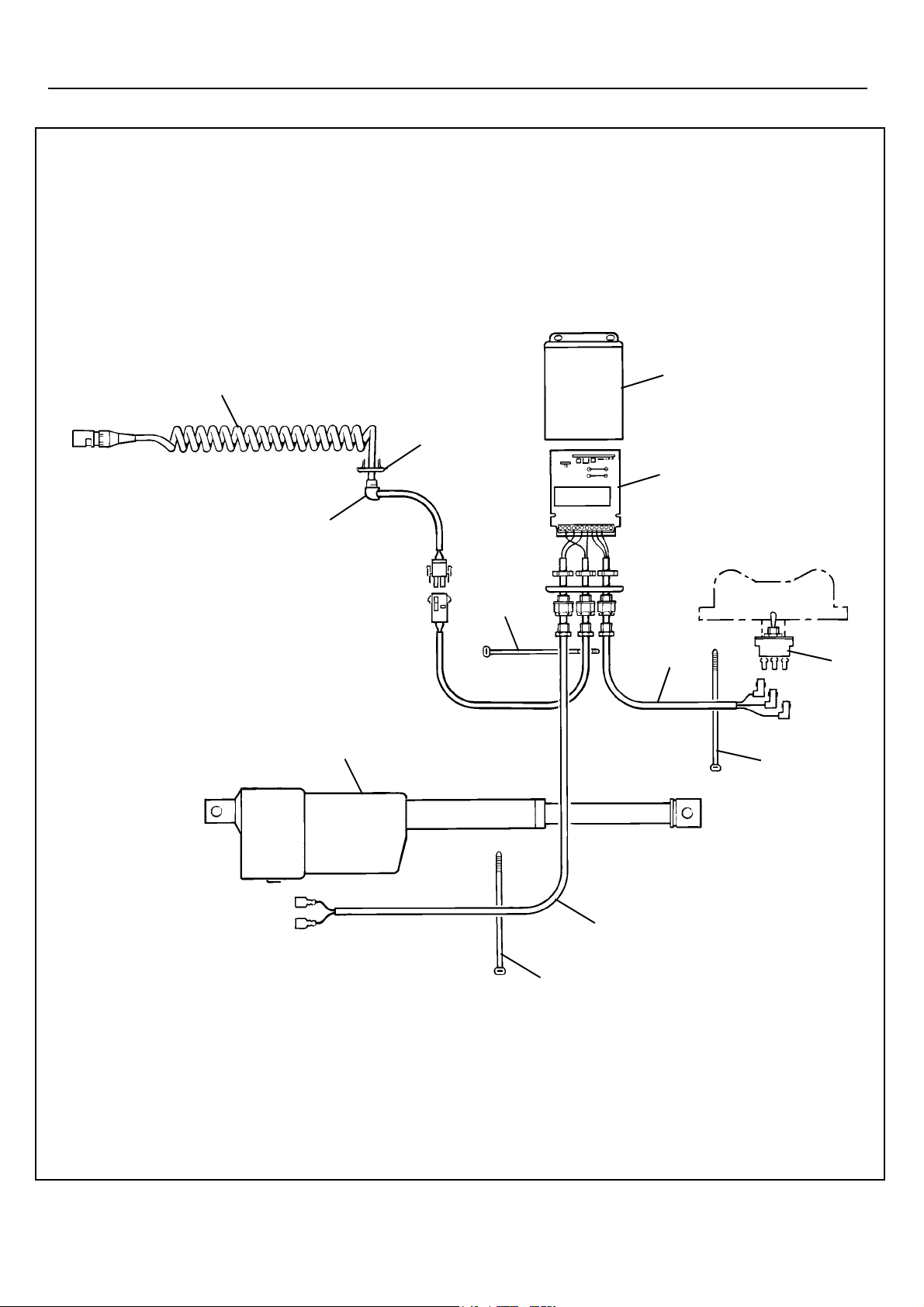

G- Electric Chassis, Electrical

P816/2

5

8

9

10

7

2

3

6

10

1

27

4

10

H - Additions to Maxilift mast

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

6370146 1 Cable entry grommet

2

MX02230.0 1 Cable assembly

3

MX02240.0 1 Cable assembly

4

MX02250.0 1 Fuse (3 amp)

5

MX02271.0 1 Cover plate

6

MX02220.0 1 Panel socket

7

MX02260.0 1 In-line fuseholder

8

MX02320.0 1 Gland

9

JX69790.0 1 Wire, brown 1.5mm2

10

EX60570.0 2 Terminal, piggy back

11

MX04520.0 1 Wire, 2 core 3 amp, flat white pvc

12

AX15310.0 2 Rivet (not illustrated)

13

JX69740.0 2 Washer, M3 (not illustrated)

14

JX70260.0 1 Cable tie

15

AX15960 3 Cable tie

16

MX04970.0 1 Wiring loom assembly (5 x mast) (not illustrated)

17

KKX10700.0 1 Self adhesive pad (PCB controller upgrade kit) (not illustrated)

18

KX57150.0 1 PCB (PCB controller upgrade kit) (not illustrated)

28

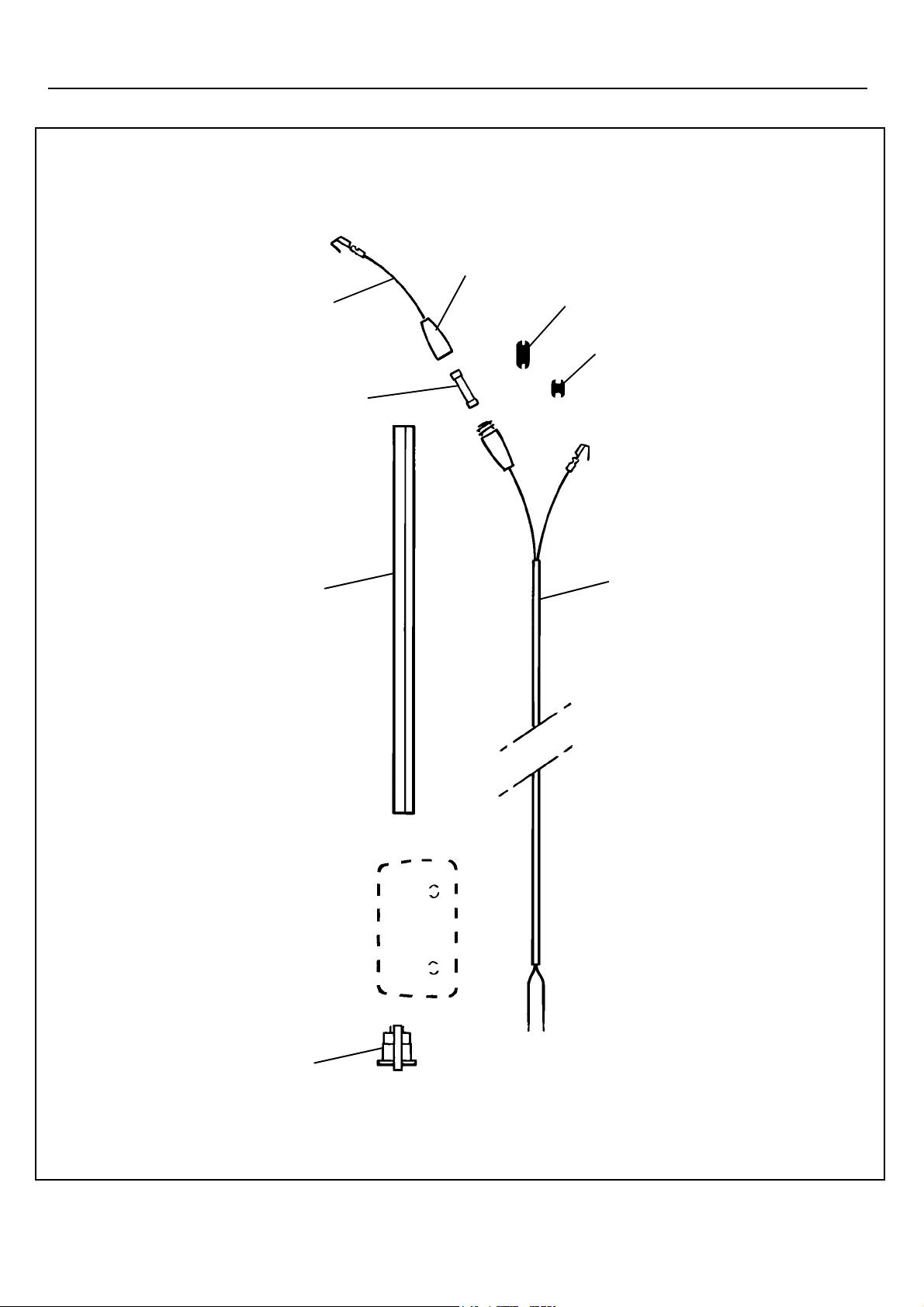

H - Additions to Maxilift mast

P817/2

7

3, 9, 10

5

1

8

4

2, 11, 10

6

29

I - Labels

Note: Always quote Serial number of lifter, and specify Quantity, Part Number, description and colour (if applicable) when ordering spares.
Note: ** in listed part number refers to country code
Note: .XX in listed part number refers to colour code suffix

Key to colour suffix:. 04 - White, .06 - Beige, .11 - Lilac, .16 - Sapphire blue, .20 - Grey, .21 - Dark Green, .23 - Orange, .25 - bright Green

Item Part Number Qty Description

1

MX01880.0 1 Label, serial number

2

AX06780.0 2 Label, serial number

3

MX04510.0 1 Label, operating switch

4

MX01900.0 1 Label, Arjo (69 x 38mm)

5

MX02410.0 1 Label, Arjo (50 x 25mm)

6

MX01870.0 1 Label, patent

7

MX04930.0 2 Label, stability

8

MX01890.0 1 Label, low battery

9

MX02590.0 1 Label, emergency lowering

10

MX02600.0 1 Label, address

11

MX04940.0 1 Label, battery removal

12

MX04950.0 1 Label, sling bucket

13

AX05780.0 1 Label, read operating instructions

14

AX01160.0 1 Label, CE

15

MX04960.0 2 Label, arrow

16

GX21300.0 1 Label, sling size guide

17

KMX01330.0 1 Label, warning (set of 3)

18

KMX01120.GB 1 Label, powered opening chassis, warning labels

30

Notes

31

AUSTRALIA
ARJO Hospital Equipment Pty. Ltd.
154 Lytton Road
Bulimba
Brisbane
QLD, 4171
Tel. [phone]
Fax. [phone]

SCANDINAVIA
Sverige
ARJO SCANDINAVIA AB
Box 61, 241 21 Eslov
Tel. [phone]
Fax [phone]
E-post: [email protected]

DEUTSCHLAND
ARJO Systeme für Rehabilitation
GmbH
Christof-Ruthof-Weg 6
55252 Mainz-Kastel
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]

ESPAÑA
ARJO SPAIN, S.A.
C/ San Rafael, nº 6
28108 ALCOBENDAS (MADRID)
SPAIN
Tel. [phone]
Fax. [phone]

NEDERLAND
ARJO NEDERLAND B.V.
De Blomboogerd 8
4003 BX TIEL
Postbus 6116
4000 HC TIEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

ÖSTERREICH
ARJO GmbH
Föhrenweg 5
A-6065 THAUR
Tel. [phone]
Fax. [phone]

Danmark
ARJO SCANDINAVIA
Postboks 51, 4632 Bjæverskov
Tel. [phone]
Fax. [phone]
E-post: [email protected]

Norge
ARJO SCANDINAVIA
Enebakkveien 117 d, 0680 Oslo
Tel. [phone]
Fax. [phone]
E-post: [email protected]

BELGIQUE / BELGIË
ARJO Hospital Equipment nv/sa
Ternesselei 248
B-2160 WOMMELGEM
Tel : [phone]
Fax : [phone]
Email: [email protected]

CANADA
ARJO Canada Inc.
1575 South Gateway Road
Unit C
Mississauga, ONTARIO
L4W 5J1
Tel. [phone]
Fax.[phone]

CESKÁ REPUBLIKA
ARJO Hospital Equipment s.r.o.
Strmá 35
CZ-616 00 BRNO
Tel. [phone]
Fax. [phone]

FRANCE
ARJO Equipements Hospitaliers sa
45, avenue de l'europe
Eurocit BP133
F–59436 RONCQ CEDEX
FRANCE
Tel: [phone]
Fax: [phone]
Email: [email protected]

GREAT BRITAIN
ARJO.
St. Catherine Street
Gloucester, GL1 2SL
ENGLAND U.K.
Tel. [phone]
Fax. [phone]

ARJO (Ireland) Ltd
Unit 6B
Calmount Park
Dublin 12
Eire
Tel. [phone]
Fax. [phone]

HONG KONG
ARJO Far East Ltd.
1001-3 APEC Plaza,
49 Hoi Yuen Road,
Kwun Tong, Kowloon,
HONG KONG
Tel. [phone]
Fax. [phone]

ITALIA
ARJO Italia S.p.A.
Via Poggio Verde, 34
00148 ROMA
Tel. [phone] - 57
Fax. [phone]
[email protected]

ARJO Poland Sp. z o.o.
ul. Lirowa 27,
02-387 Warsaw,
Poland
tel./fax office: [phone]..28
tel./fax serive: [phone]

SCHWEIZ / SVIZZERA
ARJO INTERNATIONAL AG
Florenzstr. 1d,
Postfach 4023
BASEL
Tel. [phone].
Fax. [phone]

SCHWEIZ
ARJO-SIC AG
Florenzstr. 1d
Postfach
4023 BASEL
Tel. [phone]
Fax [phone]

USA
ARJO, Inc.
50 North Gary Avenue
Roselle, IL 60172
Tel. [phone]
Fax. [phone]-ARJO(2756)

www.ARJO.com

If your country is not listed here, please contact your local distributor, or ARJO

© ARJO MED. AB LTD

International AB, Box 61, S-241 21 ESL

Tel [phone]. Fax + 46 413 555586.

ÖV, SW ED E N.

FM 21964

ISO 9001:2000

ARJO, UK Branch of ARJO MED AB LTD

MD 76970
ISO 13485

EMS73184

ISO 14001
