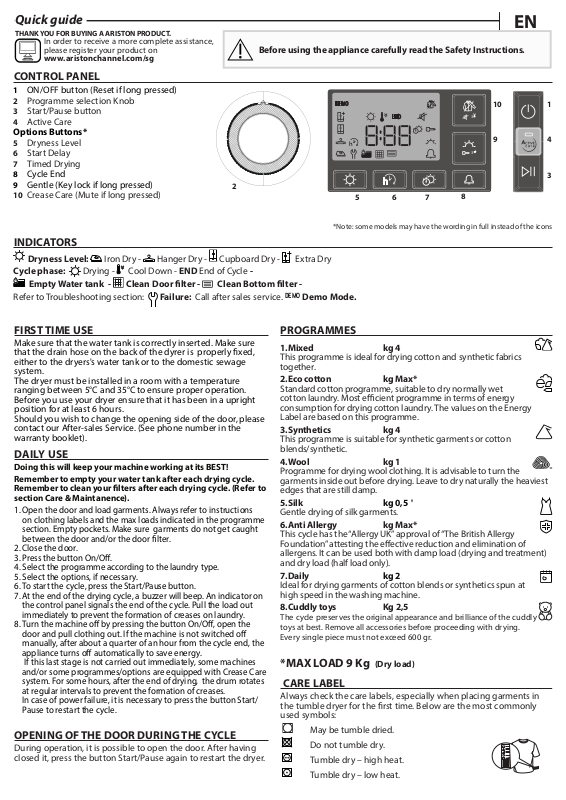

Quick guide
THANK YOU FOR BUYING A ARISTON PRODUCT.
In order to receive a more complete assistance, please register your product on www.aristonchannel.com/sg
CONTROL PANEL
EN
Before using the appliance carefully read the Safety Instructions.
Lorem ipsum
1 |
ON/OFF button (Reset if long pressed) |
|
|
|
|
2 |
Programme selection Knob |
DEMO |
|
|
|
3 |
Start/Pause button |
|
END |
|
|
4 |
Active Care |
|
|
|
|
|
|
|
|
||
Options Buttons* |
|
|
|
|
|
5 |
Dryness Level |
h |
|
|
|
6 |
Start Delay |
|
|
|
|
7 |
Timed Drying |
|
|
|
|
8 |
Cycle End |
|
h |
|
|
9 |
Gentle (Key lock if long pressed) |
2 |
|
|
|
|
|
|
|||
10 |
Crease Care (Mute if long pressed) |
5 |
6 |
7 |
8 |
10 1
3 “
9 4
3 “
3
*Note: some models may have the wording in full instead of the icons
INDICATORS
Dryness Level: Iron Dry - Hanger Dry - |
Cupboard Dry - Extra Dry |
||
Cycle phase: |
Drying - |
Cool Down - END End of Cycle - |
|
Empty Water tank - |
Clean Door filter - |
Clean Bottom filter - |
|
Refer to Troubleshooting section:
Failure: Call after sales service. DEMO Demo Mode.
FIRST TIME USE
Make sure that the water tank is correctly inserted. Make sure that the drain hose on the back of the dyrer is properly fixed, either to the dryers's water tank or to the domestic sewage system.
The dryer must be installed in a room with a temperature ranging between 5°C and 35°C to ensure proper operation. Before you use your dryer ensure that it has been in a upright position for at least 6 hours.
Should you wish to change the opening side of the door, please contact our After-sales Service. (See phone number in the warranty booklet).
DAILY USE
Doing this will keep your machine working at its BEST!
Remember to empty your water tank after each drying cycle. Remember to clean your filters after each drying cycle. (Refer to section Care & Maintanence).
1.Open the door and load garments. Always refer to instructions on clothing labels and the max loads indicated in the programme section. Empty pockets. Make sure garments do not get caught between the door and/or the door filter.
2.Close the door.
3.Press the button On/Off.
4.Select the programme according to the laundry type.
5.Select the options, if necessary.
6.To start the cycle, press the Start/Pause button.
7.At the end of the drying cycle, a buzzer will beep. An indicator on the control panel signals the end of the cycle. Pull the load out immediately to prevent the formation of creases on laundry.
8.Turn the machine off by pressing the button On/Off, open the door and pull clothing out. If the machine is not switched off manually, after about a quarter of an hour from the cycle end, the appliance turns off automatically to save energy.
If this last stage is not carried out immediately, some machines and/or some programmes/options are equipped with Crease Care system. For some hours, after the end of drying, the drum rotates at regular intervals to prevent the formation of creases.
In case of power failure, it is necessary to press the button Start/ Pause to restart the cycle.
OPENING OF THE DOOR DURING THE CYCLE
During operation, it is possible to open the door. After having closed it, press the button Start/Pause again to restart the dryer.
PROGRAMMES
1.Mixed kg 4
This programme is ideal for drying cotton and synthetic fabrics together.
2.Eco cotton |
kg Max* |
Standard cotton programme, suitable to dry normally wet |
|
cotton laundry. Most efficient programme in terms of energy |
|
consumption for drying cotton laundry. The values on the Energy Label are based on this programme.
3.Synthetics kg 4
This programme is suitable for synthetic garments or cotton blends/synthetic.
4.Wool kg 1
Programme for drying wool clothing. It is advisable to turn the
garments inside out before drying. Leave to dry naturally the heaviest edges that are still damp.
5.Silk |
kg 0,5 ' |
Gentle drying of silk garments. |
|
6.Anti Allergy |
kg Max* |
This cycle has the “Allergy UK”approval of “The British Allergy Foundation”attesting the effective reduction and elimination of allergens. It can be used both with damp load (drying and treatment) and dry load (half load only).
7.Daily kg 2
Ideal for drying garments of cotton blends or synthetics spun at high speed in the washing machine.
8.Cuddly toys |
Kg 2,5 |
The cycle preserves the original appearance and brilliance of the cuddly toys at best. Remove all accessories before proceeding with drying. Every single piece must not exceed 600 gr.
*MAX LOAD 9 Kg (Dry load)
CARE LABEL
Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:
May be tumble dried.
Do not tumble dry.
Tumble dry – high heat. Tumble dry – low heat.
The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected. In machines equipped with display, the duration of the cycles is shown on the control panel. The remaining time is constantly checked and adjusted during the drying cycle to show the best possible estimate.
9.Pre-Iron
This cycle allows to extend the fibres of garments thus making
ironing and folding easier. Do not use in case of garments that are still wet. Suitable for small loads of cotton textiles or cotton
blends.
10.Refresh
A short programme suitable for refreshing fibres and
garments by means of fresh air. Do not use with garments that are still wet. It can be used on with any load size but is more effective with small loads. The cycle duration is about 20 minutes.
11.Duvet
Programme intended to dry bulky garments, as single duvet.
12.Bed & Bath Kg Max*
This programme is intended for drying cotton towels and sheets.
13.Baby kg 2
A programme intended to dry garments and linen of newborn babies (cotton and chenille), as well as delicate garments. Do not dry garments having plastic covering.
14.Jeans kg 3
For drying cotton jeans-wear and garments made of robust cotton, like denim, such as trousers and jackets.
15.Shirts kg 3
This is a programme for Shirts made from cotton or cotton blend/synthetics.
OPTIONS
After selecting the programme, the various options can be set, if necessary
Active Care
This function allows to preserve the original appearance and brilliance of your garments at best, by controlling the motor speed, the rotation of the drum, and the temperature.
Dryness Level
Press the related button several times to obtain a different level of residual moisture on garments. An indicator signals the level being selected.
Iron Dry: a very delicate ironing. Suitable for making ironing of garments easier immediately after the end of the cycle.
Hanger Dry: a level intended for delicate garments ready to be hanged.
|
Cupboard Dry: the garments are ready to be folded and put |
|
away. |
|
Extra Dry: used for garments to be worn at the end of the |
|
cycle. |
h |
Start Delay |
|
This option allows you to set the delay of the cycle start. Press |
the corresponding button several times to obtain the required delay. After having reached the max. settable time, the option is reset by pressing the button again. An indicator on the control panel signals the time being selected. After having pressed the button Start/Pause, the machine signals the remaining time
for the cycle start. In case of door opening, after closing, it is necessary to press the button Start/Pause.
OPTIONS BUTTONS
These buttons serves to personalise the selected programme according to personal requirements. Not all options are available for all programmes. Some options are incompatible with the ones previously set. The buzzer and/or blinking indicators will signal the incompatibility. If the option is available, the option indicator will stay on. Some options may be kept in the memory of the programme if selected in the previous drying.
Timed drying
This option allows to set the drying time. Press the corresponding button to set the required time for drying. An indicator on the control panel signals the time being selected.
Cycle End
This option activates a prolonged buzzer at the end of the cycle. Enable it if you are not sure to hear the normal sound at the end of the cycle. This option remains in memory if selected in the previous drying.
Gentle
Enables a more gentle treatment of the laundry by reducing the drying temperature.
Key Lock
This option makes all machine controls inaccesible, except the button On/Off. When the machine is on:
•to activate the option, keep the button pressed until the indicator goes on.
•to disable the option, keep the button pressed until the indicator goes off. This option remains in memory if selected in the previous drying.
Crease Care
This option add a crease treatment at the end of the cycle by means of a periodic rotation of the drum (duration up to 10 hours). It is particularly suitable when it is not possible to remove the laundry as soon as the drying ends. If this option is used together with the Start Delay, the crease treatment is added also in the Start Delay phase. This option remains in memory if selected in the previous drying.
Mute
This option turns off all sounds of control panel. Only warnings remain active.
To activate the option, keep the button pressed until the indicator goes on.
To disable the option, keep the button pressed until the indicator goes off.
The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool gar-
ments labelled as “hand wash” provided
that the garments are dried according to the instructions issued by the ma-
nufacturer of this machine. Follow the garment care label for other laundry
instructions. M1762. The Woolmark symbol is a Certification mark in many countries.
