ARISTON RNF80211PH Daily Reference Guide

User Manual

www.aristonchannel.com

Quick Guide

1

2

3

A

B

THANK YOU FOR PURCHASING A ARISTON PRODUCT.

To receive more comprehensive assistance, register the
appliance on

www.aristonchannel.com/register

CONTROL PANEL

GB

Before using the appliance carefully read the Health and Safety guide.

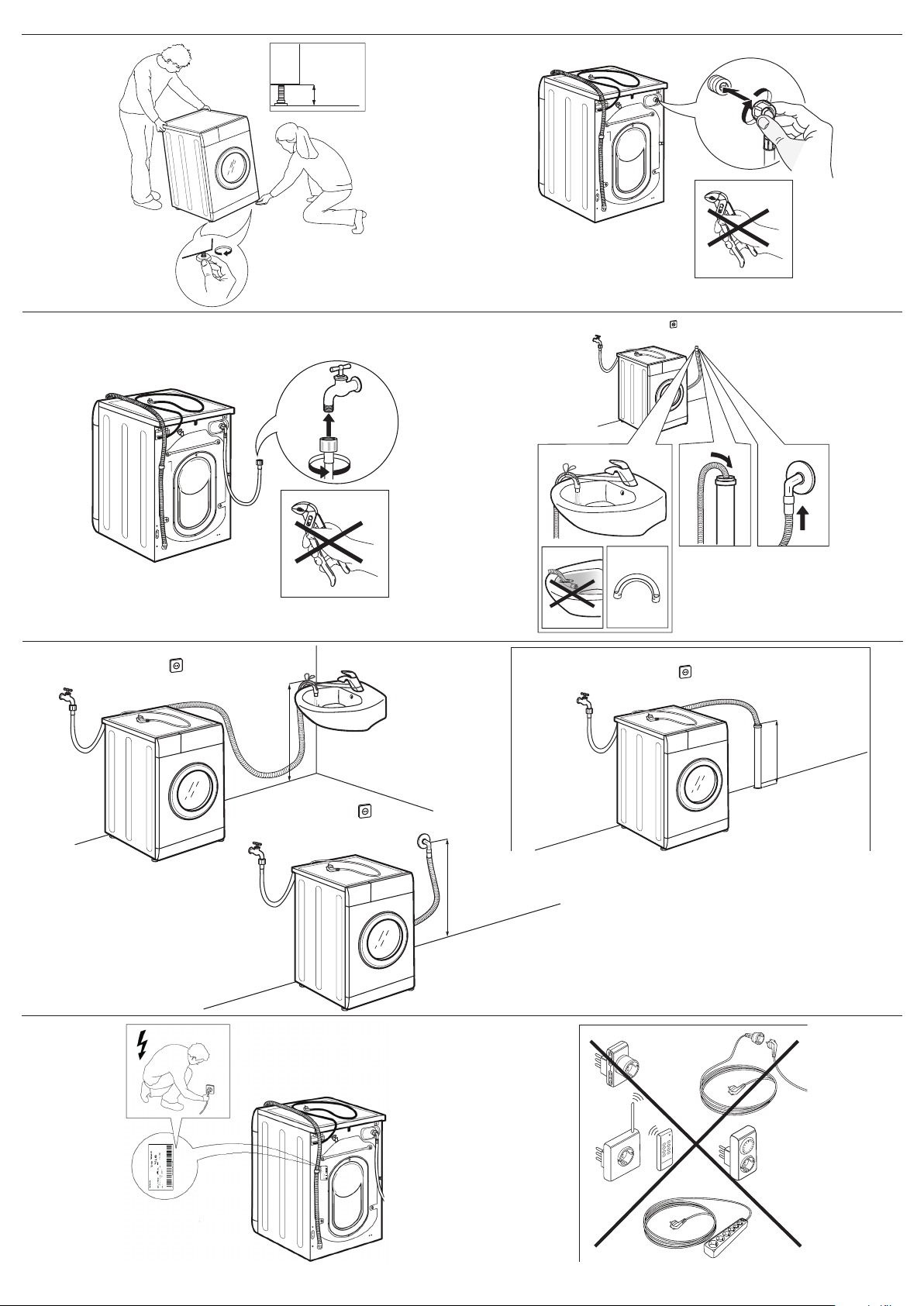

Before using the machine, it is imperative that the transport bolts are removed. For more
detailed instructions on how to remove them, see the Installation Guide.

1. EXTRA RINSE / MUTE button

2. FINAL CARE / KEY LOCK button

3. ON/OFF button

4. STEAM HYGIENE button and indicator light

5. START/PAUSE button

6. RAPID button

7. SPIN button

8. START DELAY button

9. TEMPERATURE button

10. WASH CYCLE SELECTOR KNOB

WASH CYCLE TABLE

Maximum load 8 kg
Power input in o mode 0.5 W / in left-on mode 8 W

Wash cycle

1 Mixed

2 Eco Cotton (1) 60°C

3 Cotton (2)

4 Synthetics (3)

5 Delicates

6

7 Anti Allergy

8 Anti Stain 40°

9 White

10 Steam Refresh

11 Rapid 30 min

12 Bed & Bath

13 Shirts

14 Spin & Drain *

15 Rinse & Spin

 Required dosage  Optional dosage

The cycle duration indicated on the display or instruction manual is an estimate based on
standard conditions. The actual duration may vary in relation to several factors, such as
the temperature and pressure of the incoming water, ambient temperature, amount of
detergent, load quantity and type, load balancing and any additional options selected.

1) Test wash cycle in compliance with regulation 1061/2010:
This cycle is designed for normally soiled cotton loads and is the most ecient in terms of
both electricity and water consumption; it should be used for garments washable at 60°C or
at 40°C. The actual washing temperature may dier from the indicated value.

Wool

Temperature

Default Range 1 2 3

40°C - 40°C

60°C 1200 8 225

40°C 1200 8 235

40°C - 60°C

40°C - 60°C

40°C - 40°C

40°C - 40°C

60°C 40°C - 60°C

40°C - 40°C

40°C - 90°C

– – –

30°C - 30°C

60°C - 60°C

40°C - 40°C

– –

– –

Max.

spin speed

(rpm)

1200 8

1200 8 235

1200 4,5 175

1000 4,5

800 2

1200 5

1000 4,5

1200 8

800 4,5

1200 8

600 2

1200 8

1200 8

Max.
load

(kg)

1 2

DISPLAY

8

10

Detergents and

Add

**

Garments

(

)



Duration

(minutes)









**

**

**

**

**

2

** – – – – – – – – –

**

**

**









 (***)    







Pre-

wash

–

–

–

–

–

–

–

–

–

–

–

–

Additives

Wash

 

   

   

   

   

 

 

   

   

 

   

 

9

Fabric

softener

67

Recommended

detergent

Powder Liquid

–



–



–



–



–



** – – – – – – – – –

** – – –

For all testing institutes:

2) Long cotton cycle: set wash cycle 3 with a temperature of 40°C.

3) Long synthetics cycle: set wash cycle 4 with a temperature of 40°C.



– – – – –

* By selecting the 14 cycle and excluding the spin cycle, the washing machine will drain only.
** The duration of the wash cycles can be checked on the display.
*** For Prewash press the “Temp.” button until the symbol lights up (only 90°).

3

5

ness %

tion kWh

Residual damp-

Energy consump-

– – –

53 0,97 55

53 1,24 94

53 1,24 94

53 0,54 55

– – –

– – –

– – –

– – –

– – –

– – –

– – –

– – –

4

Total water l

PRODUCT DESCRIPTION

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

DETERGENT DISPENSER DRAWER

compartment 1: Pre-wash detergent

1.

2.

7.

8.

(powder)

3.

compartment 2: Detergent for the wash
cycle (powder or liquid)

If liquid detergent is used, it is recommended
that the removable plastic partition A

4.

(supplied) be used for proper dosage.
If powder detergent is used, place the partition

5.

into slot B.

compartment 3: Additives (fabric softeners,
etc.)

6.

The fabric softener should not overow the grid.
! Use powder detergent for white cotton garments, for pre-washing, and
for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.

WASH CYCLES

END

DEM O

h

Follow the instructions on the symbols of the garment’s wash
care label. The value indicated in the symbol is the maximum
recommended temperature for washing the garment.

Mixed

For washing lightly to normally soiled resilient garments in cotton, linen,
synthetic bres and mixed bres.

Eco Cotton 60°/40°

Suitable for washing moderately soiled cotton garments. At 40°C and
60°C it is the standard cycle for washing cotton garments, and is the most
ecient in terms of combined water and electricity consumption.

Cotton

Normally to heavily soiled and robust cottons .

Synthetics

Suitable for washing moderately soiled garments made of synthetic bres
(e.g. polyester, polyacrylic, viscose, etc.) or mixed synthetic-cotton bres.

Delicates

For washing very delicate garments. It is advisable to turn the garments
inside out before washing them. For best results, use liquid detergent on
delicate garments.

Wool - Woolmark Apparel Care - Green:

The “Wool” wash cycle is approved by the Woolmark Company for
washing wool garments classied as “hand-washable”, provided that the
wash complies with the instructions appearing on the garment’s label
and with those provided by the manufacturer of this washing machine.

(M1127)

Anti Allergy

Suitable for removing major allergens such as pollen, mites and cat or dog hair.

Anti Stain 40°

The programme is suitable to heavily-soiled garments with resistant
colours. It ensures a washing class that is higher than the standard class (A
class). When running the programme, do not mix garments of dierent
colours. We recommend the use of powder detergent. Pre-treatment with
special additives is recommended if there are obstinate stains.

White

For washing normally to heavily soiled towels, underwear, table and bed
linen, etc in resilient cotton and linen. Only when the temperature is
selected at 90°C the cycle is provided with a prewash phase before main
washing phase. In this case it is recommended to add detergent both, in
the prewash and main wash section.

Steam Refresh

The garments will be damp once the cycle is completed, so we recommend
hanging them to dry (2 kg, roughly 3 items). This programme refreshes
garments by removing bad odours and relaxing the bres. Insert dry items
only (that are not dirty) and select programme “Steam Refresh”. Garments
will be a little damp at the end of the cycle and can be worn after a few
minutes. The “Steam Refresh” programme makes ironing easier.
! Do not add softeners or detergents.
! Not recommended for wool or silk garments.

Rapid 30 min

For washing lightly soiled garments quickly. This cycle lasts only 30
minutes, saving time and energy.

Bed & Bath

For washing home linen in a single cycle. It optimises the use of fabric
softener and allows for saving time and electricity. We recommend the
use of powder detergent.

Shirts

Use the special wash cycle to wash shirts in dierent fabrics and colours
to guarantee they receive the best possible care.

Spin & Drain

Spins the load then empties the water. For resilient garments. If you
exclude the spin cycle, the machine will drain only

Rinse & Spin

Rinses and then spins. For resilient garments.

DISPLAY

The display is useful when programming the washing machine and
provides plenty of information.

B

C

C

A

C

The duration of the available wash cycles and the remaining time of a
running cycle appear in section A (the display will show the maximum
duration of the cycle chosen, which may decrease after several minutes,
since the eective duration of the programme varies depending on the
wash load and the settings chosen); if the DELAYED START option has been
set, the countdown to the start of the selected wash cycle will appear.
Pressing the corresponding button allows you to view the maximum spin
speed and temperature values attained by the machine during the set
wash cycle, or the values selected most recently, if these are compatible
with the set wash cycle.
The “wash cycle phases” corresponding to the selected wash cycle and the
“wash cycle phase” of the running wash cycle appear in section B:

Main wash
Rinse

Spin + Pump out

References C indicate the wash options available (See “Options” section).
The “Start Delay” symbol , when lit, indicates that the set “delayed start”

value has appeared on the display.
The symbol indicates the possibility of inserting an additional garments
load with the washing program started (See “Adding Garments” section).
The symbol indicates the possibility to silence the key tones
While the mute is active, almost all sounds will be turned o. Only the sound
signals and the alarms remain active, as well as the sound of the end of cycle.
For activate/deactivate the mute press and hold button.

DISPLAY INDICATORS

Failure: Call Service
Refer to Troubleshooting section

Failure: Water lter clogged
Water cannot be drained; water lter might be blocked

Failure: No water
No or not sucient inlet water.

In the event of any failure, refer to the “Troubleshooting” section.

Key Lock
To lock the control panel, press and hold the “Key lock” button for
approximately 3 seconds. The symbol will light up on the display to
indicate that the control panel has been locked (with the exception of the
“ON/OFF“ button). This prevents unintentional changes to
programmes, especially with children near the machine. To unlock the
control panel, press and hold the “Key lock” button for
approximately 3 seconds .

Locked door indicator

When lit, the symbol indicates that the door is locked. To prevent any
damage, wait until the symbol turns o before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE
button ; if the symbol is o, the door can be opened.

FIRSTTIME USE

Once the appliance has been installed, and before you use it for the rst time,
run a wash cycle with detergent and no laundry, using the wash cycle 9 (60°).

DAILY USE

Prepare the laundry by following the suggestions appearing under the
“TIPS AND SUGGESTIONS” section.

- Press the ON/OFF button .

- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the wash cycle table.

- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments, as described in the “DETERGENT DISPENSER
DRAWER” section.

- Close the door.

- The machine automatically displays the default temperature and spin
speed values for the selected cycle, or the most recently used settings if
they are compatible with the selected cycle.

- Select the desired wash cycle.

- Select the desired options.

- Press the START/PAUSE button to start the wash cycle; the door will
lock ( symbol on).

PAUSING A CYCLE

To pause the wash cycle, press the START/PAUSE button again. To start
the wash cycle from the point at which it was interrupted, press the
START/PAUSE button again.

OPENING THE DOOR, IF NECESSARY

Once a cycle starts, the symbol turns on to signal that the door cannot
be opened. While a wash cycle is running, the door remains locked. To
open the door while a cycle is under way, for example, to add or remove
garments, press the START/PAUSE button to pause the cycle. If the
symbol is not lit, the door may be opened. Press the START/PAUSE
button again to continue the cycle.

C

ADDING GARMENTS

An icon on the display will signal when additional garments can be
introduced into the washing machine, without decreasing the washing
performance. To add garments, rst stop the washing machine by
pressing the START/PAUSE button then open the door and insert
them.
Press the START/PAUSE button again to restart the wash cycle from
the point at which it was interrupted.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washing machine
using the START/PAUSE button, then select the desired cycle and press
the START/PAUSE button again.
! To cancel a cycle that has already begun, press and hold the ON/OFF
button. The cycle will be stopped and the machine will switch o.

AT THE END OF THE WASH CYCLE

This will be indicated by the word “ ” on the display; when the
symbol switches o, the door may be opened. Open the door, unload the
laundry and switch o the machine. If you do not press ON/OFF button,
the washing machine will switch o automatically after about 15 minutes.

OPTIONS

- If the selected option is not compatible with the set wash cycle, the
indicator light will ash accompanied by a buzzer and the option will
not be activated.

- If the selected option is not compatible with another previously
selected option, the indicator light will ash accompanied by a buzzer
and the option will not be activated.

Extra Rinse

Selecting this option allows for enhancing rinsing eciency and fully
removing the detergent. It is particularly useful for sensitive skin.

Final Care

The washing machine will perform gentle tumbling through slow
rotations of the drum. Final Care option starts after the cycle ends for a
maximum duration of 6h and you can interrupt at any time by pressing
any button on control panel or turning the knob.

Rapid
Selecting this option allows for reducing the wash cycle duration
depending on the selected cycle, thus guaranteeing both water and
energy saving. Use this cycle for lightly soiled garments.

Steam Hygiene

This option enhances washing performance by generating steam during
the wash cycle to remove any bacteria from the bres, which are treated
at the same time. Place the laundry in the drum, choose a compatible
programme and select option Steam Hygiene.
! The steam generated during the operation of the washing machine may
cause the porthole door to become hazy.

Start Delay
To set a delayed start for the selected cycle, press the corresponding button
repeatedly until the desired delay period is reached. When this option has
been activated, the symbol lights up on the display. To remove the
delayed start setting, press the button until “OFF” appears on the display.

Temperature

Each wash cycle has a pre-dened temperature. To modify the temperature,
press the “Temp.” button. The value will appear on the display.

Spin
Each wash cycle has a pre-dened spin speed. To modify the spin speed,
press the “Spin Speed” button. The value will appear on the display.

Empty the pockets:

Objects such as coins or lighters can damage the washing machine and
the drum. Check all buttons.

CARE AND MAINTENANCE

Before performing cleaning and maintenance, switch the washing machine
o and disconnect it from the mains power. Do not use ammable liquids to
clean the washing machine.

Cutting o the water and electricity supplies
Close the water tap after every wash. This will limit wear on the hydraulic
system inside the washing machine and help to prevent leaks.
Unplug the washing machine when cleaning it and during all
maintenance work.
Cleaning the washing machine
The outer parts and rubber components of the appliance can be cleaned using
a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Caring for the door and drum
Always leave the porthole door ajar in order to prevent unpleasant odours
from forming.

ANTIMICROBIAL SEAL

The seal around the porthole door is made from a special mixture
ensuring antimicrobial protection, thus reducing bacterial proliferation
up to 99.99%.
The seal contains zinc pyrithione, a biocidal substance which reduces the
proliferation of harmful microbes (*) such as batteries and mould prone to
causing stains, unpleasant odours and product deterioration.

(*) According to tests performed by the University of Perugia, Italy
on: Staphylococcus aureus, Escherichia coll, Pseudomonas aeruginosa,

Candida albicans, Aspergillus niger, Penicillium digitatum

In rare cases an allergic reaction may be caused by prolonged contact between
seal and skin.

ACCESSORIES

Contact our Technical Assistance Service to check whether the following
accessories are available for this washing machine model.

Stacking kit

With this accessory you can secure the tumble dryer to the upper part of
your washing machine to save space and facilitate loading and unloading
of the tumble dryer.

TRANSPORT AND HANDLING

Do not lift the washing machine by gripping it from the upper section.

Unplug the appliance and close the water tap. Check that the door and
detergent dispenser drawer are tightly closed. Detach the lling hose from
the water tap then detach the drain hose. Empty all the water remaining in
the hoses and secure the latter so that they do not get damaged during
transport. Apply the transport bolts back on. Repeat, in reverse order, the
transport bolt removal procedure described in the “Installation instructions”.

DESCALE AND CLEAN PROCEDURE

An icon on the display will regularly (roughly every 50 cycles) remind users
that is time to run a maintenance cycle to clean the washing machine and
combat limescale build-up and bad odours.
To delete the descale alert turn the knob or push any button (including
ON/OFF button).
For optimal maintenance we suggest using WPRO Limescale and grease
remover, according to the instructions shown on the package.
The product can be purchased by contacting the technical assistance service
or through the website www.aristonchannel.com
The Company declines all liability for any damages to the appliance caused
by the use of other cleaning products for washing machines available on the
market.

TIPS AND SUGGESTIONS

Divide the laundry according to:

Type of fabric (cotton, mixed bres, synthetics, wool, garments to be
hand-washed). Colour (separate coloured garments from whites, wash
new coloured garments separately). Delicates (small garments – such as
nylon stockings – and items with hooks – such as bras: insert them in a
fabric bag).
