Ariston microSYSTEM Users Manual
Users
Manual
2
Dear Customer,
Thank you for choosing an ARISTON boi ler.
We guarantee that your boiler is a reliable
and technically sound product.
This User's Manual provides detailed
instructions and recommendations for proper
installation, use and maintenance.
Remember to keep this manual in a safe place
for future reference i.e. by the gas meter.
Your local MTS Servicing Centre is at your
complete disposal for all requirements.
The guarantee on this appliance is
valid for 12 months from the first
day of installation.
Repairs to the electric, hydraulic or
gas circuits may be carried out only
by your local authorised MTS
Ser vicing Centre.
Every attempt has been made to avoid
errors of any kind
in this User' s Manual, the Management
invites customers to inform
of any inaccuracies which they may find.
This will help to improve our service
TABLE OF CONTENTS
1. GEN ERALINFORMATION page 4
Technical Information page 5

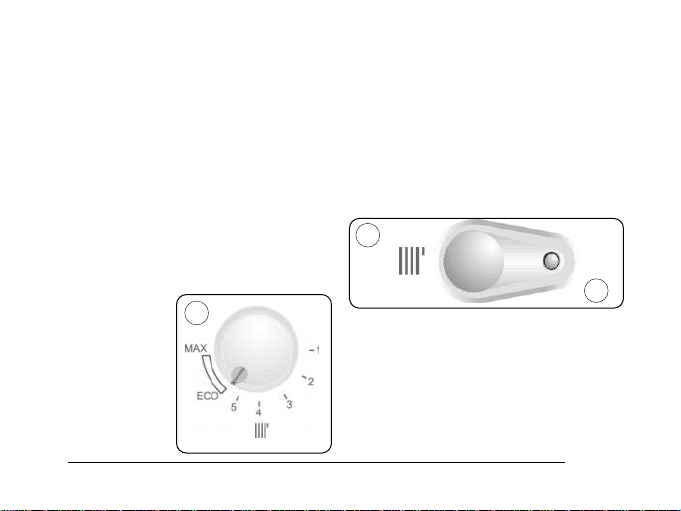

Control Panel page 6
2. OPERATING INSTRUCTIONS page 7
3. USEFUL INFORMATION AND TROUBLESHOOTING page 12
4. MAINTEN ANCE page 15
5. CHANGE OF GAS TYPE page 15
6. TIME CLOCK page 15
IMPORTANT!
Please read this manual carefully.
For additional information, please consult the “Installation and Servicing
Instructions.”
Make sure to keep the manuals provided with the appliance so that they can
be used by the end-user, installer or our authorised engineer.
3
4
1. GEN ERAL INFORMATION
MTS (GB) Limited support the
initiative. Your installer will give you, and
show you how to use, a logbook which will
give you important information about your
boiler, and heating system. Please have this
logbook to hand whenever you contact a
service engineer or us.
All CORGI Registered Installers carry a
CORGI ID card, and have a registration
number. Both should be recorded in your
boile r Logbook. You can check y ou r installer
is CORGI registered by ca lling CORGI direct
on :- (01256) 372300 .
This is an appliance for the production of
central heating. This appliance must be used
only for the purpose for which it is designed.
The manufacturer declines all liability for
damage cau sed by improper or negligent use.
Do not allow children or inexperienced
persons to use the appliance without
supervision.
If you smell gas in the room, do not turn on
light switches, use the telephone or any other
object which might cause spar ks.
Open doors and windows immediately to
ventilate the room.
Shut the gas mains tap (on the gas meter) or
the valv e of the gas cylinder and call you r Gas
Supplier immediately.
If you are going away for a long period of
time, remember to shut the mains gas tap or
the gas cylinder valve.
Before any intervention within the boiler it is
first necessar y to cut off the electrical power
supply by turning the external switch to
“OFF”.
TECHNICALINFORMATION
5
GENERAL DATA
Heating input max-min
Heating output max-min
Efficienc y at Maximum Thermal Capacity
(see Installation Instructions)
CENTRALHEATING
Operating Temperature max-min
Maximum-Minimum Heating Pressure
Built-in expansion vessel - Total capacity
ELECTRICAL DATA
Electrical Supply/ Frequency
Power Consumption
Protection of Electrical System
CATEGORY
Nominal Pressure/Methan e Gas ( G20)
Nominal Pressure/Liquid Gas (G30-G31)
kW
kW
%
°C
bar
litres
V/ Hz
W
IP
mbar
mbar
15.4
14.1
82.4
82-42
3-0.7
6
230/ 50
115
X4D
20
30-37
11.6
10.5
81.3
82-42
3-0.7
6
230/ 50
105
X4D
20
30-37
15 kW
10 kW
22.7-10.0
21.0-8.7
83.7
82-42
3-0.7
6
230/ 50
105
X4D
20
30-37
21 kW
29.8-12 .0
27.8-10 .5
84.2
82-42
3-0.7
6
230/ 50
155
X4D
20
30-37
28 kW
