Quick guide to your dishwasher
This manual explains easily what your new
dishwasher has to offer. In addition, you will
discover a world of useful hints and handy tips to
help you get a better wash from your dishwasher
and to make it last longer.
1. Introduction (p.2)
Find important safety instructions to best utilize your valuable purchase.
2. Control panel at a glance (p.3)
Learn to get to know the parts which make up your dishwasher, This is
where you will find the description of the controls and the internal parts.
3. How to load your dishes (p.4)
This page includes useful tips to help you load your dishwasher
correctly and make the most of all the available space.
4. How to start your dishwasher (p.5)
After loading the dishes, you need to select the right wash cycle
and measure out the correct dose of detergent and rinse aid.
Reading these pages will help you through all the wash phases.
5. Detergent and rinse aid (p.6)
Learn the right usage of detergent and rinse aid for best washing
results.
9. Washing special items (p.9)
Before washing anything in the dishwasher check the information
provided by this section.
10. Special care and maintenance (p.10)
Once in a while, once a month, spend a little time on the filter
assembly and the sprayer arms. This is where you can learn how.
6. Washing cycles (p.7)
Select the right wash cycle for your dishes. Selecting the most
suitable wash cycle for the load ensures clean dishes and a more
convenient use of water and electricity.
7. Salt: a helpful extra (p.8)
Using salt can improve the performance of your dishwasher. Learn
more about its potential.
8.
Troubleshooting (p.8)
Before calling customer care, have a look here: a lot of problems
can have an immediate solution. If you can't manage to solve it
yourself, then call the Ariston customer care line and any problem
will be solved as quickly as possible.
11. Keeping your dishwasher in shape (p.10)
Respect the few rules you will find here, and the result will be a
better performing dishwasher.
12. Technical characteristics (p. 3)
All your appliance's technical data, in accordance with norms and
regulations.
13. Warranty (p.11)
Ariston supports its products by means of after-sales services
and assistance, offering you special warrantees, professional
assistance as well as quality spare parts and accessories. To find
out more, call the Ariston Customer care line.
www.aristonappliances.us
ARISTON DISHWASHER - User Manual 1
Introduction
Congratulations on the purchase of your new Dishwasher. Please spend a few moments reading
the User Manual. This will show you ways to best utilize your valuable purchase.
Read through this
guide before using
your new dishwasher
Read and obey all
safety messages.
For Your Records
Write model and serial
numbers here.
You can find them on
the front of the machine
and inside of the door
opening.
Model #: ................................................
Serial #: .................................................
Important Safety Instructions
Your safety and that of your children
WARNING -When using your dishwasher follow basic precautions including the following:
Read all instructions before using your new
dishwasher. Ariston dishwashers are providing two
manuals:one Installation Instruction manual and
one Care and Use manual. Read them carefully
and save them for future references.
Use the dishwasher only for household use and
for its intended function.
Use only detergents or wetting agents
recommended for use in a dishwasher and keep
them out of the reach of children.
When loading items to be washed:
a) locate sharp items so that they are not likely
to damage the door seal; and
b) load sharp knives with the handles up to
reduce the risk of cut-type injuries.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked check the manufacturers
recommendations.
Do not operate your dishwasher unless all
enclosure panels are properly in place.
Do not tamper with controls.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not allow children to play in or on the dishwasher
to avoid risk of injury.
Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the dishwasher
turn on all hot water faucets and let the water flow
from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
Remove the door to the washing compartment when
removing an old dishwasher from service or
discarding it.
Dishwashers must be electrically grounded. Read the
Installation Instructions for details.
Do not run the dishwasher while you are out of home.
A qualified technician should do all repair work.
Do not touch the heating element during or
immediately after use
Save these instructions
2 ARISTON DISHWASHER - User Manual
www.aristonappliances.us
C
P
D
A
E
F
R
S
H
G
B
T
E
H
L
K
F
M
J
I
G
Let's open up your dishwasher together
How is it made?
Get to know the parts which make up your
dishwasher.
E. Upper rack
F. Top spray arm
G. Rack height adjuster
H. Lower rack
I. Bottom spray arm
Control panel at a glance
J. Salt container cap
K. 4 piece filter
L. Detergent and rinse aid
dispenser
M. Turbo dry fan
A. ON-OFF Button
Press this button to turn
the appliance on.
B. ON-OFF Indicator light
Indicates that the
appliance is turned on
C. Door opening handle
Use this handle to open
the dishwasher door.
D. Delayed start select
button
This button delays the
start of the wash cycle
you selected by 12, 9, 6
or 3 hours.
E. Cycle indicator light
This light informs you
which cycle you have
selected or the one in
progress.
F. Half load selection button
To allow you to wash a
half-load on the upper
rack
G. Cycle phase and
delayed start indicator
lights
These indicator lights
inform you which cycle
phase is under way
(pre-wash, wash, rinses,
drying) and, if you
have set a delayed start;
they also indicate the
amount of time left
until the wash cycle
starts.
H. Half load Indicator Light
This light informs you that
the half load you have
selected.
P. Cycle select button
Each time this button is
pressed, one of the cycle
indicator lights E will
come on in sequence.
R. Start/Reset Button
With Start, the wash cycle
begins, whereas all the
settings are cleared with
Reset.
S. Low salt indicator light
To tell you that its time to
add more salt.
T. Low rinse aid indicator
light
To tell you that its time to
add more rinse aid.
Technical Characteristics
Technical characteristics
Width inches 23,62 -24* (60 cm.)
Depth inches 23,62 (60 cm.)
Height inches 32
Capacity 12 standard place settings
Mains water pressure 4,3 psi-145 psi 30 KPa÷1MPa (0,3 ÷10 bar)
Power voltage See data plate
Total absorber power See data plate
Fuse See data plate
* with the pre-installed filler strips
www.aristonappliances.us
This dishwasher conforms to
the following Standards for
U.S.A and Canada:
1/4
1/2
-34
(82-87,5 cm.)
UL 749
ANSI/AHAM DW-1-1992
ARISTON DISHWASHER - User Manual 3

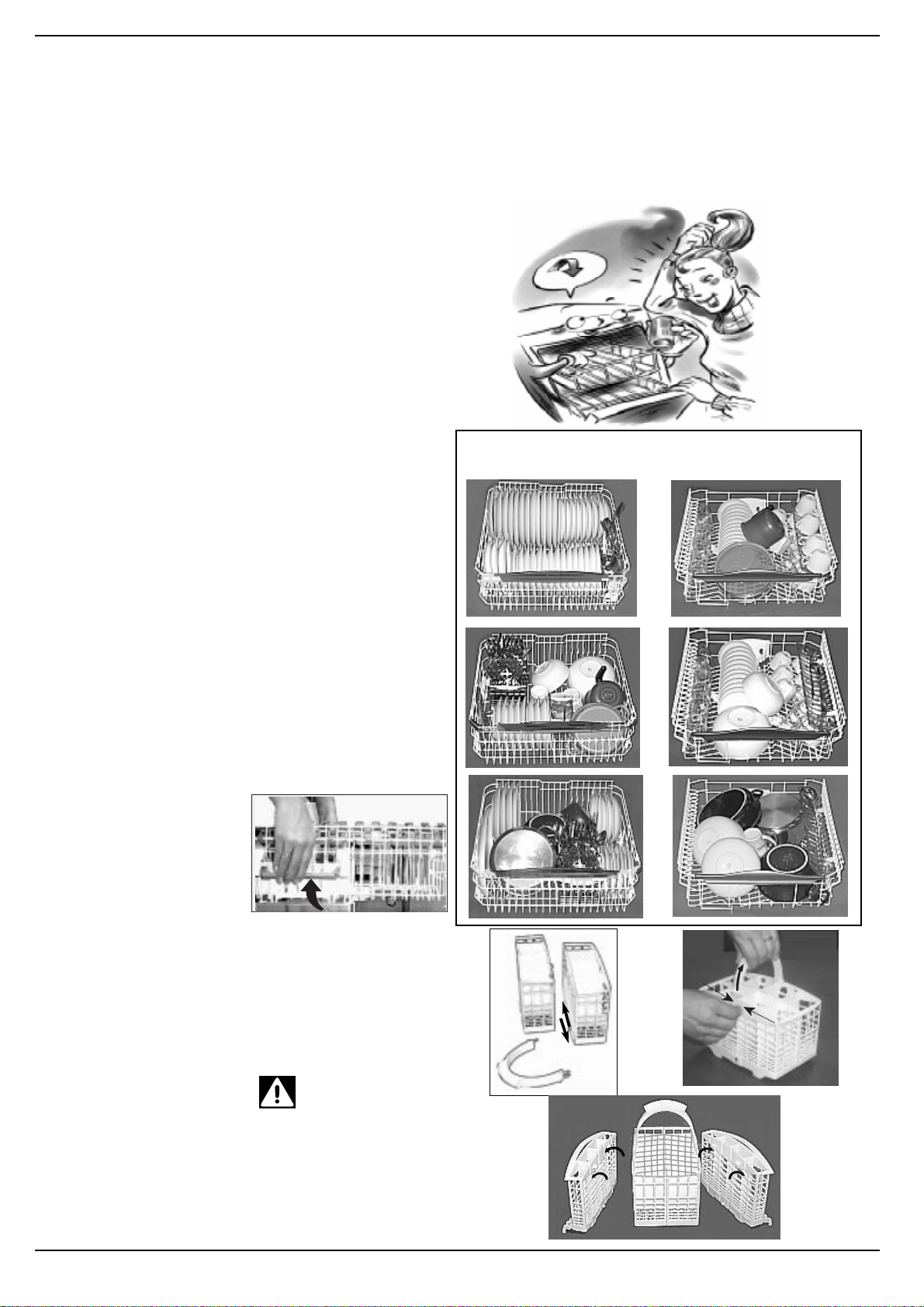

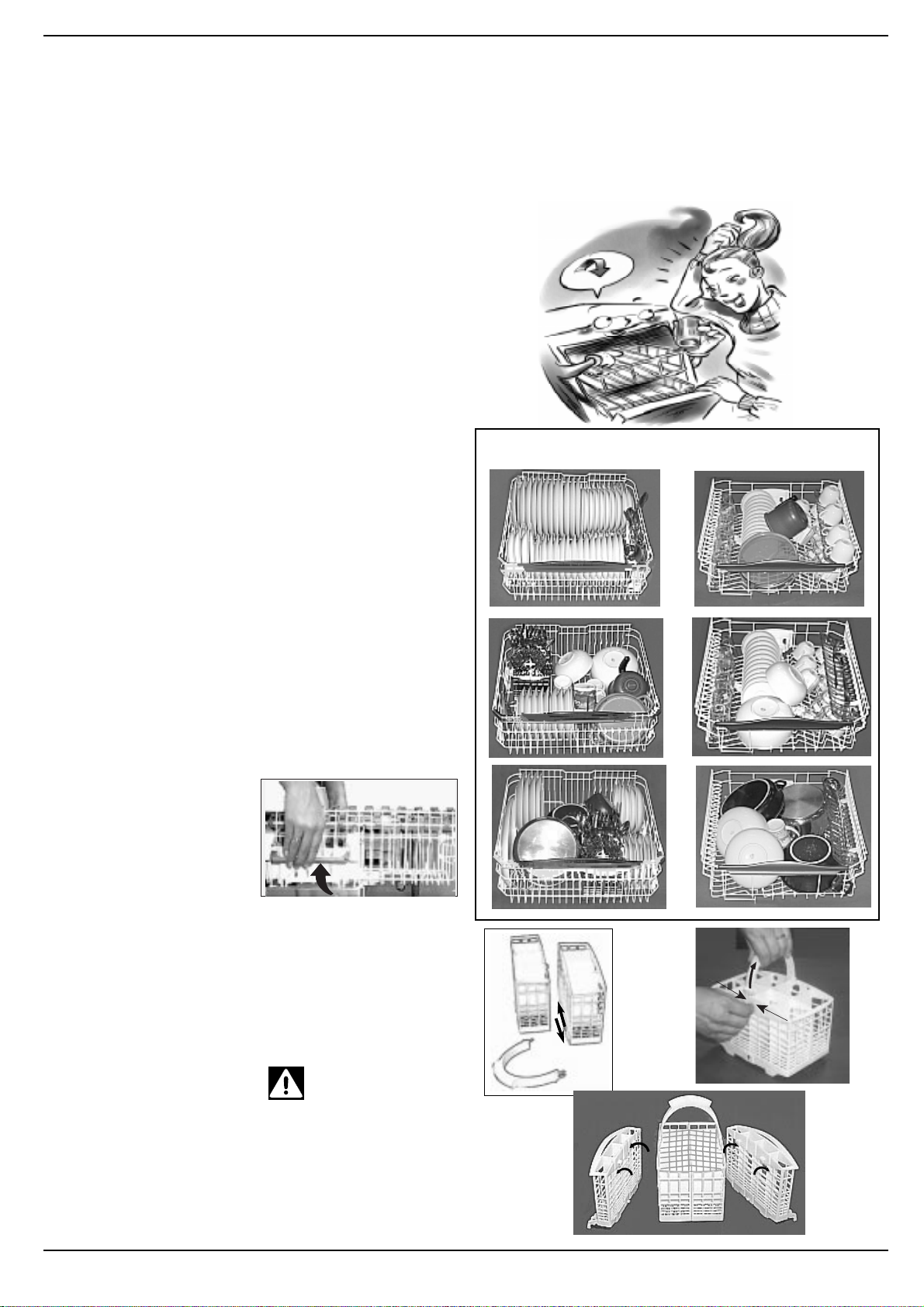

How to load your dishes
Before washing, a few small steps can help you get a better wash and keep your dishwasher performing to its best.
Remove the largest scraps of food left over on your plates, soak saucepans and frying pans with tough baked on food.
After loading your dishes, make sure the blades on the sprayer arm turn well.Do not place glasses and cups on top of
one another, and make sure the dishes are not touching.
First.
Before placing the dishes in the
racks, remove the largest scraps
of food left over on your plates,
you will thus avoid blocking the
filter, which would reduce the
efficiency of the wash.If the
saucepans and frying pans are
very dirty, allow them to soak
before being washed. To make it
easier to load your dishes, pull
the racks out.
What goes into the lower
rack?
We recommend you place the
most difficult dishes to wash into
the lower rack: saucepans, lids,
soup bowls and plates (a load
example is shown in the photo).
Serving dishes and large
lids: place them on the sides
of the rack.
Saucepans, salad bowls:
must always be placed
upside down
Very deep dishes: place
them obliquely, thus allowing
water to run down them and
cleaning them better
The cutlery basket can be split
up by pulling out the handle and
removing the clips that keeps the
two parts joined together.
When you only have little cutlery
to wash, you can use just half the
basket; save space for other
crockery or place the other half
of the basket in the upper rack
instead (see figures A and B).
In this specific model, the cutlery
basket is fitted with two
detachable side compartments,
as shown in figure A1, which can
be hooked on either to the upper
or lower rack, as required.
What goes into the upper
rack?
Place delicate and lightweight
dishes in the upper rack: glasses,
tea cups and coffee cups,
saucers - but plates too - shallow
salad bowls, slightly dirty frying
pans and shallow pans.
Position light weight dishes in
such a way as to avoid their
being moved by the spray of
water.
The appliance can also be
equipped with one or two tip-up
compartments onto which you
can place mugs and cups, as well
as long sharp knives and serving
cutlery.
After loading the dishes,
remember to check that the
blades on the sprayer arms can
turn freely without hitting against
any dishes.
How to adjust the top rack.
The upper rack can be set in high
or low position to enable you to
organize your dishes effortlessly.
C
There are two handles on the
sides of the upper rack: use
these to adjust its height (see
fig. C)
lower rack
How to use our racks
upper rack
This basket is equipped with two
removable grids: insert the
cutlery one by one into the slots.
Warning:
knives and utensils with sharp
blades or tips should be
positioned with the sharp parts at
the bottom.
Position all cutlery items so that
they don't touch.
4 ARISTON DISHWASHER - User Manual
A
A1
B
www.aristonappliances.us
Starting the dishwasher
Ready, steady, go!
You have loaded your dishes and you now have to set
the wash cycle. It takes just one minute to learn how
After performing all the
operations described in the
previous paragraphs press
on-off button "A": indicator
light "B" comes on.
Selecting the wash cycle.
To select the wash cycle
press button "P". Each time
you press the button, a
beep will sound and
indicator lights "E" will light
up in sequence: choose the
cycle you deem most
suited to the type of dishes
to be washed (have a look
at the wash cycle table on
page 7). If the appliance
door is shut, press the Start
button "R" and you will hear
a beep; the cycle will start
up within a few seconds.
The dishwasher keeps you
informed.
Your dishwasher is fitted
with indicator lights (G)
which light up to indicate
the cycle phase under way.
prewash,wash,rinsing,
drying. At all times, your
dishwasher tells you which
cycle phase is under way.
Modifying a wash cycle in
progress.
If you have chosen the
wrong cycle, not to worry!
You can modify the wash
cycle in progress, if it has
only just started.
Keep the RESET button
"R" pressed for about 5
seconds: a prolonged beep
will sound, followed by
three short beeps. Indicator
light "G" will turn off and at
this stage, all the settings
will have been cancelled.
You are now free to re-set
the correct wash cycle.
You can cancel the
wash cycle in progress,
if it has only just started.
You've left out a dish?
Well, it happens to
everyone. Interrupt the
wash cycle by pressing the
ON-OFF button, insert the
dish you had forgotten and
press the ON-OFF button
again. The cycle will start
up from where you
interrupted it.
Finished?
The end of the wash cycle
is indicated by two short
beeps and the flashing of
the drying phase indicator
light.
The end of the wash cycle
is indicated by two short
beeps and the flashing of
the drying phase indicator
light.
Turn the appliance off by
pressing button "A", thus
cutting off the electricity
supply.
If accessible turn off the
water tap
Wait a few minutes
before unloading the
dishes: they are very hot!
If you wait a little while,
they dry better thanks to
the steam.
Empty the lower rack
first.
There's been a power
failure? Have you opened
the dishwasher door?
The wash cycle stops and
then restarts when the
electricity comes back on
or when you shut the door.
Everything is under
control!
If opening
the door
soon after
the end of
the program, or during
it, stand away from the
Dishwasher, to avoid
possible injury from
hot steam.
You decide when it starts.
When you have loaded the
dishes, you can choose
when to start your
dishwasher before setting
the wash cycle desired.
Press button "D" to delay
the start of the wash cycle
by 12, 9, 6 or 3 hours.
Each time you press it, you
will hear a short beep and
the indicator light "G"
corresponding to the
selected delay will light up.
Now you can select the
desired wash cycle. Press
the start button "R" and
after you hear the beep, the
countdown to the delayed
start will begin.
Once this time is up, the
indicator light will stop
flashing and the wash cycle
will begin.
If you have set a 12 hour
delay, for example, once
you have selected the
wash cycle, the 12 hour
indicator light will flash
followed by the others in
sequence until the set time
delay is up. A quick look at
the indicator lights will keep
you informed of the
countdown progress at all
times.
Have you changed your
mind?
If you change your mind,
you can set a shorter time
delay: press button "D" to
select it. You need not reset
the wash cycle.
If on the other hand you
want to cancel the delay
set and you want the
cycle to start immediately,
press button "D"
repeatedly until the cycle
starts and indicator light
"G" corresponding to the
cycle start phase comes
on.
Dual function of indicator
lights "G"
1) flashing to indicate a
delayed start: to remind
you that you have set a
delayed start;
2) on and not flashing
beneath the cycle phase
symbol:
meaning the cycle has
started and is in the phase
indicated by the symbol.
You want to wash on the
upper rack only?
Remember to use half the
amount of detergent.
Your dishwasher also
allows you to wash half a
load, to save water and
electricity.
Before setting any wash
cycle whatsoever, press
button F to select that
you want to run a half cycle
on the upper rack.
When you press it, you will
hear a beep and indicator
light H corresponding to
the selected function will
come on.
Would you like to see which
settings you have made?
At any time, when the
cycle is under way, if you
press button "P", the cycle
in progress indicator light
will light up for a few
seconds, followed by the
half load indicator light,
wherever set.
Make sure the wash
cycle has ended before
removing the dishes!
www.aristonappliances.us
ARISTON DISHWASHER - User Manual 5
Detergent and rinse aid
Only use specific dishwasher detergents. Pour the detergent into the dispenser on
the inside of the door. Before the wash cycle starts!
The detergent
Loading the detergent

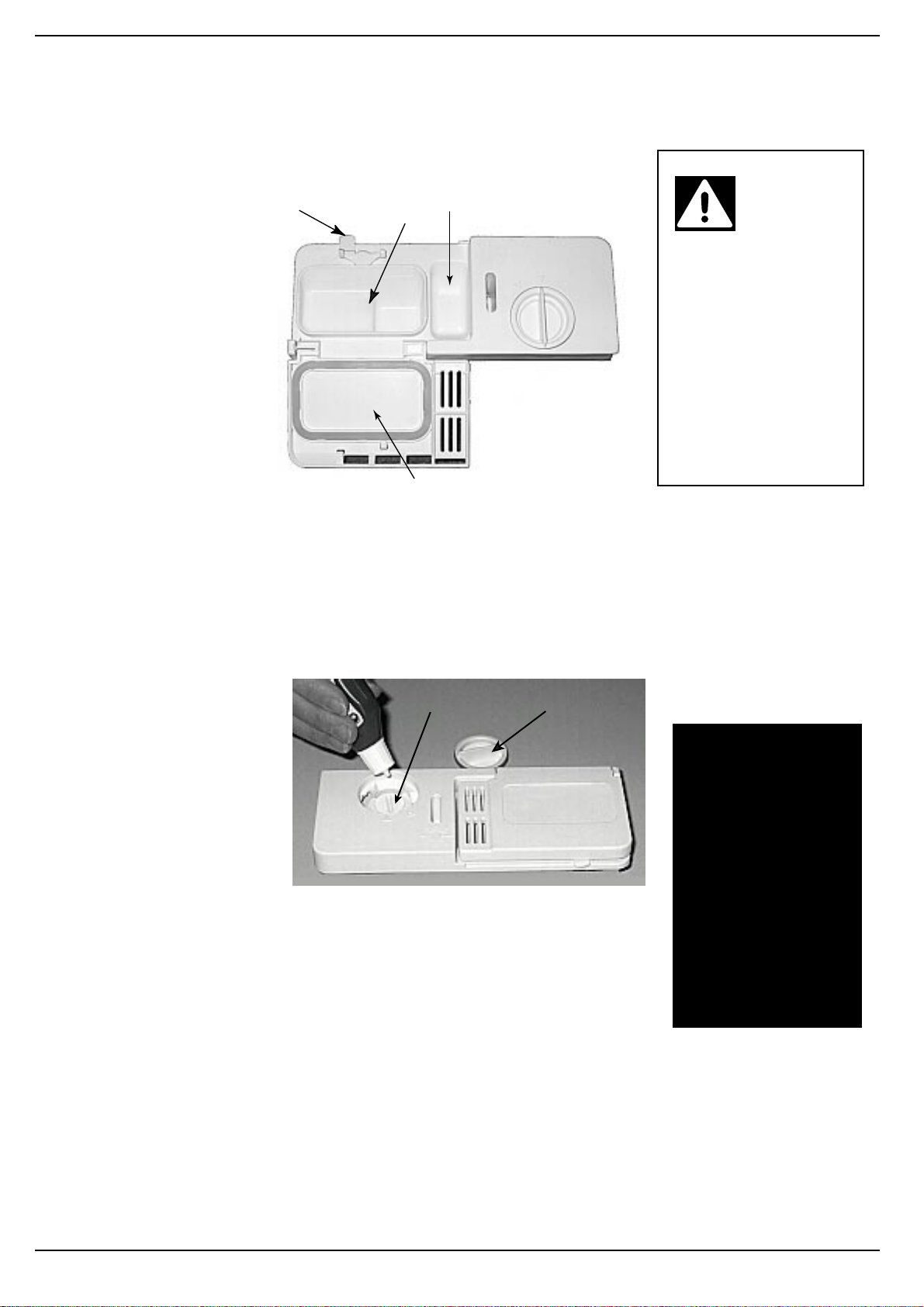

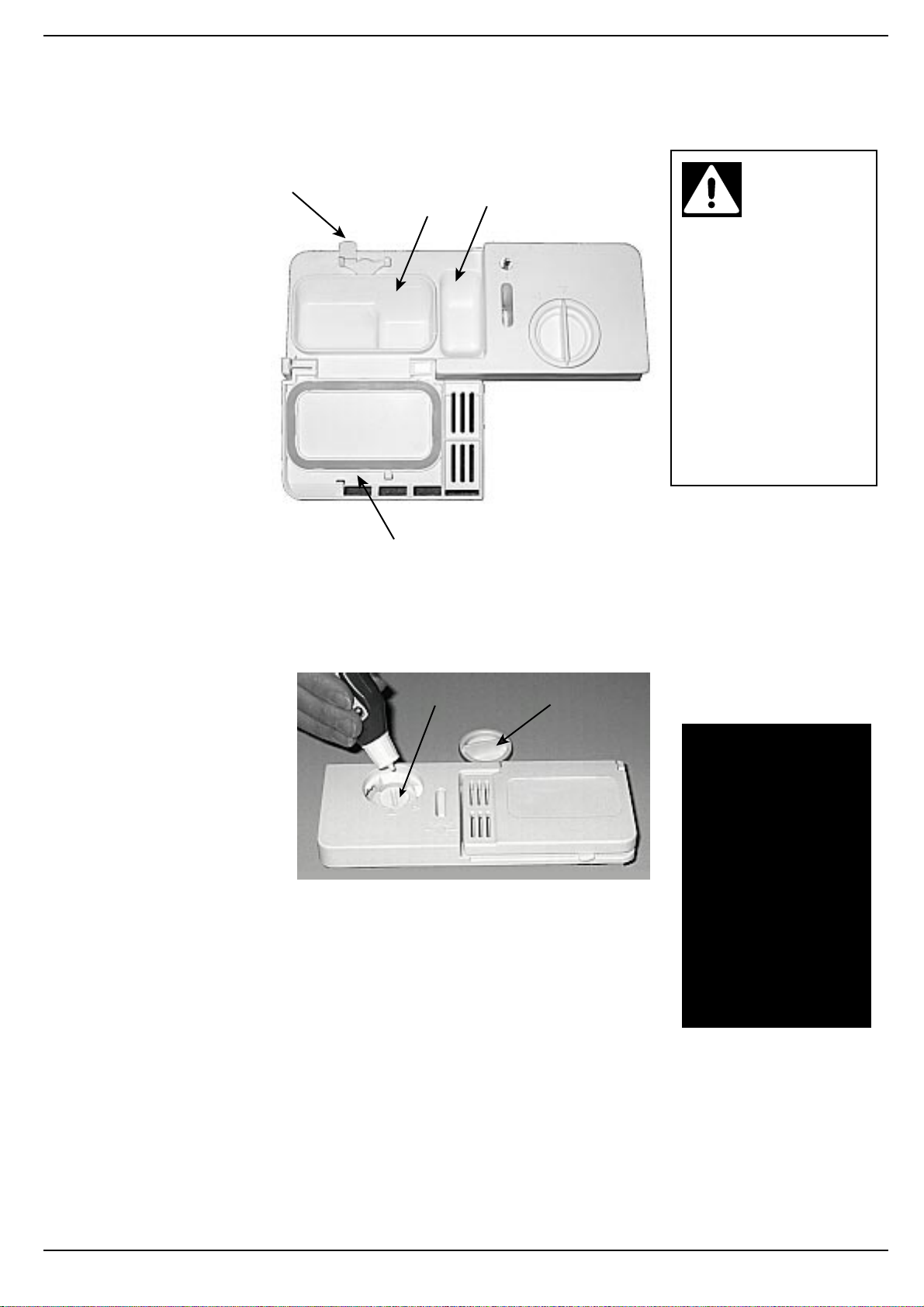

To open lid A, press button
B. The detergent should be
poured into the two
containers C and D up to
the rim.
Now you can close the lid:
press it down until you hear
it click.
If you prefer to use the
detergent in tablets, place
one of these in container
"D". Now you can close the
lid: press it down until you
hear it click.
It won't close!
Check whether there is any
detergent residue on the
edges of the dispenser. It
is due to this residue that
the lid won't close. Get rid
of it and you'll see that it
closes.
B
A
D
C
WARNING!
Detergent is
corrosive!
Take care to keep it out
of reach of children
Using too much
detergent does not
provide a better wash
or cleaner dishes. Use
only a proportional
amount to the size of
the wash.
Keep your dishwasher
detergent and rinse aid
in a cool and dry place.
Rinse aid.
Rinse Aid makes dishes
sparkle and improves the
drying.The rinse aid
container is situated on the
inside of the appliance
door; you should refill it
when the indicator light T
flashes.
Loading the rinse aid.
To open the dispenser, turn
cap C counter clockwise.
Take care when you pour
in the rinse aid to avoid it
overflowing. You can adjust
the amount of rinse aid
used by the dishwasher:
regulate the adjuster F
which you will find under lid
C.
F
You can choose from six different
positions. It is normally set to 4.
C
Proper dosage of the
rinse aid improves
drying.
If drops of water remain
on the dishes or
spotting occurs, turn
the dosage adjuster to
a higher setting.
If, on the other hand,
the dishes have white
streaks, then turn the
dosage adjuster down
to a lower setting.
6 ARISTON DISHWASHER - User Manual
www.aristonappliances.us
Select the right wash cycle
A wash cycle for every
degree of soil
Dishwasher washing guarantees your dishes will be cleaned in a sanitized setting
for safer, cleaner results.
Salt, rinse aid, the right amount of detergent and the correct wash cycle: this is the
formula to get the best results and to keep your dishwasher in shape
To optimise consumption levels, try to use the dishwasher with a full load only.
If it takes some time to fill up your dishwasher, use the soak cycle to avoid
the formation of bad odours and caked-on food.
&\FOH &\FOHVHOHFWLRQ
LQVWUXFWLRQV
,QW HQV LYH
:D V K
Very dirty dishes and
pans (not to be used
for delicate items)
Pre-wash with hot water at 95°F
2 cold rinses
Hot rinse at 149°F
Drying
&\FOHGHVFULSWLRQ 'HWHUJHQWIRU
SUHZDVK
ZDVK
Wash at 140°F
R]
J
Select the right wash
cycle for your dishes.
suitable wash cycle for the
load ensures clean dishes
and a more convenient
Selecting the most
use of water and
electricity.
5LQVH
$LG
:DVKF\FOH
GXUDWLRQ
WROHUDQFH
ZLWKRXW
H[WUD
GU\LQJ
5HJXODU
:DVK
(FR
:DVK
5DSLG
:DVK
6RDN
&U\VWDO
&DUH
Cycle for normally dirty
pans and dishes.
Standard daily cycle.
Environmentally-friendly
cycle, wi th low energy
consumpt ion l evels,
sui table for normally
dirty pans and dishes.
Economic and fast
cycle to be used for
slightly dirty dishes.
Run cycle immedi ately
after use. Without
drying.
Rinsing cycle used
while awaiting more
dishes to be loaded
from the next meal.
Special cycle to be
used for more delicate
items which are
sensitive to high
temperatures. Run
cycle immediately after
use.
Wash at 122°F
Cold rinse
Hot rinse at 153°F
Drying
2 Cold pre-washes
Extended wash at 113°F
Hot rinse at 149°F
Drying
Short wash at 113°F
Hot rinse at 122°F
Short cold wash to prevent food
from drying onto the dishes
Wash at 122°F
Warm rinse at 104°F
Hot rinse at 149°C
Drying
R]
J
R]
J
R]
J
R]
J
www.aristonappliances.us
ARISTON DISHWASHER - User Manual 7
Never without salt
Water in your home
Water hardness varies according to where you live. If the water in your home is hard you have the possibility to
add salt in order to soften your water. The softer the water the better will be your washing and drying results.
Loading the salt.
You can use special water
softening salt or normal rock salt.
The salt container is situated
underneath the lower rack, fill it
up as follows:
1. Pull out the lower rack
completely, unscrew and
remove the container cap
2. Is it the first time you load the
salt? First fill the container up
with water (you won't have to
do this again next time)
3. Put the dishwasher funnel on
the hole and pour in
approximately 70 oz. of salt.
It is normal that some water
comes out of the container.
4. Screw the cap back in place
carefully.
When should I load the
salt?
The salt container must be filled
when the softener indicator light
"S" comes on.
Once you have loaded the salt for
the first time, it is normal that the
low salt indicator light stays on or
flashes for 5 consecutive cycles.
Intelligent salt.
Your dishwasher can adjust its
salt consumption according to the
hardness of the water in your
home. This way, you can optimise
and customise your dishwasher's
salt consumption (not too much,
nor too little).
To adjust salt consumption, do as
follows:
1. Unscrew the salt container
cap
2. There is an arrow on the neck
of the container (see figure):
if necessary, turn the arrow
anti-clockwise from the "-"
setting to the "+" setting.
Select the arrow position
depending on the water
hardness, referring to the table
provided.

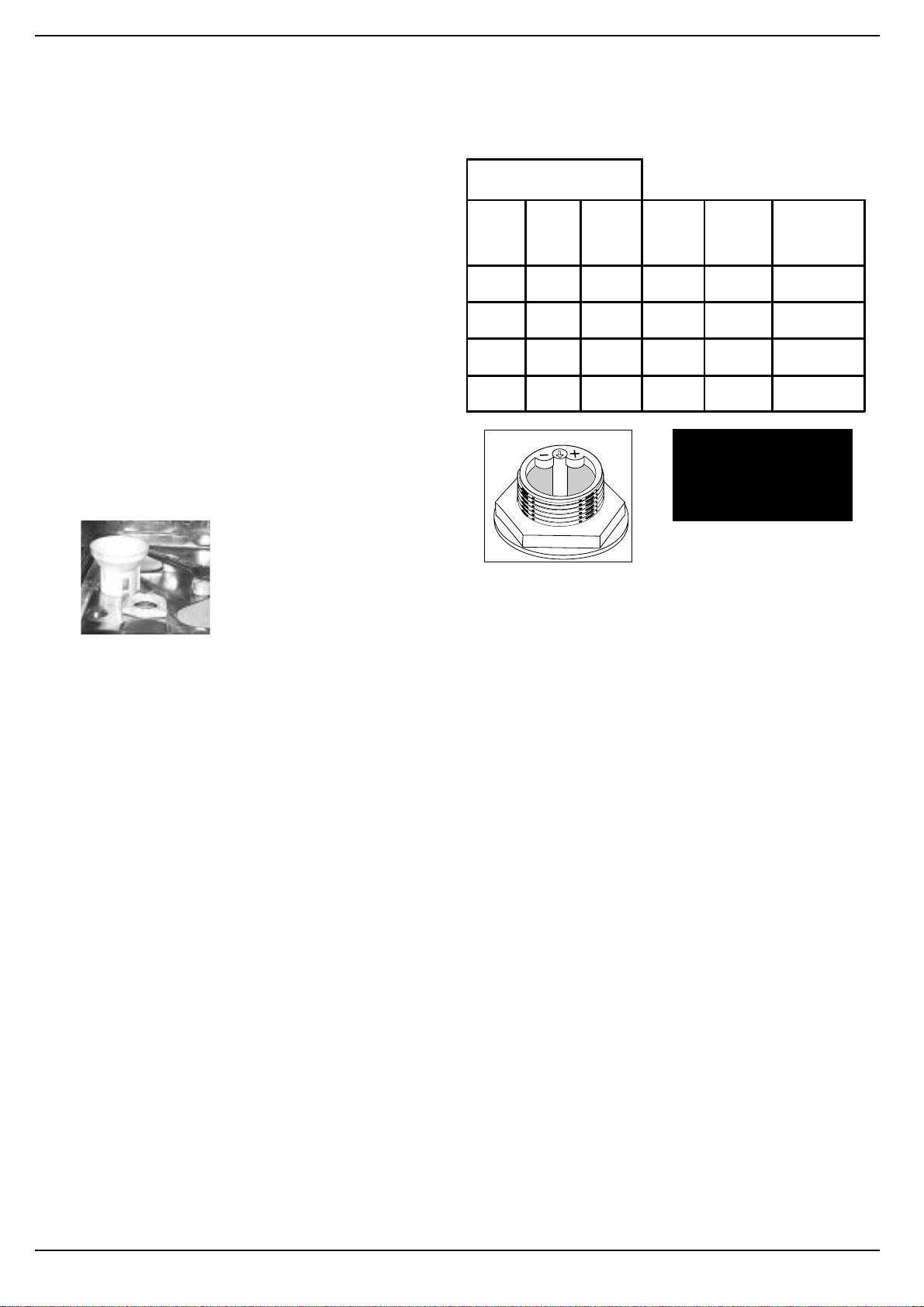

Water Hardness
Clarke
degrees
0 - 14 0 - 17 0 -1,7 / 0 /
14 - 36 18 - 44 1,8 - 4,4 "-" 0.7 60
36 - 71 45 - 89 4,5 - 8,9 MED 1.4 40
>71 > 89 > 8,9 "+" 2.1 25
°fH mmol/l
Selector
position
Salt
consumption
(Oz/cycle)
If you dont know your
water hardness ask your
local water supplier.
NOTE: if you dont find
special water softening
salt you can also use
normal rock salt.
Autonomy
(cycles\
70oz.)
Troubleshooting
If you have a problem, read this
Your dishwasher may not work or not function properly. In many cases, these are problems which can be solved
without having to call for a technician. Before calling the Customer Care Center, always check the points below.
The dishwasher won't
start
■ Is the water supply tap turned
on?
■ Is the water supply tap
connected to the hose
properly?
■ Has the water in your home
been cut off?
■ Is the pressure of the water
supply sufficient?
■ Is the hose bent?
■ Is the filter on the water supply
hose blocked?
■ Is the dishwasher door open?
The dishes are not clean.
■ Have you put the right amount
of detergent into the
dispenser?
■ Is the wash cycle suitable for
the dishes you have placed
inside the appliance?
■ Are the filter and microfilter
clean?
■ Can the sprayer arms turn
freely?
The dishwasher won't drain.
■ Is the drain hose bent?
Limescale deposits or a
white film form on the
dishes.
■ Is the lid on the salt container
closed properly?
■ Is the rinse aid dosage
correct?
Error messages.
Your dishwasher is equipped with
a safety system which is able to
detect any operating problems.
These anomalies are reported by
one or two wash cycle indicator
lights "E" will flash rapidly.
Take a note of which lights are
flashing, turn the appliance off
and call for technical assistance.
Tap off alarm
If you have forgotten to turn the
water tap on, your appliance will
remind you of this by sounding a
few short beeps for a few
minutes.Turn the tap on and your
appliance will start up again after
a few minutes.If you were not
home when these beeps are
sounded,the appliance will be
blocked automatically the 2nd
and 3rd light from the right will
flash rapidly.Turn the appliance
off at the ON-OFF button, turn
on the water tap and wait
approximately 20 seconds before
turning the appliance back on; the
selected wash cycle will start up
again.
Clogged filter alarm
If the appliance is blocked and the
2nd and the 4th light from the right
flash rapidly, this means the filter
is clogged by large particles of
food residue. Turn the appliance
off, clean the filter thoroughly and
reposition it in its seat as
illustrated on page 10. Then turn
it back on. The selected wash
cycle will start up again.
Water load solenoid valve
malfunction alarm.
If the 3rd light from the right
flashes rapidly, turn the
dishwasher off and back on
again after one minute. If the
alarm persists, first turn off the
water tap to avoid any flooding
and then cut off the electricity
supply and call for technical
assistance.
You have checked
everything, but the
dishwasher still doesn't
work and the problem
persists?
Call the Ariston Customer Care
(1-888-426-0825) and remember
to mention:
the type of malfunction
the model mark (Mod.) and
the serial number (S/N.)
indicated on the rating plate
located on the inner door, to
one side.
8 ARISTON DISHWASHER - User Manual
www.aristonappliances.us
Washing special items
If you have any doubts about washing particular items check with the manufacturer to see if they are dishwasher
safe.
0DWHULDO 'LVKZDVKHUVDIH &RPPHQWV
$OXPLQLXP
%RWWOHVDQG&DQV
&DVW,URQ
&KLQD6WRQHZDUH
&RSSHU
&U\VWDO
'LVSRVDEOH3ODVWLFV
*ODVV
,URQ
.QLYHV
1RQGLVKZDUHLWHPV
1RQVWLFNFRDWLQJV
6WDLQOHVV6WHDO
6LOYHUDQG6LOYHU
3ODWHV
3HZWHU%UDVV
%URQ]H
7LQ
:RRG
Yes, with caution
No Lables could loosen and clog the spray arms or pump and
No
Yes, with caution Always check manufacturer’s recommendations before
Yes, with caution Do not wash copper in the same load as siver of silver
No
Yes
No Cannot withstand mac hine was hing.
Yes
No
No Wood handles may wrap, crack, or loosen. Plastic handles
No Use ONLY standard household dishware. Never wash
Yes If marked dishwasher safe. After washing apply a light
Yes, with caution Exceptions: Old silverware and silverware decorated with
No
No
No Unless marked dishwasher safe by the manufacturer.
Anodized Al uminium may fade or darken by high water
temperatures and detergents.
reduce washing perf ormance.
Seasoning will be removed and the iron will rust.
washing. Antiques and hand painted china with a pattern
on top or with gold leaf decoration may fade.
plate because the silver items could discolor.
Certain types of lead crystal may etch if machine washed.
Check with the manufacturer’s reommendations.
Wash with special program at low temperature. Make sure
crystal dishware is loaded securely and will not fall over or
knock against other dishwasher while being washed.
Exception: Milk glass may yellow.
Iron will rust.
may discolor. Check manufacturer’s washing instructions.
items such as electronic air cleaners, air filters of any kind,
paint brushes, etc.
coating of vegetable oil to maintain non-stick quality.
an oxidising agent. Hot water can loosen the handles on
old silverware and wear off the decoratinos on the other.
Never let silverware come into contac t w ith other metals:
you will thus avoid stains and blackening. Silver plates and
serving dishes should be washed immediately after use,
specially if they have contained salt, eggs, olives, mustard,
vinegar, fruit juices and cooked vegetables.
Pewter will tarnish.
Tin will r ust.
Wood can wrap, crack or lose shape with any kind of
washing.
www.aristonappliances.us
ARISTON DISHWASHER - User Manual 9
Loading...
