Ariston AQCF851BU Schematic

5407663 Issue 1 Nov. 2011

C00288739 - SM003340

Aqualtis

"B Energy"

CONDENSER

ELECTRONIC

TUMBLE DRYER

Pre 2011 Models:

8 Kg:

AQCF852BI
AQCF852BU

9 Kg:

AQCF952BI
AQCF952BS
AQCF952BU

Service
Information

Indesit Company UK Ltd

© 2011 Reg. Office: Peterborough PE2 9JB Registered in London: 106725

2011 Models

9 Kg:

AQC9BF5SZ1
AQC9BF5TZ1

Indesit Company

SAFETY NOTES & GENERAL SERVICING ADVICE

1. This manual is NOT intended as a comprehensive repair/maintenance guide to the appliance.

2. It should ONLY be used by suitably qualified persons having technical competence applicable
product knowledge and suitable tools and test equipment.

3. Servicing of electrical appliances must be undertaken with the appliance disconnected (unplugged)
from the electrical supply.

4. Servicing must be preceded by Earth Continuity, Earth Resistance & Insulation Resistance checks.

5. Personal safety precautions must be taken to protect against accidents caused by sharp edges on
metal and plastic parts.

6. After Servicing the appliance must be rechecked for Electrical Safety. In the case of appliances which
are connected to a water supply (i.e.: Washing Machines, Dishwashers & Food Centres etc.) checks
must be made for leaks from seals gaskets and pipe work and rectification carried out where
necessary.

7. It can be dangerous to attempt ‘DIY’ repairs / maintenance on complex equipment and the Company
recommends that any problem with the appliance is referred to its own Service Organisation.

8. Whilst the Company has endeavoured to ensure the accuracy of the data within this publication they
cannot hold themselves responsible for any inconvenience or loss occasioned by any error within.

INDEX

Safety Notes & General Servicing Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Dryer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

Console Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 9

Component Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12

‘B’ Energy Rating - Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14

Programme Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 21

Control Board Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 25

Fault Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 - 28

Test Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Wiring Diagram - for Models fitted with A1 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Wiring Diagram - for Models fitted with A2 Module before Serial No. 00612.0000. . . . . . . .31

Wiring Diagram - for Models fitted with A2 type Module from Serial No. 00612.0000 . . . . .32

Dismantling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 - 39

Serial Number Location

The serial number is located on the front panel
behind the door - open the door to see it.

The serial number should be 9 digits long.

Service Manual UK

English

2 of 42

Indesit Company

TECHNICAL SPECIFICATIONS

First Production AQCF852... October 2008

AQCF952... October 2010
AQC9BF... October 2011

Features Electronically controlled tumble dryer comprising of an interface module

fitted into the door and a control module mounted on the plinth,

connected by a serial link.

Country of Origin Great Britain
Dimensions Height: 850 mm

Width: 595 mm
Depth: 584 mm

Weight: 41 Kg (Packed)
Energy Class B
Noise Level 68 dBA approximately
Drum Volume 112 litres
Drying Load Dry weight maximum 8 Kg - AQCF852

Dry weight maximum 9 Kg - AQCF952 & AQC9BF5...

Programmes 16
Drying Sensing Levels Up to 5 depending on programme selected.
Door Operation Lever operated door catch
Heater Before Serial No. 008160000 = 2050W @ 230V

After Serial No. 008160000 = 2300W @ 230V

Electronic Platform EVO2 / Dryer
Heater Controls Variable using electronic control and thermistors
Safety Thermostats Cycling Thermostat: 106°C

One Shot Thermostat: 143°C (White Spot)
Rear Thermistor) 25°C = 400 KΩ to 540 KΩ

100°C = 15 KΩ to 17 KΩ
Front Thermistor 25°C = 400 KΩ to 540 KΩ

100°C = 15 KΩ to 17 KΩ
Motor Before Serial No. 008160000 = Type 350

After Serial No. 008160000 = Type 362

Capacitor 8.5 uF

Production Changes

September 2009 72mm Cooling Fan and new shape Inlet Ring introduced.
November 2009 Stand-by feature introduced. This is incorporated in the User Interface module
Nov / Dec.2009 A2 type Heater and Module introduced (not interchangeable with earlier type)
May 2010 Motor covers removed, a new "BBC" module and a 2300W heater introduced.

Autumn 2011 Aesthetic changes to Base etc. Colour change from Grey to White.

Service Manual UK English

3 of 42

Indesit Company

DRYER FUNCTION

Drying Overview

These models are freestanding tumble dryers with a full width metal door.
The drum is capable of accepting a maximum 8 Kg or 9Kg load of damp clothing (depending on

model). The drum is supported at the front by 2 wheels mounted on the front air duct and a single
bearing at the rear located in the rear panel. A shaft fixed to the rear of the drum runs in the rear
bearing. The drum is driven by a belt which passes around its periphery and onto the shaft of a motor
secured to the base of the dryer. The belt is tensioned by a pulley mounted to the motor.

The motor also drives two impellers (rotors), fixed to each end of its shaft. The front impeller draws
cold air into the machine, while the rear impeller recirculates drying air.
The addition of heat to the recirculating air is provided by a heating unit attached to the rear panel,
enabling the air to hold moisture when in contact with the wet load, thus causing it to dry. As the warm
recirculating air passes through the drum, it collects lint as well as moisture. To prevent the lint from
blocking the heat exchanger (condenser), the air is passed through a filter located in the front air
duct.

The filter unit is positioned so as to be easily removable for cleaning by the user. After passing
through the filter, the circulating air is ducted through pa ssageways in a heat exchanger (condenser)
located in a housing on the base of the dryer.

Cold air is drawn into the machine and flows across the heat exchanger passageways. This cold air
is not mixed with the warm, damp recirculating air. See the condenser airflow picture below.
This has the effect of reducing the circulating air temperature, causing it to give up its moisture.
(Cold air holds less moisture than hot air.) The now warm cooling air is exhausted throug h slot s in
the rear of the dryer.

The moisture removed from the recirculating air is pumped to a removable container mounted in the
left hand side of the console. The user can easily withdraw the container to dispose of the collected
condensed water. There is no requirement for venting to atmosphere on this dryer.

CONDENSER DRYER
AIR FLOW

Cooling Air Circuit (open to atmosphere)

Recirculating Air Circuit (sealed)

Service Manual UK

English

4 of 42

Indesit Company

Controls Overview

The user controls consist of an Digit display, programme selection buttons, option buttons;
Start/Pause button and an On/Off button.

The control system consists of a control module, 2 thermistors and a conductivity sensor.
The conductivity sensor is mounted in the front air duct. A single wire connects the sensor to the
control module. The thermistors and conductivity sensor sends values back to the control module.
The control module then determines the programme duration and dryness of the load to set values
for a particular programme held within the control module software.

The control module is located behind the right hand side panel and there is a service port behind the
plinth cover that allows attachment of a computer, Smart Card Reader or Handheld Device to
programme the Control Module.

The control module can be programmed with the relevant settings file if the module is replaced, the
eeprom file becomes corrupted or if an updated file becomes available.

Each of the sensing programmes has a maximum time of 240 minutes.

Once the Automatic cycle has started, the machine’s sensors, (front and rear thermistors and the
conductivity sensor) continually monitor the dampness of the drying clothes. Once a final dry time
has been determined, the display will up date.

If the display counts down to 10 minutes and the clothes are not at the required dryness level, the
display will hold at 10 minutes, depending on the programme in progress and the material being
dried, the dryer will either wait until the correct dryness level is reached and move to the cool down
period, or wait until the machines sensors are able to recalculate the dryness time and the display
will update accordingly.

If, after the maximum programme time of 240 minutes, the clothes are still not dry, the programme
advances to cool tumble and completes the programme. No fault is indicated if this occurs.

The module also controls the heater. This has an upper and lower element. The lower (static)
element is permanently energised (except in cool tumble) and the upper element (dynamic) is cycled
on and off by the control module during a programme to maintain the correct temperature within the
drum for the programme selected.

If the user turns off the power or disconnects the mains cable or there is a power cut, the dryer will
remember its last settings and resume the programme when the start button is pressed.

The start of a programme can be delayed up to a maximum of 18 hours programmed in 1 hour steps.
Pre-crease care (see page 8) can only be selected if a timed delay has been selected; this option

tumbles the clothes for 3 seconds every 30 minutes for the duration of the time delay.

If selected, the Post crease care option (see page 8) tumbles the clothes after the programme has
finished for 3 seconds every 4 minutes up to a maximum duration of 10 hours.

In the event of a controls or thermistor fail ure, a one-shot cut-out thermostat i s fitted as safety device.

Stand-by Mode - from November 2009, a new interface module with 'Stand-by' mode was

introduced.
30 minutes after a programme has finished, if the machine is still 'On' and no buttons have been

touched, the machine will go into Stand-By mode. The LEDs and display will switch off. To reactivate
and to remove the machine from Stand-By mode, briefly press the 'On/Off' button and the console
lights will illuminate. Another programme can then be started or the machine can be switched off by
pressing the 'On/Off' button.

Service Manual UK English

5 of 42

Indesit Company

CONSOLE FUNCTIONS

AQCF852... & AQCF952...

AQC9BF...

On/O Button & Light

Option Buttons and Lights

ECO

Light

Start/Pause

Button & Light

Programme
Progress Light

Display Panel

Empty
Water /
Clean Filter
Light

Child Lock
Button & Light

Programme Knob

Sensor Dry

Timed Dry

Delay
Timer

Clean Heat

Pump

Filter

Option Buttons

ON OFF BUTTON and LIGHT

Push to switch the dryer On and Off.
If the button glows the dryer is turned on and either runni ng or waiting to be started.

PROGRAMME KNOB AND INDICATOR

Used to select the required programme option. 16 timed auto and special programmes are available.

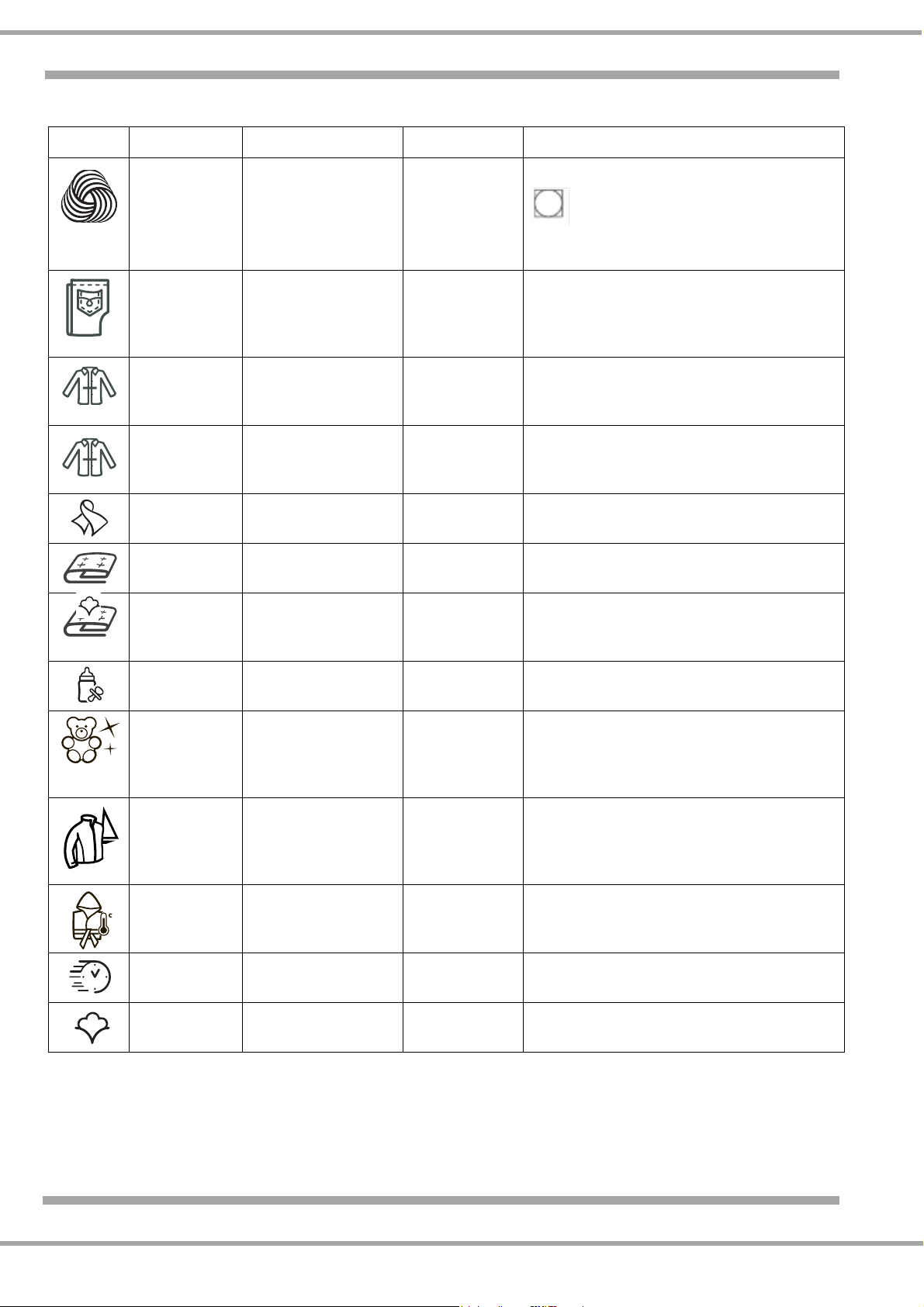

Consult the programme chart on pages 15 and 16, to see Programme descriptions.

Display

Indicates Current
Dryness Level

Sensor cycles only

Countdown Timer

Gives Estimated time to
end of delay or cycle

(See Sensing Levels)
Active. Auto Cycles
only

Displays during delay
start, auto, special and
manual programmes.

Service Manual UK

Indicates Time Set

Active. Manual Time Cycles Only

English

6 of 42

Indesit Company

Display Information

Sensing Levels

After selecting a programme that has a Sensing Dry Option, press and release the button until the
required dryness sensing level is displayed. If the sensing option is not available the display will ash
and the buzzer beeps three times.
Note: ‘Cottons - High Heat’ and ‘Jeans’ programmes are the only programmes which have all ve
dryness level options - all other programmes have only 4 options.

Dryness levels available

Timed Dry

Delay Timer

Damp Dry

Iron Dry

Hanger Dry: Dries you clothes ready to be hanged for nal drying; Use this program if

you do not need the items to be fully dry as it uses less Energy.

Cupboard Dry

Ready to Wear / Extra Dry

After selecting a Programme that has a Timed Dry Option, press the Timed Button and the display will
reduce the selected time each time you press and release this button (see Start and Programmes).
Each press decreases the set time
If the Timer Dry option is not available the display will ash and the buzzer beeps three times.
The selected time remains displayed after the programmestarts and cannot be changed after the after the

Start/Pause Button
Note: Timed Dry is only available on the following programmes:

Cottons - High Heat, Cottons - Low Heat, Shirts - High Heat, Shirts - Low Heat, Synthetics, Delicates.

After selecting a Programme that has a Delay Timer Option a delay start time can be selected.
Each press of the Delay button

and then after ve seconds cancels the delay.
For delays of 10 hours or more the display counts down the time in hours for rst ten hours, then the display

shows
and minutes and then count down in minutes for all of the delay.

After the Start/Pause Button

When the delay period nished the

and then counts down in minutes. For delays less then 9 hours or less the display shows hours

: Dries your items ready to be ironed using a machine or rotary ironer.

: Dries you items ready to be ironed with a hand iron.

: Dries your items ready to be put away.

: Dries your clothes ready to be worn.

, , , , , , , then and then repeats.

is Pressed.

advances the delay setting in 1 hour Increments from to then

is pressed the time cannot be changed.

symbol is o and the Time to End is displayed

Time to End

If the delay icon
When timed programmes are selected the time displayed throughout the cycle is the actual time
remaining.
When an Automatic programme is selected the time displayed is an estimate of the time remaining.
When the programme is selected the display shows the time required to dry a full load, after around 10
minutes the controller calculates a better estimate of the cycle time
Thetimetoendisdisplayedinhoursand minutes and counts down each minute.
The colons between the hours and minutes display ashes to show that the time is counting down.
The Display also shows if there is a problem with your dryer, if this occurs the display will show F
followed by a fault code number, the four option lights and the pause light will also ash Orange.

is o the time displayed is the Time to End of the programme running.

Note:

During Sensor Cycles the Centre Timed display screen is blank;
During Timed Cycles the left Sensor screen is blank;
During Special cycles only the left Countdown screen is on and illuminated.

Service Manual UK English

7 of 42

Indesit Company

OPTION BUTTONS

AQCF852... / AQCF952... AQC9BF5...

Option Buttons & Lights

1.

2.

1 Mini Load

Should be selected if between 1 & 2 Kg of
clothes are to be dried. The Time to END
display is adjusted to give a more accurate
Cycle Time to end estimation time.

2Alarm

If selected, the buzzer will sound at the end of
the cycle. Beeps 3 times when the cycle
finishes.

3 Pre-Crease Care

Option can be selected if the Delay Start
Option has been selected; the clothes are
tumbled occasionally during the Delay period
to help prevent creases developing.

- 3 secs Clockwise

- 30 min Pause

- 3 secs Anti -Clockwise

- 30 Pause--- continuously until programme
starts.

4 Post Crease Care

Can be selected, if the clothes will not be
removed as soon as the cycle is finished.

This option occasionally tumbles the clothes to
prevent creases developing, while the clothes
are in the drum when the cycle is finished.

- 3 secs clockwise

- 237 secs Pause

- 3 secs anti clockwise

- 237 secs pause ……continuously until the
clothes are removed.
This option will run for a maximum of 10 hours.

3.

4.

1.

2.

Extra Care

Not available on all cycles and dryness levels.
This option modifies drum movement during the

later stages of the cycle, creating a softer
movement of the clothes. (The drum pauses are
longer and the drum rotation is shorter.)

Sound

If selected, the buzzer will sound at the end of the
cycle. Beeps 3 times when the cycle finishes.

Crease Care

Can be selected, if the clothes will not be
removed as soon as the cycle is finished.

This option occasionally tumbles the clothes to
prevent creases developing, while the clothes are
in the drum when the cycle is finished.

- 3 secs clockwise

- 237 secs Pause

- 3 secs anticlockwise

- 237secs pause ……continuously until the
clothes are removed.
This option will run for a maximum of 10 hours.

High Heat

Not available on all cycles.

3.

4.

Service Manual UK

English

8 of 42

Indesit Company

Progress and Warning Lamps

ECO Led

The Eco LED will illuminate when the user adjusts the knob/option settings, which involve an
energy reduction, from the default settings.

Auto Cycles - If the sensing level is reduced. (Hanger, iron or damp dry)
Timed Cycles - If the time is adjusted to 120 minutes or lower.

Child Lock (Button)

To enable the Child Lock function, press and hold the "Child Lock" button until the Button Led
illuminates. All the controls on the dryer are now disabled.

If the selector is turned or an Option is pressed the Child Lock button will flash and the machine will
bleep, to remind the customer that the Child Lock is active.

To remove the controls child lock, press and hold the child lock button and until the button lamp
goes out.

Drying Led

Is illuminated when the machine is drying.

Cool Tumble

Is illuminated, when the dryer is on a cycle, and the heater element is off, this would be the
cool down period at the end of the cycle.

End

Is illuminated when the programme has finished its cycle.

Empty Water/ Clean Filter

Is illuminated (permanently "on"), at the end of every cycle as a reminder to the customer to
empty the water container and to clean the filter after every use.

If the Empty Water / Clean Filter Led illuminates during a cycle, (H2) would also be shown in
the display. The machine has sensed the water container is full, after approximately
1 minute the heater is turned off and continues for 10 minutes with cool air only, before
displaying the fault (H2) and LED. To continue the cycle, empty the container, push the
Start/Pause button and the machine will continue.

Clean Condenser

Is illuminated every 25 cycles to remind the customer the condenser should be regularly
removed and cleaned. The Clean Condenser Warning is only a reminder and is not
connected to any sensing device-It does not indicate the condition of the condenser.

Service Manual UK English

9 of 42

Indesit Company

COMPONENT DESCRIPTION

Door

The Aqualtis Tumble Dryer door, holds the customer interface controls and the water container
handle is only visible when the door is opened.

Door Handle - Pull to Open

Condenser
location

Door Switch

A single unit comprising two single microswitches, fitted to
the front panel of the dryer.

- One microswitch signals to the module whether the door
is opened or closed.

- One microswitch disconnects supply to the motor
whenever the door is open.

Control Module

This is an Electronic Device that monitors and controls all devices within the tumble dryer.
A production module is pre programmed at the factory with the relevant programmed file.

Service Modules are supplied non programmed and it is necessary for the Module to be programmed
by the Service Engineer. See page 22 - 25 for Module programming.

A2 type Module

During week commencing
23/11/2009 (Serial No.

91123.0001), a new A2
power module and heater
assembly was introduced in
production. This change was
gradually introduced
between
23/11/09 and 02/01/10.

During this period production

A2 Module in positon

may vary from the original

Service Manual UK

English

10 of 42

Indesit Company

build to the A2 build depending on the availability of A2 components. In order to enable easy
identification for models produced with the A2 power module and heater assembly, there will be a
circular BLUE label attached to the rear of the machine near the appliance rating plate. The label will
be discontinued when full production of the A2 module and heater is achieved on 02/01/10.
The A2 module and heater are NOT interchangeable with the earlier components.

Location of BLUE identifying label fitted to
machines produced with A2 module and
heater, before January 2010.

After January 2010 all production
is with the A2 type module

BBC Energy Saving Module - Introduced from Serial Number 008160000 (August 16th 2010)

"BBC" (Best B Class) Energy Saving Modu le introd uced. The B energy rating has been achieved by
the development of new firmware and a more intelligent dryness algorithm and settings file that ena­ble energy savings to be made, by reducing the heat during the latter stages of the drying process.

Filter

Comprises of a plastic mesh moulded into its housing, which slides into the front air duct.

Drum

The drum comprises of a zinc coated front and rear body and two removabl e plas tic li fters. Th e rear
of the drum is perforated to allow the passage of air. Fixed to the rear pressing is a support shaft which
runs in a bearing located in the rear panel of the dryer.

A drive pin and collar on the drum shaft prevents forward thrust during use. The front lock seam of
the drum rotates on bearing pads.

Note: Galvanised and Stainless steel drums are used in production, depending on the model of the
dryer.

One-Shot (Safety) Thermostat (White Spot)

Thermostat Location as seen inside heater cover

This device is a disc type thermostat set to operate
at 143°C. It is used as a safety device.
It is positioned above the element. If this device fails
it cannot be reset.

One Shot Operation for Dryers fitted with Module
Type A1:

The one-shot (safety) thermostat is wired in the

Rear (NTC)
Thermistor

Cycling

Thermostat

One-shot

Thermostat

control module Neutral circuit. If the one-shot fails
open-circuit, the dryer will be DEAD. No fault code
will display.

One Shot Operation for Dryers fitted with Module Type A2:

If the One-Shot (safety) Thermostat operates (opens) the machine will continue with the cycle, without
heating or drying the clothes, until the programme is completed. No fault code will display.

Cycling Thermostat

The cycling thermostat is mounted adjacent to the one-shot (safety) and is designed to open at
106°C. It limits the temperature of the heat entering the drum.

Service Manual UK English

11 of 42

Indesit Company

Heater Unit

Consists of four coils wound on mic a supports, wh ich are supported b y mica end insula tors. These end
insulators fit into a steel pressing that also locates the rear thermal controls. This is fixed by screws to
the rear cover. This pressing also forms air guides. The heater elements, thermal controls, thermistors
and rear cover are supplied as an assembly and has a five-way connector provided to interface with the
electronic module. The heater has an upper and lower heat er. The lower (static) he ater is permane ntly
energised and the upper heater (dynamic) is cycled on and off by the control module during a
programme to maintain the correct temperature for the programme selected.

Note: Two different Wattage heaters have been used in production.
Before Serial Number: 008160000 = 2.05 KW
From Serial Number: 008160000 = 2.3 KW
See page 13 - BBC introduction.

Pump & Float Switch

Mounted on the bottom right hand side of the rear panel, con densate water from the condenser chamber
is pumped via an external hose to the water container situated behind the console.

The pump runs continually throughout the programme.

Operation of the Float Switch:

After continuing to tumble and dry for a
further one minute, the dryer will turn off
the heater and cool tumble for a further
10 minutes - before displaying the Fault
Code H20, with the Start/Pause button
flashing Orange and the Empty Water
light flashing.

Motor

A two pole P.S.C running at 2800 rpm with the impeller fitted to the rear end of the shaft and the drive
belt running directly in grooves in the front end of the shaft. It is protected from overload by a
self-resetting internal cut-out that interrupts the electrical supply to the windings.

It is used together with a capacitor that is mounted on the base of the dryer.

Drum Rear Seal

This unit comprises of a ring of foam with a webbing bearing face. Lubrication is applied to the drum
where the webbing surface runs, to reduce noise and wear. The seal reduces air losses at the rear of
the drum. The joints in the foam are sealed with glue and the joints in the webbing are stitched to further
reduce air leakage.

Service Manual UK

English

12 of 42

Indesit Company

‘B’ Energy Rating - Additional Components Information

BBC (Best B Class) Introduction

From Serial Number 008160000 (16th June 2010), a new module, heater, motor and condenser have
been introduced, and the base and motor covers, have been removed (see below).

The new energy saving module in combination with a more powerful heater maintain the "B" rated
Energy Efficiency.

Energy Saving Module Function

BBC (Best B Class) Energy Saving Module introduc ed. The B energy rating has been achieve d by the
development of new firmware and a more intelligent dryness algorithm and settings file which enable
energy savings to be made.

BASE Assembly

Aqualtis ‘B’ Energy Condenser Dryers have additional
components to improve airflow efficiency.

A) Base Cover *
B) Motor Top Cover *
C) Motor Cover Inner *
D) Motor Cover Outer *
E) Base Duct Lower

C

B

D

E

A

* Note: These covers A, B, C & D are fitted in production up to Serial Number 008160000.

Service Manual UK English

13 of 42

These covers are used
to retain the heat within
the Drying System to
increase the
Condenser efficiency.

Indesit Company

HEATER COVER ASSEMBLY

A hole in the bottom of the Heater Cover diverts condensate onto the wick (sponge).
Any condensate will be absorbed into the wick and evaporated away by the heat of the cover.

Wick (sponge)

Inside view of
rear cover:

Absorbent

Wick

Back Panel

Drain
Hole

Service Manual UK

English

14 of 42

Indesit Company

PROGRAMME GUIDE - AQCF852... / AQCF952...

Programmes Table

! If the On/Off light is not lit; Press the On/Off Button

and then select programme.

Post Dry Programmes

Pro

gramme What it does How to set it Notes / Options available

Easy Iron

AIRING

Brief programme
(approximately 10 minutes)
that softens fibres of clothing
that is ready for ironing.

20-minute programme that
airs: your clothes with cool
air. Use also to cool warm
clothes.

1. Position the PROGRAMME knob on

2. Select Alarm Option if required

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select Alarm Option if required

3. Press the Start Button

! This is not a drying programme

.

(see previous page)

Options available

Alarm

Alarm

.

Cottons

Programme What it does How to set it Notes / Options available

Cottons - High
Heat

Cottons - Low
Heat

Dries: your Cotton
clothes on High heat

Dries: your Cotton
clothes on Low heat

1. Position the PROGRAMME knob on.

2. Choose Timed

If Timed Drying

To change from default dryness setting
press and release Dryness Levels

until required level is displayed.

3. Select any Options if required.

4. Press the Start Button.

1. Position the PROGRAMME knob on.

2. Select a drying time, see Timed

or Automatic. option

see next page - Or

next page

button

Alarm

Pre care

Mini Load

Dryness options, Automatic

See Timed

, Delay Timer ,

, Post care

Damp Dry, Iron Dry

Hanger Dry,

Cupboard Dry, Extra Dry

,

next page

Shirts

Programme What it does How to set it Notes / Options available

Shirts - High
Heat

Dries: your Cotton
Shirts on High heat

1. Position the PROGRAMME knob on.

2. Choose Timed

or Automatic. option

Alarm

Pre care

, Delay Timer ,

, Post care

Mini Load

Dryness options, Automatic

,

Iron Dry

Cupboard Dry.

Alarm

Pre care

Mini Load

Dryness options, Automatic

Iron Dry

Cupboard Dry.

Hanger Dry,

, Delay Timer ,

, Post care

,

Hanger Dry,

Shirts - Low
Heat

Dries: your Synthetic
Shirts on Low heat

If Timed Drying

To change from default dryness setting
press and release Dryness Levels

until required level is displayed.

3. Select any Options if required.

4. Press the Start Button.

1. Position the PROGRAMME knob on.

2. Choose Timed

If Timed Drying

To change from default dryness setting
press and release Dryness Levels

until required level is displayed.

3. Select any Options if required.

4. Press the Start Button.

see next page - Or

or Automatic. option

see next page - Or

button

button

Programme What it does How to set it Notes / Options available

Jeans

Dries: your Cotton
clothes on High heat

1. Position the PROGRAMME knob on.

2. Select any Options if required.

3. Press the Start Button.

Alarm , Delay Timer ,

Pre care

An Automatic Programme

, Post care

Service Manual UK English

15 of 42

Indesit Company

g

PROGRAMME GUIDE - AQCF852... / AQCF952... continued

Programmes Table

Pro

ramme What it does How to set it Notes / Options available

Synthetics

Bed & Bath

Duvet
Cotton

Duvet
Synthetic

Wool

Silk

Baby Cycle

Lingerie

Delicates

(e.g. Acrylics)

Dries: your synthetics
clothes on High heat

Dries your Towels and
bedding on High Heat

Dries your Duvet on
High Heat

Dries your Duvet
bedding on Low Heat

Dries: your Woollen
clothes,

(see previous page)

Dries your Silk items
on Low Heat

Dries your Baby
clothes on Low Heat

Dries your Lingerie on
Low Heat

Dries: your clothes on
Low heat setting,
ready to be worn.

1. Position the PROGRAMME knob on.

2. Choose Timed

If Timed Drying

To change from default dryness setting
press and release Dryness Levels

until required level is displayed..

3. Select any Options if required.

4. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select Alarm Option if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button.

1. Position the PROGRAMME knob on

2. If Timed
Otherwise default is Automatic

3. Select any Options if required

4. Press the Start Button

or Automatic. option

see below - Or

Programme required (see Timed below)

button

.

Alarm

Pre care

Mini Load

Dryness options,

Automatic

Damp Dry, Iron Dry

Hanger Dry, Cupboard Dry.

Alarm

Pre care

Alarm

Pre care
An Automatic Programme

Alarm

Pre care
An Automatic Programme

Alarm

x

Alarm

Pre care
An Automatic Programme

Alarm , Delay Timer ,

Pre care
An Automatic Programme

Alarm , Delay Timer ,

Pre care
An Automatic Programme

Alarm

Pre care

x

, Delay Timer ,

, Post care

,

, Delay Timer ,

, Post care

x

An Automatic Programme

, Delay Timer ,

, Post care

, Delay Timer ,

, Post care

An Automatic Programme

, Delay Timer ,

, Post care

, Post care

, Post care

, Delay Timer ,

, Post care

The default is Automatic

Timed

First select a programme

Programme What it does How to set it Notes / Options available

Timed Drying

(180, 160, 120,
90, 60, 30 or 20
minutes)

Service Manual UK

(see programmes table)

Always use timed drying for
loads less than 1kg or if you
prefer a different dryness
result.
The heat setting depends on
the Programme (material
option) selected;

1. Press and release the Timed Button until the display
shows the required selection. Each press decreases

, , , , , , then and

time
then repeats.

x

Delicates have maximum time of

x

After is displayed, Automatic option is

available if you change your mind.

2. Select any Options if required

3. Press the Start Button.

16 of 42

Options available

Alarm

Pre care
Consult suggested drying times (see
Laundry)
The last 10 minutes of these
programmes is the cool tumble
phase.

, Delay Timer ,

, Post care

English

Indesit Company

SPECIAL PROGRAMMES - AQCF852... / AQCF952...

Symbol Programme Approx.Time/Heat Max. Weight Notes

Wool

Programme

Jeans 85 minutes

Shirts

High Heat

Shirts

Low Heat

Silk 110 minutes

Duvet Cotton 120 minutes

Duvet

Synthetic

60 minutes

High Heat

High Heat

80 minutes

High Heat

65 minutes

Low Heat

Low Heat

Low Heat

115 minutes

Low Heat

1 kg

(approx

3 sweaters

3 kg

(approx.

4 pairs)

3 kg

(approx.

10 shirts)

3 kg

(approx.

14 shirts)

0.5kg For Delicate Silk.

Single Duvet

Single Duvet Loads using this programme will usually be

For Tumble dryer safe garments, with

symbol.

It is recommended garments re turned inside
out before drying.

For garments made of Denim Cotton, turn
front pockets inside out. Garments with
embroidery or elasticated waistbands should
not be dried.

For Shirts made from cotton

For Shirts made from synthetic materials, or
a mixture of natural and synthetic materials
such as Polyester and cotton

ready to use, the edges or seams may be
slightly damp.

Baby Cycle 120 minutes

Low Heat

Lingerie 90 minutes

Low Heat

2 kg For baby’s small items of clothing and

bedding made from Cotton and Chenille.

1 kg For very delicate lingerie including silk.

Buttons and hooks should be fastened
before drying.
Note: Low Heat. Heater Cycles to maintain
delicate temperature during cycle.

Notes

• Times shown above are for the driest setting available for the programme concerned.

• All 5 Sensing Levels are not available on all Programmes.

• The Cool down period varies between 15 and 4 minutes depending on the cycle selected.

• Times are estimated for an average load. The actual duration will va ry, depe nd in g on the
size and type of the load being dried.

• The display may show 10 minutes for an extended period if the clothes are not dry when the
cool down period is reached.

• The display may update its time to end during the cycle., if its sensors calculate either more
or less time is required to dry the clothes to the required dryness level.

• Loads using these programmes will usually be ready to u se or wear, in some situations the
edges or seams may be slightly damp.

Service Manual UK English

17 of 42

Indesit Company

PROGRAMME GUIDE - AQC9BF5...

Programmes Table

!

If the On/Off light is not lit; Press the On/Off Button and then select programme.

Programme What it does How to set it Notes / Options available

! This is not a drying programme (see previous page).

.

Options available

Sound

.

.

.

.

.

.

.

.

.

.

.

.

.

.

Sound

. Delay Start . Crease care . High Heat

Sound
Extra Care

Sensor Dry option, automatic drying:

Damp dry

, Ready to Wear .

Sound

Sensor Dry option, automatic drying:

Damp dry

Sound

Sensor Dry option, automatic drying:

Damp dry
Cupboard dry , Ready to Wear .
(We suggest to use only Ready to Wear).

Sound

Sensor Dry option, automatic drying:

Damp dry
Cupboard dry

Sound

Sensor Dry option, automatic drying:

Damp dry
dry

Sound

Sensor Dry option, automatic drying:

Damp dry
Cupboard dry

Sound

Sound

Sensor Dry option, automatic drying:

Damp dry
Cupboard dry

Sound

Sensor Dry option, automatic drying:

Damp dry
Cupboard dry

Sound

Sound

.

, Iron dry , Hanger dry Cupboard dry

. Delay Start . Crease care . High Heat

, Iron dry , Hanger dry Cupboard dry .

. Delay Start . Crease care .

, Iron dry , Hanger dry

. Delay Start . Crease care

, Iron dry , Hanger dry ,

.

. Delay Start . Crease care . Extra Care

, Iron dry , Hanger dry , Cupboard

. (We suggest to use only Cupboard dry).

. Delay Start . Crease care . High Heat .

, Iron dry , Hanger dry ,

. (We suggest to use only Cupboard dry).

.

.

, Iron dry , Hanger dry ,

(We suggest to use only Cupboard dry).

. Delay Start . Crease care .

, Iron dry , Hanger dry ,

. (We suggest to use only Cupboard dry).

. Delay Start . Crease care .

. Delay Start . Crease care .

Easy Iron

Refresh

Cottons

Shirts

Jeans

Synthetics

Bed & Bath

Duvet

Wool

Silk

Baby

Delicate

Anti Allergy

Quick Dry

Brief programme (approxima­tely 10 minutes) that softens
fibres of clothing that is ready
for ironing.

20 min cool programme to air
your clothes

Dries: your Cotton clothes.

N.B: Max. load 6 kg (with
Low Heat option)

Dries your shirt

Dries denim clothes on a high
heat.

Dries: your synthetics clothes.

Dries your Towels and
bedding.

Dries your Duvet.

Dries: your Woollen clothes.

Dries your silk items.

Dries your baby clothes.

Anti Allergy treatment for your
cotton clothes.

Dries your cotton or synthetic
clothes in less time.

.

1. Position the PROGRAMME knob on

2. Select Alarm Option if required.

3. Press the Start Button

1. Position the PROGRAMME knob on

2. Select Alarm Option if required.

3. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

(see next page).

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

(see next page).

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

(see next page).

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Choose Sensor Dry

3. Select any Options if required.

4. Press the Start Button

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button

.

.

or Timed Dry

.

or Timed Dry

.

(see next page).

.

or Timed Dry

.

(see next page).

.

(see next page).

.

.

(see next page).

.

(see next page).

.

.

.

.

.

.

.

Service Manual UK

English

18 of 42

Indesit Company

PROGRAMME GUIDE - AQC9BF5... - continued

Programme What it does How to set it Notes / Options available

Dries your sports clothes.

Activewear

Dries your cuddly toy.

Cuddly Toys

Heats your XS[IPFEXLVSFI

Heat & Enjoy

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button

1. Position the PROGRAMME knob on

2. Select any Options if required.

3. Press the Start Button

.

.

.

.

.

.

Sensor Drying and Timed Drying

First select a programme (see programmes table).

Programme What it does How to set it Notes / Options available

Sensor
Drying

Timed
Drying

(220, 180,
150, 120,
90, 60 or 40
minutes)

Always use Sensor Dry if pos­sible for drying your clothes. It
will guarantee you best drying
results.
The heat setting depends
on the programme (material
option) selected.

Always use timed drying
option if you want to decide
the drying time.
The heat setting depends
on the Programme (material
option) selected.

1. Press and release the sensor Dry button until
the display shows the desired selection. Each

press advances
repeats.
! Some sensing programmes do not have all five
dryness level options.

2. Select any Options if required.

3. Press the Start Button

1. Press and release the Timed Button until the

display shows the required selection. Each
decreases time 220’, 180’, 150’, 120’, 90’,
60’, 40’ and then repeats.

w&EF](IPMGEXIWLEZIEQE\MQYQXMQISJ150’.

2. Select any Options if required.

3. Press the Start Button

, , , , and then

.

.

. Delay Start . Crease care .

Sound

. Delay Start .

Sound

-

Options available

. Delay Start . Crease care .

Sound
High Heat

Consult suggested drying times (see Laundry).
The last 3 minutes of these programmes is the cool
tumble phase

Options available

Sound
Consult suggested drying times (see Laundry).
The last 3 minutes of these programmes is the cool
tumble phase

.

Extra Care .

.

. Delay Start .Crease care . High Heat

.

.

! For the best performance do not open the door before the cycle has finished.

Service Manual UK English

19 of 42

Indesit Company

SPECIAL PROGRAMMES - AQC9BF5...

Symbol Programme Approx.Time/Heat Max. Weight Notes

Wool

Programme

Jeans 85 minutes

Shirts

High Heat

Shirts

Low Heat

Silk 110 minutes

Duvet High

Heat

Duvet Low

Heat

60 minutes

High Heat

High Heat

80 minutes

High Heat

65 minutes

Low Heat

Low Heat

120 minutes

Low Heat

115 minutes

Low Heat

1 kg

(approx.

3 sweaters)

3 kg

(approx.

4 pairs)

3 kg

(approx.

10 shirts)

3 kg

(approx.

14 shirts)

0.5kg For Delicate Silk.

Single Duvet

Single Duvet Loads using this programme will usually be

For Tumble dryer safe garments, with

symbol.

It is recommended garments be turned
inside out before drying.

For garments made of Denim Cotton, turn
front pockets inside out. Garments with
embroidery or elasticated waistbands should
not be dried.

For Shirts made from cotton

For Shirts made from synthetic materials, or
a mixture of natural and synthetic materials
such as Polyester and cotton

ready to use, the edges or seams may be
slightly damp.

Baby Delicate 120 minutes

Cuddly Toys 200 minutes 2 or 3 cuddly

Active Wear 120 minutes 2 kg (e.g.

Heat & Enjoy Until stopped by the

Quick Dry 30 minutes 1 kg Energy saving for small loads.

Anti Allergy See Anti Allergy

See Notes overleaf.....

Low Heat

customer. Time out

240 minutes

page 17

2 kg For baby’s small items of clothing and

bedding made from Cotton and Chenille.
Dries at low temperatures with reduced drum

toys

Gore-Tex,

polyester,

nylon)

3 kg Dries at 37°C. Useful for drying clothes in

Wet Load 9 kg

Dry Load 4 kg

action. Clockwise rotation only.
For Allergy protection, freeze for 24 hours
then wash and dry.

Drying the garment after washing reactivates
the water repellent treatment.

winter before dressing.

Front Thermistor monitored.
See Anti Allergy page 21

Service Manual UK

English

20 of 42

Indesit Company

Notes

• Times shown are for the driest setting available for the programme concerned.

• All 5 Sensing Levels are not available on all Programmes.

• The Cool down period varies between 15 and 4 minutes depending on the cycle selected.

• Times are estimated for an average load. The actual duration will vary, depending on the
size and type of the load being dried.

• The display may show 10 minutes for an extende d period i f the cl othes are no t dry wh en the
cool down period is reached.

• The display may update its time to end during the cycle., if its sensors calculate either more
or less time is required to dry the clothes to the required dryness level.

• Loads using these programmes will usually be ready to use or wear, in some situations the
edges or seams may be slightly damp.

Anti-Allergy Programme

The Anti Allergy cycle has a unique programme profile:

Cycle Duration

Normal operation
Drum forward and reverse
About 20 minutes

80 minutes - reverse only
with short pauses.
80 minutes

Normal operation
Drum forward and reverse
Depends on load

The Anti-Allergy phase tumbles and heats for 80 minutes in an anti-clockwise direction, with a short
pause every 5 minutes. This is to keep the temperature constant (approximately 70°C).

Note:
The Anti-Allergy phase of the drying cycle is not intended to dry cl othes. The drying phase continues
once the Anti-allergy phase has completed.

Service Manual UK English

21 of 42

Indesit Company

CONTROL BOARD PROGRAMMING for Modules with fixed EEProm

NOTE: This board does NOT have a physically replaceable EEProm.

Programming a Main Board

There are a number of ways the board can be programmed - some of which are not applicable to
certain markets.

Types of programming:

1. Handheld Terminal (Not UK)

2. Emit / Memwriter (UK Indesit Service Engineers)

3. Smart Reader & Smart Card (certain areas of UK market) see photo below and following page.

Smart Card Reader

Smart Card

this card hold the program file
and can only be used ONCE.

PROGRAMMING (Using EMIT)

This machine can be programmed via the Emit, using a USB lead (Part number C00222800),
Hardware key (Part number C00115587) and the Memwriter software.

Black Hardware Key USB - Serial Cable - examples

A Hardware Key Pin is available
(order Part No. C00114723, qty. 1)

Service Manual UK English

22 of 42

Indesit Company

PROGRAMMING (Using Smartcard Reader / Card)

If the Main Module has been replaced during a repair the board will require programming using the
following method.

1. Do NOT connect the dryer to electrical supply at

this point.

Smart Card Reader

2. Insert the pre-programmed card into the Card
reader. Care must be taken at this point to ensure
the card is inserted correctly with the Chip on the
card facing the PCB of the Reader.

3. Insert the Reader & Card into module connection
port located at the front of the dryer - see photo.

4. Connect the dryer to the Electrical supply;
The LED's on the Smart Card Reader will light in the

following sequence:

and Smart Card in use

a) Red OFF: Good Communication between Smart

Card Reader & Card.

b) Red OFF; Green Blinking: Download taking place.
c) At end of download from Smart Card to Module,

Green ON ---> Download OK.

or

d) At end of download from Smart Card to Module,

Red ON ---> Download NOT OK.

5. Programming Complete, disconnect the machine
from Electrical supply.

6. Remove the Smart Card Reader.

Module
Connection
Port

SmartCard

Reader

SmartCard

Service Manual UK English

23 of 42

24 of 42

Service Manual UK English

Programming using Smart Card Reader - Flowchart:

Indesit Company

Indesit Company

CONTROLS BOARD PROGRAMMING for Modules with fixed EEProm

NOTE: This board does NOT have a physically replaceable EEProm.

Programming a Main Board

There are a number of ways the board can be programmed - some of which are not applicable to
certain markets.

Types of programming:

1. Handheld Terminal (Not UK)

2. Smart Reader & Smart Card - see photo below and following page.

Programming (using Handheld):

This machine can be programmed via Handheld, using:

1) a serial cable (photo 1), adapters connector (photo 2) and one of the 2 HW keys (see photo 3)

2) a Bluetooth HW key (photo 4)

Photo 1 Photo 2

Photo 3 Photo 4

Service Manual UK English

25 of 42

Indesit Company

FAULT CODES

Example of a Fault Code

In the event of a fault being detected by the
electronics, a code will appear in the LCD
display.

These codes are listed in the following table.

Please Note:

• Components with a low resistance to
Earth may cause erroneous faults or

loss of the display.

All 4 options button lights and the Start/Pause
light will flash when a Fault Code is displayed.

• Always check relevant wiring and

connector blocks security before considering replacing the modules.

• On ALL automatic programmes; there is no heat during the first 3 minutes.
The first 10 minutes of all automatic cycles is used to calculate the drying time.

ONE-SHOT STAT OPERATION - Applicable to Fault Codes.

- A1 Module

The one-shot thermostat is wired into the Neutral supply of the module. If the One-Shot

Thermostat operates and opens the machine will be 'dead' and the display will be blank.
A fault code will NOT be displayed.

- A2 Module

If the one-shot thermostat operates and opens, the machine will continue with the cycle

with no heat. A fault code will NOT be displayed.

FAULT Cause Control Action

F01 The motor is running

when it should be off.

F02 Open circuit between

module and motor
Common.

F03 Front thermistor open or

short circuit.

• Check if module connector J3 has shorted due to moisture.

• Replace module.

• Check security of module connector J3;

Test motor Common (TOC);

•

•

Check wiring between J3 and motor.

• Check security of module connector J12;

•

Test from connector pins (approximately 500 Kohms);

•

If open or short circuit, test thermistor and wiring between

thermistor and J12 to locate fault.

F04 Pump working when

should be off.

• Check security of module connector J5;

• Check connector for signs of shorting due to moisture;

• Replace module (F04 would normall y be caused by a faulty
module).

F05 Pump is not working

when it should be on.

• Check security of module connector J5;

• Check connector for signs of shorting due to moisture;

• Replace module (F05 would normall y be caused by a faulty
module).

F06 Not used.

Service Manual UK

----

English

26 of 42

Indesit Company

F07 Lower element failure

(or Heater Plug not
connected to module.)

F08 Lower element is ener-

gised when it should be
off.

F09 Error Set Up File.

Eeprom is either not pro­grammed or is not func­tioning.

F10 Open circuit in the

heater Common wiring.

• Check security of module connector J4;

• Test between pins 4 and 3 on J4 (approximately 48 Ohms);

• If open circuit, test lower element and wiring between J4
and the heater.

• Check security of module connector J4;

• Check connector for signs of shorting due to moisture;

• Test heater elements and wiring;

• Replace module (F08 would normally be caused by a faulty
module).

• If the module is a production board, replace the module;

• If the module has an Eeprom socket, check the eeprom is
correctly inserted and programmed.

• Check the wiring between the cycling stat and the module;

•

Check wiring between module connector J4 and the heater;

•

Test heater elements.

Note:- Frequent cycling stat op eration can cause F10, c heck

filter and condenser for blockages. The module checks and
waits 3 times before displaying F10.

F11 Open circuit pump

circuit.

F12 No communication

between display module
and control module.

F13 Rear thermistor open or

short circuit.

F14 Upper element failure

• Test continuity of pump;

•

Check connector J5;

•

Check wiring between pump and module J5.

Note:- F11 is usually caused by a fault in the pump circuit

not the module. Auto cycle being used fault displays

within 1 minute Time and Wool cycles being used fault
displays at the end of the cycle.

• Check connector J9 on module;

Check wiring between module connector J9 and display;

•

•

Check display connector;

•

Replace module, display or wiring as required.

• Check security of module connector J4;

•

Test from J4 connector pins 1 and 2 (approximately 500

Kohms);

•

If open circuit, test thermistor and wiring between

thermistor and J4 to locate fault.

• Check security of module connector J4;

•

Test between pins 4 and 5 on J4 (approximately 48 ohms);

•

If open circuit, test upper element and the wiring between

J4 and the heater.

Service Manual UK English

27 of 42

Indesit Company

F15 Upper element is on

when it should be off.

• Check security of module connector J4;

•

Check connector for signs of shorting due to moisture;

•

Check heater elements and wiring;

•

Replace module (F15 would normally be caused by a faulty

module).

F16 Not used.
F17 Master Relay contacts

welded closed.

• Replace module.

Operation of the float switch:

After continuing to tumble and dry for a further
one minute, the dryer will turn off the heater and
cool tumble for a further 10 minutes - before
displaying the Fault Code H20, the Empty
Water light flashing the Start/Pause button
flashing Orange.

Servicing Notes

Drum Thumping Noise - AQCF852...

When first started, it is normal for the drum to make a thumping noise for approximately 2 minutes,
while the drum support wheels centralise to the load conditions.

No Motor Action

When diagnosing the cause of no motor action, it should be remembered that one of the door
switches is in the motor supply.

Basic Auto Circuit Check

This check must be carried out with an empty

1. Set AUTO Cotton - High Heat

2. Set on Maximum Drying position.

3. Start the Dryer.

4. Within 15 minutes the dryer should move to Cool Down if the sensing system is working correctly.

drum.

Service Manual UK

English

28 of 42

Indesit Company

Auto Test

Required

> Hardware Key with a Test Switch (see photo.)
> Test Lead approximately 1.5 metres long with a 270 KW resistor in

series with a conductive magnet at one end, and a ring connector at the
other.

> Amp meter.

With the machine disconnected from the Electricity supply.

1. Attach the magnet end of the test lead on to the conductivity sensor.

2. Attach the other end of the test lead to an earth point. One of the rear
panel fixing screws is recommended.

3. Connect the Hardware key to the module. (access behind the plinth)

3a Select Cotton High Heat programme on selector.

4. START TEST

4a Plug the machine into the electricity supply, but do not switch on.
4b Switch the Test button on the Hardware key, To Test Position

The Display Shows Start Led green, Extra Dry bar, and 2:50
Drum Rotates anti clockwise. No Heat (approx. 1 amp)

4c Press the Post Crease care Button

The Display shows Start Led, Extra Dry bar, 2:50 and Post Care Led.
The Drum Stops
The Drum restarts rotating clockwise. Half heat. (approx. 5 or 6 amps)

4d Press the Alarm Button

The Display shows Start Led, Extra Dry bar, 2:50 Post Care and Alarm Led’s.
Drum continues to revolve clockwise. Full Heat. (approx 10 to 11amps)

Hardware Key
with Test switch

5. Conductivity Sensor Test
Press the Post Crease Care button again
The Heater Switches Off
The Drum Stops.
The Display shows Extra Dry bar, 2:50 and Alarm Led.

> If the Conductivity Sensor is working correctly.

The Drum Starts to rotate anti clockwise.
The Display shows Start Led green, Extra Dry Bar, 2:50. in the display.

> If the Conductivity Sensor is Faulty.
The Display briefly flashes END and Start Led flashes green, plus Drying, Cool Tumble and Empty

Water/Clean filter Led’s come on.
The drum does not rotate.
Note: If a fault is detected the fault code will display in the display on the console and in the Test Plug

screen.

Service Manual UK English

29 of 42

Service Manual UK English

WIRING DIAGRAM - Machines fitted with A1 type Module and Heater

Refer to page 10 for identification

Indesit Company

wd-160024345.ai

30 of 42

E
U

L
B

BLUE

43

E
T

I
H

W

DOOR

SWITCH (1)

INTERFACE

E
U

L
B

BLUE

WHITE

USER

PCB

E
U

L
B

J9

J10

E

E

U

U

L

L

B

B

2

N
W

O
R
B

BLUE

MAINS CONNECTION
WITH SUPPRES SION

L

FLOAT

SWITCH

2

D
E
R

1

1

D
E
R

MAIN MODULE

M

N

PUMP

D
E
R

E

D
E
R

J11

4.8

1

GREEN/YELLOW

ONE SHOT

CUT OUT

J3

RED

BLACK

1

2

3

WHITE

BROWN

ORANGE

54 3 2 1

J4

2

CYCLING

THERMOSTAT

BLACK

RED

DOOR SWITCH (2)

WHITE

BLACK

ORANGE

NTC

GREY

GREY

CAPAC

-ITOR

BLACK

PB

RED

PB

WHITE

M

M

DRUM

ASSY

STRIP

SENSING

HEATER & COVER ASSEMBLY

WHITE

UPPER

HEATER

LOWER

BROWN

FRONT NTC

MOTOR WITH

PROTECTOR

= LOCKING RECEPTACLE
= INSULATOR

M = MALE TAB

PB = PIGGY BACK

F = FLAG RECEPTACLE

Service Manual UK English

WIRING DIAGRAM - Models fitted with A2 type Module & Heater before Serial Number 00612.0000

Refer to page 10 for identification

Indesit Company

31 of 42

2

FLOAT

SWITCH

w
o

l

l
e
Y

1

w
o

l

l
e
Y

MAIN MODULE

N

USER

INTERFACE

PCB

E

E

J1

E

U

U

L

L

B

B

J9

J10

WHITE

U
L
B

BLACK

RED

43

E
T

I
H

W

DOOR

SWITCH

E

E
U

U
L

L
B

B

2

N
W

O
R
B

E
U

L
B

MAINS CONNECTION
WITH SUPPRESSION

L

1

PUMP

NTC

D
E
R

E

D
E
R

GREY

WHITE

BROWN

54 3 2 1

J4

J11

4.8

1

2

J3

GREEN/YELLOW

ORANGE

1

2

3

CYCLING

THERMOSTAT

BLUE

BLACK

RED

WHITE

BLACK

CUT OUT

ONE SHOT

GREY

GREY

DOOR

SWITCH (2)

SENSING

ORANGE

CAPAC

PB

M

M

STRIP

-ITOR

PB

DRUM

ASSY

BLACK

RED

WHITE

HEATER & COVER ASSEMBLY

BLUE

UPPER

HEATER

LOWER

BROWN

FRONT NTC

MOTOR WITH

PROTECTOR

= LOCKING RECEPTACLE
= INSULATOR

M = MALE TAB

PB = PIGGY BACK

F = FLAG RECEPTACLE

5407479wd_earlyA2.pdf
(from 16002511500)

Service Manual UK English

WIRING DIAGRAM - Models fitted with A2 type Module & Heater from Serial No. 00612.0000

Refer to page 10 for identification

BLACK

Indesit Company

32 of 42

RED

W

E
U

L
B

J1

43

H

E

I

T

WHITE

DOOR

SWITCH

USER

INTERFACE

PCB

E

E

U

U

L

L

B

B

J10

J9

E

E
U

U
L

L
B

B

1

2

O

B

R

N

W

B
B

MAINS CONNECTION
WITH SUPPRESSION

L

FLOAT

SWITCH

2

w
o

l

l
e
Y

OR

U

L

E

O

R

N

W

1

w
o

l

l
e
Y

MAIN MODULE

A2

N

PUMP

NTC

D
E
R

D
E
R

GREY

WHITE

BROWN

54 3 2 1

J4

J11

4.8

1

GREEN/YELLOW

2

J3

ORANGE

1

2

3

CYCLING

THERMOSTAT

BLUE

BLACK

RED

WHITE

BLACK

CUT OUT

ONE SHOT

GREY

GREY

DOOR

SWITCH (2)

SENSING

ORANGE

CAPAC

-ITOR

PB

M

M

DRUM

ASSY

STRIP

PB

BLACK

RED

WHITE

5407479wd_A2.ai

E

A2 type
16002511500

HEATER & COVER ASSEMBLY

BLUE

UPPER

HEATER

LOWER

BROWN

FRONT NTC

MOTOR WITH
PROTECTOR

= LOCKING RECEPTACLE
= INSULATOR

M = MALE TAB

PB = PIGGY BACK

F = FLAG RECEPTACLE

Indesit Company

DISMANTLING INSTRUCTIONS

SAFETY NOTES

1. ENSURE THAT THE MACHINE IS UNPLUGGED BEFORE DISMANTLING.

2. BEWARE OF SHARP EDGES ON METAL PANELS AND PRESSED PARTS.

A. Top Cover

1. Remove the 2 screws securing the top cover to the back panel.

2. Slide the top cover back and lift clear of the retainers.

B. Side Panels

1. Remove the top cover.

2. Remove the 4 screws securing the side panel to the rear panel and 1 screw securing the side
panel to the water container at the front of the dryer.

3. Pull the side panel backward to disengage from the lugs on the base panel.
Note: Different length screws are used to secure the side panels. Take note of the screw
positions when removing the side panel.

C. Door Assembly

1. Remove the Top Cover (A).

Fig.1

2. Disconnect the lead to the Control Card. The connector is situated along the top front edge of
the right hand side panel (Fig.1).

3. While holding the Door, remove 4 Torx T20 screws (2 per hinge) securing the door hinges to
the cabinet (Fig.2).

4. Carefully feed the loom from the Control Card through the Top Hinge access hole, while lifting
the door clear (Fig.3).

5. It is important the hinge gasket is correctly located and fitted.

The cable tie must be tight and located exactly as shown below. Do NOT cut off the tail.

Fig.2

Fig.3

Gasket

Cable Tie

Connector

The cable tie MUST be located in

front of this raised edge

Service Manual UK English

33 of 42

Indesit Company

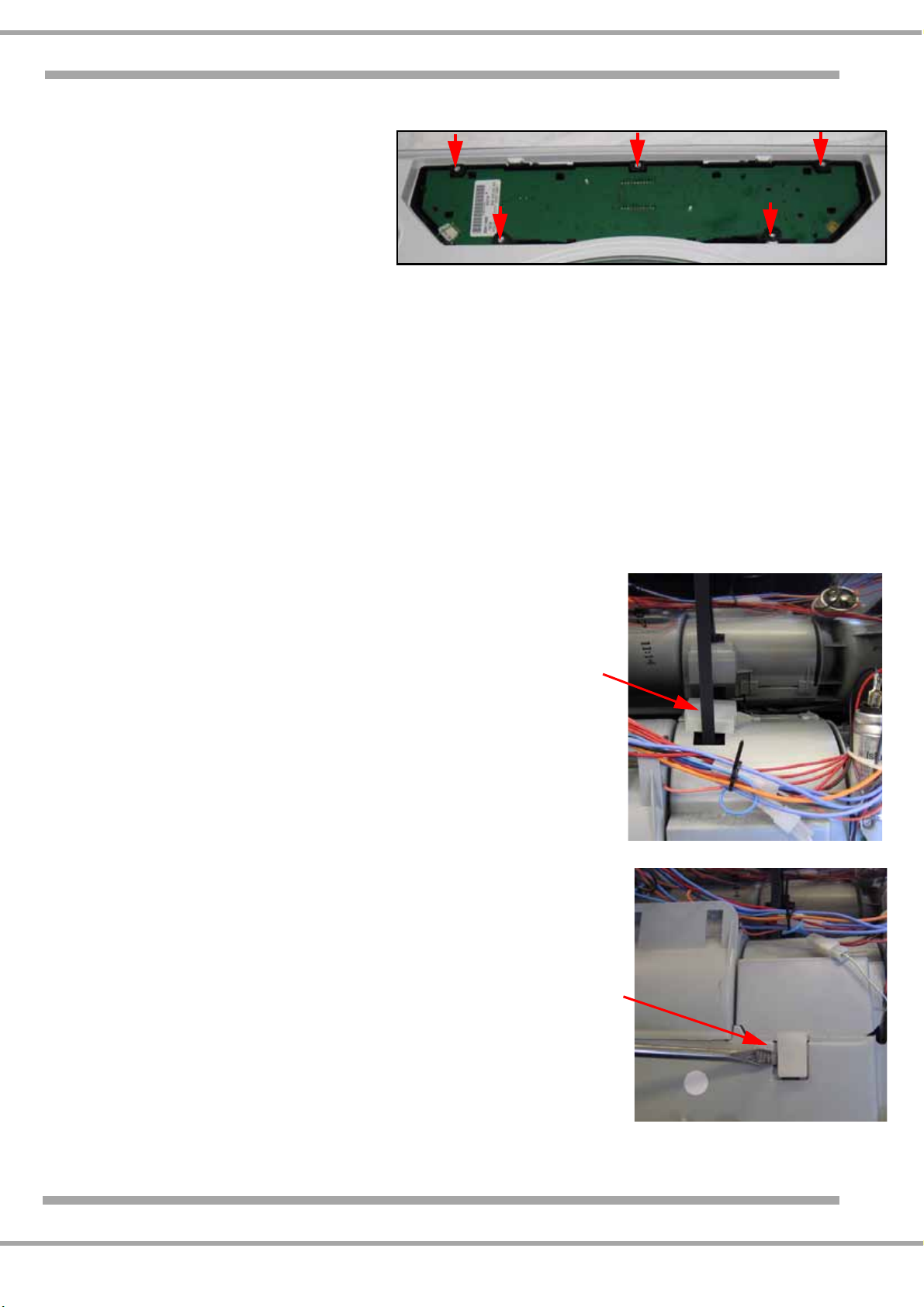

D. Interface / Display Module Assembly

1. Remove the door assembly (C).

2. Place the door assembly on a
protected flat surface.

3. Remove the control module
cover 5 Torx T8 screws.

4. Disconnect the edge connector.

5. Release the 5 retaining lugs and
ease the control module away
from the door.
(The knobs, buttons etc. remain
fitted to the module.

E. Door Seal

1. Remove the front panel as in (G).

2. The seal can now be removed from the front panel.
Note: The seal is held in place by being c ompressed between the fro nt air duct and front pa nel.
When re-fitting, fit the door seal to the front panel first, and then carefully locate the front panel

in position without disturbing the seal.

Note: When refitting the control module you are advised to fit

the edge connector before clipping into position.

F. Belt

1. Remove the side panels as in (B).

2. Remove the cooling impeller cover* using a small
blade screwdriver to lift the cover* locking tabs.

3. Unclip and lift away the Motor Cover Top
(see Fig 1).

4. Unclip and lift away the Outer Motor Cover*
(see Fig 2).

5. Remove the cooling impeller.

6. Remove the rear bearing as in (K).

7. Remove the heater unit as in (M).

8. Remove the recirculating impeller.

9. Remove the 3 hex head screws behind the
recirculating impeller securing the motor to rear of
the base moulding. This will release the belt tension.

10. Rotate the motor towards the centre of the dryer to
disengage the belt from the jockey pulley.

11. Remove the 2 screws securing the rear panel to the
side strut.

12. Remove the 2 screws securing the water container
housing to the rear panel.

13. Remove the hose spigot from the container housing
by rotating 90°.

14. Pull the rear panel backward to disengage the drum
shaft from the drum rear panel and slide the belt
back to remove from the drum.

15. Replace in reverse order. When refitting the belt first
position the belt over the jockey wheel, refit as in (O).

*Note: Covers not fitted after Serial No. 008160000.

Fig 1

Unclip
and lift
clear

Fig 2

Release
clip and
lift away

Service Manual UK

English

34 of 42

Indesit Company

G. Front Panel

1. Remove the top cover.

2. Remove the Door Assembly (C).

3. Slide out the water container and lay to one side, then remove the 3 screws from the water
container front surround. Remove the surround .

4. Remove the 5 screws around the door opening.

5. Remove the 3 screws along the bottom edge of the front panel.

Note that the bottom edge of the front panel is positioned behind the base.

6. Remove the 2 screws securing the front panel to the side strut at the top of the dryer.

7. Remove the door switch fixing screw and remove the door switch, noting the positions of the
connections.

Note: When refitting, fit the door switch before finally locating the front panel in position and be
careful not to trap any wiring between the front panel and air duct.

H) Front Air Duct, Dryer Sensor and Front Thermistor

1. Remove the front panel (G).

2. Ease the air duct forward, to remove the wiring from the guide clips, disconnect the dryer
sensor and front thermistor.

3. Lift the front air duct and ease past the front support wheels.

Notes:

1. When refitting, be careful to ease the air duct past the wheels and locate correctly into the air

duct.

2. When replacing the thermistor, route wiring and replace cable ties has shown.

Service Manual UK English

35 of 42

Indesit Company

I) Front Drum Support Wheels

1. Remove the Drum (O).

2. Unscrew the Bearing Support Wheel
fixing bolt.

Note 1:
When first started, it is normal for the

drum to make a noise for approx.
2 minutes, while the drum support
wheels centralise to the load conditions.

Note 2:
When fitting the support wheels, ensure the
shiny side of the wheel faces the protective
cover.

Once fitted there should be a 1mm gap
between the drum support wheel and the
protective cover.

Inspect the support wheel
to identify the shiny side

Support
wheel
fixing bolt

Shiny side of
support wheel

Protective Cover

1mm Gap

This instruction applies to both wheels

J. Door Switch

1. Remove the top cover as in (A).

2. Remove front panel as in (G). It is not necessary to completely remove the front panel.
The front panel should just be leaned forward to access to the door switch.

3. Slide the switch to remove from the front panel.

4. Transfer wiring, noting connections.

Note: Be careful not to trap any wiring between the front panel and air duct.

Service Manual UK

English

36 of 42

Indesit Company

K. Rear Bearing (Tear Drop shaped)

1. Remove the rear bearing cover.

2. Remove the drive pin and collar.

3. Remove the tear drop bearing fixing screw.

4. Slide the bearing off the drum shaft.
Note: Place the insulation pad before refitting the rear bearing cover.

Insulation Pad

Bearing
Cover

Teardrop Bearing
fixing Screw

L. Pump & Float Switch

1. Release the two pump/float assembly cover clips. See Photos 1 and 2.

Photo 1 Photo 2

Released Clips

Heater
Cover

Foam
Pad

2. Release the two clips
at either end of the
pump/float assembly
and lift the unit clear.

Shown with
Cover removed

Photo 3

Service Manual UK English

37 of 42

Indesit Company

M. Heating Assembly, Thermostats & Thermistor

1. Remove the right hand side panel.

2. Disconnect the wiring to the heater multi-pin connector.

3. Remove the 8 screws securing the heater unit to the rear panel.

4. Remove the 2 screws securing the heater to the rear cover.

Notes:

1. If replacing the thermostats both the cycling and one-shot thermostat MUST be replaced
should either fail.

2. When refitting the heater cover, ensure the heater wiring is not trapped between the inner and
outer rear panels.

3. Two different sizes of screw are used to fit the heater cover. The longer screws are to secure
the heater cover to the base.

N. Motor

1. Follow steps 1 to 8 as in (F).

2. Remove motor covers as necessary.

3. Lift the motor clear from the base moulding.

4. Replace in reverse order first positioning the belt over the jockey wheel. It will be necessary to
use a pair of water pump pliers as a lever on the motor casing (as illustrated) to enable it to be
rotated under tension to line up the holes in rear moulding with the fixing holes on the motor
casing, refit the 4 hex. head screws.

Rotate motor with water
pump pliers using
downward pressure to
tension belt and line up
motor fixings in rear
moulding

NOTE:

Ensure pliers do not

cause damage to
motor windings.

O. Drum Assembly

1. Remove the top cover as in (A).

2. Remove the side panels as in (B).

3. Remove the water container support (R). Ensure the door is closed before moving to next step.

4. Slacken the belt as in (F) 1 to 8.

5. Remove the rear bearing as in (K).

6. Remove the front panel as in (G) leaving the air duct attached to the front panel if required.

7. The drum can now be removed from the rear panel.

8. Replace in reverse order. Note: When reassembling, a new drive pin must be fitted.

P. Rear Seal

1. Remove the drum as in (O).

2. Remove the rear seal and clean any remnants of the seal and adhesive from the inner face of
rear panel.

Service Manual UK

English

38 of 42

Indesit Company

Q. Control Module

1. Remove the plinth by pulling forward.

2. Remove the top cover.

3. Remove the right hand side panel.

4. Disconnect the wiring noting connections.

5. Remove the screws securing the module to the kickstrip.
NOTE: - The control module can be progra mmed wi th th e rel ev ant se tti ngs fi le i f the mod ule is

replaced, if the settings file becomes corrupted or if an updated file becomes available.
The programming procedure can be found on pages 22 - 25.

R. Water Container Support

1. Remove top cover as in (A)

2. Remove L/H side panel.

3. Remove water container.

4. Undo the 3 container support adaptor securing screws and remove.

5. Release inlet and overflow hoses.

6. Undo 2 screws securing container support to back panel.

7. Ease container support and rear panel backwards and remove.

Service Manual UK

English

39 of 42

Indesit Company

Service Manual UK

English

40 of 42

Indesit Company

Service Manual UK

English

41 of 42

Indesit Company

Service Manual UK

English

42 of 42
