Wide Area Walk Mower

Owner/Operator Manual Manuel du Propriétaire/Utilisateur

Model

911413 – WAW 34

(Serial No. 013000 and up)

Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl ether) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty.

Il est possible d'utiliser de l'essence contenant jusqu'à 10% d'éthanol (E10) ou 10% de MTBE (éther méthyl-tertiobutylique) sur cette machine. L'utilisation d'une essence contenant plus de 10% d'éthanol (E10) ou de 10% de MTBE annulent la garantie.

ENGLISH

FRENCH

04081400B 4/12

Printed in USA

Page 2

TABLE OF CONTENTS

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Assembly . . . . . . . . . . . . . . . . . . . . . . . 10

Controls and Features. . . . . . . . . . . . . 12

Operation . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance. . . . . . . . . . . . . . . . . . . . . 17

Service and Adjustments . . . . . . . . . . 20

INTRODUCTION

Storage . . . . . . . . . . . . . . . . . . . . . . . . . 26

Troubleshooting. . . . . . . . . . . . . . . . . . 26

Service Parts . . . . . . . . . . . . . . . . . . . . 27

Accessories . . . . . . . . . . . . . . . . . . . . . 27

Specifications . . . . . . . . . . . . . . . . . . . 28

Warranty . . . . . . . . . . . . . . . . . . . . . . . . 29

NON-ENGLISH MANUALS

Manuals in languages other than English may be obtained from your Dealer. Visit your dealer or www.ariens.com. for a list of languages available for your equipment. Manuals printed in languages other than English are also available as a free download on our website:

http://www.ariens.com

MANUALES EN IDIOMAS DIFERENTES DEL INGLES

Puede obtener manuales en idiomas diferentes del inglés en su distribuidor. Visite a su distribuidor o vaya a www.ariens.com para obtener una lista de idiomas disponibles para su equipo.

También puede imprimir manuales en idiomas diferentes del inglés descargándolos gratuitamente de nuestra página Web:

http://www.ariens.com

MANUELS NON ANGLAIS

Des manuels dans différentes langues sont disponibles chez votre revendeur. Rendez-vous chez votre revendeur ou allez sur le site www.ariens.com pour consulter la liste des langues disponibles pour votre équipement. Les manuels imprimés dans des langues différentes de l’anglais sont également disponibles en téléchargement gratuit sur notre site Web :

http://www.ariens.com

THE MANUAL

Before using the unit, carefully and completely read your manuals. The contents will give you an understanding of safety instructions and controls during normal operation and maintenance. All reference to left, right, front, or rear are given from the operator’s position, facing the direction of forward travel.

ENGINE MANUAL

The engine on this unit is covered by a separate manual specific to the engine. This manual is included in the literature package that shipped with the unit. Refer to this manual for engine service recommendations. If the engine manual is not available, contact the engine manufacturer for a replacement manual.

SERVICE AND REPLACEMENT PARTS

When ordering replacement parts or making service inquiries, know the Model and Serial numbers of your unit and engine. Numbers are located on the product registration form in the unit literature package. They are also printed on a serial number label, located on the frame of your unit (Figure 1).

GB - 2

Page 3

• Record Unit Model and Serial numbers

Figure 1

OM1600

Unit Serial Number Label

here:

• Record Engine Model & Serial numbers here:

PRODUCT REGISTRATION

The Ariens dealer must register the product at the time of purchase. Registering the product will help the company process warranty claims or contact you with the latest service information. All claims meeting requirements during the limited warranty period will be honored, whether or not the product registration card is returned. Keep a proof of purchase if you do not register your unit.

Customer Note: If the Dealer does not register your product, please fill out, sign and return the product registration card to Ariens or go to www.ariens.com on the Internet.

UNAUTHORIZED REPLACEMENT PARTS

Use only Ariens replacement parts. Replacing any part on this vehicle with anything other than an Ariens authorized replacement part may adversely affect the performance, durability, or safety of this unit and may void the warranty. Ariens disclaims liability for any claims or damages, whether warranty, property damage, personal injury or death arising out of the use of unauthorized replacement parts. To locate your nearest Ariens Dealer, go to www.ariens.com on the Internet.

DEALER DELIVERY

Dealer should:

1. Check that all assembly and adjustments have been properly completed.

2. Fill out Original Purchaser Registration Card and return the card to Ariens.Explain Ariens Limited Warranty Policy.

3. Explain recommended lubrication and maintenance. Advise customer on adjustments. Remind customer to change oil in 4 cycle engine crankcase after first five (5) hours of operation.

4. Instruct customer on controls and operation of unit. Discuss and emphasize the Safety Rules. Give customer Owner/Operator, Parts, and Engine manuals. Advise customer to thoroughly read and understand them.

DISCLAIMER

Ariens reserves the right to discontinue, make changes to, and add improvements upon its products at any time without public notice or obligation.The descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual may be optional. Some illustrations may not apply to your unit.

GB - 3

Page 4

SAFETY

WARNING: This cutting machine

is capable of amputating hands and feet and throwing objects. Failure to observe the safety instructions in the manuals and on decals could result in serious injury or death.

Slopes are a major factor related to slip and fall accidents. Operation on all slopes requires extra caution.

Tragic accidents can occur if the operator is not alert to the presence of children. Never assume that children will remain where you last saw them.

Gasoline is extremely flammable and the vapors are explosive, handle with care.

Stop unit and engine, remove key (if equipped) and allow moving parts to stop before leaving operator’s position.

SAFETY ALERTS

Look for these symbols to point out important safety precautions. They mean:

Attention! Personal Safety Is Involved! Become Alert! Obey The Message!

The safety alert symbols above and signal words below are used on decals and in this manual.

Read and understand all safety messages.

CAUTION: POTENTIALLY HAZARDOUS SITUATION! If not avoided, MAY RESULT in minor or moderate injury. It may also be used to alert against unsafe practices.

NOTATIONS

NOTE: General reference information for

proper operation and maintenance practices. IMPORTANT: Specific procedures or

information required to prevent damage to unit or attachment.

PRACTICES AND LAWS

Practice usual and customary safe working precautions, for the benefit of yourself and others. Understand and follow all safety messages. Be alert to unsafe conditions and the possibility of minor, moderate, or serious injury or death. Learn applicable rules and laws in your area.

REQUIRED OPERATOR TRAINING

Original purchaser of this unit was instructed by the seller on safe and proper operation. If anyone other than the original purchaser will use the unit, ALWAYS provide this manual and any needed safety training before operation.

DANGER: IMMINENTLY HAZARDOUS SITUATION! If not avoided, WILL RESULT in death or serious injury.

WARNING: POTENTIALLY HAZARDOUS SITUATION! If not avoided, COULD RESULT in death or serious injury.

GB - 4

Page 5

SAFETY DECALS AND

Figure 2

LOCATIONS

ALWAYS replace missing or damaged safety decals. Refer to Figure 2 for safety decal locations.

07800404

05365900

KEEP HANDS and FEET AWAY

02988100

1. DANGER!

DANGER!

Read and understand the operator’s manual before operating unit.

1.1 Dismemberment Hazard

To avoid dismemberment hazard do not put hands near rotating blades.

GB - 5

To avoid dismemberment hazard do not put hands near moving belts.

Keep hands away from all rotating or moving parts.

Keep all guards and shields in place.

Page 6

1.2 Discharge Hazard

Discharge Hazard – NEVER direct discharge toward people, pets or property. Thrown objects can cause injury or damage.

Keep children and others away from unit while unit is in operation.

Do not operate mower unless guards are in operating position or entire bagger is attached.

1.3 Tipping Hazard

SERIOUS INJURY OR DEATH MAY RESULT FROM MACHINE ROLLOVER

• Failure to follow these instructions could result in serious injury or death

• Do not operate machine on steep slopes or near drop offs

• Avoid sharp and/or quick turns

2. DANGER!

3. DANGER!

Discharge Hazard – NEVER operate unit without discharge chute in operating position. Thrown objects can cause injury or damage.

Do not operate mower unless all guards are in operating position or bagger is attached.

Discharge Hazard NEVER direct discharge toward people, pets or property. Thrown objects can cause injury or damage.

Dismemberment Hazard – NEVER stick hands or feet under deck or shielded areas.

Shut off engine, remove key, and read manual before servicing or making adjustments to unit.

DO NOT operate on slopes.

Look down and behind before and while moving backward.

GB - 6

Keep children and others away from unit while unit is in operation.

DO NOT step or stand in this area.

Page 7

4. DANGER!

Read the operator’s manual.

Keep children and others away from unit while operating.

Never direct discharge toward other people. Thrown objects can cause injury.

Shut off engine, remove key, and read manual before servicing or making adjustments to unit.

Wear appropriate hearing protection.

EMISSION CONTROL SYSTEM

This equipment and/or its engine may include exhaust and evaporative emissions control system components required to meet U.S. Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB) regulations. Tampering with emission controls and components by unauthorized personnel may result in severe fines or penalties. Emission controls and components can only be adjusted by an Ariens Company dealer or an authorized engine manufacturer's service center. Contact your Ariens Company Equipment Retailer concerning emission controls and component questions.

SAFETY RULES

If unit is to be used by someone other than original purchaser; loaned, rented or sold, ALWAYS provide this manual and any needed safety training before operation. Learn applicable rules and laws in your area, including those that may restrict the age of the operator. Read, understand and follow all safety practices in Owner/Operator Manual before beginning assembly. Failure to follow instructions could result in personal injury and/or damage to unit. If the operator or the mechanic cannot read the manual, it is the owner’s responsibility to explain it to them. Only the user can prevent and is responsible for accidents or injuries occurring to themselves, other people or property. ALWAYS remove key (if equipped) and disconnect wire from spark plug before assembly. Unintentional engine start up can cause death or serious injury. Complete a walk around inspection of unit and work area to understand:

• work area

• your unit

• all safety decals. Clear work area of stones, sticks, wire and foreign objects which might be picked up and thrown. Tall grass can hide obstacles. Know the work area. Stay alert for holes, rocks, rough terrain and hidden hazards. Keep away from drop-offs, ditches, or embankments that could cause operator to lose footing or control of unit. ALWAYS be aware of traffic when operating along streets or curbs. Keep work area clear of all persons, children and pets. Keep children out of the work area and under the watchful care of a responsible adult. ALWAYS operate unit when there is good visibility and light. DO NOT mow wet grass. ALWAYS be sure of your footing. Keep a firm hold on handlebar. Walk, NEVER run. Engine/blade control feature on mower stops engine and blade within 5 seconds whenever operator releases PTO lever. Check this feature frequently. If feature fails to operate,

disconnect spark plug wire and adjust or have it repaired before using unit. Only trained adults may operate or service unit. Training includes actual operation. The owner is responsible for training users. NEVER operate after or during the use of medication, drugs or alcohol. Unit requires complete and unimpaired attention.

GB - 7

Page 8

NEVER allow children to use or service mower. ALWAYS keep hands and feet away from rotating parts. Rotating parts can cut off body parts. ALWAYS keep hands away from pinch points. Fumes from engine exhaust can cause death or serious injury. DO NOT run engine in an enclosed area. ALWAYS protect eyes, face, and body with adequate safety gear and protective clothes. Wear sturdy footwear, gloves, a hard hat and safety goggles or safety glasses with side shields while operating mower. Wear appropriate hearing protection. NEVER operate mower barefoot or when wearing open sandals or canvas shoes. NEVER wear loose clothes, long hair or jewelry that may get caught in rotating parts. ALWAYS stand clear of discharge when operating unit. NEVER direct discharge toward bystanders. Operator is responsible for bystander safety. DO NOT touch hot parts. Allow parts to cool. Keep safety devices or guards in place and functioning properly. NEVER modify or remove safety devices. Read, understand, and follow all instructions in the manual and on the machine before starting. Understand:

• How to operate all controls

• The functions of all controls

• How to STOP in an emergency.

DO NOT attempt to start your engine until you know what the controls do and how they work.

DO NOT tilt mower when starting it. Keep feet away when starting engine. DO NOT start the engine or operate mower

without side discharge cover or side discharge deflector installed.

Never leave a running unit unattended. Take all possible precautions when leaving unit unattended. ALWAYS shut off engine, remove key (electric start models) and disconnect spark

plug wire to prevent accidental starting or unauthorized use. Stop engine if anyone enters the work area.

NEVER attempt to make any adjustments to unit while engine is running (except where specifically recommended). Stop engine, remove key (electric start models) and wait for all moving parts to stop before servicing.

DO NOT make cutting height wheel adjustments while the engine is running.

If you strike an object, or if equipment vibrates abnormally, stop engine at once, wait for moving parts to stop and disconnect wire from spark plug. Repair any damage before restarting unit. Stop engine before removing and emptying grass bag. When mulching or bagging, ALWAYS install discharge cover. When side discharging, ALWAYS install side discharge deflector. ALWAYS shut off engine, allow blade to stop and disconnect spark plug wire before clearing clogs or cleaning unit. Check grass bag for wear, damage, and/or deterioration. Replace only with Ariens original equipment replacement parts for safety. To reduce fire hazard and overheating, keep equipment free of grass, leaves, debris or excessive lubricants. Use extra care when approaching blind corners, shrubs, trees, or other objects which may obscure vision. DO NOT mow at too fast a rate. DO NOT change engine governor setting or overspeed the engine. Do not operate mower on gravel or loose material such as sand. Stop mower when crossing drives, walks, or roads to prevent damage or injury from thrown objects.

DO NOT pull mower backwards unless absolutely necessary. Look down and back, especially for small children, before and while moving backwards.

On self-propelled models, releasing wheel drive control must stop mower’s forward movement. If this feature fails to operate, disconnect spark plug wire and repair before using unit. On self-propelled models, wheel drive must be disengaged when starting engine. NEVER leave unit unattended on a slope. Chock wheels if parking on a slope. Mow across the face of slopes, never up and down. Be especially cautious when changing direction on slopes.

This product is equipped with an internal combustion engine. DO NOT use on or near any unimproved, forest or brush covered land unless the exhaust system is equipped with a spark arrestor meeting applicable local, state or federal laws. A spark arrestor, if used, must be maintained in effective working order by the operator. See your Ariens Dealer or engine manufacturer’s service center.

Fuel is highly flammable and its vapors are explosive. Handle with care. Use only an approved gasoline container with an appropriately sized dispensing spout.

GB - 8

Page 9

• NO Smoking!

• NO Sparks!

• NO Flames!

• Allow engine to cool before filling fuel tank.

Properly remove fuel before tipping unit. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling. When practical, remove gas-powered equipment from the truck or trailer and refuel

it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lockopen device. Check fuel supply before starting engine. DO NOT fill gasoline tank indoors, when engine is running, or while engine is hot. Allow engine to cool several minutes before removing fuel cap. DO NOT overfill. Allow about 1/4" (6 mm) of tank space for fuel expansion. Replace gasoline tank cap securely and clean any spilled fuel before starting engine. If fuel is spilled on clothing, change clothing immediately. NEVER store fuel inside where there is an open flame, such as a water heater. ALWAYS drain fuel outdoors away from ignition sources. ALWAYS shut off engine and remove key when transporting unit on a truck or trailer. Avoid Electric Shock. DO NOT disconnect wire from spark plug while engine is running. Do NOT put battery in fire or mutilate. Explosive Gases! NO flames, NO sparks, NO smoking, near battery. Poisonous battery fluid contains sulfuric acid. Contact with skin, eyes or clothing can cause severe chemical burns. ALWAYS wear safety glasses and protective gear near battery. ALWAYS keep batteries out of reach of children. Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

Charge batteries in an open, well-ventilated area, away from spark and flames. Unplug charger before connecting or disconnecting battery. Wear protective clothing and use insulated tools.

Accidental engine start up can cause death or serious injury. Except where specifically recommended, ALWAYS stop engine, remove key (electric start models), wait for moving parts to stop, allow parts to cool and disconnect spark plug wire before inspecting, servicing, adjusting or repairing unit.

Keep mower free of grass, leaves, or other debris build-up.

Keep equipment in good condition. Maintain or replace safety and instruction labels, as necessary. Follow engine manufacturer’s safety instruction when servicing engine. Check all hardware at regular intervals, especially blade attachment bolts. Keep all

hardware properly tightened. An extension spring, when extended, stores

energy and can be dangerous. Always use tools specifically designed for installing or removing an extension spring. Always compress or extend springs slowly. Before tipping unit, remove fuel and battery (if equipped). Use extra care when loading or unloading unit onto trailer or truck. Ensure all wheel blocks, jack stands and tie downs will support unit during maintenance. Replace worn-out mufflers immediately. Continued use could result in fire or explosion. Sharp edges can cut or amputate fingers or a hand. Wrap blade or wear sturdy gloves to service. Only replace blades. NEVER straighten or weld blades. Use only replacement parts designed for your unit. See your Ariens Dealer. Allow engine to cool before storing in any enclosure. ALWAYS clean unit before extended storage. See engine manual for proper storage. DO NOT store unit inside a building with fuel in the fuel tank where any ignition sources are present.

Use only accessories which have been approved by Ariens and are properly installed.

Use only accessories or attachments that are designed for your unit and that can be used safely on your terrain. Check attachments frequently and replace worn or damaged components with manufacturer’s recommended parts.

GB - 9

Page 10

CAUTION: AVOID INJURY. Read

Figure 3

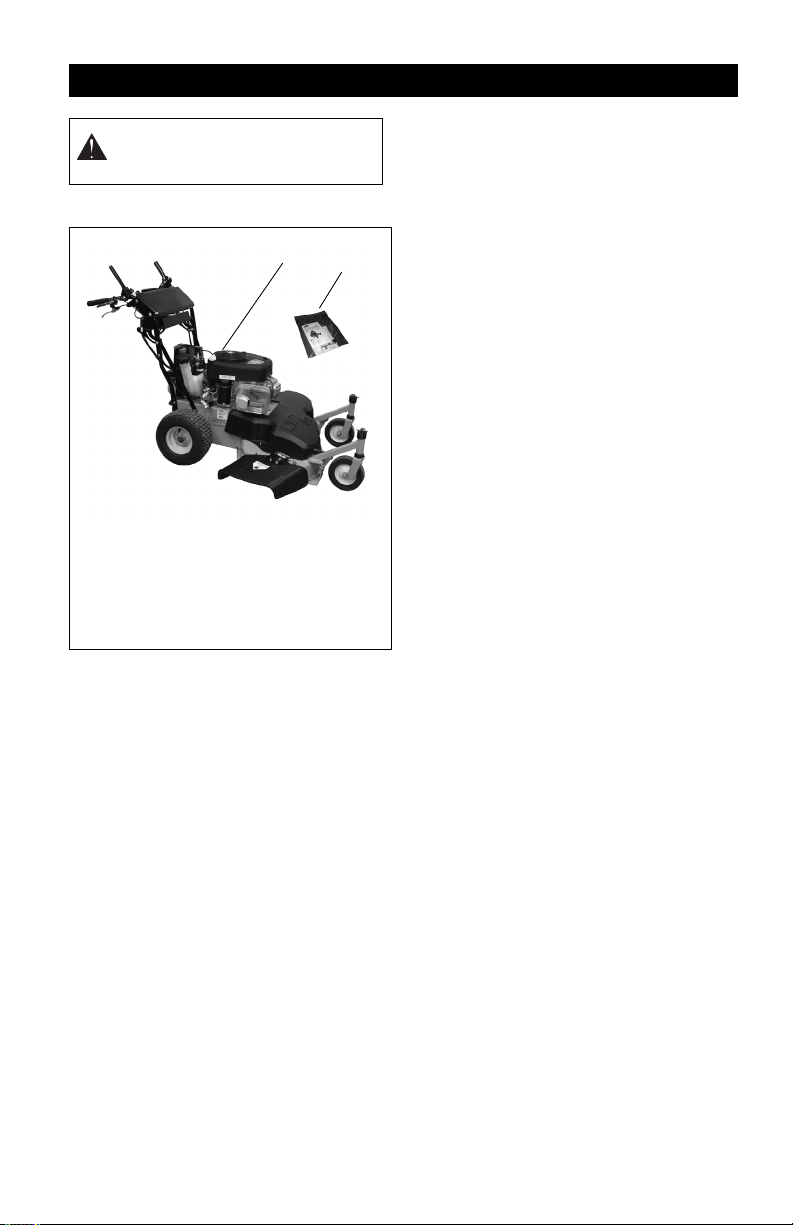

1. Mower Unit

2. Literature Pack with Installation Hardware

and understand the entire Safety section before proceeding.

CARTON CONTENTS

ASSEMBLY

1. Remove all packing materials and straps from unit.

2. Remove lower pair of nuts and bolts from the handlebars.

3. Rotate the handlebar into the operating position.

4. Replace the nuts removed in step 2 and then tighten.

5. Rotate emission component shelf to horizontal position. Tighten upper handlebar bolts.

GB - 10

Page 11

6. Check engine crankcase oil level. See

Figure 4

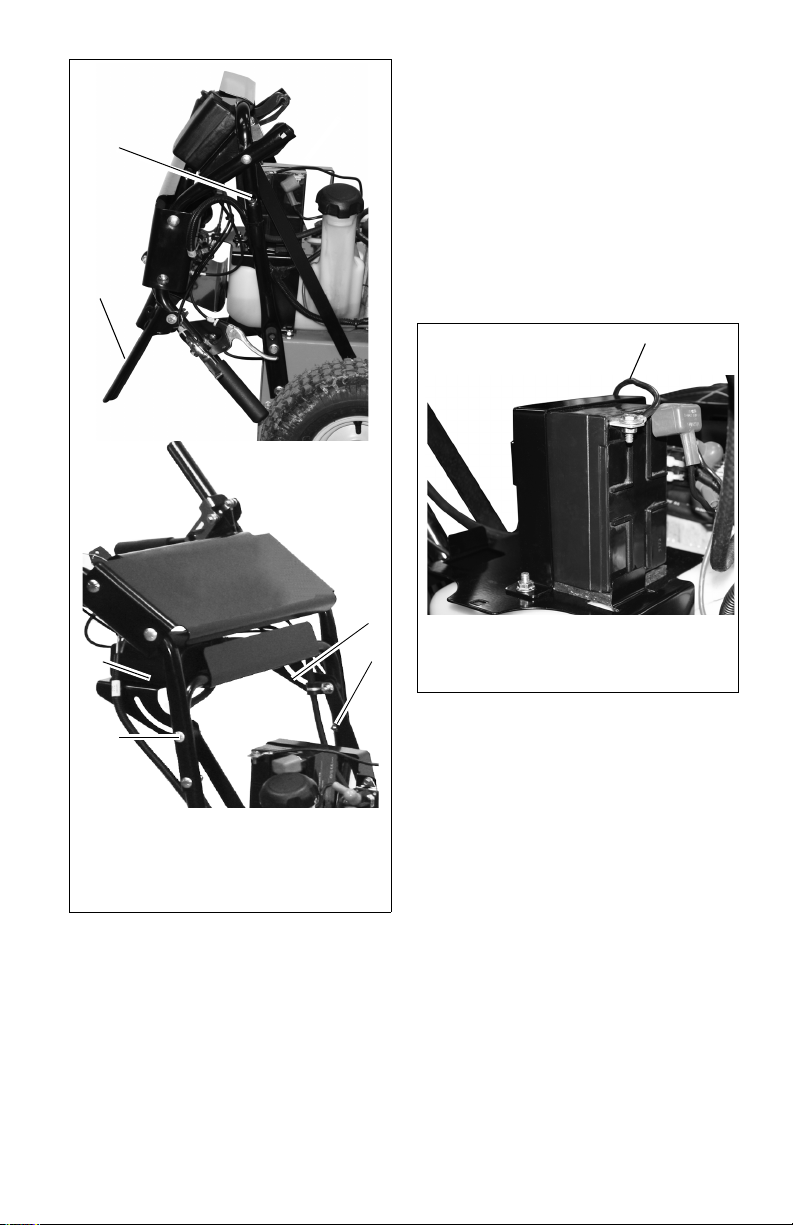

1. Handlebar Folded Down

2. Upper Handlebar Bolts

3. Emission Component Shelf

Figure 5

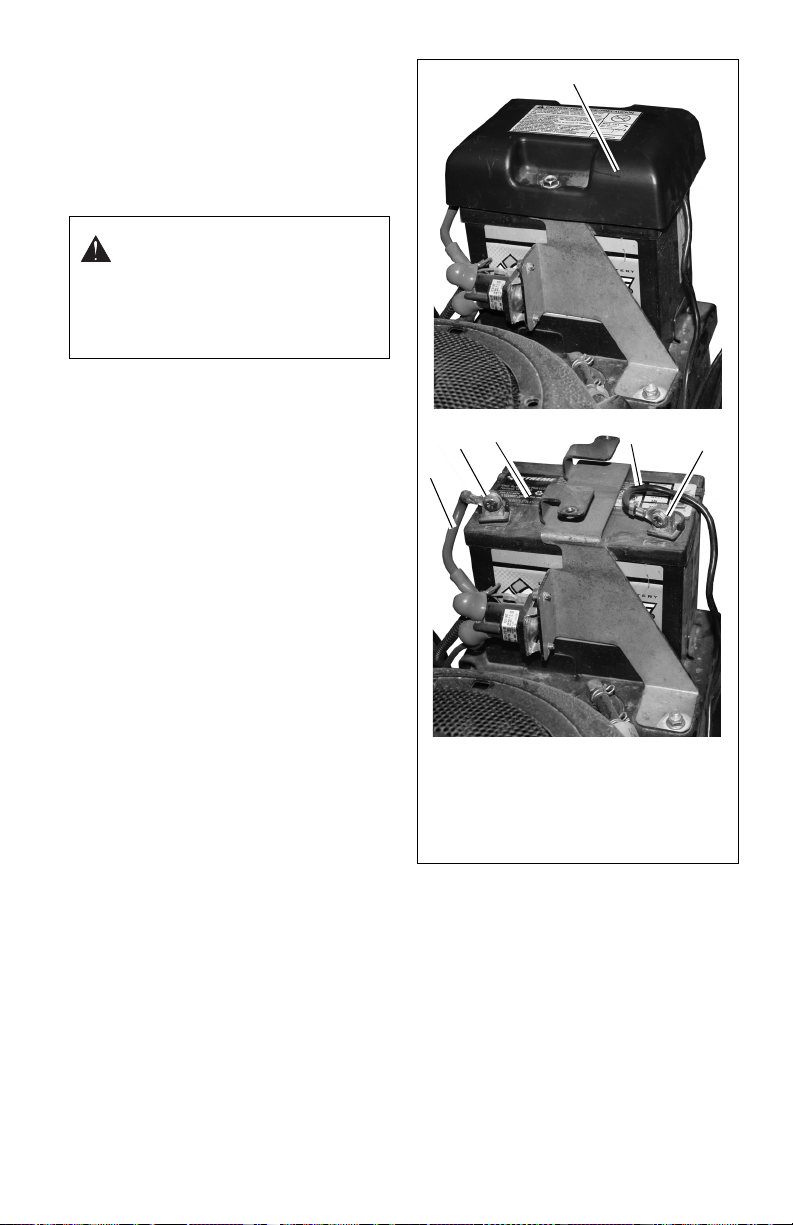

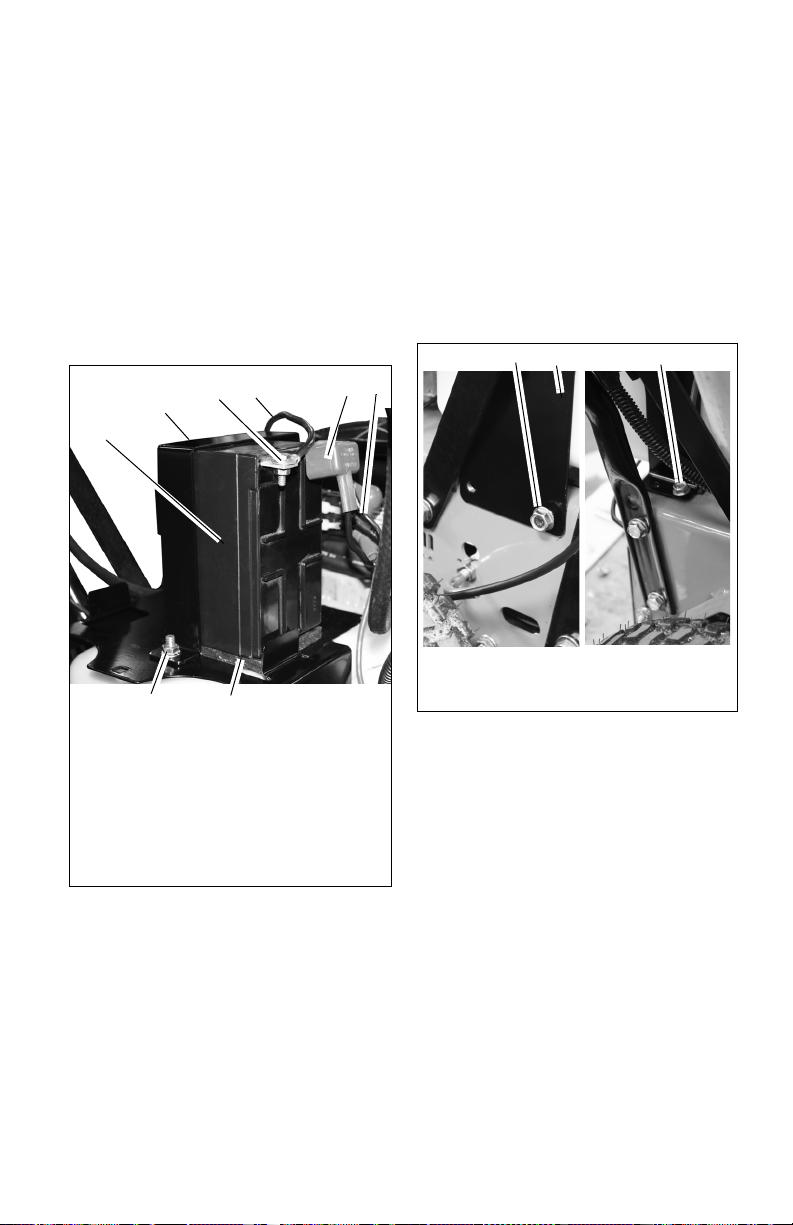

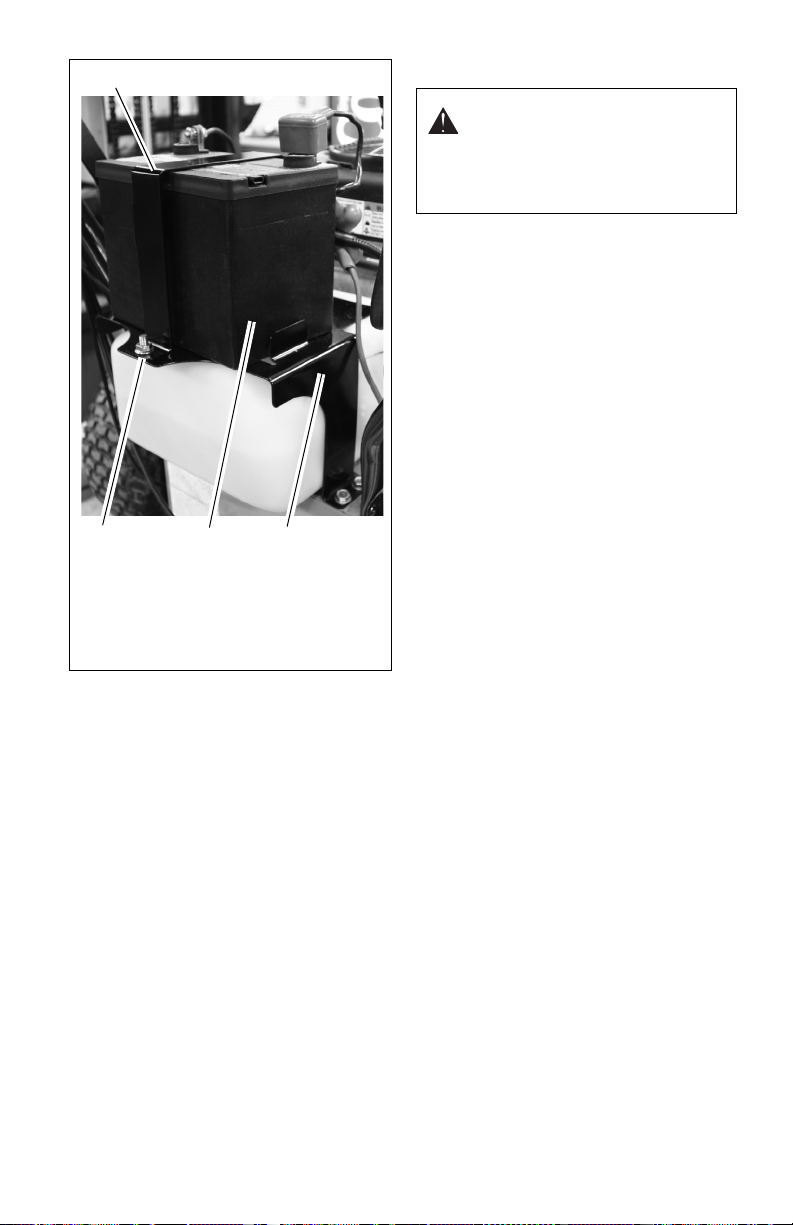

1. Negative (–) Battery Cable

engine manual.

7. Connect the battery ground cable (–) to the negative battery terminal.

8. Fill fuel tank. DO NOT OVERFILL! (See FILLING THE FUEL TANK on page 15).

NOTE: After the first twenty-five hours of operation, belt wear may require the PTO clutch cable and the drive control cables to be adjusted. See Forward/Reverse Drive Controls on page 20 and Wheel Drive Belts on page 21.

IMPORTANT: Do not operate the unit without understanding how the controls work and how to safely start, stop and operate the unit.

GB - 11

Page 12

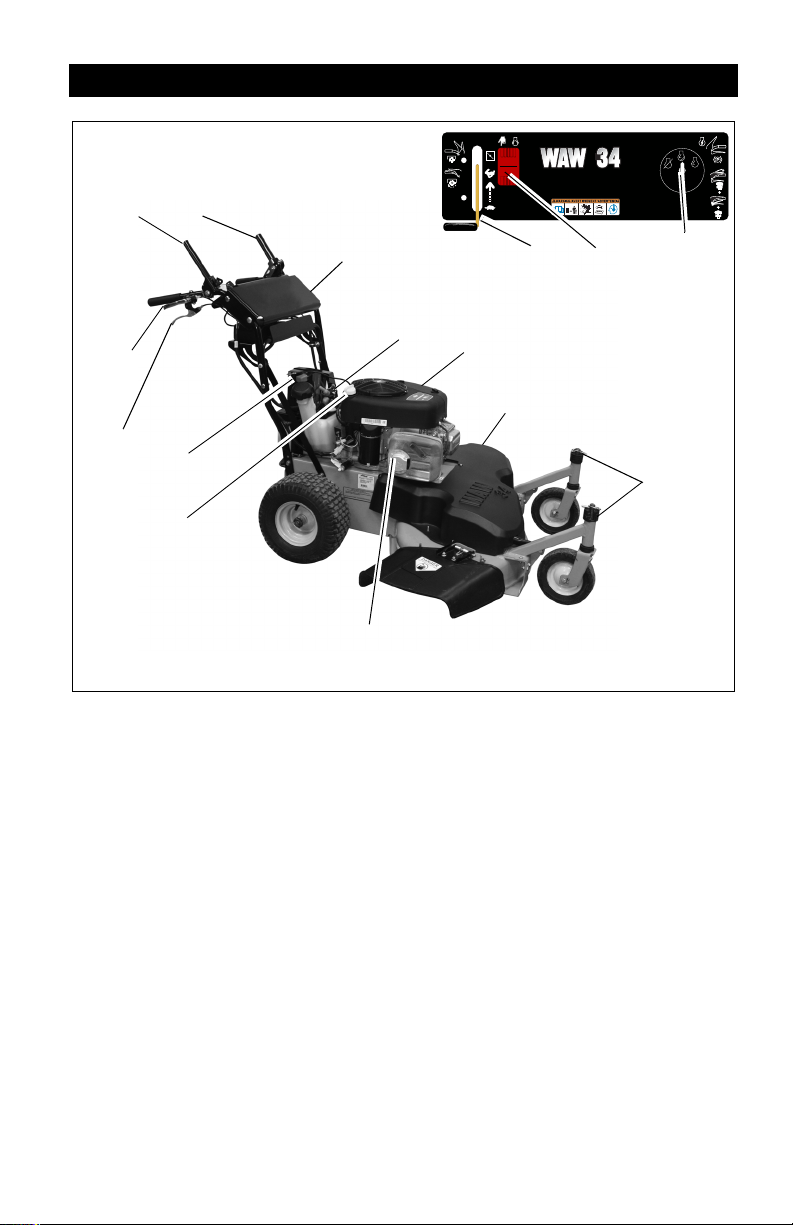

CONTROLS AND FEATURES

05365400A

Figure 6

1. PTO Clutch Lever

2. Parking Brake Release Lever

3. Forward Drive Control

4. Reverse Drive Control

5. Handlebars

6. Fuel Tank and Cap

7. Height Adjustment Spacers

8. Muffler

9. Oil Fill/Dipstick

10. Air Filter

11. Fuel Filter

12. Belt Cover

13. Ignition Key

14. Safety Start Switch

15. Throttle/Choke Control

GB - 12

Page 13

OPERATION

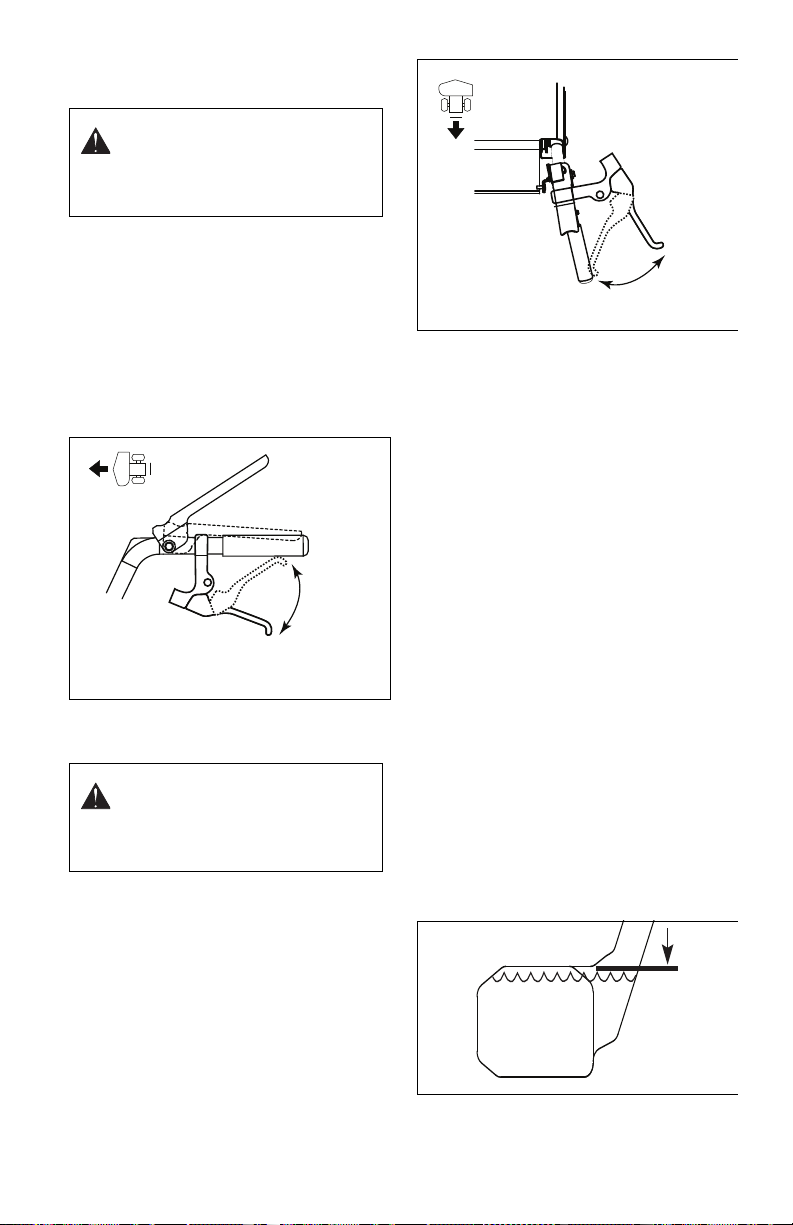

Parking Brake Disengaged: Hold lever against handlebar to operate the unit.

Parking Brake Engaged: Unit will not roll forward or backward.

PTO Engaged: Hold down the lock lever and then hold clutch lever against handlebar to engage the clutch and start the mower blades.

PTO Disengaged: Mower blades stop rotating.

CONTROLS AND FEATURES

See Figure 6 for locations.

WARNING: Improper operation can lead to injury. Learn what the controls do and how they work. Thoroughly read and understand entire Operator Manual.

CAUTION: AVOID INJURY. Read and understand the entire Safety section before proceeding.

Parking Brake Lever (Right Hand Lever)

Hold the parking brake lever against the handlebar to release the wheel lock pin and operate the unit.

Release the parking brake lever to engage wheel lock pin and prevent the unit from rolling forward or backward.

IMPORTANT: The wheel lock pin prevents the unit from rolling forward or backward. The unit can still pivot from side to side.

CUTTING HEIGHT ADJUSTMENT

DANGER: Avoid injury from

rotating blade. ALWAYS shut off engine before adjusting cutting height.

Cutting Height Settings Chart

Spacers Below Caster Arms

0 1-3/4" (44.4 mm) 1 2" (50.8 mm) 2 2-1/2" (63.5 mm) 3 2-3/4" (69.8 mm) 4 3" (76.2 mm) 5 3-1/4" (82.6 mm) 6 3-1/2" (88.9 mm)

Cut Grass Length

PTO Clutch Lever (Left Hand Lever)

Hold down the lock lever and then squeeze the PTO clutch lever against the handlebar to engage the clutch and start the mower blades.

Release the clutch lever to stop the blades. NOTE: The lock lever prevents the PTO

clutch lever from being squeezed accidentally. It will engage each time you release the clutch lever.

NOTE: Placing the spacers above the caster arm lowers the deck and decreases cutting height. Placing the spacers below the caster arm raises the deck and increases the cutting height.

To change cutting height, remove the lock pin from the top of the caster fork. Raise the caster arm high enough to expose the flats and lower pin hole on the caster fork spindle. Insert the lock pin into the lower hole to support the arm while adjusting the cutting height spacers (Figure 7).

GB - 13

Page 14

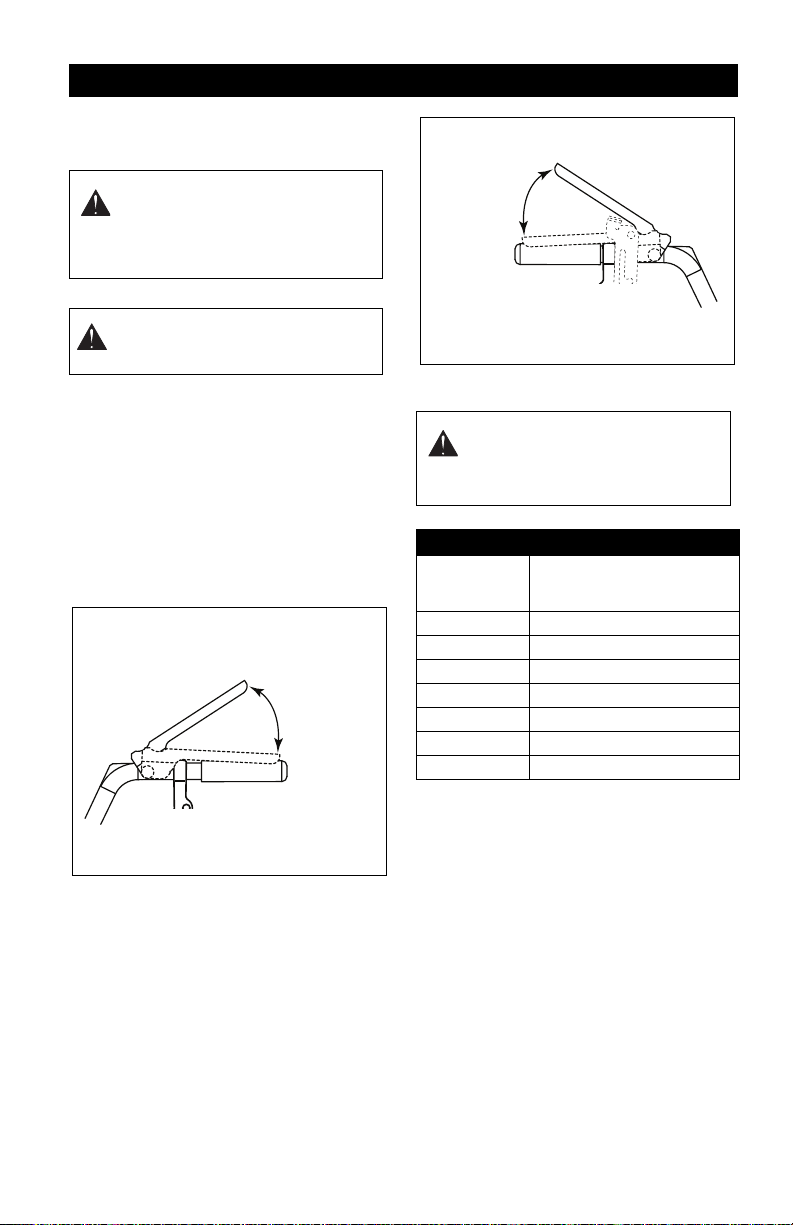

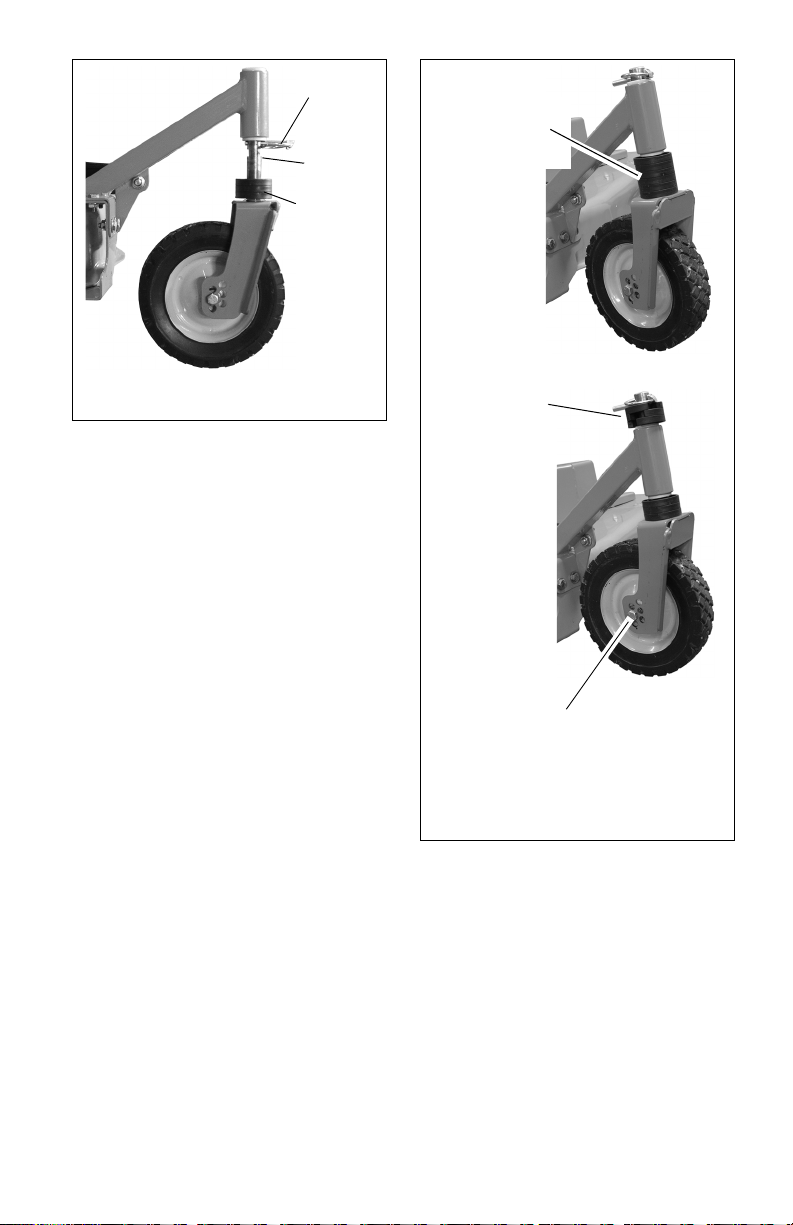

Align the open ends of the spacers with the

Figure 7

Spacers

Lock Pin

Flats

Figure 8

Remove the spacers from the stack.

Secure spacers above the caster arm with the lock pin.

NOTE: Axle positions are set at the factory. There should be no need to change the axle position in the caster in normal use or maintenance.

flats on the caster spindle and remove the spacers one at a time until enough are left at the bottom for the desired cutting height.

Remove the lock pin while supporting the caster arm. Lower the arm on top of the remaining spacers. Put the spacers that were removed in the caster spindle above the support tube as shown (Figure 8).

Reinstall the lock pin into the top hole and flip over the lock ring to secure the remaining spacers and pin.

NOTE: Set both wheels at the same height for a level cut.

GB - 14

Page 15

Forward Drive Control

STOP

OM1240

Parking Brake Lever

Forward Drive Control

STOP

OM1240

Reverse Drive Control

(Lower Right Hand Control)

CAUTION: Unit will move at

engine start if the wheel drive controls are engaged. ALWAYS release the wheel drive controls before starting unit.

NOTE: Engine must be running for wheel drive to propel unit.

To drive forward: Hold the parking brake lever against the

handlebar and slowly squeeze and hold the forward drive control. Hold the forward drive control against the handlebar for fastest speed.

To stop: Release forward drive control.

Reverse Drive Control (Side Right Hand Control)

CAUTION: Unit will move at

engine start if the wheel drive controls are engaged. ALWAYS release the wheel drive controls before starting unit.

To drive in reverse: Hold the parking brake lever against the

handlebar and slowly squeeze and hold the reverse drive control. Hold the reverse drive control against the handlebar for fastest speed.

To stop: Release reverse drive control.

FILLING THE FUEL TANK

To add fuel to fuel tank:

1. Clean fuel caps and surrounding area to prevent dust, dirt, and debris from entering fuel tanks.

2. Remove fuel caps.

IMPORTANT: Refer to Engine Manual for correct type and grade of fuel.

3. Fill fuel tank to the bottom of filler neck (see SPECIFICATIONS on page 28 for fuel tank capacity).

IMPORTANT: DO NOT OVERFILL! This equipment and/or its engine may include evaporative emissions control system components, required to meet EPA and/or CARB regulations, that will only function properly when the fuel tank has been filled to the recommended level. Overfilling may cause permanent damage to evaporative emissions control system components. Filling to the recommended level ensures a vapor gap required to allow for fuel expansion. Pay close attention while filling the fuel tank to ensure that the recommended fuel level inside the tank is not exceeded. Use a portable gasoline container with an appropriately sized dispensing spout when filling the tank. Do not use a funnel or other device that obstructs the view of the tank filling process.

4. Replace fuel cap and tighten.

5. ALWAYS clean up spilled fuel.

GB - 15

Page 16

GASOLINE

IMPORTANT: ALWAYS use gasoline that

meets the following guidelines:

• Clean, fresh gasoline.

• A minimum of 87 octane/87 AKI (91 RON). High altitude use may require a different octane. Consult your engine manual.

• Gasoline with up to 10% ethanol (gasohol) or up to 10% MTBE (methyl tertiary butyl ether) is acceptable.

• Use of any gasoline other than those approved above will void the engine warranty. If the pumps are not marked for the content of alcohol or ethers, check ethanol and MTBE levels with the fuel supplier.

• Do not modify the fuel system to use different fuels.

• Never mix oil and gasoline.

NOTE: All gasoline is not the same. If the engine experiences starting or performance problems after using a new gasoline, switch to a different fuel provider or fuel brand.

IMPORTANT: Excessively oxygenated or reformulated fuels (fuels blended with alcohols or ethers) can damage the fuel system or cause performance problems. If any undesirable operating problems occur, use a gasoline with a lower percentage of alcohol or ether.

Fuel Stabilizer

Gasoline left in the fuel system for extended periods without a stabilizer will deteriorate, resulting in gum deposits in the system. These deposits can damage the carburetor and the fuel hoses, filter and tank. Prevent deposits from forming in the fuel system during storage by adding a quality fuel stabilizer to the fuel. Follow the recommended mix ratio found on the fuel stabilizer container.

EMERGENCY STOPPING

WARNING: Operating unit on

slopes may lead to loss of steering control. When operating on slopes be prepared to react to an emergency situation.

1. Return steering levers to neutral position

2. Immediately set parking brake

3. Turn off PTO and engine NOTE: The engine will run after the clutch

and parking brake levers are released. ALWAYS shut off the engine with the ignition key and remove the key before leaving the operator’s position.

To stop the mower in an emergency:

1. Release the PTO clutch lever and the parking brake lever.

2. Turn the ignition key to the "OFF" position.

3. Allow all moving parts to stop before leaving operator’s position.

STARTING AND SHUT OFF

WARNING: Improper operation

can lead to injury. Learn what the controls do and how they work. Thoroughly read and understand entire Operator Manual.

See Figure 6 for all Controls and Features. NOTE: Start engine on a level surface that is

free of debris.

Electric Start

1. Check each item under Before Each Use in the MAINTENANCE SCHEDULE on page 17.

2. Place throttle control in the choke position. Once the engine has started, place throttle in the high speed detent.

3. Hold down the safety switch on the dash panel and turn the ignition key to the Start position.

4. Release the key and the safety switch once engine starts.

Shut Off

1. Release the PTO clutch lever, the parking brake lever, and the wheel drive controls and allow unit to stop completely.

2. Turn the ignition key to the "OFF" position.

Mowing Tips

Cut grass when it is dry. Keep mower blades sharp. Do not set cutting height too low. For tall

grass, mow twice. Do not mow too fast. Mow with engine at full throttle. Discharge

clippings into areas already cut. Vary cutting pattern with each mowing. NOTE: To prevent dirt and grass from

collecting on mower pan, avoid operating over bare ground with only patches of grass.

Mulching Tips

For best mulching performance, cut no more than 1 inch (2.54 cm) of grass per cutting.

GB - 16

Page 17

MAINTENANCE

CAUTION: AVOID INJURY. Read

and understand the entire Safety section before proceeding.

Ariens Dealers will provide any service, parts or adjustments which may be required to keep your unit operating at peak efficiency. Should engine require service, contact an Ariens Dealer or an authorized engine manufacturer's service center.

MAINTENANCE SCHEDULE

NOTE: Some working conditions (heavy

loads, high ambient temperatures, dusty conditions, or airborne debris) may require more frequent service.

See engine manual for further maintenance and troubleshooting information.

MAINTENANCE

SCHEDULE

Service Performed

Check PTO Clutch

Check Wheel Drive Control

Clean Unit • Check Engine

Oil Check Mower

Blade Check Drive

Belts Check

Fasteners Check Air

Cleaner Change

Engine Oil General

Lubrication Check Spark

Plug Check Engine

Cooling Check Muffler •

After first 5 Hours of operation.

Before

Each

Use

hrs50hrs

•

••

•

••

100

hrs

•

CHECK PTO CLUTCH LEVER CONTROL

The engine and blade must stop within 5 seconds after releasing the control. If the blade continues to run, adjust or repair control immediately.

NOTE: If the blade makes a scraping sound when the PTO lever is released, the blade brake is faulty. Contact an Ariens Dealer immediately for repair.

CHECK WHEEL DRIVE CONTROL

The unit must stop quickly and completely when the drive controls are released. Adjust or repair if necessary. See Forward/Reverse Drive Controls on page 20.

CLEAN UNIT

Before each use clean unit, muffler and engine surfaces of debris, oil or fuel spills to ensure proper cooling and prevent fires.

NOTE: Do not spray the unit with water, especially when the unit is warm from operation. Water can seep into bearings and damage them.

CHECK ENGINE OIL

IMPORTANT: Maintain proper oil level at all

times or engine damage will result. Check the level of the engine crankcase oil

before each use. Make sure engine is level when checking oil.

See engine manual for instructions.

CHECK MOWER BLADE

See Figure 10. Check blade mounting: blade must be secure

and bolt torqued to 92 – 130 lbf-ft (125 to 176 N•m). Check blade for nicks and dull cutting edges. Sharpen if necessary.

Check blade for rounded or broken ends, thinned metal or other damage. Replace if necessary.

NOTE: Blades should be sharpened and balanced professionally. Contact your Ariens Dealer.

To remove blade:

1. Stop engine, wait for all moving parts to stop, and disconnect spark plug wire.

2. Block blade to prevent rotation.

3. Remove mounting hardware and mower blades from mower deck. See Figure 9.

GB - 17

Page 18

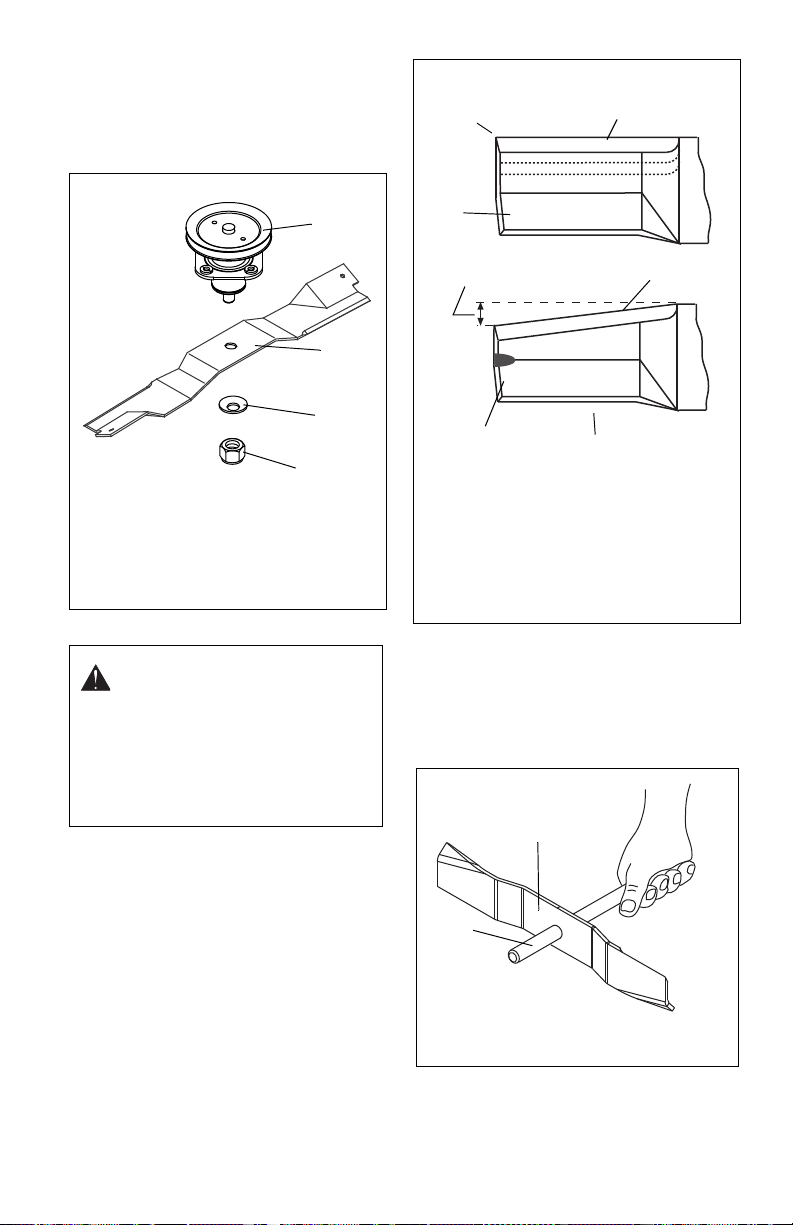

To install blade:

1. Spindle

2. Blade

3. Washer

4. 5/8 in. Nut

Figure 9

Figure 10

1. Square Corner

2. Cutting Edge

3. Air Lift

4. Air Lift Erosion

Sharpen to This Pattern

DO NOT Sharpen to This Pattern

DISCARD If More Than 1/2 in. (1.27 cm)

OT0792

Figure 11

OA0013

Bolt

Blade

1. Install mower blades on mower deck with mounting hardware.

2. Torque 5/8-inch nut to 92 to 130 lbf-ft (125 to 176 N•m).

3. Connect spark plug wire.

Sharpen the Mower Blades

CAUTION: DO NOT sharpen

mower blades while on unit. An imbalanced mower blade will cause excessive vibration and eventual damage to unit. Check mower blade balance before reinstalling blades.

NEVER weld or straighten bent blades.

1. Remove mower blade from unit. Discard mower blade if:

• More than 1/2 in. (1.27 cm) of metal is removed.

• Air lifts become eroded.

• Blade is bent or broken.

2. Sharpen mower blade by removing an equal amount of material from each end of mower blade. DO NOT change angle of cutting edge or round the corner of the mower blade.

3. Check mower blade balance. Slide mower blade on an unthreaded bolt. A balanced blade should remain in a horizontal position. If either end of mower blade moves downward, sharpen the heavy end until blade is balanced (Figure 11).

4. Install mower blade on unit.

5. Torque 5/8-inch nut to 92 to 130 lbf-ft (125 to 176 N•m).

GB - 18

Page 19

CHECK DRIVE BELTS

Check drive belts and replace if worn or damaged. See Wheel Drive Belts on page 21.

CHECK FASTENERS

Check all fasteners for proper tightness. Pay special attention to blade hardware and all guards, shields and safety devices.

CHECK SPARK PLUG

Spark plug should be replaced every 100 hours of operation or each year.

NOTE: Loose spark plug wire terminals can cause sparking. Replace terminal if damaged.

CHECK ENGINE COOLING

CHECK AIR CLEANER

See engine manual for specific information.

CHANGE ENGINE OIL

IMPORTANT: Change engine crankcase oil

after first five (5) hours of operation. Then change oil after every 25 hours of operation.

Refer to engine manual for instructions and proper oil type.

IMPORTANT: Proper oil level must be maintained at all times or engine damage will result. DO NOT overfill. Be sure engine is level when adding oil.

GENERAL LUBRICATION

The unit has sealed maintenance-free spindles and transmission. The unit should not require lubrication except for light oil or grease at pivot points.

WARNING: HOT SURFACES can cause death or serious injury. DO NOT TOUCH parts which are hot from operation. ALWAYS allow parts to cool.

To prevent overheating, air must circulate freely around the cooling fins, cylinder head and block.

Every 100 hours of operation or yearly (more often if conditions require) remove blower housing and clean cooling fins. See engine manual for instructions.

CHECK MUFFLER

Check muffler for debris, cracks, wear, or other damage.

CAUTION: Replace worn-out mufflers immediately. Continued use could result in fire or explosion.

GB - 19

Page 20

SERVICE AND ADJUSTMENTS

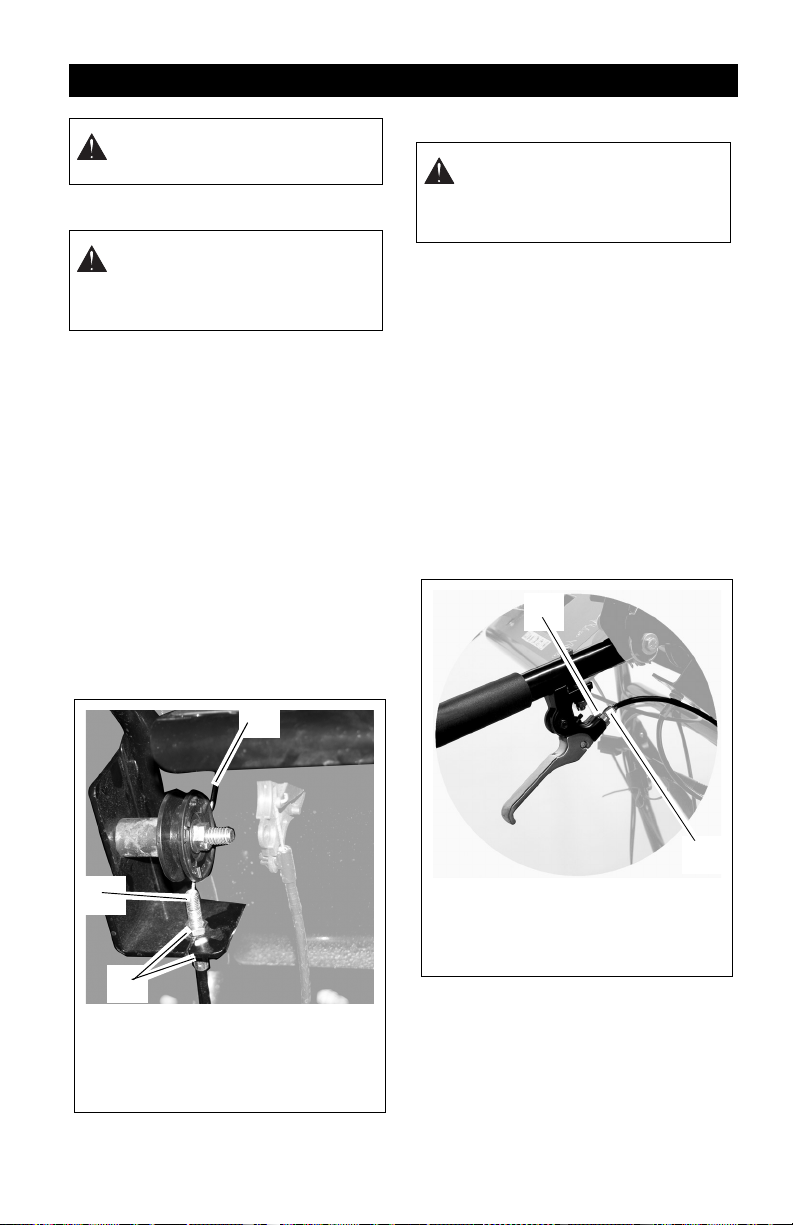

Figure 12

1. Cable Adjuster

2. Lock Nut

3. Check Slack

Figure 13

1. Cable Adjuster

2. Lock Nut

CAUTION: AVOID INJURY. Read and understand the entire Safety section before proceeding.

PTO CLUTCH

WARNING: If you cannot adjust

the controls so the unit drives properly, immediately take the unit to your local authorized dealer for repairs.

1. Test the PTO clutch adjustment. With the clutch disengaged, the blade

brake pad should touch the upper pulley. With the clutch engaged, the blade

brake pad should not touch the upper pulley and the deck belt should be under tension.

2. Loosen the lock nut on the cable adjuster under the dash panel.

3. Turn the adjuster body to tighten or loosen the clutch cable.

NOTE: There must be some slack in the clutch cable with the clutch disengaged.

4. Tighten the lock nut to hold the adjustment.

IMPORTANT: If you cannot adjust the PTO clutch or if it fails to operate properly, immediately take the unit to your Ariens dealer for repair.

Forward/Reverse Drive Controls

WARNING: If you cannot adjust

the controls so the unit drives properly, immediately take the unit to your local authorized dealer for repairs.

After new belts have been worn in or if the drive seems to be losing power, the drive control cable may need adjustment.

Adjust both drive controls the same way.

1. Loosen the lock nut on the drive lever.

2. Turn the cable adjuster to tighten or loosen the cable.

3. Tighten the lock nut to hold the adjustment.

4. Test the drive. Unit should move forward when the

drive control is squeezed and it should coast to a stop when the drive control is released.

NOTE: The reverse drive control has been removed from the unit for clarity of the illustration.

GB - 20

Page 21

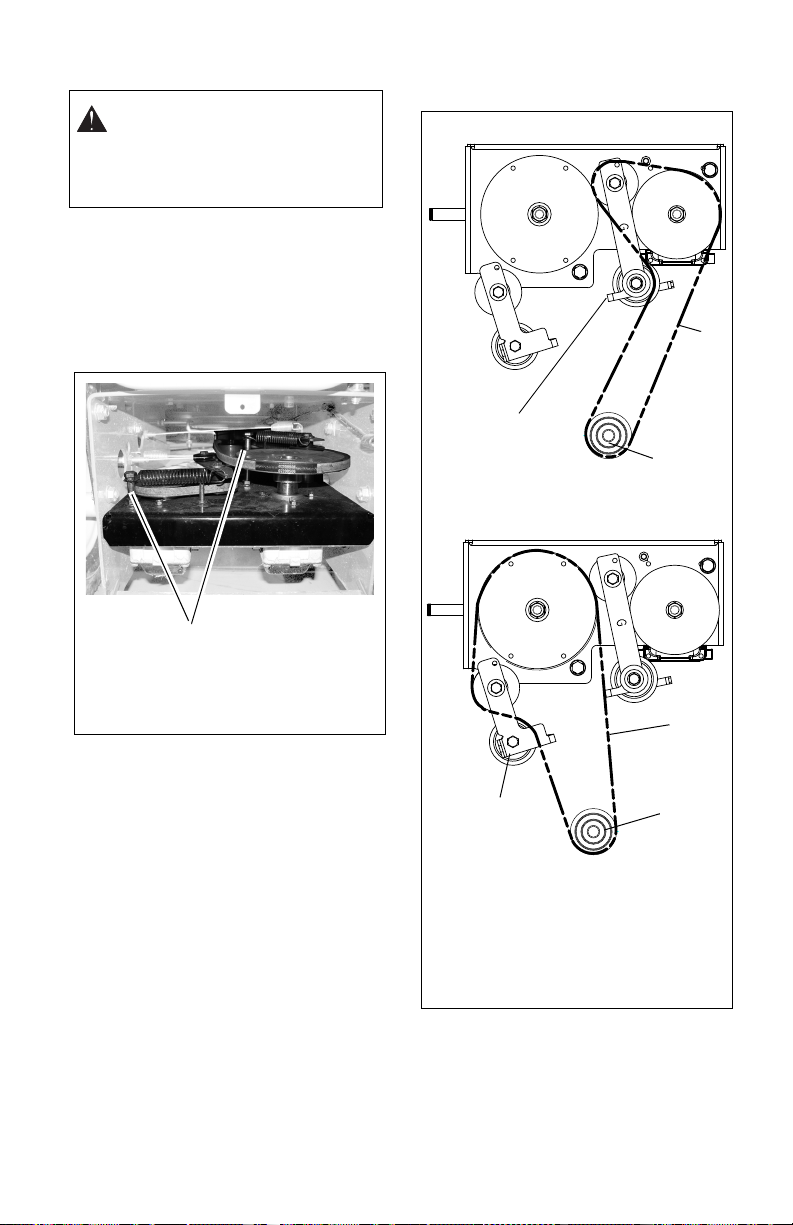

BELT REPLACEMENT

Figure 14

Disconnect neutral return springs from the spring anchors.

Figure 15

1. Engine Pulley

2. Idler Arm

3. Reverse Drive Belt

4. Forward Drive Belt

Rear of Unit – Forward Drive Belt Routing

Rear of Unit – Reverse Drive Belt Routing

WARNING: AVOID INJURY. ALWAYS block wheels, engage parking brake and know all jack stands are strong, secure and will hold weight of unit during maintenance.

Wheel Drive Belts

1. Stop engine, remove key, wait for all moving parts to stop and hot parts to cool.

2. Raise and support the rear of the unit.

3. Remove the rear cover and disconnect the neutral return springs from the spring anchors.

NOTE: Check the wheel drive control adjustment after the first 25 hours of use to compensate for belt wear.

4. Remove the idler arm from the transmission plate. See Figure 15.

5. Remove the forward drive belt from the engine pulley and remove it from the unit.

6. Remove the reverse drive belt from the engine pulley and remove it from the unit.

7. Route the new reverse belt through the transmission idler arm and then install belt on the engine pulley. See Figure 15.

8. Route the new forward belt through the transmission idler arm and then install belt on the engine pulley. See Figure 15.

9. Install the idler arms on the transmission plate and install the belts on the transmission pulleys. See Figure 15.

10. Replace the rear cover.

11. Start the unit and test operation of the drive system. Adjust the wheel drive controls, if needed.

GB - 21

Page 22

PTO Belt

Figure 16

1. PTO Belt

2. Engine Pulley

3. Idler Arm

4. Tension Spring

5. Spring Anchor

6. Deck Belt

Rear of Unit

1. Spindle

2. Blade

3. Washer

4. 5/8 in. Nut

Figure 17

1. Stop engine, remove key, wait for all moving parts to stop and hot parts to cool.

2. Remove the two drive belts from engine pulley. See Wheel Drive Belts on page 21.

3. Remove the belt cover from the deck.

4. Disconnect the two idler springs from the spring anchors.

NOTE: Do not remove the bolt holding the engine pulley to the crankshaft. Loosen it enough so the PTO belt clears the belt finger.

5. Loosen the bolt holding the engine pulley to the crankshaft and slide the pulley down until the PTO belt can be removed from the pulley.

6. Install the new belt on the engine pulley and on the deck pulleys.

7. Push the engine pulley up the crankshaft and tighten the mounting bolt to 55 lbf-ft (74.5 N•m).

8. Connect the two idler springs to spring anchors.

9. Replace the belt cover.

10. Replace the wheel two drive belts on the engine pulley.

Deck Belt

1. Stop engine, remove key, wait for all moving parts to stop and hot parts to cool.

2. Remove the two drive belts from engine pulley. See Wheel Drive Belts on page 21.

3. Remove the PTO belt from the PTO clutch. See PTO Belt on page 22.

4. Remove the two idler arms from the deck.

5. Remove the deck belt and install the new belt.

6. Replace the two idler arms on the deck.

7. Replace the PTO belt on the PTO clutch.

REPLACING MOWER BLADE

Remove (Figure 17)

CAUTION: Mower blades are

sharp and can cut you. Wrap the blades or wear gloves, and use extra caution when servicing them.

1. Block mower blades to prevent rotation.

2. Remove mounting hardware and mower blades from mower deck.

Install (Figure 17)

1. Install mower blades on spindles with mounting hardware.

2. Torque 5/8-inch nut to 92 to 130 lbf-ft (125 to 176 N•m).

GB - 22

Page 23

SERVICING THE BATTERY

1. Battery Cover

2. Negative (–) Cable

3. Negative (–) Terminal

4. Battery

5. Positive (+) Terminal

6. Positive (+) cable

Figure 18

NOTE: Unit comes equipped with a maintenance-free battery that requires no regular maintenance except cleaning the terminals.

NOTE: Unit may be equipped with a U1 style battery and cover or a sealed glass mat battery with boot terminal.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

U1 Battery Removal and Installation (Figure 18)

Remove

1. Remove the battery cover.

2. Disconnect negative (–) cable first, then

3. Remove battery from unit.

Install

1. Install battery on the unit.

2. Connect positive (+) cable first, then

3. Apply petroleum jelly or dielectric grease

4. Replace the battery cover.

positive (+) ca ble.

negative (–) cable.

to battery cable ends and terminals.

GB - 23

Page 24

Sealed Glass Mat Battery Removal

1. Negative (–) Cable

2. Negative (–) Terminal

3. Positive (+) Cable

4. Positive (+) Terminal

5. Battery

6. Hardware

7. Battery Mat

8. Battery Holddown Bracket

Figure 19

Figure 20

1. Nuts and Bolts 2. Battery Mount Bracket

and Installation (Figure 19)

NOTE: If same size replacement battery is

not available a U1-size battery can be installed (see Figure 21).

Remove

1. Disconnect negative (–) cable first, then positive (+) cable.

2. Remove battery from unit.

Install

1. Install battery onto unit.

2. Connect positive (+) cable first, then negative (–) cable.

3. Apply petroleum jelly or dielectric grease to battery cable ends and terminals.

Replacing Sealed Glass Mat Battery with U1-Size Battery (Figure 19 and Figure 20)

1. Disconnect negative (–) cable first, then positive (+) cable.

2. Disconnect fuel line at fuel filter.

3. Remove hardware securing battery hold-down bracket to battery mount bracket.

4. Remove battery from unit. Dispose of properly.

5. Remove battery mat. Dispose of properly.

6. Remove two nuts and bolts on both sides of battery mount bracket (see Figure 20).

Install U1-Size Battery (Figure 21)

NOTE: Battery hold-down bracket must be

moved to the rear position to allow the larger U1 battery to fit.

1. Transfer battery mount bracket to new location and secure with hardware removed in step 6.

2. Install battery.

3. Position battery hold-down bracket over battery.

4. Reconnect fuel line outside of battery hold-down bracket.

IMPORTANT: Ensure fuel line is securely installed outside of battery hold-down bracket.

5. Tighten previously removed hardware securing battery and battery hold-down bracket in step 3.

6. Connect positive (+) cable first, then negative (–) cable.

7. Apply petroleum jelly or dielectric grease to battery cable ends and terminals.

GB - 24

Page 25

Figure 21

1. Battery Mount Bracket

2. New Mount Location and Hardware

3. Battery

4. Battery Holddown Bracket

Cleaning Battery and Battery Cables (Figure 18 or Figure 19)

1. Remove the battery cover (if equipped).

2. Disconnect negative (–) cable first, then positive (+) cable.

3. Clean battery cable ends, negative (–) terminal, and positive (+) terminal with a wire brush and rinse with a weak baking soda solution.

4. Connect positive (+) cable first, then negative (–) cable.

5. Apply petroleum jelly or dielectric grease to battery cable ends and terminals.

6. Replace cover (if equipped).

Charging the Battery

WARNING: FROZEN BATTERIES CAN EXPLODE

and result in death or serious injury. DO NOT charge a frozen battery. Let the battery thaw before charging.

Follow First Aid directions for contact with battery fluid.

• External Contact: Flush with water.

• Eyes: Flush with water for at least 15 minutes and get medical attention immediately!

• Internal Contact: Drink large quantities of water. Follow with Milk of Magnesia, beaten egg or vegetable oil. Get medical attention immediately!

• In case of internal contact, DO NOT induce vomiting!

IMPORTANT: DO NOT fast charge. Charging at a higher rate will damage or destroy battery.

IMPORTANT: ALWAYS follow information provided on battery and battery charger. Contact battery and battery charger manufacturers’ for detailed instructions.

1. Remove battery from unit.

2. Place battery in a well-ventilated area.

3. Connect positive (+) lead of charger to positive (+) terminal, and negative (–) lead of charger to negative (–) terminal.

4. Charge battery according to battery charger and battery manufacturers’ instructions.

5. Install battery on unit.

Jump-Starting

Ariens does not recommend jump-starting your unit. Jump-starting can damage engine and electrical system components. See your engine manual for more detailed information.

GB - 25

Page 26

STORAGE

CAUTION: AVOID INJURY. Read

and understand the entire Safety section before proceeding.

IMPORTANT: NEVER spray unit with highpressure water or store unit outdoors. Store mower in a cool, dry, protected location.

Cleaning

NOTE: Allow unit to cool before cleaning.

Clean unit thoroughly with mild soap and low pressure water. Brush off dirt and debris from all surfaces. Touch up all scratched surfaces to prevent rust. Matching touch-up paint is available from your Ariens Dealer. Do not use abrasives, solvents, or harsh cleaners.

Inspection

Inspect mower and repair or replace worn or damaged parts to avoid delays when beginning use again.

Regularly check all hardware and keep fasteners tight. Know unit is in safe working condition.

Grass Bag

Wash out grass bag and allow to dry before storage. Grass bag may be stored in position on mower.

TROUBLESHOOTING

Engine

When storing unit for extended periods of time, remove all fuel from tank and carburetor (run dry). Refer to engine manual.

Fuel System

To treat the fuel system for storage:

1. Add fuel stabilizer according to manufacturers’s instructions.

2. Run engine for at least 10 minutes after adding stabilizer to allow it to reach the carburetor.

NEVER store the engine with fuel in the fuel tank inside of a building with potential sources of ignition.

PROBLEM PROBABLE CAUSE CORRECTION Engine will not

start

Engine is difficult to restart

1. Safety switch not held down.

2. Ignition switch is faulty.

3. Wiring harness fuse is blown.

4. Loose or corroded battery cables.

5. Discharged battery.

6. Faulty starter.

7. Fuel tank empty.

1. Out of fuel.

2. Fuel filter is dirty.

3. Faulty spark plug.

4. Air cleaner is plugged or dirty.

5. Faulty engine.

GB - 26

1. Hold down safety switch while turning the ignition key.

2. Replace ignition switch.

3. Replace fuse.

4. Clean and tighten battery cables.

5. Charge the battery.

6. See your Dealer.

7. Fill fuel tank (see FILLING

THE FUEL TANK on page 15).

1. Fill fuel tank with clean, fresh fuel.

2. Replace fuel filter.

3. Replace spark plug.

4. Clean or replace air cleaner.

5. Refer to the engine manual or see your Dealer.

Page 27

PROBLEM PROBABLE CAUSE CORRECTION Cut is poor

Grass does not disperse evenly

Mower does not bag clippings

Wheel drive does not engage

1. Deck is clogged with grass.

2. Blades are dull.

3. Cutting wet grass.

4. Cutting too low.

5. PTO belt is slipping.

1. Deck is clogged with grass.

2. Blades are dull.

3. Cutting wet grass.

4. Cutting too low.

1. Deck is clogged with grass.

2. Blades are dull.

3. Cutting wet grass.

4. Cutting too low.

5. PTO belt is slipping.

1. Loose or damaged drive belts.

2. Damaged drive cable.

3. Damaged transmission or drive component.

1. Clean the deck cutting chamber.

2. Sharpen or replace blades.

3. Wait for grass to dry.

4. Raise cutting height and cut grass in two or more passes.

5. Adjust or replace PTO belt.

1. Clean the deck cutting chamber.

2. Sharpen or replace blades.

3. Wait for grass to dry.

4. Raise cutting height and cut grass in two or more passes.

1. Clean the deck cutting chamber.

2. Sharpen or replace blades.

3. Wait for grass to dry.

4. Raise cutting height and cut grass in two or more passes.

5. Adjust or replace PTO belt.

1. Adjust or replace drive belts. See Wheel Drive Belts on page 21.

2. Replace drive cable. See your authorized dealer for repairs.

3. See your authorized dealer for repairs.

SERVICE PARTS

Always use genuine Ariens parts to keep your mower running like new.

Part Number

03746500 Blade 03797300 Mulching Blade 07200529 Forward Traction Belt 07200506 Reverse Traction Belt 07243300 PTO Belt 07234300 Deck Belt 21534100 Spark Plug

Description

ACCESSORIES

See your authorized Ariens Dealer to add these optional accessories.

71106100 Bagger Kit 71510800 Mulch Kit

GB - 27

Page 28

SPECIFICATIONS

Model Number 911413

Description WAW 34

Length – in. (cm) 68.5 (174)

Height – in. (cm) 38 (96.5)

Width – in. (cm) 36 (91.4)

Actual Weight – lbs (kg) 276 (125.2)

Cutting Width – in. (cm) 34 (86.3)

Cutting Height – in. (cm) 1.75 – 3.5 (4.4 – 8.9)

Engine, 4 cycle Briggs & Stratton

Model I/C

Governed RPM (May be different from maximum rpm.)

Displacement Cu. In. (cc)

Cylinder Bore Aluminum

Engine Oil Type See Engine Manual

Crank Case Capacity – Oz. (Liter) 48 (1.4)

Oil System See Engine Manual

Spark Plug Gap – in. (mm)

Fuel Type See Engine Manual

Fuel Tank Capacity – qt (Liter) 10 (7.49)

Air Cleaner Dual Element

Starting 12V Electric

Differential Yes

Forward Speed – MPH (km/hr) 3.5 (5.6)

Reverse Speed – MPH (km/hr) 2.0 (3.2)

Mower Deck Two-Spindle

Front Wheel Dia – in. (cm)

Rear Wheel Dia – in. (cm)

Rear Wheel Tire Pressure psi (kPa)

3600 +/- 100

21 (344)

See Engine Manual

8 (20.3)

13 (33)

28 (193)

GB - 28

Page 29

Consumer Mowing Equipment

Limited Warranty

Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely and Countax brand lawn and garden consumer products purchased on or after 1/1/2012 will be free from defects in material and workmanship for the time period noted in the chart below. Equipment put to personal use around a single household or residence is considered “Consumer Use”; equipment put to any business use (agricultural, commercial, or industrial) or used at multiple locations is considered “Commercial Use.” If any product is rented or leased, then the duration of these warranties shall be 90 days after the date of purchase.

An authorized Ariens dealer (Ariens brand products), Gravely dealer (Gravely brand products), or Countax dealer (Countax brand products) will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser except as noted below.

Warranty

Code

Zoom & ZT Zero-Turn Riders;

AMP™ Rider

HB Max Zoom & ZT HD Zero-Turn Riders 3 Years 1 Year

Tractors, "961" Series Walk-Behind

Mowers Classic LM Series Mowers; Wide Area

Walk Mowers

N/A Service (replacement) Parts 90 Days (no labor) 90 Days (no labor)

Product Group

Special Extensions

The chart below details special extensions to this warranty:

Warran ty

Code

HA, HB

HA Batteries for AMP™ Rider 2 Years Consumer 100% first year; prorated second year

Warranty Exception

Mower Deck Shell on Zero-Turn Riders

Main Frame on Zero-Turn Riders

Warranty

Period

5 Years Consumer

Exceptions and Limitations

The chart below details special exceptions to this warranty:

Warranty

Code

Warranty Exception

All Batteries 1 Year Consumer Prorated

All Belts, Muffler, Tires None Commercial

Cloth, Plastic, and Rubber Components

All

(Including Belts and Cables)

All Engines

Warranty

Period

Maximum

2 Years

See Engine

Manufacturer’s

Warranty

Customer Responsibilities

Register the product immediately at the time of sale. If the dealer does not register the product, the customer must complete the product registration card in the literature package and return it to the Ariens Company, or register the unit online at www.ariens.com, www.gravely.com, www.countax.com.

To obtain warranty service, the original purchaser must:

• Perform the maintenance and adjustments explained in the owner's manual.

Warranty Period

Consumer Use

3 Years 90 Days

2 Years 90 Days

3 Years 90 Days

Use Detail

3 years parts and labor Additional 2 years parts only

Use Detail

These components are not covered when used commercially.

Warranty is limited to 2 years for consumer use. Except as noted above,

All

these components are covered for defect, not for wear.

Engines are covered by engine manufacturer’s warranty. Refer to

All

engine manufacturer’s warranty statement.

Warran ty Period Commercial Use

Consumer_2012_Rev.A

Page 30

• Promptly notify Ariens or an authorized Ariens, Gravely or Countax service representative of the need for warranty service.

• Transport the product to and from the place of warranty service at owner's expense.

• Have the warranty service performed by an authorized Ariens, Gravely or Countax service representative.

To Find an Authorized Service Representative:

In the U.S. and Canada:

Use the dealer locator on our websites: www.ariens.com • www.gravely.com Or contact us by mail or by phone:

In the U.S., Canada, Mexico, Caribbean, Central and South America:

Ariens Company

655 W. Ryan Street

Brillion, WI 54110

Phone: (920) 756 - 4688

www.ariens.com

In Europe, Asia, Africa or the Middle East:

Countax Ltd, Countax House

Great Haseley, Oxfordshire,

OX44 7PF

Phone: 0800 597 7777

www.countax.com

In Australia or New Zealand:

Ariens Company

Building 2

6 Wedgewood Rd.

Hallam, Victoria 3803 Australia

Phone: (03) 9796 4244

1800 335 489

www.ariens.com.au

Exclusions – Items Not Covered by This Warranty

• Parts that are not genuine Ariens, Gravely or Countax service parts are not covered by this warranty and may void the warranty.

• Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty.

• The following maintenance, service and replacement items are not covered by this warranty unless they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, fuel filters, brake linings, brake arms, brake shoes, skid shoes, scraper blades, shear bolts, mower blades, mower vanes, brushes, headlights, light bulbs, knives, cutters.

• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires repair is not covered by this warranty.

• Use of gasoline blends exceeding 10% ethanol voids any and all warranties.

• Products are designed to the specifications in the area that the product was originally distributed. Different areas may have significantly different legal and design requirements. This warranty is limited to the requirements in the area in which the unit was originally distributed. Ariens Company does not warrant this product to the requirements of any other area. Warranty service is limited to service within the area originally distributed.

• In countries other than the United States and Canada, contact the Ariens Company dealer for warranty policies that govern within your country. Rights may vary from country to country and within any one country.

Disclaimer

Ariens Company may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating the Ariens Company to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.

LIMITATION OF REMEDY AND DAMAGES

Ariens Company's liability under this warranty, and under any implied warranty that may exist, is limited to repair of any defect in workmanship, and repair or replacement of any defective part. Ariens Company shall not be liable for incidental, special, or consequential damages (including lost profits). Some states do not allow the exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

AUSTRALIAN CONSUMER LAW

The following applies solely to warranties subject to Subsection 102(1) of the Australian Consumer Law: Our goods come with guarantees that cannot be excluded by the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and failure does not amount to a major failure.

DISCLAIMER OF FURTHER WARRANTY

Ariens Company makes no warranty, express or implied, other than what is expressly made in this warranty. If the law of your state provides that an implied warranty of merchantability, or an implied warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company, then any such implied warranty is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from region to region.

Consumer_2012_Rev.A
