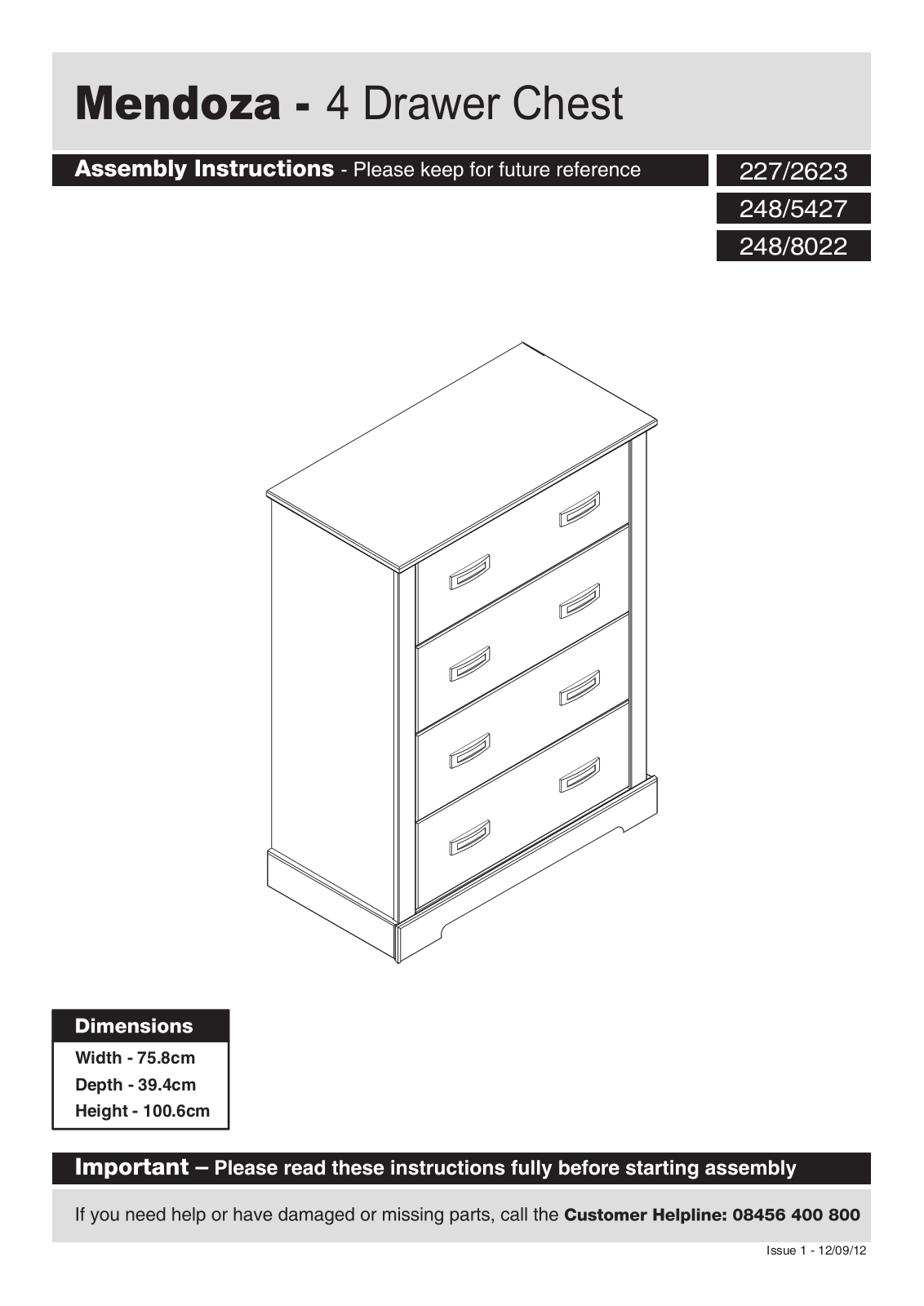

Mendoza - 4 Drawer Chest
227/2623
248/5427
248/8022
Width - 75.8cm
Depth - 39.4cm
Height - 100.6cm
Issue 1 - 12/09/12

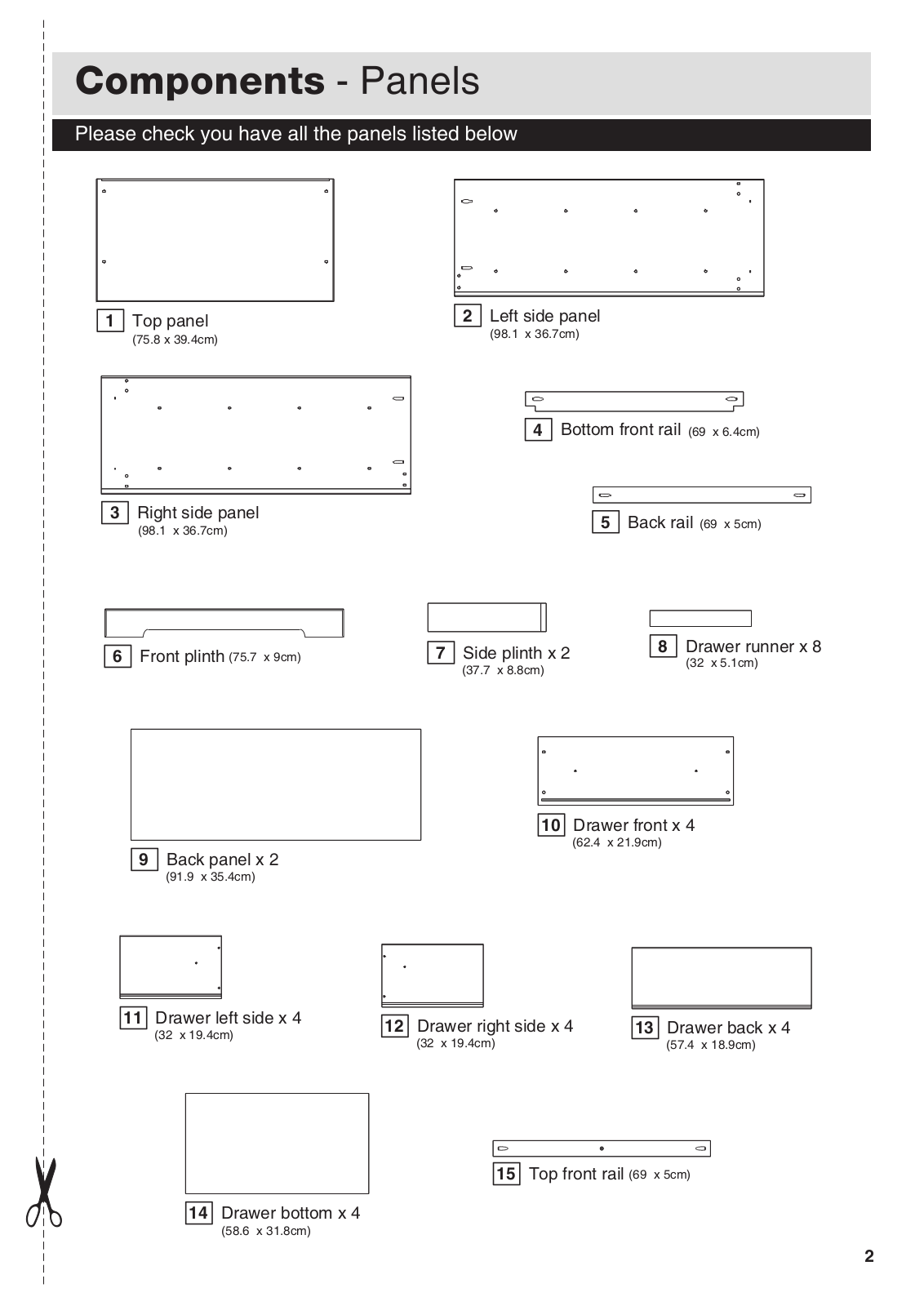

Top panel
1
(75.8 x 39.4cm)
Right side panel
3
(98.1 x 36.7cm)
Front plinth
6
(75.7 x 9cm)
Left side panel
2
(98.1 x 36.7cm)
Side plinth x 2
7
(37.7 x 8.8cm)
Bottom front rail
4
5
Back rail
8
(69 x 6.4cm)
(69 x 5cm)
Drawer runner x 8
(32 x 5.1cm)
Back panel x 2
9
(91.9 x 35.4cm)
Drawer left side x 4
11
(32 x 19.4cm)
Drawer bottom x 4
14
(58.6 x 31.8cm)
Drawer right side x 4
12
(32 x 19.4cm)
15
Drawer front x 4
10
(62.4 x 21.9cm)
Top front rail
Drawer back x 4
13
(57.4 x 18.9cm)
(69 x 5cm)

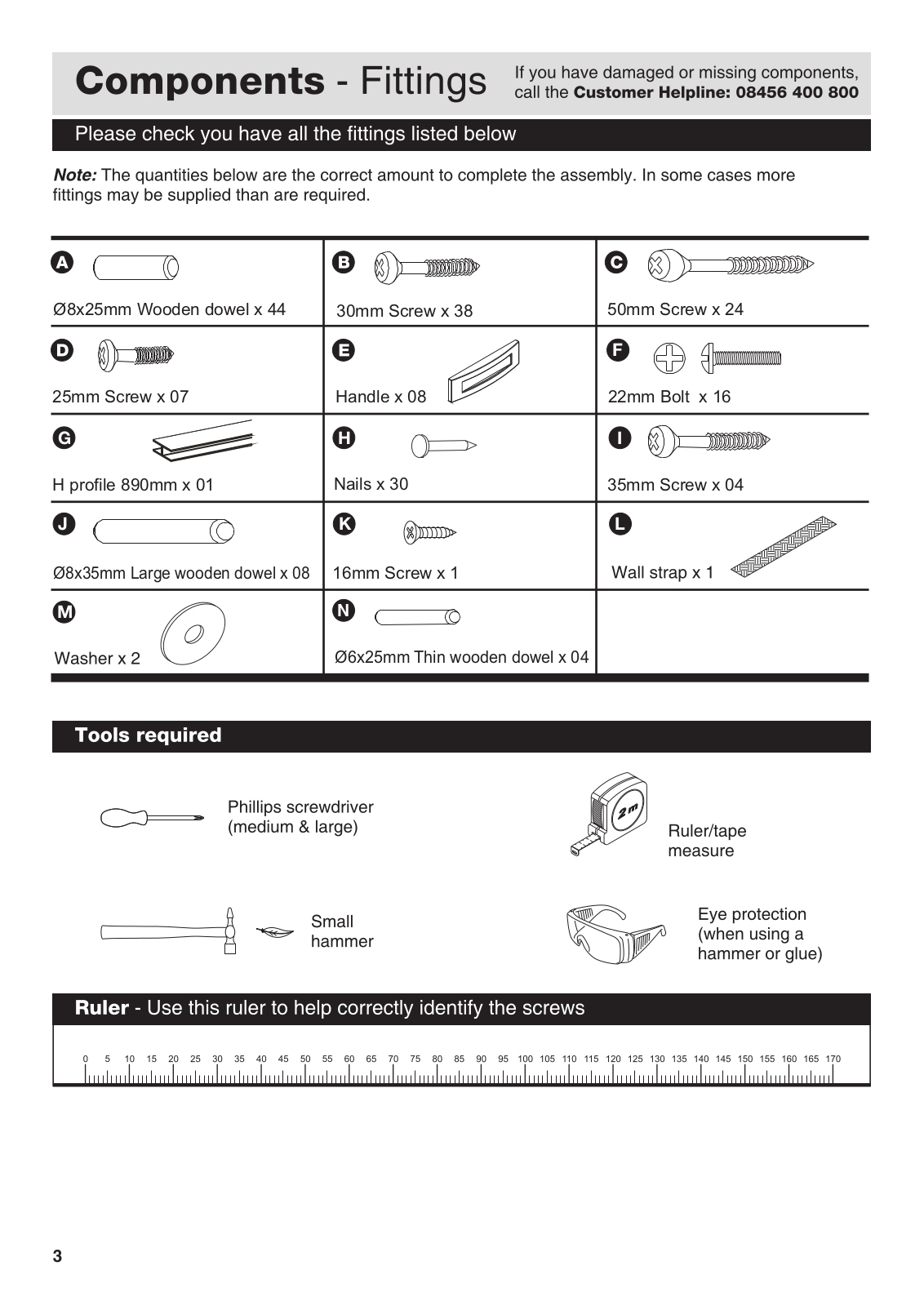

Ø8x25mm Wooden dowel x 44 50mm Screw x 24
30mm Screw x 38
F
25mm Screw x 07
G
H profile 890mm x 01
J
Ø8x35mm Large wooden dowel x 08
M
Handle x 08
H
Nails x 30
K L
16mm Screw x 1
N
Ø6x25mm Thin wooden dowel x 04
22mm Bolt x 16
I
35mm Screw x 04

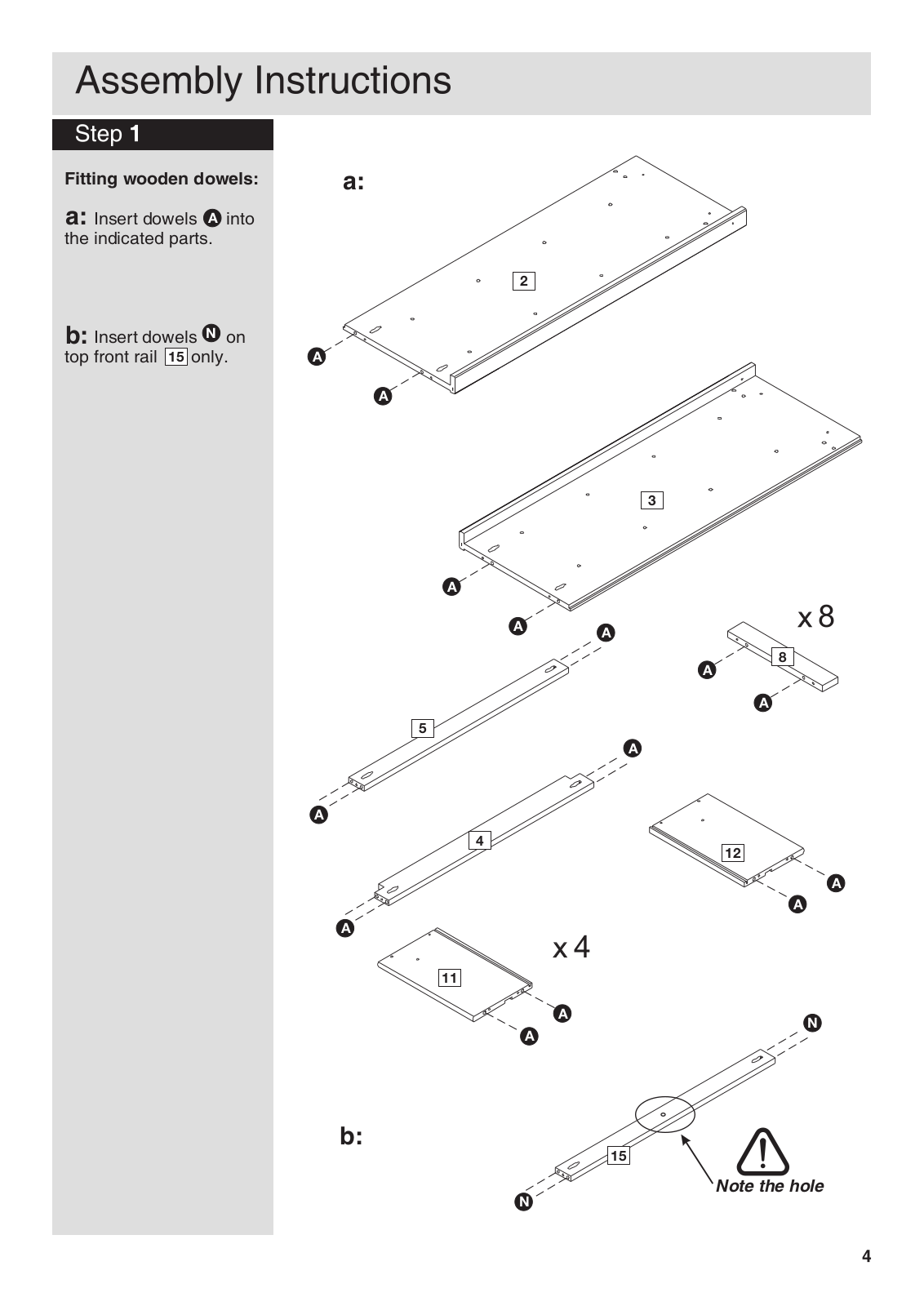

Fitting wooden dowels:
a:
a:
Insert dowels into
A
the indicated parts.
Insert dowels on
b:
top front rail only.
N
15
2
A
A
3
A
A
A
A
8 X
8
A
5
A
A
4
A
12
A
A
4 X
11
A
A
b:
15
N
N
Note the hole
View from top.

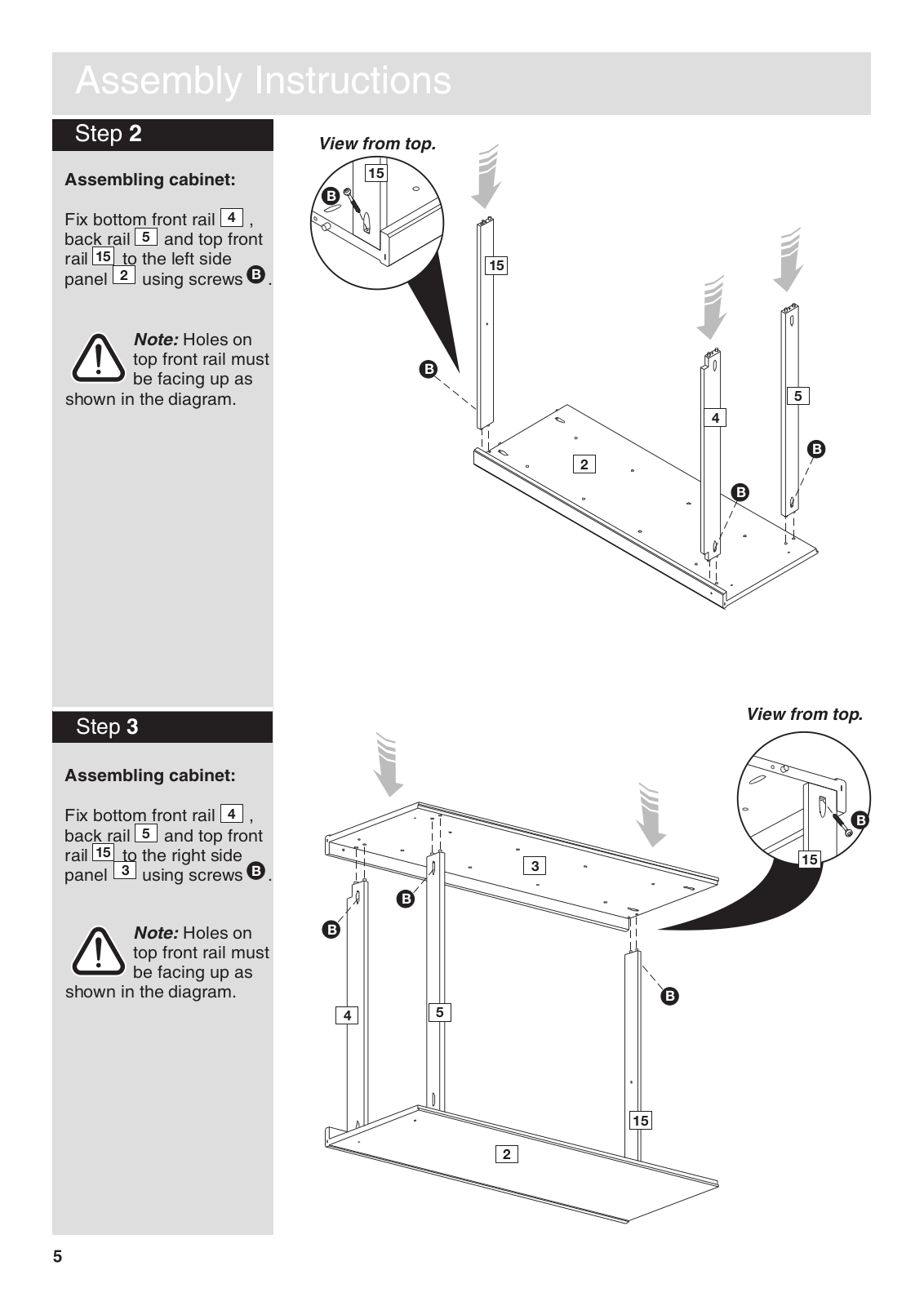

Assembling cabinet:
Fix bottom front rail ,
back rail and top front
15
rail to the left side
panel using screws .
5
2
4
B
Note: Holes on
top front rail must
be facing up as
shown in the diagram.
15
B
15
B
5
4
B
2
B
Step 3
Assembling cabinet:
Fix bottom front rail ,
back rail and top front
15
rail to the right side
panel using screws .
5
3
Note: Holes on
top front rail must
be facing up as
shown in the diagram.
4
B
View from top.
B
3
B
B
B
4
5
15
2
15

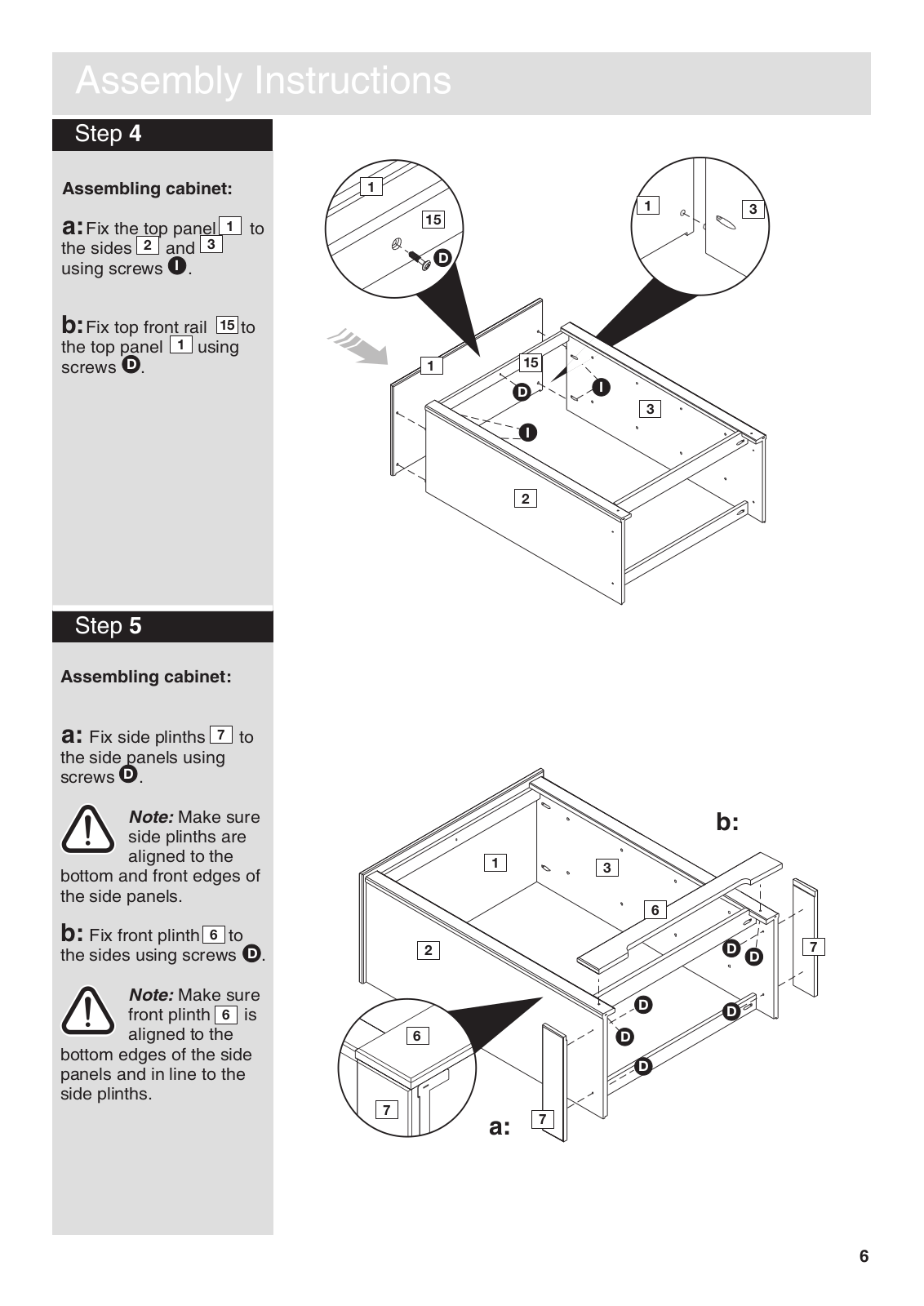

Assembling cabinet:
a:
Fix the top panel to
the sides and
using screws .
2
I
1
3
1
15
1
D
3
Fix top front rail to
b:
the top panel using
screws .
D
15
1
Assembling cabinet:
Fix side plinths to
a:
7
the side panels using
screws .
D
1
15
D
I
2
I
3
Note: Make sure
side plinths are
aligned to the
bottom and front edges of
the side panels.
Fix front plinth to
b:
the sides using screws .
6
D
Note: Make sure
front plinth is
6
aligned to the
bottom edges of the side
panels and in line to the
side plinths.
b:
1
2
6
7
a:
7
3
6
D
D
D
D
D
D
7
6

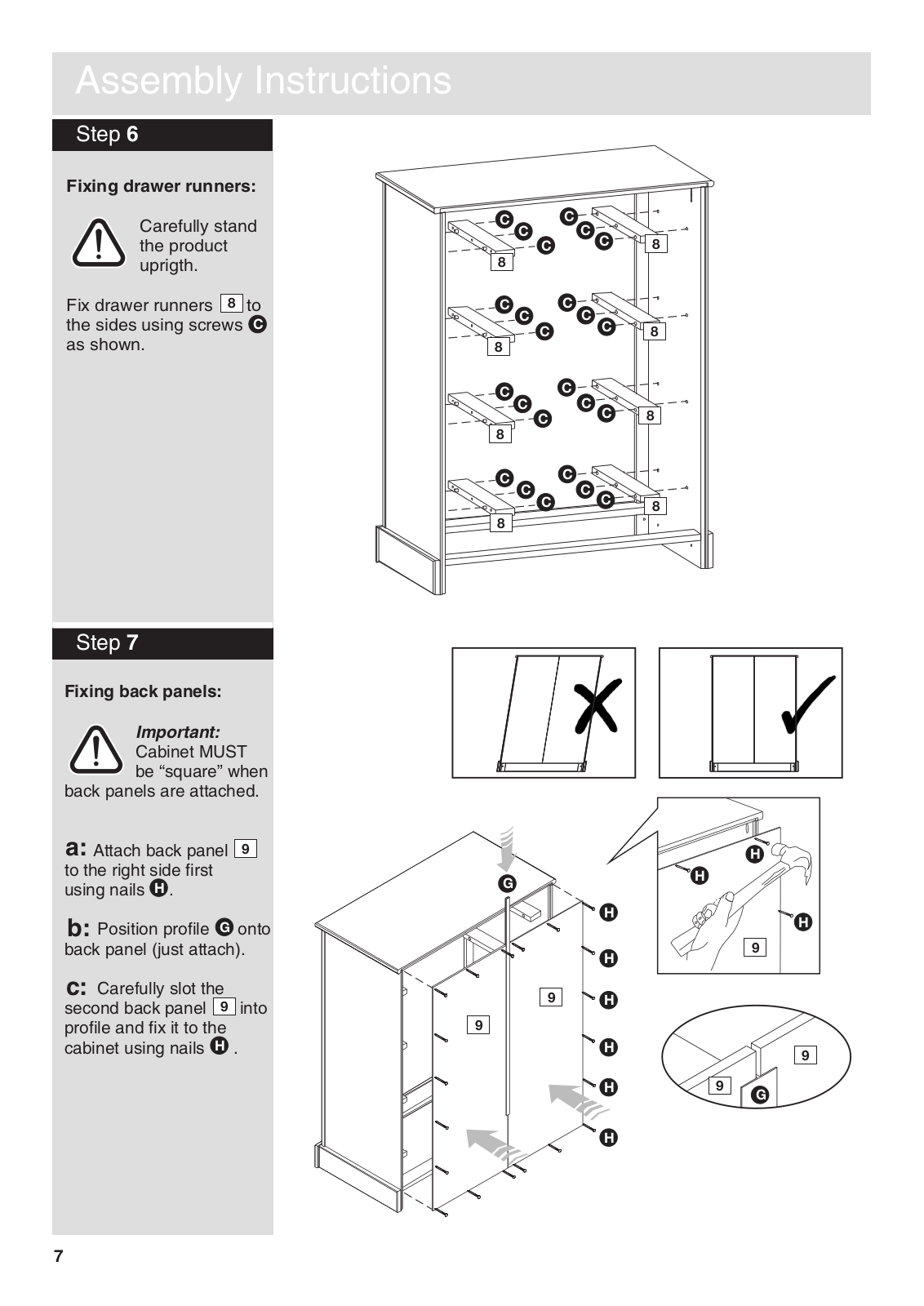

Step 6
Fixing drawer runners:
Carefully stand
the product
uprigth.
Fix drawer runners to
8
the sides using screws
as shown.
Step 7
C
8
C
C
8
C
C
8
C
8
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
8
8
8
8
Fixing back panels:
Important:
Cabinet MUST
be “square” when
back panels are attached.
a:
Attach back panel
9
to the right side first
using nails .
Position profile onto
b:
H
G
back panel (just attach).
Carefully slot the
c:
second back panel into
9
profile and fix it to the
cabinet using nails .
H
H
G
H
H
9
9
H
H
H
H
H
H
9
9
9
G
7

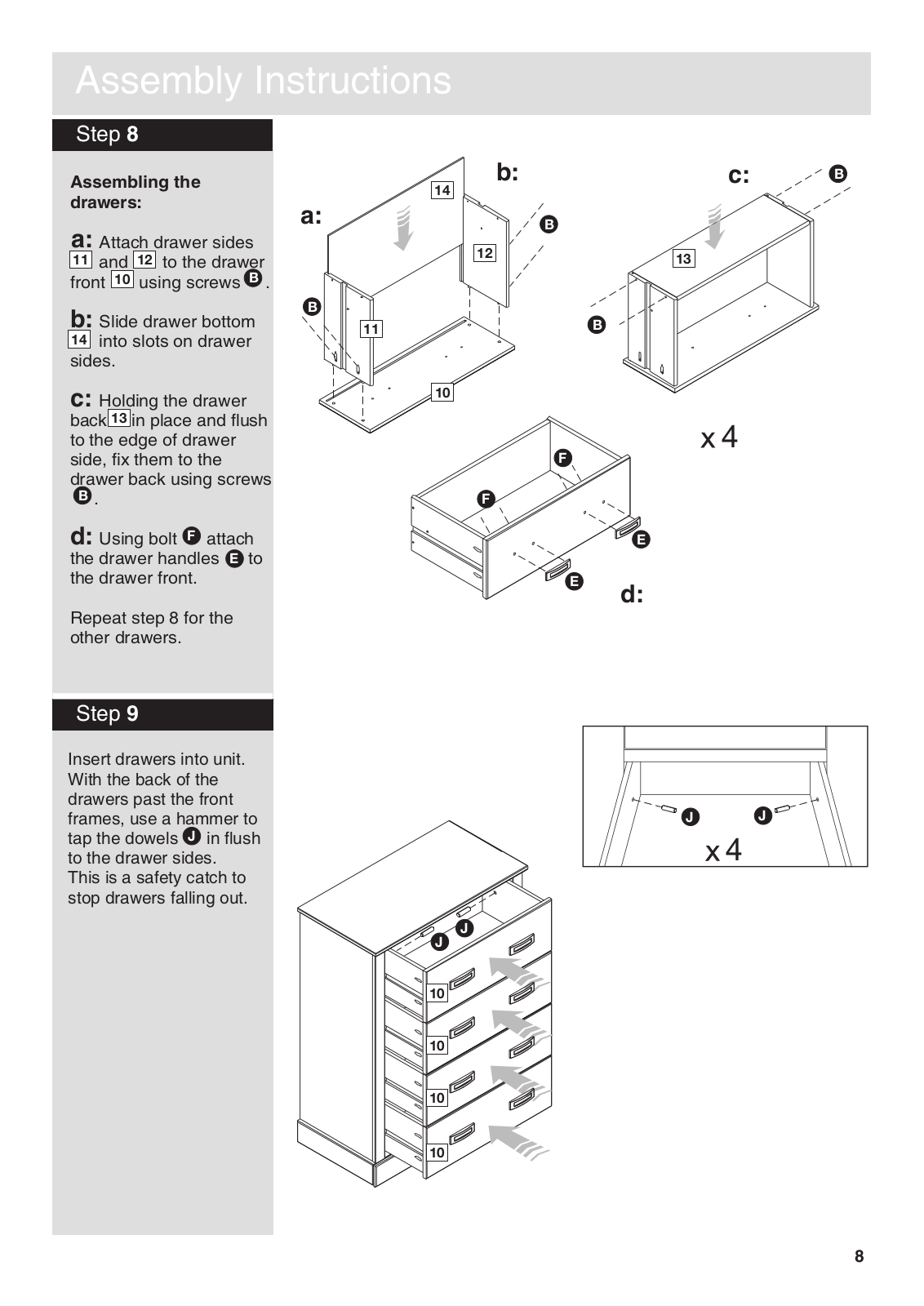

Step 8
Assembling the
drawers:
a:
Attach drawer sides
10
13
12
B
F
E
11
and to the drawer
front using screws .
Slide drawer bottom
b:
14
into slots on drawer
sides.
Holding the drawer
c:
back in place and flush
to the edge of drawer
side, fix them to the
drawer back using screws
B
.
Using bolt attach
d:
the drawer handles to
the drawer front.
Repeat step 8 for the
other drawers.
a:
B
11
14
10
12
b:
c:
B
13
B
B
4 X
F
F
E
E
d:
Step 9
Insert drawers into unit.
With the back of the
drawers past the front
frames, use a hammer to
tap the dowels in flush
to the drawer sides.
This is a safety catch to
stop drawers falling out.
J
10
10
10
10
J
J
4 X
J
J
8

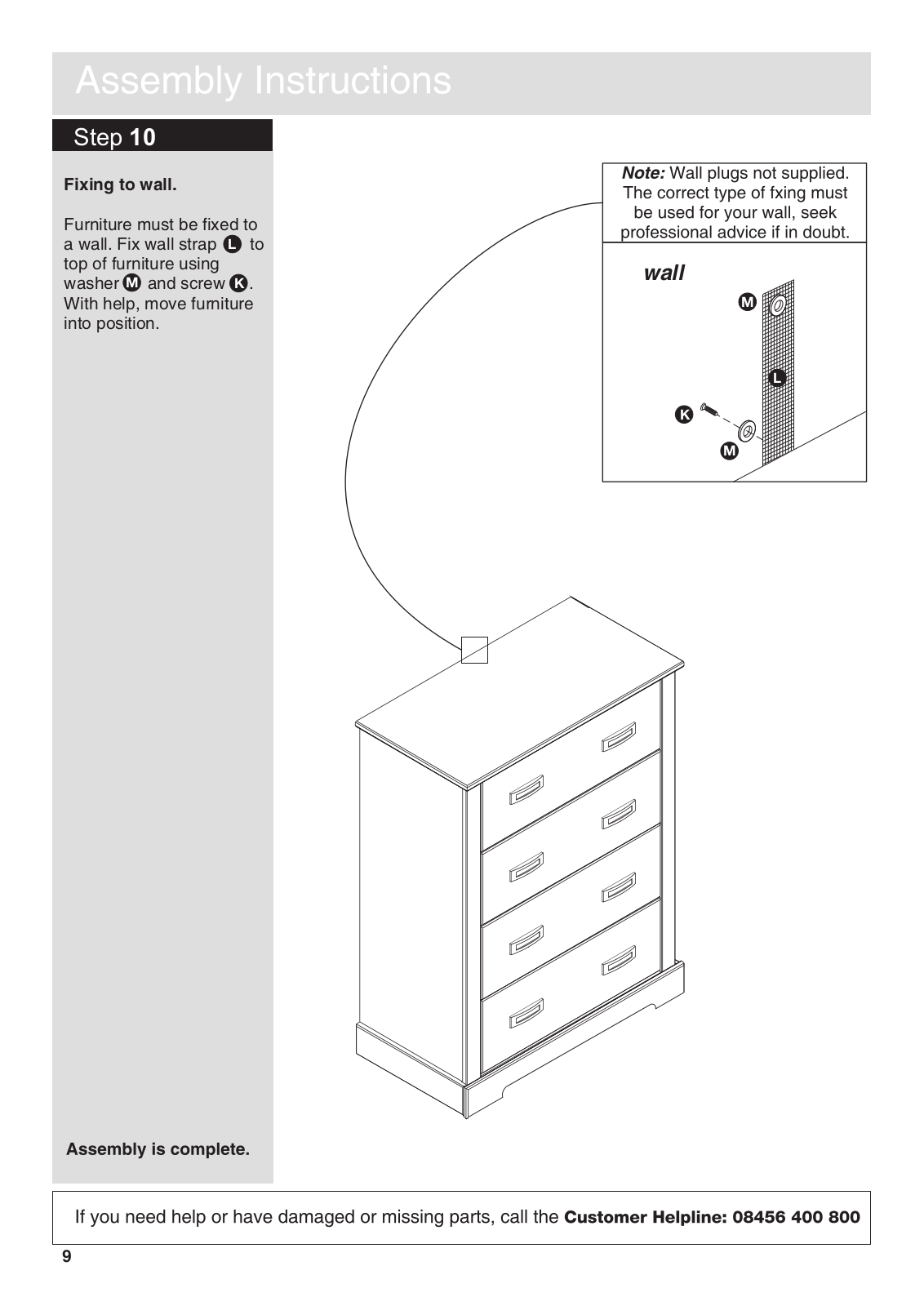

Step 10
Fixing to wall.
Furniture must be fixed to
a wall. Fix wall strap to
top of furniture using
washer and screw .
M
With help, move furniture
into position.
L
K
wall
M
L
K
M
9
