Page 1
MADE IN
BRITAIN
Dimensions
Width - 75cm
Depth - 40cm
Height - 41cm

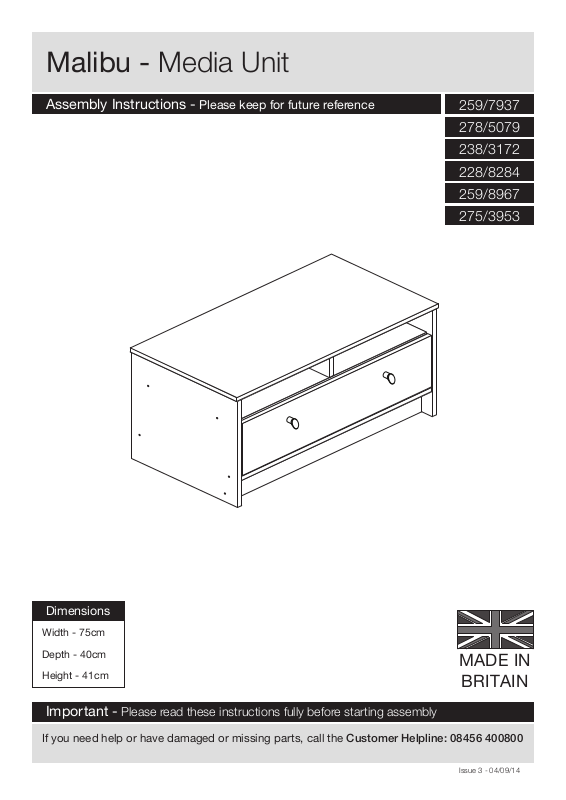

Malibu - Media Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 3 - 04/09/14
Important - Please read these instructions fully before starting assembly
259/7937
238/3172
228/8284
259/8967
275/3953
278/5079
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 15.5kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Page 3
Components - Panels
Please check you have all the panels listed below
2
1
2 3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
4
Divider (D2866A)
(92 x 372mm)
5
6
7 8 9
11
10
12
Drawer Base (T687-367)
(687 x 367mm)
Back (X568-318)
(568 x 318mm)
Drawer Back (W676-124BCK)
(676 x 124mm)
Left Drawer Side
(W370-124LH)
(370 x 124mm)
Right Drawer Side
(W370-124RH)
(370 x 124mm)
Top (D2863A)
(747 x 396mm)
Horizontal (D2867A)
(708 x 373mm)
Rail (D2868A)
(708 x 92mm) x 3
Drawer Front (D2869A)
(704 x 190mm)
Left Side (D2864A)
(396 x 394mm)
Right Side (D2565A)
(396 x 394mm)
Page 4
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Rule Scissors Hammer Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
A
Wooden dowel (F22) x 11
B
Metal dowel (F901) x 8
C
D
Large locking
nut (F900) x 6
E
Small locking
nut (F3) x 2
F
G H I
J
Nail (F51) x 12
25mm Screw (F50) x 2
K
Handle (F631) x 2
40mm Screw (F910) x 10
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
45mm Screw (F65) x 2
O
Wedgefix (F639) x 4
Knock-in Peg (F171GY) x 4
Drawer runner (F1004) x 2
L
9mm Screw (F74) x 2
M
9mm Screw (F73) x 4
N
Plastic Nail (F91) x 4
Page 5
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

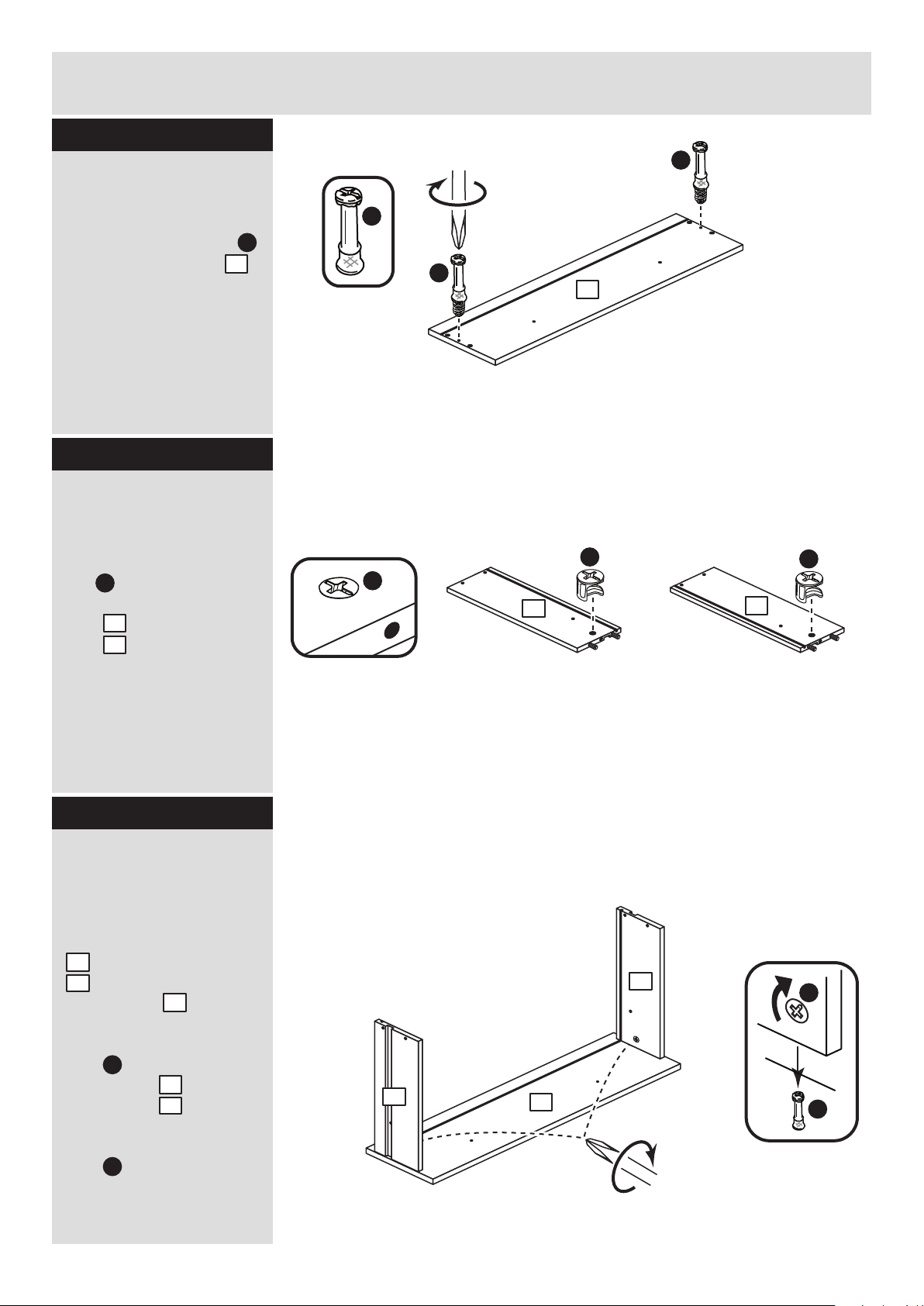

Step 1
B
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
B
7
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
F
8
9
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
8
9
7
F
F
8
9
B
B
7
B
B
F
Step 2
Step 3
F
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
F
F
8
9
9
8
7
Page 6
Assembly Instructions
5
Step 4

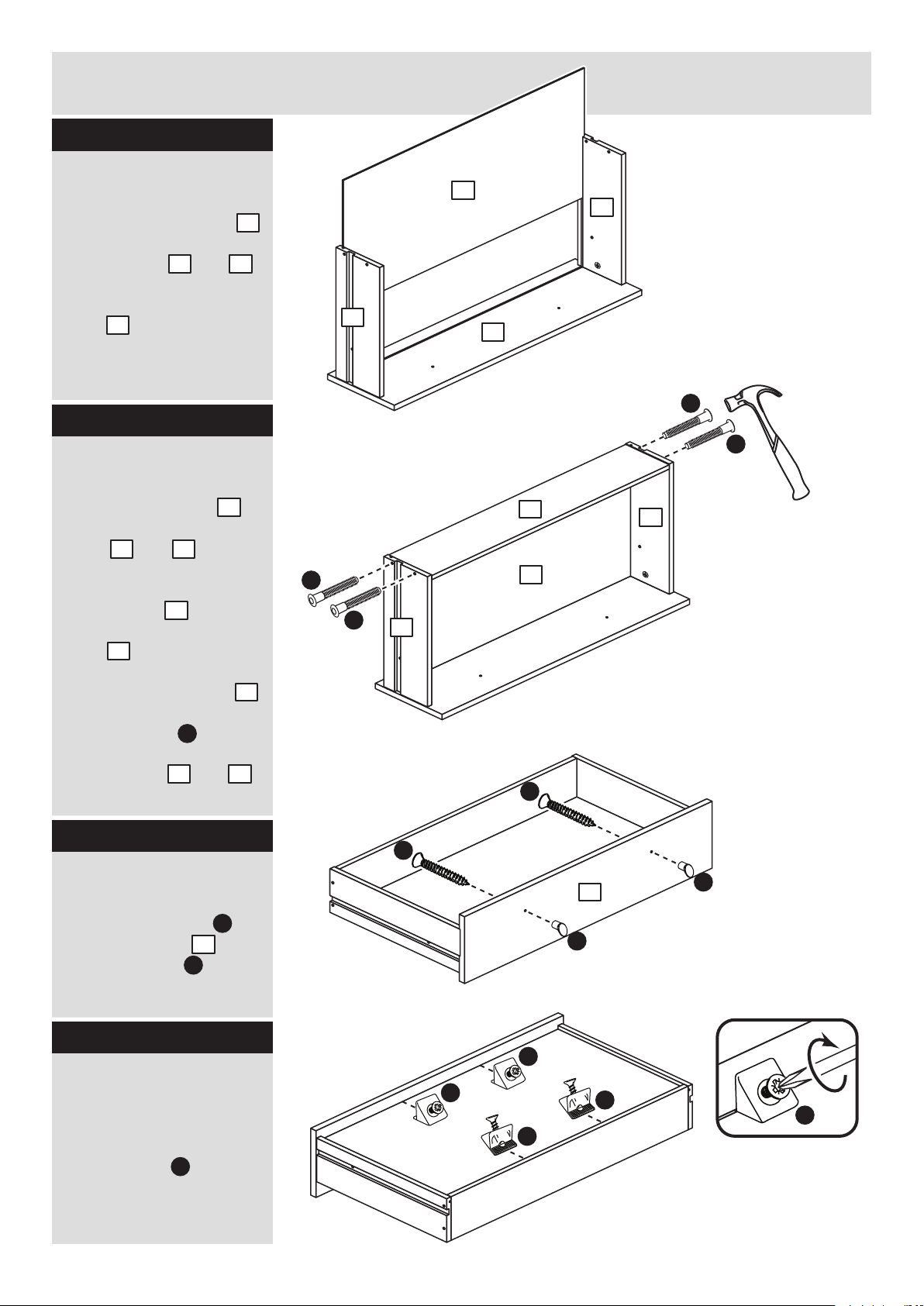

Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
10
8 9
7
11
8 9
10
11
11
C
8 9
7
8
10
9
C
C
C
C
10
9
8
11
Step 6
Attach the handles
Attach the handles to
the drawer front
using 2 screws .
K
I
7
K
I
K
I
7
O
Fit the wedgefixes
Turn the drawer
assembly over and slide
4 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
O
O
O
O
O
Step 7
Note: Do not
overtighten the screws.
Page 7
Assembly Instructions
6
Step 8
A
E
Finished
front edge
E
1
Finished
front edge
1
Finished
front edge
M
J
E

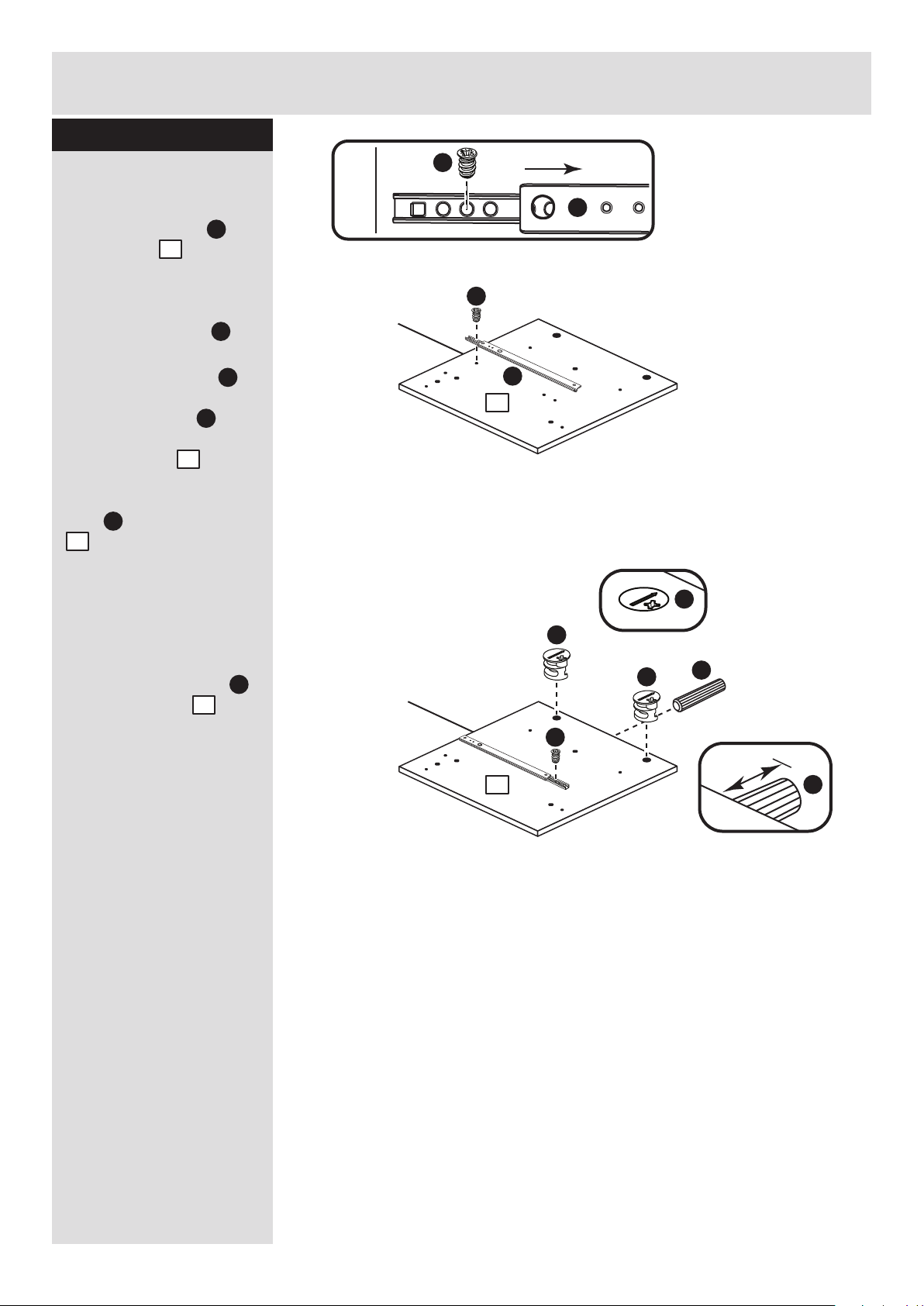

Prepare the left side
a: Place a runner on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
Insert 2 large locking
nuts into the left side
. .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
Tap a wooden dowel
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
1
M
M
E
1
1
J
J
a:
b:
10mm
A
A
1
M
J
M
Page 8
Finished
front edge
Finished
front edge
H
H
A
Assembly Instructions
7
Step 9
A
E
E
Finished
front edge
2
2
A

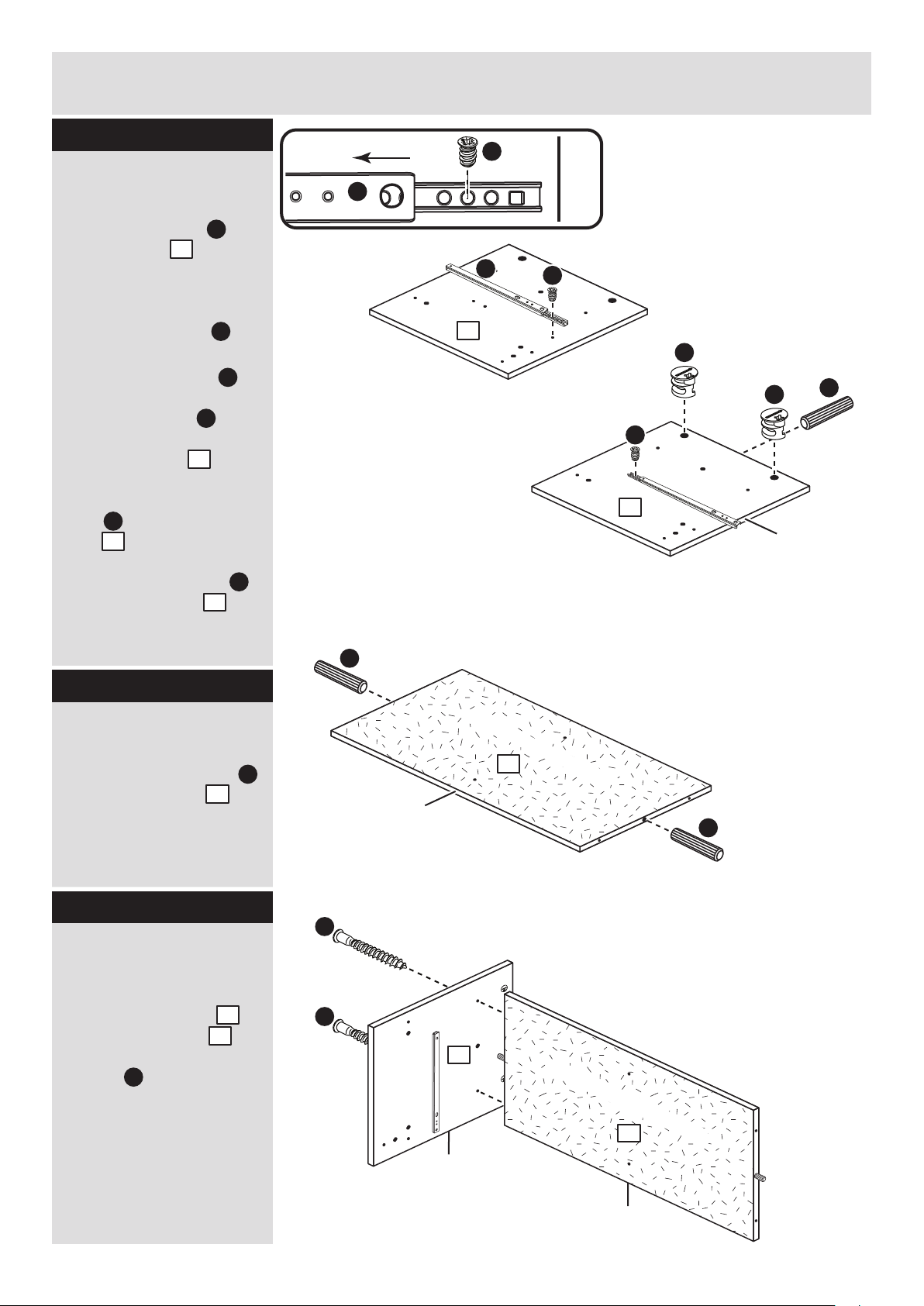

Prepare the horizontal
Tap 2 wooden dowels
into the horizontal .
Step 10
A
4
plain chipboard surface
4
Finished
front edge
Fit the horizontal to
the right side
Push the horizontal
onto the right side
and secure with 2
screws .
4
plain chipboard surface
2
Step 11
4
2
H
Prepare the right side
a: Place a runner on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
Insert 2 large locking
nuts into the right
side .
Tap a wooden dowel
into the right side .
2
M
M
E
2
2
J
J
A
2
Finished
front edge
M
J
a:
b:
M
J
M
Page 9
H
H
H
Assembly Instructions
8
Step 12
Step 13
A
Prepare the 3 rails
Tap 2 wooden dowels
into each of the 3 rails . .
A
6
Finished
front edge
A
6
plain chipboard surface
Fit the 3 rails to the
right side
Push the 3 rails onto
the right side and
secure with 3 screws .
6
2
H
Step 14
Fit the left side
Push the left side
onto the assembly and
secure with 5 screws .
Carefully stand the
unit up in preparartion
to fit the top.
1
Note: Support the rail at
the back of the unit until
the left side has been
fitted in the next step.
plain chipboard surface
plain chipboard surface
H
H
H
H
H
H
1
Warning: The
unit is heavy.
Lift with care.
x 3
6
6
2
plain chipboard surface
6
Page 10
Assembly Instructions
9
Step 15

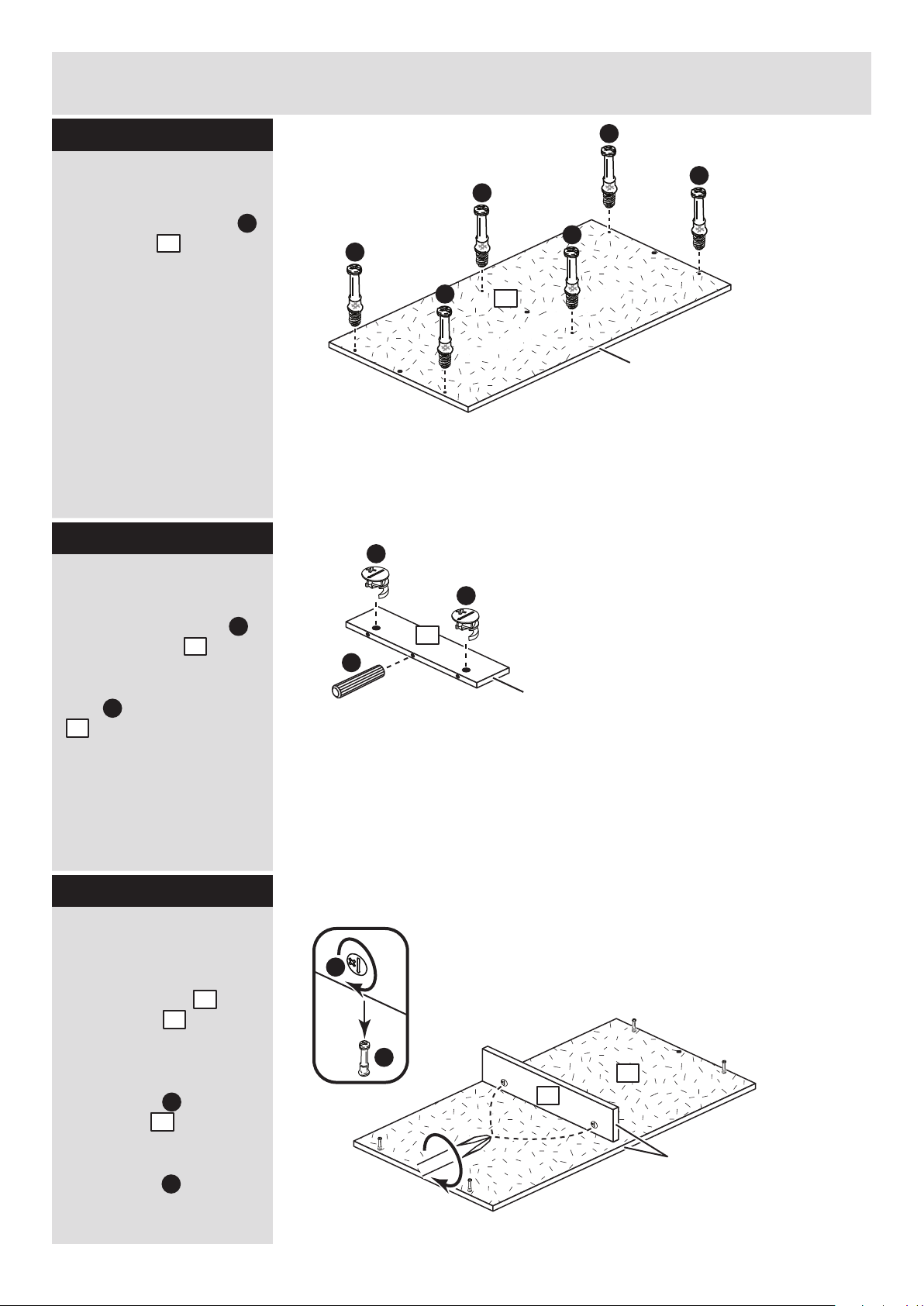

Prepare the divider
Tap a wooden dowel
into the divider .
Insert 2 large locking
nuts into the divider
. .
Step 16
Fit the divider to the
top
Push the divider
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 17
plain chipboard surface
B
B
B
B
B
B
Finished
front edge
3
Prepare the top
Screw 6 metal dowels
into the top .
B
3
E
E
Finished
front edge
A
A
5
5
E
5
E
B
5
3
5
3
E
5
Finished
front edge
E
Page 11
Assembly Instructions
10
Step 18
Step 19

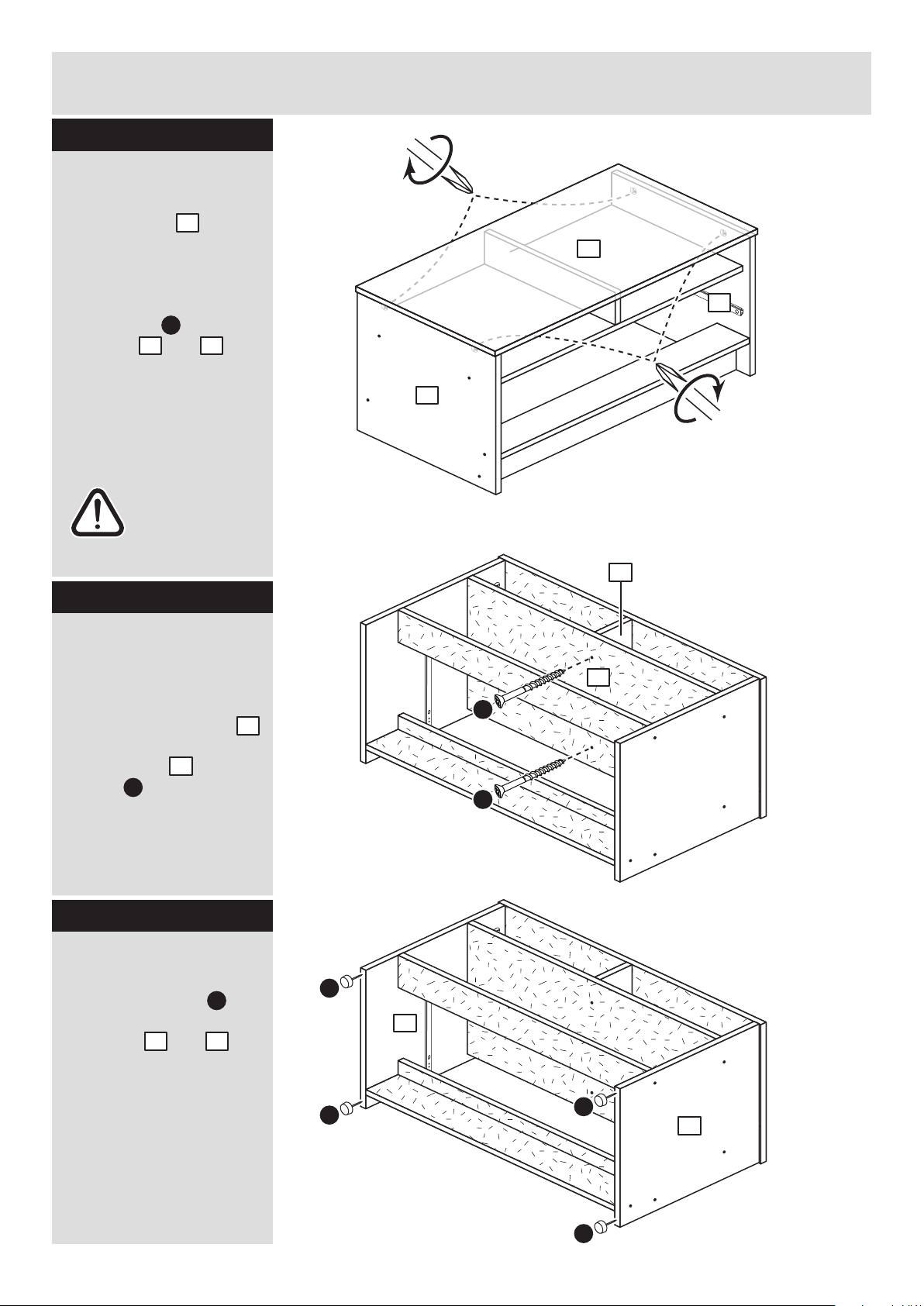

Secure the divider to
the horizontal
Screw up through the
holes in the horizontal
and into the bottom edge
of the divider using 2
screws .
Fit the top
Lower the top down
onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the sides and .
Carefully lay the unit
back down onto its
front edges for the
next step.
3
1 2
E
4
5
G
Warning: The
unit is heavy.
Lift with care.
3
1
2
G
G
4
5
Step 20
N
N
N
N
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each side and as
shown.
N
1 2
1
2
Page 12
Assembly Instructions
11
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 21
9

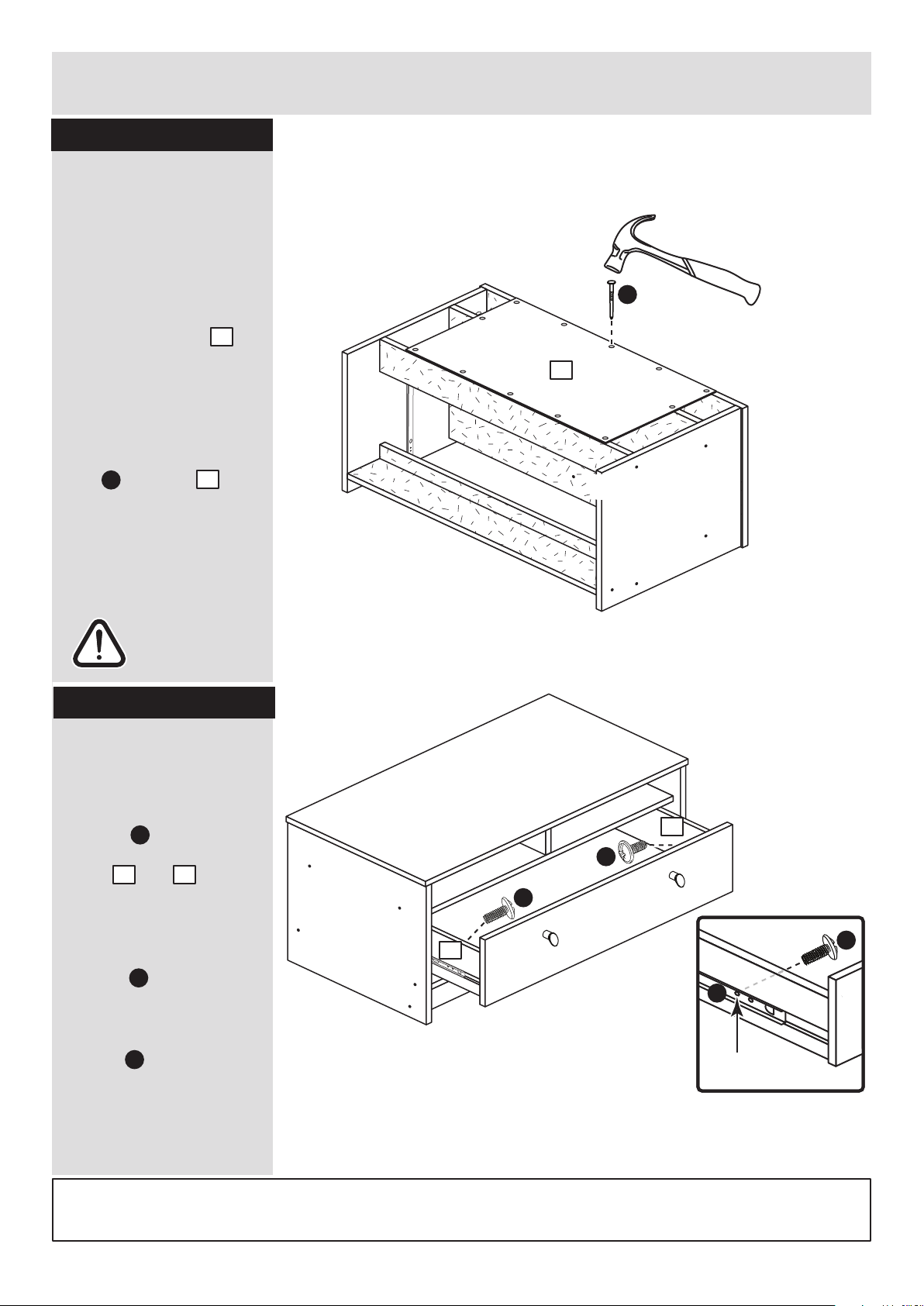

Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Note: The gaps either
side are for cable
management.
Nail the back onto
the back edges of the
unit as shown.
Stand the unit up for
the next step.
12
12
D
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Warning: The
unit is heavy.
Lift with care.
b:
D
12
y
y
x
x
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Assembly is complete
L
J
J
2nd threaded
hole
J
L
8 9
Step 22
Note: Do not overtighten the screws.
If they catch on the runner you may
need to loosen them slightly.
L
L
8
9
ALR3036
Loading...
