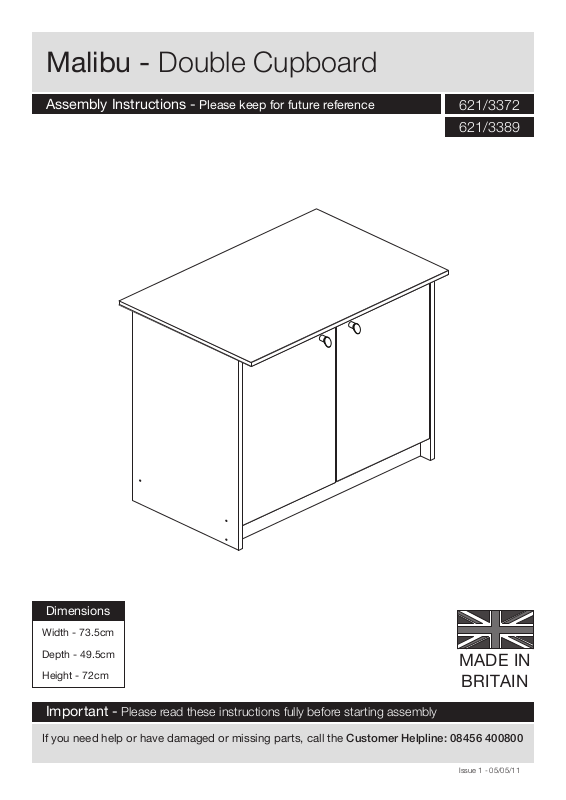

Argos Malibu - Double Cupboard ASSEMBLY INSTRUCTIONS

MADE IN
BRITAIN
Dimensions
Width - 73.5cm
Depth - 49.5cm
Height - 72cm
Malibu - Double Cupboard
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 05/05/11
Important - Please read these instructions fully before starting assembly
621/3372
621/3389
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 21kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).
• Dispose of all packaging carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Top (D0869A)
(733 x 490mm)
Door (D0867A)
(623 x 345mm) x 2
Plinth (D0879A)
(698 x 80mm)
Base (D0870A)
(698 x 378mm)
Shelf (D0871A)
(698 x 373mm)
1
Left Side (D0862A)
(706 x 394mm)
2
Right Side (D0863A)
(706 x 394mm)
3
4 5
6
7 8
Back (X806)
(722 x 622mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Rule Scissors Hammer
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Electric drill (only use when drilling into walls)
A
Wooden dowel (F22) x 2
B
Metal dowel (F901) x 4
C
D
Large locking nut (F900) x 4
E
I
Nail (F51) x 16
J
G
40mm Screw (F910) x 6
13mm Screw (F63) x 8
H
K
25mm Screw (F50) x 2
Handle (F631) x 2
Hinge plate (F523) x 4 Hinge (F522) x 4
Shelf stud (F110) x 4
F
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Step 2
E
E
J
J
2
J
Finished
front edge
Prepare the right side
Fit 2 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge.
Insert 2 large locking nuts into the right side as shown.
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
J
2
E
2
2
Finished
front edge
E
E
1
1
J
J
Prepare the left side
Fit 2 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.
Insert 2 large locking nuts into the left side . as shown.
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
J
J
1
E
1
E
Assembly Instructions
5
Step 3
G
Finished
front edge
Finished
front edge
G
G
Step 4
plain
chipboard
surface
2
4
Join the right side and base
Position the base against the right side as shown and secure with 2 screws .
4
2
G
Prepare the plinth
Tap 2 wooden dowels into the plinth .
Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
Step 5
A
A
6
A
6
6
Fit the plinth
Push the plinth onto the right side as shown and secure with screw .
6
2
G
2
plain chipboard surface
plain chipboard surface
Finished
front edge
Assembly Instructions
6

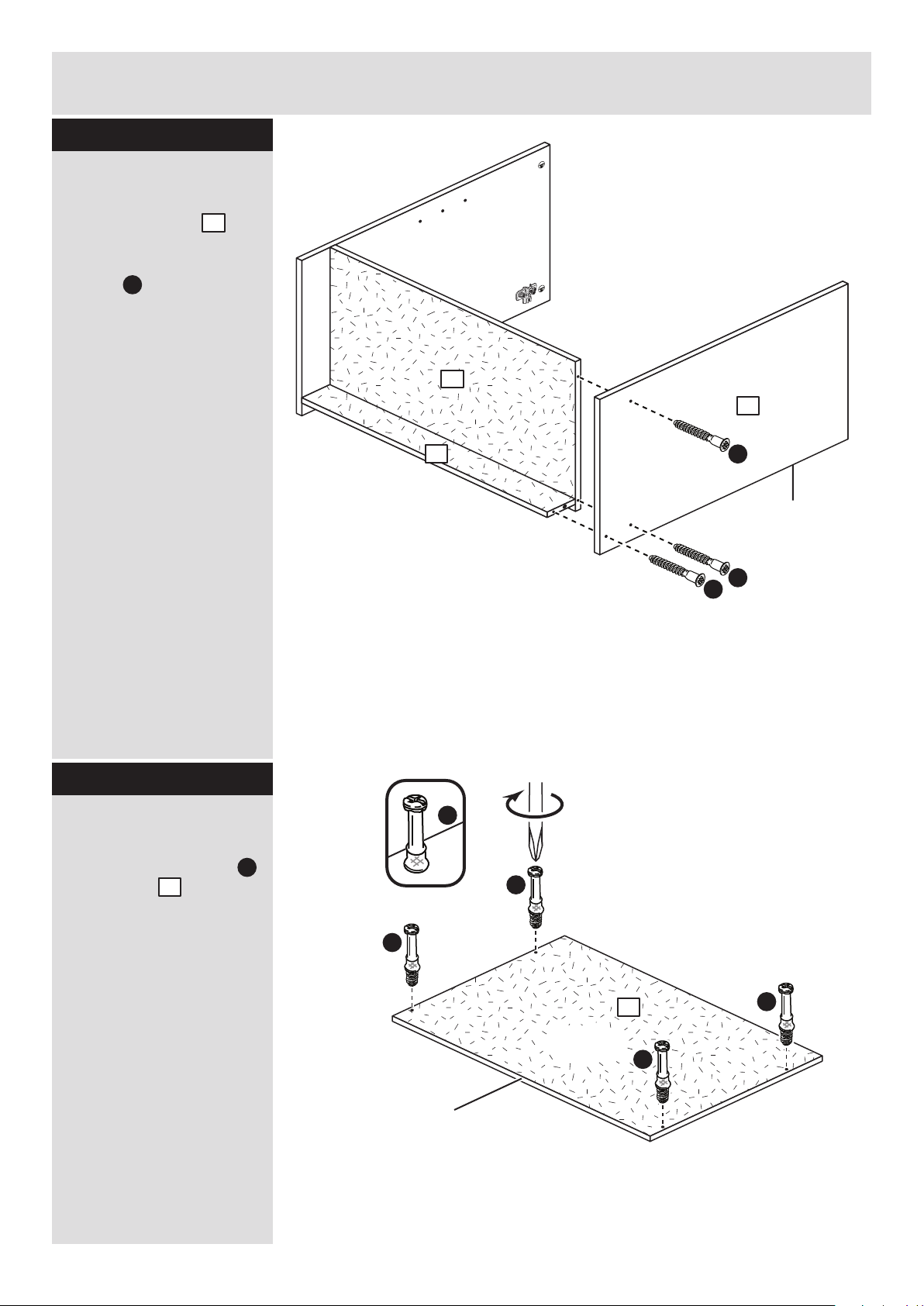

Step 6
6
G
G
G
1
4
Fit the left side
Push the left side onto the assembly as shown and secure with 3 screws .
1
G
Prepare the top
Screw 4 metal dowels into the top .
Note: Tighten metal dowels up fully against the panels.
B
B
3
B
B
B
B
Step 7
3
plain
chipboard
surface
Finished
front edge
Finished
front edge
Assembly Instructions
7
Step 9
E
B
Fit the top
Push the top onto the assembly.
Use a screwdriver to tighten the 4 large locking nuts fitted to the inside of the side panels and .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
3
E
1 2
E
y
x
b:
Fit the back
a: Square up the unit by
making sure that measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the sides and bottom edges of the back .
Note: Nails should be spaced about 150mm apart.
Stand the unit up for the next step.
8
D
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
8
2
1
y
x
D
Step 8
7
Assembly Instructions
8
Step 10
Step 11
Prepare the doors
Push fit 2 hinges into each of the doors .
Secure each hinge with 2 screws .
Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
I
K
7
K
I
I
90
K
K
I
I
x 2
5
Fit the shelf
Insert 4 shelf studs at the required height.
Lower the shelf down onto the shelf studs .
F
x 4
F
5
F
Assembly Instructions
9
Step 12
Small piece of
waste wood
Small piece of
waste wood
This will be
the left door
This will be
the right door
Drill the handle hole in the door
Important: Please follow these instructions carefully.
Lay the door down onto a smooth surface.
Important: Carefully choose which hole you need to drill.
Check that the holes and hinge plates are in the same place as the diagrams.
Note: We recommend the use of a small piece of waste wood, placed behind the hole while drilling, to reduce the possibility of any breakout.
Using the pilot hole in the rear face of the door, . drill through the hole indicated opposite, using a 2.5mm diameter drill.
Turn the door over and open out the 2.5mm hole that you have just drilled by drilling back through it with a 5mm drill.
Note: Drill bits are not provided.
7
7
7
IMPORTANT
Carefully choose which hole you will need to drill
7
ONLY drill
this hole
7
ONLY drill
this hole
DO NOT drill
this hole
DO NOT drill
this hole
Assembly Instructions
10
Step 13
K
K
K
J
J
J
K
J
C
H
7
7
a: b:
c: d:
J
K
J
J
B
J
K
K
K
A
K
J
B
e:
C
C
H
7
7
Fit doors and handles
Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges.
a: Push the hinge
onto the front part of the hinge plate . The recess at the bottom of screw B goes into the slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge plate as you slide it across as far as it will go. Tighten screw A.
c: The hinge must be
flat against the hinge plate prior to any adjustment.
d: The hinge must
NOT be AT AN ANGLE to the hinge plate when assembled. This would indicate that the recess at the bottom of screw B had not located in the slot in the hinge plate and the hinge would not be secure. Remove the hinge from the hinge plate and then re-assemble being careful to follow instructions a-c.
e: Attach a handle to
each door using screw .
