Long Drawer - White
Assembly Instructions - Please keep for future reference
1911215
Dimensions
Length - 186cm
Depth - 91cm
Height - 21.5cm
Weight - 15kg
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 1 - 15/05/14
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could
damage the unit. Only use hand
screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
If you have damaged or missing components,
Components - Parts
call the Customer Helpline: 0045 7668 8055
Please check you have all the parts listed below
Drawer side right x1
1
(89.8x17.0x1.5cm)
No. 15-01508981-20
Drawer front x1
4
(185.6x21.5x1.5cm)
No. 15-01518561-20
Drawer side left x1
2
(89.8x17.0x1.5cm)
No. 15-01508982-20
Base list x2
3
(88.2x6.5x1.5cm)
No. 12-01508821
Drawer back x1
5
(176.5x17.0x1.5cm)
No. 12-01517651-20
Drawer base x1
6
(177.6x89.2/44.6x0.3cm)
No. 4309-031776
2
Components - Fittings
Please check you have all the fi ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings
may be supplied than are required.
No. 3901-40040
A
4,0x40mm Chipboard screw x12
No. 3930-08030
D
8x30mm Dowel x4
G
Ø7x34mm Minifi x bolt x4
No. 3902-35015
B
3,5x15mm Chipboard screw x8
No. 3933-15010
E
Ø15x9,5mm Minifi x cam x4
No. 4003-002
H
Ø26x28,5mm Castor x4
No. 3903-40045
C
4,0x45mm Chipboard screw x2
No. 3940-000241
F
Ø15/Ø6x24mm Spacer x2
No. 4001-022-20No. 4020-005
I
Ø40x30mm Knob x2
Tools required
Phillips
screwdriver
(medium)
Flatblade
screwdriver
(medium)
3
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Assembly Instructions
Step 1
Attach dowels D to the
1
drawer sides
and 2.
It may be necessary
to tap the dowels in
very gently with small
hammer.
G
4
.
to the
to
Attach minifi x bolts
the drawer front
Step 2
Attach knobs
drawer front
screws
A
I
4
with
.
G
D
1
D
D
2
G
4
A
G
Step 3
Attach the drawer sides
1
and 2 to the drawer
4
front
cams
with the minifi x
E
.
I
4
A
I
A
2
E
I
E
4
1
E
4
Assembly Instructions
Step 4
Push the drawer base 6
carefully into the grooves
1
of drawer sides
2
so that it is placed
into the groove on the
drawer front
and
2
4
.
Step 5
Attach the drawer back
5
to the drawer sides
1
and 2 with the
A
screws
.
6
4
1
A
2
5
A
Step 6
Turn the drawer so that
bottom side is up.
3
Attach base lists
the drawer front
to the drawer back
with screws
A
Attach the castors
the drawer sides
2
with screws B.
Follow the
measurements.
to
4
and
5
.
H
to
1
and
A
B
B
H
B
H
B
A
H
1
3
A
4
A
H
A
5
3
B
1
H
35 mm
A
H
2
B
H
5
Assembly Instructions
Step 7
Attach spacers F to the
front legs of your bed
C
with screws
Follow the
measurements.
.
F
1.
Assembly is complete.
C
If you need help or have damaged or missing parts,
E-mail: order@fl exa.dk
2.
F
9 mm
C
F
call the Customer Helpline: 0045 7668 8055
F
123 mm
Ref.no. 44-01200-20 A Stand: 150514 Page 7 (82-20084-20)
6
Classic white bunkbed frame - 190x90 cm
Assembly Instructions - Please keep for future reference
1914425
Dimensions
Length - 195cm
Depth - 96/102cm
Height - 146cm
Weight - 43kg
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 2 - 15/05/14
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2, 3 and 4.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could
damage the unit. Only use hand
screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
IMPORTANT, READ CAREFULLY -RETAIN FOR FUTURE REFERENCE.
ASSEMBLY:
Current legislation requires that the bunk bed must be fi tted with 4 safety-rails and a ladder or platform for
the upper bunk bed. The bunk bed meets the European EN 747-2012 standards for security and durability.
MATTRESS:
This bed is designed to use a mattress size 190 cm. long and 90 cm. wide. The total thickness must not
exceed 16,1 cm. The mattress top must not pass the marking on the ladder / the post for the safety-rail.
WARNING:
High beds and the upper bed of bunk beds are not suitable for children under six years due to the risk of
injury from falls. Do not use the bed if any structural part is broken or missing. Be aware that children can
strangle in items such as ropes, strings, cords, harnesses and belts attached to or hung on a bunk bed/high
bed.
WARNING:
Children can become trapped between the bed and the wall. To avoid risk of serious injury the distance
between the top safety barrier and the wall shall not exceed 75 mm. or shall be more than 230 mm.
MAINTENANCE INSTRUCTIONS:
All assembly fastenings should always be tightened properly and that care should be taken that no fi ttings
are loose.
CLEANING:
LACQUERED: Wooden, lacquered and painted as well as laminated surfaces should be wiped over with a
cloth and a mild soap.
OIL: Oiled surfaces can be cleaned with soapy water, e.g. brown soap. Wipe with a clean cloth. To maintain
the natural life in the furniture which is provided by the oil treatment, we recommend an oil aftercare of the
furniture 1-2 times a year. The colourless natural oil for maintenance of oil-treated furniture is available at
your local furniture store.
1
If you have damaged or missing components,
Components - Parts
call the Customer Helpline: 0045 7668 8055
Please check you have all the parts listed below
Slat x30
1
No. 12-01508971
(89.7x6.5x1.5cm)
List f.safety x2 (31.8x2.8x1.2cm)
2
No. 12-01203181-20
Tread (w.4 holes) x1
3
(35.0x6.5x2.0cm)
No. 12-02003503-20
End panel x4 (87.7x27.6x0.8cm)
4
No. 4301-0808771-20
Endrail x4
5
No. 12-02008771-20
(87.7x9.2x2.0cm)
Tread (w.3 holes) x1
6
(35.0x6.5x2.0cm)
No. 12-02003504-20
Endrail x 4
7
No. 12-02008772-20
(87.7x6.5x2.0cm)
Bedside x4
8
No. 1305-18673-20
(186.7x8.9x2.0cm)
2
Components - Parts
Please check you have all the parts listed below
Leg long x4 (82.6x4.3x4.3cm)
Leg short x4 (61.8x4.3x4.3cm)
9
No. 12-04306181-20
Safety rail 3/4 x2 (149.7x6.5x2.0cm)
10
No. 12-02014971-20
11
No. 12-04308262-20
Safety rail 1/1 x2 (186.7x6.5x2.0cm)
12
No. 12-02018673-20
Ladderside bunkbed x1 (114.8x8.9x2.0cm)
13
No. 12-02011481-20
3
Components - Fittings
Please check you have all the fi ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings
may be supplied than are required.
No. 3913-06090
A
M6x90mm Connecting bolt x8
No. 3930-10045
D
10x45mm Dowel x22
No. 3939-00012-20
G
ø12x10mm Cover cap wood x3
No. 3938-00007-2
K
ø7mm Cover cap x22
No. 3938-000081-2
L
ø8mm Cover cap x8
No. 3922-06014
B
M6 Ø10x14mm Barrel nut x8
No. 3901-40030
E
4,0x30mm Chipboard screw x68
No. 3938-00010-2
H
ø10mm Cover cap x10
No. 3901-45060
M
4,5x60mm Chipboard screw x3
No. 3901-45040
C
4,5x40mm Chipboard screw x4
No. 3909-63050
F
6,3x50mm Assembly screw x8
No. 3909-63090
J
6,3x90mm Assembly screw x41
No. 3934-10088
N
ø10x88mm Connecting double bolt x4
Tools required
Phillips
screwdriver
(medium)
Flatblade
screwdriver
(medium)
Allen key
4mm incl.
No. 4033-004
4
Small
hammer
Ruler/tape
measure
Assembly Instructions
Step 1
Insert dowels D to
8
bedsides
the safety rails
12
.
It may be necessary to
tap the dowel in very
gently with a small
hammer.
– and to all
10
and
D
12
x2
D
Repeat same procedure
8
10
and
and
for all bedsids
all safety rails
12
.
Step 2
Insert the connecting
double bolts N to all the
short legs
Twist /turn the bolt to
follow the hole ø6,8 mm
Counter sunk 5 mm
hole should face same
direction as bedside
drilling
9
10
x2
D
8
x4
N
N
Ø6,8 MM
bedside
drilling
Ø5 MM
N
9
Ø6,8 MM
5
Assembly Instructions
Step 3
Attach leg 11 to endrails
5
and 7 with 4 screws
J
using the allen key
9
Attach leg
5
and 7 with 4 screws
J
using the allen key
to endrails
Repeat same procedure
for both headboard and
footboard
Step 4
During assembly
of headboard and
footboard, you must
decide if the grooves in
the MDF panels, should
face in or out of the bed
5
J
7
J
11
J
9
5
7
5
4
4
Slide panel
endrail
5
between
and 7.
Attach legs
endrails
screws
9/11
to
5
and 7 with
J
using the allen
key
Repeat same procedure
for both headboard and
footboard
11
9
7
5
4
7
11
J
J
9
6
Assembly Instructions
Step 5
Attach bedside 8 and
8
push
12
B
A
11
B
12
and then
to the
to
and
both safety rails
bed fi rstly by placing the
dowels in holes in the legs.
Push barrel nuts
into the 2 small holes
in bedside
1 connecting bolt
through each leg
meet barrel nuts
then fasten with the allen
key.
Push 4 assembly screws
J
through legs 11 to meet
the safety rails
fasten with the allen key.
D
A
12
D
J
B
x2
B
J
A
11
8
B
Step 6
B
B
then
8
into
Attach bedside
to the bed fi rstly by
placing the dowels in
the holes in the legs.
Push 2 barrel nuts
the small holes in bedside
8
push 1 connecting bolt
A
through each leg 11 to
F
meet barrel nuts
fasten with the allen key.
Step 7
8
push
8
to the
B
9
B
and
A
to
Attach bedside
bed fi rstly by placing the
dowels in the holes in the
leg.
Push 2 barrel nuts
into the small holes
in bedsides
one connecting bolt
through each leg
meet barrel nuts
then fasten with the allen
key.
8
J
J
A
A
9
11
B
B
J
J
A
11
8
B
A
9
B
9
8
8
A
B
J
A
A
11
A
9
7
Assembly Instructions

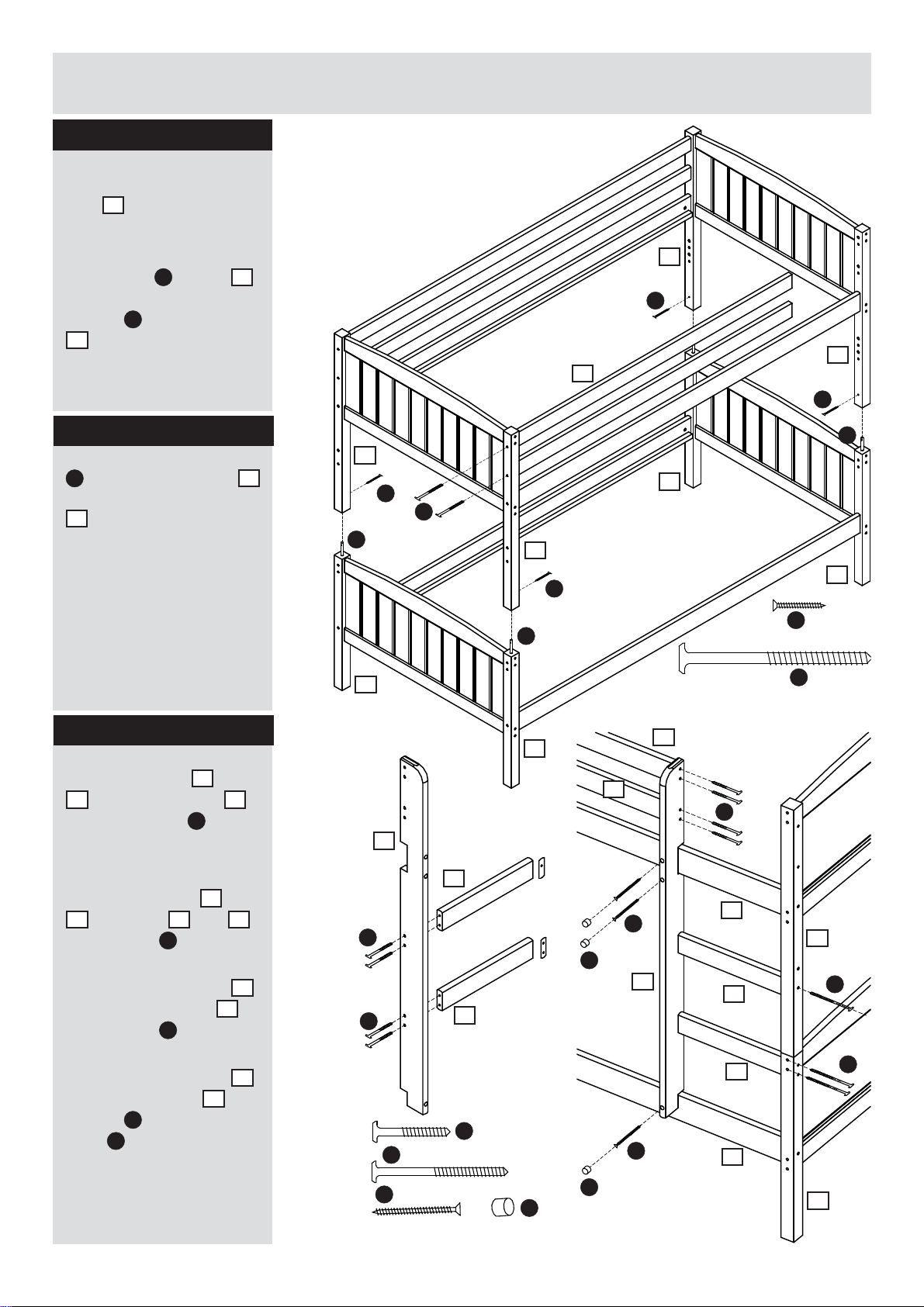

Step 8
Attach the 2 beds by
putting the one bed (with
11
legs
other bed.
Attach the connecting
double bolt
with the upper bed by
screws
11
) in top of the
N
in legs 9
C
through legs
10
x2
11
C
11
C
Step 9
Push 2 assembly screws
J
through the leg 11
to meet the safety rails
10
and then fasten
with the allen key.
Ladder can be
positioned
left or right !
Step 10
Attach the tread
6
to the ladderside 13
with the screws
Attach the treads
6
to the leg 9 and 11
with screws
Attach the ladderside 13
with the safety rails
with screws
3
and
F
3
and
J
10
F
N
11
C
J
N
9
13
F
F
3 holes
6
3
11
C
N
9
10
G
4 holes
9
9
C
J
10
F
M
13
8
11
6
J
Attach the ladderside 13
with the bedsides
M
screws
caps
. Insert cover
G
in the holes.
8
8
with
3
F
J
M
G
G
M
8
J
9
Assembly Instructions

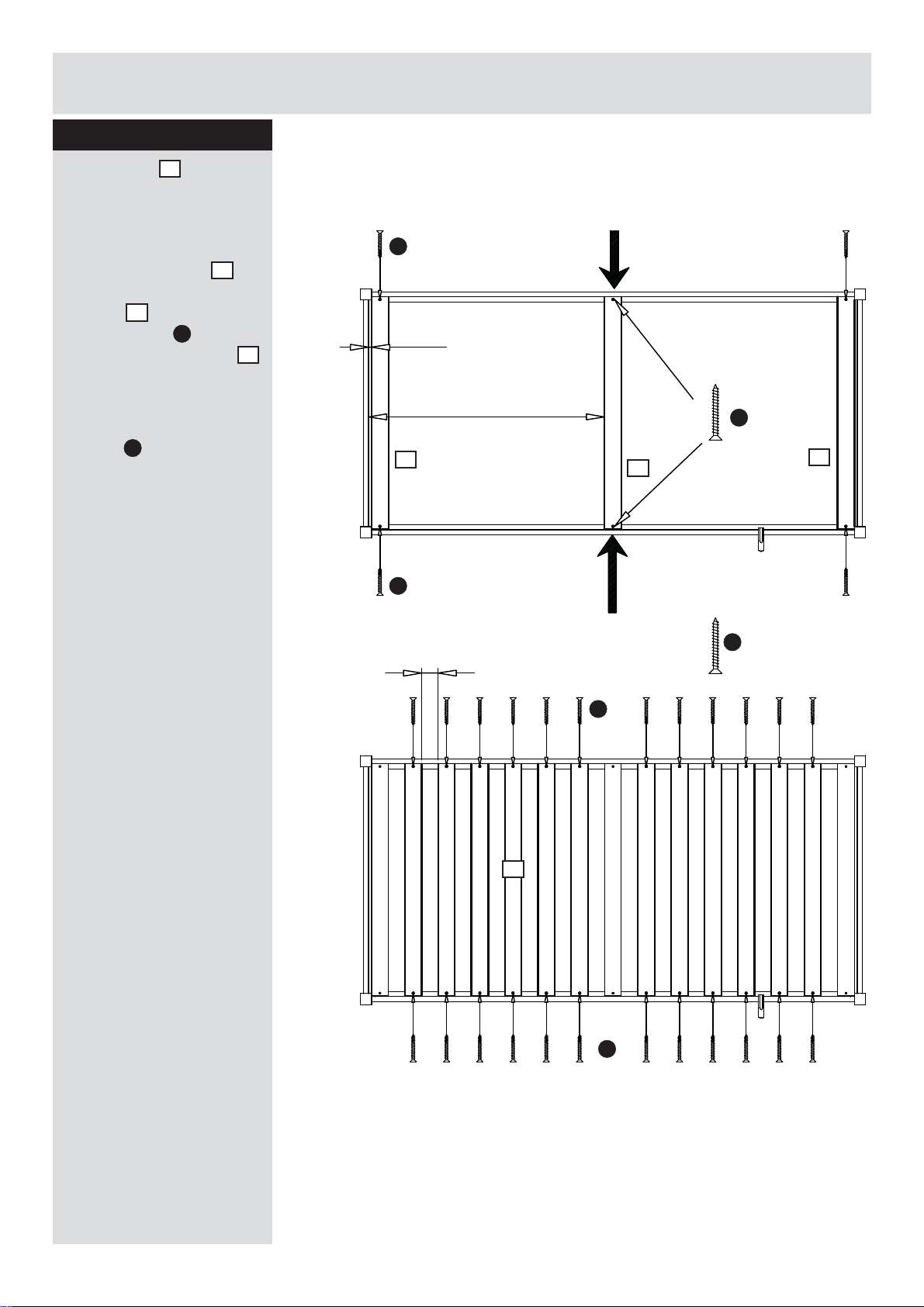

Step 11
Place 1 slat 1 (No.8)
in the bed, follow the
measurement.
E
8
Push the bedsides
together when attaching
1
the slat
with 2 screws
the remaining 14 slats
in the bed with a distance
of 64 mm between each.
Fasten each slat with 2 x
screws
to the bed
E
E
Position
1
12 mm
1
912,5 mm
PUSH
1
E
1
E
PUSH
64 mm
E
1
E
E
9
Assembly Instructions
Step 12
Attach the safety list
2
inside the bed, on the
10
front safety rails
.
Should be in the center
of the front guards
between the slats.
Attach it
rails
with chipboard screws
2
to the safety
10
and bedside 8
E
Follow the measurement.
Attach the safety list
2
on the outside of the
bed, on the back safety
12
rails
. Should be in
the center of the back
guards.
Attach it
rails
with chipboard screws
2
to the safety
12
and bedside 8
E
Max mattress height !
2
10
10
E
12
12
2
8
E
Follow the measurement.
Max. mattress height !
Assembly is complete.
E
E
2
10
71 mm
10
71 mm
8 8
12
12
E
2
10

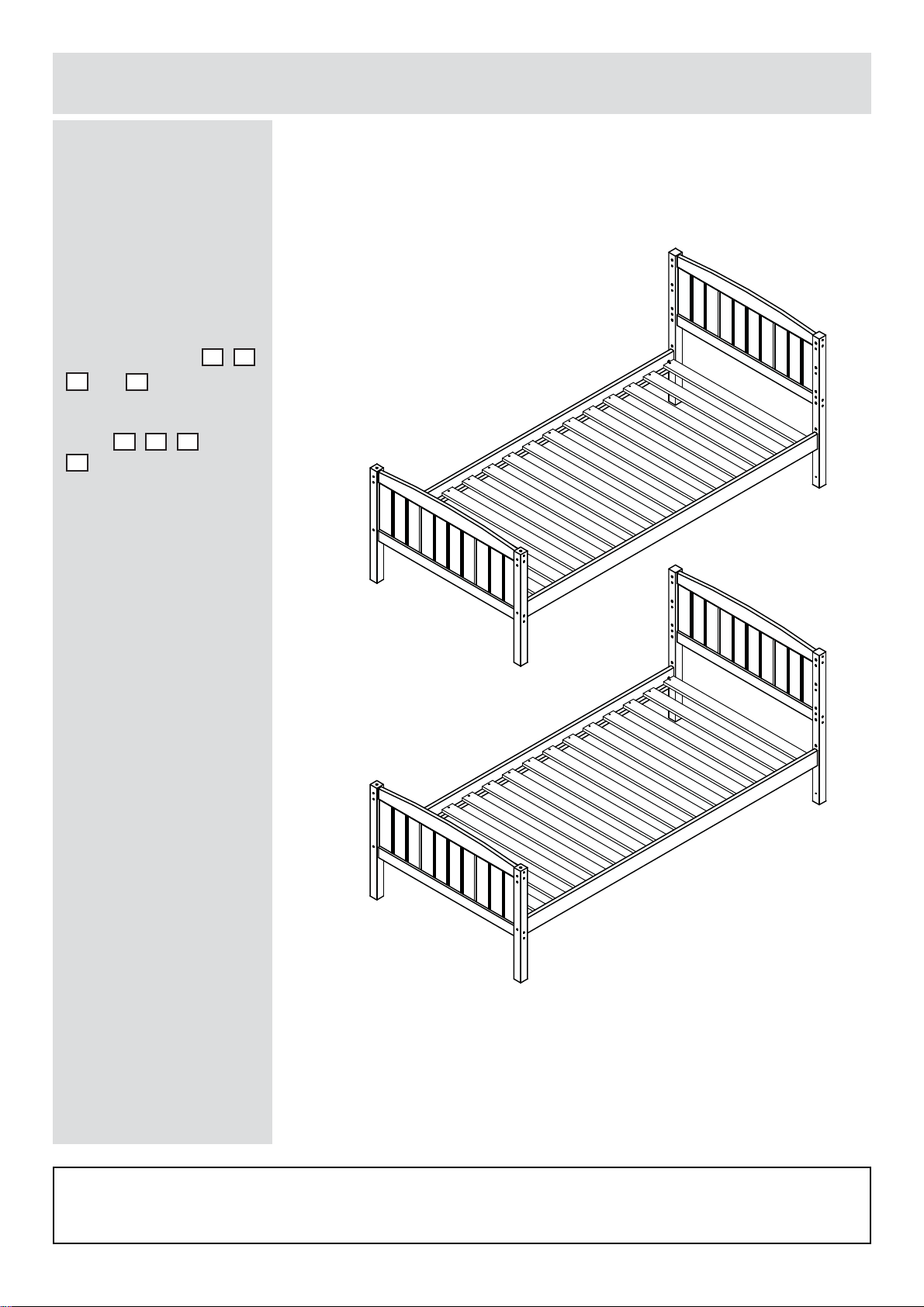

Assembly Instructions
Bunkbed as 2 single beds
Note: To acheive the
single bed look shown
on the picture, one
end of the upper bunk
4, 5
(assembled parts
7
and 11) should be
swapped over with the
lower bunk (assembled
parts
9
).
4, 5, 7
and
If you need help or have damaged or missing parts,
E-mail: order@fl exa.dk
Ref.no. 44-01115-20 A Stand: 150514 Page 12 (80-10403-20)
call the Customer Helpline: 0045 7668 8055
11
Loading...
