Arecont Vision AV12565DN, AV12566DN, AV12585DN, AV12586DN, AV20565DN Specsheet

MegaIP

™

SurroundVideo® G5 Mini IP Megapixel Cameras

12 or 20 Megapixel (MP) H.264 All-in-One 180° or 360° Panoramic True Day/Night Indoor/Outdoor Dome IP Cameras
with SNAPstream™ (Smart Noise Adaptation and Processing) and Enhanced WDR™ (Wide Dynamic Range) Models

180° Panoramic

360° Panoramic

The SurroundVideo® G5 Mini is an all-in-one total PoE panoramic IP camera
solution available in 12-megapixel (12MP) or 20MP resolutions for both 180°-view
or 360°-view congurations. A SurroundVideo camera can replace multiple xed or
PTZ cameras by recording the entire panoramic eld of view with the ability to zoom
into multiple regions of interest for a return on investment that’s easily measured.

Featuring an installer-friendly dome housing and a size roughly 50% smaller than
previous SurroundVideo models, the SurroundVideo G5 Mini delivers excellent
versatility for installation. Additionally, the SurroundVideo G5 Mini has improved
performance with faster frame rates than ever before.

Regardless of time-of-day, this camera is ideal for applications with challenging
lighting conditions. The series combines a day/night mechanical IR cut lter for the
highest image quality at any time of day. For applications with bright or over saturated

™

lighting conditions, optional Enhanced WDR

wide dynamic range delivers up to
100dB at full resolution and is available on select 12MP models. For applications
with poor low lighting conditions, Binning Mode increases the camera’s low light
performance by combining pixels so that more light can be collected.

180° Panoramic 360° Panoramic

SNAPstream

Technology

™

Wide Dynamic Range

on Select 12MP Models

™

True Day/Night

with IR Cut Filter

Series Features

•

12MP and 20MP Models

•

Forensic Zooming – Zoom Live or After the Event While Recording Full
Field-of-View in HD – Replace PTZ Devices

•

SNAPstream™ Capability to Reduce Bandwidth without Impacting Image
Quality

•

Enhanced WDR™ up to 100dB at Full Resolution: See Clearly in Shaded and
Bright Light Conditions Simultaneously on Select 12MP Models

•

True Day/Night Functionality with Electromechanical IR Cut Filter

•

Binning Mode for Strong Low Light Performance

•

Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control,
Multi-Streaming, and Multicasting

SurroundVideo G5 Mini is designed for demanding environments. Subjected and
certied to rigorous dust and water tests, the IP66 rating, and its extended operating
temperature range make it ideal for outdoor applications. The IK-10 rated, rugged
dome housing is perfect for deterring vandals since it can withstand the equivalent
of 55 kg (120 lbs) of force.

™

SurroundVideo G5 Mini models feature SNAPstream

(Smart Noise Adaptation
and Processing) technology to reduce bandwidth without impacting image quality.
The camera offers advanced streaming capabilities and is designed on an efcient
H.264 encoding platform capable of delivering high quality video without straining
the network. Power can be supplied via a single Power-over-Ethernet compliant
network cable or with power from a 18–48V DC/24V AC power supply.

The camera's interface allows for an intuitive, fast, and easy conguration; while

™

the free AV IP Utility

tool allows users to quickly congure multiple cameras at one
time. SurroundVideo G5 Mini is ONVIF Prole S (Open Network Video Interface
Forum) compliant, providing interoperability between network video products
regardless of manufacturer.

Pixel Binning Mode Enhanced WDR

•

Dual Encoder H.264/MJPEG

•

Network Protocols Include 802.1x, IPv4, DHCP, and More

•

PoE and Auxiliary Power: 18–48V DC/24V AC

•

Easily Adjustable 2-Axis Camera Gimbal with 360° Pan and 90° Tilt

•

+/- 5° Electrical Vertical Alignment to Locate Each Sensor Position

Installer Friendly

Impact / Weather

Resistant IK-10

and IP66 Rated

All-in-One PoE

and Integrated Lenses

Dual Encoder
H.264/MJPEG

(180° Series)

•

+/- 7° Mechanical Tilt Adjustment to Locate Each Sensor Angle
(360° Series)

•

Outdoor Rated IP66 and IK-10 Impact-Resistant Housing

Made in the USA

+1.818.937.0700 | www.arecontvision.com | [e-mail]

SurroundVideo® G5 Mini IP Megapixel Cameras Specications

Camera Imaging Specications

Model AV12585DN AV12565DN AV12586DN AV12566DN AV20585DN AV20565DN

Image Sensor (CMOS) 12MP (4 x 3MP) 12MP (4 x 3MP) 12MP (4 x 3MP) 12MP (4 x 3MP) 20MP (4 x 5MP) 20MP (4 x 5MP)

H-FOV 180° 360° 180° 360° 180 ° 360°

Optical Format 1/3" Progre ssive Sc an 1/3" Progre ssive Sc an 1/3.2" Progressive Scan 1/3.2" Progressive Scan 1/2. 5" CM OS 1/2. 5" CM OS

Pixel Pitch 2.2μm 2.2μm 2.2μm 2.2μm 2.2μm 2.2μm

Minimum
Illumination

Full FOV
Resolution

1/4 Resolution

Dynamic Range 69.5dB 69.5dB

Frame Rates*

Lens (x4)

Color (Day Mode) 0.2 Lux 0.2 Lux 0.2 Lux 0 .1 L ux 0.3 Lux 0.3 Lux

Color Binning
(Day Mode)

B/W (Night Mode) 0.02 Lux 0.02 Lux 0.02 Lux 0.02 Lux 0.03 Lux 0.03 Lux

Total 8192 H x 153 6 V 8192 H x 1536 V 8192 H x 1536 V 8192 H x 1536 V 10240 H x 1920 V 10240 H x 1920 V

Per Sensor 2048 H x 1536 V 2048 H x 1536 V 2048 H x 1536 V 2048 H x 1536 V 2560 H x 1920 V 2560 H x 1920 V

Total 4096 H x 768 V 4096 H x 768 V 4096 H x 768 V 4096 H x 768 V 5120 H x 960 V 5120 H x 960 V

Per Sensor 1024 H x 768 V 1024 H x 768 V 1024 H x 768 V 1024 H x 768 V 1280 H x 960 V 1280 H x 9 60 V

Full Resolution 10 fps (8192 x 1536) 10fp s (8192 x 1536) 10f ps (8192 x 1536) 10fps (8192 x 1536) 7fps (10240 x 1920) 7fps (10240 x 1920 )

1/4 Resolution 14fps (4096 x 768) 14fps (40 96 x 768) 14 fp s (409 6 x 768) 14f ps (4096 x 768 ) 10fps (5120 x 960) 10fps (5120 x 960)

Binning Mode 29fps (5120 x 96 0) 2 9fps (5120 x 960 ) 14fps (5120 x 960) 14fps (5120 x 960) 24fps (5120 x 960) 24fp s (5120 x 960)

0.1 L ux 0.1 L ux 0.1 L ux 0.1 L ux 0.15 Lu x 0.1 5 L ux

5.4mm, M12, F2.0,
1/3. 2"

2.6mm, M12, F2.0,
1/2. 5"

Up to 100dB at Full

Resolution

5.4mm, M12, F2.0,
1/3. 2"

Up to 100dB at Full

Resolution

2.6mm, M12, F2.0,
1/2. 5"

70 .1d B 7 0 .1d B

6.7mm, M12, F2.0,
1/2. 5"

3.6mm, M12, F1.8,
1/2. 5"

Programmability

Low Light Performance Pixel Binning Mode

Programmable
Shutter Speed

Motion Detection Real-t ime, pri vacy mas k, 1024 detection zone s per se nsor

™

MoonLight

Flexible Cropping Resolution window ing down to 1x1 pi xel for JPEG a nd 2x2

Backlight Compensation Auto multi-matrix white balance

Flicker Control 5Hz–255Hz adjustable

Image Alignment +/-5° digital vertical alig nment to a djust images (180° m odels)

Wide Dynamic Range Auto switc h contr ol adjus tment b etwee n WDR and LDR

Efficiency SNAPstream

Sharpness Selectable enhancement level

Miscellaneous Programmable resolution, brightness, saturation, gamma, tint

Mode Extended exposure and proprietary noise cancellation

Controls motion blur

1ms–500ms

pixels fo r H.264

modes (WDR models)

™

(Smar t Noise Adapta tion and P roces sing)

Bit rate and bandwidth limitation control

Bandwi dth and s torage s avings by r unnin g at 1/4 resolut ion

Electronic pa n, tilt, zo om (PTZ)

Simultaneous delivery of full field-of-view and zoomed images

Data Transmission

Compression Type H.264 (MPEG-4, Part 10)/ Motion JPEG

21 levels of qu ality

Netw ork Protocols HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP

Network Interface 100Base-T Ethernet

Multi-Streaming 8 non-ide ntica l streams (2 per se nsor)

* Maximum with H.264 compression

2

Compliance

Industry Standard ONVIF Profile S conformant

Listings UL (CB)

FCC Compliance 47 CFR 15 Class A

Environmental Ro HS, RE ACH, WEEE

Markings (CE ) EN550 22 Class A, EN55 024, EN61000-3-2,

Mechanical IP66 (EN60529)

CoO Made in the USA

EN61000-3-3, EN60 950-1

Environmental

Protection Ratings IP66 water/dust protection rating

IK-10 impact-resistant polycarbonate dome

Operating Temperature -4 0°C (-40 °F) to +50 °C (122°F)

Humidity 0% to 90% (non-condensing)

Storage Temperature -4 0°C (-40 °F) to +6 0°C (140°F)

Electrical

Alarm Input/Output Gen eral purpose opto-c ouple d, 1 input / 1 o utput

Power Over Ethernet PoE 802.3af, Class 3

Auxiliary Power 18–48V DC and 24V AC

Power Consumption 12.1W max DC power

Mechanical

Casing Die-ca st aluminum cove r and 4" (102mm) polycarbo nate dom e bubble

IP66 wea ther proof standard

Impact resistant, IK-10 rated

Gimbal Eas ily adju stabl e, 2-axis w/360° pa n and 90 ° tilt

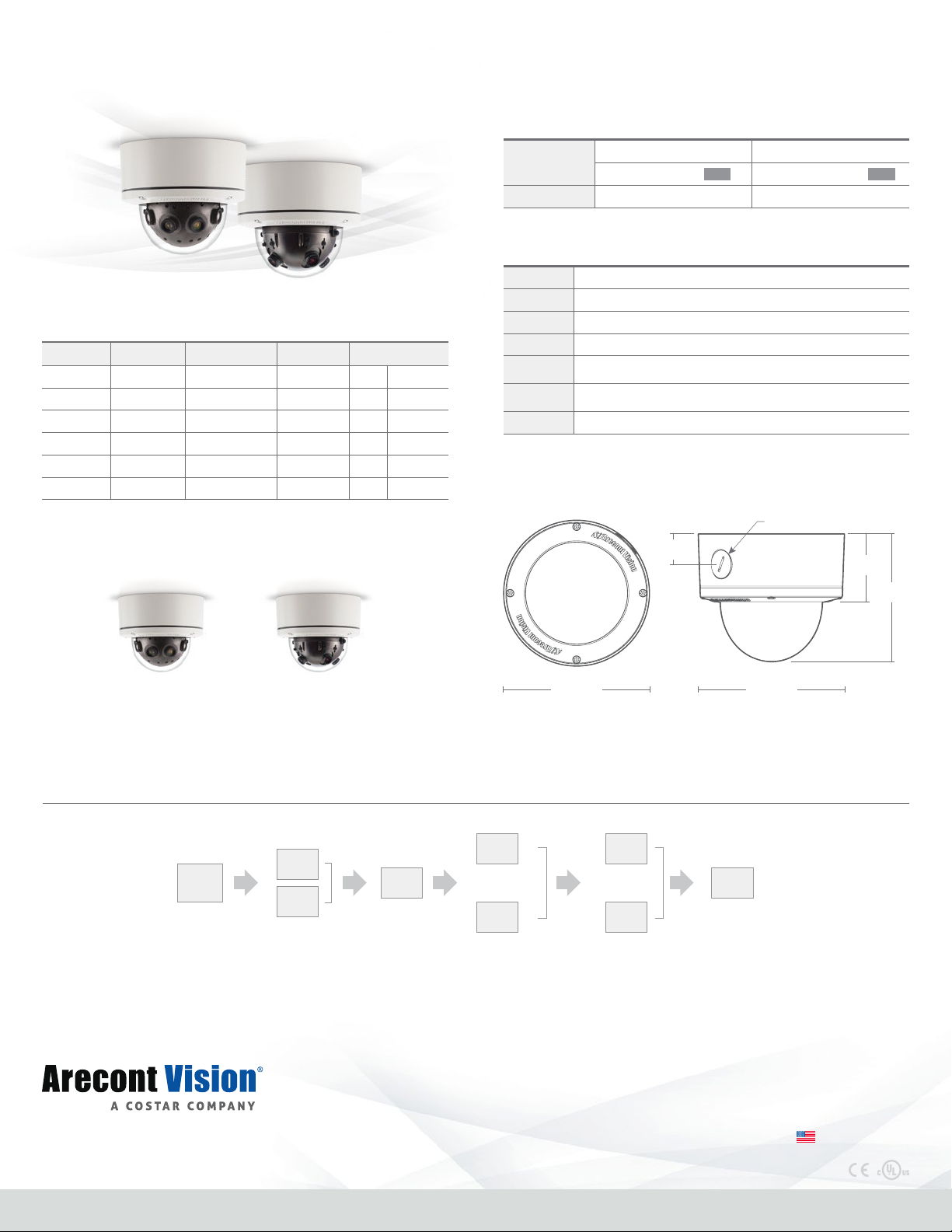

Dimensions

(See Dimensions
on Page 3)

Weight Unit 3.0lbs (1.36kg)

Unit Ø 5.77" (146.7mm) x 5" H (128mm)

Bubble Only Ø 4.0" (102mm) x 2.4" H (62m m)

Packaged 6.7" W (170mm) x 6.7" L (170mm) x 5.7" H (145mm)

Packaged 3.6lbs (1.63kg)
