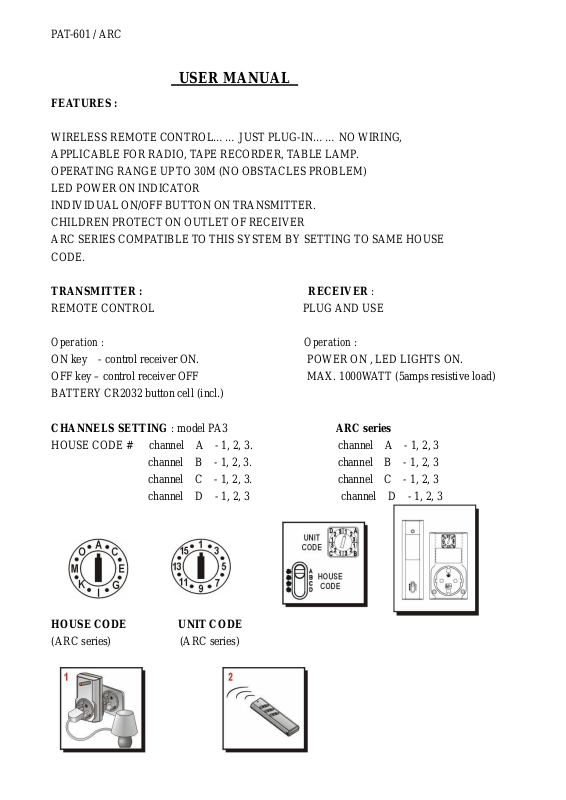

ARC Technology PAT 601 User Manual

PAT-601 / ARC

FEATURES :

WIRELESS REMOTE CONTROL…… JUST PLUG-IN…… NO WIRING,
APPLICABLE FOR RADIO, TAPE RECORDER, TABLE LAMP.
OPERATING RANGE UP TO 30M (NO OBSTACLES PROBLEM)
LED POWER ON INDICATOR
INDIVIDUAL ON/OFF BUTTON ON TRANSMITTER.
CHILDREN PROTECT ON OUTLET OF RECEIVER
ARC SERIES COMPATIBLE TO THIS SYSTEM BY SETTING TO SAME HOUSE
CODE.

TRANSMITTER : RECEIVER :
REMOTE CONTROL PLUG AND USE

Operation : Operation :

USER MANUAL

ON key - control receiver ON. POWER ON , LED LIGHTS ON.
OFF key – control receiver OFF MAX. 1000WATT (5amps resistive load)
BATTERY CR2032 button cell (incl.)

CHANNELS SETTING : model PA3 ARC series
HOUSE CODE # channel A - 1, 2, 3. channel A - 1, 2, 3
channel B - 1, 2, 3. channel B - 1, 2, 3
channel C - 1, 2, 3. channel C - 1, 2, 3
channel D - 1, 2, 3 channel D - 1, 2, 3

HOUSE CODE UNIT CODE
(ARC series) (ARC series)

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
