Approach Tech DVR-3704T User Manual
INSTALLATION &
OPERATION MANUAL
Digital Video Recorder
DVR-3704T
Before trying to connect or operate this product, please read this manual completely
SAFETY PRECAUTIONS
All the following safety and operation instructions for the prevention of harm or damage to the
operator or other persons should be read before the unit is operated.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
Do not block ventilation openings.
Do not place anything on top of the unit that might spill or fall into it.
Do not attempt to service this unit yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Please refer all servicing to qualified service personnel.
Do not use liquid cleaners or aerosols for cleaning.
This installation should be done by a qualified service person and should conform to all local
codes.
To prevent fire or electric shock, do not overload wall outlets or extension cords.
This unit must be grounded to reduce the risk of electric shock hazard.
CAUTION
HDD:
Please don’t use the hard disk(s) you have employed with a particular model of the DVR (in
recording and playing back data) with any other model of DVR, for you will lose the data you have
stored in the hard disk(s) if you do so. You are free to use the same hard disks between DVRs
belonging to a single model.
Danger of explosion if the Lithium battery (RTC Battery) is incorrectly replaced.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to
the manufacturer’s instructions.
Risk of explosion if replaced by an incorrect type. Dispose of used batteries according to the
instructions.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference with radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
1
Table Of Contents
1. PRODUCT FEATURES .................................................................................................. 4
1.1 PRODUCT INTRODUCTION...................................................................................................4
1.2 PRODUCT FEATURES .............................................................................................................4
2. DESCRIPTION OF THE FRONT/REAR VIEW............................................................... 6
2.1 FRONT VIEW.............................................................................................................................6
2.2 REAR VIEW ...............................................................................................................................9
2.3 ALARM In/Out .........................................................................................................................10
3. BASIC OPERATIONS .................................................................................................. 11
3.1 RECORDING OPERATIONS..................................................................................................11
..........................................................................................................................................11 3.1.1 Manual Recording
............................................................................................................................................11 3.1.2 Alarm Recording
.............................................................................................................................................12 3.1.3 Tim er Recording
3.2 PLAYBACK OPERATIONS......................................................................................................13
.....................................................................................................................................13 3.2.1 Fast Forward/Reverse
...........................................................................................................................13 3.2.2 Playback Picture-by-picture
3.3 BACKUP OPERATIONS .........................................................................................................14
3.4 KEY LOCK OPERATIONS ......................................................................................................15
3.5 TRIPLEX OPERATIONS .........................................................................................................15
4. SEARCH MODE........................................................................................................... 16
4.1 RECORD LIST.........................................................................................................................16
4.2 ALARM LIST............................................................................................................................16
4.3 TIME FILTER ..........................................................................................................................17
5. MENU MODE ............................................................................................................... 18
5.1 QUICK SETTING ....................................................................................................................19
5.2 DISPLAY OPTION...................................................................................................................20
5.3 SEQUENCE SETTING ............................................................................................................21
5.4 ADJUST PICTURE..................................................................................................................21
5.5 ADVANCED SETTING............................................................................................................22
......................................................................................................................................22 5.5.1 RECORD SETTING
........................................................................................................................................23 5.5.2 ALARM SETTING
......................................................................................................................................24 5.5.3 MOTION SETTING
..................................................................................................................................25 5.5.4 NETWORK SETTING
2
.................................................................................................................................26 5.5.5 SCHEDULE SETTING
5.6 DISK SETUP............................................................................................................................27
5.7 SYSTEM SETTING...................................................................................................................28
6. DISPLAY MODE........................................................................................................... 29
7. NETWORK VIEWER: INTRODUCTION....................................................................... 30

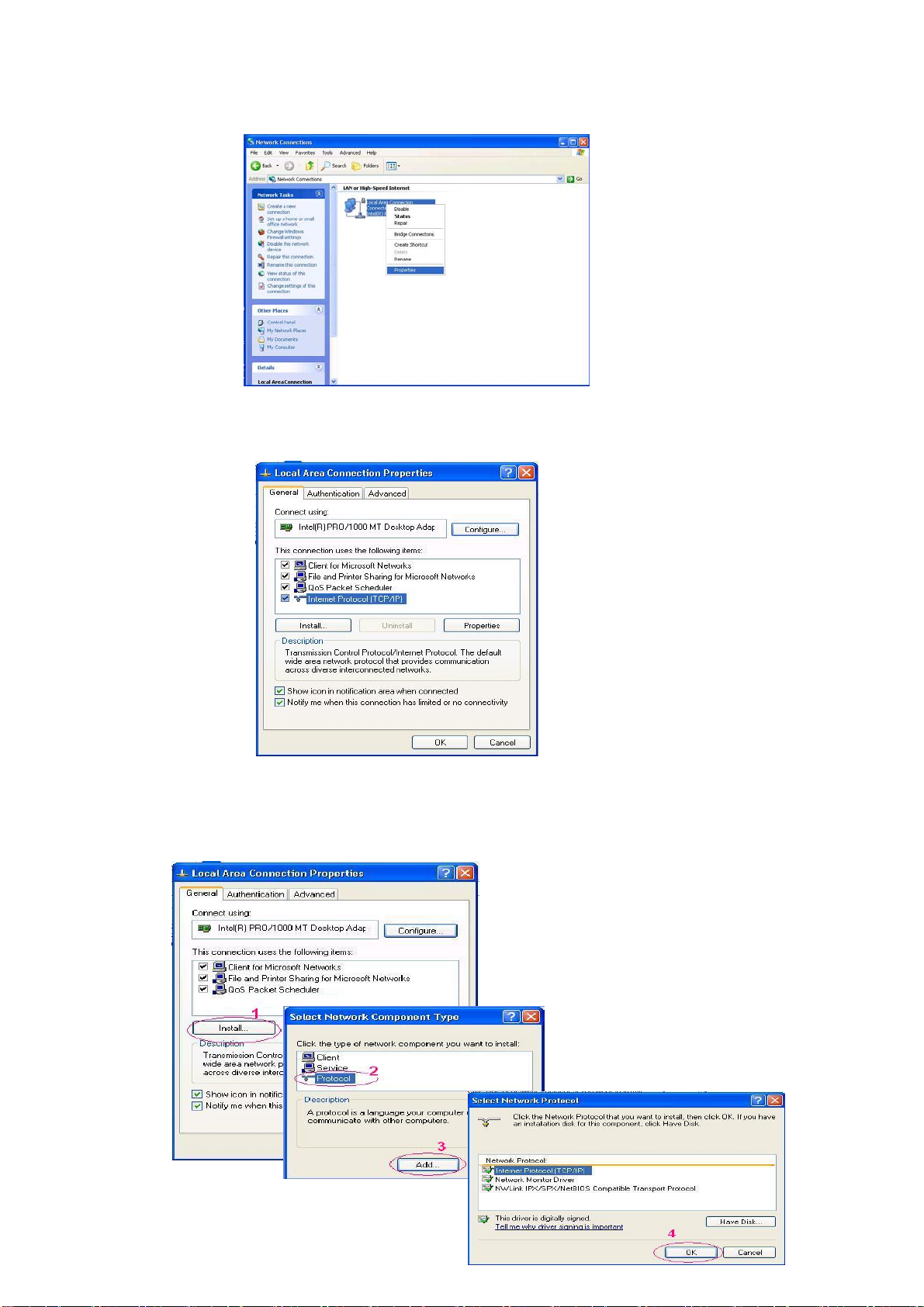

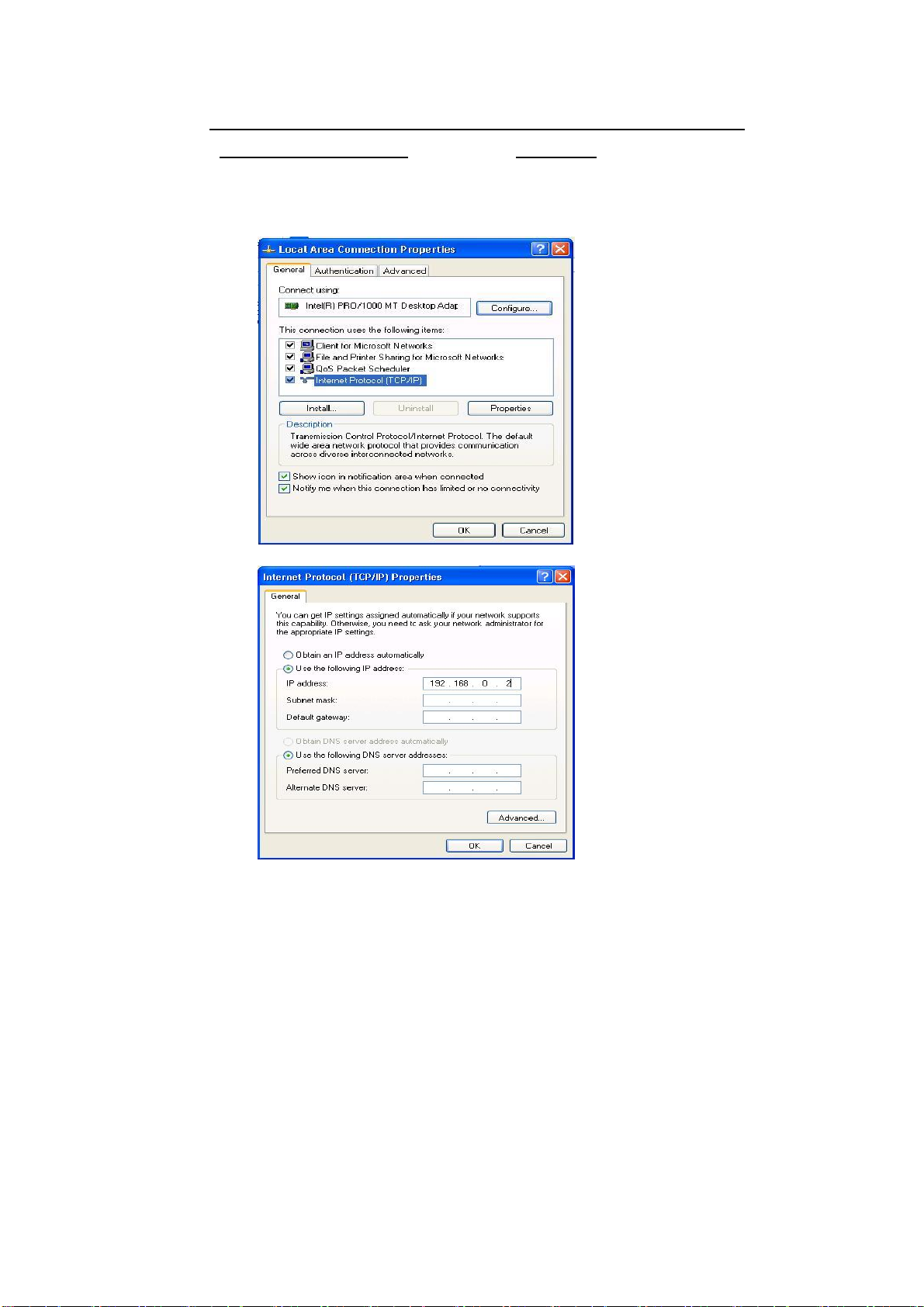

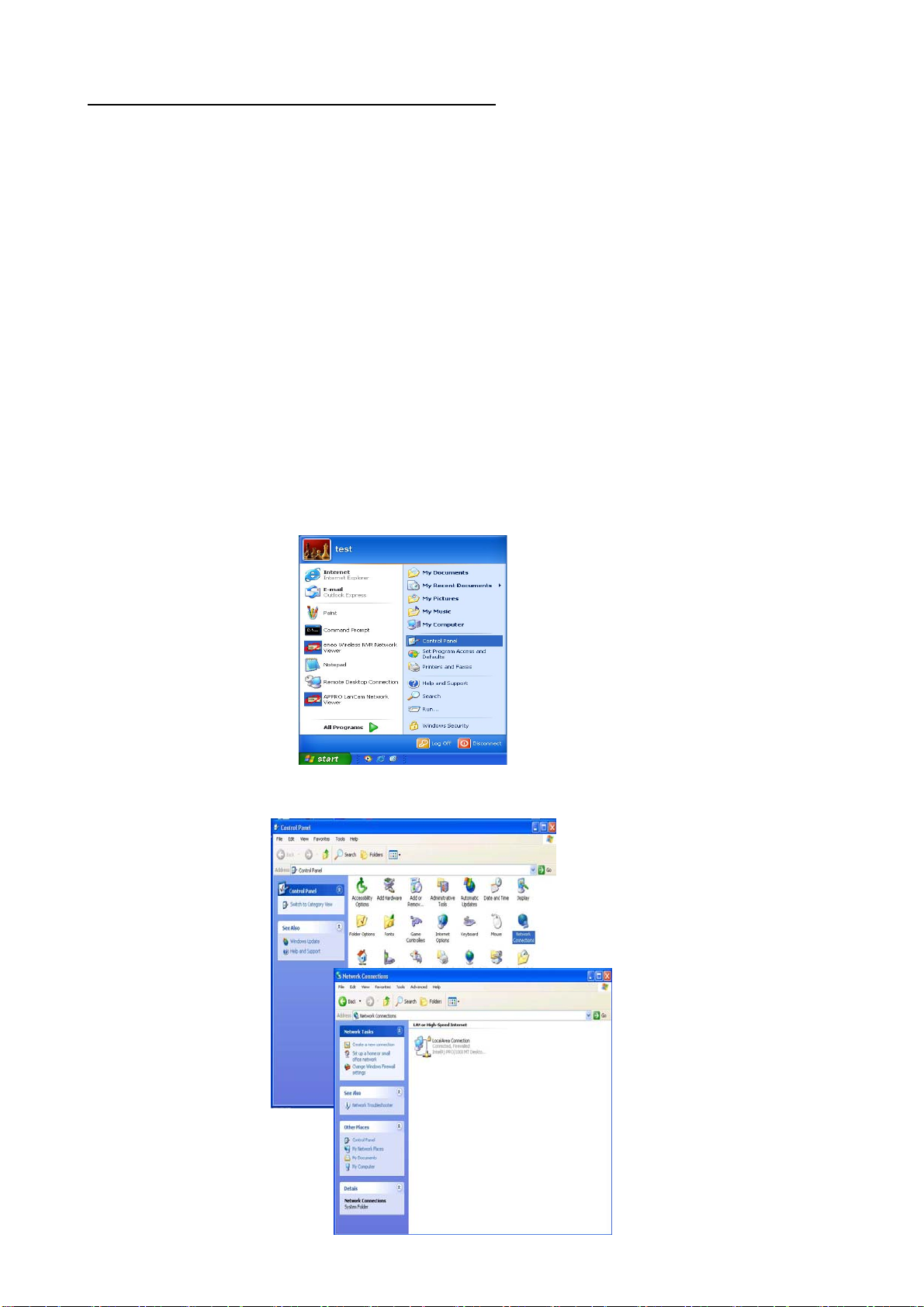

7.1 TCP/IP COMMUNICATION SETUP ......................................................................................30

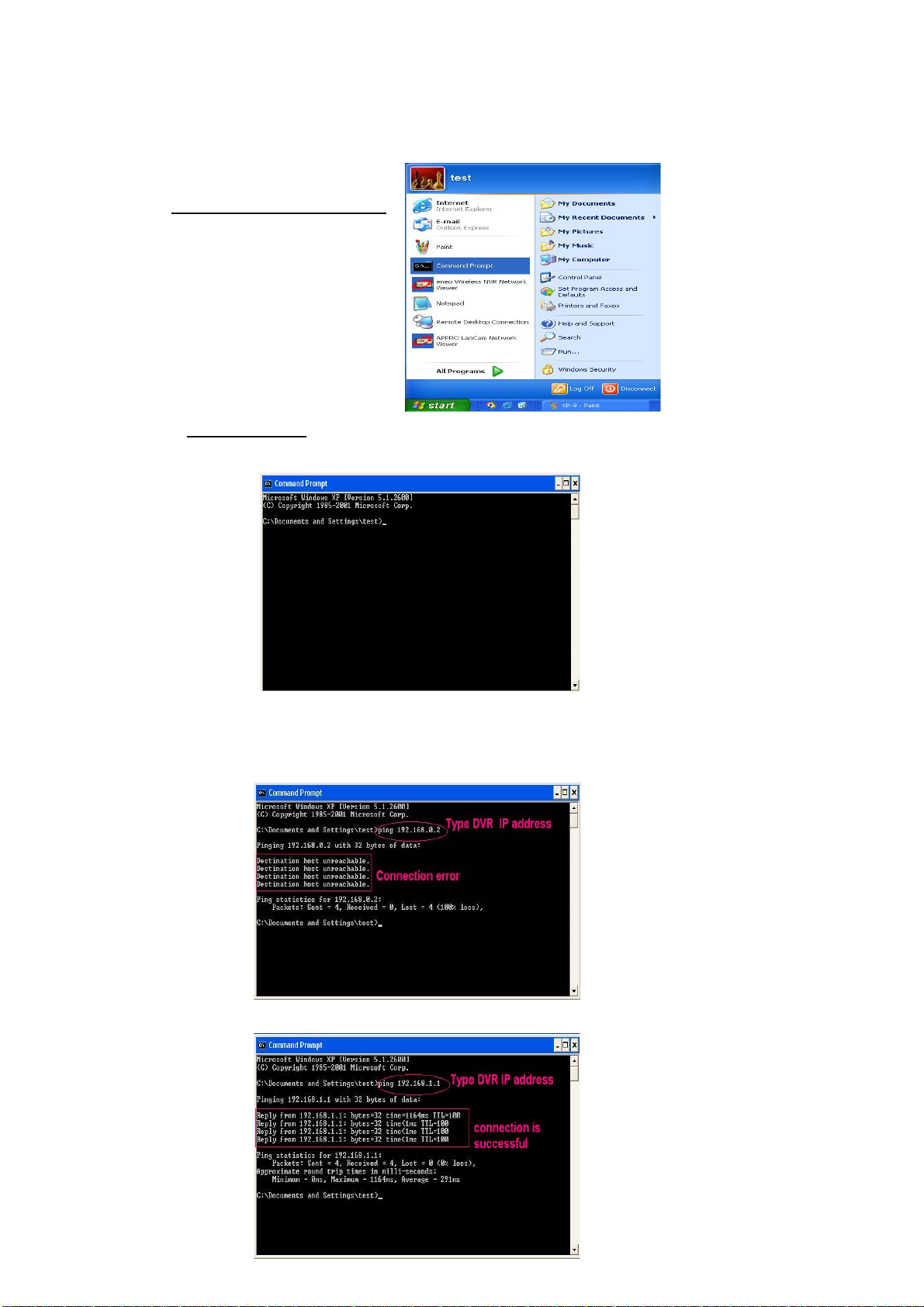

7.2 CONNECTION TESTING........................................................................................................33

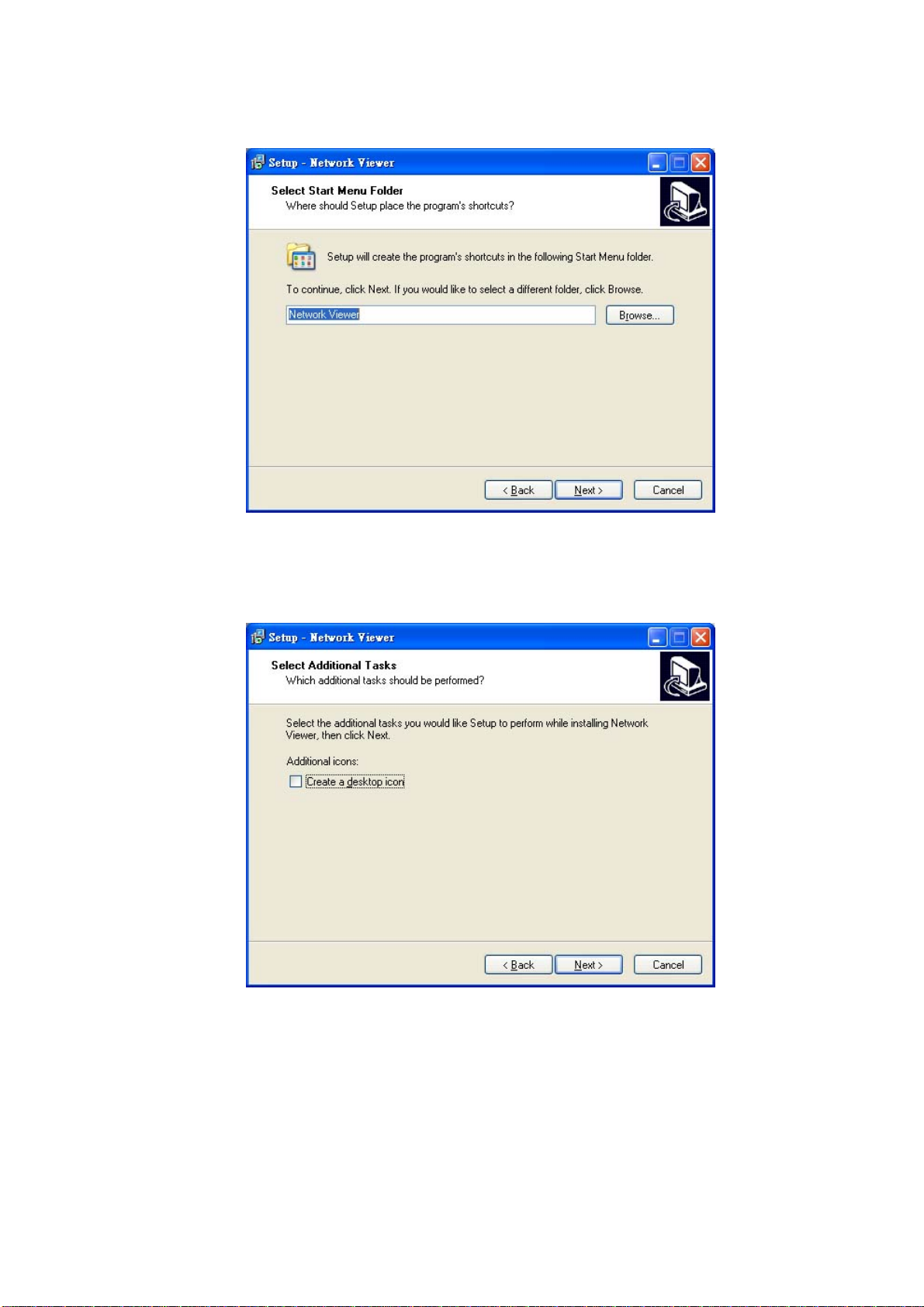

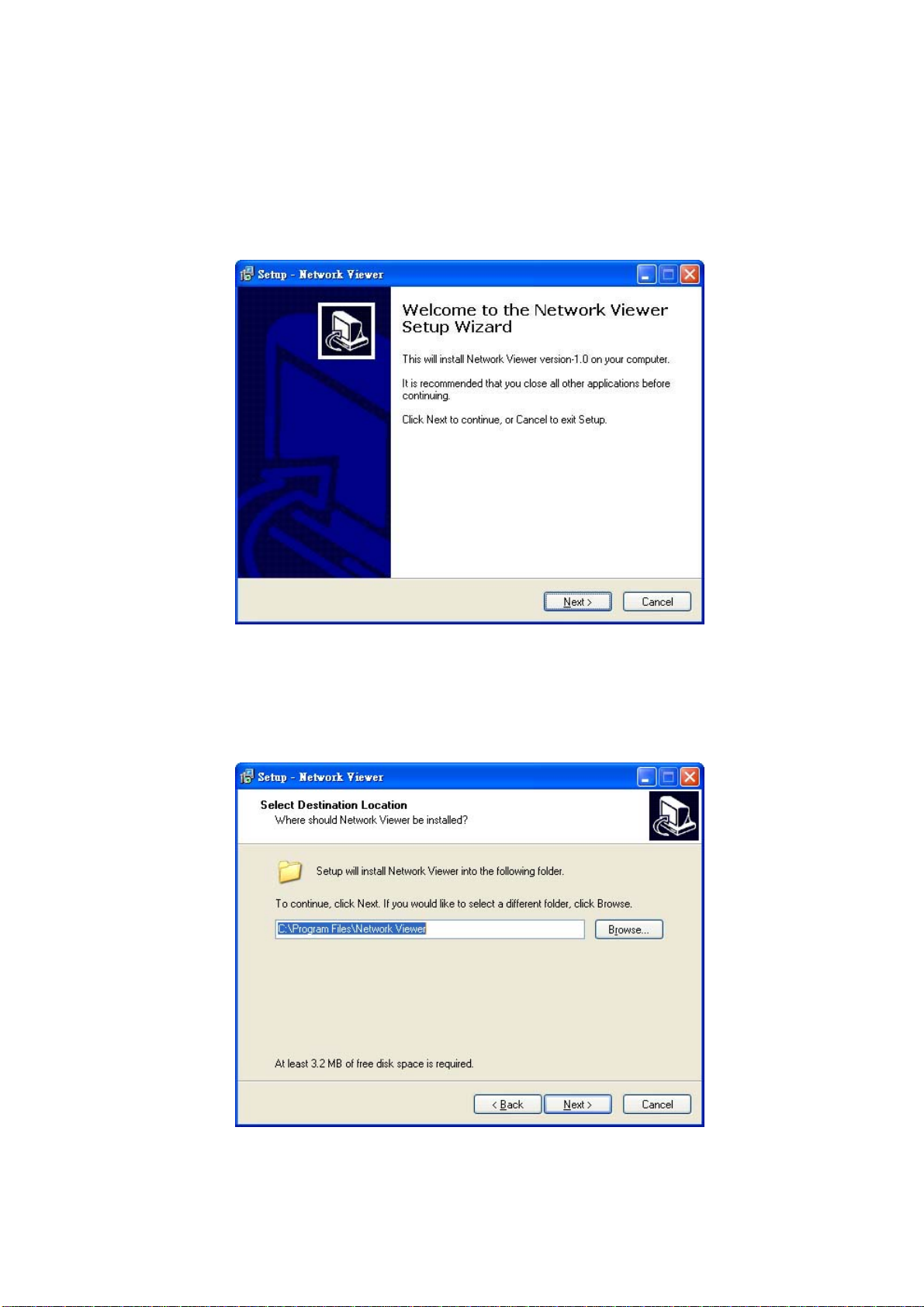

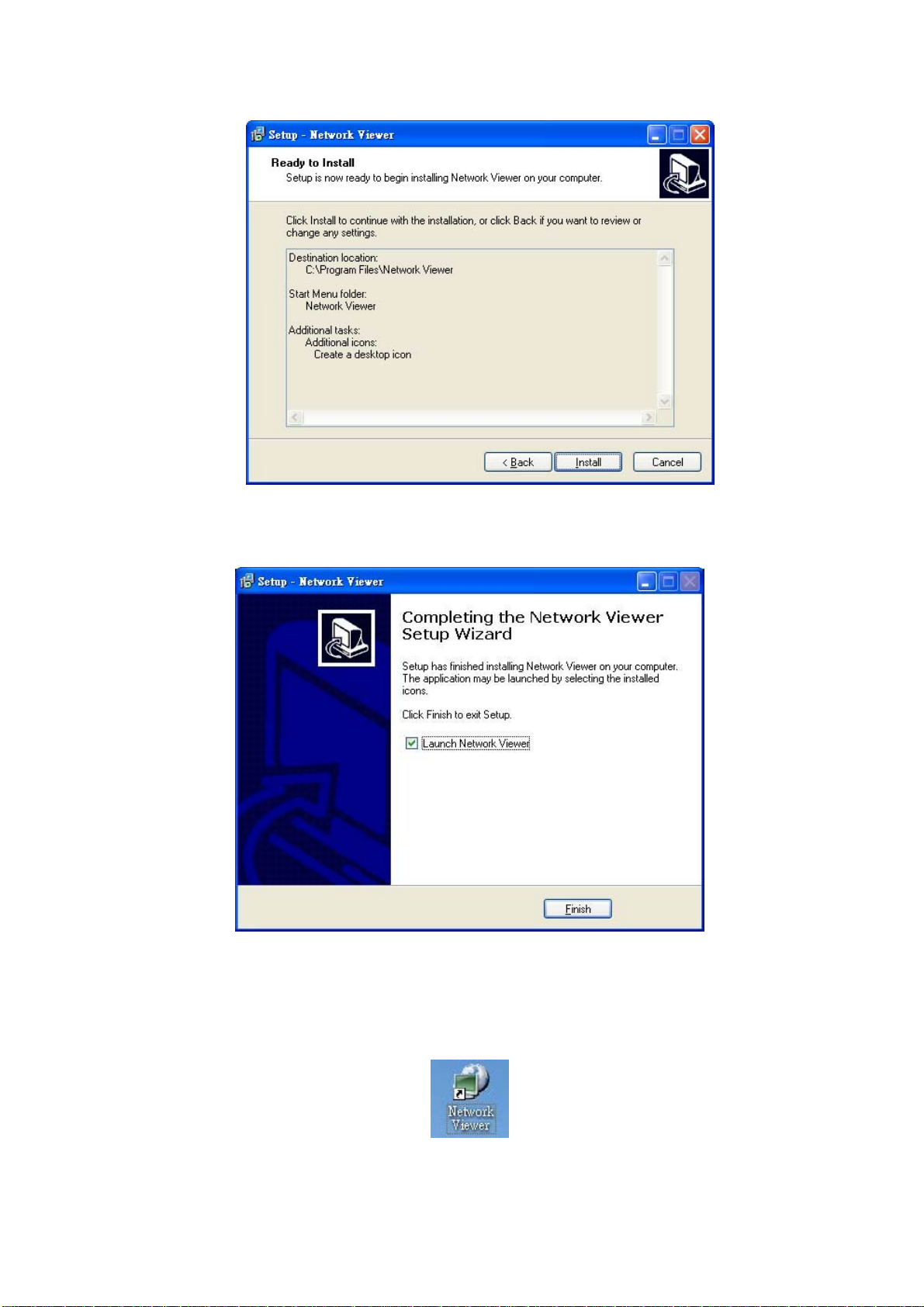

7.3 SOFTWARE INSTALLATION..................................................................................................34

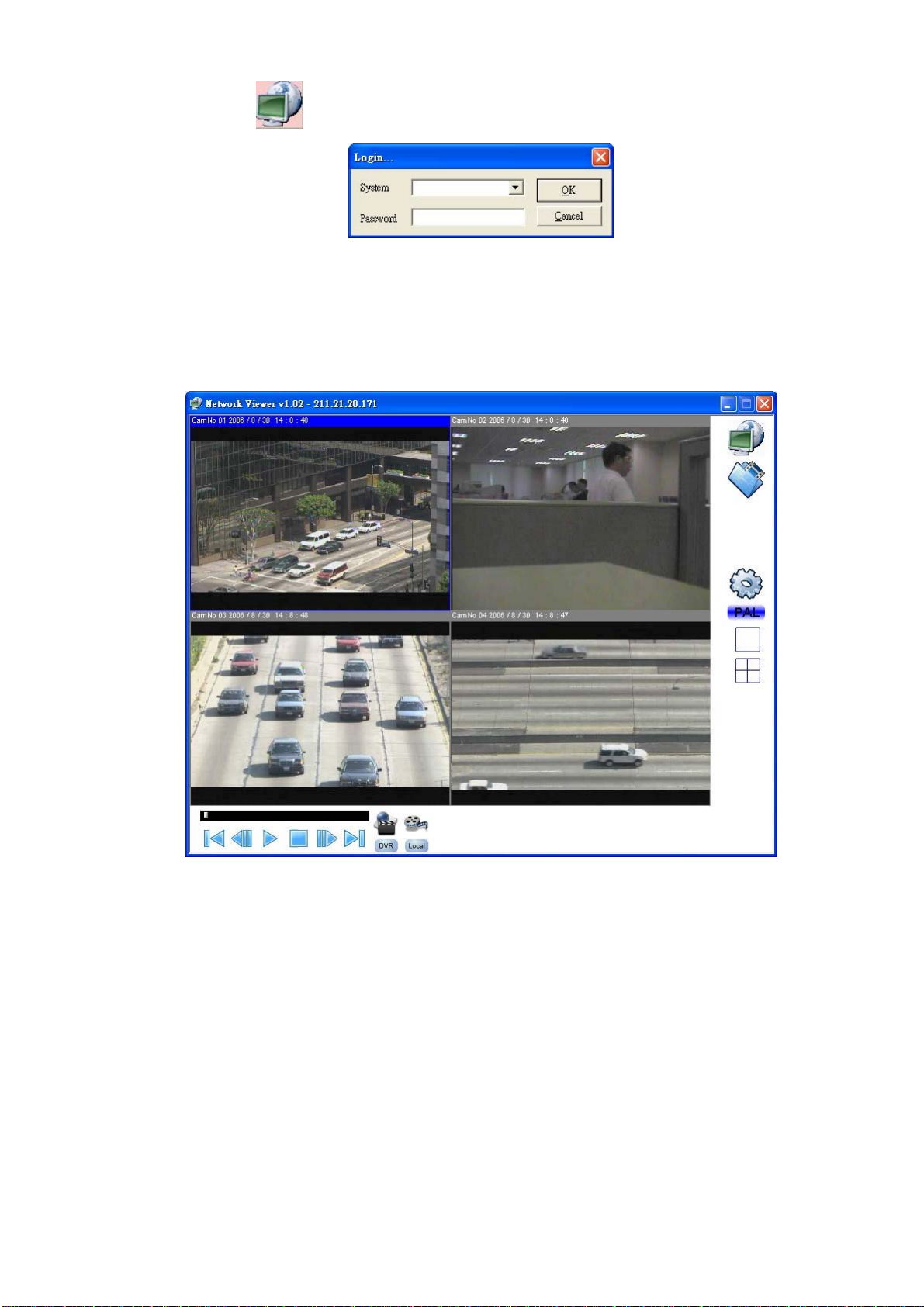

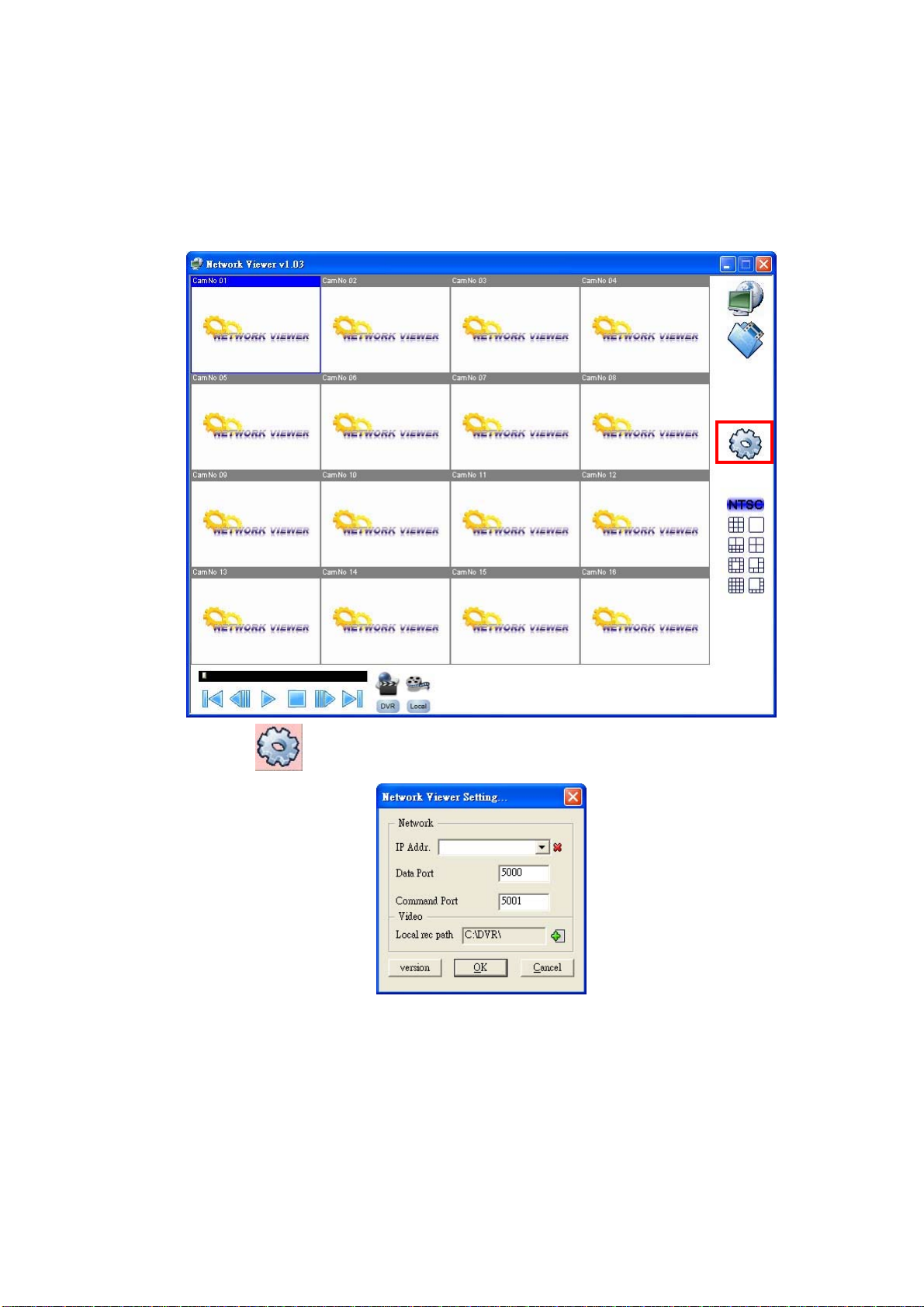

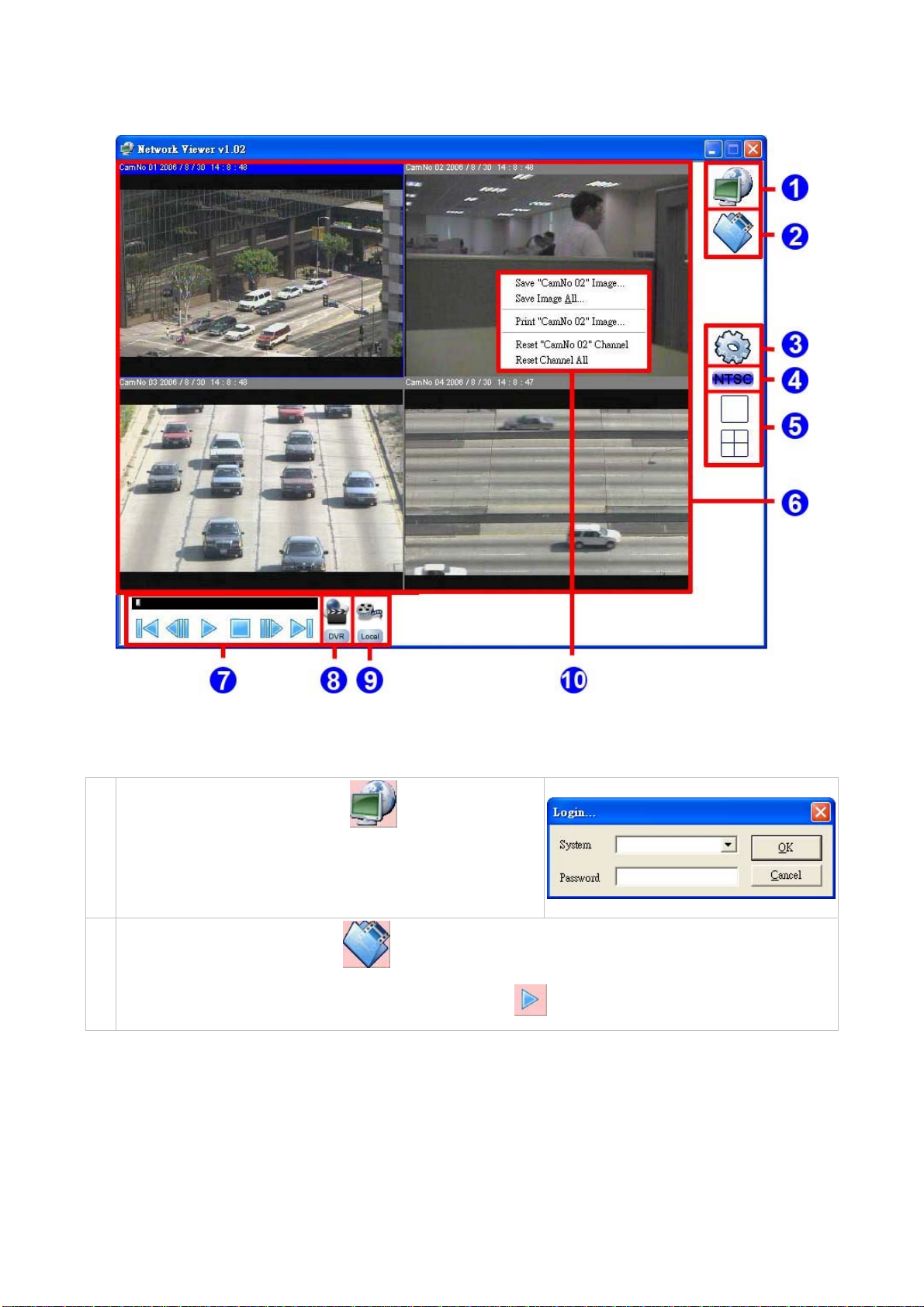

7.4 VIEW THE DVR VIDEO FROM A REMOTE PC....................................................................37

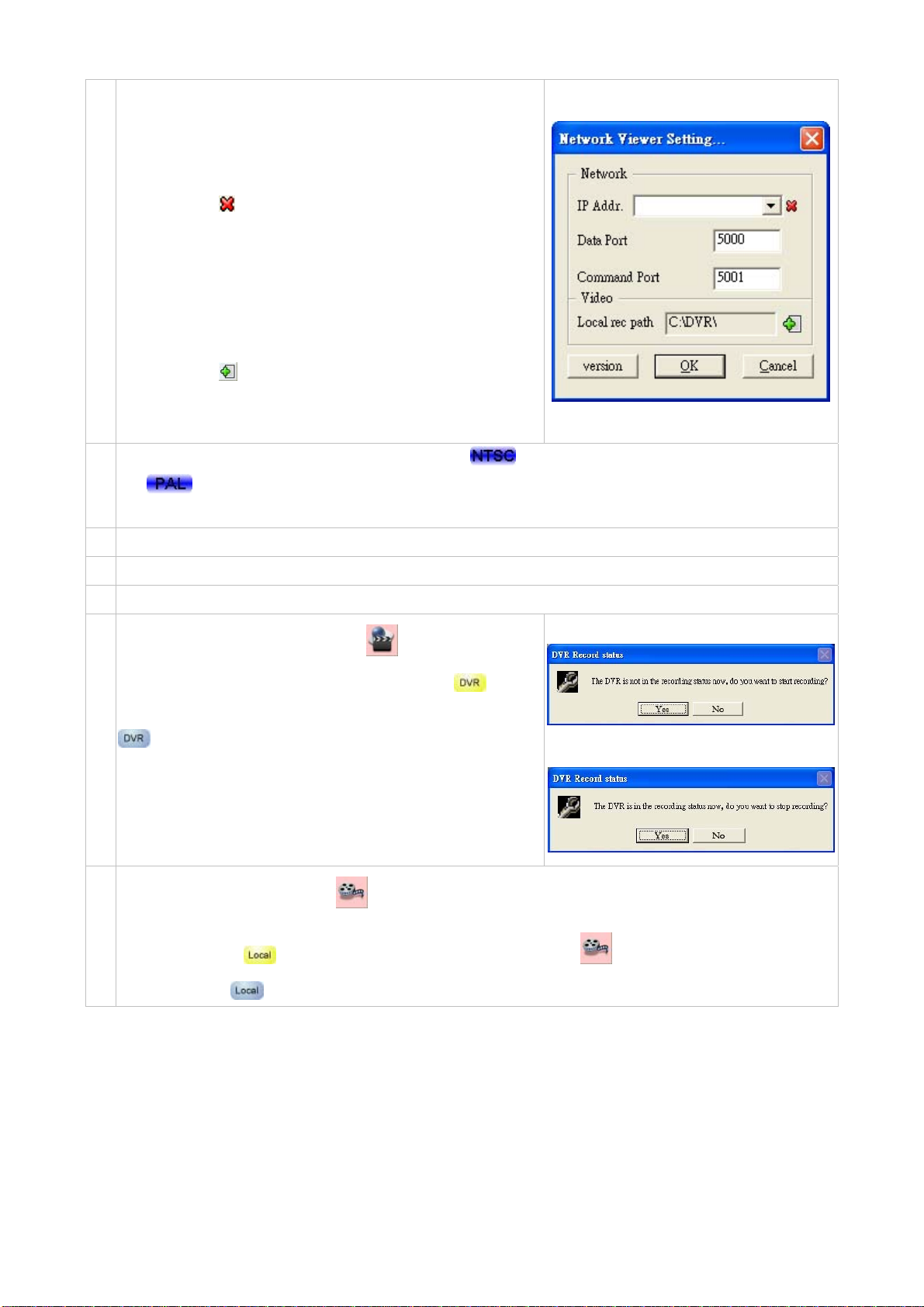

7.5 OPERATION............................................................................................................................39
8. SPECIFICATIONS ........................................................................................................ 42

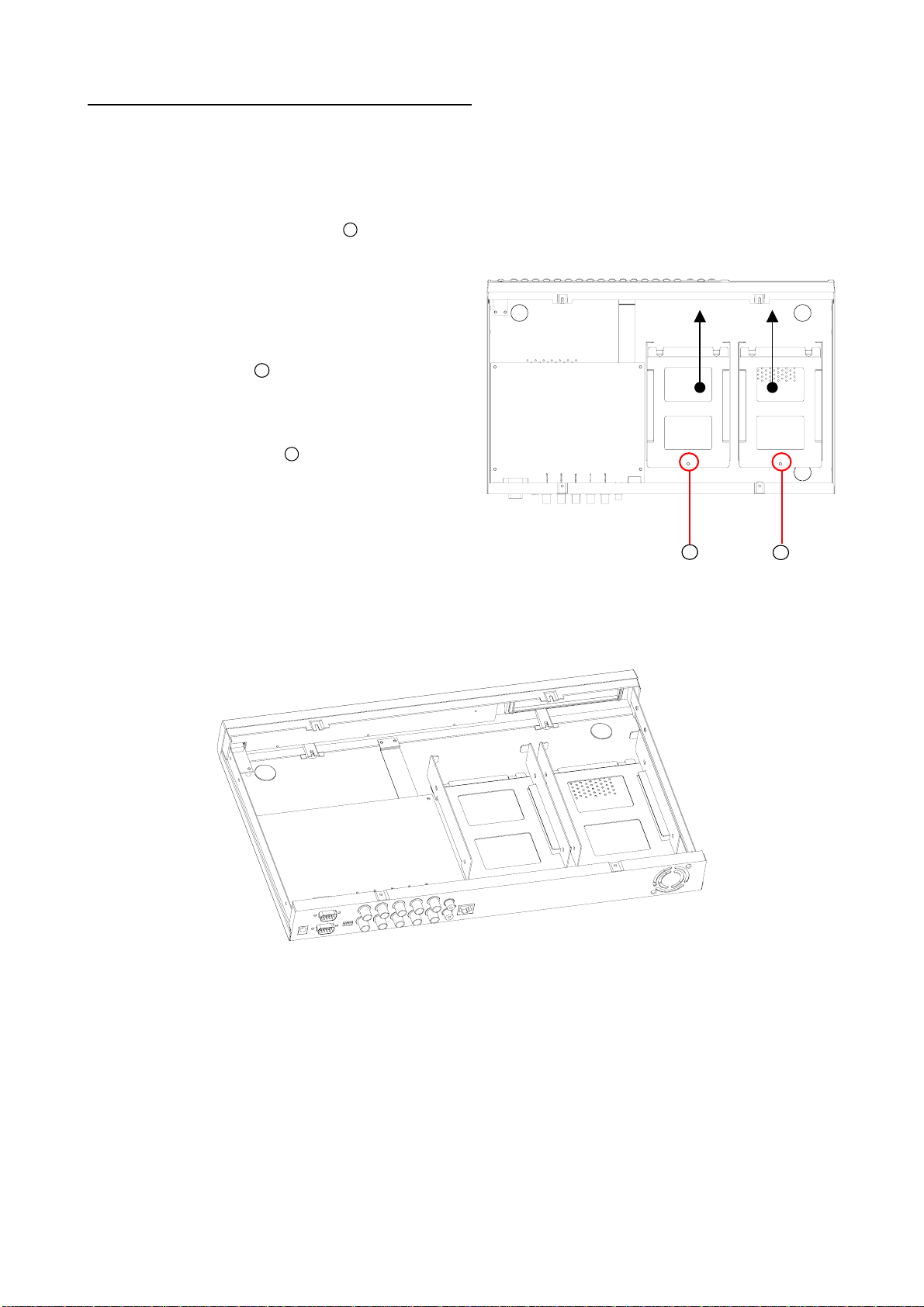

APPENDIX 1. – Insert the mobile rack........................................................................... 43
APPENDIX 2. – RS-232 Connection............................................................................... 44
APPENDIX 3. – Compatible SATA hard-disk drives ..................................................... 45
3
1. PRODUCT FEATURES
1.1 PRODUCT INTRODUCTION
The DVR-3704 is a unique low-cost, high-performance digital video recorder supporting a
4-channel video input, 4 alarm inputs and one alarm output. It records at a real time speed, and
displays video at the same speed rate per channel. Our device is capable of simultaneous triplex
recording, playback and live modes, and provides a multi-screen on which to view your recorded
images. Instead of having to handle inconvenient VCR tapes, you now have the hard-disk drive in
which to store your videos, enabling you to enjoy the extreme flexibility of digital image archiving.
You can access the images from any of your four channels rapidly and smoothly whenever you
wish.
In your recordings you can set different speed rates, qualities and resolutions as you choose, and
when you're looking for some particular records, you can use the search functions to search
through your records by record list, alarm list or time filter. You can play back your selected items
directly, and save the crucial images to a USB device which you can transfer to your PC to play and
print out.
Our digital video recorder further supports the network function in which you can use a remote PC
to connect with the DVR and retrieve vital images from a hard disk. You will be able to access both
video and audio records effortlessly. Use our device to bring your total environment under your
complete surveillance, archiving and control.
1.2 PRODUCT FEATURES
Non-PC based DSP hardware with proprietary system firmware.
Operation status LEDs.
Full triplex operation with simultaneous Live, Play, Record and remote Network operations.
Live refresh rate up to 120 field/sec for 360x240 pixels (NTSC) or 100 field/sec for 360x288 pixels
(PAL).
Compression: Motion JPEG.
Live viewing modes: 2X digital zoom.
Recording speed up to 60 field/sec for NTSC (50 field/sec for PAL).
Multiple recording modes: Manual/ Alarm/ Circular/ Timer recording.
Full triplex operation allows live viewing/ video recording/ playback and network access
simultaneously.
Supports in both a forward and a backward direction, as well as step by step.
Fast and slow playback of recorded video at various speeds.
Fast forward and reverse (2x, 4x, 8x, 16x).
Individual sensor alarm, video loss alarm & motion detection alarm for each channel.
4
Easy field firmware update via USB device can be performed by the end user.
Built-in USB connector to save image(s) for an individual channel to an USB device.
4 BNC video input channels.
4 alarm inputs and 1 alarm output.
Audio recording.
Quick setup menu.
Disk-full warning.
Supports factory default menu setting.
Supports Play/Reverse-Play/Pause/Stop/FF/REW for playback.
5
2. DESCRIPTION OF THE FRONT/REAR VIEW
2.1 FRONT VIEW
4CH DIGITAL VIDEO RECORDER
1
< button:
Press to move the focus to desired items in the menu setup mode.
2
> button:
Press to move the focus to desired items in the menu setup mode.
3
^ button:
Press to move within a desired option or value in the setup mode in the upward direction.
4
v button:
Press to move within a desired option or value in the setup mode in the downward direction.
Press the “v” button to activate/deactivate the key lock function (refer to section 3.4).
5
Enter ( / ) button:
Press to enter a selected item in the menu setup mode.

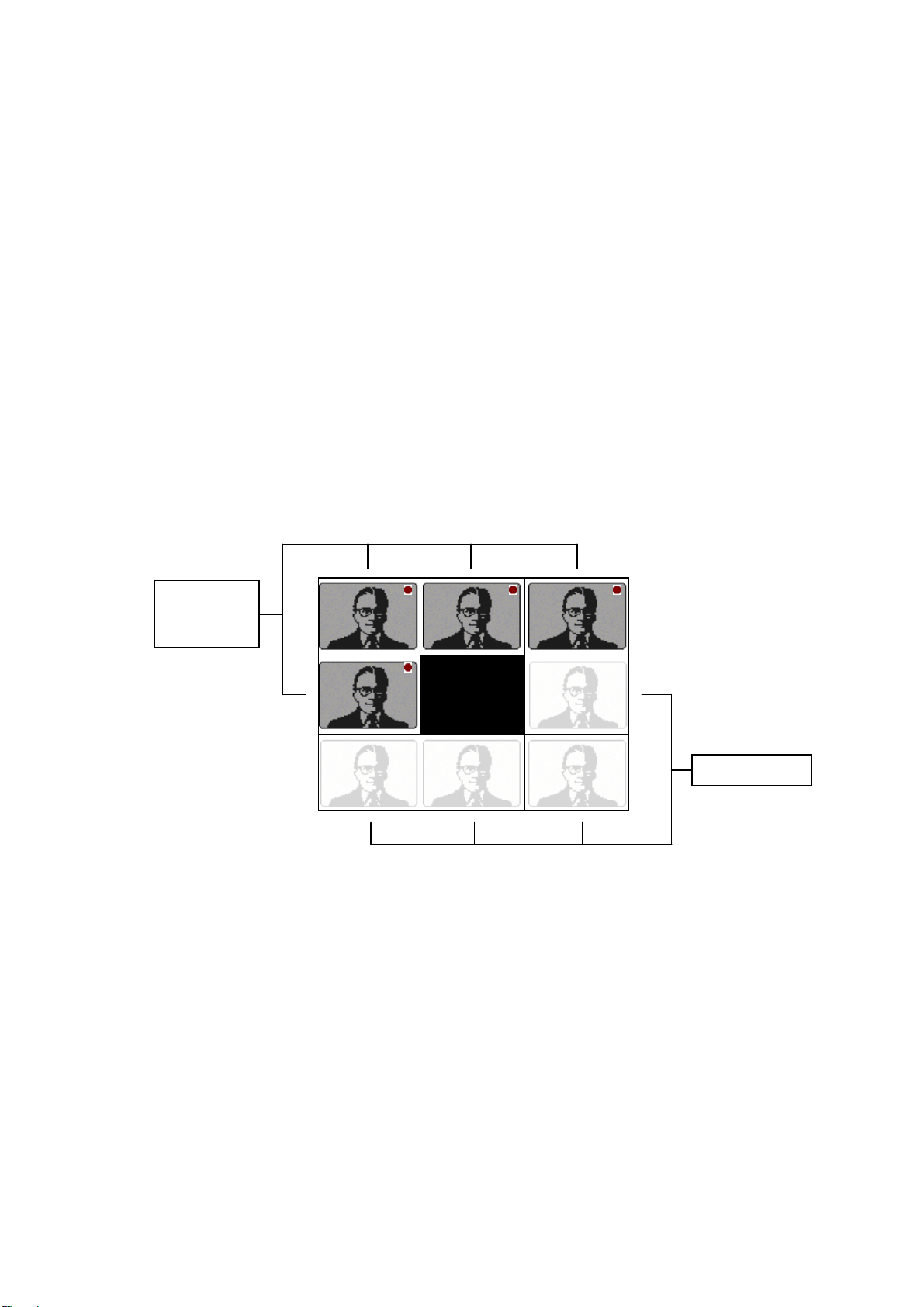

In both the live and play modes, press twice successively to get two multi-channel modes on the
main monitor, the first time in a 4-way vision, and the last in a 9-way mode.
6
Exit / PIP button:
Press to exit the menu setup mode.
The
press this button to loop the picture-in-picture modes in turns.
button is used to select video modes and video channels. In the Live / Record mode,
Note: Press the button for at least 3 seconds to enter a single channel with one, two or three
insets of the channels and highlight the channel to exchange the video sources. Press the
button for at least 3 seconds to exit the setting.
7
Save / button:
Press to enter the sequential jumping mode, each multi-screen, and one sequence; the picture will
sequentially switch to different channels according to the sequence setting in the setup menu.
6
8
button:
Press to double the size of an image. Use the "^" ( up ), "V" ( down ) , "<" ( left ) and ">" ( right )
buttons to shift your zoom focus . Press the
button again or press the Display button to return
to the original image size.
9
channel buttons:
All channel buttons from 1 to 4 are sited here. Press each to display its channel in the live and play
modes.
10
Search button:
Press to enter the search mode to access recorded video.
11
Menu button:
Press this to enter the setup menu.
12
Display button:
Press to display the status of the hard disks, the USB flash memory, the record setting and the
network setting in your device.
13
button:
Press to play a recorded video in the reverse direction at faster speeds than the recorded speed
and the LED will emit green light.
During the freeze, press to display one image of a picture at a time in the backward direction.
14
button:
Press to play a recorded video in the forward direction at faster speeds than the recorded speed
and the LED will emit green light.
During the freeze, press to display one image of a picture at a time in the forward direction.
15
◄ button:
Press to play back a recorded video in the reverse direction from the hard disk and the LED will
emit green light.
16
► button:
Press to play back a recorded video in the forward direction from the hard disk and the LED will
emit green light.
17
button:
In a playback display, press this to freeze the display and the LED will emit green light. During the
freeze, press to display one image of a picture at a time in the forward direction.
7
18
█ (Stop) button:
Press to stop playing back a recorded video from a hard disk and the LED will emit green light.
19
button:
Press to start recording video into a hard disk while in the live display mode and the LED will emit
green light. Press again for at least 3 seconds to stop the recording.
20
POWER button:
Press this button for at least 3 seconds to switch off. Press again to activate the device.
21
(disk) Indicator:
The indicator shows the operation status of the unit’s hard-disk drives. The green light indicates the
hard-disk drive is storing or retrieving data.
22
USB port:
This is used for system software updating and archiving/accessing critical images.
Note: When turning on the DVR, a message of “SYSTEM INITIALIZING” will appear. The user can press and
hold the “^” button to change to the PAL system; or press and hold the “v” button to change to the NTSC
system.
8
2.2 REAR VIEW
1
DC jack:
The inlet connects to an external power supply. Connect with the 12 V DC TUV-approved Power Supply;
or connect with the UL Listed Class 2 Power Supply or ITE power supply marked ‘LPS’ or its equivalent.
2

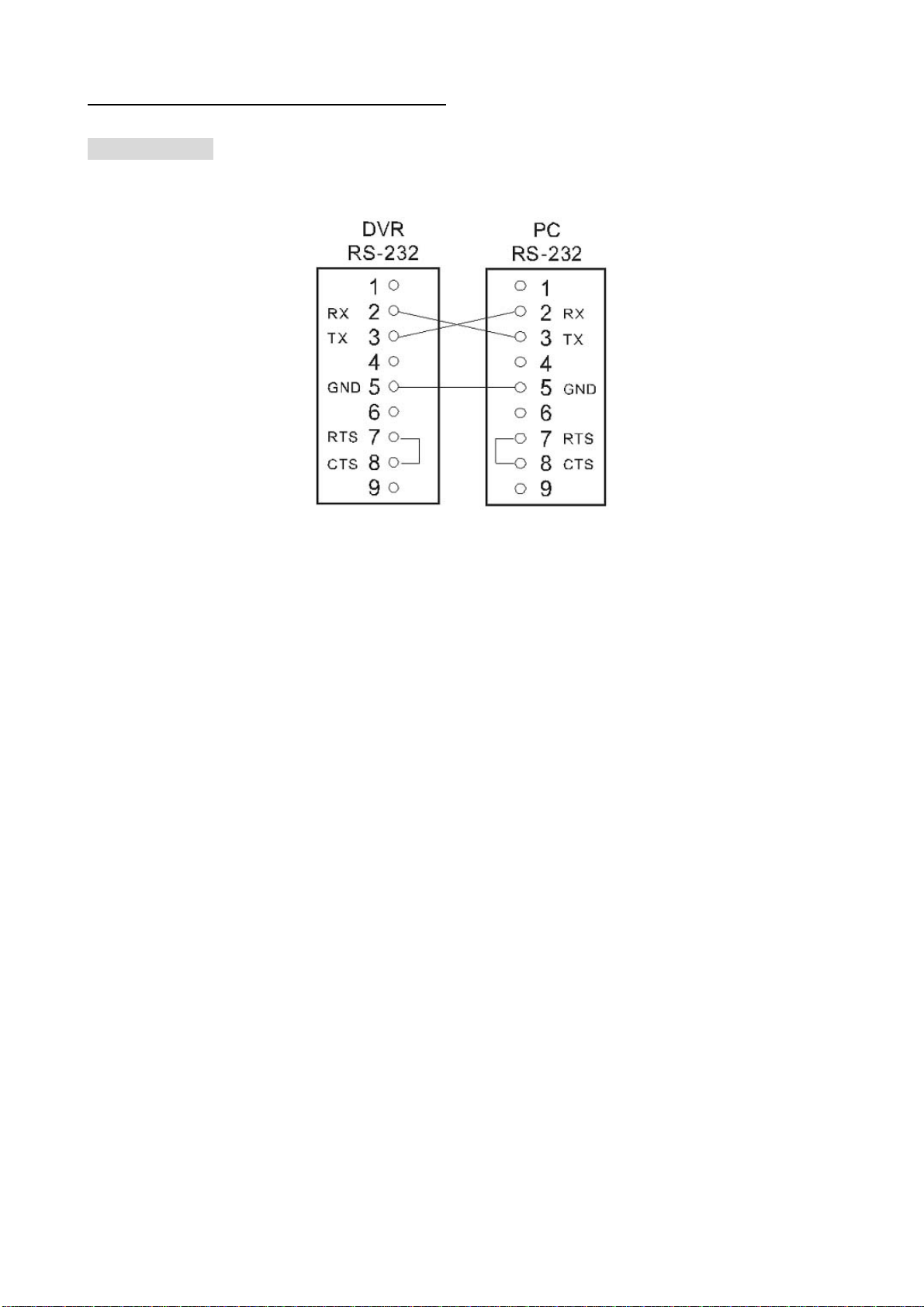

RS-232 Port:
The RS-232 communication port functions as a connector to an external control device. Please refer to
the RS-232 Connection for more details.
3
ALARM I/O:
This is a 9-PIN D-SUB connector including GROUND, ALARM OUT, DISK FULL, RECORD IN,
ALARM RESET, and ALARM IN for connecting with external devices. Please refer to the next section
(ALARM In/Out) for details.
4
75Ω/Hi-Z Individual termination:
These 4 switches are used to set the impedance of each loop through output connectors (31) between
75 and Hi-Z. Toggle the corresponding impedance termination to the Hi-Z position if another device is
connected to the video loop through the connector. Set the impedance to the 75 position if no other
device is connected to the corresponding loop through the connector. The default setting is 75 .
5
Video in connectors (Ch1~Ch4) & Video loop through connectors (Ch1~Ch4):
These 4 BNC connectors are used to connect to the video output from the cameras. 4 cameras can be
connected to these connectors.
These 4 BNC connectors are used to loop video signals from each camera out to other devices.
6
Monitor connector:
This BNC connector provides a video signal controlled by the control buttons in the front panel to the
main monitor. This connector transmits the video display in full-screen format, multi-screen format and
sequential format.
7
AUDIO IN Connector:
This connector is used to connect the audio output from a camera or other devices to the 4CH DVR.
8
AUDIO OUT:
This connector provides the unit’s audio signal to a speaker or stereo.
9
ETHERNET 10/100 Connector:
This is a standard RJ-45 connector for the10/100 Mbps Ethernet networks.
9
2.3 ALARM In/Out
DISK FULL
ALARM RESET
ALARM OUT
RECORD IN GROUND
12345
6789
ALARM1 IN ALARM4 IN
ALARM2 IN ALARM3 IN
THE ABOVE FIGURE IS A REAR VIEW.
1. GND: Ground Contact.
2. ALARM OUT (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as
5V
buzzers or lights. (
3. DISK FULL (OUTPUT): This is a disk-full output trigger. Connect this to external devices such as
buzzers or lights. (
4. ALARM RESET (INPUT): This pin connects to an alarm-clear device for clearing an alarm.
5V
(
5. RECORD IN (INPUT): This pin connects to a record-triggering device for starting a record.
(
6. ALARM4 IN (INPUT): This is an alarm input( for CH 4 )which can be programmed in the menu
system to Normally Open or Normally Closed. (
7. ALARM3 IN (INPUT): same as the above, for CH 3
8. ALARM2 IN (INPUT): same as the above, for CH 2
9. ALARM1 IN (INPUT): same as the above, for CH 1
0V(Active)
5V
0V(Active)
)
)
0V(Active)
5V
0V(Active)
)
)
5V
0V(Active)
)
10
3. BASIC OPERATIONS
This section shows you how to operate and manage the DVR.
3.1 RECORDING OPERATIONS
3.1.1 Manual Recording
When the DVR is in the live display mode, take the following steps to start recording:
(1) In live display, press the
corresponding programmed recording settings. At once the device will emit a “beeping” sound
signal and the
(2) Press the
Note: In the SEARCH MENU and MAIN MENU, the user cannot press the
record mode.
(3) To access just recorded video, please refer to section 5.5.1 RECORD SETTING for more
details.
3.1.2 Alarm Recording
Take the following steps to activate the programmed alarm recording. For ALARM settings, please
refer to section 5.5.1 for more details.
(1) Press the MENU button to enter the MAIN MENU.
(2) Select the ADVANCED SETTING and press the Enter button to enter the ADVANCED
SETTING page.
(3) Select the ALARM SETTING and press the Enter button to enter the ALARM SETTING page.
button will light up indicating the DVR is in the recording status.
button for at least 3 seconds to stop recording any time.
button to record video into a hard-disk drive with the
button to lift the
(Please refer to section 5.5.1 for more information.)
(4) Enter and set each channel to activate or deactivate the three modes of "SENSOR",
"V-LOSS", and "MOTION".
(5) Set the desired time period. Set the "ALARM DURATION" for 0 second, 30 seconds, 1 minute,
5 minutes to 10 minutes or NONSTOP.
(6) Activate or deactivate the buzzer sound.
ADVANCED SETTING
1.RECORD SETTING ENTER
2.ALARM SETTING ENTER
3.MOTION SETTING ENTER
4.NETWORK SETTING ENTER
5.SCHEDULE SETTING ENTER
ALARM SETTING
1. SENSOR V-LOSS MOTION
CH1 OFF OFF OFF
CH2 OFF OFF OFF
CH3 OFF OFF OFF
CH4 OFF OFF OFF
2.ALARM DURATION 00 MIN
3.BUZZER SOUND ON
11
3.1.3 Timer Recording
Timer recording provides seven schedules in a weekly table. This way the DVR will start and stop
recording according to the programmed schedule. Please take the following steps to program the
scheduled recording.
(1) Press the MENU button to enter the MAIN MENU.
(2) Select the ADVANCED SETTING and press the Enter button to enter the ADVANCED
SETTING page.
(3) Select the SCHEDULE SETTING and press the Enter button to enter the SCHEDULE
SETTING page.
(Please refer to section 5.5.5 for more information.)
(4) Enter and set each single day to activate (ON) or deactivate (OFF) the recording schedule.
(5) Set the desired recording period. Set the time to begin a recording. Set the time to end a
recording.
NOTE: You can set each time period between 00:00 and 23:59 (24HR mode).
(6) If you want to stop recording in a scheduled recording session or at anytime, you can press the
button for at least 3 seconds.
NOTE: You can proceed to start the scheduled recording from the current time if it is in the
scheduled interlude as soon as the setting is complete, and come out from the menu
to start recording.
NOTE: If you activate the recording function before the scheduled recording, the unit won’t
operate the timer recording function.
ADVANCED SETTING
1.RECORD SETTING ENTER
2.ALARM SETTING ENTER
3.MOTION SETTING ENTER
4.NETWORK SETTING ENTER
5.SCHEDULE SETTING ENTER
SCHEDULE SETTING
START STOP
1 SUN : OFF 00:00 ~ 12:00
2 MON : OFF 00:00 ~ 12:00
3 TUE : OFF 00:00 ~ 12:00
4 WED : OFF 00:00 ~ 12:00
5 THU : OFF 00:00 ~ 12:00
6 FRI : OFF 00:00 ~ 12:00
7 SAT : OFF 00:00 ~ 12:00
12
3.2 PLAYBACK OPERATIONS
This section shows you how to operate the fast and single-picture playback functions, and details
how the unit is to playback a file in a different operation status. Please refer to the following
paragraphs specifying the relevant details. When playing a file, the PLAY button will light up
indicating that the DVR is in the playback status.
During playback, press the CH1-CH4 buttons to view the corresponding channels. To view the
playback of multiple channels simultaneously, press the appropriate
switching between keys, the
view.
3.2.1 Fast Forward/Reverse
There are 4 speeds available for playback: 2x, 4x, 8x and 16x.
While playing back recorded video at the recorded speed:
Forward: Press the
faster than the recorded speed. Press the button to increase the forward rate, as 2x, 4x,
8x or 16x.
Reverse: Press the
faster than the recorded speed. Press the button to increase the forward rate, as 2x, 4x,
8x or 16x.
Normal: Press the ► or ◄ button to return to the normal speed of playback.
button to view the recorded video in the forward direction at a speed
button to view the recorded video in the reverse direction at a speed
button can also be used to zoom the picture to a 2X digital zoom
/ button. Besides
3.2.2 Playback Picture-by-picture
While playing back recorded video at the recorded speed:
(1) Press the PAUSE button for the picture-by-picture mode.
(2) There are two ways, by
a forward direction; the other, the
picture-by-picture.
By or button:
Press the
the forward direction.
By button:
Press the
backward direction.
(3) Press the ► or ◄ button to return to the normal speed of playback.
button. Use the or button to display one image of a picture at a time in
button. Use the button to display one image of a picture at a time in the
button or by button, to play in the picture-by-picture mode in
button, can act in a backward direction, as well as
13
Loading...
