Page 1

INSTALLATION &

OPERATING MANUAL

Digital Video Recorder

DVR-3016 & DVR-3016D

Before trying to connect or operate this product, please read this manual complete

Page 2

Page 3

SAFETY PRECAUTIONS

All the following safety and operation instructions for the prevention of harm or damage to the

operator or other persons should be read before the unit is operated.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Do not block ventilation openings.

Do not place anything on top of the unit that might spill or fall into it.

Do not attempt to service this unit yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Please refer all servicing to qualified service personnel.

Do not use liquid cleaners or aerosols for cleaning.

This installation should be done by a qualified service person and should conform to all local

codes.

To prevent fire or electric shock, do not overload wall outlets or extension cord.

This unit must be grounded to reduce the risk of electric shock hazard.

CAUTION

Danger of explosion if the Lithium battery (RTC Battery) is incorrectly replaced.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer. Dispose of used batteries according

to the manufacturer’s instructions.

Risk of explosion if replaced by an incorrect type. Dispose of used batteries according to the

instructions.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

Page 4

Table Of Contents

1. PRODUCT FEATURES .................................................................................................. 4

1.1 Product Introduction..................................................................................................................4

1.2 Product Features .............................................................................................................................4

2. DESCRIPTION OF THE FRONT/REAR VIEW............................................................... 6

2.1 Front View..................................................................................................................................6

2.2 Rear View ...................................................................................................................................9

2.3 ALARM In/Out .........................................................................................................................10

3. INSTALLATION............................................................................................................ 11

3.1 Basic Connection .....................................................................................................................11

3.2 Hard-Disk Drive Installation...................................................................................................12

3.3 HDD Information and channel selection.................................................................................13

3.4 Updating System Software.......................................................................................................14

4. BASIC OPERATIONS .................................................................................................. 15

4.1 Recording Operations..............................................................................................................15

4.1.1 Manual Recording ......................................................................................................................................15

4.1.2 Timer Recording .........................................................................................................................................15

4.1.3 Alarm Recording .....................................................................................................................................18

4.2 Playback Operations................................................................................................................20

4.2.1 Fast Forward/Reverse ..........................................................................................................................20

4.2.2 Slow Forward/ Reverse ........................................................................................................................ 20

4.2.3 Playback Picture-by-picture ................................................................................................................21

4.2.4 Play Back Recorded Video from a HDD of the mobile rack (FOR REMOVABLE HDD MODEL ONLY)

...................................................................................................................................................21

4.3 Search Operations....................................................................................................................22

4.3.1 Full List Search .......................................................................................................................................22

4.3.2 Alarm list Search.....................................................................................................................................22

4.3.3 SEARCH FILTER ...................................................................................................................................23

4.3.4 THUMBNAIL Search..............................................................................................................................24

4.3.5 SD CARD Menu......................................................................................................................................24

4.3.6 CD (BACKUP) Menu .............................................................................................................................25

4.4 Backup Operations...................................................................................................................26

4.4.1 CD ReWritable unit Backup Operations (FOR CD-ROM MODEL ONLY) ............................ 26

4.4.2 Mobile Rack HD Backup Operations (FOR REMOVABLE HDD MODEL ONLY) ..............27

4.4.3 Security Digital Card (SD Card) Backup Operations...................................................................29

4.5 Key Lock Operations................................................................................................................31

4.6 T riplex Operations ...................................................................................................................32

4.6.1 Live mode: ................................................................................................................................................ 32

4.6.2 Play mode:................................................................................................................................................ 32

5. MENU SETUP .............................................................................................................. 33

5.1 QUICK SETTING ....................................................................................................................34

Page 5

5.2 DISPLAY OPTION...................................................................................................................35

5.3 SEQUENCE SETTING ............................................................................................................38

5.4 PICTURE ADJUST..................................................................................................................39

5.5 OPERATION LOG...................................................................................................................39

5.6 AVANCED SETTING...............................................................................................................40

5.6.1 ALARM SETTING.......................................................................................................................................40

5.6.2 RECORD SETTING ...................................................................................................................................41

5.6.3 MOTION SETTING .................................................................................................................................... 42

5.6.4 COVERT CAMERA....................................................................................................................................43

5.6.5 OPERATION LOCK ................................................................................................................................... 43

5.6.6 COMMUNICATION ....................................................................................................................................44

5.6.7 DISK SETUP...............................................................................................................................................45

5.6.8 SCHEDULE.................................................................................................................................................46

5.6.9 RETURN ......................................................................................................................................................47

5.7 DEFAULT SETTING ...............................................................................................................47

5.8 PASSWORD SETTING ............................................................................................................48

5.9 EXIT MENU.............................................................................................................................49

6. NETGUARD SYSTEM: Introduction........................................................................... 50

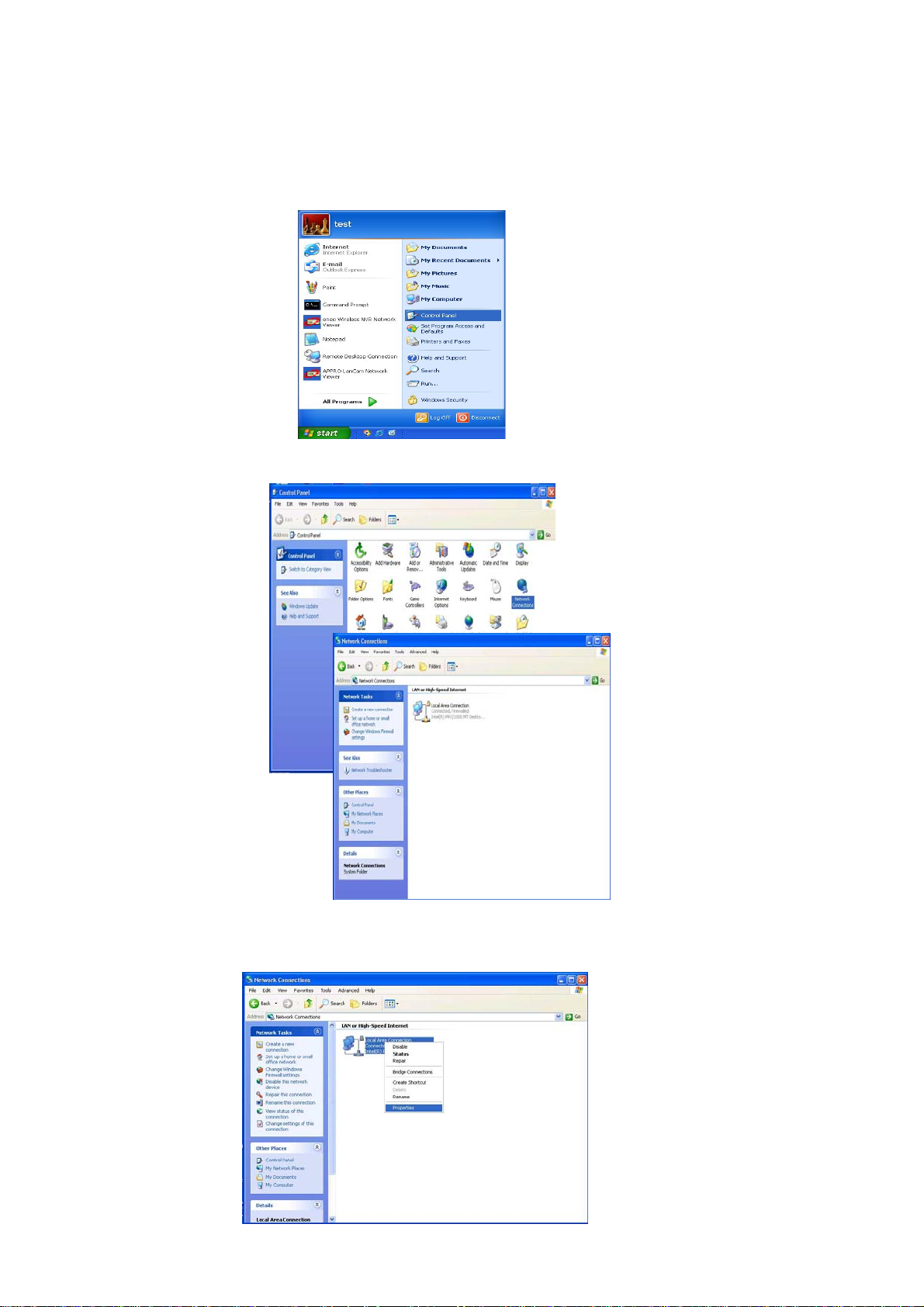

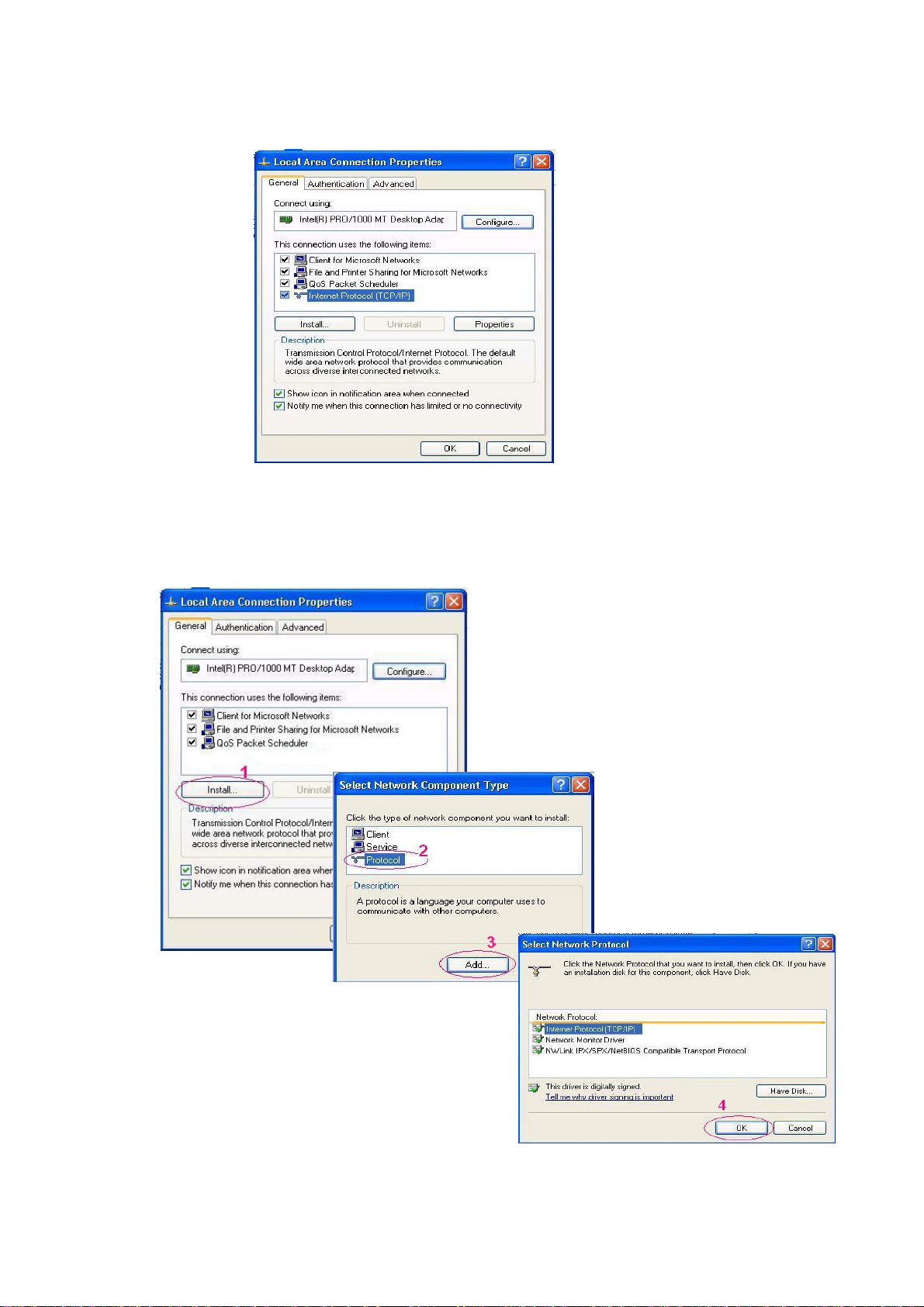

6.1 TCP/IP Communication Setup.................................................................................................51

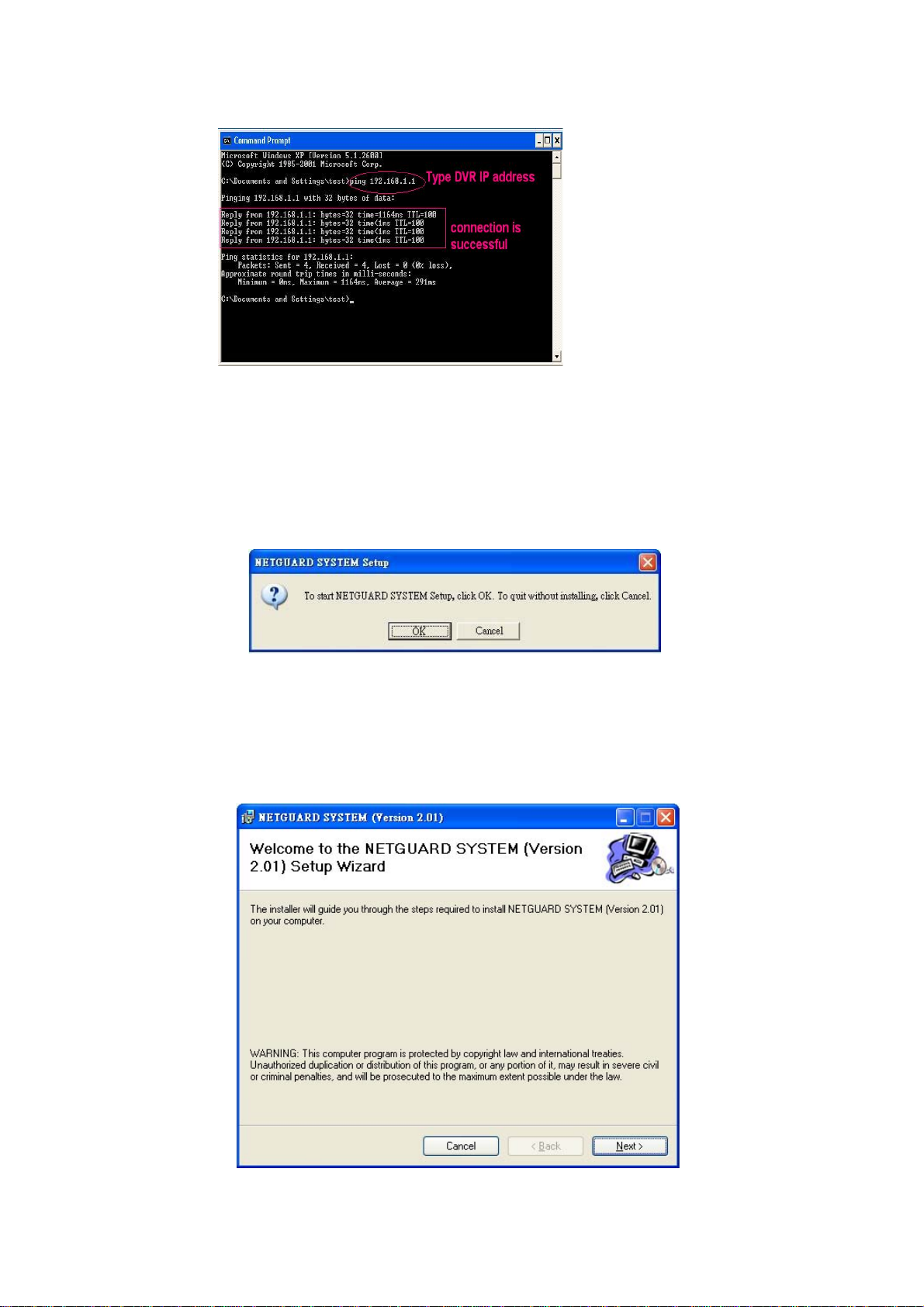

6.2 Connection Testing...................................................................................................................54

6.3 Software installation................................................................................................................55

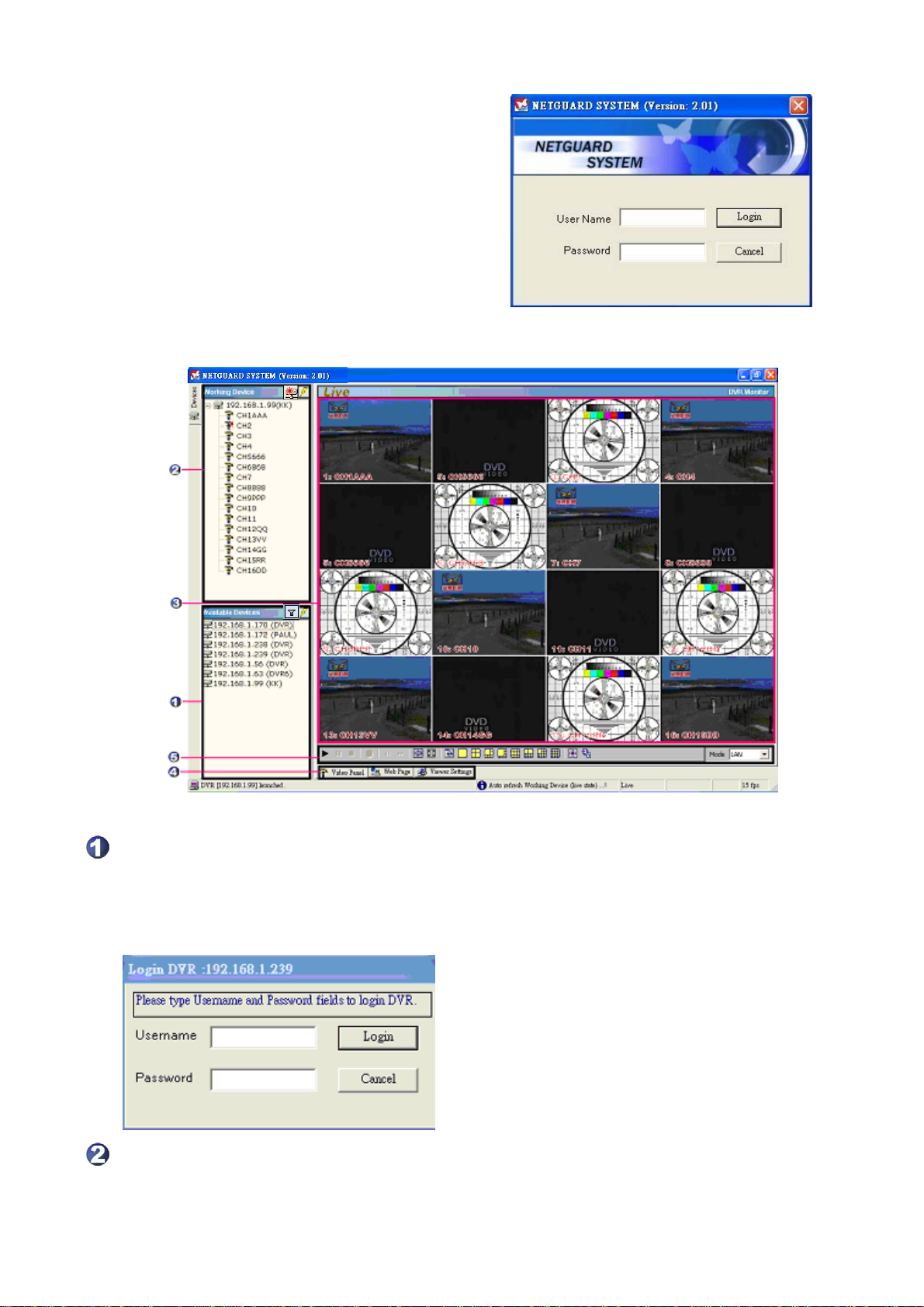

6.4 Short introduction....................................................................................................................58

6.4.1 Program introduction..................................................................................................................................58

6.5 Operation.................................................................................................................................59

6.5.1 Remote Control........................................................................................................................................... 59

6.5.2 Remote play and PTZ control...................................................................................................................62

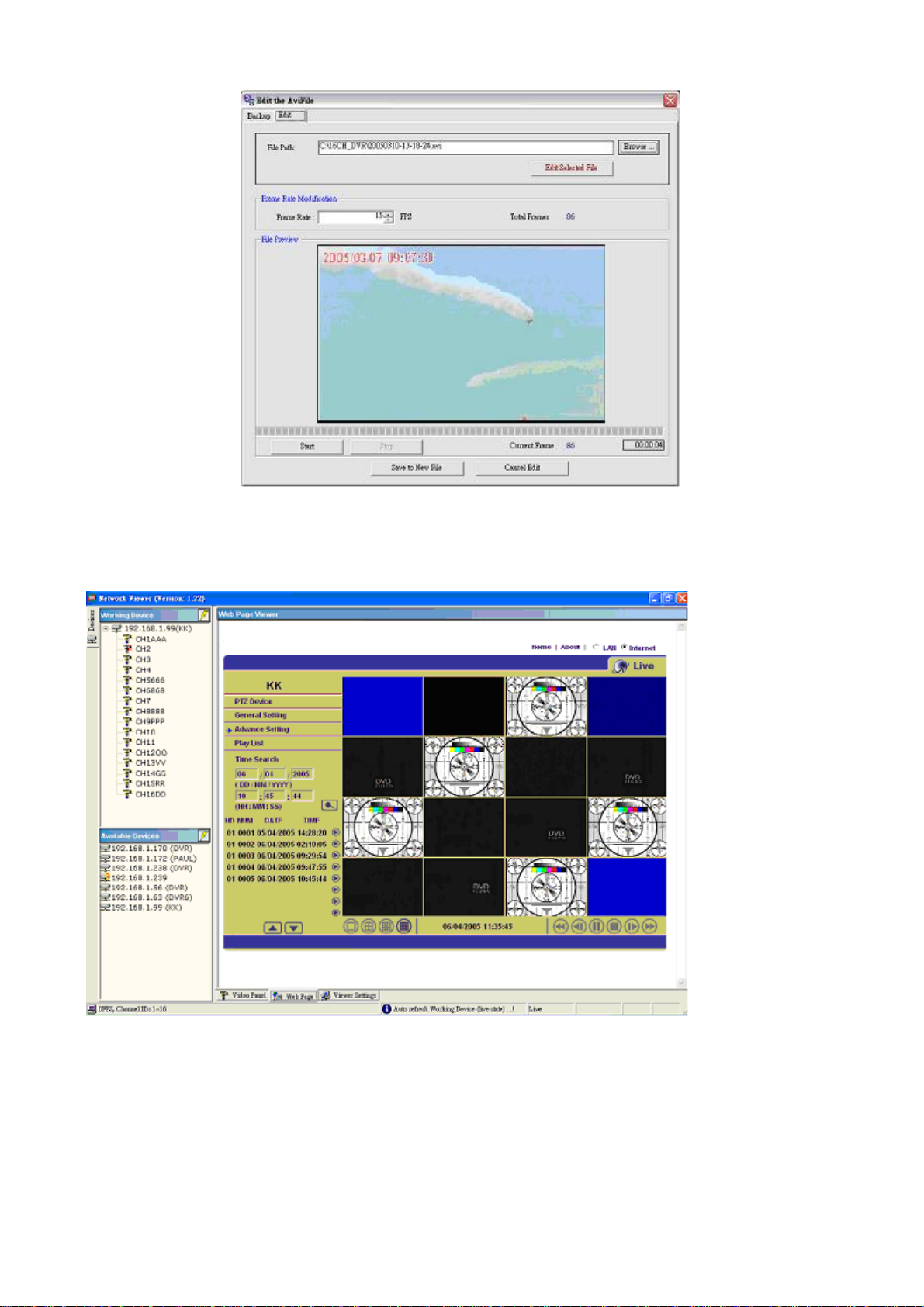

6.5.3 Backup and video edit................................................................................................................................63

6.5.4 Web Page Viewer....................................................................................................................................... 65

6.5.5 Viewer setting..............................................................................................................................................66

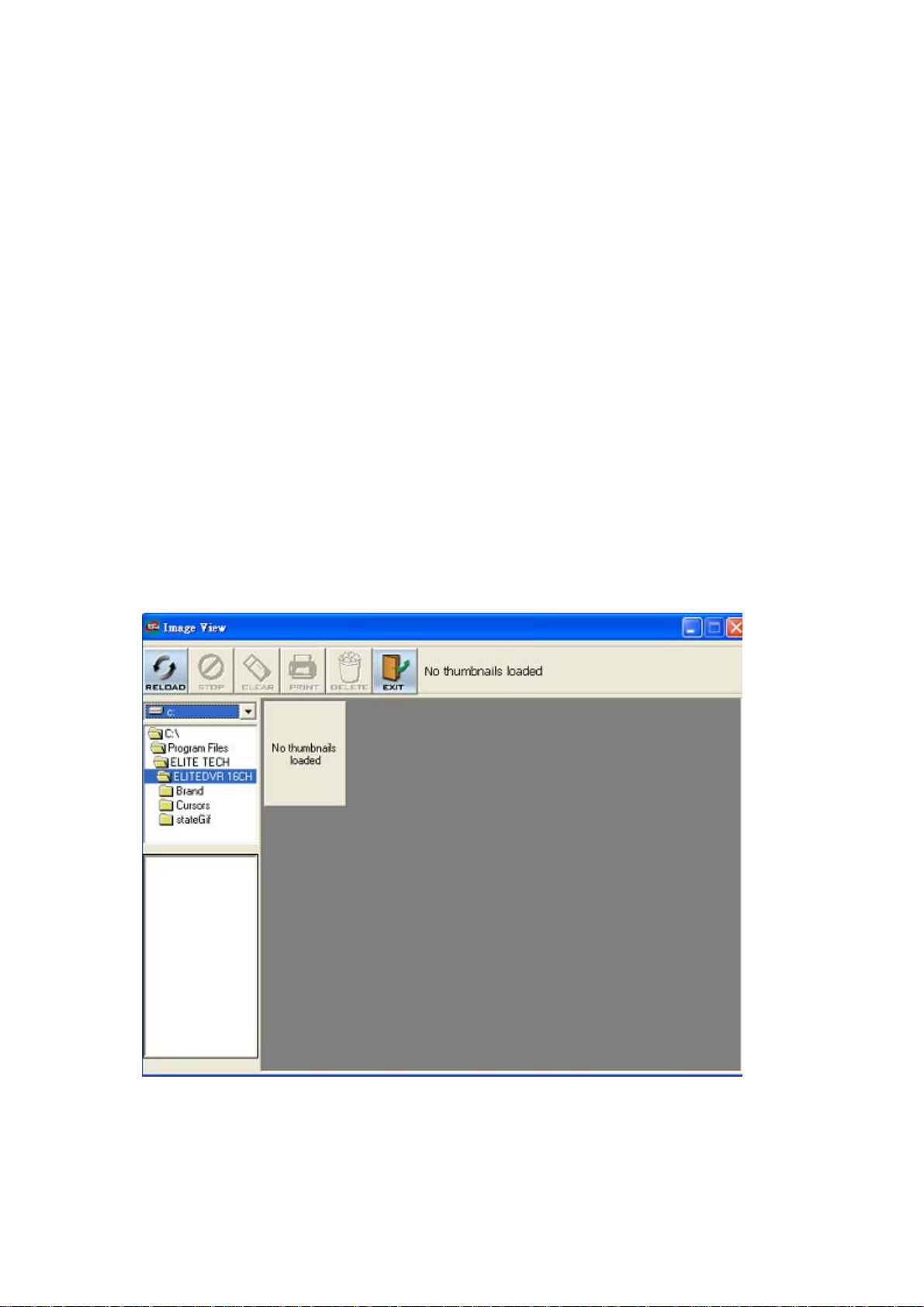

6.6 The Image V iewer.....................................................................................................................68

7. Microsoft Internet Explorer ........................................................................................ 69

8. SPECIFICATIONS ........................................................................................................ 72

APPENDIX 1. – RS-232 & RS-485 Codes....................................................................... 73

APPENDIX 2. – Using CD Discs (FOR CD-ROM MODEL ONLY) ................................. 78

Page 6

1. PRODUCT FEATURES

1.1 Product Introduction

This 16CH DVR is a triplex digital recorder with a 16ch multiplexer, capable of Triplex simultaneous

recording, playback and live multi-screen viewing; it uses two hard disks and a CD-RW drive instead of

VCR tapes to store video (FOR CD-ROM MODEL ONLY). It enables you to enjoy the extreme flexibility

of digital image archiving instead of clumsy tape management. Equipped with a range of

comprehensive features, such as playback picture-by-picture, quick access video recording by time and

event, the upgradeable software of the system, the expandable capacities of hard drive, and much more,

the 16CH DVR will make your applications far more flexible and effective than ever before. For all

purposes the 16CH DVR is going to prove the timely substitute for time-lapse VCR.

1.2 Product Features

＊ Non-PC based DSP hardware with proprietary system firmware. ＊ Main recording media: two fixed HDDs plus a CD/RW. (FOR CD-ROM MODEL ONLY)

＊ Main recording media: two fixed HDDs & one removable HDD. (FOR REMOVABLE HDD MODEL

ONLY)

＊ Maximum 3 hard-disk drive capability (one removable). (FOR REMOVABLE HDD MODEL ONLY)

＊ Full triplex operation with simultaneous Live, Play, Record and remote Network operations.

＊ Pre-alarm image recording: 10 seconds in advance.

＊ Every camera can be assigned to any channel location under a multi-screen display mode in both

live viewing and playback mode (16-way, 13-way, 10-way, 9-way, 8-way, 6-way, 4-way, 3-way,

2-way).

＊ Refresh rate up to 60 field/sec for 720X240 (NTSC) or 50 field/sec for 720X288 (PAL).

＊ Compression: Motion JPEG.

＊ Quick setup menu.

＊ Live viewing modes: freeze, 2X electronic zoom, custom sequencing.

＊ Recording and live status display of all the hard disks, CD-RW and SD memory card.

＊ Four user-selectable recording image qualities per channel (best / high / standard / basic).

＊ Individual channel setups for alarm recording rates: normal, double, interleave, and exclusive.

＊ Multiple recording modes: Manual/ Alarm/ Schedule recording.

＊ Multiple search modes: Event list/ Time/ Alarm list/ Filter/ Thumbnail/ SD card/ CD.

＊ Search condition options: time/date, sensor alarm, video loss alarm, motion alarm, and channel

specification.

＊ Thumbnail search display intervals: 8 different intervals (year/ month/ day/ hour/ 10 minutes/ 1

minute/ 10 seconds/ 1 second).

＊ Fast and slow playback of recorded video at various speeds.

Fast forward and reverse (2x, 4x, 8x, 16x, 30x, 100x).

Slow forward and reverse (1/2x, 1/4x, 1/8x, 1/16x, 1/30x, 1/100x).

＊ Adjustable individual camera images (noise filter ON/OFF, brightness, contrast, color, and hue for

Page 7

each camera).

＊ Selectable display position and color of title/time/date OSD text in both MAIN and CALL monitors.

＊ Covert camera recording.

＊ Schedule setting: total 8 schedules.

Individual record and alarm condition setting can be assigned by designated schedule.

＊ Disk-full warning and operation status LEDs.

＊ Remote control via RS-232 and RS-485 ports.

＊ Alarm trigger source selection: alarm sensor/motion detection/video loss alarm can be programmed

to trigger three different alarm out replays.

＊ Adjustable motion detection conditions: sensitivity, target area, target size, motion duration, and track

direction.

＊ Individual alarm sensor, video loss alarm & motion detection alarm for each channel.

＊ Power interruption recovery.

＊ Operation-status record log.

＊ Multi-lock out functions: front key lock, RS-232 lock, play back lock, and recording lock.

＊ Three audio quality levels (8/ 22/ 44 kHz sampling, μ-law).

＊ Audio recording modes: stereo/ left/ right/ off.

＊ Built-in SD memory card slot to save JPEG/AVI image(s) for individual channel to an SD memory

card.

＊ Easy field firmware update via SD memory card can be performed by end user.

＊ Factory default menu setting and installer menu setting can be restored.

＊ Use both client software and Internet Explorer for remote viewing and access from a remote desktop

or a laptop via Ethernet connection.

＊ Daylight saving setting.

＊ Pan/Tilt/Zoom camera setting and control through Ethernet port.

Page 8

2. DESCRIPTION OF THE FRONT/REAR VIEW

2.1 Front View

FOR CD-ROM MODEL

CD-RW device compartment:

The compartment allows you to burn the

data mostly for backup purposes. This

tray is for loading the CD disc. It will

accept 120 mm and 80 mm discs. Please

place the discs in the exact center of the

FOR REMOVABLE HDD MODEL

Hard-disk drive compartment.

The compartment allows you to install a

hard disk drive mostly for backup purposes.

Make sure the drive is well secured with

the mounting screws in the mobile rack

before you put the rack into the

tray.

Eject button:

Pressing this controls the insertion and

ejection of the tray.

Writing Display Light:

When a disc is being burnt, the display

light will be a red flash.

Power Supply / Reading Light:

When a disc has been ejected, the

display light will be green. When a disc is

unable to be read, or the device is being

repaired, the display light will flash

Emergency Eject Button:

When the power supply has been

interrupted, or it is impossible to eject a

disc, please use a pin to press the

emergency eject button so that the

compartment. And remember to turn on

the power of the compartment by locking it.

Hard disk compartment lock:

The key lock secures a hard disk in

place. Unlock the compartment before

you remove the hard disk from the slot

without turning off the device.

Mobile Rack Power LED:

Indicates the power status of the Mobile

Rack. The green light indicates the

Mobile Rack is activating.

Mobile Rack HDD LED:

Indicates the HDD status of the Mobile

Rack. The orange light indicates the

HDD is storing or retrieving data.

caddy will eject the disc.

Page 9

Jog Dial:

This dial can act in both a forward and a backward direction, as well as step by step. Turn this left

to play a recorded video in the reverse direction. Turn this right to play a recorded video in the

forward direction. Moreover, the dial can be rotated so you can move the focus to any item or

function.

Shuttle Ring:

The shuttle can be moved forward and backward for playback in either direction. Turn this left to

play a recorded video in the reverse direction at faster or slower speeds than the recorded speed.

Turn this right to play a recorded video in the forward direction at faster or slower speeds than the

recorded speed. Additionally, the shuttle can also be rotated to change or adjust values in your

settings.

PLAY button:

Press to play back a recorded video from the hard disk.

STOP button:

Press to stop playing back a recorded video from a hard disk.

PAUSE button:

In a playback display, press this to freeze the display. During the freeze, press to display one

frame of a picture at a time in the forward direction. Additionally, if you press “Enter” during freeze,

you can open the “SD CARD Menu” to save the image(s).

REC button:

Push to start recording video into a hard disk while in the live display mode. Press again for at

least 3 seconds to stop the recording.

NOTE: The monitor will display a message "STOP RECORD" if you power off the device in

case of recording.

Left / button:

Press to move the focus to desired items in the menu setup mode. In the live and play modes,

press the left button to enter a single channel, with an inset of the next channel which passes

through three modes with successive button pushes.

Right / button:

Press to move the focus to desired items in the menu setup mode. In both the live and play modes,

press thrice successively to get three multi - channel modes on the main monitor, the first two

times in a 3-way vision, and the last in a 4-way mode.

Up / buttons:

Press to move the focus in the setup mode in the upward direction. In the live and play modes, you

can press thrice to get three multi - channel modes, in a 9-way, 8-way, and 6-way channel mode

on the main monitor, respectively.

Down / buttons:

Press to move the focus in the setup mode in the downward direction. In the live and play modes,

you can press thrice to get three multi - channel visions, in a 16-way, 13-way, and 10-way channel

mode on the main monitor, respectively.

Page 10

call button:

If you connect to the call monitor, the "Call" button enables you to select channels on this monitor.

Press the "Call" button and any particular channel button on the front panel simultaneously to

display that channel.

menu button:

Press this to enter the setup menu.

seq. button:

Press to enter the sequential jumping mode, each multi-screen, and one sequential; the picture

would sequentially switch to different channels according to the sequencer setting in the setup

menu.

enter button:

Press to enter a selected item and save the setting in the menu setup mode.

display button:

Press to display the status of the hard disks and SD card in your device.

freeze button:

Press to freeze an image in the live or play mode.

NOTE: During the play mode, pressing the “freeze” and the “pause” buttons have different

effects. Push “freeze” to capture a particular image, while the image record

continues running in the device. When you press the “pause” button, both the

particular image and the entire image record are halted.

search button:

Press to enter the search mode to access recorded video.

(zoom) button:

Press to double the size of an image. Use the "^" ( up ), "V" ( down ) , "<" ( left ) and ">" ( right )

buttons to shift your zoom focus . Press the zoom button again to return to the original image size.

channel button:

All channel buttons from 1 to 16 are sited here. Press each to display its channel in the live and

play modes.

LOCK Indicator:

The red signal denotes an operation lock.

T-rec Indicator:

This indicator of the timer recording mode lights up to signal the scheduled record setting is on.

(DISK) Indicator:

The indicator shows the operation status of the unit’s hard-disk drives. The green light indicates

the hard-disk drive is storing or retrieving data. The red light signals the hard-disk drive is filling up.

The orange light indicates the hard-disk is retrieving at disk-full status.

POWER button:

Press this button for at least 3 seconds to power off. Press again to activate the device.

SD CARD Slot:

This is used for system software updating, and archiving/accessing critical images, and to save

the whole setting.

Page 11

2.2 Rear View

75Ω/Hi-Z Individual termination:

These 16 switches are used to set the impedance of each loop through output connectors (31) between

75 and Hi-Z. Toggle the corresponding impedance termination to the Hi-Z position, if another device is

connected to the video loop through connector. Set the impedance to the 75 position if no other device

is connected to the corresponding loop through the connector. The default setting is 75 .

Video in connectors (Ch1~Ch16) & Video loop through connectors (Ch1~Ch16):

These 16 BNC connectors are used to connect to the video output from the cameras. 16 cameras can

be connected to these connectors.

These 16 BNC connectors are used to loop video signals from each camera out to other devices.

Call monitor connector:

This BNC connector provides video signal to call monitor to display any selected camera in full-screen

call up, sequential display and alarm call up operations.

Main monitor connector:

This BNC connector provides a video signal controlled by the control buttons in the front panel to the

main monitor. This connector transmits the video display in full-screen format, multi-screen format and

sequential format.

Ground Screw’s: The ground screw is for the chassis terminal.

Left & Right AUDIO IN Connector:

These two connectors are used to connect the audio output from a camera or other devices to the 16CH

DVR.

38 39

Left & Right AUDIO OUT:

These two connectors provide the unit’s audio signal to a speaker or stereo.

RS-485 Port: The RS-485 communication ports function as connectors when two or more units are

serially connected to an external control device.

RS-232 Port:

The RS-232 communication port functions as a connector to an external control device. Please refer to

the RS-232 & RS-485 Protocol for more details.

ALARM I/O: This is a 25-PIN D-SUB connector including 16Pin ALARM IN, GROUND, 3Pin ALARM

OUT, DISK FULL, RECORD IN, ALARM RESET, and RESERVED for connecting with external devices.

Please refer to the next section (ALARM In/Out) for details.

Plug Inlet:

The inlet connects to an external power supply. Connect with the 12 V DC UL Listed Class 2 Power

Supply.

ETHERNET 10/100 Connector:

This is one standard RJ-45 connector for 10/100 Mbps Ethernet networks.

Page 12

2.3 ALARM In/Out

The pin assignment of the female DB-25 alarm I/O connector is listed as follows.

12345678910111213

141516171819202122232425

alarm I/O

Pin# Pin Assignment Pin# Pin Assignment

1 GROUND 14 RESERVED 2 DISK FULL (OUTPUT) 15 ALARM1 OUT (OUTPUT) 3 ALARM2 OUT (OUTPUT) 16 ALARM3 OUT (OUTPUT) 4 RECORD IN (INPUT) 17 ALARM RESET (INPUT) 5 ALARM1 IN (INPUT) 18 ALARM2 IN (INPUT) 6 ALARM3 IN (INPUT) 19 ALARM4IN (INPUT) 7 ALARM5 IN (INPUT) 20 ALARM6 IN (INPUT) 8 ALARM7 IN (INPUT) 21 ALARM8 IN (INPUT)

9 ALARM9 IN (INPUT) 22 ALARM10 IN (INPUT) 10 ALARM11 IN (INPUT) 23 ALARM12 IN (INPUT) 11 ALARM13 IN (INPUT) 24 ALARM14 IN (INPUT) 12 ALARM15 IN (INPUT) 25 ALARM16 IN (INPUT) 13 NO CONNECTION

NOTE: THIS FIGURE IS SEEN FROM THE REAR VIEW

 GROUND: Ground Contact.

 DISK FULL (OUTPUT): This is a disk full output trigger. Connect this to external devices

such as buzzers or lights. (

0V(Active)

)

 ALARM OUT (OUTPUT): This is an alarm output trigger. Connect this to external devices

0V(Active)

such as buzzers or lights. (

)

 RECORD IN (INPUT): This pin connects to a record trigger device for starting a record.

0V(Active)

(

)

 ALARM RESET (INPUT): This pin connects to an alarm-clear device for clearing an alarm.

0V(Active)

(

)

 ALARM IN (INPUT): This is an alarm input (for each channel) that can be programmed in

0V(Active)

the menu system to Normally Open or Normally Closed. (

)

Page 13

3. INSTALLATION

Please follow the instructions and the diagram below to set up the system.

3.1 Basic Connection

CONNECTING WITH 1 to 16 CAMERAS

ATTACHING AN EXTERNAL DEVICE TO DVR

Connect an alarm out, alarm input, and a peripheral device as shown in the diagram below.

Page 14

3.2 Hard-Disk Drive Installation

The 16CH DVR is equipped with two compartments of hard-disk drives and a CD-RW drive (FOR

CD-ROM MODEL ONLY). The unit usually comes with one hard-disk drive installed in the compartment

HD1, which is default-configured as a master. If you need a second hard-disk drive to be installed in the

compartment HD2, please contact your distributors or installers for specific instructions on how to install

it. Please don’t try this before consulting your installers. The jumper-settings arrangement of installed

hard-disk drives for the system (Table 3.2 A) and the compatible hard-disk drives (Table 3.2 B), which

can be used with the unit, are shown in the tables below.

NOTE: There are three compartments of hard-disk drives in the REMOVABLE HDD MODEL. If there is

only one hard-disk drive in the mobile compartment, please set the HDD3 USAGE option to REC

(please refer to section 4.4) before proceed recording function.

Table 3.2 A. The jumper settings of hard disk drives in the system

Location Jumper

IDE 1 Compartment HD 1 Master

IDE 1 Compartment HD 2 Slave

IDE 2 Compartment CD Master

Table 3.2 B. Compatible hard-disk drives

Manufacturer Model Capacity Rotation

Seagate

Maxtor

NOTE: Hard-disk drives not shown on this list have not been tested by the engineering team

and are not recommended for use with this product. For the latest updated list on the

recommended hard disk drives, please contact your dealers or distributors.

ST380020A/P 80GB 5400 RPM

ST340810A/P 40GB 5400 RPM

ST320014A 20GB 5400 RPM

ST340015A 40GB 5400 RPM

ST380012ACE 80GB 5400 RPM

ST3120025ACE 120GB 5400 RPM

4A160J0-1A 160GB 5400 RPM

4R080L0-1 80GB 5400 RPM

6Y120L0-1 120GB 7200 RPM

6Y200P0-1A 200GB 7200 RPM

6Y250P0-1A 250GB 7200 RPM

SV0802N 80GB 5400 RPM SAMSUNG

SV1203N 120GB 5400 RPM

Page 15

3.3 HDD Information and channel selection

3.3.1 HDD information You can display the HDD information as shown on Figure 3.3 A below at any time by pressing the Display button

recording mode, the Manual Recording information is displayed. The unit displays status on a monitor as shown next.

Figure 3.3 A. Description of Figure 3.3 A

. In the playback mode, the recorded video information is displayed. In the live or

(20G): The capacity of installed hard disk, 20 GB

(HDD): Hard disk Compartment (HDD3 IS FOR

REMOVABLE HDD MODEL ONLY)

(●): Recording; (○): No recording

(

►): Playback; ( ): No Playback

(CD):CD-RW Compartment (FOR CD-ROM MODEL ONLY)

(SD CARD): SD CARD Compartment

Press the Display button

again; the unit will display the information as shown in Figure 3.3 B below.

Figure 3.3 B. Description of Figure 3.3 B

REC RATE: 30 F/S REC TIME: 5h18m REMAIN: 1h10m REC MODE: STOP

STATUS: LIVE SCHEDULE: NORMAL

PLAY: The device is in the playback mode.

(30 F/S): Record speed setting, 30 frames/sec. (5h18m): Total 5 hours and 18 minutes recording time available. (1h10m): Total 1 hours and 10 minutes remaining time available. (REC MODE): STOP; MANUAL. (STATUS): Indicates the device status.

LIVE: The device is in the live display mode. MANU

: The device is in the search mode.

(SCHEDULE): NORMAL, and 1~8.

Press the Display button

again; the unit will display the information as shown in Figure 3.3 C below.

Figure 3.3 C. Description of Figure 3.3 C

ETHERNET DHCP

1 9 2 . 1 6 8 . 1 . 1 4 3

RX 29 KB/S

TX 100 KB/S

(DHCP): Enables the DHCP communication function.

192.168.1.143): Every DVR has to own an IP address to

(

be identified on the network.

29 KB/S): Receives the data from network every

(RX

per second.

100 KB/S): Transmits the data to network every per

(TX

second.

3.3.2 Channel Selection

The

, , , and CH1/ CH2/ CH3/ …/CH16 buttons are used to select video modes

and video channels in factor. The following table show the functions under different modes.

Mode Key Result Display

Live / Record / Playback

  then loop back

CH1/ CH2/ CH3/ …/CH16

( Single channel )

Page 16

3.4 Updating System Software

If the system software of the 16CH DVR needs to be upgraded, please take the following steps to safely

update it.

Important: Before carrying out the following procedures, please ensure the SD card is working

and the system software file is intact.

1. Create a directory named DVRVIDEO in the SD Card; if you already have a directory, move to Step2.

2. Copy the file of UPDATE.BIN to the DVRVIDEO-directory.

3. If 16CH DVR is running, please power it off first.

4. Insert the SD card into the built-in SD slot of the unit.

5. Hold down the

Up and Down buttons simultaneously, and then turn on the unit while still

holding down the buttons.

6. Keep holding down the buttons until the 16CH DVR sounds a note and displays the message “ LOAD

PROGRAM . . .” Now the 16CH DVR is updating the system software, taking approximately 150

seconds to complete.

7. Restart the unit by turning off the DVR when the device displays the message “ PLEASE POWER OFF

RESTART”. Then turn on the DVR again. The process is complete.

(If you have already followed procedures 1~6, and the unit is still unable to turn on, then please first

check if the SD card you are using is functioning and the file is intact. And then repeat procedures 1 ~

6.)

8. Verify the version information of the system software. (Please refer to the section 5.7 DEFAULT

SETTING option)

display

cal

seq.

enter

freeze

REW FF

PL A Y

STOP

PAUSE

REC

Warning: Don't interrupt the process or use an SD card lacking the proper system

software, as this could damage the unit.

Page 17

4. BASIC OPERATIONS

This section shows you how to operate and manage the DVR.

4.1 Recording Operations

This section details the way to record video into hard-disk drives. Before commencing with the recording

function, please configure the recording setting properly according to your needs.

4.1.1 Manual Recording

When the DVR is in the live display mode, take the following steps to start recording:

(1) In live display, press the REC button

corresponding programmed recording settings. At once the device will emit a “beeping” sound

signal and the REC button

(2) Press the REC button

(3) To access just recorded video, please refer to section 5.6.2 RECORD SETTING for more

details.

4.1.2 Timer Recording

Timer recording provides two periods of time each day in a weekly table which programs the DVR

to turn on and off at specified times. This way the DVR will start and stop recording according to

the programmed schedule. Please take the following steps to program the scheduled recording.

(1) Press the menu button

(2) Select the ADVANCED SETTING and press the Enter button

SETTING page.

(3) Select SCHEDULE and press the Enter button

to record video into a hard disk drive with the

will light up indicating the DVR is in the recording status.

for at least 3 seconds to stop recording any time.

to enter the MAIN MENU.

to enter the ADVANCED

to enter the SCHEDULE SETTING page.

(4) Choose a schedule and enable it by turning the shuttle ring clockwise.

(5) ● Press or use jog dial and then press ENTER to enter the schedule's settings.

● Then you can choose to record for a single day, the standard business week (M-F) or the

entire week.

● Set the time to begin a recording. Set the time to end a recording.

NOTE: The time is displayed in a 24-hour clock format.

(6) Set alarm, record, and motion preferences to override normal alarm, record and motion

settings during this scheduled record period.

(7) After scheduling is completed, leave the page and save the settings. This device will operate

automatically during the specific time period you have scheduled, set and saved for it.

(8) If you want to stop recording in a scheduled recording session or at anytime, you can press the

REC button #10 for at least 3 seconds.

Page 18

NOTE: You can proceed to start the scheduled recording from the current time if it is in the

scheduled interlude as soon as the setting is complete, and come out from the menu to

start recording.

NOTE: If you activate the recording function before the scheduled recording, the unit will

operate recording as shown in the diagram below and keep those Images in different

files.

START END START END

03:00 06:00 08:00 12:00 14:00

Start Manual

Recording

Timer Manual Timer Manual

Page 19

ADV

MAIN MENU

1 QUICK SETTING: ENTER 2 DISPLAY OPTION: ENTER 3 SEQUENCE SETTING: ENTER 4 PICTURE ADJUST: ENTER 5 OPERATION LOG: ENTER 6 ADVANCED SETTING: ENTER 7 DEFAULT SETTING: ENTER 8 PASSWORD SETTING: ENTER 9 EXIT MENU: ENTER

enter: select ▲/▼/jog/ch1~9: item

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

NCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

SCHEDULE SETTING

1 SCHEDULE1: DISABLE ENTER 2 SCHEDULE2: DISABLE ENTER 3 SCHEDULE3: DISABLE ENTER 4 SCHEDULE4: DISABLE ENTER 5 SCHEDULE5: DISABLE ENTER 6 SCHEDULE6: DISABLE ENTER 7 SCHEDULE7: DISABLE ENTER 8 SCHEDULE8: DISABLE ENTER RETURN

enter: select ▲/▼/jog/ch1~8: item

SCHEDULE SETTING

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~8: item

SCHEDULE SETTING

1 DATE: WEEKL 2 START TIME: 12:00 3 END TIME: 12:00 4 START RECORD: YES 5 ALARM SETTING: DISABLE ENTER 6 RECORD SETTING: DISABLE ENTER 7 MOTION SETTING: DISABLE ENTER RETURN

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~7: item

Page 20

4.1.3 Alarm Recording

Take the following steps to activate the programmed alarm recording. For ALARM settings, please

refer to section 5.6.1 for more details.

(1) Press the menu button

(2) Select the ADVANCED SETTING and press the Enter button

SETTING page.

(3) Select the ALARM SETTING and press the Enter button

page.

(4) Set the desired time period. The options range from "TRANSPARENT" to "NONSTOP", from

one second to 60 minutes.

(5) Set the alarm record rate.

(6) Set the alarm record mode.

(7) Set the alarm record quality.

(Please refer to section 5.6.1 for more information.)

(8) Set to a "SENSITIVITY" of from 0.1 to 0.8 seconds

(9) Enter and set each channel to activate or deactivate the three modes of "SENSOR", "V LOSS",

and "ACTIVE" in the ALARM TYPE LINK and ALARM OUT LINK items.

NOTE: The “ALARM OUT LINK” page has an item, namely “START RECORD”. Change it to

“ON” under “ACTIVE” to start alarm recording.

to enter the MAIN MENU.

to enter the ADVANCED

to enter the ALARM SETTING

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

DVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

LARM SETTING

1 ALARM DURATION: 30 SEC 2 DISK FULL ALERT: ON 3 PREALARM: OFF 4 ALARM RECORD RATE: 60 F/S 5 ALARM RECORD MODE: ENTER 6 ALARM RECORD QUALITY: ENTER 7 SENSOR TYPE: ENTER 8 ALARM INPUT LINK: ENTER 9 ALARM OUT LINK: ENTER RETURN

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~9: item

Page 21

4.1.4 Externally triggered Recording

By connecting the RECORD IN of ALARM I/O on the rear panel of the DVR, you can

activate/deactivate the recording function of a DVR.

NOTE: The status of recording operations when an alarm takes place is shown in the

diagrams below.

Manual or Externally

Triggered Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm Normal

Timer Recording

Alarm Takes Place

Actual Recording

Timer Recording

Alarm Takes Place

Actual Recording

Timer Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm Normal

Normal Alarm

Alar

Normal

Page 22

4.2 Playback Operations

This section shows you how to operate the fast, slow, and single-picture playback functions, and details

how the unit is to playback a file in a different operation status. Please refer to the following paragraphs

specifying the relevant details. When playing a file, the PLAY button

DVR is in the playback status.

During playback, to view individual channels press the CH1-CH16 buttons respectively. To view the

playback of multiple channels simultaneously, press the appropriate

Besides switching between keys, the zoom button

full-screen view.

can also be used to zoom the picture to a 2X2

will light up indicating that the

, , , buttons.

4.2.1 Fast Forward/Reverse

There are 6 speeds available for playback: 2x, 4x, 8x, 16x, 30x and 100x

While playing back recorded video at recorded speed:

Forward: Turn the Shuttle dial

at a speed faster than the recorded speed. Each subsequent turn of the shuttle to the

right increases the forward rate, as 2x, 4x, 8x, 16x, 30x and 100x.

Reverse: Turn the Shuttle dial

to the right to view the recorded video in the forward direction

to the left to view the recorded video in the reverse direction at

a speed faster than the recorded speed. Each subsequent turn of the shuttle to the left

increases the reverse rate, as -2x, -4x, -8x, -16x, -30x and -100x.

Normal: Release the Shuttle dial

4.2.2 Slow Forward/ Reverse

There are 6 speeds available for a slow playback: 1/2x, 1/4x, 1/8x, 1/16x, 1/30x and 1/100x

While playing back recorded video at the recorded speed:

(1) Press the PAUSE button

(2) Forward: Turn the Shuttle dial

direction at a speed slower than the recorded speed. Each subsequent turn of the

shuttle to the right increases the forward rate, as 1/2x, 1/4x, 1/8x, 1/16x, 1/30x and

1/100x.

(3) Reverse: Turn the Shuttle dial

direction at a speed slower than the recorded speed. Each subsequent turn of the

to return to the normal speed of playback.

for the slow playback mode.

to the right to view the recorded video in the forward

to the left to view the recorded video in the reverse

shuttle to the left increases the reverse rate, as -1/2, -1/4, -1/8, -1/16, -1/30x and

-1/100x.

(4) Normal: Release the Shuttle dial

normal speed of playback.

and then press the PLAY button to return to the

Page 23

4.2.3 Playback Picture-by-picture

While playing back recorded video at the recorded speed:

(1) Press the PAUSE button

(2) There are two ways, by PAUSE button or by JOG, to play in the picture-by-picture mode, but

the PAUSE button

act in both a forward and a backward direction, as well as picture-by-picture.

By PAUSE button

Press the PAUSE button

direction.

By JOG dial

Turn the JOG dial

direction. Turn the JOG dial

the backward direction.

(3) Press the PLAY button

for the picture-by-picture mode.

can only function in a forward direction; the other, the JOG dial , can

to display one frame of a picture at a time in the forward

clockwise to display one frame of a picture at a time in the forward

counterclockwise to display one frame of a picture at a time in

to return to the normal speed of playback.

4.2.4 Play Back Recorded Video from a HDD of the mobile rack (FOR REMOVABLE HDD

MODEL ONLY)

To play back a recorded video from a HD3, take the following steps:

(1) Press the Search button

(2) Select the FULL LIST and press the Enter button

video.

(3) Press the

to flip over a page.

(4) Use the search function to access desired recorded video from HD3 in the mobile rack. For

specific operation details please refer to the next section 4.3 (Search Operations).

“^” and “v” buttons, to select a video; press the “<” and “>” buttons,

to enter the search mode.

to access the complete list of recorded

Page 24

4.3 Search Operations

This section shows you how to access recorded video.

4.3.1 Full List Search

Take the following steps to proceed with the full-list search function.

(1) Press the Search button to enter the search mode.

(2) Select FULL LIST and press the Enter button

to access the complete list of recorded

video.

(3) Highlight the specific recorded video of your requirement and press the Enter button

display the selected video.

(Key Operation: Press the

and

“>” buttons to turn a page.)

“^” and “v” buttons to select a video; press the “<”

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

HD NO. DATE TIME DURATION

HD1 0004 05/11/2004 12:20:23PM 00:01:24

0005 14:30:43PM 00:56:05 0006 05/12/2004 13:20:23PM 00:19:14 0007 15:20:23PM 00:18:23 0008 16:20:23PM 00:16:25 0009 18:20:23PM 00:08:13 0010 05/14/2004 03:20:23PM 00:01:05 0011 07:20:23PM 00:33:05 0012 08:20:23PM 00:01:12 0013 05/15/2004 12:20:23PM 00:01:11

(“CD” IS FOR THE CD-ROM MODEL AND “BACKUP” IS FOR THE REMOVABLE HDD

MODEL ONLY IN THE ITEM 6.)

NOTE: The maximum number of lists for an HDD is 2000.

4.3.2 Alarm list Search

Take the following steps to proceed with the alarm-list search function.

(1) Press the Search button to enter the search mode.

(2) Select the ALARM LIST and press the Enter button

alarm-event recorded video.

(3) Highlight the specific recorded video of your requirement and press the Enter button

display the selected video.

(Key Operation: Press the

and

“>” buttons to turn a page.)

“^” and “v” buttons to select a video; press the “<”

to access the complete list of

Page 25

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

HD NO. DATE TIME ALARM

HD1 0001 05/11/2004 12:15:03PM CH3 VLOS

0002 14:30:43PM CH4 VLOS 0003 05/16/2004 11:14:23PM CH5 VLOS 0004 12:20:25PM CH3 VLOS 0005 16:37:13PM CH3 VLOS 0006 19:25:53PM CH6 VLOS 0007 05/17/2004 03:20:23PM CH3 VLOS 0008 07:34:26PM CH3 VLOS 0009 08:36:23PM CH6 VLOS 0010 05/18/2004 12:20:43PM CH3 VLOS

(“CD” IS FOR THE CD-ROM MODEL AND “BACKUP” IS FOR THE REMOVABLE HDD MODEL

ONLY IN THE ITEM 6.)

4.3.3 SEARCH FILTER

Take the following steps to proceed with the time-list search function.

(1) Press the Search button to enter the search mode.

(2) Select the SEARCH FILTER and press the Enter button

page.

(3) The “ALARM FILTER” can search four modes, namely “DISABLE”, “SENSOR”, “V-LOSS”, and

“MOTION”.

(4) Set the channel number you wish to search for the recorded video.

(5) Set the date period you wish to search for the recorded video.

(6) Set the time period you wish to search for the recorded video.

(7) Select the SEARCH LIST on the SEARCH FILTER page and press the Enter button

start searching and displaying the concerned image.

(8) If no video is found, please return to the SEARCH FILTER page and repeat steps (3) and (6)

again for another search.

to access the SEARCH FILTER

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

SEARCH FILTER

1 ALARM FILTER: DISABLE CH: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

2 DATE FILTER: DISABLE DATE: 05/19/2004

3 TIME FILTER: DISABLE TIME: 02:06:27 PM

4 SEARCH LIST: ENTER

▲/▼/◄/►: item shuttle: value search: return

(“CD” IS FOR THE CD-ROM MODEL AND “BACKUP” IS FOR THE REMOVABLE HDD MODEL

ONLY IN THE ITEM 6.)

Page 26

4.3.4 THUMBNAIL Search

Take the following steps to proceed with the thumbnail search function.

(1) Press the Search button to enter the search mode.

(2) Select the THUMBNAIL and press the Enter button

● You can set up by using the “<” button

select the image you wish to search for the recorded video.

● You can also use the Shuttle Ring to start playback.

(3) There are 8 levels of recording range modes, Press the “

to access the thumbnail page.

and the “>” button to move eye focus and

^” button and the “v” button or

use the Jog Dial

Seconds or 1 Second. Select the specific frame of your requirement to enter the previous or

next level.

(4) On reaching the critical point at any level, the user can start playback by just clicking the PLAY

button

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

or the Enter button .

to choose the Year, Month, Day, 1 Hour, 10 Minutes, 1 Minute, 10

(“CD” IS FOR THE CD-ROM MODEL AND “BACKUP” IS FOR THE REMOVABLE HDD MODEL

ONLY IN THE ITEM 6.)

4.3.5 SD CARD Menu

Take the following steps to proceed with the SD card search function.

(1) Insert an SD Card into the SD card slot of the front unit.

(2) Press the Search button

(3) Select the SD CARD and press the Enter button

(4) Highlight the specific JPEG file of your requirement and press the Enter button

the image.

(5) If you need another, please press the Enter button

and repeat step (4) again for another search.

(6) If you would like to delete a JPEG file in the SD card, please highlight the specific JPEG file of

your requirement and press the Enter button

button

to enter the search mode.

to access the complete list of JPEG files.

to display

to return to the SD CARD MENU page

to display the image, then press the Down

and select “yes” to delete the image.

Page 27

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

SD CARD MENU 1 05/13/2004 12:49:12PM JPG0001.JP 2 05/13/2004 12:50:33PM JPG0002.JP 3 05/13/2004 12:51:45PM JPG0003.JP 4 05/13/2004 12:51:21PM JPG0004.JP 5 05/13/2004 12:52:42PM JPG0005.JP 6 05/13/2004 12:53:32PM JPG0006.JP 7 05/13/2004 12:54:55PM JPG0007.JP

*** END ***

(“CD” IS FOR THE CD-ROM MODEL AND “BACKUP” IS FOR THE REMOVABLE HDD MODEL ONLY IN THE ITEM 6.)

4.3.6 CD (BACKUP) Menu

4.3.6.1 CD Menu (FOR CD-ROM MODEL ONLY)

Take the following steps to proceed with the CD search function.

(1) Place the disc in the tray.

(2) Press the Search button

(3) Select the CD option and press the Enter button

(4) Highlight the specific JPEG file of your requirement and press the Enter button

the image.

(5) If you need another, please press the Enter button

repeat step (4) again for another search.

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

to enter the search mode.

to access the complete list of JPEG files.

to display

to return to the CD MENU page and

CD MENU 1 01/09/2005 08:01:49PM AVI0001.AVI 2 01/13/2005 04:01:20PM JPG0001.JP 3 05/13/2005 09:01:34PM JPG0002.JP 4 05/13/2005 10:59:16PM JPG0003.JP 5 05/13/2005 10:59:16PM JPG0004.JP 6 05/13/2005 10:59:16PM JPG0005.JP 7 05/13/2005 10:59:16PM JPG0006.JP

(“CD” IS FOR THE CD-ROM MODEL AND “BACKUP” IS FOR THE REMOVABLE HDD MODEL

ONLY IN THE ITEM 6.)

NOTE: If by accident one selects a CD item and forgets to insert it: See the picture below for this

status and please insert a CD or press the search button to exit the CD menu

CD MENU

CD NOT READY

Page 28

4.3.6.2 BACKUP Menu (FOR HARD-DISK MODEL ONLY)

Please refer to section 4.4.2 “Mobile Rack HD Backup Operations” for more details.

4.4 Backup Operations

4.4.1 CD ReWritable unit Backup Operations (FOR CD-ROM MODEL ONLY)

This device now includes a CD-RW unit.

1 SD CARD JPEG: ENTER 2 SD CARD AVI: ENTER 3 CD JPEG: ENTER 4 CD AVI: ENTER

▲/▼: item enter: select menu: exit

SAVE MENU

1. SD CARD JPEG: Archive single image clips into an SD card. (Please refer to section 4.4.2)

2. SD CARD AVI: Archive video of AVI clips into an SD card. (Please refer to section 4.4.2)

3. CD JPEG: You can archive a lot of single images in a CD disc by entering this item.

Please follow the steps given below.

i ) Please insert the CD disc in its tray. You’ll hear a signaling beep to tell you the disc is

ready.

ii ) Play the video back to find your desired item. Press PAUSE when you find it.

iii ) Press the Menu button and select # 3 ( "CD JPEG" ) and enter.

iv ) You've entered the CD JPEG MENU.

v )

1 ADD JPEG FILE: ENTER 2 EDIT JPEG: ENTER 3 BURN: ENTER

▲/▼: item shuttle: select menu: return

Select item 1: Add your image to the buffer. The message "ADD OK" is a confirmation. If you wish to add more images to the buffer, press any key to return to the CD JPEG MENU.

vi ) Turn the jog dial to find the next image you want. Now repeat the last step again to

add this image to the buffer. You can continue in this way indefinitely.

vii ) If you now wish to edit your buffer, select item 2 ( "EDIT JPEG" ) in the CD JPEG

MENU. Now in the EDIT JPEG page, turn the jog dial to review your selected images.

As the dial is turned, the images move. You can now decide to delete or not delete any image you find unnecessary or not by pressing the "^" ( up ) or "v" ( down ) buttons to "NO" ( meaning no deletions ) or "YES" ( meaning you're deleting a particular image ). Press the "Menu" button to exit this page.

viii ) If your selection is complete, enter item 3 ( "BURN" ) in the CD JPEG MENU. Give

the device some time to complete this process.

ix ) Press the eject button to open the CD tray, take out the CD disc, and enter it in a PC

CD JPEG MENU

Page 29

to view your selections.

4. CD AVI: You can archive a video in the CD disc by entering this item.

Please follow the steps given below.

i ) Please insert the CD disc in its tray. Hear that beeping signal to confirm your disc is

ready.

ii ) Play the video back to find your desired item. Press PAUSE when you want to start. iii ) Press the Menu button and select # 4 ( "CD AVI" ) and enter. iv ) You're in the CD AVI MENU now.

v )

1 VIDEO MODE: FULL 2 AUDIO MODE: RIGHT 3 TIME: 10 SEC 4 BURN: ENTER

▲/▼: item shuttle: select menu: return

CD AVI MENU

Item 1: Turn the shuttle to choose your video mode: either "FULL" or " CIF".

Item 2: Turn the shuttle to select "RIGHT", "LEFT" or "DISABLE" as your audio

mode.

Item 3: Turn the shuttle to select the time length of your saved recording

anywhere between １０seconds and １０minutes.

Item 4: Enter this item to start burning your video in the CD disc.

vi ) Press the eject button to open the CD tray, take out the CD disc, and enter it in a PC

to view your video.

4.4.2 Mobile Rack HD Backup Operations (FOR REMOVABLE HDD MODEL ONLY)

There are three ways available to duplicate the recorded video from HDD1 and HDD2 (Fixed HDs)

in HDD3 (the Mobile Rack HD). Please take the following steps to proceed.

(1) Set HDD3 to BACKUP first. Take the following steps.

 Press the menu button

 Highlight ADVANCED SETTING and press the Enter button

to enter the MAIN MENU page.

to enter the ADVANCED

SETTING page.

 Select the DISK SETUP and press the Enter button

to enter the DISK SETUP page

 Then set HD 3 USAGE to BACKUP HD.

Page 30

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

DISK SETUP

1 DISK FULL: REWRITE 2 HDD1 REFORMAT: ENTER 3 HDD2 REFORMAT: ENTER 4 HDD3 (REMOVEABLE) REFORMAT: ENTER 5 SD CARD REFORMAT 6 HDD3 (REMOVEABLE) USAGE: BACKUP HD 7 RETURN

HD1 MODEL: ST320014A HD2 MODEL: HD3 MODEL:

menu: exit shuttle: value ▲/▼/jog/ch1~7: item

ENTER

(2) Backup to HD3.

 Press the “Search” button and enter the SEARCH page.

 Move the focus to BACKUP and enter the BACKUP MENU page.

 Set the DATE, TIME and DURATION in the menu. Adjust the shuttle to set the desired

values in the entries; the maximum value for DURATION is 72 hours 59 minutes.

 After you set the DATE, TIME and DURATION, select START BACKUP.

 Commence the backup function; the red signal on the screen shows the HDD3 is

functioning.

 Press the STOP button to end the backup function.

 Press the search button to exit the mode (to survey the live images) and press the

search button again to return to the BACKUP MENU mode (to check the BACKUP

mode information). This process can continue until you finish the backup function or

push the STOP button.

1 FULL LIST ENTER 2 ALARM LIST ENTER 3 SEARCH FILTER ENTER 4 THUMBNAIL ENTER 5 SD CARD ENTER 6 CD (BACKUP) ENTER 7 EXIT ENTER

enter: select ▲/▼/jog/ch1~7: item

1 DATE: 05/24/2004 2 TIME: 12:00 AM 3 DURATION: 24:00 4 START BACKUP: ENTER

BACKUP MENU

1 DATE: 05/24/2004 2 TIME: 12:00 AM 3 DURATION: 24:00 4 START BACKUP: ENTER

BACKUP MENU

NO. DATE TIME DURATION 0001 05/24/2004 09:10:16AM 00:00:25 0002 05/24/2004 09:57:11AM 00:01:19 0003 05/24/2004 09:59:18AM 00:07:56

stop: end backup search: return to live view

Page 31

4.4.3 Security Digital Card (SD Card) Backup Operations

The SD card slot of the front unit has four functions as shown below:

1. Archive Single image Clips into the SD Card

Please take the following steps to archive a critical image in an SD card.

(1) Insert an SD Card into the SD card slot of the front unit.

(2) Start playing back the recorded video and select a desired channel.

(3) Press the PAUSE button

(4) Press the menu button

to freeze the desired pictures.

to enter the SAVE MENU page.

●SD CARD JPEG:

The quantity of pictures that can be stored depends on the SD card capacity. It depends on

the SD card capacity how many pictures can be stored. You can have the saved images

printed out in any computer. The image is stored in the JPEG compressed format. If more

than one clip is stored in an SD card, file names will be assigned in sequence as shown

below.

SAVE JPG0001.JPG TO SD CARD

SAVE JPG0002.JPG TO SD CARD

…

SAVE JPG000N.JPG TO SD CARD

2. Archive video of AVI Clips into an SD Card

Please take the following steps to archive a critical video in an SD card.

(1) Insert an SD Card into the SD card slot of the front unit.

(2) Start playing back the recorded video and select a desired channel.

(3) Press the PAUSE button

(4) Press the menu button

(5) Select the SD CARD AVI and press the Enter button

to freeze the desired pictures.

to enter the SAVE MENU page.

to enter the SD CARD AVI

MENU page.

(6) Set desired settings in the AVI save file setup mode.

●SD CARD AVI MENU:

1 VIDEO MODE: FULL 2 AUDIO MODE: RIGHT 3 TIME: 10 S 4 SAVE: ENTER

▲/▼: item menu: exit shuttle/enter: select

SD CARD AVI MENU

The quantity of video that can be stored depends on the SD card capacity. The image is stored in

the AVI compressed format. If more than one clip is stored in an SD card, file names will be

assigned in sequence as shown below.

Page 32

SAVE AVI0001.AVI TO SD CARD

SAVE AVI0002.AVI TO SD CARD

…

SAVE AVI000N.AVI TO SD CARD

NOTE: ●The JPEG file format can be played and deleted in the DVR. Please refer to section 4.3.5.

●The AVI file format cannot be played and deleted in the DVR. It can only be played in a card

reader connected to a computer.

●The file format can be selected on the SAVE MENU.

3. Backup system settings onto a SD Card.

16CH DVR offers a quick setup method by using an SD card. You can use this feature to tell the

16CH DVR to save all of its settings onto the SD card, so that it can be loaded into another 16CH

DVR.

Save the whole setting into the SD card:

 Insert an SD card into the SD card slot.

 Press the menu button

 Highlight DEFAULT SETTING and press the Enter button

 Select the SAVE SD CARD SETTING and press the Enter button

to enter the MAIN MENU page.

to enter the DEFAULT SETTING page.

to enter the saving mode.

 Set SAVE SD CARD SETTING to YES. Then the system setting info will auto save into the SD

card.

Transfer the system setting info of a DVR to another:

 Insert the SD card which has stored the system setting info into the DVR.

 Press the menu button

 Highlight DEFAULT SETTING and press the Enter button

 Select the LOAD SD CARD SETTING and press the Enter button

to enter the MAIN MENU page.

to enter the DEFAULT SETTING page.

to enter the loading mode.

 Then set LOAD SD CARD SETTING to YES and press enter.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

DEFAULT SETTING

1 SAVE INSTALLER SETTING: ENTER 2 LOAD INSTALLER SETTING: ENTER 3 SAVE SD CARD SETTING: ENTER 4 LOAD SD CARD SETTING: ENTER 5 LOAD FACTORY SETTING: ENTER 6 VERSION INFORMATION: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~6: item

4. Updating System Software (please refer to section 3.4 for more details.)

Page 33

4.5 Key Lock Operations

● To activate the key lock function.

(1) Press the Menu button to enter the MAIN MENU page.

(2) Select ADVANCE SETTING to enter the ADVANCE SETTING page.

(3) Select OPERATION LOCK to enter the OPERATION LOCK mode.

(4) Select FRONT KEY LOCK to enable its function.

(5) Exit and save, activating the key lock function.

● To deactivate the key lock function, turn the FRONT KEY LOCK to OFF.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

DVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

Page 34

4.6 Triplex Operations

4.6.1 Live mode:

● Simultaneous live viewings of any one channel in multiple channels.

(1) Use the enter button to show a red-framed Channel 1.

(2) Press the enter button to move the red-framed rectangle to Channel 2, and so on to

(3) Click any specific channel button to show that channel’s live images in the particular

4.6.2 Play mode:

● Simultaneous viewing of a particular channel in the play mode in any number of

channels.

(1) Press the search button to enter the SEARCH page to select a recorded video. Play

(2) Use the enter button to show a red-framed Channel 1.

(3) Press the enter button to move the red-framed rectangle to Channel 2, and so on to

the other channels consecutively until you arrive at your chosen channel.

space you’ve arrived at.

the record.

the other channels consecutively until you arrive at your chosen channel.

(4) Click any specific channel button to show that channel’s recorded images in the play

mode in the particular space you’ve arrived at.

● Simultaneous Live – and – Play on-Screen functions.

(1) Press the search button to enter the SEARCH page to select a recorded video. Play

the record.

(2) Press the PAUSE button to halt the images.

(3) Use the enter button to show a red-framed Channel 1.

(4) Press the enter button to move the red-framed rectangle to Channel 2, and so on to

the other channels consecutively until you arrive at your chosen channel.

(5) Click any specific channel button to show that channel’s live images in the particular

space you’ve arrived at.

(6) Press the PLAY button to resume playing the playback record of any channel.

NOTE: You can press the “REC” button to simultaneously show the “LIVE”, “PLAY” and

“RECORD” functions. The three modes played together comprise the “Triplex”

function.

Page 35

5. MENU SETUP

There are 9 functional items for operation setting in the setup menu system as shown below. The following

sections will instruct you step by step to configure the operation setting and will state each item’s purpose

and options. To enter any particular item, press the corresponding channel number from CH 1~9 on the

front panel. You can also use the “

items. Once inside the item’s system, the on-screen menu allows you to set up the key features of the unit.

The functions of the various buttons within the menu-setup mode are described in the paragraphs below.

^” (up) and “v” (down) buttons, or rotate the jog dial, to select any of the

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

KEY FUNCTIONS

menu button

Press to enter the MAIN MENU page. You can also use this button to return directly to the

MAIN MENU page from any other page. After returning to the MAIN MENU page, you can

push the menu button again and then enter to exit the menu system page.

^” and “v” buttons :

“

Press to select a desired item.

“<”

Press to move within a desired option or value.

Enter button

Press to enter a selected item.

and “>” buttons :

Shuttle Ring :

Turn to change the value of any desired option.

Jog Dial :

Turn to move the focus in any direction you want.

CH 1~16

Press a channel number to enter a functional item of the same number on any page.

Page 36

5.1 QUICK SETTING

This page enables you to rapidly install your desired setting. For more detailed changes, enter each item

page.

MAIN MENU

enter: select

▲/▼/jog/ch1~9: item

1. TIME SETTING:

You can set the system time here.

2. DATE SETTING:

Records the system date.

3. TITLE SETTING:

Fixes a desired title. After entering this page you can choose any particular channel's title and use

the shuttle to make any changes.

4. NORMAL RECORD RATE:

Select this item and use the shuttle to adjust your recording rate out of our available rate range

from 0 to 60(NTSC), or 0 to 50(PAL). If you choose a speed rate, your selected recording rate will

be divided proportionally between the number of channels you use.

5. RECORD QUALITY:

Enter and choose each channel's quality out of a quality range from "BEST", "HIGH", and

"STANDARD" to "BASIC".

6. DISK FULL:

This option determines the way to utilize storage media in case of a full disk.

REWRITE: When the hard disk is full, the device continues recording by displacing the old data.

STOP: When the hard disk is full, the device will stop recording.

NOTE: Please press the " STOP" or "DISPLAY" buttons to erase the beeping sound.

7. RETURN:

Choose this item and press Enter button to go back to the previous page.

QUICK SETTING

1 TIME SETTING: 18:54:47 PM 2 DATE SETTING: 04/29/2004 3 TITLE SETTING: ENTER 4 NORMAL RECORD RATE: 30 F/S 5 RECORD QUALITY: ENTER 6 DISK FULL: REWRITE RETURN

menu: exit enter: select shuttle: value ◄/►/ jog: move ▲/▼/jog/ch1~6: item

Page 37

5.2 DISPLAY OPTION

This item enables you to fix the display labels on your screen.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

DISPLAY OPTION

1 TIME MODE: 12HR 2 TIME SETTING: 05:40:55PM 3 DATE MODE: MM/DD/YYY 4 DATE SETTING: 05/02/2004 5 TIME ZONE: GMT+00:00 6 TITLE SETTING: ENTER 7 MAIN MONITOR DISPLAY: ENTER 8 CALL MONITOR DISPLAY: ENTER 9 DAYLIGHT SAVING SETTING:ENTER RETURN

menu: exit enter: select shuttle: value

◄/►/ jog: move

▲/▼/ ch1~9: item

1. TIME MODE:

You have a choice between using a 12 HR or a 24 HR mode.

12 HR: Shows the time in the a.m. and p.m. mode in the setting.

24 HR: Gives a 24 - hour reading.

2. TIME SETTING:

Change the system time here.

3. DATE MODE:

Gives a date in terms of months, days, or years in changeable positions.

4. DATE SETTING:

Change the system date here.

5. TIME ZONE:

Please choose a correct time zone.

6. TITLE SETTING:

Fixes a desired title for each channel. You can use the shuttle ring to change the titles.

7. MAIN MONITOR DISPLAY:

Enter the Main Monitor Display page.

DISPLAY OPTION

1 TIME MODE: 12HR 2 TIME SETTING: 05:40:55PM 3 DATE MODE: MM/DD/YYYY 4 DATE SETTING: 05/02/2004 5 TIME ZONE: GMT+00:00 6 TITLE SETTING: ENTER 7 MAIN MONITOR DISPLAY: ENTER 8 CALL MONITOR DISPLAY: ENTER 9 DAYLIGHT SAVING SETTING:ENTER RETURN

menu: exit enter: select shuttle: value

◄/►/ jog: move

▲/▼/ ch1~9: item

MAIN MONITOR DISPLAY

1 TIMEDISPLAY: ON 2 TIME DISPLAY COLOR: WHITE 3 DATE DISPLAY: ON 4 DATE DISPLAY COLOR: WHITE 5 TIME/DATE LOCATION: TOP-RIGHT 6 TITLE DISPLAY: TYPE B 7 TITLE DISPLAY COLOR: ENTER RETURN

menu: exit shuttle: value ▲/▼/jog/ch1~7: item

1. TIME DISPLAY:

Activate to ON ( enable ) or OFF ( disable ).

Page 38

2. TIME DISPLAY COLOR:

/▼/

You can choose between red, yellow, blue, green, black, and white.

3. DATE DISPLAY:

Select to ON or OFF as desired.

4. DATE DISPLAY COLOR:

Select any of the six colors, namely red, yellow, green, blue, black, and white.

5. TIME / DATE LOCATION:

You can locate / change time / date labels in any of six positions: top - left, top - mid, and

top - right, and bottom - left, bottom - mid, and bottom - right.

6. TITLE DISPLAY:

This item has 3 options: TYPE A, TYPE B and OFF.

7. TITLE DISPLAY COLOR:

Again, you have the six colors to choose from: red, yellow, blue, green, black, and

white.

8. RETURN:

Go back to the previous, DISPLAY OPTION page.

8. CALL MONITOR DISPLAY:

Enter the CALL MONITOR DISPLAY page.

DISPLAY OPTION

menu: exit enter: select shuttle: value

◄/►/ jog: move

▲

ch1~9: item

CALL MONITOR DISPLAY

1 TIMEDISPLAY: ON 2 DATE DISPLAY: ON 3 TIME/DATE LOCATION: TOP-RIGHT 4 TITLE DISPLAY: ON RETURN

menu: exit shuttle: value ▲/▼/jog/ch1~4: item

1. TIME DISPLAY:

Enable to ON to activate the call monitor, and disable to OFF.

2. DATE DISPLAY:

The option once more is ON to enable and OFF to disable.

3. TIME / DATE LOCATION:

The time and date labels can be placed at or changed to any of six positions:

top - left, top

- mid, and top - right, and bottom - left, bottom - mid, and bottom - right.

4. TITLE DISPLAY:

Once again, turn ON to activate and OFF to deactivate.

5. RETURN:

Go back to the previous, DISPLAY OPTION page.

Page 39

9. DAYLIGHT SAVING SETTING:

This entry allows users to set the daylight saving time.

1. NONE:

Disables the daylight saving time.

2. EUROPE GMT +00:00:

Daylight saving time begins at 1:00 a.m. on the last Sunday of March. Time reverts to

standard time at 2:00 a.m. on the last Sunday of October.

3. EUROPE GMT +01:00:

Daylight saving time begins at 2:00 a.m. on the last Sunday of March. Time reverts to

standard time at 3:00 a.m. on the last Sunday of October.

4. EUROPE GMT +02:00:

Daylight saving time begins at 3:00 a.m. on the last Sunday of March. Time reverts to

standard time at 4:00 a.m. on the last Sunday of October.

5. RUSSIA:

Daylight saving time begins at 2:00 a.m. on the last Sunday of March. Time reverts to

standard time at 3:00 a.m. on the last Sunday of October.

6. NORTH AMERICA:

Daylight saving time begins at 1:00 a.m. on the first Sunday of April. Time reverts to

standard time at 2:00 a.m. on the last Sunday of October.

7. AUSTRALIA:

Daylight saving time begins at 2:00 a.m. on the last Sunday of October. Time reverts to

standard time at 2:00 a.m. on the last Sunday of March.

10. RETURN:

Choose this item and press the Enter button to go back to the previous page.

Page 40

5.3 SEQUENCE SETTING

/▼/jog

This page enables you to use ten modes to set the sequence of displays you want for the main

monitor, and a single mode for the call monitor. The dwell time for displays in each channel can be set

at your own preference anywhere between 0 ( no - show ) and 99 seconds when you press the

Sequence button.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

SEQUENCE SETTING

MAIN MONITOR 1 1-CHANNEL DISPLAY: ENTER 2 2-CHANNEL DISPLAY: ENTER 3 3-CHANNEL DISPLAY: ENTER 4 3-CHANNEL DISPLAY: ENTER 5 4-CHANNEL DISPLAY: ENTER 6 6-CHANNEL DISPLAY: ENTER 7 8-CHANNEL DISPLAY: ENTER 8 9-CHANNEL DISPLAY: ENTER 9 10-CHANNEL DISPLAY: ENTER 10 13-CHANNEL DISPLAY: ENTER

CALL MONITOR 11 FULL SCREEN DISPLAY: ENTER RETURN

menu: exit enter: select

▲

/ch1~11: item

1. 1-CHANNEL DISPLAY: You can set a full - screen sequence.

2-CHANNEL DISPLAY: A fullscreen with an inset, either of which can be in the sequence

mode.

3-CHANNEL DISPLAY: A triple - window mode, with any one of them in sequence status.

3-CHANNEL DISPLAY: A different arrangement of three windows, with any one of them

being sequential.

4-CHANNEL DISPLAY: 4 windows, one sequential.

6-CHANNEL DISPLAY: 6 windows, one sequential.

8-CHANNEL DISPLAY: 8 windows, one sequential.

9-CHANNEL DISPLAY: 9 windows, one sequential.

10-CHANNEL DISPLAY: 10 windows, one sequential.

10.

13-CHANNEL DISPLAY: 13 windows, one sequential.

11. FULL SCREEN DISPLAY: Set the call monitor's sequence mode, with the preferred dwell time

for each channel.

12. RETURN: Choose this item and press the Enter button to go back to the previous page.

Page 41

5.4 PICTURE ADJUST

This page enables you to position your images the way you desire.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

PICTURE ADJUST

1 H POSITION: 0 2 V POSITION: 0 3 LIVE PICTURE: ENTER 4 COLOR BAR PATTERN: ENTER RETURN

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~4: item

1. H POSITION: Horizontal position.

2. V POSITION: Vertical position.

3. LIVE PICTURE: You can change or adjust, in each channel, the NOISE FILTER function, BRIGHT, CONTRAST, COLOR and HUE of the images.

4 COLOR BAR PATTERN: Refer to if and when necessary.

5 RETURN: Go back to the previous page.

5.5 OPERATION LOG

This page displays the contents of the operation log for you.

The following are the critical steps of the operation log: Menu saving, power on, power off, power loss,

recording stop, play stop, play start, recording start, alarm, and hard - disk full signal.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

OPERATION LOG Log Time / Date 1 MENU SAVE 05:16:34PM 04/30/2004 2 MENU SAVE 06:10:13PM 04/30/2004 3 POWER ON 07:34:32PM 04/30/2004 4 POWER LOSS 08:16:54PM 04/30/2004 5 REC STOP 10:15:14PM 04/30/2004 6 PLAY STOP 10:21:24PM 04/30/2004 7 PLAY START 10:25:31PM 04/30/2004 8 REC START 10:27:33PM 04/30/2004 9 PLAY STOP 10:45:35PM 04/30/2004 10 REC STOP 10:56:24PM 04/30/2004 11 REC START 08:23:51PM 05/01/2004 12 PLAY STOP 08:16:34PM 05/01/2004 13 REC STOP 08:16:40PM 05/01/2004 14 REC START 05:43:08PM 05/02/2004 END

Note: The log keeps an operation history on a revolving basis because of its limit of 2000. When the

log is full, the newly registered record of an operation will replace the existing records from the

oldest one.

Page 42

5.6 AVANCED SETTING

This page includes multiple special functions.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

DVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

5.6.1 ALARM SETTING

This page enables you to set all the various alarm - related functions. The device will record as long as

the alarm is activating.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

LARM SETTING

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~9: item

1. ALARM DURATION:

Set the desired time period. The options range from "TRANSPARENT" to "NONSTOP", from one

second to 60 minutes.

NOTE: You can't set a time frame of so many seconds and minutes at the same time.

2. DISK - FULL ALERT:

This signals a disk is fully recorded. The options are "ON' and "OFF".

ON: Enables the function.

OFF: Disables the function.

3. PREALARM:

This option determines that images prior to an alarm will be recorded in the hard- disk drive. When

an alarm is triggered the device will record the images prior to the alarm for 10 seconds.

ON: Enables the function.

OFF: Disables the function.

Page 43

4. ALARM RECORD RATE:

For an NTSC unit we provide many different speeds from 0 to 60 fields per second, and for a PAL

unit the figures are from 0 to 50 F/S.

5. ALARM RECORD MODE:

Each channel is provided with four categories of alarm record rates: NORMAL, DOUBLE,

INTERLEAVED, and EXCLUSIVE.

6. ALARM RECORD QUALITY:

Similarly enter and set each channel to record an alarm at qualities ranging from BEST, HIGH, and

STANDARD to BASIC.

7. SENSOR TYPE:

Again, the alarm input in each channel can be set to a "SENSITIVITY" of from 0.1 to 0.8 seconds.

8. ALARM INPUT LINK:

Enter and set each channel to activate ( ON ) or deactivate ( OFF ) the three modes of "SENSOR",

"V ( VIDEO )-LOSS", and "ACTIVE".

9. ALARM OUT LINK:

Enter and activate ( YES ) or deactivate ( NO ) the three alarm output modes of "SENSOR",

"V-LOSS" and "ACTIVE" for the following : ALARM OUT 1, 2, and 3, BUZZER, MAIN and CALL

DISPLAYs, START RECORDING, and CALL FULL SCREEN.

10. RETURN

Go back to the previous page.

5.6.2 RECORD SETTING

This page enables you to set the recording rate and recording quality, and enables you to continue

recording if you set the "RECORD MODE" to "NONSTOP".

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

RECORD SETTING

1 RECORD QUALITY: ENTER 2 NORMAL RECORD RATE: 30 F/S 3 ALARM SAMPLING RATE: 44K Hz 4 AUDIO CHANNEL MODE: STEREO RETURN

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~4: item

Page 44

1. RECORD QUALITY:

You can enter and set each channel's record quality at 4 different levels of image recording from

"BEST","HIGH", and "STANDARD" to "BASIC".

2. NORMAL RECORD RATE:

The rate range is from 1 field per second (F/S) to 60 F/S.

3. AUDIO SAMPLING RATE:

This item has 4 options: "44K Hz", "22K Hz", "8K Hz", and "DISABLE".

4. AUDIO CHANNEL MODE

The options here are "STEREO" ( two channels with the same input ), and "LEFT INPUT" and

"RIGHT INPUT" ( two channels that work separately ).

5. RETURN

Go back to the previous page.

5.6.3 MOTION SETTING

Here you can set the motion detection area of each channel.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

elect

channel

1. SENSITIVITY:

Use the shuttle to move the sensitivity bar and change the focus left to right.

2. TARGET ZONE:

With "AUTO" or "MANUAL" setting.

3. TRACK DETECT:

Ranging from "UP" and "DOWN" to "LEFT" and "RIGHT".

4. DURATION:

The rate of recorded image movements, ranging from 0.0 to 5.0 seconds.

5. SIZE:

Determine which size targets you want detected, ranging from 1H1W to 9H9W.

6. RETURN:

Go back to the previous page.

CH1 MOTION SETTING

1 SENSITIVITY: ○--------◘---------♁ 2 TARGET ZONE: MANUAL 3 TRACK DETECT: OFF 4 DURATION: 0.0 SEC 5 SIZE: 1H1W RETURN

menu: exit shuttle: value

og/ch1~5: item

enter: en/disable call + ▲/▼/◄/►:

set A dot seq +

▲/▼/◄/►:

set B dot

x: area disable o: area enable

Page 45

5.6.4 COVERT CAMERA

Enter and activate each channel to ON or deactivate to OFF for hidden or exposed recording

respectively.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

5.6.5 OPERATION LOCK

We provide you with 4 kinds of locks:

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

CAMERA COVERT

CH1 : ON menu: exit CH2 : OFF shuttle: value CH3 : OFF ▲/▼/jog/ch1~16: item CH4 : OFF CH5 : OFF CH6 : OFF CH7 : OFF CH8 : OFF CH9 : OFF CH10 : OFF CH11 : OFF CH12 : OFF CH13 : OFF CH14 : OFF CH15 : OFF CH16 : OFF RETURN

OPERATION LOCK

1 FRONT KEY LOCK: OFF 2 RS-232 LOCK: OFF 3 PLAYBACK LOCK: OFF 4 RECORD KEY LOCK: OFF 5 NETWORK LOCK: OFF RETURN

menu: exit shuttle: value ▲/▼/jog/ch1~5: item

1. FRONT KEY LOCK: Turn ON to lock, and to deactivate the key lock function, turn the FRONT

KEY LOCK to OFF.

2. RS-232 LOCK: Turn ON to lock and OFF to unlock.

3. PLAYBACK LOCK: Turn ON to lock and OFF to unlock, when you wish to enter the various

playback functions.

4. RECORD KEY LOCK: Turn ON to lock and OFF to unlock.

5. NETWORK LOCK: Turn ON to lock and OFF to unlock the Ethernet communication port.

6. RETURN: Go back to the previous page.

Page 46

5.6.6 COMMUNICATION

We provide you with two settings: the RS 232 and RS 485.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

1. RS-232 SETTING:

You have the option of using an ID code ( any number between 0 and 9999 ) or a Baud rate ( at

5 different levels : 1200, 2400, 4800, 9600, and 19200 ).

2. RS-485 SETTING: The options are:

1. ID CODE: Use any number between 0 and 9999.

2. BAUD RATE: At the rates of 1200, 2400, 4800, 9600, and 19200.

3. MASTER CLOCK: Activate ON or OFF

4. RETURN: Go back to the previous page.

3. NET SETTING:

This option is used to configure the Ethernet communication settings. This is required for the

purpose of making a network connection. Please consult with a qualified MIS professional to

configure it.

COMMUNICATION

1 RS-232 SETTING : ENTER 2 RS-485 SETTING : ENTER 3 NET SETTING: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~3: item

NOTE:

If provided with a DHCP server, the 16CH DVR can get an IP automatically by setting

the DHCP item to ON.

4. RETURN: Go back to the previous page.

COMMUNICATION

1 RS-232 SETTING : ENTER 2 RS-485 SETTING : ENTER 3 NET SETTING: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~3: item

NET SETTING

1 DHCP : OFF 2 IP ADDRESS : 192.168.001.001 3 SUBNET MASK: 255.255.255.000 4 GATEWAY: 192.168.001.254 5 HTTP PORT: 00080 6 ADMIN NAME: ADMIN 7 ADMIN PASSWORD: 9999 8 VIEWER NAME: VIEWER 9 VIEWER PASSWORD: 9999 10 DEVICE NAME: DVR RETURN

menu: exit shuttle: value

◄/►/ jog: move

▲/▼/ ch1~10: item

Page 47

5.6.7 DISK SETUP

▲/▼

/jog

Enter the disk mode to select your desired setting.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

1. DISK FULL:

This option determines the way to utilize storage media in case of a full disk.

REWRITE: When the hard-disk is full, the device continues recording by displacing the old

data.

STOP: When the hard-disk is full, the device will stop recording.

2. DAYS TO KEEP DATA IN HDD:

You have the option of using DAYS ( any number between 07 and 99 DAYS ) or NO ERASE.

3. HDD1 REFORMAT:

This option allows you to clear out all the data in the HDD1. You will be required to enter the pre-set password before proceeding with clearing out the data. Enter the standard password “9999”.

4. HDD2 REFORMAT:

This option allows you to clear out all the data in the HDD2. You will be required to enter the pre-set password before proceeding with clearing out the data. Enter the standard password “9999”.

5. HDD3 (REMOVABLE) REFORMAT (FOR REMOVABLE HDD MODEL ONLY): This option allows you to clear out all the data in the HDD3. You will be required to enter the pre-set password before proceeding with clearing out the data. Enter the standard password “9999”.

6. SD CARD REFORMAT:

This option allows you to clear out all the data in the SD card. You will be required to re - check your selection before proceeding with clearing out the data, and set and enter the SD CARD

FORMAT MENU to activate (YES) or, alternatively, deactivate (NO).

7. CD REFORMAT (FOR CD-ROM MODEL ONLY):

This item helps you erase your CD disc if it’s rewritable.

8. HDD3 (REMOVABLE) USAGE: (FOR REMOVABLE HDD MODEL ONLY)

There are two options here for the removable and mobile HD, "REC" ( record ) and "BACKUP HD".

This option determines the way to utilize the hard-disk drive in the mobile compartment.

BACKUP HD: Used for data backup only, which will not be part of regular recording in a

hard-disk drive.

REC: Used for the regular recording hard-disk drive.

DISK SETUP

1 DISK FULL: REWRITE 2 DAYS TO KEEP DATA IN HDD: NO ERASE 3 HDD1 REFORMAT: ENTER 4 HDD2 REFORMAT: ENTER 5 HDD3 (REMOVABLE) REFORMAT: ENTER (FOR HARD-DISK MODEL ONLY) 6 SD CARD REFORMAT: ENTER 7 CD REFORMAT: ENTER (FOR CD-ROM MODEL ONLY) 8 HDD3 (REMOVABLE) USAGE BACKUP HD (FOR HARD-DISK MODEL ONLY) RETURN

HD1 MODEL: ST320014A HD2 MODEL: HD3 MODEL: CD MODEL: ASUS CRW-5232AX 1.0

menu: exit shuttle: value

/ch1~8: item

Page 48

9. RETURN:

Go back to the previous page.

5.6.8 SCHEDULE

Enter the setting to set up 8 forms of schedule. A schedule can change the record setting as well as the

alarm setting at designated times. You can directly "ENABLE" or "DISABLE" each schedule.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

Enter the "SCHEDULE" setting to adjust the following items:

SCHEDULE SETTING

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~8: item

SCHEDULE SETTING

enter: select ▲/▼/jog/ch1~8: item

SCHEDULE SETTING

1 DATE: WEEKL 2 START TIME: 12:00 3 END TIME: 12:00 4 START RECORD: YES 5 ALARM SETTING: DISABLE ENTER 6 RECORD SETTING: DISABLE ENTER 7 MOTION SETTING: DISABLE ENTER RETURN

menu: exit enter: select shuttle: value ▲/▼/jog/ch1~7: item

1. DATE: You can choose a single or several days, or a week.

2. START TIME: The time a schedule commences.

3. END TIME: The concluding time of a schedule.

4. START RECORD: Options are simply YES or NO.

5. ALARM SETTING: During the scheduled time, you can set another alarm setting.

6. RECORD SETTING: During the scheduled time, you can set the schedule record quality and rate.

7. MOTION SETTING: For each channel, you can set another scheduled motion detection setting

during the scheduled time.

Page 49

8. RETURN: Go back to the previous page.

5.6.9 RETURN

To exit the “ADVANCED SETTING” page choose “RETURN” and go back to the “MAIN MENU” page.

ADVANCED SETTING

1 ALARM SETTING: ENTER 2 RECORD SETTING: ENTER 3 MOTION SETTING: ENTER 4 CAMERA COVERT: ENTER 5 OPERATION LOCK: ENTER 6 COMMUNICATION: ENTER 7 DISK SETUP: ENTER 8 SCHEDULE: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~8: item

5.7 DEFAULT SETTING

This page enables you to save and reload the default settings.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

MAIN MENU

1 QUICK SETTING: ENTER 2 DISPLAY OPTION: ENTER 3 SEQUENCE SETTING: ENTER 4 PICTURE ADJUST: ENTER 5 LOG OPERATION: ENTER 6 ADVANCED SETTING: ENTER 7 DEFAULT SETTING: ENTER 8 PASSWORD SETTING: ENTER 9 EXIT MENU: ENTER

enter: select ▲/▼/jog/ch1~9: item

DEFAULT SETTING

1 SAVE INSTALLER SETTING: ENTER 2 LOAD INSTALLER SETTING: ENTER 3 SAVE SD CARD SETTING: ENTER 4 LOAD SD CARD SETTING: ENTER 5 LOAD FACTORY SETTING: ENTER 6 VERSION INFORMATION: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~6: item

1. SAVE THE INSTALLER SETTING:

This item enables you to save the setting in the buffer of the device.

2. LOAD INSTALLER SETTING:

In case of alien tampering or its possibility, this item allows you to return to your selected settings without wasting any time.

3. SAVE SD CARD SETTINGS:

If you wish to quickly set up many DVR units with the same settings, you can save all the settings to an SD card.

4. LOAD SD CARD SETTING:

This item allows you to load your entire settings and transfer them to another DVR by using an SD card.

5. LOAD FACTORY SETTING:

This page enables you to reload the factory default setting.

6. VERSION INFORMATION:

This item is in the "DEFAULT SETTING” page, where you can find the model number, the software version, and the date of the latest firmware improvement.

7. RETURN:

Go back to the previous page.

Page 50

5.8 PASSWORD SETTING

This page enables you to set the password.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

1. MENU PASSWORD.

This option lets you set a password to block any unauthorized entry.

ENTER NEW MENU PASSWORD:

Type in a 4 - digit number password of your choice to replace the previous one.

RE - ENTER MENU PASSWORD:

Type in the pre - set password to access the password setting system.

2. ADVANCE SETTING PASSWORD:

To enter an advanced setting, you have to first shift the focus to this item. Instantly the screen

shows the following entry:

ENTER NEW ADVANCE PASSWORD:

Type in the 4 -digit number password you choose.

RE - ENTER ADVANCE PASSWORD:

Re - type your advance password in order to check it.

3. DEFAULT SETTING PASSWORD:

If you want to execute the default setting, shift the focus to this item and enter. Instantly the

screen shows the following entry:

ENTER NEW DEFAULT PASSWORD:

Type in your selected new default password in a 4 - digit number.

RE - ENTER DEFAULT PASSWORD:

Re - type your new default password in order to check it.

4. REFORMAT PASSWORD:

This option allows you to set a password to block any unauthorized entry in formatting Hard disk,

CD or SD card.

ENTER NEW REFORMAT PASSWORD:

Type in the 4 -digit number password you choose.

RE - ENTER REFORMAT PASSWORD:

Re - type your advance password in order to check it.

5. RETURN:

Go back to the previous page.

PASSWORD SETTING

1 MENU PASSWORD: ENTER 2 ADVANCE SETTING PASSWORD: ENTER 3 DEFAULT SETTING PASSWORD: ENTER 4 REFORMAT PASSWORD: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~4: item

Page 51

5.9 EXIT MENU

If you wish to exit the menu, focus on this item and enter.

MAIN MENU

enter: select ▲/▼/jog/ch1~9: item

1. EXIT MENU WITHOUT SAVING:

Enter to exit at once without saving any settings.

2. EXIT AFTER SAVING:

EXIT MENU

1 EXIT MENU WITH SAVING: ENTER 2 EXIT WITHOUT SAVING: ENTER RETURN

menu: exit enter: select ▲/▼/jog/ch1~2: item

Save your settings and exit.

3. RETURN:

Go back to the previous page.

Page 52

6. NETGUARD SYSTEM: Introduction

NETGUARD SYSTEM : This version of the NETGUARD SYSTEM uses the Microsoft .Net Framework

version. The .Net Framework performs the XML Web Services which applies this operation system. The .Net

Framework provides a very high performance environment to solve the network program. Therefore, please

use our NETGUARD software to connect the 16CH DVR. It will satisfy our users as being safer, faster, and

more stable and reliable than other software. See below for the chief features of this NETGUARD.

 This software supports

the multiple functions of

the network.

 It can search any number

of DVRs as necessary.

 It can support eight display

modes and help you

control your favorite

screen sizes.

 It has an extremely

powerful search mode to

help you search recorded

data for the event / time

you want.

 It supports your local PC

simultaneously with the

DVR backup data.

The programs can be operated by a selected PC equipped with the following requirements：

1. Intel Pentium III 750MHz (at least).

2. 128 MB RAM

3. Windows 98, NT, ME, 2000 and XP.

4. 4 MB Video card capable of 24-bit true color display.

5. 160 MB free hard-disk space for software installation.

6. 10-base T network for LAN operation.

Page 53

6.1 TCP/IP Communication Setup

Follow the instructions below to install the TCP/IP communication program into your computer.

1. Click the Start Menu from your computer, and point to the Control panel.

2.Click the Network Connections icon twice to enter the Network setting windows.

Point to the Local Area Connection and click the right bottom of the mouse. Click the Properties to

enter the Local Area Connection.

Page 54

3.Click on the Configuration tag; check if the TCP/IC is included among the network components list. If the

TCP/IP is included, please process step 5. If it is not included, please follow step 4 to install the TCP/IP.

4.TCP/IP installation

During the installation, you will be requested to insert the windows XP CD ROM. After installation, the PC

will be restarted.

Page 55

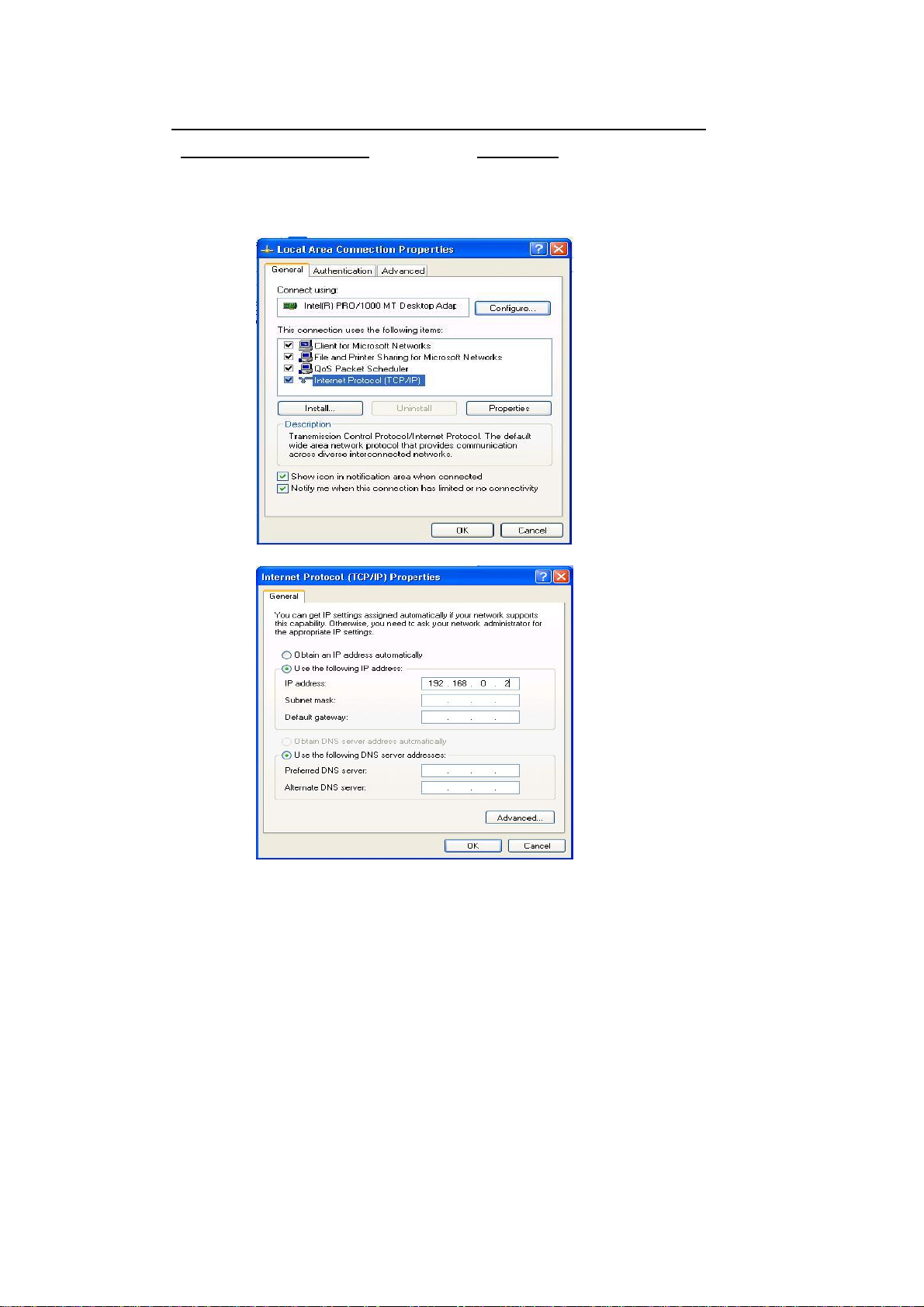

5 TCP/IP Configuration setting

 Click Start  Control Panel  Network.Connections  Local Area Connection

 Select Internet Protocol (TCP/IP)

, and then click Properties.

 Before processing the DVR installation in a WAN, please make sure the Internet connection works

properly. If not, please contact your ISP provider.

If you are using a DHCP server, please select Obtain an IP address automatically. Any assigned IP address

for the connected DVRs must be in the same class type as the server. If there is no DHCP server, please

select specify an IP address and type in the IP address of your PC. This IP address must be different from

the DVR IP but in the same class type.

NOTE: The IP address of a DVR in a network must be unique to itself as opposed to those of the other chosen

PCs, but in the same class type

Page 56

6.2 Connection Testing

With the previous settings, follow the instructions below to ensure whether you have established the

connection successfully.

1. Click Start  Command Programs

2. Type in ping 192.168.1.1 then Enter. (See the sample screen below)

** This IP is the DVR IP address that is assigned for the connected DVR.

3.If you receive a response as in the sample screen below, the connection hasn’t been successfully

established. Please re-check all the hardware and software installation by repeating steps 1 to 5. If you still

can’t establish the connection after rechecking, please contact your dealer.

Page 57

4. If you receive a response as in the sample screen below, you have successfully made the connection.

6.3 Software installation.

Step 1: Exit all applications currently running in the selected PC.

Step 2: Insert the supported PC in the CD - ROM device. The program will execute the installation of the .Net

Framework automatically after you click the "Setup.exe" file.

※ Note: If you choose "Yes" in the above window, the installation will be completed

automatically. You may need to wait 3 - 5 minutes during the installation.

Step 3: After you have completed installing the ".Net 1.22 Framework Viewer", you'll automatically

enter the "NETGUARD SYSTEM" installation screen. Please see the screen below.

※ Note: Please choose the "Next" button to continue.

Page 58

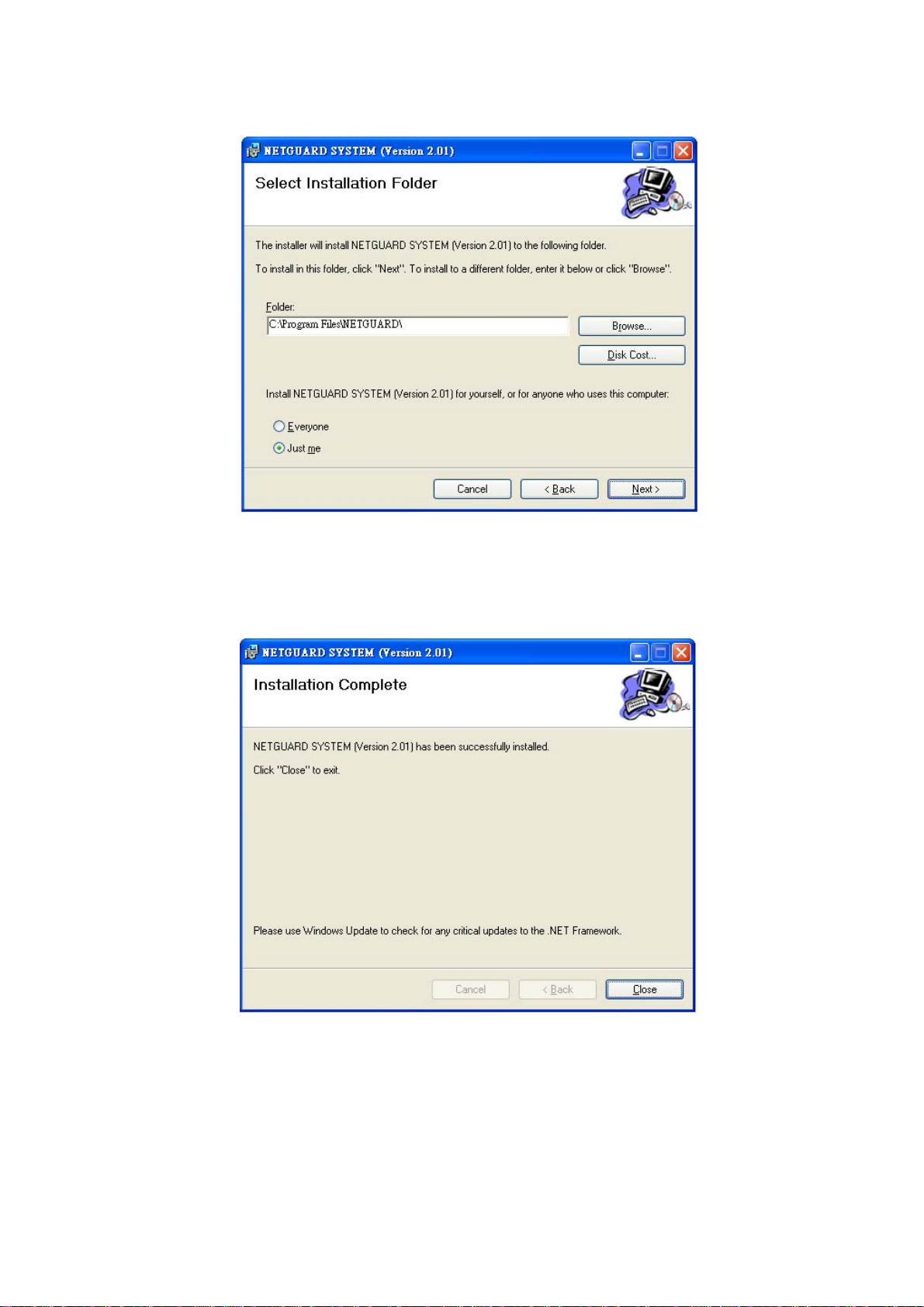

Step 4: The installation screen will show the message "C :\ Program Files \ NETGUARD \". Or you can

select the path you want.

※ Note: Click "Next" to continue the installation.

Step 5 : The window below tells you the process is complete.

※ Note: Click the "Close" button to complete the installation process.

Page 59

Step 6 : After completing installation, you can double - click the file shown below. Or click the "Start Menu" in

the computer and select "Programs" to open the "Program Selection" page. Then click the "NETGURD

SYSTEM" tag to start the program.

NOTE: Please make sure the TCP/IP communication software has been properly set and configured in

your computer.

NOTE: “Auto Uninstall”: It’s not necessary to remove the exit program when you are going to install a

new version of NETGUARD. Every time you update the NETGUARD, the original version will be

removed automatically.

Page 60

6.4 Short introduction

Once the NETGUARD is executed, a log in window will

appear. Please type the appropriate user name and

password to log into the DVR, ie “Admin” and “9999”, and

click the "Login" button.

6.4.1 Program introduction

【Available Devices】：

selection. Double click any of them to open the screen below. Please enter the correct

"Username" and "Password" to log into this DVR. The default "Username" and

"Password" are "admin" and "9999" respectively.

Here the whole DVR list is shown. You can connect with your

【Wording Device】：

show the information in all the cameras.

After you enter the DVR, the section in the upper left margin will

Page 61

【Multiscreen】：

Here all the videos of the cameras will show.

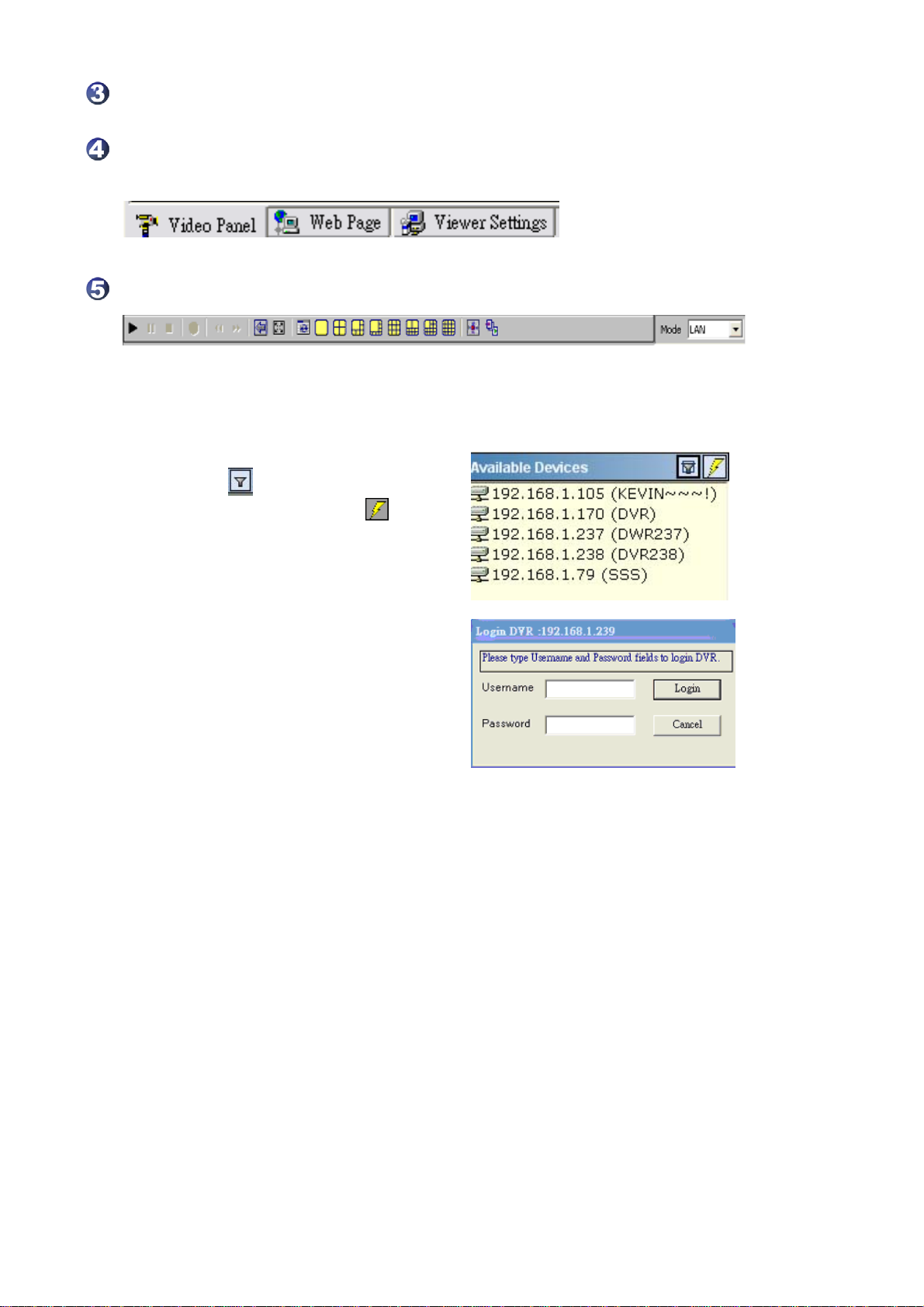

【Multiscreen Buttons】：You can interchange between three buttons here : the

"Video Panel", "Web Page" and the "Viewer Settings" buttons.

【Function Key】：

Click each of these buttons to execute its functions.

6.5 Operation

6.5.1 Remote Control

※ Step 1: After entering the "NETGUARD",

please click the button to select “16

Channels DVR ” and then click the

"Available Devices" button. The software will

automatically search the whole local LAN 16 -

channel DVR device to see a list.

※ Step 2: Double click your selected device to

see a window as on the right. Enter the

"Username" and "Password" -- the default

name and password are "admin" and "9999".

※ Step 3: The default multi-screen is the 16 - channel mode you see now.

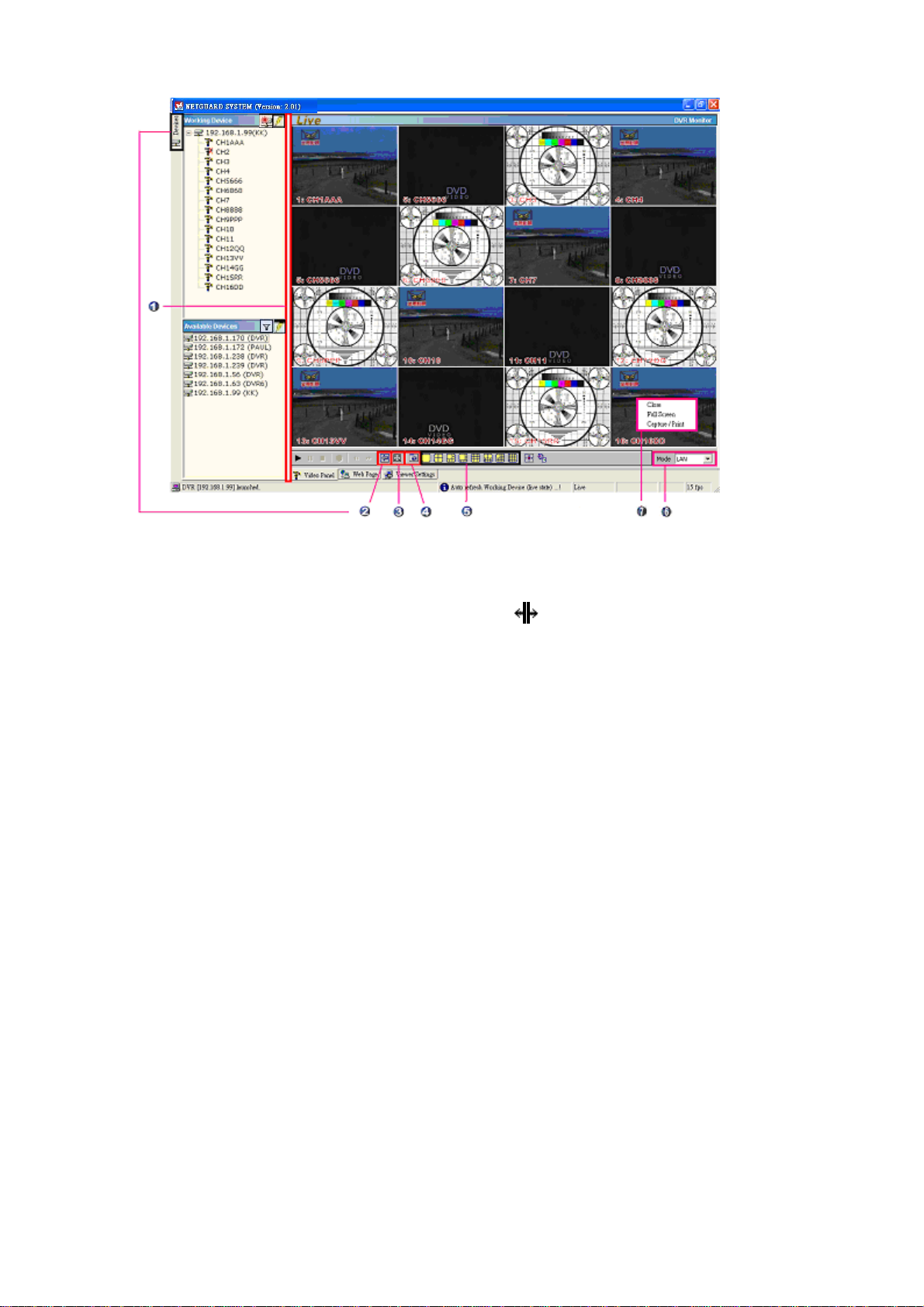

※ Step 4 : The NETGUARD helps you see any display mode you want.

Page 62

1. Adjust the screen size: Move the mouse to the vertical bar on the right side of

the "Work Devices" / "Available Devices" box on the left margin of the

screen. This bar runs from the top to the bottom of the screen, and when you

move the mouse to this bar, it shows like this: . You can move this bar to

the left to narrow the "Working Devices" / "Available Devices" box and to the

right to widen it.

2. Hide Device Panel: Click this button to hide the "Available Devices /

Working Devices" box from view behind the video display screen.

3. Full Screen: Click this button to show the full screen for surveillance. All the

setting buttons will be hidden in this mode. If you want to return to the previous

mode, use the mouse to click the right key, and choose "Close".

4. Re-arrange the divisions: Click this button to see the following channels.

5. Screen divisions: Choose any of the buttons you want.

6. LAN or Internet mode: Click this button to enter the "LAN" and "Internet"

modes alternately.

7. Pop-menu: You can use the mouse to move to each channel. Click the right

key of the mouse to show a window. You can select "Close", "Full Screen", or

"Capture / Print".

※ Close: Stops the channel's display.

※ Full Screen: Enlarges the display to "Full Screen".

※

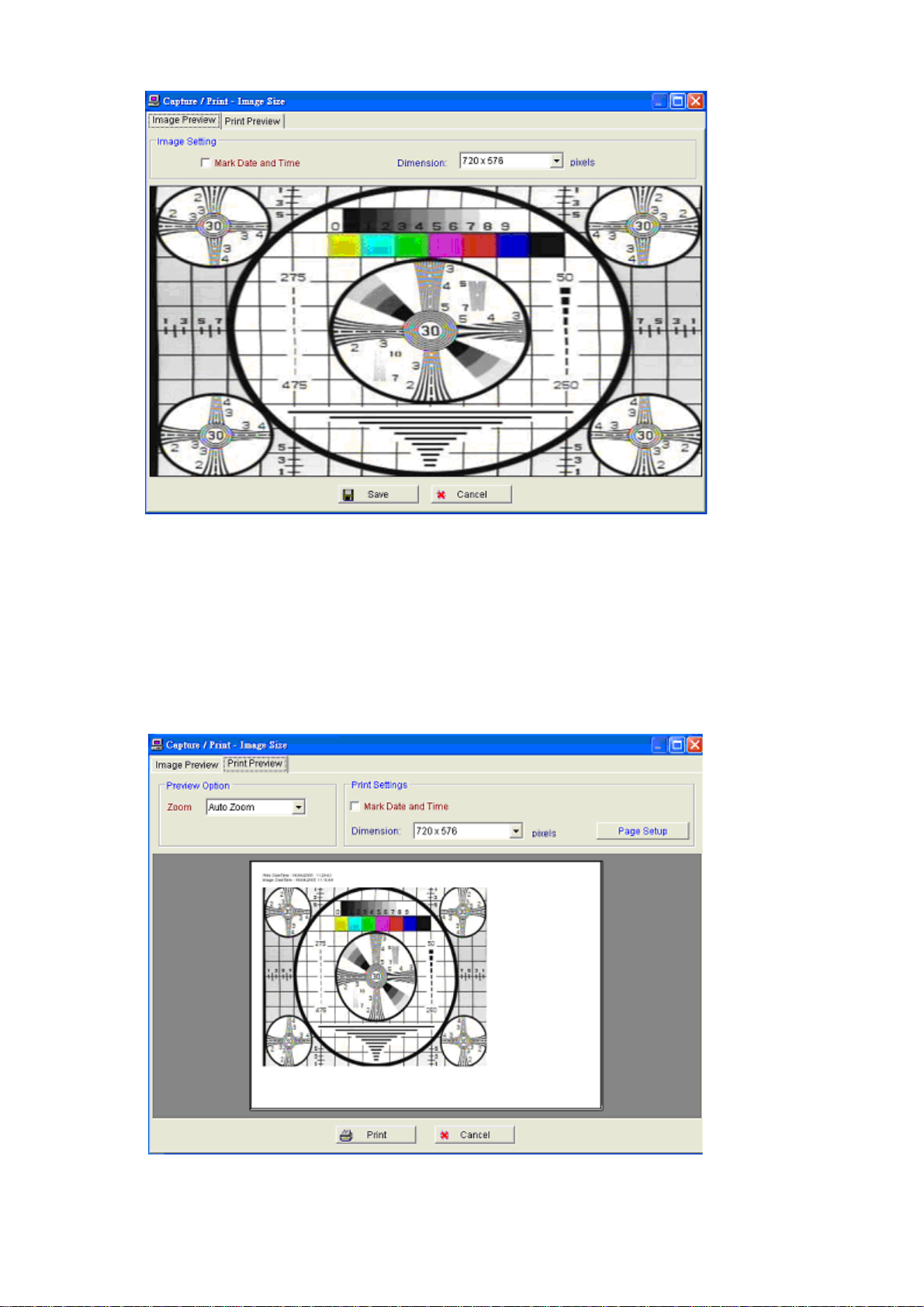

Capture / Print:

"Capture":

See the "Image Preview" page for the "Preview Setting" which has two choices :

"Mark Date and Time" and "Dimension". Mark the item “Mark Date and Time” to

set the date and time stamp on a chosen picture. Choose an appropriate dimension

before saving the image. To save the image, click "Save" at the bottom to enter the "Save Page" window. Give the file name. If you want to exit, click "Cancel".

Page 63

"Print":

Click the "Print Preview" button and go to the "Preview" option to adjust the image

size. Go to the "Print Settings" area and then to "Mark Date and Time" if you wish to

stamp the date and time of the image on the image itself. Select "Dimension" to scroll

the appropriate pixels from the drop - down list. Click "Print" to start the printing. Click

"Cancel" to exit.

Page 64

6.5.2 Remote play and PTZ control.

This device has the full triplex so you can use the NETGUARD in the remote without affecting the performance

of the 16 - channel DVR. You can also use the NETGUARD to play and back up. If you have a PTZ camera,

the NETGUARD can also control it.

6.5.2.1 Remote play

See the following panel which enables you to play, pause, stop, record, fast backward, and so on.

"Play": Click it to see the DVR play window. Use the "Previous page" and "Next

page" buttons to find the record you want from the record list. Click the "Time

Search" page to use the time and date search entries to help your search.

"Pause": Click to freeze the image. "Stop": Click to stop playing back the recorded video. "Step Forward": Click to view images picture-by-picture in the forward direction. "Step Backward": Click to view images picture-by-picture in the reverse direction.

"FWD": Click to play a recorded video in the forward direction at speeds which are

faster than the recorded speed.

"REV": Click to play a recorded video in the reverse direction at speeds which are

faster than the recorded speed.

6.5.2.2 Change Pan/Tilt/Zoom Setting

Click the

button on the home page to open the Speed Dome Controller.

1. Click the

button to control the Zoom setting on the Speed Dome Controller.

2. The right-hand set,

, has four buttons, each of which, upon being clicked, will turn the camera all

Page 65

the way, without stopping, in one of the four designated directions. The fifth button, in the center, will stop

the camera at any point you prefer.

3. The left-hand set of buttons,

one short step only in any of the four designated directions.

4. Select a Speed Dome device Model

Controller. The Controller will display the corresponding Model.

5. Select a Speed Dome device ID

The Controller will display the corresponding ID .

Each of the ten buttons under ‘Set’ is connected with a specific position and angle of either panning or

tilting of the camera. Click each button to activate its particular position and angle. Press the button under

‘Preset‘ to turn the camera angle by angle in the set positions.

Each of the ten buttons under ‘Clear’ can be clicked to delete the corresponding ‘Set’ button above it. For

, has four buttons, each of which, upon being clicked, will move

from the drop-down list on the Speed Dome

from the drop-down list on the Speed Dome Controller.

example, if you wish to de-activate ‘Set’ button #4, please click ‘Clear’ button #4 to delete its

corresponding ‘Set’ counterpart.

Each of the ten buttons designated ‘Go to’ can be clicked to view the particular corresponding angle of the

position in which it is set.

The ‘AutoPan’ section

panning movement you select. The third or bottom button sets the chosen movement in the play mode.

has three buttons. The ‘Start’ and ‘End’ buttons fix the two points of any

6.5.3 Backup and video edit

Use the

button to see the "Backup to the AVI file" window.

【Backup】：

Backup Settings：

● File Path : To set the backup file path and the file name, click the "Browser" button on the right.

● Frame Rate : Sets the backup record file speed.

● Maximum File Size : Sets the maximum file size.

Note: The unit of “Maximum File Size” in the windows XP system is “Mb”, but the unit of

“Maximum File Size” in windows 98 or Win me is frame.

Page 66

● Frame dimension : Sets the resolution.

● Mark Day and Time : Sets the date and time stamp.

Play Options：

● Time to play : To search the date and time you want.

● Channel Number : To choose a camera.

Play Monitor：

● Use the panel below to play or stop, etc.

● If you already want to back up, click the "Start backup" button. If you want to stop, click the "Stop

backup" button.

【Edit】：

● File Path: To set the backup file and the file name, check the "Browser" button on the right. Click

"Edit Selected File" to start editing.

● Frame Rate Modification: To see the total number of frames, modify your frame rate.

● File Preview: Click the "Start" button to start your setting component. You can also use the "Start"

button to interrupt the code. You can click the "Save to new file" button to save a new file after the

edit code.

Page 67

6.5.4 Web Page Viewer

This section provides instructions for using the NETGUARD's web page viewer feature.

1. " Click "PTZ Device" to open the control panel and remote control the pan/tilt/zoom function camera live over a local area network or the Internet.

2. Enter the "General Setting" page to set the title, the date and time modes, and the date and time of the device. Click "Submit" after each setting.

3. Click "Advance Setting" to enter four pages: the "Image", "Alarm", "Record", and "User" pages.

Page 68

● Image:

Click "Image" to enter the "Image " page to set each channel's "Channel Title", "Quality", "Noise Filter", "Brightness", "Contrast", "Color" and "Hue". Click "Submit" after each setting.

● Alarm:

The upper part of the window enables you to set the "Duration", "Disk Full", "PreAlarm", and "Frame Rate" of the alarm for the device. The bottom part of the window helps you set each channel's settings in the event of an alarm. Set the "Select Channel", "Record Mode", "Quality", "Sensor Type", "Sensor Sensitivity", "Sensor Output", "Video Loss Output", and "Motion Output" for each channel. Click "Submit" to set your changes.

● Record:

Click "Record" to enter the "Record Setting" page. In the upper part of the window you can set the device's "Disk Full", "Frame Rate", "Audio Rate" and "Audio Channel" entries. In the lower part of the window set each channel's "Select Channel" and "Quality". Click "Submit" after each setting.

● User:

Click "User" to enter the "User Setting" page and set the device's "User Name", "Password", "New Password" and "Confirm". Click "Submit" to set.

NOTE: This device also provides remote control and viewing capabilities via the IE Browser. Please

refer to section 7, Microsoft Internet Explorer, for more details.

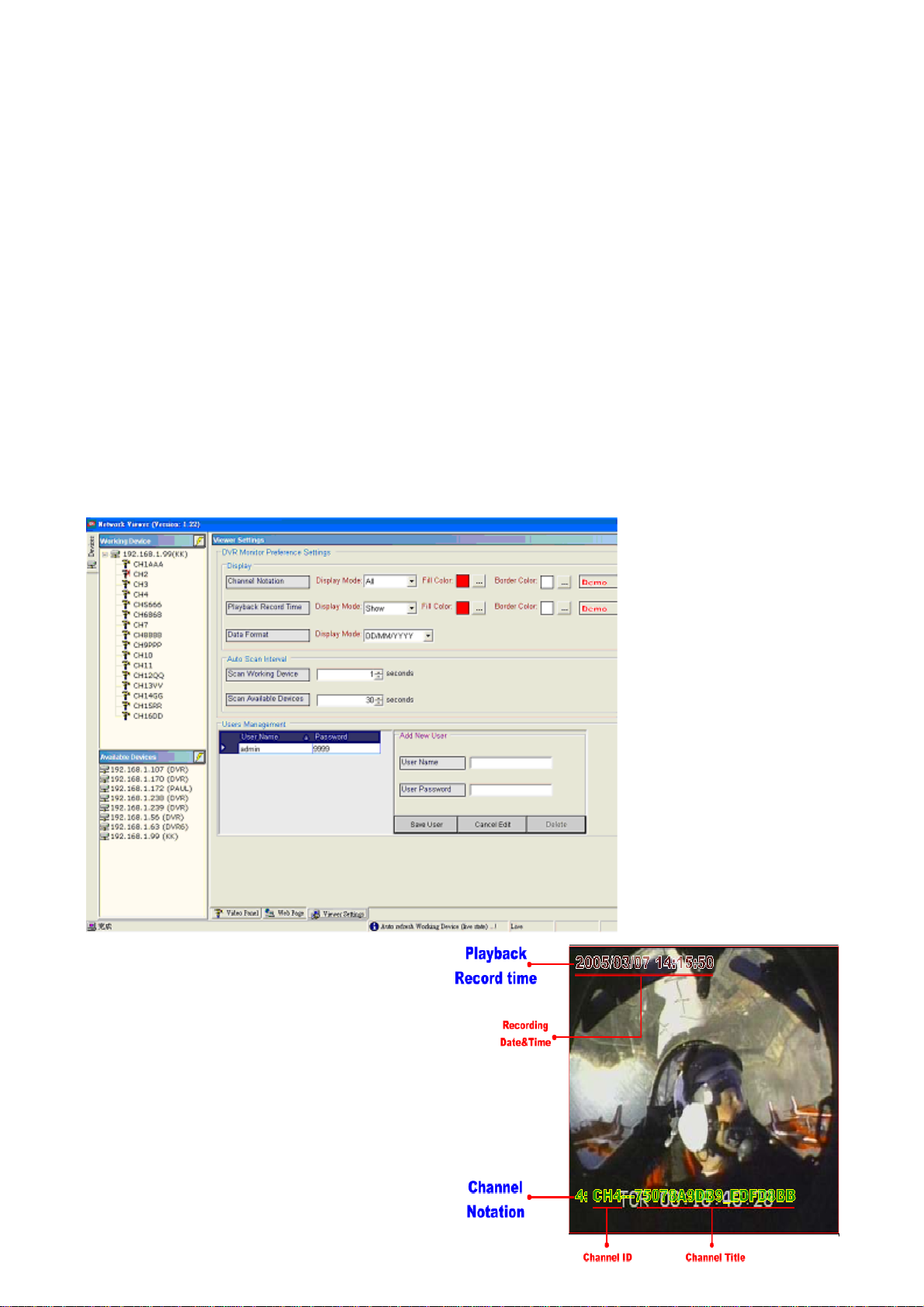

6.5.5 Viewer setting

1. "Channel Notation".

If you wish to change the "Display Mode", open

its drop - down list and select any of the four items

there. Your choice will automatically appear in the

relevant blank space. Similarly you can enter the

"Fill Color" and "Border Color" entries to open

their respective color tables. Click "OK" in each

case to set your choice.

Page 69

2. "Playback Record Time".

Click the "Display Mode" to select from a drop - down list of two choices, "Hide" and "Show". Your choice

will decide whether the images will display the date and time or not.

3.”Data Format”.

Click the “Display Mode” to select from a drop-down list of two choices, “DD/MM/YYYY” and

“MM/DD/YYYY”.

4. "Auto Scan Interval".

Here you have two entries, "Scan Working Devices" and "Scan Available Devices". Set the time in

seconds for both entries as per your requirements. The "Scan Working Devices" entry has a time span of 1

to 5 seconds only. The "Scan Available Devices " time range covers 30 to 1000 seconds.

5."Users Management".

Click the "Save User" button to add the new user’s name and password under "Add New User": Enter the

"User Name" and "Password" and click "Save User " again. Your new user and his password will appear on

the "User Name & Password " list to the left. If you proceed to enter a new user and then click "Cancel Edit",

no new name will be added to your list. If you wish to delete any user, click his name and click "Delete" to

effect the change.

Page 70

6.6 The Image Viewer

The 16CH DVR is equipped with a digital watermark. It's a check software which protects archived

images and informs you whether the images have been modified or not. Follow the instructions below to

open an archived image from an SD card or an HDD.

Pop up the START menu in your computer, and point to Programs / NETGUARD SYSTEM to open up

the program selection page. Click the Image Viewer tag to start the Image View program. (See a

sample screen below.)

This is image integrity-protection software. It not only allows you to view an archived image from the SD

card or HDD of a computer, but also protects an archived image from reproduction or interpolation. If an

image isn't in the original format form of our 16CH DVR, the Image Viewer will not display the image and

instead will send a warning message " Not Correct Image " right away. Close this message to enable

you to see the image now.

1. Click the RELOAD tag to load the images from a path.

2. Click the PRINT tag to get a displayed image printed out from a printer.

Page 71

7. Microsoft Internet Explorer

This section provides instructions for accessing the 16CH DVR via Microsoft Internet Explorer.

Connecting the 16CH DVR

Start up the Microsoft Internet Explorer, and then follow the steps given below to connect the 16CH DVR:

1. Click the URL block at the top of the screen.

2. Type in the URL address of the 16CH DVR into

the URL block and press the “Enter” button to

enter the login page. The default User Name and

password is admin and 9999 respectively.

3. Enter the user name (Login Name).

4. Fill in the password (Password).

5. Click the “OK” button and enter the home page of

the 16CH DVR: both the user name and

password must be provided correctly.

Description of functional keys:

User Name: Enter the user name in the blank space.

Password: Fill in the password in the blank space.

OK button: Click to enter the home page of the 16CH DVR.

Browsing images from the 16CH DVR:

The images from the 16CH DVR will be displayed on the home page while going online with the 16CH

DVR. There are some buttons provided on the bottom of the home page for further setting:

Page 72

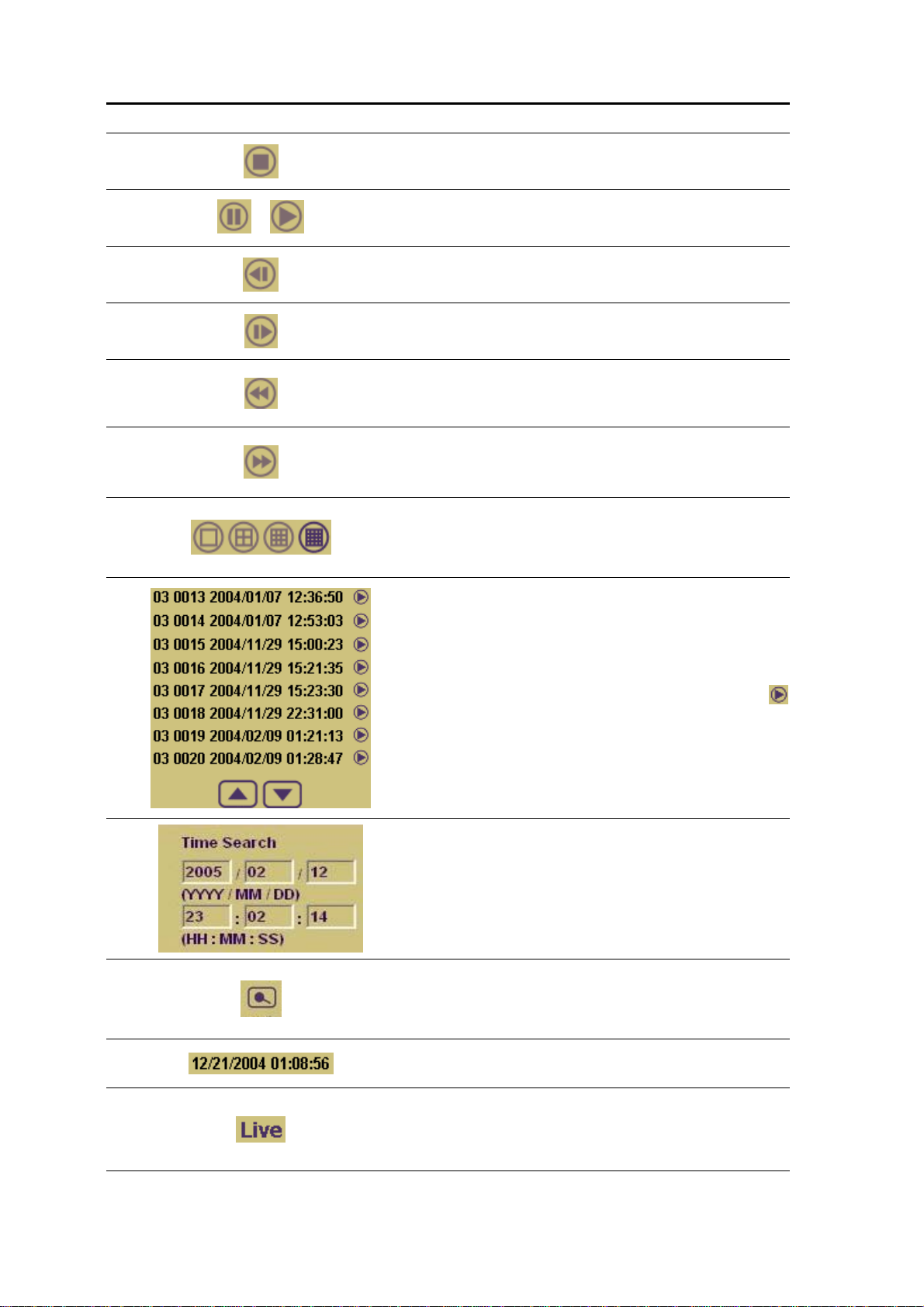

Function Buttons

Description

Stop- Click to stop playing back the recorded video or

to cease recording.

Pause / Play- Click to a recorded video from the PLAY LIST.

Step- Click to view images in the reverse direction

picture-by-picture.

Step- Click to view images in the forward direction

picture-by-picture.

REV- Click to play a recorded video in the reverse

direction at speeds which are faster than the recorded speed.

FWD- Click to play a recorded video in the forward

direction at speeds which are faster than the recorded speed.

The Split-Screen display function bar: This allows you to display the connected device in the multi-format screens of 1, 2x2, 3x3 and 4x4.

Recorded video list box: This box allows you to access all recorded video which are stored in the HDD of the connected devices. To review a recorded video, simply select an entry from the list and click the button. PgUp / PgDn: Enables you to scroll up and down the list.

This allows you to search a recorded video stored in the HDD of the device. Enter the YEAR/MONTH/DAY HOUR: MINUTE: SECOND you wish to search and click the GO button to proceed.

Time Search play: This allows you to play a recorded video stored in the HDD of the device.

16CH DVR date & time.

This box indicates the selected device status.

PLAY: The device is in the playback mode. LIVE: The device enters the live display mode.

Page 73

Image display area. Displays images from the 16ch cameras.

" Click "PTZ Device" to open the control panel and remote control the pan/tilt/zoom function camera

live over a local area network or the Internet. Please refer to section 6.3.2.2 for more details.

The "General Setting" page is used to set the title, the date and time modes, and the time.

Click "Advanced Settings" to enter four pages: the "Image", "Alarm", "Record", and "User" pages.

● Image:

Click "Image" to enter the "Image " page to set each channel's "Channel Title", "Quality", "Noise Filter", "Brightness", "Contrast", "Color" and "Hue". Click "Submit" after each setting.

● Alarm:

The upper part of the window enables you to set the "Duration", "Disk Full", "PreAlarm", and "Frame Rate" of the alarm for the device. The bottom part of the window helps you set each channel's settings in the event of an alarm. Set "Select Channel", "Record Mode", "Quality", "Sensor Type", "Sensor Sensitivity", "Sensor Output", "Video Loss Output", and "Motion Output" for each channel. Click "Submit" to set your changes.

● Record:

● User:

Click "User" to enter the "User Setting" page and set the admin and viewer’s "User Name", "Password", "New Password" and "Confirm". Click "Submit" to set.

Page 74

8. SPECIFICATIONS

Model DVR 3016 DVR 3016D

Resolution NTSC 720x240 pixels; PAL 720x288 pixels

Operation Mode Triplex (Live, Play, Record and Network Simultaneous)

Video Input BNC x 16 (termination: DIP SW)

Video Output Main (BNC), Spot (BNC), Looping(BNC) x 16

Audio In/Out Stereo, Line In/ Out (RCAx4), 8/ 22/ 44 kHz sampling, μ-law

Compression MJPEG

Storage Media >900Gb / 2 Fixed HDD, 1 Removable HDD >600GB 2 Fixed HDD

Watermark Embedded Digital Signature

Recording Rate NTSC:60 ips ; PAL: 50 ips

Image Size Best (40KB)/ High (32KB)/ Standard (24KB)/ Basic (16KB)

Recording Mode Schedule/ Manual/ Alarm/ Circular/ External Control

Alarm Recording Pre-Alarm/ Post-Alarm

Pre-alarm Recording 10 Sec

Playback Speeds

Zoom X2

Motion Detection Advanced MD (Zone, Position, Sensitivity)

OSD Cam Title/ Time & Date/ Mode/ Error Message

Set-up Menu Advanced/ Quick/ Network setting

Hot Swappable Removable HDD / SD

Card

Jog/ Shuttle Dial access

Fast Forward/ Reverse: 1X, 2X, 4X, 8X, 16X, 30X, 100X

Slow Forward/ Reverse: 1/2X, 1/4X, 1/8X, 1/16X, 1/30X, 1/100 and pause

Event List/ Time/ Alarm List/ Filter/

Thumbnail/ SD Card

Event List/ Time/ Alarm List/ Filter/

CD-RW / SD Card

Thumbnail/ SD Card/ CD

Log List 2048-Record Operation Log

Alarm In/Out 16 Alarm Inputs/ 3 Alarm Outputs

Built in Buzzer Yes

Camera title 9 char.

Communication Port RS-232, RS-485, and Ethernet Ports

Network Interface Ethernet (RJ-45 10/100 base-Tx)

Network Protocol TCP/IP, DHCP, HTTP

Software Upgrade Upgradeable via Memory Card (SD Card)

Password Protection Yes

Power input Input: 100-230V, 50/60 Hz; Output: DC12V max 5A: (AC Adapter)

Weight Approx. 5.9 kg/ 13 lb (w/o HDD)

Dimensions 430 x 55 x 405 mm EIA 19" 1 1/2U H Mountable

Operating Temperature 5 - 40 ℃(41 -104 ℉)

Regulation FCC, CE

**Design and specifications subject to change without notice.

Page 75

APPENDIX 1. – RS-232 & RS-485 Codes

RJ-11 PIN configuration for RS-485

PIN NO. PIN Assignment

CONNECTION

Not Connected

Ground

D -

D +

Ground

Not Connected

More than one device can be controlled via the RS-232 & RS-485 port from a host computer. Three kinds of

RS-232 & RS-485 command codes are used in the command set: Separation code, Key code, and Control

Command code. All the command codes are in ASCII code format as listed in the table below. The

transmission protocol is 8 data bit; 1 start bit, 1 stop bit and no parity. Four different speeds can be used, 1200

baud per second, 2400 baud, 4800 baud, and 9600 baud. The default setting is 2400 baud per second.

When only one device is controlled via RS-232 & RS-485 port from a host computer, the control command

codes should contain an “L0” to instruct the device to enter operation mode. Other command codes starting

with “L” are not necessary.

When a computer controls more than one device, use “LA” to instruct all devices to enter into stand-by mode.

Use “Lnnnn” to instruct a specific unit to enter into operation mode. “nnnn” represents the ID number of the

specific unit. Set the ID number for the device in the menu setup mode. (0 cannot be used for ID numbers)

Page 76

Separation Code

A separation code is used to insert between two control command codes to ensure a proper operation. They

do not have any explicit function themselves. The following codes can be used as separation code:

Code Hexadecimal code

“TAB” (09h)

“LF” (0Ah)

“CR” (0Dh)

“SP” (20h)

“/” (2Fh)

Key Codes--

These codes are used to operate all the functions performed by the buttons on the front panel. These

Key codes are usually in a single code format. For non-capitalized Key Codes, no Separation code is

needed. They can be issued continuously. All Capitalized character Key codes will clear the alarm.

1/ Same as CH1 Selection button

2 Same as CH2 Selection button

3 Same as CH3 Selection button

4 Same as CH4 Selection button

5 Same as CH5 Selection button

6 Same as CH6 Selection button

7 Same as CH7 Selection button

8 Same as CH8 Selection button

9 Same as CH9 Selection button

10 Same as CH10 Selection button

11 Same as CH11 Selection button

12 Same as CH12 Selection button

13 Same as CH13 Selection button

14 Same as CH14 Selection button

15 Same as CH15 Selection button

16 Same as CH16 Selection button

e Same as Call button

g Same as enter button

m Same as menu button

s Same as seq. button

v Same as play button

p Same as stop button

u Same as pause button

o Same as record button

Page 77

d Same as display button

f Same as freeze button

b Same as search button

z Same as zoom button

j Same as jog+ button

k Same as jog- button

+ Same as shuttle + button

- Same as shuttle - button

0 Same as shuttle button homing

i Same as button

q Same as button

n Same as button

h Same as button

C1/ Displays “CH1” in full screen format

C2 Displays “CH2” in full screen format

C3 Displays “CH3” in full screen format

C4 Displays “CH4” in full screen format

C5 Displays “CH5” in full screen format

C6 Displays “CH6” in full screen format

C7 Displays “CH7” in full screen format

C8 Displays “CH8” in full screen format

C9 Displays “CH9” in full screen format

C10 Displays “CH10” in full screen format

C11 Displays “CH11” in full screen format

C12 Displays “CH12” in full screen format

C13 Displays “CH13” in full screen format

C14 Displays “CH14” in full screen format

C15 Displays “CH15” in full screen format

C16 Displays “CH16” in full screen format

R1/ Selects “CH1” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R2/ Selects “CH2” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R3/ Selects “CH3” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R4/ Selects “CH4” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R5/ Selects “CH5” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R6/ Selects “CH6” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R7/ Selects “CH7” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R8/ Selects “CH8” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R9/ Selects “CH9” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

Page 78

R10/ Selects “CH10” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R11/ Selects “CH11” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R12/ Selects “CH12” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R13/ Selects “CH13” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R14/ Selects “CH14” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R15/ Selects “CH15” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

R16/ Selects “CH16” to display under PIP, Quad, 2x2, 3x3, or 4x4 format

E1/ Displays “CH1” on the Call monitor

E2 Displays “CH2” on the Call monitor

E3 Displays “CH3” on the Call monitor

E4 Displays “CH4” on the Call monitor

E5 Displays “CH5” on the Call monitor

E6 Displays “CH6” on the Call monitor

E7 Displays “CH7” on the Call monitor

E8 Displays “CH8” on the Call monitor

E9 Displays “CH9” on the Call monitor

E10 Displays “CH10” on the Call monitor

E11 Displays “CH11” on the Call monitor

E12 Displays “CH12” on the Call monitor

E13 Displays “CH13” on the Call monitor

E14 Displays “CH14” on the Call monitor

E15 Displays “CH15” on the Call monitor

E16 Displays “CH16” on the Call monitor

ES Same as “Call” + “Seq.” buttons

ESQ Auto-sequencing on the Call monitor

SQ Auto-sequencing on the Main monitor

VR Enters into playback mode

PX Enters into Live display (Exit playback mode)

FL Displays full screen format

ZM Displays Zoom mode

IP Displays format

QD Displays format

NE Displays format

HX Displays format

Control Command Codes

These Control Command codes are used to perform specific functions to control one or more than

one unit via the RS-232 & RS-485 ports from a host computer.

Page 79

? Status inquiry: This code is used to inquire the operating status of a specific unit in the

system. The addressed unit will response with a message code as follow: “〈SP〉﹕〈MODE〉〈STATUS〉〈CR〉〈LF〉” “ :SQ_2 S=0000000000000000 V=0000000000000000〈CR〉〈LF〉” “ :VR_PIP S=0000000000000000 V=0000000000000000〈CR〉〈LF〉” 〈MODE〉There are 8 different modes. VR VCR playback mode SQ Sequencer mode 4x4 4x4 display mode 3x3 3x3 display mode QD QUAD display mode PIP PIP display mode ZOOM 2XZoom display mode 1-16 Full screen mode displaying corresponding channel from 1 to 16 〈STATUS〉: THERE ARE TWO KINDS OF STATUS. THEY CAN BE DISPLAYED THROUGH FOLLOWING MESSAGE CODES: S=0000000000000000 Alarm sensor status of each input channel V=0000000000000000 Video loss status of each input channel THERE ARE 16 DIGITS FOLLOWING EACH DIFFERENT ALARM. EACH DIGIT REPRESENTS THE STATUS OF THE CORRESPONDING CHANNEL FROM 1 TO 16 ACCORDINGLY. A ”0” MEANS NORMAL OPERATING STATUS. A “1’ MEANS AN ACTIVATED/TRIGGED STATUS.

A? Alarm Records inquiry: This code is used to instruct a specific unit to display its alarm

records. The device will feed back a following message: “CH1 SENSOR 04-02-1997 SUN 08:10:15 AM〈CR〉〈LF〉” “CH3 V-LOSS 04-02-1997 SUN 10:56:47 AM〈CR〉〈LF〉” “CH4 V-LOSS 04-02-1997 SUN 10:57:02 AM〈CR〉〈LF〉” “CH1 V-LOSS 04-02-1997 SUN 11:03:34 AM〈CR〉〈LF〉” If the ID number of the unit is 0082, the device will response a following message. “0082-CH1 V-LOSS 04-02-1997 SUN 08:10:15 AM〈CR〉〈LF〉”

T? TIME INQUIRY: THIS COMMAND IS USED TO OBTAIN THE TIME/CLOCK INFORMATION

OF A SPECIFIC DEVICE. THE RESPONSE MESSAGE FROM THE DEVICE IS AS FOLLOWS: “〈SP〉=mm-dd-yy hr:min:sec〈TAB 〉” For example: “ =04-10-1999 SUN 08:00:00 PM〈TAB〉” Date information will be displayed in “mm-dd-yy” format for EIA/NTSC system and in “dd: mm: yy” format for CCIR/APL system. Every item is displayed in 2 digital decimal numbers.

T= Clock setting: This command is used to set the time/clock device. Please enter the

information according to above-mentioned format. “T=mm-dd-yyyy hh:mm:ss” “T=dd-mm-yyyy hh:mm:ss” “T=yyyy-mm-dd hh:mm:ss” “T=mm-dd-yyyy hh:mm: ssA (P) M” “T=dd-mm-yyyy hh:mm: ssA (P) M” “T=yyyy-mm-dd hh:mm: ssA (P) M” Foe example: “T=07-04-1997 08:00:00AM”

L? ID number inquiry: This instruction is used to obtain the ID number of the unit, which can only

be assigned and programmed into any unit individually through the menu setup during installation. ID number code can be a 1 to 4 decimal digits except 0 for every digit： For example: “〈SP〉=nnnn〈SP〉” “= 0082”

Lnnnn/ This instruction is used to instruct a specific device, which is specified by the ID number. ID

number code can be a 1 to 4 decimal digits except 0 for every digit： For example: ”L082/” or “L82/”

Page 80

APPENDIX 2. – Using CD Discs (FOR CD-ROM MODEL ONLY)

Please note that when using CD-ROM, CD-R and CD-RW discs, do not write or stick anything on the surface

as this could cause an error in recording or the data on the disc may be damaged.

Inserting Disc

1. Please press the eject button.

2. Please place the disc in the tray.

NOTE: When using a 12 cm disc please place it in the center of the caddy where you are able to see

the larger position specifically for the 12 cm disc. When using an 8 cm disc please place it in

the center of the caddy where you can see the position for the 8 cm disc. Please place the

printed side up. Never place two discs in the caddy at the same time.

3. Please do not touch the surface of the disc where it has been recorded.

4. To insert the caddy please press the insert / eject button and hold the caddy lightly at the middle of its front

and push gently to insert.

Ejecting The Disc

1. Press the eject button.

2. Carefully lift out the disc.

3. Press the eject button, or lightly touch the center of the tray and the tray will automatically reenter its

position within the CD - RW recorder.

Caution: After the tray has been ejected and the disc has been retrieved from the caddy or put in the

caddy, insert the tray in its original position to avoid the accumulation of dust or

miscellaneous items inside the caddy, or else the pick up head may be affected when it

needs to remain clean for effective reading of the data.

Page 81

Emergency Eject Button

The device has an emergency eject button, which allows for manual retrieval of the disc in case the machine

needs repair, or there is a cut in the power supply. In the above circumstances use the following method to

eject the disc.

1. The power supply has been cut.

2. Press the emergency eject button with a needle ( a paper clip, etc. can also be used ) and the tray will

immediately eject.

3. Press the front of the tray or lightly and gently pull the tray out with two fingers.

Others

When you use either a CD-RW or a CD-ROM, please pay heed to the following.

1. At the time of installation: As suggested in your specifications, please do not install in an unstable position

or in one that causes vibrations.

2. Do not install in high humidity, direct sunlight, or damp conditions.

3. Do not use near magnetic fields, or place near a television or a radio signal as the performance of the

device may be affected.

4. Do not open to try to repair, as the laser may be harmful.

RMN040200255 V2.0
