APG

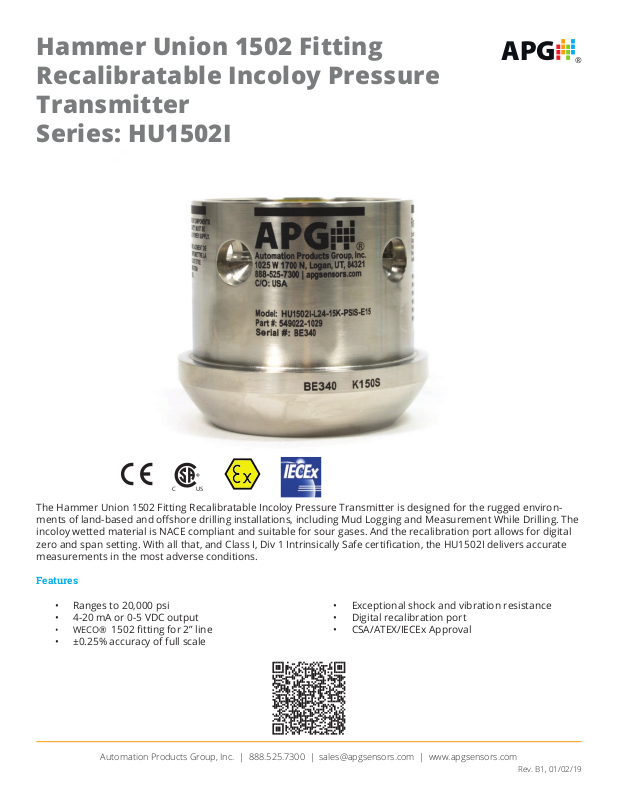

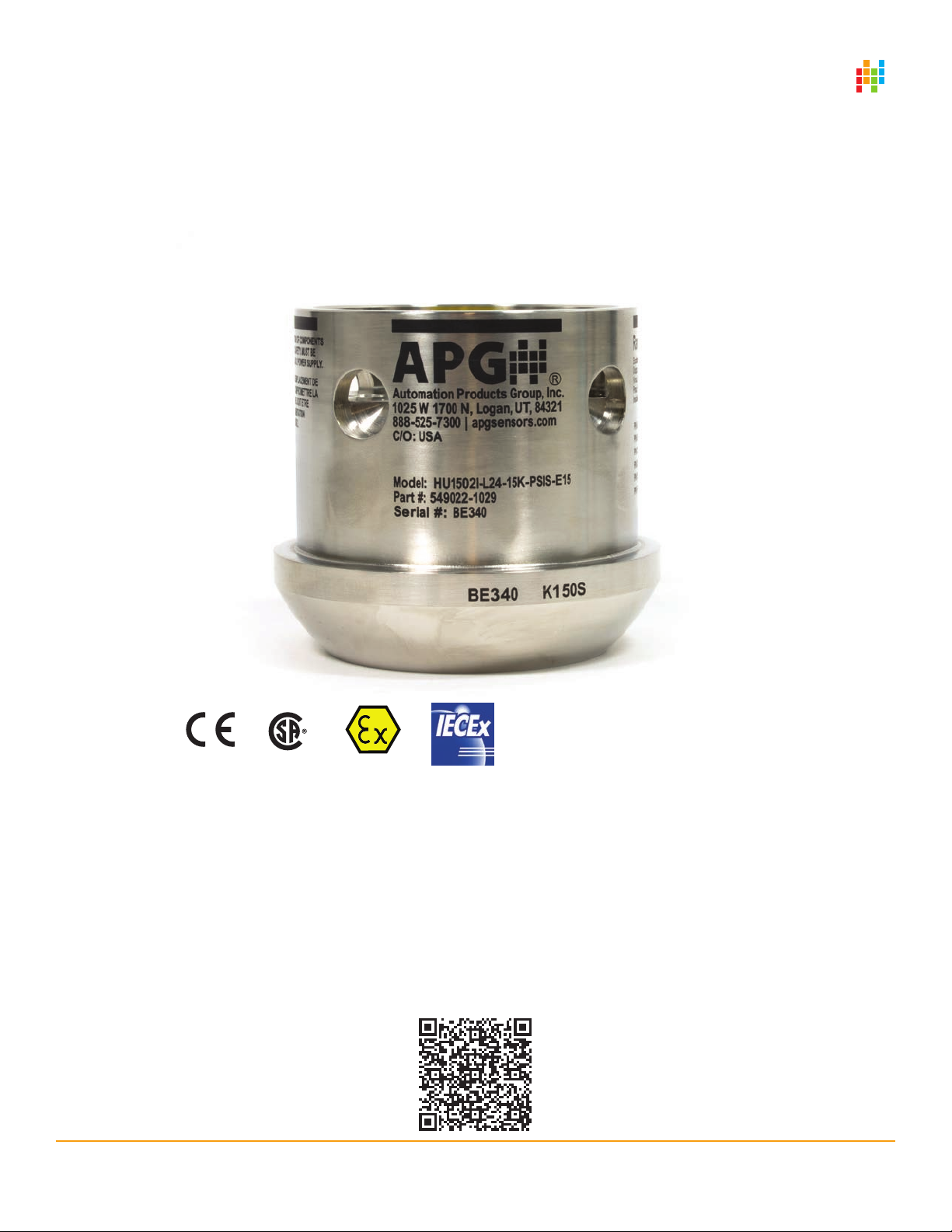

Hammer Union 1502 Fitting
Recalibratable Incoloy Pressure
Transmitter
Series: HU1502I
®
C
US
The Hammer Union 1502 Fitting Recalibratable Incoloy Pressure Transmitter is designed for the rugged environ-
ments of land-based and oshore drilling installations, including Mud Logging and Measurement While Drilling. The
incoloy wetted material is NACE compliant and suitable for sour gases. And the recalibration port allows for digital
zero and span setting. With all that, and Class I, Div 1 Intrinsically Safe certication, the HU1502I delivers accurate
measurements in the most adverse conditions.
Features
• Ranges to 20,000 psi
• 4-20 mA or 0-5 VDC output
• WECO® 1502 tting for 2” line
• ±0.25% accuracy of full scale
Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com
• Exceptional shock and vibration resistance
• Digital recalibration port
• CSA/ATEX/IECEx Approval
Rev. B1, 01/02/19
Page 2
APG

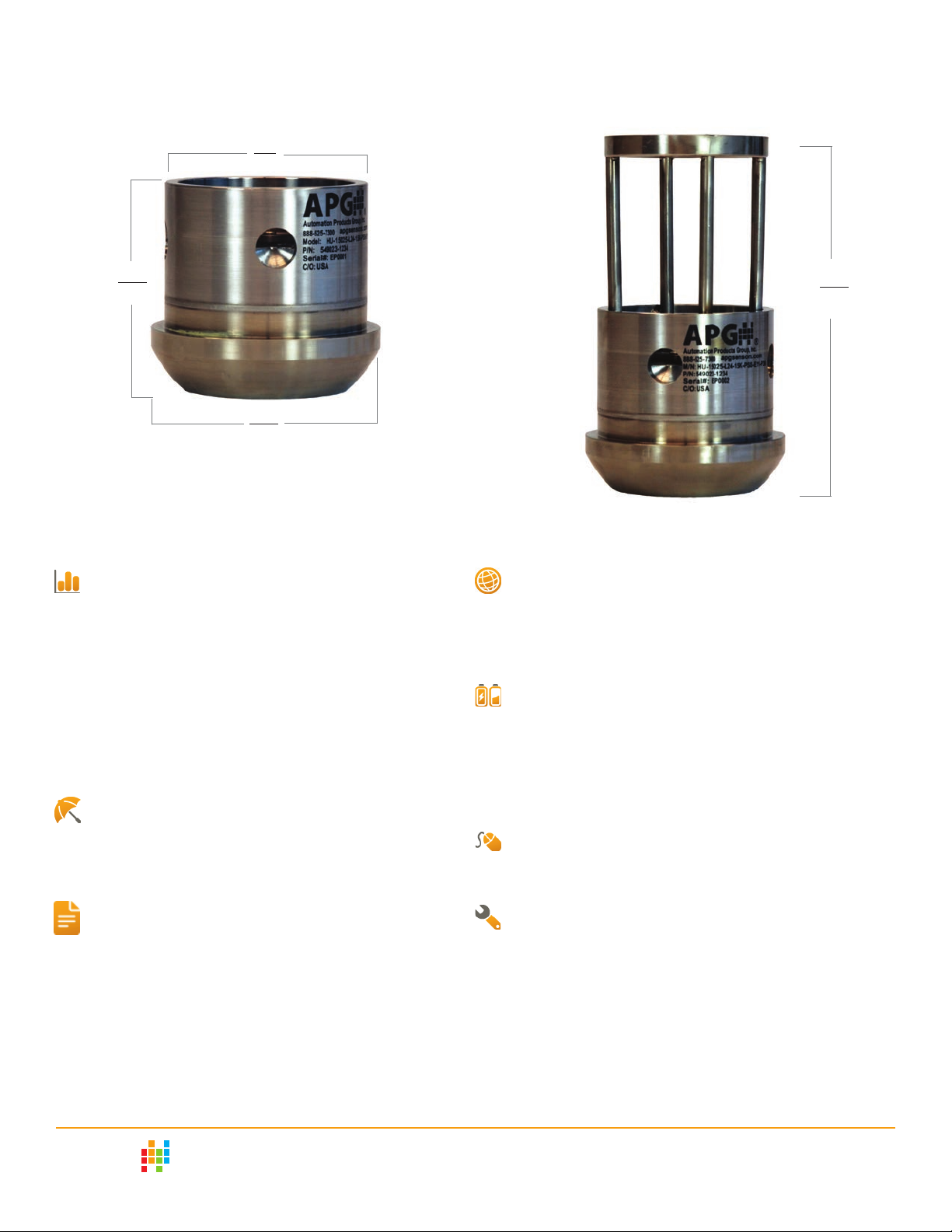

Hammer Union 1502I Specications
3.25”
82.5 mm
3.38”
85.9 mm
3.69”
93.7 mm
Performance
• Accuracy (linearity, hysteresis, & repeatability):
±0.25% of full scale (BFSL)
• Standard Pressure Ranges: 0-20,000 psis
• Overpressure: Smaller of 1.5 times full scale, or limit of
WECO® tting
• Burst Pressure: 3 times full scale, or limit of WECO® tting, whichever is smallest
• Temp Eects on Zero & Span:
±0.026% FSO/ºC (±0.01% FSO/ºF)
• Life: 10 million cycles
• Frequency Response: Less than 5mS
Environmental
• Operating Temp: -40 - 85ºC (-40 - 185ºF)
• Compensated Temp: -40 - 65ºC (-40 - 150ºF)
• Storage Temp: -50 - 120ºC (-58 - 248ºF)
• Enclosure Protection: IP67/IP65
6.54”
166.1 mm
Connectivity
• Output Signal @ 21ºC:
4-20 mA: 3-30 mA max
0-5 VDC: 110 mA inrush current
0-5 VDC: 3.5 mA operating current
Electrical
• Supply Voltage: 10-28 VDC on sensor
• Loop Resistance: 1012 ohms @ 28 VDC decreasing
linearly to 0 ohms @ 10 VDC
• Insulation Resistance: >100 megaohms @ 500 VAC,
70ºC
• Shunt Cal: 100% of full scale output
Programming
• Recalibration via programming unit
(purchase separately - powered by USB)
Certication
• CSA/cCSAus Contract #237484
• IS: Class I, Division 1; Groups C & D
Class I, Zone 0, AEx ia IIB T4
Ex ia IIB T4
Ambient: -40 - 85ºC
• ATEX: 4-20 mA
CE 0344 EX II 1G Ex ia IIB T4 Ga
(Ta = -40°C to +85°C)
• IECEx: 4-20 mA
EX ia IIB T4 Ga (Ta= -40°C to +85°C)
Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com
®
Physical
• Wetted Materials: Incoloy
Conforms to NACE MR-01-75 and ISO 15156-3
standards
• Housing: 316L Stainless Steel
2
Rev. B1, 01/02/19
Page 3
APG
Common Model Congurations
Model Number Model Description
HU1502I-L24-5K-PSIS-E15-K0 4-20mA Output, 6 pin Bayonet w/switched Shunt Cal, 0-5,000 PSIS, Incoloy recalibratable
HU1502I-L24-10K-PSIS-E15-K0 4-20mA Output, 6 pin Bayonet w/switched Shunt Cal, 0-10,000 PSIS, Incoloy recalibratable
HU1502I-L24-15K-PSIS-E15-K0 4-20mA Output, 6 pin Bayonet w/switched Shunt Cal, 0-15,000 PSIS, Incoloy recalibratable
HU1502I-L24-5K-PSIS-E16-K0 4-20mA Output, 4 pin threaded MS3102 w/Shunt Cal, 0-5,000 PSIS, Incoloy recalibratable
HU1502I-L24-10K-PSIS-E16-K0 4-20mA Output, 4 pin threaded MS3102 w/Shunt Cal, 0-10,000 PSIS, Incoloy recalibratable
HU1502I-L24-15K-PSIS-E16-K0 4-20mA Output, 4 pin threaded MS3102 w/Shunt Cal, 0-15,000 PSIS, Incoloy recalibratable
HU1502I Accessories
Please order separately, by part number.
Description Part Number
Programming Module (with 3.5mm connector) 200014
Replacement 1/8” NPT plug 200006

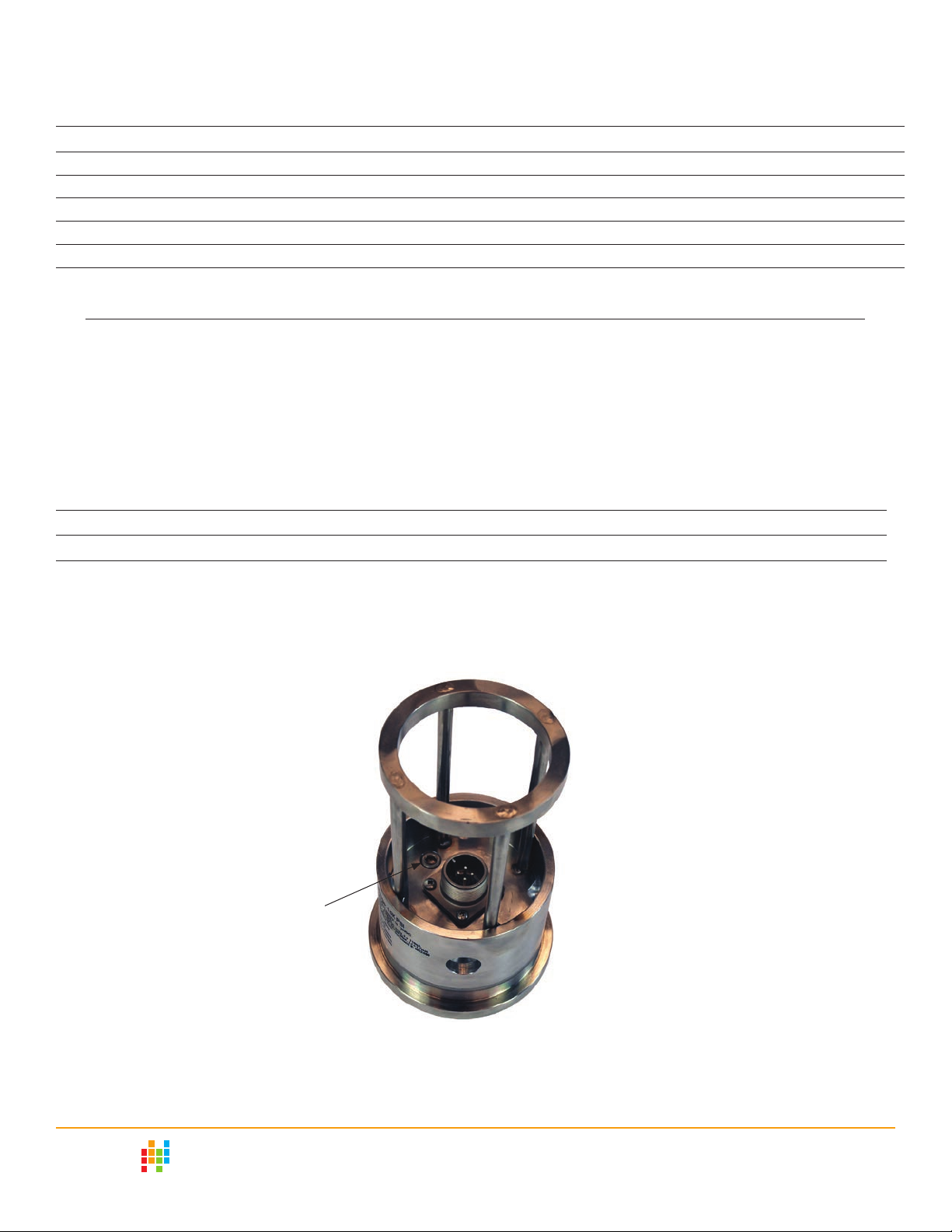

Recalibraon Port
Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com
®
3
Rev. B1, 01/02/19
Page 4
APG
Model Conguration Options
Model Number: HU1502I - _____ - _____ - PSIS - _____ - _____
A B C D
®
A. Output
▲
□ L24
4-20 mA
□ L27 0-5 VDC
B. Pressure Range
□ 5K 0 - 5,000 psis
□ 6K 0 - 6,000 psis
□ 7.5K 0 - 7,500 psis
□ 10K 0 - 10,000 psis
□ 15K 0 - 15,000 psis
□ 20K 0 - 20,000 psis
C. Electrical Connection*
4-20 mA Output Options
□ E1 4 pin Mini (w/ Shunt Cal)
□ E2 5 pin Mini (w/ Shunt Cal)
□ E6 3 pin Turck M12 [RSFVL36]
□ E7 4 pin Reverse Bayonet (w/ Shunt Cal)
□ E8 5 pin Threaded MS3102 (w/ Shunt Cal)
□ E9 3 pin Threaded MS3102
□ E11 4 pin Threaded MS3102
□ E13 7 pin Jupiter/Souriau (w/ Shunt Cal)
▲
□ E15
6 pin Bayonet (w/ switched Shunt Cal)
□ E16 4 pin Threaded MS3102 (w/ Shunt Cal)
□ E18 4 pin Rota (w/ Shunt Cal)
□ E20 4 pin Turck M12 [P-RSFV 40-0.3]
□ E28 6 pin Bayonet
□ E40 3 pin Bayonet (w/ Shunt Cal)
□ E45 6 pin Bayonet (w/ Shunt Cal)
□ E49 6 pin Bayonet (w/ Shunt Cal)
D. Enclosure
▲
□ K0
No options (standard)
□ K1 With protective cage assembly*
* Consult factory
0-5 VDC Output Options
□ E3 4 pin Threaded MS3102
□ E14 6 pin Bayonet (w/ switched Shunt Cal)
4-20 mA Direct Wiring Options w/ Shunt Cal
□ E5 1/2 NPT coupling, ying leads
□ E10 Junction Box
□ E17 1/2 NPT coupling, 10’ cable, ying leads
▲
This option is standard
* Consult factory for specic pinout options
Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com
Document #9005183 Part #200046 Rev. B1, 01/02/19
