APG

Hammer Union 2002/2202 Fitting Pressure Transmitter

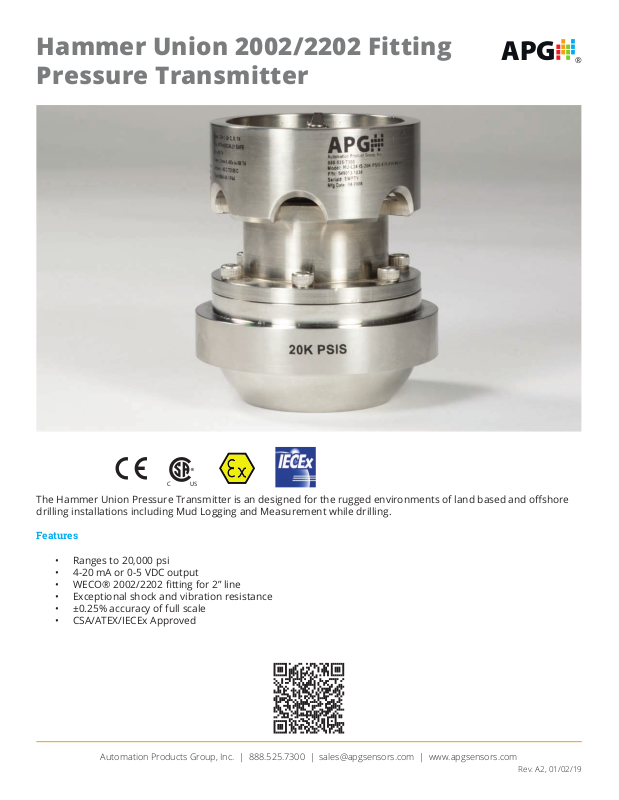

The Hammer Union Pressure Transmitter is an designed for the rugged environments of land based and oshore

drilling installations including Mud Logging and Measurement while drilling.

Features

• Ranges to 20,000 psi

• 4-20 mA or 0-5 VDC output

• WECO® 2002/2202 tting for 2” line

• Exceptional shock and vibration resistance

• ±0.25% accuracy of full scale

• CSA/ATEX/IECEx Approved

Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com

Rev. A2, 01/02/19

Page 2

APG

Hammer Union 2002/2202 Specications

2.59”

65.8 mm

3.00”

76.2 mm

Performance

• Accuracy (linearity, hysteresis, & repeatability): ±0.25% of full scale (BFSL)

• Standard Pressure Ranges: 0-20,000 psis

• Overpressure - 1.5 times full scale, 22.5 kpsi,

or limit of WECO® tting, whichever is smallest

• Burst Pressure - 3 times full scale, 22.5 kpsi,

or limit of WECO® tting, whichever is smallest

• Compensated Temp: -40 - 65ºC (-40 - 150ºF)

• Temp Eects on Zero & Span:

±0.026% FSO/ºC (±0.01% FSO/ºF)

• Life: 10 million cycles minimum

• Frequency Response: Less than 5mS

3.45”

87.6 mm

3.00”

76.2 mm

Connectivity

• Output Signal @ 21ºC: 4-20 mA: 3-30 mA max 0-5 VDC: 110 mA inrush current 0-5 VDC: 3.5 mA operating current

Electrical

• Supply Voltage: 10-28 VDC on sensor

• Loop Resistance: 1012 ohms @ 28 VDC decreasing linearly to 0 ohms @ 10 VDC

• Insulation Resistance: >100 megaohms @ 500 VAC, 70ºC

• Shunt Cal: 100% of full scale output

Environmental

• Storage Temp: -50 - 120ºC (-50 - 248ºF)

• Operating Temp: -40 - 85ºC (-40 - 185ºF)

• Enclosure Protection: IP67

Certication

• CSA/cCSAus Contract #237484

• IS: Class 1, Division 1; Groups C & D

Class 1, Zone 0, AEx ia IIB T4

Ex ia IIB T4 Ambient: -40 - 85ºC

• ATEX: 4-20 mA CE 0344 EX II 1G Ex ia IIB T4 Ga (Ta = -40°C to +85°C)

• IECEx: 4-20 mA EX ia IIB T4 Ga (Ta= -40°C to +85°C)

Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com

Physical

• Wetted Materials: Conforms to NACE MR-01-75 and ISO 15156-3 standards

• Incoloy

Rev. A2, 01/02/19

Page 3

APG

Model Conguration Options

Model Number: HU - _____ - IS - _____ - PSIS - _____ - _____ - _____ A B C D E

A. Output

□ L24 4-20 mA □ L27 0-5 VDC

B. Pressure Range

□ 5K 0 - 5,000 psis □ 6K 0 - 6,000 psis □ 10K 0 - 10,000 psis □ 15K 0 - 15,000 psis □ 20K 0 - 20,000 psis

C. Electrical Connection

4-20 mA Output Options

□ E1 4 pin ‘Mini’ (w/ Shunt Cal) □ E2 5 pin ‘Mini’ (w/ Shunt Cal) □ E6 3 pin Turck Minifast [RSFVL36] □ E7 4 pin Reverse Bayonet (w/ Shunt Cal) □ E8 5 pin Threaded MS3102 (w/ Shunt Cal) □ E9 3 pin Threaded MS3102

□ E11 4 pin Threaded MS3102 □ E13 7 pin Jupiter/Souriau (w/ Shunt Cal) □ E15 6 pin Bayonet (w/ switched Shunt Cal)

□ E18 4 pin Rota (w/ Shunt Cal) □ E20 4 pin Turck minifast [P-RSFV 40-0.3]

□ E28 6 pin Bayonet □ E40 3 pin Bayonet (w/ Shunt Cal) □ E45 6 pin Bayonet (w/ Shunt Cal) □ E49 6 pin Bayonet (w/ Shunt Cal)

D. Fitting

□ P35 Small HU 2002/2202 WECO® tting □ P37 Welded HU 2002/2202 WECO® tting

E. Enclosure

□ K0 No options (standard) □ K7 With handle* □ K1 With protective cage assembly*

*Consult factory

0-5 VDC Output Options

□ E3 4 pin Threaded MS3102 □ E14 6 pin Bayonet (w/ switched Shunt Cal)

4-20 mA Direct Wiring Options w/ Shunt Cal

□ E5 1/2 NPT coupling, ying leads □ E17 1/2 NPT coupling, 10’ cable, ying leads

Common Model Congurations

Model Number Model Description

HU-L24-IS-5K-PSIS-E15-P37-K0 4-20mA Output, 6 pin Bayonet w/Shunt Cal, 0-5,000 PSIS, Welded 2002/2202 tting

HU-L24-IS-10K-PSIS-E15-P37-K0 4-20mA Output, 6 pin Bayonet w/Shunt Cal, 0-10,000 PSIS, Welded 2002/2202 tting

HU-L24-IS-15K-PSIS-E15-P37-K0 4-20mA Output, 6 pin Bayonet w/Shunt Cal, 0-15,000 PSIS, Welded 2002/2202 tting

HU-L24-IS-5K-PSIS-E16-P37-K0 4-20mA Output, 4 pin threaded MS1302 w/Shunt Cal, 0-5,000 PSIS, Welded 2002/2202 tting

HU-L24-IS-10K-PSIS-E16-P37-K0 4-20mA Output, 4 pin threaded MS1302 w/Shunt Cal, 0-10,000 PSIS, Welded 2002/2202 tting

HU-L24-IS-15K-PSIS-E16-P37-K0 4-20mA Output, 4 pin threaded MS1302 w/Shunt Cal, 0-15,000 PSIS, Welded 2002/2202 tting

HU-L24-IS-20K-PSIS-E16-P37-K0 4-20mA Output, 4 pin threaded MS1302 w/Shunt Cal, 0-20,000 PSIS, Welded 2002/2202 tting

Automation Products Group, Inc. | 888.525.7300 | [email protected] | www.apgsensors.com

Rev. A2, 01/02/19

Page 4

APG

Hammer Union Pressure Transmitter

Built for the Toughest Applications

Automation Products Group, Inc. brings you the highest quality hammer union pressure transmitter on the market.

There’s a reason why so many are switching to the APG hammer union pressure transmitter. We use a NACE compliant nickel alloy and welded construction for the toughest applications in Oil & Gas drilling and production.

Next time you need a hammer union pressure transmitter, call us at (888) 525-7300.

Short Lead Times

As little as 2 weeks

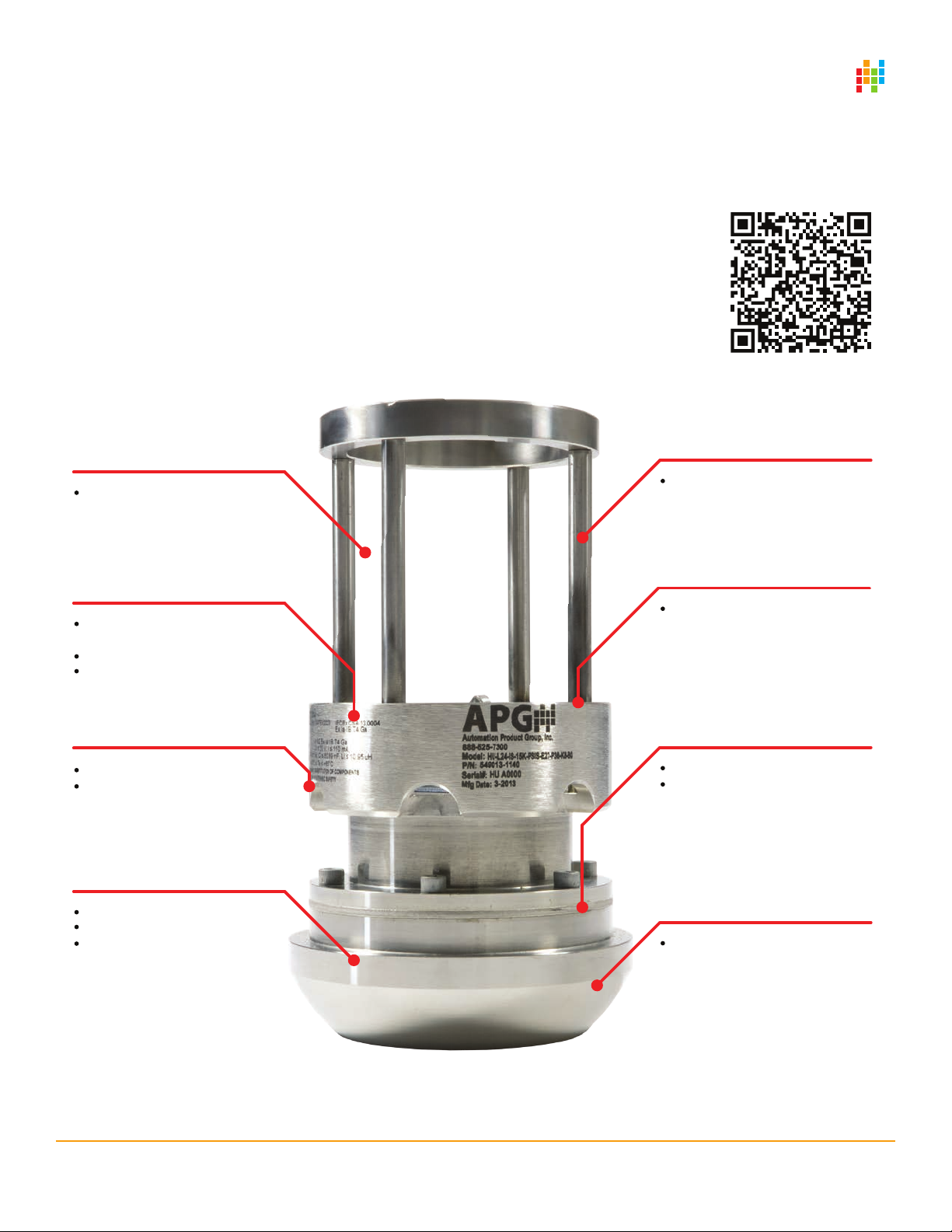

Haz Location Certifications

Class 1, Division 1; Groups C & D Class 1, Zone 0 ATEX II 1G Ex ia IIB T4 Ga IECEx EX ia IIB T4 Ga

Drain Holes

Saves your connector Prevents leaks

NACE Compliant Nickel Alloy

NACE MR-01-75 ISO 15156-3 We never sacrifice quality

Optional Halo Cage

Toughest cage design on the market

Wide Top Access

Just another way we make it easy on you

Welded Construction

Built for high vibration Field-proven in applications such as Measurement While Drilling

1502 & 2002/2202 Fittings

1502 shown, 2002/2202 available
