APEX Digital HT-150 User Manual

Important Safety Instructions

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: (Visible) Laser Radiation When Open. DO NOT STARE INTO BEAM.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE NE

PAS OUVRIR

WARNING: DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DUE TO THE HIGH RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT OPEN THE CABINET; DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. ONLY QUALIFIED SERVICE PERSONNEL SHOULD ATTEMPT THIS.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, AND

FULLY INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU' AU FOUD.

CAUTION: This

Home Theater System employs a Laser System. To prevent direct exposure to the laser beam, do not try to open the

enclosure. Visible laser radiation when open and interlocks defeated.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

DO NOT STARE INTO BEAM.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location, or contact APEX Digital Inc.Only qualified service personnel should remove the cover.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device. Pursuant to the part 15 of FCC Rules.

WARNING: Changes or modifications made to this equipment, not expressly approved by APEX or parties authorized by APEX will void all the

CLASS 1

LASER PRODUCT

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates,uses and can radiate radio frequency energy and,if not installed and used in accordance with the

instructions,may cause harmful interference to radio communication.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:To assure continued compliance,(example-use only shielded interface cables when connecting to computer or peripheral devices).Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

manufacture warranties.

THE REGION CODE FOR THE UNIT IS 1.

Since it is very usual for DVD movies to be released at different times in different regions of the world, all players have region codes and discs can have an optional region code. If you load a disc of a different region code to your player, you will see the

region code notice on the screen. The disc will not play, and should be unloaded.

For Customer Use: In spaces provided below, record the Model and Serial No. located on the rear panel of your unit.

Model No. Serial No.

Retain this information for future reference.

APEXHT-150

Important Safety Instructions

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Please carefully study this manual and always keep it available. There are, however, some installation and operation precautions which you should be aware of.

1.Read Instructions - All the safety and operating instructions should be read before the product is operated.

2.Retain Instructions - The safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.

6.Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7.Water and Moisture - Do not use this product near water - for example the apparatus shall not be exposed to dripping splashing and that no objects fill with liquid such as vases, ‘WARNING’ To reduce the risk of fire or electric shock do not expose this apparatus to rain or moisture.

8.Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9.A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10.Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11.Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12.Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings - This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature, If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

13.Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14.Protective Attachment Plug - The product is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.

15.Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

16.Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

APEX

HT-150

Important Safety Instructions

18.Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19.Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

20.Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Warning:This unit should only be serviced by an authorized and properly trained technician.Opening the cover or other attempts by the user to service this unit may result in serious injury or death from electrical shock,and may increase the risk of fire.

21.Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. If the product has been dropped or damaged in any way, and f. When the product exhibits a distinct change in performance - this indicates a need for service.

22.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23.Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform saftey checks to determine that the product is in proper operating condition.

24.Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

UNPACKING

First check and identify the contents of your HT-150 package, as listed below:

- DVD Home Theater

- Remote control handset

- RCA cable (yellow, red, and white)

- Owner’s manual

- Size AAA batteries (2)

- Speakers (5), Subwoofer (1)

- Speaker cables (6) If any item should be damaged or missing, please inform your dealer without delay. Keep the packaging materials, you may need them to transport your player in the future.

WHERE TO PLACE YOUR DVD

A. Place the unit on a firm, flat surface. B. When you place the unit near other units, the playback picture may become poor and/or distorted. In this situa-

tion, move the unit further away from them. C. Keep away from direct sunlight & domestic heating equipment. D. If placed in a cabinet, please allow at least 2.5 cm (1 inch) of free space all around the player for proper venti-

lation.

TO OBTAIN A CLEAR PICTURE

This unit is a high tech, precision device. If the optical pick-up lens and disc drive parts become dirty or worn down, the picture quality may become poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

NOTICE:

The OSD and the illustration in this manual may be somewhat different from the unit. Please take the unit as the standard.

APEXHT-150

Introduction

Active

R E A D A B L E

Thank you for purchasing our Home Theater System. With it, you will be able to enjoy full length DVD movies with true cinema picture quality, and stereo multichannel sound.

Your new unit also supports CD, MP3, and WMA.Your player also has several unique features, including AFF (Active Full Screen Function that allows you to view wide screen movie presentations in full screen mode), component video output, S-Video (for greater picture clarity), Parental Control (to prevent children from viewing inappropriate content) and Kodak Picture CD compatibility (so you can view photos on your TV). This is a true multimedia machine designed for the multimedia world to enjoy. The digital age has never been easier to enjoy than with APEX Digital.

Notes on Discs

HOW TO HANDLE, CLEAN, AND STORE DISCS.

• Do not touch the playback side of the disc

• Do not attach paper or tape to discs.

HANDLING DISCS

• Do not touch the playback side of the disc.

• Do not attach paper or tape to discs. NOTE: APEX DIGITAL Inc. shall not be responsible for damage that may occur to a disc from being operated in the player.

CLEANING DISCS

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outward with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

• Do not use any type of solvent such as a thinner, benzine, commercially available cleaners or anti-static spray for vinyl LP’s. It may damage the disc.

PLAYABLE DISCS

This unit can play back the following discs.

Disc Mark Contains Disc Size Maximum playback time

DVD

video

disc

Audio

MP3

Kodak


Audio

Video

(moving

pictures)

Audio

Spec.

12 cm

8 cm

(CD single)

12 cm

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 74 minutes

Approx. 20 minutes

Approx. 600+ minutes

STORING DISCS

• Do not store discs in places subject to direct sunlight or near heat sources.

• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

NOTES ON REGIONAL NUMBERS

DVDs are divided into separate regions. The United States and Canada are designated as region 1 DVD. Your unit plays region 1 DVDs only.

TYPE OF TV SYSTEM

Connect this unit to a TV compatible with the NTSC or PAL/3.58 system.

WMA

APEX

Audio

12 cm

Up to approx. 22 hours playback

HT-150

Table of Contents

Safety Precautions...............................................1

Important Safety Instructions..................................2

Introduction.......................................................4

Notes on Discs....................................................4

Index of Parts and Controls..............................5

Connecting to a TV..........................................8

Speaker System Hookup........................................9

HT-150/AV Amplifier Connection

for AV Input...........................................................10

AFF Function........................................................11

Playing Back a Disc.......................................15

Locating a Specific Title,

Chapter or Track......................................................14

Using the On-Screen Display................................14

Playing Repeatedly............................................15

Index of Parts and Controls

FRONT PANEL

596 7

Zooming a Picture..........................................15

Selecting the Camera Angle

Selecting a Language........................................16

Selecting Subtitles............................................16

Playing in a Favorite Order...................................17

MP3 Operation..................................................17

WMA Operation....................................................18

Playing Back Your Kodak Picture CD............18

Working with Your JPEG Files.......................19

Memo On Output Sounds.....................................19

Setting the Parental Lock............................... 20

Customizing the Function Settings............21

Specifications............................................22

Troubleshooting Guide .........................................23

Limited Warranty...................................................24

REAR PANEL

1 2 3

1 POWER ON/OFF

2 POWER INDICATOR LIGHT

3 VFD

4 DISC TRAY

5 PLAY

6 PREVIOUS

7 VOLUME KNOB (VOLUME UP/DOWN)

8 NEXT

9 STOP

10 OPEN/CLOSE

* You can change the brightness of the front panel display by

pressing the DIMMER button repeatedly.

1 AV INPUT

COMPOSITE VIDEO, AUDIO L, AUDIO R

2 AV OUTPUT

COMPOSITE VIDEO, AUDIO L, AUDIO R

3 COMPONENT VIDEO OUTPUT

4 S-VIDEO OUTPUT

5 DIGITAL AUDIO COAXIAL OUTPUT

6 DIGITAL AUDIO OPTICAL OUTPUT

7 (DOLBY 5.1 CHANNEL) SPEAKER TERMINAL

REAR R (+/-) REAR L (+/-) WOOFER (+/-)

CENTER (+/-) FRONT R (+/-) FRONT L (+/-)

8 POWER CORD

NOTICE:

The terminals printed with “DVD ONLY” on the rear panel indicate that this terminal can only function when the internal signal is output from the DVD disc. The items mentioned in this manual, displayed on OSD or VFD, printed on rear panel are listed below in the left column corresponding to those listed in the right:

L/FL/FRONT L Front left channel R/FR/FRONT R Front right channel SL/LFET SUR/SL/REAR L Rear left channel

SR/RIGHT SUR/SR/REAR R Rear right channel C Center W/SW Woofer or Subwoofer

APEXHT-150

Index of Parts and Controls

THE INSTRUCTIONS BELOW DESCRIBE THE FUNCTIONS ON THE REMOTE CONTROL.

Continued

1.AFF

2.FUNCTION

3.STANDBY

4.GOTO

5.PROGRAM

6.A-B RPT

7.NUMBER

8.SUBTITLE

9.AUDIO

10.DISPLAY

11.DIRECTION

20.FAST FORWARD

21.STEP

22.SLOW

23.ENTER

24.MODE

25.VOLUME+/-

26.MUTE

27.CLEAR

28.ZOOM

29.ANGLE

30.KODAK T.E.

1 2

3 4

5 6

31 30

28 27 26

12.TITLE

13.MENU

14.SETUP

15.SKIP FORWARD

16.SKIP REVERSE

17.PLAY/ PAUSE

18.STOP

31.RESUME

32.DIMMER

33.PAL/NTSC

34.SHUFFLE

35. REPEAT

36.OPEN/CLOSE

37. I/P (I/P function is not

available in this model)

19.FAST REVERSE

NOTICE

• Please turn on the master power switch on the unit. Standby button on this remote control unit is for standby power only.

• MUTE Cut off sound momentarily, press again to reinstate sound.

• VOLUME+/- controls the audio output from the unit. (VOLUME control is only available in audio analog output status.)

• When

“ ” displayed on TV, function is not operational on the disc.

APEX DIGITAL

HT-150

Index of Parts and Controls

PREPARING THE REMOTE CONTROL

To operate the unit, you must first place the batteries in the remote control.

1 2 3

Continued

Open the cover.

Insert batteries (AAA size).

Make sure to match the + and - on the batteries to the marks inside the battery compartment.

OPERATING WITH THE REMOTE CONTROL

Operating unit with the remote control.

The remote control must point at the remote sensor, in order for the remote to function correctly.

30°

Distance: Maximum of 7m from the front of the remote sensor. Angle: Approximately 30° from each direction.

*Do not place the remote control under intense light source such as direct sunlight or illumination.

Close the cover.

NOTICE

FOLLOW INSTRUCTIONS BELOW BECAUSE INCORRECT USE OF BATTERIES MIGHT CAUSE THEM TO LEAK OR ERODE.

• Do not place the batteries in the wrong direction.

• It is dangerous to charge, heat, open or short-circuit the batteries.

• Do not leave dead batteries or mix old with new battery in the remote control.

• When not using the remote control for a long duration of time, remove the batteries.

• If battery leakage occurs, wipe the battery liquid from the battery compartment, then replace the batteries.

APEX DIGITALHT-150

Connecting to a TV

SETTING UP YOUR UNIT

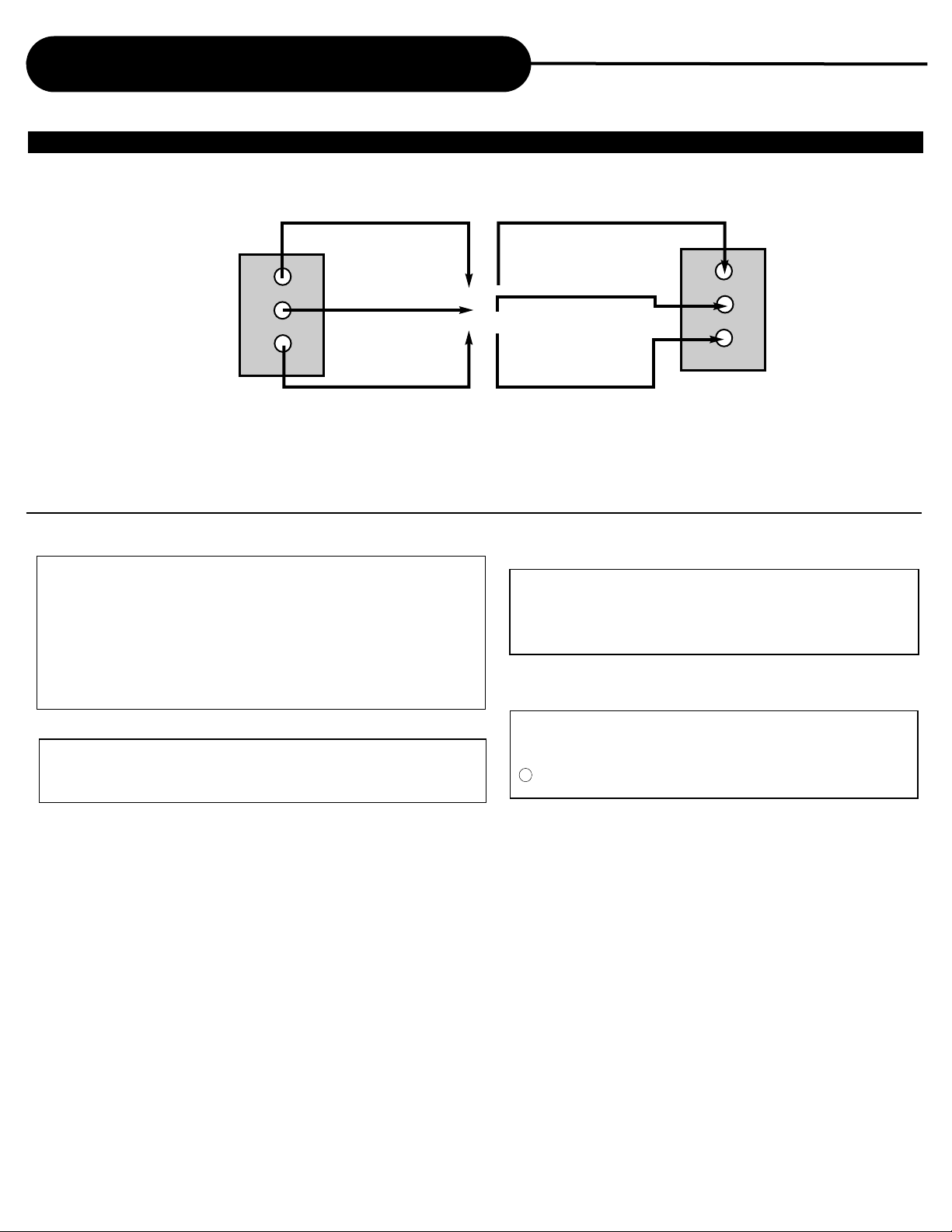

Step 1: Connect the RCA cable (red & white) from audio outputs of the unit to the TV Audio Inputs. Step 2: connect the RCA cable (yellow) from the video output on the back of your unit to the TV Video Input. (For TV that support S-video Input please follow the diagram to the right).

GOOD

Yellow

Red

White

TV Video Input

TV Audio Input

BEST

Y, Pb, Pr can only output video signals when the unit is in DVD mode.

BETTER

S-Video can only output video signals when the unit is in DVD mode.

During connecting, do not connect the S-Video output and YPbPr component output terminals simultaneously.

Red

White

TV’s Audio Input

Connect the unit with an optional S-Video cable, if the TV has an S-Video input. Don not connect the yellow video cable if using the S-Video cable.

TV’s S-video input (Optional Cable)

Component Video Output

Component video output terminals when connected to selected TV and monitor will produce a highter picture

White

Red

quality. Depending on the selected TV and monitor, the wording of the component input terminals may vary. If there are any fluctuations with the color played back, adjust the TV or monitor to achieve the best audio and/or picture.

When connecting YPbPr, do not connect S-Video simultaneously.

NOTICE

• Turn off the power and unplug both units before setting up any connections.

• Please refer to the user’s manual of the connected TV.

• If you connect the unit to a video cassette recorder (VCR), or TV/VCR combinations, the playback picture might be distorted because all DVD unit incorporate copyright protection circuitry by Macrovision.

• Keep the unit away from any tuner or radio to avoid any static or distorted sound interference from a broadcast.

• Due to the wide dynamic range of sound output of the unit, adjust the volume of your receiver to a comfortable listening level to avoid any speaker damage.

APEX DIGITAL

HT-150

+ 16 hidden pages
