Q SERIES Ø22mm (.866") Panel Mount LED Indicators
27,00 1,063 AF
3,25 0,128
M22 x 1,0 THREAD
Distinctive features and specification
VOYC1603R2US
Features
• 22mm panel mounting LED indicator
• 18mm colored diffused epoxy lens or 18mm super bright LEDs
• Plated brass bezel finished in bright chrome,
black chrome or satin grey and moulded polycarbonate rear body
• Black ABS Plastic bezel option
• Prominent and flush bezel styles
• Custom engraving available
• (2.8 x 0.8) solder lug/faston terminals, pins or (200mm long) wire terminations
IP67 sealing option (EN60529)
•
• Supplied with fixing nut and spring washer
NB: UL Recognized Component
Max Reverse Voltage: 5V
TECHNICAL SPECIFICATIONS
Voltage Operating Voltage Operating Current
(Min to Max) (Typical All Types)
05 (No Resistor) 3.3 to 9.9VDC 40mA max*
12VDC 10.8 to 13.2VDC 40mA
24VDC 21.6 to 26.4VDC 40mA
28VDC 25.2 to 30.8VDC 40mA
110VAC 99 to 121VAC 5mA
220VAC 207 to 253VAC 3mA
Viewing Angle: 30–100°
Life Expectancy: 100,000 hours
Temperature Range: –40 to +85°C
Torque:
100cNm
Ø 22.00 +0.15/-0.0
(dependant on model)
(operating & storage)
PANEL CUTOUT
Standard LED Intensity Prominent Flush Forward Voltage
HE Red 82mcd 70mcd 5.7V
Green 95mcd 66mcd 6.0V
Yellow 60mcd 59mcd 5.9V
Blue 120mcd 101mcd 9.9V
White 1,000mcd 150mcd 3.3V
Bi-color (Typical) (Red/Green)
Tri-color (Typical) (Red/Green/Yellow)
Bi-color - The color is changed by reversing the polarity of the supply voltage.
80/50mcd
80/50/50mcd
80/50mcd 2.0V/2.2V
80/50/50mcd 2.0V/2.2V/2.1V
Tri-color - The indicator has red and green LEDs, when both connected yellow is produced.
Super bright LED (Diffused) Prominent Flush Forward Voltage
HE Red
Green
Yellow
Luminous intensity will be reduced with lower operating current.
465mcd 800mcd 5.7V
245mcd 980mcd 9.0V
365mcd 1,250mcd 6.0V
Note: The operating voltage must not be exceed ed by more that 10% as this will result in reduced life expectanc y.
The company reserves the right to cha nge s pecifications without notice.
* Customer t o supply resistor for desired o perating c urrent.
Luminous i ntensity is measured at 20mA on a dis crete L ED unless o therwise stated.
Luminous i ntensities and color shades of white LEDs m ay vary within a batch.
APEM
www.apem.com
1
Q SERIES Ø22mm (.866") Panel Mount LED Indicators
Technical Drawings
PROMINENT BEZEL
25,00
6,50 0,256
14,25 0,561
25,00
6,50 0,256
14,25 0,561
18,00 0,709
SOLDER LUG/FASTONS
M22x1,0
25,00
0,984
10,00 0,394
35,00 1,378
8,65 0,341
0,984
6,50 0,256
14,25 0,561
18,00 0,709
REAR E POXY WIRES
M22x1,0
25,00
0,984
200,0+/-10
[7,874+/-0,393]
0,984
6,50 0,256
14,25 0,561
19,50 0,768
REAR E POXY PINS
M22x1,0
0,70 ,028
1,25 0,049
1,25 0,049
19,00 0,748
16,00 0,630
SHORT BODY PINS
M22x1,0
1,25 0,049
0,70 0,028
1,25 0,049
17,50 0,689
14,50 0,571
SHORT BODY WIRES
M22 x 1,0
25,00
0,984
6,50 0,256
14,25 0,561
20,00 0,787
200,0+/-10
[7,874+/-0,393]
FLUSH BEZEL
25,00
2,50 0,098
11,75 0,463
2,50 0,098
11,75 0,463
22,00 0,866
SOLDER LUG/FASTONS
M22x1,0
0,984
39,00 1,535
2,8x0,8[0,11x0,031]
10,00 0,394
9,35 0,368
25,00
0,984
2,50 0,098
4,75 0,187
22,00 0,866
REAR E POXY WIRES
M22x1,0
25,00
25,00
0,984
200,0+/-10
[7,874+/-0,393]
0,984
2,50 0,098
11,75 0,463
23,50 0,925
REAR E POXY PINS
M22x1,0
0,70 ,028
19,00 0,748
16,00 0,630
SHORT BODY PINS
M22x1,0
0,70 0,028
17,50 0,689
14,50 0,571
1,25 0,049
1,25 0,049
1,25 0,049
1,25 0,049
SHORT BODY WIRES
M22x1,0
25,00
0,984
2,50 0,098
11,75 0,463
24,00 0,945
200,0+/-10
[7,874+/-0,393]
2
www.apem.com
APEM
Q SERIES Ø22mm (.866") Panel Mount LED Indicators

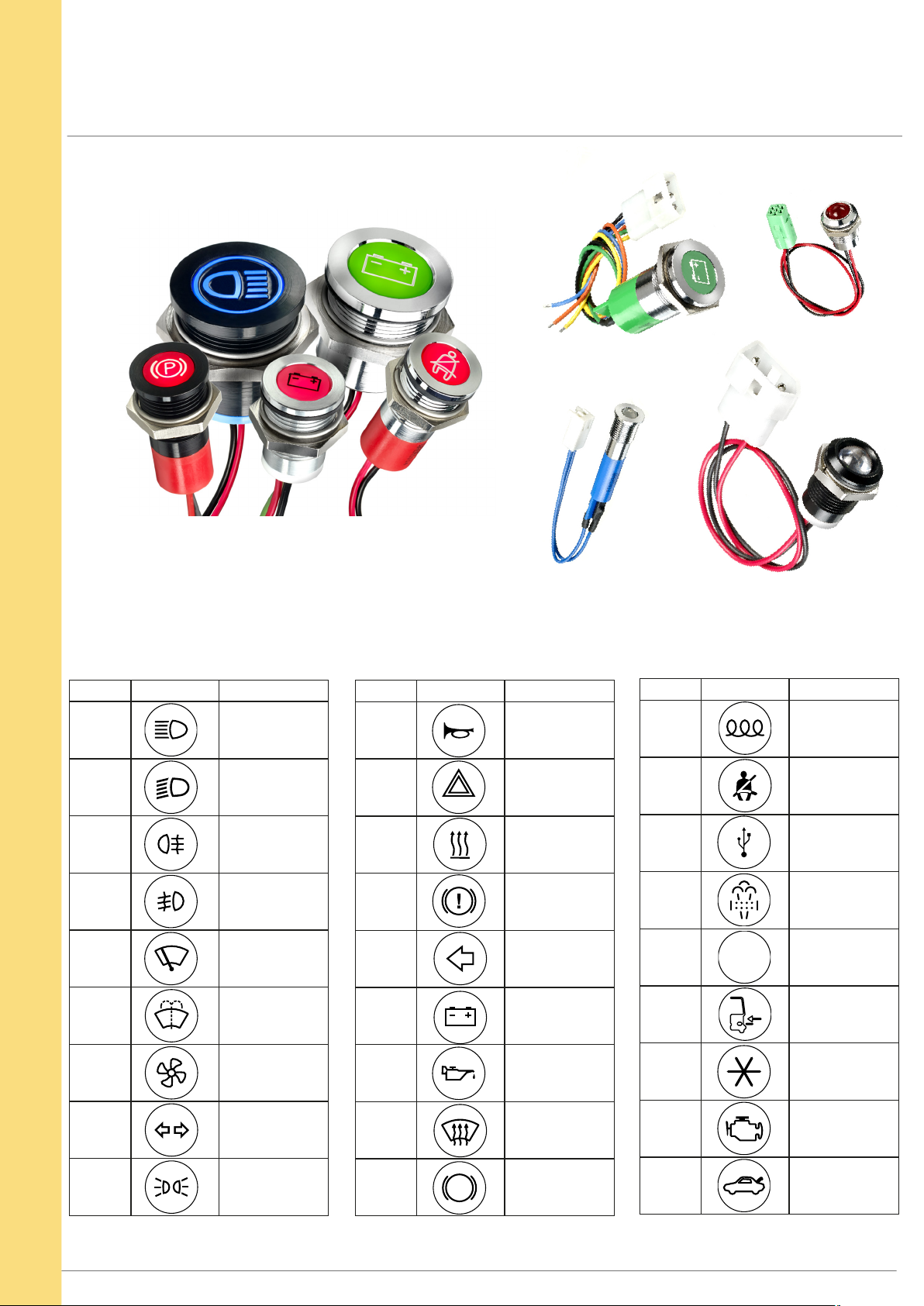

Custom Options
Custom Engraving Cable length & connector
Suffix the part number with legend code (see example on page 4)
Code Symbol Description
-0AJ High Beam
-097 Low Beam
-027 Rear Fog
-026 Front Fog
-021
-022
Windscreen
Wiper
Windscreen
Washer
Code Symbol Description
-041 Horn
-013
-018 Heating
-0BU Brake Test
-0K6 Arrow
-0AG Battery
Hazard
Warning
For custom cable length and
connectors please contact
APEM
Code Symbol Description
-0BD
-0SB Seat Belt
-0UB
-0ST Steam
-0EU ECU
-0AD Side Step
Engine
Coil
USB
Connection
-023
-0AH
-098 Side Lights
Some common codes are listed above, for your custom requirements please contact APEM.
Unless specified standard engraving with white infill will be supplied
APEM
Ventilator
Fan
Turn
Signal
-0GP Oil Can
-020
-086 ABS
www.apem.com
Windscreen
Heating
-012 Air Con
-040 Engine
-0BR
Boot/Trunk
Release
3
Q SERIES Ø22mm (.866") Panel Mount LED Indicators

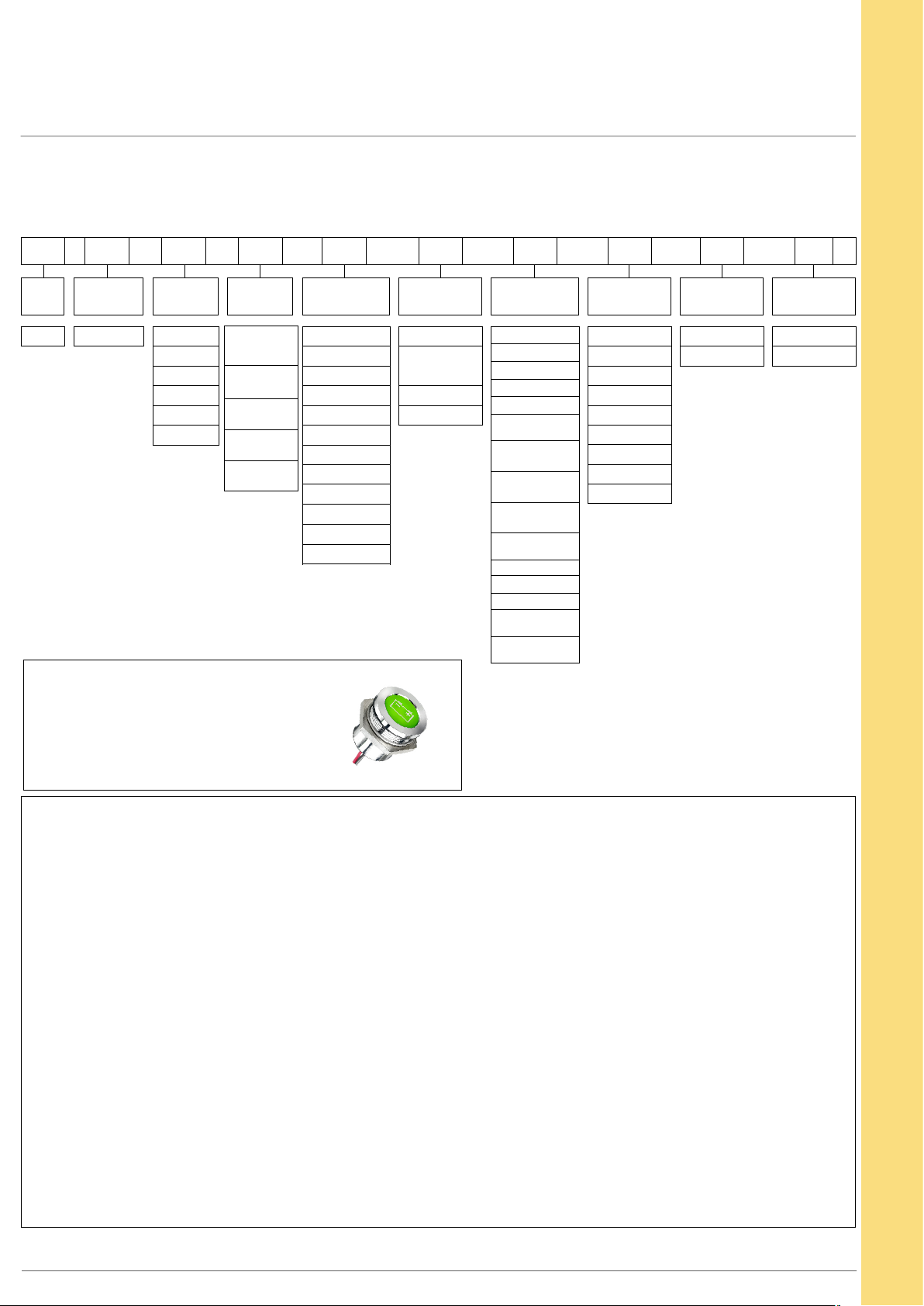

Overview
STANDARD OPTIONS
The Q22 Series is available with a range of standard options, to specify your LED, simply choose one option from each
column. An example is shown below.
Q 22 F 1 BP XX W 28 E DL
SERIES
Q
MOUNTING
HOLE
22 = Ø22mm
BEZEL
STYLE
Metal
P = Prominent
F = Flush
Plastic
PP = Prominent
FP = Flush
TERMINALS
1 = Solder Lug/
Fastons
(2.8 x 0.8)
4 = Rear epoxy
Pins
5 = Rear epoxy
Wires
6 = Short body
Pins
7 = Short body
Wires
Example Q22F5CXXG12E-0AG
Ø22mm, flush bezel, rear epoxy wire
terminals, bright chrome finish,
fixed light, green, 12VDC LED,
IP67 panel sealed, Battery symbol marking
BEZEL FINISH
Metal
C = Bright Chrome
B = Black Chrome
G = Satin Grey
Plastic
BP = Black
Anodised Flush
AR = Red
AG = Green
AY = Yellow
AB = Blue
AN = Black
TYPE OF
ILLUMINATION
XX = Fixed Light
KK = Flashing
Light (only 12VDC)
YY = Bi-color
ZZ = Tri-color
LED COLOR VOLTAGE SEALING OPTIONS
R = Red
G = Green
Y = Yellow
B = Blue
W = White
SR = Super bright
Red
SG = Super bright
Green
SY = Super bright
Yellow
RG = Red/Green
RY = Red/Yellow
GY = Green/Yellow
RYG = Red/Yellow/
Green
05 = no resistor*
12 = 12VDC
12A = 12VAC/DC
24 = 24VDC
24A = 24VAC/DC
28 = 28VDC
28A = 28VAC/DC
110 = 110VAC
220 = 220VAC
(Blank) = Unsealed
E = IP67
DL = Daisy Chain
LT = Lamp Test
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, 22AWG UL1007, red wire denotes Anode (+), black wire denotes Cathode (-)
for other wire lengths consult APEM
• For LEDs with alternative voltages consult APEM
• Bi-color LEDs, by connecting the gold Faston (+) one color is produced,
by reversing the supply voltage another color is produced – Bi-colors are available up to 28VDC
• Take care when soldering to the Faston terminals (recommended solder temperature 300°C - 3 sec)
• Pin and Wire options are epoxy sealed at the rear
of the bezels, termination options 4 and 5
• The Tri-color LED has red and green LEDs when both are connected yellow is produced
• Standard Tri-color Faston terminals are two Anodes (+) and one Cathode (-)
• Tri-color wires are one red (+) and one green (+) Anode and one black (-) Cathode
• Tri-color pins are center (–) Cathode, shortest (+) Anode pin green, longest (+) Anode pin red
• Maximum panel thickness: Prominent = 12mm, Flush = 10mm
• Plastic bezel material: ABS
• Daisy chaining option - has negative (Cathode) terminals linked (3 x Fastons), solder lugs only
• Lamp test facility option 4 x solder lug/Faston only
• We recommen
* = For resistorless versions (05) please refer to the forward voltage on page 1
d using super bright LEDs for use at 110 and 220VAC
