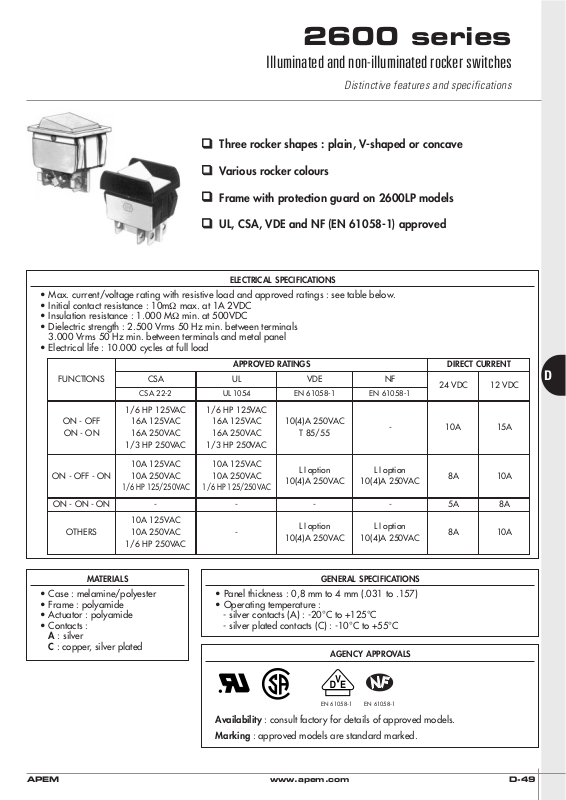

2600 series
Illuminated and non-illuminated rocker switches
Distinctive features and specifications
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load and approved ratings : see table below.
• Initial contact resistance : 10mΩ max. at 1A 2VDC
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.500 Vrms 50 Hz min. between terminals
3.000 Vrms 50 Hz min. between terminals and metal panel
• Electrical life : 10.000 cycles at full load
❑❑
Three rocker shapes : plain, V-shaped or concave
❑❑
Various rocker colours
❑❑
Frame with protection guard on 2600LP models
❑❑
UL, CSA, VDE and NF (EN 61058-1) approved
FUNCTIONS
ON - OFF
ON - ON
1/6 HP 125VAC
16A 125VAC
16A 250VAC
1/3 HP 250VAC
1/6 HP 125VAC
16A 125VAC
16A 250VAC
1/3 HP 250VAC
10(4)A 250VAC
T 85/55
ON - OFF - ON
10A 125VAC
10A 250VAC
1/6 HP 125/250VAC
10A 125VAC
10A 250VAC
1/6 HP 125/250VAC
L I option
10(4)A 250VAC
OTHERS
10A 125VAC
10A 250VAC
1/6 HP 250VAC
-
L I option
10(4)A 250VAC
APPROVED RATINGS DIRECT CURRENT
24 VDC 12 VDC
10A 15A
8A 10A
CSA UL VDE
CSA 22-2 UL 1054 EN 61058-1
-
L I option
10(4)A 250VAC
ON - ON - ON - - -
5A 8A
8A 10A
-
L I option
10(4)A 250VAC
NF
EN 61058-1
MATERIALS
• Case : melamine/polyester
• Frame : polyamide
• Actuator : polyamide
• Contacts :
A : silver
C : copper, silver plated
GENERAL SPECIFICATIONS
• Panel thickness : 0,8 mm to 4 mm (.031 to .157)
• Operating temperature :
- silver contacts (A) : -20°C to +125°C
- silver plated contacts (C) : -10°C to +55°C
AGENCY APPROVALS
Availability : consult factory for details of approved models.
Marking : approved models are standard marked.
EN 61058-1
EN 61058-1
D-50 APEM www.apem.com
2600 series
Illuminated and non-illuminated rocker switches

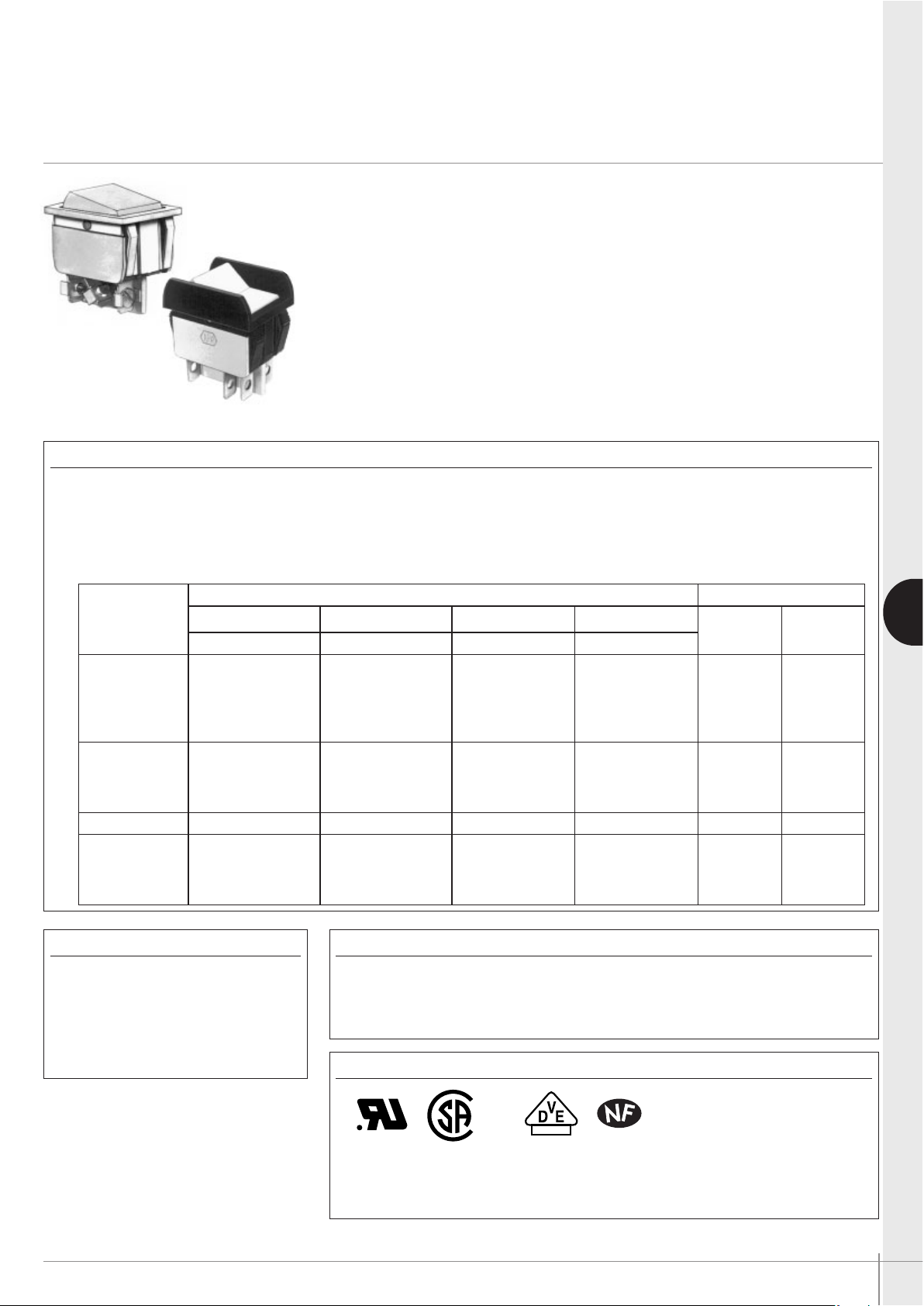

Overview
D
26
Number of poles
3 Single pole
4 Double pole
SERIES Frame type
LH Plain
LP With protection guard
Terminals
(none) Screw + clamp
/2 Solder lugs
/quick-connect
/3 Normalized
quick-connect
Special contact
(none) Standard
Electrical functions
1 ON - OFF
4 ON ON ON▲
5 MOM - ON▲
6 ON - ON
7 MOM OFF MOM▲
8 ON OFF MOM▲
9 ON OFF ON
▲ double pole only
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches
- options in the same order as in above chart
Dimensions : first dimensions are in mm while inches are shown as bracketted numbers.
NOTICE : please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
Sealing boot U2150 available to protect the switches against dust and water. See section H.
APEM www.apem.com D-51
2600 series
Illuminated and non-illuminated rocker switches
Overview
D
Packaging unit : 20 pieces per type and colour.
Frame colours
1 blue
1/4 dark blue
2 black (standard)
4 grey
7/1 white
8 chrome plated
B light brown
E dark brown
Rocker marking
Black White
00 00 (none)
01 21 O—
07 27 OI
08 28 ON OFF
Complete table at the end of
the series.
Lamps
L0 Without lamp
L6V 6V filament lamp
L12V 12V filament lamp
L24V 24V filament lamp
L110V 110VAC neon lamp
L110V1 110VAC blue fuor. lamp
L110V3 110VAC green fuor. lamp
L220V 220VAC neon lamp
L220V1 220VAC blue fuor. lamp
L220V3 220VAC green fuor. lamp
L380V 380VAC neon lamp
L380V1 380VAC blue fuor. lamp
L380V3 380VAC green fuor. lamp
L I option
L I EN 61058-1 approved
version, without lamp
(3 position switches)
Rocker shapes
1 Plain
2 V-shaped
3 Concave
Rocker colours
Illuminated rocker (without
window)
0 Without rocker
1 blue
3 green
5 yellow
6 red
7/1 white
9 orange
With green or blue rocker,
use fluorescent lamp only.
Non-illuminated rocker or
rocker with illum. window•
0 Without rocker
02 light brown
04 dark brown
03 beige
10 blue
14 dark blue
20 black •
30 green •
40 grey
50 yellow
60 red •
70 white
90 orange
Contact materials
A Silver
Silver cadmium oxide (if
combined with S)
C Copper, silver plated
(functions 1, 6 and 9 only)
Illuminated
window
/3 green
/6 red
With green, use
fluorescent lamp
only.
D-52 APEM www.apem.com
D
2600 series
Illuminated and non-illuminated rocker switches

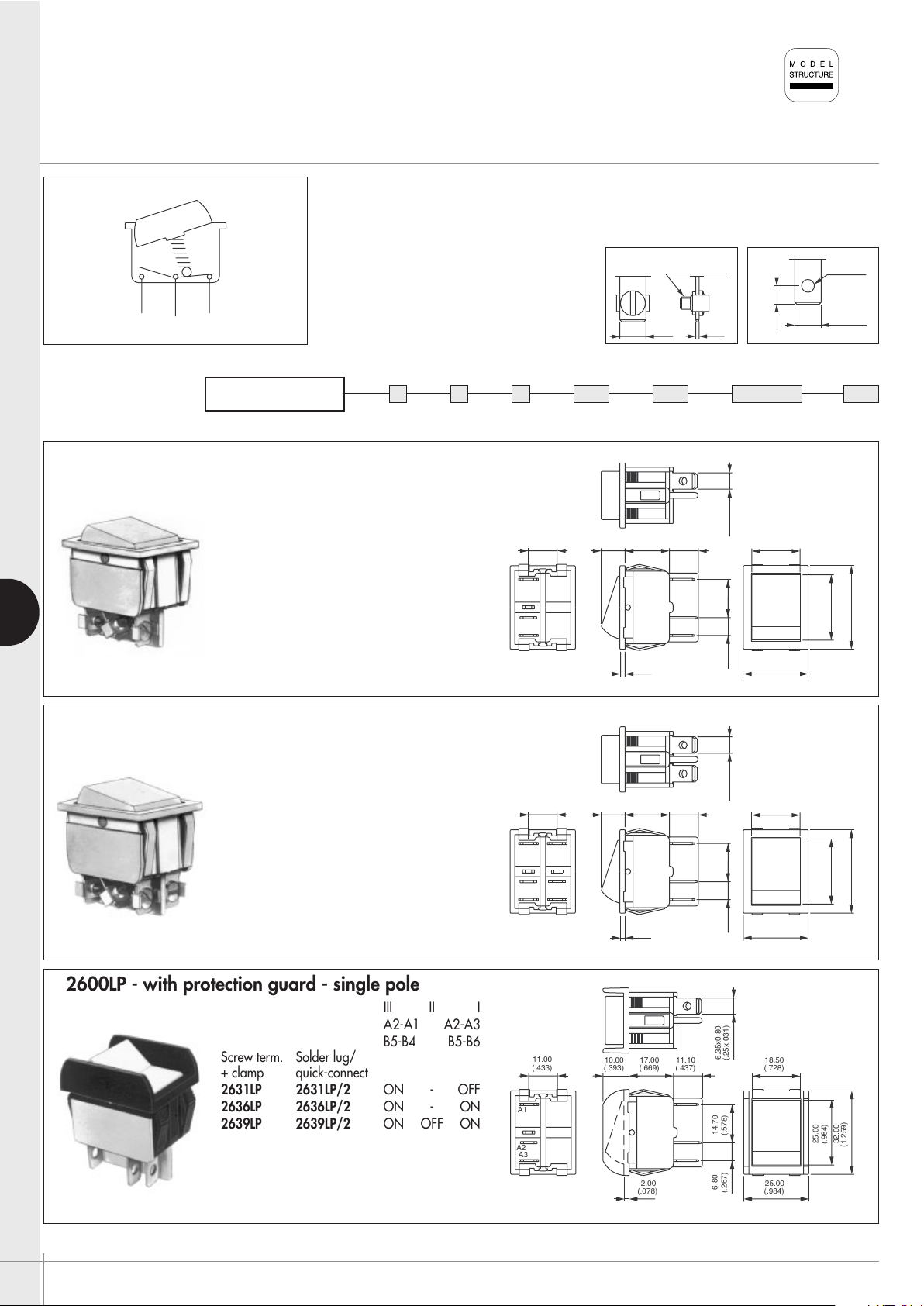

2600LP - with protection guard - single pole
2600LH - double pole
2600LH - single pole
III II I
A2-A1 A2-A3
B5-B4 B5-B6
Screw term. Solder lug/
+ clamp quick-connect
2631LH 2631LH/2 ON - OFF
2636LH 2636LH/2 ON - ON
2639LH 2639LH/2 ON OFF ON
III II I
A2-A1 A2-A3
B5-B4 B5-B6
Screw term. Solder lug/
+ clamp quick-connect
2641LH 2641LH/2 ON - OFF
2644LH* 2644LH/2* ON ON ON
2645LH 2645LH/2 MOM - ON
2646LH 2646LH/2 ON - ON
2647LH 2647LH/2 MOM OFF MOM
2648LH 2648LH/2 ON OFF MOM
2649LH 2649LH/2 ON OFF ON
III II I
A2-A1 A2-A3
B5-B4 B5-B6
Screw term. Solder lug/
+ clamp quick-connect
2631LP 2631LP/2 ON - OFF
2636LP 2636LP/2 ON - ON
2639LP 2639LP/2 ON OFF ON
MODEL
STRUCTURE
• Model 2600LP with protection guard
• 1 and 2 pole configurations
* Function 4 : SP in DP case, see end of catalogue.
123
I II III
(.031)
(.118DIAx0.50 IS)
Ø3.00x0.50 SI
0.80
6.35
(.25)
(.122DIA)
Ø3.10
4.50
(.177)
(.25x.031)
6.35x0.80
14.70
(.578)
A3
A2
2.00
(.078)
6.80
(.267)
11.00
(.433)
A1
9.00
(.354)
17.00
(.669)
6.35x0.80
(.25x.031)
11.10
(.437)
32.00
25.00
(.984)
25.00
(.984)
(1.259)
18.50
(.728)
(.578)
14.70
A2
A3
B6
B5
6.80
(.078)
2.00
(.267)
(.984)
25.00
(.433)
11.00
A1 B4
(.354)
9.00
(.669)
17.00
(.437)
11.10
(.25x.031)
6.35x0.80
(.728)
18.50
(.984)
25.00
(1.259)
32.00
A3
(.078)
2.00
(.267)
6.80
(.984)
25.00
(.393)
10.00
(.433)
11.00
A1
A2
(.25x.031)
6.35x0.80
(.437)
11.10
(.669)
17.00
(.578)
14.70
32.00
(.984)
25.00
(.728)
18.50
(1.259)
2640LH 2640LH/2
