Installation and Start-Up
80kW InfraStruXureTM System
Medium Data Centers
208/480/600V Input
About this Manual
This manual is intended for APC Field Service Engineers or APC-trained installers of a 80kW
InfraStruXure system. It covers basic installation and start-up.
For additional information about installing the InfraStruXure system, see Certified Electrician’s
Instructions (990-1469A), which provides specific instructions for the electrician connecting utility
to the InfraStruXure PDU.
For information about installing specific components in your InfraStruXure system, see the
documentation included with each component. Before installing or operating any component, refer to
the safety instructions in the component’s manual.
The illustrations of products in this manual may vary slightly from the products in your InfraStruXure
system.
You can check for updates to this manual by clicking on the User Manuals link on the
Support page of the APC Web site (www.apc.com). In the list of InfraStruXure
Note
manuals, look for the latest letter revision (A, B, etc.) of the part number on this manual.
InfraStruXure System—Installation and Start-Up i
Contents
Safety ......................................................................1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Save these instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety symbols used in this manual . . . . . . . . . . . . . . . . . . . 1
Cross-reference symbols used in this manual . . . . . . . . . . . . . 1
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation/Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Maintenance performed while the
PDU is receiving input power
Total Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DANGER—Risk of Electric Shock! . . . . . . . . . . . . . . . . . . . . . 3
Emergency Power Off (EPO) . . . . . . . . . . . . . . . . . . . . . . . . 3
EMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . 2
Site Planning............................................................5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
InfraStruXure PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Symmetra PX UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Battery Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
NetShelter VX Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rack Distribution Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Space Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Weight Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Heat Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electrical Requirements and Specifications . . . . . . . . . . . . . . . . 11
Cross Tie Output Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . 12
Emergency Power Off (EPO) . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Basic Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
InfraStruXure System—Installation and Start-Up iii
Installation Procedures .......................................... 18
Installation Procedures .......................................... 19
Level the PDU, UPS, RDP, NetShelter and Battery Enclosures . . 19
Exchange Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Attach the PDU, UPS, and Battery Enclosure . . . . . . . . . . . . . . 22
Ensure that All Power is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connect Utility Conductors to the PDU . . . . . . . . . . . . . . . . . . 25
Connect AC Power and Control Wiring . . . . . . . . . . . . . . . . . . 26
Connect DC Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cascade Battery Enclosures . . . . . . . . . . . . . . . . . . . . . . . 31
Connect power cables from the
Battery Enclosure to the Symmetra PX UPS
. . . . . . . . . . . . . 32
Connect an Emergency Power Off Switch . . . . . . . . . . . . . . . . 33
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Connect an EPO switch to the
user connection plate and test the switch
Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . 34
Connect User Input Contacts and
Relay Outputs to the User Connection Plate. . . . . . . . . . . . . . . 37
Install Shielding Troughs,
Shielding Partitions, and Cable Ladders . . . . . . . . . . . . . . . . . . 39
Shielding Troughs and Shielding Partitions
for overhead wiring along rows
Cable Ladders for overhead wiring across rows . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . 39
Install InfraStruXure Rack-Mount Devices . . . . . . . . . . . . . . . . . 41
Install the Rack Automatic Transfer Switches (ATS) . . . . . . . . 41
Install the Rack Power Distribution Units (PDU) . . . . . . . . . . 41
Install the InfraStruXure Manager and Hub (or Switch) . . . . . 41
Install the Environmental Monitoring Unit or
Environmental Management System
. . . . . . . . . . . . . . . . . 41
Route and Attach Overhead Wiring . . . . . . . . . . . . . . . . . . . . . 42
Connect the sub-feed power cable conductors to a
three-pole breaker on the PDU
Route and attach power cables to equipment racks . . . . . . . 43
iv InfraStruXure System—Installation and Start-Up
. . . . . . . . . . . . . . . . . . . . . 42
Route Data Cables to the
InfraStruXure Manager Hub (or Switch) . . . . . . . . . . . . . . . . . . 46
Connect network cables to components . . . . . . . . . . . . . . . 46
Route network cables to the
InfraStruXure Manager Hub (or Switch)
. . . . . . . . . . . . . . . . 47
Start-Up Procedure .................................................49
Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Ensure that all power is off . . . . . . . . . . . . . . . . . . . . . . . . 49
Apply power to the system . . . . . . . . . . . . . . . . . . . . . . . . 51
Verify UPS battery operation . . . . . . . . . . . . . . . . . . . . . . . 54
Verify proper voltage and phase rotation on the PDU . . . . . . 56
Start the UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Verify proper phasing:
place the UPS into bypass operation
Return from maintenance bypass operation . . . . . . . . . . . . . 62
Power the PDU Distribution Circuit Breakers . . . . . . . . . . . . 63
Close Cross-Tie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
. . . . . . . . . . . . . . . . . . 60
Configure the InfraStruXure Manager . . . . . . . . . . . . . . . . . . . 65
Appendix A : System Operation ..............................67
How to Transfer the UPS into
Maintenance Bypass Operation . . . . . . . . . . . . . . . . . . . . . . . . 67
How to Return from
Maintenance Bypass Operation . . . . . . . . . . . . . . . . . . . . . . . . 70
How to Ensure Total Power Off . . . . . . . . . . . . . . . . . . . . . . . . 73
How to Apply Power to the System . . . . . . . . . . . . . . . . . . . . . 75
Appendix B : Single-Line Diagrams .........................79
Appendix C: Changes in This Manual......................83
InfraStruXure System—Installation and Start-Up v
Safety
d
o
Overview
Save these instructions
This manual contains important instructions that must be followed during installation, operation, and
maintenance of the InfraStruXure System.
Safety symbols used in this manual
Indicates an electrical hazard, which, if not avoided, could result in injury or
Electrical
Hazar
Warning
death.
Indicates a hazard, which, if not avoided, could result in personal injury or
damage to product or other property.
Indicates a potential hazard which could result in damage to product or other property.
Caution
Indicates important information.
Note
Indicates a heavy load that should not be lifted without assistance.
Heavy
Indicates a standby state. When in standby, the unit is not operating, but it may still
contain hazardous voltage. It is not safe to service until the equipment is
disconnected from all sources of electrical power.
Cross-reference symbols used in this manual
Indicates that more information is available on the same subject in a different manual.
See als
Indicates that more information is available on the same subject in a different section
of this manual.
InfraStruXure System—Installation and Start-Up 1
Warnings
Installation/Maintenance
Only a certified electrician can perform these tasks:
• Connect the PDU to utility
• Connect the cross tie output breaker to another PDU
• Connect a switch to the EPO interface on the PDU
Only a certified electrician or an APC Field Service Engineer can perform these tasks:
• Connect the PDU to the Symmetra PX UPS
• Perform maintenance of the PDU
When you connect the PDU to utility, you must install a circuit breaker to protect the PDU against
over- current. Determine the type of circuit breaker that you need to install:
Input Voltage Circuit Breaker Sizing
208V 350A
480V 150A
600V 125A
Maintenance performed while the PDU is receiving input power
APC does not recommend that you perform maintenance of the PDU while it is receiving input
power. However, due to the critical nature of data center loads, this may occur. If you must perform
maintenance while the PDU is receiving input power, observe the following precautions to reduce the
risk of electric shock:
1. Never work alone.
2. Perform the maintenance only if you are a certified electrician who is trained in the hazards of
live electrical installation.
3. Know the procedure for disconnecting electricity to the PDU and the data center in case of an
emergency.
4. Wear appropriate personal protective equipment.
5. Use double-insulated tools.
6. Always follow local and site regulations when working on the PDU.
2 InfraStruXure System—Installation and Start-Up

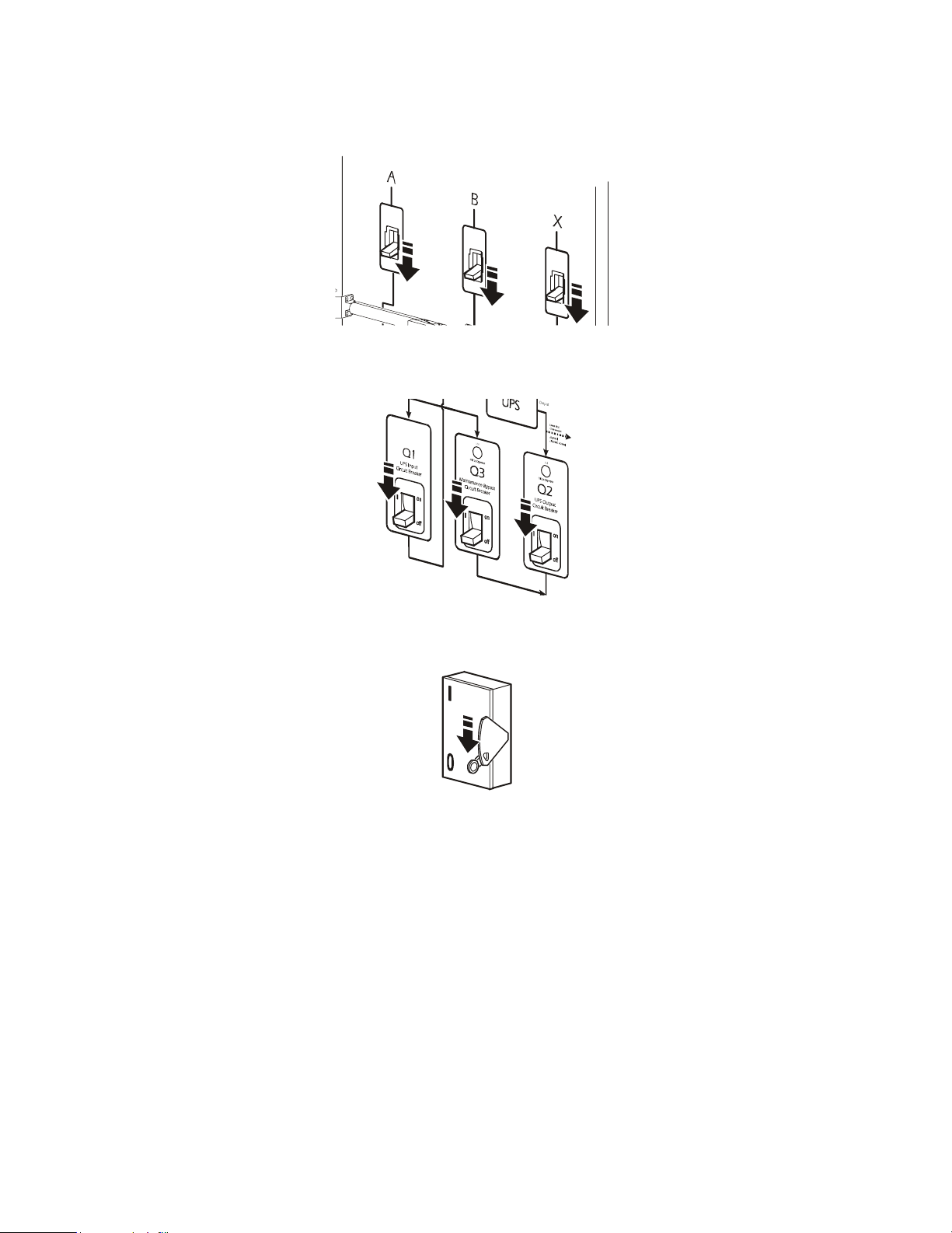

Total Power Off
d
1. Set the Symmetra PX UPS System Enable switch to Off.
2. Set the DC Disconnect breaker of each Battery Enclosure to Off.
3. Set the PDU Main Input (A) switch to Off.
4. If applicable, set the PDU Bypass Input (B) switch to Off.
5. If applicable, set the PDU Cross Tie Output (X) circuit breaker to Off.
6. Set all upstream utility circuit breakers feeding the PDU to Off.
7. Disconnect the batteries in the Battery Enclosure and any XR Battery Enclosures by pulling
them out to the red disconnect line.
DANGER—Risk of Electric Shock!
Hazardous, live parts may exist inside the PDU because of the Symmetra PX UPS
inverter even when the AC power is disconnected. Test any electrical parts before
Electrical
Hazar
touching them.
Safety: Warnings
Emergency Power Off (EPO)
Hazardous voltage from the branch circuit must be isolated from the 24VAC, 24VDC, and contact
closure. 24VAC and 24 VDC are considered Class 2 circuits as defined in Article 725 of the National
Electrical Code (NFPA 70) and Section 16 of the Canadian Electrical Code (C22.1).
A Class 2 circuit is a source having limited voltage and energy capacity as follows:
a. If an Inherently Limited Power Source, voltage and energy are limited to less than 30VAC,
less than 30VDC, and 8A.
b. If not an Inherently Limited Power Source, voltage and energy are limited to less than
30VAC, less than 60 VDC, 250VA, and the current is limited to 1000/ V max. The fuse is
limited to 5A if less than 20VAC or 20VDC, or 100/Vmaximum if less than 30VAC or
60VDC.
If you choose to use a 24VAC, 24 VDC, or contact closure connection to the EPO, use one of the
following UL-listed wire types:
• CL2 Class 2 cable for general purpose use
• CL2P Plenum cable for use in ducts, plenums, and other space used for environmental air
• CL2R Riser cable for use in a vertical run shaft from floor to floor
• CL2X Limited Use cable for use in dwellings and for use in a raceway
• For installation in Canada, the cable should be CSA Certified, type ELC (extra-low-voltage
control cable).
If you do not use a CL2 cable, route the EPO wiring in conduit that does not contain any branch
circuit wiring.
InfraStruXure System—Installation and Start-Up 3
Safety: Warnings
EMI
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with this user manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference.The user will
bear sole responsibility for correcting such interference.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de le class A est conforme a la norme NMB-003 du Canada.
4 InfraStruXure System—Installation and Start-Up
Site Planning
Dimensions
InfraStruXure PDU
Without Shielding Trough
81.5in (2070mm)
Shielding Partitions
29.5in
(749.3mm)
4.74
4.72in
(120mm)
With Shielding Trough
88.78in (2255mm)
Symmetra PX UPS
29.5in
(749.3mm)
23.5in
(597mm)
81.5in
(2070mm)
Wide PDU Shielding Trough
7.28in
(185mm)
29.5in
(749.3mm)
34.5in
(876.3mm)
Power Module
5.2in
(130mm)
34.5in
(876.3mm)
InfraStruXure System—Installation and Start-Up 5
19in
(480mm)
28in
(720mm)
Site Planning: Dimensions
Battery Enclosure
23.5in
(597mm)
Battery Module
34.5in
(876.3mm)
NetShelter VX Enclosure
81.5in
(2070mm)
23.5in
(597mm)
(2070mm)
81.5in
Shielding Partitions
23.5in
(597mm)
Shielding Trough
19.0in
(480mm)
4.8in
(122mm)
5.2in
(130mm)
28in
(720mm)
23.5in
(597mm)
42.2in
(1071.9)
6 InfraStruXure System—Installation and Start-Up
7.2in
(183mm)
Rack Distribution Panel
(2060mm)
Site Planning: Dimensions
81in
24in
(610mm)
35in
(890mm)
InfraStruXure System—Installation and Start-Up 7
Space Considerations
Study the figures below to determine your space requirements for installing the InfraStruXure PDU,
Symmetra PX UPS, and Battery Enclosure. Consult your local codes and the NEC for additional
requirements.
Ceiling Clearance
18in (457.2 mm)
Minimum Rear Clearance
Minimum Front Clearance
208V:36in (914.4mm)
480V: 42 in (1066.8mm)
8 InfraStruXure System—Installation and Start-Up
208V:36in (914.4 mm)
480V: 42 in (1066.8mm)
Weight Considerations
Ensure that the floor and sub-floor can support the total weight of the configuration when
concentrated on the leveling feet. If you are placing equipment on a raised floor, consult the flooring
manufacturer for loading requirements before installing equipment.
Component Maximum Weight
InfraStruXure PDU 2100lb (953kg)
Symmetra PX UPS 1700lb (775kg)
Battery Enclosure 2152lb (976kg)
NetShelter VX Enclosure (empty) 363lb (165kg)
InfraStruXure System—Installation and Start-Up 9
Heat Output
Consider the heat dissipation ratings of equipment to determine cooling requirements. Additional
cooling equipment may be required. The following table shows the heat output of the InfraStruXure
PDU and the Symmetra PX UPS.
InfraStruXure PDU
208V 6,165BTU/hr. (1.81kW)
480V 5,079BTU/hr. (1.49kW)
600V 5,527BTU/hr. (1.62kW)
Symmetra PX UPS 23,757BTU/hr. (6.96kW)
The heat output is higher while batteries are charging. Under normal operating
conditions, battery recharging periods are infrequent.
Note
10 InfraStruXure System—Installation and Start-Up
Electrical Requirements and Specifications
d
o
Procedures requiring a licensed electrician
Procedures requiring a licensed electrician include:
• Connection of utility conductors
Electrical
Hazar
See als
Electrical requirements
• Installation of a 350-, 150-, or 125-amp circuit breaker
• Connection to the Main Input switch
• Connection to a branch circuit
• Connection to the cross tie output breaker
To connect utility conductors, see Certified Electrician’s Instructions (990-1469A)
included with your InfraStruXure PDU documentation.
208VAC 480VAC 600VAC
Upstream circuit breaker
Conductors to Main Input switch
† ‡
† ‡*
Conductors to the Bypass Input switch
Conductors to the Cross Tie Output
† ‡
breaker
Recommended wire sizing
‡
350A 150A 125A
3W + G, 4 W + G
† ‡
4W + G
*
3W + G + GEC to building steel
4W + G
L1, L2, L3 400kcmil (350A) 1/0AWG (150A) 2AWG (125A)
*
N
400 k cm il 1/0 AW G 2 AWG
G 3 AWG 6 AWG 6 AWG
GEC 1/0 AW G 6 AWG 8 AWG
Torque according to wire size
L1, L2, L3 Underfloor Wiring: 500in-lbs, Overhead Wiring: 160in-lb
(18Nm) of lugs onto the circuit breaker
N 125in-lb
G, GEC 45in-lb if single terminal (ground), 50in-lb if double terminal
(G + GEC)
* Transformerless PDUs only.
† Provided by customer.
‡ Consult local and national codes for sizing requirements.
InfraStruXure System—Installation and Start-Up 11
Cross Tie Output Circuit Breaker
Overview
The optional cross tie output circuit breaker allows two separate UPSs that are fed from two different
power sources (dual-fed) to be tied together to create a 2N system. The illustration below shows an
example configuration.
POWER SOURCE B
Inpu t
Step-down
Tra nsf or mer
POWER SOURCE A
AABBXX
Inpu t
Step-down
Tra nsf or mer
PDU A PDU B
To UPS To UPS
With a dual-fed 2N system, the secondary of UPS A’s input transformer, located within PDU A, is
connected to the bypass feed of UPS B; and the secondary of UPS B’s input transformer, located
within PDU B, is connected to the bypass feed of UPS A.
The purpose of a 2N system is to use two UPSs such that if something were to happen to one of the
UPSs, the other UPS is available to supply power to the load equipment. 2N systems provide an
added benefit for 480V and 600V power distribution systems in that isolation transformers are not
required to step down the 480V or 600V input to 208V because transformers in the PDUs perform
this task.
It is important to note that the cross tie feature is to be used on 2N dual-fed systems only. The cross
tie circuit breaker is not to be used to supply power to any other load device. Cross tie connections are
made through the load-side terminals of a molded-case circuit breaker, located in the front, upper,
right-hand side of the PDU. PDUs with the bottom feed option are supplied with terminals on the
front, lower, right-hand side of the PDU.
12 InfraStruXure System—Installation and Start-Up
Emergency Power Off (EPO)
Overview
To provide a mechanism for emergency power off, attach a remote switch (not included) to the EPO
interface on the PDU monitoring unit. The EPO interface () is connected to the PDU Main Input
switch () and to the UPS internal EPO switch (). (Control wires from the PDU to the UPS are
connected during installation of the InfraStruXure system.)
Switch
When the EPO is activated, the main input circuit breaker to the PDU transformer is opened, the UPS
DC Disconnect breaker is opened, and the UPS System Enable switch is turned off. In this sequence,
there is not power from the PDU transformer and there is no power from the UPS inverters and
batteries.
APC offers an optional InfraStruXure EPO System (EPW9). Contact your APC sales
representative, or visit the APC Web site (www.apc.com) for more information.
Note
PDU
UPS
See “Connect an Emergency Power Off Switch” on page 33 for instructions on how to
connect an EPO switch to the PDU.
InfraStruXure System—Installation and Start-Up 13
Basic Installation Procedure
o
This section provides the basic steps that you need to perform when installing InfraStruXure power
and rack components. Follow the references provided with each step for detailed instructions.
Do not begin installing your InfraStruXure system without an APC Field Service
Warning
1. Unpack the components according to the unpacking instructions included on the outside of the
2. Determine the correct placement of your system components by studying your InfraStruXure
Engineer present.
packaging or in the installation manual included with the component.
Search all boxes and packaging to make sure that they are empty before
discarding.
Note
Configure-To-Order (CTO) Report. Move the Symmetra PX UPS, InfraStruXure PDU, RDP,
Battery Enclosure, and NetShelter VX Enclosures to their final location.
If installing InfraStruXure on a raised floor, make sure that the raised-
2
rating that will support the full weight of the
Warning
floor structure has a lb/in
InfraStruXure installation. See “Weight Considerations” on page 9.
3. Level the PDU, UPS, RDP, NetShelter, and Battery Enclosures, using the 13/14-mm wrench
included with each unit.
See page 18 for detailed instructions.
4. Exchange side panels and run battery communication cables.
See page 20 for detailed instructions.
5. Join adjacent enclosures.
For instructions on joining the PDU, UPS, and Battery Enclosure see page 22.
For instructions on joining to RDP to a NetShelter VX Enclosure, or joining
adjacent NetShelter VX Enclosures, see the installation manual included with
See als
your enclosures.
6. Ensure total power off.
See page 23 for detailed instructions.
14 InfraStruXure System—Installation and Start-Up
Site Planning: Basic Installation Procedure
o
o
o
o
7. Connect utility conductors to the PDU.
A licensed electrician must connect utility power.
For instructions, see Certified Electrician’s Instructions (990-1469A) included
with your InfraStruXure PDU documentation.
See als
8. Connect AC power and control wiring.
See page 26 for detailed instructions.
9. Connect DC power wiring.
See page 30 for detailed instructions.
10. Connect an EPO switch to the PDU user connection plate.
See page 33 for detailed instructions.
11. Connect user input contacts and relay outputs to the PDU user connection plate, if applicable.
See page 37 for detailed instructions.
12. Install Shielding Troughs, Shielding Partitions, and Cable Ladders.
See page 39 for general information.
For detailed information and grounding instructions, see the instruction sheet
included with the Shielding Troughs and Shielding Partitions
See als
(990-1393B).
For more information on installing and grounding the Cable Ladders see the
instruction sheet included with the cable ladders (990-1576).
See als
13. Install the Rack Automatic Transfer Switches (ATS), Rack Power Distribution Units, and other
InfraStruXure rack-mount devices.
For instructions, see the manuals included with your Rack ATS, Rack PDU, or
other InfraStruXure rack-mount device.
See als
14. Route and attach power cables to RDPs and to each Rack ATS and/or Rack PDUs.
See page 41 for detailed instructions.
15. Route and attach communication cables to the InfraStruXure Manager hub (or switch).
See page 46 for detailed instructions.
InfraStruXure System—Installation and Start-Up 15
Site Planning: Basic Installation Procedure
o
16. Start the system.
Only qualified, APC-trained personnel may perform a system start-up.
See page 45 for detailed instructions.
17. Configure the InfraStruXure Manager.
For instructions, see the manual included with your InfraStruXure Manager.
See als
16 InfraStruXure System—Installation and Start-Up
Tools Required
The following tools are required to perform the procedures in this manual. Additional tools may be
required for components not covered in this manual.
Tool Supplied?
13-mm socket wrench No
17-mm socket wrench No
T-20 screwdriver No
Standard screwdriver No
Level No
Open-ended wrench (14 mm) for adjusting the leveling feet Yes
Step ladder No
Crimper No
Volt-meter No
Phase-rotation meter No
InfraStruXure System—Installation and Start-Up 17
Installation Procedures
18 InfraStruXure System—Installation and Start-Up
Installation Procedures
Level the PDU, UPS, RDP, NetShelter and Battery Enclosures
Leveling feet are attached under the enclosure at each corner. The leveling feet can help provide a
stable base if the selected floor space is uneven, but they are not intended to compensate for a badly
sloped surface. To level the enclosure:
1. Fit the 14-millimeter end of the open-ended wrench (provided) to the hex head just above the
round pad on the bottom of the leveling foot. Turn the wrench clockwise to extend the leveling
foot until it makes firm contact with the floor.
2. Repeat step 1 for each of the remaining leveling feet.
3. Use a level to determine which feet need further adjustment to level the enclosure. Adjust as
necessary.
InfraStruXure System—Installation and Start-Up 19
Exchange Side Panels
Before installing the InfraStruXure PDU, Symmetra PX UPS, and Battery Enclosure, you will need
to exchange side panels so that the adjacent panels will have matching holes for joining the
enclosures together and for routing input and output wiring between them. The following side panels
will need to be exchanged:
• Adjacent side panels of a PDU and UPS
• Adjacent side panels of a Battery Enclosure and a UPS
• Adjacent side panels of two Battery Enclosures
To exchange side panels:
1. Detach the ground wires from the side panels that you will be exchanging.
20 InfraStruXure System—Installation and Start-Up
Installation Procedures: Exchange Side Panels
2. Remove the solid side panels from the sides of the UPS that will be adjacent to the PDU and the
Battery Enclosure in your planned configuration.
3. Remove the side panels from the sides of the PDU and Battery Enclosure that will not be
adjacent to the UPS.
4. Remove the rear hole covers from the panels that you removed in step 3.
Connect Battery Enclosure communication cables:
5. Route the communication cable through the hole between the UPS and the Battery Enclosure.
Route the cable from the side of the UPS to which it is attached, around the back of the UPS,
and through the hole on the other side of the UPS to the front of the Battery Enclosure.
6. Connect the cable to Port 1 on the first adjacent
XR Battery Encl osure 2
Battery Enclosure’s XR Communication Card.
7. Connect Port 2 on the first Battery Enclosure to
Port 1 on the next Battery Enclosure. Route the
cable the same way as described in step 5.
Continue until all XR Communication Cards are
connected.
XR Battery Enclosure 1
Symmetra PX UPS
XR Communications Card
XR Communications Card
XR Communications Card
Port 1
Port 1
e
l
b
a
C
.
m
m
o
C
Port 2
Port 1
e
l
b
a
C
.
m
m
o
C
Port 2
8. Locate the XR Communication Card terminator
and insert it into the open port of the last Battery Enclosure in your configuration.
The terminator is in Port 1 of the UPS XR Communication Card and
in Port 2 of the Battery Enclosure XR Communication Card.
Note
9. Install, on the UPS, the side panels that you removed from the PDU and the Battery Enclosure
in step 3 and reattach the ground wires.
Ter mi n a t o r
Port 2
10. Install, on the PDU and the Battery Enclosure, the solid side panel that you removed from the
UPS in step 2 and reattach the ground wires.
InfraStruXure System—Installation and Start-Up 21
Attach the PDU, UPS, and Battery Enclosure
1. Move the PDU, Symmetra PX UPS, and Battery Enclosures into position, aligning the holes in
the adjacent side panels.
2. Level the PDU, Symmetra PX UPS, and Battery Enclosure by using a level and adjusting the
leveling feet on each enclosure.
3. Thread the chase nipple (part number: 820-0071) through the opening in the adjacent side
panels of the enclosures. The following enclosures will need to be attached:
• An adjacent PDU and UPS
• An adjacent Battery Enclosure and UPS
• Adjacent Battery Enclosures
4. Tighten the lock-nut and the bushing on the chase nipple.
22 InfraStruXure System—Installation and Start-Up
Ensure that All Power is Off
d
Before you proceed, ensure that power is off by following the procedure in this
Electrical
Hazar
Warning
How to ensure that all power is off
1. Set the UPS System Enable switch to OFF.
section.
Do not install any batteries into the Battery Enclosure or power modules into the
Symmetra PX UPS until instructed to do so.
2. Set the Battery Enclosure DC Disconnect breaker to OFF.
InfraStruXure System—Installation and Start-Up 23
Installation Procedures: Ensure that All Power is Off
3. Set the Main Input (A) and Bypass Input (B) switches and the Cross Tie Input (X) circuit
breaker (if applicable) on the PDU to the OFF position.
4. Open (turn OFF) the Q1, Q2, and Q3 circuit breakers on the PDU.
5. Set each upstream utility circuit breaker that will feed the PDU to OFF.
24 InfraStruXure System—Installation and Start-Up
Connect Utility Conductors to the PDU
o
Only a certified electrician can connect utility conductors to the InfraStruXure
Warning
See als
PDU.
For detailed instructions see Certified Electrician’s Instructions (990-1469A), which
was included with your PDU documentation.
InfraStruXure System—Installation and Start-Up 25
Connect AC Power and Control Wiring
d
Before you connect AC power and control wiring, connect utility conductors to the
PDU. For instructions, see Certified Electrician’s Instructions included with the PDU
Note
Electrical
Hazar
Attach AC power and control wiring to the UPS. The power wires are coiled in the bottom of the
PDU. There are five main input wires, four bypass input wires, and four output wires coiled on the
floor of the PDU. Each set of wires is labeled. The control wires for the UPS Maintenance Bypass
control board and the UPS EPO control board are also coiled in the PDU. The diagram below
provides an overview of the connections that you will make between the PDU and the UPS.
documentation.
Only qualified personnel trained by APC may connect the AC power and control
wiring.
Maintenance Bypass Control
Output
PDU
EPO Control
Bypass
Input
UPS
To make the connections you will need to remove the rear lower panel of the UPS and the rear panel
of the PDU. Use the opening in the side panels of the enclosures to run the wires.
26 InfraStruXure System—Installation and Start-Up
Installation Procedures: Connect AC Power and Control Wiring
d
Connect AC power wiring.
1. Attach the bypass wires (L1, L2, L3, N) to the four UPS bypass bus bars with corresponding
labels (
).
2. Attach the input wires (L1, L2, L3, N) to the four UPS input bus bars with corresponding
colors and labels (
). And, attach the input ground wire (G) to the ground lug to the right of the
input bus bars marked .
3. Attach the output wires (L1, L2, L3, N) to the four UPS output bus bars with corresponding
colors and labels (
).
The following illustration shows the UPS buswork and the order in which you need to make the
connections. The numbers in the illustration correspond to the numbered steps above (1–3).
The conductors are not interchangeable, and must be terminated in the
correct location to prevent damage to the system and connected
Electrical
Hazar
equipment.
InfraStruXure System—Installation and Start-Up 27
Installation Procedures: Connect AC Power and Control Wiring
Connect control wiring.
4. Connect the EPO control wires from the PDU and Battery Enclosure to the EPO board on the
UPS. The control wires are harnessed and coiled in the floor of the PDU and Battery Enclosure,
respectively. The PDU harness connects to a 4-pin molex connector labeled J6 and the Battery
Enclosure harness connects to a 4-pin molex connector labeled J8.
J6—Connect from PDU0W4510C
1 Internal Power +24V Supply
2/3 Relay Coil 1
4 Ground
J6
21
43
J8—Connect 0W1696
from Battery Enclosure
4321
1413121110987654321
8765
J8
4
1 Internal Power
+24V Supply
3
2/3 NC
2
4 Ground
1
28 InfraStruXure System—Installation and Start-Up
Installation Procedures: Connect AC Power and Control Wiring
5. Connect the Maintenance Bypass control wire harness from the PDU to the Maintenance
Bypass interface board of the UPS. There are two wire harnesses coiled and secured in the
PDU. One is a 6-wire harness and the other is a 4-wire harness.
PDU Switchgear Q1, Q2, Q3
J1
5
3
1
6
4
2
1/3 Q1 UPS Input (NO)
4/5 Q2 UPS Output (NO)
2/6 UPS Manual Service Bypass (NC)
A jumper wire must be installed in position 13 and 14.
Note
J1
Q1 Q2 Q3
1234
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Q2
LEDQ3LED
56789101112
H2 & H3 LEDs on
PDU Bypass Panel
21
J3
43
1/3 Ok to operate Q2
2/4 Ok to operate Q3
J3
Switchg ear
Present
13 14
InfraStruXure System—Installation and Start-Up 29
Connect DC Power Wiring
d
d
Only qualified personnel trained by APC may connect the Battery Enclosure to
Electrical
Hazar
Warning
Electrical
Hazar
the Symmetra PX UPS or to another Battery Enclosure.
The supplied power and ground wires are for internal side-panel wiring only.
These wires are not for use in external conduits.
Before you begin connecting the DC power wiring, ensure that there are no
battery units installed in the Battery Enclosures. Do not install battery units until
instructed to do so.
30 InfraStruXure System—Installation and Start-Up
Installation Procedures: Connect DC Power Wiring
X
X
X
y
Cascade Battery Enclosures
If you have multiple Battery Enclosures as part of your InfraStruXure system, you can cascade
Battery Enclosures to form a “daisy-chain” to a Symmetra PX UPS. Starting with the Battery
Enclosure furthest away from the UPS:
1. Route DC output cables and the ground cable (coiled on the floor of the enclosure) from one
Battery Enclosure to the next Battery Enclosure through the adjacent holes in the side panels of
the enclosures.
2. Connect the DC output cables from one Battery Enclosure to the DC Input Breaker of the next
Battery Enclosure [(+) to (+), (CT) to (CT), (–) to (–)].
3. Connect the ground wire from one Battery Enclosure to the grounding stud on the next Battery
Enclosure.
To
Batter
Enclosure
Battery Enclosure
XR (+) XR (CT) XR (–)
DC OUTPUT
XR (GND)
XR (–)
R (CT)
XR (+)
R (+) XR (CT) XR (–)
DC INPUT
To
UPS
Battery Enclosure
R (+) XR (CT) XR (–)
DC INPUT
InfraStruXure System—Installation and Start-Up 31
Installation Procedures: Connect DC Power Wiring
X
X
X
Connect power cables from the Battery Enclosure to the Symmetra PX UPS
1. Route the Battery Enclosure DC output cables to the Symmetra PX UPS through the hole in the
adjacent side panels.
2. Connect the Battery Enclosure DC output cables to the Symmetra PX UPS DC input terminal
[(+) to (+), (CT) to (CT), (–) to (–)].
Tighten the lugs on the terminals only to the torque specified: the power
terminal lug diameter is 10 mm with a torque value of 53 lb/in (6Nm).
Warning
3. Connect the Battery Enclosure ground cable to the Symmetra PX UPS ground stud.
XR (GND)
Battery Enclosure
XR (+) XR (CT) XR (–)
DC OUTPUT
R (CT)
XR (–)
XR (+)
Symmetra PX UPS
R (+) XR (–) XR (CT)
DC INPUT
R (+) XR (CT) XR (–)
DC INPUT
32 InfraStruXure System—Installation and Start-Up
Connect an Emergency Power Off Switch
Overview
Connecting the switch. Choose one of the
following methods to connect a switch to the
EPO interface:
• Contact closure
• 24 VDC
•24 VAC
Contact closure is recommended.
Note
The EPO connections are made at the PDU
user connection plate. The figure to the right
shows the location of the user connection
plate. It is mounted on the roof of the PDU
enclosure (
) and connections are made from
inside the PDU. Use the knockout in the plate
to run wires out the roof of the PDU.
Configuring and testing. Configuring and
testing of the switch is done through the EPO
interface on the PDU monitoring unit. The
figure to the right shows the PDU monitoring
unit and the location of the EPO LEDs and
switches.
EPO
TRIPPED
ARMED
TEST
NC
NO
885-2288
USER / EPO CONTACTSTO UPS
12345678910111213
LINK RX/TX
25 24 23 22 21 20 19 18 17 16 15 14
10=G RN
100=ORN
NETWORK
STATUS
RESET
DISPLAY
TRIPPED
ARMED
EPO
TEST
NO NC
POWER
RS-232
9600-8 -N-1
CONSOLE PORT
Note
APC offers an optional InfraStruXure EPO System (EPW9). Contact your APC sales
representative, or visit the APC Web site (www.apc.com) for more information.
InfraStruXure System—Installation and Start-Up 33
Installation Procedures: Connect an Emergency Power Off Switch
–
–
–
Connect an EPO switch to the user connection plate and test the switch
1. Connect the switch to the EPO connection point terminals located on the bottom side of the
PDU user connection plate. Read the label next to the terminal block to determine which
terminals to connect to for the signal type you are using:
– Contact Closure—Normally Open
USER INTERFACE
© 2001 APC
MADE IN USA
External set of
Normally Open Dry Contacts
+
1 234
Contact Inputs
Contact Outputs
EPO 24V
ATS EN
AC/DC
EPO
Contact
ATS 1
ATS 0
ATS 2
– Contact Closure—Normally Closed
USER INTERFACE
© 2001 APC
MADE IN USA
1 234
Contact Inputs
Contact Outputs
+
EPO 24V
ATS EN
AC/DC
EPO
Contact
ATS 1
ATS 0
ATS 2
External set of
Normally Closed Dry Contacts
– 24 VAC/VDC—Normally Open
External set of
Normally Open Dry Contacts
USER INTERFACE
© 2001 APC
MADE IN USA
24V AC or DC Power Supply
+
1 234
Contact Inputs
Contact Outputs
EPO 24V
ATS EN
AC/DC
EPO
Contact
ATS 1
ATS 0
ATS 2
2. Verify that the EPO DIP switches on the PDU monitoring unit are configured properly for the
signal type you are using. The labels above the switches and the figure below show the correct
settings for both the Normally Open (NO) and Normally Closed (NC) position.
TRIPPED
Normally ClosedNormally Open
ARMED
EPO
TEST
NC
NO
Location of switches
on PDU monitoring unit
or 24V AC/DC
The default setting on the EPO interface on the PDU monitoring unit is for a Normally
Open (NO) switch.
Note
34 InfraStruXure System—Installation and Start-Up
Installation Procedures: Connect an Emergency Power Off Switch
3. Test the EPO switch to ensure that it is wired and working correctly:
a. Place the Arm/Test rocker switch in the Test position. The EPO state LEDs will be off and
the PDU display interface will show the following alarm (in addition to any other active
alarms):
Active Alarm xxofxx
EPO Ready To Test
b. Engage the EPO switch. (If your switch is momentary, engage it with one person watching
the EPO state LEDs, and another at the EPO switch.)
c. Observe the EPO LEDs. If the switch is wired and working properly, when the switch is
engaged, both of the EPO state LEDs are red.
d. If the test was successful, place the Arm/Test rocker switch back to the Arm position. The
PDU display interface will clear the EPO test mode alarm. If the test was not successful, see
the troubleshooting chart:
Problem Action
Neither state LED was red when
EPO switch was engaged
• Check the wiring to your EPO switch.
• Check to make sure the EPO DIP switch
configuration is correct for your switch
(NO or NC). See step 2 on the previous page for
proper configuration instructions.
Only one of the state LEDs was
red when EPO switch was
engaged
• Check to make sure the EPO DIP switch
configuration is correct for your switch
(NO or NC) and test again. See step 2 on the
previous page for proper configuration
instructions.
• If the switch is configured correctly and both
LEDs are not red after testing again, contact
customer support at a number on the back cover
of this manual.
e. Repeat this test for each EPO switch installed.
4. Ensure that the Arm/Test rocker switch is in the Arm position on the monitoring unit.
InfraStruXure System—Installation and Start-Up 35
Installation Procedures: Connect an Emergency Power Off Switch
Safety warnings
Hazardous voltage from the branch circuit must be isolated from the 24VAC, 24VDC, and contact
closure. 24VAC and 24 VDC are considered Class 2 circuits as defined in Article 725 of the National
Electrical Code (NFPA 70) and Section 16 of the Canadian Electrical Code (C22.1).
A Class 2 circuit is a source having limited voltage and energy capacity as follows:
a. If an Inherently Limited Power Source, voltage and energy are limited to less than 30VAC,
less than 30VDC, and 8A.
b. If not an Inherently Limited Power Source, voltage and energy are limited to less than
30VAC, less than 60 VDC, 250VA, and the current is limited to 1000/ V max. The fuse is
limited to 5A if less than 20VAC or 20VDC, or 100/Vmaximum if less than 30VAC or
60VDC.
If you choose to use a 24VAC, 24 VDC, or contact closure connection to the EPO, use one of the
following UL-listed wire types:
• CL2 Class 2 cable for general purpose use
• CL2P Plenum cable for use in ducts, plenums, and other space used for environmental air
• CL2R Riser cable for use in a vertical run shaft from floor to floor
• CL2X Limited Use cable for use in dwellings and for use in a raceway
• For installation in Canada, the cable should be CSA Certified, type ELC (extra-low-voltage
control cable).
If you do not use a CL2 cable, route the EPO wiring in conduit that does not contain any branch
circuit wiring.
36 InfraStruXure System—Installation and Start-Up
Connect User Input Contacts and Relay
–
Outputs to the User Connection Plate
Overview
The figure below shows the location of the user connection plate. It is mounted on the roof of the
PDU enclosure, and the connections are made from inside the enclosure. Use the knockout in the
plate to route cables to and from the user connections on the plate.
USER INTERFACE
© 2001 APC
MADE IN USA
– +
1 234
Contact Inputs
Contact Outputs
EPO 24V
EPO
ATS 1
ATS 0
ATS 2
AC/DC
Contact
ATS EN
Make contact closure connections (NO or NC) at the user connection plate to monitor dry contacts.
You can make eight connections—four input contacts and four relay outputs.
USER INTERFACE
© 2001 APC
MADE IN USA
+
1 23
Contact Inputs Contact Outputs
4
InfraStruXure System—Installation and Start-Up 37
EPO 24V
ATS EN
AC/DC
EPO
Contact
ATS 1
ATS 0
ATS 2
Installation Procedures: Connect User Input Contacts and Relay Outputs to the User Connection Plate
How to connect contacts to the PDU monitoring unit
1. Choose one or more contact numbers on the user connection plate to which you will connect the
contacts. The user connection plate is connected to the PDU monitoring unit.
2. From the PDU display interface:
a. Press the
b. Select Contacts on the top-level menu screen and press the
c. Press the
ESC or ENTER key to go to the top-level menu screen.
ENTER key.
ENTER key to select the number of the contact you are connecting. The continue
arrow will appear next to the contact number.
d. Press the Up or Down arrow key to select the appropriate contact number and press the
key.
e. Press the Down arrow key to enter a unique Name for the contact and to configure the
Normal state of the contact (Open or Closed). The default Normal state is Open. Press the
ENTER key to select the item you wish to configure.
You will be prompted for your password to configure these items.
Note
3. Connect contact wires (300V-rated cabling required) to the terminal block on the user
connection plate. You will need a 2.5-mm standard screwdriver.
4. Run the wires from the terminal block out the roof or under the floor of the PDU to your
contact’s location.
Ensure that wires are properly retained and away from high voltage lines
and breakers.
Warning
ENTER
Relay output specifications
Nominal switching capacity 1A at 30VDC
Maximum switching power 30W
Maximum switching voltage 60VDC
Maximum switching current 2 ADC
Maximum carrying current 2ADC
Surge ratings 2kV per Bellcore TA-NWT-001089
1.5kV per FCC part 68
38 InfraStruXure System—Installation and Start-Up
Install Shielding Troughs, Shielding Partitions,
o
and Cable Ladders
Shielding Troughs and Shielding Partitions for overhead wiring along rows
If you ordered APC Shielding Troughs, Shielding Partitions, and Cable Ladders to route overhead
wiring for your system, assemble the Shielding Troughs and the Shielding Partitions along the rows
of enclosures and assemble the Cable Ladders between rows.
For detailed information and grounding instructions, see the instruction sheet included
with the Shielding Troughs and Shielding Partitions
See als
Shielding Troughs. There are two types of Shielding Troughs:
• The PDU Wide Shielding Trough is 610 mm in length and is not adjustable. The trough sits on
(990-1393B).
top of the InfraStruXure PDU. The PDU Shielding Trough is two pieces. The power cables sit
in between the two pieces when installed on the roof of the PDU.
• The NetShelter Shielding Trough is 610mm in length and is not adjustable. The Shielding
Troughs have an opening in each side through which you route data cables to the Shielding
Partitions.
Shielding Trough accessories. APC offers the following accessories for Shielding Troughs:
• Shielding Trough Covers for both 600-mm wide (AR8174BLK) and 750-mm wide
(AR8175BLK) enclosures. Contact APC for more information.
• Shielding Trough End Caps (AR8167BLK) to place on the side of a Shielding Trough at the end
of a row. Contact APC for more information.
InfraStruXure System—Installation and Start-Up 39
Installation Procedures: Install Shielding Troughs, Shielding Partitions, and Cable Ladders
o
Shielding Partitions. There are two types of Shielding Partitions, each of which forms a side wall
of a trough for data cables. You can customize the width of the trough for each row of your system —
wider for rows carrying many data cables, narrower for rows carrying fewer.
• As the back wall, use a Shielding Partition that
contains an opening for routing data cables.
• As the front wall, use a solid Shielding Partition to
hide data cables for a clean appearance.
Cable Ladders for overhead wiring across rows
After installing the Shielding Troughs and Shielding Partitions, install the Cable Ladders between
rows of enclosures. You can also run Cable Ladders across Shielding Troughs in the same row, using
the hardware provided in the ladder kit.
For detailed instructions on installing and grounding the Cable Ladders see the
instruction sheet included with the cable ladders (990-1576).
See als
Use wide Cable Ladders (12in; 305mm) where many power cables or data cables will run between
rows; use narrow Cable Ladders (6in; 152mm) where few power cables or data cables will run
between rows.
The Cable Ladders are 9feet, 8inches long. You can adjust the length of the Cable Ladders in the
following ways:
• Cut the ends with a hacksaw to shorten them.
• Insert the connectors only partially into the side rails to extend them.
Do not change the spacing between rows or the length and position of the Cable
Ladders from the layout you planned with your APC representative when you placed
Note
your order. For overhead wiring, each PDU power cable is provided at a pre-determined
length. Changes to the physical configuration of your system could cause some PDU
power cables to be too short or too long.
40 InfraStruXure System—Installation and Start-Up
Install InfraStruXure Rack-Mount Devices
o
o
o
Install the Rack Automatic Transfer Switches (ATS)
Install a Rack ATS in the top of each enclosure for overhead wiring, and in the bottom of each
enclosure for wiring under the floor.
See the installation instructions in the manual included with your Rack ATS.
See als
The Rack ATS is an optional component and not all InfraStruXure systems will include them.
Install the Rack Power Distribution Units (PDU)
Install Rack PDUs in the rear of the NetShelter VX enclosure, in the channel directly behind the rear
vertical mounting rails. For overhead wiring, make sure that the power cord is pointing toward the
roof of the enclosure. For under the floor wiring, make sure that the power cord is pointing toward the
floor.
See the installation instructions in the manual included with your Rack PDU.
See als
Install the InfraStruXure Manager and Hub (or Switch)
Install the InfraStruXure Manager in the enclosure closest to the InfraStruXure PDU. The CAT-5 data
cables included with your configuration are of varying lengths, based on the distance components
will be installed from the InfraStruXure PDU.
See the installation instructions in the manual included with your InfraStruXure
Manager.
See als
Install the Environmental Monitoring Unit or Environmental Management System
Install the Environmental Monitoring Unit or Environmental Management System according to the
installation instructions included with the device. The Environmental Monitoring Unit and
Environmental Management System are optional components and not all InfraStruXure systems will
include them.
InfraStruXure System—Installation and Start-Up 41
Route and Attach Overhead Wiring
d
Connect the sub-feed power cable conductors to a three-pole breaker on the PDU
Only licensed electricians or APC Field Service Engineers can connect the sub-
feed power cable conductors to a breaker on the PDU. Ensure that the RDP
Electrical
Hazar
The sub-feed power cable is connected to the RDP and the cable’s wires are terminated with ferrules.
Note
To connect the sub-feed power cable to the PDU:
1. Route the sub-feed power cable from the RDP to the PDU through the Shielding Troughs.
2. Route each phase conductor (L1, L2, L3) through a current sensor (secured to the PDU
3. Connect the power
breakers are OFF before beginning this procedure.
If you ordered the alternative connection, your PDU and RDP have sub-feed power
cables that terminate with IEC 309 connectors. If you have this option, the procedure
below does not apply.
enclosure) and secure the current sensor to each conductor using a wire tie (provided).
cable’s individual wires
(see the illustration):
a. Connect each phase
conductor (L1, L2,
L3) to the appropriate
pole on one of the
three-pole breakers
(sub-feed breakers) at
the bottom of the
panel.
N
b. Connect the neutral
wire to a termination
point on the Neutral
Bar (N) at the top of
the distribution panel.
c. Connect the ground
wire to a ground lug
(G) at the bottom of
the distribution panel.
42 InfraStruXure System—Installation and Start-Up
G
Installation Procedures: Route and Attach Overhead Wiring
Route and attach power cables to equipment racks
If you ordered overhead wiring, connect the prewired power cables of the InfraStruXure PDU as
follows:
1. Install the Shielding Troughs, Shielding Partitions, and Cable Ladders so that you can route
power cables from the PDU to the NetShelter VX Enclosures.
For installation instructions, see page 39.
2. Find the numbers that indicate the enclosure to which each power cable will supply power.
These numbers appear on the roof of the PDU where the power cables exit, and on the ends of
each power cable.
The enclosures are not numbered. Consult your APC InfraStruXure
Configuration Build-out Tool to determine the enclosure associated with each
Note
power cable.
3. Beginning with the power cables for the enclosures farthest from the PDU, run each power
cable within the Shielding Trough along the row and, if necessary, across one or more Cable
Ladders to the enclosure to which it will provide power.
Ensure that the L21-20 twist-lock connector at the end of each power cable
always lies on top of any longer power cables in the Shielding Trough.
Note
4. Connect the appropriate power cable to APC power management equipment in the enclosure in
one of the four following ways:
– For single-feed devices without redundancy: attach a power cable directly to a Rack PDU
installed in a NetShelter VX Enclosure.
InfraStruXure System—Installation and Start-Up 43
Installation Procedures: Route and Attach Overhead Wiring
– For dual-feed devices within a redundant system: attach a power cable from each PDU into
two different Rack PDUs in the NetShelter VX Enclosure.
– For single-feed devices within a redundant system with an Automatic Transfer Switch:
connect a power cable to the Automatic Transfer Switch (A and B feeds) and connect the
Automatic Transfer Switch power cord to a Rack PDU in the NetShelter VX Enclosure.
– For dual-feed devices in a redundant system with an Automatic Transfer Switch: connect a
power cable from each PDU to the Automatic Transfer Switch’s A and B feeds, and another
power cable from one PDU to a Rack PDU, and the Automatic Transfer Switch’s power cord
to a second Rack PDU in the NetShelter VX Enclosure.
Lay the cables neatly in the Shielding Trough to minimize cable build-up.
Note
44 InfraStruXure System—Installation and Start-Up
Installation Procedures: Route and Attach Overhead Wiring
5. From each NetShelter VX Enclosure, run the power cable of the appropriate APC power
management device out the roof of the enclosure, through the notch in the rear side of the
Shielding Trough, to the connector of the appropriate power cable from the PDU. Plug the two
connectors together, and twist them clockwise to lock.
InfraStruXure System—Installation and Start-Up 45
Route Data Cables to the InfraStruXure
A
Manager Hub (or Switch)
Connect network cables to components
Connect a Cat-5 network cable (provided) to the network or 10Base-T ports on your APC
InfraStruXure devices. The following devices need to be connected:
Automatic Transfer Switch
Reset
Link - RX/TX
Smart Slot
10/100
Network Management Card
Statu s
Rack PDU
InfraStruXure PDU
Contact
24 VAC/DC
Closure
AB
Preference
Input
B
Environmental Monitoring Unit
User Contacts
Output
Reset
N
O
GND
+12V
Sensor Zo nes
C
C
N
N
O
O
C
C
M
M
123
C
O
M
NCN
C
O
M
Power
Symmetra PX UPS
Link - RX/TX
C
4
Reset
Configuration
Smart Slot
Probes
Link - RX/TX
10/100
Network Management Card
Automatic
Tra nsf er Swi tch
Status
21
Statu s
46 InfraStruXure System—Installation and Start-Up
Installation Procedures: Route Data Cables to the InfraStruXure Manager
Route network cables to the InfraStruXure Manager Hub (or Switch)
Overhead routing.
1. Install Shielding Partitions and Cable Ladders.
See “Install Shielding Troughs, Shielding Partitions, and Cable Ladders” on
page 39.
2. Run the Cat-5 network cables (provided) from each APC device to the InfraStruXure Manager
Hub (or Switch).
a. Start with the device farthest from the enclosure housing the InfraStruXure Manager and Hub
(or Switch), and use the longest supplied Cat-5 cable.
b. Bundle cables together and run the bundles in the data cable troughs along rows and across
Cable Ladders, if necessary.
3. Connect each APC device’s network cable to any available station port in the InfraStruXure
Manager Hub (or Switch). Station ports are those with an x after the number (e.g., 2x).
InfraStruXure System—Installation and Start-Up 47
Start-Up Procedure
d
Safety warnings
This section provides instructions on how to perform a system start-up. Do not skip any steps in this
procedure.
Only APC Field Service Engineers or qualified, APC-trained personnel may
Electrical
Hazar
Warning
Ensure that all power is off
perform a system start-up.
Do not install any batteries into the Battery Enclosure or power modules into the
Symmetra PX UPS until instructed to do so.
1. Set the UPS System Enable switch to OFF.
2. Set the Battery Enclosure DC Disconnect circuit breaker to OFF.
InfraStruXure System—Installation and Start-Up 49
Start-Up Procedure: InfraStruXure System
3. Set the Main Input (A) and Bypass Input (B) switches and the Cross Tie Output (X) circuit
breaker (if applicable) on the PDU to the OFF position.
4. Open (turn OFF) the Q1, Q2, and Q3 circuit breakers on the PDU.
5. Set the upstream main (and bypass, if applicable) utility circuit breaker to OFF.
50 InfraStruXure System—Installation and Start-Up
Apply power to the system
d
1. Set the upstream main (and bypass, if applicable) utility circuit breaker to ON.
2. Ensure A-B-C clockwise phase rotation at the top of the Main Input (A) switch on the PDU,
using a phase rotation meter.
3. Set the Main Input (A) switch on the PDU to ON.
Start-Up Procedure: InfraStruXure System
4. Verify A-B-C clockwise phase rotation at the top of the primary winding of the transformer,
using a phase rotation meter.
5. Verify that the proper voltage is present on the secondary winding of the transformer
(208V, metered phase-to-phase), using a true RMS voltmeter.
6. Install at least one battery module (four battery units) in the Battery Enclosure.
Install battery modules, starting in the lowest available shelf. Position the battery unit between
the grooves, and slide it completely into the enclosure.
Use two people to lift and
install battery units.
Heavy
The DC bus in the Battery
Enclosure is energized
Electrical
Hazar
when battery modules are
installed, even when the
DC Disconnect breaker is
open.
InfraStruXure System—Installation and Start-Up 51
Start-Up Procedure: InfraStruXure System
7. Install at least one power module in the Symmetra PX UPS.
Install power modules starting from the lowest available shelf. Push each module completely
into the enclosure.
Use two people to lift and install power modules.
Heavy
8. Secure the power module:
a. Tighten the screws on each side of the power module.
b. Turn the locking latch clockwise until the arrow on the knob faces the power module.
The power module will not start unless the locking latch is engaged.
Note
52 InfraStruXure System—Installation and Start-Up
Start-Up Procedure: InfraStruXure System
9. Set the Battery Enclosure DC Disconnect circuit breaker to ON.
10. Set the UPS System Enable switch to ON.
When the System Enable switch is in the ON position, the UPS is running on battery. The Startup
screen appears on the display interface of the Symmetra PX UPS, and then
PowerView RM
Rev: 000 English
Please wait...
the top-level status screen appears on the display interface. This may take up to 40 seconds.
Fuel %
Load %
In 208V out000V 60Hz
Runtime:
||||||||||||
|||
1hr 2m
InfraStruXure System—Installation and Start-Up 53
Start-Up Procedure: InfraStruXure System
Verify UPS battery operation
1. Read the messages displayed on the Symmetra PX UPS display interface:
Note any alarms and verify that they are
appropriate for start-up conditions.
2. Command the UPS to apply power to the load:
a. Press the
ESC key to open the top-level
menu.
b. Select Control, and press the
ENTER key.
Top-Level Status Screen
Fuel %
Load %
In 208V out000V 60Hz
Runtime:
||||||||||||
|||
1hr 2m
Top-Level M en u
Control
Status
Setup
Accessories
Logging
Display
Diags
Help
c. Select Turn Load On/Off from the
Control menu, and press the
ENTER key.
d. On the next screen: select Yes, UPS Load
ON, and press the
ENTER key.
The interface will display the following screen:
The interface will display the following fault message:
e. Select Start up on Batt, and press the
ENTER key.
Control Menu
UPS Into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load On
Confirmation Screen
Confirm
Yes, UPS Load ON
No, Abort
UPS has been
commanded to turn
load power on...
Low/No AC input
Start up on Batt?
Start Now
The interface will display the following screen:
commanded to turn
load power on...
54 InfraStruXure System—Installation and Start-Up
UPS has been
The UPS interface displays the following fault screen:
Start-Up Procedure: InfraStruXure System
f. Press any key.
Bypass not available
Input Freq/Volt out of range
Press any key...
The UPS interface displays the following fault screen:
g. Press the
ESC key.
End of Fault List
Press Esc to exit or other
keys to view list again
The LOAD ON LED illuminates and the interface displays the following screen:
UPS load is on
Press any key...
After you have verified that the UPS operates correctly in on-battery operation, shut-down the UPS:
3. Command the UPS to turn off power to the load:
a. Press the
E
SC
key at the top-level status
screen to open the top-level menu and have
access to eight submenus.
b. Select Control, and press the
E
NTER
key.
Top-Level Menu
Control
Status
Setup
Accessories
Control Menu
Logging
Display
Diags
Help
UPS Into Bypass
c. Select Turn Load Off from the Control
menu, and press the
E
NTER
key.
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load Off
Confirmation Screen
d. On the next screen: select Yes , UPS Load
E
NTER
OFF, and press the
key.
Confirm
Yes, UPS Load OFF
No, Abort
The LOAD ON LED turns off and the interface displays the following two screens:
UPS has been
commanded to turn
load power off...
UPS load is off
Press any key...
InfraStruXure System—Installation and Start-Up 55
Start-Up Procedure: InfraStruXure System
4. Set the UPS System Enable switch to the
OFF position.
5. Set the Battery Enclosure DC Disconnect
circuit breaker to the OFF position.
Verify proper voltage and phase rotation on the PDU
1. Close (turn ON) the Q1 circuit breaker on the InfraStruXure PDU to apply power to the UPS.
2. Ensure A-B-C clockwise rotation at the UPS input bus bars, using a phase rotation meter.
3. Verify proper voltage is present at the UPS input bus bars (208V, metered phase-to-phase),
using a true RMS voltmeter.
4. Ensure A-B-C clockwise rotation at the top of the PDU bypass switch, using a phase rotation
meter.
5. Verify proper voltage is present at the top of the PDU bypass switch (208V, metered phase-to-
phase), using a true RMS voltmeter.
The voltage for the bypass feed can only be 208V, phase-to-phase.
Warning
56 InfraStruXure System—Installation and Start-Up
6. Set the PDU Bypass Input (B) switch to ON.
7. Ensure A-B-C clockwise rotation at the UPS Bypass bus bars, using a phase rotation meter.
8. Verify proper voltage is present at the UPS Bypass bus bars (208V, metered phase-to-phase),
using a true RMS voltmeter.
Start the UPS
1. Set the Battery Enclosure DC Disconnect circuit breaker to ON.
Start-Up Procedure: InfraStruXure System
2 . Set the UPS System Enable switch to ON.
InfraStruXure System—Installation and Start-Up 57
Start-Up Procedure: InfraStruXure System
When the System Enable switch is in the ON position, the UPS is running on battery. The Startup
screen appears on the display interface of the Symmetra PX UPS, and then
PowerView RM
Rev: 000 English
Please wait...
the top-level status screen appears on the display interface. This may take up to 40 seconds.
Fuel %
Load %
In 208V out000V 60Hz
Runtime:
||||||||||||
|||
1hr 2m
3. Read the messages displayed on the Symmetra PX UPS display interface:
Note any alarms and verify that they are
appropriate for start-up conditions.
Top-Level Status Screen
Fuel %
Load %
In 208V out000V 60Hz
Runtime:
||||||||||||
|||
1hr 2m
4. Command the UPS to apply power to the load:
a. Press the
menu.
b. Select Control, and press the
c. Select Turn Load On/Off from the
Control menu, and press the
ESC key to open the top-level
ENTER key.
ENTER key.
Top-Level M en u
Control
Status
Setup
Accessories
Control Menu
UPS Into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot
Logging
Display
Diags
Help
Graceful Turn Off
Start Runtime Cal
Turn Load On
d. On the next screen: select Yes, UPS Load
ON, and press the
ENTER key.
Confirmation Screen
Confirm
Yes, UPS Load ON
No, Abort
The interface will display the following screen:
commanded to turn
load power on...
58 InfraStruXure System—Installation and Start-Up
UPS has been
The interface will display the following fault message:
Start-Up Procedure: InfraStruXure System
e. Select Start up on Batt, and press the
ENTER key.
Low/No AC input
Start up on Batt?
Start Now
The interface will display the following screen:
UPS has been
commanded to turn
load power on...
The UPS interface displays the following fault screen:
f. Press any key.
Bypass not available
Input Freq/Volt out of range
Press any key...
The UPS interface displays the following fault screen:
g. Press the
ESC key.
End of Fault List
Press Esc to exit or other
keys to view list again
The LOAD ON LED illuminates and the interface displays the following screen:
5. Close (turn ON) the Q2 circuit breaker on the PDU.
UPS load is on
Press any key...
InfraStruXure System—Installation and Start-Up 59
Start-Up Procedure: InfraStruXure System
Verify proper phasing: place the UPS into bypass operation
1. Command the UPS into static bypass operation through the UPS display interface:
a. Press the
menu.
b. Select Control on the top-level menu, and
press the
c. Select UPS Into Bypass on the Control
menu, and press the
ESC key to open the top-level
ENTER key.
ENTER key.
Control
Status
Setup
Accessories
UPS Into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load On
Confirmation Screen
d. On the next screen: select Yes, UPS into
Bypass, and press the
ENTER key.
Confirm
Yes, UPS into Bypass
No, Abort
Top-Level M e n u
Logging
Display
Diags
Help
Control Menu
The BYPASS LED illuminates and the following screens appear:
UPS has been
commanded to go
into Bypass...
UPS load is in Bypass
Press any key...
The H3 LED above the Q3 circuit breaker illuminates, but do not operate the
cirucit breaker.
Note
2. Use a true RMS voltmeter to make sure that there is no difference in potential between L1 IN
and L1 OUT, L2 IN and L2 OUT, and L3 IN and L3 OUT on the Q3 circuit breaker. The Q3
circuit breaker must be in the OFF position. The top side of Q3 will be utility voltage and the
bottom side of Q3 will be the voltage from the UPS in static bypass. Voltage should be less than
2 volts.
Q3 is a 4-pole circuit breaker. Be sure to measure L1 to L1, L2 to L2, and L3 to L3.
Note
60 InfraStruXure System—Installation and Start-Up
Start-Up Procedure: InfraStruXure System
3. Close (turn ON) the Q3 circuit breaker on the InfraStruXure PDU.
The H2 LED above the Q2 circuit breaker illuminates, indicating that it is safe to
operate the Q2 circuit breaker.
Note
4. Open (turn OFF) the Q2 cirucit breaker on the InfraStruXure PDU.
The UPS will display a Forced Bypass message on the display interface and the Fault LED will be
red.
InfraStruXure System—Installation and Start-Up 61
Start-Up Procedure: InfraStruXure System
Return from maintenance bypass operation
1. Command the UPS into static bypass operation through the UPS display interface:
a. Press the
ESC key to open the top-level
menu.
b. Select Control on the top-level menu, and
press the
ENTER key.
c. Select UPS Into Bypass on the Control
menu, and press the
ENTER key.
d. On the next screen: select Yes, UPS into
Bypass, and press the
ENTER key.
Top-Level M e n u
Control
Status
Setup
Accessories
Logging
Display
Diags
Help
Control Menu
UPS Into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load On
Confirmation Screen
Confirm
Yes, UPS into Bypass
No, Abort
The H2 LED above the Q2 circuit breaker illuminates, indicating that it is safe to
operate the Q2 circuit breaker.
Note
2. Close (turn ON) the Q2 circuit breaker on the InfraStruXure PDU.
The H3 LED above the Q3 circuit breaker illuminates, indicating that it is safe
to operate the Q3 circuit breaker
Note
62 InfraStruXure System—Installation and Start-Up
3. Open (turn OFF) the Q3 circuit breaker on the InfraStruXure PDU.
The UPS automatically returns from Static Bypass.
Power the PDU Distribution Circuit Breakers
1. Ensure that the Q2 circuit breaker on the PDU is closed (ON).
Start-Up Procedure: InfraStruXure System
When Q2 is closed, the PDU distribution panel is energized.
Note
2. Close (turn ON) the PDU distribution panel circuit breakers.
Note
When the distribution panel circuit breakers are closed, the PDU power
cables and connected equipment are energized.
InfraStruXure System—Installation and Start-Up 63
Start-Up Procedure: InfraStruXure System
Close Cross-Tie
1. If applicable, ensure A-B-C clockwise rotation at the bottom of the PDU cross tie output circuit
breaker, using a phase rotation meter.
2 . If applicable, verify that there is NO voltage present across the PDU cross tie circuit breaker,
and that proper voltage is present on each side of the circuit breaker (208V, metered phase-to-
phase), using a true RMS voltmeter.
There should be no voltage present across the Cross Tie Output circuit
breaker.
Warning
3 . If applicable, set the PDU Cross-Tie Output (X) circuit breaker to ON.
Once the cross-tie output circuit breaker is closed, you can start the system to which the circuit
breaker is tied. Repeat this start-up procedure for each InfraStruXure system.
64 InfraStruXure System—Installation and Start-Up
Configure the InfraStruXure Manager
o
Once all equipment is installed, the network cables are connected to the InfraStruXure Manager hub
(or switch), and start-up of the system is complete, configure the InfraStruXure Manager.
For instructions, see the InfraStruXure Manager Installation and Quick-Start manual
See als
Note
included with your InfraStruXure Manager.
If you use PowerChute Network Shutdown (PCNS) software with your
InfraStruXure UPS, your UPS must have a connection to the “User LAN” (public
network) for PCNS to function correctly. If the Network Management Card installed
in your UPS is connected to the InfraStruXure Manager’s “APC LAN,” you must
install a second Network Management Card in your UPS and connect it to the “User
LAN” (public network) to use PCNS.
InfraStruXure System—Installation and Start-Up 65
Appendix A : System Operation
How to Transfer the UPS into Maintenance Bypass Operation
Select Help from the top-level menu screen of the PDU display interface and select
the first help topic, Putting the PDU into Maintenance Bypass, or follow the
Note
When servicing the UPS, transfer the UPS into maintenance bypass operation. When the UPS is
operating in maintenance bypass, input power flows directly to the PDU and out to the load
equipment.
1. Command the UPS into static bypass operation through the UPS display interface:
procedure below.
E
SC
a. Press the
key at the top-level status screen to
open the top-level menu.
b. Select Control on the top-level menu, and press
E
NTER
the
key.
Top-Level Menu
Control
Status
Setup
Accessories
Control Menu
UPS Into Bypass
Do Self Test
c. Select UPS Into Bypass on the Control menu
and, press the
E
NTER
key.
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load On
Confirmation Screen
d. Confirm the selection on the next screen: select
E
NTER
Yes, UPS into Bypass and press the
key.
Confirm
Yes, UPS into Bypass
No, Abort
The UPS BYPASS LED illuminates and the following screens appear:
Logging
Display
Diags
Help
UPS has been
commanded to go
into Bypass...
UPS load is in Bypass
Press any key...
InfraStruXure System—Installation and Start-Up 67
Appendix A : System Operation
The H3 LED above the Q3 circuit breaker illuminates, indicating that it is safe to
operate the Q3 circuit breaker.
Note
2. Close (turn ON) the Q3 circuit breaker on the PDU.
If you have a dual-fed system, check to ensure that
power is available before operating the Q3 circuit
breaker.
The H2 LED above the Q2 circuit breaker illuminates, indicating that it is safe to
operate the Q2 circuit breaker.
Note
3. Open (turn OFF) the Q2 circuit breaker on the PDU.
4. Set the UPS System Enable switch to the OFF
position.
68 InfraStruXure System—Installation and Start-Up
5. Set the Battery Enclosure DC Disconnect circuit
breaker to the OFF position.
6. Open (turn OFF) the Q1 circuit breaker on the
PDU.
Appendix A : System Operation
7. If applicable, set the PDU Q10
Bypass Input (B) switch to OFF.
The UPS is now in maintenance bypass operation.
InfraStruXure System—Installation and Start-Up 69
How to Return from Maintenance Bypass Operation
Select Help from the top-level menu screen on the PDU display interface and select the
second help topic, Returning from PDU Maintenance Bypass, or follow the
Note
1. Close (turn ON) the Q1 circuit breaker on the
procedure below:
PDU.
2. If applicable, set the PDU Q10
Bypass Input (B) switch to ON.
3. Set the XR Battery Enclosure DC Disconnect
circuit breaker to ON.
70 InfraStruXure System—Installation and Start-Up
4. Set the UPS System Enable switch to the ON
position.
The UPS will show a Forced Bypass message on
the display interface, and the Fault LED will be
red.
5. Command the UPS to apply power to the load:
Appendix A : System Operation
E
SC
a. Press the
key at the top-level status screen to
open the top-level menu and have access to eight
submenus.
b. Select Control, and press the
E
NTER
key.
Top-Level Menu
Control
Status
Setup
Accessories
Control Menu
UPS Into Bypass
c. Select Tu r n L o a d O n from the Control menu, and
press the
E
NTER
key.
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load On
Confirmation Screen
d. On the next screen: select Ye s, UPS Load ON, and
press the
E
NTER
key.
Confirm
Yes, UPS Load ON
No, Abort
The LOAD ON LED illuminates and the interface displays the following two screens:
Logging
Display
Diags
Help
UPS has been
commanded to turn
load power on...
UPS load is on
Press any key...
6. Command the UPS into static bypass operation through the UPS display interface:
E
SC
a. Press the
key at the top-level status screen to
open the top-level menu.
b. Select Control on the top-level menu, and press the
E
NTER
key.
InfraStruXure System—Installation and Start-Up 71
Top-Level Menu
Control
Status
Setup
Accessories
Logging
Display
Diags
Help
Appendix A : System Operation
c. Select UPS Into Bypass on the Control menu, and
press the
E
NTER
Control Menu
UPS Into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot
key.
Graceful Turn Off
Start Runtime Cal
Turn Load On
Confirmation Screen
d. Confirm the selection on the next screen: select Yes,
UPS into Bypass, and press the
E
NTER
key.
The H2 LED above the Q2 circuit breaker illuminates, indicating that it is
safe to operate the Q2 circuit breaker.
Note
7. Close (turn ON) the Q2 circuit breaker on the PDU.
Confirm
Yes, UPS into Bypass
No, Abort
The H3 LED above the Q3 circuit breaker illuminates, indicating that it is safe to
operate the Q3 circuit breaker
Note
8. Open (turn OFF) the Q3 circuit breaker on the PDU.
The UPS automatically comes out of Static Bypass
operation.
72 InfraStruXure System—Installation and Start-Up
How to Ensure Total Power Off
1. Command the UPS to turn off power to the load:
E
SC
a. Press the
key at the top-level status
screen to open the top-level menu and have
access to eight submenus.
b. Select Control, and press the
E
NTER
key.
Top-Level Menu
Control
Status
Setup
Accessories
Logging
Display
Diags
Help
Control Menu
UPS Into Bypass
c. Select Tu r n L o a d O f f from the Control
menu, and press the
E
NTER
key.
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load Off
Confirmation Screen
d. On the next screen: select Yes, UPS Load
E
NTER
OFF, and press the
key.
Confirm
Yes, UPS Load OFF
No, Abort
The LOAD ON LED turns off and the interface displays the following two screens:
2. Set the UPS System Enable switch to the OFF
position.
UPS has been
commanded to turn
load power off...
UPS load is off
Press any key...
InfraStruXure System—Installation and Start-Up 73
Appendix A : System Operation
3. Set the Battery Enclosure DC Disconnect circuit
breaker to the OFF position.
4. Pull out all battery units in the Battery
Enclosures to the red battery disconnect line.
5. Set the Main Input switch (A), and, if
applicable, the Q10 Bypass Input switch (B),
and Cross Tie Output circuit breaker (X) on the
PDU to the OFF position.
6. Open (turn OFF) the Q1, Q2, and Q3 circuit
breakers on the PDU.
7. Set the upstream main input, and, if applicable,
the bypass input and cross tie utility circuit
breaker to the OFF or Locked Out position.
A
74 InfraStruXure System—Installation and Start-Up
B
X
How to Apply Power to the System
This procedure instructs on how to apply power to a system that has already been installed. For initial
start-up instructions, see InfraStruXure 80kW Installation and Start-Up.
1. Set the upstream utility, and, if applicable, the
bypass input and cross tie utility circuit breaker
to ON.
1. Set the Main Input (A) switch on the
PDU to ON.
2. Close (turn ON) the Q1 circuit breaker on the
PDU to apply power to the UPS.
A
B
X
3. If applicable, set the Q10 Bypass
Input (B) switch on the PDU to ON.
InfraStruXure System—Installation and Start-Up 75
Appendix A : System Operation
4. Ensure that all battery units are pushed all the way into the Battery Enclosures and locked
into position.
5. Set the Battery Enclosure DC Disconnect
circuit breaker to ON.
6. Set the UPS System Enable switch to ON
When the System Enable switch is placed in the ON position, the Startup screen appears on the
display interface of the Symmetra PX UPS.
PowerView RM
Rev: 000 English
Please wait...
The top-level status screen appears on the display interface. This may take up to 30 seconds.
Fuel%
Load%
In 208V out000V 60Hz
Runtime:
||||||||||||
|||
1hr 2m
76 InfraStruXure System—Installation and Start-Up
7. Read the messages displayed on the UPS display interface:
Appendix A : System Operation
a. Note any alarms, and verify that they are appropriate
for start-up conditions.
b. Verify that the UPS accepts the input.
8. Command the UPS to apply power to the load:
E
SC
a. Press the
key at the top-level status screen to open
the top-level menu and have access to eight submenus.
E
NTER
b. Select Control, and press the
key.
c. Select Tu r n L o a d O n from the Control menu, and
E
NTER
press the
key.
Top-Level Status Screen
Fuel%
Load%
In 208V out000V 60Hz
Runtime:
||||||||||||
|||
1hr 2m
Top-Level Menu
Control
Status
Setup
Accessories
Logging
Display
Diags
Help
Control Menu
UPS Into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot
Graceful Turn Off
Start Runtime Cal
Turn Load On
d. On the next screen: select Yes, UPS Load ON, and
E
NTER
press the
key.
Confirmation Screen
Confirm
Yes, UPS Load ON
No, Abort
The LOAD ON LED illuminates, and the interface displays the following two screens:
UPS has been
commanded to turn
load power on...
UPS load is on
Press any key...
InfraStruXure System—Installation and Start-Up 77
Appendix A : System Operation
9 . To apply power to the PDU distribution panel,
close (turn ON) the Q2 circuit breaker on the PDU.
10. To apply power to the PDU power cords and
connected equipment, close (turn ON) the
distribution panel circuit breakers.
11. If applicable, close (turn ON) the Cross Tie
Output (X) circuit breaker.
78 InfraStruXure System—Installation and Start-Up
Appendix B : Single-Line Diagrams
80A
Sub Feeds
I
I
I
I
80A
80A
80A
80A
0W1860
2/0
4P
320A
2A
H3
Q3
H3
IIIII
I
20A
20A
V
4P
320A
Q2
2/0
Output
Bypass
2A
FL=121A
I
0W1874
0W1862
20A
Mains
20A
2/0
Input
Panel
42-Position
400-Amp Rated
Lamps
Shunt Trip
Aux Switch
Dual Aux Switch
Current Monitoring
Voltage Monitoring(RMS)
I
V
Option
Load Port
0W1873
PX
80kW
Symmetra
A
S
2A
Q1
112 .5k VA
S1
600V
360A 3P
3P
225A/400A
480V
208V
V
208V
0W1865
2A
T
600V: 0W1815
480V: 0W1814
208V: 0W1810
A
S
500
MCM
AC
GND
Mains
This drawing and specifications herein are the property of American Power Conversion
and shall not be reproduced or copied or used in whole or par as the basis for the manufacture
or sale of items without written permission from APC.
0W1870
All Wiring
4/0 Unless Noted
0W1871
80kW PDU with System Bypass 208V, 480V, or 600V Input, Single-feed, with Transformer
600V: 0W1782
480V: 0W1782
208V: 0W1783
Option
Bottom Feed
InfraStruXure System—Installation and Start-Up 79
Appendix B : Single-Line Diagrams
I
80A
80A
80A
Sub Feeds
I
I
I
80A
80A
I
IIIII
20A
20A
V
I
0W1874
20A
20A
(RMS)
Panel
42-Position
400-Amp Rated
Aux Swi tch
Lamps
Shunt Trip
Dual Aux Switch
Current Monitoring
Voltage Monitoring
I
A
V
S
2A
Symmet ra
0W1901
PX
Option
Load Port
80kW
Option
Cross Tie
(Dual Feed)
X-Tie
Bottom Feed
0W1887
}
Option
Output
This drawing and specifications herein are the property of American Power Conversion
and shall not be reproduced or copied or used in whole or par as the basis for the manufacture
or sale of items without written permission from APC.
400A
3P
500 MCM
4P
320A
Q2
0W1860
2/0
4P
320A
2A
H3
s
Q3
0W1881
All Wiring
4/0 Unless Noted
V
Dual Feed Option
H2
2/0
Bypass
0W1867
0W1869
S2
160A 3P
160A 3P
500
400A
MCM
V
0W1879
208V
A
3P
F1
F1
Output
S1
2A
0W1862
FL=121A
Q1
400A
500
MCM
360A 3P
3P
Main s
208V
V
2/0
0W1873
Input
0W1864
2A
0W1811
A
S
Bottom Feed
0W1785
}
Option
208V
AC
Input
Bottom Feed
0W1884
}
Option
AC
Input
GEC
GND
GND
Input
GND
Bypass
208V
Input
Bypass
80kW PDU with System Bypass 208V Input, Dual-feed, with Cross Tie Output Breaker, without a Transformer
80 InfraStruXure System—Installation and Start-Up
GND
X-Tie
Output
Appendix B : Single-Line Diagrams
80A
Sub Feeds
I
I
I
I
80A
80A
80A
80A
0W1860
2/0
4P
320A
2A
H3
Q3
I
IIIII
20A
20A
V
4P
320A
Q2
2/0
Output
Bypass
0W1874
2A
0W1862
FL=121A
Panel
42-Position
20A
2/0
Input
400-Amp Rated
Lamps
Shunt Trip
Aux Switch
Dual Aux Switch
Current Monitoring
Voltage Monitoring(RMS)
I
A
V
Option
Load Port
0W1873
PX
80kW
Symmetra
S
2A
20A
I
Main s
80kW PDU with System Bypass 208V Input, Single-feed, without a Transformer
V
0W1867
Fx
350A
0W1872
0W1879
All Wiring
4/0 Unless Noted
Bottom Feed
0W1864
Q1
2A
360A 3P
V
A
S
500
208V
0W1884
}
Option
MCM
AC
GND
Main s
This drawing and specifications herein are the property of American Power Conversion
and shall not be reproduced or copied or used in whole or par as the basis for the manufacture
or sale of items without written permission from APC.
InfraStruXure System—Installation and Start-Up 81
Appendix C: Changes in This Manual
Overview
The following list documents the specific changes made to this manual since its last release (990-
1467A).
General changes
An index was added to the end of this manual. See pages 85–87.
Changes by page number
Pages 33–36 Updated instructions on how to connect an Emergency Power Off (EPO) switch to
the user connection plate.
Pages 37–38 Updated instructions on how to connect user contacts and added information about
connecting relay outputs.
InfraStruXure System—Installation and Start-Up 83
Index
B
battery enclosure
attaching the
cascading
, 20
, 28
connect communication
cables
, 19
connect DC power wiring
, 27–
29
dimensions
level the
space considerations
weight considerations
bypass input switch
, 6
, 17
, 8
, 9
, 22, 46, 65– 66,
70– 71
electrical requirements
, 11
bypass operation
place the UPS into
returning from
transferring into
, 56– 57
, 58– 59, 66 – 68
, 63– 65
C
cable ladders, installing, 36
cables
connect battery enclosure
communication cables
connect from the battery
enclosure to the UPS
InfraStruXure Manager, route
to
, 42– 43
power cables, route and attach to
equipment racks
circuit breakers
cross tie output, overview
cross tie, close
, 60
distribution, apply power to
electrical requirements
sizing
, 2
cross tie input breaker
cross tie output circuit breaker
70, 74
close
, 60
electrical requirements
overview
, 12
cross-reference, symbols used in
this manual
, 1
, 19
, 29
, 39
, 12
, 11
, 22
, 46,
, 11
, 59
D
DC disconnect circuit breaker, 21,
53, 65– 66, 70, 72
diagrams, single-line
, 75– 78
E
electrical requirements, 11
Emergency Power Off (EPO)
connecting
, 30– 31
interface, connecting a switch to
the
, 31
problems with connecting
safety warnings
warnings
wire types
EMI
, 4
, 32
, 3
, 3
, 31
Environmental Management
System, installation of
, 37
Environmental Monitoring Unit,
installation of
, 37
EPO. See Emergency Power Off
(EPO).
G
G wire
recommended size
torque
, 11
, 11
GEC wire
recommended size
torque
, 11
ground lug, location of
ground wire, location of
, 11
, 38
, 38
H
H2 LED, 57– 58, 64, 68
H3 LED
heat dissipation ratings
, 56, 58, 64, 68
, 10
I
InfraStruXure Manager
configure
installation of
route data cables to
, 61
, 37
, 42– 43
InfraStruXure PDU
attaching the
, 20
connect AC power and control
wiring
, 24– 26
connect AC power
wiring
, 25
connect control wiring
connect utility conductors to
dimensions
, 5
, 26
, 23
distribution circuit breakers,
apply power to
heat output
level the
, 17
, 59
, 10
maintenance performed while
receiving input power
space considerations
, 2
, 8
verify proper voltage and phase
rotation
weight considerations
, 52– 53
, 9
input, voltage and circuit breaker
sizing
, 2
installation
basic procedure
tools required
warnings
installation procedures
, 13– 15
, 16
, 13
, 17– 43
attach the PDU, UPS, and
battery enclosure
, 20
connect AC power and control
wiring
, 24– 26
connect AC power
wiring
, 25
connect control wiring
connect DC power wiring
, 26
, 27–
29
cascade battery
enclosure
, 28
connect power cables from
the battery enclosure to the
UPS
, 29
connect user input contacts and
output relays to the user
connection plate
, 33– 34
connect utility conductors to the
PDU
, 23
InfraStruXure System—Installation and Start-Up 85
Emergency Power Off (EPO),
connect
exchange side panels
, 30– 31
, 18– 19
install InfraStruXure rack-
mount devices
, 37
install shielding troughs,
shielding partitions, and cable
ladders
, 35– 36
level the PDU, UPS, RDP,
NetShelter, and battery
enclosures
, 17
route and attach overhead
wiring
, 38– 41
total power off, ensuring
, 21–
22
L
L1 wire
recommended size
torque
, 11
, 11
L2 wire
recommended size
torque
, 11
, 11
L3 wire
recommended size
torque
, 11
, 11
LEDs
H2
, 57– 58, 64, 68
H3
, 56, 58, 64, 68
M
main input switch, 22, 46 – 47, 70–
71
electrical requirements
, 11
maintenance, performed while the
PDU is receiving input power
, 2
N
N wire
recommended size
torque
, 11
NetShelter VX
dimensions
level the
, 17
weight considerations, empty
neutral bar, location of
neutral wire, location of
, 11
, 6
, 38
, 38
O
operation, 63– 74
maintenance bypass, returning
from
, 66– 68
maintenance bypass,
transferring the UPS into
65
system, applying power to
74
total power off, ensuring
70
P
PDU monitoring unit, connecting
contacts to
, 34
PDU. See InfraStruXure PDU.
power module
start-up
, 48
Q
Q1 circuit breaker, 22, 46, 65– 66,
70– 71
Q2 circuit breaker
64, 68, 70, 74
Q3 circuit breaker
64, 68, 70
R
Rack Automatic Transfer Switch
(ATS), installation of
Rack Distribution Panel
dimensions
level the
, 7
, 17
Rack Power Distribution Units,
installation of
, 37
RDP. See Rack Distribution Panel.
S
safety, 1– 4
during start-up
electric shock risk
Emergency Power Off (EPO)
, 9
warnings
overview
symbols used in this manual
warnings
, 32
, 1
, 2– 4
, 63–
, 71–
, 69–
, 22, 46, 57– 59,
, 22, 46, 56, 58,
, 37
, 45
, 3
, 1
shielding partitions
installing
, 36
shielding trough
accessories
installing
side panels, exchanging
site planning
, 35
, 35
, 18– 19
, 5– 16
basic installation
procedure
, 13– 15
cross tie output circuit
breaker
dimensions
, 12
, 5– 7
battery enclosure
, 6
InfraStruXure PDU
NetShelter VX
power module
, 6
, 5
Rack Distribution Panel
shielding partitions
shielding trough
UPS
, 5
, 5
, 5
electrical requirements and
specifications
heat output
, 11
, 10
InfraStruXure PDU
UPS
, 10
space considerations
tools required
weight considerations
battery enclosure
, 8
, 16
, 9
, 9
InfraStruXure PDU
NetShelter VX
UPS
, 9
start-up procedure
, 9
, 45– 61
applying power to the
system
, 47– 49
configure the InfraStruXure
Manager
, 61
cross tie circuit breaker,
close
, 60
PDU distribution circuit
breakers, apply power to
placing the UPS into bypass
operation
, 56– 57
returning from maintenance
bypass
, 58– 59
start the UPS
, 53– 55
verify proper voltage and phase
rotation
, 52– 53
verify UPS battery
operation
, 50– 52
, 5
, 7
, 10
, 9
, 59
86 InfraStruXure System—Installation and Start-Up
Symmetra PX UPS. See UPS.
system
applying power to
, 47– 49, 71 –
74
operation
single-line diagrams
system enable switch
, 63– 74
, 75– 78
, 21, 49, 53–
54, 64, 67, 69, 72
T
tools, required for installation, 16
total power off
ensuring
overview
, 21– 22, 45, 69 – 70
, 3
U
updates
in this manual
to this manual
UPS
attaching the
bypass operation, placing
57
bypass operation, returning
from
, 58– 59, 66 – 68
bypass operation, transferring
into
, 63– 65
connect AC power and control
wiring
connect AC power
wiring
connect control wiring
connect DC power wiring
29
connect power cables from
the battery enclosure
dimensions
heat output
level the
space considerations
start, how to
verify battery operation
weight considerations
upstream circuit breaker, electrical
requirements
upstream utility breaker
upstream utility breaker
user connection plate, location
of
, 33
, 79
, i
, 20
, 56–
, 24– 26
, 25
, 26
, 27–
, 29
, 5
, 10
, 17
, 8
, 53– 55
, 50– 52
, 9
, 11
, 22
, 46
utility conductors, connecting to the
PDU
, 23
V
voltage, input, 2
W
warnings, 2 – 4
electric shock risk
Emergency Power Off (EPO)
for installation
installation/maintenance
performing maintenance while
the PDU is receiving input
power
, 2
wiring
connect AC power and
control
, 24– 26
connect DC power
overhead, route and attach
41
recommended sizing
torque according to size
, 3
, 3
, 13
, 2
, 27– 29
, 38–
, 11
, 11
InfraStruXure System—Installation and Start-Up 87
APC Worldwide Customer Support
Customer support for this or any other APC product is available at no charge in any of the following ways:
• Visit the APC Web site to access documents in the APC Knowledge Base and to submit customer
support requests.
– www.apc.com (Corporate Headquarters)
Connect to localized APC Web sites for specific countries, each of which provides customer
support information.
– www.apc.com/support/
Global support searching APC Knowledge Base and using e-support.
• Contact an APC Customer Support center by telephone or e-mail.
– Regional centers:
Direct InfraStruXure Customer Support Line (1) (877)537-0607 (toll free)
APC headquarters U.S., Canada (1)(800)800-4272 (toll free)
Latin America (1)(401)789-5735 (USA)
Europe, Middle East, Africa
Japan (0) 35434-2021
Australia, New Zealand, South Pacific area (61) (2) 9955 9366 (Australia)
– Local, country-specific centers: go to www.apc.com/support/contact for contact information.
Contact the
information on how to obtain local customer support.
APC representative or other distributor from whom you purchased your APC product for
Entire contents copyright © 2004 American Power Conversion. All rights reserved.
Reproduction in whole or in part without permission is prohibited. APC, the APC logo,
NetShelter, InfraStruXure, and Symmetra are trademarks of American Power Conversion
Corporation and may be registered in some jurisdictions. All other trademarks, product
names, and corporate names are the property of their respective owners and are used for
informational purposes only.
(353)(91)702000 (Ireland)
990-1467B 06/2004
*990-1467B*
Loading...
