User Manual Back-UPS™ Pro BR1200SI / BR1600SI

Safety and General Information

Inspect the package contents upon receipt. Notify the carrier and dealer if there is any damage.

SAVE THESE INSTRUCTIONS - This section contains important
instructions that should be followed during installation and maintenance of the UPS and batteries.
DANGER
This UPS is intended for indoor use only.
Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive
dust or humidity.
Connect the UPS power cable directly to a wall outlet.
Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.
Servicing of batteries should be performed or supervised by personnel knowledgeable about
batteries and required precautions.
A battery can present a risk of electric shock and burns by high short−circuit current.
Failed batteries can reach temperatures that exceed the burn thresholds for touchable
surfaces.
Failure to follow these instructions will result in death or serious injury.

Inventory

Connect the Battery

b
b
u
4
7
2
bu473a
b
u
4
7
5
The UPS is shipped with the battery disconnected.
u471a
Lay the UPS with the battery door facing up. The arrows point to the locking tabs of the battery compartment.
a
Press the tabs downwards and pull the battery door away from the unit to access the battery modules.
bu474a
Using the handles on both sides of the
Push the battery into the unit.
battery, lift the battery 30 degrees upward to expose the battery connector. Connect the red wire as shown above.
a
Replace the battery door.

Install PowerChute™ Personal Edition Software

Use PowerChute Personal Edition software to configure the UPS settings. During a power outage, PowerChute will save any open files on your computer and shut it down. When power is restored, it will restart the computer.
Note: PowerChute is only compatible with a Windows operating system. If you are using Mac OSX, use the native shutdown feature to protect your system. See the documentation provided with your computer.

Installation

Use the USB communication cable supplied with the Back-UPS to connect the data port on the Back-UPS to the USB port on your computer. On the computer, go to www.apc.com Search for “PowerChute Personal Edition” then click on “View Details” to download the latest version of PCPE software. Click the download link and select Software product. Select the appropriate operating system. Follow directions to download the software.
2
Back-UPS Pro BR 1200/1600 SI

Connect the Equipment

bu486a

Battery backup and surge protected outlets

When the Back-UPS is receiving input power, the Battery Backup with Surge Protection outlets will supply power to connected equipment. During a power outage or other AC problems, the Battery Backup outlets receive power for a limited time from the Back­UPS.
Connect equipment such as printers, fax machines, scanners, or other peripherals that do not need battery backup power to the Surge Protection Only outlets. These outlets provide full-time protection from surges even if the Back-UPS is switched OFF.
USB and Serial Data port
Telephone Cable Surge Protected ports
AC Power Input
Battery Backup outlets with Surge Protection
Circuit Breaker
In/Out
Ethernet surge­protected ports
Surge Protected outlets
To use PowerChute Personal Edition, connect the supplied USB cable or an optional serial cable (not supplied).
Connect the ground lead from an additional surge suppression device such as a stand-alone data line surge protector.
Use the supplied power cable to connect the unit to AC power.
During a power outage or other AC problems, the Battery Backup outlets receive power for a limited time from the Back-UPS. Connect critical equipment such as desktop computer, computer monitor, modem or other data sensitive devices into these outlets.
Use to reset the system after an overload condition has occurred causing the circuit breaker to trip.
Use an Ethernet cable to connect a cable modem to the IN port, and connect a computer to the O
These outlets provide full-time protection from surges, even if the Back­UPS is off. Connect equipment such as printers and scanners that do not require battery backup protection.
UT port.
Back-UPS Pro BR 1200/1600 SI
3

Operation

Power saving display

The display interface can be configured to be continuously illuminated, or to save energy, it can be configured to darken after a period of inactivity.
1. Full Time Mode: Press and hold DISPLAY for two seconds. The display will
illuminate and the Back-UPS will beep to confirm the Full Time mode.
2. Power Saving Mode: Press and hold DISPLAY for two seconds. The display will
darken and the Back-UPS will beep to confirm the Power Saving mode. While in Power Saving Mode, the display will illuminate if a button is pressed, it then darkens after 60 seconds of no activity.

Unit sensitivity

Adjust the sensitivity of the Back-UPS to control when it will switch to battery power; the higher the sensitivity, the more often the Back-UPS will switch to battery power.
1. Ensure the Back-UPS is connected to AC power, but is OFF.
2. Press and hold the POWER button for six seconds. The LOAD CAPACITY bar will
flash on and off, indicating that the Back-UPS is in programming mode.
3. Press POWER again to rotate through the menu options. Stop at selected
sensitivity. The Back-UPS will beep to confirm the selection.
Generator Sensitivity Default Sensitive Loads
Low sensitivity Medium sensitivity (Default) High sensitivity
156-300 Vac 176-294 Vac 176-288 Vac
Input voltage is extremely low or high. (Not recommended for computer loads.)
The Back-UPS frequently switches to battery power.
The connected equipment is sensitive to voltage fluctuations.
4
Back-UPS Pro BR 1200/1600 SI

Front panel buttons and display interface

Use the three buttons on the front panel of the Back-UPS and the display interface to configure the Back-UPS.
Front panel
Display button
Power On/Off button
Mute button
Display interface
USB charging ports:
The 2 USB ports provide a total of 15W of DC power, and will provide power even when the UPS is on battery.
On Line: The Back-UPS is supplying conditioned AC power to connected equipment
bu470b
Load Capacity: The load is indicated by the number of sections illuminated, one to five. Each bar represents 20% of the load.
Battery Capacity: The battery charge level is indicated by the number of sections illuminated. When all five blocks are illuminated, the Back-UPS is at full charge. When one block is filled, the Back-UPS is near the end of its battery capacity, the indicator will flash and the Back-UPS will beep continuously.
Low Battery: When battery capacity reaches the empty level, the Back-UPS is nearing shutdown and the indicator will flash accompanied by a continuous beep.
Replace Battery: The battery is nearing the end of its useful life. When the display shows a flashing Replace Battery icon and an empty Battery Capacity icon, replace the battery as early as possible.
On Battery: The Back-UPS is supplying battery backup power to the connected equipment, it will beep four times every 30 seconds.
Event: The event counter shows the number of events that occurred that caused the Back-UPS to switch to on-battery operation.
System Error Detected: The system has an error. The error number will illuminate on the display interface. See “System errors” on page 7.
Overload: The power demand from the load has exceeded the capacity of the Back-UPS.
Back-UPS Pro BR 1200/1600 SI
5

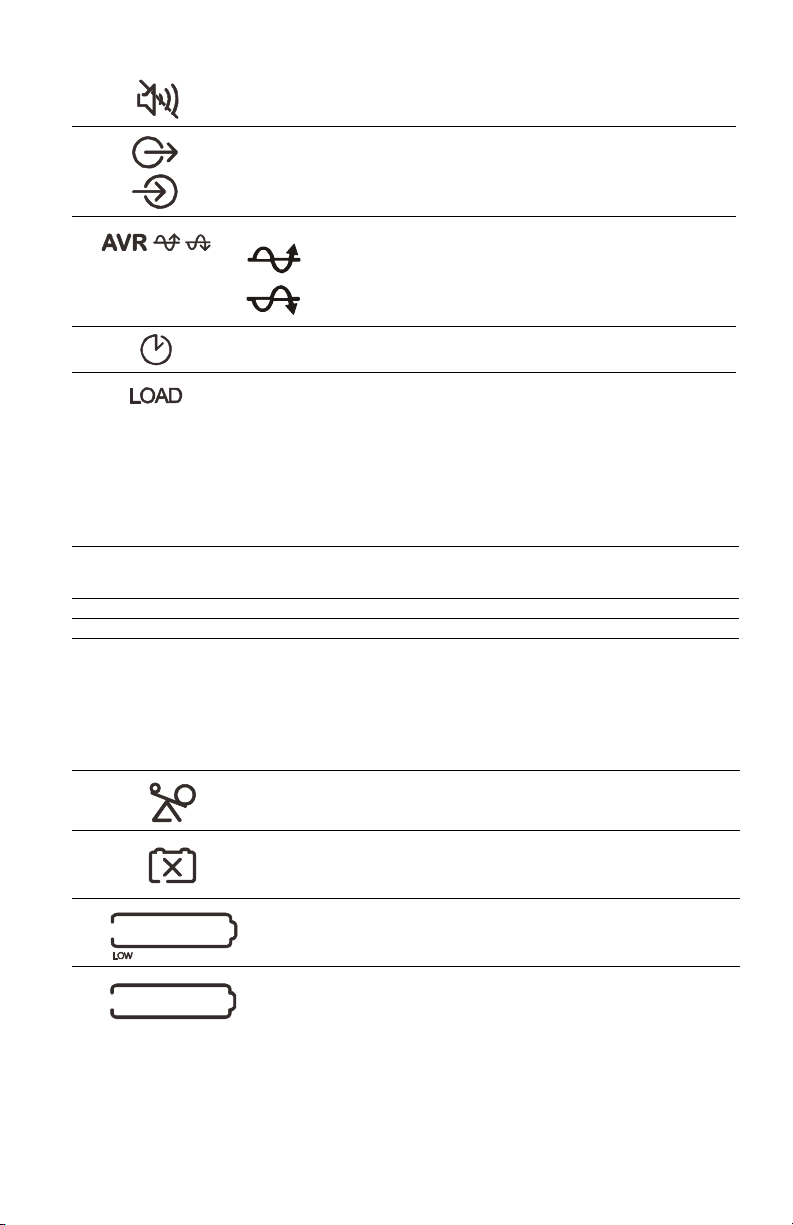

Mute: If the line through the speaker icon is illuminated, the audible alarm has been turned off.
Out: Output voltage, frequency
In: Input voltage.
Automatic Voltage Regulation:
When illuminated, the Back-UPS is compensating for low input voltage
When illuminated, the Back-UPS is compensating for high input voltage.
Estimated Run Time: This indicates the battery runtime minutes that remain if the Back-UPS switches to battery power.
Load: The total load in watts (W) or percentage (%) used by the devices connected to the Battery Backup outlets.

Alarms and System Errors

Audible indicators

Four Beeps Every 30 Seconds
Continuous Beeping
Continuous tone Battery Backup outputs are overloaded. Chirps every 2 Seconds Battery is disconnected.
Continuous chirping
Back-UPS is running on battery. You should consider saving any work in progress.
Low battery condition and battery run-time is very low. Promptly save any work in progress, exit all open applications, and shut down the operating system.
Battery did not pass the automatic diagnostic test and should be replaced as early as possible. Pressing the pauses the chirping.
MUTE button

Status icons

If these icons are flashing... This may be the problem.
The Back-UPS is overloaded. Disconnect one of the items connected to the Back-UPS. If the Overload icon stops flashing, the Back-UPS is no longer overloaded and will continue to operate normally.
The Back-UPS is operating on AC power, but the battery is not functioning properly. Contact Schneider Electric IT (SEIT) Customer Service to order a replacement battery. See “Battery Replacement” on page 10.
The Back-UPS is operating on battery power and the battery power is getting low. Shut down all connected equipment to avoid losing an unsaved data. When possible, connect the Back-UPS to AC power to recharge the battery.
The battery is not connected. See “Connect the Battery” on page 2 to make sure battery wires are connected properly.
6
Back-UPS Pro BR 1200/1600 SI

System errors

The Back-UPS will display these error messages. Except for errors F01 and F02, contact SEIT Technical Support.
Turn the Back-UPS off. Disconnect non-essential
On-Battery Overload
F01
On-Battery Output
F02
Short
Clamp Short
F04
Charge Error
F05
bu088 d
F06
F07
F08
F09
Relay Welding
Temperature
Fan Error
Internal Error
equipment from the Battery Backup outlets and the turn Back-UPS on.
Turn the Back-UPS off. Disconnect all equipment from the Battery Backup outlets and the turn Back-UPS on. Re-connect equipment one item at a time. If the output is tripped again, disconnect the device that caused the error.
Errors F04-F09 cannot be corrected by the user, contact SEIT Technical Support for assistance.
Back-UPS Pro BR 1200/1600 SI
7

Function Button Quick Reference

Function Button
Power
Power On 0.2 Off
Power Off 2On
Display
Status Inquiry
Full-Time/ Power­Saving mode
Mute
Enable/ Disable mode
Sensitivity 6Off
Self-Test (manual)
Event Reset
Error Reset
Timing
(seconds)
0.2 On
2On
2On
6On
0.2 On
2Error
UPS
Status Description
Press P input power is not available, the Back-UPS will run on battery power.
The Back-UPS is not receiving input AC power, but is providing surge protection.
Verify the status or condition of the Back-UPS. The LCD will illuminate for 60 seconds. Press the button the toggle into various information.
The LCD will illuminate and the Back-UPS will beep to confirm the Full-Time mode. The LCD will darken and the Back-UPS will beep to confirm the Power­Saving mode. While in Power-Saving Mode, the LCD will illuminate if a button is pressed, then darkens after 60 seconds of no activity.
Enable or disable the audible alarms. The Mute icon will illuminate and the Back-UPS will beep one time.
The Load Capacity icon will blink, indicating that the Back-UPS is in programming mode. Use the P button to scroll through Low, Medium, and High, stop at selected sensitivity. The Back-UPS will beep to confirm selection. See "Unit sensitivity" for details.
The Back-UPS will perform a test of the internal battery. Note: This will happen automatically when the Back-UPS is turned ON or when the Back-UPS previously detected a bad battery.
When the Event screen is visible, press and hold D
ISPLAY, then press POWER, to clear the detected error
event counter.
After an error has been identified, press P remove the visual indication and return to standby status.
OWER to start receiving input AC power. If AC
OWER
OWER to
8
Back-UPS Pro BR 1200/1600 SI

Troubleshooting

Problem Possible Cause Corrective Action
Back-UPS will not switch on.
The Back-UPS does not provide power during a AC power outage.
The Back-UPS is operating on battery power, while connected to AC power.
The Back-UPS does not provide the expected amount of backup time.
EPLACE
The R B
ATTERY indicator is
illuminated.
The O
VERLOAD
indicator is illuminated.
YSTEM ERROR
The S indicator is illuminated, all the front panel indicators are flashing.
The Back-UPS is not connected to AC power.
The circuit breaker has been tripped. Disconnect non-essential equipment
The internal battery is not connected. Connect the battery.
The AC input voltage is out of range. Adjust the transfer voltage and
Ensure that essential equipment is not plugged into a S
The plug has partially pulled out of the wall outlet, the wall outlet is no longer receiving AC power, or the circuit breaker has been tripped.
URGE ONLY outlet.
The Back-UPS is performing an automatic self test.
The AC input voltage is out of range, the frequency is out of range, or the waveform is distorted.
Battery Backup outlets may be fully or improperly loaded.
The battery was recently discharged due to a power outage and has not fully recharged.
The battery has reached the end of its useful life.
The battery has reached the end of its useful life.
The equipment connected to the Back-UPS is drawing more power than the Back-UPS can provide.
There is an internal error. Determine which internal error
Ensure that the Back-UPS is securely connected to an AC outlet.
from the Back-UPS. Reset the circuit breaker. Re-connect equipment one item at a time. If the circuit breaker is tripped again, disconnect the device that caused the trip.
sensitivity range.
Disconnect equipment from the SURGE ONLY outlet and re-connect to a Battery Backup outlet.
Ensure that the plug is fully inserted into the wall outlet. Ensure that the wall outlet is receiving AC power by checking it with another device.
No action is necessary.
Adjust the transfer voltage and sensitivity range.
Disconnect non-essential equipment from the Battery Backup outlets and connect the equipment to S outlets.
Charge the battery cartridge for 16 hours.
Replace the battery.
Replace the battery as early as possible.
Disconnect non-essential equipment from the Battery Backup outlets and connect the equipment to S outlets.
message is displayed by matching the number displayed on the LCD with the corresponding Error Message (see "System errors") and contact SEIT Technical Support.
URGE
URGE
Back-UPS Pro BR 1200/1600 SI
9

Specifications

BR1200SI BR1600SI
VA 1200 VA 1600 VA
Maximum Load 720W 960W
Nominal Input Voltage 220 - 240 Vac
Online Input Voltage Range 176 - 294 V
Automatic Voltage Regulation
Frequency Range 50/60 Hz ± 3%
On-battery Waveshape sine-wave
USB charging port Type C*1, Type A*1 (15W in total)
Typical Recharge Time 16 hours
Transfer Time 8 ms, typical10 ms, maximum
Operating Temperature
Storage Temperature
IP Rating IP20
Battery Type Lead acid, 12V x 2 batteries
Unit Dimensions 11.9 ×4.4 ×15.0 in (368 ×100 ×260 mm)
Unit Weight 25.8 lb (11.7 kg) 27.6 lb (12.5 kg)
Interface USB and Simple Signal
On-Battery Runtime Go to: http://www.apc.com/product
Boost by +11.5% when input voltage drops below limit
Trim by -10.2% when input voltage exceeds limit
32 to 104
23 to 113
o
F (0 ~ 40 oC)
o
F (-15 ~ 40 oC)

Battery Replacement

CAUTION
RISK OF HYDROGEN SULPHIDE GAS AND EXCESSIVE SMOKE
Replace the battery at least every 5 years.
Replace the battery immediately when the UPS indicates battery replacement is necessary.
Replace battery at the end of its service life.
Replace batteries with the same number and type of batteries as originally installed in the
equipment.
Replace the battery immediately when the UPS indicates a battery over−temperature
condition, or UPS internal over−temperature, or when there is evidence of electrolyte leakage. Power off the UPS, unplug it from the AC input, and disconnect the batteries. Do not operate the UPS until the batteries have been replaced.
Failure to follow these instructions can result in minor or moderate injury and equipment damage.
The battery typically lasts for 3 to 5 years, a shorter period if subjected to frequent outages or elevated temperatures. Battery replacement parts for Back-UPS Pro BR1200SI is APCRBC161, and for BR1600SI is APCRBC163. Delaying the replacement of parts may corrode the batteries in the cartridge. Recycle spent battery cartridges.
10
Back-UPS Pro BR 1200/1600 SI

Warranty

The standard warranty is three (3) years from the date of purchase, valid in European Community. For all other regions, the standard warranty is two (2) years from the date of purchase. Schneider Electric IT (SEIT) standard procedure is to replace the original unit with a factory reconditioned unit. Customers who must have the original unit back due to the assignment of asset tags and set depreciation schedules must declare such a need at first contact with an SEIT Technical Support representative. SEIT will ship the replacement unit once the defective unit has been received by the repair department, or cross-ship upon the receipt of a valid credit card number. The customer pays for shipping the unit to SEIT. SEIT pays ground freight transportation costs to ship the replacement unit to the customer.
Back-UPS Pro BR 1200/1600 SI
11

APC by Schneider Electric IT Customer Support Worldwide

For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.
© 2018 APC by Schneider Electric. APC, the APC logo, Back-UPS, and PowerChute are owned by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are property of their respective owners.
EN 990-91254
11/2018
Loading...
