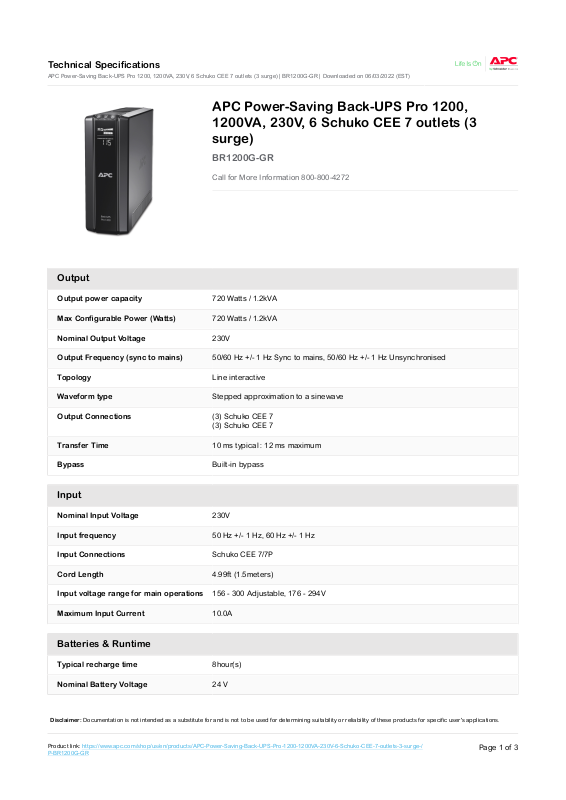

Technical Specifications
APC Power-Saving Back-UPS Pro 1200, 1200VA, 230V, 6 Schuko CEE 7 outlets (3 surge) | BR1200G-GR | Downloaded on 06/03/2022 (EST)
APC Power-Saving Back-UPS Pro 1200,
1200VA, 230V, 6 Schuko CEE 7 outlets (3
surge)
BR1200G-GR
Call for More Information 800-800-4272
Output
Output power capacity 720Watts /1.2kVA
Max Configurable Power (Watts) 720Watts /1.2kVA
Nominal Output Voltage 230V
Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology Line interactive
Waveform type Stepped approximation to a sinewave
Output Connections (3) Schuko CEE 7
Transfer Time 10 ms typical : 12 ms maximum
Bypass Built-in bypass
(3) Schuko CEE 7
Input
Nominal Input Voltage 230V
Input frequency 50 Hz +/- 1 Hz, 60 Hz +/- 1 Hz
Input Connections Schuko CEE 7/7P
Cord Length 4.99ft (1.5meters)
Input voltage range for main operations 156 - 300 Adjustable, 176 - 294V
Maximum Input Current 10.0A
Batteries & Runtime
Typical recharge time 8hour(s)
Nominal Battery Voltage 24 V
Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications.
Product link: https://www.apc.com/shop/us/en/products/APC-Power-Saving-Back-UPS-Pro-1200-1200VA-230V-6-Schuko-CEE-7-outlets-3-surge-/
P-BR1200G-GR
Page 1 of 3
Page 2
Technical Specifications
APC Power-Saving Back-UPS Pro 1200, 1200VA, 230V, 6 Schuko CEE 7 outlets (3 surge) | BR1200G-GR | Downloaded on 06/03/2022 (EST)
Batteries & Runtime
Replacement Battery
Battery Charge Power (Watts) 23Watts
Runtime View Runtime Graph (Available in Technical Tab on site)
Efficiency View Efficiency Graph (Available in Technical Tab on site)
APCRBC124
Communications & Management
Interface Port(s) Optional Simple Signalling RS232 cable, USB
Surge Protection and Filtering
Surge energy rating 441Joules
Data Line Protection RJ11 modem/fax/DSL protection (two wire single line), RJ45 modem/fax/DSL
protection (four wire dual line)
Physical
Maximum Height 11.85inches (301MM, 30.1CM)
Maximum Width 4.41inches (112MM, 11.2CM)
Maximum Depth 15.04inches (382MM, 38.2CM)
Net Weight 28.66lbs. (13.0KG)
Shipping weight 30.42lbs. (13.8KG)
Shipping Height 15.35inches (390MM, 39.0CM)
Shipping Width 9.25inches (235MM, 23.5CM)
Shipping Depth 19.29inches (490MM, 49.0CM)
SCC Codes 10731304286834
Environmental
Operating Temperature 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 10000ft (0 - 3048meters)
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 50000ft (0 - 15240meters)
Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications.
Product link: https://www.apc.com/shop/us/en/products/APC-Power-Saving-Back-UPS-Pro-1200-1200VA-230V-6-Schuko-CEE-7-outlets-3-surge-/
P-BR1200G-GR
Page 2 of 3
Page 3
Technical Specifications
APC Power-Saving Back-UPS Pro 1200, 1200VA, 230V, 6 Schuko CEE 7 outlets (3 surge) | BR1200G-GR | Downloaded on 06/03/2022 (EST)
Environmental
Audible noise at 1 meter from surface of
unit
45.0dBA
Conformance
Approvals BSI 1363, CE, NEMKO
Equipment protection policy Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
Standard warranty 2 years repair or replace, 3 years repair or replace for European Union countries
Sustainable Offer Status
RoHS Compliant
Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications.
Product link: https://www.apc.com/shop/us/en/products/APC-Power-Saving-Back-UPS-Pro-1200-1200VA-230V-6-Schuko-CEE-7-outlets-3-surge-/
P-BR1200G-GR
Page 3 of 3
