Network Management Card & Modbus/ Jbus

(66123)

Installation manual

2 - 3402230800/AC

The Network Management Card & Modbus/Jbus (66123) is recommended for central UPSs protecting entire networks or for UPS units backing up critical loads. With the card installed, the UPS has its own IP address and uses the local computer capabilities to: ◗ Supply web pages (http or https (SSL)) with information on status conditions and measurements/settings/ alarms, ◗ Integrate an SNMP-based NMS such as HP OpenView, IBM Tivoli Netview and Computer Associates Unicenter,

◗ Communicate with shutdown modules installed on the protected servers (Network Shutdown Module), ◗ Send e-mail and SMS messages, ◗ Control the ON/OFF function of the UPS and the outlets, ◗ Monitor the Environment Sensor (optional, cat. no. 66846).

UNPACKING AND CHECKS

◗ One Network Management Card & Modbus/Jbus (66123) ◗ One serial cable for configuration (3402226700), ◗ One installation manual (34022308EN).

Settings/Sensor

1 0

0 M

Settings/Sensor

1 0

0 M

U P

S d

a ta

2 3

661

a t

2 3

66103

Network Management Card & Modbus/ Jbus (66123)

Installation manual

3402230800/AC - 3

OVERVIEW

MAC address

000623001C07

Settings/Sensor

100M

10M

UPS data RS232

66123

INDICATIONS

ETHERNET port

LED Colour Status Description

ACT Green ◗ OFF

◗ ON

◗ Flashing

100M Orange

◗ OFF ◗ ON

◗ Card not connected to network ◗ Card connected to network, but no activity ◗ Port is sending/receiving

◗ Port operating at 10 Mbits/s ◗ Port operating at 100 Mbits/s

Jbus/modbus port

ETHERNET 10/100BT port

Service port (Settings/Sensor)

Orange LED: RS232 activity

Green LED: communication with the UPS

Catalogue number

Orange LED: 10/100M

Green LED: connection + activity

Service port (Settings/Sensor)

LED Colour Status Description

UPS Data Green ◗ OFF

◗ ON ◗ Flashing

RS232 Orange

◗ OFF ◗ ON

◗ Flashing

4 - 3402230800/AC

◗ Card starting ◗ Communicating with UPS ◗ Normal operation

Communication with UPS is operational

◗ Configuration menu activated ◗ Normal operation

Configuration menu not activated

◗ Communication with Environment Sensor (option)

The Network Management Card & Modbus/Jbus (66123) can be hot-plugged in MGE

GalaxyTM 7000

equipped with a Minislot. It is not necessary to shutdown the UPS, disconnect the load or restart the UPS.

◗ Note the MAC address of the card before inserting it.

UPS

Settings

/Sensor

1 0 0

0 M

U P

S d

a t a

R S

2 3

66103

ETHERNET

◗ Insert and secure the card with the screws. ◗ Connect the ETHERNET cable. ◗ Check the ETHERNET port indications. ◗ Wait until the UPS Data LED flashes regularly (approx. two minutes), indicating that card start-up has

terminated correctly.

Note. Connection detection continues until the card has been connected to the network. Once connection is made, card start-up continues.

IP SETTINGS

Once the card has started, proceed as indicated below.

◗ Connect the serial cable to card’s service port and PC’s COM port ◗ Use a terminal emulator such as HyperTerminal

with these settings

Bits per second Data bits Stop bits Parity Flow control 9600 8 1 none none

"Echo typed characters locally" option: disabled

◗ Type MGEUPS (or mgeups). The main configuration menu is displayed:

APC by Schneider Electric Network Management Card & Modbus/Jbus Release : AB.build_5_0_7

1 : Reset 2 : Network configuration 3 : Set Login Password to Default 4 : Return to Default Configuration 5 : Jbus configuration 6 : Sensor configuration 0 : Exit

3402230800/AC - 5

Your network is equipped with a BOOTP/DHCP server (default)

The card is configured by default with this service enabled. No manual configuration is required.The IP parameters are automatically collected by the card.

From the main configuration menu: (see above)

◗

Press the 2 key (Network configuration).

◗

Press the 1 key(Read Network settings).

The settings supplied by the server are displayed:

Network configuration :

MAC address : 00:06:23:00:1C:07 Mode : DHCP IP address : 172.17.23.18 Subnet mask : 255.255.248.0 Gateway : 172.17.17

◗

Note the IP address.

◗

Press the 0 key (Exit).

◗

Press the 0 key (Exit).

You can also use MUPGRADE software utility to view the card IP adress

Provided on the Solution-Pac 2 CD-ROM or at www.mgeups.com. It must be installed on a network connected PC.

Your network is not equipped with a BOOTP/DHCP server

Manual configuration is required. To set the network configuration, use terminal emulation (see above) From the main configuration menu: ◗ Press the 2 key (Network configuration).

◗

Press the 2 key (Modify Network settings).

◗

Follow the instructions and enter the IP parameters:

1 : Read Network settings 2 : Modify Network settings 3 : Set ethernet speed

0 : Exit For each of the following questions, you can press "Return" to select the value shown in braces, or you can enter a new value Should this target obtain IP settings from the network?[N] N Static IP address [172.17.16.16]?172.16.1.82 Subnet mask IP address [255.255.0.0]? 255.255.255.0 Gateway address IP address [0.0.0.0]? 172.17.17.1 Done

Wait until "Done" is displayed, indicating that the IP parameters have been saved.

◗

Press the 0 key (Exit).

◗

Press the 1 key (Reset).

◗

Press the 2 key (Restart).

The card restarts with the new IP settings (after approx. one minute).

6 - 3402230800/AC

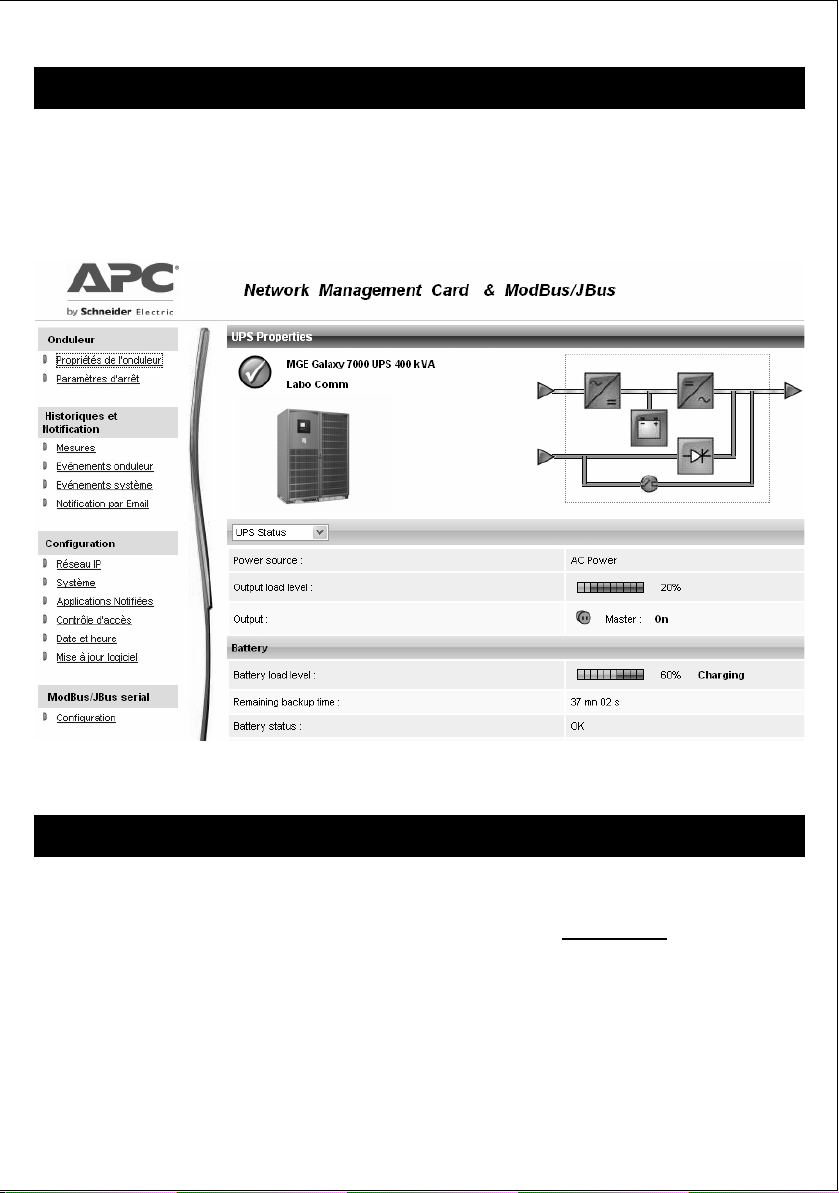

ACCESS TO SUPERVISION

To check whether the and configuration, proceed as follows.

◗ Run a browser ◗ Enter in the address bar:

http://IP address/ (e.g. http://172.16.1.82/)

◗ The home page is displayed

Network Management Card

& Modbus/Jbus (66123)

is operational after installation

◗

Set the time by clicking the Time command.

◗ Continue configuration via the sections in the Settings menu.

USER MANUAL

This manual provides all the information required to install and configure the

Modbus/Jbus

For more information on the supervision, control and configuration functions offered by the

Management Card

(66123).

& Modbus/Jbus

(66123), see the user manual on the

Network Management Card &

www.apc.com

web site.

3402230800/AC - 7

Network

SENSOR CONNECTION (option)

The Environment sensor is a Network Management Card & Modbus/Jbus option. The sensor remotely monitors the UPS environment by regularly measuring the temperature and humidity, and checking the states of two external contacts. It can also send alarms (e-mail, SNMP trap) tripped by pre-set thresholds. Connection is made via the Service port (Settings/Sensor) on the Network Management Card & Modbus/ Jbus. The sensor is detected automatically. Configuration and supervision use a menu that may be accessed directly from the home page. For more information, see the user manual of the Network Management Card & Modbus/Jbus.

ETHERNET

Settings/Sensor

100M 10M

On = Link

UPS data RS232

PS d

link =

ata RS232

Act

66103

66102

100M 1

UPS data RS232

ETHERNET

66103

UPS

8 - 3402230800/AC

JBUS/MODBUS

SA2

SA1

RS232 link configuration and connection

SA1

SA2

43 2 1

Pin Function

1 Received data (input) 2 Not connected 3 Transmitted data (output) 4 Not connected 5 Signal ground

SA2

OFF

Txd RxdSG

RS485 link configuration and connection

For proper operation, the polarity of EIA RS485 2-wire and 4-wire lines must be set at only one point and the lines terminated at the end.

Polarity

Normally, the master of the network sets the polarity of the line. The receiver inputs have a true failsafe feature wich eliminates the need for external bias resistors and ensures a logic high output level when the inputs are open or shorted. This guarantees that the receiver outputs are in a known state before communication begins and when communication ceases.

Termination

Termination is used to match impedance of a node to the impedance of the transmission line being used. When impedance are mismatched, the transmitted signal is not completely absorbed by the load and a portion is reflected back into the transmission line. The termination line is not necessary if the speed on the line is much less than 115Kbauds

RS485

RD = (B')

RD = (A')

TD = (B)

TD = (A)

0 V

R-

R+

T-

T+

0 V

The default setting of the RS485 is a 4 wires configuration without polarity and without termination. SA1 switches are used to make the termination and the topology of the line (2 or 4 wires). The termination resistance value is 166 Ω.

SA1

SA2

OFF

SA1

OFF

SA1 description:

1 : reserved 2 : reserved 3 : link termination between T- to R- (2 wires configuration) if set to ON 4 : connection T- to R- (2 wires configuration ) if set to ON 5 : connection T+ to R+ (2 wires configuration ) if set to ON 6 : reserved 7 : reserved 8 : link termination between R+ and R- if set to ON

3402230800/AC - 9

2 wires connection

SA2

SA1

SA2

SA1

OFF

3V3

43 2 1

SA2

OFF

L +

L -

3V3

polarity

connection if end of the line

polarity

L- L-

L+ L+

SA1-3

L- L-

L+ L+

termination

SA1-3

transmit/receive data

Master unit Card of an end-of-line cabinet

transmit/receive data

Card of an intermediate cabinet

transmit/receive data

Card settings of an intermediate cabinet

SA1

SA2

SA1

OFF

8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1

OFF

Link without polarity and without termination.

Others settings

SA1

SA1 SA1

OFF

8 7 6 5 4 3 2 1

OFF

Link with termination.

10 - 3402230800/AC

SA2

4 wires connection

SA2

SA1

SA2

5R-43 2 1

R +T -T +

master transmitt

polarity

transmit data

connection if end of the line

slave receiver

receive data

T- R-

T+ R+

R- T-

R+ T+

SA2

OFF

slave receiver

SA1

OFF

R- R-

Ra Ra

R+ R+

receive data

slave transmitt

T- T-

T+ T+

termination

slave receiver

receive data

slave transmitt

transmit datatransmit data

Master unit Card of an intermediate cabinet Card of an end-of-line cabinet

Card settings of an intermediate cabinet

SA1

SA2

SA1

OFF

8 7 6 5 4 3 2 1

OFF

Link without polarity and without termination.

Others settings

SA1

SA2

SA1

OFF

8 7 6 5 4 3 2 1

OFF

Link with termination.

3402230800/AC - 11

Configuration of the JBUS/MODBUS communication parameters

Through settings port

ETHE

RNET

Settings/Sensor

100

1 0 0

n =

U P

lin

d a

k =

data

Act

S 2

66103

66102

1 0

0 M

d a t

S 2

3 2

ETHERNET

66103

UPS

Connect the RS232 link to a

terminal

(Microsoft Hyper terminal)

◗ Use the cord supplied with the card ◗ Connect the card to a computer ◗ Use a terminal emulator such as HyperTerminal

Bits per second Data bits Stop bits Parity Flow control 9600 8 1 none none

"Echo typed characters locally" option: disabled

◗ Check that UPS power is on. ◗ Type MGEUPS (or mgeups).

The main configuration menu is displayed::

APC by Schneider Electric Network Management Card & Modbus/Jbus Release : AB.build_5_0_7

1 : Reset 2 : Network configuration 3 : Set Login Password to Default 4 : Return to Default Configuration 5 : Jbus configuration 6 : Sensor configuration 0 : Exit

◗

Press the 5 key (Jbus configuration).

with these settings

The Jbus configuration menu is displayed:

Jbus settings

1 : Display Jbus settings 2 : Modify Jbus settings 3 : Display Jbus diagnostics 4 : Reset Jbus diagnostics 5 : Return to Jbus Default Configuration 6 : Display Jbus frames 0 : Exit

12 - 3402230800/AC

◗

Press the 2 key (Modifiy Jbus settings)

◗

Press «Return» key to modify the Jbus settings

Setting Jbus configutration

Set Slave number : 0x1*

Set the Baud Rate [1:38400,2: 19200, 3:9600, 4: 4800, 5: 2400, 6: 1200] :3

Set data format[1: 8 bits, 2: 7 bits] :1 Set stop bit[1: 1 bits, 2: 2 bits] :1 Set parity [1: None, 2: Even, 3: Odd] :1

Wait during the new setting is saved ... TLS/Slave JBUS initialized The Jbus configuration is now updated.

* Hex format.

◗

Press the 0 key (Exit).

◗

Press the 0 key (Exit).

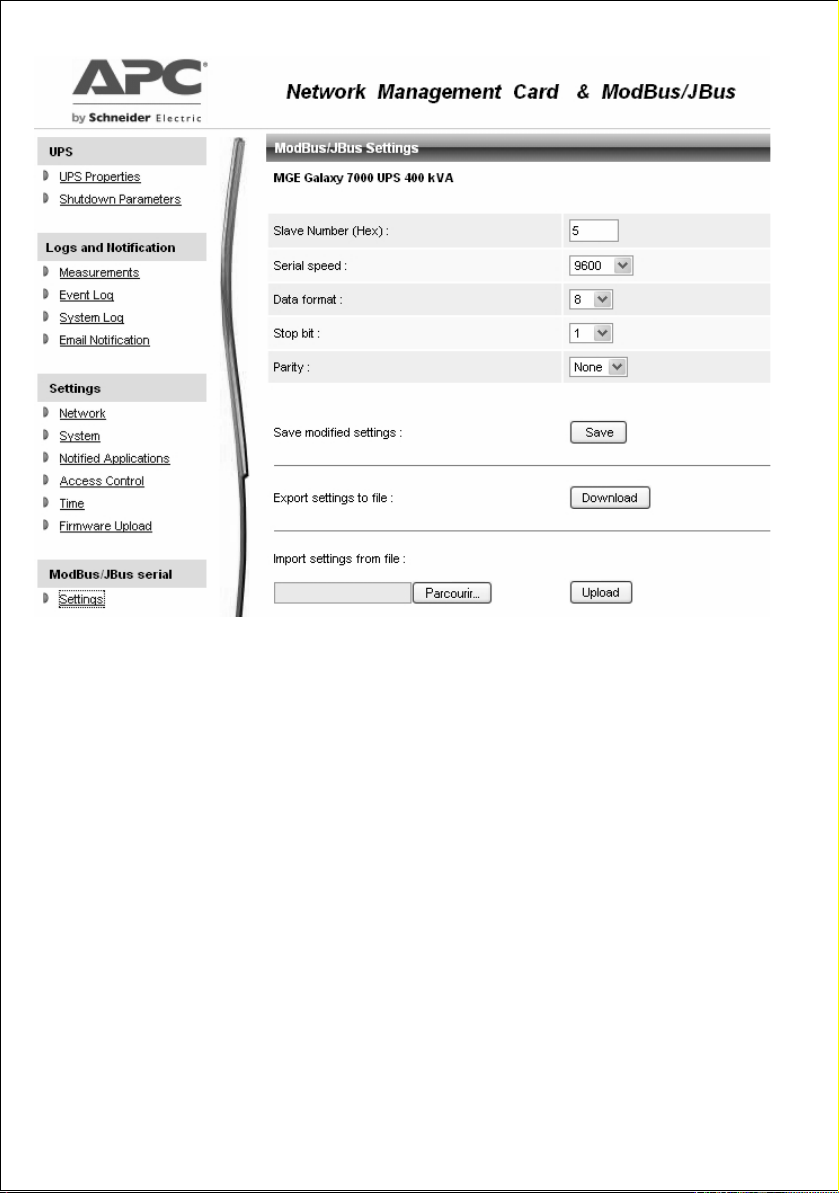

Through a web browser

◗ Run a browser ◗ Enter in the address bar:

http://IP address/ (e.g. http://172.16.1.82/)

◗ The home page is displayed

◗ Select the setting menu

3402230800/AC - 13

◗ Set the parameters. ◗ Select the «Save» button to save the new parameters.

14 - 3402230800/AC

TECHNICAL CHARACTERISTICS

Physical characteristics

Dimensions (W x D x H) 132 x 66 x 42 mm Weight 70 g RoHS 100% compatible

Storage

Storage temperature range -10°C to 70°C

Ambient conditions

Operating temperature range 0°C to 40°C Relative humidity 90% RH max. without condensation

Card performance

Supply voltage 5V ±5% Supply current (all LEDs ON and

Environment Sensor connected)

Functions

Web supervision 5 browsers max. (http),

Languages English, French, German, Italian, Spanish Alarms E-mail, SNMP TRAP, Web page Log 400 measurements or events Server protection Up to 35 servers protected Network Fast ETHERNET, 10/100 Mbits, auto-negotiation

Identification User name and password Security SSL 3.0, TLS 1.0 Browsers Microsoft Internet Explorer 6.x or higher NMS Enterprise Power Manager (EPM)

MIB MIB II standard - MGE V1.7 MIB

Settings (default values)

IP network BOOTP/DHCP enabled

Web-page access control User name: MGEUPS

Service-port menu access control Password: MGEUPS or mgeups

Date and time Synchronise with an NTP server (GMT) Service port 9600 bits/s, 8 bits, 1 bit stop, no parity RS485 port Slave nb:0x01, 9600 bits/s, 8 bits, 1 bit stop, no parity

300 mA max.

3 browsers max. (https)

HTTP 1.1, SNMP V1, NTP, TFTP, SMTP, BOOTP/DHCP

Management-Pac 2

IP address: 172.17.16.16 (manual configuration) Subnet mask: 255.255.0.0 Gateway: 0.0.0.0 NTP server: pool.ntp.org

Password: MGEUPS

(not modifiable)

3402230800/AC - 15

ELECTROMAGNETIC COMPATIBILITY

When correctly installed and used in accordance with manufacturer instructions, the card complies with the following standards:

◗ ITE (Information Technology Equipment) safety: IEC/EN 60950-1 2005 ◗ EMC: EN 61000-6-2 (2005), EN 61000-6-3 (2006), IEC/EN 62040-2 (2005)

In compliance with European directives:

◗ Low voltage: 2006/95/EEC. ◗ EMC: 2004/108/EEC.

Federal Communication Commission (FCC) statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

3402230800/AC
