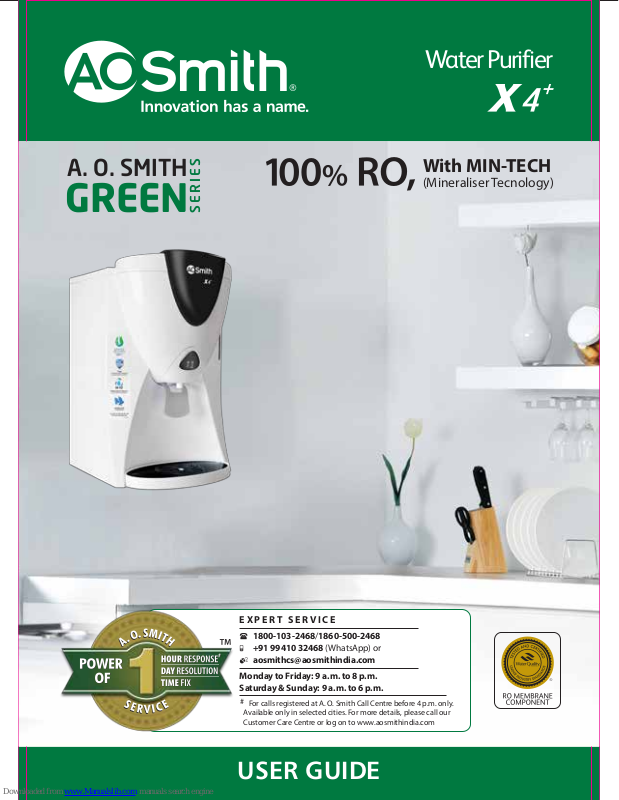

A.O. Smith X4+ User Manual
Water Purifier
A. O. SMITH
GREEN
With MIN-TECH
(Mineraliser Tecnology)
SERIES
EXPERT SERVICE
1800-103-2468/
+91 99410 32468 (WhatsApp) or
aosmithcs@aosmithindia.com
Monday to Friday: 9 a.m. to 8 p.m.
Saturday & Sunday: 9 a.m. to 6 p.m.
#
For calls registered at A. O. Smith Call Centre before 4 p.m. only.
Available only in selected cities. For more details, please call our
Customer Care Centre
1860-500-2468
or log on to www.aosmithindia.com
USER GUIDE
Dear Customer,
Congratulations and welcome to A. O. Smith family.
We thank you for the trust you have shown in choosing the A. O. Smith Water Purifier.
A. O. Smith Water Purifier is one of the most advanced RO Water Purifier available in the
market today. It is specially designed keeping in mind today’s water quality and your
needs.
Millions of customers all over the world trust A. O. Smith Products for their quality
and workmanship.
Our customer-centric approach manifests itself in many other ways too. If you need any
information or assistance with your Water Purifier, just call us from any phone,
anywhere in the country to our Customer Care No. 1800-103-2468/1860-500-2468.
Please go through this simple and easy to read instruction and installation manual to
get the best out of your A. O. Smith RO Water Purifier.
We once again thank you for choosing A. O. Smith.
Yours Sincerely,
Team A. O. Smith
Contents
USER GUIDE
Key Features of your A. O. Smith RO Water Purifier .......................................... 01
Pre-instruction literature .......................................................................................... 02
General instructions ................................................................................................. 03
Introduction ............................................................................................................. 04
Product overview ..................................................................................................... 06
Function of indicators .............................................................................................. 07
Water flow ............................................................................................................... 08
Electrical diagram..................................................................................................... 08
Safety precautions.................................................................................................... 09
How to use............................................................................................................... 10
Draining drip tray..................................................................................................... 11
How to maintain your product................................................................................. 12
Troubleshooting....................................................................................................... 13
Technical specifications ............................................................................................ 17
FAQs......................................................................................................................... 19
Warranty terms and conditions................................................................................ 21
Warranty card .......................................................................................................... 25
Service and maintenance ......................................................................................... 26
Disclaimer ................................................................................................................ 27
What’s in the box?
User Guide Mounting Accessories Tube & ConnectorsWater Purifier
Key Features of your A. O. Smith RO Water Purifier
PURITY THROUGH 7 STAGE PURIFICATION
7S TECHNOLOGY: Pre-filter + SCB filter™ (Sediment filter + Carbon block) + ART™
(Advance Recovery Technology™) + Patented Side Stream RO Membrane +
SCM-TECH™ (Silver Activated Post Carbon + MIN-TECH). In A. O. Smith RO
water purifier 100% water passes through the RO membrane.
ART™ (ADVANCE RECOVERY TECHNOLOGY™)
Breakthrough Advance Recovery Technology gives true water recovery > 55%,
while ensuring 100% RO purification.
ADVANCE PATENTED SSM TECHNOLOGY (SIDE STREAM RO MEMBRANE)
Suitable for water with low and high (upto 2000 ppm) TDS. Wastes less water and
improves pure water recovery.
MIN-TECH (MINERALISER TECHNOLOGY)
The MIN-TECH (Mineraliser Technology) adds essential calcium and magnesium
minerals to the water. This ensures that the water tastes fresh and natural and
has balanced pH – an essential requirement for drinking water.
ADVANCE ALERT TECHNOLOGY
For RO membrane and Pre + Post RO filters change.
CONVENIENCE
Provision for both wall mounting and table top.
TANK OVERFLOW PROTECTION
Prevents water overflow from the tank.
LARGE STORAGE CAPACITY
Pure water storage capacity of 9 litres.
WQA CERTIFIED RO MEMBRANE
RO membrane element in A. O. Smith RO Water Purifier is tested and certified
by WQA against NSF/ANSI 58 standards for material requirements.
* Patent Applied | TDS: 750 ppm, Water temperature 27°C, Water feed pressure 20 psi.
01
Pre-instruction Literature
On Receipt
It is our policy to promote safe delivery of all orders. This product shipment has been
thoroughly checked, packed and quality certified before leaving our plant.
Visible Loss or Damage
If any of the goods called for on the bill of lading or express receipt are damaged or the
quantity is short, do not accept them until the freight or express delivery agent makes an
appropriate notation on your freight bill or receipt.
Concealed Loss or Damage
When a shipment has been delivered to you in apparent good condition, but upon
opening the crate or container, loss or damage has taken place while in transit, inform
the carrier’s agent/A. O. Smith representative immediately.
About this Manual
This manual is a guide to good practice for operating and periodic maintenance of the
A. O. Smith RO Water Purifier.
This does not contain the full servicing procedures necessary for continued successful
operation of this product. The services of A. O. Smith Company Authorised Service
Technician must be employed periodically on the same.
Do not operate before reading manual supplied with this product.
Please follow instructions in this manual to ensure personal safety and proper operation
of this product. A. O. Smith assumes no liability for installation or servicing performed by
any unauthorised personnel. Always install, operate, inspect and maintain this product in
accordance with all applicable standards. Please store this user manual carefully for any
future reference.
02
General Instructions
Safety
Your safety and the safety of your loved ones is paramount to us. There are several
safety-related messages in this manual, which have been provided during various stages
such as installation, operation and maintenance of your A. O. Smith RO Water
Purifier. These messages point out potential hazards and also educate on how to reduce
any potential risks. Please always read and follow all safety messages as provided in this
manual.
This is the safety alert symbol. This symbol alerts you to potential
hazards that can hurt you and others. All safety messages will follow the
safety alert symbol and either the word “DANGER” or “WARNING”.
Indicates an imminently hazardous situation which, if not avoided, will
DANGER
Indicates a potentially hazardous situation which, if not avoided, could
WARNING
Indicates a potentially hazardous situation which, if not avoided, may
CAUTION
result in death or serious injury.
result in death or serious injury.
result in minor or moderate injury or property damage.
IMPORTANT
These instructions have been written as a guide for the proper installation and operation
of your A. O. Smith RO Water Purifier. A. O. Smith will not accept any liability where
these instructions have not been followed. However, for your safety and to avoid
damage caused by improper installation, it is recommended that the Water Purifier must
be installed by A. O. Smith Company Authorised Service Technician only.
Before proceeding with the installation instructions:
1. Inspect the A. O. Smith RO Water Purifier and its component parts for possible
damage. DO NOT install or attempt to repair any damaged component parts. If you
detect any damage in your A. O. Smith RO Water Purifier, please contact the
company through Customer Care Centre, details of which are mentioned in this
manual and on the product.
2. Verify that the voltage being supplied corresponds to that which is mentioned in the
A. O. Smith RO Water Purifier manual.
03
Introduction
A. O. Smith RO Water Purifier uses one of the latest technologies that is used in
water purification process. A. O. Smith RO Water Purifier works under the principle
of RO (Reverse Osmosis) technology which is found to be one of the most effective
process. In this process, water under pressure is passed through a semi-permeable
membrane. Purified water is collected for drinking in a storage tank and impurities in
the water are flushed to the drain.
Why water purification is important?
Water purification, today is essential due to the presence of harmful contaminants
present in the water supply. Rapid urbanisation and speedy industrial growth have led to
significant pollutants and contaminants being found in the water supply. Below is a list
of some of the harmful contaminants found today in the water supply which if
consumed in excess can be detrimental to human health.
• TDS (Total Dissolved Solids) like Nitrates, Chlorides, Sulphates etc.
• Pesticides and VOC (Volatile Organic Compounds).
• Heavy metals like Mercury, Arsenic, Lead, Chromium, Cadmium etc., imbalanced pH.
• Microorganisms such as pathogenic bacteria, virus, protozoa and cysts.
A. O. Smith RO Water Purifier removes excessive TDS (Total Dissolved Solids) in water
by more than 95%. A. O. Smith RO Water Purifier reduces heavy metals, removes
pathogens and balances the pH value. By this, it ensures you safe and great tasting
water.
How does A. O. Smith RO Water Purifier work?
A. O. Smith RO Water Purifier has 7 stages of purification system, wherein the water
is passed through the various stages and progressively filtered to get purified water
which is stored in the inbuilt storage tank.
Stage 1 – Pre-filter
The Pre-filter is used to remove physical contaminants such as dirt, dust, soil
particles, turbidity present in the water. This improves the life of the SCB filter
TM
Stage 2 and Stage 3 – SCB filter
This is a dual filter (Sediment and Carbon Block) where Sediment filter first removes
fine and coarse physical contaminants present in the water. Then water is passed
through Carbon Block, which reduces harmful chemicals like pesticides, volatile
organic compounds, residual chlorine etc. It also adsorbs bad taste and odour
causing organic compounds from water.
TM
Stage 4 – ART
(Advance Recovery Technology)
The ART is scale control media which conditions the water to reduce scaling
potential in water.
(Sediment and Carbon Block)
TM
.
04
Stage 5 – RO (Reverse Osmosis) membrane
RO membrane contains semi-permeable membrane wherein the water is passed
through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and
heavy metals like mercury, arsenic, lead, chromium, cadmium etc. It also removes
microorganisms like bacteria, virus, protozoa and cysts.
Stage 6 and Stage 7 – SCM-TECH
™ (Silver Activated Post Carbon and MIN-TECH)
This filter is the combination of Silver Activated Post Carbon and MIN-TECH
(Mineraliser Technology). Silver Activated Post Carbon acts as polisher and enhances
the taste of water. MIN-TECH contains Calcium and Magnesium minerals which helps
to improve the taste and quality of water. It also adds the required essential minerals
back to water and balances the pH of water.
Figure 1
Ball
valve
Pre-filter
Note: The Pre-filter and the Ball Valve comes along with the product as standard accessories.
05
Product Overview
Figure 2
Display Panel
Indicators
Faucet
Lever
Drip Tray
Cover
Removable
Drip Tray
Top
Cover
Water
Level
Indicator
Main
Body
Front View
Overflow
water
Feed water
IO
inlet
Rear
Cover
R
Back View
Reject
water
06
