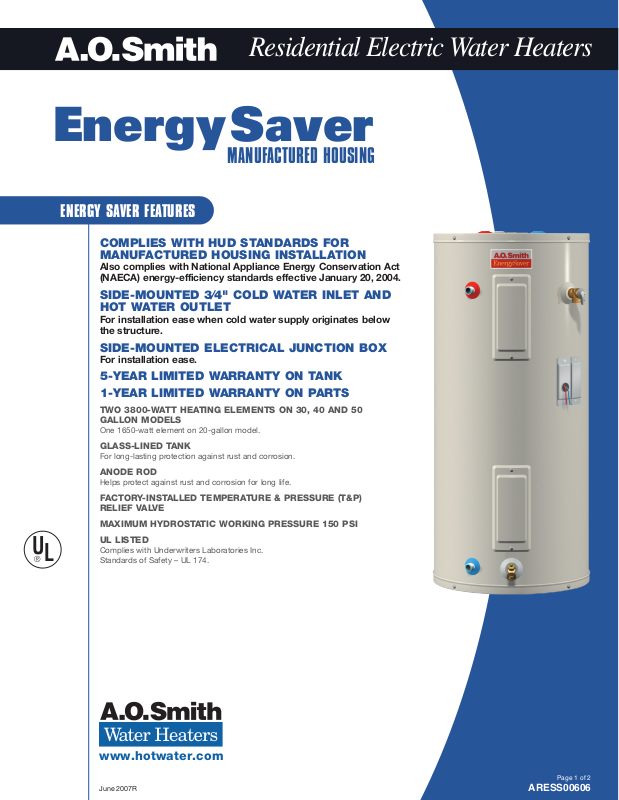

A.O. Smith ARESS00606 User Manual

Residential Electric Water Heaters

EnergySaver

MANUFACTURED HOUSING

ENERGY SAVER FEATURES

COMPLIES WITH HUD STANDARDS FOR MANUFACTURED HOUSING INSTALLATION

Also complies with National Appliance Energy Conservation Act (NAECA) energy-efficiency standards effective January 20, 2004.

SIDE-MOUNTED 3⁄4" COLD WATER INLET AND HOT WATER OUTLET

For installation ease when cold water supply originates below the structure.

SIDE-MOUNTED ELECTRICAL JUNCTION BOX

For installation ease.

5-YEAR LIMITED WARRANTY ON TANK 1-YEAR LIMITED WARRANTY ON PARTS

TWO 3800-WATT HEATING ELEMENTS ON 30, 40 AND 50 GALLON MODELS

One 1650-watt element on 20-gallon model.

GLASS-LINED TANK

For long-lasting protection against rust and corrosion.

ANODE ROD

Helps protect against rust and corrosion for long life.

FACTORY-INSTALLED TEMPERATURE & PRESSURE (T&P) RELIEF VALVE

MAXIMUM HYDROSTATIC WORKING PRESSURE 150 PSI

UL LISTED

Complies with Underwriters Laboratories Inc. Standards of Safety – UL 174.

www.hotwater.com

April 2006

June 2007R

Page 1 of 2

ARESS00606

RESIDENTIAL

EnergySaver

MANUFACTURED HOUSING

Electric Water Heaters

MODEL

NUMBER

ESM-20 – – 19.9 120V, 1650 Watts 8 12 34 26-1/2 17

ESM-30 43 .93 30 240V, 3800 Watts 17 16 37-1/2 28-1/4 20-1/2 90

ESM-40 51 .93 40 240V, 3800 Watts 17 16 46 38-1/4 20-1/2

ESM-50 58 .95 50 240V, 3800 Watts 17 16 56 47-3/4 20-1/2 140

FIRST HOUR

RATING

GALLONS

ENERGY FACTOR

GALLON

CAPACITY

STD.

VOLTAGE/WATTAGE

RECOVERY

90°F RISE

GALLONS

VALUE

DIMENSIONS IN INCHES

A B C

T&P VALV E

APPROX.

SHIPPING

WEIGHT

(LBS)

115

HOT

AB B

OUTLET

COLD INLET

www.hotwater.com

For Technical Information and Automated Fax Service, call 800-527-1953.

500 Tennessee Waltz Parkway, Ashland City, TN 37015

A. O. Smith Corporation reserves the right to make product changes or improvements without prior notice.

ELECTRICAL OPENING

Page 2 of 2

ARESS00606
