AOC T5042ID Schematic

维 修 手 册

品牌 机种

AOC T5042ID

版权说明

此维修手册版权归冠捷科技公司所有，规格如有更改，恕不另行通知。
此维修手册受版权保护。未经版权所有者许可，任何形式的复制和分发，包括改编、解释或摘录，尤其是作为翻印、
翻拍、电子复制或在数据处理设备和数据网络内的传输，都是被禁止的。以上行为将在法律范围内受到起诉

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

E50D4KNDFEA1NNX

A00 Oct 25,2013

首次发布

T5042ID

E50D4KNDFEA1N

2

目 录

1. 技术规格------------------------------------------------------------------------------------------------------------04

1.1 一般规格---------------------------------------------------------------------------------------------------------04

1.2 预设显示模式---------------------------------------------------------------------------------------------------06

2. 操作说明------------------------------------------------------------------------------------------------------------07

2.1 连接电视机----------------------------------------------------------------------------------------------------07

2.2 遥控器说明----------------------------------------------------------------------------------------------------11

2.3 OSD 调整----------------------------------------------------------------------------------------------------14

3. 工厂模式调整------------------------------------------------------------------------------------------------------26

4. 电气方框图---------------------------------------------------------------------------------------------------------29

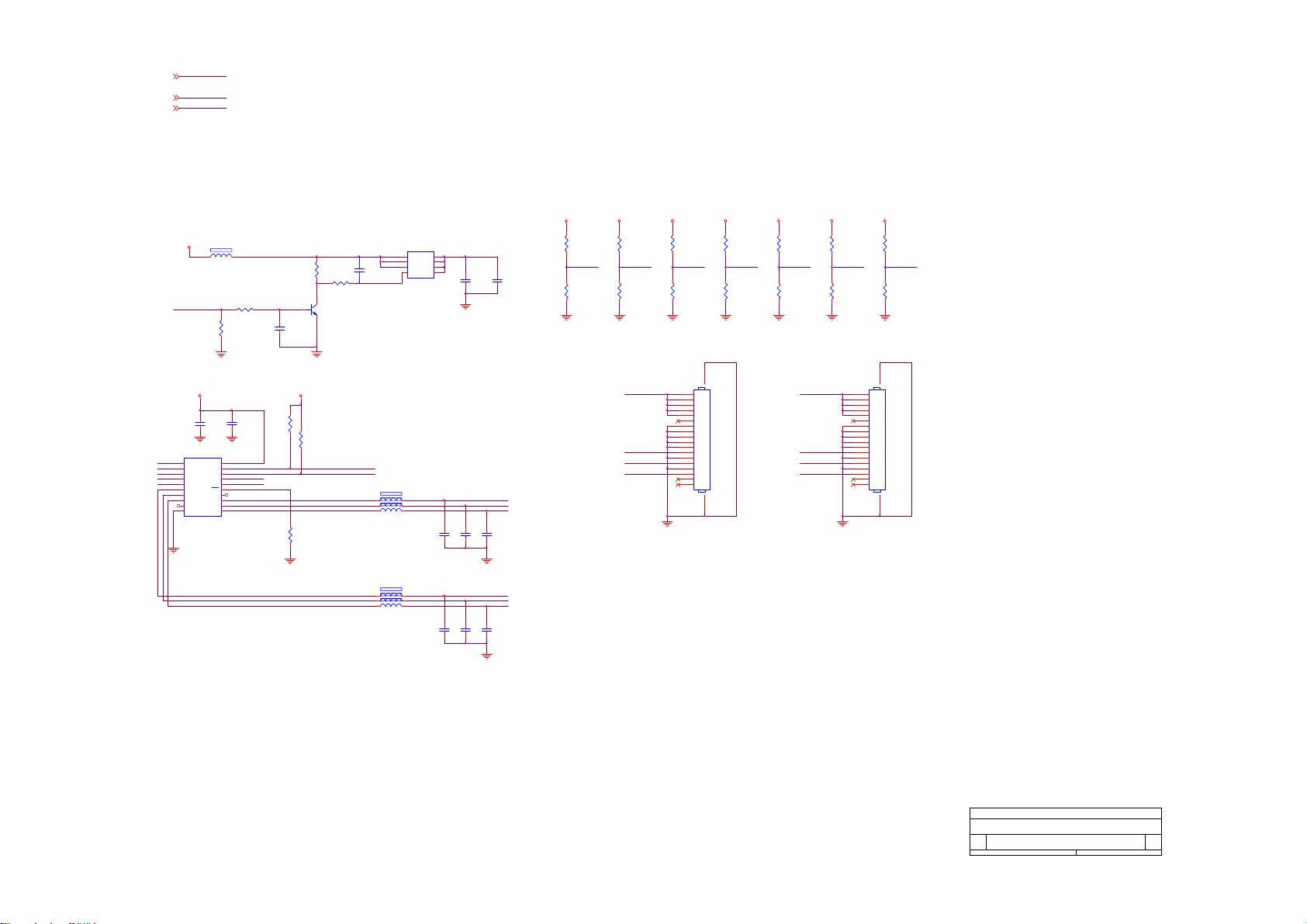

5. 线路图---------------------------------------------------------------------------------------------------------------30

5.1 主板-------------------------------------------------------------------------------------------------------------30

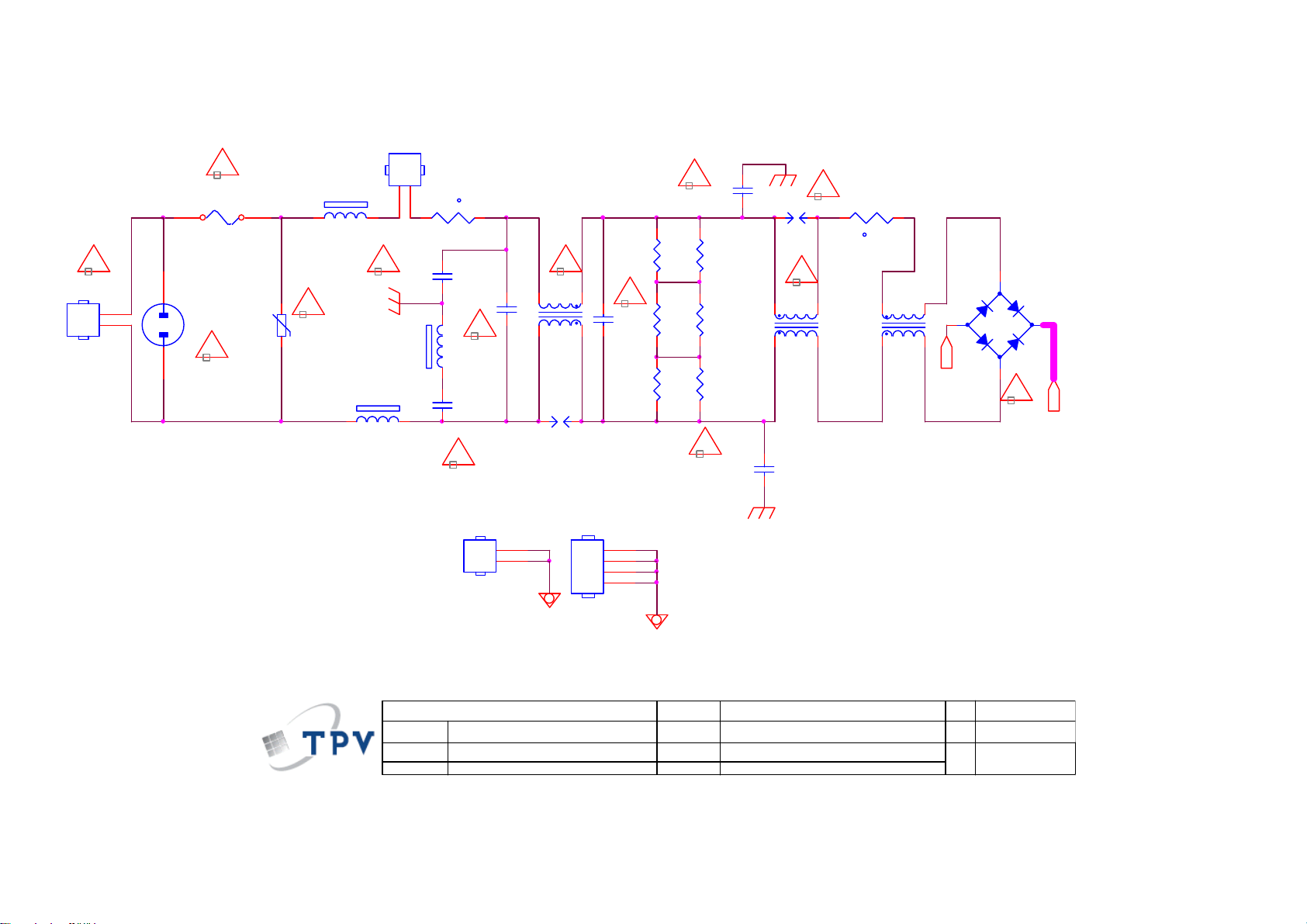

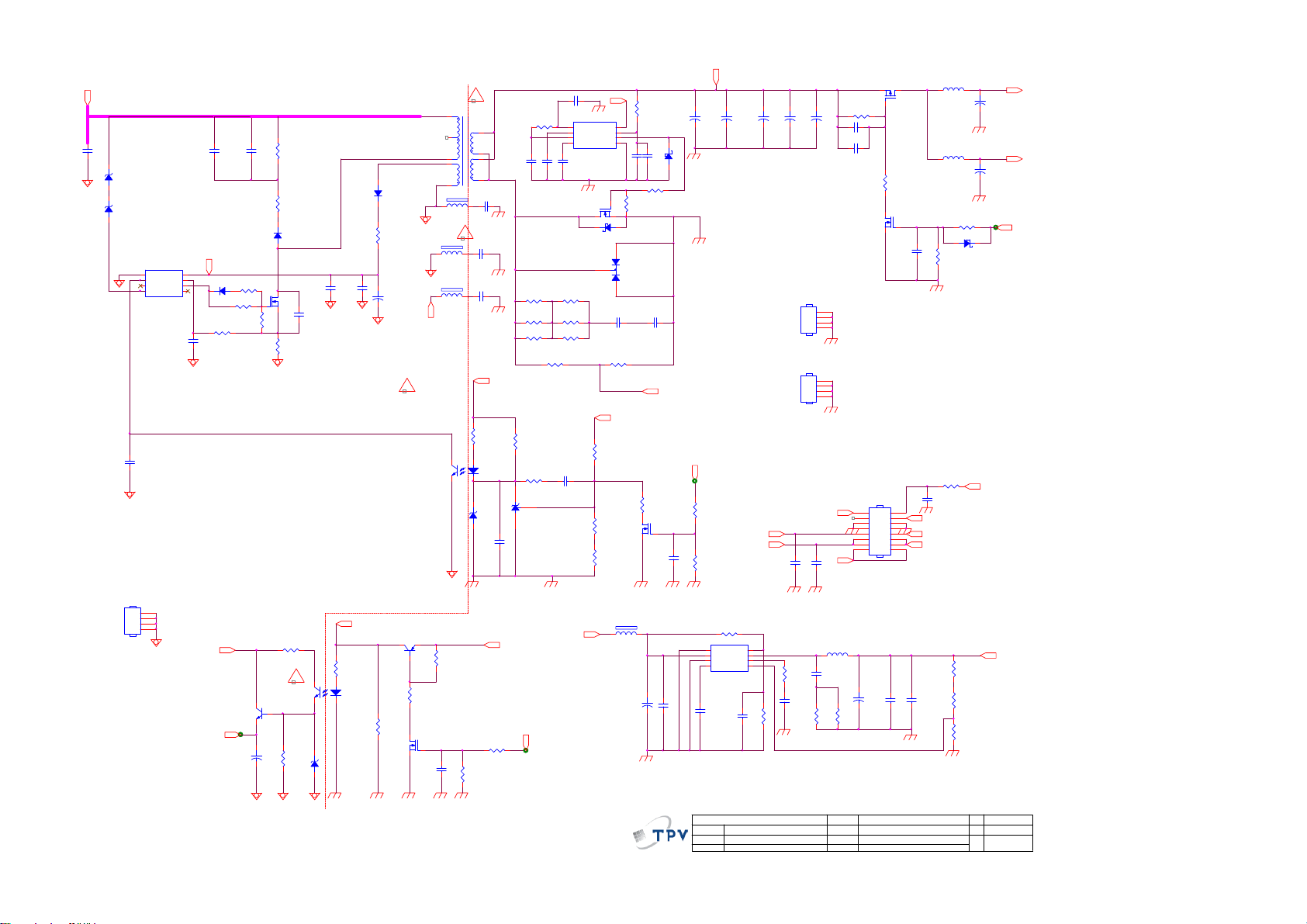

5.2 电源板----------------------------------------------------------------------------------------------------------48

5.3 按键板--------------------------------------------------------------------------------------------------------52

6. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------53

7. 故障处理流程图---------------------------------------------------------------------------------------------------55

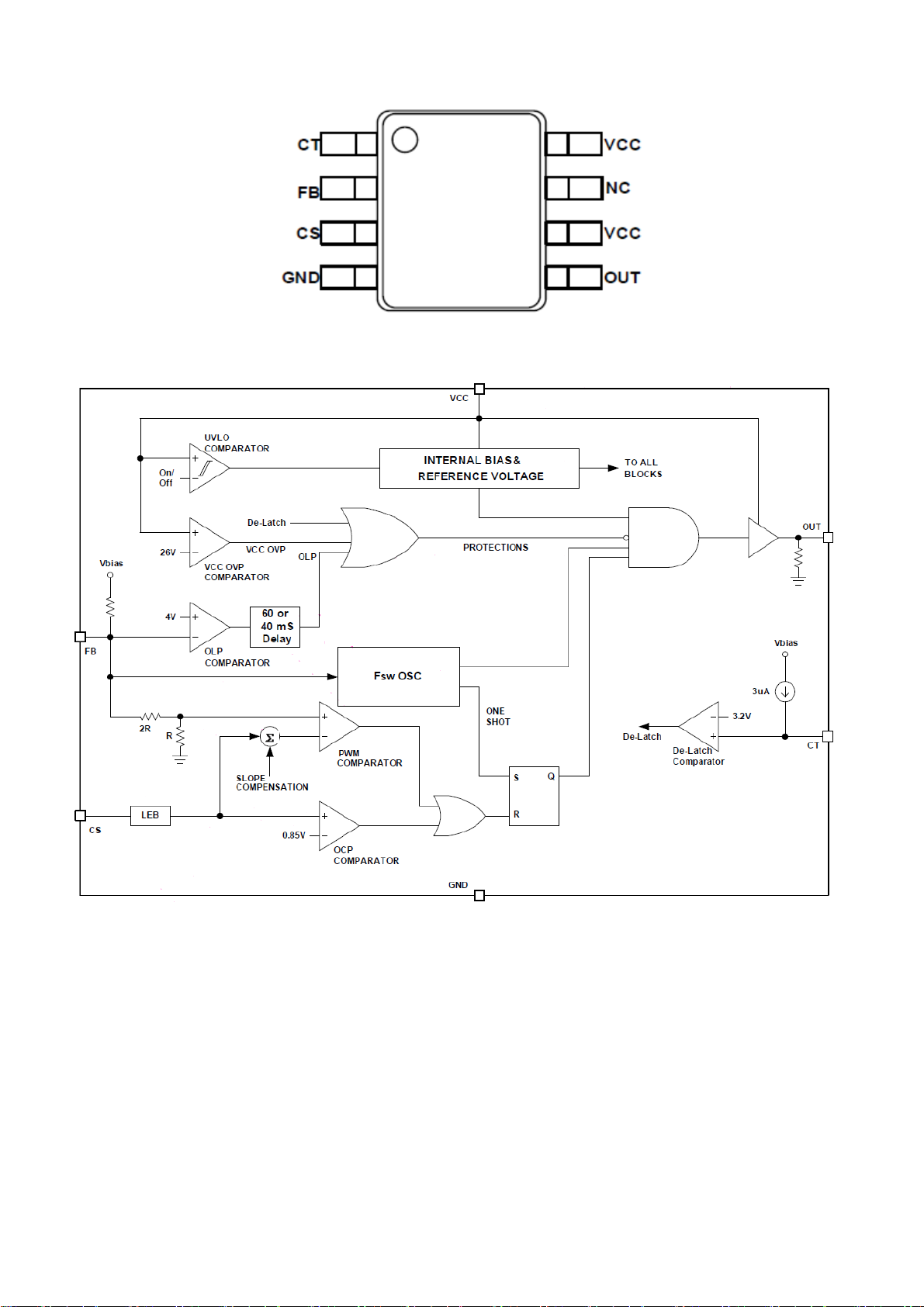

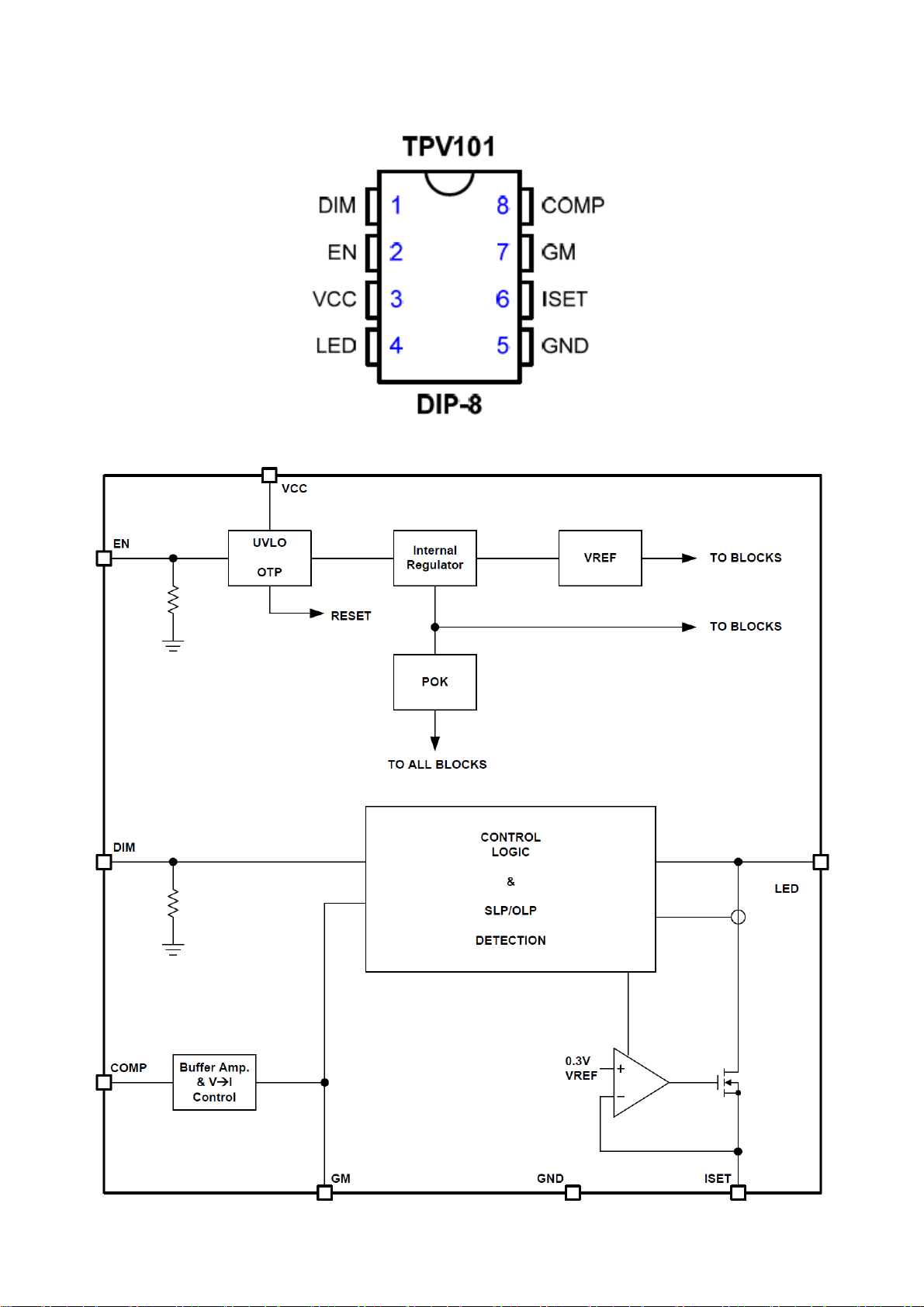

8. 主要 IC 管脚及内部框图---------------------------------------------------------------------------------------60

9. BOM-------------------------------------------------------------------------------------------------------------63

3

1. 技术规格

1.1 一般规格

4

5

1.2 预设显示模式

电脑输入信号参照表

将电脑连接到电视后，按照下表，设置电脑中的输出信号。

DVI/电脑HDMI 输入信号参照表

1. 使用DVI 端口时，将视频设备的DVI 端口使用DVI 转HDMI 线连接到电视后，按照下表，设置视频设备的输
出信号。

2. 使用电脑HDMI 端口时，将电脑的HDMI 端口使用HDMI 线连接到电视后，按照下表，设置电脑的输出信号。

视频输入信号参照表

1. 将视频设备的分量或HDMI 端口连接到电视后，按照下表，设置视频设备的输出信号。

2. 如果电脑显卡可支持视频格式信号，可设置下表输出信号。

电视模式支持的视频系统

PAL D/K B/G I, DTMB。

视频模式支持的视频系统

PAL, NTSC, SECAM。
您也可以使用DVD 播放机或VCR 播放机观看传统节目。通过电视的视频输入，将设备连接到电视。

6

2. 操作说明

2.1 连接电视

7

8 9

连接电视

有线系统或VHF/UHF天线系统
除标清模拟节目以外，您还可以观看标清或高清数字节目（如果您所在的地区能提供，并经过机顶盒或其他

类似设备）。本电视能够接收有线和VHF/UHF天线的模拟信号电视节目。
强烈建议您使用75Ω同轴线连接天线/有线输入，以接收最佳的画面质量。300Ω双芯线很容易受到射频干扰

影响，从而造成信号降级。

高清接口

通过申请开通高清有线服务或高清卫星服务，您可以观看高清节目。为取得最佳的画面，请务必通过电视后
面的HDMI或分量视频（带音频）输入端，将该设备连接到电视。

HDMI连接

如果设备配有DVI插孔，而不是HDMI插孔，请将DVI插孔连接到HDMI输入（用DVI-to-HDMI线或适配器）插
孔。将音频插孔连接到电脑音频输入插孔。

分量信号连接

视频信号连接
切换信源时请选择视频1

切换信源时请选择视频2

视频输出连接

电脑连接

如下面所示，用VGA线连接，将电视用作电脑显示器。本电视也可以连接到带DVI或HDMI输出的电脑。

使用含铁氧磁心的VGA线和音频线将电视连接到电脑。
如果电脑已连接到电视，并且5分钟以上没有电脑信号输入，则电视会自动进入待机模式。

10

2.2 遥控器说明

11

12 13

2.3 OSD调整

打开和关闭电视
您可以参照遥控器说明使用遥控器对电视进行操作。

提示：

1. 尽管待机时电视机
的耗电量很少，但电视
机会继续耗电。当长时
间不使用电视机时，请
将电视机的电源线与
电源插座断开。

2. 如果您找不到遥控
器，但又想从待机状态
下打开电视机，请按电
视机右下方的“菜单”
键。

切换信号源
在AOC 电视中，按信源键在显示菜单上选择信号源。

14

频道切换/回看

15

图像设置

16

声音设置

17

频道设置

18

功能设置

19

童锁

20

多媒体设置

21

22

23

24

25

3. 工厂模式调整

该机种需要调整 ADC（Ypbpr&VGA）and WB（Ypbpr/VGA’s Normal/Warm/Cool ）.

3.1 进入工厂模式

Press RC Key‘menu’+‘1’+‘9’+‘9’+‘9’or‘menu’+‘1’+‘9’+‘9’+‘9’+‘ok’.

3.2 ADC 调整方法

1. 进入工厂模式

2. 选择“Current Source”项

3. 在信号产生器端设置正确的 Timing and Pattern

4. 在工厂模式中选择“Auto Color”项

3.3 正确的信号产生器 Timing and Pattern 参数

Timing and Pattern Setting：Ypbpr:Timing 311 pattern 185

Ypbpr:Timing 314 pattern 185
VGA:Timing 137 pattern 42

3.2 白平衡调整步骤：

1. 进入工厂模式

2. 以调整 Ypbpr Normal 为例

1.选择“Source”项：Ypbpr 和“Color Temp”项 Normal

2.调整 RGB 的 gain 值使其色温满足下例规格

（COMPONENT mode：TIN=314；PAT=141(801RE)）

3. 以调整 VGA Normal 为例：

1.选择“Source”项：VGA 和“Color Temp”项：Normal

2.调整 RGB 的 gain 值使其色温满足下例规格

（VGA mode：TIM=137;PAT=141(801RE)）

Normal/ (7500K) Warm/ (6500K) Cool / (9300K)
x (center)
y (center)
Lv(center)

0.285  0.030 0.313  0.030 0.270  0.030

0.293  0.030 0.321  0.030 0.278  0.030
>250cd >250cd >250cd

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

26

工厂菜单说明

选项名称 调整范围

Brand
Main-MCU ver
Bootloader ver

Sub-MCU ver
EEPROM ver

Date

Model name

Scaler

Panel type

Current source

Auto color

ADC Gain

ADC Offset

Color temp.

根据IC SPEC

根据IC SPEC

不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整

支持输入源

执行动作

支持色温

TV AV/S Comp HD PC

o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

注释
客户名称
发布软体Main-MCU 版本
发布软体Bootloader 版本
发布软体Sub-MCU ver 版本
发布软体EEPROM 版本
软体发布日期
对外机种名
Scaler 型号
屏的型号

当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler
等相关信息同步更新。

Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会
对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。

在Auto Color 做完立即更新，并可手动调整。

在Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler

Gain & Offset RGB 值等相关信息同步更新。

Scaler Gain

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time

根据IC SPEC

根据IC SPEC

执行动作

不可调整

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

o o o o o

Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。

实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language

等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。

背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。

27

Total time

不可调整

o o o o o

AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。

Black light

Language

Energy LOGO On/Off * * * * *

Reset

Exit

根据IC SPEC

支持语言

执行动作

执行动作

* * * * *

* * * * *

√ √ √ √ √

√ √ √ √ √

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时Burn in自动关闭。

设置背光灯的亮度

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，

Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设

置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。

退出工厂模式

28

4.电气方框图

29

5. 线路图

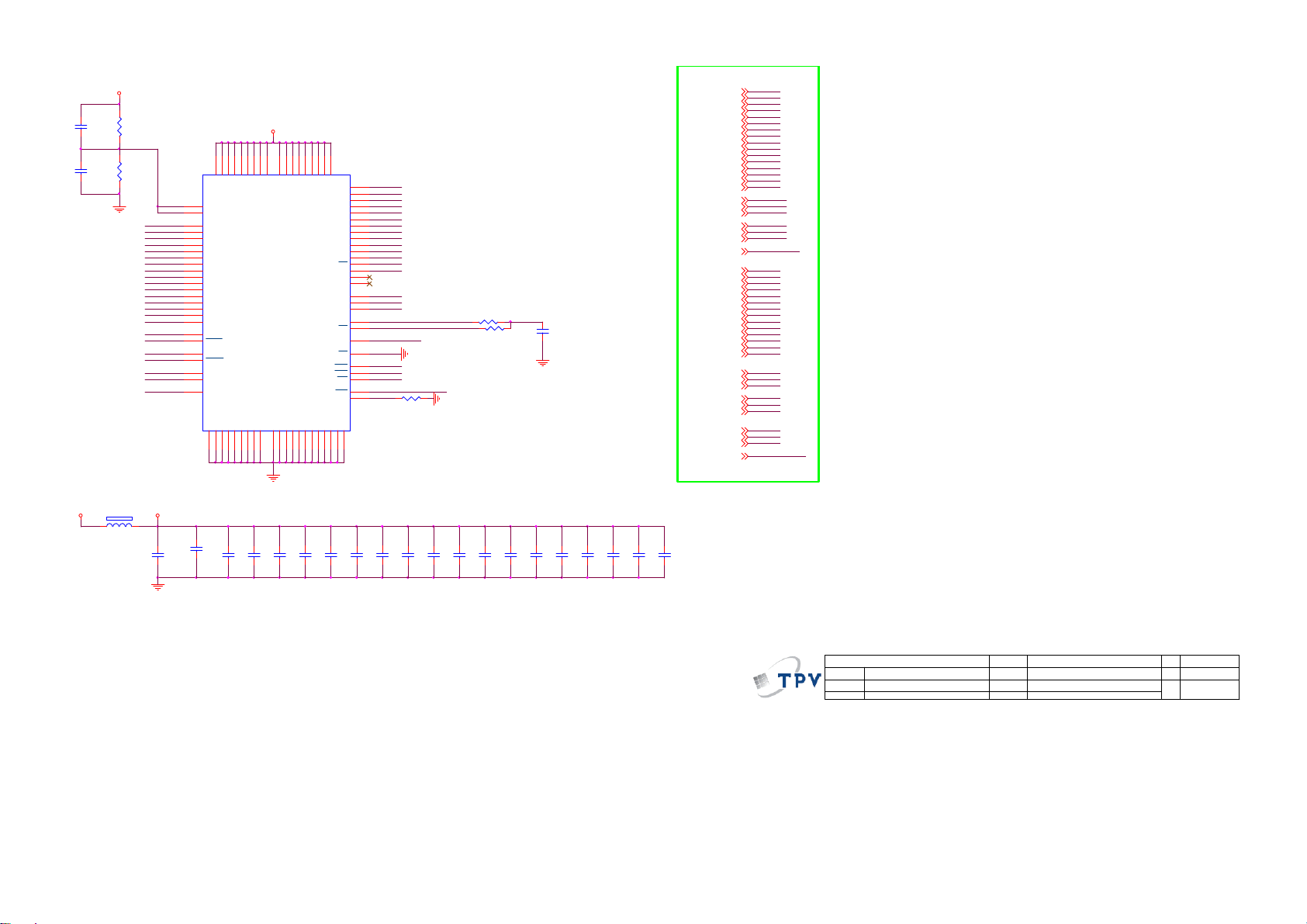

5.1 主板

715G6193M0D000004F

MAIN POWER

Power Connector

CN701

1

BL_DIM

2

BL_ON/OFF

3
4

3D_EN

5
6
7
8
9
10
11
12
13
14

+12V_Panel 12V_or_5V +5VSB

CONN

C733

+

NC/220UF 35V

PS_ON:
Normal: High
Stand_By : Low

12V_or_5V

C743

10UF 16V

CORE P OWER D1V 0

C751

100N 16V

U700

1

VCC

2

POK

3

GND
FB4EN

C757

NC/100N 16V

APW7323AKAI-TRG

USB PO WER

Vout = 0.925x (1+43.2/9.53)= 5.118V

+12V_Panel

C760

10UF 16V

12V_AMP

12V_or_5V

C718

0.1uF 50V

C745

10nF 50V

R731
4R7 1/16W 5%

E-Pad

VIN

LX

PGND

C766

10nF 50V

1
2
3

9
8
7
6
5

1
2
3

+5VSB

PS_ON

12V_AMP

C727

C738

100PF 50V

0.1uF 50V

C725

100PF 50V

2.1A

L705
22uH

U703

C741

9

GND

8

BS

SS

7

47nF 50V

VIN

EN

6

LX

COMP

5

GND4FB

R752

5.1K 1%

APW7313

C746

1.5nF 50V

Vout = 0.8x(1+R1/R2)=1.117V

10uF 10V

R732
NC/10K 1/16W 5%

L702

2.2uH 20mOHM 8A

C726

1UF 25V

1.8A

L706
22uH

U701

C758

9

GND

8

BS

SS

7

47nF 50V

VIN

EN

6

LX

COMP

5

GND4FB

R754

5.1K 1%

APW7313

22PF 50V

C767

1.5nF 50V

R712

10K+-5%1/16W

Q702
MMBT3904

C744

22PF 50V

C755

C761

R711

4.7K 1/16W

C717

0.1uF 50V

12V_or_5V

R758
NC/36K 1%

C752

1UF 10V

R749

R1

9.53K

R750

24KOHM 1/10W

R2

+3V3SB

R717

10K+-5%1/16W

Q703
MMBT3904

R751
1K 1/16W

FB702

1 2

NC/300R 4A

R714
100K

C739

R755

NC/100pF 50V

33K 1%

R757

7.5K +-1% 1/10W

Vout = 0.9 25x(1+33/7.5)=4. 995V

FB703

+5VSB

120R 6A

1 2

C754

2.2UF 10V

C749

C753

+

C750

100N 16V

22uF 10V

22uF 10V

+5VSB

R719

10K+-5%1/16W

Q713
MMBT3904

R718

4.7K 1/16W

C747

R756

NC/100pF 50V

43.2K OHM +-1% 1/16W

R759

9.53K 1%

+12V_Panel

R725

100K 1/16W

Q714
MMBT3904

R738

4.7K 1/16W

C742
22UF 10V

C756

NC/220UF 16V

+3V3SB

R721

10K+-5%1/16W

Q706
MMBT3904

C759
22UF 10V

+3V3SB

R713

10K+-5%1/16 W

FB704

1 2

300R 4A

R753
1K 1/16W

+5VSB

PWR_ON

FB701

1 2

300R 4A

C740
100N 16V

A1V0

D1V0

FB706

1 2

300R 4A

C748
100N 16V

R740

10K+-5%1/16W

Q707
MMBT3904

R760
1K 1/16W

PWR_ON

+5VSB

USB_5V

PWR_ON

INVERTER ON/OFF

+3V3SB

BL_EN

BL_EN
H: OFF
L: ON

BRIGHT ADJUST

100R 1/16W 5%

R708

10K 1/16W 5%

BL_D IMMIN G

Max:3.3V
Min: 0V

10K 1/10W

PWR_ON

R765

1K 1/16W

+5V Switch

PWR_ON

+5VSB

C724

100UF 16V

DDR POWER

+5V_SW

R764

D_3.3V

+5V_SW

R702

4.7K 1/16W
R705
10K 1/16W 5%

4.7K 1/16W

R706

+3V3SB

R733

Q710

R730

1K 1/16W

+

R707

BL_DIMBL_ADJ

R723

30K 1/10W 5%

PMBS3904

C720
NC/4.7uF 10V

10K 1/10W

R734
10K 1/10W

C730
10UF 10V

C702
NC/22uF 10V

+5VSB

R72410K 1/16W 5%

R737

3

1

2

C716

100NF 16V

R727

51K 1/16W 5%

Q705
PMBT3904

1
2
3

PMBT3904

POK
VEN
VIN
VPP4NC

Q701

Q711
AO3401A

BL_ON/OFF

BL_ON/OFF

C703
100N 16V

D_3.3V

+5V_SW

C715

Q704

1

8

100NF 16V

S

D

2

7

S

D

3

6

S

D

4

5

G

D

AO4449 -7A/-30V

U708

9

E-Pad

8

GND

7

ADJ

6

VO

5

R735

G9661

7.5K +-1% 1/10W

R736

2.4KOHM +-1% 1/10W

VO=0.8*(Rup+Rdown)/Rdown=0.8*(7.5+2.4)/2.4=3.3

For U702 Thermal issue, add D701 on 7/5'1 3

D700

Q709
AO3401A

10K 1/10W

1K 1/10W

C763

1UF 10% 16V

R726

Q708

GS1A

C735
1UF 10% 16V

R722

30K 1/10W 5%

PMBS3904

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

Control

PWR_ON

Interface

BL_ADJ

BL_EN
3D_EN

+

C719

NC/100UF 16V

+3V3SB

FB705

1 2

300R 4A

C731

C722

100N 16V

10UF 10V

D701

GS1A

10UF 10V

VIN3VOUT

C721

C734

100nF 50V

Vo=1.25x(1+R2/R1)+Iadj*R2=1.511V

OEM MODEL

TPV MODEL

PCB NAME

Sheet

U702

GND/ADJ

1

R728 220R 1/10W 1%

22R 1/10W 1%

R729

R763

24R 1/10W 1%

21 22Thursday, August 01, 2013

of

PWR_ON
BL_ADJ
BL_EN
3D_EN

G1084PT43U

C762

100UF 16V

R1

D1V5

C764

+

C765
100nF 50V

10UF 10V

2

R2

Custom

Size

Rev

称爹

称爹

<>

30

IF+ % IF- exange for Layout

TUN_IF+
TUN_IF- TUN _IF -

VGA_HS
VGA_VS
VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R-

PR0+
YPbPr0­Y0+
PB0+

GND

GND

GND

C4034 10UF 10V

VIN_A1-

AV1_CVBS+

1UF 10VC4002
1UF 10VC4003

TUN _I 2C_ SD A
TUN _I 2C_ SC L

ATV_IF_AGC

VGA_DDC _SCL

VGA_DDC _SDA

47nF 16VC4015
47nF 16VC4018
47nF 16VC4019
47nF 16VC4020
47nF 16VC4021
47nF 16VC4022

47nF 16VC4023
47nF 16VC4024
47nF 16VC4025
47nF 16VC4026

47nF 16VC4030

CLOAD_DW

47nF 16VC4035
47nF 16VC4037
47nF 16VC4031
47nF 16VC4039

CVBS_OUT

HDMI1_CLK­HDMI1_CLK+
HDMI1_D0­HDMI1_D0+
HDMI1_D1­HDMI1_D1+
HDMI1_D2­HDMI1_D2+

HDMI1_DDC_SDA
HDMI1_DDC_SCL

HOTPLUG2

HDMI2_CLK­HDMI2_CLK+
HDMI2_D0­HDMI2_D0+
HDMI2_D1­HDMI2_D1+
HDMI2_D2­HDMI2_D2+

HDMI2_DDC_SDA
HDMI2_DDC_SCL

LEDG

U401A

A1

IF_N

A2

IN_P

C5

TSD A2

B5

TSC L2

A4

RF_AGC

B4

IF_AGC

B13

VSCL1

C14

VSDA1

A12

HS

C13

VS

B12

VIN_0P

C12

VIN_0N

B11

VIN_1P

C11

VIN_1N

A10

VIN_2P

B10

VIN_2N

B9

VIN_3P

C9

VIN_Y 0N

A8

VIN_4P

B8

VIN_5P

F12

VIN_6P

D11

VIN_Y 1N

F11

VIN_7P

F10

VIN_8P

A3

CLOAD

C8

VIN_11P

B7

VIN_A0N

C7

VIN_9P

A6

VIN_10P

B6

AVO_1

RTD2694G 20x20

U401B

C19

P1CKN

A18

P1CKP

B18

P1_0N

C18

P1_0P

B17

P1_1N

C17

P1_1P

A16

P1_2N

B16

P1_2P

C20

HSDA1

B19

HSCL1

C3

ST25/PLUG_2

A23

P2CKN

B23

P2CKP

A22

P2_0N

B22

P2_0P

C22

P2_1N

B21

P2_1P

C21

P2_2N

A20

P2_2P

A24

HSDA2

C23

HSCL2

B20

ST24/PLUG_1

RTD2694G 20x20

Tuner

_____|

Video IO

|_______

HDMI

VDD10
ADCV10
VDCV10

ADCV33

DACV33

APLLV33

BB2V33

|_______

APLLG

VCM_BB

AIN_3L
AIN_3R
AIN_2L
AIN_2R
AIN_1L
AIN_1R

Audio IO

AIO_2L
AIO_2R

_____|

AIO_1L
AIO_1R

AOUT_L

AOUT_R

HPO_L

HPO_R

GP120/SPDI F_O

FSW_0
FSW_1

HV10
HV33

GND
GND

HGND

HREXT

CEC

P0CKN
P0CKP

P0_0N
P0_0P
P0_1N
P0_1P
P0_2N
P0_2P

HSDA0
HSCL0

ST23/PLUG_0

G11

IFV33

BBV33

IF_G
GND

VDCG

BBG0
BBG2

ADCG
DACG

G12
H8

F20

V33

K18
F14
P18
F15
J18
M18

K16
U13
J8
H15
J16
M16
B3
J12
P16

D10
D9
F8
D7
C6
D6
E7
E6
D5
E5

D4
E4
F9
D8

C4

D18
D19

G9
E19

W13
W14
H14

D16

C16

E1
E2
E3
F2
F3
G1
G2
G3

D2
D3

B24

ADC_1V0
VDC_1V0

+3V3SB

IF_3V3
ADC_3V3
BB2_3V3
ADC_3V3
BB0_3V3
BB2_3V3

1 2

R4002 0R05 1/16W

APLLGND

R4003 0R05 1/16W

BB0_GND

R4004 0R05 1/16W

BB2_GND

R4005 0R05 1/16W

VCM_BB
ADC_GND

R4006 0R05 1/16W

R4001 0R05 1/16W

2.2UF 10VC4050

2.2UF 10VC4047
C4040 10UF 6.3V 20%
C4041 10UF 6.3V 20%

Bandwidth Limitation for 10uF

SPDIF_ OUT

N_WP#

VDC_1V0
+3V3SB

GND

APLLGND

HDMI_REXT

R4007 6.2K

HDMI_CEC

R4008 27K 1/16W 5%

D1V0

FB407

120R/500m A

GND

2.2UF 10VC4027

2.2UF 10VC4028

2.2UF 10VC4036

2.2UF 10VC4038

VGA_IN_L
VGA_IN_R

VGA&YPbPr&CVBS
sharethesame conne ct or

AV1_IN_L
AV1_IN_R

AOUT_L
AOUT_R
HP_OUT_L
HP_OUT_R

SPDIFforHDMI1 ARCfunction

GND

FB4017

1 2

O ohm 4A

10UF 6. 3V 20%

GND

100N 16VC4012
1UF 10VC4013

D401

12

+3V3SB

RB501V- 40_R1_00001

CORE_1V0

C4004

10UF 6. 3V 20%

GND

GND

C4005

+3V3SB

A1V0

C4007

C4009

C4008

2.2UF 16V

2.2UF 16V

FB403

1 2

120R/500m A

FB406

1 2

120R/500m A

closetoMainChip closetoMainChip

BB0_3V3

BB0_GND

closetoMainChip

BB2_3V3

GND

closetoMainChip

C4006

2.2UF 16V

2.2UF 16V

IF_3V3

C4010

1UF 10V

GND

closetoMainChip

ADC_1V0

A1V0

C4014

100N 16V

GND

FB408

1 2

120R/500m A

C4032

100N 16V

BB0_GND

FB410

1 2

120R/500m A

C4001

100N 16V

GND

+3V3SB

1 2

120R/500m A

FB401

1 2

120R/500m A

C4033

1UF 10V

+3V3SB

C4042

1UF 10V

FB404

ADC_3V3

C4011

1UF 10V

GND

closetoMainChip

VDC_1V0

C4016

100N 16V

ADC_GND

ADC_GND

C4017

100N 16V

+3V3SB

Tuner

TUN _IF ­TUN _IF +

TUN _I 2C_ SD A
TUN _I 2C_ SC L

ATV_IF_AGC

VGA&YPbPr

VGA_DDC _SCL

IN

VGA_DDC _SDA

VGA_HS
VGA_VS
VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R-

PB0+
YPbPr0­Y0+
PR0+

VGA_IN_L
VGA_IN_R

VGA&YPbPr&CVBS
sharethesamecon nect or

CVBS
IN

AV1_CVBS+
VIN_A1­AV1_IN_L
AV1_IN_R

Headphone

HP_OUT_L
HP_OUT_R

HDMI1_CLK­HDMI1_CLK+
HDMI1_D0­HDMI1_D0+
HDMI1_D1­HDMI1_D1+
HDMI1_D2-

HDMI1_D2+
HDMI1_DDC_SDA
HDMI1_DDC_SCL

HDMI2_CLK-

HDMI2_CLK+

HDMI2_D0-

HDMI2_D0+

HDMI2_D1-

HDMI2_D1+

HDMI2_D2-

HDMI2_D2+
HDMI2_DDC_SDA
HDMI2_DDC_SCL

HDMI_CEC

HOTPLUG2

CVBS_OUT

N_WP#

LEDG

SPDIF

SPDIF _OUT

AOUT_L
AOUT_R

TUN _IF +

TUN_I2C_SDA
TUN_I2C_SCL

ATV_IF_AGC

VGA_DDC _SCL
VGA_DDC _SDA
VGA_HS
VGA_VS
VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R-

PB0+
YPbPr0­Y0+
PR0+

VGA_IN_L
VGA_IN_R

AV1_CVBS+

VIN_A1-

AV1_IN_L
AV1_IN_R

HP_OUT_L
HP_OUT_R

HDMI1_C LK­HDMI1_C LK+
HDMI1_D 0­HDMI1_D 0+
HDMI1_D 1­HDMI1_D 1+
HDMI1_D 2­HDMI1_D 2+
HDMI1_DDC_SDA
HDMI1_DDC_SCL

HDMI2_C LK­HDMI2_C LK+
HDMI2_D 0­HDMI2_D 0+
HDMI2_D 1­HDMI2_D 1+
HDMI2_D 2­HDMI2_D 2+
HDMI2_DDC_SDA
HDMI2_DDC_SCL

HDMI_CEC

HOTPLUG2

CVBS_OUT

N_WP#

LEDG

SPDIF_ OUT

AOUT_L
AOUT_R

31

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

of

322Monday, July 22, 2013

Size

Rev

称爹

A3

称爹

<>

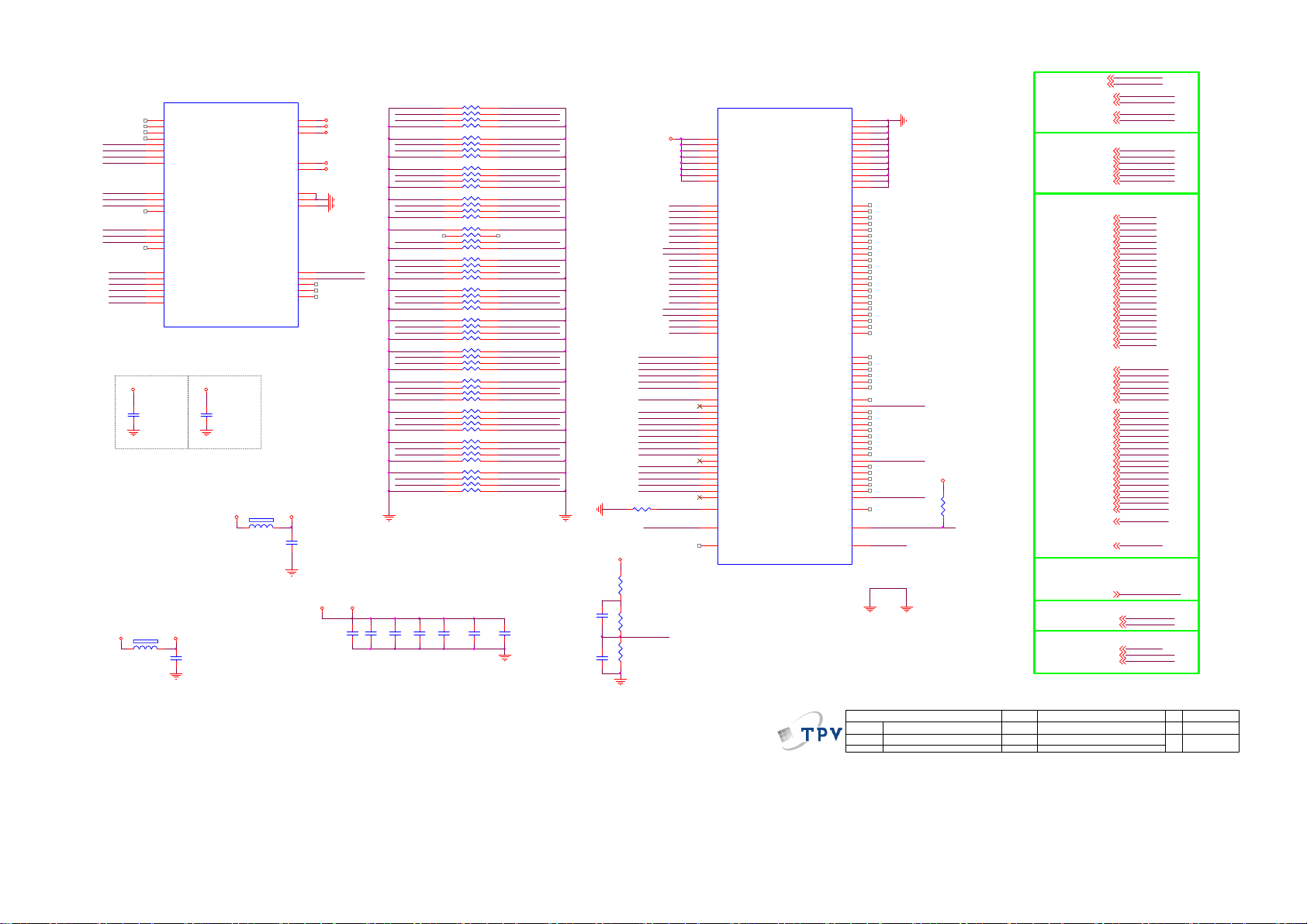

USB1_DP
USB1_DM
I2C_SCL_EE
I2C_SDA_EE

USB3_DP
USB3_DM
EEPROM_WP

WIFI_DP
WIFI_DM
LR_EN

Ether_TxP
Ether_TxN
Ether_Rx P
Ether_Rx N
ETN_LED0
ETN_LED1

J4/K4 USB 有USB Hub

兼容性问题，挪到

pin on 20130426

A14/B14

VDC_1V0

GND

A1V0 USB_1V0

1 2
120R/500mA

U401C

H2

U3TXP

H3

U3TXN

J1

U3RXP

J2

U3RXN

J3

U2DP2

K2

U2DM2

L1

GP114/U3_CT

K3

GP115/U3_FG

B14

U2DP3

A14

U2DM3

B15

GP78/U2_CT

C15

GP80/U2_FL

J4

U2DP1

K4

U2DM1

K21

GP79/U1_CT

J23

GP81/U1_FL

L2

ETNTXP

L3

ETNTXN

M2

ETNRXP

M3

ETNRXN

AD24

GP48/ETNLED

AA21

GP49/ETNLED

RTD2694G 20x20

C4045

4.7UF 10% 10V

closeto
BALL_ H9

FB411

GND

USB_1V0

C4048

100N 16V

GND

_______|

USB Ethernet

|_________

C4046

4.7UF 10% 10V

closeto
BALL_ F6

+3V3SB

U3RXGND

GP2/EXT_CLK
GP3/EXT_VAL

GP4/EXT_SYNC

GP5/EXT_ERR

GP6/EXT_D0

FB412

1 2

120R/500mA

ETHV10

U3RXV10

USBV10

ETHV33

U3V33

ETNGND

U3TXGND

U3_3V3

GND

G8
H9
F6

N18
G14

N16
J9
H16

AC22
AE23
AD23
AC23
AB22

C4044

100N 16V

VDC_1V0
VDC_1V0
USB_1V0

BB2_3V3
U3_3V3

GND
APLLGND

AMB_I2C-SCL
AMB_I2C-SDA

D1V5

10UF 6. 3V 20%

DDR1V5

C4051

DGND

C4070

10UF 6.3V 20%

10UF 6.3V 20%

DW_S_DA3

DW_S_DBA2

DW_S_DA5
DW_S_DA7

22 OHM

DW_S_DA2

DW_S_DA13

22 OHM

DW_S_RAS#
DW_S_CAS#

22 OHM

22 OHM

DW_S_DBA1
DW_S_DA12

22 OHM

DW_S_DA10

DW_S_C KE

22 OHM

DW_S_DA8
DW_S_DA4

22 OHM

DW_S_DA1

DW_S_DA11

22 OHM

DW_S_DA0

DW_S_WE#

22 OHM

DW_S_DA_RST#

DW_S_DA9

22 OHM

DW_S_DODT

DW_S_DBA0

22 OHM

DW_S_CK

DW_S_CK#

C4068

C4052

2.2UF 16V

RP401

8
7
6
5

8
7
6
5

RP402 22 OHM

8
7
6
5

RP403

8
7
6
5

RP404

8
7
6
5

RP405

8
7
6
5

RP406

8
7
6
5

RP407

8
7
6
5

RP408

8
7
6
5

RP409

8
7
6
5

RP410

8
7
6
5

RP411

8
7
6
5

RP412

8
7
6
5

RP413

C4053

100N 16V

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

C4054

100N 16V

22 OHM

DW_S_DA3_DW

DW_S_D BA2_DW

DW_S_DA5_DW
DW_S_DA7_DW

DW_S_DA2_DW

DW_S_DA13_DW

DW_S_R AS#_DW
DW_S_C AS#_DW

DW_S_DA6_DWDW_S_DA6

DW_S_D BA1_DW
DW_S_DA12_DW

DW_S_DA10_DW

DW_S_CKE_DW

DW_S_DA8_DW
DW_S_DA4_DW

DW_S_DA1_DW

DW_S_DA11_DW

DW_S_DA0_DW
DW_S_WE#_DW

DW_S_DA_RST#_DW

DW_S_DA9_DW

DW_S_D ODT_DW

DW_S_D BA0_DW

DW_S_C K_DW

DW_S_CK#_DW

C4043

100N 16V

GND

DGND

100N 16V

100N 16V

GND

C4049

C4055

DDR1V5

DW_S_D M1
DW_S_D Q11
DW_S_D Q9
DW_S_D Q13
DW_S_D Q0
DW_S_D Q15

DW_S_D Q2
DW_S_LLDQS
DW_S_LLDQS#

DW_S_D Q6

DW_S_D Q4

DW_S_D Q7

DW_S_D Q5

DW_S_D Q1

DW_S_D Q3

DW_S_D M0

DW_S_D Q12
DW_S_LUDQS#
DW_S_LUDQS

DW_S_D Q14

DW_S_D Q8

DW_S_D Q10

DW_S_C KE_DW
DW_S_D A4_DW
DW_S_D BA1_DW
DW_S_D A6_DW
DW_S_D A1_DW
DW_S_D A8_DW

DW_S_DA11_DW

DW_S_R AS#_DW
DW_S_C AS#_DW
DW_S_W E#_DW
DW_S_DA10_DW
DW_S_C K_DW
DW_S_C K#_DW
DW_S_D BA0_DW
DW_S_D BA2_DW

DW_S_D A5_DW
DW_S_D A0_DW
DW_S_D A2_DW
DW_S_DA13_DW
DW_S_D A9_DW

R4010 240R 1% 1/16W

DW_S_DVR EF1

DDR1V5

R4013
0oHM

R4012
1K 1/16W 1%

DW_S_DVR EF1

R4009
1K 1/16W 1%

GND

AC10
AB10
AC11

AB11

AE12

P6
P7
R6
R7
T7
U7
V7

W7

N1
N2
P2
N3
R1
P3
R2
R3
T2
T3
U1
U2
U3
V2

V3
W1
W2
W3

Y2

Y3

AA1
AA2

AE1
AC7
AD1
AB7
AC8
AE2

AD2
AC9
AB8
AD3
AB9
AE3
AD4
AE4

AD5
AE5

AE6
AD6

AA4

AA3

AB6

U401D

V15
V15
V15
V15
V15
V15
V15
V15

LUDM
DQ11
DQ9
DQ13
DQ0
DQ15
DQ2
LLDQS
LLDQS#
DQ6
DQ4
DQ7
DQ5
DQ1
DQ3
LDM
DQ12
LUDQS#
LUDQS
DQ14
DQ8
DQ10

RTD2694G 20x20

CKE
ADD4
BA1
ADD6
ADD1
ADD8

ADD11
ADD12
RAS#
CAS#
WE#
ADD10
CK1
CK1#
BA0
BA2
ADD3
ADD5
ADD0
ADD2
ADD13
ADD9
ADD7

ZQ

VRI_0

ODT

DDR

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

DRST#

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

NC
NC
NC
NC
NC
NC

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

CS#

ODT

V11
W11
V16
V10
W10
U16
P11
R11
T11
P10
R10
T10

AD13
AE14
AC13
AC14
AD14
AC15
AD15
AE16
AD16
AC16
AD17
AC17
AE18
AD18
AC18
AD19
AC19
AE20
AD20
AC20
AD21
AC21

AE7
AC1
AD7
AB1
AC2
AE8

AD8
AC3

DW_S_DA12_DW

AB2
AD9
AB3
AE9
AE22
AD22
AC4
AB4
AC5

DW_S_DA3_DW

AD10
AE10
AB5
AE11
AD11
AC6

DW_S_DA7_DW

AB12

AC12

AD12

GND

GND

DW_S_DA_RST#_DW

DW_S_DODT_DW

DGND

D1V5

R4025
10K+-5 %1/16W

ToUSB

ToEthernet

ToDDR

ToPanel

WIFI_DM
WIFI_DP

USB1_DP
USB1_DM

USB3_DP
USB3_DM

Ether_TxP

Ether_TxN
Ether_Rx P
Ether_Rx N

ETN_LED0

ETN_LED1

DW_S_DM1

DW_S_DQ11

DW_S_DQ9

DW_S_DQ13

DW_S_DQ0

DW_S_DQ15

DW_S_DQ2

DW_S_LLDQS
DW_S_LLDQS#

DW_S_DQ6

DW_S_DQ4

DW_S_DQ7

DW_S_DQ5

DW_S_DQ1

DW_S_DQ3

DW_S_DM0

DW_S_DQ12

DW_S_LUDQS#
DW_S_LUDQS

DW_S_DQ14

DW_S_DQ8

DW_S_DQ10

DW_S_CKE

DW_S_DA4

DW_S_DBA1

DW_S_DA6

DW_S_DA1

DW_S_DA8

DW_S_DA11

DW_S_DA12

DW_S_RAS#

DW_S_CAS#

DW_S_WE#

DW_S_DA10

DW_S_CK

DW_S_CK#

DW_S_DBA0

DW_S_DBA2

DW_S_DA3

DW_S_DA5

DW_S_DA0

DW_S_DA2

DW_S_DA13

DW_S_DA9

DW_S_DA7

DW_S_DODT

DW_S_DA_RST#

LR_EN

AMB_I2C-SDA

AMB_I2C-SCL

EEPROM_WP

I2C_SC L_EE

I2C_SD A_EE

WIFI_DM
WIFI_DP

USB1_DP
USB1_DM

USB3_DP
USB3_DM

Ether_TxP
Ether_TxN
Ether_Rx P
Ether_Rx N
ETN_LED0
ETN_LED1

DW_S_D M1_
DW_S_D Q11_
DW_S_D Q9_
DW_S_D Q13_
DW_S_D Q0_
DW_S_D Q15_
DW_S_D Q2_
DW_S_LL DQS_
DW_S_LLDQS#_
DW_S_D Q6_
DW_S_D Q4_
DW_S_D Q7_
DW_S_D Q5_
DW_S_D Q1_
DW_S_D Q3_
DW_S_D M0_
DW_S_D Q12_
DW_S_LUDQS#_
DW_S_LUDQS_
DW_S_D Q14_
DW_S_D Q8_
DW_S_D Q10_

DW_S_C KE
DW_S_D A4
DW_S_D BA1
DW_S_D A6
DW_S_D A1
DW_S_D A8

DW_S_D A11
DW_S_D A12
DW_S_R AS#
DW_S_C AS#
DW_S_W E#
DW_S_D A10
DW_S_C K
DW_S_C K#
DW_S_D BA0
DW_S_D BA2
DW_S_D A3
DW_S_D A5
DW_S_D A0
DW_S_D A2
DW_S_D A13
DW_S_D A9
DW_S_D A7

DW_S1_DODT

DW_S_DA_RST#_

LR_EN

AMB_I2C-SDA
AMB_I2C-SCL

EEPROM_WP
I2C_SCL_EE
I2C_SD A_EE

32

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

of

422Thursday, July 11, 2013

Size

Rev

称爹

Custom

称爹

<>

+3V3SB

R4030 4.7K 1/16W

R4023 4.7K 1/16W
R4033 4. 7K 1/16W

R4036 NC /4.7K
R4037 NC /4.7K

R4041 4. 7K 1/16W
R4014 4. 7K 1/16W

PLL_EN (SPI_CS#, PAD_SPI_CS_N)
0 : Disable
1 : Enable
test mode (N_ALE/SPI_SDO, PAD _SPI_DO)
0 : enable
1 : disable
EJTAG (N_CLE/ SPI_SCLK, PA D_SPI_SCK)
0 : enable
1 : disable
NAND EC C typ e bit[0]

癸莱

0xb801_0128[0]
(N_WE#,PAD_GPI O_126)
NAND EC C typ e bit[1]

癸莱

0xb801_0128[1]
(N_RE#, PAD_GPI O_127)

+3V3SB

FB413

1 2

120R/500mA

C4057

A1V0

1 2

120R/500m A

R4019 NC/1M

C4056

22PF 50V

PLL_GND PLL_GND

10K 1/16W 5%

100N 16V

FB414

GND

C4058
100N 16V

PLL_GND

X40 1

1 2

R4018 51R 1%

27MHz

C4064
22PF 50V

+3V3SB

R4020

RESET#

C4065

1UF 10V

GND

+3V3SB

R4035

4.7K 1/16W

R4046

4.7K 1/16W

[GPIO123]default UART
[GPIO124]default UART

[LSADCREF]LSADCREF

R4017
10K 1/16W 5%

GND

UART sele ction (UART0_TX, PAD_G PIO_123)
0 : VGADDC
1 : GPIO123/124

U401E

G25

SPI_CS#

N_ALE/S PI_S DO
N_CLE/S PI_S CLK

N_CE0#

N_WE#
N_RE#

N_RDY

N_DATA0
N_DATA1
N_DATA2
N_DATA3
N_DATA4
N_DATA5
N_DATA6
N_DATA7

FB415

1 2

120R/500mA

GND

GND GND

[LSADC0]KEY0
[LSADC1]KEY1

H25
H24
H22

G24
G23
H21
G22
G21

D20
E21
E22
E23
F21
F22
F24
F25

PLL_GND

XIN

BL_EN
AMP_PD

PANEL_EN

LS_SCL
LS_SDA

LEDBAR_PWR EN

BL_ADJ

UART0_TX

UART0_RX

LSADC0
LSADC1

LSADC_REF

S_CS#
S_DI
N_ALE/S_DO
N_CLE/S_SC LK

GP45/N_CE1#
GP46/N_CE0#
GP126/N_WR #
GP127/N_RD#
ST21/N_RDY

ST6/N_D0
ST7/N_D1
ST8/N_D2
ST9/N_D3
ST10/N_D4
ST11/N_D5
ST12/N_D6
ST13/N_D7

RTD2694G 20x20

F16

B2

B1

C1
C2

XOU T

F13

D13

D12

L21
L23

C10

L22

AB23
AA23
AA24

L10
L11
L12
L13
L14
L15

M9
M10
M11
M12
M13
M14
M15

N9
N12
N13
N14
N15

P9

P12
P13
P14
P15

T12
T16

U9

V9

K22

AE24

J22
J21

E24
E25

D17
D15
D14

U401G

PLLV33
PLLV10

PLLG

XOU T
XIN
XOR TC
XIR T C

RST

GP118
GP119
GP116
GP117

GP112/I_D0
GP113/I_D1
GP18/I_D2

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

T9

GND
GND
GND
GND
GND

GP130
GP7/SPDIF _O

GP123/UART
GP124/UART

LS0/KEY0
LS1/KEY1

LSREF
LS2
LS4

RTD2694G 20x20

____|

Falsh ROM

|____

Crystal

GP23/TPO_SYNC

GP24/TPO_VAL

TP_O_CLK

GP14/TPO_D0
GP15/TPO_D1

GP8/TPO_D2

GP9/TPO_D3
GP10/TPO_D4
GP11/TPO_D5
GP12/TPO_D6
GP13/TPO_D7

TP2_SYNC_I N

TP2_VAL_IN

TP2_C LK_ IN

TP2_D0
TP2_D1
TP2_D2
TP2_D3
TP2_D4
TP2_D5
TP2_D6
TP2_D7

GP102/IRE Q

GP104/INPAC K#

GP106/WAIT

GP107/CD#

CO10
CO10
CO10
CO10
CO10
CO10
CO10
CO10
CO10
CO10
CO10
CO10

STV10

RTC33

LDO_33

EFUSE33

ST22/LED

ST20/PWR_EN

ST19/IRTX
ST17/IRRX

ST18/PWR_KEY

ST16/BL_EN

ST14/PAN_EN

ST15/MUTE

Y22
Y21
AB13

AB24
AA25
AE25
AD25
AC25
AC24
AA22
AB25

AB16
AB15
AB14

AB17
AB18
AB19
AB20
AB21
AA18
AA19
AA20

R20
P20
N20
M20

K6
K7
K10
K11
K12
K13
K14
K15
L6
L7
M6
M7

F4

H20

G19

V33

F19

V33

E20
G20

W9

GND

L9

GND

U11

GND

U14

GND

U15

GND

U10

GND

N11

GND

N10

GND

W16

GND

W15

GND

W12

GND

V13

GND

V14

GND

V15

GND

V12

GND

R9

GND

R12

GND

R13

GND

R14

GND

R15

GND

R16

GND

A25
B25
D21
C24
C25
D22
D24
D25

A25<=> D22, Change pin.
prevent error of POL

D_3.3V

R4040

4.7K 1/16W

R4022 100R 1/16W 5%

MEMC_R ST

R4038 4. 7K 1/16W
R4015 N C/100R 1/16W 5%
R4016 N C/100R 1/16W 5%
R4024 0R05 1/16W

R4021 10 0R 1/16W 5%

CORE_1V0

ST_1V0

C4063 10UF 6.3V 20%

C4062

100N 16V

HIF_Selection_n (S T_GPIO_17, PAD_ST_G PIO_17)

0 : HIF Enabl e

1 : HIF Disable

ROM boot (LEDG, PA D_ST_GPIO_16)

0 : boot from ROM

1 : don't boot from ROM

Flash type (HOTPLUG0, PAD_ST_GPIO_15)

0 : SPI-Flash boot

1 : NAND- Flash boo t

PWR_ON

ST_GPIO_17

LEDR

R4027 4.7K 1/16W

HOTPLUG1

HOTPLUG0

R4034 4. 7K 1/16W

R4039
NC/4.7K

MEMC_S CL
MEMC_S DA
HP_OUT_JD

HDMI2_CON 5V

GND

C4061

1UF 10V

GND

IRRX

3D_EN

C4059

10UF 6.3V 20%

D_3.3V

JackDetec tion
Function(place
resistorNear
Connector)

+3V3SB

C4060

10UF 6.3V 20%

R4043 15KOHM 1/16W

GND

Note, need to cancel the

+3V3SB

pull-High resister of IR
board

33

TX_ADP _
TX_ADN _
TX_A_CKP_
TX_A_C KN_
TX_ACP _
TX_ACN _
TX_ABP_
TX_ABN_
TX_AAP_
TX_AAN_

+3V3SB

Y25

Y24
W25
W24

V25

V24

U25

U24

T25

T24

R25

R24

W20

V20
W23
W22
W21

V22

V21

U23

U22

U21

T22

T21

U401F

AFP
AFN
AEP
AEN
ACKP
ACKN
ACP
ACN
ABP
ABN
AAP
AAN

LVDS

BFP
BFN
BEP
BEN
BCKP
BCKN
BCP
BCN
BBP
BBN
BAP
BAN

RTD2694G 20x20

Add for Heat Sink Outline 20110106

PowerControl

PWR_ON
BL_ADJ

BL_EN

PANEL_EN

ToFlashROM

N_ALE/SPI_SD O
N_CLE/SPI_SCLK

N_CE0#
N_WE#
N_RE#

N_RDY
N_DATA0
N_DATA1
N_DATA2
N_DATA3
N_DATA4
N_DATA5
N_DATA6
N_DATA7

Panel

3D_EN

MEMC_ RST
MEMC_S CL
MEMC_S DA

N_ALE/SPI_SD O
N_CLE/SPI_SCLK

DCKP

DCKN

CLKP
CLKN

U12

GND

CFP

CFN

CEP

CEN

CCP
CCN

CBP

CBN

CAP

CAN

DFP

DFN

DEP

DEN

DCP
DCN

DBP

DBN

DAP

DAN

GND

P25
P24
N25

TX_CDP_

N24

TX_CDN_

M25

TX_C_CKP_

M24

TX_C_CKN_

L25

TX_CCP_

L24

TX_CCN_

K25

TX_CBP_

K24

TX_CBN _

J25

TX_CAP_

J24

TX_CAN _

U20
T20
R23
R22
R21
P22
P21
N23
N22
N21
M22
M21

Amp

AMP_PD

HDMIHotplug

HOTPLUG1
HDMI2_CON 5V

KEYPAD

LSADC0
LSADC1

LEDR

LS_SCL
LS_SDA

UART

UART0_TX
UART0_RX

HP_OUT_JD

LEDBAR_PWR EN

LEDBAR_PWR EN

IRRX

ToLVDS

TX_ADP _
TX_ADN_
TX_A_CKP_
TX_A_C KN_
TX_ACP _
TX_ACN_
TX_ABP_
TX_ABN _
TX_AAP_
TX_AAN _

TX_CDP_
TX_CDN_
TX_C_CKP_
TX_C_C KN _
TX_CCP_
TX_CCN_
TX_CBP_
TX_CBN _

HS401

1
2

HEAT SINK

90A0060‐201

T P V ( Top Victory Electroni cs Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MOD EL Size

TPV MODEL

PCB NAME

Sheet

of

522Thursday, August 01, 2013

TX_CAP_
TX_CAN _

PWR_ON
BL_ADJ
BL_EN
PANEL_EN

N_CE0#
N_WE#
N_RE#

N_RDY
N_DATA0
N_DATA1
N_DATA2
N_DATA3
N_DATA4
N_DATA5
N_DATA6
N_DATA7

3D_EN

MEMC_ RST
MEMC_S CL
MEMC_S DA

AMP_PD

HOTPLUG1
HDMI2_CON5V

LSADC0
LSADC1

LEDR

LS_SCL
LS_SDA

UART0_TX
UART0_RX

HP_OUT_JD

IRRX

TX_ADP _
TX_ADN_
TX_A_CKP_
TX_A_CKN_
TX_ACP _
TX_ACN_
TX_ABP_
TX_ABN_
TX_AAP_
TX_AAN_

TX_CDP_
TX_CDN_
TX_C_CKP_
TX_C_CKN_
TX_CCP_
TX_CCN_
TX_CBP_
TX_CBN _
TX_CAP_
TX_CAN _

Rev

称爹

<>

Custom

称爹

NAND‐Flash

M3. 3V

R4042 4.7K 1/ 16W

GND

R4044 NC /4.7K 1/1 6W

R4045 4.7K 1/ 16W

R4047 4.7K 1/ 16W

N_DATA0
N_DATA1
N_DATA2
N_DATA3
N_DATA4
N_DATA5
N_DATA6
N_DATA7

N_WP#
N_CLE/SPI_SCLK
N_ALE/SPI_SD O

N_CE0#

N_RE#

N_WE#

N_RDY

29
30
31
32
41
42
43
44

19
16
17
15
14
10

18

38

9
8

4
5
6
7

I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7

WP
CL
AL
NC_E4
NC_E3
NC_E2
E1
R
W

NC_R/B4
NC_R/B3
NC_R/B2
R/B1

NC_PRE

U405

K9F2G08U0C-SIB0

37

VDD1

12

VDD0

36

VSS1

13

VSS0

48

NC21

47

NC20

46

NC19

45

NC18

40

NC17

39

NC16

35

NC15

34

NC14

33

NC13

28

NC12

27

NC11

26

NC10

25

NC9

24

NC8

23

NC7

22

NC6

21

NC5

20

NC4

11

NC3

3

NC2

2

NC1

1

NC0

GND

GND

C4066
100N 16V

M3. 3V

C4067
100N 16V

1 2

FB416

120R/500m A

(35+38mA)

D_3.3V

From Main Chip

N_ALE/ SPI_SDO
N_CLE/SPI_SCLK

N_CE0#
N_WE#
N_RE#

N_RDY

N_WP#

N_DATA0
N_DATA1
N_DATA2
N_DATA3
N_DATA4
N_DATA5
N_DATA6
N_DATA7

EEPROM_WP

I2C_SC L_EE
I2C_SDA_EE

N_ALE/SPI_SD O
N_CLE/SPI_SCLK

N_CE0#
N_WE#
N_RE#
N_RDY
N_WP#

N_DATA0
N_DATA1
N_DATA2
N_DATA3
N_DATA4
N_DATA5
N_DATA6
N_DATA7

EEPROM_WP
I2C_SC L_EE
I2C_SDA_EE

CN4006

CONN

4
3
2
1

D_3.3V

R4060100OHM
R4061100OHM

GND

D_3.3V

R4062

4.7K

R4067 100OHM

R4065 100OHM

R4066 100OHM

C4120

1UF 10V

8
7
6
5

M24C16

VCC
WC
SCL
SDA

U4002

VSS

R4063

4.7K

D_3.3V

R4064

4.7K

EEPROM_WP

I2C_SC L_EE

I2C_SDA_EE

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MO DEL

TPV MOD EL

PCB NA ME

Sheet

622Wednesday , May 22, 2013

of

Size

Rev

称爹

B

称爹

<>

1

NC

2

NC

3

NC

4

GND

34

1V5DDR_1

C4069

R4070

100N 16V

1K 1/16W 1%

R4072

C4071

1K 1/16W 1%

100N 16V

GND

DW_S_DQ0
DW_S_DQ1
DW_S_DQ2
DW_S_DQ3
DW_S_DQ4
DW_S_DQ5
DW_S_DQ6
DW_S_DQ7
DW_S_DQ8
DW_S_DQ9
DW_S_DQ10
DW_S_DQ11
DW_S_DQ12
DW_S_DQ13
DW_S_DQ14
DW_S_DQ15

DW_S_LLDQS
DW_S_LLDQS#

DW_S_LUDQS
DW_S_LUDQS#

DW_S_DM0
DW_S_DM1

DW_S_DODT

FB417

DDR1V5 1V5DDR_1

1 2

120R 3A

C4095

10UF 6. 3V 20%

H9

H1

VREF_DQ

M8

VREF_CA

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

F3

LDQS

G3

LDQS

C7

UDQS

B7

UDQS

E7

LDM

D3

UDM

K1

ODT

G9

C4096

10UF 6. 3V 20%

NT5CB128M16HP-C G

NC = J1,J9, L1,L9

C4098

C4097

100N 16V

100N 16V

1V5DDR _1

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

GND

C4099

100N 16V

C4100

100N 16V

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

A10/AP

A12/BC

NC_A14
NC_A15

CKE

RAS
CAS

C4101

100N 16V

FromRTD2694A

DW_S_DQ8
DW_S_DQ9
DW_S_DQ10
DW_S_DQ11
DW_S_DQ12
DW_S_DQ13
DW_S_DQ14
DW_S_DQ15
DW_S_DQ0
DW_S_DQ1
DW_S_DQ2

C4114

100N 16V

DW_S_DQ3
DW_S_DQ4
DW_S_DQ5
DW_S_DQ6
DW_S_DQ7

DW_S_LUDQS#
DW_S_LUDQS
DW_S_DM1

DW_S_LLDQS#
DW_S_LLDQS
DW_S_DM0

DW_S_DODT

DW_S_DA0
DW_S_DA1
DW_S_DA2
DW_S_DA3
DW_S_DA4
DW_S_DA5
DW_S_DA6
DW_S_DA7
DW_S_DA8
DW_S_DA9
DW_S_DA10
DW_S_DA11
DW_S_DA12
DW_S_DA13

DW_S_DBA0
DW_S_DBA1
DW_S_DBA2

DW_S_WE#
DW_S_CAS#
DW_S_RAS#

DW_S_CKE
DW_S_CK
DW_S_CK#

DW_S_D A_RST#

U402

N3

DW_S_DA0

A0

P7

DW_S_DA1

A1

P3

DW_S_DA2

A2

N2

DW_S_DA3

A3

P8

DW_S_DA4

A4

P2

DW_S_DA5

A5

R8

DW_S_DA6

A6

R2

DW_S_DA7

A7

T8

DW_S_DA8

A8

R3

DW_S_DA9

A9

L7

DW_S_DA10

R7

A11

BA0
BA1
BA2

RST

DW_S_DA11

N7

DW_S_DA12

T3

DW_S_DA13

NC

T7
M7

M2

DW_S_D BA0

N8

DW_S_D BA1

M3

DW_S_D BA2

J7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

K7

K9

L2

J3
K3
L3

T2
L8

C4102

100N 16V

DW_S_C K

DW_S_CK#

DW_S_CKE

GND

DW_S_R AS#
DW_S_C AS#
DW_S_WE#

DW_S_D A_RST#

R4076

240R 1% 1/16W

C4104

C4103

100N 16V

100N 16V

CK
CK

CS

WE

ZQ

GND

C4105

100N 16V

C4106

100N 16V

R4078

51R 1%

R4080 51R 1%

C4107

100N 16V

C4108

100N 16V

C4072
100N 16V

GND

C4109

100N 16V

C4110

100N 16V

C4111

100N 16V

C4112

100N 16V

C4113

100N 16V

DW_S_D Q8
DW_S_D Q9
DW_S_D Q10
DW_S_D Q11
DW_S_D Q12
DW_S_D Q13
DW_S_D Q14
DW_S_D Q15
DW_S_D Q0
DW_S_D Q1
DW_S_D Q2
DW_S_D Q3
DW_S_D Q4
DW_S_D Q5
DW_S_D Q6
DW_S_D Q7

DW_S_LU DQS#
DW_S_LU DQS
DW_S_D M1

DW_S_LLD QS#
DW_S_LLD QS
DW_S_D M0

DW_S_D ODT

DW_S_DA0
DW_S_DA1
DW_S_DA2
DW_S_DA3
DW_S_DA4
DW_S_DA5
DW_S_DA6
DW_S_DA7
DW_S_DA8
DW_S_DA9
DW_S_DA10
DW_S_DA11
DW_S_DA12
DW_S_DA13

DW_S_DBA0
DW_S_DBA1
DW_S_DBA2

DW_S_WE#
DW_S_CAS#
DW_S_RAS#

DW_S_CKE
DW_S_CK
DW_S_CK#

DW_S_DA_RST#

GND

35

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

of

722Thursday, August 01, 2013

Size

Custom

Rev

称爹

称爹

<>

TX_AD P_
TX_ADN_
TX_A_CKP_
TX_A_ CKN _

TX_AC P_
TX_ACN_
TX_AB P_
TX_AB N_

TX_AA P_
TX_AA N_
TX_CDP_
TX_CDN_

TX_C_CKP_
TX_C _CK N_
TX_CCP_
TX_CCN_

TX_C BP_
TX_C BN_
TX_C AP_
TX_C AN_

4 5
3 6
2 7
1 8

RP430 0R

4 5
3 6
2 7
1 8

RP431 0R

4 5
3 6
2 7
1 8

RP432 0R

4 5
3 6
2 7
1 8

RP421 0R

4 5
3 6
2 7
1 8

RP426 0R

TX_ADP_1
TX_ADN_1
TX_A_CKP_1
TX_A_CKN_1

TX_ACP_1
TX_ACN_1
TX_ABP_1
TX_ABN_1

TX_AAP_1
TX_AAN_1
TX_CDP_1
TX_CDN_1

TX_C_CKP_1
TX_C_CKN_1
TX_CCP_1
TX_CCN_1

TX_CBP_1
TX_CBN_1
TX_CAP_1
TX_CAN_1

PANEL_VCC

SELBIT

MEMC _SD A
LR_EN
LR_O

TX_ADP_1
TX_A_CKP_1
TX_ACP_1
TX_ABP_1
TX_AAP_1
TX_CDP_1
TX_C_CKP_1
TX_CCP_1
TX_CBP_1
TX_CAP_1

D_3.3V

Panel

LR_EN
3D_EN
LD_O
BL_ADJ

MEMC _SD A
MEMC _SC L
MEMC _RS T

TX_CDP_
TX_CDN_

TX_C_CKP_
TX_C_ CKN _
TX_CCP_
TX_CCN_

TX_CB P_
TX_CB N_
TX_CA P_
TX_CA N_

TX_AD P_
TX_ADN_

TX_A_CKP_
TX_A_CKN_
TX_AC P_
TX_ACN_

TX_ABP_
TX_ABN _
TX_AAP_
TX_AAN _

PANEL_EN

SELLVDS

D_3.3V

R4116
NC/ 4.7K 1/ 16W

R4115

4.7K 1/16W

R4100
NC/ 4.7K 1/16W

R4101

4.7K 1/16W

LR_EN
3D_EN
LR_O
BL_ADJ

MEMC _SD A
MEMC _SC L
MEMC _RS T

FromMainChipfor
LVDS

TX_CDP_
TX_CDN_

TX_C_CKP_
TX_C_CKN_
TX_CCP_
TX_CCN_

TX_CBP_
TX_C BN_
TX_CAP_
TX_C AN_

TX_AD P_
TX_ADN_

TX_A_CKP_
TX_A_ CKN _
TX_AC P_
TX_ACN_

TX_AB P_
TX_AB N_
TX_AA P_
TX_AA N_

PANEL_EN

GND

39
37
35
33
31
29
27
25
23
21
19
17
15
13
11

9
7
5
3
1

40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2

CONN

CN408

41 42

PANEL_VCC

SELLVDS

R4108 NC

MEMC _SC L
MEMC _RS T
3D_EN

TX_ADN_1
TX_A_CKN_1
TX_ACN_1
TX_ABN _1
TX_AAN _1
TX_CDN_1
TX_C_CKN_1
TX_CCN_1
TX_CBN_1
TX_CAN_1

BL_ADJ

D_3.3V

R4122

R4121

NC/ 4.7K 1/ 16W

NC/ 4.7K 1/16W

MEMC _SC L

MEMC _SD A

SELBIT

+12V_Panel

PANEL_EN

+5V_SW

R4105 4.7K 1/16W

R4099

4.7K 1/16W

FB418

1 2

120R 6A

FB419

1 2

NC/ 120R 6A

R4102

10K 1/16W 5%

C4118

1UF 25 V

R4104

47K 1/16W 5%

Q402
PMBT3904

PANEL_VCC

FB420

1 2

NC/ 120R 6A

AO4449 -7A/-30V

Q403

1
2
3
4

絬隔瓜絪腹

Key Component

8

S

D

7

S

D

6

S

D

5

G

D

T P V ( Top Victory Electronics Co . , Ltd. )

A

Date

C4116

10UF 16V

C4117

100N 16V

+

R4103
C4115
NC/ 100UF 16V

OEM MODEL

TPV MODEL

PCB NAME

Sheet

R4114

NC

NC

of

822Monday, July 15, 2013

36

Size

Rev

称爹

Custom

<>

称爹

CONN

CN126

GND

AV1_CVBS+

VIN_A1-

AV1_IN_L

AV1_IN_R

3
5
4
2
1

ZD101

MLVG0402

1 2

GND

R101 0R05 1/16W

R102
75OHM 1/16W

R103 0R05 1/16W

AV1_CVBS+

C101
NC/ 47pF 50V

VIN_ A1-

AV1_CVBS+
VIN_ A1-

AV1_IN_L
AV1_IN_R

ZD102
NC/ MLVG0402

1 2

GND

ZD103
NC/ MLVG0402

1 2

GND GND

GND

C102

NC/470PF

C103

NC/470PF

R104 6.8K 1%

R106 6.8K 1%

Closeto
Connector

R105
10K 1/16W 5%

GND

R107
10K 1/16W 5%

GND

AV1_IN _L

AV1_IN_R

37

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MO DEL

TPV MO DEL

PCB NA ME

Sheet

of

922Friday , May 31, 2013

Size

Rev

称爹

B

称爹

<>

YPbPr & CVBS IN

TO Main Chip

AV1_CVBS+co‐useY0+

CONN

CN111

Y0+
PB0+
PR0+

YPbPr0-

3
5
4
2
1

Y1
PB1

PR1

12

ZD104
MLVG0402

12

ZD105
MLVG0402

12

ZD106
MLVG0402

Y1

PB1

PR1

R110
75OHM 1/16W

R111

0R05 1/16W

R115
75OHM 1/16W

R116

0R05 1/16W

R120
75OHM 1/16W

R121

0R05 1/16W

R108

0R05 1/16W

R113

0R05 1/16W

R118

0R05 1/16W

R109

100R 1/16W 5%

R112

100R 1/16W 5%

R114

100R 1/16W 5%

R117

100R 1/16W 5%

R119

100R 1/16W 5%

R122

100R 1/16W 5%

Y0+
PB0+
PR0+
YPbPr0-

Y0+

C104

5PF 50V

YPbPr0-

PB0+

C105

5PF 50V

YPbPr0-

PR0+

C106

5PF 50V

YPbPr0-

Close to Main Chip

T P V ( Top Victory Electronics Co . , Ltd. )

A

絬隔瓜絪腹

Key Component

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

of

10 22Friday, May 31, 2013

Size

Rev

称爹

38

A

<>

称爹

VGA_VS

VGA_HS

C109

22PF 50V

Mark on board

PC_LINE_IN

PHONEJ ACK

CN102

GND

R138 100R 1/16W 5%

R139 100R 1/16W 5%

C110

10PF 50V

GND

GND

2

3
1

R144

2.2K 1/16W

1

HS

2

VS

VGA_INR

VGA_INL

U100

I/O1

I/O4

GND

VDD

I/O23I/O3

AOZ8105C I

GND GNDGNDGND

6
5
4

NC/MLVG0402

NC/ MLVG0402

VGA_CON 5V

VGA_DDC_SCL

VGA_DDC_SDA

R143

2.2K 1/16W

VGA_SDA
VGA_5V
VGA_SCL

TOMainCh ip

VGA&YPbPr&CVBS
sharethesame
connector

VGA_SCL

VGA_IN_R

VGA_IN_L

GND

15

14

13

12

11

UART0_RX_PIN11

12

ZD118

MLVG0402

IRRX

UART0_RX
UART0_TX

17 16

CN101

5
10
4
9
3
8
2
7
1
6

R1032

+5VSB

12

PORT for ITV Level 1

R1024
10K 1/16W 5%

R1026

NC/100R 1/16W 5%

R1027

ZD115
MLVG0402

MLVG0402

GND

100R 1/16W 5%

1

100R 1/16 W 5%

R1030 100R 1/16W 5%
R1029 100R 1/16W 5%

12

ZD107
MLVG0402

UART0_TX_PIN4

VGA_CON 5V

12

ZD121

GND

UART0_RX

R1025
10K 1/16W 5%

23

Q102

LMBT3906LT1G

GND

100R 1/16W 5%

R1031

+5V_SW

C1014

NC/100N16V

UART0_TX

VGA_BIN

VGA_GIN

VGA_RI N

12

0R4
TH100

t

RC_IR_OUT

CN105

1
2
3
4
5

CONN

R132 0R05 1/16W

GND

R140 0R05 1/16W

GND

GND

67

R131

75OHM 1/16W

R137

75OHM 1/16W

R147

75OHM 1/16W

R148 0R05 1/16W

GND

GND

2

VGA_5V

R151 6. 8K 1%

C112

NC/ 470PF

R153 6.8K 1%

C113

NC/470PF

+5V_SW

R152
10K 1/16W 5%

GND

R154
10K 1/16W 5%

GND

ZD116

ZD117

GND

1

12

GND

12

D100
BAT54C

3

Mark on board

R127

4.7K 1/16W

VS

HS

C114

NC/ 33PF 50V

GND

GND

GND

VGA_RIN

R128

4.7K 1/16W

R1033

R1034

C115

NC/ 33PF 50V

U101

1

I/O1

2

GND
I/O23I/O3

AOZ8105C I

100R 1/16W 5%

100R 1/16W 5%

VGA_SDA

D-SUB CONN 15 P BL UE - R/ A 1 0

6

VGA_BIN

I/O4

5

VGA_5V

VDD

4

VGA_GIN

D-sub

VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R-

VGA_HS
VGA_VS

VGA_DDC_SCL
VGA_DDC_SDA

VGA_IN _L
VGA_IN _R

VGA&YPbPr&CVBS
sharethesame connector

UART0_RX

UART0_TX

IRRX

R130
100R 1/16W 5%

R134
100R 1/16W 5%

R136
100R 1/16W 5%

R142
100R 1/16W 5%

R146
100R 1/16W 5%

R150
100R 1/16W 5%

ClosetoMain
Chip

VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R-

VGA_HS
VGA_VS

VGA_DDC_SCL
VGA_DDC_SDA

VGA_IN _L
VGA_IN _R

UART0_RX
UART0_TX

C111

5PF 50V

IRRX

VGA_B+

C107

5PF 50V

VGA_B-

VGA_G+

C108

5PF 50V

VGA_G-

VGA_R+

VGA_R-

GND

39

T P V ( Top Victory Electronics Co . , Ltd. )

A

絬隔瓜絪腹

Key Component

Date

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

11 22Friday , May 31, 2013

of

Size

Rev

称爹

B

<>

称爹

4.7K 1/16W

HDMI2_DDC_SCL
HDMI2_DDC_SDA

NC/33PF 50V

HOTPLUG2

HDMI1_DDC_SCL
HDMI1_DDC_SDA

R518

C506

R516

4.7K 1/16W

C504

NC/33PF 50V

HOTPLUG1

D501

1

2

3

R519

4.7K 1/16W

R523 100R 1/16W 5%
R527 100R 1/16W 5%

C507

NC/33PF 50V

R507
47K 1/16W 5%

D502

132

+5V_SWHDMI2_CON5V

BAT54C

R504
1K 1/16W 1%

R510

Q504

10K 1/16W 5%

PMBT3904

ESD protcetion

HDMI2_D2+
HDMI2_D2-

HDMI2_D1+
HDMI2_D1-

+5V_SWHDMI1_CON 5V

BAT54C

R517

4.7K 1/16W

R522 100R 1/16W 5%
R526 100R 1/16W 5%

C505

NC/33PF 50V

R506
47K 1/16W 5%

R509
10K 1/16W 5%

GND

GND

U505

6
7

NC

8

VN

9

NC

10

NC

NC/AOZ 8804DI

R503
1K 1/16W 1%

Q503
PMBT3904

HDMI2_DDC_SCL#
HDMI2_DDC_SDA#

HDMI2_CON5V

HDMI2_D2+

CH45NC

4

HDMI2_D2-

CH3

3

VN

2

HDMI2_D1+

CH2

1

HDMI2_D1-

CH1

GND

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#

HDMI1_CON5V

HDMI2_D2+

HDMI2_D2­HDMI2_D1+

HDMI2_D1­HDMI2_D0+

HDMI2_D0­HDMI2_CLK+

HDMI2_CLK­HDMI_CEC
HDMI2_CON_PI N14

12

12

ZD510 M LVG0402

HDMI1_D2+

HDMI1_D2­HDMI1_D1+

HDMI1_D1­HDMI1_D0+

HDMI1_D0­HDMI1_CLK+

HDMI1_CLK­HDMI_CEC

ZD506 M LVG040212ZD508 M LVG0402

GND

12

ZD512 M LVG040212ZD511 M LVG0402

HDMI2_D0+
HDMI2_D0-

HDMI2_CLK-

12

ZD507 M LVG0402

GNDGND

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

GND

CN508

SHLD0
TMDSD 2+
DSHLD0

SHLD2
TMDSD 2­TMDSD 1+
DSHLD1
TMDSD 1­TMDSD 0+
DSHLD2
TMDSD 0­TMDSC +
CSHLD0
TMDSC ­CEC
NC
SCL
SDA
DDC_GND
VCC5

SHLD3
HPD

SHLD1

HDMI

Make on board

HDM I1

U506

6

CH45NC

7

CH3

NC

8

VN

VN

9

CH2

NC

10

CH1

NC

NC/AOZ 8804DI

CN507

1

TMDSD2+

2

DSHLD0

3

TMDSD2-

4

TMDSD1+

5

DSHLD1

6

TMDSD1-

7

TMDSD0+

8

DSHLD2

9

TMDSD0-

10

TMDSC+

11

CSHLD0

12

TMDSC-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

VCC5

19

HPD

HDMI

Make on board

HDM I2

HDMI2_D0+

4

HDMI2_D0-

3
2

HDMI2_CLK+HDMI2_CLK+

1

HDMI2_CLK-

SHLD0

SHLD2

SHLD3

SHLD1

TOMainCh ip

20

22

HDMI1_D2+
HDMI1_D2­HDMI1_D1+
HDMI1_D1­HDMI1_D0+
HDMI1_D0­HDMI1_CLK+
HDMI1_CLK-

HDMI1_DDC_SCL
HDMI1_DDC_SDA

23

21

SPDIF_OU T

20

22

23

21

GND

R524 200OHM1/16W

R531

100R 1/16W 5%

C501

100N 16V

+5V_SW

R520
10K 1/16W 5%

HDMI2_CON_PI N14

R528
39K 1/16W

HOTPLUG1

HDMI2_D2+
HDMI2_D2­HDMI2_D1+
HDMI2_D1­HDMI2_D0+
HDMI2_D0­HDMI2_CLK+
HDMI2_CLK-

HDMI2_DDC_SCL
HDMI2_DDC_SDA

HOTPLUG2

HDMI_CEC

SPDIF_OU T

HDMI2_CON5V

HDMI1_D 2+
HDMI1_D 2­HDMI1_D 1+
HDMI1_D 1­HDMI1_D 0+
HDMI1_D 0­HDMI1_C LK+
HDMI1_C LK-

HDMI1_DDC_SCL
HDMI1_DDC_SDA
HOTPLUG1

HDMI2_D 2+
HDMI2_D 2­HDMI2_D 1+
HDMI2_D 1­HDMI2_D 0+
HDMI2_D 0­HDMI2_C LK+
HDMI2_C LK-

HDMI2_DDC_SCL
HDMI2_DDC_SDA
HOTPLUG2

HDMI_CEC

SPDIF_OU T

HDMI2_CON5V

ESD protcetion

HDMI1_D 2+
HDMI1_D 2-

HDMI1_D 1+
HDMI1_D 1-

U503

6
7

NC

8

VN

9

NC

10

NC

NC/AOZ 8804DI

CH45NC
CH3

VN
CH2
CH1

4
3
2
1

HDMI1_D2+
HDMI1_D2-

HDMI1_D1+
HDMI1_D1-

HDMI1_D0+
HDMI1_D0-

HDMI1_CLK+
HDMI1_CLK-

U504

6
7

NC

8

VN

9

NC

10

NC

NC/AOZ 8804DI

HDMI1_D 0+

CH45NC

4

HDMI1_D 0-

CH3

3

VN

2

HDMI1_C LK+

CH2

1

HDMI1_C LK-

CH1

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

Size

Custom

Rev

称爹

称爹

12 22Sunday, J une 09, 2013

of

<>

40

CN113

CONN

3

2

1

Headphoneout

ZD110

MLVG0402

1 2

R123

75OHM 1/16W

R125

NC/0R05 OHM

CVBS_OUT

R124
NC/10K 1/16W 5%

+5V_SW

R126
NC/0R05 OHM

SPDIF_OUT

R129
NC/0R05 OHM

Headphone

HP_OUT_L
HP_OUT_R
HP_OUT_JD

CVBS_OUT

SPDIF_OUT

HP_OUT_L
HP_OUT_R
HP_OUT_JD

CVBS_OUT

SPDI F_OUT

HP_OUT_R

Grounding

Grounding

R624

1K 1/16W 1%

R623

1K 1/16W 1%

C645

100N 16V

C644

100N 16V

D_3.3V

Grounding

47K 1/16W 5%

HPOUT_RT

HPOUT_LT

HP_OUT_JDHP_OUT_L

R610

R614 0R05 1/10W

HP De te ct

H = > HP Dete ct
L = > Norm al

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

Grounding

C636
NC/2.2nF 50V

EMI Solution

OEM MODEL

TPV MODEL

PCB N AME

Sheet

HPOUT_RT

HPOUT_LT

C637

NC/2.2nF 50V

13 22Friday , May 31, 2013

of

C638
100N 16V

12

8.5mm

12

12

ZD127

ZD126

MLVG0402

MLVG 0402

ZD128
MLVG0402

5
4
3
2
6
7
1

Size

Rev

称爹

41

CONN

CN602

A

称爹

<>

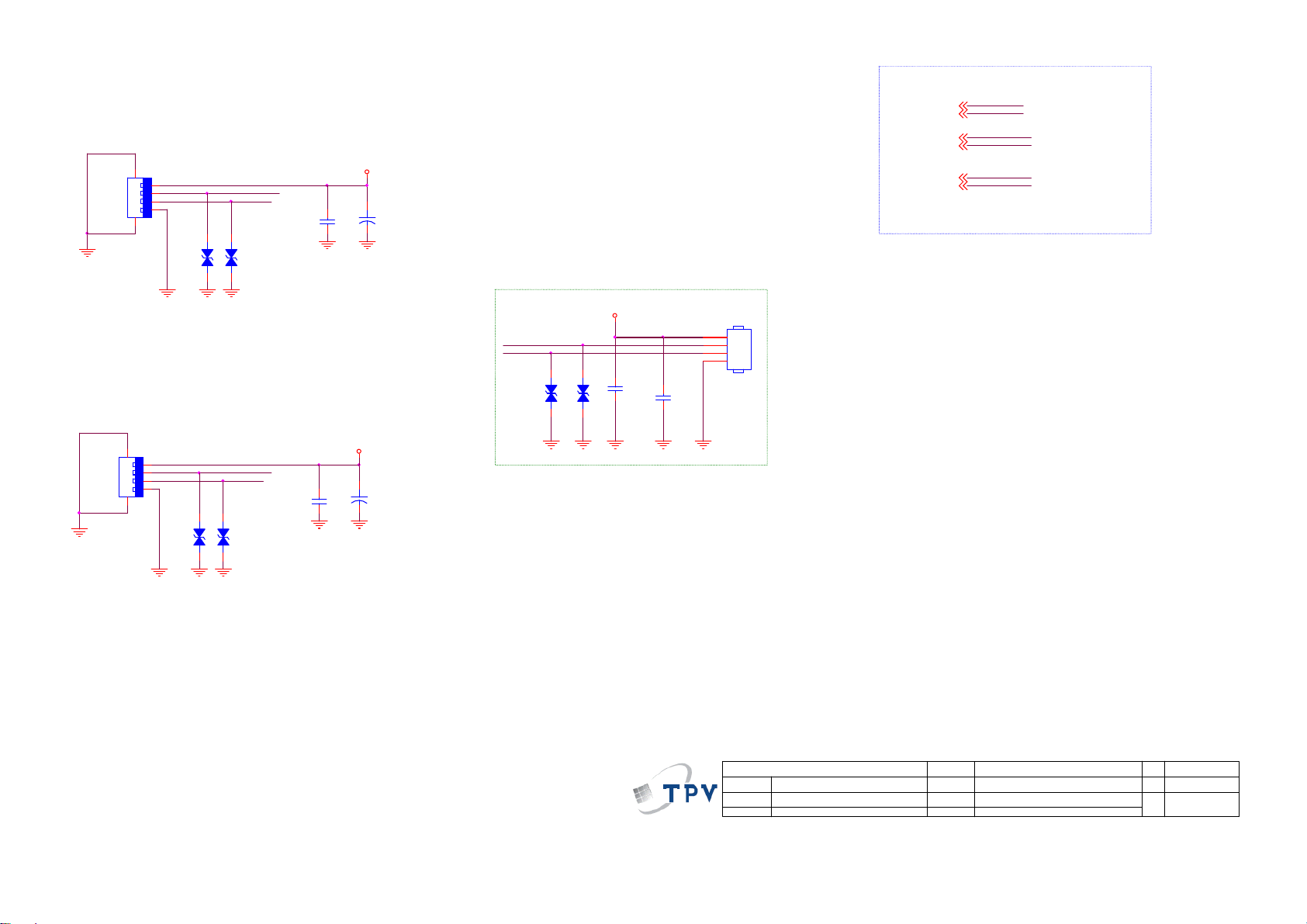

USB1

GND

USB2

USB CONN

GND

CN103

USB CON N

CN104

trace : diffenentail 90 R

1

1234

2

USB1_DM

3

USB1_DP

4

6 5

ZD122

MLVG0402

GND

trace : diffenentail 90 R

1

1234

2

USB3_DM

3

USB3_DP

4

6 5

ZD119

MLVG0402

GND

1 2

GND GND

1 2

1 2

GNDGND

1 2

ZD120

MLVG0402

ZD123

MLVG0402

GND

C118

100N 16V

USB_5V

C134

100N 16V

USB_5V

GNDGND

GND

+

+

C135

100UF 16V

C117

100UF 16V

ZD125

NC/ MLVG0402

GND GND

1 2

USB_5V

NC/22UF 10V
ZD124
NC/ MLVG0402

1 2

C141

WIFI
module

WIFI_DM
WIFI_DP

C142

NC/ 100N 16V

GNDGNDGND

1
2
3
4

CN106

From Main Chip

USB1_DM
USB1_DP

WIFI_DM
WIFI_DP

USB3_DM
USB3_DP

USB1_DM
USB1_DP

WIFI_DM
WIFI_DP

USB3_DM
USB3_DP

42

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MO DE L

TPV MO DE L

PCB NAME

Sheet

15 22Monday , July 15, 2013

of

Size

Rev

称爹

B

称爹

<>

D_3.3V

Ether_RxN

Ether_RxP
Ether_TxN
Ether_TxP

ETN_LED0
ETN_LED1

Ether_Rx N
Ether_Rx P
Ether_TxN
Ether_TxP

ETN_LED0
ETN_LED1

ETN_LED1

ETN_LED0

R174

1K 1/16W 5%

R176 1K 1/16W 5%

R177 1K 1/16W 5%

MD I_R NEther_RxN
MDI_ RPEther_RxP

MD I_TNEther_TxN

MDI_ TPEther_TxP

R169
0R05 1/16W

RRGOUT

C145

0.1uF 25V

C144

10N 50V

RRGOUT

0.1uF 25V

C143

R175
1K 1/16W 5%

RJ45 CONN+LED R/A 15P

15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

R170
0R05 1/16W

C138
10N 50V

G+ P15
G- P14
Y+ P13
Y- P12
NC P11
NC P10
NC P9
NC P8
NC P7
RCT P6
RD- P5
RD+ P4
TD- P3
TD+ P2
TCT P1

17

TH2

TH1

16

C136
NC/22uF 10V

CN108

C137
NC/22uF 10V

T P V ( Top Victory Electronics Co . , Ltd. )

A

絬隔瓜絪腹

Key Component

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

of

16 22Tuesday, April 09, 2013

Size

Rev

称爹

43

A

<>

称爹

12V_AMP

SH600
SH601
SH602
SH603
SH604

FB600

1 2

120R 6A

PVDD

AMP_PD

+5VSB

10K 1/10W

10K 1/10W

10K 1/10W

D_3.3V

R601

100K 1/10W 5%

R600

R619
10K 1/10W

Q602

R618

MMBT3906

R617

+

100UF 16V

AMP_PD#

Q600
PMBS3904

C629

AMP_PD

AOUT_L

AOUT_R

AMP_PD

AOUT_L

AOUT_R

HS601

HEAT SINK

U600

C600

220NF 25V

GAIN0

GAIN1

C620

220NF 25V

1

SDZ

2

FAULTZ

3

LINP

4

LINN

5

GAIN0

6

GAIN1

7

AVCC

8

AGND

9

GVDD

10

PLIMIT

11

RINN

12

RINP

13

NC

14

PBTL

AD52580-QG28NAR

AMP_PD#

AOUT_L

GAIN0

GAIN1

AOUT_R

R609 1K 1/ 10W

10K 1/10W

R612

100K 1/10W 1%

R613

27K 1/10W 1%

R615

D_3.3V

R604 10KR605

R606 NC

R603 10K

NC

1
2

C618

1UF 50V

1UF 50V

R621

10K 1/10W

C619

C611 220NF 25V

C613

NC

C617

NC

R622

0R05 OHM

R625

0R05 OHM

C614 220NF 25VR620 1K 1/10W

Thermal Pad

PVCCL

PVCCL

BSPL

OUTPL

PGND

OUTNL

BSNL

BSNR

OUTNR

PGND

OUTPR

BSPR

PVCC

PVCC

29

R616

PVDD

100UF 35V

R602

10OHM1/16W

R608

10OHM1/16W

R611

10OHM1/16W

+

L603
22uH

PVDD

+

C603

L600
22uH

L601
22uH

L602
22uH

C621

LOUT+

C605

1UF 50V

LOUT-

C607

1UF 50V

ROUT-

C616

1UF 50V

ROUT+

1UF 50V

CONN

4
3
2
1

5 6

CN600

28

27

26

25

24

23

22

21

20

19

18

17

16

15

C624

0.1uF 50V

C601

0.1uF 50V

C623

330pF 50V

C625

1nF 50V

C606

330pF 50V

C609

330pF 50V

C615

330pF 50V

100UF 35V

C602

1nF 50V

10OHM1/16W

C626

44

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

of

14 22Thursday, July 04, 2013

C

Size

Rev

称爹

称爹

<>

TU1 01

TUN ER

ST21 WN‐2I‐E

IF_AGC

TH110TH211TH312TH4

13

1

ANT

2

3.3V

3

SCL

4

SDA

5

GND

6

Xou t

7

IF_N

8

IF_P

9

Close to Tuner

IF_AGC

SCL_CAN
SDA_CAN

AIF­AIF+

IF_AGC

3.3V_TUNER

C139

1NF 50V

C133
100N 16V

R162

1K 1%

closeto
Tuner

R187

R189

100R 1/16W 5%

R190

100R 1/16W 5%

C170
1UF 10% 16V

C175
1UF 10% 16V

C168
10PF 50V

C173
20PF

C186

10PF 50V

Close main chip

D_3.3V

R161

10K 1/16W 5%

C130

10NF 50V

3.3V_TUNER

R188

4.7K 1/16W

4.7K 1/16W

L104

0.47uH

L106

0.47uH

R184
NC/ 6K8 1/10W 5%

ATV_IF_AGC

TUN _I 2C _SC L

TUN_I2C_SDA

C174
20PF

TUN _I F-

R191
NC/ 200OHM1/16W

TUN _I F+

+5V_SW

FB108

1 2

220R/2000m A

C185

1UF 10V

(Near Tuner)

1A

U104

G1117-33T63Uf

VI3VO

2

GND14

4

+

C180

100UF 1 6V

ATV_IF_AGC

TUN_I2C_SCL
TUN_I2C_SDA

3.3V_TUNER

C181

NC/ 10UF 6. 3V 20%

TUN _I F+
TUN _I F-

C182
100N 16V

ATV_IF_AGC

TUN _I 2C _SC L
TUN_I2C_SDA

TUN _I F+
TUN _I F-

45

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

of

18 22F riday , June 07, 2013

Size

Rev

称爹

B

称爹

<>

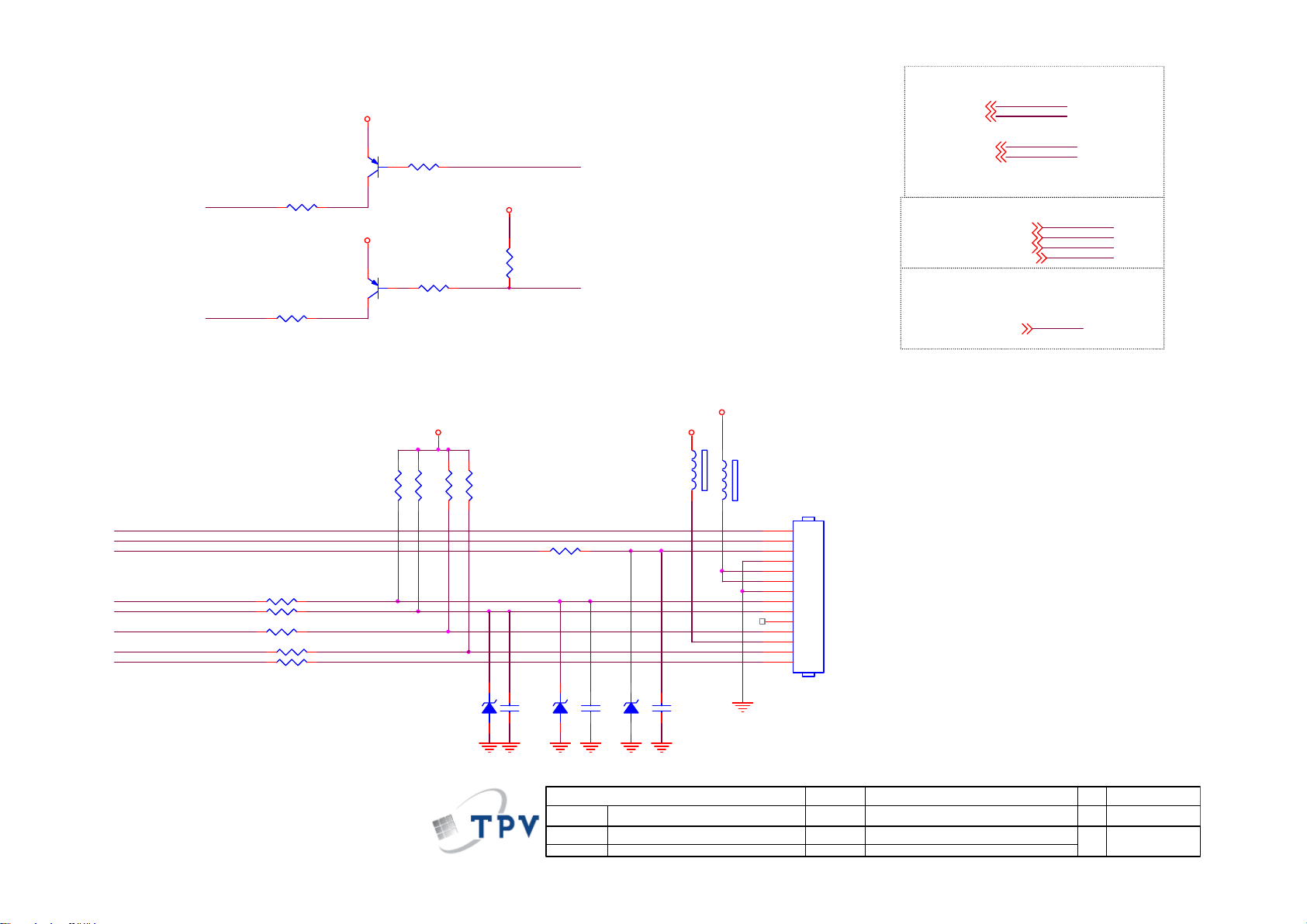

TO IR/KEY BOARD

LED_R
LED_G
IRRX

LSADC0
LSADC1

LS_SCL

LS_SDA
LR_O

PMBS3906

LED_R

LED_G

R4117 100R 1/16W 5%
R4118 100R 1/16W 5%

R4120 NC/100R 1/16W 5%

R4119 NC/100R 1/16W 5%
R4113 100R 1/16W 5%

Q4002

R4050
200OHM1/16W

Q4003

PMBS3906

R4048
200OHM1/16W

6.8K +-1% 1/ 16W

6.8K +-1% 1/ 16W

+3V3S B

+3V3S B

R4111
R4106

KEYPAD

LSADC0
LSADC1

23

1

R4049
4K7 1/16W 5%

+3V3SB

23

1

R4051
4K7 1/16W 5%

LEDR

R4052
4K7 1/16W 5%

LEDG

LEDR pull-LOW by 4.7k, near IC pin

+3V3SB

+3V3SB

R4109

R4107

4.7K 1%

4.7K 1%

600R/200mA

R4110 100R

FB4014

+5V_SW

12

12

FB4015
600R/200mA

1
2
3
4
5
6
7
8

9
10
11
12
13
14

CN4003

LS_SCL
LS_SDA

IR

KEY_UP_DN_DCSW
KEY_MENU_L_R_SOURCE

LS_SCL
LS_SDA

IRRX
LEDG
LEDR

PWR_ON

LR_O

LR_O

IRRX
LEDG
LEDR

PWR_ON

ZD4001

RLZ5.6B

ZD4003

RLZ5.6B

1 2

C4119 100N16V

ZD4004

RLZ5.6B

1 2

T P V ( Top Victory Electronics Co . , Ltd. )

A

絬隔瓜絪腹

Key Component

Date

1 2

C4121 100N16V

C4122 100pF 50V

CONN

OEM MOD EL

TPV MODE L

PCB NAME

Sheet

Size

Rev

of

19 22Thursday, May 23, 2013

称爹

A4

<>

称爹

46

>

>

LEDBAR_PWREN

AMB_I2C-SDA

AMB_I2C-SCL

LEDBAR_PW REN

AMB_I2C-SDA

AMB_I2C-SCL

FB4021

+12V_Panel

1 2
120R/3000m A

A0
A1
A2
A3
A4
LED0
LED1
LED2
LED3
Vss10LED4

C4134
100P 50V

VDD
SDA
SCL

OE
LED7
LED6
LED5

1K 1/16W

R4130

R4147

4.7K 1/16W

C4135

1UF 10% 16V

20
19
18
17

A6

A6

16

A5

A5

15
14
13
12
11

LEDBAR_PW REN

U406

1

A0

2

A1

3

A2 L_B

4

A3

5

A4

6
7
8
9

PCA9634PW

C4130

NC/1UF 10V

D_3.3VD_3.3V

R4150
10K 1/16W 5%

R4138
4K7 1/16W 5%

R4139 4K 7 1/16W 5%

Q4010
PMBS3904

R4148
4K7 1/16W 5%

R4149
4K7 1/16W 5%

AMB_I2C-SDA
AMB_I2C-SCL

FB4023 600R/300mA
FB4024 600R/300mA
FB4025 600R/300mA

FB4026 600R/300mA
FB4027 600R/300mA
FB4028 600R/300mA

C4131
100nF 50V

1 2
1 2
1 2

1 2
1 2
1 2

1

S

2

S

3

S

4

G

AO4449 -7A/-30V

Q4011

8

LED_PWR

D

7

D

6

D

5

D

C4132

C4133

10uF 25V

100NF 25V

L_R
L_G
L_B

C4138

C4136

C4137

1N 50V

1N 50V

1N 50V

R_R
R_G
R_B

C4139

C4140

C4141

1N 50V

1N 50V

1N 50V

R4131

NC/4K7 1/16W 5%

R4140
10K 1/16W 5%

R4132

NC/4K 7 1/16W 5%

A0

R4141
10K 1/16W 5%

LED_PWR

D_3.3VD_3.3VD_3.3V D_3.3VD_3.3V

A1

L_G

L_R

R4133

NC/4K7 1/16W 5%

A2

R4142
10K 1/16W 5%

18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

19 20

CN4004

CONN

R4134

NC/4K7 1/16W 5%

A3

R4143
10K 1/16W 5%

R4135

NC/4K7 1/16W 5%

A4

R4144
10K 1/16W 5%

LED_PWR

R_G

R_R

R_B

R4136

NC/4K7 1/16W 5%

A5

R4145
10K 1/16W 5%

18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

D_3.3VD_3.3V

R4137

NC/4K7 1/16W 5%

R4146
10K 1/16W 5%

CN4005

CONN

19 20

A6

Title

Title

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

<Doc > <Rev C ode

<Doc > <Rev C ode

C

C

Date: Sheet

Date: Sheet

of

of

11Sunday, June 09, 2013

11Sunday, June 09, 2013

47

5.2 电源板

715G6335P01000002S

!

F9901

T5AL 250V

T5.0AL/250V

!

CN9901

NC/CONN

1
2

12

CN9902
SOCKET

!

FB9901

BEAD

1 2

!

RV9901

TVR14561KFAOZF

FB9902 BEAD

CN9903
NC/CONN

L1N

2

!

C9903 100PF 250V

FB9903

BEAD

12

NR9901

1 2

2.5R

470NF 275V

12

!

C9904

47pF 250V

!

t

C9905

!

L9901

4

3

1

2

9mH

SG9902

NC/DSPL-501N-A21F

!

C9910

220PF 250V

R9901

510K 1/4W

!

R9903
510K 1/4W

C9906

R9905

470NF 275V

510K 1/4W

R9902

510K 1/4W

R9904

510K 1/4W

R9906

510K 1/4W

18mH

!

!

SG9901

NC/ DSPL-501N-A21F

!

L9902

1

2

L9903

3

0.25mH

4

C9911

220PF 250V

NR9902

t

2.5R

12

BD9901

2

TS10K80-01

4

3

-

4

1

2

R-

+

1

3

!

Vsin

HS9901

1
2

NC/HEAT SINK

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

01.AC input

HD9901
HEAT SINK

1
2
3
4

OEM MODEL

TPV MODEL

PCB NAME

Sheet

of

15Wednesday , July 10, 2013

Size

Rev

称爹

A

48

Vsin

C9805

1UF 450V

1

D9801

+

3

FB9803

1 2

BEAD

C9801

NC/1UF 450V

R9808

0.07R

R-

-

4

L9801

240uH

2

6

KBP306G-05

R9802

10R 1/8W 5%

4

!

D9803
RB160M

R-

R9803

200OHM +-5% 1/8W

Q9801

STF24NM60N

12

FB9804

1 2

127R

FB9805

127R

1 2

C9818

47PF

R9806
10K OHM +-5% 1/8W

C9817

47PF

D9802
FMNS-1106S

+

C9814

68uF 450V

R9804

1MOHM +-1% 1/4W

HV

+

C9815

68uF 450V

VCC_ON

C9803

10UF 50V

+

C9811
1NF 50V

C9806

100N 50V

IC9801

R2A20133ESP

R9818

16K 1% 1/8W

8

FB1COMP2RT3NC

NC

R9823

OUT7VCC

R9810

6

5

C9807

CS

GND

3.3nF 50V

4

R9813 56K 1/8W

C9809
22N 50V

C9810

220NF 50V

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

C9831

NC

200 OHM 1/4W

R9811
NC/24K 1/8W 1%

R9812

200K 1/8W 1%

02.PFC

12

ZD9801

BZT52-B3V6

C9802
NC/680P 50V

R9814

NC/24K 1/8W 1%

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

C9804

100N 50V

25Wednesday , J uly 10, 2013

R9809

680K OHM +-1% 1/4W

100K 1%

R9815

of

R9807

680K OHM +-1% 1/4W

HEAT SINK

1
2
3
4

Size

Rev

称爹

HS9801

A

49

C9113
1NF

C9104

470UF 25V

D9106

1 2

C9121

RB160M

R9126 10 OHM 1/4W

1N 50V

DV5

Q9106
NC/2N 7002K

C9140

NC/100N 50V

C9127

NC/1uF

12VS

+

+

C9105

470UF 25V

470UF 25V

R9130
NC/10K OHM

+12V +12V

R9131
NC/330K 1% 1/8W

R9138 NC/100K OHM +-5% 1/8W

IC9105

1
2
3

PGND
VIN
AGND
VCC4FB

C9128

NC/1N 50V

NC/100 N 50V

EN

LX

COMP

NC/AO Z3015AI

C9129

R9137

NC/3K OHM 1%

8
7
6
5

C9106

+

+

C9107
470UF 25V

C9141

1uF

C9125
NC/2N2 50V

NC/30 OHM 1/4W

C9108
470UF 25V

HQ9102

HEAT SINK

HD9105
NC/H EAT SINK

R9135

NC/20 K 1/8W 1%

+

NC/100KOHM +-5% 1/8W

1
2
3
4

1
2
3
4

BL_ON/OF F

+5V

C9142
1uF 50V

L9102NC/47uH

C9135
NC/2N2 50V

R9158

NC/30 OH M 1/4W

R9151

NC/100 KOHM +-5% 1/8W

C9116

NC/1uF

C9117

NC/1uF

R9152

CN9100

2
4
6

8
10
12
14
16

CONN

+

C9124

NC/470UF 25V

R9161

Q9105

NC/AOD 4185

C9119
NC/100N 50V

1
3
5
7
9
11
13
15

1 2

FB9100

FB9103

BEAD

FB9904

1 2

R-

1K5 +-1% 1/8W

IC9102

EL817M(X)

R9406
10K 1/8W 1%

Q9403
2N7002K

5

4

3
2

1

POWER X'FMR

127R

127R

R9119

43

C9402

100N 50V

COLDHOT

!

T9101

470pF 250V

!

12

220PF 250V

220PF 250V

12

BZT52-B15

1 2

R9408
510K 1% 1/8W

6

10
7

9

C9914

C9913

12VS

ZD9106

C9912

C9110

2.2UF 25V

12VS

R9407

100 OHM 1/4W

22K 1%

C9132 100N 50V

R9108

27 OHM 1/4W

R9109

27 OHM 1/4W

R9110

27 OHM 1/4W

R9118
4K7 +-5% 1/8W

R9121
1K 1/8W 1%

IC9103

AS431AN-E1

PS_ON

R9124

C9131 100P 50V

27 OHM 1/4W

27 OHM 1/4W

27 OHM 1/4W

R9122 22K 1%

C9130

100N 50V

1
2
3

C9133

100P 50V

R9132

R9133

R9134

C9118
220N 50V

2K2 1/8W 1%

IC9104

Timin g
Pred
VR

MOSG -C

Adj4GND

SP6018S8RGB

Q9102

AOTF298L

D9105

NC/F ME-220B

R9115

12VS

SYNC

8

SYNC

7

Vdd

6
5

C9134

1uF

12

D9108 SK510C

3

2

1

C9136

1N 50V

R9123 5.1K 1/4W

12VS

R9120
9K1 1/8W 1%

120R 1/8W 1%

R9116

1 2

FB9102

NC/BEAD

NC/470U F 25V

C9126

R9117

5.1K 1/4W

SYNC

R9125

4R7 1/4W 5%

1uF

C9137

R9129
NC/10K OHM

+

HV

new part

1 2

1 2

ZD9101
BZT52-B30

ZD9102
BZT52-B30

IC9100
SSC2S110

1

GND

2

FB/OLP

3

NC
ST4NC

DRIVE

C9120

2.2NF

C9111
NC/1NF

+VCC1

8

VCC

7

D9103

OCP

6

1N4148W

5

R9103

470 OHM 1/4W

C9102
470P 50V

R9106

75ohm 1/8W +/-1%

R9104
10R 1/8W 5%

R9107
10K OHM +-5% 1/8W

R9147
82KOHM +-5% 2WS

R9142
22R

D9102
SARS01-V1

Q9100

C9139

AOTF8N65

100N 50V

C9100
NC/47PF

R9111

0.36R

FR107G-A0

3.3 OHM 1/4W

C9138

100N 50V

D9104

R9112

+

47UF 50V

C9101

!

C9103
4N7 50V

HQ9100

1
2

HEAT SINK

3
4

+VCC1

R9401
3K

!

IC9401

+

R9402

ZD9401

100K 1/8W 1%

VCC_ON

Q9401

BTC4672M3

C9401

10UF 50V

DV5

R9403
2Kohm 1/4W +/-5%

12

43

EL817M(X)

BZT52-B16

1 2

R9404
10K 1/4W

Q9402
MMBT3906 PNP

R9405
10K OHM

Q9104

NC/2N 7002K

NC/1uF

NC/1uF

C9122

R9154
NC/510K 1% 1/8W

PS_ON

+12V_A+12V_A

C9123

L9100
3UH

L9101
3UH

R9153
NC/10 0 OHM 1/4W

1 2

D9109
NC/RB160M

R9128
0 OHM +-5% 1/8W

C9115
1N 50V

R9140

NC/10.5K OHM 1%

R9136

NC/20 0R 1/8W 1%

R9139

NC/2K 1 /8W 1%

C9109
470UF 25V

+

C9112
470UF 25V

+

DIM

+5V

+12V

+12V_A

PS_ON

50

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

03. Main POWER
Wednesday , July 10, 2013

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

35

of

Size

Rev

称爹

称爹

<>

C9114
1NF

COLD

HOT

HV

C8104

C8120
NC/1NF

2.2NF

R8106
82KOHM +-5% 2WS

R8117
82KOHM +-5% 2WS

HD8106

HEAT SINK

HS8106

1
2
3
4

HEAT SINK

1
2
3
4

470NF 50V

HQ8100

HEAT SINK

1
2
3
4

C8105

IC8100

1

CT

2

FB

3

CS
GND4OUT

PF6002AS

R8103
510OHM +-5% 1/4W

C8100
220P 50V

C8101
1N 50V

1 2

D8100
1N4148W

R8143

ZD8105
NC

R8102

200 OHM 1/4W

R8144

200 OHM 1/4W

R8101
10R 1/8W 5%

R8104

10K 1/4W

R8142

R8141

200 OHM 1/4W

200 OHM 1/4W

VCC_ON

8

VCC

7

NC

6

VCC

5

47OHM +-5% 1/8W

C8102

100N 50V

R8145

200 OHM 1/4W

R8115

NC/10K 1/4W

Q8100

AOTF8N65

R8146

D8101
SARS01-V1

R8105

0.2OHM 2W

200 OHM 1/4W

C8117
NC/4.7UF

C8103
47PF

R8147

200 OHM 1/4W

FR107G-A0

R8148

200 OHM 1/4W

D8104

C8123
100P 50V

BL_ON/OFF

-VLED-1

!

R8130
NC/10 OHM 1/4W

C8125

NC/100P 50V

DIM

+12V

10K 1/4W

IC8102

EL817M(X)

!

5

4

3
2

1

43

ZD8103
BZT52-B30

R8118

T8101

6
7

9
10

POWER X'FMR

12

1 2

300 OHM 1/4W

300 OHM 1/4W

R8137

300 OHM 1/4W

R8109
1Kohm +-1% 1/ 4W

R8110
10K 1/8W 1%

IC8104
AS431AN-E1

R8120

R8121

C8124

100P 50V

D8106

FMNS-1106S

300 OHM 1/4W

300 OHM 1/4W

ZD8102
BZT52-B16

1 2

R8111

100K 1/8W 1%

C8118

100N 50V

C8122

NC/100P 50V

R8122

R8123

R8138
300 OHM 1/4W

4N7 50V
C8106

R8113
33K 1/8W 1%

1

DIM

2

EN

3

VCC
LED4GND

C8113

100N 50V

C8111
100PF 500V

C8112
100PF 500V

1 2

IC8103

COMP

GM

ISET

TPV101D

FB9802

BEAD

ZD8101
BZT52-B16

8
7
6
5

12

+

120UF 100V

R8114
62K 1/8W 1%

R8124

1.5R

C8107

R8125

1.5R

+

120UF 100V

+VLED

R8126
2 OHM 1%

C8108

R8127
3R9 1%

R8119
0R05 1/4W

L8100
3UH

C8110

47UF 100V

C8114

470NF 50V

+VLED

+

R8116
200K 1/8W 1%

R8112
120KOHM +-1% 1/8W

-VLED-1

-VLED-2

0 OHM +-5% 1/8W

R8107

R8108

0 OHM +-5% 1/8W

+VLED

+VLED

CN8501

1
2
3
4
5
6
7
8

9
10
11
12

CONN

-VLED-2

100N 50V

C8119

100N 50V

1
2
3

C8115

IC8105

DIM

COMP
EN
VCC
LED4GND

TPV101D

HS8103

HS8105

NC/HEAT SINK

8
7

GM

6

ISET

5

R8132

R8131

1.5R

2 OHM 1%

1.5R

R8136

0R05 1/4W

C8116

470NF 50V

R8133

R8134

3R9 1%

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

03. Main POWER
Wednesday , July 10, 2013

Date

C8121

10N 50V

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

1
2

of

35

NC/HEAT SINK

1
2

Size

Rev

称爹

<>

称爹

51

5.3 按键板

715G6316K0D000004S

CN01

34

KEY1

1
2

CONN

100N 50V

C06

Direction switch

Center

Right

Left

Down

Up

----><----|

SW01

F5

1 6

F1

2

F3

3 4

SW 6P

F4

5

F2

2-5 short

1-5 short

4-5 short

3-5 short

6-5 short

Menu

VOL-

CH-

CH+

No function

ResistanceKey function

0R

1K2VOL+

2K2

6K8

15K

Voltage

0V

0.495V

0.807V

1.65V

2.271V

3.3V

Joystick circuit diagram

pin1

pin2

pin3

pin4

pin5 pin6

F1

F2

F3

F4

Right

Center UpDown

Left

F5

----><----|

R01

C01

1K2 1/10W 1%

NC/100N 50V

----><----|

R02

C02

0R05 1/ 10W

----><----|

R03

NC/100N 50V

C03

6K8 1/10W 1%

NC/100N 50V

----><----|

R04

C04

2K2 1/10W 1%

1

絬隔瓜絪腹

Key Component

NC/100N 50V

T P V ( Top Victory Electronics Co . , Ltd. )

02. KEY

Date

----><----|

R05

C05

15K 1/10W 1%

NC/100N 50V

OEM MO DE L

TPV MO DE L

PCB NAME

Sheet

of

22Tuesday , July 16, 2013

Size

Rev

称爹

Custom

XX

52

6. 软体及 EDID 烧录

6.1 软体烧录

1. 将软体名称修改为“install.img”

2. 将软体拷到 U 盘根目录，把 U 盘插到电视 USB 接口；



3. 上电开机，软体自动升级，过程如下。



53

4. 升级完成电视自动重启，按”Memu+1999+Back”键进入工厂模式确认版本；

6.2 EDID 烧录

此机种 EDID 数据包含于 flash 软体中，无需进行单独的 EDID 烧录。

54

7. 故障处理流程

检测电源板 CN9100 的 PIN12/14 是否有 5V 电压输出

检测电源板 CN9100PIN9/10 是否有 12V 电压输出

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

无

更换电源板

无法启动

有

无

重插电源插座或开启硬开关

无

更换电源板

检测主板的 POWER 键是否失灵

是

更换主板

55

检测 TV 是否受控，能否用遥控器或按键板开关机

检测 LVDS 线是否良好

是

检测主板上 CN408 的
PIN37/38/39/40 是否有 5V 电压供电

是

否

先更换主板
检测是否 OK

更换主板

更换 Panel

否

无画

是

检测是否有背光

是

否

重插或更换 LVDS 线

检测电源板 CN9100PIN9/10 是否有 12V 电压输出

是

更换 Panel

否

否

检测主板 CN701 是否有 BL 信号

是

否

更换电源板

更换主板

否

更换主板

56

彩 条、水 波 纹、画 抖、画 闪 、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

检测信号源输出

是 否

先更换主板

检测是否 OK

否

更换 Panel

检测信号线

是否良好

是 否

更换信号线

信号是否正常

重新设置

信号源

画异

TV 画面雪花点、重

影、细线、条纹干扰

检测 TV 信号线

是否接触不良

是 否

重新连接

TV 信号线

检测附近是否
有高频干扰源

是 否

排除干扰源 用场强仪检测信号强度

是否在 45-100db 之间，

65db 左右为最佳值

是

更换主板

57

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新

是 否

升级软体

先更换主板

检查是否 OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

否

取回站内
加温检测

无声或声音异常

检测信号源音频接口是否正确，或 TV 制式是否为 DK 制

是

否

检测 TV 是否被静音，调整音量大小，

或进入菜单进行复位看是否 OK

否

检测主板到喇叭的连接线是否断路

是 否

更换连接线

检测喇叭阻抗是否变质

(喇叭阻抗值标在喇叭上)

是 否

更换喇叭 更换主板

收不到台或收台不全

检测软体版本是否需要更新

重插音频接口或设置 TV 制式

检测此频道是否发生频
偏，尤其是使用卫星信号

是

建议客户重新

设置信号源

是 否

升级软体

用场强仪检测信号强度是否在
45-100db 之间，65db 左右为最佳值

是

用别的 TV 测试是否能收到此台

是

和客户说明当地 TV 信号未转播此台

否

更换主板

否

太弱:加装信号放大器
太强:减少信号放大器或加装信号衰减器

否

58

更换喇叭 主板功放异常

重新安置或更换电池

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换主板

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

更换遥控器 检测 IR 板是否异常

异响

用别的遥控器测试是否可用

是 否

是

更换 IR 板

电源板，PANEL 异响

更换电源板/PANEL

否

更换主板

59

8. 主要 IC 管脚及内部框

LED DRIVER TPV101D DIP-8

60

PF6002AS SOP-8

61

SSC2S110 SOP-8

62

9. BOM

注意：以下初始版本 BOM 信息仅供维修参考，不作为下单依据，如有变更，恕不另行通知，请以 RSPL 或 Service
BOM(http://cs.tpv.com.cn

E50D4KNDFEA1NNX

点位 组件 对象描述 备注

756TXECB0KD0010004 MAIN BOARD-CBPFDKJDX3

SMTF-U405 100TARVQ004D4X MCU ASSY-056G2233 58

P34E18170GM02K0200 REAR_COVER TV50W-14A-AOC1-AOC1 --NA --N
001G6021 1 SCREW
0M1G 130 6 47 CR3 SCREW 3X6
0M1G1030 8 47 CR3 SCREW
0M1G1730 8120 SCREW
0Q1G1030 6120 SCREW 3X6
0Q1G1030 8 47 CR3 SCREW 3X8
0Q1G1030 8120 SCREW
0Q1G1030 10120 SCREW
317GAAKB501HTG IR MODULE YKJ-3274PCBA

SP01 378G0120498XAA 6 OHM 12W 132*45*39 0 UNIT
ECN701 395G801314DY15 HARNESS 14P-16P 400 2nd source
ECN701 395G801314MY15 HARNESS 14P-16P 400
ECN600 395G801404DC39 HARNESS 4P-B&R+B&W 650/500
ECN600 395G801404MC39 HARNESS 4P-B&R+B&W 650/500 2nd source

ECN4003 395G801414RC04 HARNESS 14P-5P+2P 400/900 2nd source
ECN4003 395G801414XC04 HARNESS 14P-5P+2P 400/900

ECN408 395G801851DC17 LVDS CABLE 51P-40P 320MM 2nd source
ECN408 395G801851XC17 LVDS CABLE 51P-40P 320MM

708GQA340WPX01 CITA 40(234 CH)
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM

E750 750TBV500V41HCN000 LCD PANEL TPT500J1-HVN04 S16SH TW TPV T

Z40G0002ALL01A OTHER LABEL

CN4003 033G380214B YH L WAFER 2.0MM 14P R/A 29.98MM 7.8MM

C626 067G315M1016KV EC 100UF 20% 35V 8*7

C603 067G315M1016KV EC 100UF 20% 35V 8*7

CN102 088G 30288C PHONE JACK 3P GREEN - 1 1
CN113 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN602 088G302G7B1ACL PHONE JACK R/A 7P BLACK H=10.5
CN108 088G342GFB1AGN RJ45 CONN + LED R/A 15P BLACK H=10.5
CN104 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN103 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN101 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
TU101 094G PALALL10L TUNER CHINA DT21WN-2-E
CN600 311GW200A04ABX WAFER 2.0MM 4P
CN701 311GW250B14BBX WAFER 2.5MM 14P W2415-14RVA-S01-A
CN126 388G302F5B1AQS PHONE JACK R/A 5P 1*1 BLACK 8.5MM
CN111 388G302F5B1AQS PHONE JACK R/A 5P 1*1 BLACK 8.5MM

709T61930XM001 COMSUMPTIVE ASSY
055G 23524 WELDING FLUX WITHOUT PB
Q49G 51100 CLEANER

Q55G 100625 TIN STICK_LOW ARGENTUM
U702 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U708 056G 563X01 LDO G9661-25ADJF11U 2A 300MV DROP SOP-8
U101 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6

) 为准，谢谢！

63

U100 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6

U4002 056G1133 56 M24C16-WMN6TP

U405 056G2233 58 FLASH K9F2G08U0C-SIB0 2GB TSOP-48
Q600 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q4002 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q402 057G 417 18 T PMBT3904 SOT-23
Q503 057G 417 18 T PMBT3904 SOT-23
Q705 057G 417 18 T PMBT3904 SOT-23
Q504 057G 417 18 T PMBT3904 SOT-23
Q701 057G 417 18 T PMBT3904 SOT-23
Q702 057G 417511 MMBT3904
Q714 057G 417511 MMBT3904
Q707 057G 417511 MMBT3904
Q713 057G 417511 MMBT3904
Q706 057G 417511 MMBT3904
Q703 057G 417511 MMBT3904
Q602 057G 417512 MMBT3906
Q704 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q403 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q711 057G 763940 MOSFET AO3401A SOT-23
Q709 057G 763940 MOSFET AO3401A SOT-23

RP432 061G 1260008JI RST NET 0R 5% 1/16W
RP430 061G 1260008JI RST NET 0R 5% 1/16W
RP431 061G 1260008JI RST NET 0R 5% 1/16W
RP421 061G 1260008JI RST NET 0R 5% 1/16W
RP426 061G 1260008JI RST NET 0R 5% 1/16W
RP413 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP405 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP406 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP407 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP408 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP411 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP412 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP404 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP403 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP402 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP410 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP409 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP401 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

R622 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R625 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R132 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R169 061G0402000 JT RST 0402 0.05R MAX 1/16W -

R4003 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R4024 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R4006 061G0402000 JT RST 0402 0.05R MAX 1/16W -

R118 061G0402000 JT RST 0402 0.05R MAX 1/16W -

R4005 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R4002 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R4001 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R4004 061G0402000 JT RST 0402 0.05R MAX 1/16W -

R148 061G0402000 JT RST 0402 0.05R MAX 1/16W -

64

R140 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R170 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R103 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R108 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R101 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R116 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R113 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R121 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R111 061G0402000 JT RST 0402 0.05R MAX 1/16W ­R611 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R616 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R602 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R608 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R162 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R503 061G04021001FY RST CHIP 1K 1/16W 1%
R504 061G04021001FY RST CHIP 1K 1/16W 1%

R4070 061G04021001FY RST CHIP 1K 1/16W 1%

R624 061G04021001FY RST CHIP 1K 1/16W 1%

R4012 061G04021001FY RST CHIP 1K 1/16W 1%
R4009 061G04021001FY RST CHIP 1K 1/16W 1%

R623 061G04021001FY RST CHIP 1K 1/16W 1%

R4072 061G04021001FY RST CHIP 1K 1/16W 1%
R4110 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I

R119 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R122 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R522 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R114 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R4021 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R109 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R146 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R706 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R190 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R150 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R139 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R117 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R1034 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1033 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R112 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R189 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R4117 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R134 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R1031 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1032 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R526 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R527 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R523 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R136 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R138 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R142 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R130 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R531 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R4065 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4066 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4067 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO

65

R760 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R751 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R765 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R730 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R753 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R174 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R175 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R176 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R177 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R713 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R740 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R721 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R719 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R717 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R712 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R705 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R520 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R154 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R107 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R105 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R152 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R161 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R708 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R4017 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4020 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R724 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R509 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R4102 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R510 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R725 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R714 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I

R4043 061G0402153 JF RST CHIPR 15KOHM 1/16W FENGHUA
R4050 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA

R524 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R144 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
R143 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R4010 061G04022400FI RST 0402 240R 1% 1/16W
R4076 061G04022400FI RST 0402 240R 1% 1/16W
R4008 061G0402273 JT RST CHIP 27K 1/16W 5% TZAI YUAN

R755 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA
R528 061G0402393 JI RST 0402 39K 5% 1/16W
R756 061G04024322FF RST CHIPR 43.2KOHM +-1% 1/16W FENGHUA
R519 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4101 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R517 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4027 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4035 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R718 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4034 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R738 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4042 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4105 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R711 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4014 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

66

R516 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4046 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R702 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R707 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4047 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4045 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4099 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R518 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R127 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R128 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R188 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4023 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R187 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R4115 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4033 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4030 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4041 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4064 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4063 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4062 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4049 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R507 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R506 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R610 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN

R4104 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN

R731 061G0402479 JT RST CHIP 4R7 1/16W 5% TZAI YUAN
R754 061G04025101FF RST CHIP 5.1K 1/16W 1% FENGHUA
R752 061G04025101FF RST CHIP 5.1K 1/16W 1% FENGHUA

R4018 061G04025109FT RST 0402 51R 1% 1/16W
R4080 061G04025109FT RST 0402 51R 1% 1/16W
R4078 061G04025109FT RST 0402 51R 1% 1/16W
R4025 061G0402511 JF RST CHIP 510R 1/16W 5% FENGHUA

R727 061G0402513 JT RST CHIP 51K 1/16W 5% TZAI YUAN

R4007 061G0402622 JI RST 0402 6.2K 5% 1/16W
R4111 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA

R151 061G04026801FI RST 0402 6.8K 1% 1/16W
R104 061G04026801FI RST 0402 6.8K 1% 1/16W
R106 061G04026801FI RST 0402 6.8K 1% 1/16W
R153 061G04026801FI RST 0402 6.8K 1% 1/16W
R123 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R110 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R131 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R120 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R115 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R102 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R147 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R137 061G0402750 JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R759 061G04029531FF RST 0402 9.53K 1/16W 1% FENGHUA

FB414 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
FB415 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R614 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R612 061G06031003FT RST CHIP 100K 1/10W 1%
R609 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R620 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

67

R764 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R749 061G06031022FI RST 0603 10.2K 1% 1/10W
R621 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R600 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R726 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R615 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R733 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R603 061G0603103 JI RST 0603 10K 5% 1/10W
R604 061G0603103 JI RST 0603 10K 5% 1/10W
R737 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R617 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R734 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R619 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R618 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R601 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R728 061G06032200FT RST CHIP 220R 1/10W 1%
R729 061G06032209FT RST CHIP 22R 1/10W 1%
R736 061G06032401FY RST CHIPR 2.4KOHM +-1% 1/10W YAGEO
R750 061G06032402FF RST CHIPR 24KOHM 1/10W FENGHUA
R763 061G06032409FT RST CHIP 24R 1/10W 1%
R613 061G06032702FT RST CHIP 27K 1/10W 1%
R722 061G0603303 JT RST CHIP 30K 1/10W 5% TZAI YUAN
R723 061G0603303 JT RST CHIP 30K 1/10W 5% TZAI YUAN
R735 061G06037501FF RST CHIPR 7.5KOHM +-1% 1/10W FENGHUA
R757 061G06037501FF RST CHIPR 7.5KOHM +-1% 1/10W FENGHUA

FB705 061G08050004JT RST CHIPR 0805 0 OHM 4A
R4013 061G08050004JT RST CHIPR 0805 0 OHM 4A

FB4017 061G08050004JT RST CHIPR 0805 0 OHM 4A

C186 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C110 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C168 065G040210031J Y CAP 0402 10PF 5% 50V NP0

C4122 065G040210131J A CAP CHIP 0402 100PF J 50V NPO

C727 065G040210131J F CAP 0402 100PF 5% 50V NP0
C725 065G040210131J F CAP 0402 100PF 5% 50V NP0
C139 065G040210232K A CAP 0402 1NF 10% 50V X7R
C130 065G040210332K A CAP 0402 10NF 10% 50V X7R
C144 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C138 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C715 065G040210412K F CAP 0402 100NF 10% 16V X7R
C716 065G040210412K F CAP 0402 100NF 10% 16V X7R

C4121 065G040210412K T CAP CHIP 0402 100NF 16V X7R

C638 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4069 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4067 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4017 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4098 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4097 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4102 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4055 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4066 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4100 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4016 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C703 065G040210412K Y CAP 0402 100NF 10% 16V X7R

68

C4111 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4032 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4110 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4104 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4062 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4099 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C731 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4109 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4044 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4071 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4113 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4108 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4107 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4114 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4105 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4106 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4117 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4103 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C182 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4112 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4049 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C501 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4054 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4053 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4043 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C118 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4057 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4072 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4101 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C748 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C645 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C644 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C750 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4012 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4014 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4048 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C133 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C134 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C751 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C740 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C143 065G040210425K F CHIP 0402 0.1UF 25V X5R
C145 065G040210425K F CHIP 0402 0.1UF 25V X5R

C4011 065G040210506K A CAP 0402 1UF 10% 6.3V X6S
C4033 065G040210506K A CAP 0402 1UF 10% 6.3V X6S
C4065 065G040210506K A CAP 0402 1UF 10% 6.3V X6S
C4010 065G040210506K A CAP 0402 1UF 10% 6.3V X6S
C4042 065G040210506K A CAP 0402 1UF 10% 6.3V X6S
C4013 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4120 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R

C185 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R

C4003 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4061 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R

C752 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R

C4002 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R

69

C767 065G040215232K A CAP 0402 1.5NF 10% 50V X7R
C746 065G040215232K A CAP 0402 1.5NF 10% 50V X7R
C174 065G040220031J F CAP 0402 20PF 5% 50V NP0
C173 065G040220031J F CAP 0402 20PF 5% 50V NP0
C744 065G040222031J A CAP 0402 22PF J 50V NPO
C761 065G040222031J A CAP 0402 22PF J 50V NPO
C109 065G040222031J A CAP 0402 22PF J 50V NPO

C4064 065G040222031J A CAP 0402 22PF J 50V NPO
C4056 065G040222031J A CAP 0402 22PF J 50V NPO

C623 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C615 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C609 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C606 065G040233131J T AP CHIP 0402 330PF 50V J NPO

C4026 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4039 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4020 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4021 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4037 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4030 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4023 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4031 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4022 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4015 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4018 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4025 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4024 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4019 065G040247312K A CAP 0402 47NF 10% 16V X7R
C4035 065G040247312K A CAP 0402 47NF 10% 16V X7R

C106 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C107 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C111 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C108 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C602 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R
C625 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R
C745 065G060310332K F CAP CHIP 0603 10NF K 50V X7R
C766 065G060310332K F CAP CHIP 0603 10NF K 50V X7R
C601 065G060310432K A CAP 0603 100NF 10% 50V X7R
C765 065G060310432K A CAP 0603 100NF 10% 50V X7R
C624 065G060310432K A CAP 0603 100NF 10% 50V X7R
C734 065G060310432K A CAP 0603 100NF 10% 50V X7R
C738 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C718 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C717 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C735 065G060310512K A CAP 0603 1UF 10% 16V X7R
C175 065G060310512K A CAP 0603 1UF 10% 16V X7R
C763 065G060310512K A CAP 0603 1UF 10% 16V X7R
C170 065G060310512K A CAP 0603 1UF 10% 16V X7R
C726 065G060310522K A CAP 0603 1UF 10% 25V X7R CL10B105KA8NNN

C4118 065G060310522K A CAP 0603 1UF 10% 25V X7R CL10B105KA8NNN
C4068 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4096 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4070 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%

70

C4060 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4040 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4051 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4095 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4004 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4005 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4041 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%

C600 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C611 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C614 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C620 065G060322422K T CAP CHIP0603 220NF K 25V X7R

C4006 065G060322515K A 0603 2.2UF K 16V X5R
C4009 065G060322515K A 0603 2.2UF K 16V X5R
C4047 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4028 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4038 065G0603225A5K A CAP 0603 2.2UF K 10V X5R

C754 065G0603225A5K A CAP 0603 2.2UF K 10V X5R

C4036 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4050 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4027 065G0603225A5K A CAP 0603 2.2UF K 10V X5R

C741 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C758 065G060347332K F CAP CHIP 0603 47NF K 50V X7R

C4045 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­C4008 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­C4063 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­C4007 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­C4052 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­C4059 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­C4046 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN

C607 065G080510532K A CAP 0805 1UF 10% 50V X7R
C605 065G080510532K A CAP 0805 1UF 10% 50V X7R
C621 065G080510532K A CAP 0805 1UF 10% 50V X7R
C616 065G080510532K A CAP 0805 1UF 10% 50V X7R
C618 065G080510532K A CAP 0805 1UF 10% 50V X7R
C619 065G080510532K A CAP 0805 1UF 10% 50V X7R
C743 065G080510615K A CAP 0805 10UF 10% 16V X5R

C4116 065G080510615K A CAP 0805 10UF 10% 16V X5R

C760 065G080510615K A CAP 0805 10UF 10% 16V X5R
C730 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C721 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C722 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C764 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C4034 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C755 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K

R4103 065G120622615K A CAP 1206 22UF 10% 16V X5R
R4114 065G120622615K A CAP 1206 22UF 10% 16V X5R

C742 065G1206226A5K A 1206 22UF K 10V X5R
C759 065G1206226A5K A 1206 22UF K 10V X5R
C753 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C749 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C629 067G311C1013CT EC SMD 100UF 20% 16V RV 6.3*7.7
C117 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C180 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C724 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2

71

C762 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C135 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C629 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2

HDCP-U4002 070GHDCP500HDC HDCP CODE

FB417 071G 56121 TA CHIP BEAD 0805 120R/3A HCB2012KF-121T30
FB108 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R
FB704 071G 56G301 DA CHIP BEAD 0805 300R 25% 4A
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB706 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB418 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB600 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB703 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L

FB4015 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02

FB413 071G 59S121 M HIP BEAD 120R/500MA
FB410 071G 59S121 M HIP BEAD 120R/500MA
FB416 071G 59S121 M HIP BEAD 120R/500MA
FB411 071G 59S121 M HIP BEAD 120R/500MA
FB412 071G 59S121 M HIP BEAD 120R/500MA
FB401 071G 59S121 M HIP BEAD 120R/500MA
FB403 071G 59S121 M HIP BEAD 120R/500MA
FB408 071G 59S121 M HIP BEAD 120R/500MA
FB407 071G 59S121 M HIP BEAD 120R/500MA
FB406 071G 59S121 M HIP BEAD 120R/500MA
FB404 071G 59S121 M HIP BEAD 120R/500MA

L104 073G 63478 5M CHIP INDUCTOR 0603 100MA 0.47UH 5%
L106 073G 63478 5M CHIP INDUCTOR 0603 100MA 0.47UH 5%

L702 073G253S 71 DN SMD CHOKE 2.2UH 20% 8A LZ.412R2.A0P,HF
CN508 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
CN507 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4

D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D100 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D501 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23

X401 093G 22S517 YC CRYSTAL HC-49U/SMD 27M 30PPM 20PF
ZD4003 093G 39GA01 T RLZ5.6B
ZD4004 093G 39GA01 T RLZ5.6B

D700 093G 52S903 T RECTIFIER GS1A 1A 50V DO-214AC

D701 093G 52S903 T RECTIFIER GS1A 1A 50V DO-214AC

ZD508 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD127 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD512 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD510 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD507 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD511 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD119 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD118 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD128 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

72

ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD126 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
CN408 311GW125F40ACH WAFER 1.25MM 40P V/T A12511WVA-SF-2*20PN

U104 356G0563527BHF000C LDO BL1117-33CX (CU) 1A 3.3V SOT-223

U401 356G0568448068 SCALER RTD2694A LFBGA-448

U402 356G0615163 DRAM K4B2G1646E-BCH9 2GB FBGA-96

U600 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP

U703 356GD563008011 DC/DC APW7313KAI-TRG 3A 20V SOP-8

U701 356GD563008011 DC/DC APW7313KAI-TRG 3A 20V SOP-8

U700 356GD563008014 DC/DC APW7323AKAI-TRG 3.2A ADJ SOP-8

C4058 365G040247505M000A CAP 0402 4.7UF 20% 6.3V X5R CL05A475MQ5

MAC-U4002 370G0MAC602AOC CD MAC

L600 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L603 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L706 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L601 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L602 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L705 373G253S243D00 SMD CHOKE 22UH 20% 2.10 0.069 SWPG8040G

D401 393G060S91300T00HF HF RB501V-40_R1_00001 0.1A 45V SOD-323

709T61930XS001 COMSUMPTIVE ASSY
052G 2191 A PAPER TAPE
055G 100610 TIN CREAM W/O PB

Q52G170100700B00XW MESH PRINTTING_PAPER
E715 715G6193M0D000004F MAIN PCB FR4 DS 135X186X1.6MM
E715 715G6193M0D000004K MAIN PCB FR4 DS 135X186X1.6MM 2nd source

HS401 X90G070410100000BF HEAT SINK
HS401 X90G070410100000HG HEAT SINK

KEPFDXA2 KEY BOARD

R02 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R01 061G06031201FT RST CHIP 1K2 1/10W 1%
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R03 061G06036801FT RST CHIP 6K8 1/10W 1%
C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R

CN01 311GW125D02ADX WAFER 1.25MM 2P R/A S1315-02RVB-S03-K

SW01 377G060902A0CJ CHIP TACT SW 6P 5MM 160G SMD

709T63160XS001 COMSUMPTIVE ASSY
E715 715G6316K0D000004S KEY PCB FR4 SS 25*24.4*1.6
E750 LCA500HVN04AB1E50C PANEL TPT500J1-HVN04 S16SH TW TPV 2nd source

P33E0550ADT01T0200 COVER_KEY N/A

P34E18180GM01K0300 COVER_SPK N/A NA NA

P34E18190GM01K0300 COVER_SPK N/A NA NA

P34E18200GM01K0100 LENS_FUNCTION

P34E18210GM01K0100 LENS_FUNCTION

PLTVDQ401XAF7 ADAPTER BOARD NA

Z40G0002ALL01A OTHER LABEL

CN8501 033G380212B YH WAFER 12P 2.0 DIP

IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC8102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9401 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

R9808 061G3SWJ70759B SY RST WD 0.07R 5% 3W
C9906 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C9905 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M

73

FB9901 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
FB9902 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B

CN9902 087G 50147D HC HF HF AC SOKET R/A 2P 12DEGREE H=12.8

D9801 093G 50460514 BRIDGE KBP306G-05 3A 800V KBP

0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0

CN9100 311GW200C16ABX CONN 2.0MM 16P R/A -

IC8105 356G0700008060 LED DRIVER TPV101D DIP-8

IC8103 356G0700008060 LED DRIVER TPV101D DIP-8
RV9901 361G0046621KZE VARISTOR 620V 10%
RV9901 361G0046621KZW VARISTOR 620V 10%

NR9901 361G0058259MYW008A NTCR 2.5R 20% 3.6W SCK152R58MTY503
NR9902 361G0058259MYW008A NTCR 2.5R 20% 3.6W SCK152R58MTY503

C9805 363G210J105GHP CAP MPP 1UF 5% 450V
C9815 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA ­C9814 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA ­C8108 367G515X121JKZ EC 120UF 20% 100V EV2A121MLT0830F5R
C8107 367G515X121JKZ EC 120UF 20% 100V EV2A121MLT0830F5R
L9901 373G0174298H00 LINE FILTER 9MH MIN 1.2A -­L9903 373G0174301X00 LINE FILTER 0.25MH MIN 2A 3LFT1064-251M
L9902 373G0174303X00 LINE FILTER 18MH MIN 1.26 3LFT18106-183
L9801 373G0174312H00 PFC CHOKE 240UH 8% 2A GL-13224 HA
L8100 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L9100 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L9101 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
T9101 380GL32P141H00 X'FMR 360U 10% 5U ER31 BCK-13122-HA
T8101 380GL52P153H00 X'FMR 250UH 10% 4UH ER31 -

BD9901 393G0050460A10 BRIDGE TS10K80-01 X0 10A 800V X0

705TAD57082 Q9100 ASSY

Q9100 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP

0M1G1730 8120 SCREW

HQ9100 Q90G0219 4 HEAT SINK ÐͲÄ/PROFILE

705TAD57083 Q9102 ASSY
0M1G1730 8120 SCREW

Q9102 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F

HQ9102 Q90G0219 4 HEAT SINK ÐͲÄ/PROFILE

705TAD57084 Q9801 ASSY

Q9801 057G 667A04 MOSFET STF24NM60N 17A 600V 30W TO-220FP

D9802 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW

HS9801 Q90G0219 3 HEAT SINK

705TAD57088 Q8100 ASSY

Q8100 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP

0M1G1730 8120 SCREW

HQ8100 Q90T0236 1 HEAT SINK

705TAD93666 D8106 ASSY

D8106 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW

HS8106 Q90G0219 4 HEAT SINK ÐͲÄ/PROFILE

IC9103 056G 158501 IC AS431AN-E1 SOT23

IC8104 056G 158501 IC AS431AN-E1 SOT23

Q9402 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23

R9128 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8107 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8108 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

74

R9128 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8107 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8108 061G0805000 JT RST 0805 0.05R MAX 1/8W
R9802 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9104 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R8101 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9802 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9104 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R8101 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9121 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
R9116 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I
R9121 061G08051001FT RST CHIP 1K 1/8W 1%
R9406 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9131 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R8110 061G08051002FT RST CHIP 10K 1/8W 1%
R9406 061G08051002FT RST CHIP 10K 1/8W 1%
R9402 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8111 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8111 061G08051003FT RST CHIP 100K 1/8W 1%
R9402 061G08051003FT RST CHIP 100K 1/8W 1%
R9806 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9107 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9806 061G0805103 JT RST 0805 10K 5% 1/8W
R9107 061G0805103 JT RST 0805 10K 5% 1/8W
R9119 061G08051501FF RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA
R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN
R9818 061G08051602FF RST CHIPR 16KOHM +-1% 1/8W FENGHUA
R9818 061G08051602FI RST 0805 16K 1% 1/8W
R9812 061G08052003FF RST CHIPR 200KOHM +-1% 1/8W FENGHUA
R9812 061G08052003FT RST CHIP 200K 1/8W 1%
R8112 061G08052003FT RST CHIP 200K 1/8W 1%
R9803 061G0805201 JF RST CHIPR 200OHM +-5% 1/8W FENGHUA
R9803 061G0805201 JT RST CHIPR 200OHM +-5% 1/8W TZAI YUAN
R9115 061G08052201FF RST CHIPR 2.2KOHM +-1% 1/8W FENGHUA
R9115 061G08052201FT CHIP 2K2 1/8W 1%
R8116 061G08053903FT RST CHIP 390K 1/8W 1%
R8113 061G08054302FT RST CHIP 43K 1/8W 1%
R8102 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R8102 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9118 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA
R9118 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
R9408 061G08055103FF RST CHIPR 510K OHM +- 1% 1/8W FENGHUA
R9408 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN
R9813 061G0805563 JF RST CHIPR 56KOHM +-5% 1/8W FENGHUA
R9813 061G0805563 JT RST CHIPR 56K +-5% 1/8W TZAI YUAN
R8114 061G08057502FT RST CHIP R 75 KOHM +-1% 1/8W
R9106 061G08057509FT RST CHIP R 75OHM 1/8W +/-1%
R9120 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA
R9120 061G08059101FT RST CHIP 9K1 1/8W 1%
R8119 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R8136 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ9912 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9910 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9908 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

75

RJ9907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9909 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9911 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ9901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R8136 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R8119 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R9126 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA

R9126 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN

R8109 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA

R8109 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W

R9405 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA

R9130 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA

R9405 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206

R9815 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF

R9815 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO

R9804 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R9804 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R9407 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R9407 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R9404 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R8118 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R8104 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R8118 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R8104 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R9404 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R8124 061G12061508FT RST 1206 1.5R 1% 1/4W

R8131 061G12061508FT RST 1206 1.5R 1% 1/4W

R8125 061G12061508FT RST 1206 1.5R 1% 1/4W

R8132 061G12061508FT RST 1206 1.5R 1% 1/4W

R8126 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206

R8133 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206

R8145 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8141 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8143 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8142 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8146 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8147 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R9810 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8148 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8144 061G1206201 JF RST CHIPR 200 OHM 5% 1/4W FENGHUA

R8141 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8145 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8143 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8142 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8146 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R9810 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8147 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8144 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R8148 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN

R9403 061G1206202 JF RST CHIPR 2KOHM +-5% 1/4W FENGHUA

R9403 061G1206202 JT RST CHIP R 2KOHM 1/4W +/-5%

76

R9124 061G12062202FF RST 1206 22K 1% 1/4W FENGHUA

R9122 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN

R9124 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN

R9132 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA

R9134 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA

R9109 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA

R9108 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA

R9133 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA

R9110 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA

R9108 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN

R9110 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN

R9133 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN

R9132 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN

R9134 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN

R9109 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN

R8120 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W FENGHUA

R8138 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W FENGHUA

R8121 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W FENGHUA

R8122 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W FENGHUA

R8137 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W FENGHUA

R8123 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W FENGHUA

R8123 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN

R8122 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN

R8121 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN

R8138 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN

R8120 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN

R8137 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN

R9401 061G1206302 JF RST CHIP 3K 5% 1/4W

R9401 061G1206302 JT RST CHIP 3K 5% 1/4W

R9112 061G1206339 JF RST CHIPR 3.3 OHM +-5% 1/4W FENGHUA

R9112 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN

R9103 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA

R9103 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN

R9125 061G1206479 JT RST 1206 4.7R 5% 1/4W

R9125 061G1206479 JY RST CHIPR 4R7 +-5% 1/4W YAGEO

R8103 061G1206511 JT RST CHIPR 510OHM +-5% 1/4W TZAI YUAN

R8103 061G1206511 JY RST CHIPR 510 OHM +-5% 1/4W YAGEO

R9117 061G1206512 JF .ST CHIPR 5.1KOHM +-5% 1/4W FENGHUA

R9123 061G1206512 JF .ST CHIPR 5.1KOHM +-5% 1/4W FENGHUA

R9123 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R9117 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R9901 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA

R9905 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA

R9906 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA

R9902 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA

R9903 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA

R9904 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA

R9901 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN

R9905 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN

R9906 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN

R9902 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN

R9904 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN

R9903 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN

R9809 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

77

R9807 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R9807 061G12066803FT RST CHIP 680K 1/4W 1%

R9809 061G12066803FT RST CHIP 680K 1/4W 1%

C9133 065G080510131J F CAP CHIP 0805 100PF J 50V NPO

C8124 065G080510131J F CAP CHIP 0805 100PF J 50V NPO

C8123 065G080510131J F CAP CHIP 0805 100PF J 50V NPO

C9131 065G080510131J F CAP CHIP 0805 100PF J 50V NPO

C9131 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%

C8123 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%

C8124 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%

C9133 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%

C9811 065G080510231J F CAP 0805 1NF 5% 50V NPO

C9811 065G080510231J M CAP 0805 1NF 5% 50V NP0

C8101 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C9137 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C9136 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C9115 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C9115 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C9136 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C9137 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C8101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C9140 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C9402 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C9139 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C8113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C8115 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C8118 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C9804 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C9138 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C8119 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C8102 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C9806 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C9130 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C9132 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C8113 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9402 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9132 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9139 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C8115 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C8118 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9804 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C8119 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9130 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9138 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C8102 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9134 065G080510532K M CAP 0805 1UF 10% 50V X7R

C9121 065G080510532K M CAP 0805 1UF 10% 50V X7R

C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R

C9134 065G080510532K T CAP 0805 1UF 10% 50V X7R

C9121 065G080510532K T CAP 0805 1UF 10% 50V X7R

C9141 065G080510532K T CAP 0805 1UF 10% 50V X7R

C8100 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

C8100 065G080522131J Y CAP CHIP 0805 220P 50V NP0 +/-5%

78

C9809 065G080522332K F CAP 0805 22NF K 50V X7R

C9809 065G080522332K Y CAP CHIP 0805 22N 50V X7R +/-10%

C9118 065G080522432K F CAP 0805 220NF 10% 50V X7R

C9810 065G080522432K F CAP 0805 220NF 10% 50V X7R

C9810 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224

C9118 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C9110 065G080522522K M CAP 0805 2.2UF 10% 25V X7R

C9807 065G080533232K F CAP 0805 3.3NF 10% 50V X7R

C9807 065G080533232K Y CAP 0805 3.3NF 10% 50V X7R

C9102 065G080547131J F CAP CHIP 0805 470PF J 50V NPO

C9102 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%

C9103 065G080547232K F CAP 0805 4.7NF 10% 50V X7R

C8106 065G080547232K F CAP 0805 4.7NF 10% 50V X7R

C9103 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%

C8106 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%

C8105 065G080547432K M CAP 0805 470NF 10% 50V X7R

C8114 065G080547432K M CAP 0805 470NF 10% 50V X7R

C8116 065G080547432K M CAP 0805 470NF 10% 50V X7R

C8116 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C8114 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C8105 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C8112 065G120610171J Y CAP 1206 100PF 5% 500V NP0

C8111 065G120610171J Y CAP 1206 100PF 5% 500V NP0

C9142 065G120610532K M CAP CHIP 1206 1UF K 50V X7R

D9803 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123

D9106 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123

D9108 093G 60S952 T SCHOTTKY SK510C R6 5A 100V SMC

IC9801 356G0379008222 PFC R2A20133ESP SOP8
IC8100 356G0379008228 AC/DC PF6002AS SOP-8
IC9100 356G0379213 AC/DC SSC2S110 SOP-8
IC9104 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8

Q9401 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89
Q9403 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
Q9106 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V

R9129 361G12068201FT RST 1206 8.2K 1% 1/4W SMD12068K2F

D8100 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123

D9103 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123

ZD9801 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD
ZD8101 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
ZD9401 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
ZD8102 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
ZD8103 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123
ZD9101 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123
ZD9102 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123
ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123

T9101 006G 31 4 1.7MM RIVET

T8101 006G 31 4 1.7MM RIVET

R8105 061G152M20852T SY RST MOF 0.2OHM 5% 2W FUTABA

R8106 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA

R9147 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA

C9113 065G 1K10293T CAP CER 1NF 10% 1KV R

C9114 065G 1K10293T CAP CER 1NF 10% 1KV R

C8104 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING

C9120 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING

79

C9803 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR

C9401 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR

C8110 067G 5154709KT EC 47UF 20% 100V 10*12

C9104 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

C9112 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

C9109 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

C9105 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

C9106 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

C9108 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

C9107 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

FB9803 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571
FB9103 071G 55 29 FERRITE BEAD

F9901 084G 56 5 C FUSE 5A 250V MST 5A 250V

D9104 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41

D8101 093G1080 252T DIODE SARSO1-V1 SANKEN

D9102 093G1080 252T DIODE SARSO1-V1 SANKEN

J9922 095G 90 23 JUMP WIRE - -

J9919 095G 90 23 JUMP WIRE - -

J9907 095G 90 23 JUMP WIRE - -

J9914 095G 90 23 JUMP WIRE - -

J9902 095G 90 23 JUMP WIRE - -

J9926 095G 90 23 JUMP WIRE - -

J9921 095G 90 23 JUMP WIRE - -

J9906 095G 90 23 JUMP WIRE - -

J9918 095G 90 23 JUMP WIRE - -

J9901 095G 90 23 JUMP WIRE - -

J9913 095G 90 23 JUMP WIRE - -

J9925 095G 90 23 JUMP WIRE - -

J9920 095G 90 23 JUMP WIRE - -

J9932 095G 90 23 JUMP WIRE - -

J9905 095G 90 23 JUMP WIRE - -

J9917 095G 90 23 JUMP WIRE - -

J9929 095G 90 23 JUMP WIRE - -

J9912 095G 90 23 JUMP WIRE - -

J9924 095G 90 23 JUMP WIRE - -

J9909 095G 90 23 JUMP WIRE - -

J9931 095G 90 23 JUMP WIRE - -

J9904 095G 90 23 JUMP WIRE - -

J9916 095G 90 23 JUMP WIRE - -

J9911 095G 90 23 JUMP WIRE - -

J9908 095G 90 23 JUMP WIRE - -

J9930 095G 90 23 JUMP WIRE - -

J9903 095G 90 23 JUMP WIRE - -

J9915 095G 90 23 JUMP WIRE - -

J9927 095G 90 23 JUMP WIRE - -

J9910 095G 90 23 JUMP WIRE - -

R9142 361G152M22052T00SY RST MOF 22R 5% 2W RSS02J22R0A520NH

R9111 361G2SWJ36852T00SY

RST NWR 0.36OHM 5% 2W
NWS02JR360A520NH

NR9901 006G 31 4 1.7MM RIVET
NR9902 006G 31 4 1.7MM RIVET
CN9902 006G 31500 EYELET

040G 45762420A LABEL 25X6MM

R8117 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA

80

C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P

C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P

C9911 065G306K22123R CAP Y1 220PF 10% 250V Y5P

C9910 065G306K22123R CAP Y1 220PF 10% 250V Y5P

C9913 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06

C9914 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06

C9910 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06

C9911 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06

C9912 065G306K47123R CAP Y1 470PF 10% 250V Y5P

C9912 065G306K4712WR CAP Y1 470PF 10% 250V Y5P CT7-Y1-250V-0

C9101 067G 5151017KT EC 100UF 20% 50V 10*9 EJ

FB9904 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9805 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9804 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9100 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9903 071G 55 29 FERRITE BEAD
FB9802 071G 55 29 HF FERRITE BEAD 3.5*2.2*0.8 TAPING HF

J9933 095G 90 23 JUMP WIRE - -

J9934 095G 90 23 JUMP WIRE - -

C8103 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G

C9817 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G

C9904 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA

E715 715G6335P01000002S PWR PCB FR2 CTI>600 SS 241*195.5MM

Q11G701016000L00ZL PCB-SUPPORT
Q12G714001100200SS HEAT PAD
Q12G714002100100HK HEAT PAD
Q36T 600 28 13 GP NON-WOVEN FABRIC
Q36T 600 30 2 HIMERON
Q36T 600 30 6 NONWOVEN FABRIC
Q45G99010TV05500X1 PROTECT BAG
Q50G 500 TV005 CABLE TIE
Q52G130118600000YY TAPE
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
Q85T 583162 GASKET
Q85T 583162 GASKET
X15T906110100000BL BKT_GROUND
X15T9069601000GMLH BKT_IO
X15T9070101000GMBL BKT_IO
X15T909010100000YF BKT_STAND
X15T912610100000YF BKT_GROUND
X15T915210200000AJ BKT_GROUND
X15T918620100000AJ BKT_BTM
X33E0069ADT01L0100 BEZEL
X35T8225001A1C01DA DECO_BEZEL
X40G2013050X1600XY LABEL IO
X40G2013050X2400ZA LABEL SIDE
X44GQA3461502A ARTWORK CARTON
X44GQA44101EPE CUSHION-T
X44GQA44201EPE CUSHION-B
X44GQA44301EPE CUSHION-FRONT
X52G10010TV01800BK AL FOIL
X52G1601 TVX04 FAPE
X52G18010TV18800ZA INSULATING SHEET

81

ECN126 089G 17356CY01 RCA CABLE 100
ECN111 089G 17356GX01 RCA CABLE 100MM

E08901 089G214A15N HL AC POWER CORD 1500MM

092GB1JX1A3DGC BATTERY 1.5V BATTERY FOR LR03
RFB01 317GARFM006CHH RF MODULE CBIP-X
RFB01 317GARFM008TCL RF MODULE GL03-2-E

ECN102 389G017356GY09 AUDIO CABLE 100MM

E39801 398GRABD4NCACT REMOTE AOC YKF322-002 CHINESE

X41G50MV61504B MANUAL T5042ID

X41G78DV61501D WARRANTY CARD AOC CHINA

040G 58162435A MANUAL P/N LABEL

Q40G 581689 4B SN LABEL(58X35MM)

Q40G000162493A 3CEL LABEL FOR TV MODEL G2/2.0/0.5

X40G000162413A CARTON LABEL

X40G050061506A RATING LABEL FOR T5042ID CITA

82
