维 修 手 册
品牌 机种
T4050MD
T4250MD
AOC LE40D3158/80
LE42D3133/80
LE40D3150/80
LE42D3150/80
1
变更说明
版本 发布日期 变更说明 对外机种名 对内机种名
LE40D3150/80 E40E2KNDDWA7NNX
A00 Apr.11,2014
A01 Apr.16,2014
首次发布
LE42D3150/80 E42E5KNDDWA7NNX
LE40D3158/80 E40E2KNDDWA8NNX
LE42D3133/80 E42E5KNDDWA6NNX
增加新机种
T4050MD E40E2KNDDWA9NNX
T4250MD E42E5KNDDWA8NNX
2
目 录
1. 技术规格------------------------------------------------------------------------------------------------------------04
1.1 一般规格---------------------------------------------------------------------------------------------------------04
1.2 预设显示模式---------------------------------------------------------------------------------------------------06
2. 操作说明------------------------------------------------------------------------------------------------------------07
2.1 遥控器说明----------------------------------------------------------------------------------------------------07
2.2 连接电视机----------------------------------------------------------------------------------------------------09
2.3 OSD 调整----------------------------------------------------------------------------------------------------13
3. 工厂模式调整------------------------------------------------------------------------------------------------------27
4. 电气方框图---------------------------------------------------------------------------------------------------------30
5. 线路图---------------------------------------------------------------------------------------------------------------32
5.1 主板------------------------------------------------------------------------------------------------------32
5.2 电源板---------------------------------------------------------------------------------------------------44
5.3 遥控板 ---------------------------------------------------------------------------------------------------46
5.4 按键板----------------------------------------------------------------------------------------------------------47
6. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------48
7. 故障处理流程图---------------------------------------------------------------------------------------------------49
8. 主要 IC 管脚及内部框图---------------------------------------------------------------------------------------55
9. BOM-------------------------------------------------------------------------------------------------------------59
3
1. 技术规格
1.1 一般规格
4
5
1.2 预设显示模式
电脑输入信号参照表
将电脑连接到电视后，按照下表，设置电脑中的输出信号。
预设电脑模式
标准 分辨率 水平频率（kHz） 垂直频率（Hz）
VESA
VESA
VESA
VESA
VESA
640×480
800×600
1024×768
1360×768
1920×1080
31.469 59.94
37.879 60.317
48.363 60.004
47.72 59.799
67.5 60.000
DVI/电脑HDMI输入信号参照表
1. 使用DVI端口时，将视频设备的DVI端口使用DVI转HDMI线连接到电视后，按照下表，设置视频设备的输出信号。
2. 使用电脑HDMI端口时，将电脑的HDMI端口使用HDMI线连接到电视后，按照下表，设置电脑的输出信号。
预设HDMI模式
标准 分辨率 水平频率（kHz） 垂直频率（Hz）
VESA
VESA
VESA
VESA
VESA
640×480
800×600
1024×768
1360×768
1920×1080
31.469 59.94
37.879 60.317
48.363 60.004
47.72 59.799
67.5 60.000
视频输入信号参照表
1. 将视频设备的HDMI端口连接到电视后，按照下表，设置视频设备的输出信号。
2. 如果电脑显卡可支持视频格式信号，可设置下表输出信号。
HDMI模式
标准 分辨率 水平频率（kHz） 垂直频率（Hz）
SD
SD
SD
SD
HD
HD
HD
HD
FHD
FHD
720×480i
720×480p
720×576i
720×576p
1280×720p
1280×720p
1920×1080i
1920×1080i
1920×1080p
1920×1080p
15.734 60
31.5 60
15.625 50
31.25 50
37.5 50
45 60
28.125 50
33.75 60
56.25 50
67.5 60
电视，视频模式支持的视频系统
PAL D/K
您也可以使用DVD播放机或VCR播放机观看传统节目。通过电视视频输入，将设备连接到电视。
6
2. 操作说明
2.1 遥控器说明
7
8 9
2.2 连接电视
10
连接电视
有线系统或VHF/UHF天线系统
除标清模拟节目以外，您还可以观看标清或高清数字节目（如果您所在的地区能提供，并经过机顶盒或其他类似设备
转接）。
本电视能够接收有线和VHF/UHF天线的模拟信号电视节目。
强烈建议您使用75Ω同轴线连接天线/有线输入，以接收最佳的画面质量。300Ω双芯线很容易受到射频干扰影响，从
而造成信号降级。
有线或VHF/UHF(或仅VHF)
天线隔离器安装说明
用心服务，创造完美是我们始终追求的目标。
电源布线如果不符合安全规范、电源电压异常、有线电视输入端口处有电压可能导致电视产品非正常失效，还可能造
成潜在的触电或火灾事故。我们产品在设计和制造时已将安全放在第一位，为保证您长期安全、放心地使用本产品，
避免使用过程中不安全的事故发生，我们将随机附送天线隔离器，请在安装电视的同时一并安装上天线隔离器，安装
方法如下图示（图片仅做示意参考，安装时天线隔离器请根据实际机台调整最适合方向安装，具体以实物为准）：
高清接口
通过申请开通高清有线服务或高清卫星服务，您可以观看高清节目。为取得最佳的画面，请务必通过电视后面的HDMI
输入端，将该设备连接到电视。
HDMI连接
如果设备配有DVI插孔，而不是HDMI插孔，请将DVI插孔连接到HDMI输入（用DVI-to-HDMI线或适配器）插孔。将音
频插孔连接到电脑音频输入插孔。
11
分量信号输入连接
视频信号连接
切换信号源时请选择视频1
切换信号源时请选择视频2
视频输出连接
电脑连接
如下面所示，用VGA线连接，将电视用作电脑显示器。本电视也可以连接到带DVI或HDMI输出的电脑。
使用含铁氧磁心的VGA线和音频线将电视连接到电脑。
如果电脑已连接到电视，并且5分钟以上没有电脑信号输入，则电视会自动进入待机模式。
12
2.3 OSD调整
使用AOC电视
打开和关闭电视
您可以使用遥控器上的电源开关按钮打开电视。
提示：
1. 尽管待机时电视机的耗电量很少，但电视机会继续耗电。当长时间不使用电视机时，请将电视机的电源线与电源插座断
开。
2. 如果您找不到遥控器，但又想从待机状态下打开电视机，请按电视机侧面的
13
(电源)键。
切换信号源
14
频道切换/回看
15
频道设置
16
图像设置
17
电脑设置
18
声音设置
19
功能设置
20
童锁
21
多媒体设置
22
23
24 25 26
3. 工厂模式调整
白平衡调整：
1. 在分量信号模式下，信号产生器选择为 Tim 314、 Pattern 141(80% White);
2. 进入工厂菜单: 按遥控器“菜单+1999+返回”，并将 CA210 探头放于 TV 正中间;
3. 光标移动到 Colortemp，并选择 Cool 色温，光标移动到 Gain（工厂菜单有两个 Gain，应选择 Colortemp
后面的 Gain 选项）并调整其中的 RGB 参数，如下图，使其色温值在 cool 的色温规格内（规格见下表）。
4. 重复步骤 3，进行 Normal 和 Warm 色温调整。
T4050MD & LE40D3158/80 & LE40D3150/80 色温规格:
Color Temp x y
Cool 0.269+ 0.020 0.275 + 0. 020
Normal 0.285 + 0. 020 0.293 + 0. 020
Warm 0.313 + 0. 020 0.321 + 0. 020
T4250MD & LE42D3133/80 & LE42D3150/80 色温规格:
Color Temp x y
Cool 0. 271+ 0.020 0.274 + 0. 020
Normal 0.285 + 0. 020 0.293 + 0. 020
Warm 0.313 + 0. 020 0.321 + 0. 020
注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！
27
工厂菜单说明
选项名称 调整范围
Brand
Main-MCU ver
Bootloader ver
Sub-MCU ver
EEPROM ver
Date
Model name
Scaler
Panel type
Current source
Auto color
ADC Gain
ADC Offset
Color temp.
根据IC SPEC
根据IC SPEC
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
支持输入源
执行动作
支持色温
TV AV/S Comp HD PC
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
注释
客户名称
发布软体Main-MCU 版本
发布软体Bootloader 版本
发布软体Sub-MCU ver 版本
发布软体EEPROM 版本
软体发布日期
对外机种名
Scaler 型号
屏的型号
当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler
等相关信息同步更新。
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会
对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。
在Auto Color 做完立即更新，并可手动调整。
在Auto Color 做完立即更新，并可手动调整。
当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler
Gain & Offset RGB 值等相关信息同步更新。
Scaler Gain
Scaler Offset
Burn in On/Off √ √ √ √ √
EEPROM Init
Back LIT time
根据IC SPEC
根据IC SPEC
执行动作
不可调整
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
o o o o o
Scaler Gain 值在白平衡调整时立即更新，并可手动调整。
Offset RGB 值在白平衡调整时立即更新，并可手动调整。
打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。
实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language
等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。
背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。
28
Total time
不可调整
o o o o o
AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。
Black light
Language
Energy LOGO On/Off * * * * *
Reset
Exit
根据IC SPEC
支持语言
执行动作
执行动作
* * * * *
* * * * *
√ √ √ √ √
√ √ √ √ √
备注：
1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；
2. 不同机型工厂模式项目略有增删；
3. 进工厂模式时Burn in自动关闭。
设置背光灯的亮度
设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）
仅中国向有该项
实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，
Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设
置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。
退出工厂模式
29
4. 电气方框图
HDMI1
HDMI2
VGA
YPbPr
SERV.U
AV2
Headphone
ATV&DTV
CVBS_OUT
Ethernet
USB1
USB2
AV1
IF+/-
RTD2634DD
LVDS Panel
AD52580
SPEAKER
30
A
+12V
APW7313D12V_IN
(2A)
D5V_STB
(1A)
G5695T11U
A3V3
D3V3
0.3A
Always ON
IO_3V3, UART, Keypad, LVDS_3V3, LSADC_3V3, HDMI_3V3
ADC_3V3, BB_3V3, IFDADC_3V3, USB_3V3
Power On => EN Pin pull high
Power Off => EN Pin pull Low
1.0V(VCCK)
APW7323
POWER_ON_LV2
D_5V
MOS
D_5V
1.0V(VCCK)
PANEL_EN
POWER_ON_LV2
(1A)
APL5932B
(1A)
LDO G1117 Silicon Tuner 3.3V
MOS
MOS
M3V3 for SPI Flash
1.5V
ADC, VDC, APLL
A1V0
0.3A
D1V0 (Core Power)
3.3V
Panel
DDR Power
0.35A
0.75A
Tuner
0.35A
D_5V, USB_5V
DDR3 :1.5V
Audio AMP
MP VDD
31

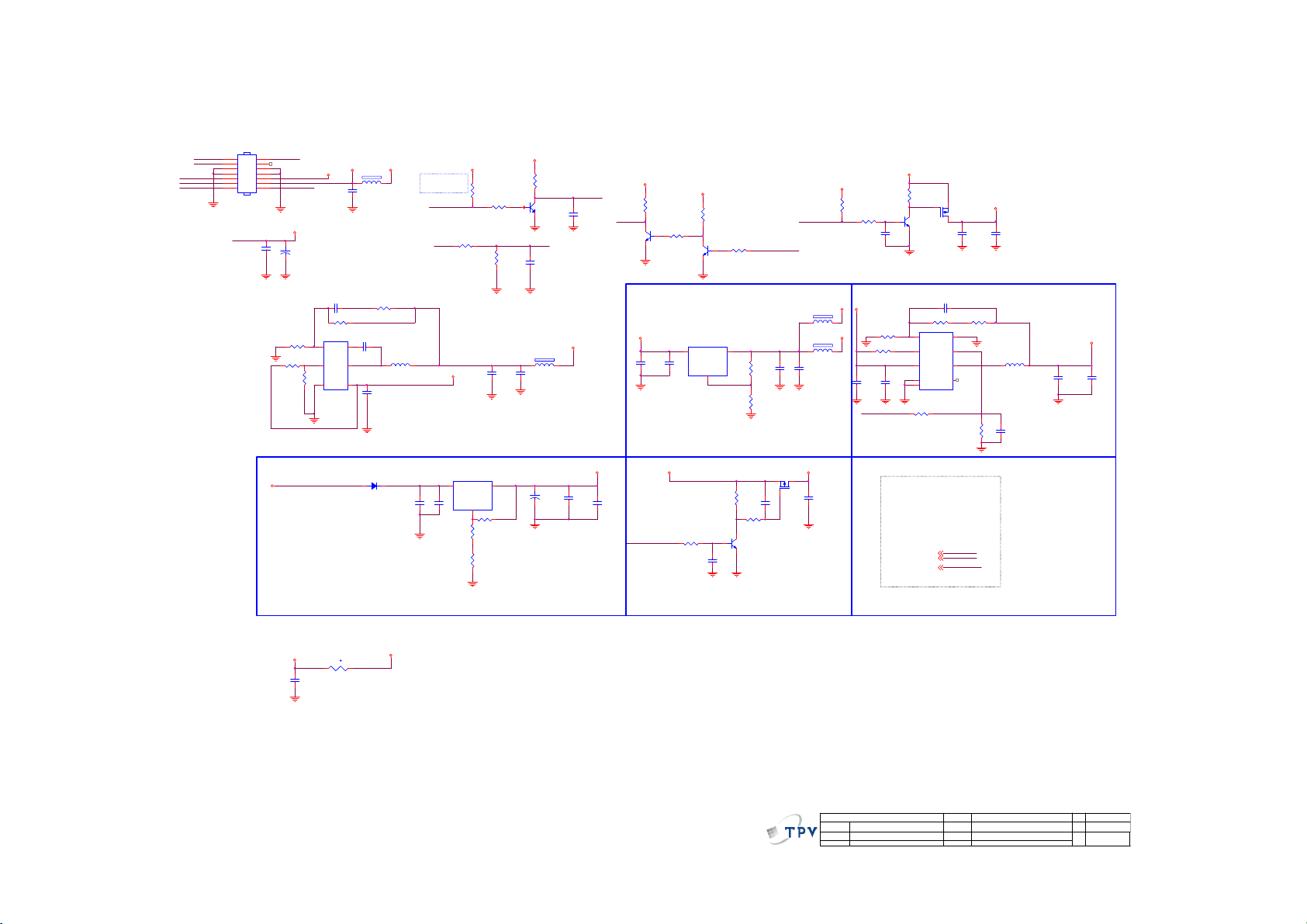

5. 线路图
5.1 主板
715G6682M01000004K
+12V_Audio
12V_or_5V
P12V
BL_DIM
PS_ON
DGND
CN701
13
11
9
7
5
3
1
CONN
P12V
C713
100nF 50V
DGND
14
BL_ON/OFF
12
10
8
6
4
2
+12V_Panel
DGND
DGND
D_5V
DDR POWER
+12V_Audio
12V_or_5V
P12V
DGND
C714
+
NC/100UF 16V
R707
13.3K 1%
R702
100K 1/16W
DGND
R705
36K 1%
+12V_Audio
100nF 50V
R703 100K 1%
U701
1
FB
2
EN
GND3IN
SY8104ADC
R713
4.7K 1/16W
R739
4.7K 1/16W
DGND
R709
1
BL_ADJ
D_5V
3
Q702
LMBT3904LT1G
2
C491
100pF 50V
DGND
BL_ON/OFF
DGNDDGND
C716
100N 16V
12V_or_5V
FB705
1 2
NC/300R 4A
C708
DGND
C704
R735 0R05 1/16W
22pF 50V
D3V3
BL_EN
H: OFF
L: ON
Backlight Diming
BL_EN
BL_DIM
R712
10K 1/16W 5%
R724 100OHM
4.7K 1/16W
Backlight ON/OFF
D5V_STB
Vout = 0. 6x(1+100/13.3)=5.11V
C703
6
BS
0.1uF 50V
L701
4.7uH
C728
10UF 10V
3.3A
12V_or_5V
C727
100nF 50V
DGND
C705
22UF 16V
DGND
U704
G1084PT43U
2
VIN3VOUT
GND/ADJ
R1
1
R726 220R 1/10W 1%
R728
R2
22R 1/10W 1%
R732
24R 1/10W 1%
DGND
Vo=1.2 5x(1+R2/R1)+Ia dj*R2=1.511V
5
LX
4
C701
10uF 16V
DGND
D702
GS1A
DGND
C706
22UF 16V
FB701
1 2
300R 4A
+
C726
100UF 16V
DGND
D5V_STB
DDR_POWER
10UF 10V
C743
1.5V
C744
100nF 50V
PS ON/OFF
D5V_STB
R740
10K+-5%1/16W
PS_ON
R721
Q707
4.7K 1/16W
LMBT3904LT1G
DGND
D5V_STB
C712
C734
10UF 10V
100N 16V
G1084PT43U
DGND
Vout = 1.25x(1+Rd/Rup)=3.33V
D5V_STB
R733
POWER_ON_LV2
D3V3
R742
10K+-5%1/16W
Q706
LMBT3904LT1G
DGND
U702
VIN3VOUT
GND/ADJ
1
200 OHM +-1% 1/10W
10K+-5%1/16W
DGND
R751
2
120 OHM +-1% 1/10W
D_5V
Switch
C729
4.7UF 6.3V
DGND
4.7K 1/16W
R730
R723
DGND
R725
10K+-5%1/16W
R729
47K 1/16W
Q705
LMBT3904LT1G
POWER_ON_LV2
C733
10UF 6.3V 20%
DGND
Q704
MTP3401N3
C725
220N 25V
POWER_ON_LV2
FB703
1 2
FB702
1 2
100N 16V
DGND
D_5V
DGND
300R 4A
300R 4A
C732
1UF 10V
M3V3 Switch
D3V3
R716
NC/1K 1%
R718 4.7K 1/16W
CORE POWER D1 V1 A1V 1
D5V_STB
D3V3
R2
A3V3
DGND
C715
10UF 10V
POWER_ON_LV2
C724
C720
1UF 10V
R720 100K 1%
R710 100K 1/16W
C718
10UF 10V
DGND
DGND
Power
POWER_ON_LV23
D3V3
R715
10K
Q703
LMBT3904LT1G
DGND
R1
R717 100K 1%
1
FB
2
PG
3
IN
4
PGND
9
PGND
U703 SY8003ADF C
R722 10K
BL_EN3
BL_ADJ3
C730 22P 50V
SGND
EN
LX
NC
BL_EN
BL_ADJ
POWER_ON_LV2
M3V3
MTP3401N3
Q701
C721
100N 16V
DGND DGND
R704 1K5 OHM 1/16W 1%
8
7
DGND
2.04A
6
5
R708
100K1/16W
DGND
C722
2.2UF 6.3V
Vout=0.6(1+R1/R2)=1.209V
L703
2.2uH
C711
NC/1uF 10V
C717
22UF 6.3V
DGNDDGND
D1V1
C719
22UF 6.3V
USB P OWER
D_5V
C731
1UF 16V
DGND
PTCR
TH701
1 2
USB_5V
t
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
15. SYS TEM POWER
Date
OEM MOD EL
TPV MODE L
PCB NAME
Sheet
12Thursday, April 03, 2014
of
C
Size
Rev
B
<
称爹
称爹
>
32
To LVDS
TEDP[4]
TEDN[4]
TECLKP[4]
TECLKN[4]
TECP[4]
TECN[4]
TEBP[4]
TEBN[4]
TEAP[4]
TEAN[4]
TODP[4]
TODN[4]
TOCLKP[4]
TOCLKN[4]
TOCP[4]
TOCN[4]
TOBP[4]
TOBN[4]
TOAP[4]
TOAN[4]
BL_EN[4]
PANEL_EN[4]
BL_ADJ[4]
LR_IN[4]
3D_EN[4]
To HDMI 0
HDMI0_CLK-[7]
HDMI0_CLK+[7]
HDMI0_D0-[7]
HDMI0_D0+[7]
HDMI0_D1-[7]
HDMI0_D1+[7]
HDMI0_D2-[7]
HDMI0_D2+[7]
HDMI_CEC[7]
HDMI0_DDC_SD A[7]
HDMI0_DDC_SC L[7]
HOTPLUG0[7]
HDMI0_CON5V#[7]
To HDMI 2
HDMI2_CLK-[7]
HDMI2_CLK+[7]
HDMI2_D0-[7]
HDMI2_D0+[7]
HDMI2_D1-[7]
HDMI2_D1+[7]
HDMI2_D2-[7]
HDMI2_D2+[7]
HDMI2_DDC_SDA[7]
HDMI2_DDC_SCL[7]
HOTPLUG2[7]
HDMI2_CON5V#[7]
To Tuner
TUN_I F-[ 12]
TUN_I F+[12]
M_SDA[ 12]
M_SCL[12]
ATV_IF_AGC[12]
To Keypad
IRRX[13]
LEDG[13]
LSADC1[13]
LSADC0[13]
LEDR[13]
To Power
POWER_ON_LV2[ 14]
To USB
USB1_DP[10]
USB1_DM[10]
DDR_POWER
C43910UF 6.3V 20%
D1V1
C44010UF 6.3V 20%
FB401
1 2
120R 3A
FB402
1 2
120R 3A
TEDP
TEDN
TECLKP
TECLKN
TECP
TECN
TEBP
TEBN
TEAP
TEAN
TODP
TODN
TOCLKP
TOCLKN
TOCP
TOCN
TOBP
TOBN
TOAP
TOAN
BL_EN
PANEL_EN
BL_ADJ
LR_IN
3D_EN
HDMI0_CLKHDMI0_CLK+
HDMI0_D0HDMI0_D0+
HDMI0_D1HDMI0_D1+
HDMI0_D2HDMI0_D2+
HDMI_CEC
HDMI0_DDC_SD A
HDMI0_DDC_SC L
HOTPLUG0
HDMI0_CON5V#
HDMI2_CLKHDMI2_CLK+
HDMI2_D0HDMI2_D0+
HDMI2_D1HDMI2_D1+
HDMI2_D2HDMI2_D2+
HDMI2_DDC_SDA
HDMI2_DDC_SCL
HOTPLUG2
HDMI2_CON5V#
TUN_IFTUN_IF+
M_SDA
M_SCL
ATV_IF_AGC
IRRX
LEDG
LSADC1
LSADC0
LEDR
POWER_ON_LV2
USB1_DP
USB1_DM
C441100N 16V
DGND
CORE_1V1
To Video input
VGA_DDC_SCL
VGA_DDC_SCL[6]
VGA_DDC_SDA
VGA_DDC_SDA[6]
VGA_HS
VGA_HS[6]
VGA_VS
VGA_VS[6]
VGA_B+
VGA_B+[6]
VGA_B-
VGA_B-[6]
VGA_G+
VGA_G+[6]
VGA_R+
VGA_R+[6]
PB0+
PB0+[6]
YPbPr0-
YPbPr0-[6]
Y0+
Y0+[6]
PR0+
PR0+[6]
AV1_CVBS+
AV1_CVBS+[6]
VIN_A0-
VIN_A0-[6]
To AMP
AMP_MUTE
AMP_MUTE[9]
SPK_R
SPK_R[9]
SPK_L
SPK_L[9]
To Flash ROM
SPI_CS#
SPI_CS#[4]
N_WP#/SPI_WP#
N_WP#/SPI_WP#[4]
N_ALE/SPI_SDO
N_ALE/SPI_SDO[4]
N_CLE/SPI_SC LK
N_CLE/SPI_SC LK[4]
N_WE#/SPI_DI
N_WE#/SPI_DI[4]
HP_L
HP_L[8]
HP_R
HP_R[8]
HP_OUT_JD
HP_OUT_JD[8,9]
AV_OUT
AV_OUT[8]
UART_RX1
UART_RX1[5]
UART_TX1
UART_TX1[5]
ARC
ARC[8]
M3V3 ETN_1V1
M3V3 LVDS_3V3
C446100N 16V
C442100N 16V
C443100N 16V
C45610UF 6.3V 20%
C45710UF 6.3V 20%
C447100N 16V
C444100N 16V
C445100N 16V
C45810UF 6.3V 20%
C460100N 16V
C459100N 16V
C462100N 16V
C461100N 16V
C463100N 16V
DGND
PLL_GND
1 2
NC
C464100N 16V
C431 15pF 50V
C432 15pF 50V
ETN_3V3 CORE_1V1
FB412
AGND
DGND
A3V3
C47410UF 6.3V 20%
AGND
M3V3
To Audio in/out
VGA/YPbPr_IN _L/AV2_CVBS_L[6]
VGA/YPbPr_IN _R/AV2_CVBS_R[6]
AV_IN_L[6]
AV_IN_R[6]
BB_GND
C424,C425 Close
to SoC Pin
R410
NC/0R05 OHM
1 2
C433NC
D3V3 V33POR
C401100N 16V
FB411
1 2
120R
FB424
1 2
NC/300R
VGA/YPbPr_IN _L/AV2_CVBS_L
VGA/YPbPr_IN _R/AV2_CVBS_R
AV_IN_L
AV_IN_R
AGND
R409 0R05 OHM
12
X401
27MHz
FB413
NC
AGND
FB409
1 2
300R
C448100N 16V
C4492.2UF 6.3V
AGND
IO_3V3
C466100N 16V
C465100N 16V
DGND
CORE_1V1
VDD33A_MAIN
VGA/YPbPr_IN_L/ AV2_CVBS_L
VGA/YPbPr_IN _R/AV2_CVBS_R
AGND
100N 16VC420
1UF 10VC421
C428 10UF 6. 3V 20%
VDD33A_MAIN
CORE_1V1
C434NC
A3V3 AV33_HDMI
C437100N 16V
DGND
VCM_BB
ETN_1V1
ETN_3V3
ETN_1V1
XOUT
XIN
VDD33A_MAIN
C450100N 16V
AGND
SPK_L
SPK_R
HP_L
HP_R
TUN_I FTUN_I F+
ATV_IF_AGC
M_SCL
M_SDA
PLL_GND
1 2
300R
C4512.2UF 6.3V
AV_OUT
AV_IN_L
2.2UF 6.3V C413
AV_IN_R
2.2UF 6.3V C414
HP_OUT_JD
2.2UF 6.3V C416
R407 0R05 OHM
2.2UF 6.3VC424
AGND
XIN
XOUT
C429 1UF 10V
C430 1UF 10V
T1
T2
T3
T4
USB1_DM
USB1_DP
R408 0R05 1/10W
FB414
1 2
300R
FB410
DGND
1 2
2.2UF 6.3V C417
BB_GND
2.2UF 6.3V
2.2UF 6.3V
2.2UF 6.3V C425
IF_N
IF_P
AGND
C4382.2UF 6. 3V
FB415
300R
HS401
HEAT SINK
C419
C418
C422NC/10UF 6. 3V 20%
C423NC/10UF 6. 3V 20%
1
2
U401
1
VDAC_OUT / GPIO129
2
V11CORE
3
AV33_AU
4
AIN_1L
5
AIN_1R
6
AIN_2L / GPIO130
7
AIN_2R / GPIO131
8
AIN_3L / GPIO132
9
AIN_3R / GPIO133
10
BB_GND
11
AIOL / GPIO136
12
AIOR / GPIO137
13
VCM_BB
14
HP_L / GPIO138
15
HP_R / GPIO139
16
BB_CBP
17
BB_CBN
18
BB_CPVEE
19
CP_AOUT_L
20
CP_AOUT_R
21
XIN
22
XOUT
23
V25IFADC
24
IF_N
25
IF_P
26
NC
27
NC
28
NC
29
NC
30
NC
31
NC
32
NC
33
U0DM
34
U0DP
35
U1DM
36
U1DP
37
AV33_IFADC
38
RF_IF AGC / GPIO0
39
TUNER_SCL / GPIO1
40
TUNER_SDA / GPI O2
41
V11CORE
42
TP0_D0 / GPIO16
43
TP0_SYNC / GPIO17
44
TP0_VAL / GPIO18
RTD2634DD
C452100N 16V
AGND
AGND
VDD33A_ST B
CORE_1V1
PR0+
AV1_CVBS+
VIN_A0-
47NF 16VC403
47NF 16VC404
DGND
C402 10UF 6. 3V 20%
177
172
173
176
171
170
174
175
E-PAD
V25VADC
V11CORE
G33VADC
AV33_VADC_MHL
VIN_9P / GPIO121
VIN_A0N / GPIO123
TP0_CLK / GPIO1945SPI_SCK/ NF_C LE / GPIO3946SPI_DI / N_WR / GPIO4047SPI_CS_N / GPI O4148SPI_DO / N_ALE / GPIO4249VDDR_POWER50VDDR_POWER51V33IO52NF_CE0 / GPIO3553NF_D0 / GPIO4454NF_D1 / GPIO4555NF_D2 / GPIO4656NF_D3 / GPIO4757NF_D4 / GPIO4858NF_D5 / GPIO4959NF_D6 / GPIO5060NF_D7 / GPIO5161NF_RD / GPIO5262NF_RDY / GPIO5663UART_RX / GPIO5364UART_TX / GPIO5465V33IO66VDDR_POWER67VDDR_POWER68VREF_DDR69V11CORE70VREF_DDR71VDDR_POWER72VDDR_POWER73GPIO14174GPIO8175GPIO8276LVDSA_FP / GPIO5777LVDSA_FN / GPIO5878LVDSA_EP / GPIO5979LVDSA_EN / GPIO6080LVDSA_DP / GPIO6181LVDSA_DN / GPIO6282LVDSA_CP / GPIO6383LVDSA_CN / GPIO6484LVDSA_BP / GPIO6585LVDSA_BN / GPIO6686LVDSA_AP / GPIO6787LVDSA_AN / GPIO68
SPI_CS#
N_WE#/SPI_DI
N_CLE/SPI_SC LK
N_ALE/SPI_SDO
DDR_POWER
DDR_POWER
DGND
VDD33A_STB
VDD33A_STBA3V3VDD33A_MAINM3V3
C4532.2UF 6.3V
C454100N 16V
AGND
AGND
DGND
DGND
R4020R05 1/10W
YPbPr0-
VGA_G+
Y0+
PB0+
VGA_R+
47NF 16VC405
47NF 16VC410
47NF 16VC409
47NF 16VC408
47NF 16VC407
47NF 16VC406
168
165
169
167
166
VIN_5P
VIN_4P
VIN_3P
VIN_Y0N
VIN_2P / GPIO116
N_DATA2
N_DATA1
N_DATA0
N_CE0#
IO_3V3
C435100N 16V
R418
1KOHM +-1% 1/16W
DDR_VERF
R421
1KOHM +-1% 1/16W
C436100N 16V
C4552.2UF 6.3V
AV33_HDMI
AGND
R4036.2K 1/16W 1%
VGA_B-
VGA_B+
VGA_VS
VGA_HS
47NF 16VC411
47NF 16VC415
HDMI0_D1-
HDMI0_D0+
HDMI0_D1+
HDMI0_D2-
HDMI0_D2+
HDMI0_D0-
HDMI0_CLK+
HDMI_R EXT
157
155
164
159
161
152
162
160
154
163
158
156
153
RX0_BP
RX0_RP
RX0_GP
RX0_BN
RX0_RN
RX0_GN
AV33_HDMI
HDMI_REXT
VIN_0P / GPIO113
VIN_BN / GPIO114
VIN_1P / GPIO115
VSYNCVIN / GPIO111
HSYNCVIN / GPIO112
N_DATA4
N_DATA3
DDR_VERF
IO_3V3
DDR_POWER
UART_RX1
UART_TX1
AGND
HDMI0_CLK-
151
150
RX1_RP
RX0_CKP
RX0_CKN
DDR_VERF
CORE_1V1
149
147
146
148
145
RX1_BP
RX1_GP
RX1_RN
RX1_GN
BL_ADJ
PANEL_EN
ARC
DDR_POWER
DGND
HDMI2_CLK+
HDMI2_D2+
HDMI2_D2-
HDMI2_D1+
HDMI2_D1-
HDMI2_D0+
HDMI2_D0-
141
139
144
136
143
138
142
140
137
RX2_BP
RX1_BN
RX2_RP
RX2_GP
RX2_BN
RX2_RN
RX2_GN
RX1_CKP
RX2_CKP
RX1_CKN
HDMI0_DDC_SDA / ST_GPIO24
HDMI0_DDC_SCL / ST_GPIO23
HDMI1_DDC_SDA / ST_GPIO21
HDMI1_DDC_SCL / ST_GPIO20
HDMI2_DDC_SDA / ST_GPIO18
HDMI2_DDC_SCL / ST_GPIO17
VGA_DDC_SCL / U ARRX / ST_GPIO15
VGA_DDC_SDA / UARTX / ST_GPIO14
TOCLKP
TOCP
TOCN
TODN
TOCLKN
TODP
TOBP
LR_IN
CORE_1V1
VDD33A_STB
HDMI2_CLK-
135
133
134
RX2_CKN
V11CORE
AV33_VADC_MHL
LSADC7 / ST_GPIO6
LSADC2 / ST_GPIO3
LSADC1 / ST_GPIO2
LSADC0 / ST_GPIO1
LSADC_REF_ / ST_GPIO0
HDMI_HPD0 / ST_GPIO22
HDMI_HPD1 / ST_GPIO19
HDMI_HPD2 / ST_GPIO16
ST_GPIO13
ST_GPIO12
ST_GPIO11
ST_GPIO10
HDMI_ARC / ST_GPIO9
IRRX / ST_GPIO8
LVDSB_AN / GPIO80
LVDSB_AP / GPIO79
LVDSB_BN / GPIO78
LVDSB_BP / GPIO77
LVDSB_CN / GPIO76
LVDSB_CP / GPIO75
LVDSB_DN / GPIO74
LVDSB_DP / GPIO73
LVDSB_EN / GPIO72
LVDSB_EP / GPIO71
LVDSB_FN / GPIO70
LVDSB_FP / GPIO69
88
TOBN
TOAN
TOAP
V10LDO
V33POR
ST_GPIO7
V11CORE
GPIO84
GPIO83
V33LVDS
D3V3
R405
10K+-5%1/16W
RESET#
C477100N 16V
DGND
132
HOTPLUG2
CBUS
131
RESET#
RESET
130
CEC
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
R406 0R05 OHM
LEDR
LSADC1
LSADC0
BL_EN
HDMI0_DDC_SD A
HDMI0_DDC_SC L
HOTPLUG0
HDMI2_DDC_SD A
HDMI2_DDC_SC L
LEDG
VGA_DDC_SCL
VGA_DDC_SDA
AMP_MUTE
IRRX
POWER_ON_LV2
TEAN
TEAP
TEBN
TEBP
TECN
TECP
TECLKN
TECLKP
TEDN
TEDP
HDMI0_CON5V#
3D_EN
N_WP#/SPI_WP#
HDMI2_CON5V#
LVDS_3V3
HDMI_CEC
CORE_1V1
STB_1V0
V33POR
Close to Pin
V10LDO(STB)
STB_1V0
C412
10UF 6.3V 20%
DGND
Power On Latch
(Power-on-latch Pin don't use as input function)
PLL Enable (GPIO0 Pin 38)
0 : Disable PLL
1 : Enable PLL
HIF_Selection_n (GPIO42 Pin 49)
0 : HIF Enable
1 : HIF Disable
EJTAG (STGPIO11 Pin 109)
0 : enable
1 : disable
ROM boot (GPIO35 Pin 53)
0 : boot from ROM
1 : don't boot from ROM
FLASH_TYPE_bit0 (GPIO45 Pin 55)
0 : NAND
1 : SPI
test mode (STGPIO7 Pin105)
0 : enable
1 : disable
RANDOM_ACCESS_MODE (GPIO48 Pin 58)
0 : disable
1 : enable
ECC_bit0 (GPIO44 Pin 54)
0 : 6 bit
1 : 12 bit
PAGE_SIZE_bit0 (GPIO46 Pin 56)
PAGE_SIZE_bit1 (GPIO47 Pin 57)
0 : 2K
1 : 4K
2 : 8K
Reserved for debug0(GPIO39 Pin46)
Didoe forward
voltage smaller
than 0.3V
For Layout
D3V3
12
D401
RB551V-30_R1_00001
R404
27K 1/16W 1%
HDMI_CEC
ATV_IF_AGC
N_ALE/SPI_SDO
AMP_MUTE
N_CE0#
N_DATA1
POWER_ON_LV2
N_DATA4
N_DATA0
N_DATA2
N_DATA3
N_CLE/SPI_SC LK
Rev:B
DGND
R415 NC/4.7K 1/16W
DGND
R417 NC/4.7K 1/16W
DGND
R420 4.7K 1/16W
DGND
R423 NC
AGND
R425 NC/4.7K 1/16W
AGND
R427 4.7K 1/16W
R429 4.7K 1/16W
AGND
R431 4.7K 1/16W
AGND
R433 4.7K 1/16W
AGND
M3V3
11
R412 4.7K 1/16W
R413 NC/4.7K 1/16W
M3V3
1
1
R414 4.7K 1/16W
D3V3
1
R416 4.7K 1/16W
M3V3
R419 NC/4.7K 1/16W
M3V3
1
R422 4.7K 1/16W
1
R424 1K 1/16W
1
R426 NC/4.7K 1/16W
M3V3
1
AGND
R428 NC/4.7K 1/16W
M3V3
1
R430 NC/4.7K 1/16W
M3V3
1
R432 NC/4.7K 1/16W
M3V3
AGND
D3V3
M3V3
R434
NC/4.7K 1/16W
R435
4.7K 1/16W
Default
1
1
1
0
0
1
0
0
0
33
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
03. RTD2644i
Date
OEM MODEL
TPV MODE L
PCB NAME
Sheet
D
Size
B
Rev
<
称爹
称爹
110Thursday, April 03, 2014
of
>
SP IFLASH
M3V 3
SPI_CS#
N_WE#/SPI_D I
N_WP#/SPI_W P#
R436
4.7K 1/16W
DGND
DGND
1
2
3
U402
CS#
SO/SI O1
WP#
GND4SI/SIO0
VCC
HOLD#
SCLK
MX25L6406EM2I-12G
R437
8
7
6
5
SPI_HOLD
N_CLE/SPI_SCLK
N_ALE/SPI_SDO
4.7K 1/16W
DGND
C467
1UF 10V
SPIFlash
N_WE#/SPI_D I3
N_WP#/SPI_W P#3
N_ALE/SPI_SDO3
N_CLE/SPI_SCLK3
SPI_CS#3
N_WE#/SPI_D I
N_WP#/SPI_W P#
N_ALE/SPI_SDO
N_CLE/SPI_SCLK
SPI_CS#
T P V ( Top Victory Electronic s Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
04. FLASH
34
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
B
Size
Rev
B
<
称爹
称爹
110Thursday , April 03, 2014
of
>

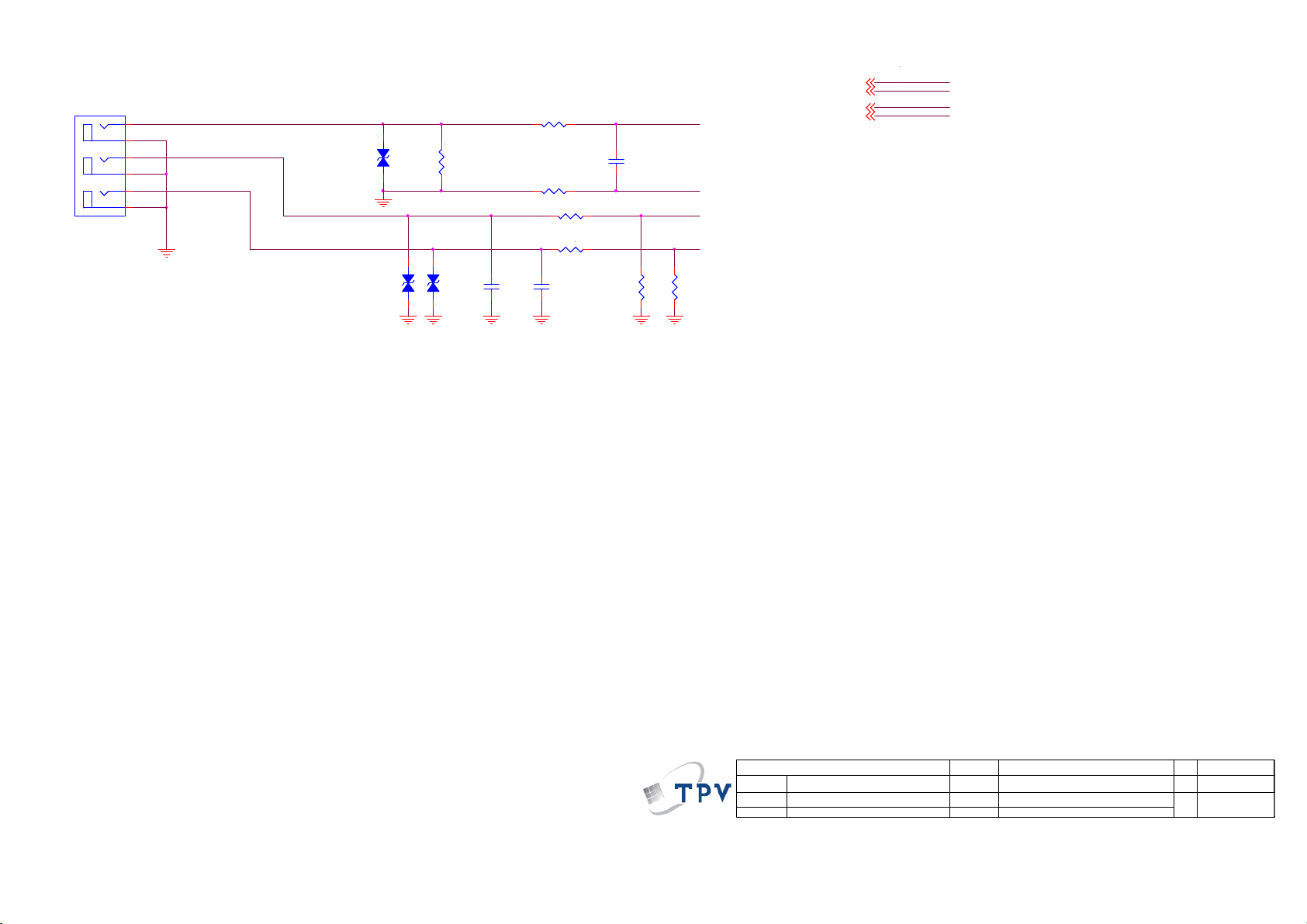

RCA JACK
A
B
C
CN111
2
1
4
3
6
5
AGND
AV1_CVBS_I N
AV_L_CONN
AV_R_CONN
AV IN
ZD101
MLVG0402
1 2
AGND
12
ZD102
NC/MLVG0402
R101
75OHM +-5% 1/ 10W
12
ZD103
NC/MLVG0402
R102 0R 05 1/10W
EMI
R103 0R 05 1/10W
R104 6K8 1/10W 5%
R105 6K8 1/10W 5%
C102
NC/ 470pF 50V
C103
NC/ 470pF 50V
AV1_CVBS+
AV1_CVBS+
C101
NC/47pF 50V
R106
10K+- 5%1/16W
VIN_A0-
AV_IN _L
AV_IN _R
AV_IN _R
R107
10K+- 5%1/16W
AV1_CVBS+[3]
VIN_ A0-[3]
AV_IN_L[3]
AV_IN_R[3]
AV1_CVBS+
VIN_A0-
AV_IN_L
AV_IN_R
AGND
Closeto
Connector
AGNDAGND AGND
AGNDAGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
05. AV1 CVBS
OEM MODEL
TPV MO DE L
PCB NAME
Sheet
B
Size
Rev
B
称爹
称爹
>
110Thursday , April 03, 2014
of
<
35
YPbPrVideoInput
RCA JACK
2
A
1
4
B
3
6
C
5
CN102
AGND
VGA/YPbPr/AV 2Audio
Input
CN103
2
A
1
4
B
3
RCA JACK
AGND
12
12
ZD107
NC/MLVG0402
AGND
ZD104
MLVG0402
12
AGND
12
ZD105
MLVG0402
ZD108
NC/MLVG0402
Y1
PB1
PR1
12
R111
R112
75OHM +-5% 1/10W
ZD106
MLVG0402
AGND
C107
NC/470pF 50V
75OHM +-5% 1/10W
AGND
R117 6K8 1/10W 5%
R118 6K8 1/10W 5%
C108
NC/470pF 50V
AGND AGND
R113
75OHM +-5% 1/10W
AGNDAGND
Close to Main Chip
AGND
R108 100OHM
R109 100OHM
R110 100OHM
R114 100OHM
R115 100OHM
R116 100OHM
R119
R120
10K 1/10W
10K 1/10W
Y0+co‐use
AV2_CVBS+
C104
C105
5PF 50V
C106
5PF 50V
5PF 50V
VGA&YPbPr&AV2_ CVBS+ L/R
sharethesameconne ctor
VGA/YPbPr_IN_L/AV2_CVBS_L
VGA/YPbPr_IN_R/AV2_CVBS_R
Y0+
PB0+
PR0+
YPbPr0-
YPbPr0-
YPbPr0-
YPbPrVideoInput
VGAVideoInput
VGA_B+[3]
VGA_B-[3]
VGA_G+[3]
VGA_R+[3]
VGA_HS[3]
VGA_VS[3]
UART0
VGA_DDC_SCL[3]
VGA_DDC_SDA[3]
VGA/YPbPr/AV2AudioInput
VGA/YP bPr_IN_L/AV2_C VBS_L[3]
VGA/Y PbPr_IN_R/ AV2_CVBS_R[3]
UART1
UART_TX1[3]
UART_RX1[3]
PB0+
PB0+[3]
YPbPr0-
YPbPr0-[3]
Y0+
Y0+[3]
PR0+
PR0+[3]
VGA_B+
VGA_BVGA_G+
VGA_R+
VGA_HS
VGA_VS
VGA_DDC_SCL
VGA_DDC_SDA
VGA/Y PbPr_IN_L/AV2 _CVBS_L
VGA/Y PbPr_IN_R/ AV2_CVBS_R
UART_TX1
UART_RX1
VGA_CON5V
R122
10K+-5%1/16W
VGA_DDC_SCL
VGA_VS
VGA_HS
VGA_DDC_SDA
D_5V
1
2
D101
3
BAT54C
VGA_5V
R123
10K+-5%1/16W
C110
22P 50V
AGND AGNDAGND
AGND
VGAVideo
Input
AGND
CN104
5
15
R131 100OHM
12
12
VGA_SCL
VS
HS
VGA_SDA
12
D3V3
AGND
VGA_SDA
VGA_SCL
HS
VS
ZD128
ZD125
12
12
ZD126
ZD127
MLVG0402
MLVG0402
MLVG0402
MLVG0402
10
4
14
9
3
13
8
VGA_BIN-
2
12
7
VGA_GIN-
1
11
6
VGA_RIN-
12
17 16
ZD120MLVG0402
CONN
AGND
AGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
VGA_CON5V
ZD121MLVG0402
AGND
06. VG A/YPbP r/AV 2 CVBS
R127 100OHM R128 100OHM
R129 100OHM
C111
10PF 50V
R132
2.2K 1%
R172 100OHM
R171 100OHM
UART_RX1
R133
2.2K 1%
R135 10K+ -5%1/16W
AGND
36
AGND
AGND
UART_TX1
12
AGND
D3V3
R124
10K+- 5%1/16W
12
12
VGA_BIN
VGA_GIN
VGA_RIN
ZD122
ZD123
ZD124
MLVG0402
MLVG0402
MLVG0402
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
AGND
AGND
AGND
12Thursday , April 03, 2014
of
R121 100OHM
R125
75OHM +-5% 1/10W
R126 100OHM
R130 100OHM
R134
75OHM +-5% 1/10W
R136 100OHM
R137 100OHM
R138
75OHM +-5% 1/10W
R139 100OHM
ClosetoMainChip
C109
5PF 50V
C112
5PF 50V
C113
5PF 50V
VGA_B+
VGA_B-
VGA_G+
VGA_B-
VGA_R+
VGA_B-
Size
Rev
称爹
Custom
B
<
称爹
>
Make on board

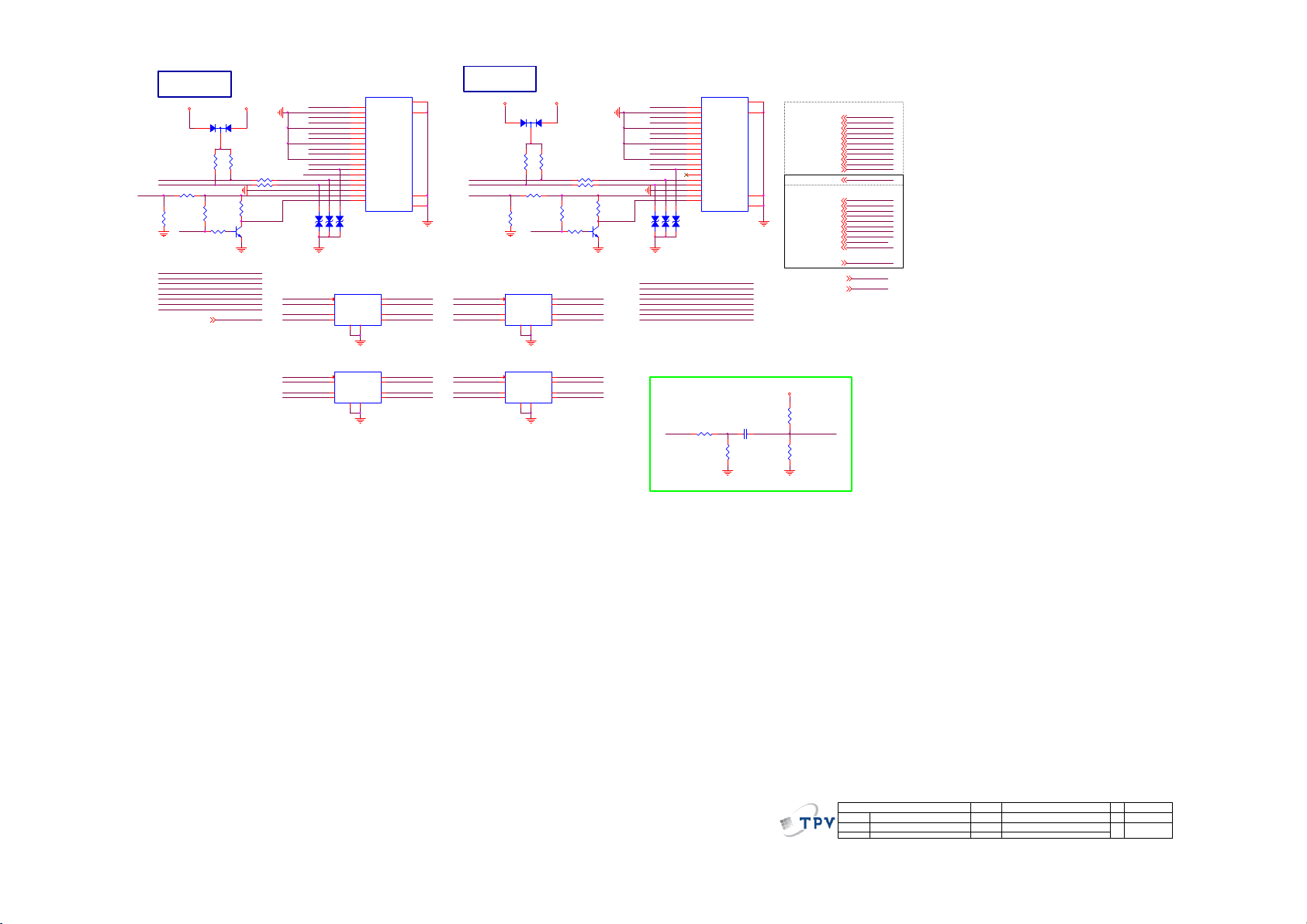

HDM I0
HDMI0_CON5V
132
R501
4.7K 1/16W
HDMI0_DDC_SCL
HDMI0_DDC_SDA
HDMI0_CON5V#
R525 560K
R512
R531
47K 1/16W
1M 1/16W
HOTPLUG0
10K+-5% 1/16W
DGND
HDMI0_D1N HDMI0_D1HDMI0_D1P HDMI0_D1+
HDMI0_D0N HDMI0_D0HDMI0_D0P HDMI0_D0+
HDMI0_CLKN HDMI0_CLKHDMI0_CLKP HDMI0_CLK+
ARC[3,5]
Make on board
CN501
1
D_5V
D502
ARC
DGND
BAT54C
R504
4.7K 1/16W
R508 100OHM
R510 100OHM
DGND DGND
R513
1K 1/16W
R514
Q501
MMBT3904
DGND
HDMI0_D2-HDMI0_D2N
HDMI0_D2+HDMI0_D2P
HDMI0_D2P
HDMI0_D2N
HDMI0_D1P
HDMI0_D1N
HDMI0_D0P
HDMI0_D0N
HDMI0_CLKP
HDMI0_CLKN
HDMI_CEC HOTPLUG0
HDMI0_CON_PIN 14
HDMI0_DDC _SCL#
HDMI0_DDC _SDA#
HDMI0_CON5V
12
HDMI0_D2P
HDMI0_D2N
HDMI0_D1P
HDMI0_D1N
HDMI0_D0P
HDMI0_D0N
HDMI0_CLKP
HDMI0_CLKN
TMDSD2+
2
DSHLD0
3
TMDSD2-
4
TMDSD1+
5
DSHLD1
6
TMDSD1-
7
TMDSD0+
8
DSHLD2
9
TMDSD0-
10
TMDSC+
11
CSHLD0
12
TMDSC-
13
CEC
14
NC
15
SCL
16
SDA
17
DDC_GND
18
VCC5
19
HPD
12
12
ZD501
ZD502
HDMI
ZD503
MLVG0402
MLVG0402
MLVG0402
U503 NC/RC lamp0524P.TCT
1
IN1
OUT1
2
IN2
OUT2
4
IN3
OUT3
IN45OUT4
GND
GND
3
8
DGND
U505 NC/R Clamp0524P.TCT
1
IN1
OUT1
2
IN2
OUT2
4
IN3
OUT3
IN45OUT4
GND
GND
3
8
DGND
SHLD0
SHLD2
SHLD3
SHLD1
10
HDMI0_D2P
9
HDMI0_D2N
7
HDMI0_D1P
6
HDMI0_D1N
10
HDMI0_D0P
9
HDMI0_D0N
7
HDMI0_CLKP
6
HDMI0_CLKN
20
22
23
21
DGND
HDM I1
HDMI2_CON5V
HDMI2_DDC _SCL
HDMI2_DDC _SDA
HDMI2_CON5V#
DGND
U504 NC/RC lamp0524P.TCT
1
HDMI2_D2P
2
HDMI2_D2N
4
HDMI2_D1P
HDMI2_D1N
U506 NC/RC lamp0524P.TCT
1
HDMI2_D0P
2
HDMI2_D0N
4
HDMI2_CLKP
HDMI2_CLKN HDMI2_CLKN
D503
132
R505
4.7K 1/16W
R529 560K
R530
1M 1/16W
HOTPLUG2
IN1
OUT1
IN2
OUT2
IN3
OUT3
IN45OUT4
GND
GND
3
8
DGND
IN1
OUT1
IN2
OUT2
IN3
OUT3
IN45OUT4
GND
GND
3
8
DGND
D_5V
BAT54C
R506
4.7K 1/16W
10K+-5%1/16W
10
9
7
6
10
9
7
6
R509 100OHM
R511 100OHM
R515
47K 1/16W
R517
HDMI2_D2P
HDMI2_D2N
HDMI2_D1P
HDMI2_D1N
HDMI2_D0P
HDMI2_D0N
HDMI2_CLKP
DGND
HDMI2_CON5V
R516
1K 1/16W
Q502
MMBT3904
DGND
CN502
1
HDMI2_D2P
MHL_I N
HDMI2_D2N
HDMI2_D1P
HDMI2_D1N
HDMI2_D0P
HDMI2_D0N
HDMI2_CLKP
HDMI2_CLKN
HDMI_CEC
HDMI2_DDC _SCL#
HDMI2_DDC _SDA#
12
DGNDDGND
HDMI2_D2N HDMI2_D2HDMI2_D2P HDMI2_D2+
HDMI2_D1N HDMI2_D1-
HDMI2_D0P HDMI2_D0+
HDMI2_CLKN HDMI2_CLK-
12
12
ZD504
ZD505
ZD506
MLVG0402
MLVG0402
MLVG0402
200R 1/10W 5%
TMDSD 2+
2
DSHLD0
3
TMDSD 2-
4
TMDSD 1+
5
DSHLD1
6
TMDSD 1-
7
TMDSD 0+
8
DSHLD2
9
TMDSD 0-
10
TMDSC +
11
CSHLD0
12
TMDSC -
13
CEC
14
NC
15
SCL
16
SDA
17
DDC_GND
18
VCC5
19
HPD
HDMI
R527
SHLD0
SHLD2
SHLD3
SHLD1
HDMI2_D1+HDMI2_D1P
HDMI2_D0-HDMI2_D0N
HDMI2_CLK+HDMI2_CLKP
R526
20
22
23
21
C505
100N 16V
100 OHM 1/10W
DGND
HDMI0
HDMI1
HDMI2_CON5V#[3]
R523
10K+-5%1/16W
R524
39K 1/16W 5%
HDMI0_D2+3
HDMI0_D2-3
HDMI0_D1+3
HDMI0_D1-3
HDMI0_D0+3
HDMI0_D0-3
HDMI0_CLK+3
HDMI0_CLK-3
HDMI0_DDC_SCL3
HDMI0_DDC_SDA3
HOTPLUG03
HDMI_CEC3
HDMI2_D2+3
HDMI2_D2-3
HDMI2_D1+3
HDMI2_D1-3
HDMI2_D0+3
HDMI2_D0-3
HDMI2_CLK+3
HDMI2_CLK-3
HDMI2_DDC_SCL3
HDMI2_DDC_SDA3
HOTPLUG23
HDMI0_CON5V#[3]
D_5V
HDMI0_CON_PI N14ARC
DGNDDGND
HDMI0_D2+
HDMI0_D2HDMI0_D1+
HDMI0_D1HDMI0_D0+
HDMI0_D0HDMI0_CLK+
HDMI0_CLKHDMI0_DDC_SCL
HDMI0_DDC_SDA
HDMI_CEC
HDMI2_D2+
HDMI2_D2HDMI2_D1+
HDMI2_D1HDMI2_D0+
HDMI2_D0HDMI2_CLK+
HDMI2_CLK-
HDMI2_DDC_SCL
HDMI2_DDC_SDA
HOTPLUG2
HDMI0_CON5V#
HDMI2_CON5V#
37
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
07. HDMIx 2
Date
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
Size
C
Rev
B
<
称爹
称爹
12Thursday, April 03, 2014
of
>
CN105
CONN
AV_OUT
AV_OUT
1
2
CVBS_OUT
3
AGND
ZD109
MLVG0402
AGND
R140 75OHM 1/16W
12
AV_OUT
R141
NC/10K 1/16 W 5%
AGND
HP_L
HP_R
HP_OUT_JD
AV_OUT
HP_L
HP_R
HP_OUT_JD
Headphone
CN106
NC/PHONE JACK 5P
D3V3
2.4V: jack plug in
0V: jack not plug in
R142
12
AGND
ZD114
NC/10K
R143 N C/100OHM
R170
12
NC/ 10OHM1/16W
ZD110
NC/ MLVG0402
AGND
R163
NC/10OHM1/16W
12
ZD111
NC/ MLVG0402
AGND
HP_OUT_JD
R144
NC/1K 1/16W
R145
NC/1K 1/16W
AGND
AGNDAGND
AGND
C114
NC/ 100N 16V
C115
NC/ 100N 16V
HP_R
HP_L
3
4
2
5
1
AGND
NC/MLVG0402
38
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
08. SPDIF/Headphone
Date
OEM MO DEL
TPV MO DEL
PCB NAME
Sheet
Size
C
Rev
B
称爹
称爹
>
of
12Thursday , April 03, 2014
<
A
E
+12V_Audio
MP_MUT
Low: Mute disablde
High: Mute enable
AMP_MUTE
D5V_STB
1 2
R601 10K+-5%1/16W
R604 10K+-5%1/16W
HS601
NC
FB603
120R 6A
D3V3
1
1
2
100UF 35V
DGND
R622
NC
Q602
LMBT3906LT1G
2 3
+
C612
100UF 16V
DGND
DGND
C632
+
R623
4.7K 1/ 16W
2A
SPK_L
C633
+
100UF 3 5V
D_5V
R615
R608
SPK_R
PVDD
1.2A Max
C624
1UF 10V
C626
1UF 10V
U601
PVCCL
PVCCL
BSPL
OUTPL
PGND
OUTNL
BSNL
BSNR
OUTNR
PGND
OUTPR
BSPR
PVCC
PVCC
29
DGND
28
27
26
C608 NC/220NF 25V
25
24
DGND
23
22
C629 NC/220NF 25V
21
C620 NC/220NF 25V
20
19
DGND
18
17
C605 NC /220NF 25V
16
15
C625
100N 16V
DGND
10OHM1/16W
10OHM1/16W
C615
100N 16V
DGND
R614
R602
R603
10OHM1/16W
R620
10OHM1/16W
DGND
PVDD
C601
1N 50V
DGND DGND
L601
22uH
C606
330pF 50V
L602
22uH
C628 330pF 50V
L603
22uH
C621 330pF 50V
L604
22uH
C610
330pF 50V
C604
1N 50V
C627
10uF 16V
DGND
DGND
DGND
DGND
PVDD
DGND
C613
10uF 16V
DGND
DGND
DGND
DGND
C617
1uF
C619
1uF
C611
1uF
C622
1uF
Amp
SPK_R3
SPK_L3
AMP_MUTE[3]
L+
L-
R-
R+
4
3
2
1
DGND
5 6
DGND
SPK_R
SPK_L
AMP_MUTE
CN601
CONN
Thermal Pad
1
SDZ
2
FAULTZ
3
LINP
4
LINN
5
GAIN0
6
GAIN1
7
AVCC
8
AGND
9
GVDD
10
PLIMIT
11
RINN
12
RINP
13
NC
14
PBTL
AD52580
D_5V
R610
10K+-5%1/16W
D602BAS316WS
R613
1K
R607
100OHM
R611
1K 1/10W
R616
10K+-5%1/16W
NC/ 10K 1/16W 5%
R617
0R05 OHM
NC/0.05R
DGND
DGND
R609 100OHM
C630
NC/10NF 50V
R612
1K 1/10W
DGND
Q601
LMBT3904LT1G
DGND
R605 43K 1/ 16W
DGND
AV_L_OUT#
AV_R_OUT#
C631
NC/1U F 10% 16V
C607
100N 16V
DGND
C623 1U F 10% 16V
C618 1UF 10% 16V
DGND
PVDD
R619
NC/10 OHM
A_VDD
C609
NC/ 1UF 10% 16V
DGND
R621 100K 1/16W
DGND
DGND
C616 1UF 10% 16V
DGND
C602 1U F 10% 16V
DGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
09. AUDI O AMP
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
12Thursday , April 03, 2014
of
Size
Rev
称爹
B
B
称爹
>
<
39

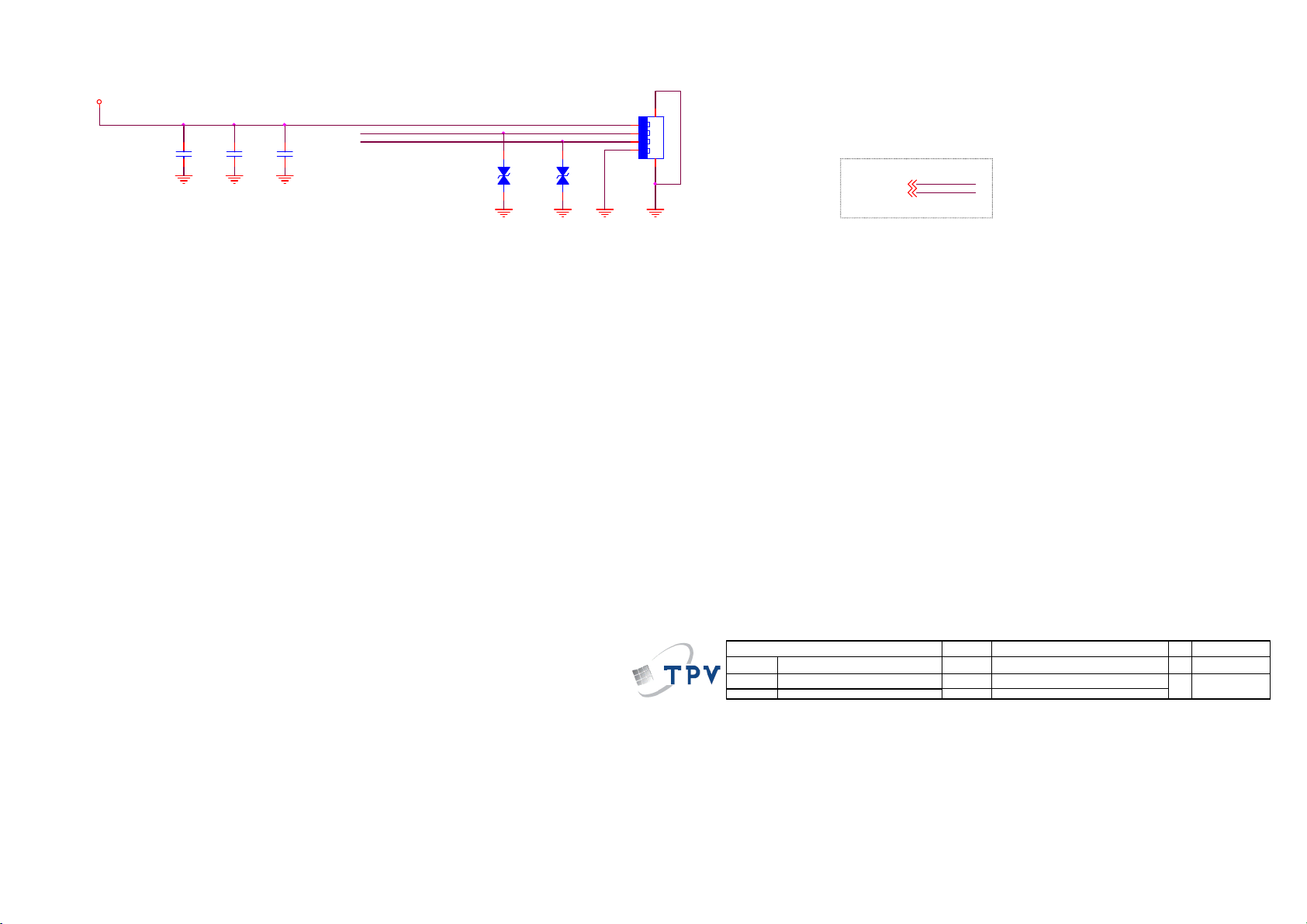

USB
USB_5V
DGND
C117
10UF 10V
C116
10UF 10V
DGND DGND
C118
NC/ 100N 16V
USB1_DM
USB1_DP
12
ZD112
NC/ MLVG0402
DGND DGND DGNDDGND
12
ZD113
NC/ MLVG0402
CN107
1
2
3
4
USB CONN
123 4
6 5
USB2
USB1_DM[3]
USB1_DP[3]
USB1_DM
USB1_DP
40
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
10. USB
OEM MODEL
TPV MODEL
PCB NAME
Sheet
Size
B
Rev
B
称爹
称爹
>
of
12Thursday , April 03, 2014
<
Silicon Tuner
TU10 1
ST18WM-2-E
ANT
3.3V
SCL
SDA
GND
GPIO1
IF_N
IF_P
IF_AGC
TH110TH211TH312TH4
13
AGND
SCL_CAN M_SC L
C144
10PF 50V
AGND
SDA_CAN
C145
10PF 50V
AGND
1
2
3
SCL_CAN
4
SDA_CAN
5
6
7
AIF-
8
AIF+
9
IF_AGC
R158
100OHM
R159 100OHM
C133NC/1N 50V
AGND
M_SD A
+
C126
100UF 16V
AGND
I2C for Tuner
3.3V_TUNER
300mA
3.3V_TUNER
R154 4.7K 1/16W
R155 4.7K 1/16W
300mA
AIF+
AIF-
C147
100N 16V
1K 1/16W
U101
VI3VO
AGND
C137 1UF 10V
C141
R173
GND14
4
3.3V_TUNER
2
G1117-33T63Uf
AGND
C13820PF
1UF 10V
D_5V 3.3V_TUNER
C127
10UF 10V
C131
100N 16V
AGND
M_SCL
M_SDA
Close to Tuner
IF_AGC
AGND
C130
C132
100N 16V
10UF 10V
AGND
L101
0.47uH
C139
20PF
L102
0.47uH
Close main chip
U4001
10K 1/16W 5%
AGND
R174
C146
10NF 50V
C134
C135
NC/100N 16V
NC/100N 16V
AGND
R167
NC/200R 1/16W 5%
M3V3
R175
NC/6K8 1/ 10W 5%
C136
NC/100N 16V
TUN _IF +
TUN _IF -
ATV_IF_AGC
Main Chip <-->
TUN_ IF +
TUN_ IF -
ATV_IF_AGC
M_SD A
M_SC L
ATV_IF_AGC
M_SDA
M_SCL
TUN _IF +
TUN _IF -
CN108
112233445
AGND
NC/RF CONN 5P
5
RF_IN
L105
NC/0. 33uH 10%
AGND
C148
NC/820PF 50V
1
3
AGND
AGND
2
D102
NC/BAV99
L103
NC/6.8nH
C150
NC/150PF 50V
L104
NC/0. 22uH 5% 0805
AGND
SCL_CAN
SDA_CAN
NC/10PF 50V
TDA18275
C149
AGND
32
31
U103
GPO1
VCC(RF)
1
GND(RF)
2
RFIN
3
GND(RF)
4
TESTOUT1
5
XTALINSEL
6
TESTOUT2
7
GND(DIG)
8
AS
SCL9SDA10TESTIN111XTAL_P12XTAL_N13TESTIN214VT15CP
AGND
C162
NC/10PF 50V
AGND
3.3V_TUNER3.3V_TUNER
AGND
29
30
28
27
25
26
GPO2
VCC(IF)
GND(IF )
TESTIN3
VIFAGC _A
VIFAGC_D
IFOUT_A_N
IFOUT_A_P
IFOUT_D_N
IFOUT_D_P
CAPREGVC O
AGND C153
NC/6.8NF 50V
AGND
C151
C152
NC/18PF 50V
NC/18PF 50V
X101
1 2
NC/16MHz
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
VCC(PLL)
GND(PLL)
XTOU T
16
C154
NC/150nF 16V
AGND
12. Tuner
C159
NC/6.8NF 50V
AGND
33
PAD
24
23
22
21
20
19
18
17
R177
NC/220 OH M +-5
AGND
R176
NC/1K 1/16W
C158 N C/100NF 16V
C157 N C/100NF 16V
C156
NC/100N F 16V
3.3V_TUNER
AGND
XTOU T
％
1/16W
C155
NC/6.8NF 50V
AGND
IF_AGC
AGND
T5
AGND
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
AIF-
AIF+
C160
NC
C161
NC
Custom
Size
Rev
B
称爹
称爹
>
of
12Thursday, April 03, 2014
<
41
LSADC0
LSADC1
LMBT3906LT1G
LED_R
LED_G
R452 100R 1/16W 5%
R453 100R 1/16W 5%
R443
200OHM1/16W
LMBT3906LT1G
R446
200OHM1/16W
6.8K +-1% 1/16W
6.8K +-1% 1/16W
Q402
Q401
D3V3
D3V3
23
23
R447
1
1
D3V3
R442
4K7 1/16W 5%
R445
4K7 1/16W 5%
R448
IRRX
D3V3
R441
4K7 1/16W 5%
LEDR
D3V3
R444
4K7 1/16W 5%
LEDG
LED_R
R451 100OHM1/16W
LED_G
D3V3
12
KEYPAD
LSADC0
LSADC1
FB405600R/200m A
1
2
3
4
5
6
7
8
9
CN401
IR
IRRX
LEDG
LEDR
KEY_UP_DN_DCSW
KEY_MENU_L_R_SOURCE
IRRX
LEDG
LEDR
12
ZD404
MLVG0402
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
13. Keypad/IR
ZD405
C470 100N16V
DGND DGND
12
MLVG0402
C471 100N 16V
OEM MO DE L
TPV MO DEL
PCB N AME
12
ZD406
MLVG0402
Sheet
C472 100pF 50V
DGND
42
CONN
DGND
C479 100N16V
DGND
B
Size
Rev
B
<
称爹
称爹
12Thursday , April 03, 2014
of
>
1
TEAN
TEAP
TEBN
TEBP
TEC N
TEC P
TEC LKN
TEC LKP
TED N
TED P
TOAN
TOAP TOAP _1
TOBN
TOBP
TOC N
TOC P
TOC LKN
TOC LKP
TOD N
TOD P
RP401 0O HM 1/16W
RP402 0O HM 1/16W
RP403 0OHM 1/16W
RP404 0O HM 1/16W
RP405 0O HM 1/16W
+12V_Panel
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
D5V_STB
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
TEAN_1
TEAP_1
TEBN_1
TEBP_1
TEC N_1
TEC P_1
TEC LKN _1
TEC LKP_ 1
TED N_1
TED P_1
TOAN _1
TOBN _1
TOBP _1
TOCN_1
TOC P_1
TOC LKN _1
TOC LKP_ 1
TODN_1
TOD P_1
FB406
1 2
120R 6A
FB408
1 2
NC/ 120R 6A
10K 1/16W 5%
R462
C473
0.47uF 16V
R465
LR_IN
Q403
AO3407A
R459 NC
R458 NC
TEAP_1
TEBP_1
TEC P_1
TEC LKP_ 1
TED P_1
TOAP _1
TOBP _1
TOC P_1
TOCLKP_1
TOD P_1
C475
100N 16V
PANEL_VC C
+
C476
NC/ 100UF 16V
30
28
26
24
22
20
18
16
14
12
10
DGND
CONN
8
6
4
2
R463
10K 1/10W 5%
PANEL_VCC
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
CN402
LVDS(8-bit)
SELLVDSBL_ADJ
TEAN_1
TEBN_1
TEC N_1
TEC LKN_ 1
TED N_1
TOAN _1
TOBN _1
TOC N_1
TOC LKN_ 1
TOD N_1
DGND
3D_EN
SELLVDS
D3V3
DGND
R460
NC/4.7K 1/16W
R461
NC/4.7K 1/16W
Panel
LR_IN
3D_EN
BL_ADJ
LR_IN
3D_EN
BL_ADJ
FromMainChipfor
LVDS
TED P
TED N
TEC LKP
TEC LKN
TEC P
TEC N
TEBP
TEBN
TEAP
TEAN
TOD P
TOD N
TOC LKP
TOC LKN
TOC P
TOC N
TOBP
TOBN
TOAP
TOAN
PANEL_EN
TED P
TED N
TEC LKP
TEC LKN
TEC P
TEC N
TEBP
TEBN
TEAP
TEAN
TOD P
TOD N
TOC LKP
TOC LKN
TOC P
TOC N
TOBP
TOBN
TOAP
TOAN
PANEL_EN
Power
PANEL_EN
R466 4. 7K 1/16W
R467
4.7K 1/16W
DGND
47K 1/16W 5%
Q404
LMBT3904LT1G
DGND
DGNDDGND
DGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
16. LVDS
OEM MODEL
TPV MO D EL
PCB NAME
Sheet
B
Size
A
Rev
称爹
称爹
>
of
45Thursday , April 03, 2014
<
43
5.2 电源板
715G6750P02000002M
2
4
680K 1/4W
C9905
!
4
-
-
3
!
L9901
124
18MH
R9903
680K 1/4W
R9904
L9902
3
18MH
C9901
470NF 275V
RV9901
620V
2
CN9901
AC in
2
+
3
3
680K 1/4W
C9903
680PF 250V
124
C9906
47PF 250V
!
!
1
+
1
BD9102
GBL08-07_NC
R9905
680K 1/4W
R9906
!
!
NTCR
NR9901
1
12
t
F9901
T4AL 250V
!
R9901
680K 1/4W
680K 1/4W
R9902
12
t
BD9101
GBL08-07
!
C9902
680PF 250V
!
NC
!
NTCR_NC
NR9902
C9101
56UF 450V
D9106
PG1010R
R9102
R9101
180K
180K
R9114
100KOHM +-5% 1/8W
D9101
3
FMEN-220A
2
1
R9115
22 OHM 1/4W
R9104
R9106
82K OHM 1%
R9105
82K OHM 1%
D9103
PG1010R
R9127
22R OHM 1%
Q9101
8N65
R9111
10K OHM +-5% 1/8W
R9112
0.24R
HS9106
HEAT SINK (Q9101)_N C
1
2
3
4
82K OHM 1%
R9107
82K OHM 1%
C9126
100PF
HS9101
HEAT SINK (Q9101)
(D9102_NC )
1
2
3
4
PS2561DL1-1
R9108
4R7 1/4W 5%
D9105
1N4007
HS9104
IC9102
T910 1
1
3
2
4
5
POWER X'FMR 380uH
1
2
HS9103
3
4
(D9101&D9102)
43
12
56UF 450V
C9102
+
ZD9103
NC
IC9101
PT
FB
CS
GND4OUT
TPV002AS
+
ZD9105
12
NC
8
VCC
6
VCC
5
R9113
470 OHM 1/4W
C9904
470pF 250V
1uF 50V
+
R9133
NC
R9103
180K
1
2
3
C9106
220P 50V
C9124
1NF
C9130
NC
12
R9146
0R05 1/4W
C9104
C9103
2.2NF
22R OHM 1%
D9104
1N4148W
R9110
47R 1%
FB9903
BEAD
1 2
R9128
R9109
10 OHM
+
C9105
2.2UF 50V
R9116
22 OHM 1/4W
R9117
22 OHM 1/4W
D9109
D9108NC
22 OHM 1/4W
R9120
3
1
NC
R9118
NC
R9119
22 OHM 1/4W
D9102
FMEN-220A
2
8
9
6
7
10
1
2
3
4
!
BZT52-B16
C9107
1NF 500V
ZD9104
C9121
330UF 25V
R9138
NC
R9139
22 OHM 1/4W
R9140
22 OHM 1/4W
1 2
+
C9108
1NF 500V
R9122
9.1K OHM
IC9103
AS431AN-E1
!
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
C9109
330UF 25V
+
C9117
220N 50V
01.POWER
L9101
3UH
C9110
NC
R9121
2K4 1/8W 5%
R9124
10K OHM +-5% 1/8W
R9123
43K 1/8W 1%
C9114
330UF 25V
NC
+
C9111
C9123
3300UF 35V
+
R9125
620K 1/8W 1%
R9126
9.31K +-1% 1/8W
R9141
680R 1/8W 1%
C9112
NC
C9122
330UF 35V
+
OEM MOD EL
TPV MODEL
PCB NAME
Sheet
C9129
NC
+
12Tuesday , March 25, 2014
+12V
C9116
330UF 35V
of
+12V_A
Q9102
2N3904
R9130
1K OHM
C9119
100N 50V
+18V
ZD9101
GDZJ22B
1 2
R9129
470 OHM 1/4W
R9131
1K OHM +- 5% 1/8W
A3
Size
Rev
称爹
44
+18V
VCC_1
FB
ZD810 1
BZT52-B4V7
R8109
10 OHM 1/4W
DIMOUT
VLED+
C8108
NC
R8119
NC
DIMOUT
1 2
C8103
1uF
PF
IC8101
；
7903BS
C8109
NC
5
8
6
CS
OUT7VCC
GND
DIMOUT1GM2FB3OVP/DI M
4
R8102
4K7 +-5% 1/8W
C8111
100N 50V
R8110
100R 1/8W 5%
R8111
R8114
100R 1/ 8W 5%
10K OHM +-5% 1/8W
D8120
L8101
8
1
33uH
Q8101
AOTF454FL
R8104
22OHM +-5% 1/8W
D8103
R8105
NC
NC
R8108
330R 1/8W 5%
BZT52-B22
2 OHM 1%
R8115
ZD8102
R8118
R8106
2 OHM 1%
10K OHM +-5% 1/8W
C8110
1NF
FB
VLED-
5
Q8107
D8D7D6D
MTB30 N0 6Q8
S1S2S3G
4
2 OHM 1%
SR515
1 2
1 2
D8121
SR515
R8107
0R1 5% 2W
1 2
R8125
1.8R
R8120
FB8101
BEAD
1 2
HS8101
HEAT SINK (Q8101)
1
2
3
4
RK7002BM
R8127
NC
R8126
1.8R
C8106
C8117
Q8103
NC
NC
C8112
1N 50V
C8102
330UF 50 V
+
+12V
R8101
10K OHM +-5% 1/8W
Q8104
PMBT3904
R8103
10K OHM +-5% 1/8W
+
C8105
330UF 50V
R8124
330K 1/8W 5%
BL_ON/OF F2
R8116
180K 1/8W 5%
R8112
150K 1/8W 5%
R8117
27K 1/8W 5%
R8113
33K 1/8W 5%
C8104
1N 50V
100KOHM +-5% 1/8W
C8114
1uF
R8128
30K 1/4W
R8122
VLED+
DIM
DIM
D8104
1N4148W
Q8106
PMBS3906
R8123
15K 1/8W 1%
C8113
0.1uF 50V
VLED-
VLED+
C9127
1N 50V
+12V_A
+12V
R8121
8K2 +-5% 1/8W
Q8105
PMBS3904
6
5
4
3
2
1
CN9101
CONN
1
3
5
7
9
11
13
15
VCC_1+12V
LED side
CN8101
CONN
7 8
C9128
2
4
6
8
10
12
14
16
1N 50V
BL_ON/OF F
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
01.POWE R
Date
OEM MO DE L
TPV MODEL
PCB NAME
Sheet
X Po wer
12Tuesday , March 25, 2014
Size
Rev
of
称爹
B
45
5.3 遥控板
715G6726R01000004I
CN202
67
1
2
3
4
5
CONN
IR-in
R202 220 O HM 1/10W
R203 220 O HM 1/10W
VCC
R204 NC/220 OHM 1/10W
R205 NC/220 OHM 1/10W
LED201
12-22/BH R6C-C 31/2C
Red
2
3
Blue
2
3
1
LED202
12-22/BH R6C-C31/2C
Red
Blue
1
VCC
VCC
U201
4
GND
3
Vout
2
VCC
1
GND
TSOP75438TR
C202
2.2uF 10V
IR-in
R201 15K 1/16W 5%
R206 100 OHM 1/10W
VCC
<
A
称爹
A
>
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
IR BOARD
OEM MO D EL
TPV MOD EL
PCB N AME
Sheet
of
22
Size
Rev
称爹
46
5.4 按键板
715G6316K01000004I
CN01
34
KEY1
1
2
CONN
C06
100N 50V
----><----|
Right
SW01
F5
1 6
F1
2
F3
3 4
SW 6P
Center UpDown
Direction s wi tc h
Center
Right
Left
Down
Up
2-5 short
1-5 short
4-5 short
3-5 short
6-5 short
Menu
CH+ 1K2
CH-
VOL-
VOL+
ResistanceKey function
0R
2K2
6K8
15K
No function
7
F4
5
F2
8
Joystick circuit diagram
pin1
pin2
pin3
Voltage
0V
0.5V
0.81V
1.65V
2.27V
3.3V
pin4
pin5 pin6
F1
F2
F3
F4
F5
Left
----><----|
R01
1K2 1/10W 1%
C01
NC/100N 50V
----><----|
R02
0R05 1/10W
C02
----><----|
R03
NC/100N 50V
C03
6K8 1/10W 1%
NC/100N 50V
----><----|
R04
C04
2K2 1/10W 1%
絬 隔 瓜 絪 腹
Key Component
NC/100N 50V
T P V ( Top Victory Electronics Co . , Ltd. )
02. KEY
Date
----><----|
R05
C05
15K 1/10W 1%
NC/100N 50V
OEM MO DE L
TPV MO DE L
PCB NAME
Sheet
22Tues day , Septem ber 17, 2013
of
Size
Rev
称爹
Custom
1
XX
47
6. 软体及 EDID 烧录

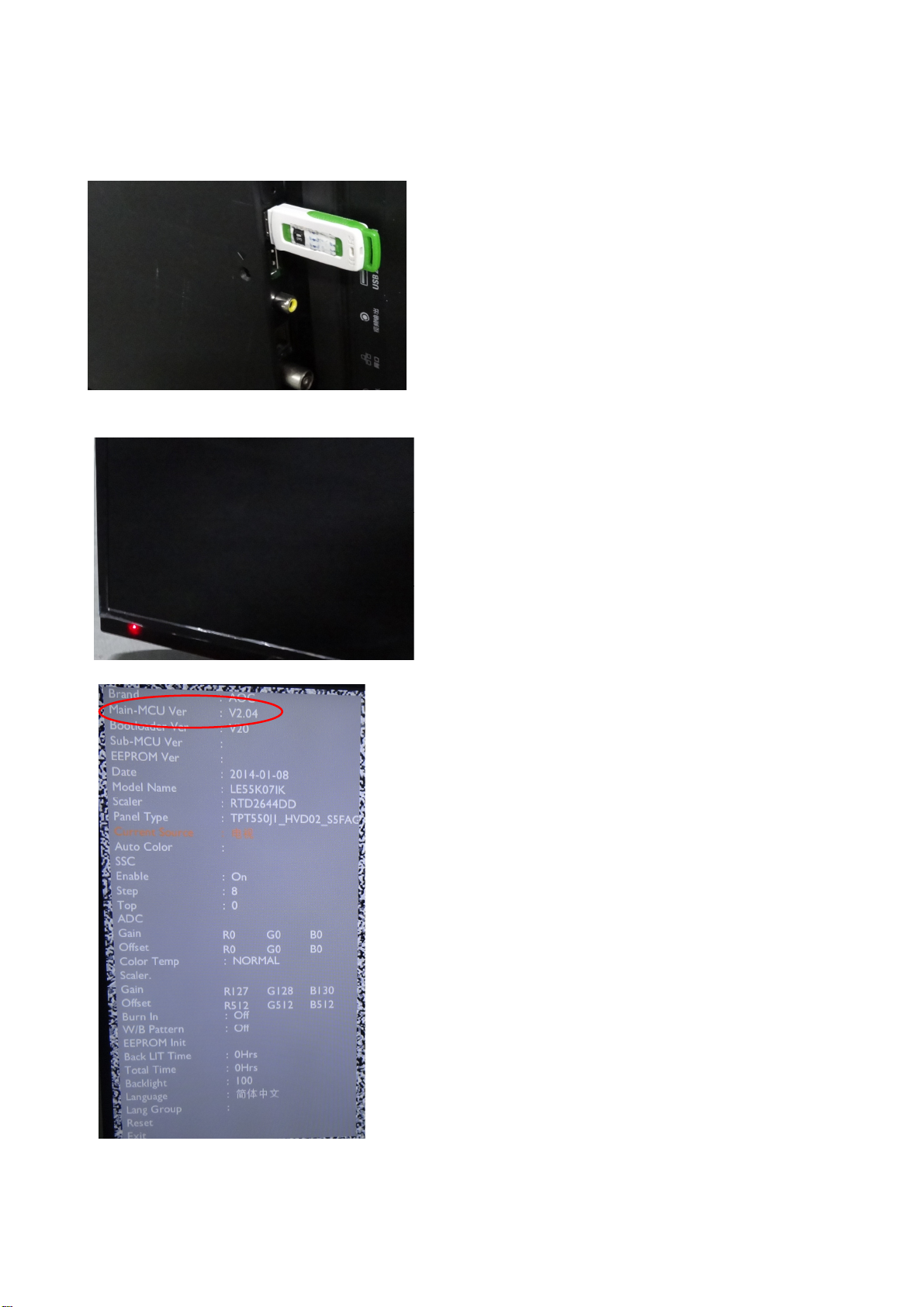

6.1 软体烧录
1.将软体.img 文件拷进 U 盘根目录,并命名为 install.img。
2.电视断电状态插上 U 盘。
3.电视上电，软体自动升级（注意升级过程中，屏幕显示黑屏，指示灯为红色），升级完后电视自
动开机。
4.开机后，遥控器上按“menu+1999+back”键进入工厂模式，确认软体版本。
6.2 EDID 烧录
此机种 EDID 数据包含于 flash 软体中，无需进行单独的 EDID 烧录。
48
7. 故障处理流程
无法启动
（
红色）
检测按键板及 LED 灯
检测电源板 CN9101 的 PIN11/12/13/14 是否有 12V 电压输出
更换按键板
无电（LED 不亮）
检测插座是否有电或硬开关是否打开
有
有
LED
无
重插电源插座或开启硬开关
无
更换电源板
检测电源板 CN9101 的 PIN9/10 是否有 12V 电压输出
无
否
是
更换按键板
有
检测按键板的POWER键是否失灵
是
检测按键板的红外接收器是否失灵
更换红外接收器
更换电源板
否
更换主板
49
无画（LED绿色）
检测TV是否受控，能否用遥控器或按键板开关机
是
否
更换主板
检测是否有背光
是
否
检测LVDS线是否良好
检测主板是否有BL信号
是
否
检测主板上CN402的
PIN27/28/29/30是否有12V供电
是
否
是
重插或更换LVDS线
否
更换主板
先更换主板
检测是否OK
更换主板
检测电源板 CN9101 的 PIN9/10 是否有 12V 电压输出
更换Panel
否
更换Panel
是
否
更换电源板
50
彩条、水波纹、画抖、画闪、
鬼影、残影、拖影等干扰
检测附近是否有干扰源
是 否
排除干扰源
先更换主板
检测是否OK
否
更换Panel
检测信号线
是否良好
是 否
检测信号源出
信号是否正常
是 否
更换信号线
重新设置
信号源
画异
TV画面雪花点、重
影、细线、条纹干扰
检测TV信号线
是否接触不良
是
重新连接
TV信号线
排除干扰源 用场强仪检测信号强度
否
检测附近是否
有高频干扰源
是 否
是否在45-100db之间，
65db左右为最佳值
是
更换主板
间歇性画异加温
画异冷开机画异
检测软体版本是
否需要更新
是 否
升级软体
否
太弱：加装信号放大器
太强：减少信号放大器
或加装信号衰减器
先更换主板
检测是否OK
否
取回站内
加温检测
51
检测TV是否被静音，调整音量大小，
或进入菜单进行复位看是否OK
检测主板到喇叭的连接线是否断路
更换连接线
检测此频道是否发生频
偏，尤其是使用卫星信号
是
建议客户重新
设置信号源
无声或声音异常
检测信号源音频接口是否正确，或TV制式是否为DK制
是
否
是
否
检测喇叭阻抗是否变质
（喇叭阻抗值标在喇叭上）
是
否
更换喇叭 更换主板
收不到台或收台不全
是 否
检测软体版本是否需要更新
升级软体
用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳
是
用别的TV测试是否能收到此台
是
和客户说明当地TV信号未转播此台
否
更换主板
否
重插音频接口或设置TV制式
否
太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减
否
52
更换喇叭 主板功放异常
重新安置或更换电池
喇叭异响
（破音，滋滋声）
检测喇叭是否变质
是 否
更换主板
遥控失灵
检查遥控器电池是否未安置好或没电
是 否
更换遥控器
异响
用别的遥控器测试是否可用
是 否
检测按键板是否异常
是
更换按键板
电源板，PANEL异响
更换电源板/PANEL
否
更换主板
53
OSD 不稳定或无法正常工作
按键板连接正常吗？
否
接好按键板
是
按键正常吗？
是
按键板有无故障？
是
检查主板
否
否
更换按键
更换按键板
54
8. 主要 IC 管脚及内部框图
RTD2634DD
Pin Description
55
AD52580
Pin Description
Block Diagram
56

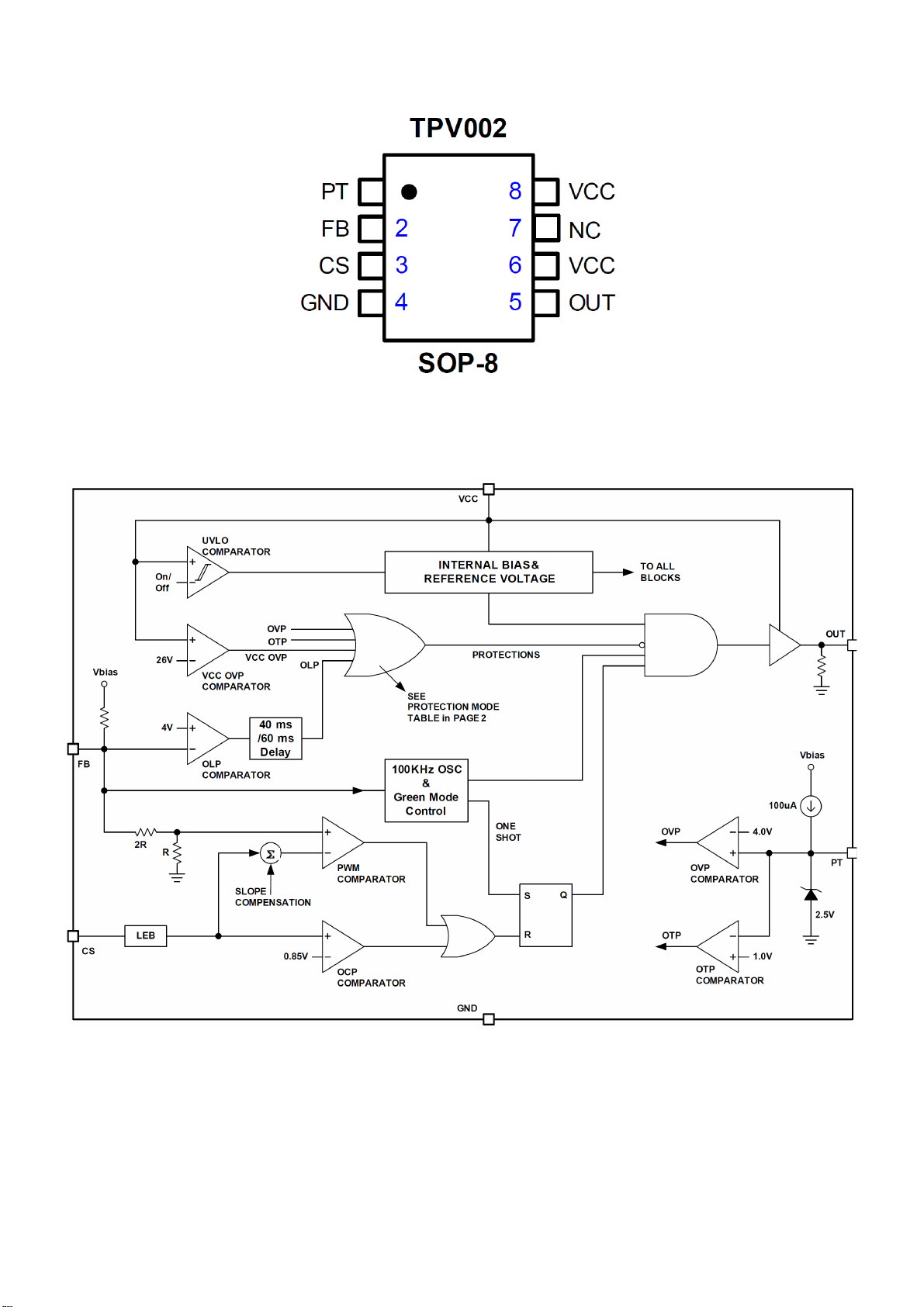

TPV002
Pin Description
Block Diagram
57
PF7903BS
Pin Description
Block Diagram
58
9. BOM
注意：以下初始版本 BOM 信息仅供维修参考，不作为下单依据，如有变更，恕不另行通知，请以 RSPL
或 Service BOM(http://cs.tpv.com.cn) 为准，谢谢！
LE40D3150/80
点位 组件 对象描述 备注
a 0M1G1030 6 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 8125 SCREW M1-MACHINE SCREW X8
SP01 378G0100498CAC 6 OHM 10W 132*45*39 0 UNIT
SP01 378G0100498XAC 6 OHM 10W 132*45*39 0 UNIT
ECN9901 389G214A15NYH500X2 AC POWER CORD 1500+60 FOR CHINA
ECN601 395G801404LD16 HARNESS 4P-B&R+B&W 750/650MM 2nd-source
ECN601 395G801404RD16 HARNESS 4P-B&R+B&W 750/650MM
ECN401 395G801409DC08 HARNESS 9P-5P+2P 340MM/700MM
ECN401 395G801409WC08 HARNESS 9P-5P+2P 340MM/700MM 2nd-source
ECN701 395G801416DC63 HARNESS 14P-16P 140MM
ECN701 395G801416MC63 HARNESS 14P-16P 140MM 2nd-source
ECN402 395G801851DD03 LVDS CABLE 51P-30P 360MM 2nd-source
ECN402 395G801851RD03 LVDS CABLE 51P-30P 360MM
708GMA400CPX01 AOC 40(576 CH)
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
E750 750TBV400J61D8N000 LCD PANEL TPT400LA-J6PE1 SC1D XM TPV XM 2nd-source
756TXECB0KD009060X MAIN BOARD-CBPFDKLDXC
SMTF-U402 100TARVT012D6X MCU ASSY-056G2233 42
Z40G0002ALL01A OTHER LABEL
CN401 033G3802 9B YH L CONN 2.0 9P
C633 067G315M1016KV EC 100UF 20% 35V 8*7
C632 067G315M1016KV EC 100UF 20% 35V 8*7
CN105 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5
CN102 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5
CN111 088G 78G137ACL HF HF RCA JACK R/A 6P Y/W/R 1*3 H=10.5
CN107 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN104 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
CN601 311GW200A04ABX WAFER 2.0MM 4P
CN701 311GW200C14AAL WAFER 2.0MM 14P
CN402 311GW200C30ABL WAFER 2.0MM 2*15P
CN402 311GW200C30ABX CONN 2.0MM 30P R/A 32MM 9.5MM
CN107 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4
TU101 394GNPALALL26L TUNER CHINA ST18WM-2-E
U101 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223
U704 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U702 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U402 056G2233 42 FLASH MX25L6406EM2I-12G 64MB SOP-8
Q502 057G 417511 MMBT3904
Q501 057G 417511 MMBT3904
Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q401 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q602 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q404 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q703 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
E40E2KNDDWA7NNX
59
Q702 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q705 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
RP401 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP402 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP404 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP405 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP403 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
TH701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
R409 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R608 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R735 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R614 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R620 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R603 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R602 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R418 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R421 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R703 061G04021003FY RST CHIP 100K 1/16W 1%
R720 061G04021003FY RST CHIP 100K 1/16W 1%
R717 061G04021003FY RST CHIP 100K 1/16W 1%
R451 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R452 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R453 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R509 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R110 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R114 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R607 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R172 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R171 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R139 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R159 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R158 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R510 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R127 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R126 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R128 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R121 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R508 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R609 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R511 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R116 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R115 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R109 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R108 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R724 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R131 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R130 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R136 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R137 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R129 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
60
R173 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R513 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R516 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R613 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R742 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R523 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R610 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R106 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R601 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R107 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R604 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R124 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R122 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R725 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R514 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R405 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R740 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R733 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R517 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R712 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R174 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R462 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R722 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R715 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R621 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R702 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R710 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R708 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R531 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R530 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R704 061G04021501FF RST CHIP 1K5 1/16W 1% FENGHUA
R443 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R446 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R132 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R133 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R404 061G04022702FF RST CHIP 27K 1/16W 1% FENGHUA
R705 061G04023602FT RST 0402 36K 1% 1/16W
R524 061G0402393 JF RST CHIP 39K 1/16W 5% FENGHUA
R605 061G0402433 JY RST CHIPR 43KOHM +-5% 1/16W YAGEO
R467 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R412 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R431 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R433 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R751 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R739 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R420 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R422 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
61
R429 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R427 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R709 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R504 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R506 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R501 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R505 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R713 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R416 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R414 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R437 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R466 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R435 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R155 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R154 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R718 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R444 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R441 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R445 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R442 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R512 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R515 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R729 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R465 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R529 061G0402564 JY RST 0402 560K 5% 1/16W RC0402JR-07560KL
R525 061G0402564 JY RST 0402 560K 5% 1/16W RC0402JR-07560KL
R403 061G04026201FF RST CHIP 6.2K 1/16W 1% FENGHUA
R447 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R448 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R140 061G0402750 JF .ST CHIPR 75 OHM +-5% 1/16W FENGHUA
R402 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R408 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R103 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R102 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R526 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R612 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R611 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R119 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R120 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R463 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R730 061G06031200FY RST 0603 120R 1% 1/10W
R707 061G06031332FF RST 0603 13.3K 1% 1/10W FENGHUA
R723 061G06032000FY RST CHIP 200R 1% 1/10W
R527 061G0603201 JF RST CHIP 200R 1/10W 5% FENGHUA
R726 061G06032200FT RST CHIP 220R 1/10W 1%
R728 061G06032209FT RST CHIP 22R 1/10W 1%
R732 061G06032409FT RST CHIP 24R 1/10W 1%
R118 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R104 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R117 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R105 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R111 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R101 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R112 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
62
R125 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R113 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R138 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R134 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
C145 065G040210031J F CAP 0402 10PF 5% 50V NP0
C144 065G040210031J F CAP 0402 10PF 5% 50V NP0
C111 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C472 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C491 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C604 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C601 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C146 065G040210332K A CAP 0402 10NF 10% 50V X7R
C471 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C479 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C470 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C466 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C464 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C477 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C732 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C147 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C420 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C607 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C716 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C462 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C465 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C461 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C460 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C615 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C721 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C459 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C734 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C445 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C401 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C505 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C437 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C132 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C131 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C448 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C475 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C442 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C625 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C436 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C444 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C447 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C446 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C441 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C454 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C450 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C724 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C141 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
63
C137 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C626 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C467 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C720 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C429 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C430 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C624 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C421 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C432 065G040215031J A CAP 0402 15PF 5% 50V NP0
C431 065G040215031J A CAP 0402 15PF 5% 50V NP0
C139 065G040220031J F CAP 0402 20PF 5% 50V NP0
C138 065G040220031J F CAP 0402 20PF 5% 50V NP0
C704 065G040222031J T CAP 0402 22PF 5% 50V NP0 UMK105 CG220JV
C110 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C730 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C610 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C606 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C628 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C621 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C403 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C404 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C408 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C406 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C407 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C405 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C409 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C411 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C415 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C410 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C729 065G040247505M M CAP 0402 4.7UF 20% 6.3V X5R
C106 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C113 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C112 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C109 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C713 065G060310432K A CAP 0603 100NF 10% 50V X7R
C708 065G060310432K A CAP 0603 100NF 10% 50V X7R
C727 065G060310432K A CAP 0603 100NF 10% 50V X7R
C744 065G060310432K A CAP 0603 100NF 10% 50V X7R
C703 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C616 065G060310512K A CAP 0603 1UF 10% 16V X7R
C618 065G060310512K A CAP 0603 1UF 10% 16V X7R
C602 065G060310512K A CAP 0603 1UF 10% 16V X7R
C623 065G060310512K A CAP 0603 1UF 10% 16V X7R
C731 065G060310512K M CAP 0603 1UF 10% 16V X7R GRM188R71C105K
C457 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C458 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C456 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C440 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C428 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C402 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C439 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C412 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
64
C474 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C733 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C725 065G060322422K Y CAP 0603 220N 25V X7R 10%
C473 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R
C617 065G080510532K T CAP 0805 1UF 10% 50V X7R
C611 065G080510532K T CAP 0805 1UF 10% 50V X7R
C622 065G080510532K T CAP 0805 1UF 10% 50V X7R
C619 065G080510532K T CAP 0805 1UF 10% 50V X7R
C627 065G080510615K T CHIP 10UF 16V X5R 0805
C701 065G080510615K T CHIP 10UF 16V X5R 0805
C613 065G080510615K T CHIP 10UF 16V X5R 0805
C728 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C718 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C715 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C127 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C743 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C116 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C117 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C130 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C712 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C717 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C719 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C706 065G120622615K A CAP 1206 22UF 10% 16V X5R
C705 065G120622615K A CAP 1206 22UF 10% 16V X5R
C726 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C126 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C612 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB702 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB406 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB603 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB402 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB401 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB411 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB405 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02
FB409 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB414 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB410 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB415 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
L101 073G 63478 5M CHIP IND 0.47UH 5% 0.1A 3.5R MGFI1608AR
L102 073G 63478 5M CHIP IND 0.47UH 5% 0.1A 3.5R MGFI1608AR
CN501 088G 34019G AD HDMI HEADER 19P - -
CN502 088G 34019G AD HDMI HEADER 19P - -
CN502 088G 34019G AV HDMI HEADER 19P BLACK -
CN501 088G 34019G AV HDMI HEADER 19P BLACK -
D503 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D101 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D702 093G 52S903 T RECTIFIER GS1A 1A 50V DO-214AC
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
65
ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD127 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD126 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD406 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD405 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD404 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD128 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
D602 093G 64S526SEM SWITCHING BAS316WS 250MA 100V SOD323
U401 356G0568176604 SCALER RTD2634DD LQFP 176
U601 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP
U701 356GD563006600 DC/DC SY8104ADC 4A 18V TSOT23-6
U703 356GD563008601 DC/DC SY8003ADFC 3A 5.5V DFN2X2-8
Q701 357G0763030018 MOSFET MTP3401N3 -4A -30V SOT-23
Q704 357G0763030018 MOSFET MTP3401N3 -4A -30V SOT-23
Q403 357G0763A06 MOSFET AO3407A -25A -30V 1.4W SOT23
C453 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C438 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C451 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C455 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C416 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C414 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C425 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C413 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C449 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C417 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C419 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C418 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C722 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C424 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
L602 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L601 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L604 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L603 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L701 373G253S198D00 SMD CHOKE 4.7UH 20% 3.3A 0.026R SWPG604
L703 373G253S256D00 SMD CHOKE 2.2UH 30% 2.95A 0.030R SWPG40
X401 393G022S624NSK CRYSTAL NXE27.000AC12F-BK6 27 12
D401 393G060S91200T00HF SCHOTTKY RB551V-30_R1_00001 0.5A 30V SO
E715 715G6682M01000004K MAIN BOARD PCB
HS401 X90G8014 1 HEAT SINK
IRPFDXD5 IR BOARD
CN202 033G8032 5F S HR CONNECTOR
R201 061G0402153 JT RST CHIP 15K 1/16W 5% TZAI YUAN
66
R203 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R206 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R204 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
C202 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
LED201 081G 15 3 GP CHIP LED BLUE/RED GPTD12048BRC1-AR
LED202 081G 15 3 GP CHIP LED BLUE/RED GPTD12048BRC1-AR
U201 356GS927038006 SMD IR RECEIVER TSOP75438TR 38 KHZ
E715 715G6726R01000004I IR BOARD PCB
KEPFDXA2 KEY BOARD
040G 45762420A LABEL 25X6MM
R02 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R01 061G06031201FT RST CHIP 1K2 1/10W 1%
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R03 061G06036801FT RST CHIP 6K8 1/10W 1%
C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R
CN01 311GW125D02ADX WAFER 1.25MM 2P R/A S1315-02RVB-S03-K
SW01 377G060902B0CJ CHIP TACT SW 6P 6MM 160G SMD
709T63160XS001 COMSUMPTIVE ASSY
E715 715G6316K01000004I KEY BOARD PCB
E715 715G6316K01000004K KEY BOARD PCB 2nd-source
E715 715G6316K01000004S KEY BOARD PCB 2nd-source
E750 LCM400J6PE1ABXEX0X PANEL TPT400LA-J6PE1 SC1D XM TPV
P33E0676XJT01R0100 BUTTON
PLTVDQ281XXCH POWER BOARD
Z40G0002ALL01A OTHER LABEL
CN9901 033G8029 3A H CONN 3.96MM 3(2N)P R/A 11.88MM 9.5MM
IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
C9901 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
L9902 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
L9901 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
D8120 093G 60334 SCHOTTKY SR506-44 5A 60V DO-201AD
CN8101 311GW200A06ABX WAFER 2.0MM 6P
CN9101 311GW200C16BBX ONN 2.0MM 16P R/A W2010-16RVA-S04,B200
RV9901 361G0046621KZE VARISTOR 620V 10%
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
R8107 361G3SWJ50759B00TZ RST WD 0.05R 5% 3W NKNP3WS0R05JMS10
C9102 367G215X560PKZ000S EC 56UF 20% 450V 12.5*40
C9101 367G215X560PKZ000S EC 56UF 20% 450V 12.5*40
L9101 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L8101 373G0253258X00 BOOST CHOKE 33UH 10% 3.5A 3LCEF16-330K
T9101 380GL52P177L00 X'FMR 380 10% 5.5 ER31 PT-018699
T9101 380GL52P177N00 X'FMR 380 10% 5.5 ER31 YUVA-2133-23
BD9101 393G0050460A05 BRIDGE GBL08-07 X0 4A 800V GBL
705TXD57072 Q9101 ASS'Y
0M1G1730 8120 SCREW
Q9101 357G0667700001 MOSFET AOTF11N70 11A 700V TO-220F
HS9101 Q90T0236001A0000HG HEAT SINK
705TXD93076 D9101&D9102 ASS'Y
D9101 093G 60258 DIODE FME-220B TO-220 SANKEN
D9102 093G 60258 DIODE FME-220B TO-220 SANKEN
0M1G1730 8120 SCREW
HS9103 Q90T0236003A0000BF HEAT SINK
705TXE57012 Q8101 ASS'Y
67
0M1G1730 8120 SCREW
Q8101 357G0600100005 MOSFET SM1A15NSFPC-TUG 16A 100V TO-220FP
HS8101 Q90G0219002A0000HG HEAT SINK
IC9103 056G 158501 IC AS431AN-E1 SOT23
Q8106 057G 417517 HF SMALLTRAN LMBT3906LT1G-HF SOT-23
Q8104 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
Q8105 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
Q8103 057G 763532 MOSFET RK7002BM 0.25A 60V SOT-23
R9109 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R8114 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8110 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8111 061G0805103 JT RST 0805 10K 5% 1/8W
R9124 061G0805103 JT RST 0805 10K 5% 1/8W
R8106 061G0805103 JT RST 0805 10K 5% 1/8W
R8101 061G0805103 JT RST 0805 10K 5% 1/8W
R9111 061G0805103 JT RST 0805 10K 5% 1/8W
R8103 061G0805103 JT RST 0805 10K 5% 1/8W
R9114 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8122 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8123 061G08051502FT RST CHIP 15K 1/8W 1%
R8116 061G08051803FT RST CHIPR 180K +-1% 1/8W TZAI YUAN
R8112 061G08051803FT RST CHIPR 180K +-1% 1/8W TZAI YUAN
R8104 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN
R9121 061G0805242 JT RST CHIP 2K4 1/8W 5% TZAI YUAN
R8117 061G0805243 JF RST CHIPR 24KOHM +-5% 1/8W FENGHUA
R8108 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R8113 061G0805333 JT RST CHIP 33K 1/8W 5% TZAI YUAN
R8124 061G0805334 JT RST CHIP 330K 1/8W 5% TZAI YUAN
R9123 061G08054302FT RST CHIP 43K 1/8W 1%
R8102 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
R9125 061G08056203FT RST CHIP 620K 1/8W 1%
R9110 061G08056209FT RST 0805 62R 1% 1/8W
R9141 061G08056800FT RST CHIP 680R 1/8W 1%
R8121 061G0805822 JT RST CHIPR 8K2 +-5% 1/8W TZAI YUAN
R9122 061G0805912 JT RST CHIPR 9.1 KOHM +-5% 1/8W 0805
R9126 061G08059311FT RST CHIPR 9.31KOHM +-1% 1/8W TZAI YUAN
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9146 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8109 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R9103 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9102 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9101 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9128 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9127 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9139 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9138 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9118 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9119 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9117 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9116 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9115 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R8128 061G1206303 JT RST CHIPR 30 KOHM 1/4W TZAI YUAN
68
R9113 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9108 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9904 061G12066803FT RST CHIP 680K 1/4W 1%
R9903 061G12066803FT RST CHIP 680K 1/4W 1%
R9902 061G12066803FT RST CHIP 680K 1/4W 1%
R9901 061G12066803FT RST CHIP 680K 1/4W 1%
R9906 061G12066803FT RST CHIP 680K 1/4W 1%
R9905 061G12066803FT RST CHIP 680K 1/4W 1%
R9106 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9107 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9105 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9104 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
C9124 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8110 065G080510231J F CAP 0805 1NF 5% 50V NPO
C9128 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8112 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9127 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8104 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8111 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8103 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8114 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9106 065G080522131J Y CAP CHIP 0805 220P 50V NP0 +/-5%
C9117 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9104 065G120610532K T CAP CHIP 1206 1UF K 50V X7R
C9107 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9108 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
IC9101 356G0379008231 AC/DC TPV002AS SOP-8
IC8101 356G0700008054 LED DRIVER PF7903BS SOP-8
Q8107 357G0763060600 MOSFET MTB30N06Q8 8A 60V SOP-8
R8127 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8125 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8126 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8118 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8120 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
D8104 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
D9104 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD8102 393G039S95100T00HF ZENER BZT52-B5V1_R1_00001 5.1V 0.41W SOD
ZD8101 393G039S96300T00HF ZENER BZT52-B4V7 4.7V 410MW SOD-123
ZD9104 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
T9101 006G 31 4 1.7MM RIVET
CN9901 006G 31500 EYELET
L9902 006G 31502 EYELET
C9101 006G 31502 EYELET
NR9901 006G 31502 EYELET
C9102 006G 31502 EYELET
C9901 006G 31502 EYELET
L9901 006G 31502 EYELET
RV9901 006G 31502 EYELET
040G 45762420A LABEL 25X6MM
C9126 065G 1K10193T CAP CER 100PF 10% 1KV R
C9904 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9903 065G306K68123R CAP Y1 680PF 10% 250V Y5P
C9902 065G306K68123R CAP Y1 680PF 10% 250V Y5P
69
C9121 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9111 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9109 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9116 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9123 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9122 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
FB9903 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB8101 071G 55 29 FERRITE BEAD
F9901 084G 56 4 C FUSE 4A 250V MST 4A 250V
D9105 093G 5212T52T DIODE 1N4007-AO DO-41
D9106 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41
D9103 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41
J908 095G 90 23 JUMP WIRE - -
J915 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J910 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J913 095G 90 23 JUMP WIRE - -
J905 095G 90 23 JUMP WIRE - -
J912 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J906 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
J914 095G 90 23 JUMP WIRE - -
R9112 361G152M24852T00TZ RST MOF 0.24R 5% 2W MOF2WS0R24JT52
C9103 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12D-2R
C9906 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
C9105 367G315X229HKB EC 2.2UF 20% 50V 5*11MM 3000 HR 250MA -
C8102 367G415X3317KT EC 330UF 20% 50V 12.5*12
C8105 367G415X3317KT EC 330UF 20% 50V 12.5*12
E715 715G6750P02000002M POWER BOARD PCB
Q52G100203000B00ZA AL FOIL
Q11G701015000L00JY PCB-SUPPORT
Q12G6300 25 3 FOOT PAD
Q36T 600 30 10 NONWOVEN FABRIC
Q45G88010TV08800WN PROTECT BAG
Q45G88010TV11800X1 PROTECT BAG 900*1200
Q52G100204000A00ZA AL FOIL
Q52G130118600000YY TAPE
Q52G15010TV0070WXW TAPE_INSULATING
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
X01G8000 3 SCREW
X15T950210100000BL BKT_STAND
X15T950310100000BL BKT_STAND
X15T9504101000GMBL BKT_IO
X15T9505101000GMBL BKT_IO
X33E0101001Z1C0100 DECO_BEZEL
X34E0181ADT01L0200 BASE TV396W-14C-C1-13FOM
X34E0189XJY01D0100 REAR_COVER TV396W-14C-C1-13FOM
X44GMA401010SY
X44GMA402020SY
CUSHION-T N/A 亚洲
CUSHION-B N/A 不分区域(全球
X44GMA4061501A ARTWORK CARTON LE40D3150/80
70
0M1G1740 18225 CR3 SCREW 4.0X20.0
317GARFM006CHH RF MODULE CBIP-X
E09201 392GB1TA1A362H BATTERY 1.5V 2P R03-B500-01S
E09801 398GR08BCAC00G REMOTE AOC TS-Y108-94 CHINESE
Q45G88010TV08900X1 PROTECT BAG
X41G40MV61504B MANUAL CN
X41G78DV61501D WARRANTY CARD AOC CHINA
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
Q40G000162493A 3CEL LABEL FOR TV MODEL G2/2.0/0.5
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL
X40G040061512A RATING LABEL LE40D3150/80
71
LE42D3150/80 E42E5KNDDWA7NNX
点位 组件 对象描述 备注
085T 583113 GASKET
0M1G1030 6 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 8125 SCREW M1-MACHINE SCREW X8
SP01 378G0100498CAC 6 OHM 10W 132*45*39 0 UNIT
SP01 378G0100498XAC 6 OHM 10W 132*45*39 0 UNIT
ECN9901 389G214A15NYH500X2 AC POWER CORD 1500+60 FOR CHINA
ECN601 395G801404LD16 HARNESS 4P-B&R+B&W 750/650MM 2nd-source
ECN601 395G801404RD16 HARNESS 4P-B&R+B&W 750/650MM
ECN401 395G801409LC18 HARNESS 9P-5P+2P 500/700MM 2nd-source
ECN401 395G801409RC18 HARNESS 9P-5P+2P 500/700MM
ECN701 395G801416DC63 HARNESS 14P-16P 140MM 2nd-source
ECN701 395G801416MC63 HARNESS 14P-16P 140MM
ECN402 395G801851DD38 LVDS CABLE 51P-30P 300MM
ECN402 395G801851RD38 LVDS CABLE 51P-30P 300MM 2nd-source
708GNB370CPX03 CITA 40 ( 495 CH )
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
E750 750TBV420SE1D8N000 LCD PANEL TPT420H2-DUJSGE S1D XM TPV XM 2nd-source
756TXECB0KD010040X MAIN BOARD-CBPFDKLDXC
SMTF-U402 100TARVM006D4X MCU ASSY-056G2233 42
Z40G0002ALL01A OTHER LABEL
CN401 033G3802 9B YH L CONN 2.0 9P
C632 067G315M1016KV EC 100UF 20% 35V 8*7
C633 067G315M1016KV EC 100UF 20% 35V 8*7
CN105 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5
CN102 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5
CN111 088G 78G137ACL HF HF RCA JACK R/A 6P Y/W/R 1*3 H=10.5
CN107 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN104 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
CN601 311GW200A04ABX WAFER 2.0MM 4P
CN701 311GW200C14AAL WAFER 2.0MM 14P
CN402 311GW200C30ABL WAFER 2.0MM 2*15P
CN402 311GW200C30ABX CONN 2.0MM 30P R/A 32MM 9.5MM
CN107 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4
TU101 394GNPALALL26L TUNER CHINA ST18WM-2-E
U101 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223
U704 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U702 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U402 056G2233 42 FLASH MX25L6406EM2I-12G 64MB SOP-8
Q501 057G 417511 MMBT3904
Q502 057G 417511 MMBT3904
Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q401 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q602 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q702 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q404 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q703 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q705 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
72
Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
RP405 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP404 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP402 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP403 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP401 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
TH701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
R409 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R608 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R735 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R614 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R620 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R603 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R602 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R421 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R418 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R717 061G04021003FY RST CHIP 100K 1/16W 1%
R720 061G04021003FY RST CHIP 100K 1/16W 1%
R703 061G04021003FY RST CHIP 100K 1/16W 1%
R451 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R452 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R453 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R509 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R110 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R114 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R609 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R508 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R121 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R128 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R126 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R127 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R510 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R158 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R159 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R139 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R171 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R172 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R607 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R511 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R116 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R115 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R109 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R108 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R724 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R131 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R130 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R136 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R137 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R129 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R173 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R513 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
73
R516 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R613 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R610 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R106 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R601 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R107 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R604 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R124 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R122 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R725 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R514 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R405 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R523 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R742 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R740 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R733 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R517 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R712 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R174 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R462 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R715 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R722 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R710 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R702 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R621 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R708 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R531 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R530 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R704 061G04021501FF RST CHIP 1K5 1/16W 1% FENGHUA
R443 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R446 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R133 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R132 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R404 061G04022702FF RST CHIP 27K 1/16W 1% FENGHUA
R705 061G04023602FT RST 0402 36K 1% 1/16W
R524 061G0402393 JF RST CHIP 39K 1/16W 5% FENGHUA
R605 061G0402433 JY RST CHIPR 43KOHM +-5% 1/16W YAGEO
R420 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R739 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R751 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R433 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R431 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R412 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R422 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R429 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R427 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R709 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R504 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
74
R506 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R501 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R505 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R713 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R467 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R416 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R414 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R437 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R466 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R435 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R155 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R154 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R718 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R444 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R441 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R445 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R442 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R512 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R515 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R729 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R465 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R529 061G0402564 JY RST 0402 560K 5% 1/16W RC0402JR-07560KL
R525 061G0402564 JY RST 0402 560K 5% 1/16W RC0402JR-07560KL
R403 061G04026201FF RST CHIP 6.2K 1/16W 1% FENGHUA
R448 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R447 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R140 061G0402750 JF .ST CHIPR 75 OHM +-5% 1/16W FENGHUA
R402 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R408 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R103 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R102 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R526 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R612 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R611 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R119 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R120 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R463 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R730 061G06031200FY RST 0603 120R 1% 1/10W
R707 061G06031332FF RST 0603 13.3K 1% 1/10W FENGHUA
R723 061G06032000FY RST CHIP 200R 1% 1/10W
R527 061G0603201 JF RST CHIP 200R 1/10W 5% FENGHUA
R726 061G06032200FT RST CHIP 220R 1/10W 1%
R728 061G06032209FT RST CHIP 22R 1/10W 1%
R732 061G06032409FT RST CHIP 24R 1/10W 1%
R118 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R104 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R117 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R105 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R111 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R101 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R112 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R125 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R113 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R138 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
75
R134 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
C145 065G040210031J F CAP 0402 10PF 5% 50V NP0
C144 065G040210031J F CAP 0402 10PF 5% 50V NP0
C111 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C472 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C491 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C604 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C601 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C146 065G040210332K A CAP 0402 10NF 10% 50V X7R
C471 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C479 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C470 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C466 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C464 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C477 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C732 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C147 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C420 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C607 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C716 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C462 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C465 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C461 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C460 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C615 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C721 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C459 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C734 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C445 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C401 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C505 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C437 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C132 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C131 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C448 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C475 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C442 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C625 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C436 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C444 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C447 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C446 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C441 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C454 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C450 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C724 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C141 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C137 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C626 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C467 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
76
C720 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C429 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C430 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C624 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C421 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C431 065G040215031J A CAP 0402 15PF 5% 50V NP0
C432 065G040215031J A CAP 0402 15PF 5% 50V NP0
C139 065G040220031J F CAP 0402 20PF 5% 50V NP0
C138 065G040220031J F CAP 0402 20PF 5% 50V NP0
C704 065G040222031J T CAP 0402 22PF 5% 50V NP0 UMK105 CG220JV
C110 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C730 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C621 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C628 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C606 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C610 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C403 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C404 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C405 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C409 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C408 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C406 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C415 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C410 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C411 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C407 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C729 065G040247505M M CAP 0402 4.7UF 20% 6.3V X5R
C106 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C113 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C112 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C109 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C713 065G060310432K A CAP 0603 100NF 10% 50V X7R
C708 065G060310432K A CAP 0603 100NF 10% 50V X7R
C727 065G060310432K A CAP 0603 100NF 10% 50V X7R
C744 065G060310432K A CAP 0603 100NF 10% 50V X7R
C703 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C616 065G060310512K A CAP 0603 1UF 10% 16V X7R
C618 065G060310512K A CAP 0603 1UF 10% 16V X7R
C602 065G060310512K A CAP 0603 1UF 10% 16V X7R
C623 065G060310512K A CAP 0603 1UF 10% 16V X7R
C731 065G060310512K M CAP 0603 1UF 10% 16V X7R GRM188R71C105K
C457 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C458 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C456 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C440 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C428 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C402 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C439 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C412 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C474 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C733 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C725 065G060322422K Y CAP 0603 220N 25V X7R 10%
77
C473 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R
C617 065G080510532K T CAP 0805 1UF 10% 50V X7R
C611 065G080510532K T CAP 0805 1UF 10% 50V X7R
C622 065G080510532K T CAP 0805 1UF 10% 50V X7R
C619 065G080510532K T CAP 0805 1UF 10% 50V X7R
C627 065G080510615K T CHIP 10UF 16V X5R 0805
C701 065G080510615K T CHIP 10UF 16V X5R 0805
C613 065G080510615K T CHIP 10UF 16V X5R 0805
C728 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C718 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C715 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C127 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C743 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C116 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C117 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C130 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C712 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C717 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C719 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C706 065G120622615K A CAP 1206 22UF 10% 16V X5R
C705 065G120622615K A CAP 1206 22UF 10% 16V X5R
C726 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C126 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C612 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB702 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB406 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB603 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB402 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB401 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB411 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB405 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02
FB409 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB414 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB410 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB415 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
L101 073G 63478 5M CHIP IND 0.47UH 5% 0.1A 3.5R MGFI1608AR
L102 073G 63478 5M CHIP IND 0.47UH 5% 0.1A 3.5R MGFI1608AR
CN501 088G 34019G AD HDMI HEADER 19P - -
CN502 088G 34019G AD HDMI HEADER 19P - -
CN502 088G 34019G AV HDMI HEADER 19P BLACK -
CN501 088G 34019G AV HDMI HEADER 19P BLACK -
D503 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D101 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D702 093G 52S903 T RECTIFIER GS1A 1A 50V DO-214AC
ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
78
ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD127 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD126 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD406 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD405 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD404 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD128 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
D602 093G 64S526SEM SWITCHING BAS316WS 250MA 100V SOD323
U401 356G0568176604 SCALER RTD2634DD LQFP 176
U601 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP
U701 356GD563006600 DC/DC SY8104ADC 4A 18V TSOT23-6
U703 356GD563008601 DC/DC SY8003ADFC 3A 5.5V DFN2X2-8
Q701 357G0763030018 MOSFET MTP3401N3 -4A -30V SOT-23
Q704 357G0763030018 MOSFET MTP3401N3 -4A -30V SOT-23
Q403 357G0763A06 MOSFET AO3407A -25A -30V 1.4W SOT23
C438 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C453 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C451 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C455 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C416 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C414 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C425 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C413 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C449 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C417 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C419 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C418 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C424 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C722 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
L603 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L604 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L601 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L602 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L701 373G253S198D00 SMD CHOKE 4.7UH 20% 3.3A 0.026R SWPG604
L703 373G253S256D00 SMD CHOKE 2.2UH 30% 2.95A 0.030R SWPG40
X401 393G022S624NSK CRYSTAL NXE27.000AC12F-BK6 27 12
D401 393G060S91200T00HF SCHOTTKY RB551V-30_R1_00001 0.5A 30V SO
E715 715G6682M01000004K MAIN BOARD PCB
HS401 X90G8014 1 HEAT SINK
IRPFDXD5 IR BOARD
CN202 033G8032 5F S HR CONNECTOR
R201 061G0402153 JT RST CHIP 15K 1/16W 5% TZAI YUAN
R203 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R206 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R204 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
79
C202 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
LED201 081G 15 3 GP CHIP LED BLUE/RED GPTD12048BRC1-AR
LED202 081G 15 3 GP CHIP LED BLUE/RED GPTD12048BRC1-AR
U201 356GS927038006 SMD IR RECEIVER TSOP75438TR 38 KHZ
E715 715G6726R01000004I IR BOARD PCB
KEPFDXA2 KEY BOARD
040G 45762420A LABEL 25X6MM
R02 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R01 061G06031201FT RST CHIP 1K2 1/10W 1%
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R03 061G06036801FT RST CHIP 6K8 1/10W 1%
C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R
CN01 311GW125D02ADX WAFER 1.25MM 2P R/A S1315-02RVB-S03-K
SW01 377G060902B0CJ CHIP TACT SW 6P 6MM 160G SMD
709T63160XS001 COMSUMPTIVE ASSY
E715 715G6316K01000004I KEY BOARD PCB
E715 715G6316K01000004K KEY BOARD PCB 2nd-source
E715 715G6316K01000004S KEY BOARD PCB 2nd-source
E750 LCG420DUJE1ABXEX0X PANEL TPT420H2-DUJSGE S1D XM TPV
P33E0676XJT01R0100 BUTTON
PLTVDQ281XXCP POWER BOARD
Z40G0002ALL01A OTHER LABEL
CN9901 033G8029 3A H CONN 3.96MM 3(2N)P R/A 11.88MM 9.5MM
IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
C9901 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
L9902 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
L9901 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
D8120 093G 60334 SCHOTTKY SR506-44 5A 60V DO-201AD
CN8101 311GW200A06ABX WAFER 2.0MM 6P
CN9101 311GW200C16BBX ONN 2.0MM 16P R/A W2010-16RVA-S04,B200
RV9901 361G0046621KZE VARISTOR 620V 10%
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
NR9902 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
R8107 361G3SWJ50759B00TZ RST WD 0.05R 5% 3W NKNP3WS0R05JMS10
C9101 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
C9130 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
C9102 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
L9101 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L8101 373G0253258X00 BOOST CHOKE 33UH 10% 3.5A 3LCEF16-330K
T9101 380GL52P177L00 X'FMR 380 10% 5.5 ER31 PT-018699
T9101 380GL52P177N00 X'FMR 380 10% 5.5 ER31 YUVA-2133-23
BD9101 393G0050460A05 BRIDGE GBL08-07 X0 4A 800V GBL
705TXD57074 Q9101 ASS'Y
0M1G1730 8120 SCREW
Q9101 357G0667700001 MOSFET AOTF11N70 11A 700V TO-220F
HS9101 Q90T0236001A0000HG HEAT SINK
705TXD93076 D9101&D9102 ASS'Y
D9101 093G 60258 DIODE FME-220B TO-220 SANKEN
D9102 093G 60258 DIODE FME-220B TO-220 SANKEN
0M1G1730 8120 SCREW
HS9103 Q90T0236003A0000BF HEAT SINK
705TXE57012 Q8101 ASS'Y
0M1G1730 8120 SCREW
80
Q8101 357G0600100005 MOSFET SM1A15NSFPC-TUG 16A 100V TO-220FP
HS8101 Q90G0219002A0000HG HEAT SINK
IC9103 056G 158501 IC AS431AN-E1 SOT23
Q8106 057G 417517 HF SMALLTRAN LMBT3906LT1G-HF SOT-23
Q8105 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
Q8104 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
Q8103 057G 763532 MOSFET RK7002BM 0.25A 60V SOT-23
R9109 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R8114 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8110 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8103 061G0805103 JT RST 0805 10K 5% 1/8W
R8111 061G0805103 JT RST 0805 10K 5% 1/8W
R9111 061G0805103 JT RST 0805 10K 5% 1/8W
R8106 061G0805103 JT RST 0805 10K 5% 1/8W
R9124 061G0805103 JT RST 0805 10K 5% 1/8W
R8101 061G0805103 JT RST 0805 10K 5% 1/8W
R8122 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R9114 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8123 061G08051502FT RST CHIP 15K 1/8W 1%
R8112 061G08051803FT RST CHIPR 180K +-1% 1/8W TZAI YUAN
R8116 061G08051803FT RST CHIPR 180K +-1% 1/8W TZAI YUAN
R8104 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN
R9121 061G0805242 JT RST CHIP 2K4 1/8W 5% TZAI YUAN
R8117 061G0805273 JT RST CHIP 27K 1/8W 5% TZAI YUAN
R8108 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R8113 061G0805333 JT RST CHIP 33K 1/8W 5% TZAI YUAN
R8124 061G0805334 JT RST CHIP 330K 1/8W 5% TZAI YUAN
R9123 061G08054302FT RST CHIP 43K 1/8W 1%
R9110 061G08054709FT RST 0805 47R 1% 1/8W
R8102 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
C9112 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN
C9110 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN
C9110 061G0805512 JY RST 0805 5.1K 5% 1/8W
C9112 061G0805512 JY RST 0805 5.1K 5% 1/8W
R9125 061G08056203FT RST CHIP 620K 1/8W 1%
R9141 061G08056800FT RST CHIP 680R 1/8W 1%
R8121 061G0805822 JT RST CHIPR 8K2 +-5% 1/8W TZAI YUAN
R9122 061G0805912 JT RST CHIPR 9.1 KOHM +-5% 1/8W 0805
R9126 061G08059311FT RST CHIPR 9.31KOHM +-1% 1/8W TZAI YUAN
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9146 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8109 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R8115 061G12061008FY RST 1206 1R 1% 1/4W
R9101 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9102 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9103 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9128 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9127 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9140 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9120 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9119 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9138 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
81
R9117 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9139 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9116 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9115 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9118 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R8128 061G1206303 JT RST CHIPR 30 KOHM 1/4W TZAI YUAN
R9113 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9108 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9904 061G12066803FT RST CHIP 680K 1/4W 1%
R9905 061G12066803FT RST CHIP 680K 1/4W 1%
R9906 061G12066803FT RST CHIP 680K 1/4W 1%
R9901 061G12066803FT RST CHIP 680K 1/4W 1%
R9902 061G12066803FT RST CHIP 680K 1/4W 1%
R9903 061G12066803FT RST CHIP 680K 1/4W 1%
R9105 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9104 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9107 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9106 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
C9124 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8110 065G080510231J F CAP 0805 1NF 5% 50V NPO
C9128 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9127 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8112 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8104 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8111 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8114 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8103 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9106 065G080522131J Y CAP CHIP 0805 220P 50V NP0 +/-5%
C9117 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9104 065G120610532K T CAP CHIP 1206 1UF K 50V X7R
C9107 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9108 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
IC9101 356G0379008231 AC/DC TPV002AS SOP-8
IC8101 356G0700008054 LED DRIVER PF7903BS SOP-8
Q8107 357G0763060600 MOSFET MTB30N06Q8 8A 60V SOP-8
R8125 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8127 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8126 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8120 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8118 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
D9104 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
D8104 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD8102 393G039S95100T00HF ZENER BZT52-B5V1_R1_00001 5.1V 0.41W SOD
ZD8101 393G039S96300T00HF ZENER BZT52-B4V7 4.7V 410MW SOD-123
ZD9104 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
T9101 006G 31 4 1.7MM RIVET
CN9901 006G 31500 EYELET
C9130 006G 31502 EYELET
NR9902 006G 31502 EYELET
L9902 006G 31502 EYELET
RV9901 006G 31502 EYELET
C9101 006G 31502 EYELET
NR9901 006G 31502 EYELET
82
L9901 006G 31502 EYELET
C9102 006G 31502 EYELET
C9901 006G 31502 EYELET
040G 45762420A LABEL 25X6MM
C9126 065G 1K10193T CAP CER 100PF 10% 1KV R
C9904 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9902 065G306K68123R CAP Y1 680PF 10% 250V Y5P
C9903 065G306K68123R CAP Y1 680PF 10% 250V Y5P
C9109 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9121 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9111 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9123 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9122 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9116 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
FB9903 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB8101 071G 55 29 FERRITE BEAD
F9901 084G 56 4 C FUSE 4A 250V MST 4A 250V
D9105 093G 5212T52T DIODE 1N4007-AO DO-41
D9106 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41
D9103 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41
J913 095G 90 23 JUMP WIRE - -
J908 095G 90 23 JUMP WIRE - -
J914 095G 90 23 JUMP WIRE - -
J906 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J912 095G 90 23 JUMP WIRE - -
J905 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J910 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
R9112 361G152M24852T00TZ RST MOF 0.24R 5% 2W MOF2WS0R24JT52
C9103 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12D-2R
C9906 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
C9105 367G315X229HKB EC 2.2UF 20% 50V 5*11MM 3000 HR 250MA -
C8102 367G415X3317KT EC 330UF 20% 50V 12.5*12
C8105 367G415X3317KT EC 330UF 20% 50V 12.5*12
E715 715G6750P02000002M POWER BOARD PCB
Q11G701015000L00JY PCB-SUPPORT
Q12G6300 25 3 FOOT PAD
Q36T 600 30 10 NONWOVEN FABRIC
Q45G88010TV08700WN PROTECT BAG
Q45G88010TV08900X1 PROTECT BAG
Q45G99010TV07000WN PROTECT BAG
Q52G1001205 A ZA AL FOIL
Q52G100205000A00ZA AL FOIL
Q52G130118600000YY TAPE
Q52G15010TV0070WXW TAPE_INSULATING
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
X01G8000 3 SCREW
X15T950210100000BL BKT_STAND
X15T950310100000BL BKT_STAND
X15T9504101000GMBL BKT_IO
83
X15T9505101000GMBL BKT_IO
X33E0101001Z1C0100 DECO_BEZEL
X34E0181ADT01L0200 BASE TV396W-14C-C1-13FOM
X34E0190XJY01D0100 REAR_COVER TV42W-14C-C1-13FOM
X44GNB371010YS
X44GNB372010YS
X44GNB3761503A ARTWORK CARTON CITA LE42D3150/80
0M1G1740 18225 CR3 SCREW 4.0X20.0
317GARFM006CHH RF MODULE CBIP-X
E09201 392GB1TA1A362H BATTERY 1.5V 2P R03-B500-01S
E09801 398GR08BCAC00G REMOTE AOC TS-Y108-94 CHINESE
X41G40MV61504B MANUAL CN
X41G78DV61501D WARRANTY CARD AOC CHINA
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
Q40G000162493A 3CEL LABEL FOR TV MODEL G2/2.0/0.5
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL
X40G042061532A RATING LABEL FOR LE42D3150/80 CTA
CUSHION-T N/A 不分区域(全球
CUSHION-B N/A 不分区域(全球
84
T4050MD E40E2KNDDWA9NNX
点位 组件 对象描述 备注
X44GMA401020SY
0M1G1030 6 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 8125 SCREW M1-MACHINE SCREW X8
SP01 378G0100498CAC 6 OHM 10W 132*45*39 0 UNIT
SP01 378G0100498XAC 6 OHM 10W 132*45*39 0 UNIT
ECN9901 389G214A15NYH500X2 AC POWER CORD 1500+60 FOR CHINA
ECN601 395G801404LD16 HARNESS 4P-B&R+B&W 750/650MM 2nd-Source
ECN601 395G801404RD16 HARNESS 4P-B&R+B&W 750/650MM
ECN401 395G801409DC08 HARNESS 9P-5P+2P 340MM/700MM
ECN401 395G801409WC08 HARNESS 9P-5P+2P 340MM/700MM 2nd-Source
ECN701 395G801416DC63 HARNESS 14P-16P 140MM
ECN701 395G801416MC63 HARNESS 14P-16P 140MM 2nd-Source
ECN402 395G801851DD03 LVDS CABLE 51P-30P 360MM 2nd-Source
ECN402 395G801851RD03 LVDS CABLE 51P-30P 360MM
708GMA400CPX01 AOC 40(576 CH)
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
E750 750TBV400J61D8N000 LCD PANEL TPT400LA-J6PE1 SC1D XM TPV XM 2nd-Source
756TXECB0KD009060X MAIN BOARD-CBPFDKLDXC
SMTF-U402 100TARVT012D6X MCU ASSY-056G2233 42
Z40G0002ALL01A OTHER LABEL
CN401 033G3802 9B YH L CONN 2.0 9P
C633 067G315M1016KV EC 100UF 20% 35V 8*7
C632 067G315M1016KV EC 100UF 20% 35V 8*7
CN105 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5
CN102 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5
CN111 088G 78G137ACL HF HF RCA JACK R/A 6P Y/W/R 1*3 H=10.5
CN107 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN104 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
CN601 311GW200A04ABX WAFER 2.0MM 4P
CN701 311GW200C14AAL WAFER 2.0MM 14P
CN402 311GW200C30ABL WAFER 2.0MM 2*15P
CN402 311GW200C30ABX CONN 2.0MM 30P R/A 32MM 9.5MM
CN107 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4
TU101 394GNPALALL26L TUNER CHINA ST18WM-2-E
U101 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223
U704 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U702 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U402 056G2233 42 FLASH MX25L6406EM2I-12G 64MB SOP-8
Q502 057G 417511 MMBT3904
Q501 057G 417511 MMBT3904
Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q602 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q401 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q703 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q404 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q702 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q705 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
CUSHION-T N/A 大陸(2002)
85
Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
RP403 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP405 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP404 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP402 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP401 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
TH701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
R409 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R608 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R735 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R614 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R620 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R603 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R602 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R418 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R421 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R703 061G04021003FY RST CHIP 100K 1/16W 1%
R720 061G04021003FY RST CHIP 100K 1/16W 1%
R717 061G04021003FY RST CHIP 100K 1/16W 1%
R451 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R453 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R452 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R131 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R724 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R108 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R109 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R115 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R116 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R511 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R607 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R114 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R110 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R509 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R172 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R171 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R139 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R159 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R158 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R510 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R127 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R126 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R130 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R136 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R137 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R129 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R609 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R508 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R121 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R128 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R516 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R513 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
86
R173 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R613 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R517 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R733 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R740 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R742 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R523 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R610 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R106 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R601 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R405 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R514 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R725 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R122 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R124 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R604 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R107 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R712 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R174 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R462 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R715 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R722 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R710 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R702 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R621 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R708 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R531 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R530 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R704 061G04021501FF RST CHIP 1K5 1/16W 1% FENGHUA
R443 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R446 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R133 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R132 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R404 061G04022702FF RST CHIP 27K 1/16W 1% FENGHUA
R705 061G04023602FT RST 0402 36K 1% 1/16W
R524 061G0402393 JF RST CHIP 39K 1/16W 5% FENGHUA
R605 061G0402433 JY RST CHIPR 43KOHM +-5% 1/16W YAGEO
R713 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R505 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R501 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R506 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R504 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R709 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R718 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R154 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R155 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R435 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R466 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R437 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R414 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R416 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
87
R467 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R412 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R431 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R433 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R751 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R739 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R420 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R422 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R429 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R427 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R442 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R445 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R441 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R444 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R729 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R515 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R512 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R465 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R529 061G0402564 JY RST 0402 560K 5% 1/16W RC0402JR-07560KL
R525 061G0402564 JY RST 0402 560K 5% 1/16W RC0402JR-07560KL
R403 061G04026201FF RST CHIP 6.2K 1/16W 1% FENGHUA
R448 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R447 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R140 061G0402750 JF .ST CHIPR 75 OHM +-5% 1/16W FENGHUA
R402 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R408 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R103 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R102 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R526 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R612 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R611 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R120 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R119 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R463 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R730 061G06031200FY RST 0603 120R 1% 1/10W
R707 061G06031332FF RST 0603 13.3K 1% 1/10W FENGHUA
R723 061G06032000FY RST CHIP 200R 1% 1/10W
R527 061G0603201 JF RST CHIP 200R 1/10W 5% FENGHUA
R726 061G06032200FT RST CHIP 220R 1/10W 1%
R728 061G06032209FT RST CHIP 22R 1/10W 1%
R732 061G06032409FT RST CHIP 24R 1/10W 1%
R105 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R117 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R104 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R118 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R111 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R101 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R112 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R125 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R113 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R138 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
88
R134 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
C144 065G040210031J F CAP 0402 10PF 5% 50V NP0
C145 065G040210031J F CAP 0402 10PF 5% 50V NP0
C111 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C491 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C472 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C601 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C604 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C146 065G040210332K A CAP 0402 10NF 10% 50V X7R
C470 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C479 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C471 065G040210412K T CAP CHIP 0402 100NF 16V X7R
C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C459 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C607 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C420 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C147 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C732 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C477 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C464 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C466 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C716 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C462 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C465 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C461 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C460 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C615 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C721 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C450 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C734 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C445 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C401 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C505 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C437 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C132 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C131 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C448 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C475 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C442 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C625 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C436 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C444 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C447 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C446 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C441 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C454 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C724 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C141 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C137 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C626 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C467 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
89
C720 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C429 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C430 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C624 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C421 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C432 065G040215031J A CAP 0402 15PF 5% 50V NP0
C431 065G040215031J A CAP 0402 15PF 5% 50V NP0
C139 065G040220031J F CAP 0402 20PF 5% 50V NP0
C138 065G040220031J F CAP 0402 20PF 5% 50V NP0
C704 065G040222031J T CAP 0402 22PF 5% 50V NP0 UMK105 CG220JV
C730 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C110 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C621 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C628 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C606 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C610 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C403 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C404 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C405 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C407 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C406 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C408 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C409 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C411 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C410 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C415 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C729 065G040247505M M CAP 0402 4.7UF 20% 6.3V X5R
C106 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C109 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C112 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C113 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C713 065G060310432K A CAP 0603 100NF 10% 50V X7R
C708 065G060310432K A CAP 0603 100NF 10% 50V X7R
C727 065G060310432K A CAP 0603 100NF 10% 50V X7R
C744 065G060310432K A CAP 0603 100NF 10% 50V X7R
C703 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C616 065G060310512K A CAP 0603 1UF 10% 16V X7R
C618 065G060310512K A CAP 0603 1UF 10% 16V X7R
C602 065G060310512K A CAP 0603 1UF 10% 16V X7R
C623 065G060310512K A CAP 0603 1UF 10% 16V X7R
C731 065G060310512K M CAP 0603 1UF 10% 16V X7R GRM188R71C105K
C733 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C474 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C412 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C439 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C402 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C428 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C440 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C456 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C458 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C457 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C725 065G060322422K Y CAP 0603 220N 25V X7R 10%
90
C473 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R
C617 065G080510532K T CAP 0805 1UF 10% 50V X7R
C611 065G080510532K T CAP 0805 1UF 10% 50V X7R
C622 065G080510532K T CAP 0805 1UF 10% 50V X7R
C619 065G080510532K T CAP 0805 1UF 10% 50V X7R
C627 065G080510615K T CHIP 10UF 16V X5R 0805
C701 065G080510615K T CHIP 10UF 16V X5R 0805
C613 065G080510615K T CHIP 10UF 16V X5R 0805
C728 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C718 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C715 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C127 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C743 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C116 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C117 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C130 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C712 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C717 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C719 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C706 065G120622615K A CAP 1206 22UF 10% 16V X5R
C705 065G120622615K A CAP 1206 22UF 10% 16V X5R
C726 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C126 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C612 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB702 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB406 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB603 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB402 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB401 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB411 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB405 071G 59C601 TA CHIP BEAD 600R/200MA FCM1608K-601T02
FB409 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB414 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB410 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB415 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
L101 073G 63478 5M CHIP IND 0.47UH 5% 0.1A 3.5R MGFI1608AR
L102 073G 63478 5M CHIP IND 0.47UH 5% 0.1A 3.5R MGFI1608AR
CN501 088G 34019G AD HDMI HEADER 19P - -
CN502 088G 34019G AD HDMI HEADER 19P - -
CN502 088G 34019G AV HDMI HEADER 19P BLACK -
CN501 088G 34019G AV HDMI HEADER 19P BLACK -
D503 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D101 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D702 093G 52S903 T RECTIFIER GS1A 1A 50V DO-214AC
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
91
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD127 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD126 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD406 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD405 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD404 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD128 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
D602 093G 64S526SEM SWITCHING BAS316WS 250MA 100V SOD323
U401 356G0568176604 SCALER RTD2634DD LQFP 176
U601 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP
U701 356GD563006600 DC/DC SY8104ADC 4A 18V TSOT23-6
U703 356GD563008601 DC/DC SY8003ADFC 3A 5.5V DFN2X2-8
Q701 357G0763030018 MOSFET MTP3401N3 -4A -30V SOT-23
Q704 357G0763030018 MOSFET MTP3401N3 -4A -30V SOT-23
Q403 357G0763A06 MOSFET AO3407A -25A -30V 1.4W SOT23
C453 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C438 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C451 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C455 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C416 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C414 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C425 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C413 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C449 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C417 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C419 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C418 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C722 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C424 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
L602 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L601 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L604 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L603 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L701 373G253S198D00 SMD CHOKE 4.7UH 20% 3.3A 0.026R SWPG604
L703 373G253S256D00 SMD CHOKE 2.2UH 30% 2.95A 0.030R SWPG40
X401 393G022S624NSK CRYSTAL NXE27.000AC12F-BK6 27 12
D401 393G060S91200T00HF SCHOTTKY RB551V-30_R1_00001 0.5A 30V SO
E715 715G6682M01000004K MAIN BOARD PCB
HS401 X90G8014 1 HEAT SINK
IRPFDXD5 IR BOARD
CN202 033G8032 5F S HR CONNECTOR
R201 061G0402153 JT RST CHIP 15K 1/16W 5% TZAI YUAN
R203 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R206 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R204 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
92
C202 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
LED201 081G 15 3 GP CHIP LED BLUE/RED GPTD12048BRC1-AR
LED202 081G 15 3 GP CHIP LED BLUE/RED GPTD12048BRC1-AR
U201 356GS927038006 SMD IR RECEIVER TSOP75438TR 38 KHZ
E715 715G6726R01000004I IR BOARD PCB
KEPFDXA2 KEY BOARD
040G 45762420A LABEL 25X6MM
R02 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R01 061G06031201FT RST CHIP 1K2 1/10W 1%
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R03 061G06036801FT RST CHIP 6K8 1/10W 1%
C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R
CN01 311GW125D02ADX WAFER 1.25MM 2P R/A S1315-02RVB-S03-K
SW01 377G060902B0CJ CHIP TACT SW 6P 6MM 160G SMD
709T63160XS001 COMSUMPTIVE ASSY
E715 715G6316K01000004I KEY BOARD PCB
E715 715G6316K01000004K KEY BOARD PCB 2nd-Source
E715 715G6316K01000004S KEY BOARD PCB 2nd-Source
E750 LCM400J6PE1ABXEX0X PANEL TPT400LA-J6PE1 SC1D XM TPV
P33E0676XJT01R0100 BUTTON
PLTVDQ281XXCH POWER BOARD
Z40G0002ALL01A OTHER LABEL
CN9901 033G8029 3A H CONN 3.96MM 3(2N)P R/A 11.88MM 9.5MM
IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
C9901 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
L9901 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
L9902 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
D8120 093G 60334 SCHOTTKY SR506-44 5A 60V DO-201AD
CN8101 311GW200A06ABX WAFER 2.0MM 6P
CN9101 311GW200C16BBX ONN 2.0MM 16P R/A W2010-16RVA-S04,B200
RV9901 361G0046621KZE VARISTOR 620V 10%
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
R8107 361G3SWJ50759B00TZ RST WD 0.05R 5% 3W NKNP3WS0R05JMS10
C9102 367G215X560PKZ000S EC 56UF 20% 450V 12.5*40
C9101 367G215X560PKZ000S EC 56UF 20% 450V 12.5*40
L9101 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L8101 373G0253258X00 BOOST CHOKE 33UH 10% 3.5A 3LCEF16-330K
T9101 380GL52P177L00 X'FMR 380 10% 5.5 ER31 PT-018699
T9101 380GL52P177N00 X'FMR 380 10% 5.5 ER31 YUVA-2133-23
BD9101 393G0050460A05 BRIDGE GBL08-07 X0 4A 800V GBL
705TXD57072 Q9101 ASS'Y
0M1G1730 8120 SCREW
Q9101 357G0667700001 MOSFET AOTF11N70 11A 700V TO-220F
HS9101 Q90T0236001A0000HG HEAT SINK
705TXD93076 D9101&D9102 ASS'Y
D9101 093G 60258 DIODE FME-220B TO-220 SANKEN
D9102 093G 60258 DIODE FME-220B TO-220 SANKEN
0M1G1730 8120 SCREW
HS9103 Q90T0236003A0000BF HEAT SINK
705TXE57012 Q8101 ASS'Y
0M1G1730 8120 SCREW
Q8101 357G0600100005 MOSFET SM1A15NSFPC-TUG 16A 100V TO-220FP
HS8101 Q90G0219002A0000HG HEAT SINK
93
IC9103 056G 158501 IC AS431AN-E1 SOT23
Q8106 057G 417517 HF SMALLTRAN LMBT3906LT1G-HF SOT-23
Q8104 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
Q8105 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
Q8103 057G 763532 MOSFET RK7002BM 0.25A 60V SOT-23
R9109 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R8114 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8110 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8111 061G0805103 JT RST 0805 10K 5% 1/8W
R9124 061G0805103 JT RST 0805 10K 5% 1/8W
R8106 061G0805103 JT RST 0805 10K 5% 1/8W
R8101 061G0805103 JT RST 0805 10K 5% 1/8W
R9111 061G0805103 JT RST 0805 10K 5% 1/8W
R8103 061G0805103 JT RST 0805 10K 5% 1/8W
R9114 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8122 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8123 061G08051502FT RST CHIP 15K 1/8W 1%
R8116 061G08051803FT RST CHIPR 180K +-1% 1/8W TZAI YUAN
R8112 061G08051803FT RST CHIPR 180K +-1% 1/8W TZAI YUAN
R8104 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN
R9121 061G0805242 JT RST CHIP 2K4 1/8W 5% TZAI YUAN
R8117 061G0805243 JF RST CHIPR 24KOHM +-5% 1/8W FENGHUA
R8108 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R8113 061G0805333 JT RST CHIP 33K 1/8W 5% TZAI YUAN
R8124 061G0805334 JT RST CHIP 330K 1/8W 5% TZAI YUAN
R9123 061G08054302FT RST CHIP 43K 1/8W 1%
R8102 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
R9125 061G08056203FT RST CHIP 620K 1/8W 1%
R9110 061G08056209FT RST 0805 62R 1% 1/8W
R9141 061G08056800FT RST CHIP 680R 1/8W 1%
R8121 061G0805822 JT RST CHIPR 8K2 +-5% 1/8W TZAI YUAN
R9122 061G0805912 JT RST CHIPR 9.1 KOHM +-5% 1/8W 0805
R9126 061G08059311FT RST CHIPR 9.31KOHM +-1% 1/8W TZAI YUAN
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9146 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8109 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R9103 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9102 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9101 061G1206184 JT RST CHIPR 180K +-5% 1/4W TZAI YUAN
R9115 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9116 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9117 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9119 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9118 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9138 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9139 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9127 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R9128 061G1206220 JT RST CHIPR 22 OHM +-5% 1/4W TZAI YUAN
R8128 061G1206303 JT RST CHIPR 30 KOHM 1/4W TZAI YUAN
R9113 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9108 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9904 061G12066803FT RST CHIP 680K 1/4W 1%
94
R9903 061G12066803FT RST CHIP 680K 1/4W 1%
R9902 061G12066803FT RST CHIP 680K 1/4W 1%
R9901 061G12066803FT RST CHIP 680K 1/4W 1%
R9906 061G12066803FT RST CHIP 680K 1/4W 1%
R9905 061G12066803FT RST CHIP 680K 1/4W 1%
R9106 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9107 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9105 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
R9104 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
C9124 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8110 065G080510231J F CAP 0805 1NF 5% 50V NPO
C9128 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8112 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9127 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8104 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8111 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8103 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8114 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9106 065G080522131J Y CAP CHIP 0805 220P 50V NP0 +/-5%
C9117 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9104 065G120610532K T CAP CHIP 1206 1UF K 50V X7R
C9107 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9108 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
IC9101 356G0379008231 AC/DC TPV002AS SOP-8
IC8101 356G0700008054 LED DRIVER PF7903BS SOP-8
Q8107 357G0763060600 MOSFET MTB30N06Q8 8A 60V SOP-8
R8127 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8125 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8126 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8118 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
R8120 361G12069107FT RST 1206 0.91R 1% 1/4W SMD12060R91FT
D8104 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
D9104 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD8102 393G039S95100T00HF ZENER BZT52-B5V1_R1_00001 5.1V 0.41W SOD
ZD8101 393G039S96300T00HF ZENER BZT52-B4V7 4.7V 410MW SOD-123
ZD9104 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
T9101 006G 31 4 1.7MM RIVET
CN9901 006G 31500 EYELET
L9902 006G 31502 EYELET
C9101 006G 31502 EYELET
NR9901 006G 31502 EYELET
C9102 006G 31502 EYELET
C9901 006G 31502 EYELET
L9901 006G 31502 EYELET
RV9901 006G 31502 EYELET
040G 45762420A LABEL 25X6MM
C9126 065G 1K10193T CAP CER 100PF 10% 1KV R
C9904 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9903 065G306K68123R CAP Y1 680PF 10% 250V Y5P
C9902 065G306K68123R CAP Y1 680PF 10% 250V Y5P
C9121 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9111 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
C9109 067G 5153314HT A EC 330UF 20% 25V HSP331M1EG07VM6HTAP5
95
C9116 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9123 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9122 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
FB9903 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB8101 071G 55 29 FERRITE BEAD
F9901 084G 56 4 C FUSE 4A 250V MST 4A 250V
D9105 093G 5212T52T DIODE 1N4007-AO DO-41
D9106 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41
D9103 093G 52916 RECTIFIER PG1010R 1A 1000V DO-41
J908 095G 90 23 JUMP WIRE - -
J915 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J910 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J913 095G 90 23 JUMP WIRE - -
J905 095G 90 23 JUMP WIRE - -
J912 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J906 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
J914 095G 90 23 JUMP WIRE - -
R9112 361G152M24852T00TZ RST MOF 0.24R 5% 2W MOF2WS0R24JT52
C9103 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12D-2R
C9906 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
C9105 367G315X229HKB EC 2.2UF 20% 50V 5*11MM 3000 HR 250MA -
C8102 367G415X3317KT EC 330UF 20% 50V 12.5*12
C8105 367G415X3317KT EC 330UF 20% 50V 12.5*12
E715 715G6750P02000002M POWER BOARD PCB
Q52G100203000B00ZA AL FOIL
Q11G701015000L00JY PCB-SUPPORT
Q12G6300 25 3 FOOT PAD
Q36T 600 30 10 NONWOVEN FABRIC
Q45G88010TV08800WN PROTECT BAG
Q45G88010TV11800X1 PROTECT BAG 900*1200
Q52G100204000A00ZA AL FOIL
Q52G130118600000YY TAPE
Q52G15010TV0070WXW TAPE_INSULATING
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
X01G8000 3 SCREW
X15T950210100000BL BKT_STAND
X15T950310100000BL BKT_STAND
X15T9504101000GMBL BKT_IO
X15T9505101000GMBL BKT_IO
X33E0101001Z1C0100 DECO_BEZEL
X34E0181ADT01L0200 BASE TV396W-14C-C1-13FOM
X34E0189XJY01D0100 REAR_COVER TV396W-14C-C1-13FOM
X44GMA4061503A ARTWORK CARTON T4050MD
0M1G1740 18225 CR3 SCREW 4.0X20.0
317GARFM006CHH RF MODULE CBIP-X
E09201 392GB1TA1A362H BATTERY 1.5V 2P R03-B500-01S
E09801 398GR08BCAC00G REMOTE AOC TS-Y108-94 CHINESE
Q45G88010TV08900X1 PROTECT BAG
X41G40MV61504B MANUAL CN
96
X41G78DV61501D WARRANTY CARD AOC CHINA
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
Q40G000162493A 3CEL LABEL FOR TV MODEL G2/2.0/0.5
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL
X40G040061511A RATING LABEL T4050MD
X44GMA402030SY
CUSHION-B N/A 大陸(2002)
97
T4250MD E42E5KNDDWA8NNX
点位 组件 对象描述 备注
085T 583113 GASKET
0M1G1030 6 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 8125 SCREW M1-MACHINE SCREW X8
SP01 378G0100498CAC 6 OHM 10W 132*45*39 0 UNIT
SP01 378G0100498XAC 6 OHM 10W 132*45*39 0 UNIT
ECN9901 389G214A15NYH500X2 AC POWER CORD 1500+60 FOR CHINA
ECN601 395G801404LD16 HARNESS 4P-B&R+B&W 750/650MM 2nd-Source
ECN601 395G801404RD16 HARNESS 4P-B&R+B&W 750/650MM
ECN401 395G801409LC18 HARNESS 9P-5P+2P 500/700MM 2nd-Source
ECN401 395G801409RC18 HARNESS 9P-5P+2P 500/700MM
ECN701 395G801416DC63 HARNESS 14P-16P 140MM 2nd-Source
ECN701 395G801416MC63 HARNESS 14P-16P 140MM
ECN402 395G801851DD38 LVDS CABLE 51P-30P 300MM
ECN402 395G801851RD38 LVDS CABLE 51P-30P 300MM 2nd-Source
708GNB370CPX03 CITA 40 ( 495 CH )
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
E750 750TBV420SE1D8N000 LCD PANEL TPT420H2-DUJSGE S1D XM TPV XM 2nd-Source
756TXECB0KD010040X MAIN BOARD-CBPFDKLDXC
SMTF-U402 100TARVM006D4X MCU ASSY-056G2233 42
Z40G0002ALL01A OTHER LABEL
CN401 033G3802 9B YH L CONN 2.0 9P
C632 067G315M1016KV EC 100UF 20% 35V 8*7
C633 067G315M1016KV EC 100UF 20% 35V 8*7
CN105 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5
CN102 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5
CN111 088G 78G137ACL HF HF RCA JACK R/A 6P Y/W/R 1*3 H=10.5
CN107 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN104 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
CN601 311GW200A04ABX WAFER 2.0MM 4P
CN701 311GW200C14AAL WAFER 2.0MM 14P
CN402 311GW200C30ABL WAFER 2.0MM 2*15P
CN402 311GW200C30ABX CONN 2.0MM 30P R/A 32MM 9.5MM
CN107 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4
TU101 394GNPALALL26L TUNER CHINA ST18WM-2-E
U101 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223
U704 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U702 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U402 056G2233 42 FLASH MX25L6406EM2I-12G 64MB SOP-8
Q501 057G 417511 MMBT3904
Q502 057G 417511 MMBT3904
Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q401 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q602 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q702 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q404 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q703 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q705 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
98
Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
RP405 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP404 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP402 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP403 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
RP401 061G 1260008JY RST CHIP AR 8P4R 0 OHM +-5% 1/16W
TH701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
R409 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R608 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R735 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R614 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R620 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R603 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R602 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R421 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R418 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA
R717 061G04021003FY RST CHIP 100K 1/16W 1%
R720 061G04021003FY RST CHIP 100K 1/16W 1%
R703 061G04021003FY RST CHIP 100K 1/16W 1%
R451 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R452 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R453 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R509 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R110 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R114 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R609 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R508 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R121 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R128 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R126 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R127 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R510 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R158 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R159 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R139 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R171 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R172 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R607 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R511 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R116 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R115 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R109 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R108 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R724 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R131 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R130 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R136 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R137 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R129 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R173 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R513 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
99
R516 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R613 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R610 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R106 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R601 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R107 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R604 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R124 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R122 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R725 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R514 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R405 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R523 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R742 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R740 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R733 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R517 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R712 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R174 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R462 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R715 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R722 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R710 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R702 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R621 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R708 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R531 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R530 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R704 061G04021501FF RST CHIP 1K5 1/16W 1% FENGHUA
R443 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R446 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R133 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R132 061G04022201FF ST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R404 061G04022702FF RST CHIP 27K 1/16W 1% FENGHUA
R705 061G04023602FT RST 0402 36K 1% 1/16W
R524 061G0402393 JF RST CHIP 39K 1/16W 5% FENGHUA
R605 061G0402433 JY RST CHIPR 43KOHM +-5% 1/16W YAGEO
R420 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R739 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R751 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R433 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R431 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R412 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R422 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R429 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R427 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R709 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R504 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
100
Loading...
