AOC T32013 Schematic

32" LCD-TV T32013

Service

Horizontal Frequency

31.5-49kHz

TABLE OF CONTENTS

Description Page Description Page

Table Of Contents.......……..............................…........1

Revision List.…........................................……......2

Important Safety Notice.……..................……......3

1.Specification For LCD-TV……....................………........4

1.1 General Specification…………………………….......4

1.2 LCD-TV Description..…………...............…….........19

1.3.Interface Connector.........…...........…..…...........19

2. Precautions And Notices…............…................20

2.1 Assembly Precaution...........................…............20

2.2 Operating Precaution…............……………..........20

2.3.Storage Precaution….…........………..…...............20

2.4 High Voltage Warning…………….…….…………….20

3. Exploded View………….…….................................21

4. BOM List.....……...………….…....……………............22

SAFETY NOTICE

5. Repair Flow Chart.....…………………….…………......55

6.PCB Layout..……………..........………………….…......59

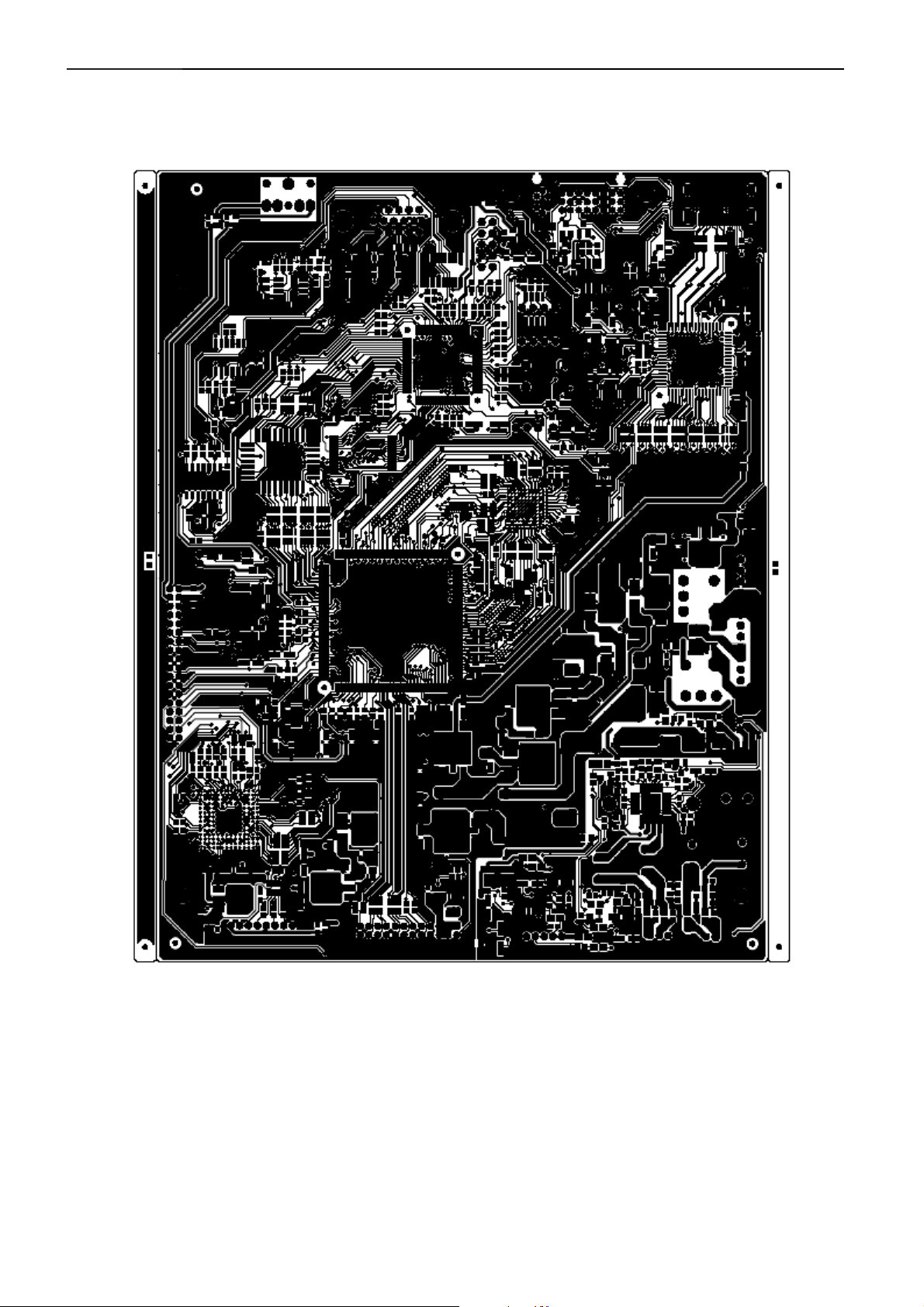

6.1 Main Board.……………………….…… ...........59

6.2.Power Board.………………..………..…......….......61

6.3 Tuner Board.……..…..……...……..…………..….......63

6.4 Key Board.........……...…….....…….........….....63

6.5. IR Board.……...........…..………………...............63

6.6.1.Headphone Board………………………………64

7.Block Diagram………..…....………..............................65

7.1.Main Board……….…..……………..………..............65

7.2.Power Board………..….……………………..….66

8.Schematic………………..…....…..............................67

8.1 Main Board..…….………......................................67

8.2.Power Board………..……....................................79

8.3.Headphone Board…......…….…...........................81

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

32" LCD-TV T32013

Revision List

Revision Release Date Revision History TPV Model

A00 May-17-06 Initial Release EJF5MTNBC1TETMC

32" LCD-TV T32013

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company** Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

* * Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.)

32" LCD-TV T32013

1. Specifications For LCD TV

1.1 General Specifications

Items Specification

Panel Type 32” CMO V320B1-L01 panel

Driver Element a-si TFT active matrix

Aspect Ratio 16: 9

Pixel Number 1366 x 768

Active Display Area H x V 708.954mmx398.592mm

Pixel Pitch 0. 1730mm(H) x 0.5190mm(V)

LCD Panel

Video Inputs

Audio Output

OSD language

Table Stand

Wall Mount

Power

Contrast Ratio 1000:1 (type)

Brightness 550:1 (type)

Response Time 8ms

View Angle (CR20) H: 176/V: 176

Display colors 16.7 million

Lamp Type/Life 60000 hr (type)

Color Temperature Cool / Warm

RCA x 1

AVǃ S-VIDEO

S-Video x 1

Audio Output: L / R Headphone Mini-jack for stereo (3.5ø)

English / French / Spanish / Portuguese/German/Italian .etc

Included

VESA 100 x 100 mm

Power Supply AC100V~240V, 50/60Hz

Power Consumption <200W

Audio L/R x 1 (Share)

Panel Tilt

Environment

Forwards/Backwards/Rotation -4°/ +18° / ± 35°

Operating + 0 °C ~ + 40 °C

Storage - 25 °C ~ + 60 °C

Operating 10% ~ 85%

32" LCD-TV T32013

Operating Instructions

The Use Of Remote Control

Press this key to turn on or on stand-by the TV set.

Press PR+ or PR– to scroll through the channels.

Press + or – to increase or decrease the volume.

Press this key to adjust the automatic shut-off time (from 0 to 120 minutes). Each key press increases this time 15 minutes. The timer begins to count down from the number of minutes selected after the display has disappeared.

Press this key to display:

- the channel number when watching a TV program.

- the input source when watching an AV program.

Press this key to mute the sound. Press this key again to restore it.

0~9 DIGIT BUTTONS

To select a TV channel.

RETURN

Press this key to return to previously selected TV channel or return to previously selected input source.

Press this key to swap main picture and small picture when PIP is working.

Press this key to display PIP/PAP screen

Press this key to adjust PIP size when PIP is working.

Press this key to display main menu.

Press this key to return last AV or press repeatedly to select desired input source

Press this key to select sound type (Mono, Stereo or Dual if broadcasted by the TV

Press these keys to select desired picture format (4:3, 14:9, CINERAMA, 16:9)

EXIT

Press this key to exit main menu

32" LCD-TV T32013

TELETEXT

The Teletext service is available in many countries under a variety of names (TOP Text, Fastext, and FLOF

Text, Videotext). It is provided as a free service by television broadcasters. This service provides a real wealth of

information, available at any time, on weather, sports results, news, games, etc. The information is presented in

pages or organized in topics specified in colour on the screen and you can access this information by simply

pressing the buttons of the relevant colour on the remote control.

TEXT

Press this key, Teletext will display the last page selected, or

If you have changed channel, the index page (usually100).

Press EXIT to leave Teletext.

Press this key to superimpose the teletext over the TV picture.

A 2nd key press displays the teletext in the left part of the

screen. Press again to return to Teletext mode.

Press this key, once to zoom in on the top part of the screen,

a second time to zoom in on the bottom part of the screen and

a third time to return to normal display.

RED / GREEN / YELLOW / BLUE

If Fastext is available, use colored keys to access directly to

the relevant color topics.

Press this key to select subtitle page. If the displayed page is

not the subtitle one, search its number in the index page and

select it.

STOP

Press this key to stop the page scrolling. Press it again o

restart the page scrolling.

(?)

Press this key to reveal a hidden answer (for example, in

games). Press it again to hide the answer.

. PAGE SELECTION

Page can be selected in two ways.

a. Press

number by one.

b. By entering the page number, using digit buttons 0~9.

SUBPAGE ACCESS

Some information is spread across more than one page. To access sub-pages, press ---- /AV key then enter the

sub-page number using digit buttons 0~9.

ǂ or ǂ to increase or decrease the page

32" LCD-TV T32013

To Use The Menu

1. Press the MENU button repeatedly to display each menu.

2. Use the cursor up/down to select a menu item or adjust the setting of Menu item.

3. Use the cursor left/right to enter a submenu or enable the function.

4. Press the OK button to exit the menu.

Main Men

Press the MENU button to display the Main menu. It offers the following options: Picture adjustments, Audio

adjustments, PIP/POP adjustments, TV channels search menu (only in TV mode) and PC adjustments (only in PC

mode). It also allows defining your preferences in the Setup menu.

Picture Adjustments

Display the Main menu by pressing MENU button. Select the Picture menu using the ¿/ À

OK button to confirm. Use the ¿/ À

Preset: choose between Personal, Vivid, Standard or Mild.

Personal: give access to following adjustments.

Contrast, Brightness, Colour and Sharpness: adjust these settings as required using the ½/ ¾buttons.

Tint: This option is only available for NTSC audio-visual sources. Adjust the tint of the picture using the ½/

buttons to select each option.

buttons. Press the

¾buttons.

Reset: Return to default settings. Press OK button to return default settings. Press the EXIT button to exit the

Picture menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

When you adjust a menu option (Contrast for example), the menu is replaced by a sub-menu as illustrated. Press

the OK button to return the Picture menu.

32" LCD-TV T32013

Audio Adjustments

Display the Main menu by pressing MENU button. Select the Sound menu using the Àbutton. Press the OK button

to confirm. Use the ¿/ Àbuttons to select each option.

Volume: adjust as required using the ½/ ¾buttons.

Balance: adjust the balance between left/right channels as required using the ½/ ¾buttons.

Bass: adjust the bass level as required using the ½/ ¾buttons.

Treble: adjust the treble level as required using the ½/ ¾buttons.

SRS WOW: Using ½/ ¾, activate (On) or deactivate (Off) SRS function. SRS is an audio technology, which

improve the sound quality.

Reset: Return to default settings. Press OK button to return to default settings. Press the EXIT button to exit the

Sound menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

When you adjust a menu option (Volume for example), the menu is replaced by a sub-menu as illustrated. Press the

OK button to return the Sound menu.

PIP/PAP Adjustments

Press the MENU button to display the Main menu Select the PIP menu using the Àbutton. Press the OK button to

confirm. Use the ¿/ Àbuttons to select each option.

32" LCD-TV T32013

Dual mode: Using ½/ ¾buttons activate (PIP/PAP) or deactivate (Off) the PIP function. Following options are

available if you have selected PIP or PAP at the PIP line.

Position: use the ½/ ¾buttons to change the position of the PIP frame on the screen.

Source: to select video source of the PIP/PAP, use the ½/ ¾buttons to select video source of the picture in the

PIP/PAP frame (TV or AV). You can insert a TV picture while you are viewing an AV program or insert an AV picture

while you are viewing a TV program. Video source can also be selected without the menu, using AV button on the

remote control.

Audio select: to select audio source: MAIN (Main picture) or SUB (PIP/PAP picture), use the ½/ ¾buttons to

select audio source. Press the EXIT button to exit the PIP menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

Channels Search

Channels search involves selecting all the settings required to be able to search for and store all the channels you

can receive. Make sure that the television is switched on and follow all the steps in turn specified on this page.

Display the Main menu by pressing MENU button. Select the Installation menu using the Àbutton. Press the OK

button to confirm. Use the ¿/ Àbuttons to select each option.

Automatic Set-Up

Select Auto. Installation using the Àҏ button. Press the OK button to display the Auto. Installation menu.

Use the ¿/ Àbuttons to select each option.

32" LCD-TV T32013

Country: Select the relevant country using the ½/ ¾buttons. This is the country you are in, or the country whose

channels you want to receive if you live near its borders. If you do not find your country, select Auto. Start: Press OK

button to start channels searching.

Manual Set-Up

Select Man. installation using the Àbutton. Press the OK button to display the Man. installation menu.

Use the ¿/ Àbuttons to select each option.

Prog. Number: Allows selecting the program on which you want save a new channel or a program you want to

modify.

- Using the ½/ ¾buttons, select the program.

Frequency: Allows entering a specific frequency for tuning.

- Using the Àbutton, select the Frequency option and press the OK button.

- Using the 0~9 digit and ½/ ¾buttons, enter desire frequency and press the OK button.

Name: Allows editing the channel name.

- Using the Àbutton, select the Name option.

- Using the ¾button select the first letter field.

- By pressing the 0~9 digit repeatedly and using the following table select the first character.

Repeat the procedure for each letter field.

Press the OK button to confirm.

32" LCD-TV T32013

Store prog.: Allows to Save a channel on a new Program N°, to Insert a channel on an already existing Program No

(the channel previously saved on this program n° will be shifted to the upper program n°) or to Delete

the Program No.

- Once a channel has been found and named, use the Àbutton to select the Store prog. Option.

- Using the ½/ ¾buttons, select Save, Insert or Delete and press the OK button to confirm.

Swap prog.: Allows to swap 2 programme numbers.

- Using the ¿/ Àbuttons select the Prog. Number option.

- Using the ½/ ¾buttons, select the program to be moved.

- Using the Àbutton, select the Swap prog. option.

- Using the ¾button, enter the swap function.

- Using the 0~9 digit, enter the new programme number (3 digits).

- Press the OK button to confirm, the programme numbers are swapped.

Norm: Allows changing the audio norm.

- Using the Àbutton, select the Norm option.

- Using the ½/ ¾buttons, select the norm.

Note: the following norms are available to choose from: I for the UK and Ireland, L/LP for France and Luxembourg,

D/K for Eastern Europe, the Middle East and Asia, B/G for Western Europe, Australia and New Zealand.

Skip: Allows skipping a channel.

- Using the Àbutton, select the Skip option.

- Using the ½/ ¾buttons, select on, the channel will be skip.

Repeat this procedure to skip other channels.

Fine-tuning: If the picture is not clear, you can adjust the setting.

- Using the Àbutton, select the Fine Tuning option.

- Use the ½/ ¾buttons to find the good tuning point.

Man. search: Allows launching a manual search.

- Using the Àbutton, select the Man. search option.

- Using the ½/ ¾buttons, start the search in decreasing or increasing order.

The menu is replaced by a sub-menu showing the progression of the search.

- The search will stop at the first channel found; Man. installation menu is displayed again (within 3 seconds).

- If you wish to memories the channel, select Store Program option using ¿button and proceed as indicated in

previous page. Otherwise, continue the search using ½/ ¾buttons.

If you have modified Norm, Skip, Fine-tuning options or if you have launched a Manual Search, select Store Prog.

Option using ¿/ Àbuttons and proceed as indicated above to save your modification.

Press the EXIT button to exit the PIP menu.

32" LCD-TV T32013

Input Selection

To select AV source:

To select desire input source, press the AV button to display the selection menu. Use the ¿/ Àbuttons to select

each input sources. Press the OK button to display the desire input source.

To select input source in PIP/PAP mode

To select desire input source in PIP/PAP mode, press the AV button to display the selection menu. Use the ¿/

Àbuttons to select either MP source (to modify Main picture source) or PIP source (to modify PIP source).

Press the OK button to display the selection menu in PIP mode.

Use the ¿/ Àbuttons to select the input source. Press the OK button to display the desire input source.

32" LCD-TV T32013

Setup

This menu allows selecting the language for the menus as well as the colour of the screen when there is no video

input. It allows also setting an automatic shut-off time.

Display the Main menu by pressing MENU button. Select the Options menu using the Àbutton. Press the OK button

to confirm Use the ¿/ Àbuttons to select each option.

Menu language: To select the language for the menus.

Menu timeout: To set an automatic shut-off time for Menu. Using ½/ ¾buttons select 5 > 10 > 20 > 30 > 40 >

50 seconds.

Menu background: Select Opaque or Transparent type.

Sleep Timer: To set an automatic shut-off time. Using ½/ ¾buttons select off > 15> 30 > 45 > 60 > 90 > 120

minutes. Once the time is ended, TV set automatically switch on standby mode. If you turn the TV on standby mode

after setting the sleep timer, setting will be erased. Set it again.

Blue Screen: To have a blue screen when there is no video input or when the RF signal is very bad. Using the ½/

¾buttons select on. Select Off if you do not want the blue screen.

Teletext language: Using ½/ ¾buttons, select the character set that will be used for Teletext on this channel.

The following character sets are available: West Europe, East Europe, Cyrillic (Russia), Greek, Arabic, Persian,.

The character set determines how characters are displayed on Teletext screen.

Reset: Return to default settings. Press the OK button to return to default settings. Press the EXIT button to exit the

Options menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

Note: You can display the remaining time before the automatic shut-off. To do that, press the sleep button

To cancel the automatic shut-off, press several times the sleep button

to display Sleep timer off.

32" LCD-TV T32013

PC Mode

In PC mode, main menu is different from the one in TV mode. Please select PC as main input.

PC Settings

Display the Main menu by pressing MENU button. Select the PC menu using the Àbutton. Press the OK button to

confirm. Use the ¿/ Àbuttons to select each option.

H. Position: use the ½/ ¾buttons to move the picture horizontally on the screen.

V. Position: use the ½/ ¾buttons to move the picture vertically on the screen.

Focus: Adjust as required to improve the picture quality.

Auto adjust: this function is used to automatically adjust the VGA input. Press the ½/ ¾buttons to start the

adjustment process.

Tone: to adjust the colour temperature at your convenience.

Reset: Return to default settings. Press OK button to return default settings.

32" LCD-TV T32013

Connect Peripheral Equipment

Front Panel Control Knobs

Button: Press this button to switch on or on standby the TV set.

MENU button: Press this button to display the main menu.

Buttons: Press these buttons to select a channel or to choose an option in a menu.

– / + Buttons: Press these buttons to adjust the volume, access a sub-menu or perform an adjustment in a menu.

Source button: To select desire input source, press the SOURCE button to display the selection menu. Use the

buttons to select each input sources. Press the – / + button to display the desire input source.

Connection

Preparation

Remove the back plate at the back of the TV as shown on the illustration opposite. Lay the LCD TV with the screen

down on a table, as it will be easier to connect your peripheral equipment. Please take precaution not to damage the

screen.

32" LCD-TV T32013

AV Sockets

(Located at the back of the TV set, on the left side)

32" LCD-TV T32013

Headphone Socket

(Located At The Back Of The TV Set, On The Right side)

When headphones are connected, the sound of TV set is cut. Adjust headphones volume level by using

+ / - Buttons on the remote control. To switch off the sound of the headphone press the button

control.

on the remote

HDMI Socket (High-Definition Multimedia Interface)

(Located At The Back Of The TV Set, Near The Power Input Socket)



This socket allows the connection to all appliances fitted with an HDMI socket.

The standard HDMI allows a digital transmission of video and audio data using only one connector. It gives you the

possibility to obtain very high quality images. In this case it is necessary to use an HDMI connecting cable. Make

sure the appliance output is set to be HDMI output. To display images from the connected appliance, select the input

source (HDMI) by pressing the AV button on the remote control.

PC IN Socket

(Located At The Back Of The TV Set, Near The HDMI Socket)

Allows connecting a PC to the TV set



32" LCD-TV T32013



Connect the PC IN D-sub socket located at the back of the TV set to the output of PC equipment through a mini

D-sub 15 pin cable (2).

Connect the stereo PC IN audio jack located at the back of the TV set (near the D-sub socket) to the audio output

socket on the computer through an audio cable.

To display images from the connected appliance, select the input source (PC) by pressing the AV button on the

remote control.

Care of the screen

Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently.

Unplug the screen before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean

cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or aerosol

cleaners.

Mobile telephone warning

To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your

mobile telephone from the TV.

End of life directives

We are paying a lot of attention to produce environmentally friendly in green focal areas. Your new receiver contains

materials that can be recycled and reused.

At the end of its life specialized companies can dismantle the discarded receiver to concentrate the reusable

materials and to minimize the amount of materials to be disposed of.

Please ensure you dispose of your old receiver according to local regulations.

32" LCD-TV T32013

1.2 LCD-TV Description

The LCD TV will contain a main board, a power board, a tuner board, a keyboard, IR board, and a headphone board.

The main board and power board will house the flat panel to control logic I2C bus, brightness control logic for LCD

panel, DC-DC conversion to supply the appropriate power to the whole board and transmitting TTL level signals into

LCD Module to drive the LCD display circuit.

The switching power board will provides the power ON/OFF to control the TV and control LED indicator for DPMS.

The function keyboard and Remote Control will provide the OSD control signal to the Main Board.

1.3 Interface Connector

1) RF TV port

2) Earphone output port

3) Right audio input port

4) Left audio input port

5) AV video port

6) S-VIDEO video port

7) Power input port

32" LCD-TV T32013

2. Precautions And Notices

2.1 Assembly Precaution

(1) Please do not press or scratch LCD panel surface with anything hard. And do not soil LCD panel surface by

touching with bare hands (Polarize film, surface of LCD panel is easy to be flawed). In the LCD panel, the gap

between two glass plates is kept perfectly even to maintain display characteristic and reliability. If this panel is

subject to hard pressing, the following occurs:(a) Uniform color (b) Orientation of liquid crystal becomes disorder.

2) Please wipe out LCD panel surface with absorbent cotton or soft clothe in case of it being soiled.

3) Please wipe out drops of adhesive like saliva and water in LCD panel surface immediately. They might damage to

cause panel surface variation and color change. Do not apply any strong mechanical shock to the LCD panel.

2.2 Operating Precaution

Please be sure to unplug the power cord before remove the rear-cover. (Be sure the power is turn-off)

Please do not change variable resistance settings in main board; they are adjusted to the most suitable value.

If they are changed, it might happen LUMINANCE does not satisfy the white balance spec.

Please consider that LCD backlight takes longer time to become stable of radiation characteristic in low

temperature than in room temperature.

Please pay attention to displaying the same pattern for very long-time. Image might stick on LCD.

2.3 Storage Precaution

When you store LCD for a long time, it is recommended to keep the temperature between 0°C -40°C without the

exposure of sunlight and to keep the humidity less than 85% RH.

Please do not leave the LCD in the environment of high humidity and high temperature such as 60°C, 85%RH.

Please do not leave the LCD in the environment of low temperature; below -25°C.

2.4 High Voltage Warning

The high voltage was only generated by Power support part, if carelessly contacted the transformer on this

module, can cause a serious shock.

32" LCD-TV T32013

3. Explode View

32"LCD-TV T32013

4. BOM List

EJF5MTNBC1TETMC

Location Part No. for TPV model Description Quantity

 001T6020 1 SCREW-SPE CIAL 1.000

 007T 5 L 9 COMPOUND PALLET 1.000

 007T 6 L 38 COMPOUND PALLET 1.000

 015T5908 2 BRACKET 1.000

 015T6189 1 CMO'PANEL SHIELD 1.000

 015T8214 1 BKT MAIN 1.000

 015T8215 1 BKT LSIDE 1.000

 015T8216 1 BKT R SIDE 1.000

 015T8217 1 BKT LONG 1.000

 015T8220 1 BKT HOLD PANEL 1.000

 015T8221 1 BKT HOLD PANEL 2.000

 015T8221 2 BKT HOLD PANEL 3.000

 015T8223 1 BKT CONNECTOR 1.000

 015T8270 1 BKT-PCB-SUPPORT-1 1.000

 034T1661 GM L COVER CABLE 1.000

 034T1665 GM L COVER HINGE 1.000

 034T1666 GM L COVER HINGE BOTTOM 1.000

 040T 581902 1A CARTON LABEL 2.000

 044T3A08 1 EPS 1.000

 044T3A08 2 EPS 1.000

 044T3A08 3 EPS 1.000

 044T3A08 4 EPS 1.000

 044T3A08 5 1A U TYPE SHEET FOR BASE 1.000

 044T6000 4 6B SPACE PAPER 1.000

 044T6002 1A PAPER BOARD 1.000

 044T6002861 2A PAPER BOARD 1.000

 044T9003 1 corner paper 1.000

 044TZ001200 4B PIZZA BOX 1.000

 045T 99606 2 PE BAG FOR BASE 1.000

 045T 99609 2 EPE COVER 1.000

 045T 99609 5 EPE COVER FOR BASE 1.000

 045T 99626 2 PE BAG FOR MONITOR 1.000

 052T 1150 C WHITE TAPE 15.000

 052T 1185 MIDDLE TAPE FOR CARTON 130.000

 052T 1186 SMALL TAPE 1.000

 052T 1211 A ADHESIVE TYPE 2.000

 052T 1211 B ADHESIVE TYPE 2.000

 092TB1JX1A31GM PEONY A1KALINE LR03 2.000

 095T8014 2516 WIRE HARNESS 1.000

 095T8014 3529 WIRE HARNESS 1.000

 095T8014 5553 WIRE HARNESS 1.000

32" LCD-TV T32013

 095T8014 8591 WIRE HARNESS 1.000

 095T8014 10515 WIRE HARNESS 1.000

 095T8014 12530 WIRE HARNESS 1.000

 098TR7GW2NT B REMOTE THOMSON GRAY RC311TR1G 1.000

 0M1T 330 4128 SCREW 2.000

 0M1T 330 4128 SCREW 11.000

 0M1T 340 8 47 SCREW 6.000

 0M1T 940 6120 SCREW 7.000

 0M1T 940 6120 SCREW 6.000

 0M1T 940 6120 SCREW 4.000

 0M1T 940 6120 SCREW 8.000

 0M1T1140 6128 SCREW 4X6 1.000

 0M1T1730 6128 SCREW M3X6 12.000

 0Q1T 330 6128 SCREW 1.000

 0Q1T 340 10 47 SCREW 8.000

 0Q1T 340 10128 SCREW 9.000

 0Q1T 340 10128 SCREW 6.000

 0Q1T 340 10128 SCREW 1.000

 0Q1T 930 6128 SCREW T3X6 2.000

 0Q1T 930 6128 SCREW T3X6 1.000

 705TQJK0B34001 BACK COVER ASS'Y 1.000

 705TQJK0F34001 BEZEL ASS'Y 1.000

 705TQJK0M34001 earphone ASS'Y 1.000

 705TQJK0P34001 STAND ASS'Y 1.000

 750VVMN0 B1 31 CMO 32" C4 PANEL 1.000

 ADPF24180A4 ADAPTER ASS'Y 1.000

 CBPFF5BMTTHT MAIN BOARD 1.000

 IOPFFA2 TV IO BOARD 1.000

 Q40T 320902 3A RATING LABEL 1.000

 Q40T 581902 8A LABEL 1.000

 Q44T3A08902 3A CARTON 1.000

 Q85T 717 4 SHIELD 1.000

 S95T801830682 LVDS ASS'Y 1.000

 040T 58162435A LABEL 1.000

 041T7880902 1A WARRANTY CARD 1.000

 045G 76 28 RN PE BAG FO MANUAL/BASE 1.000

 Q41T2701902 9B MANUAL 1.000

 011T 176 1 RL WIRE HOLDER 1.000

 015T6184 1 Kensington lock 1.000

 015T8225 1 BKT KEY PAD 1.000

 033T6301B14 2C PC PLATE ON TOP 1.000

 034T1660 GM 2L REAR COVER 1.000

 044T3121510506 SPONGE 2.000

 0M1T 330 4128 SCREW 2.000

32" LCD-TV T32013

 0Q1T 330 6120 SCREW 2.000

 KEPFF60KA2 KEY BOARD 1.000

 Q33T4823 WL 1L ID1 FUN KEY 1.000

 033T4828 ED C REMOTE LENS 1.000

 033T4829 2 X LCD TV IR BOARD 1.000

 044T3121510514 SPONGE 4.000

 078T 452 1 L 8OHM SPEAKER 1.000

 078T 452 1 R 8OHM SPEAKER 1.000

 0Q1T 330 6120 SCREW 1.000

 0Q1T1040 10128 SCREW 8.000

 IRPFF60A1 IR BOARD 1.000

 Q33T4833 WL 1L ID1 NO KEY COVER 1.000

 Q34T1681 WLA1L BEZEL 1.000

 Q36T 431 WL 3C SPEAKER GRILL 1.000

 0Q1T 330 6120 SCREW 2.000

 HJPFA60A9 HEADPHONE JACK BOARD 1.000

 W33T6381CGM 1L COVER_CARD READER 1.000

 012T 394 3 RUBBER FOOT 8.000

 015T8224 1 BASE PLATE 1.000

 020T 031 1 DIECASTING 1.000

 034T1662 GM L BASE 1.000

 037T 546 1 HINGE 1.000

 0M1T 140 10120 SCREW M4X10 4.000

 0M1T 330 4128 SCREW 3.000

 0Q1T 140 8128 SCREW 8.000

 0Q1T 140 10128 SCREW 8.000

 0Q1T 140 10128 SCREW 4.000

 0Q1T1040 6128 SCREW 4.000

 Q33T4832 WL 1L CLIP CABLE 1.000

 Q33T4854 WL 1L 18 STAND MID 1.000

 Q33T4855 WL 1L 18 STAND TOP 1.000

 Q34T1663 WL 1L 20 BASE COSMETIC 1.000

 Q34T1664 WL 1L STAND BTM 1.000

GD903 009V6005 1 GND 1.000

GD902 009V6005 1 GND 1.000

GD901 009V6005 1 GND 1.000

GD904 009V6005 1 GND 1.000

CN951 033T3802 10 PLUG 1.000

CN952 033T3802 12 WAFER PH-12 1.000

 040T 45762420A S/N LABEL 1.000

IC922 056T 139 3A PC123Y22FZOF 1.000

IC924 056T 139 3A PC123Y22FZOF 1.000

IC942 056T 139 3A PC123Y22FZOF 1.000

IC925 056T 139 3A PC123Y22FZOF 1.000

NR902 061T 58030 W NTCR 3ou 5A 1.000

NR901 061T 58030 W NTCR 3ou 5A 1.000

32" LCD-TV T32013

R950 061T 20K398GB1 CEMENTR 0.39 OHM +-10% 2W 1.000

R921 061T152M10458G6267 100K OHM 5% 2W 1.000

R905 061T153M27858G6267 0.27 OHM 5% 3W 1.000

R945 061T153M47358G6267 47K OHM 5% 3W 1.000

C901 063T 10722410S 0.22UF 275VAC X2 1.000

C902 063T 10747410S capacitance 1.000

C905 063T213J105GFA MPF CAP 1.000

C926 064T400K473 57 MPF CAP 1.000

C942 065T 1K222 2A6213 0.0022UF/1KV 1.000

C922 065T 1K222 2A6213 0.0022UF/1KV 1.000

C921 065T 1M103 3T6921 0.01uf 20% 1000V Y5V 1.000

C903 065T306M1022BM Y1.CAP.001UF 250VAC MURATA 1.000

C915 065T306M1022BM Y1.CAP.001UF 250VAC MURATA 1.000

C904 065T306M1022BM Y1.CAP.001UF 250VAC MURATA 1.000

C970 065T306M2222BP Y1.CAP.0022UF 250V AC 1.000

C907 067T 40K18116K 105C EC SHAP-IN 1.000

C950 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C949 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C930 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C948 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C951 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C933 067T215L1024NL KY25VB1000M-L 10*25MM 1.000

C932 067T215L1024NL KY25VB1000M-L 10*25MM 1.000

C934 067T215L221 4R LOWE.S.R 220UFM 25V 1.000

C931 067T215L221 6N KY35VB220M-L 8*15MM 1.000

C955 067T215L471 6N KY35VB470M-L 10*20MM 1.000

L906 073L 174 44 TG CHOKE COIL 1.000

L953 073L 174 46LSG FILTER 1.000

L952 073L 174 47LSG LINE FILTER 1.000

L903 073L 174 48 LG LINE FILTER 1.000

L904 073L 174 49LSG LINE FILTER 1.000

L905 073L 174 52LSG CHOKE COIL 1.000

L902 073L 253156 TH CHOKE COIL 1.000

L901 073L 253156 TH CHOKE COIL 1.000

L923 073T 253155 L CHOKE 1.000

L922 073T 253155 L CHOKE 1.000

T951 080LL26T 2 TG X'FMR 1.000

T921 080LL26T 3 TG XFMR 1.000

D943 093T1020 752T UF4003PT 1.000

D922 093T1020 752T UF4003PT 1.000

D942 093T1100 1052T BA159GPT 1.000

D941 093T1100 1052T BA159GPT 1.000

D921 093T1100 1052T BA159GPT 1.000

D920 093T1100 1052T BA159GPT 1.000

RJ905 095T 90 26 WIRE HARNESS 1.000

CN921 095T8013 12633 HARNESS 1.000

+ 56 hidden pages
