AOC T27013 Schematic

27" LCD-TV T27013

Service

Horizontal Frequency

31.5-49kHz

TABLE OF CONTENTS

Description Page Description Page

Table Of Contents.......……..............................…........1

Revision List.…........................................……......2

Important Safety Notice.……..................……......3

1.Specification For LCD-TV……....................………........4

1.1 General Specification…………………………….......4

1.2 LCD-TV Description..…………...............…….........19

1.3.Interface Connector.........…...........…..…...........19

2. Precautions And Notices…............…................20

2.1 Assembly Precaution...........................…............20

2.2 Operating Precaution…............……………..........20

2.3.Storage Precaution….…........………..…...............20

2.4 High Voltage Warning…………….…….…………….20

3. Exploded View………….…….................................21

4. BOM List.....……...………….…....……………............22

SAFETY NOTICE

5. Repair Flow Chart.....…………………….…………......55

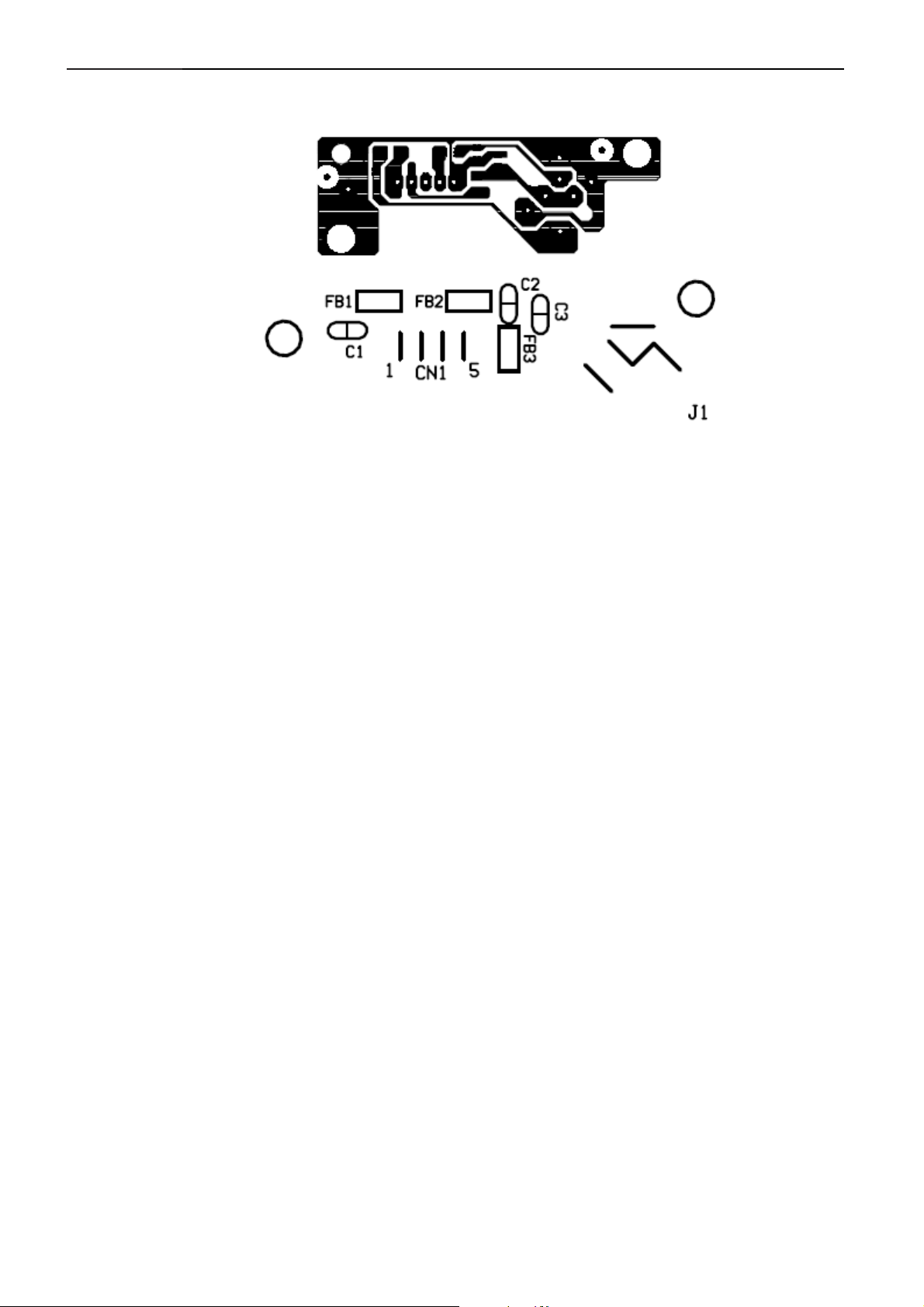

6.PCB Layout..……………..........………………….…......59

6.1 Main Board.……………………….…… ...........59

6.2.Power Board.………………..………..…......….......61

6.3 Tuner Board.……..…..……...……..…………..….......63

6.4 Key Board.........……...…….....…….........….....63

6.5. IR Board.……...........…..………………...............63

6.6.1.Headphone Board………………………………64

7.Block Diagram………..…....………..............................65

7.1.Main Board……….…..……………..………..............65

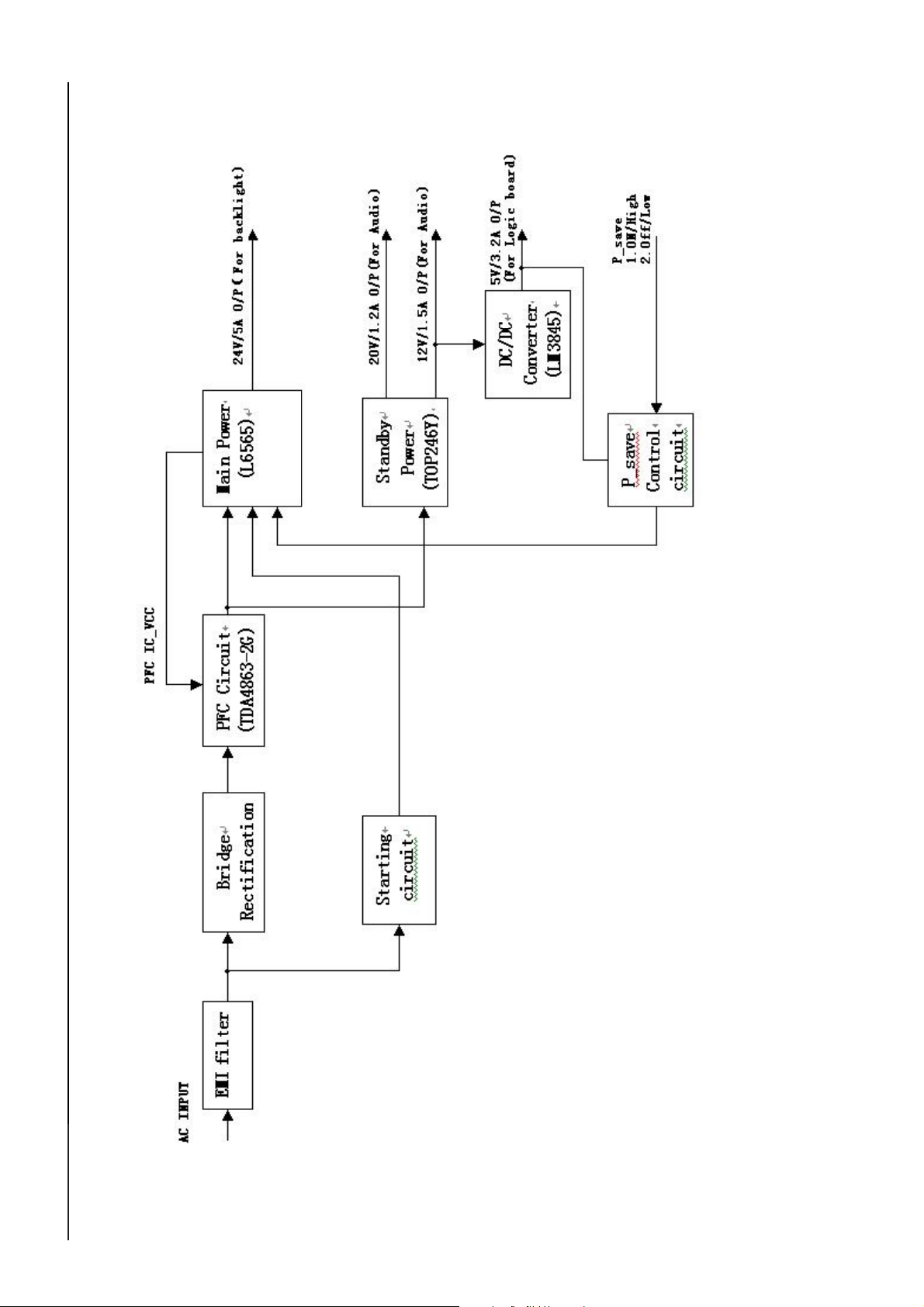

7.2.Power Board………..….……………………..….66

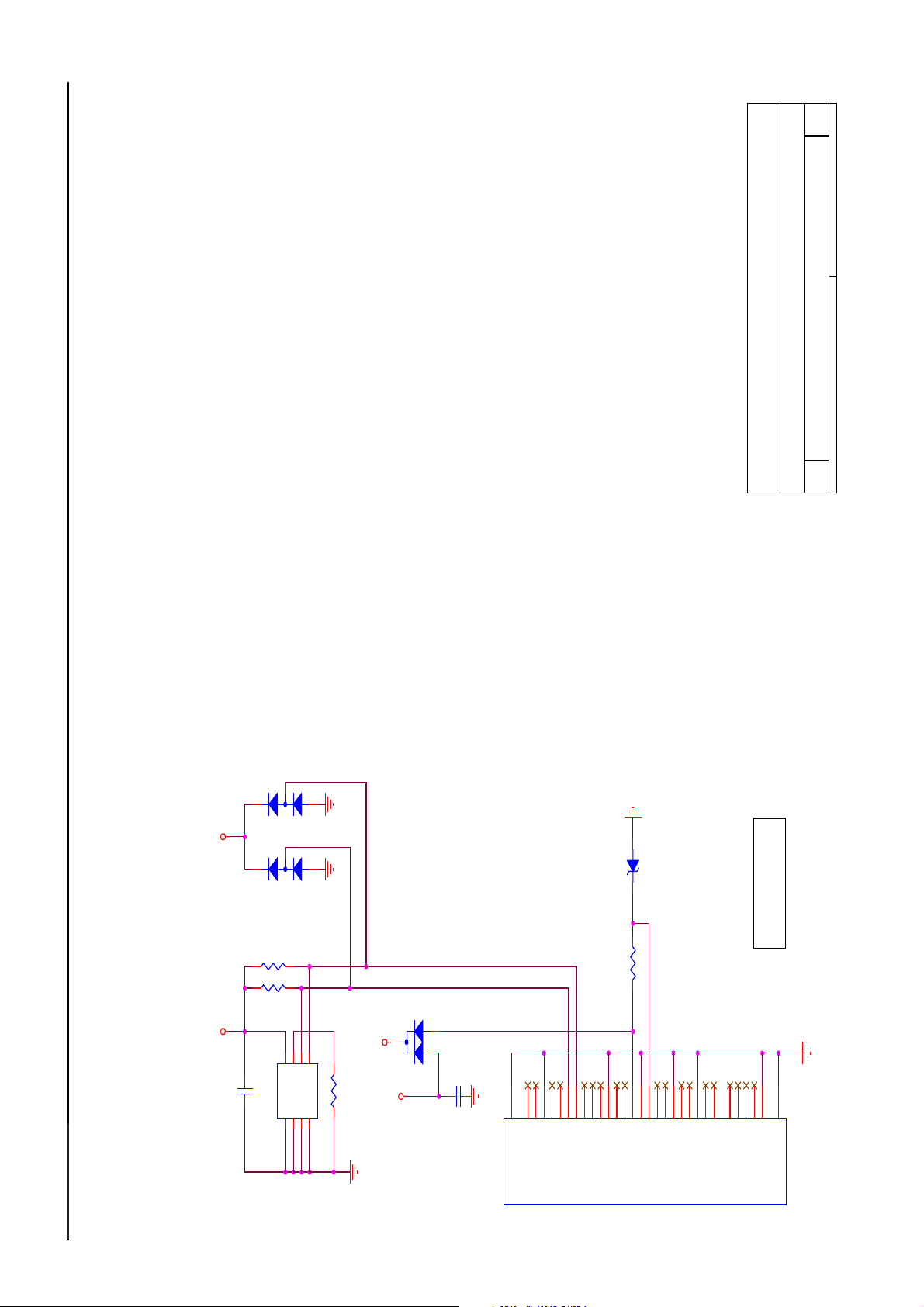

8.Schematic………………..…....…..............................67

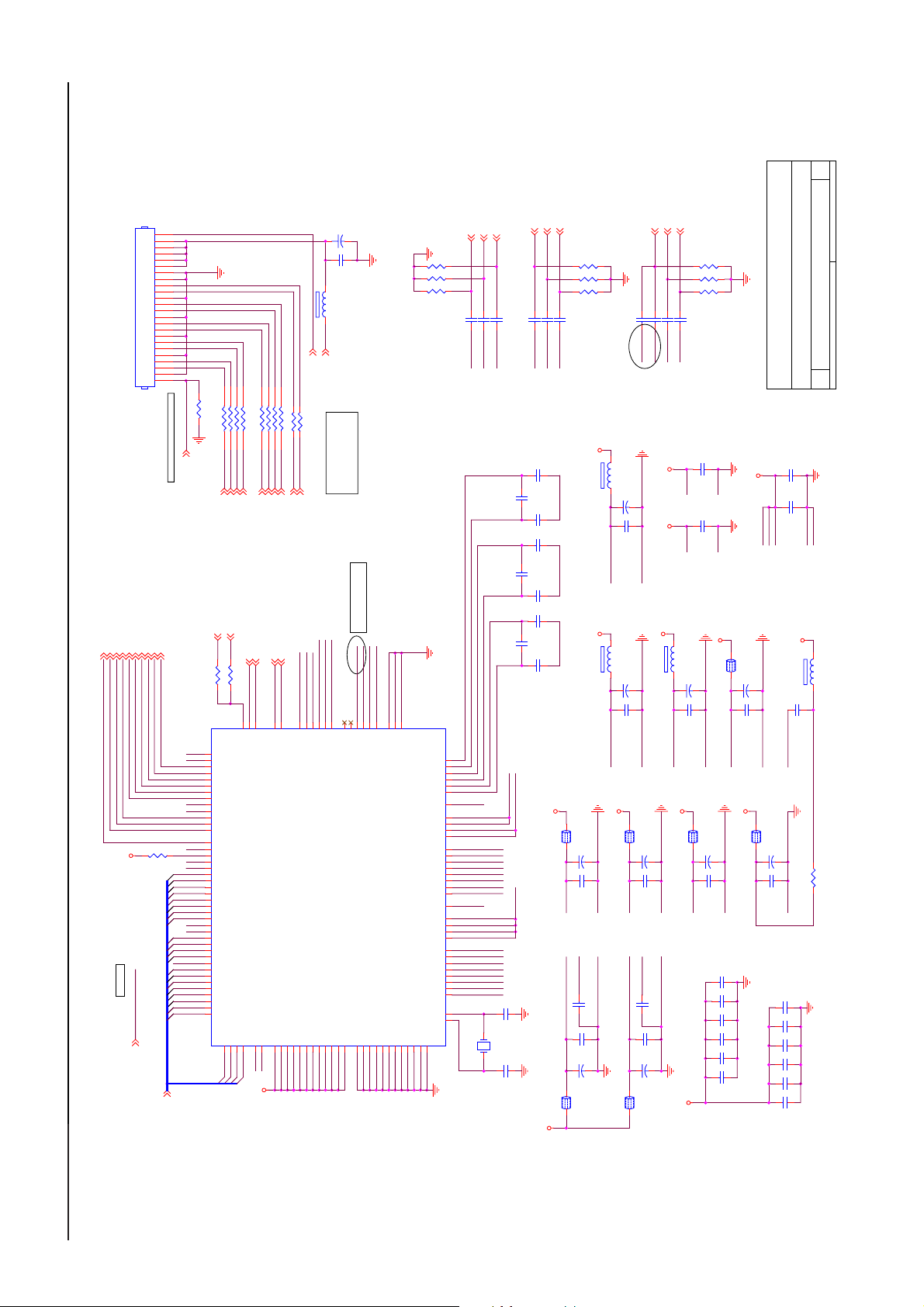

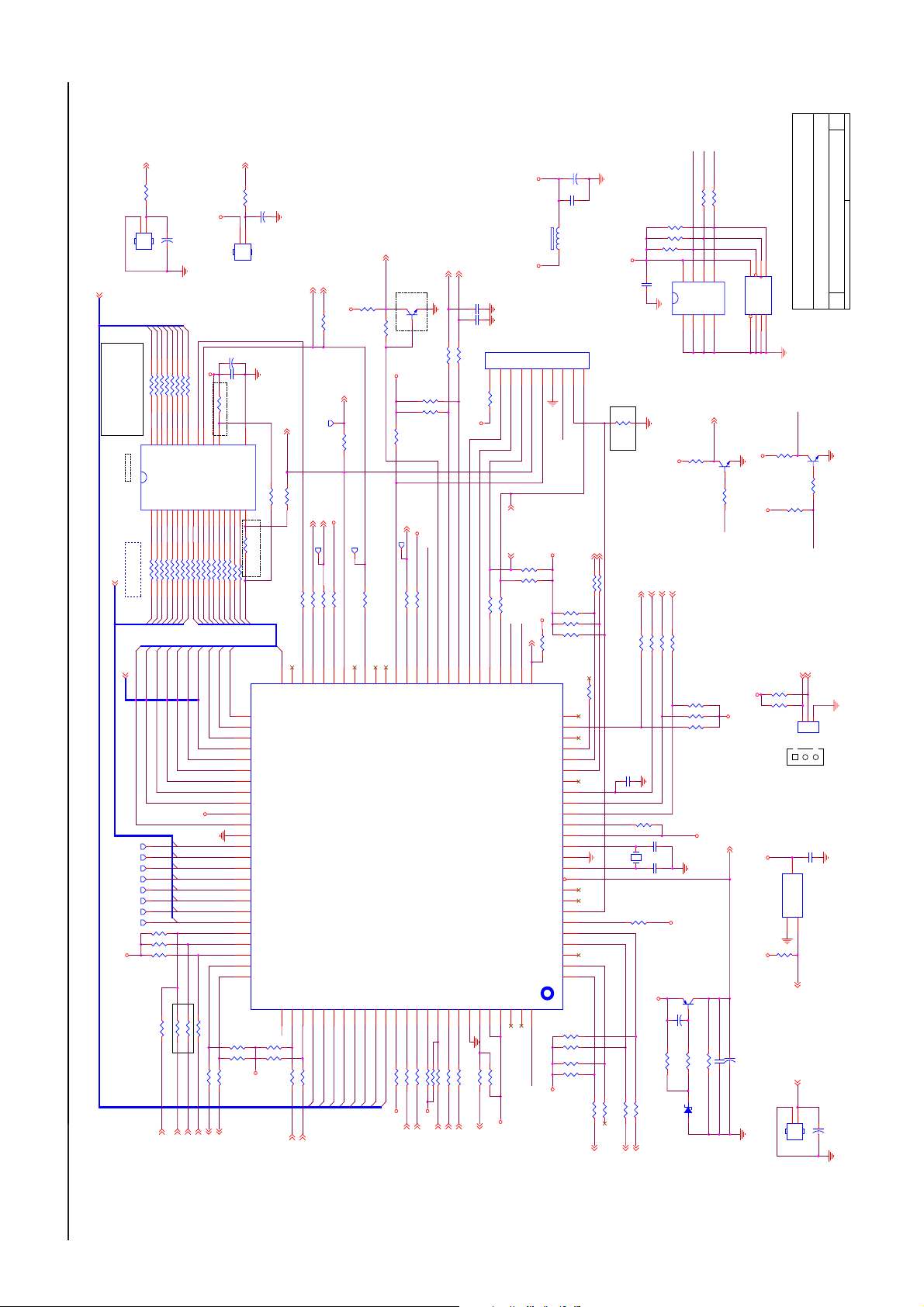

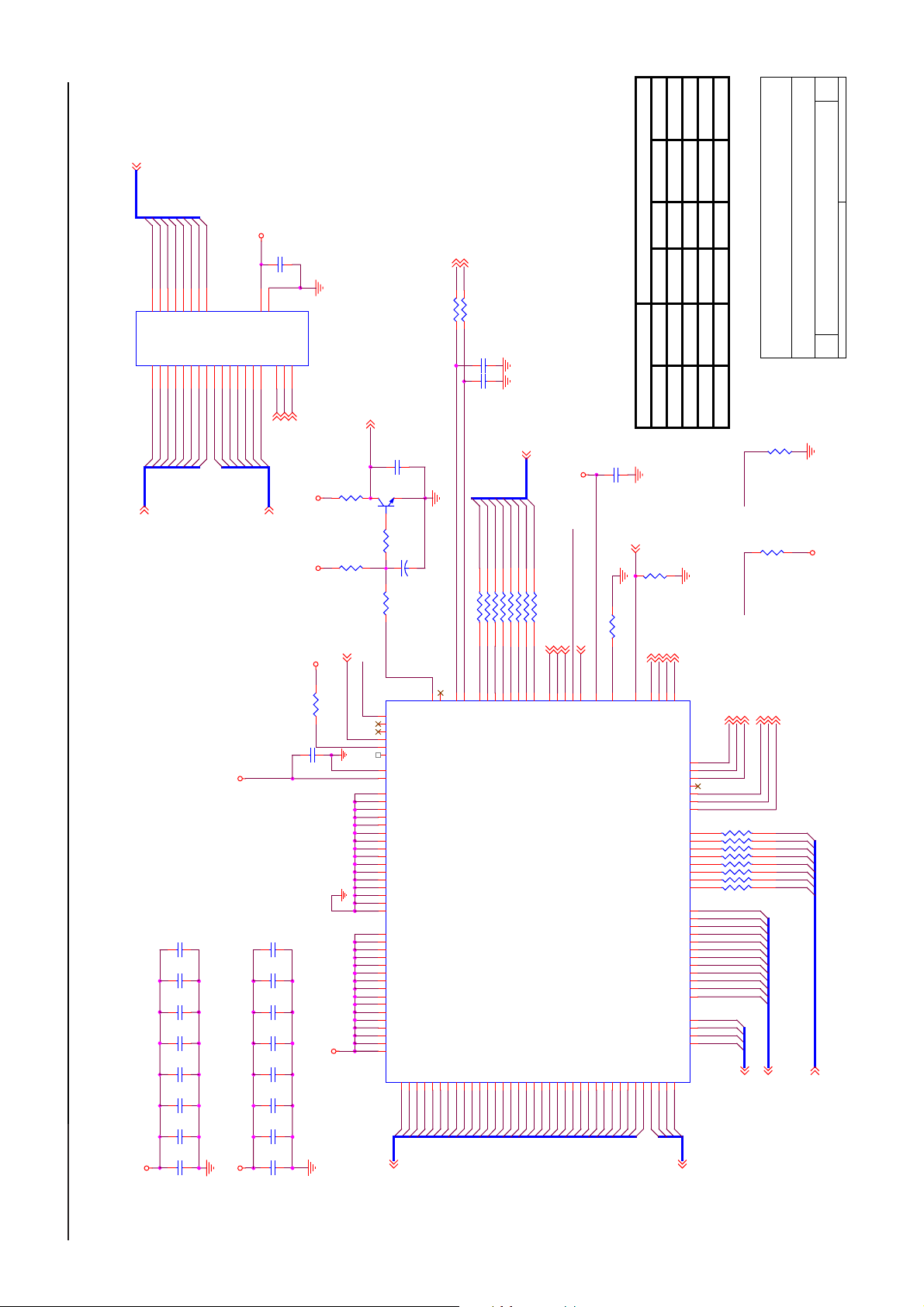

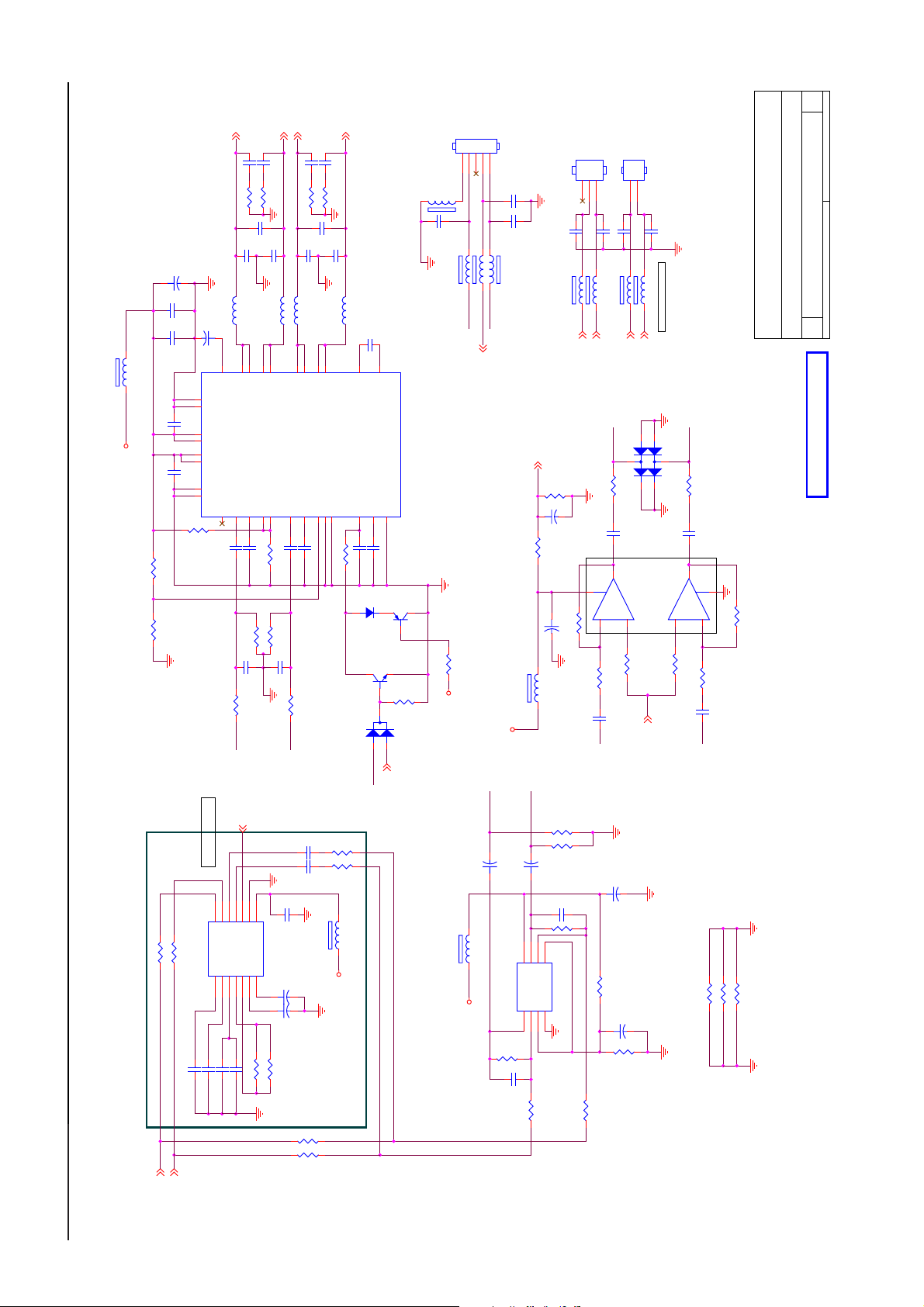

8.1 Main Board..…….………......................................67

8.2.Power Board………..……....................................79

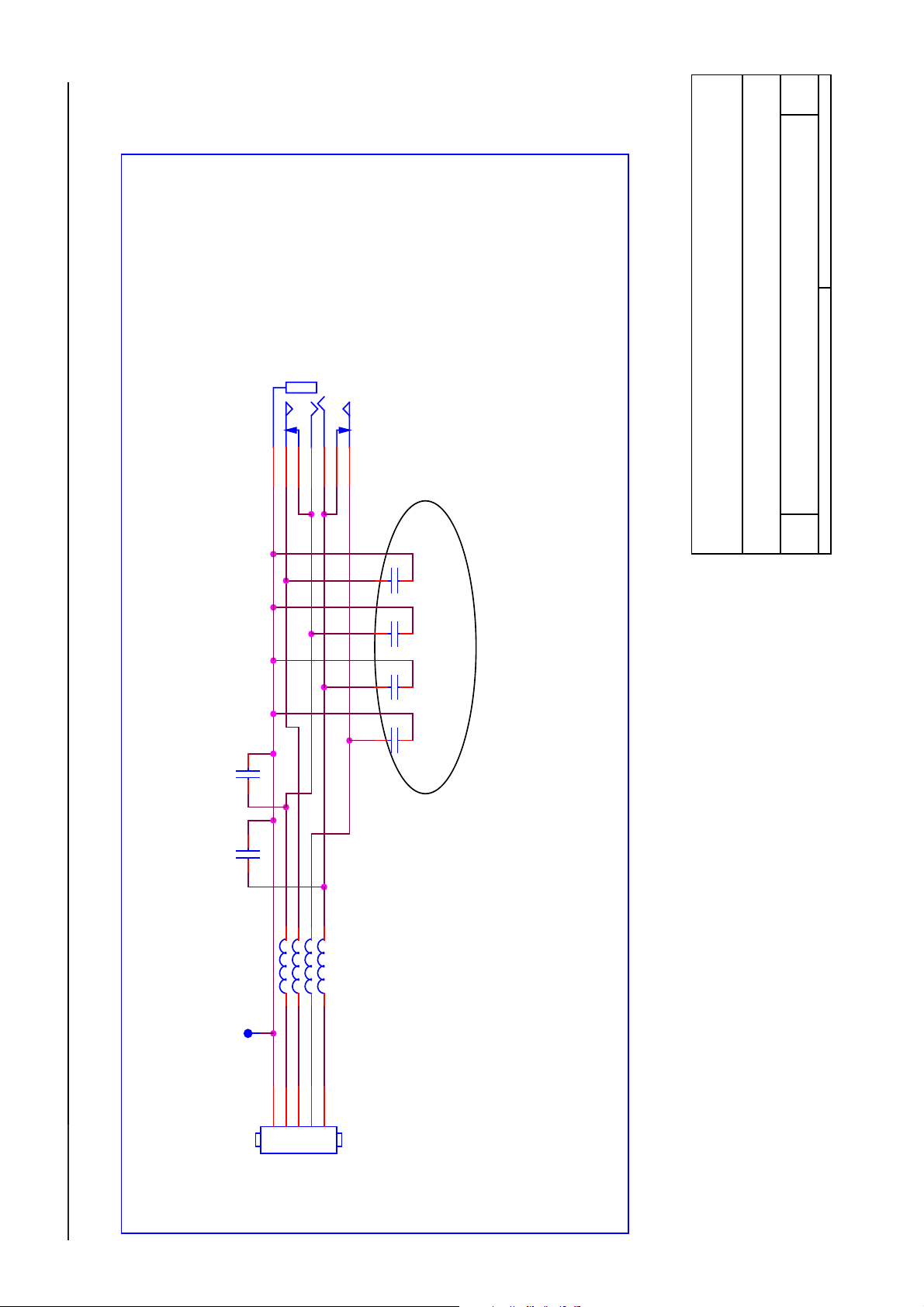

8.3.Headphone Board…......…….…...........................81

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

27" LCD-TV T27013

Revision List

Revision Release Date Revision History TPV Model

A00 May-18-06 Initial Release EFF5MTNBC1TETMC

2

27" LCD-TV T27013

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company** Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

* * Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.)

3

27" LCD-TV T27013

1. Specifications For LCD TV

1.1 General Specifications

Items Specification

Panel Type 27” CMO V270B1-L01 panel

Driver Element a-si TFT active matrix

Aspect Ratio 16: 9

Pixel Number 1366 x 768

Active Display Area H x V 596.259mmx335.232mm

Pixel Pitch 0. 4365mm(H) x 0.4365mm(V)

LCD Panel

Video Inputs

Audio Output

OSD language

Table Stand

Wall Mount

Power

Contrast Ratio 1000:1 (type)

Brightness 550:1 (type)

Response Time 8ms

View Angle (CR20) H: 176/V: 176

Display colors 16.7 million

Lamp Type/Life 60000 hr (type)

Color Temperature Cool / Warm

RCA x 1

AVǃ S-VIDEO

S-Video x 1

Audio Output: L / R Headphone Mini-jack for stereo (3.5ø)

English / French / Spanish / Portuguese/German/Italian .etc

Included

VESA 100 x 100 mm

Power Supply AC100V~240V, 50/60Hz

Power Consumption <140W

Audio L/R x 1 (Share)

Panel Tilt

Environment

Forwards/Backwards/Rotation -4°/ +18° / ± 35°

Operating + 0 °C ~ + 40 °C

Storage - 25 °C ~ + 60 °C

Operating 10% ~ 85%

4

27" LCD-TV T27013

Operating Instructions

The Use Of Remote Control

Press this key to turn on or on stand-by the TV set.

PR

Press PR+ or PR– to scroll through the channels.

Press + or – to increase or decrease the volume.

Press this key to adjust the automatic shut-off time (from 0 to 120 minutes). Each key press increases this time 15 minutes. The timer begins to count down from the number of minutes selected after the display has disappeared.

Press this key to display:

- the channel number when watching a TV program.

- the input source when watching an AV program.

Press this key to mute the sound. Press this key again to restore it.

0~9 DIGIT BUTTONS

To select a TV channel.

RETURN

Press this key to return to previously selected TV channel or return to previously selected input source.

Press this key to swap main picture and small picture when PIP is working.

Press this key to display PIP/PAP screen

Press this key to adjust PIP size when PIP is working.

MENU

Press this key to display main menu.

AV

Press this key to return last AV or press repeatedly to select desired input source

Press this key to select sound type (Mono, Stereo or Dual if broadcasted by the TV

Press these keys to select desired picture format (4:3, 14:9, CINERAMA, 16:9)

EXIT

Press this key to exit main menu

5

27" LCD-TV T27013

TELETEXT

The Teletext service is available in many countries under a variety of names (TOP Text, Fastext, and FLOF

Text, Videotext). It is provided as a free service by television broadcasters. This service provides a real wealth of

information, available at any time, on weather, sports results, news, games, etc. The information is presented in

pages or organized in topics specified in colour on the screen and you can access this information by simply

pressing the buttons of the relevant colour on the remote control.

ǂ

TEXT

Press this key, Teletext will display the last page selected, or

If you have changed channel, the index page (usually100).

Press EXIT to leave Teletext.

OK

Press this key to superimpose the teletext over the TV picture.

A 2nd key press displays the teletext in the left part of the

screen. Press again to return to Teletext mode.

Press this key, once to zoom in on the top part of the screen,

a second time to zoom in on the bottom part of the screen and

a third time to return to normal display.

RED / GREEN / YELLOW / BLUE

If Fastext is available, use colored keys to access directly to

the relevant color topics.

Press this key to select subtitle page. If the displayed page is

not the subtitle one, search its number in the index page and

select it.

STOP

Press this key to stop the page scrolling. Press it again o

restart the page scrolling.

(?)

Press this key to reveal a hidden answer (for example, in

games). Press it again to hide the answer.

. PAGE SELECTION

Page can be selected in two ways.

a. Press

number by one.

b. By entering the page number, using digit buttons 0~9.

SUBPAGE ACCESS

Some information is spread across more than one page. To access sub-pages, press ---- /AV key then enter the

sub-page number using digit buttons 0~9.

6

ǂ or ǂ to increase or decrease the page

27" LCD-TV T27013

u

To Use The Menu

1. Press the MENU button repeatedly to display each menu.

2. Use the cursor up/down to select a menu item or adjust the setting of Menu item.

3. Use the cursor left/right to enter a submenu or enable the function.

4. Press the OK button to exit the menu.

Main Men

Press the MENU button to display the Main menu. It offers the following options: Picture adjustments, Audio

adjustments, PIP/POP adjustments, TV channels search menu (only in TV mode) and PC adjustments (only in PC

mode). It also allows defining your preferences in the Setup menu.

Picture Adjustments

Display the Main menu by pressing MENU button. Select the Picture menu using the ¿/ À

OK button to confirm. Use the ¿/ À

Preset: choose between Personal, Vivid, Standard or Mild.

Personal: give access to following adjustments.

Contrast, Brightness, Colour and Sharpness: adjust these settings as required using the ½/ ¾buttons.

Tint: This option is only available for NTSC audio-visual sources. Adjust the tint of the picture using the ½/

buttons to select each option.

buttons. Press the

¾buttons.

Reset: Return to default settings. Press OK button to return default settings. Press the EXIT button to exit the

Picture menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

When you adjust a menu option (Contrast for example), the menu is replaced by a sub-menu as illustrated. Press

the OK button to return the Picture menu.

7

27" LCD-TV T27013

Audio Adjustments

Display the Main menu by pressing MENU button. Select the Sound menu using the Àbutton. Press the OK button

to confirm. Use the ¿/ Àbuttons to select each option.

Volume: adjust as required using the ½/ ¾buttons.

Balance: adjust the balance between left/right channels as required using the ½/ ¾buttons.

Bass: adjust the bass level as required using the ½/ ¾buttons.

Treble: adjust the treble level as required using the ½/ ¾buttons.

SRS WOW: Using ½/ ¾, activate (On) or deactivate (Off) SRS function. SRS is an audio technology, which

improve the sound quality.

Reset: Return to default settings. Press OK button to return to default settings. Press the EXIT button to exit the

Sound menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

When you adjust a menu option (Volume for example), the menu is replaced by a sub-menu as illustrated. Press the

OK button to return the Sound menu.

PIP/PAP Adjustments

Press the MENU button to display the Main menu Select the PIP menu using the Àbutton. Press the OK button to

confirm. Use the ¿/ Àbuttons to select each option.

8

27" LCD-TV T27013

Dual mode: Using ½/ ¾buttons activate (PIP/PAP) or deactivate (Off) the PIP function. Following options are

available if you have selected PIP or PAP at the PIP line.

Position: use the ½/ ¾buttons to change the position of the PIP frame on the screen.

Source: to select video source of the PIP/PAP, use the ½/ ¾buttons to select video source of the picture in the

PIP/PAP frame (TV or AV). You can insert a TV picture while you are viewing an AV program or insert an AV picture

while you are viewing a TV program. Video source can also be selected without the menu, using AV button on the

remote control.

Audio select: to select audio source: MAIN (Main picture) or SUB (PIP/PAP picture), use the ½/ ¾buttons to

select audio source. Press the EXIT button to exit the PIP menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

Channels Search

Channels search involves selecting all the settings required to be able to search for and store all the channels you

can receive. Make sure that the television is switched on and follow all the steps in turn specified on this page.

Display the Main menu by pressing MENU button. Select the Installation menu using the Àbutton. Press the OK

button to confirm. Use the ¿/ Àbuttons to select each option.

Automatic Set-Up

Select Auto. Installation using the Àҏ button. Press the OK button to display the Auto. Installation menu.

Use the ¿/ Àbuttons to select each option.

9

27" LCD-TV T27013

Country: Select the relevant country using the ½/ ¾buttons. This is the country you are in, or the country whose

channels you want to receive if you live near its borders. If you do not find your country, select Auto. Start: Press OK

button to start channels searching.

Manual Set-Up

Select Man. installation using the Àbutton. Press the OK button to display the Man. installation menu.

Use the ¿/ Àbuttons to select each option.

Prog. Number: Allows selecting the program on which you want save a new channel or a program you want to

modify.

- Using the ½/ ¾buttons, select the program.

Frequency: Allows entering a specific frequency for tuning.

- Using the Àbutton, select the Frequency option and press the OK button.

- Using the 0~9 digit and ½/ ¾buttons, enter desire frequency and press the OK button.

Name: Allows editing the channel name.

- Using the Àbutton, select the Name option.

- Using the ¾button select the first letter field.

- By pressing the 0~9 digit repeatedly and using the following table select the first character.

Repeat the procedure for each letter field.

Press the OK button to confirm.

10

27" LCD-TV T27013

Store prog.: Allows to Save a channel on a new Program N°, to Insert a channel on an already existing Program No

(the channel previously saved on this program n° will be shifted to the upper program n°) or to Delete

the Program No.

- Once a channel has been found and named, use the Àbutton to select the Store prog. Option.

- Using the ½/ ¾buttons, select Save, Insert or Delete and press the OK button to confirm.

Swap prog.: Allows to swap 2 programme numbers.

- Using the ¿/ Àbuttons select the Prog. Number option.

- Using the ½/ ¾buttons, select the program to be moved.

- Using the Àbutton, select the Swap prog. option.

- Using the ¾button, enter the swap function.

- Using the 0~9 digit, enter the new programme number (3 digits).

- Press the OK button to confirm, the programme numbers are swapped.

Norm: Allows changing the audio norm.

- Using the Àbutton, select the Norm option.

- Using the ½/ ¾buttons, select the norm.

Note: the following norms are available to choose from: I for the UK and Ireland, L/LP for France and Luxembourg,

D/K for Eastern Europe, the Middle East and Asia, B/G for Western Europe, Australia and New Zealand.

Skip: Allows skipping a channel.

- Using the Àbutton, select the Skip option.

- Using the ½/ ¾buttons, select on, the channel will be skip.

Repeat this procedure to skip other channels.

Fine-tuning: If the picture is not clear, you can adjust the setting.

- Using the Àbutton, select the Fine Tuning option.

- Use the ½/ ¾buttons to find the good tuning point.

Man. search: Allows launching a manual search.

- Using the Àbutton, select the Man. search option.

- Using the ½/ ¾buttons, start the search in decreasing or increasing order.

The menu is replaced by a sub-menu showing the progression of the search.

- The search will stop at the first channel found; Man. installation menu is displayed again (within 3 seconds).

- If you wish to memories the channel, select Store Program option using ¿button and proceed as indicated in

previous page. Otherwise, continue the search using ½/ ¾buttons.

If you have modified Norm, Skip, Fine-tuning options or if you have launched a Manual Search, select Store Prog.

Option using ¿/ Àbuttons and proceed as indicated above to save your modification.

Press the EXIT button to exit the PIP menu.

11

27" LCD-TV T27013

Input Selection

To select AV source:

To select desire input source, press the AV button to display the selection menu. Use the ¿/ Àbuttons to select

each input sources. Press the OK button to display the desire input source.

To select input source in PIP/PAP mode

To select desire input source in PIP/PAP mode, press the AV button to display the selection menu. Use the ¿/

Àbuttons to select either MP source (to modify Main picture source) or PIP source (to modify PIP source).

Press the OK button to display the selection menu in PIP mode.

Use the ¿/ Àbuttons to select the input source. Press the OK button to display the desire input source.

12

27" LCD-TV T27013

Setup

This menu allows selecting the language for the menus as well as the colour of the screen when there is no video

input. It allows also setting an automatic shut-off time.

Display the Main menu by pressing MENU button. Select the Options menu using the Àbutton. Press the OK button

to confirm Use the ¿/ Àbuttons to select each option.

Menu language: To select the language for the menus.

Menu timeout: To set an automatic shut-off time for Menu. Using ½/ ¾buttons select 5 > 10 > 20 > 30 > 40 >

50 seconds.

Menu background: Select Opaque or Transparent type.

Sleep Timer: To set an automatic shut-off time. Using ½/ ¾buttons select off > 15> 30 > 45 > 60 > 90 > 120

minutes. Once the time is ended, TV set automatically switch on standby mode. If you turn the TV on standby mode

after setting the sleep timer, setting will be erased. Set it again.

Blue Screen: To have a blue screen when there is no video input or when the RF signal is very bad. Using the ½/

¾buttons select on. Select Off if you do not want the blue screen.

Teletext language: Using ½/ ¾buttons, select the character set that will be used for Teletext on this channel.

The following character sets are available: West Europe, East Europe, Cyrillic (Russia), Greek, Arabic, Persian,.

The character set determines how characters are displayed on Teletext screen.

Reset: Return to default settings. Press the OK button to return to default settings. Press the EXIT button to exit the

Options menu.

Note: this menu is removed automatically after a few seconds without using the remote control.

Note: You can display the remaining time before the automatic shut-off. To do that, press the sleep button

To cancel the automatic shut-off, press several times the sleep button

to display Sleep timer off.

.

13

27" LCD-TV T27013

PC Mode

In PC mode, main menu is different from the one in TV mode. Please select PC as main input.

PC Settings

Display the Main menu by pressing MENU button. Select the PC menu using the Àbutton. Press the OK button to

confirm. Use the ¿/ Àbuttons to select each option.

H. Position: use the ½/ ¾buttons to move the picture horizontally on the screen.

V. Position: use the ½/ ¾buttons to move the picture vertically on the screen.

Focus: Adjust as required to improve the picture quality.

Auto adjust: this function is used to automatically adjust the VGA input. Press the ½/ ¾buttons to start the

adjustment process.

Tone: to adjust the colour temperature at your convenience.

Reset: Return to default settings. Press OK button to return default settings.

14

27" LCD-TV T27013

Connect Peripheral Equipment

Front Panel Control Knobs

Button: Press this button to switch on or on standby the TV set.

MENU button: Press this button to display the main menu.

Buttons: Press these buttons to select a channel or to choose an option in a menu.

– / + Buttons: Press these buttons to adjust the volume, access a sub-menu or perform an adjustment in a menu.

Source button: To select desire input source, press the SOURCE button to display the selection menu. Use the

buttons to select each input sources. Press the – / + button to display the desire input source.

Connection

Preparation

Remove the back plate at the back of the TV as shown on the illustration opposite. Lay the LCD TV with the screen

down on a table, as it will be easier to connect your peripheral equipment. Please take precaution not to damage the

screen.

15

27" LCD-TV T27013

AV Sockets

(Located at the back of the TV set, on the left side)

16

27" LCD-TV T27013

Headphone Socket

(Located At The Back Of The TV Set, On The Right side)

When headphones are connected, the sound of TV set is cut. Adjust headphones volume level by using

+ / - Buttons on the remote control. To switch off the sound of the headphone press the button

control.

on the remote

HDMI Socket (High-Definition Multimedia Interface)

(Located At The Back Of The TV Set, Near The Power Input Socket)



This socket allows the connection to all appliances fitted with an HDMI socket.

The standard HDMI allows a digital transmission of video and audio data using only one connector. It gives you the

possibility to obtain very high quality images. In this case it is necessary to use an HDMI connecting cable. Make

sure the appliance output is set to be HDMI output. To display images from the connected appliance, select the input

source (HDMI) by pressing the AV button on the remote control.

PC IN Socket

(Located At The Back Of The TV Set, Near The HDMI Socket)

Allows connecting a PC to the TV set



17

27" LCD-TV T27013



Connect the PC IN D-sub socket located at the back of the TV set to the output of PC equipment through a mini

D-sub 15 pin cable (2).

Connect the stereo PC IN audio jack located at the back of the TV set (near the D-sub socket) to the audio output

socket on the computer through an audio cable.

To display images from the connected appliance, select the input source (PC) by pressing the AV button on the

remote control.

Care of the screen

Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently.

Unplug the screen before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean

cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or aerosol

cleaners.

Mobile telephone warning

To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your

mobile telephone from the TV.

End of life directives

We are paying a lot of attention to produce environmentally friendly in green focal areas. Your new receiver contains

materials that can be recycled and reused.

At the end of its life specialized companies can dismantle the discarded receiver to concentrate the reusable

materials and to minimize the amount of materials to be disposed of.

Please ensure you dispose of your old receiver according to local regulations.

18

27" LCD-TV T27013

1.2 LCD-TV Description

The LCD TV will contain a main board, a power board, a tuner board, a keyboard, IR board, and a headphone board.

The main board and power board will house the flat panel to control logic I2C bus, brightness control logic for LCD

panel, DC-DC conversion to supply the appropriate power to the whole board and transmitting TTL level signals into

LCD Module to drive the LCD display circuit.

The switching power board will provides the power ON/OFF to control the TV and control LED indicator for DPMS.

The function keyboard and Remote Control will provide the OSD control signal to the Main Board.

1.3 Interface Connector

1) RF TV port

2) Earphone output port

3) Right audio input port

4) Left audio input port

5) AV video port

6) S-VIDEO video port

7) Power input port

19

27" LCD-TV T27013

2. Precautions And Notices

2.1 Assembly Precaution

(1) Please do not press or scratch LCD panel surface with anything hard. And do not soil LCD panel surface by

touching with bare hands (Polarize film, surface of LCD panel is easy to be flawed). In the LCD panel, the gap

between two glass plates is kept perfectly even to maintain display characteristic and reliability. If this panel is

subject to hard pressing, the following occurs:(a) Uniform color (b) Orientation of liquid crystal becomes disorder.

2) Please wipe out LCD panel surface with absorbent cotton or soft clothe in case of it being soiled.

3) Please wipe out drops of adhesive like saliva and water in LCD panel surface immediately. They might damage to

cause panel surface variation and color change. Do not apply any strong mechanical shock to the LCD panel.

2.2 Operating Precaution

Please be sure to unplug the power cord before remove the rear-cover. (Be sure the power is turn-off)

Please do not change variable resistance settings in main board; they are adjusted to the most suitable value.

If they are changed, it might happen LUMINANCE does not satisfy the white balance spec.

Please consider that LCD backlight takes longer time to become stable of radiation characteristic in low

temperature than in room temperature.

Please pay attention to displaying the same pattern for very long-time. Image might stick on LCD.

2.3 Storage Precaution

When you store LCD for a long time, it is recommended to keep the temperature between 0°C -40°C without the

exposure of sunlight and to keep the humidity less than 85% RH.

Please do not leave the LCD in the environment of high humidity and high temperature such as 60°C, 85%RH.

Please do not leave the LCD in the environment of low temperature; below -25°C.

2.4 High Voltage Warning

The high voltage was only generated by Power support part, if carelessly contacted the transformer on this

module, can cause a serious shock.

20

21

27" LCD-TV T27013

3. Explode View

27"LCD-TV T27013

4. BOM List

EFF5MTNBC1TETMC

Location Part No. for TPV model Description Quantity

 007T 6 L 12 COMPOUND PALLET 1.000  007T 6 L 13 COMPOUND PALLET 1.000  015T5908 2 BRACKET 1.000  015T8156 1 HINGE PLATE 1.000  015T8158 1 BKT-CONNCTOR 1.000  015T8175 1 MAIN FRAME 1.000  034T1557 GM L COVER CABLE 1.000  034T1558 GM L COVER HINGE 1.000  040T 581902 1A CARTON LABEL 2.000  044T2702 1 EPS 1.000  044T2702 2 EPS 1.000  044T6000 4 6B SPACE PAPER 1.000  044T6002 7A PAPER BOARD 1.000  044T6002695 1A PAPER BOARD 1.000  044T9003 1 corner paper 1.000  044TZ001200 4B PIZZA BOX 1.000  045T 99606 1 PE BAG FOR BASE 1.000  045T 99609 1 EPE COVER 1.000  045T 99609 4 EPE COVER FOR BASE 1.000  045T 99626 1 PE BAG FOR MOUITOR 1.000  050T 500 1 CABLE TIE 6.000  052T 1185 MIDDLE TAPE FOR CARTON 115.000  052T 1186 SMALL TAPE 10.000  052T 1211 B ADHESIVE TYPE 1.000  052T6020 9 PROTECT FILM 1.000  052T6025 15128 MYLAR 1.000  085T 690 1 SHIELD MAIN 1.000  092TB1JX1A31GM PEONY A1KALINE LR03 2.000  095T8014 2514 HARNESS 1.000  095T8014 3527 HARNESS 1.000  095T8014 5549 HARNESS 5P-5P 1.000  095T8014 8561 WIRE HARNESS 1.000  095T8014 10 11 WIRE HARNESS 1.000  095T8014 12 13 WIRE HARNESS 1.000  095T8018 30648 LVDS 1.000  098TR7GW2NT B REMOTE THOMSON GRAY RC311TR1G 1.000  0M1T 330 3128 SCREW 4.000  0M1T 330 4128 SCREW 2.000  0M1T 330 4128 SCREW 5.000  0M1T 330 6128 SCREW 3.000  0M1T 340 14120 SCREW M4X14 4.000

22

27" LCD-TV T27013

 0M1T 860 24128 SCREW 1.000  0M1T 940 8120 SCREW 2.000  0M1T1130 6128 SCREW 7.000  0M1T1130 6128 SCREW 5.000  0M1T1140 6128 SCREW 4X6 1.000  0M1T1740 14120 SCREW 6.000  0Q1T 340 10128 SCREW 4.000  0Q1T 340 12120 SCREW 5.000  0Q1T 930 6128 SCREW T3X6 3.000  0Q1T 930 12120 SCREW 14.000  0Q1T1030 8128 SCREW 1.000  705LFF5FB34015 BEZEL ASS'Y 1.000  750TVMH0B11 11 CMO 27" C1 PANEL 1.000  ADPF24180A4 ADAPTER ASS'Y 1.000  CBPFF5BMTTHT MAIN BOARD 1.000  IOPFFA2 TV IO BOARD 1.000  Q40T 27090214A Rating label 1.000  Q40T 581902 9A I/O LABEL 1.000  Q44T2702 5 1C U tape sheet for base 1.000  Q44T2702902 3A CARTON 1.000  T34T1669 GM L BASE 1.000  W33T6381CGM 1L COVER_CARD READER 1.000  040T 58162435A LABEL 1.000  041T7880902 1A WARRANTY CARD 1.000  045T 76 28 RN PE BAG FOR MANUAL 1.000  Q41T2701902 9B MANUAL 1.000  001T6021 1 SCREW 8.000  011T 176 1 RL WIRE HOLDER 1.000  012T 394 3 RUBBER FOOT 8.000  015T6184 1 Kensington lock 1.000  015T6299 1 BKT-KEY PAD 1.000  015T8230 1 BKT-BASE-ID2 1.000  020T 031 1 DIECASTING 1.000  033T4828 ED C REMOTE LENS 1.000  033T4829 2 X LCD TV IR BOARD 1.000  033T6301B14 2C PC PLATE ON TOP 1.000  034T1556 GM 1L BACK COVER 1.000  037T 528 1 HINGE 1.000  044T3231 21 1 EVA WASHER 2.000  044T3231 21 2 EVA WASHER 2.000  044T3231 21 3 EVA WASHER 1.000  078T 452 1 L 8OHM SPEAKER 1.000  078T 452 1 R 8OHM SPEAKER 1.000  0M1T 140 10120 SCREW M4X10 4.000  0M1T 330 3128 SCREW 2.000  0M1T 330 3128 SCREW 1.000

23

27" LCD-TV T27013

 0M1T 330 4128 SCREW 2.000  0Q1T 140 8120 SCREW 8.000  0Q1T 140 20120 SCREW 4.000  0Q1T 330 6120 SCREW 1.000  0Q1T 330 8120 SCREW 3X8mm 2.000  0Q1T 330 8120 SCREW 3X8mm 3.000  0Q1T1830 6120 SCREW 4.000  HJPFA60A8 HEADPHONE JACK BOARD 1.000  IRPFF60A1 IR BOARD 1.000  KEPFF60KA2 KEY BOARD 1.000  Q33T4823 WL 1L ID1 FUN KEY 1.000  Q33T4832 WL 1L CLIP CABLE 1.000  Q33T4833 WL 1L ID1 NO KEY COVER 1.000  Q33T4854 WL 1L 18 STAND MID 1.000  Q33T4855 WL 1L 18 STAND TOP 1.000  Q34T1555 WLA1L BEZEL 1.000  Q34T1559 WL 1L STAND BTM 1.000  Q34T1670 WL 1L BASE COVER 1.000  Q36T 429 WL 3C SPEAKER GRILL 1.000

GD904 009V6005 1 GND 1.000

GD903 009V6005 1 GND 1.000

GD902 009V6005 1 GND 1.000

GD901 009V6005 1 GND 1.000

CN951 033T3802 10 PLUG 1.000

CN952 033T3802 12 WAFER PH-12 1.000

 040T 45762420A S/N LABEL 1.000

IC925 056T 139 3A PC123Y22FZOF 1.000

IC942 056T 139 3A PC123Y22FZOF 1.000

IC924 056T 139 3A PC123Y22FZOF 1.000

IC922 056T 139 3A PC123Y22FZOF 1.000

NR902 061T 58030 W

NR901 061T 58030 W

R950 061T 20K398GB1 CEMENTR 0.39 OHM +-10% 2W 1.000

R921 061T152M10458G6267 100K OHM 5% 2W 1.000

R905 061T153M27858G6267 0.27 OHM 5% 3W 1.000

R945 061T153M47358G6267 47K OHM 5% 3W 1.000

C901 063T 10722410S 0.22UF 275VAC X2 1.000

C902 063T 10747410S CAPACITANCE 1.000

C905 063T213J105GFA MPF CAP 1.000

C926 064T400K473 57 MPF CAP 1.000

C942 065T 1K222 2A6213 0.0022UF/1KV 1.000

C922 065T 1K222 2A6213 0.0022UF/1KV 1.000

C921 065T 1M103 3T6921 0.01uf 20% 1000V Y5V 1.000

C904 065T306M1022BM Y1.CAP.001UF 250VAC MURATA 1.000

C903 065T306M1022BM Y1.CAP.001UF 250VAC MURATA 1.000

C915 065T306M1022BM Y1.CAP.001UF 250VAC MURATA 1.000

NTCR 3 󱂜 5A NTCR 3 󱂜 5A

1.000

24

27" LCD-TV T27013

C970 065T306M2222BP Y1.CAP.0022UF 250V AC 1.000

C907 067T 40K18116K 105C EC SHAP-IN 1.000

C950 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C949 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C930 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C948 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C951 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

C933 067T215L1024NL KY25VB1000M-L 10*25MM 1.000

C932 067T215L1024NL KY25VB1000M-L 10*25MM 1.000

C934 067T215L221 4R LOWE.S.R 220UFM 25V 1.000

C931 067T215L221 6N KY35VB220M-L 8*15MM 1.000

C955 067T215L471 6N KY35VB470M-L 10*20MM 1.000

L906 073L 174 44 TG CHOKE COIL 1.000

L953 073L 174 46LSG FILTER 1.000

L952 073L 174 47LSG LINE FILTER 1.000

L903 073L 174 48 LG LINE FILTER 1.000

L904 073L 174 49LSG LINE FILTER 1.000

L905 073L 174 52LSG CHOKE COIL 1.000

L902 073L 253156 TH CHOKE COIL 1.000

L901 073L 253156 TH CHOKE COIL 1.000

L923 073T 253155 L CHOKE 1.000

L922 073T 253155 L CHOKE 1.000

T951 080LL26T 2 TG X'FMR 1.000

T921 080LL26T 3 TG XFMR 1.000

D943 093T1020 752T UF4003PT 1.000

D922 093T1020 752T UF4003PT 1.000

D942 093T1100 1052T BA159GPT 1.000

D941 093T1100 1052T BA159GPT 1.000

D921 093T1100 1052T BA159GPT 1.000

D920 093T1100 1052T BA159GPT 1.000

RJ905 095T 90 26 WIRE HARNESS 1.000

CN921 095T8013 12633 HARNESS 1.000

 705L F94 56 01 IC981 ASS'Y 1.000  705L F94 57 02 Q942/Q943/D927/D928 ASS'Y 1.000  705L F94 57 04 Q901/Q941/D902 ASS'Y 1.000  705L F94 61 01 R919 ASS'Y 1.000  705L F94 87 01 CN901 ASS'Y 1.000  705L F94 93 01 BD901 ASS'Y 1.000  AD24180A4SMT ADAPTER FOR SMT 1.000  DCPF1205A3 DC TO DC BOARD 1.000

CN11 033T3278 12 12P PLUG B12B-XHA/JS B12B-XHA/ 1.000

CN60 033T3802 2H WAFER 2P RIGHT ANGLE 1.000

CN62 033T3802 3H WAFER 3P RIGHT ANGLE 1.000

CN61 033T3802 5H WAFER 5P RIGHT ANELE PI 1.000

CN12 033T3802 8H WAFER 8P RIGHT ANGLE PITCH 2.0 1.000

CN10 033T801736A H PIN HEADER 36P 2.0MM 1.000

25

27" LCD-TV T27013

CN20 033T802724D H 24PIN 1.000

 040T 457624 1B CPU LABEL 1.000  040T 45762412B CBPC LABEL 1.000  044T3231508512 CHIELD D-SUB 1.000

U31 056T1133 77 EN29F040A-70JCP 1.000

R714 061T152M109 64 MOFR 1 OHM +-5% 2WS 1.000

R711 061T152M109 64 MOFR 1 OHM +-5% 2WS 1.000

R727 061T152M229 64 2.2 OHM 2W 5% MOF 1.000

R712 061T152M479 64 4.7 OHM +-5% 2W 1.000

R710 061T152M479 64 4.7 OHM +-5% 2W 1.000

C606 067T215L102 6N KY35VB1000M-L 5*25MM 1.000

L717 073T 253137 ER CHOKE COIL BY EROCORE SCB-03 1.000

L714 073T 253137 ER CHOKE COIL BY EROCORE SCB-03 1.000

L606 073T 253158 L CHOKE COIL 1.000

L605 073T 253158 L CHOKE COIL 1.000

L604 073T 253158 L CHOKE COIL 1.000

L603 073T 253158 L CHOKE COIL 1.000

P12 088T 30214K PHONE JACK 1.000

P11 088T 35315F HA D-SU13 15PIN 1.000

MTGU21 090T 372 2 HEAT SINK 1.000

MTGU60 090T6068 2 HEAT SINK 1.000

X20 093T 2253B J 14.31818MHZ/85C 1.000

X50 093T 2258B J 24.576MHZ/20PF/49US 1.000

X40 093T 2279B 28.32MHZ/14PF/49US 1.000

X30 093T 2281B 10.000MHZ/30PF/49US 1.000

 Q19T 553700 SPRING 1.000  SMTFF5BMTTHT MAIN BOARD SMT 1.000

CN1 033T802436C H HEADER FEMALE 36P 2.0MM 1.000

R100 061T152M270 64 27 OHM 5% 2W 1.000

R33 061T152M330 64 33 OHM 5% 2W 1.000

 085T 583510 GASKET 1.000

J5 088T 78 10 2C RCA JACK 1.000

J3 088T 100 6 TN MINI PIN 4P 1.000

J2 088T 35521A HC SCART CONN.R/A 21PIN 1.000

J1 088T 35521A HC SCART CONN.R/A 21PIN 1.000

J4 088V 78 13 5 RCA 2*3 C1G4A1-001 TACT R/B/G+ 1.000

X1 093T 22D60 BH CRYSTAL 1.000

T1 094TPASEALL 3P FQ1216ME/IH-5(SV22) 1.000

 SMTIOPFFA2 TV IO BOARD SMT 1.000

CN1 033T3802 5H WAFER 5P RIGHT ANELE PI 1.000

J1 088T 30230C PHONE JACK 1.000

GND 095T 900 53 HARNESS 95MM 1.000

 SMTHJPFA60A8 TUNER BOARD SMT 1.000

CN2 033T3802 4 WAFER PH-4 1.000

U4 056T 627 5 TSOP4833 1.000

 095T 900 53 HARNESS 95MM 1.000

26

27" LCD-TV T27013

 SMTIRPFF60A1 TUNER BOARD SMT 1.000  SMTKEPFF60KA2 KEY BOARD 1.000

IC981 056T 379 40 TOP246YN T0-220-7C 1.000

 090T 427 1 HEAT SINL 1.000  0M1T1730 8128 SCREW M3x8 1.000  005T 42 1 CUSHION 2.000  012T 372 1 MICA 2.000

Q943 057T 600 45 IRF3415 T0-220AB 1.000

Q942 057T 600 45 IRF3415 T0-220AB 1.000

 090T 428 1 HEAT SINK 1.000

D927 093T 60239 FME-210B T0-220 1.000

D928 093T 60247 DIODE 1.000

 0M1T1730 10128 SCREW M3X10 4.000  012T 372 2 MICA 1.000

Q901 057T 667 19 2SK3523-01R 1.000

Q941 057T 667 21 STP10NK70ZFP 1.000

 090T 426 5 HEAT SINK 1.000

D902 093T 220 22 DIODE YG972S6R TO-220F FUJI 1.000

 0M1T1730 8128 SCREW M3x8 3.000

R919 061T153M27858G6267 0.27 OHM 5% 3W 1.000

 096T 29 8 TUBE 20.000

CN901 087T 501 22 RF AC SOCKET 1.000

 095T 900619 WIRE HARNESS 1.000  090T 425 1 HEAT SINK 1.000

BD901 093T 50460 18 D10XB60 1.000

 0M1T1730 10128 SCREW M3X10 1.000

IC941 056T 379 38 L6565D SO-8 1.000

IC901 056T 538 8 TDA4863-2G SO-8 1.000

Q922 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q924 057T 760 5 DTC144WKA BY FOHM SMT 1.000

R922 061V0805000 CHIP 0OHM 1/10W 1.000

R944 061V0805000 CHIP 0OHM 1/10W 1.000

R947 061V0805000 CHIP 0OHM 1/10W 1.000

R954 061V0805100 CHIP 10OHM 1/10W 1.000

R955 061V0805100 CHIP 10OHM 1/10W 1.000

R920 061V0805100 2F CHIP 10K OHM 1/8W 1% 1.000

R940 061V0805100 2F CHIP 10K OHM 1/8W 1% 1.000

R931 061V0805102 CHIPR 1K OHM +-5% 1/8W 1.000

R934 061V0805102 CHIPR 1K OHM +-5% 1/8W 1.000

R909 061V0805103 CHIP 10K OHM 1/10W 1.000

R910 061V0805103 CHIP 10K OHM 1/10W 1.000

R965 061V0805103 CHIP 10K OHM 1/10W 1.000

R964 061V0805104 CHIPR 100K OHM+-5% 1/8W 1.000

R959 061V0805115 2F CHIP 11.5K OHM 1/10W 1% 1.000

R960 061V0805133 CHIPR 13KOHM +-5% 1/8W 1.000

R961 061V0805152 CHIPR 1.5K OHM +-5% 1/8W 1.000

27

27" LCD-TV T27013

R914 061V0805191 2F 19.1K OHM 1/8W 1% 1.000

R957 061V0805200 9F CHIP 20 OHM 1/10W 1% 1.000

R958 061V0805202 CHIP 2KOHM 1/8W 1.000

R936 061V0805220 CHIP 22 OHM 5% 0805 1/8W 1.000

R967 061V0805222 CHIP 2.2KOHM 5% 0805 1/8W 1.000

R951 061V0805242 CHIP 2.4KOHM 1% 1/8W 1.000

R949 061V0805273 CHIP 27KOHM 5% 0805 1/8W 1.000

R930 061V0805280 3F CHIP 280K OHM 1/10W 1.000

R948 061V0805330 CHIP 33 OHM 5% 1/10W 1.000

R904 061V0805470 CHIP 47 OHM 1/10W 1.000

R933 061V0805471 CHIPR 470 OHM+-5% 1/8W 1.000

R935 061V0805472 CHIRP 4.7K OHM +-5% 1/8W 1.000

R932 061V0805510 2F CHIP 51K OHM 1/10W 1.000

R953 061V0805563 CHIP 56K OHM 1/8W 1.000

R952 061V0805682 CHIP 6.8KOHM 5% 0805 1/8W 1.000

R903 061V0805683 CHIPR 68K OHM+-5% 1/8W 1.000

R925 061V0805689 CHIP 6.8OHM 5% 1/8W 1.000

RJ903 061V1206000 CHIP 0 OHM 1/8W 1.000

RJ901 061V1206000 CHIP 0 OHM 1/8W 1.000

R908 061V1206000 CHIP 0 OHM 1/8W 1.000

R983 061V1206100 3F CHIP 100K OHM +-1% 1/4W 1.000

R923 061V1206100 4F 1M OHM 1/4W 1% 1.000

R924 061V1206100 4F 1M OHM 1/4W 1% 1.000

R968 061V1206101 CHIP 100 OHM 5% 1/4W 1.000

R962 061V1206102 CHIP 1K OHM 5% 1/8W 1.000

R926 061V1206205 CHIP 2M OHM 5% 1/4W 1.000

R927 061V1206205 CHIP 2M OHM 5% 1/4W 1.000

R974 061V1206330 CHIP 33 OHM 5% 1/4W 1.000

R929 061V1206330 CHIP 33 OHM 5% 1/4W 1.000

R946 061V1206330 CHIP 33 OHM 5% 1/4W 1.000

R913 061V1206330 3F 330K OHM 1/4W 1% 1.000

R911 061V1206330 3F 330K OHM 1/4W 1% 1.000

R912 061V1206330 3F 330K OHM 1/4W 1% 1.000

R917 061V1206332 CHIP 3.3KOHM 1/8W 5% 1.000

R916 061V1206332 CHIP 3.3KOHM 1/8W 5% 1.000

R973 061V1206470 CHIP 47OHM 5% 1/4W 1.000

R915 061V1206472 CHIP 4.7KOHM 5% 1/4W 1.000

R928 061V1206562 CHIP 5.6K OHM 1/4W 1.000

R906 061V1206624 CHIP 620K 5% 1/4W 1.000

R907 061V1206624 CHIP 620K 5% 1/4W 1.000

R901 061V1206684 RST CHIPR 680KOHM +-5% 1/4W 1.000

R902 061V1206684 RST CHIPR 680KOHM +-5% 1/4W 1.000

C911 065T0805102 32 CHIP 1000P 50VX7R 0805 1.000

C927 065T0805102 32 CHIP 1000P 50VX7R 0805 1.000

C913 065T0805103 32 10NF/50V/0805/X7R 1.000

C936 065T0805103 32 10NF/50V/0805/X7R 1.000

28

27" LCD-TV T27013

C910 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C914 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C920 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C965 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C956 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C953 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C939 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C938 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C937 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C935 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C924 065T0805104 32 CHIP 0.1U 50V X7R 1.000

C959 065T0805334 22 0.33UF+-10% 25V X7R 0805 1.000

C946 065T0805471 31 CHIP 470PF 50V NPO 1.000

C958 065T0805471 31 CHIP 470PF 50V NPO 1.000

C912 065T0805474 22 CHIP 0.47UF 25V X7R 1.000

C964 065T1206103B2M6213 CHIP 0.01UF 630V X7R 1.000

D905 093T 6432P LL4148 BY PANJIT 1.000

D906 093T 6432P LL4148 BY PANJIT 1.000

D907 093T 6432P LL4148 BY PANJIT 1.000

D923 093T 6432P LL4148 BY PANJIT 1.000

D924 093T 6432P LL4148 BY PANJIT 1.000

D925 093T 6432P LL4148 BY PANJIT 1.000

D926 093T 6432P LL4148 BY PANJIT 1.000

D929 093T 6432P LL4148 BY PANJIT 1.000

D944 093T 6432P LL4148 BY PANJIT 1.000

D945 093T 6432P LL4148 BY PANJIT 1.000

D946 093T 6432P LL4148 BY PANJIT 1.000

D947 093T 6432P LL4148 BY PANJIT 1.000

D949 093T 6432P LL4148 BY PANJIT 1.000

D950 093T 6432P LL4148 BY PANJIT 1.000

D904 093T 6432P LL4148 BY PANJIT 1.000

ZD921 093T 39S 10 T RLZ6.8B LLDS 1.000

ZD944 093T 39S 15 T RLZ15B 1.000

ZD943 093T 39S 24 T RLZ 5.6B LLDS 1.000

ZD942 093T 39S 33 T PTZ 13B 1.000

ZD931 093T 39S 38 T PTZ 9.1B 1.000

ZD945 093T 39S 41 T RLZ24B LLDS 1.000

ZD946 093T 39S 42 T RLZ27B LLDS 1.000

D901 093T3060 10 ML35PT 1.000

 AD24180A4AI ADAPTER FOR AI 1.000

CN801 033T800913Z H PIN HEADER 1*13 R/A 1.000

C806 067T215B471 3R LOW E.S.R 470UF +/-20% 16V 1.000

C807 067T215B471 3R LOW E.S.R 470UF +/-20% 16V 1.000

C801 067T405V221 4P

 DC1205A3SMT DC TO DC BOARD FOR SMT 1.000

U708 056T 133 33AAC AZ1117H-1.8-E1 1.000

105ć 220UF M 25V

1.000

29

27" LCD-TV T27013

U62 056T 192 10 LM358DT 1.000

U60 056T 535 8 MAX9704 1.000

U21 056T 562600 SVPTMEX52-LF QFP-256 1.000

U702 056T 563 25 AIC1084-33PE 1.000

U709 056T 563 31 AZ1117D-1.8E1 TO-252 1.000

U707 056T 563 31 AZ1117D-1.8E1 TO-252 1.000

U706 056T 563 31 AZ1117D-1.8E1 TO-252 1.000

U700 056T 563 44 AME8815BEGT 250Z SOP-223 1.000

U704 056T 563 44 AME8815BEGT 250Z SOP-223 1.000

U710 056T 585 9 IC AP1117E50LA ANACHIP 1.000

U701 056T 585 4A AP1117E33LA 1.000

U703 056T 585 4A AP1117E33LA 1.000

U705 056T 585 4A AP1117E33LA 1.000

U16 056T 614 1 74HC4052D 1.000

U20 056T 615 9 NO APP EM6A9320BI-5MG 1.000

U22 056T 615105 AS 7C256A-10TIN TSOP-1 1.000

U63 056T 616 3 PT2308S SO-8 PTC 1.000

U50 056T 623 11 SAA7117AE/V2/G BGA-156 1.000

U45 056T 638601 CS4344-CZZ 1.000

U42 056T 642600 SII9011CLU 1.000

U32 056T1125610 M30620SPGP LQFP-100PIN 1.000

U10 056T1133 34 M24C02-WMN6TP 1.000

U40 056T1133 34 M24C02-WMN6TP 1.000

U33 056T1133 78 24LC64 ISNG SOIC(150MIL) 1.000

U11 056T4LVC 14 P 74LVC14ADT 1.000

U44 056T566N600 NDC7002N SOT-6 FAIRCHILD 1.000

U46 056T566N600 NDC7002N SOT-6 FAIRCHILD 1.000

Q10 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q11 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q13 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q20 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q33 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q60 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q704 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q705 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q706 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q708 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q709 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q32 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q61 057T 417 6 PMBS3906/PHILIPS-SMT 1.000

Q31 057T 417 6 PMBS3906/PHILIPS-SMT 1.000

Q14 057T 417 6 PMBS3906/PHILIPS-SMT 1.000

Q12 057T 417 6 PMBS3906/PHILIPS-SMT 1.000

Q702 057T 763 3 AO4411L SO-8 BY AOS SMT 1.000

Q703 057T 763 3 AO4411L SO-8 BY AOS SMT 1.000

Q707 057T 763 3 AO4411L SO-8 BY AOS SMT 1.000

30

27" LCD-TV T27013

Q701 057T 763 3 AO4411L SO-8 BY AOS SMT 1.000

Q700 057T 763 3 AO4411L SO-8 BY AOS SMT 1.000

V47 061T 47 1 VARISTOR EZJZ1V80010 1.000

V46 061T 47 1 VARISTOR EZJZ1V80010 1.000

V45 061T 47 1 VARISTOR EZJZ1V80010 1.000

V44 061T 47 1 VARISTOR EZJZ1V80010 1.000

V43 061T 47 1 VARISTOR EZJZ1V80010 1.000

V42 061T 47 1 VARISTOR EZJZ1V80010 1.000

V41 061T 47 1 VARISTOR EZJZ1V80010 1.000

V40 061T 47 1 VARISTOR EZJZ1V80010 1.000

RN213 061V 125101 8 CHIP ARRAY 100OHM 1/15W 8P4R 1.000

RN212 061V 125101 8 CHIP ARRAY 100OHM 1/15W 8P4R 1.000

RN211 061V 125101 8 CHIP ARRAY 100OHM 1/15W 8P4R 1.000

RN210 061V 125101 8 CHIP ARRAY 100OHM 1/15W 8P4R 1.000

RN207 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN206 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN205 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN204 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN203 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN202 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN201 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN200 061V 125220 8 CHIP ARRAY 22 OHM 1/16W8P4R 1.000

RN32 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN33 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN34 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN35 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN44 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN45 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN46 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN47 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN51 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN52 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN53 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN43 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN40 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN41 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN42 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN31 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN30 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN209 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

RN208 061V 125330 8 CHIP ARRAY 33 OHM 1/16W 8P4R 1.000

R645 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R506 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R505 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R504 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R503 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

31

27" LCD-TV T27013

R502 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R501 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R500 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R401 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R400 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R644 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R633 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R631 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R728 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R614 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R613 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R610 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R510 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R509 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R507 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R148 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R149 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R150 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R155 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R210 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R226 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R301 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R314 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R321 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R380 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R371 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R369 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R362 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R359 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R358 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R357 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R352 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R349 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R345 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R381 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R384 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R385 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R386 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R387 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R391 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R639 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R646 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R647 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R648 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R649 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R305 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

32

27" LCD-TV T27013

R308 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R309 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R319 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R320 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R330 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R336 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R337 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R338 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R339 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R117 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R118 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R207 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R208 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R209 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R219 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R370 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R404 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R515 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R516 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R524 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R641 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R116 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R112 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R361 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R363 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R364 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R411 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R419 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R421 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R602 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R625 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R626 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R630 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R632 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R638 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R723 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R725 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R643 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R642 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R328 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R225 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R220 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R216 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R114 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R113 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R125 061V0603104 CHIPR 100K OHM+-5% 1/10W 1.000

33

27" LCD-TV T27013

R640 061V0603104 CHIPR 100K OHM+-5% 1/10W 1.000

R732 061V0603104 CHIPR 100K OHM+-5% 1/10W 1.000

R122 061V0603105 CHIP 1MOHM 1/16W 1.000

R416 061V0603105 CHIP 1MOHM 1/16W 1.000

R203 061V0603150 CHIP 15 OHM 1/16W 1.000

R204 061V0603150 CHIP 15 OHM 1/16W 1.000

R205 061V0603150 CHIP 15 OHM 1/16W 1.000

R206 061V0603150 CHIP 15 OHM 1/16W 1.000

R124 061V0603184 180K 1/10W 5% 1.000

R120 061V0603184 180K 1/10W 5% 1.000

R374 061V0603202 CHIP 2K OHM 1/16W 1.000

R106 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R107 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R109 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R111 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R322 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R323 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R324 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R327 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R332 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R326 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R360 061V0603221 220 OHM 1.000

R121 061V0603222 CHIPR 2.2K OHM+-5% 1/10W 1.000

R119 061V0603222 CHIPR 2.2K OHM+-5% 1/10W 1.000

R726 061V0603223 CHIP 22KOHM 1/16W 1.000

R721 061V0603223 CHIP 22KOHM 1/16W 1.000

R719 061V0603223 CHIP 22KOHM 1/16W 1.000

R718 061V0603223 CHIP 22KOHM 1/16W 1.000

R637 061V0603243 CHIP 24K OHM 1/10W 1.000

R627 061V0603243 CHIP 24K OHM 1/10W 1.000

R611 061V0603272 CHIP 2.7K OHM 1/16W 1.000

R606 061V0603272 CHIP 2.7K OHM 1/16W 1.000

R628 061V0603273 CHIP 27K OHM 1/16W 1.000

R635 061V0603273 CHIP 27K OHM 1/16W 1.000

R212 061V0603330 CHIP 33 OH 1/16W 1.000

R213 061V0603330 CHIP 33 OH 1/16W 1.000

R311 061V0603330 CHIP 33 OH 1/16W 1.000

R312 061V0603330 CHIP 33 OH 1/16W 1.000

R317 061V0603330 CHIP 33 OH 1/16W 1.000

R318 061V0603330 CHIP 33 OH 1/16W 1.000

R412 061V0603330 CHIP 33 OH 1/16W 1.000

R223 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R417 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R409 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R392 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R390 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

34

27" LCD-TV T27013

R389 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R388 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R383 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R382 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R379 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R378 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R376 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R375 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R373 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R372 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R368 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R367 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R525 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R522 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R425 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R424 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R423 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R422 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R420 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R414 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R406 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R403 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R402 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R395 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R394 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R393 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R366 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R217 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R218 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R302 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R303 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R304 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R315 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R316 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R325 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R333 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R356 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R355 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R350 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R344 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R343 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R342 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R335 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R334 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R331 061V0603473 CHIP 47K OHM 1/16W 1.000

R620 061V0603473 CHIP 47K OHM 1/16W 1.000

35

27" LCD-TV T27013

R621 061V0603473 CHIP 47K OHM 1/16W 1.000

R622 061V0603473 CHIP 47K OHM 1/16W 1.000

R623 061V0603473 CHIP 47K OHM 1/16W 1.000

R624 061V0603473 CHIP 47K OHM 1/16W 1.000

R629 061V0603473 CHIP 47K OHM 1/16W 1.000

R715 061V0603473 CHIP 47K OHM 1/16W 1.000

R716 061V0603473 CHIP 47K OHM 1/16W 1.000

R717 061V0603473 CHIP 47K OHM 1/16W 1.000

R724 061V0603473 CHIP 47K OHM 1/16W 1.000

R202 061V0603510 CHIP 51 OHM 1/16W 1.000

R201 061V0603510 CHIP 51 OHM 1/16W 1.000

R221 061V0603680 CHIP 68 OHM 1/16W 1.000

R222 061V0603680 CHIP 68 OHM 1/16W 1.000

R413 061V0603680 CHIP 68 OHM 1/16W 1.000

R415 061V0603680 CHIP 68 OHM 1/16W 1.000

R519 061V0603680 CHIP 68 OHM 1/16W 1.000

R520 061V0603680 CHIP 68 OHM 1/16W 1.000

R103 061V0603750 CHIP 75OHM 1/16W 1.000

R104 061V0603750 CHIP 75OHM 1/16W 1.000

R105 061V0603750 CHIP 75OHM 1/16W 1.000

R508 061V0603750 CHIP 75OHM 1/16W 1.000

R511 061V0603750 CHIP 75OHM 1/16W 1.000

R513 061V0603750 CHIP 75OHM 1/16W 1.000

R517 061V0603750 CHIP 75OHM 1/16W 1.000

R518 061V0603750 CHIP 75OHM 1/16W 1.000

R729 061V0603752 CHIPR 7.5K 1/10W 1.000

R730 061V0603752 CHIPR 7.5K 1/10W 1.000

R365 061V0603822 CHIP 8.2K OHM 1/16W 1.000

L600 061V0805000 CHIP 0OHM 1/10W 1.000

R100 061V0805000 CHIP 0OHM 1/10W 1.000

R713 061V0805000 CHIP 0OHM 1/10W 1.000

R720 061V0805302 CHIP 3K OHM 1/10W 1.000

R722 061V0805302 CHIP 3K OHM 1/10W 1.000

C107 065T0603101 32 CHIP 100PF 50V X7R 1.000

C118 065T0603101 32 CHIP 100PF 50V X7R 1.000

C305 065T0603101 32 CHIP 100PF 50V X7R 1.000

C306 065T0603101 32 CHIP 100PF 50V X7R 1.000

C309 065T0603101 32 CHIP 100PF 50V X7R 1.000

C610 065T0603101 32 CHIP 100PF 50V X7R 1.000

C615 065T0603101 32 CHIP 100PF 50V X7R 1.000

C629 065T0603101 32 CHIP 100PF 50V X7R 1.000

C632 065T0603101 32 CHIP 100PF 50V X7R 1.000

C633 065T0603101 32 CHIP 100PF 50V X7R 1.000

C410 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C411 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C412 065T0603102 32 CHIP 1000PF 50V X7R 1.000

36

27" LCD-TV T27013

C413 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C418 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C419 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C450 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C449 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C448 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C447 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C446 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C445 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C427 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C426 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C425 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C421 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C420 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C409 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C100 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C122 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C313 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C406 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C407 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C408 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C206 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C207 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C652 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C651 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C650 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C649 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C432 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C400 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C302 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C300 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C214 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C209 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C208 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C205 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C200 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C416 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C417 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C422 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C424 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C429 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C431 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C433 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C441 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C442 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C443 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

37

27" LCD-TV T27013

C444 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C452 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C455 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C505 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C508 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C528 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C414 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C285 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C286 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C287 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C288 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C289 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C290 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C291 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C292 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C293 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C294 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C298 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C307 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C402 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C403 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C404 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C405 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C734 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C735 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C737 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C739 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C741 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C743 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C744 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C745 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C746 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C750 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C754 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C755 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C756 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C758 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C760 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C713 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C732 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C535 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C602 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C603 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C604 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C605 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C628 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

38

27" LCD-TV T27013

C705 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C708 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C710 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C715 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C717 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C719 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C722 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C724 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C727 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C730 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C284 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C225 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C226 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C227 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C228 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C229 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C230 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C232 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C237 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C238 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C242 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C246 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C247 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C249 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C213 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C111 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C112 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C113 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C114 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C116 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C119 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C120 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C121 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C201 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C202 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C203 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C204 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C212 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C250 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C271 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C272 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C273 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C274 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C275 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C276 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C277 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

39

27" LCD-TV T27013

C278 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C279 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C280 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C281 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C282 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C283 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C270 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C253 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C255 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C257 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C258 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C259 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C260 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C261 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C262 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C263 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C265 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C266 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C267 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C269 065T0603104 12 MLCC 0603 0.1UF K 16V X7R 1.000

C234 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C231 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C221 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C218 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C217 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C216 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C143 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C240 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C241 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C251 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C252 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C613 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C621 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C299 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C142 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C110 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C109 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C428 065T0603105 12 CHIP 1UF 16V X7R 1.000

C437 065T0603180 31 CHIP 18PF 50V NPO 1.000

C439 065T0603180 31 CHIP 18PF 50V NPO 1.000

C219 065T0603200 31 CHIP 20PF 50V NPO 1.000

C220 065T0603200 31 CHIP 20PF 50V NPO 1.000

C514 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C513 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C512 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C511 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

40

27" LCD-TV T27013

C510 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C515 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C516 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C517 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C518 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C519 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C520 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C521 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C624 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C612 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C614 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C620 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C509 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C507 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C502 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C501 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C500 065T0603223 32 CHIP 0.022UF 50V X7R 0603 1.000

C503 065T0603271 31 CHIP 270PF 50V NPO 1.000

C532 065T0603271 31 CHIP 270PF 50V NPO 1.000

C529 065T0603271 31 CHIP 270PF 50V NPO 1.000

C525 065T0603271 31 CHIP 270PF 50V NPO 1.000

C534 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C531 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C527 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C506 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C451 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C436 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C244 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C235 065T0603272 32 CHIP 2700PF 50V X7R 1.000

C311 065T0603330 31 CHIP 33PF 50V NPO 1.000

C310 065T0603330 31 CHIP 33PF 50V NPO 1.000

C523 065T0603330 31 CHIP 33PF 50V NPO 1.000

C522 065T0603330 31 CHIP 33PF 50V NPO 1.000

R231 065T0603391 31 CHIP 390PF 50V NPO 1.000

C108 065T0603470 31 CHIP 47PF 50V NPO 1.000

C643 065T0603471 31 CHIP 470PF 50V NPO 1.000

C642 065T0603471 31 CHIP 470PF 50V NPO 1.000

C639 065T0603471 31 CHIP 470PF 50V NPO 1.000

C637 065T0603471 31 CHIP 470PF 50V NPO 1.000

C211 065T0603472 32 CHIP 4700PF 50V X7R 1.000

C210 065T0603472 32 CHIP 4700PF 50V X7R 1.000

C626 065T0603473 32 CHIP 0.047UF 50V X7R 1.000

C123 065T0603473 32 CHIP 0.047UF 50V X7R 1.000

C115 065T0603473 32 CHIP 0.047UF 50V X7R 1.000

C627 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C618 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

41

27" LCD-TV T27013

C616 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C611 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C609 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C124 065T0603474 27 CHIP 0.47UF 25V Y5V 1.000

C117 065T0603474 27 CHIP 0.47UF 25V Y5V 1.000

C297 065T0603680 31 CHIP 68PF 50V NPO 1.000

C296 065T0603680 31 CHIP 68PF 50V NPO 1.000

C530 065T0603681 31 CHIP 680PF 50V NPO 1.000

C533 065T0603681 31 CHIP 680PF 50V NPO 1.000

C504 065T0603681 31 CHIP 680PF 50V NPO 1.000

C526 065T0603681 31 CHIP 680PF 50V NPO 1.000

C430 065T0805105 12 1UF +-10% 6V X7R 1.000

C766 065T0805105 12 1UF +-10% 6V X7R 1.000

C765 065T0805105 12 1UF +-10% 6V X7R 1.000

C648 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C647 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C644 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C638 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C706 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C641 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C636 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C635 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C456 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C440 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C423 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C415 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C401 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C315 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C314 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C304 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C763 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C762 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C761 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C753 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C752 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C751 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C740 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C731 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C725 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C723 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C716 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C707 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C102 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C233 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C236 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C239 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

42

27" LCD-TV T27013

C243 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C245 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C248 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C303 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C301 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C268 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C264 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C256 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C254 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C747 067T 312100 6 SMD EC 10UF 35V 85C 1.000

C308 067T 312101 3 SMD EC 100UF 16V 85C D 1.000

C312 067T 312101 3 SMD EC 100UF 16V 85C D 1.000

C607 067T 312109 7 SMD EC 1UF 50V 85C 1.000

C718 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C711 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C704 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C295 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C721 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C729 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C733 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C736 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C738 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C757 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C759 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C714 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C215 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C435 067T 312339 3T CHIP EC 3.3UF 16V 85C 1.000

C438 067T 312339 3T CHIP EC 3.3UF 16V 85C 1.000

C453 067T 312339 3T CHIP EC 3.3UF 16V 85C 1.000

C454 067T 312339 3T CHIP EC 3.3UF 16V 85C 1.000

C630 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C634 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C640 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C709 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C712 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C726 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C748 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C749 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

LP10 071T 56A121 8T CHIP BEAD ARRAY 120 OHM 1.000

FB200 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB201 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB202 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB203 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB204 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB205 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB206 071T 56G151 A CHIOP BEAD 150 OHM 1.000

43

27" LCD-TV T27013

FB40 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB41 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB42 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB43 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB44 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB11 071T 56G151 A CHIOP BEAD 150 OHM 1.000

FB10 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L203 071T 56G151 B BEAD 0805 150 OHM 1.000

L614 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L615 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L700 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L703 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L705 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L708 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L712 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L715 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L720 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L721 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L722 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L103 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L30 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L704 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L707 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L613 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L612 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L601 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L204 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L102 071T 56U601 BEAD 600 OHM 1.000

L104 071T 56U601 BEAD 600 OHM 1.000

L607 071T 56U601 BEAD 600 OHM 1.000

L608 071T 56U601 BEAD 600 OHM 1.000

L609 071T 56U601 BEAD 600 OHM 1.000

L610 071T 56U601 BEAD 600 OHM 1.000

L611 071T 56U601 BEAD 600 OHM 1.000

L709 071T 56U601 BEAD 600 OHM 1.000

L710 071T 56U601 BEAD 600 OHM 1.000

L711 071T 56U601 BEAD 600 OHM 1.000

L713 071T 56U601 BEAD 600 OHM 1.000

L719 071T 56U601 BEAD 600 OHM 1.000

L101 071T 56U601 BEAD 600 OHM 1.000

L100 071T 56U601 BEAD 600 OHM 1.000

L202 071T 57G601 BEAD 1206 600 OHM 1.000

L201 071T 57G601 BEAD 1206 600 OHM 1.000

L200 071T 57G601 BEAD 1206 600 OHM 1.000

L41 073T253S 6 T GP SMD CHOKE 90 OHM ACM2012D-900 1.000

L40 073T253S 6 T GP SMD CHOKE 90 OHM ACM2012D-900 1.000

44

27" LCD-TV T27013

L43 073T253S 6 T GP SMD CHOKE 90 OHM ACM2012D-900 1.000

L42 073T253S 6 T GP SMD CHOKE 90 OHM ACM2012D-900 1.000

U31 087T 202 32 NY IC SOCKET 32PIN PLCC 1.000

P40 088T 340 19 H HDMI HEADER 1.000

ZD11 093T 39147 TZMC 5V6 1.000

ZD10 093T 39147 TZMC 5V6 1.000

D40 093T 60230 BAT54C BY MCC 1.000

D100 093T 60230 BAT54C BY MCC 1.000

D105 093T 60231 NO APP BAT54S SOT-23 1.000

D104 093T 60231 NO APP BAT54S SOT-23 1.000

D601 093T 64 42 P BAV70 SOT23 1.000

D103 093T 6432V LL4148-GSO8 SMD BY VISHA 1.000

D102 093T 6432V LL4148-GSO8 SMD BY VISHA 1.000

D101 093T 6432V LL4148-GSO8 SMD BY VISHA 1.000

D602 093T 6432V LL4148-GSO8 SMD BY VISHA 1.000

D603 093T 6433P BAV99 1.000

D604 093T 6433P BAV99 1.000

ZD30 093T 39S 60 T MLL5227B 1.000

 715V1616 D2 MAIN BOARD PCB 1.000

U5 056T 133 30AAC AZ1117H-1.8-E1 1.000

U1 056T 133 30AAC AZ1117H-1.8-E1 1.000

U2 056T 585 11 AZ1117D-5.0-E1 1.000

U4 056T 593 8 IC MSP3410G-QI-C12-100 MICRONAS 1.000

U3 056T 638 2 AN15857A QFH064-P-1414H 1.000

Q2 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q1 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q10 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q11 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q3 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q4 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q5 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q6 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q7 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q8 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

Q9 057T 417 4 CHIP PMBS3904 BY PHILIPS 1.000

R35 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R88 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R89 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R90 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R38 061V0603100 CHIP 10 OHM 1/16W 1.000

R41 061V0603100 CHIP 10 OHM 1/16W 1.000

R45 061V0603100 CHIP 10 OHM 1/16W 1.000

R48 061V0603100 CHIP 10 OHM 1/16W 1.000

R53 061V0603100 CHIP 10 OHM 1/16W 1.000

R59 061V0603100 CHIP 10 OHM 1/16W 1.000

R21 061V0603100 CHIP 10 OHM 1/16W 1.000

45

27" LCD-TV T27013

R30 061V0603100 CHIP 10 OHM 1/16W 1.000

R85 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R43 061V0603102 CHIPR 1K OHM+-5% 1/10W 1.000

R99 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R98 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R97 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R96 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R83 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R73 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R80 061V0603112 CHIP 1.1K OHM 1/10W 1.000

R68 061V0603112 CHIP 1.1K OHM 1/10W 1.000

R5 061V0603123 CHIP 12K OHM 1/16W 1.000

R24 061V0603123 CHIP 12K OHM 1/16W 1.000

R66 061V0603181 CHIP 180OHM 1/16W 1.000

R14 061V0603183 CHIP 18K OHM 1/16W 1.000

R32 061V0603183 CHIP 18K OHM 1/16W 1.000

R23 061V0603183 CHIP 18K OHM 1/16W 1.000

R67 061V0603201 CHIP 200 OHM 1/10W 1.000

R76 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R75 061V0603220 CHIPR 22 OHM+-5% 1/10W 1.000

R26 061V0603223 CHIP 22KOHM 1/16W 1.000

R16 061V0603223 CHIP 22KOHM 1/16W 1.000

R12 061V0603223 CHIP 22KOHM 1/16W 1.000

R79 061V0603224 CHIP 220K OHM 1/16W 1.000

R95 061V0603392 CHIP 3.9K OHM 1/16W 1.000

R94 061V0603392 CHIP 3.9K OHM 1/16W 1.000

R82 061V0603392 CHIP 3.9K OHM 1/16W 1.000

R81 061V0603392 CHIP 3.9K OHM 1/16W 1.000

R60 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R54 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R49 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R46 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R42 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R39 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R31 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R22 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R15 061V0603471 CHIPR 470 OHM+-5% 1/16W 1.000

R87 061V0603472 RST CHIPR 4.7KOHM +-5% 1/10W 1.000

R17 061V0603473 CHIP 47K OHM 1/16W 1.000

R4 061V0603473 CHIP 47K OHM 1/16W 1.000

R57 061V0603473 CHIP 47K OHM 1/16W 1.000

R58 061V0603473 CHIP 47K OHM 1/16W 1.000

R109 061V0603473 CHIP 47K OHM 1/16W 1.000

R110 061V0603473 CHIP 47K OHM 1/16W 1.000

R3 061V0603473 CHIP 47K OHM 1/16W 1.000

R20 061V0603473 CHIP 47K OHM 1/16W 1.000

46

27" LCD-TV T27013

R2 061V0603473 CHIP 47K OHM 1/16W 1.000

R19 061V0603473 CHIP 47K OHM 1/16W 1.000

R18 061V0603473 CHIP 47K OHM 1/16W 1.000

R1 061V0603473 CHIP 47K OHM 1/16W 1.000

R72 061V0603681 CHIP 680 OHM 1/16W 1.000

R71 061V0603681 CHIP 680 OHM 1/16W 1.000

R70 061V0603681 CHIP 680 OHM 1/16W 1.000

R69 061V0603681 CHIP 680 OHM 1/16W 1.000

R65 061V0603681 CHIP 680 OHM 1/16W 1.000

R64 061V0603681 CHIP 680 OHM 1/16W 1.000

R13 061V0603750 CHIP 75OHM 1/16W 1.000

R27 061V0603750 CHIP 75OHM 1/16W 1.000

R28 061V0603750 CHIP 75OHM 1/16W 1.000

R36 061V0603750 CHIP 75OHM 1/16W 1.000

R37 061V0603750 CHIP 75OHM 1/16W 1.000

R40 061V0603750 CHIP 75OHM 1/16W 1.000

R44 061V0603750 CHIP 75OHM 1/16W 1.000

R47 061V0603750 CHIP 75OHM 1/16W 1.000

R50 061V0603750 CHIP 75OHM 1/16W 1.000

R51 061V0603750 CHIP 75OHM 1/16W 1.000

R52 061V0603750 CHIP 75OHM 1/16W 1.000

R55 061V0603750 CHIP 75OHM 1/16W 1.000

R86 061V0603750 CHIP 75OHM 1/16W 1.000

R9 061V0603750 CHIP 75OHM 1/16W 1.000

R8 061V0603750 CHIP 75OHM 1/16W 1.000

R7 061V0603750 CHIP 75OHM 1/16W 1.000

R63 061V0603750 CHIP 75OHM 1/16W 1.000

R62 061V0603750 CHIP 75OHM 1/16W 1.000

R61 061V0603750 CHIP 75OHM 1/16W 1.000

R56 061V0603750 CHIP 75OHM 1/16W 1.000

R10 061V0603750 CHIP 75OHM 1/16W 1.000

R11 061V0603750 CHIP 75OHM 1/16W 1.000

R106 061V0603912 CHIP 9.1K OHM 1/16W 1.000

R105 061V0603912 CHIP 9.1K OHM 1/16W 1.000

R101 061V0805220 CHIP 22 OHM 5% 0805 1/8W 1.000

C11 065T0603101 31 CHIP 100PF 50V NPO 1.000

C99 065T0603101 32 CHIP 100PF 50V X7R 1.000

C130 065T0603102 31 CHIP 1000PF 50V NPO 1.000

C129 065T0603102 31 CHIP 1000PF 50V NPO 1.000

C119 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C120 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C16 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C17 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C18 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C3 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C4 065T0603102 32 CHIP 1000PF 50V X7R 1.000

47

27" LCD-TV T27013

C5 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C59 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C60 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C74 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C75 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C112 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C111 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C110 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C109 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C108 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C132 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C133 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C20 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C29 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C30 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C31 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C32 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C34 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C35 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C62 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C63 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C68 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C73 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C13 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C107 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C106 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C83 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C92 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C98 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C2 065T0603222 32 CHIP 2200PF 50V X7R 1.000

C15 065T0603222 32 CHIP 2200PF 50V X7R 1.000

C14 065T0603222 32 CHIP 2200PF 50V X7R 1.000

C1 065T0603222 32 CHIP 2200PF 50V X7R 1.000

C64 065T0603470 31 CHIP 47PF 50V NPO 1.000

C65 065T0603470 31 CHIP 47PF 50V NPO 1.000

C66 065T0603470 31 CHIP 47PF 50V NPO 1.000

C103 065T0603471 31 CHIP 470PF 50V NPO 1.000

C102 065T0603471 31 CHIP 470PF 50V NPO 1.000

C97 065T0603471 32 CHIP 470PF 50V NPO 1.000

C82 065T0603471 32 CHIP 470PF 50V NPO 1.000

C72 065T0603471 32 CHIP 470PF 50V NPO 1.000

C77 065T0603473 32 CHIP 0.047UF 50V X7R 1.000

C76 065T0603473 32 CHIP 0.047UF 50V X7R 1.000

C128 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C127 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C126 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

48

27" LCD-TV T27013

C125 065T0603474 17 CHIP 0.47UF 16V Y5V 1.000

C43 065T0603474 27 CHIP 0.47UF 25V Y5V 1.000

C41 065T0603474 27 CHIP 0.47UF 25V Y5V 1.000

C90 065T0603509 31 CHIP 5PF 50V NPO 1.000

C89 065T0603509 31 CHIP 5PF 50V NPO 1.000

C88 065T0603560 31 CHIP 56PF 50V NPO 1.000

C87 065T0603560 31 CHIP 56PF 50V NPO 1.000

C86 065T0603560 31 CHIP 56PF 50V NPO 1.000

C24 065T0603680 31 CHIP 68PF 50V NPO 1.000

C23 065T0603680 31 CHIP 68PF 50V NPO 1.000

C22 065T0603680 31 CHIP 68PF 50V NPO 1.000

C58 065T0603680 31 CHIP 68PF 50V NPO 1.000

C57 065T0603680 31 CHIP 68PF 50V NPO 1.000

C56 065T0603680 31 CHIP 68PF 50V NPO 1.000

C9 065T0603680 31 CHIP 68PF 50V NPO 1.000

C8 065T0603680 31 CHIP 68PF 50V NPO 1.000

C7 065T0603680 31 CHIP 68PF 50V NPO 1.000

C6 065T0603680 31 CHIP 68PF 50V NPO 1.000

C10 065T0603680 31 CHIP 68PF 50V NPO 1.000

C105 065T0805105 17 CHIP IUF 16V Y5V 1.000

C104 065T0805105 17 CHIP IUF 16V Y5V 1.000

C48 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C49 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C50 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C51 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C52 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C53 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C54 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C55 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C78 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C79 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C80 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C81 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C47 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C46 065T0805225 17 CHIP 2.2UF 16V Y5V 1.000

C37 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C38 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C39 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C40 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C42 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C44 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C61 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C67 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C94 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C141 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C140 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

49

27" LCD-TV T27013

C139 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C138 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C95 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C93 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C85 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C70 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C69 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C36 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C26 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C21 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C19 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C121 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C12 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C101 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C100 067T 312100 3 SMD EC 10UF 16V 85C B 1.000

C45 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C131 067T 312220 3 SMD EC 22UF 16V 85C 1.000

C96 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C91 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C84 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C71 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C33 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C28 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

C27 067T 312470 3 SMD EC 47UF 16V 85C D 1.000

L16 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L15 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L19 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L20 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L25 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L26 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L27 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L5 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L6 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L7 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L8 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L9 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L14 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L21 071T 56G151 A CHIOP BEAD 150 OHM 1.000

R6 071T 56G151 A CHIOP BEAD 150 OHM 1.000

L34 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L17 071T 56G301 EA CHIP BEAD 300 OHM 0805 1.000

L2 071T 56U601 BEAD 600 OHM 1.000

L22 071T 56U601 BEAD 600 OHM 1.000

L23 071T 56U601 BEAD 600 OHM 1.000

L24 071T 56U601 BEAD 600 OHM 1.000

L28 071T 56U601 BEAD 600 OHM 1.000

50

27" LCD-TV T27013

L29 071T 56U601 BEAD 600 OHM 1.000

L3 071T 56U601 BEAD 600 OHM 1.000

L30 071T 56U601 BEAD 600 OHM 1.000

L31 071T 56U601 BEAD 600 OHM 1.000

L32 071T 56U601 BEAD 600 OHM 1.000

L35 071T 56U601 BEAD 600 OHM 1.000

L36 071T 56U601 BEAD 600 OHM 1.000

L37 071T 56U601 BEAD 600 OHM 1.000

L38 071T 56U601 BEAD 600 OHM 1.000

L4 071T 56U601 BEAD 600 OHM 1.000

L18 071T 56U601 BEAD 600 OHM 1.000

L13 071T 56U601 BEAD 600 OHM 1.000

L12 071T 56U601 BEAD 600 OHM 1.000

L11 071T 56U601 BEAD 600 OHM 1.000

L10 071T 56U601 BEAD 600 OHM 1.000

L1 071T 56U601 BEAD 600 OHM 1.000

ZD17 093T 39147 TZMC 5V6 1.000

ZD11 093T 39147 TZMC 5V6 1.000

ZD10 093T 39147 TZMC 5V6 1.000

ZD18 093T 39147 TZMC 5V6 1.000

ZD19 093T 39147 TZMC 5V6 1.000

ZD20 093T 39147 TZMC 5V6 1.000

ZD5 093T 39147 TZMC 5V6 1.000

ZD7 093T 39147 TZMC 5V6 1.000

ZD8 093T 39147 TZMC 5V6 1.000

ZD9 093T 39147 TZMC 5V6 1.000

D10 093T 6432V LL4148-GSO8 SMD BY VISHA 1.000

 715V1542 E TUNER BOARD PCB 1.000

C3 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C2 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

C1 065T0603103 32 CHIP 0.01UF 50V X7R 1.000

FB3 071T 56U601 BEAD 600 OHM 1.000

FB2 071T 56U601 BEAD 600 OHM 1.000

FB1 071T 56U601 BEAD 600 OHM 1.000

 715T1290 1 5 PCB FOR HJPF 1.000

Q6 057T 417 6 PMBS3906/PHILIPS-SMT 1.000

R43 061V0603101 CHIPR 100 OHM+-5% 1/10W 1.000

R45 061V0603103 CHIPR 10K OHM+-5% 1/10W 1.000

R46 061V1206102 CHIP 1K OHM 5% 1/8W 1.000

R44 061V1206152 CHIP 1.5KOHM 5% 1/8W 1.000

C43 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C41 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C42 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C39 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C40 065T0805475 A5 CHIP 4.7UF 10V X5R 1.000

FB6 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608 1.000

51

27" LCD-TV T27013

FB7 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608 1.000

FB8 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608 1.000

D6 081T 14 15 KB KAA-3528CGKSYKC-01-AOC SMA 1.000

 715T1453 1 I IR BOARD PCB 1.000

CN1 033T8032 4C WAFER 1.25MM SMT 4P 1.000

R5 061V0603000 CHIPR 0OHM +-5% 1/10W 1.000

R4 061V0603100 1F CHIP 1KOHM 1/10W 1% 1.000

R2 061V0603180 1F CHIP 1.8K OHM 1/16W 1% 1.000

R1 061V0603220 1F 2.2K OHM 1% 1/10W 1.000

R8 061V0603220 2F CHIP 20K OHM 1/16W 1% 1.000

R6 061V0603330 1F Chip 3.3KOHM +-1% 1/10W 1.000

R3 061V0603390 0F CHIP 390 OHM 1/16W 1.000

R7 061V0603680 1F CHIP 6.8KOHM 1% 1/10W 1.000

C1 065T0603101 32 CHIP 100PF 50V X7R 1.000

C2 065T0603101 32 CHIP 100PF 50V X7R 1.000

L1 071T 56U601 MA 0805 600 OHM 1.000

L2 071T 56U601 MA 0805 600 OHM 1.000

S1 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

S2 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

S3 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

S4 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

S5 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

S6 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

S7 077T 604 2 TO CHIP TACT SW TS-9-TMG-533 1.000

D1 093T 6433P BAV99 1.000

 715T1623 1 KEY BOARD PCB 1.000

CN901 006V 31500 EYELET 2.000

T951 006V 31502 1.5MM RIVET 4.000

T921 006V 31502 1.5MM RIVET 4.000

NR902 006V 31502 1.5MM RIVET 2.000

NR901 006V 31502 1.5MM RIVET 2.000

L906 006V 31502 1.5MM RIVET 4.000

L904 006V 31502 1.5MM RIVET 4.000

C941 065T 1M103 3T6921 0.01uf 20% 1000V Y5V 1.000

 715T1180 3 POWER BOARD PCB 1.000

J935 095T 90 23 TIN COATED 1.000

J919 095T 90 23 TIN COATED 1.000

J918 095T 90 23 TIN COATED 1.000

J917 095T 90 23 TIN COATED 1.000

J916 095T 90 23 TIN COATED 1.000

J915 095T 90 23 TIN COATED 1.000

J914 095T 90 23 TIN COATED 1.000

J913 095T 90 23 TIN COATED 1.000

J912 095T 90 23 TIN COATED 1.000

J911 095T 90 23 TIN COATED 1.000

J925 095T 90 23 TIN COATED 1.000

52

27" LCD-TV T27013

J924 095T 90 23 TIN COATED 1.000

J923 095T 90 23 TIN COATED 1.000

J922 095T 90 23 TIN COATED 1.000

J921 095T 90 23 TIN COATED 1.000

J920 095T 90 23 TIN COATED 1.000

J926 095T 90 23 TIN COATED 1.000

J927 095T 90 23 TIN COATED 1.000

J928 095T 90 23 TIN COATED 1.000

J931 095T 90 23 TIN COATED 1.000

J933 095T 90 23 TIN COATED 1.000

J934 095T 90 23 TIN COATED 1.000

J901 095T 90 23 TIN COATED 1.000

J902 095T 90 23 TIN COATED 1.000

J904 095T 90 23 TIN COATED 1.000

J905 095T 90 23 TIN COATED 1.000

J906 095T 90 23 TIN COATED 1.000

J907 095T 90 23 TIN COATED 1.000

J908 095T 90 23 TIN COATED 1.000

J909 095T 90 23 TIN COATED 1.000

J910 095T 90 23 TIN COATED 1.000

R938 061T 17247152T 470OHM 5% 1/4W 1.000

R966 061T 60110252T 1K OHM +-2% 1/6W 1.000

R937 061T 60168152T 680 OHM +-2% 1/6W 1.000

L951 071T 55 23 S FERRITE BEAD K-TYPE 1.000

L921 071T 55 23 S FERRITE BEAD K-TYPE 1.000

F901 084T 55 4 FOSE 382-5A 250V SICKMANN 1.000

IC943 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC 1.000

IC923 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC 1.000

Q947 057T 419501 T KTC945P 1.000

Q945 057T 419501 T KTC945P 1.000

Q948 057T 420501 T KTA733P 1.000

Q946 057T 420501 T KTA733P 1.000

Q926 057T 566 1 2N5060RLRAG TO-92 BY ON 1.000

C908 065T517M103 3T 0.01UF 20% 500V Y5P 1.000

C909 067T 2151007NT 10UF 50V NCC 5*11MM 1.000

C923 067T 2151007NT 10UF 50V NCC 5*11MM 1.000

C957 067T 2151007NT 10UF 50V NCC 5*11MM 1.000

C925 067T 2154707NT 47UF 50V NCC 5*11MM 1.000

C944 067T 2154707NT 47UF 50V NCC 5*11MM 1.000

C945 067T 2154707NT 47UF 50V NCC 5*11MM 1.000

IC801 056T 133 32 NS LM3485 1.000

Q801 057T 763 3 AO4411L SO-8 BY AOS SMT 1.000

R803 061V0603200 2F CHIP 20K OHM 1/16W 1% 1.000

R801 061V0603360 2F chip 36k ohm 1/10w 1% 1.000

R802 061V0603620 2F CHIP 62K OHM 1/16W 1% 1.000

R804 061V1206220 CHIP 22OHM 5% 1/8W 1.000

53

27" LCD-TV T27013

C803 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C804 065T0603102 32 CHIP 1000PF 50V X7R 1.000

C809 065T0603104 32 CHIP 0.1UF 50V X7R 1.000

C805 065T0603471 31 CHIP 470PF 50V NPO 1.000

C808 065T0805102 32 CHIP 1000P 50VX7R 0805 1.000

C810 065T0805102 32 CHIP 1000P 50VX7R 0805 1.000

C802 065T0805105 22 CHIP 1UF 25V X7R 0805 1.000

L801 073T M5822020T 22UH +-20% 1.000

D801 093T8004 2 SBM84PT 1.000

 715V1278 4 PCB 1.000

54

27" LCD-TV T27013

A

5. Repair Flow Chart

Defect Mode Failure Analysis Repair Testing

Abnormal

Display

Missing Line

Bright Dot

Dark Dot

Light Leakage

Mura

Image Sticking

Dot Defect

Brightness Spot

Dot Defect

Particle

No display Check Power Board

Check Panel

Panel Change

Change Power Board

Noise

Check Main board

Check Panel

Check Keyboard

Check Line Connected Power board and Minored

Check Main board

Check Panel

Next Step

Change Main board

Change Panel

Change Keyboard

Change Wires

Change Main board

Change Panel

Test

NG

Completed

55

27" LCD-TV T27013

A

Noise Check Single Cable Change Single Cable

Flicker Check Main board Change Main board

Change Panel

Change Main board

Change Panel

Change LVDS Cable

Change Panel

Abnormal Gray

R\G\B Display Abnormal

Check Panel

Check Main board

Check Panel

Check LVD Cable

Check Single Cable Change Single Cable

Check Main board Change Main board

Check Panel

Monitor

Shut Down

No signal Check Single Cable Change Single Cable

Power on Display

bnormal

Check Power board Change Power board

Check Main board

Check Keyboard Change Keyboard

Check Main board

Change Main board

Next Step

Test

A

56

Complete

27" LCD-TV T27013

A

LED Display Abnormal

Abnormal Keyboard

LED Off

LED Dark

LED Abnormal

LED Flicker

Check Wires

Check Main board

Check Keyboard

Change Keyboard or Main board or wire

Change Keyboard or Main board

Change Keyboard or Main board or wire

Change Wires

Change Main board

Change Keyboard

Abnormal OSD

Check Main board

Check LVDS Wire

Change Main board

Change LVDS Wire

Next step

Test

Complete

57

27" LCD-TV T27013

Key Board

OSD is unstable or not working

N

Is Key Pad Board connecting normally?

Y

Connect Key Pad Board

Is Button Switch normally?

Y

Is Key Pad Board Normally?

Y

Check Main Board

N

Replace Button Switch

Replace Key Pad Board

58

27" LCD-TV T27013

6. PCB Layout

6.1 Main Board

715V1616 D2

59

27" LCD-TV T27013

60

27"LCD-TV T27013

6.2 Power Board

715V1278 4

715T1180 3

61

27" LCD-TV T27013

62

27" LCD-TV T27013

6.3 Tuner Board

715T1542 1

6.4 IR Board

715T1453 1 I

63

27" LCD-TV T27013

6.5 Headphone Board

715T1290 1 5

64

ʳ

(

27”

Panel

A29040BL

Flash memory

CPU

M30620SPGP

Inverter

Trident

EX52Scalar

De-interlace

OSD

TxT/CC

Board

Power

(Built in)

DC Output

AC 110/240 V

DDR

EM6A9320BI-5MG

MAX9704

AMPLIFIER

PT2308S

Headphone driver

MSP3410G

Audio Decoder

Earphone Speaker

Audio

IR/LED Board

Key PAD Board

27” Main Board Block Diagram (EU)

Tuner

Philips

CVBS

Y/C

Panasonic

Selector

AN15857A



Audio

65

SAA7117A

Video Decoder

Video (24bits R/G/B)

Sil9011

27" LCD-TV T27013

7. Block Diagram

7.1 Main board

ANT

SCART1 (CVBS)

SCART2 (CVBS/Y/C)

S-VIDEO

All Mode Audio

HDMI

VGA RGB

Component

SCART1 (RGB)

ʳ

66

27" LCD-TV T27013

7.2 Power Board

ʳ

1.0

12

715T1616-D

1

Tuesday, November 29, 2005

DVI/HDMI_MUX

Title

Size Document Number Rev

A4

Date: Sheet of

AOC (Top Victory) Electronics Co., Ltd.

67

3

1 2

D107

ǂ

3

D106

4.7K

U12

24LC02MWN

123

BAV99

R130

R129

678

VCC

VCLK

NCNCNC

SCL

1 2

D109

MLL5232B 5.6V

C1C2C3C4C5

2526272829

A_RED

A_BLUE

A_GREEN

DVI = Option

32

SHELL2

A_GND1

A_HSYNC

DVI_V

ǂ

R147 10K

DATA1-

DATA1+

A_VSYNC

D5V

+5V

GND

DATA3-

DATA3+

H_PLUG_DET

DATA1/3_SHLD

DATA0-

DATA5-

DATA0+

DATA0/5_SHLD

DATA5+

CLK_SHLD

24

CLK+

CLK-

D108

BAV70

2

1

1234567891011121314151617181920212223

31

C132

0.1uF

DATA2-

DATA4-

DATA2+

P10

SHELL1

DATA4+

DDC_CLK

DDC_DATA

DATA2/4_SHLD

3

DVCC

ǂ

VSS SDA

R136 1K

4 5

5V

5V_SB

DVCC

C125 0.1uF

715V1616 D2

27" LCD-TV T27013

8.1 Main Board

8. Schematic Diagram

ʳ

CONN

432

NC

R123

ST5V

3.3V_SB

8

ǂ

0

R155

LP10

300 OHM

CN12

C1210.1uF

C1200.1uF

C1190.1uF

C118100pF

KEY_AD

6,12

5V_SB

CN13

AOC (Top Victory) Electronics Co., Ltd.

MAIN-ON 12

ST5V

ǂ

R100 0 1/10W

123

CONN

Nov.28

PCR

PCL

SRS_R 9

SRS_L 9

SRS_R/L to exchange

135791113151719212325272930

246

8

101214161820222426

C143 0.1uF

C142 0.1uF

5VSW

12VSW

HDMI_L7

S/PDIF7

HDMI_R7

VEE

1234567

C144 100pF

18

765

L103 600 OHM

ST5V

5V

REMOTE6,12

+

1687

C102

10uF/16V

VDD GND

CN11

L102 600 OHM

L101 600 OHM

INV_PRO6

SD1 6,7,12

RX 6

Y0Y1Y2

BL_ADJ3,6

4610

CONN

ǂ

R118 1K

ǂ

R117 1K

5V

ISP_SW 6

5V_SB

9

A

B

Y3

EN

123456789

C110

Power Connect

0.1uF

GSOG 8

FUN_2 6,8

FUN_1 6,8

CVBS2 8

EX_C 4

SAAC 8

SAAY 8

CVBS1 4

SD16,7,12

SC16,7,12

SCART1_FB8

EX_Y 4

0.1uF

C109

3132

3334

3536

28

COMP_R4

COMP_B4

COMP_Y4

CN10 I/O

SCART_B8

SCART_R8

SCART_G8

+20V

+12VP

U16 74HC4052D

101112

+5VP

SC1 6,7,12

TX 6

12141511152

X0X1X2

X3

X

Y

3

13

1

12

2

I/O

Tuesday, November 29, 2005

Custom

Title

Size Document Number Rev

Date: Sheet of

NC

TxD

0.1uF

74LVC14

U11

0.1uF

C112

BAT54C

RxD

FB

C116

0.1uF

3.3V_SB

ǂ

2.2K 1/16W

R119

Q10

PMBS3904

32

1

ǂ

C114

0.1uF

R121 2.2K

SCART1_FB

Detect_VGAVS 6

ǂ

C113 0.1uF

3

ǂ

R113 10K

R115 NC

VGA_VS

ǂ

R114 10K

R116 1K

732

U10 24LC02

856

1

NC2

NC1

NC0

VCLK

VCC

SDA

SCL

GND

I2C Address: 1010 000x

4

VGA_SCL

VGA_SDA

8-pin, 300mil DIP with socket

32

Q11

PMBS3904

1

23

ǂ

R120 180K 1/16W

3.3V_SB

Q12

PMBS3906

1

2

3

VGAVS

To mcu

C117

0.47uF/50V

ǂ

R122

1M

1

D104

BAT54S

C115

0.047uF

VGA_VSIN 4

VGA_HSIN 4

DET_FB 6

SC1_FB 4

VGA_RIN 4

VGA_GIN 4

VGA_BIN 4

ǂ

R148 0 1/16W

R149 0 1/16W

12345

678910

12345

678

GG

1617

DB15

R102

R101

1112131415

RxD

VGA_SDA_IN

NC

1 2

FB11

P11

3.3V_SB

ǂ

R150 0 1/16W

D103MLL4148

R10575

D102MLL4148

R10475

D101MLL4148

R10375

TxD

9

10

VGA_HS

VGA_VS

150 OHM

FB10 150 OHM

ǂ

VGA_SCL_IN

1 2

ZD11

MLL752A

R10722

R10622

ZD10

MLL752A

ǂ

R110 NC

R109 22

1A 1Y

2A 2Y

1 2

3 4

5 6

VGAVS

VGAHS R108 NC

ǂ

VGAHS6,12

VGAVS6,12

C111

ǂ

R112 1K

R111 22

714

GNDVCC

74LVC14

3A 3Y

4A 4Y

5A 5Y

6A 6Y

9 8

11 10

13 12

FB

3.3V_SB

2

1

D100

5V

C108

47pF

C107

100pF

27" LCD-TV T27013

PCL

C122

L104 600 OHM

Detect_VGAHS 6

Q13

PMBS3904

32

1

23

ǂ

R124 180K 1/16W

3.3V_SB

0.001uF

12534

Q14

PMBS3906

1

2

3

VGAHS

P12

C124

R125

1

C123

C100

PC_AUDIO

0.47uF/50V

ǂ

100K

D105

BAT54S

0.047uF

PCR

0.001uF

68

600 OHM

L100

ʳ

1

12

MPUGPIO3

1

10

0

1

AD[0..7] 6

AD[0..7]

AD1

AD0

AD2

11121315161718

Extra SRAM

D0D1D2D3D4D5D6

A0A1A2A3A4A5A6A7A8A9A10

U22

AS7C256A

9876543

10

A2

A0

A1

A[0..7]

MCU_A[0..7]6

AD3

A3

C283

C282

C281

C280

C279

C278

AD4

A4

AD5

A5

0.1uF

AD6

A6

AD7

19

A7

D7

252421

A8

A11

A10

A9

5V-1_CPU

C292

28

14

VCC

GND

A11

A12

A13

A14

/CE

232261202227

A14

A12

A13

RD#6

CS16

A[8..14]

A[8..14]6

VDDMQ

C291

0.1uF

C290

0.1uF

C289

0.1uF

C288

0.1uF

C287

0.1uF

C286

0.1uF

/OE

0.1uF

/WE

WR#6

C293

0.1uF

VDDM

5V

ǂ

R216 10K

VDDMQ

4.7K 1/16W

ǂ

R218

Q20

4.7K 1/16W

ǂ

R217

CS 6

MPUGPIO4

MPUGPIO1

SVP-EX52_256

BL_ADJ 2,6

C294

0.1uF

2 3

1

PMBS3904

ǂ

R220

10K 1/16W

C295

22uF/16V

ǂ

R219

1K 1/16W

EX-PWM

188 189 190 191 193

NC

192

VSSR

141

VDDR

139

VSSM

83

VSSM

80

VSSM

87

VSSM

101

VSSM

98

VSSM

105

VSSM

116

VSSM

121

VSSM

129

VSSM

132

VSSM

151

VSSM

158

VSSM

155

VSSM

169

VSSM

176

VSSM

173

VDDM

77

VDDM

81

VDDM

85

VDDM

95

VDDM

99

VDDM

103

VDDM

119

VDDM

124

VDDM

134

VDDM

136

VDDM

153

VDDM

157

VDDM

161

VDDM

171

VDDM

175

VDDM

179

MD0

MD1

7375767884868890919394

U21A

MD1

MD2

MD0

MD2

MD3

17

MPUGPIO4 MPUGPIO3 MPUGPIO2 MPUGPIO1 MPUGPIO0

MD3

MD4

18

P_17

MD4

MD5

ǂ

68 1/16W

R221

SDA_EX

FLD/IO

MD5

MD6

MD7

3V_SCL 7,8

3V_SDA 7,8

ǂ

68 1/16W

R222

ǂ

RN210 100

SCL_EX

1614203

SCL

SDA

MD7

MD8

MD9

MD8

*CS1N is not a input or output pin

C297

68pF

C296

68pF

AD[0..7] 6

5V_SB

AD7

AD1

AD4

AD3

AD2

AD0

AD5

AD6

MPUCS0N

ǂ

100

1 8

2 7

3 6

4 5

1 8

2 7

3 6

4 5

RN211

WR_EMU 6

ALE_EMU 6

INT# 6

RD_EMU 6

RD#

217

218

WR#

219

220

ALE

MPUCS0N

15

INT#

202

A_D7

201

A_D6

200

A_D5

197

A_D4

196

A_D3

195

A_D2

194

A_D1

216

A_D0

(1 of 2)

SVP-EX [256]

MD10

MD11

MD12

MD13

MD14

MD15

MD16

MD17

MD18

MD19

MD20

MD21

MD22

MD23

MD24

96

102

104

106

108

148

150

152

154

160

162

163

165

166

168

MD23

MD14

MD15

MD16

MD17

MD18

MD19

MD20

MD21

MD22

MD24

MD25

MD10

MD11

MD12

MD13

MPUGPIO2

0

*CS1N

OUTPUT

1

15V0

1

MPUCS0N

CS1N=0: SVP-EX CPU access enabled

CS1N=1:SVP-EX CPU access disabled

Connector for Amtel AT76C112 Video Output

0

1

MPUGPIO0

INPUT

1

01

0

1

MPUGPIO1

0.1uF

V5SF

MD25

170

MD26

12

MD26

172

MD27

C298

RST_H 6

ǂ

R223 470

13

RESET

TESTMODE

MD27

MD28

MD29

MD30

178

180

181

183

MD29

MD28

MD30

MD31

147

MD31

79

DQM0

R224

BA0 5

BA1 5

145

BA0

BA1

DQM0

DQM1

97

DQM1

NC

CLKE 5

144

CLKE

DQM2

159

DQM2

WE# 5

142

WE#

DQM3

177

DQM3

MVREF CAS# RAS# CS1# CS0# MCK0# MCK0

ADDR0 ADDR1 ADDR2 ADDR3 ADDR4 ADDR5 ADDR6 ADDR7

MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MA11

DQS3 DQS2 DQS1 DQS0

MPUGPIO4

MPUCS0N

RAS# 5

MVREF 5

CAS# 5

140 138 137 135 133 131 130

ǂ

100

RN213

206 207 208 209 210 211 212 213

ǂ

100

RN212

126

MA0

125

MA1

123

MA2

122

MA3

120

MA4

118

MA5

117

MA6

115

MA7

114

MA8

112

MA9

111

MA10

109

MA11

174

DQS3

156

DQS2

100

DQS1

82

DQS0

DQS[0..3]5

3

SVP-EX256_1

Tuesday, November 29, 2005

Title

0

ǂ

multiplex

I2C Address:

10K

I2C Address:

7C/7D

Size Document Number Rev

7E/7F

VD3_3

Not

Populated

B

Date: Sheet of

AOC (Top Victory) Electronics Co., Ltd.

R226

MPU has

Data/Address

ǂ

R225

MPU has

separated

Address/Data

69

MCLK0 5

CS0# 5

MCLK0# 5

1 8

MCU_A0

2 7

MCU_A1

3 6

MCU_A2

4 5

MCU_A3

1 8

MCU_A4

2 7

MCU_A5

3 6

MCU_A6

4 5

MCU_A7

MA[0..11]5

MCU_A[0..7]6

C277

VDDMQ

C276

0.1uF

VDDMQ

C285

C284

0.1uF

MD[0..31]5

DQM[0..3]5

27" LCD-TV T27013

ʳ

1 2 3 4 5

CMO-27"

6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

CONNECTOR for PANEL

21 22 23 24

CN20

R200 NC

LCS6

Low color shift on = Vcc

ǂ

RN208 33

3 6

4 5

TXOUT3+

TXOUT3-

2 7

TXCLK+

1 8

TXCLK-

ǂ

RN209 33

4 5

2 7

3 6

TXOUT2+

TXOUT2-

TXOUT1+

1 8

TXOUT1-

ǂ

33

R212

TXOUT0+

OD_SEL

6

ǂ

R213 33

TXOUT0-

C215

22uF/16V

+

C216

0.1uF

300 OHM

L204

PVDD10

May.05

OD_SEL for CMO 32"

60 Hz = Low

50 Hz = High

1

12

CVBS1 2

C299 0.1uF

C241 0.1uF

CVBS_2

CVBS_1

AVSS_ADC1

EX_Y 2

C251 0.1uF

Y

VD1_8

VD3_3

C252 0.1uF

C

EX_C 2

NC

R236

NC

R235

NC

R234

AOC (Top Victory) Electronics Co., Ltd.

C266

VD3_3

0.1uF

P_40

P_41

C250

C265

P_50

C249

0.1uF

P_51

P_38

P_33

P_24

4

SVP-EX256_2

Tuesday, November 29, 2005

Custom

Title

Size Document Number Rev

Date: Sheet of

0.1uF

P_25

P_32

COMP_R 2

C221 0.1uF

PR_R1

NC

C224

NC

C223

C231 0.1uF

Y_G2

C230

C229

C228

C227

VGA_GIN 2

NC

R230

NC

R229

NC

R228

C240 0.1uF

C234 0.1uF

PR_R2

PB_B2

VA1_8

12

L2002.2uH

0.1uF

AVSS_ADC3

AVSS_ADC2

C233

C232

AVDD_ADC1

10uF/16V

0.1uF

COMP_B 2

COMP_Y 2

NC

R233

NC

R232

NC

R231

C218 0.1uF

C217 0.1uF

Y_G1

PB_B1

VGA_BIN 2

VGA_RIN 2

TXOUT0+

TXOUT0-

P_36

P_37

P_35

TXOUT1-

TXOUT2-

TXOUT1+

P_34

P_31

VD3_3

Pin 56

TXOUT2+

TXCLK-

P_29

P_30

CLK_2EX

CLK_2EX7,8

TXCLK+

P_27

P_28

ǂ

1K

R209

TXOUT3+

TXOUT3-

P_26

DIN[0..23]7,8

24

P_24

25

P_25

26

P_26

27

P_27

28

P_28

29

P_29

30

P_30

31

P_31

32

P_32

33

P_33

34

P_34

35

P_35

36

P_36

37

P_37

38

P_38

39

P_39

40

P_40

41

P_41

42

DIN19

43

DIN18

44

DIN17

45

DIN16

46

DIN15

47

DIN14

48

DIN13

49

DIN12

50

P_50

51

P_51

52

DIN11

53

DIN10

54

DIN9

55

DIN8

56

CLK_2EX

57

DIN7

58

DIN6

59

DIN5

60

DIN4

61

DIN3

62

DIN2

63

DIN1

64

DIN0

U21B

56T126-10

SVP-EX52_256

CVBS_1 for TV

SC1_FB 2

DE_2EX 7

DHS_2EX 7,8

VGA_HSIN 2

DVS_2EX 7,8

DIN21

72

DIN20

DE

DIN20

VGA_VSIN 2

PR_R1

PB_B1

Y_G1

246

232

225

212223

10

11

V

MLF1

H

MLF1

6

PLF2

VD1_8

PLF2

AIN_HS

VDDC

983

AIN_VS

VDDC

67

VDDC

107

VDDC

113

PR_R1

VDDC

143

Y_G1

VDDC

149

ǂ

R211 NC

R210 0 1/16W

P_24 P_25 P_26 P_27 P_28 P_29 P_30 P_31 P_32 P_33 P_34 P_35 P_36

P_37 P_38 P_39 P_40 P_41 P_42 P_43 P_44 P_45 P_46 P_47 P_48 P_49 P_50 P_51 P_52 P_53 P_54 P_55 P_56 P_57 P_58 P_59 P_60 P_61 P_62 P_63 P_64

DIN23

DIN22

697071

DIN22

DIN21

DIN23

CVBS_2 for AV

Y

C

PB_B2

PR_R2

Y_G2

CVBS_1

CVBS_2

AIN_N3

AIN_N1

AIN_N2

242

243

CVBS1

244

CVBS3

CVBS2

249

247

245

231

C

AIN_N3

AIN_N2

AIN_N1

226

PB_B1

248

PR_R2

233

Y_G2

236

PB_B2

237

CVBS_OUTP

CVBS_OUTN

(2 of 2)

SVP-EX [256]

VDDC

167

VDDC

184

VDDC

198

VDDC

214

VDDC

251

VDDC

VSSC

68

VSSC

928974

VSSC

110

VSSC

146

VSSC

164

VSSC

182

VSSC

185

VSSC

215

199

250

VREFP_3

VREFN_3

223

VREFP_3

224

VREFN_2

229

VREFP_2

230

VREFN_1

240

VREFP_1

241

VDDL

128

VDDH

19

VDDH

65

VDDH

186

VDDH

204

AVDD3_AVSP2

234

AVDD_ADC3

221

AVDD_ADC2

227

AVDD_ADC1

238

PDVDD

252

PAVDD

254

PAVDD1

2

PAVDD2

5

VSSL

127

VSSH

20

VSSH

66

VSSH

187

VSSH

205

AVSS3_BG_ASS

235

AVSS_ADC3

222

AVSS_ADC2

228

AVSS_ADC1

239

PDVSS

253

PAVSS

255

PAVSS1

4

PAVSS2

7

XTALI

256

XTALO

1

14.318MHz

VREFN_1

VREFN_2

VREFP_2

VDDL

VSSL

X20

VREFP_1

EX3V3_SB

VDDH

AVDD3_AVSP2 AVDD_ADC3 AVDD_ADC2 AVDD_ADC1

PDVDD

PAVDD

PAVDD1 PAVDD2

VSSH

AVSS3_BG_ASS AVSS_ADC3 AVSS_ADC2 AVSS_ADC1

PDVSS

PAVSS

PAVSS1 PAVSS2

20pF

C220

C219

20pF

C226

0.1uF

C222 NC

C225

0.1uF

VL1_8

AVSS_ADC1

VD1_8

FB202

1 2

VDDL

PAVDD1

FB201

1 2

150 OHM

C239

C238

MLF1

C235 2700pF

C237

C236

150 OHM

VA1_8

10uF/16V

0.1uF

VSSL

PAVSS1

0.1uF

10uF/16V

12

L2012.2uH

C243

C242

AVDD_ADC2

VL1_8

FB204

1 2

PDVDD

PAVDD2

FB203

1 2

10uF/16V

0.1uF

AVSS_ADC2

150 OHM

C248

C247

PLF2

C244 2700pF

C246

C245

150 OHM

VA1_8

10uF/16V

0.1uF

PDVSS

PAVSS2

0.1uF

10uF/16V

12

L2022.2uH

C254

C253

AVDD_ADC3

VL1_8

FB200

1 2

PAVDD

VD1_8

10uF/16V

0.1uF

AVSS_ADC3

150 OHM

C256

C255

VD3_3

FB205

1 2

AVDD3_AVSP2

10uF/16V

0.1uF

PAVSS

0.1uF

C262

0.1uF

C261

0.1uF

C260

C259

0.1uF

C258

0.1uF

C257

0.1uF

150 OHM

C264

C263

VD3_3

FB206

10uF/16V

0.1uF

AVSS3_BG_ASS

150 OHM

1 2

C268

C267

VDDH

3.3V_SB

Power saving ?

C275

VSSH

10uF/16V

0.1uF

VSSH

0.1uF

C274

0.1uF

C273

0.1uF

C272

0.1uF

C271

0.1uF

C270

0.1uF

C269

70

L203 600 OHM

0.1uF

EX3V3_SB

R215 NC

27" LCD-TV T27013

ʳ

1

12

MCLK0 3

MCLK0

DQM[0..3] 3

0.01uF

C200

R201

ǂ

51 1/16W

CS0# 3

BA0 3

BA1 3

RAS# 3

MA[0..11]3

Each MD trace must be equal length.

Each DQS trace must be equal

length.

MCLK0# 3

R202

ǂ

MCLK0#

51 1/16W

WE# 3

CLKE 3

CAS# 3

MCLK0

MCLK0#

MA11 MA10

MA9 MA8 MA7 MA6 MA5 MA4 MA3 MA2 MA1 MA0

B10 G10 K12 K11 L3 M2 L2 G3 B3 K8 L9

L11 L10 M11 K2 K1 L1 M1 M3 L4

L6 K5 L7 M10 M9 M8 L8 M7 M6 L5 M5 M4

DQS[0..3] 3

DQS0

ǂ

R203 15

DDQS0

DQ31

DQ30

A7B8A8A9B12

DQ31

NC_B10 NC_G10 NC_K12 NC_K11

NC_L3

NC_M2

NC_L2

NC_G3

NC_B3 RFU3 RFU2

CK#

CK

CKE WE#

CAS# RAS#

CS# BA0 BA1

A11 A10

A9

A8_AP A7 A6 A5 A4 A3 A2 A1 A0

DQ0

A6B5A5A4B1

DQ0

DQ1

DQ29

DQ30

DQ1

DQ2

DQS1

ǂ

R204 15

DDQS1

DQ28

DQ27

DQ29

DQ28

DQ2

DQ3

DQ4

DQS2

ǂ

R205 15

DDQS2

DQ26

DQ25

C11

DQ27

DQ26

DQ4

DQ5

C2C1D1

DQ6

DQ5

C12

DQ25

DQ6

DQS3

ǂ

R206 15

DDQS3

DQ24

D12

DQ24

DQ7

DQ15

DQ14

E11

E12

DQ15

DQ16

E2E1F2

DQ17

DQ16

DQ13

F11

DQ14

DQ17

DQ18

MD[0..31] 3

ǂ

RN201 22 1/16W

DQ12

F12

DQ13

DQ18

F1

DQ19

MD0

4

5

DQ23

DQ11

H11

DQ12

DQ19

H2

DQ20

MD2

MD1

DQ22

DQ20DQ22

VDDMQ

DQ9

DQ10

H12

J11

DQ11

DQ10

DQ20

DQ21

J1

H1

DQ21

MD4

MD3

DQ21

DQ8

DQ9

MD7

MD6

MD8

MD5

123

4

123

ǂ

5

876

RN202 22 1/16W

DQ19

DQM2

DQM3

J12

A11

G11

DQ8

DM3

DM1

DQ18

R207

876

DQ17

DQ16

ǂ

1K 1/16W

C201

DDQS2

DDQS3

G12G1

A12

DQS3

0.1uF

DQS1DQS2

4

ǂ

5

RN200 22 1/16W

DQ7

MVREF 3

M12L12

VREFMCL

4M x 32 DDR

DQS0

DQ22

DQ23

DM0

DM2

J2

A1

A2

G2

DQM0

DDQS0

DQM1

DDQS1

DQ23

MD11

MD14

MD12

MD10

MD9

DQ6

123

ǂ

876

RN203 22 1/16W

DQ5

DQ4

ǂ

R208

1K 1/16W

C202

0.1uF

B2B4B6B7B9

VDDQ

MD13

4

5

DQ2

DQ3

B11D2D11E3F3

VDDQ

DQ1

VDDQ

FBGA 144

VSSQ

A3

C3C4C5C8C9

A10

C10

MD15

123

876

DQ0

VDDQ

VSSQ

D5

D8

ǂ

RN204 22 1/16W

VDDQ

VSSQ

E4

MD17

MD16

4

5

DQ29

DQ31

H3J3E10

VDDQ

VSSQ

E9F4F9

MD18

DQ30

VDDQ

VSSQ

MD19

123

876

DQ28

VDDMQ

F10

H10

VDDQ

VSSQ

G4G9H4

ǂ

RN205 22 1/16W

J10

VDDQ

VSSQ

MD20

4

5

DQ27

VDDQ

VSSQ

J4

MD21

DQ26

VSSQ

H9

MD22

DQ25

VSSQ

J9

MD23

123

ǂ

876

RN206 22 1/16W

DQ24

U20

EM6A9320BI

VDD VDD VDD VDD VDD VDD VDD VDD

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

MD24

4

5

DQ15

C7 C6 D10 D3 K10 K7 K6 K3

H8 H7 H6 H5 G8 G7 G6 G5 F8 F7 F6 F5 E8 E7 E6 E5

D9 D7 D6 D4 J8 J7 J6 J5 K9 K4

MD25

DQ14

VDDM

MD26

DQ13

MD27

123

876

DQ12

MD28

4

ǂ

5

RN207 22 1/16W

DQ10

MD31

MD30

MD29

123

876

SVP-EX_DDR

DQ8

DQ9

MEMORY DECOUPLING SCHEME

DQ11

Title

0.01uF

0.1uF

4700pF

0.01uF

0.1uF

Size Document Number Rev

B

AOC (Top Victory) Electronics Co., Ltd.

C214

C213

VDDM

C212

C211

C210

C209

C208

C207

C206

C205

DDR VDDMQ / VDDM de-caps

C204

VDDMQ

C203

5

Tuesday, November 29, 2005

Date: Sheet of

71

TP206

TP_T_C30

TP208

TP_T_C30

TP207

RAS#

TP_T_C30

CS0#

WE#

TP209

TP_T_C30

TP210

TP_T_C30

TP200

TP_T_C30

TP201

TP_T_C30

MCLK0

TP202

TP_T_C30

DDQS0

TP203

TP_T_C30

DQM0

TP204

TP_T_C30

DQ23

TP205

TP_T_C30

CAS#

Test pads for DDR

27" LCD-TV T27013

ʳ

AD[0..7] 3

When use W29C040,use R404 and

R400;R398 and R399 are

When use W27E040,use R398 and

R399;R400 and R404 are

Option.

W27E040

Socket = 87L 202-32

MCU_A[0..7] 3

RN214~RN218

A[8..14] 3

A[0..7]

TP307

TP306

TP305

TP304

TP303

TP302

TP301

TP300

5V-1_CPU

RST# 7

ǂ

R301 0

Reset SIL9011..

1

2

CN31

CONN

AD0

AD1

AD2

ǂ

1 8

2 7

3 6

RN30 33

Option.

A29040BL-70F

U31

A0A1A2A3A4A5A8

121110

ǂ

2 7

3 6

4 5

-->RN31~RN35

RN32 33

A0

A2

A1

A9

A10

A8

A7

A6

A5

A4

A3

A2

A1

A0

R304

ǂ

R303

ǂ

R3024.7K

ǂ

R305 100

Detect_VGAVS2

AD3

4 5

987

1 8

A3

A11

C301 10uF/16V

AD5

AD4

1 8

2 7

19131415171820

ǂ

3 6

4 5

RN33 33

A4

A5

A12

4.7K

R306 NC

Q5Q0Q1Q2Q3Q4Q6

VGAVS2,12

AD7

AD6

ǂ

3 6

4 5

RN31 33

PS

Q7

OE#

CE#

A11

A6A9A13

A10

5

6

27

25

262823

ǂ

1 8

2 7

3 6

4 5

1 8

2 7

RN34 33

A6

A8

A9

A7

A10

A11

A15

A13

A14

5V-1_CPU

ǂ

R307 NC

R308 100

ǂ

R309 100

RX_INT#7

VGAHS2,12

BL_ADJ2,3

3.3V_SB

5V-1_CPU

R310 NC

132242221

VPP

VCC

A12A7A14

4

ǂ

1 8

2 7

RN35 33

A13

A12

A16

A7

A6

A5

A4

A3

A2

A1

A0

ǂ

100

R387

PWR_ON10,12

CONN

29

3 6

A14

RST_H 3

ǂ

0

R314

1

2

CN32

C303

10uF/16V

0.01uF

C302

W27E040 USED

A15

A16

A17

A18 GND

3

2

30

31 16

ǂ

4 5

R311 33

R312 33

A17

A15

A18

A16

A17

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

ǂ

R389

ǂ

R388

Reset EX52

C304

10uF/16V

NC

R313

W27E040 USED

P4_1/A17

P4_0/A16

P3_7/A15

P3_6/A14

P3_5/A13

P3_4/A12

P3_3/A11

P3_2/A10

P3_1/A9

Vcc2

P3_0/A8

Vss

P1_4

P1_3

4.7K

R316

4.7K

R3154. 7K

5V-1_CPU

WR# 3

ǂ

33

R318 33

R317

ǂ

R321 0 1/16W

A[8..18]

A18

5049484746

P4_2/A18

P4_3/A19

P2_7/A7/D7

P2_6/A6/D6

P2_5/A5/D5

P2_4/A4/D4

P2_3/A3/D3

P2_2/A2/D2

P2_1/A1/D1

P2_0/A0/D0

P1_7/INT5

P1_6/INT4

P1_5/INT3

P1_2

P1_1

767778

RST

4.7K

ǂ

100

R319

R320

Detect_VGAHS2

ǂ

R322 22 1/16W

P4_4/CS0

P1_0

AD7

SCDT7

RD_EMU 3

RD# 3

WR

TP309

CS1 3

CS 3

TP308

ǂ

R323 22 1/16W

P4_5/CS1

P4_6/CS2

P0_6/AN0_6

P0_7/AN0_7

AD6

ǂ

22 1/16W

R324

5V-1_CPU

ǂ

R325 4.7K 1/16W

45

P4_7/CS3

P0_5/AN0_5

AD5

VD3_3

WR_EMU 3

ǂ

R326

22 1/16W

P5_0/WR

P0_4/AN0_4

AD3

AD4

ǂ

R328

10K 1/16W

TP310

RD

ǂ

R327 22 1/16W

P5_2/RD

P5_1/BHE

P0_2/AN0_2

P0_3/AN0_3

AD2

P5_3/BCLK

P0_1/AN0_1

85848382818079

AD1

RST_H 3

NC

Q30

2 3

ǂ

1

R330 100

5V-1_CPU

R335

ǂ

R334

R331 47K

ALE_EMU 3

5V-1_CPU

TP311ALE

RST_HDMI

ǂ

R333 4.7K 1/16W

R332 22 1/16W

363738394041424344

P5_6/ALE

P5_7/RDY

P5_4/HLDA

P5_5/HOLD

P6_0/CTS0/RTS0

U32

M30620SPGP

P10_4/AN4

P10_5/AN5

P10_6/AN6

P10_7/AN7

P0_0/AN0_0

ǂ

4.7K

AD0

R385 100 1/16W

R395

R394 4.7K

R384 100 1/16W

5V-1_CPU

FUN_22,8

FUN_12,8

ǂ

4.7K

ǂ

4.7K

RST_EX52

35

P6_1/CLK0

P10_3/AN3

ǂ

R350 4.7K

R345 100

EAR_DET9

SC1 2,7,12

ǂ

R337 100 1/16W

P6_2/SCL0

P10_2/AN2

92919089888786

DET_FB2

ǂ

100 1/16W

R339

ǂ

100 1/16W

R336

SD1 2,7,12

C306

C305

323334

P6_3/SDA0

P6_4/CTS1/RTS1

Avss

P10_1/AN1

9493969798

ǂ

R338 100 1/16W

KEY_AD2,12

5V-1_CPU

5V_SB

100pF

123456789

ǂ

R300 0

5V-1_CPU

TX2

RX 2

ǂ

R383

4.7K

TX

RX

ǂ

R382

4.7K

100

R381 100

R380

INV_PRO 2

SCLE

SDAE

313028

P6_5/CLK1

P10_0/AN0

95

R340 NC

CE_REMOTE7

P6_6/RXD1

Vref

R341 NC

29

P6_7/TXD1

Avcc

5V-1_CPU

27

P7_1/SCL2

P7_0/SDA2

P9_7/ADTRG

P9_6

99

26

P7_2/TA1out

P9_5

100

E_PAGE

1

12

SCLE

15pF

3.3V_SB

INT_A 8

ǂ

R362 100 1/16W

5V-1_CPU

+

100uF/16V

ZD30

E_PAGE

ǂ

VCC

A0A1A2

123

Q31

PMBS3906

C312

ǂ

8.2K

R365

MLL5227B

PAGE

ǂ

4.7K

R378

R3684.7K

R3674.7K

ǂ

R3664.7K

3.6V

SDAE

ǂ

100 1/16W

R369

678

SCL

4 5

RST_7117

ǂ

5V-1_CPU

ǂ

R370 1K 1/16W

RST_7117 8

ǂ

100 1/16W

R371

GND SDA

1000pF

C313

Q33

1

RST

10uF/16V

U30 24C64

PMBS3904

2 3

ǂ

R379 4.7K

5V-1_CPU

CPU_RST

C314

24LC64

U33

6

MCU

856473

SCL

SDA

VCC

VCLKNC2

GND

NC1

NC0

2

1

RST#

ǂ

4.7K

R372

3.3V_SB

Q32

ǂ

5V-1_CPU

R373

4.7K

ǂ

R376

4.7K 1/16W

5V_SB

SC1

R375

ǂ

4.7K 1/16W

1

Top View

VD3_3

3

VCC

GND

RESET

1

2

VD3_3

R377

NC

RST_H3

CPU_RST

1

2

CN34 CONN

Tuesday, November 29, 2005

Custom

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

Date: Sheet of

2 3

1

ǂ

2K

PMBS3904

R374

RST_HDMI

SC1 2,7,12

SD1 2,7,12

SD1

123

CN30

3

2

C316

NC

72

CONN

NC

U34

ASM810SEUR-T

Reset MCU

C315 10uF/16V

C308

+

100uF/16V

0.1uF

C307

600 OHM

L30

2.54mm

CN33

CONN

10

CPU_RST

PANPWR_ON 10

SRS_CTL 9

5V-1_CPU

ǂ

100

R352 100

R349

R3444.7K

ǂ

5V

R343

ǂ

4.7K

ǂ

R342

ǂ

4.7K

R393 4.7K

NC

R347

P7_3/TA1in

25

P7_4/TA2out

24

P7_5/TA2in

23

P7_6/TA3out

22

P7_7/TA3in

21

P8_0/TA4out

20

P8_1/TA4in

19

P8_2/INT0

18

P8_3/INT1

17

P8_4/INT2

16

P8_5/NIM

15

Vcc1

14

Xin

13

Vss

12

Xout

11

Reset

10

P8_6/Xcout

9

P8_7/Xcin

8

CNVss

7

BYTE

6

P9_0/TB0in

5

P9_1/TB1in

4

P9_2/TB2in

3

P9_3/DA0

2

P9_4/DA1

1

R3924.7K

ǂ

R354NC

R346NC

R3904.7K

ǂ

NC

100

5V-1_CPU

R348

R391

ISP_SW2

DVI_HDMI to P1

Option

5V-1_CPU

R353

C309

X30

10.000MHZ

R351 NC

OD_SEL4

R36410K 1/16W

R36310K 1/16W

R36110K 1/16W

C300 0.01uF

NC

INT# 3

REMOTE 2,12

MUTE 9

ǂ

R359 100 1/16W

R358 100 1/16W

R357 100 1/16W

100pF

4.7K

ǂ

R356

C311

C310

R355

ǂ

4.7K

5V-1_CPU

ǂ

R360 220

ǂ

100

R386

LCS4

27" LCD-TV T27013

ʳ

1

12

of

7

HDMI_ SIL9011

Tuesday, November 29, 2005

A3

Title

Size Document Number Rev

Date: Sheet

RX3V_DDC_SDA

1234

G1S2G2D2

S1

D1

NDC7002N

5

6

RX_DDC_SDA

RX_DDC_SCL

RX3V_DDC_SCL

+

C456

10uF/16V

Close loop to GND

C455

0.1uF

+

C454

3.3uF/16V

73

3V3S

D40

C413

C412

C411

C410

C409

C408

C407

C406

C405

C404

C403

C402

C401

BAT54C

5V

1000pF

0.1uF

10uF/16V

RX_INT#6

SCDT6

3

2

DE_2EX 4

4

5

ǂ

R401 0

RX3V_DDC_SDA

RST#6

C414

0.1uF

R4034.7K

R4024.7K

1

P40 HDMI_con

DHS_2EX 4,8

CLK_2EX 4,8

DVS_2EX 4,8

ǂ

123

876

RN46 33

119 128 1 127

118 106 97 78 69 30 18 6 120 107 98 77 68 31 19 7

91

90

89

41 42

RX3V_DDC_SCL

U42

RX3V_DDC_SCL1

RX3V_DDC_SDA1

ǂ

0

R400

732

VCLK

VCC

U40

856

ǂ

IN_5V

ǂ

RX_DDC_SDA

R404 1K

+5V

GND

HP DET

SHELL2

SHELL4

21

23

35

QO7

QO6

QO5

QO4

QO3

QO2

QO1

QO0

ODCK

HSYNC

VSYNC

DE

OGND OGND OGND OGND OGND OGND OGND OGND OVCC OVCC OVCC OVCC OVCC OVCC OVCC OVCC

INT

SCDT

RESET#

DSDA DSCL

RXC-

RXC+

RX0-

RX0+

ANTSTO

48

RX1-

5051545558596263495357615256606447466682658386

QO8

RX1+

QO9

QO10

RX2-

QO11

RX2+

QO12

15

QO13

14

QO14

AVCC

QO15

AVCC

11

QO16

AGND

QO17

AGND

QO18

AGND

QO19

AGND

QO20

23458910

QO23

QO22

QO21

SiI 9011

128-Pin LQFP

PVCC

PGND

1617202122

23

26272829323334

SiI 9011

C425

1000pF

10uF/16V

3V3S

1 2

RXC-

4

5

RX_C-

C424

FB41 150 OHM

C422

RX0-

RXC+

RX_0-

RX_C+

C423

0.1uF

RX0+

123

876

RX_0+

1000pF

0.1uF

10uF/16V

RXC+

RX0+

RX0-

RXC-

1

NC2

NC1

NC0

SDA

SCL

GND

24LC02

I2C Address: 1010 000x

8-pin, 300mil DIP with socket

4

CE_REMOTE 6

RX_0-

RX_C-

RX_C+

NC

CE Remote

CK-

CK+

CK Shield

RX_0+

D0-

D0 Shield

RX_DDC_SCL

DDC CLK

DDC DATA

RX_1-

D0+

RX1-

D1-

RX1+

RX_2-

RX_1+

D2-

D1+

D1 Shield

RX2+

RX2-

RX_2+

12345678910111213141516171819

D2 Shield

22

D2+

SHELL1

SHELL3

20

3V3S

1 2

C421

C420

C419

C418

C417

C416

C415

FB40 150 OHM

1000pF

0.1uF

DIN[0..23] 4,8

VR1_8

RN48

3V_SDA 3,8

ǂ

4.7K

R423

3V3S

1234

0.1uF

C451

R422

ǂ

10K 1/16W

ǂ

270K 1/16W

ǂ

4.7K

1000pF

10uF/16V

R421

ǂ

10K 1/16W

2700pF

G1S2G2D2

U44

S1

D1

NDC7002N

5

6

SD12,6,12

SC12,6,12

AOC (Top Victory) Electronics Co., Ltd.

3V_SCL3,8

ǂ

R425

4.7K 1/16W

3V3S

U46

ǂ

R424

4.7K 1/16W

CI2CA

High,0x62/0x6A

Low,0x60/0x68 (Default)

3V3S

NC

R405

R406

ǂ

4.7K 1/16W

FB44

C453

150 OHM

3.3uF/16V

1 2

CS4344

U45

AUDIO_R

10

VA

GND

AOUTR

LRCK

SDIN

DEM/SCLK

12345 6

IIS_DATA

IIS_WS

IIS_SCK

+

C452

0.1uF

AUDIO_L

789

AOUTL

MCLK

VQ FILT+

MCLK

5V_A

DIN15

ǂ

123

876

RN41 33

BIN7

114

QE7

XTALVCC

87

1 2

RX1-

4

5

RX_1-

DIN1

DIN0

ǂ

4

5

RN42 33

GIN1

GIN0

111

110

QE8

REGVCC

VR1_8

C432

C431

C430

C400

C429

C428

150 OHM

FB43

RX2-

RX1+

RX_1+

RX_2-

DIN2

GIN2

109

QE9

45

C433 0.1uF

RX2+

123

876

RX_2+

DIN3

123

876

GIN3

108

QE10

QE11

VPP

0.01uF

0.1uF

1uF/16V

0.01uF

0.1uF

1uF/16V

DIN4

4

5

GIN4

105

QE12

RN49

DIN5

GIN5

104

QE13

CI2CA

38

CI2CA

V47

V46

V45

V44

ǂ

10 1/16W

DIN7

DIN6

123

876

GIN6

GIN7

103

102

QE14

MUTE

677970

TP40

1pF

DIN16

DIN17

ǂ

4

5

RN43 33

RN44 33

RIN0

RIN1

101

100999695949392

QE15

QE16

SPDIF

71

R407 NC

C434 NC

R408

S/PDIF2

DIN18

RIN2

QE17

SD3

NC

DIN19

123

876

RIN3

QE18

SD2

DIN20

4

5

RIN4

QE19

QE20

SD1

876

123

IIS_DATA

DIN21

RIN5

QE21

IIS_WS

DIN23

DIN22

123

876

RIN7

RIN6

QE22

SCKWSSD0

7675747372

5

4

MCLK

IIS_SCK

ǂ

RN45 33

QE23

MCLK

CSDA CSCL

TEST

NC

GND GND GND GND GND GND VCC VCC VCC VCC VCC VCC

PWR5V

XTALIN XTALOUT

ǂ

RN47 33

39 40

88

43

126 113 80 37 25 13 125 112 81 36 24 12

44

85 84

HDMI_L 2

ǂ

470

R409

C435

3.3uF/16V

+

AUDIO_L

3V_SDA 3,8

3V_SDA

3V_SCL

ǂ

R413 68 1/16W

ǂ

R412 33 1/16W

RXO

C437 18pF

ǂ

R411

10K 1/16W

C436

R410

3V_SCL 3,8

ǂ

R415 68 1/16W

ǂ

R414 4.7K

2700pF

ǂ

270K 1/16W

R416

VR1_8

X40

28.322MHz

ǂ

1M 1/16W

C450

C449

C448

C4471000pF

C4461000pF

C4451000pF

C4440.1uF

C443

C4420.1uF

C4410.1uF

C440

C439 18pF

HDMI_R 2

ǂ

470

R417

C438

3.3uF/16V

+

AUDIO_R

ǂ

R420 4.7K 1/16W

IN_5V

R419

R418

DIN10

DIN8

DIN11

DIN12

DIN14

DIN13

DIN9

ǂ

4

123

4

5

876

5

RN40 33

BIN2

BIN4

BIN0

BIN6

BIN1

BIN5

BIN3

124

123

122

121

117

116

115

QE0

QE1

QE2

QE3

QE4

QE5

QE6

DVCC

DVCC2

DGND

DGND2

C427

1000pF

C426

1000pF

150 OHM

FB42

3V3S

1pF

V43

V42

1pF

V41

V40

1pF

ǂ

10 1/16W

27" LCD-TV T27013

ʳ

1

12

0.1uF

GSOG 2

ǂ

R501 0 1/16W

C501 0.022uF

AI11

SCART_R 2

ǂ

R503 0 1/16W

C502 0.022uF

AI21

SCART_G 2

ǂ

R505 0 1/16W

R504 0 1/16W

C507 0.022uF

C509 0.022uF

AI31

AI41

C528

C527

2700pF

680pF

C526

C525

SAAC 2

ǂ

R507 0 1/16W

C512 0.022uF

AI22

CVBS2 2

ǂ

R509 0 1/16W

C514 0.022uF

AI14

SCART1_FB 2

ǂ

R510 0 1/16W

AI34

NC

R512

AI33

FUN_2 2,6

FUN_1 2,6

DIN[0..23] 4,7

ǂ

NC

R516 1K 1/16W

R514

R515 1K 1/16W

DIN0

DIN3

DIN2

DIN1

876

5

ǂ

33

RN53

123

4

X2

X1

X3

AI43

X0

DIN4

DIN5

876

RN52 33 ǂ123

X4

X5

VDDA3.3DIN6

X6

DIN7

5

4

X7

SCART_B 2

SAAY 2

ǂ

R506 0 1/16W

C510 0.022uF

AI12

270pF

CLK_2EX 4,7

876

RN51 33 ǂ123

XCLK

DHS_2EX 4,7

HS_VPC

DVS_2EX 4,7

5

4

VS_VPC

VDDA1.8

R521 NC

ICLK

C531

C530

C529

2700pF

680pF

270pF

8

SAA7117A

Tuesday, November 29, 2005

C535

C534

C533

C532

Title

0.1uF

2700pF

680pF

270pF

Size Document Number Rev

B

Date: Sheet of

CLK_2EX 4,7

DHS_2EX 4,7

DVS_2EX 4,7

Option

123

4

876

5

RN50 NC

LLC

IGPH

IGPV

AOC (Top Victory) Electronics Co., Ltd.

VDD1.8

VDDA3.3

VDDA1.8

VDD3.3

VDD1.8

C506

C505

C504

C503

ǂ

0

R502

2700pF

0.1uF

680pF

270pF

M11 M8 M4 J12 D12 C9 C5

E2 G2 J1 L1 D4 F4 H4 K4 M3

P2 N2

M9 M5 H12 F12 C10 C8 B3

C508

0.1uF

VDDD6 VDDD5 VDDD4 VDDD3 VDDD2 VDDD1 VDDD0

VDDA4A VDDA3A VDDA2A

VDDA1A VDDA4 VDDA3 VDDA2 VDDA1 VDDA0

VXDD

VDDA18_1 VDDA18_0

VDD18_5 VDD18_4 VDD18_3 VDD18_2 VDD18_1 VDD18_0

AI11

J2

AI11

AI12

K1

AI12

M1

AOUT

AI13

AI14

K2L3K3

AI14

C511 0.022uF

L14

K13

N12

IGP0

IGP1

AI1D

AI21

G4G3H2J3H1

AI22

AI21

C513 0.022uF

ǂ

R508 75

ICLK

M14

L13

ICLK

ITRDY

AI22

AI23

C516 0.022uF

C515 0.022uF

IGPH

IGPV

K14

K12

IDQ

IGPV

IGPH

AI24

AI2D

AI31

E3F2F3G1F1

AI31

C517 0.022uF

ǂ

R511 75

G14

G12

IPD0

AI32

AI33

AI34

C518 0.022uF

H11

H14

IPD1

IPD2

AI34

AI3D

B1

AI41

C519 0.022uF

ǂ

R513 75

H13

J14

IPD3

IPD4

AI41

AI42

D2

D1E1D3

AI43

C520 0.022uF

J13

K11

IPD5

IPD6

U50

AI43

AI44

C521 0.022uF

0.022uF

C500

D14

E11

IPD7

HPD0

SAA7117AE

AI4D

FSWCEITRI

N4

L12

M13

ǂ

R500 0

R518 NC

AI34

ǂ

RST_71176

R517 75

E13

E12

HPD1

HPD2

HPD3

XTRI

B11N9P10

ǂ

68 1/16W

E14

HPD4

SCL

R519

3V_SCL3,7

F13

F14

HPD5

SDA

ǂ

R520 68 1/16W

3V_SDA3,7

G13

HPD6

HPD7

XTALI

B4A3A2

XCLK

A6B7A7D8C7

XDQ

XRDY

XTAL

XTOUT

X50

HS_VPC

VS_VPC

XRV

XRH

XCLK

RES1

RES2

B2

B13

B14

24.576MHz

X2

X3

X0

X1

A8B8A9B9A10

XPD0

XPD1

XPD2

RES3

RES4

RES5

RES6

C3

C4

C12

C13

C523

C522

NC

L50

X4

XPD3

RES7

N1

33pF

X5

B10

XPD4

RES8

N3

XPD5

RES10

X7

X6

N8P8M7L7P7N7L6M6P6

A11

C11

XPD6

XPD7

ADP0

RES11

RES12

TEST0

P13

N13

N14

D13

C524 NC

ADP1

ADP2

TEST1

TEST2

C14

A13

ADP3

ADP4

TEST3

TEST4

B12

A12

ADP5

ADP6

TEST5

R522

ADP7

ADP8

TRST

C6B6D6

ǂ

4.7K 1/16W

LLC

P4N5M10

LLC

TCK

TMS

A5B5P3

Option

VDD3.3

LLC2

TDO

N10

L10P9P5

RTS0

RTS1

TDI

EXMCLR

M12

NC

R523

INT_A 6

RTCO

INT_A

RESO

AMXCLK

ALRCLK

ASCLK

P12

N11

ǂ

1K 1/16W

R524

AMCLK

P11

CLKEXT

N6

VDD3.3

ǂ

R525

4.7K 1/16W R526

NC

Option

VSSD13

L9

VSSD12

L5

VSSD11

J11

VSSD10

F11

VSSD9

D10

VSSD8

D7

VSSD7

L11

VSSD6

L8

VSSD5

L4

VSSD4

G11

VSSD3

D11

VSSD2

D9

VSSD1

D5

VXSS

A4

VSSA4

C1

VSSA3

E4

VSSA2

H3

VSSA1

J4

VSSA0

M2

AGNDA

L2

AGND

C2

Logic 0 for 24.576MHz

Logic 1 for 32.11MHz

74

Logic 0 for slave address 42h/43h and 4Ah/4Bh

Logic 1 for slave address 40h/41h and 48h/49h

27" LCD-TV T27013

ʳ

1.0

12

9

AUDIO

Tuesday, November 29, 2005

Custom

Title

Size Document Number Rev

Date: Sheet of

Speaker = 78T 447-1-L/R

75

L601 300 OHM

V20SW

ǂ

R602 10K 1/16W

ǂ

R638 10K 1/16W

C603

C605

C602

C604

0.1uF

+

0.1uF

C606

470uF/25V

0.1uF

24 23

22 21

4 3

2 1

R604

0.01uF

C651

ǂ

R648 100

C621

0.01uF

C620

L605 15uH

252728

OUTR-

OUTR+

/SHDN

INR-G1G2

11

C618

0.47uF/16V

C652 0.01uF

R649

0.1uF

OUTR-

18

ǂ

100

0.01uF

C624

L606 15uH

Audio_R-

ǂ

R639 100

6

C1P

SS

12

C6260.47uF

D602

32

D601

BAV70

C628

0.1uF/16V

5

C1N

REG

14

C627

0.47uF/

MLL4148

1

3

2

AGND

13

Q61

PMBS3906

Q60

PMBS3904

1

R640

C629

56T535-8

U60 MAX9704

3 2

ǂ

100K

L600

0 OHM

470pF

5V_A

ǂ

R641 10K

600 OHM

L609

L608

EAR_R

12345

600 OHM

L610 600 OHM

EAR_L

EAR_DET

EAR_DET6

CN61 CONN

Earphone Jack

C633

100pF

C632

470pF

2.5Vref

ǂ

R621 47K 1/16W

L611 600 OHM

5V_A

R623

+

C636

10uF/16V

+

C635 10uF/16V

300 OHM

ǂ

47K 1/16W

C637 470pF

L612

R627

ǂ

47K 1/16W

CN62

CONN

123

Audio_L-

Audio_L+

2

IN_R

C639 470pF

L613 300 OHM

PRE_R

R644

C647

1

-

ǂ

R628 47K 1/16W

C638

2.2uF/16V

CN60

2

C642 470pF

300 OHM

L614

3

ǂ

100

2.2uF/16V

+

3

4.0V

CONN

1

Audio_R-

Audio_R+

12

D603 BAV99

ǂ

100K

R631

C643 470pF

L615 300 OHM

12

ST LM358

2.5Vref

Idc=4A,Rdc=0.15Ohm

PRE_L

3

D604 BAV99

ǂ

R645

100

C648

2.2uF/16V

7

+

-

5

6

ǂ

100K

R633

R635 47K 1/16W

C644

IN_L

2.2uF/16V

U62 LM358

56L 192-10/ 14

4 8

ǂ

R637 47K 1/16W

AOC (Top Victory) Electronics Co., Ltd.

Audio_L-

C650 0.01uF

C649 0.01uF

ǂ

R647 100

0.1uF

C613

0.01uF

29

OUTL-

FS1

FS2

19

20

R610

0.47uF/16V

C610

C614

L604 15uH

161517

C616

ǂ

0 1/16W

ǂ

R643 6.8K

C615

100pF

PRE_R

Audio_R+

OUTR+

INR+

0.47uF/16V

ǂ

R611 1K

Audio_L+

ǂ

R646 100

C612

C607

L603 15uH

1uF

+

78

31

322630

OUTL+

PGND

CHOLDNC

PGND

VDD VDD

PGND PGND

INL-

INL+

9

10

NC

C611

C609

0.47uF/16V

ǂ

6.8K

R642

100pF

ǂ

1K

R606

PRE_L

ǂ

R601 100 1/16W

EAR_DET

MUTE6

EAR_L

SRS_CTL 6

C623

NC

SRS_L2

ǂ

R603 100 1/16W

SRS_R2

H: SRS 3D on

14

LIN

FIL1

U61 NJM2199

1234567 8

C646 0.01uF

C645 0.033uF

C617 0.47uF/50V

RIN

LOUT

FIL2

FIL3

C619 0.33uF/50V

ROUT

VOL2

910111213

GND

MODE

VOL1

VrefIN

ǂ

R615 4.7K

2.2uF/16V

C622

2.2uF/16V

C601

0.1uF

Vref V+

C625

+

10uF/16V

+

C608

10uF/16V

ǂ

R616 100K

ǂ

R619 100

ǂ

R618 100

ǂ

L602 NC

5V_A

NC

IN_L

IN_R

R614 0 1/16W

R613 0 1/16W

EAR_R

7mA, 5V

L607 600 OHM

5V_A

+

C630 47uF/16V

U63 PT2308S

ǂ

C631

NC

1 8

R620

47uF/16V

+

C634

OUT1 VDD

IN1- OUT2

2 7

3 6

47K 1/16W

ǂ

R622

47K 1/16W

R626 10K 1/16W

ǂ

R625

10K 1/16W

ǂ

+

C600

NC

R624

ǂ

C640

47uF/16V

47K

GND

ǂ

0 1/10W

ǂ

R630

R629

ǂ

47K 1/16W

10K 1/16W

+

C641

10uF/16V

ǂ

R632

10K 1/16W

IN1+ IN2-

GND IN2+

4 5

0 1/10W

R634

R600

R636

AUDIO_GND

27" LCD-TV T27013

ʳ

1

V20SW

+20V

EX_5V

5V_SB

5V

0.1uF

C743

GND

13

L

L714

45

Q701 AO4411

R715

ǂ

47K 1/16W

5VSW

300 OHM

L700

5V_SB

876

D1D1D1

S1S1S1

123

876

D1D1D1

S1S1S1

Q703 AO4403

123

R716

ǂ

876

D1D1D1

S1S1S1

Q702 AO4403

123

R717

47K 1/16W

ǂ

+

C744 0.1uF

R728

ǂ

0 1/16W

3

C746 0.1uF

R729

0.1uF

C745

R730

R718

3

ǂ

7.5K

3

1

ǂ

22K 1/16W

ǂ

7.5K

R721

R719

C747

10uF/35V

NC

C764

Q704

ǂ

R722

3K 1/10W

+

C749

C765

1

ǂ

22K 1/16W

ǂ

R720

3K 1/10W

+

C748

C766

1

ǂ

22K 1/16W

2

PMBS3904

47uF/16V

1uF/16V

2

Q706

PMBS3904

47uF/16V

1uF/16V

2

Q705

PMBS3904

5

D1

G1

4

5

D1

G1

4

5

D1

G1

4

AO4403

0.1uF

C713

12V

12VP

+12VP

PVDD 4

876

D1D1D1

S1S1S1

Q707

123

NC

R731

12VP

12VSW

13

L717

5

D1

G1

4

ǂ

0 1/10W

R713

5V_SB

300 OHM

L715

45

ǂ

R723

10K

5V_A

AP1117E50A

56T 585 9

0.1uF

C750

L

C751

+

10uF/16V

R732

U710

ǂ

100K 1/16W

3 2

4

VI VO

Q700

PANPWR_ON 6

ǂ

R725

10K 1/16W

1

Q708

PMBS3904

+

C755

C754

+

C752

876

D1D1D1

AO4411

S1S1S1

123

R724

2

C753

10uF/16V

0.1uF

GND

0.1uF

10uF/16V

ǂ

47K 1/16W

AOC (Top Victory) Electronics Co., Ltd.

Title

3.3V_SB

1

5

D1

G1

C756 0.1uF

4

3

2

L719 600 OHM

4

U701

VI VO

AP1117E3.3A

3 2

ST5V

C760

+

C758

+

0.1uF

C759

GND

0.1uF

C757

22uF/16V

1

Q709

PMBS3904

ǂ

R726

22K 1/16W

12

10

POWER_1

Tuesday, November 29, 2005

A4

Size Document Number Rev

Date: Sheet of

76

+5VP

PWR_ON6,12

STANDBY: 0

POWER ON:

1

27" LCD-TV T27013

ʳ

1

12

11

3.3V Power

for

C730

C729

600 OHM

SAA7117A

0.1uF

VDDA1.8

22uF/16V

U708

1.8V Power for

SAA7117A

ANALOG

C734

0.1uF

C733

22uF/16V

L711

600 OHM

4

GND

VI VO

AZ1117H-1.8

3 2

C735

0.1uF

POWER_2

1.8V Power

for

SAA7117A

C739

0.1uF

VDD1.8

AOC (Top Victory) Electronics Co., Ltd.

Title

C738

22uF/16V

L713

600 OHM

Sil9011

1.8V

1

VR1_8

300 OHM

L712

C737

0.1uF

C736

22uF/16V

Power

Tuesday, November 29, 2005

B

Size Document Number Rev

Date: Sheet of

77

VA1_8a

SVP-EX 3.3V

Standby

Power

C705

VD3_3

C704

L703 300 OHM

23

OUTIN

TO-252

U702

AIC1084-33CE

ǂ

R727 2.2 2W

EX_5V

0.1uF

22uF/16V

GND

C706

10uF/16V

3.3V Power for

SAA7117A

ANALOG

C722

0.1uF

C723

10uF/16V

VDD3.3

L710

VDDA3.3

C721

L709

600 OHM

2314

4

OUTIN

AP1117E33LA

L708 300 OHM

22uF/16V

GND

Sil9011

3.3V

Power

C719

2314

OUTIN

L705 300 OHM

0.1uF

C718

22uF/16V

4

GND

U705

C717

0.1uF

C716

10uF/16V

5V

3V3S

U703

1

AP1117E33LA

5V

VDDMQ

2.5V

L704

56T 563 44

AME8815BE-250Z

U700

ǂ

R710 4.7 2W

5V

Power for DDR

IO PADS

600 OHM

C710

0.1uF

+

C709

47uF/16V

4

GND

1

VI VO

3 2

0.1uF

C708

+

C707

10uF/16V

C711

22uF/16V

VDDM

2.5V

L707

600 OHM

4

56T 563 44

VI VO

U704

AME8815BE-250Z

3 2

VD1_8

Power for DDR

Core Logic

C715

0.1uF

+

C712

47uF/16V

GND

1

EX_5V

L720 300 OHM

23

TO-252

U706

AIC1084-18CE

ǂ

R714

1 2W

ǂ

R711

1 2W

C727

0.1uF

+

C726

47uF/16V

C761

10uF/16V

OUTIN

GND

1

C714

22uF/16V

C725

10uF/16V

0.1uF

C724

VA1_8

VA1_8a

TO-252

U707

L721 300 OHM

23

OUTIN

AIC1084-18CE

ǂ

R712 4.7 2W

C732

C731

C762

GND

0.1uF

10uF/16V

1

VL1_8

L722 300 OHM

VL1_8a

23

TO-252

U709

AIC1084-18CE

C741

0.1uF

C740

10uF/16V

C763

10uF/16V

OUTIN

GND

1

27" LCD-TV T27013

ʳ

1.0

12

ǂ

R701 100 1/16W

14

SC1 2,6,7

ǂ

R700 100 1/16W

13

SD1 2,6,7

of

12

REMOTE 2,6

VGAVS 2,6

VGAHS 2,6

ǂ

Option

R704 100 1/16WǂR705 100 1/16W

R707 100 1/16W

C701 0.01uF

C700 0.001uF

Tuesday, November 29, 2005

ENERGY STAR

10K

R709 10K

R708

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

A

Date: Sheet

ǂ

9

10

11

12

U711 NT1009

Option

CK/GPIO9

DAT/GPIO10

LED2/GPIO8

GPIO7

1

2

ǂ

R702 100 1/16W

GND

PD/GPIO11

GPIO6

VDD

3

4

ǂ

R703 100 1/16W

IR/GPIO0

GPIO5

5

6

VS/GPIO1

GPIO4

PSW/GPIO3 HS/GPIO2

7 8

ǂ

R706 100 1/16W

L701 NC

C703

+

C702

78

0.1uF

10uF

ST5V

PWR_ON6,10

MAIN-ON2

KEY_AD2,6

27" LCD-TV T27013

ʳ

79

27" LCD-TV T27013

8.2 Power Board

715T 1180 3

ʳ

80

27" LCD-TV T27013

ʳ

1

of

11Wednesday, May 11, 2005

715L1290-B-2

J1

15637

2

4

PHONEJACK

Audio Conver

470pF

C2

470pF

C1

C6

0.0022uF

C5

0.0022uF

C4

0.0022uF

C3

0.0022uF

AOC (Top Victory) Electronics Co., Ltd.

Title

A

Size Document Number Rev

PCB_17"Audio Conver

Date: Sheet

81

FB3 BEAD

FB4 BEAD

FB1 BEAD

FB2 BEAD

1

PRE_L

Gnd-case

CN1

27" LCD-TV T27013

8.3 Headphone Board

EAR_R

5

PRE_R

234

FB1-4 : 600 OHM

715L1290-B-2

EAR_L

1

CONN

AOC T27013 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
