AOC T2655MK Schematic

维 修 手 册

品牌 机种

T2655MK

AOC

T2655M

版权说明

此维修手册版权归冠捷科技公司所有，规格如有更改，恕不另行通知。
此维修手册受版权保护。未经版权所有者许可，任何形式的复制和分发，包括改编、解释或摘录，尤其是作为翻印、
翻拍、电子复制或在数据处理设备和数据网络内的传输，都是被禁止的。以上行为将在法律范围内受到起诉

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

T2655MK E26C9KNDCEA1NNX

A00 Nov.29, 2012

首次发布

E26C9KNDCEA2NNX

T2655M

E26C9KNDCEA3NNX

2

目 录

1. 技术规格------------------------------------------------------------------------------------------------------------04

1.1 一般规格---------------------------------------------------------------------------------------------------------04

1.2 预设显示模式---------------------------------------------------------------------------------------------------05

2. 操作说明------------------------------------------------------------------------------------------------------------06

2.1 连接电视机----------------------------------------------------------------------------------------------------06

2.2 遥控器说明----------------------------------------------------------------------------------------------------09

2.3 OSD 调整----------------------------------------------------------------------------------------------------11

3. 工厂模式调整------------------------------------------------------------------------------------------------------22

4. 电气方框图---------------------------------------------------------------------------------------------------------26

4.1 主板---------------------------------------------------------------------------------------------------------------26

4.2 主板电源---------------------------------------------------------------------------------------------------------27

5. 线路图---------------------------------------------------------------------------------------------------------------28

5.1 主板-------------------------------------------------------------------------------------------------------------28

5.2 电源板----------------------------------------------------------------------------------------------------------37

5.3 遥控板----------------------------------------------------------------------------------------------------------39

6. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------40

7. 故障处理流程图---------------------------------------------------------------------------------------------------42

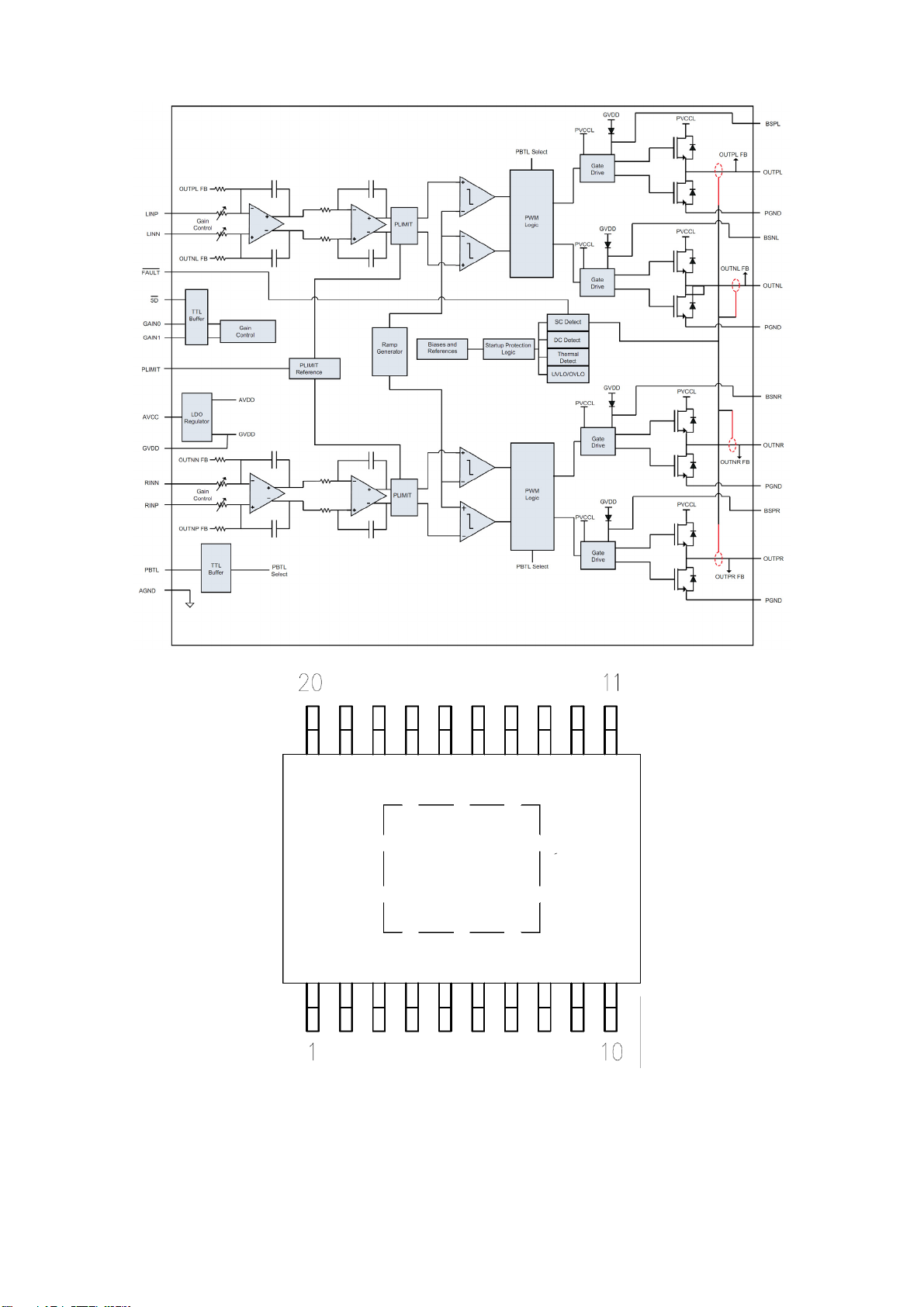

8. 主要 IC 管脚及内部框图---------------------------------------------------------------------------------------48

9. BOM-------------------------------------------------------------------------------------------------------------50

3

1. 技术规格

1.1 一般规格

T2655M /

4

1.2 预设显示模式

电脑输入信号参照表

将电脑连接到电视后，按照下表，设置电脑中的输出信号。

DVI/电脑HDMI 输入信号参照表

1. 使用DVI 端口时，将视频设备的DVI 端口使用DVI 转HDMI 线连接到电视后，按照下表，设置视频设备的输
出信号。

2. 使用电脑HDMI 端口时，将电脑的HDMI 端口使用HDMI 线连接到电视后，按照下表，设置电脑的输出信号。

3. 使用VGA端子时，将电脑VGA端口使用VGA线连接到电视后，按照下表，设置电脑的输出信号。

视频输入信号参照表

1. 将视频设备的分量或HDMI 端口连接到电视后，按照下表，设置视频设备的输出信号。

2. 如果电脑显卡可支持视频格式信号，可设置下表输出信号。

*仅HDMI模式支持

电视，视频模式支持的视频系统

PAL, NTSC, SECAM
您也可以使用DVD 播放机或VCR 播放机观看传统节目。通过电视的视频输入，将设备连接到电视。

5

2. 操作说明

2.1 连接电视

6

7

8

2.2 遥控器说明

9

10

2.3 OSD调整

提示：

1. 尽管待机时电视机的耗电量很
少，但电视机会继续耗电。当长时间
不使用电视机时，请将电视机的电源
线与电源插座断开。

2. 如果您找不到遥控器，但又想从
待机状态下打开电视机，请按电视机
侧面的“电源.

切换信号源
在 AOC 电视中，您可以直接通过遥控器选择信号源。

1）直接使用遥控选择信号源时：按以下按键可直接切换输入的信号源，计算机指的是电脑信号。

11

2）使用信源按键选择信号源时：

12

13

14 15 16 17 18 19 20 21 22

3. 工厂模式调整

以 LE26H100C 为例：

3.1 ADC 调整：

1: 将 Chroma 设置为 T314/P185
2: 按“菜单+1+9+9+9+回看”进入工厂模式
3: 将 Current Source 选择为“分量信号”
4: 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。
5: 将 Chroma 设置为 T311/P185
6: 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。

VGA ADC 调整：上述 ADC 调整 OK 后将

1: Chroma 设置为 T137/P42
2: 将 Current Source 选择为“电脑”
3: 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。

分量信号

3.2 白平衡调整：

1：将 Chroma 设置为 T137/P141
2：按“菜单+1+9+9+9+回看”进入工厂模式
3：将 Current Source 选择为“VGA”（如图一）
4：再选择 Color temp 选择色温模式（Cool、Normal、Warm）（如图二）
5：选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内，
6：再将 Chroma 设置为 T314/P141
7：Current Source 切为 component
8：再选择 Color temp 选择色温模式（Cool、Normal、Warm）
9：选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内。

ADC 调整 OK

3.3 白平衡值检查：

Current Source 选择为“视频”/T303/P141、HDMI/T347/P141 色温规格也需在规格范围内，此时白平衡调整 OK。

图一 图二

调整规格是写在白平衡程式里面的，检验以产品规格为准：

色温

(x,y)

Item Level x y x y x y

调整规格
产品规格

80IRE 0.003 0.003 0.003 0.003 0.003 0.003
80IRE 0.030 0.030 0.030 0.030 0.030 0.030

Cool

(0.270,0.273)

Normal

(0.285,0.293)

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

Warm

(0.313,0.329)

23

工厂菜单说明

选项名称 调整范围

Brand
Main-MCU ver
Bootloader ver

Sub-MCU ver
EEPROM ver

Date

Model name

Scaler

Panel type

Current source

Auto color

ADC Gain

ADC Offset

Color temp.

根据IC SPEC

根据IC SPEC

不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整

支持输入源

执行动作

支持色温

TV AV/S Comp HD PC

o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

注释
客户名称
发布软体Main-MCU 版本
发布软体Bootloader 版本
发布软体Sub-MCU ver 版本
发布软体EEPROM 版本
软体发布日期
对外机种名
Scaler 型号
屏的型号

当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler
等相关信息同步更新。

Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会
对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。

在Auto Color 做完立即更新，并可手动调整。

在Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler

Gain & Offset RGB 值等相关信息同步更新。

Scaler Gain

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time

根据IC SPEC

根据IC SPEC

执行动作

不可调整

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

o o o o o

Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。

实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language

等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。

背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。

24

Total time

不可调整

o o o o o

AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。

Black light

Language

Energy LOGO On/Off * * * * *

Reset

Exit

根据IC SPEC

支持语言

执行动作

执行动作

* * * * *

* * * * *

√ √ √ √ √

√ √ √ √ √

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时Burn in自动关闭。

设置背光灯的亮度

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，

Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设

置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。

退出工厂模式

25

4. 电气方框图

4.1 主板

I2C

W25Q32BVSSIG

U40 3
NOR FLA SH 32 Mb

DT21 CN-2- E

TU101

D-SUB(PC IN)

PHONE JACK(PC R/L)

YPBPR

RC A(AV)

USB(Multimedia)

IF

HDMI

I2C

USB 2.0

MP3 & JPEG, SW UPDATE

IF1P

IF1N

VGA

PC AUDIO

YPbPr

CV BS

RTD2648

LVDS (50/60 Hz)

CV BS

monitor output

AOU T_ L
AOU T_ R

CVBS output

AUD IO AMP

AD52583

LCD PANEL T-CON

SPK X 2

SPK R/L

HEADPHONE

HP R/L

KEY RC

26

4.2 主板电源

Power On => EN Pin pull high

Power Off => EN Pin pull Low

D5V_STB

MOS D_5V

AO4449

POWER_ON_LV2

G1084T43Uf

DC-DC

AT1529F11U

(300 mA)

LDO

G903T63UF

(1 A)

LDO

G1084T43Uf

(1 A)

(3 A)

+3V3

DDR Power

1.8V DDR_POWERLDO

A1V0

D1V0(Core Power)

TUNER

DT21CN-2-E

USB DRIVER

POWER_ON_LV2

Pac' :2.5V
Mac :1.8V

MOS

AO3401

Pac' :1A
Mac :2A

M3V3

SCALER

RTD2648

FLASH

IO_3V3, UART, Keypad, LVDS_3V3, LSADC_3V3, HDMI_3V3
ADC_3V3, BB_3V3

+12V

+24V_AMP

AO4449

PANEL_EN

MOS

Always ON

PANEL

AMP

AD52583

27

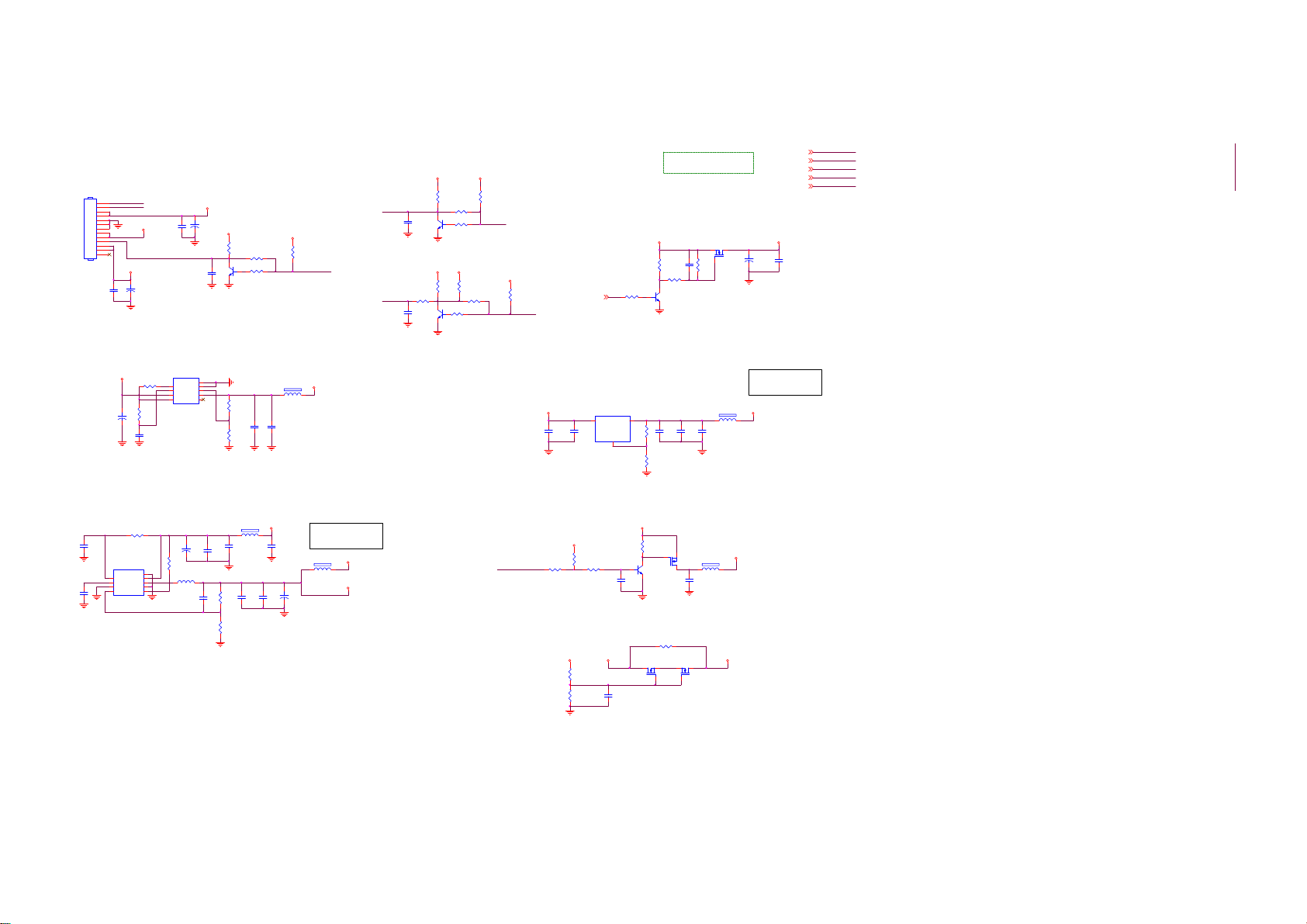

5. 线路图

5.1 主板
715G5549M0E000004K

CN701

1

BL_ON1

2

BL_PWM

3
4
5
6
7

+24V_AMP

8

DGND
9
10
11
12
13

CONN

D5V_STB

+

C709

C708

100UF16V

100N 16V

DGND

C701

100N 16V

DGND

C707

100N 16V

+

100UF16V

+12V

C702

D5V_STB

R701
10K 1/10W

NC/0R05 OHM

Q701

R712

10K 1/10W

MMBT3904

DGNDDGND

BL_ADJ

BL_ADJ

D_5V

C704

100N 16V

BL_EN

BL_PWM

BL_EN

BL_PWM

POWER_ON_LV1

POWER_ON_LV2

BL_EN

POWER_ON_LV2: High Active

10K 1/10W

R711

4.7K

R704

Low Standby

D5V_STB

C703

100N 16V

R708

47K

Q704
MMBT3904

DGND

Q702

LP3401LT1G

R705

NC/100K 1/10W

Co- layout

DGND

+

C706
NC/100UF16V

POWER_ON_LV1

POWER_ON_LV2

+3V3

D5V_STB

R731

R702

NC/10K 1/10W

NC

R703

BL_ON1

Q703

NC/MMBT3904

C705

+3V3

R744

10K 1/10W

R709

POWER_ON_LV1

100N 16V

BL_PWM

NC/4.7UF 10V

C710

DGND

NC/10K 1/10W

R716

1K 1/10W

DGND

R714

DGND

D5V_STB

Q706

MMBT3904

DGND

Realtek request on 3/21'12

0R05 OHM

BL_EN

R706
NC

+3V3

R718

1K 1/10W

+3V3

R715

10K 1/10W

R717

NC/0R05 OHM

BL_ADJ : MAC no 5V tolerance

R743

10K 1/10W

BL_ADJ

POWER_ON_LV2

100N 16V

100UF16V

C718

100N 16V

DGND

C724

DGND

DGND

10K 1/10W

R733

R734
10K 1/10W

C730
10UF 10V

1
2
3

U701

POK
VEN
VIN
VPP4NC

G9661

M3V3

+

C715

DGND

Vddr=0.8*(1.5+1.2)/1.2=1.8V

R723
10 OHM 1/10W

R725

1
2
3

U703

VCC
REF
GND
FB4EN

AT1527F11U

10K 1/10W

9

E-PAD

PGND

L701

8

2.2UH

VIN

7

LX

6
5

NC/1NF 50V

DGNDDGND

Vout = 0.8x(1+R1/R2)=1.0V

E-Pad

GND

ADJ

VO

+

C719

NC/220UF 16V

C726

FB703

1 2

0R

USB_5V

+3V3D5V_STB

M3V3

Make on board

A3V3

D3V3

9

DGND

8
7
6
5

R735

1.5K +-1% 1/10W

R736

1.2KOHM 1%

DGND

FB704

120R/6000mA

1 2

C720

C722

100N 16V

4U7 10V

DGND

R729

100N 16V

R1

9K1 1/10W 1%

R730

24KOHM 1/10W

R2

DGND

C727

C716

10UF 10V

DGND

DGND

D_5V

DGND

C728

22uF 10V

C731

100N 16V

C721

100N 16V

FB707

1 2

0R

C725

+

220UF 16V

DGND

DDR_POWER

Make on board

A1V0

A1V0

FB705

1 2

0R

D1V0

D1V0

POWER_ON_LV2

TO-252, 1A

U702

VIN3VOUT

C711

C712

10UF 10V

100N 16V

GND/ADJ

1

G1084PT43U

DGND

330 OHM +-1% 1/10W

Vou t = 1.25x(1+Rd /Rup)=3.3 1V

+3V3

R726
1K 1/10W

R727

R728

+24V_AMP

R738

33K 1/10W 5%

R739

20K

DGND

10K 1/10W

D_5V

C729

100N 50V

0R05 OHM

1UF16V

C732

2

R719

200R 1% 1/10W

R722

DGND

+3V3

Q708

MMBT3904

R724

47K

DGND

Q709

AO3404

C713

10UF 10V

R740
NC/0oHM

C717

10UF 10V

AO3401

Q707

Q710

AO3404

C723

100N 16V

DGND

C714

100N 16V

DGND

FB706

1 2

300R 4A

28

To LVDS

To HDMI

HDMI_CLK­HDMI_CLK+
HDMI_D0­HDMI_D0+
HDMI_D1­HDMI_D1+
HDMI_D2­HDMI_D2+
HDMI_CEC
HDMI_DDC_SDA
HDMI_DDC_SCL

HOTPLUG

To Tuner

TUN_IF­TUN_IF+

TUN_I2C_SDA
TUN_I2C_SCL

ATV_IF_AGC

To Keypad

IRRX
LEDR
LEDG
LSADC1
LSADC0

To SPI Flash

SPI_DI
SPI_DO
SPI_SCLK
SPI_CS#
SPI_WP

Power

POWER_ON_LV1
POWER_ON_LV2

HP_OUT_JD

+3V3

FB4021
0R

1 2

TEDP
TEDN

TECP
TECN
TEBP
TEBN
TEAP
TEAN

TODP
TODN
TOCLK P
TOCLK N
TOCP
TOCN
TOBP
TOBN
TOAP
TOAN

BL_EN
PANEL_EN
BL_ADJ

HDMI_CLK­HDMI_CLK+
HDMI_D0­HDMI_D0+
HDMI_D1­HDMI_D1+
HDMI_D2­HDMI_D2+
HDMI_CEC
HDMI_DDC_SDA
HDMI_DDC_SCL
HOTPLUG

TUN _IF ­TUN _IF +

TUN_ I2C _SDA
TUN_ I2C _SCL

ATV_IF_AGC

LSADC1
LSADC0

SPI_DI
SPI_DO
SPI_SCLK
SPI_CS#
SPI_WP

POWER_ON _LV1
POWER_ON _LV2

HP_OUT_JD

1 2

C4040

100N 16V

1 2

C4051

100N 16V

C4055

10UF 6.3V 20%

TEDP
TEDN

TECP
TECN
TEBP
TEBN
TEAP
TEAN

TODP
TODN
TOCL KP
TOCL KN
TOCP
TOCN
TOBP
TOBN
TOAP
TOAN

BL_EN
PANEL_EN
BL_ADJ

IRRX
LEDR
LEDG

FB4013

330nH

C4041

100N 16V

BB1_GNDBB1_GND

close to Main chip

FB4017

300R

C4052

100N 16V

BB2_GNDBB2_GND

close to main chip

CORE_1V0D1V0

C4056

10UF 6.3V 20%

A1V0 PLL_1V0

BB1_3V3

BB2_3V3

C4057

C4058

100N 16V

100N 16V

DGND

To Video input

VGA_DDC_SC L
VGA_DDC_SD A

VGA_HS
VGA_VS
VGA_B+
VGA_B­VGA_G+
VGA_R+

PB0+
YPbPr0­Y0+
PR0+

CVBS_OUT6
VGA_IN_L
VGA_IN_R
YPBPR1_I N_L
YPBPR1_I N_R

TX0
RX0

AOUT_L
AOUT_R
HP_OUT_L
HP_OUT_R

AGND

To AMP

AMP_MUTE

To USB

USB1_DP
USB1_DM

PLL_GND

FB4014

1 2

C4045

300R

100N 16V

PLL_GND

PLL_3V3+3V 3

FB4018

1 2

300R

PLL_GND

C4060

C4061

C4059

100N 16V

100N 16V

100N 16V

VGA_DDC_SC L
VGA_DDC_SD A
VGA_HS
VGA_VS
VGA_B+
VGA_B­VGA_G+
VGA_R+

PB0+
YPbPr0­Y0+
PR0+

CVBS_OUT

YPBPR1_I N_R

TX0
RX0

AOUT_L
AOUT_R
HP_OUT_L
HP_OUT_R

AGND
AGND

AMP_MUTE

USB1_DP
USB1_DM

C4049

100N 16V

C4062

100N 16V

VGA_IN_L
VGA_IN_R
YPBPR1_I N_L

100N 16VC4001
1UF 10VC4022

1 2

1 2
1 2

C4034
30PF

C4037
30PF

NC/0R05 OHM

+3V3

1 2

C4042

1UF 10V

IFADC_GND

+3V3

C4019

2.2uF 10V

C4020

2.2uF 10V

AGND

FB4010

1 2

300R

FB4024 NC/300R
FB4011 300R

FB4012
300R

AGND

12

X4001

R4007

IFADC_3V3

FB4015

300R

IFADC_GN D

USB_1V0

A1V0

USB_GND

FB4022

1 2

300R

L
R

FB4001

1 2

BB1_3V3

VGA_IN_L

VGA_IN_R
YPBPR1_I N_L
YPBPR1_I N_R
HP_OUT_JD
PANEL_EN

BB2_GND

BB2_3V3

HP_OUT_R R
HP_OUT_L L

CORE_1V0

XOU T
XIN

PLL_3V3
PLL_1V0

PLL_GND

IFADC_GND

1UF 10V C4024
1UF 10V C4028

IFPGA_3V3
IFADC _3V3
USB_3V3

USB_1V0

ATV_IF_AGC

CORE_1V0

R4005

0R05 OHM

27MHz

+3V3 USB_ 3V3

1 2

C4046

100N 16V

C4053

4.7UF 6. 3V

DDRPLL_3V3

C4063

100N 16V

DDRPLL_GND

BB1_GND

VCM_BB

0R

2.2uF 10V C4025

2.2uF 10V C4026

2.2uF 10V C4027

2.2uF 10V C4023

+

C4030 100UF16V

+

C4031 100UF16V

USB1_DM
USB1_DP
USB_GND

LEDG

0R05 OHM

XOU T

XIN

FB4019

12

300R

120R

FB4025

USB_GND

FB4033

1 2

300R

U4001

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

IF_NTUN_I F-

22

IF_PTUN_ IF+

23
24
25
26
27
28
29
30
31

R4001

32

+3V3

C4043

4.7UF 6.3V

IO_3V3+3V3

A1V0 DDRPLL_1V0

C4054

100N 16V

DGND

LVDS_3V3+3V3

+3V3

C4064

100N 16V

DGND

Pin119 CLOAD:

AGND

BOM For Mac : CS5 10uF
BOM For Pac': CS5 0R

VDADC_1V0

VDAC_3V3

CVBS_OUT

127

125

126

AVOUT1

V33VDAC

BL_ADJ

RX0

TUN_I2C_SDA

IFPGA_3V3

C4044

IFADC_GND

C4050

100N 16V

TMDS_3V 3

C4065

100N 16V

TMDS_ GND

CORE_1V0

47NF 16VC4009

AV1_CVBS+

124

V10CORE

TUN_I2C_SCL

FB4005

AGND

300R

47NF 16VC4010

VIN_A0-

123

VIN_9P

SPI_WP

121

122

V33ADC

VIN_A0N

V10VDADC

SPI_DI

SPI_SCLK

YPPADC_1V0

AGND

ADC_3V3

C4005
10UF 10V

1 2

PB0+

Y0+

PR0+

YPbPr0-

VGA_R+

ADC3V3_GND

CLOAD_DW

47NF 16V C4015

47NF 16V C4013

47NF 16V C4012

47NF 16V C4011

47NF 16V C4014

119

115

120

118

117

116

114

113

CLOAD

VIN_5P

VIN_4P

VIN_3P

G33ADC

VIN_Y0N

V10YPPADC

RTD2648

DDRPLL_GND

SPI_CS#

SPI_DO

DDR_VERF1

DDRPLL_3V 3

DDRPLL_1V 0

DDR_POWER

DDR_POWER

AGND

DDR_POWER

C4047

10UF 6.3V 20%

DGND

AGND

FB4004

0R

1 2

DGND

VDAC3V3_GND

128

129

E-PAD

G33VDAC

G33BB1
VCM_BB
V33BB1
AIN_3L
AIN_3R
AIN_2L
AIN_2R
AIN_1L
AIN_1R
G33BB2
V33BB2
HPOUT_R
HPOUT_L
V10CORE
XOU T
XIN
V33PLL
V10PLL
G33PLL
G33IFPGA
IF_N
IF_P
V33IFPGA
V33IFADC
V33USB
U1DM
U1DP
GUSB
V10USB
RFAGC(5V)
IFAGC(BL_PW M)(5V)
V10CORE

V33IO33SPDIFO34GPIO1935GPIO2036TUNER_I2C1_SDA37TUNER_I2C1_SCL38SPDIFI39SPI_SCK40SPI_DI41SPI_CS_N42SPI_DO43VDDR_POWER44V33DDRPLL45GDDRPLL46V10DDRPLL47VDDR_POWER48VREF_DD R49V10CORE50VREF_DD R51VDDR_POWER52V10CORE53LVDSA_EP54LVDSA_EN55LVDSA_DP56LVDSA_DN57LVDSA_CP58LVDSA_CN59LVDSA_BP60LVDSA_BN61LVDSA_AP62LVDSA_AN63V33LVDS

TX0

IO_3V3

FB4016

1 2

300R

100N 16V

FB4020

1 2

300R

DDRPLL_GND

FB4023

1 2

300R

+3V3 VDAC_3V3

FB4002

1 2

U4002

C4035

C4038

1

GND

2

RESET

DGND

NC

HDMI_DDC_SDA
AMP_MUTE

R4002 NC/0R05 O HM

STB_1V0

POWER_ON_LV1
LSADC0
LSADC1
POWER_ON_LV2

HDMI_REXT
HDMI_D2+
HDMI_D2­HDMI_D1+
HDMI_D1­HDMI_D0+
HDMI_D0-

HDMI_CLK+

HDMI_CLK-

TMDS_GND

TEAN
TEAP
TEBN
TEBP
TECN
TECP
TEDN
TEDP

DDR_POWER

R4010
1K 1%

DDR_VERF1

R4011
1K 1%

DGND

RD3 0R

RD3 1K

DGND

1

1

2

2

Exchange Hotplug

AGND

and BL_EN on

CORE_1V0

APLL_3V3

3/21'12

FB4006
300R

VGA_B+

VGA_B-

VGA_G+

VGA_VS

VGA_HS

1 2

IRRX

VGA_DDC_SD A

VGA_DDC_SC L

HOTPLUG

LEDR

BL_EN

APLL3V3_GND

47NF 16V C4017

47NF 16V C4018

47NF 16V C4016

109

111

112

110

VIN_2P

VIN_1P

VIN_0P

VIN_BN

DDR_VERF2

CORE_1V0

DDR_POWER

100

105

106

103

107

102

108

101

104

99

V33APLL

G33APLL

IRRX(5V)

V10CORE

ST_GPIO5

BL_EN(5V)

VSYNCVIN

HSYNCVIN

HOTPLUG(5V)

VGA_DDC_SCL

TOBP

TOAP

TOAN

TOBN

TOCN

TOCP

TODN

TOCLKP

TODP

TOCLKN

CORE_1V0

RESET Cir.

HDMI_DDC_SCL

RESET#

97

98

RESET

HDMI0_DDC_SDA

ST_GPIO0

VGA_DDC_SDA

CEC

HDMI0_DDC_SCL

V10LDO

V33LSADC

LSADC_REF

LSADC0
LSADC1

LSADC2
V10CORE
G10CORE

REXT
RX0_RP
RX0_RN
RX0_GP
RX0_GN
RX0_BP
RX0_BN

RX0_CKP
RX0_CKN
V10TMDS
G10TMDS
V33TMDS

V10CORE
LVDSB_AN
LVDSB_AP
LVDSB_BN
LVDSB_BP

LVDSB_CN
LVDSB_CP
LVDSB_EN

LVDSB_EP

64

100N 16V

100N 16V

LVDS_3V3

BOM For Pac': RD1 NM

RESET#

96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

BOM For Mac : RD1 1K

A1V0

C4048

100N 16V

TMDS_1V0

C4066

100N 16V

TMDS_GN D

HS4000

Add for Heat Sink Outline 20110106

Heat Sink

STB_1V0
LSADC_3V3

CORE_1V0AGND

R4003

6.2K 1/10W

TMDS_1V 0

TMDS_3V3
CORE_1V0

Vcc

C4067

100N 16V

100N 16V

DGND

+3V3

3

R4018
10K 1/10W

12

C4068

NC

HDMI_CEC

C4036

C4039

ZD4004

100N 16V

NC/MLVG0402

DGND

+3V3

DGND

AGND

AGND

DDR_POWER

R4009
1K 1%

DDR_VERF2

R4012
1K 1%

DGND

HIF_Selection_n (Pin 38)
0 : HIF Enable
1 : HIF Disable

EJTAG (Pin 40, pull-h i)
0 : enable
1 : disable

test mode (Pin 95, pull-hi)
0 : enable
1 : disable

ROM boot (Pin 42, pull-lo)
0 : boot from ROM
1 : don't boot from ROM

BOOT_MODE_bit1 (pin 43, pull-lo)
0 : SPI-Flash boot
1 : NAND-Flash boot

100nH

C4082

100UF16V

A1V0 YPPADC _1V0

FB4008

1 2

300R

100N 16V

ADC_3V3

FB4007

1 2

300R

C4008

100N 16V

AGND

Didoe forward
voltage smaller
than 0.3V

For Layout

D4001

NC/RB751V- 40

HDMI_CEC

AGND

C4002

+

100N 16V

VDAC3V3_GN D

C4006

AGND

10UF 6.3V 20%

+3V3

12

R4004
NC/27K

DGND

A1V0

C4003

1UF 10V

ADC3V3_GND

+3V3

STB_1V0

12

C4029

DGND

Make on board

UART1

SPI_SCLK

4.7K

AMP_MUTE

4.7K

TX0

RX0

LEDG

SPI_CS#

SPI_DO

1 2

1 2

ZD4005

NC/MLVG0402

R4014

R4015

R4047

4.7K
R4048

4.7K
R4052

4.7K

R4016

4.7K

R4017

4.7K

FB4003

300R

FB4009

300R

M3V3

APLL3V3_GND

+3V3

100N 16V

+3V3

DGND

VDADC_1V0

C4004

100N 16V

AGND

APLL_3V3

C4007

100N 16V

LSADC_3V3

C4021

AGND

29

Title

Main C hip

Size Document Number Rev

<Doc> 1.0

C

Date: Sheet

of

13Tuesday , June 19, 2012

Add R4054 for panel enable default
status on 2/17'12

PANEL_EN

+12V

D5V_STB

R713

360R 1/10W 5%

220 OHM 1/10W

R721

NC/ 360R 1/10W 5%

390 OHM 1/10W

R737

R732

220 OHM 1/10W

R720

R4054

R4029

M3V3

DGND

4.7K

3

C754
100N 50V

NC/100 OHM

R4031

4.7K

U708

AZ809ANSTR-E1

RESET

Vcc

GND

M3V3

R4027

4.7K

Q4003
PMBS3904

DGND

2

1

+12V

D5V_STB

R4030

4.7K

D712

RB501V-40

FB4026

300R 4A

1 2

1 2

FB4027

NC/300 OHM

R4023

10K 1/10W

12

220N 16V

R4028

47K

Q4002
PMBS3904

DGND

C4071

R4024

NC

AO4449 -7A/-30V

Q4006

1

S

D

2

S

D

3

S

D

4

G

D

PANEL_VCC

8
7
6

+

5

C4070

NC/100UF16V

C4072

100N 16V

DGND

R4067

NC/680R

R4068

NC/ 680R

From Main Chip

TED P
TED N

TEC P
TEC N
TEBP
TEBN
TEAP
TEAN

TOD P
TOD N
TOC LKP
TOC LKN
TOC P
TOC N
TOBP
TOBN
TOAP
TOAN

PANEL_EN
BL_PWM

SPI_DI
SPI_DO
SPI_SCLK
SPI_CS#
SPI_WP

TED P
TED N

TEC P
TEC N
TEBP
TEBN
TEAP
TEAN

TOD P
TOD N
TOC LKP
TOC LKN
TOC P
TOC N
TOBP
TOBN
TOAP
TOAN

PANEL_EN
BL_PWM

SPI_DI
SPI_DO
SPI_SCLK
SPI_CS#
SPI_WP

TEAN
TEAP
TEBN
TEBP

TEC N

TEC P

TED N

TED P

TOAN
TOAP
TOBN
TOBP

TOC N
TOC P
TOC LKN
TOC LKP

TOD N
TOD P

1
2
3
4

1
2
3
4

RP4004

1
2
3
4

RP4005
22 OHM

1
2
3
4

RP4001
22 OHM

1
2
3
4

22 OHM

RP400222 OH M

8

TEAN_1

7

TEAP_1

6

TEBN_1

5

TEBP_1

RP400322 OH M

8

TECN_1

7

TEC P_1

6

TEDN_1

5

TED P_1

8

TOAN _1

7

TOAP_1

6

TOBN _1

5

TOBP_1

8

TOCN_1

7

TOC P_1

6

TOC LKN _1

5

TOC LKP _1

8

TODN_1

7

TOD P_1

6
5

R4050

NC/4.7K

R4051

NC/4.7K

DGND

+3V3

NC/0R05 OHM

R4049

SELLVDS
BL_PWM
TEAP_1
TEBP_1
TEC P_1
TOC LKP_1
TED P_1

TOAP_1
TOBP_1
TOC P_1
TOC LKP_1
TOD P_1

PANEL_VC C

DGND

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30

LVDS(10-bit)

CN4002
NC/CONN

RXO0-TEAN _1
RXO0+TEAP_1

PANEL_VCC

RXO1-TEBN _1
RXO1+TEBP_1
RXO2-TECN_1
RXO2+TECP_1

RXOC-TOCL KN_ 1
RXOC+TOCLKP_1
RXO3-TEDN_1
RXO3+TEDP_1
RXE0-TOAN _1
RXE0+TOAP_1

RXE1-TOBN _1
RXE1+TOBP_1

RXE2-TOCN _1

RXEC-TOC LKN _1

RXE3-TODN _1
RXE3+TODP _1

DGND

DGND

CN4001

1
3
5
7

TEAN_1

9

TEBN_1

11

TECN_1

13

TOC LKN_ 1

15

TEDN_1

17
19

TOAN _1

21

TOBN _1

23

TOC N_1

25

TOC LKN_ 1

27

TOD N_1

29

CONN

31 32

DGND

DGND

TOCP _1 R XE2+

TOCLKP_1 RXEC+

DGND

R4020

4.7K

R4022
R4026

5PF 50V

22R 1/10W 5%

C4073

Realtek request
add 10 uF Cap on
3/21'12

C4069

100N 16V
22R 1/10W 5%

DGND

DGND

SPI_SCLK
SPI_DO

23Friday , June 01, 2012

C4080

10UF 10V

DGND

of

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

31 32

DGND

M3V3

R4019

4.7K

DGND

For Rtice Check

22R 1/10W 5%

SPI_DI

R4025
NC/0R05 OHM

R4021

DGND

/CS

2

SPI_DI 0 SPI_HOLD

DO

3

SPI_WP SPI_SCLK0

/WP

4

GND

W25Q64FVSIG

RM4 CM2 close to IC

Tit le

LVDS

Size Document Number Rev

<Doc > 1.0

B

Date: Sheet

U4003

1

SPI_CS#

VCC

/HOLD

CLK

M3V3

8
7
6
5

SPI_DO0

DI

30

AV share with YPbPr

CN101

CONN

YPbPr/AV Video in

2

A

1

4

B

3

6

C

5

AGND

ZD101

MLVG0402

12

12

MLVG0402

AGND

ZD104

12

Y1

PB1

PR1

ZD105
MLVG0402

AGND

AGND

AGND

R101
75 OHM

R112
75 OHM

R117
75 OHM

SH101

SH102

SH103

R102
0R05 OHM

C101

5PF 50V
R106
0R05 OHM

R110
0R05 OHM

C104

5PF 50V
R113
0R05 OHM

R115
0R05 OHM

C105

5PF 50V
R118
0R05 OHM

Close to Main Chip

R103
100OHM1/16W

R107
100OHM1/16W

R111
100OHM1/16W

R114
100OHM1/16W

R116
100OHM1/16W

R119
100OHM1/16W

Y0+Y1

YPbPr0-

PB0+PB1

YPbPr0-

PR0+PR1

YPbPr0-

CN102

2

A

1

4

B

CONN

3

AGND

12

ZD102

MLVG0402

YPbPr1 Audio in

VIDEO OUTPUT

RCA JACK

CN103

2

12

ZD107
MLVG0402

1

DGNDDGND

12

AGND

ZD103
MLVG0402

C102

470pF 50V

AGNDAGND AGND AGNDAGND

R122 75 OHM

NC/ 470pF 50VC107

R104

6.8kO HM +-5% 1/10W

R105

6.8kO HM +-5% 1/10W

C103

470pF 50V

CVBS_OUT

R123
NC/10K 1/10W

R108
10K 1/10W

YPBPR 1_IN_L

YPBPR 1_IN_R

R109
10K 1/10W

To Chip

PB0+
YPbPr0­Y0+
PR0+

YPBPR 1_IN_L
YPBPR 1_IN_R

AV Output

CVBS_OUT

PB0+
YPbPr0­Y0+
PR0+

YPBPR 1_IN_L
YPBPR 1_IN_R

CVBS_OUT

31

Tit le

YPbPr

Size Doc ument Number Rev

<Doc > 1.0

B

of

Date: Sheet

14Monday, May 28, 2012

VGA_DDC _SCL

VGA_VS

VGA_HS

VGA_DDC _SDA

NC/ 33P 50V

AGND

CONN

CN106

D_5V

1

D401

BAT54C

R131

10K+- 5%1/16W

C112

HS

VS

3

2
1

AGND

CN107

CONN

VGA_CON5V

2

3

VGA_5V

R132
10K+- 5%1/16W

R172 100OHM1/16W

R135 100OHM1/16W

R138 100OHM1/16W

R186 100OHM1/16W

AGNDAGND

AGND

VGA_RX0

R141

2.2K 1/16W

C113

NC/ 33P 50V

AGND

U100

1

I/O1

2

GND
I/O23I/O3

AOZ8105CI

C115

C114

10PF 50V

22PF 50V

AGND AGND

For Lesson learn check list, change R140/R141
from 2k to 2.2k on 2/14

6

VGA_SDA

I/O4

5

VGA_5V

VDD

4

VGA_SCL

R140

2.2K 1/16W

PC_LINE_IN

R149

6.8kOHM + -5% 1/10W

R151

6.8kOHM + -5% 1/10W

470pF 50V

AGND

1.65V: jack not plug in
0V: jack plug in

12

12

MLVG0402

MLVG0402

ZD120

ZD121

AGNDAGNDAGND

ZD117

MLVG0402

1
7
6
2
3
4
5

AGND

AGND

AGND

12

12

ZD118
MLVG0402

+3V3

R150
10K 1/10W

R152
NC/10K 1/10W

AGND

C117

470pF 50V

12

MLVG0402
ZD119

C118

VGA_SCL

VGA_RI N

AGNDAGND AGND

R155
1K 1/10W

CONN
CN105

15

14

VS

13

HS

12

VGA_SDA

11

12

R169
100OHM1/16W

ZD124

MLVG0402

AGND

U102

1

I/O1

I/O4

2

GND

VDD

I/O23I/O3

AOZ8105CI

VGA_IN _R

VGA_IN _L

R154

R153

10K 1/10W

10K 1/10W

R156

1K 1/10W

AGND AGNDAGND

AGND

17 16

AGND

6

VGA_BIN

5

VGA_5V

4

VGA_GIN

C119

NC/ 100N 16V

5
10
4
9
3
8
2
7
1
6

C120

NC/ 100N 16V

AGND

AGND

12

ZD125

MLVG0402

R168 100OHM1/16W

VGA_CON5V

VGA_BIN-

VGA_GIN-

VGA_RIN -

AGND

HP_OUT_JD
HP_OUT_L
HP_OUT_R

R170

4.7K 1/16W

VGA_TX0

VGA_RX0

AGND

VGA_TX0

VGA_BIN

VGA_GIN

VGA_RIN

D5V_STB

R171

4.7K 1/16W

+3V3

+3V3

Q102

2N7002

Q101

2N7002

TX0

RX0

VGA_BIN-

VGA_GIN-

VGA_RIN-

DGND

SH105

SH106

SH107

USB_Shield_GND

R128
0R05 OHM

R130
75 OHM

R133
0R05 OHM

R136
0R05 OHM

R139
75 OHM

R142
0R05 OHM

R144
0R05 OHM

R146
75 OHM

R147
0R05 OHM

Close to Main Chip

C110

5PF 50V

C111

5PF 50V

C116

5PF 50V

USB_5V

USB1_DM
USB1_DP

NC/ 4P7 50V

From Main Chip

VGA_B+
VGA_B-

+

C122

100UF16V

ZD122
MLVG0402

VGA_G+
VGA_R+

VGA_HS
VGA_VS

VGA_DD C_SCL
VGA_DD C_SDA

VGA_IN _L
VGA_IN _R

HP_OUT_L
HP_OUT_R

HP_OUT_JD

VGA_TX0
VGA_RX0

12

ZD123
MLVG0402

DGNDDGND

USB1_DM
USB1_DP

TX0
RX0

C123
100N 16V

DGND

VGA_B+VGA_BIN

R129
100OHM1/16W

VGA_B-

R134
100OHM1/16W

VGA_G+VGA_GIN

R137
100OHM1/16W

VGA_B-

R143
100OHM1/16W

VGA_R+VGA_RIN

R145
100OHM1/16W

VGA_B-

R148
100OHM1/16W

t

1 2

TH101

C121

NC/ 22uF 10V

DGND

12

C124

C125

NC/ 4P7 50V

DGND DGND

Tit le

VGA

Size D ocument Number Rev

<Doc > 1.0

B

Date: Sheet

VGA_B+
VGA_B­VGA_G+
VGA_R+

VGA_HS
VGA_VS

VGA_DDC _SCL
VGA_DDC _SDA

VGA_IN_L
VGA_IN_R

HP_OUT_L
HP_OUT_R

HP_OUT_JD

USB1_DM
USB1_DP

TX0
RX0

VGA_TX0
VGA_RX0

USB_Shield_GND

USB CONN

1

1234

2
3
4

6 5

USB_Shield_GND

of

24Monday, May 28, 2012

CN108

32

To Main Chip

HDMI_D2+
HDMI_D2­HDMI_D1+
HDMI_D1­HDMI_D0+
HDMI_D0­HDMI_CLK+
HDMI_CLK-

HDMI_DDC_SCL
HDMI_DDC_SDA

HOTPLUG

TUN_I2C_SCL
TUN_I2C_SDA

HDMI_CEC

R501
NC/47K

HOTPLUG0

NC/10K 1/10W

0R05 OHM

R503

R520

HDMI_D2+
HDMI_D2­HDMI_D1+
HDMI_D1­HDMI_D0+
HDMI_D0­HDMI_CLK+
HDMI_CLK-

HDMI_DDC_SCL
HDMI_DDC_SDA
HOTPLUG

TUN_I2C_SCL
TUN_I2C_SDA

HDMI_CEC

HDMI0_CON5V

R502
NC/1K 1/10W

Q501
NC /MMBT3 904

R521

100K 1/16W

DGND

HOTPLUG1

DGND

DGND

HDMI0_DDC_SCL#
HDMI0_DDC_SDA#

DGND

R510

1.5KOHM + -5% 1/16W

HDMI0_5VHDMI0_5V

R515
3KOHM +- 5

DGND

DGND

DGND

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#

HDMI1_CON5V

R518

1.5KOHM +- 5% 1/16W

R524

HDMI1_5V

100K 1/16W

R517

％

3KOHM +- 5

DGND

D_5V

R516
R527
47K

HDMI_DDC_SCL
HDMI_DDC_SDA

22 OHM 1/10W

TUN_I2C_SCL HDMI_SCL

TUN_I2C_SDA

22 OHM 1/10W

HDMI0_D2+

HDMI0_D2­HDMI0_D1+

HDMI0_D1­HDMI0_D0+

HDMI0_D0­HDMI0_CLK+

HDMI0_CLK-

HDMI_CEC

12

DGND

％

1/16W

HDMI1_D2+

HDMI1_D2­HDMI1_D1+

HDMI1_D1­HDMI1_D0+

HDMI1_D0­HDMI1_CLK+

HDMI1_CLK-

HDMI_CEC

12

1/16W

DGND

47K

R173

C523

NC/12pF 50V

10
11
12
13
14
15
16
17
18
19
20
21

DGNDDGND

10
11
12
13
14
15
16
17
18
19
20
21

DGND

CN501

1
2
3
4
5
6
7
8
9

CN502

1
2
3
4
5
6
7
8
9

C524
NC/12 pF 50V

D2+
D2 Shield
D2­D1+
D1 Shield
D1­D0+
D0 Shield
D0­CK+
CK Shield
CK­CE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
SHELL1
SHELL2

HDMI

D2+
D2 Shield
D2­D1+
D1 Shield
D1­D0+
D0 Shield
D0­CK+
CK Shield
CK­CE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
SHELL1
SHELL2

HDMI

HDMI_SDA

R174

DGND

12

12

ZD501
ZD502
ZD503
MLVG0402
MLVG0402
MLVG0402

12

12

ZD504
ZD505
ZD506
MLVG0402
MLVG0402
MLVG0402

SHELL3
SHELL4

SHELL5

SHELL6
SHELL7

SHELL3
SHELL4

SHELL5

SHELL6
SHELL7

M3V3

FB502

1 2

120R

C506

10UF 10V

22
23

24

25
26

DGND

22
23

24

25
26

DGND

DGNDDGND

C505

100N 16V

DV33_TMDS

DV33_TMDS

C511

C510

100N 16V

100N 16V

C512

100N 16V

100N 16V

U501

NC/R Clamp0524P .TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

8

U502

NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

8

U503

NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

3

8

DGND

U504

NC/RC lamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

3

8

DGND

3

DGND

3

DGND

GND

GND

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

10

HDMI0_D2+

OUT1

9

HDMI0_D2-

OUT2

7

HDMI0_D1+

OUT3

6

HDMI0_D1-

GND

10

HDMI0_D0+

OUT1

9

HDMI0_D0-

OUT2

7

HDMI0_CLK+

OUT3

6

HDMI0_CLK-

GND

10

HDMI1_D2+

9

HDMI1_D2-

7

HDMI1_D1+

6

HDMI1_D1-

10

HDMI1_D0+

9

HDMI1_D0-

7

HDMI1_CLK+

6

C513

DGND

HDMI0_D2+
HDMI0_D2-

HDMI0_D1+
HDMI0_D1-

HDMI0_D0+
HDMI0_D0-

HDMI0_CLK+
HDMI0_CLK-

HDMI1_D2+
HDMI1_D2-

HDMI1_D1+
HDMI1_D1-

HDMI1_D0+
HDMI1_D0-

HDMI1_CLK+
HDMI1_CLK- HDMI1_CLK-

DV33_TMDS

DGND

DGND

C522
1uF 16V

R535

82K 1/10W

R533 499 +-1% 1/10W

DV33_TMDS

DGND

RESET

DV33_TMDS

HOTPLUG

R536NC/22KOHM 1/10W

HDMI_SDA

HDMI_SCL

HDMI_D2+

34

33

35

36

U505

PCSCL

PCSDA

NC
REXT
ARX2P
ARX2M
NC
ARX1P
ARX1M
VSS
ARX0P
ARX0M
VCC
ARXCP
ARXCM
ASCL
ASDA
RESET

PCADR0

IT6633E-P

AHPD

APWR5V

16

14

15

HDMI1_D 2-

HDMI1_D2+

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

R526 100K 1/16W

DGND

HDMI_D0+

HDMI_D2-

HDMI_CLK+

HDMI_CLK-

HDMI_D1-

HDMI_D1+

HDMI_D0-

DV33_TMDS

DGND

37

38

TX2P

TX2M

HDMI1_D1+

DV33_TMDS

47

40

45

48

44

46

39

42

41

VSS

VCC

TX1P

TX0P

TX1M

TX0M43TXCP

TXCM

TXSCL

TXSDA

HDMI1_D 1-

DGND

TXHPD

TXPWR 5V

CPWR5V

BHPD1BSDA2BSCL3BRXCM4BRXCP5BRPWR5V6BRX0M7BRX0P8VSS9BRX1M10BRX1P11VCC12BRX2M13BRX2P

HDMI1_5V

HDMI1_D 0-

HOTPLUG1 HDMI_DDC_SDA

HDMI1_D0+

HDMI1_CLK-

HDMI1_CLK+

HDMI1_DDC_SCL

HDMI1_DDC_SDA HDMI_DDC_SCL

CHPD
CSDA

CSCL
CRXCM
CRXCP

CRX0M

CRX0P

CRX1M

CRX1P

CRX2M

CRX2P

R537

100K 1/16W
49
50
51
52
53
54
55
56
57
58

VSS

59
60
61

VCC

62
63
64

NC

HOTPLUG0
HDMI0_DDC_SDA
HDMI0_DDC_SCL
HDMI0_CLK­HDMI0_CLK+

HDMI0_5V
HDMI0_D0­HDMI0_D0+

HDMI0_D1­HDMI0_D1+
DV33_TMDS
HDMI0_D2­HDMI0_D2+

DGND

DGND

HDMI0_CON5V

HDMI0_DDC_SDA

NC/33P 50V

D5V_STB

D501

132

BAT54C

R506

R507

4.7K

4.7K

R508

HDMI0_DDC_SCL#

100 OHM

HDMI0_DDC_SDA#

C507

NC/33P 50V

DGND

R509
100 OHM

C501

HDMI1_DDC_SC LHDMI0_DDC_SCL
HDMI1_DDC_SD A

NC/3 3P 50V

R512

4.7K

C502

D502

132

D5V_STBHDMI1_CON5V

BAT54C

R514

4.7K

R511

100 OHM

C508

NC/33P 50V

DGND

R513
100 OHM

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#

Titl e

HDMI

Size Document Number Rev

<Doc> 1. 0

C

Date: Sheet

of

12Friday, J une 15, 2012

33

AOUT_L

AOUT_R

R602
100 OHM
R603
100 OHM

C604

1NF 50V

SH600

SH601

SH602

SH603

SH604

DGND

120R/6000mA

FB601

1 2

AV_L_OUT#

AV_R_OUT#

R605 NC/100K 1/10W

R604

NC/100K 1/10W

PVDD+24V_AMP

C605

1NF 50V

AMP_MUTE

D5V_STB

10K 1/10W

10K 1/10W

AMP_MUTE
Low: Mute disablde
High: Mute enable

R601

10K 1/10W

R613

R615

R612
10K 1/10W

Q602
MMBT3906

C629

+

100UF16V

D_5V

R606

10K 1/10W

Q601

MMBT39 04

AV_L_OUT#

D_5V

R621

10K 1/10W

R627

NC/0.05R

AV_R_OUT#

100 OHM

10K

R622

NC

R626

R623

6K8 1/10W 1%

100 OHM

C607 100N 50V

R611

C613 1uF 25V

PVDD

R624

10 OHM 1/4W

C622

1UF 50V

R620

3.32KOHM + -1% 1/10W

R614

C614 1uF 25V

AMP_STB

C619

1uF 25V

C621

1UF 50V

C633

1UF 50V

C620

1uF 25V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

U601

SDZ

FAULTZ

LINP

LINN

GAIN0

GAIN1

AVCC

AGND

GVDD

PLIMIT

RINN

RINP

NC

PBTL

TPA3110D2

1.2A Max

Thermal Pad

PVCCL

PVCCL

BSPL

OUTPL

PGND

OUTNL

BSNL

BSNR

OUTNR

PGND

OUTPR

BSPR

PVCC

PVCC

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

100N 50V

C603

0.22uF 50V

C608

0.22uF 50V

C623

0.22uF 50V

C626

0.22uF 50V

100N 50V

C606

C618

DGNDDGND

R607

10OHM1/16W

R608

10OHM1/16W

R609

10OHM1/16W

R610

10OHM1/16W

DGND DGNDDGND

C602

1nF 50V

1 2

C609

330pF 50V

1 2

1 2

1 2

330pF 50V

C615

1nF 50V

PVDD

100UF 35V

+

C601

DGND

L601
47UH

FB602

NC/120R 6A

L603
47UH

FB603

NC/120R 6A

C611 330pF 50V

L602
47UH

C624 330pF 50V

L604
47UH

FB605

NC/120R 6A

C627

PVDD

FB604

NC/ 120R 6A

100UF 35V

+

C616

C610

330nF

C612

330nF

C625

330nF

C628

330nF

AMP

CONN

AOUT_L
AOUT_R

AMP_MUTE

4
3
2
1

5 6

CN601

AOUT_L
AOUT_R

AMP_MUTE

L+

L-

R-

R+

34

Tit le

Size

B

Date: Sheet

AUDIO AMP

Document Number

Design Check Auditing

Check of nameAuditing of nameModify Rev

Modi fy Rev

12Wednes day, June 20, 2012

Rev

00.00

of

Main Chip <-->

TUN _I F+

TUN ER

TU10 1

FB101

NC/300 OHM

SCL_CAN

SDA_CAN

AIF-

AIF+

IF_AGC

AGND

12

100UF16V

AGND

Tuner3.3V

Tuner 3.3 V

+

C128

C133

1NF 50V

I2C for Tuner

TUN_I2C_SCL

TUN_I2C_SDA

3.3V_TUNER

C131

C130

1UF 10V

+3V3

R159 4. 7K

R160 4. 7K

1NF 50V

AGND

C132

470pF 50V

TUN_I2C_SCL

TUN_I2C_SDA

close to main chip

R162

Form main chip

Form main chip

100 OHM

AGND

R164
100 OHM

AGND

C140
10P 50V

C144
10P 50V

AIF+

SCL_CAN

AIF-

SDA_CAN

1

ANT-DC

2

VCC

3

SCL

4

SDA

5

GND

6

CLK_OUT

7

IF_N

8

IF_P

9

IF_AGC

TH110TH211TH312TH4

13

AGND

D_5V 3.3V_TUNER

AGND

FB103

1 2

0R

C149

100N 16V

C127

100UF16V

U101

2

VIN3VOUT

+

DGND

C126

1UF 10V

DGND

GND14

4

C129

NC/10U F 10V

DGND

Realtek requext to fine tune IF on 3/22' 12

AGND

L106

C13915PF 50V

NC/0.82UH

AGND

C150

C151

1uF 16V

1uF 16V

AGND

C135 NC/15PF 50V

C134

NC/15PF 50V

L102

0.82UH

C13715PF 50V

C13830PF

L107

0.82UH

NC/15PF 50V

AGND

L105

NC/0.82UH

C141

L103

0.82UH

L108

0.82UH

C142 NC/15PF 50V

C136
15PF 50V

TUN _I F+

TUN _I F-

C143

15PF 50V

TUN _I F-

ATV_IF_AGC

TUN_I2C_SCL
TUN_I2C_SDA

TUN _I F+
TUN _I F-

ATV_IF_AGC

TUN _I2 C_S CL
TUN _I2 C_S DA

Close to Main chip

IF_AGC from IC

+3V3

10K 1/10W 5%

R165
NC/1K 1/10W

R166

C145

10NF 50V

L109 0 ohm

C146

NC/10U F 10V

AGNDAGND

Close to Tuner

R167

C147
NC/10U F 10V

1K 1/10W

AGNDAGND

C148
100N 16V

To tuner

IF_AGC trace shielding by GND

IF_AGCATV_IF_AGC

Titl e

Tuner

Size Document Number Rev

<Doc > 1.0

Custom

Date: Sheet

of

34Thursday, May 10, 2012

35

DGND

1112

CN4004

DGND

1
2
3
4
5
6
7
8
9
10

CONN

LED-R
LED-G

IRRX1 LSADC1

POWER

KEY_AD C1

POWER_ KEY

DGND

IR & KEYPAD CONNECTOR:

Pin01: LED-R
Pin02: LED-G
Pin03: IRRX1
Pin04/07: GND
Pin05/06: POWER
Pin08: KEY_ADC1
Pin09: POWER_KEY

+3V3

Q105

IRRX

NC/ 2N7002

VGA_RX0
VGA_TX0

R1926 NC/100R 1/16W 5%
R1927 NC/100R 1/16W 5%

NC/ MLVG0402

D5V_STB +3V3

FB4028

NC/300R 4A

1 2

1 2

POWER_KEY
KEY_ADC 1

LED-G
LED-R
IRRX1
POWER

C4078

100N 16V

45

1
2
3

DGND

D5V_STB D5V_STB

R1928

NC/ 10K 1/16W 5%

R1931 NC

R1929

NC/ 2N3906S-RTK/PS

12

ZD116

DGND DGND DGND DGND

23

NC/ 100R 1/16W 5%

1

AGND

12

R1930

NC/ 10K 1/16W 5%

Q104

ZD115
NC/MLVG0402

DGND

CN4005

NC/CONN

DGND

1 2

ZD4001

GLZ5.6B

LIGHT_R1
LIGHT_G1

C156

NC/ 100nF 50V

FB4029
300R 4A

C4079
100PF 50V

DGND

12

ZD126

NC/MLVG0402

C4074

100N 16V

R4044
NC/1K 1/10W

R4045
NC/1K 1/10W

12

TH1 02
NC/0R4

t

12

ZD127
NC/ MLVG0402

+3V3 +3V3

R4032
2K2 1/10W 1%

C4075

100N 16V

1 2

ZD4002

GLZ5.6B

1 2

FB4032

300R 4A

LEDR_C TRL
LEDG_CTRL

DGND

C4076

100N 16V

CN110

1
2
3
4
5

NC/CONN

R4033
4K7 1/10W 1%

ZD4003

GLZ5.6B

1 2

DGND

IRRX

R4034
100 OHM

R4035
100 OHM

C4077
100N 16V

LSADC0

R4038
1K 1/10W

R4037
1K 1/10W

KEY_ADC 1

POWER_KEY

LEDG_CTRL
LEDR_C TRL

+3V3

Q4004

MMBT3906

Q4005
MMBT3906

To Keypad

IRRX
LEDR
LEDG
LSADC 1
LSADC 0

VGA_RX0
VGA_TX0

LEDG

R4036

4.7K

LEDR

R4039

4.7K
R4053

NC/4.7K

DGND

R4040

14.7KO HM 1/10W

R4041

7.15K 1%

R4042

4.3K

R4043

2.49K 1%

R4046

750 OHM +-1% 1/10W

Tit le

Size Document Number Rev

Date: Sheet

SW4007

3 4
1 2

SW

SW4006

3 4
1 2

SW

SW4005

3 4
1 2

SW

SW4004

3 4
1 2

SW

SW4001

3 4
1 2

SW

DGND

DGND

DGND

DGND

DGND

VOL+

VOL-

CH+

CH-

Power

2.05V

1.48V

0.9V

0.3V

077G602S 3A HJ

Key pad

<Doc > 1.0

B

34Friday , May 18, 2012

IRRX
LEDR
LEDG
LSADC 1
LSADC 0

VGA_RX0
VGA_TX0

of

36

5.2 电源板
715G5508P01001002M

FB9104

1 2

4

-

RV9901

TVR14561KFAOZF

BEAD

L9902

124

3

C9902

30MH

1NF 250V

B

C9907

470NF 305V

L9901

3

SG901

30MH

124

C9901

470NF 305V

change type_1124

R9901

IC9901

390K

1

NC

NC

2

D1

D2

3

D1

D2

4 5

NC NC

R9903

C9906

47pF

390K

B

C9903

100PF 250V

1 2

1

2

CN904
NC/CONN

3

2

A

8
7
6

CN901

SOCKET

+

C9904

1NF 250V

C9905

100PF 250V

220PF 250V

C9316

BD901

1

1 2

TS6B06G-05-X0

FB9105
BEAD

1 2

A

SG902

DSPL-501N-A21F

12

NR9901
NTCR

t

FUSE

1 2

3 4

1 2

FB9102

BEAD

R9108
100KOHM +-5% 1/8W

CN9902

1

L

2

N

CONN

F901

FB9101

BEAD

C9144

56uf 450V

+

56uf 450V

R9101

6.8K 1/4W

R9102

6.8K 1/4W

R9103

6.8K 1/4W

C9145

NC

C9101

+

C9108
470P 50V

C9102

+

NC

IC9101

LD7750RGR

1

OTP

HV

2

COMP

3

CS

VCC

4 5

GNDOUT

470OHM +-5% 1/8W

C9908

470PF 250V

1NF 250V

C9315

C9105

100N 50V

R9109

+

8

6

HS9101

HEAT SINK

C9103

NC

D9102
SS0520

R9106
47OHM +-5% 1/8W

BEAD
FB9103

1 2

1
2
3
4

+

12

R9110
10 OHM 1/4W

ZD9101

1 2

C9104

2.2NF

R9105

10 OHM 1/8W

R9113

5.1 OHM 1/4W

MTZJ27B

+

C9136
NC

D9101

PR1007

R9107
10K OHM +-5% 1/8W

HS9102

1
2
3
4

HEAT SINK

C9126

2.2nF 630V

R9104
82KOHM +-5% 2WS

12

FB9106
BEAD

Q9101

STF10N65K3

+

C9107

47UF 50V

R9111

0.24 oHM 2W

C9109

22N 50V

C9119
47pF

D9103
PR1007

IC9102

PS2561DL1-1

T9101

POWER X'FMR

8 9

5
1

2

R9112

3.3 OHM 1/4W

43

HS9103

1
2
3

SHIELD

5.2V1

R9145

910 OHM 1/8W

12

IC9103
KIA431A-AT/P

10

11
12
13
14

15
16

C9133
100N 50V

R9114
47 OHM 1/4W

R9115
47 OHM 1/4W

R9116
47 OHM 1/4W

R9120

220 OHM 1/4W

R9121

220 OHM 1/4W

R9122

220 OHM 1/4W

D9107

3

FMXA-2202S

2

1

R9146

1.5KOHM +-1% 1/8W

OVP

R9147

2K OHM

3

1

5.2V

D9104
FMW-2156

2

+

C9140
330UF 50V

R9148

3K OHM 1%

R9151

2K43 1/8W 1%

C9110

1000pF 630V

+

C9111
330UF 16V

+

C9125

1000pF 630V

C9148

1000pF 630V

C9142
330UF 50V

+24V1

R9150

200K +-1% 1/4W

5.2V1

L9101

C9112

100N 50V

+24V1

+

12

C9141
330UF 50V

R9159

10R

3.5uH

ZD9106

P6KE27A

470uF 16V

+

C9113

C9143
330UF 50V

5.2V

12
1 2

+

100N 50V

ZD9104

BZT52-B9V1

D9109

RB160M

C9127

C9120

330UF 35V

+12V

BZT52-B16

12
1 2

C9114

1uF

24V_A

+

C9128

100N 50V

R9137

100K 1/8W 1%

ZD9105

D9105

RB160M

R9153

470 OHM

C9118

0.1uF 50V

R9138
100K 1/8W 1%

+24V1

12
1 2

R9154
1K 1/8W

Q9107
P1604ETF

Q9108
2N7002

Q9105
2N7002

ZD9107

BZT52-B39

D9108

RB160M

5.2V

R9119

330K 1/8W 5%

R9118

39K 1/8W 1%

ZD9103

BZT52-B6V2

1 2

R9139

3.9K 1/8W

5.2V1

R9155
10K OHM +-5% 1/8W

Q9110
PMBS3906

C9134

100N 50V

1

2

3

4

C9123
15N 50V

+24V1

R9140

5.6K 1/8W

IC9105
AS431AN-E1

C9122
100N 50V

R9156

47KOHM +-1% 1/8W

C9117
100N 50V

IC8104

BOOT

GND

VIN

COMP

EN

VSNS

SS

C9129

10nF 50V

R9133

10K OHM +-5% 1/8W

R9134

100K 1/8W 1%

PH

L9103

3.5uH

D9106

SM340A

8

7

6

5

C9131

470UF 35V

R9143

27K 1/8W 1%

R9144

3K 1/8W +/-1%

R9157
33K 1/8W 5%

Q9111

PMBS3904

PS_ON

1 2

24V_A

D9110

SS0520

0.1uF 50V

47uH
L9102

+

C9106

C9146
1000pF 630V

R9158
47 OHM 1/4W

C9124
1nF 50V

R9126
33K OHM

C9132
100N 50V

C9130

NC

5.2V1

R9168
NC

12

C9116

270UF 25V

Q9113
NC

C9137

NC

OVP

R9129

10K OHM +-5% 1/8W

+

C9138
100PF 50V

R9166

R9167
NC

C9115
100N 50V

NC

PS_ON

C9135

NC

+

R9152

NC

+12V

R9125

11K 1/8W 1%

R9117

750 OHM 1/8W

soft start >20ms

Q9112

NC

R9165

NC

PS_ON

24V_A

4.7UF 50V

ON/OFF

DIM

2SB1124S-TD-E

R9135

+

C9139

Q9114

100K 1/8W 1%

R9136

390K OHM

+24V

R9201

24V_B

R9169

330R 1/8W 5%

24V_B

R9170

330R 1/8W 5%

100 OHM 1%

PS_ON

C9147

1uF

C9149

1NF

CN903

C9150

1NF

CONN

13
12
11
10

9
8
7
6
5
4
3
2
1

R9202

100 OHM 1%

+12V

5.2V

37

VBJT

+24V

10N 50V

C8118

1NF

18K 1/8W 5%

C8114

10N 50V

C8108

R8111

C8117

1NF

+12V

R8101

51K 1% 1/8W

VSET

R8110
100K 1% 1/4W

C8104
100N 50V

5.2V

Q8102

2N3904

R8113

18R 1%

VADJ

C8105
100N 50V

VSET

C8109

100N 50V

DIM

VFB

C8101

+

330UF 35V

ON/OF F

IC8501

1

EN

2

DIM

3

GM

4

VFB

5

VSET

6

OVP

7 8

RT CS

R8102

150K 1/8W

LED1

Q8104

2N3904

Q8103

2N3904

R8121

15R 1%

SLP

VADJ

VBJT
VCC

VMOS

GND

R8122

15R 1%

SLP

14
13
12
11
10
9

VBJT

VADJ

R8108

330R 1/8W 5%

C8110

1NF

Q8105

2N3904

R8123

15R 1%

L8101

2

Q8106

2N3904

R8124

15R 1%

C8103
1uF

D8102

RB160M

4

R8104

10 OHM 1/8W

12

R8103

0 OHM 1/4W

Q8107

2N3904

R8125

15R 1%

R8105

2R2 +-5% 1/8W

+12V

LED3

Q8108

2N3904

R8126

15R 1%

Q8101

AOD4126

R8106

10K 1/4W

Q8109

2N3904

R8127

15R 1%

D8101

1

MBRD10150D

2

3

R8107

0.07R

C8116

47pF

C8115

47pF

LED4

Q8110

2N3904

C8106

1NF

R8128

15R 1%

+

Q8111

2N3904

R8132

15R 1%

C8102

100UF 63V

LED5

NC

Q8112

2N3904

C8113

+

100UF 63V

C8111

R8136

15R 1%

R8116
100K 1% 1/4W

R8117

4K3 +-1% 1/8W

Q8114

2N3904

R8137

15R 1%

LED6LED2

VLED+

Q8113

2N3904

R8138

15R 1%

LED1

LED2

LED3

LED4

LED5

LED6

Q8115

2N3904

R8139

15R 1%

D8103

2

3

1

BAV99

D8104

2

3

1

BAV99

D8105

2

3

1

BAV99

D8106

2

3

1

BAV99

D8107

2

3

1

BAV99

D8108

2

3

1

BAV99

R8118

1M 1/6W 5%

VLED+

LED5
LED3
LED1

LED2
LED4
LED6

VLED+

VFB

R8119
150K 1/8W 5 %

NC

C8112

SLP

CONN

12
11
10

9
8
7
6
5
4
3
2
1

CN801

38

5.3 遥控板
715G5061R02002004M

CN01
CONN

33G8032 4F HR

LED

081G 14 50 EL

Red

LED1
264-10SURC/S530-A3

R002 220 OHM 1/10W

1 2

Top View

65

1
2
3
4

IR

VCC

R001 15K 1/10W

C001

0.1uF 50V

U001

1

VOUT

2

GND

3

VCC

KSM-603TM2M

056G 627911

16 mm

Dip LED

IR

37mm

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

715G5061-R0A-000-0040

02-IR&LED

39

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715G5061-R0A-000-0040

of

22Thursday, May 26, 2011

Size

Rev

称爹

<

A

称爹

A

>

6. 软体及 EDID 烧录

（一）采用 U 盘烧录

1. 准备工作

1.1 工具：U 盘（FAT 格式为佳）

1.2 软体：软体发布时获得img文档。

2. 烧录

2.1 将待烧录的“.img”格式软体拷贝到U盘（此U盘必须能够被TV识别）根目录下。

2.2 确保要更新的软体名与TV中原有软体名相同，仅版本日期checksum差异） ，在TV开机状态下，按
“Menu+456987+Recall”，进入CSM菜单。

1. “菜单”键

2. 4,5,6,9,8,7 键

3. “回看”键

2.3 插入带软体的U盘， TV会自动识别，如下图。

40

2.4 选择“是”（一般默认）， 按OK键确认开始更新软体（更新软体过程严禁对TV任何动作，不能断电，否则容易

造成flash烧写异常）。

2.5 升级结束之后电视自动开机（整个过程大概持续2分钟左右）。

（二）EDID 已经捆绑到软体中，无需单独烧录。

41

7. 故障处理流程

有

检测 IR 板及 LED 灯

更换 IR 板

检测电源板 CN9201 的 PIN5/6 是否有 24V 电压输出

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

无

重插电源插座或开启硬开关

检测电源板 CN9201 的 PIN2/3 是否有 5.2V 电压输出

无

无法启动

无

有

更换电源板

更换电源板

更换按键板

检测按键板的 POWER 键是否失灵

是

检测遥控板的红外接收器 U001 是否失灵

是

更换遥控板

否

否

更换主板

42

检测 LVDS 线是否良好

检测主板上 CN4005 的
PIN1/2/3/4 是否有 12V 供电

是

否

先更换主板
检测是否 OK

更换主板

更换 Panel

否

是

无画

检测 TV 是否受控，能否用遥控器或按键板开关机

是

检测是否有背光

是

否

重插或更换 LVDS 线

检测电源板 CN9201 的 PIN5/6 是否有 24V 电压输出

是

更换 Panel

否

否

检测主板 CN4003 是否有 PW 信号

是

更换主板

否

更换主板

否

更换电源板

43

彩 条、水 波 纹、画 抖、画 闪 、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

检测信号源出
信号是否正常

是 否

先更换主板

检测是否 OK

否

更换 Panel

检测信号线

是否良好

是 否

更换信号线

重新设置

信号源

画异

TV 画面雪花点、重

影、细线、条纹干扰

检测 TV 信号线

是否接触不良

是 否

重新连接

TV 信号线

检测附近是否
有高频干扰源

是 否

排除干扰源 用场强仪检测信号强度

是否在 45-100db 之间，

65db 左右为最佳值

是

更换主板

44

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新

是 否

升级软体

先更换主板

检查是否 OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

否

取回站内
加温检测

无声或声音异常

检测信号源音频接口是否正确，或 TV 制式是否为 DK 制

是

否

检测 TV 是否被静音，调整音量大小，

或进入菜单进行复位看是否 OK

否

检测主板到喇叭的连接线是否断路

是 否

更换连接线

检测喇叭阻抗是否变质

(喇叭阻抗值标在喇叭上)

是 否

更换喇叭 更换主板

收不到台或收台不全

检测软体版本是否需要更新

重插音频接口或设置 TV 制式

检测此频道是否发生频
偏，尤其是使用卫星信号

是

建议客户重新

设置信号源

是 否

升级软体

用场强仪检测信号强度是否在
45-100db 之间，65db 左右为最佳值

是

用别的 TV 测试是否能收到此台

是

和客户说明当地 TV 信号未转播此台

否

更换主板

否

太弱:加装信号放大器
太强:减少信号放大器或加装信号衰减器

否

45

更换喇叭 主板功放异常

重新安置或更换电池

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换主板

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

更换遥控器 检测 IR 板是否异常

异响

用别的遥控器测试是否可用

是 否

是

更换 IR 板

电源板，PANEL 异响

更换电源板/PANEL

否

更换主板

46

更换按键

OSD 不稳定或无法正常工作

按键板连接正常吗？

否

接好按键板

是

按键正常吗？

否

是

按键板有无故障？

否

更换按键板

是

检查主板

47

8. 主要 IC 管脚及内部框图

1）RTD2648

HDMI

DSUB

YPbPr

CVBS

Video Input

HDMI

USB 2.0x1

Peripherial I/F

Tuner

Tuner IF INPUT

AIN

AIN

Audio Input

Head

Phone

AMP

Audio Output

SPDIF

RTD2648

SPDIF

AIN

JTAG

GPIO/PWM

I2C

UART

Debug

Contorl I/F

ADC Key

IR

remote

U/I

2-port 8nit LVDS

Panel I/F

DDR2(MCM)

SPI

Memory

48

2）IC TPA3110D2

49

9. BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

E26C9KNDCEA1NNX

点位 组件 对象描述 备注

756TXCCB0KD1130003 MAIN BOARD-CBPFCK8DX5

SMTF-U4003 100TARVF005D3X MCU ASSY-356G2233073
U4003 356G2233073 FLASH W25Q64FVSSIG 64MB SOIC8 2.7~3.6V

036T 600 18112 NONWOVEN FABRTC
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
070GHDCP500HDC HDCP CODE
SP01 078G0110574 YA 16 OHM 11W 132X27MM - NO
085T 583103 GASKET

E08901 089G214A15N HL AC POWER CORD 1500MM
ECN701 095G801313DM05 HARNESS 13P-13P 350MM FQE110783I
E098 098GRABD6NCACD REMOTE 2K11 AOC 90-364100T4420

0M1G 930 6 47 CR3 SCREW 3X6
0M1G1730 8120 SCREW 3X8
0M1G1730 8120 SCREW 3X8
0Q1G 330 8 47 CR3 SCREW 3X8
0Q1G 330 8 47 CR3 SCREW 3X8
0Q1G 330 8 47 CR3 SCREW 3X8
0Q1G 330 8 47 CR3 SCREW 3X8
0Q1G 940 18 47 CR3 SCREW
0Q1G1030 6120 SCREW 3X6
0Q1G1030 10 47 CR3 SCREW

ECN601 395G801404DY11 HARNESS 4P-B&R+B&W 450/260MM
ECN601 395G801404XY11 HARNESS 4P-B&R+B&W 450/260
ECN4004 395G801410DY12 HARNESS 10P-4P(1253) 420
ECN4004 395G801410LY12 HARNESS 10P-4P 420MM
ECN801 395G801412DY47 HARNESS 5P-12P 350
ECN801 395G801412MY47 HARNESS 5P-12P 350MM
ECN4001 395G801830DY47 LVDS CABLE 30P-30P 290MM
ECN4001 395G801830LY47 LVDS CABLE 30P-30P 290MM 2nd Source
E098 398GRABD6NCACC REMOTE AOC RL76E-2 CHINESE

CBPFCK8DX5 CONVERSION BOARD
040G 45762412B OTHER LABEL

C616 067G315M1016KV EC 100UF 20% 35V 8*7
C601 067G315M1016KV EC 100UF 20% 35V 8*7
SW4006 077G602S 3A HJ TACT SW 4P 5.85 200G TSDBYC2202
SW4007 077G602S 3A HJ TACT SW 4P 5.85 200G TSDBYC2202
SW4005 077G602S 3A HJ TACT SW 4P 5.85 200G TSDBYC2202
SW4004 077G602S 3A HJ TACT SW 4P 5.85 200G TSDBYC2202
SW4001 077G602S 3A HJ TACT SW 4P 5.85 200G TSDBYC2202
CN103 088G 78F114VCL RCA JACK 2P YELLOW 1*1 V/T 13.5
CN102 088G 78F121XCL RCA JACK V/T 4P W/R 1*2 H=8.6
CN101 088G 78F135XCL RCA JACK V/T 6P G/BL/R 1*3 H=8.6
CN106 088G302F3G1VCL PHONE JACK V/T 3P GREEN H=8.4
CN107 088G302G7B1ACL PHONE JACK R/A 7P BLACK H=10.5
CN108 088G352F6B2ACL USB CONN R/A 6P BLACK 8.4MM
CN105 088G353FFF3XCL D-SUB CONN V/T 15P BLUE H=8.4MM
TU101 094G PALALL 7L TUNER CHINA DT21CN-2-E
CN601 311GW200A04ABX WAFER 2.0MM 4P
CN701 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM

50

CN701 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM
C629 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C4031 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C709 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C127 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C702 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C128 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C4030 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C4082 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C719 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C122 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C715 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382
C715 067G305S1013HB EC 100UF 20% 16V 6.3*7
C122 067G305S1013HB EC 100UF 20% 16V 6.3*7
C719 067G305S1013HB EC 100UF 20% 16V 6.3*7
C4082 067G305S1013HB EC 100UF 20% 16V 6.3*7
C4030 067G305S1013HB EC 100UF 20% 16V 6.3*7
C128 067G305S1013HB EC 100UF 20% 16V 6.3*7
C702 067G305S1013HB EC 100UF 20% 16V 6.3*7
C127 067G305S1013HB EC 100UF 20% 16V 6.3*7
C709 067G305S1013HB EC 100UF 20% 16V 6.3*7
C725 367G315M2213AB EC 220UF 20% 16V 6.3*7 3000 HR ERF1CM221
U702 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U101 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223
U703 056G 563398 LDO AT1527F11U 3A -

U701 056G 563X01

LDO G9661-25ADJF11U 2A 300MV DROP

SOP-8
U601 056G 616 54 IC TPA3110D2 15W TSSOP-28
U708 056G 643 46 IC RESET AZ809ANSTR-E1 SOT-23 2.93V

U100 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6
U102 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6
Q4003 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q4002 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q701 057G 417511 MMBT3904
Q708 057G 417511 MMBT3904
Q704 057G 417511 MMBT3904
Q706 057G 417511 MMBT3904
Q601 057G 417511 MMBT3904
Q602 057G 417512 MMBT3906
Q4005 057G 417512 MMBT3906
Q4004 057G 417512 MMBT3906
Q707 057G 763 1 MOSFET A03401 4.2A 30V SOT-23
Q710 057G 763 39 FET AO3404 SOT-23 AOS
Q709 057G 763 39 FET AO3404 SOT-23 AOS
Q4006 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q101 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
Q102 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
Q702 057G 763940 MOSFET AO3401A SOT-23
RP4003 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4002 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4005 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4004 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4001 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
TH101 061G 56A100 WT PTCR SMD 0.21R MAX 0.8W

51

R102 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R113 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R110 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R106 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R115 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R133 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R128 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R136 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R144 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R142 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R147 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R609 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R610 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R608 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R607 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R143 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R145 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R138 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R168 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R172 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R137 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R186 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R148 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R114 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R169 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R129 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R107 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R116 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R103 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R135 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R134 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R132 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R131 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R524 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R521 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R526 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R537 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R510 061G0402152 JF RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA
R518 061G0402152 JF RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA
R140 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
R141 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
R517 061G0402302 JF RST 0402 3K 5% 1/16W
R515 061G0402302 JF RST 0402 3K 5% 1/16W
R171 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R170 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R627 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R4001 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R4005 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R703 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
FB4001 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R520 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

52

R727 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
FB4004 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R723 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R4010 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I
R4012 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I
R4011 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I
R4009 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I
R603 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R602 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R4035 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R513 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R162 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R164 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R4034 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R511 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R611 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R614 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R508 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R509 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R156 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R155 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R4038 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R716 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R718 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R167 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R4037 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R726 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R622 061G0603103 JI RST 0603 10K 5% 1/10W
R166 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R734 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R606 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R704 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R4018 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R733 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R154 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R153 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R150 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R109 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R701 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R601 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R712 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R725 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R108 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R728 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R744 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R743 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R4023 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R612 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R613 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R615 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R736 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W
R4040 061G06031472FY RST CHIPR 14.7KOHM 1/10W YAGEO
R735 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA
R719 061G06032000FY RST CHIP 200R 1% 1/10W

53

R739 061G0603203 JY RST CHIP 20K 1/10W 5% YAGEO
R4021 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN
R4026 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN
R4022 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN
R173 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO
R174 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO
R4032 061G06032201FT RST CHIP 2K2 1/10W 1%
R732 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R737 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R730 061G06032402FI RST 0603 24K 1% 1/10W
R730 061G06032402FY RST CHIPR 24KOHM +-1% 1/10W YAGEO
R4043 061G06032491FI RST 0603 2.49K 1% 1/10W
R722 061G06033300FF RST CHIPR 330 OHM +-1% 1/10W FENGHUA
R620 061G06033321FF RST CHIPR 3.32KOHM +-1% 1/10W FENGHUA
R738 061G0603333 JT RST CHIP 33K 1/10W 5% TZAI YUAN
R713 061G0603361 JT RST CHIP 360R 1/10W 5% TZAI YUAN
R720 061G0603391 JF RST CHIPR 390 OHM +-5% 1/10W FENGHUA
R4042 061G06034301FI RST 0603 4.3K 1% 1/10W
R4033 061G06034701FT RST CHIP 4K7 1/10W 1%
R4017 061G0603472 JY
R159 061G0603472 JY
R711 061G0603472 JY
R160 061G0603472 JY
R514 061G0603472 JY
R4014 061G0603472 JY
R4036 061G0603472 JY
R4016 061G0603472 JY
R4020 061G0603472 JY
R4027 061G0603472 JY
R715 061G0603472 JY
R4019 061G0603472 JY
R4048 061G0603472 JY
R506 061G0603472 JY
R4047 061G0603472 JY
R4031 061G0603472 JY
R4030 061G0603472 JY
R4052 061G0603472 JY
R4054 061G0603472 JY
R507 061G0603472 JY
R512 061G0603472 JY
R4015 061G0603472 JY
R4039 061G0603472 JY

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO
R4028 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R516 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R527 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R708 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R724 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R533 061G06034990FF RST CHIPR 499OHM +-1% 1/10W FENGHUA
R4003 061G0603622 JF RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA
R623 061G06036801FY RST CHIP 6K8 1/10W 1%
R105 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA
R104 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA
R149 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA
R151 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA

54

R4041 061G06037151FI RST 0603 7.15K 1% 1/10W TA-I
R101 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R112 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R117 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R130 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R139 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R122 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R146 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R4046 061G06037500FF RST CHIPR 750 OHM +-1% 1/10W FENGHUA
R535 061G0603823 JF RST CHIPR 82KOHM 5% 1/10W FENGHUA
R729 061G06039101FI TEST ONLY RST 0603 9.1K 1% 1/10W TA-I
R729 061G06039101FY RST CHIPR 9.1KOHM +-1% 1/10W YAGEO
FB703 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
FB103 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
L109 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
FB707 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
FB705 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
FB4021 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R624 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA
C115 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C4079 065G040210131J F CAP 0402 100PF 5% 50V NP0
C605 065G040210232K A CAP 0402 1NF 10% 50V X7R
C604 065G040210232K A CAP 0402 1NF 10% 50V X7R
C131 065G040210232K A CAP 0402 1NF 10% 50V X7R
C133 065G040210232K A CAP 0402 1NF 10% 50V X7R
C145 065G040210332K A CAP 0402 10NF 10% 50V X7R
C510 065G040210412K F CAP 0402 100NF 10% 16V X7R
C505 065G040210412K F CAP 0402 100NF 10% 16V X7R
C513 065G040210412K F CAP 0402 100NF 10% 16V X7R
C512 065G040210412K F CAP 0402 100NF 10% 16V X7R
C511 065G040210412K F CAP 0402 100NF 10% 16V X7R
C148 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4002 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4054 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4066 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4058 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C718 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4075 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4072 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4021 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C720 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C723 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C705 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C149 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4063 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4076 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4069 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C123 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4065 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C708 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C721 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C731 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4077 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C704 065G040210412K Y CAP 0402 100NF 10% 16V X7R

55

C4050 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4039 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4045 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4052 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4046 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4007 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4008 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4035 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4049 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4044 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4036 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4041 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4074 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4038 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4051 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4040 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4059 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C701 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4078 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C707 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C712 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4064 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4006 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4061 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4004 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C714 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4068 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4060 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4048 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4062 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C727 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C724 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4057 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4028 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C130 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C126 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4042 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4003 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4022 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4071 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C703 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4024 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C139 065G040215031J F CAP 0402 15PF J 50V NPO
C137 065G040215031J F CAP 0402 15PF J 50V NPO
C143 065G040215031J F CAP 0402 15PF J 50V NPO
C136 065G040215031J F CAP 0402 15PF J 50V NPO
C114 065G040222031J A CAP 0402 22PF J 50V NPO
C4034 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
C4037 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
C138 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0
C627 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C611 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C609 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

56

C624 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C103 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C102 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C118 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C117 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C132 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C4014 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4015 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4017 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4016 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4013 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4012 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4009 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4018 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4010 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4011 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C110 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C4073 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C116 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C111 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C101 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C144 065G060310031J Y CAP 0603 10P 50V NP0 +/-5%
C140 065G060310031J Y CAP 0603 10P 50V NP0 +/-5%
C602 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R
C615 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R
C606 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C754 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C607 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C618 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C729 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C150 065G060310512K A CAP 0603 1UF 10% 16V X7R
C522 065G060310512K A CAP 0603 1UF 10% 16V X7R
C151 065G060310512K A CAP 0603 1UF 10% 16V X7R
C732 065G060310512K T CAP 0603 1UF 10% 16V X7R
C620 065G060310522K T CAP CHIP 0603 1UF K 25V X7R
C619 065G060310522K T CAP CHIP 0603 1UF K 25V X7R
C613 065G060310522K T CAP CHIP 0603 1UF K 25V X7R
C614 065G060310522K T CAP CHIP 0603 1UF K 25V X7R
C4047 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4056 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4055 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4029 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4027 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4023 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4026 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4025 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4020 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4019 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
C4043 065G060347506K T CAP 0603 4.7UF 10% 6.3V X6S -
C4053 065G060347506K T CAP 0603 4.7UF 10% 6.3V X6S -
C622 065G080510532K A CAP 0805 1UF 10% 50V X7R
C621 065G080510532K A CAP 0805 1UF 10% 50V X7R

57

C633 065G080510532K A CAP 0805 1UF 10% 50V X7R
C730 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C506 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C4080 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C713 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C711 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C4005 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C716 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C717 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C608 065G080522432K A CAP 0805 220NF 10% 50V X7R
C603 065G080522432K A CAP 0805 220NF 10% 50V X7R
C623 065G080522432K A CAP 0805 220NF 10% 50V X7R
C626 065G080522432K A CAP 0805 220NF 10% 50V X7R
C612 065G080533432K A CAP 0805 330NF 10% 50V X7R
C628 065G080533432K A CAP 0805 330NF 10% 50V X7R
C625 065G080533432K A CAP 0805 330NF 10% 50V X7R
C610 065G080533432K A CAP 0805 330NF 10% 50V X7R
C722 065G0805475A2K A MLCC 0805 4U7 10V X7R +-10%
C728 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
070GHDCP500HDC HDCP CODE
FB4026 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB4029 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB4032 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB706 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB601 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB704 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB704 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB601 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB502 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF
FB4025 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB4003 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4010 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4012 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4033 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4009 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4008 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4005 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4018 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4022 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4023 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4016 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4014 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4011 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4019 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4020 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4017 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4015 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4006 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4007 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
FB4002 073G 6310810M CHIP INDUCTOR 0.1UH +-10% 50MA
FB4013 073G 6333810M CHIP INDUCTOR 0.33UH 10% 0.75R 100MA
L107 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5%
L108 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5%
L102 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5%

58

L103 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5%
L701 073G253S 71 M SMD CHOKE 2.2UH 20% 0.020R 8.2A
L603 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A
L602 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A
L601 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A
L604 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A
CN501 088G 34021A VA HDMI HEADER V/T 21P BLACK H=10.5 HF
CN502 088G 34021A VA HDMI HEADER V/T 21P BLACK H=10.5 HF
D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D501 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D401 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
X4001 093G 22S517 YC CRYSTAL HC-49U/SMD 27M 30PPM 20PF
ZD4001 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34
ZD4002 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34
ZD4003 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34
D712 093G 60S913 T DIODE RB501V-40 SOD-323
ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD4005 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD117 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD118 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD119 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
CN4001 311GW125F30ACH WAFER 1.25MM 30P V/T -
CN4004 311GW200A10ADJ WAFER 2.0MM 10P
U4001 356G0562X12 SCALER RTD2648 LQFP128
U505 356G0623X05 HDMI SWITCH IT6633E-P LQFP-64
U4003 356G2233073 FLASH W25Q64FVSSIG 64MB SOIC8 2.7~3.6V
E715 715G5549M0E000004K MAIN BOARD PCB
E715 715G5549M0E000004X MAIN BOARD PCB 2nd Source
C4031 067G305S1013HB EC 100UF 20% 16V 6.3*7
C629 067G305S1013HB EC 100UF 20% 16V 6.3*7
X12G8001 1 BGP HEAT PAD
HS4000 X90G8014 1 HEAT SINK
IRPFBXBB IR BOARD
LED1 081G 2 4 EL LED RED 264-10SURC/S530-A3
U001 356G0927911 IR RECEIVER KSM-603TM2M. 38K
LED1 381G00020040GP LED RED GPR2703C/P310A
709T5061 XM001 COMSUMPTIVE ASS'Y

59

055G 23520 IPA
CN01 033G8032 4F HR CONNECTOR 4P 1.25
R001 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO
R002 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
C001 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
E715 715G5061R02002004M IR BOARD PCB

709T5061 XS001 COMSUMPTIVE ASS'Y
P15T0943201 BRACKET_HOLDER_TOP
PLTVCL246AXH1 POWER BOARD
040G 45762412B OTHER LABEL

CN903 033G327813D CONNECTOR
CN801 033G3802 12 H X WAFER 12P 2.0MM H W2011-12RVA-S01

IC9102 056G 139 8

PHOTO-COUPLER PS2561DL1-1 CTR

Q100~200%
IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
RV9901 061G 46561 WB VARISTOR 560V 10% 14
R8107 061G3SWJ70759B SY RST WD 0.07R 5% 3W

C9907 063G107M474AUM CAP X2 470NF 20% 305V
C9901 063G107M474AUM CAP X2 470NF 20% 305V
FB9105 071G 55 21 FERRITE BEAD
FB9104 071G 55 21 FERRITE BEAD
FB9102 071G 55906 FERRITE CORE 510R C8B R6H 6X9.2(A)
L9902 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
L9901 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
L8101 073G 174259 CP BOOST CHOKE 33UH 10% 2.5A L020341-6
L9103 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG
L9101 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG
L9102 073G 253214 H CHOKE COIL 47UH 10% L470R HA
CN901 087G 50147C DL AC SOCKET V/T 2P ACT1MD-02BL4B006 H=14
BD901 093G 50460938 BRIDGE TS6B06G-05-X0 6A 800V KBJ
0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0
NR9901 361G0058509MYW005A NTCR 5R 20% 3.1W SCK13055MTY501
C9145 367G215X560PKZ000S EC 56UF 20% 450V 12.5*40
C9144 367G215X560PKZ000S EC 56UF 20% 450V 12.5*40
T9101 380GL32P102N00 X'FMR 320UH 10% 5UH YUVA-1986-3

705TXB57842 Q9101 ASS'Y
0M1G 930 8120 SCREW 3X8

Q9101 357G0667A05

MOSFET STF10N65K3 10A 650V 35W

TO-220FP
HS9101 Q90G0219 2 HEAT SINK
705TXC84030 F901 ASS'Y

F901 084G 34 14 FUSE -- -- --
F901 084G 41 3 T3.15AH250V 02153.15 LITTLEFUSE
705TXC93954 D9104&D9107 ASS'Y
D9107 093G 52 57 RECTIFIER FMXA-2202S 20A 200V TO-220F
D9104 093G1506 2 SCHOTTKY FMW-2156 15A 60V TO-220
0M1G1730 8120 SCREW 3X8
Q9107 357G0600A02 MOSFET AOTF409 24A 60V 43W TO-220FL
HS9102 Q90G0219 3 HEAT SINK
IC9105 056G 158501 IC AS431AN-E1 SOT23
IC8104 056G 368909 OTHERS IC TPS54231DR SO-8
IC9101 056G 379190 AC/DC CONVERTER LD7750RGR SOP-7
IC9901 056G 665142 OTHERS CAP004DG-TL SOP-8
IC8501 056G 700 34 LED DRIVER PF7001S SOP-14

60

Q9111 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q9110 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q8101 057G 600923 MOSFET AOD4126 TO-252
Q9108 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
Q9105 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
R9105 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R8104 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9201 061G08051000FY RST CHIPR 100 OHM +-1% 1/8W YAGEO
R9202 061G08051000FY RST CHIPR 100 OHM +-1% 1/8W YAGEO
R9137 061G08051003FT RST CHIP 100K 1/8W 1%
R9138 061G08051003FT RST CHIP 100K 1/8W 1%
R9154 061G0805102 JI RST 0805 1K 5% 1/8W
R9107 061G0805103 JT RST 0805 10K 5% 1/8W
R9129 061G0805103 JT RST 0805 10K 5% 1/8W
R9155 061G0805103 JT RST 0805 10K 5% 1/8W
R9108 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R9134 061G0805106 JT RST CHIPR 10M +-5% 1/8W TZAI YUAN
R9125 061G08051102FT RST 0805 11K 1% 1/8W SMD0805011KF
R9146 061G08051501FF RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA
R8102 061G0805154 JF RST CHIPR 150KOHM +-5% 1/8W FENGHUA
R8102 061G0805154 JI RST 0805 150K 5% 1/8W
R8119 061G0805154 JT RST CHIP 150K 1/8W 5% TZAI YUAN
R8111 061G0805183 JT RST CHIP 18K 1/8W 5%
R8105 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
R9151 061G08052431FY RST CHIP 2K43 1/8W 1%
R9143 061G08052702FT RST CHIP 27K 1/8W 1%
R9148 061G08053001FI RST CHIPR 3KOHM +-1% 1/8W 0805
R9144 061G08053001FT RST CHIP R 3K 1/8W +/-1%
R9169 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R9170 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R8108 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R9126 061G0805333 JI RST CHIPR 33KOHM +-5% 1/8W 0805
R9157 061G0805333 JT RST CHIP 33K 1/8W 5% TZAI YUAN
R9119 061G0805334 JF RST CHIPR 330KOHM +-5% 1/8W FENGHUA
R9119 061G0805334 JT RST CHIP 330K 1/8W 5% TZAI YUAN
R9118 061G08053902FF RST CHIPR 39KOHM +-1% 1/8W FENGHUA
R9118 061G08053902FT RST CHIP 39K 1/8W 1%
R9139 061G0805392 JF RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA
R8117 061G08054301FY RST CHIPR 4K3 +-1% 1/8W YAGEO
R9106 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9156 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA
R9109 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
R8101 061G08055102FI RST 51K OHM 1% 1/8W TA-I
R9133 061G0805514 JT RST CHIPR 510K +-5% 1/8W TZAI YUAN
R9140 061G0805562 JF RST CHIPR 5.6KOHM +-5% 1/8W FENGHUA
R9117 061G0805751 JF RST CHIPR 750 OHM +-5% 1/8W FENGHUA
R9145 061G0805911 JF RST CHIPR 910 OHM +-5% 1/8W FENGHUA
JR9105 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR9102 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR9103 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR9104 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9161 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
R8103 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
R9110 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA

61

R8116 061G12061003FI RST 1206 100K 1% 1/4W
R8110 061G12061003FI RST 1206 100K 1% 1/4W
R9158 061G1206101 JI RST 1206 100R 5% 1/4W
R9160 061G1206101 JI RST 1206 100R 5% 1/4W
R8106 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R8113 061G12061809FT RST 1206 18R 1% 1/4W
R9150 061G12062003FF RST CHIPR 200KOHM +-1% 1/4W FENGHUA
R9150 061G12062003FT RST CHIPR 200KOHM +-1% 1/4W TZAI YUAN
R9147 061G1206202 JI RST 2K OHM 5% 1/4W TA-I
R9122 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R9120 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R9121 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R9112 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN
R9114 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9115 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9116 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9153 061G1206471 JI RST 470 OHM 5% 1/4W TA-I
R9113 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN
R9103 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R9102 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R9101 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
C9138 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
C8110 065G080510231J F CAP 0805 1NF 5% 50V NPO
C9149 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8117 065G080510231J F CAP 0805 1NF 5% 50V NPO
C9150 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8118 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8118 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9150 065G080510231J M CAP 0805 1NF 5% 50V NP0
C8110 065G080510231J M CAP 0805 1NF 5% 50V NP0
C8117 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9149 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9124 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9130 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8114 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C8108 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C8109 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9118 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9106 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8104 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8105 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9133 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9117 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9127 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9115 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9112 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9134 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9105 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9132 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8103 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9114 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9147 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9123 065G080515332K Y CAP CHIP 0805 15N 50V X7R +/-10%
C9121 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%

62

C9110 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
C9109 065G080522332K Y CAP CHIP 0805 22N 50V X7R +/-10%
C9128 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9122 065G080522522K M CAP 0805 2.2UF 10% 25V X7R
C9108 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C9125 065G1206102B2K Y CAP 1206 1NF 10% 630V X7R -
C9146 065G1206102B2K Y CAP 1206 1NF 10% 630V X7R -
C9148 065G1206102B2K Y CAP 1206 1NF 10% 630V X7R -
D8107 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D8108 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D8106 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D8105 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D8102 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9109 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9108 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9105 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9106 093G 60S935 T DIODE SK34A SMA
R8138 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8127 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8126 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8132 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8121 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8139 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8137 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8136 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
R8128 361G12061439FT RST 1206 14.3 OHM 1% 1/4W --
D8101 393G0060A11 HF SCHOTTKY MBRD10150D 10A 150V TO-252
D8101 393G0060A14 SCHOTTKY SM10150D1-C 10A 150V (D-PACK)
ZD9103 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
ZD9104 393G039S95300T00HF HF BZT52-B9V1_R1_00001 9.1V 0.41W
ZD9107 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9105 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
D9110 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123
D9102 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123
T9101 006G 31 4 1.7MM RIVET
BD901 006G 31 4 1.7MM RIVET
CN901 006G 31500 EYELET
L9901 006G 31502 EYELET
C9907 006G 31502 EYELET
C9901 006G 31502 EYELET
C9144 006G 31502 EYELET
C9145 006G 31502 EYELET
L9902 006G 31502 EYELET
RV9901 006G 31502 EYELET
NR9901 006G 31502 EYELET
IC9103 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92
Q8103 057G 417513 T TRA 2N3904 TO-92
Q8102 057G 417513 T TRA 2N3904 TO-92
Q8110 057G 417513 T TRA 2N3904 TO-92
Q8112 057G 417513 T TRA 2N3904 TO-92
Q8111 057G 417513 T TRA 2N3904 TO-92
Q8109 057G 417513 T TRA 2N3904 TO-92
Q8114 057G 417513 T TRA 2N3904 TO-92
Q8113 057G 417513 T TRA 2N3904 TO-92

63

Q8115 057G 417513 T TRA 2N3904 TO-92
Q8108 057G 417513 T TRA 2N3904 TO-92
R8118 061G 60210552T TZ RST CFR 1M 1/6W 5%
R9111 061G152M24852T SY RST MOFR 0.24OHM +-5% 2WS SY
R9104 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA
R9159 061G208M10052T SY RST MOF 10R 5% 1W
R9901 061G212Y39452T SY RST MGF 390K 5% 1/2W RMU12J3903A520NL
R9903 061G212Y39452T SY RST MGF 390K 5% 1/2W RMU12J3903A520NL
C8106 065G 1K10223T CAP CER 1NF 10% 1KV Y5P
C9104 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
C8116 065G 1K470 2T6921 CAP CER 47PF K 1KV
C8115 065G 1K470 2T6921 CAP CER 47PF K 1KV
C9119 065G 1K470 2T6921 CAP CER 47PF K 1KV
C9906 065G 1K470 2T6921 CAP CER 47PF K 1KV
C9905 065G306K10123R CAP Y1 100PF 10% 250V Y5P
C9903 065G306K10123R CAP Y1 100PF 10% 250V Y5P
C9903 065G306K1012SR CAP Y1 100PF 10% 250V Y5P
C9905 065G306K1012SR CAP Y1 100PF 10% 250V Y5P
C9316 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9316 065G306K2212SR CAP Y1 220PF 10% 250V Y5P
C9908 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9908 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9904 065G306M1023SR CAP Y1 1NF 20% 250V Y5U
C9902 065G306M1023SR CAP Y1 1NF 20% 250V Y5U
C9315 065G306M1023SR CAP Y1 1NF 20% 250V Y5U
C9107 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU
C8102 067G 5151018KT EC 100UF 20% 63V EV1J101MPN1012RSU
C8113 067G 5151018KT EC 100UF 20% 63V EV1J101MPN1012RSU
C8101 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9120 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9113 067G 5154713KT EC 470 20% 16V EV
C9111 067G204S3313KT CAP CS 330UF 20% 16V 10*7 2000 HR
C9116 067G215P2714KT EC 270UF 20% 25V 10*9

C9131 067G515S4716KT

EC 470UF 20% 35V 12.5*12 EC

EC1V471MPN
FB9101 071G 55 29 FERRITE BEAD
FB9103 071G 55 29 FERRITE BEAD
FB9106 071G 55 29 FERRITE BEAD

ZD9106 093G 3918652T TVS P6KE27A 27V 100A 600W DO15
ZD9101 093G 3995552T DIODE GDZJ27B DO-35
ZD9106 093G 39A8652T TVS P6KE27A A0 27V 100A 5W DO15
D9101 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
D9103 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
J9115 095G 90 23 JUMP WIRE - -
J9102 095G 90 23 JUMP WIRE - -
J8109 095G 90 23 JUMP WIRE - -
J9114 095G 90 23 JUMP WIRE - -
J9112 095G 90 23 JUMP WIRE - -
J9111 095G 90 23 JUMP WIRE - -
J8107 095G 90 23 JUMP WIRE - -
J8108 095G 90 23 JUMP WIRE - -
J9106 095G 90 23 JUMP WIRE - -
J8101 095G 90 23 JUMP WIRE - -
J8111 095G 90 23 JUMP WIRE - -

64

J9107 095G 90 23 JUMP WIRE - -
J9109 095G 90 23 JUMP WIRE - -
J8106 095G 90 23 JUMP WIRE - -
J8103 095G 90 23 JUMP WIRE - -
J9113 095G 90 23 JUMP WIRE - -
J9116 095G 90 23 JUMP WIRE - -
J9110 095G 90 23 JUMP WIRE - -
J9104 095G 90 23 JUMP WIRE - -
J9103 095G 90 23 JUMP WIRE - -
J8110 095G 90 23 JUMP WIRE - -
J9105 095G 90 23 JUMP WIRE - -
J8105 095G 90 23 JUMP WIRE - -
J8102 095G 90 23 JUMP WIRE - -
J9117 095G 90 23 JUMP WIRE - -
J8104 095G 90 23 JUMP WIRE - -
J9101 095G 90 23 JUMP WIRE - -
J9108 095G 90 23 JUMP WIRE - -
SG902 362G0010501MIT SPARK GAP 500V -20/+30%
SG901 362G0010501MIT SPARK GAP 500V -20/+30%
C9126 363G213K2224TA CAP DMPE 2.2NF 10% 630V RSBPC1220SH00K
C9143 367G415X3317KT EC 330UF 20% 50V 12.5*12
C9142 367G415X3317KT EC 330UF 20% 50V 12.5*12
C9140 367G415X3317KT EC 330UF 20% 50V 12.5*12
C9141 367G415X3317KT EC 330UF 20% 50V 12.5*12
E715 715G5508P01001002M POWER BOARD PCB
HS9103 Q85T0205101 SHIELD 13*30

Q11G701017000L00ZL PCB-SUPPORT PA66 YES 94V-V0
Q12G6082 3 FOOT PAD
Q12G714001100100HB HEAT PAD
Q12G715000400100TS RUBBER PAD
Q36T 600 18134 NONWOVEN FABRIC
Q45G 77 5 PE PACKING
Q45G88010TV03400WN PE PACKING

M04501 Q45G99010TV03800HW PE PACKING
M04501 Q45G99010TV03800WN PROTECT BAG

Q50G 4 10 TIE (Y1900221)
Q50G 500 TV005 CABLE TIE
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
Q52G1501150523 W INSULATING PLATE
Q52G18010TV046 AL FOIL ºÚÉ« 94 V0 0.4 CLEAR PC PHP

M05202 Q52G18010TV09900JY INSULATING SHEET
M05202 Q52G18010TV09900ZA INSULATING SHEET
Q52T6025 15155 INSULATING SHEET ºÚÉ« 94 V0 0.25 PET PHP
E750 TPT260WX211A900LX0 PANEL TPT260B2-WX211 , C1A XM TPV

X15T825040200000AJ BKT_PANEL_BTM
X15T8251101 BRACKET
X33E0043AKZ01C0100 LENS_IR
X33E004400101C0100 LENS_POWER
X34E0054AFLZ3L01BB BEZEL
X34E00560GM01L0100 STAND
X34E00570GM01L01BA BASE
X34E00790GM02K02BA COVER
X40G000261588A CEL LABEL --
X44GEA07101 CUSHION-T EPS

65

X44GEA07201 CUSHION-B EPS / / ÆÄËÛ /
X44GEA0761503B ARTWORK CARTON CITA T2655MK
092GB1JX1A3DGC BATTERY 1.5V BATTERY FOR LR03
0Q1G 940 18 47 CR3 SCREW
Q45G8801 TV004 PE PACKINGX290X195X0.04
Q45G8801 TV012 P.E. BAGX120X80X0.04
X41G26MV61506C MANUAL
X41G78DV61501D WARRANTY CARD AOC CHINA
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL
X40G026061508A RATING LABEL --T2655MK
085T 583123 1 GP GASKET_ELECTRIC
0M1G1730 8120 SCREW 3X8
X15T8372101000GMBL BKT_IO

66
