AOC T2369M Schematic

维 修 手 册

品牌 机种

AOC T2369M-T2369Z

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

T2369M E23CG1NDBQA8NNF.LF

A00 2013-2-21

首次发布

T2369Z E23CG1NDBQA7NNF.LF

2

目录

1. 技术规格 ---------------------------------------------------------------------------------------------------------------- 04

1.1一般规格 ------------------------------------------------------------------------------------------------------------ 04

1.2预设显示模式 ------------------------------------------------------------------------------------------------------ 05

2.操作说明 ----------------------------------------------------------------------------------------------------------------- 06

2.1 遥控器操作 --------------------------------------------------------------------------------------------------------- 06

2.2 控制面板和侧面信源接口 --------------------------------------------------------------------------------------- 07

2.3 菜单操作 ------------------------------------------------------------------------------------------------------------ 08

3.工厂模式调整 ----------------------------------------------------------------------------------------------------------- 24

4.电气方框图 -------------------------------------------------------------------------------------------------------------- 28

5.线路图 -------------------------------------------------------------------------------------------------------------------- 28

5.1 主板 -------------------------------------------------------------------------------------------------------------------- 28

5.2 电源板 ----------------------------------------------------------------------------------------------------------------- 37

5.3 IR 板 ------------------------------------------------------------------------------------------------------------------- 39

6.软体及 EDID 烧录 ------------------------------------------------------------------------------------------------------ 40

6.1 软体烧录 ------------------------------------------------------------------------------------------------------------- 40

6.2 EDID 烧录 ----------------------------------------------------------------------------------------------------------- 41

7.故障处理流程 ----------------------------------------------------------------------------------------------------------- 42

8.主要 IC 管脚及内部框图 ---------------------------------------------------------------------------------------------- 48

9. BOM ---------------------------------------------------------------------------------------------------------------------- 52

3

1.技术规格

1.1 一般规格

4

1.2 预设显示模式

5

2.操作说明

2.1 遥控器操作

6

2.2 控制面板和侧面信源接口

7

2.3 菜单操作

打开和关闭电视

8

9

10 11 12 13 14 15 16 17 18 19 20 21 22 23

3.工厂模式调整

注: 此处仅以 LE32R17M 图片为例来说明。

Components ADC 调整：

1. 将 Chroma 设置为 T314/P185

2. 按“菜单+1+9+9+9+回看”进入工厂模式

3. 将 Current Source 选择为“分量信号”

4. 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK

5. 将 Chroma 设置为 T312/P185

6. 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK

VGA ADC 调整：上述 ADC 调整 OK 后将

1. Chroma 设置为 T137/P42

2. 将 Current Source 选择为“电脑”

3. 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。

注意：在调整白平衡之前要先做 ADC。

白平衡调整：

1. 将 Chroma 设置为 T137/P141

2. 按“菜单+1+9+9+9+回看”进入工厂模式

3. 将 Current Source 选择为“VGA” (如图一)

4. 再选择 Color temp 选择色温模式(Cool、Normal、Warm) （如图 2）

5. 选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内，

24

6. 再将 Chroma 设置为 T314/P141

7. Current Source 切为 component

8. 再选择 Color temp 选择色温模式(Cool、Normal、Warm)

9. 选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内。

白平衡值检查：

Current Source 选择为“视频”/T303/P141、HDMI/T347/P141 色温规格也需在规格范围内，此时白平衡调

整 OK。

图一 图二

调整规格是写在白平衡程式里面的，检验以产品规格为准, 如下:

Warm (x=0.313± 0.030, y=0.329± 0.030)/6500K (80%white)

Normal (x=0.285± 0.030, y=0.293± 0.030)/9300K (80%white)

Cool (x= 0.270± 0.030, y= 0.273± 0.030)/12000K (80%white)

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

25

工厂菜单说明

选项名称 调整范围 TV AV/S Comp HD PC 注释

Brand

Main-MCU ver 不可调整 o o o o o 发布软体 Main-MCU 版本

Bootloader ver

Sub-MCU ver
EEPROM ver 不可调整 o o o o o 发布软体 EEPROM 版本

Date

Model name

Scaler 不可调整 o o o o o Scaler 型号

Panel type

Current source 支持输入源 √ √ √ √ √

Auto color 执行动作 √ √ √ √ √

ADC Gain 根据 IC SPEC √ √ √ √ √ 在 Auto Color 做完立即更新，并可手动调整。

ADC Offset

Color temp. 支持色温 √ √ √ √ √

Scaler Gain 根据 IC SPEC √ √ √ √ √ Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

不可调整

不可调整
不可调整

不可调整
不可调整

不可调整

根据 IC SPEC

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

√ √ √ √ √

客户名称

发布软体 Bootloader 版本
发布软体 Sub-MCU ver 版本

软体发布日期
对外机种名

屏的型号
当前进工厂时的输入源，该项可切换输入源，对应输入源的 ADC，色温，

Scaler 等相关信息同步更新。
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto
color 会对输入的 ADC 做自动矫正，调整 ADC Gain 和 Offset RGB 值。

在 Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温
的 Scaler Gain & Offset RGB 值等相关信息同步更新。

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time 不可调整 o o o o o

根据 IC SPEC

执行动作

√ √ √ √ √

√ √ √ √ √

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭 Burn in 模式。当 Burn in 设置为 On 时它将响应工厂遥控器功
能；EEPROM Init 后默认为 On 状态；Reset 后默认为 Off。
实现的是初始化除了 HDCP key 和产品序列号以外的全部 EEPROM，如
主菜单的 OSD 默认值，工厂菜单的 ADC 数据，白平衡设定值，Black light
和 Language 等，同时把 Burn in 设置为 On，响应工厂遥控器功能，设置
输入源为 TV。
背光打开总计时，在 EEPROM Initial 或 Factory reset 后都清为 0，显示
值用十进制表示，当时间到达显示最大值时就不再变化。

26

Tot al t im e 不可调整 o o o o o

Black light 根据 IC SPEC * * * * * 设置背光灯的亮度

Language 支持语言 * * * * *

Energy LOGO On/Off * * * * *

Reset 执行动作 √ √ √ √ √

Exit

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时 Burn in 自动关闭。

执行动作

√ √ √ √ √

AC ON 主电源供电总计时，在 EEPROM Initial 或 Factory reset 后都清为
0，显示值用十进制表示，当时间到达显示最大值时就不再变化。

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式
的 OSD 中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了 HDCP 和产品序列号，工厂菜单的 ADC 数据，白平衡
设定值，Black light，Language 和 Energy Logo 以外的全部 EEPROM 数
据，如主菜单的 OSD 默认值，并把用户菜单 Language 设置为工厂
Language，同时把 Burn in 设置为 Off，禁止响应工厂遥控器功能，设置
输入源为 TV。

退出工厂模式

27

5.线路图

5.1 主板

715G5789M01000004K

POWER

From
Power
Board

CN70 1

1
2
3
4
5
6
7
8
9
10
11
12
13

CONN

13P R/A 2.5mm
311GW250B13BBX

PW_CTL2

PW_CTL2

12V

24V

P24V

PW_CTL

PW_CTL

P12V

P24V

C705

0.1uF 50V

1 2

R723 4.7K

C703

100NF 16V

5V

ZD701

NC/BZT52-C5V6

R716 4.7K

+

C707

100NF 16V

B

P12V

C704

10UF 25V

SMT

+5V_Standby

+

C

E

+5V_Standby

C708

100UF 16V

SMT

+5V_Norm al

R720

100K

R722
10K

Q706

MMBT3904

R713

10K

R714 10K

Q705

MMBT3904

R729

47K

R705 100R

R708

NC/10K

C724

100NF 16V

BL_EN
BL_PWM

+5V_Norm al

R712

1K

Q704

MMBT3904

PS_ON

PS_ON

Q701

LP3401LT1G

+5V_Norm al

Standby Power

+5V_Standby

C712

+

C711

1UF16V

100UF 16V

DDR Power

+5V_Norm al

R718 2.2R

U702

+3.3V_Standby

AZ1117D

2

VI3VO

+

C713

GND

100UF 16V

1

SMT

U70 3
AZ1084D-ADJTRE1

3

+

VOUT2VIN

C721

GND

100UF 16V

1

SMT

Vout = 1.25x(R1+R2)/R2

1.845V

BL_EN

C702

NC/10N 50V

R1

BL_PWM

NC/4.7U F 10V

C714

100NF 16V

+1.8V_DDR

R719

2.4K 1%

R701

0.05R

R721 1K 1%

Backlight Control

+5V_Norm al

R702

1K

R704

Q702

R703

NC/10K

C706

+

C722

100UF 16V

SMT

1K

R709

+5V_Norm al

R706

NC/10K

C723

NC/10uF

MMBT390 4

Q703

MMBT3904

1K

+3.3V_Standby

R2

+5V_Norm al

6-12

R728

10K

Q707

R727 4.7K

MMBT3904

R707

1K

R710 4.7K

+1.2V Core Power

+5V_Standby

FB701

1 2

300R 4A

C709

4.7uF 10V

USB Power

P24V

R730

R725

NC/15KOHM 1/16W

27K 1/16W 5%

R726

10K+-5%1/16W

Hi: Of f
Low: On

VBL_CTRL

C701

100NF 16V

P12V

1UF 16V

VBL_CTRL 2

BRI_ADJ- PWM0 2,3

C710

10UF 10V

C715

100N 16V

0402

+5V_Norm al

C725

C716

100N 16V

0402

Vout = 0.8x(R1+R2)/R2

R724

NC/100K

U704

5

VOUT

VIN

GND

4

OCB3EN

APL3511CBI-TRG

R711 1K

1
2
3

1
2

U701

E-Pad

VCC

VIN

POK

LX

GND

PGND

FB4EN

APW7323AKAI-TRG

9
8
7
6
5

USB_5V

073G253S 68 H

L701

2.2uH

C718

1UF16V

1.26V

7.5K 1%

+1.2V_VDDC

C719

C717

C720

10N 50V

0402

22UF 10V

22UF 10V

SMT

R717

12.4K 1%

R2

R715

R1

28

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

01-Power

Date

OEM MODEL

NA

TPV MOD EL

NA A

PCB NAME

715GXXXX-M0A-000-0040

Sheet

of

19Monday, Sept ember 24, 2012

Custom

Size

Rev

称爹

>

<

称爹

MST6931XP/SPI FLASH

HDMI_CEC5

HDMI-ARC5

VGA_HS4
VGA_VS4
VGA_BIN4
VGA_GIN4
SOG04
VGA_RIN4

Y+4
SOY4
Pb+4
Pr+4

AV1-CVBS0P4

CVBS_OUT04

VGA-AUR14
VGA-AUL14
COMP_AUR44
COMP_AUL44

USB0_DP4
USB0_DM4

LEDR9
LEDG9

VIFP7
VIFM7
TAGC7

HP_DET4,6

IRIN9

UART-RX4,9
UART-TX4,9

KEY0-SAR09
KEY1-SAR19

HDMI_HP1
HDMI1-SCL
HDMI1-SDA
HDMI1-CLKP
HDMI1-CLKN
HDMI1-RX0P
HDMI1-RX0N
HDMI1-RX1P
HDMI1-RX1N
HDMI1-RX2P
HDMI1-RX2N

HDMI_HP0
HDMI0-SCL
HDMI0-SDA
HDMI0-CLKP
HDMI0-CLKN
HDMI0-RX0P
HDMI0-RX0N
HDMI0-RX1P
HDMI0-RX1N
HDMI0-RX2P
HDMI0-RX2N

HDMI-CEC
HDMI-ARC

VGA_HS
VGA_VS
VGA_BIN
VGA_GIN
SOG0
VGA_RIN

Y+
SOY
Pb+
Pr+

AV1-CVBS0P

CVBS_OUT0

VGA-AUR1
VGA-AUL1
COMP_AUR4
COMP_AUL4

USB0_DP
USB0_DM

LEDR
LEDG

VIFP
VIFM
TAGC

HP_DET

IRIN

UART-RX
UART-TX

KEY0-SAR0
KEY1-SAR1

Debug & ISP po rt

CN402

1
2
3

UART-RX

4

UART-TX

NC/CONN

System-R ST

C405
1uF 10V

+5V_Standby

HOTPLUG15
HDMI1_DDC_SCL5
HDMI1_DDC_SDA5
HDMI1_CLK+5
HDMI1_CLK-5
HDMI1_D0+5
HDMI1_D0-5
HDMI1_D1+5
HDMI1_D1-5
HDMI1_D2+5
HDMI1_D2-5

HOTPLUG05
HDMI0_DDC_SCL5
HDMI0_DDC_SDA5
HDMI0_CLK+5
HDMI0_CLK-5
HDMI0_D0+5
HDMI0_D0-5
HDMI0_D1+5
HDMI0_D1-5
HDMI0_D2+5
HDMI0_D2-5

H/W Reset

R405
1K 1/16W

C404

1NF 50V

R407

51R 1/16W 5%

R421

R422

4.7K

4.7K

HDMI_ARC

D401

BAV99

C402

2.2UF 16V

Close to IC
with width trace

+5V_Standby

3

R403

1M 1/16W

1

2

R404

Q402

4.7K 1/16W
C403

MMBT3906

2.2UF 16V

R406

22K 1/16W

VDD33

VDDC

R410

68OHM 1/16W

AVDD_ADC

R412

68OHM 1/16W

C449
47nF 16V
R415

68OHM 1/16W

CHIP_CONFIG

{IPAD_PWM1, PAD_PWM0}
B51_NO_EJ

VBL-CTRL

R419

4.7K

R0402

C407
47nF 16V

C408
47nF 16V

AV1-CVBS0P

C410

47nF 16V

AU33

C412

C413
10UF

100N 16V

FB402

60 OHM

1 2

4'h00

BRI_ADJ-PWM0

R420

4.7K

R0402

System XTAL

XTALO

R427

X401

0R05 OHM

12

R428

1M 1/16W

24MHz

XTALI

HDMI1-CLKN
HDMI1-CLKP
HDMI1-RX0N
HDMI1-RX0P

HDMI1-RX1N
HDMI1-RX1P
HDMI1-SDA
HDMI1-RX2N
HDMI1-RX2P
HDMI1-SCL
HDMI_ARC

VGA_HS
VGA_BIN
SOG0
VGA_GIN

VGA_RIN
VGA_VS

Pb+
SOY
Y+

Pr+

CVBS_OUT0

AUVRM
AUVAG

VGA-AUL1

C425
27PF 50V

C430
27PF 50V

1

RXCKN_A

2

RXCKP_A

3

RX0N_A

4

RX0P_A

5

AVDD_33

6

RX1N_A

7

RX1P_A

8

DDCDA_DA

9

RX2N_A

10

RX2P_A

11

DDCDA_CK

12

ARC

13

AVDD1P2_DVI _A

14

HSYNC0

15

BIN0P

16

SOGIN0

17

GIN0P

18

GIN0M

19

RIN0P

20

VSYNC0

21

AVDD3P3_ADC

22

BIN1P

23

SOGIN1

24

GIN1P

25

GIN1M

26

RIN1P

27

VSYNC1

28

HSYNC1

29

CVBS1

30

CVBS0

31

VCOM

32

CVBSOUT

33

AU33

34

AUREF

35

AUVAG

36

AUL1

37

AUR1

38

AUL3

U401

HDMI0-RX0P

HDMI0-RX1P

HDMI0-RX2P

HDMI_HP1

HDMI0-SDA

HDMI0-SCL

HDMI0-RX2N

HDMI0-RX0N

HDMI0-CLKP

HDMI0-RX1N

HDMI0-CLKN

128

119

129

122

125

120

123

126

121

124

127

118

E-Pad

RX0P_D

RX1P_D

RX2P_D

RX0N_D

RX1N_D

RX2N_D

RXCKP_D

HOTPLUGA

DDCDD_DA

DDCDD_CK

MST693 1XP

AUOUTL146AUOUTR147AUOUTL044AUOUTR045XIN49XOUT48AVDD_DMPLL

AUL440AUR4

AUR543AUL5

AUR3

41

42

39

VGA-AUR1

COMP_AUR4

COMP_AUL4

AMP-AUOUT L0

AMP-AUOUT R0

XTALO

XTALI

AV-AUOUTL3

AV-AUOUTR3

+3.3V_Standby

R423
R424

4.7K

4.7K

AUDIO-EN

PW_CTL

PWR-ON/ OFF

VBL-C TRL VBL_CTRL
BRI_ADJ -PWM0

GND-EFUSE

HDMI_HP0

117

116

RXCKN_D

HOTPLUGD

50

VDD33_DMPLL

R0402
R0402

PANEL-ON/OFF

IRIN

HDMI-CEC

System-RST

113

114

112

115

IRIN

CEC

HWRESET

GND_EFUSE

RFAGC

VIFM53VIFP

AVDD3P3_DAD C51GPIO5658VDDP59VDDC60GPIO55

55

54

52

TAGC

VIFM

VIFP

AVDD33_DEMOD

AUDIO_EN

ON_PANELPANEL-ON/OF F

TUNER_SCL
TUNER_SDA

3D_enable

C419

C418

100N 16V

100N 16V

+3.3V_Standby

Power 1.2V

+1.2V_VDDC

1 2

FB401120R/300 0mA

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

C420

100N 16V

FB406

1 2

60 OHM

C426
10UF

C406
180PF 50V

C409
180PF 50V

C411
180PF 50V

C414
180PF 50V

+3.3V_Standby

C423

100N 16V

100N 16V

RXO0- 3
RXO0+ 3
RXO1- 3
RXO1+ 3
RXO2- 3
RXO2+ 3
RXOC- 3
RXOC+ 3
RXO3- 3
RXO3+ 3

RXE0- 3
RXE0+ 3
RXE1- 3
RXE1+ 3
RXE2- 3
RXE2+ 3
RXEC- 3
RXEC+ 3
RXE3- 3
RXE3+ 3

3D_enable 3

AV_AUOUTR3

AV_AUOUTL3

FB404

1 2

C427

R409

100K 1/16W

R413

100K 1/16W

R416

100K 1/16W

R418

100K 1/16W

60 OHM

C428

100N 16V

AVDD_ADC

C421

100N 16V

+3.3V_Standby

1 2

FB40760 OHM

VDDC

C429

100N 16V

AMP_AUOUTR0 8

AMP_AUOUTL0 8

AV_AUOUTR3 6

AV_AUOUTL3 6

AU33AVDD33_DEMOD

C424

100N 16V

AVDD_DDR

KEY1-SAR1

KEY0-SAR0

BRI_ADJ-PWM0

UART-RX

UART-TX

VBL-CTRL

PWR-ON/ OFF

104

109

103

111

110

105

106

107

108

GPIO64

TESTPIN

DDCA_CK

DDCA_DA

AVDD_DDR

SAR2/GPIO73

SAR1/GPIO74

SAR0/GPIO75

GND

AVDD_DDR

57

56

TUNER_SDA

TUNER_SCL

VDD33

VDDC

AVDD_DDR

PWM0/GPI O26

PWM1/GPI O25

USB1_DP

USB1_DM

AVDD_MOD

USB0_DP

USB0_DM

PWM2/GPIO24

INT/GPIO65

AVDD_MOD

LVBCKM

LVBCKP

AVDD_MOD

LVACKM

LVACKP

LVA3P

LVA4P61LVA4M62LVA3M

MST6931XP

63

64

RXE3-

RXE3+

AUDIO_EN 8
PW_CTL 1

ON_PANEL 3

VBL_CTRL 1

BRI_ADJ -PWM0 1,3

TUNER_SCL 7
TUNER_SDA 7

GPIO0
GPIO1
GPIO2
GPIO3

VDDC
LVB0M
LVB0P
LVB1M
LVB1P

LVB2M
LVB2P

LVB3M
LVB3P
LVB4M
LVB4P
LVA0M
LVA0P
LVA1M
LVA1P
LVA2M
LVA2P

102
101
100
99
98
97

SCZ

96

SDO

95

SDI

94

SCK

93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

USB0_DP
USB0_DM
SPI_CS0N
SPI-SDO
SPI-SDI
SPI-SCK
SPI_WP0N

R401
100OHM1/16W

LEDG
LEDR

AUDIO-EN

RXO0­RXO0+
RXO1­RXO1+

RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+

RXEC­RXEC+

VDD33

HP_DET

3D_enable

VDDC

VDD33

VDD33

Power 3.3V

+3.3V_Standby

DDR Power

+1.8V_DDR

FB408

0R05 1/10W

FB403

1 2

60 OHM

10UF

+3.3V_Standby

FB405

1 2

C431

NC/100N 16V

10UF

C415

C432

AMP-AUOUTR0

VDD33

60 OHM

AMP-AUOUTL0
AV-AUOUTR3
AV-AUOUTL3

C416

100N 16V

VDD33_DMPLL

C422

100N 16V

AVDD_DDR

C433

4.7UF 6. 3V

C417

100N 16V

SPI_CS0N
SPI-SDO
SPI_WP0N

+3.3V_Standby

WP active low

SERIAL FLASH

R431

4.7K

R434 1K

100N 16V

C435

FLASH_WP0N

R436

DGND

10K

1
2
3

close to IC

U402

CS#
SO/SIO1

HOLD#
WP#
GND4SI/SIO0

W25Q32BVSSIG

+3.3V_Standby

C434

R435 51R

C436
22PF 50V

DGND

100N 16V

SPI-SCK
SPI-SDI

8

VCC

7
6

SCLK

5

HS401

Heat Sink

DGND

DGND

1

1

2

2

AGND

DGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

02.MST6831XP/SPI FLASH

Date

OEM MOD EL

NA

TPV MODE L

NA A

715GXXXX-M0A-000-0040

PCB NAME

29Monday, September 24, 2012

of

Sheet

Custom

Size

Rev

<

称爹

>

称爹

29

LVDS

R444

NC/ 360R 1/10W 5%

P12V

+5V_Standby

R452

NC/ 220 OHM 1/10W

ON_PANEL2

R447

NC/ 360R 1/10W 5%

R451

NC/ 390 OHM 1/10W

R453

NC/ 220 OHM 1/10W

DGND

3D_EN

3

C439
NC/ 100N 50V

+5V_Standby

R442 4.7K

R443

10K

DGND

U403

NC/AZ809ANSTR-E1

Vcc

NC/4.7K

RESET

GND

+3.3V_Standby

R471

2

1

R472

NC/ 0.05R

P12V

NC/RB501V-40

D402

R437 NC/0oHM

R438

0oHM

R439

100K

12

3D_enable 2

Panel Po wer

C401

1
2

220N 25V

3

R446

NC/0R05 OHM

SELLVDS

BLPWM

TUN_I2C_SCL

R476

R454

R448

4

RXO0+
RXO1+
RXO2+

RXO3+

RXE0+
RXE1+
RXE2+

RXE3+

R473

47K

R441

10K

Q403
MMBT39 04

DGND

TUNER_SCL2,7

RXOC+ RXOC1+

0R05 OHM

0R05 OHM

AO4449 -7A/-30V

Q401

S

D

S

D

S

D

G

D

PANEL_VCC

NC/0R05 OHM

RXEC1+RXEC+

8
7
6
5

DGND

PANEL_VCC

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

C437

100NF 16V

DGND

DGND

41

42

DGND

+

C438

100UF 16V

CN403

1
3
5
7
9
11
13

R477 NC/0R05 OHM

15
17
19
21
23

RXOC1- RXOC-

CONN

0R05 OHM

RXEC1-

0R05 OHM

R455

R449

DGND

25
27
29
31
33
35
37
39

LVDS(8-bit)

3D_EN

R440

NC/1K 1/ 4W

TUN_I2C_SDA

RXO0­RXO1­RXO2-

RXO3-

RXE0­RXE1­RXE2­RXEC­RXE3-

NC/4.7K

SELLVDS

NC/4.7K

DGND

+3.3V_Standby

R445

R450

TUNER_SDA 2,7

PANEL_VC C

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+

RXOC1­RXOC1+
RXO3­RXO3+
RXE0­RXE0+

RXE1­RXE1+

RXE2­RXE2+
RXEC1­RXEC1+
RXE3­RXE3+

CN405
NC/CONN

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

DGND

RXO0-2

RXO0+2

RXO1-2

RXO1+2

RXO2-2
RXO2+2
RXOC-2

RXOC+2

RXO3-2
RXO3+2

RXE0-2
RXE0+2

RXE1-2
RXE1+2

RXE2-2
RXE2+2
RXEC-2

RXEC+2

RXE3-2
RXE3+2

BLPWM

31 32

DGND

DGND

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

BRI_ADJ -PWM0 1,2

30

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0A-000-0040

03. LVDS

Date

OEM MODEL

TPV MO DE L

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

of

39Monday, September 24, 2012

Size

Rev

称爹

B

称爹

>

<

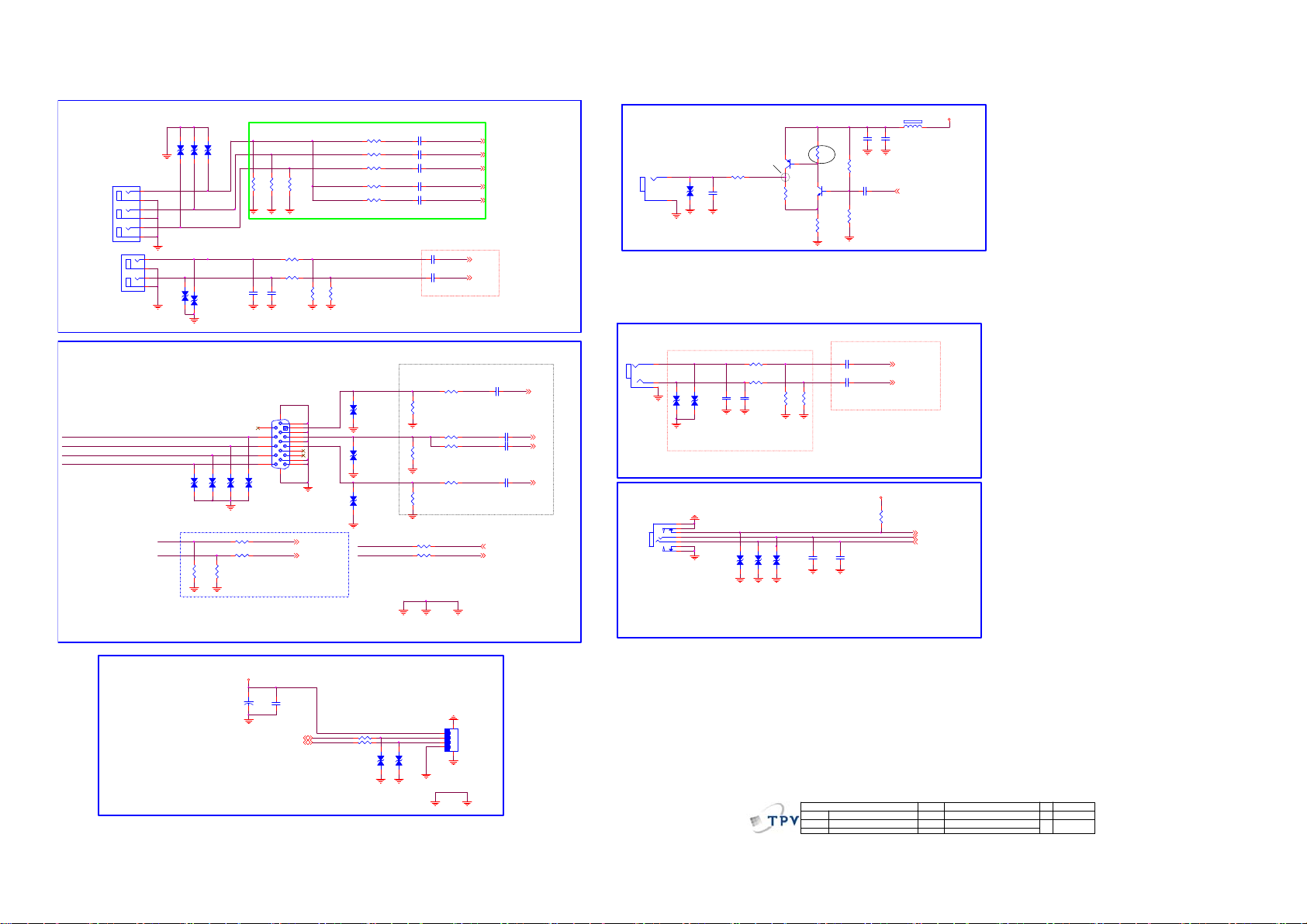

VIDEO/AUDIO INTERFAC/USB2.0

VGA_SDA

VGA_HSYN C

VGA_VSYNC

VGA_SCL

CONN

CN102

YPBPR Video/Audio IN

33 OHM 1/16W

2.2uF 10V

2.2uF 10V

Close to MST IC

R133 33R

R135 33R

Close IC side

C102
47nF 16V

C105
47nF 16V

C106
47nF 16V

C107
1N50V

C110
47nF 16V

COMP_AUL4

C111

COMP_AUR4

C112

Close IC side

R122 33R

R125

75R

0603

R126 33R

R127 33R

R128

75R

0603

R129 33R

R130

75R

0603

Y+

Pb+

Pr+

AV1-CVBS0P

0402

SOY

0402

0402

0402

0402

Y+ 2

Pb+ 2

Pr+ 2

SOY 2

AV1-CVBS0P 2

COMP_AUL4 2

COMP_AUR4 2

VGA_R

VGA_G

VGA_SOG

VGA_B

UART-TX 2,9

UART-RX 2,9

C117
47nF 16V

C120
47nF 16V
C121
1N50V

C122
47nF 16V

VGA_RIN 2

VGA_GIN 2

SOG0 2

VGA_BIN 2

CN103

MLVG0402

RCA JACK

CN104

3

2
1

CONN

AGND

HeadPhone

CN101

CONN

Mark on board

HP OUT

R119

12K 1/16W

R102

33 OHM 1/16W
R104

R106

33 OHM 1/16W

R111

33 OHM 1/16W
R113

33 OHM 1/16W

12

12

12

ZD102

ZD103

AGND

MLVG0402

MLVG0402

2

A

1

4

B

3

6

C

5

CONN

AGND

2

A

1

4

CN107

B

12

3

12

ZD106

MLVG0402

ZD107 MLVG0402

AGND

AGND

ZD104
MLVG0402

YPBPR1_IN_L1

YPBPR1_IN_R1

330pF 50V

C113

Y1

PB1

PR1

R108

R107

R109

75 OHM

75 OHM

75 OHM

AGNDAGND

AGND

Placement Near RCA.

R116

10K 1/16W 5%

R117

10K 1/16W 5%

R118

C114

330pF 50V

12K 1/16W

AGND

AGND

AGND AGND

VGA IN

12

VGA_HSYN C

VGA_VSYNC

12

ZD112 MLVG0402

R136

10K

12

ZD113 MLVG0402

R132 68R

R134 68R

R137

10K

12

11

12

13

14

15

12

ZD101 MLVG0402

ZD114 MLVG0402

088G353GFF1ACL

VGA_HS

VGA_VS

Close to MST IC

1716

6
1
7
2
8
3
9
4
10
5

CN105
CONN

VGA_HS 2

VGA_VS 2

ZD110 MLVG0402

12

ZD111 MLVG0402

12

ZD115 MLVG0402

VGA_SDA

VGA_SCL

2

ZD105

1

AGND

12

ZD108MLVG0402

AGND

1
7
6
2
3
4
5

CVBS Out

12

C108

22pF 50V

AGND

AGND

12

C118

470pF 50V

ZD109

MLVG0402

Placement Near
connect.

AGND

AGND

2Vp-p

R110

CVBS_OUT1

75 OHM

Gain=1+ (Rf/Rg)

PC AUDIO IN

R120

10K 1/16W 5%

R121

10K 1/16W 5%

C119

470pF 50V

AGND

AGND

12

12

ZD116

ZD118

ZD117

MLVG0402

MLVG0402

MLVG0402

AGNDAGND

C103

C104

100N 16V

R105

47K

C109
10UF 10V

R114

33K 1/16W 5%

VGA-AUL1

C115

2.2uF 10V

VGA-AUR1

C116

2.2uF 10V

C Placement
Near IC

+3.3V_Standby

C124

NC/100N 16V

1uF 10V

VGA-AUL1 2

VGA-AUR1 2

R131
10K 1/16W 5%

HP_OUT_L
HP_OUT_R

R103

220R 1/16W

Q102
MMBT3906

Q101

MMBT3904

R112

75 OHM

Rf

R115

Rg

75 OHM

R123

R124
12K 1/16W
12K 1/16W

AGND

AGND

HP_D

12

C123

NC/100N 16V

AGND

AGNDAGND

FB102

1 2

300R

CVBS_OUT0 2

HP_DET 2,6
HP_OUT_L 6
HP_OUT_R 6

+5V_Nor mal

USB IN

USB_5V

DGND

+

100UF 16V

DGNDAGND

C126

USB0_DM2
USB0_DP2

ZD20/ZD21 new component for 0.5 Cp

C125
100N 16V

USB0_DM
USB0_DP

R138 4.99ohm 1/16W +/-1%
R139 4.99ohm 1/16W +/-1%

12

12

ZD119

NC/MLVG0402
NC/MLVG0402

ZD120

0.5pF

DGNDDGND

DGND

USB_Shield_GND

1

1234

2
3
4

6 5

USB_Shield_GND

USB_Shield_GNDDGND

CN106

USB CONN

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

04. Vide o/Audio Inter fac/USB

Date

OEM MODEL

NA

TPV MOD EL

NA A

PCB NAME

715GXXXX-M0A-000-0040

49Monday, September 24, 2012

Sheet

of

A2

Size

Rev

<

称爹

>

称爹

31

INPUT_HDMI

AC off EDID
solution
without
EEPROM

HOTPLUG0

HDMI0_D2+
HDMI0_D2-

HDMI0_D1+
HDMI0_D1-

HDMI0_D0+
HDMI0_D0-

HDMI0_CLK+
HDMI0_CLK-

DGND

HDMI0_D DC_SCL#
HDMI0_D DC_SDA#

DGND

R503

R506

DGND

IN1
IN2

IN3
IN45OUT4

GND

GND

3

8

DGND

IN1
IN2

IN3
IN45OUT4

GND

GND

3

8

DGND

1K 1/10W

D502
MMBT39 04

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

R502
47K

10K 1/16W 5%

U502 NC /RClam p0524P.TCT

1
2

4

U504 NC /RClam p0524P.TCT

1
2

4

HDMI0_D2+

HDMI0_D2­HDMI0_D1+

HDMI0_D1­HDMI0_D0+

HDMI0_D0­HDMI0_CLK+

HDMI0_CLK-

10
9

7
6

10
9

7
6

R515 0R05 OHM

R516 0R05 OHM
R517 0R05 OHM

R518 0R05 OHM
R519 0R05 OHM

R520 0R05 OHM
R521 0R05 OHM

R522 0R05 OHM

HDMI0_CON5V

12

MLVG0402
ZD502

DGND

HDMI0_D2+
HDMI0_D2-

HDMI0_D1+
HDMI0_D1-

HDMI0_D0+
HDMI0_D0-

HDMI0_CLK+
HDMI0_CLK-

HDMI_CEC1

HDMI-ARC

DGND

HDMI0_DDC_SCL
HDMI0_DDC_SDA

CN501

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19

HP DET

20

SHELL1

21

SHELL2

HDMI0_CON5V

SHELL3
SHELL4

SHELL5

SHELL6
SHELL7

HDMI

Make on board

HDM I0

R509

R508

47K

47K

100R

R510

100R
R501

22
23

24

25
26

DGND

HDMI0_D DC_SCL#
HDMI0_D DC_SDA#

12

12

DGND

DGND

MLVG0402
MLVG0402

ZD504
ZD503

AC off EDID
solution
without
EEPROM

HOTPLUG1

HDMI1_D2+
HDMI1_D2-

HDMI1_D1+
HDMI1_D1-

HDMI1_D0+
HDMI1_D0-

HDMI1_CLK+
HDMI1_CLK-

DGND

R504
47K

R507

10K 1/16W 5%

(180 degree connector)

U501 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

U503 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

HDMI1_D2+

HDMI1_D2-

HDMI1_D1+

HDMI1_D1-

HDMI1_D0+

HDMI1_D0­HDMI1_CLK+

HDMI1_CLK-

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#

DGND

R505
1K 1/10W

D503
MMBT3904

DGND DGND

GND

8

GND

8

3

DGND

3

DGND

GND

GND

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

HDMI1_C ON5V

10
9

7
6

10
9

7
6

R523 0R05 OHM

R524 0R05 OHM
R525 0R05 OHM

R526 0R05 OHM
R527 0R05 OHM

R528 0R05 OHM
R529 0R05 OHM

R530 0R05 OHM

HDMI_CEC1

12

MLVG0402
ZD501

HDMI1_D2+
HDMI1_D2-

HDMI1_D1+
HDMI1_D1-

HDMI1_D0+
HDMI1_D0-

HDMI1_CLK+
HDMI1_CLK-

CN502

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

DGND

HDMI1_DDC_SCL
HDMI1_DDC_SDA

D2+

SHELL3

D2 Shield

SHELL4
D2­D1+
D1 Shield
D1­D0+
D0 Shield
D0­CK+
CK Shield

SHELL5
CK­CE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
SHELL1

SHELL6
SHELL2

SHELL7

HDMI

Make on board

HDM I1

HDMI1_C ON5V

R511

R512

47K

47K

100R

100R

22
23

24

25
26

R513

R514

DGND

HDMI_CEC1

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#

12

12

MLVG0402
MLVG0402

DGNDDGND

From Main Chip

HDMI0_D2+2
HDMI0_D2-2
HDMI0_D1+2
HDMI0_D1-2
HDMI0_D0+2
HDMI0_D0-2
HDMI0_CLK+2

HDMI0_CLK-2
HDMI0_DDC_SCL2
HDMI0_DDC_SDA2

HOTPLUG02

HDMI_CEC2

HDMI1_D2+2

HDMI1_D2-2

HDMI1_D1+2

HDMI1_D1-2

HDMI1_D0+2

HDMI1_D0-2

HDMI1_CLK+2

HDMI1_CLK-2
HDMI1_DDC_SCL2
HDMI1_DDC_SDA2

HOTPLUG12

HDMI-ARC2

12

MLVG0402
ZD505

DGND

ZD507
ZD506

R531

200R 1/16W

HDMI0-RX2P
HDMI0-RX2N
HDMI0-RX1P
HDMI0-RX1N
HDMI0-RX0P
HDMI0-RX0N
HDMI0-CLKP
HDMI0-CLKN
HDMI0-SCL
HDMI0-SDA
HDMI_HP0

HDMI-CEC

HDMI1-RX2P
HDMI1-RX2N
HDMI1-RX1P
HDMI1-RX1N
HDMI1-RX0P
HDMI1-RX0N
HDMI1-CLKP
HDMI1-CLKN
HDMI1-SCL
HDMI1-SDA
HDMI_HP1
HDMI-ARC

HDMI-CEC

称爹

<

Custom

>

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0A-000-0040

05. Input_ HDMI

Date

OEM MO DE L

TPV MO DEL

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

of

59Monday, Septem ber 24, 2012

Size

Rev

称爹

32

EARPHONE PRE AMP

GND14/LSD

13

NC

RIN

/RSD

ROUT

8

HP_OUT_R

HP_OUT_L

12

11

10

LIN

9

C611

10UF 10V

C601

100NF 16V

R607 100 OHM 1/10W
R608 100 OHM 1/10W

AV_AUOUTR32

AV_AUOUTL32

AV_AUOUTR3

AV_AUOUTL3

C604

1UF16V

C610

2.2UF 16V

U602

16

1

CP+

2

PGND

3

CP-

4

NC

+3.3V_Standby

1 2

15

PVDD

APA2176A

CVSS5VSS6LOUT7VDD

FB602

300R

HP_OUT_R 4

HP_OUT_L 4

FB601

1 2

300R

C602

10UF 10V

C606

1UF16V

HP_SD

R604 100OHM1/16W

C607

1UF16V

+5V_N ormal

C603

NC/ 1.5nF 50V

R602
0R05 OHM

R605 0R05 O HM

C608

NC/ 1.5nF 50V

HP_OUT_R
HP_OUT_L

C605

1.5nF 50V

200OHM1/16W

200OHM1/16W

C609

1.5nF 50V

R603

R606

AV_AUOUTR3

HP_DET 2, 4

AV_AUOUTL3

Headphone Amp

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

GXXXX-M0A-000-0040

06. Earphone pre amp

33

OEM MO D EL

TPV MODEL

PCB NAME

Sheet

NA

NA A

715GXXXX-M 0A - 000-0040

of

69Monday, Septem ber 24, 2012

Size

Rev

称爹

<

称爹

A4

>

TUNER

TUNER

ANT-DC

CLK_OUT

IF_AGC

TH110TH211TH312TH4

13

AGND

BPF_IN

AIF+

TU101

VCC

SCL

SDA

GND

IF_N

IF_P

AIF-

1

2

3

4

5

6

7

8

9

Silicon Tuner

FB103

NC/ 300 OHM

12

SCL_CAN

SDA_CAN

AIF+

AIF-

IF_AGC

C133

1N 50V

L102

1UH

AGND DGND

C131

1uF 10V

AGND

L101

1UH

Tuner3.3V

AGND

C135
56pF 50V

L need Q>15

3.3V_TUNER

C132

1N 50V

300mA

close Tuner

L103

2.2uH

L104

2.2uH

+5V_N ormal

C136

33PF 50V

C127

10uF 10V

R140
510R

DGND

C134

100N 16V

C137

100N 16V

300mA

C128
100N 16V

U101

VIN3VOUT

TUN_IF+

TUN_IF-

Tuner Power

3.3V_TUNER

2

GND14

DGND

C129

100UF 16V

4

+

C101
100N 16V

DGNDDGND

Close to Main chip

1K_100MHz/400_400MHz

FB101

1 2

1000OHM

3.3V_TUNER

C130

2.2UF 16V

DGND

TUNER_SCL2
TUNER_SDA2

TP_SYNC[55]

TP_CLK[48]

TP_VALID[51]

TP_DI[54]

IF_CTL[47]

I2C for Tuner

3.3V_TUNER

R141 4. 7K

R142 4. 7K

Main Chip <-->

VIFP2
VIFM2

TUN ER_ SCL

TUN ER_ SDA

TUN_IF+
TUN_IF-

TUN_I2C_SCL
TUN_I2C_SDA

TUNER_SCL 2

TUNER_SDA 2

IF_AGC Control Circuit

Close to Main chip

TAGC2

IF_AGC from IC

TAGC

3.3V_TUNER

R144
10K

R146

0R05 OHM

C140

22NF 25 V

Close to Tuner

R101

100R

AGNDAGND

C141
100NF 16V

IF_AGC

To tuner

IF_AGC trace shielding by GND

34

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0 A-000-0 040

07. Tuner

Date

close to main chip

TUNER_SCL

Form main chip

TUNER_SDA

Form main chip

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

R143

100OHM

R145

100OHM

NA

NA A

715GXXXX-M0A-000-0040

79Monday , Septem ber 24, 2012

of

AGND

AGND

SCL_CAN

C138
NC/ 100pF 50V

SDA_CAN

C139
NC/ 100pF 50V

Size

Rev

称爹

B

<

称爹

>

AUDIO AMP

AMP_MUTE

R627

R628

FB603

1 2

120R/6000mA

R609
10OHM1/16W
R610
10OHM1/16W

NC/1NF 50V

AC OFF POPO

10K

10K

+

AMP_AUOUTL02

AMP_AUOUTR02

AUDIO_EN2

+5V_Standby

P24V PVDD

C612

Q602

MMBT3906

C450

100UF 16V

R629

AV_L_OUT#

AV_R_OUT#

R615 NC/100K 1/16W

R614

NC/100K 1/16W

AMP_MUTE
Low: Mute disablde
High: Mute enable

POP

10K

C617

NC/1NF 50V

AV_L_OUT#

AV_R_OUT#

AMP_MUTE

100OHM

1.2A Max

C613 10 0N 50V

R620

NC/10 OH M 1/4W

C627

NC/1UF 50V

R622

AMP_STB

C633

220NF 25V

C622

220NF 25V

C631

1UF 50V

C632

1UF 50V

U601

1

SDZ

2

FLAGZ

3

LINP

4

LINN

5

GAIN0

6

GAIN1

7

NC

8

AGND

9

AVDD

10

PLIM

11

RINN

12

RINP

13

NC

14

PBTL

AD52580

Therm al Pad

PVCCL

PVCCL

LOUTP

LOUTN

ROUTN

ROUTP

PVCCR

PVCCR

29

28

27

26

NC

C620

NC/0. 22uF 50V

25

24

PGND

23

22

NC

C625

NC/0. 22uF 50V

21

NC

C628

NC/0. 22uF 50V

20

19

PGND

18

17

NC

C636

NC/0. 22uF 50V

16

15

100N 50V

C638

100N 50V

C618

10OHM1/16W

R616

R621

10OHM1/16W

R623

10OHM1/16W

R626

10OHM1/16W

1NF 50V

1NF 50V

PVDD

100UF 35V

100UF 35V

+

C614

+

L602
47UH
C623

330pF 50V

L603
47UH
C626

330pF 50V

L601
47UH
C630

330pF 50V

L604
47UH
C637

330pF 50V

C615

L+

C621

330nF

L-

C624

330nF

4

R-

C629

330nF

R+

C634

330nF

PVDD

100UF 35V

+

C640

CN601

3
2
1

5 6

CONN

C619

C639

+5V_Normal

R611

10K

R612

Q601

POP

MMBT3904

10K

R613

100OHM

R625

+5V_Nor mal

R617 NC/10K

R601 0.05R

R618 10 K

R619 NC/0.05R

27K 1/16W 1%

C616 220NF 25V

PVDD

100K 1%

R624

C635 220N F 25V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

08. AUDIO AMP

Date

OEM MOD EL

NA

TPV MOD EL

NA A

715GXXXX-M0A-000-0040

PCB NAME

89Monday, September 24, 2012

Sheet

of

B

Size

Rev

<

称爹

>

称爹

AMP

35

KEYPAD/IR

DGND

1112

DGND

IRIN

UART-RX
UART-TX

CN401

1
2
3
4
5
6
7
8
9
10

CONN

Q406

NC/2N7002

LED-R
LED-G

POWER

KEY_ADC1

POWER_KE Y

+3.3V_Standby

R469 NC/ 100R 1/ 16W 5%
R470 NC/ 100R 1/ 16W 5%

POWER_KEY
KEY_AD C1
LED-G
LED-R

IRRX1
POWER

C443

1UF16V

DGND

R467 NC

R468

NC/ 2N3906S-R TK/PS

ZD404

NC/ MLVG0402

+3.3V_Standby

120R/6000m A

1 2

C445

1N 50V

ZD403

MLVG0402

DGND

+5V_Standby

R465

NC/ 10K 1/ 16W 5%

1

AGND

12

12

FB409

12

C446

1N 50V

R466

NC/ 10K 1/16W 5%

Q407

23

NC/ 100R 1/16W 5%

ZD405
NC/MLVG0402

NC/ 100nF 50V

DGND

C440

1N 50V

C447

+3.3V_Standby

C441

1N 50V

MLVG0402

12

ZD406

NC/MLVG0402

R456
4K7 1/16W 1%

12

ZD402

R464

100OHM

+5V_Standby

12

TH4 01
NC/0R4

t

12

ZD407
NC/ MLVG0402

+3.3V_Standby

C442

100NF 16V

ZD401

MLVG0402

R457
4K7 1/16W 1%

12

C444

100NF 16V

DGNDDGND

IRIN

1
2
3
4
5

R458
100OHM

R460
100OHM

CN404

NC/CONN

KEY0- SAR0IRRX1
KEY1- SAR1

R461
10OHM1/16W

R462
10OHM1/16W

KEY_ADC 1

POWER_KEY

From Main Chip

KEY0-S AR02
KEY1-S AR12

IRIN2

LEDG2

LEDR2

+3.3V_Standby

Q404

MMBT39 06

R478
NC/0R05 OHM

Q405
MMBT39 06

UART-TX2,4

UART-RX2,4

14.7KO HM 1/10W

750 OHM +- 1% 1/10W

NC/0R05 OHM

R402

R408

7.15K 1%

R411

4.3K

R414

2.49K 1%

R417

KEY0- SAR0
KEY1- SAR1

IRIN

LEDG

LEDR

LEDG

R459

4.7K
R474

3.3K

LEDR

R463

4.7K

R479

NC/10K

SW4007

SW4006

SW4005

SW4004

SW4001

077G602S 3A HJ

R475

3 4
1 2

3 4
1 2

3 4
1 2

3 4
1 2

3 4
1 2

SW

CONN

+3.3V_Standby

+3.3V_Standby

SW

SW

SW

SW

45

DGND

CN406

1
2
3

DGND

DGND

DGND

DGND

DGND

LED-R
LED-G

DGND

VOL+

VOL-

CH+

CH-

Power

DGND

DGNDDGNDDGND

DGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

GXXXX-M0A-000-0040

09. Keypad/IR

OEM MO D EL

TPV MOD EL

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

of

99Monday, September 24, 2012

Size

Rev

称爹

<

称爹

A4

>

36

5.2 电源板

715G5804P01W20001M

3

4

­+

2

RV9901

!

560V-NC

RV9902

!

12

560V-NC

FB9901

BEAD-NC

C9902

470PF 250V

CN9902

2
1

CONN-NC

SG9901

DSPL-501N-A21F-NC

C9906

100PF 250V

!

R9136

NC

R9132NCR9133

12

FB9904
BEAD

12

NR9901

NTCR-NC

t

!

12

NR9902
3R

CN9901

t

SOCKET

!

L9901

3

124

30MH

!

C9901

窯　

0.47uF 305V
R9135

R9137

NC

R9134

NC

R9901

1MOHM +-5% 1/2W

!

C9903

470PF 250V

C9907

100PF 250V

!

063G107M474AUM

NC

NC

12

GBL08-07

!

1

BD9101

12

12

FB9902

BEAD-NC

C9127

+

100UF 450V-N C

+

SG9902

DSPL-501N-A21F -NC

R9114

100KOHM +-5% 1/8W

FB9909
BEAD

T3.15AH/250V

F9901
FUSE

!

C9101
47UF 450V

FB9908
BEAD

1 2

C9102

+

47UF 450V

C9124
10N 50V

1N->680P

1

PT

2

FB

3

CS
GND4OUT

C9106
220P 50V

HV

IC9101

HV

VCC

PF6200

R9113

220 OHM 1/4W

C9904

470PF 250V

1 2

065G 1K222 2T6921穦Τ
PITHC5.0(125　　PITCH琌7.5mm
065G 1K22293S)

R9101

6.8K 1/4W

R9102

6.8K 1/4W

R9103

6.8K 1/4W

ZD9105
BZT52-B36

1 2

8

1 2

6
5

D9104

1N4148W

33R 1/8W 5%
R9110

ZD9106
BZT52-B36

C9104
100N 50V

钵　

C9103

2.2NF

R9109
18R 1%

!

FB9903
BEAD

1 2

FB9906

C9908

BEAD

220PF 250V

100K->82K

R9104
82K OHM 1%

R9105
82K OHM 1%

R9111
10K OHM +-5% 1/8W

C9105

+

47UF 50V

R9106
82K OHM 1%

R9107
82K OHM 1%

D9103

FR107

Q9101
STF6N65K3

R9112

0.43 OHM +-5% 2WS

ON/OF F

C9120

100N 50V-N C

R9108
4R7 1/4W 5%

D9105

C9126

100PF

HS9101

1
2
3
4

HEAT SINK

PS2561DL1-1

R9144

0 OHM +-5% 1/8W-NC

12V 380GL19P049N(H)00
16V 380GL19P048N(H)00

6

5

4
2

1

FR107

!

43

IC9102

DIM

C9125

100N 50V-N C

+16V

T9101

POWER X'FMR

!

HS9102
HEAT SINK-N C

12

R9142

0 OHM +-5% 1/8W

R9143

0 OHM +-5% 1/8W

+5.2V

9
10

7
8

11
12

1
2
3
4

37

D9109

SR506

D9108

SR506

R9117

22 OHM 1/4W

HEAT SINK-N C

CN9903
CN9904

CN9904

13
12
11
10

9
8
7
6
5
4
3
2
1

CONN-NC

D9101

3

FMW-2156-NC

1

R9115

22 OHM 1/4W

R9116

22 OHM 1/4W

HS9103

10
11
12
13

HS9104
HEAT SINK-N C

1
2
3
4

2

R9118

22 OHM 1/4W-NC

R9119

22 OHM 1/4W

R9120

22 OHM 1/4W

D9102

MBRF10150CT-NC

1

3

D9111
SR510-22

1 2

D9112
SR510-22

1 2

D9113
SR510-22

1 2

1
2
3
4

ミ
绢仅

CN9903

1
2
3
4
5

BZT52-B6V8

6
7
8
9

CONN

C9121

330UF 25V

+

C9107

C9123

2N2 50V

2N2 50V

R9138

22 OHM 1/4W- NC

R9139

22 OHM 1/4W

R9140

22 OHM 1/4W

2

ZD9104

1 2

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

715G5309-P0A-W21-0020__120306

Key Component

01.POWER

Date

C9109

330UF 25V

+

C9108
1NF 500V

R9122
3K3 1/8W 1%

C9117

220N 50V

IC9103

AS431AN-E1

L9101

3UH

C9110
100N 50V-N C

C9122

330UF 25V

+

R9121

470OHM +-5% 1/8W

R9123
15K 1/8W 1%

R9145
3K3 1/8W 1% -NC

R9124
10K OHM +-5% 1/8W

2.8A

C9111

330UF 25V

+

C9113

330UF 25V

+

R9125
130K 1%

R9126

9.31K +-1% 1/8W

R9141
430OHM +-1% 1/8W

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

+5.2V

C9112
100N 50V-NC

L9102

3UH

C9114
100N 50V-NC

Q9103

MMBT3904-NC

R9125/R9126+R9141
12V out
130K/9.31K+430
16V out
180K/9.31K+510

24PFL3507H

PLTV1E474GAF8

of

12Tuesday, D ecember 04, 2012

Q9102

2N3904

C9115
100N 50V-NC

R9130

470R

C9119

100N 50V

C9116

330UF 25V- NC

+

+16V

1 2

D9107
1N4148-NC

C9118
100N 50V-NC

093G 39A0852T-->18B

1 2

093G 39G 7----->15B

R9129
470 OHM 1/4W

R9131

1K OHM + -5% 1/8W

2.5A

ZD9102

GDZJ22B-N C

100R 1/8W 5%-NC

1K OHM +-5% 1/8W-N C

ZD9101
GDZJ15B

+5.2V

R9127

R9128

+16V

1 2

1N4148-NC

Size

Rev

称爹

ZD9103

GDZJ 5.6B-NC

D9106

+16V

A3

+16V

C8108

10N 50V

R8111
18K 1/8W 1%

16V/13K
12V/18K

VBJT

+16V

51K 1/8W 1%

VSET

R8110
100K 1%

C8105
100N 50V-NC

R8101

C8109

100N 50V

C8104
100N 50V

VADJ

DIM

VSET

C8114

10N 50V

ON/OF F

VFB

+5.2V

2N3904

Q8102

+

C8101

330UF 25V

IC8501

1

EN

2

DIM

3

GM

4

VFB

5

VSET

6

OVP
RT7CS

R8102

PF7001S

180K +-1% 1/8W

R8115 56R 1%

56R 1%

R8114

R8113 18R 1%

SLP

VADJ

VBJT

VCC

VMOS

GND

SLP

14

VADJ

13
12
11
10
9
8

R8108

200OHM +-5% 1/8W

C8110

470P 50V

Q8103

2N3904

R8121
13R 1%

VBJT

Q8104

2N3904

R8122
13R 1%

R8129
NC

L8102

47uH

R8104

22OHM +-5% 1/8W

D8102
1N4148W

R8103

C8103

0 OHM +-5% 1/8W

100N 50V

LED2LED1 LED4LED3

R8130
NC

Q8105

2N3904

R8123
13R 1%

C8116

220P 50V-NC

C8107

220P 50V-NC

C8115

220P 50V-NC

R8105

2R2 +-5% 1/8W

+16V

R8131
NC

Q8106

2N3904

R8124
13R 1%

5

4

R8106

10K OHM +-5% 1/8W

R8107

0R1 5% 2W

Q8107

2N3904

R8125
13R 1%

SR310-29

D8101

1 2

Q8101
AO4486

D8D7D6D

AO4482L 6A/100V 057G 763958

S1S2S3G

AO4486 4.2A/100V 057G 763125
SM1A13NSKC 7A/100V 057G 763537
SM1105NSKC 3.5A/100V 357G0763A09

1 2

LED1

LED2

LED3

LED4

FB9905

JUMPER

C8106
1NF-N C

071G 55 29-->JUMPER 095G 90 23

C8102

+

33UF 100V

D8103

2

3

1

BAV99

D8104

2

3

1

BAV99

D8105

2

3

1

BAV99

D8106

2

3

1

BAV99

VFB

C8113

+

47UF 100V-N C

C8111

NC

FB9907

JUMPER

1 2

R8117
3K9 1/8W 1%

R8118

1M 1/6W 5%

R8119

150K 1/8W 5%

LED4

LED1

VLED+

R8116
100K 1%

OVP 66.6V

LED3

LED2

NC

SLP

C8112

VLED+

311AF050-H10-ABB

CN8101& CN8102
For FFC TRF
Board

LED1

CN8102

2
1

NC

6
5
4
3
2
1

7 8

CN8101 For
AUO&TPV

CN8104 LNT

CN8101

CONN

1
2
3
4
5
6
7
8
9

10

CONN-NC

CN8104

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

715G5309-P0A-W21-0020__120306

02.LED D RIVER

Date

OEM MO DE L

TPV MODEL

PCB NA ME

Sheet

24PFL3507H

PLTV1E474GAF8

of

22Tuesday , December 04, 2012

Size

Rev

称爹

B

38

5.3 IR 板

715G5943R01000004S

CN201

67

1
2
3
4
5

CONN

LED_R

LED_B

IR

081G 14 24 EL

R202 NC_0R05 1/10W

R203 0R05 1/10W

VCC

R201 15K 1/10W

C201

0.1uF 50V

R204 NC/220 OHM 1/10W

R205 470R

LED201

BLUE

2 3

1

4

RED

LED

VCC

U201

1

GND

2

GND

3

OUT

4

VCC

IRM-H 938M3/ TR2

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

715G5471-R0A-000-0040

02-IR&LED

39

OE M MOD E L

TPV MODEL

PCB NAME

Sheet

X

Dynex UFC Model

715G5471-R0A-000-0040

22Wednesday , January 16, 2013

of

Size

Rev

称爹

<

A

称爹

A

>

6.软体及 EDID 烧录

说明: 此系列机种使用的是 RTD IC,以下是该 IC 的烧录 SOP。
（注: 此处仅以 LE32R17M 机种为例来说明，LE40R17M 可比照之）

6.1 软体烧录



采用 U 盘烧录

1.以AOC LE42A5720/61软体烧录为例，软体发布时获得bin文档：
AOC_LE42A5720-61_INDIA_MST6931XP_TPT420H2-HVD01_SVN1007_V1.04_20120826_1864.bin，重命名为

MERGE.bin，

将软体拷入 U 盘（此 U 盘必须能够被 TV 识别），在 TV 开机状态下，插入 U 盘，按“Menu+456987+Recall”，
进入软件升级如下：



2. 选择“确定”（一般默认），按OK键确认开始更新软体（更新软体过程严禁对TV任何动作，不能断电，
否则容易造成flash烧写异常）：



4.更新结束之后电视自动关机（整个过程大概持续90秒左右），再手动开机：






40

5.按“Menu+1999+Recall” （进入工厂菜单确认软体版本并选择 System Reset ，按 OK 键，机台待机，
此时软体更新完全，再开机则启用新软体：

6.2 EDID 烧录

此机种 EDID 数据包含于 flash 软体中，无需进行单独的 EDID 烧录。

41

7.故障处理流程

检测遥控板及 LED 灯

更换遥控板

检测电源板 CN9401 的 PIN2/3 是否有 5.2V 电压输出

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

有

无

重插电源插座或开启硬开关

无

更换电源板

检测电源板CN9401的PIN5/6是否有24V电压输出

检测按键板的POWER键是否失灵

更换按键板

无法启动（LED蓝色）

有

是

无

否

检测遥控板的红外接收器U01是否失灵

是 否

更换电源板

更换遥控板

更换主板

42

检测主板上CN4005的
PIN1/2/4是否有12V供电

是

先更换主板
检测是否OK

否

更换Panel

否

更换主板

检测TV是否受控，能否用遥控器或按键板开关机

检测LVDS线是否良好

是

重插或更换LVDS线

无画（LED不亮）

是

检测是否有背光

是

否

检测电源板CN9401的PIN5/6是否有24V电压输出

是

更换Panel

否

否

检测主板CN700是否有BL信号

是

否

更换电源板

更换主板

否

更换主板

43

信

检测是否

有高频干扰源

彩条、水波纹、画抖、画闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

先更换主板

OK

否

更换Panel

检测信号线

是否良好

是 否

检测信号源出

号是否正常

是 否

更换信号线

重新设置

信号源

画异

TV画面雪花点、重

影、细线、条纹干扰

检测TV信号线

是否接触不良

是 否

重新连接

TV信号线

排除干扰源 用场强仪检测信号强度

检测附近是否

是 否

是否在45-100db之间，

65db左右为最佳值

是

更换主板

间歇性画异加温
画异冷启动画异

检测软件版本是

否需要更新

是 否

升级软件

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

先更换主板

检测是否OK

否

取回站内
加温检测

44

无声或声音异常

检测信号源音频接口是否正确，或TV制式是否为DK制

是

检测TV是否被静音，调整音量大小，

或进入菜单进行复位看是否OK

否

检测主板到喇叭的连接线是否断路

是 否

更换连接线

检测喇叭阻抗是否变质

（喇叭阻抗值标在喇叭上）

是 否

更换喇叭 更换主板

收不到台或收台不全

否

重插音频接口或设置TV制式

建议客户重新

设置信号源

检测此频道是否发生频
偏，尤其是使用卫星信号

是

升级软件

用别的TV测试是否能收到此台

是

否

更换主板

检测软件版本是否需要更新

是 否

用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳

是

否

和客户说明当地TV信号未转播此台

45

否

太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减

异响

喇叭异响

（破音，滋滋声）

电源板，PANEL 异响

检测喇叭是否变质

更换电源板/PANEL

是 否

更换喇叭 主板功放异常

更换主板

检查遥控器电池是否未安置好或没电

重新安置或更换电池

遥控失灵

是

否

用别的遥控器测试是否可用

是 否

更换遥控器 检测遥控板是否异常

是

否

46

更换遥控板

更换主板

更换按键

更换按键板

OSD 不稳定或无法正常工作

按键板连接正常吗？

是

按键正常吗？

是

按键板有无故障？

是

检查主板

否

接好按键板

否

47

8.主要 IC 管脚及内部框图

1. W25Q32FVSSIG

48

2. APA2176AQBITRG

49

3. APL3511CBI-TRG

50

4. NC7SB3157P6X

51

9. BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

T2369M E23CG1NDBQA8NNF.LF

点位 组件 对象描述 备注
001G6021--1 screw
036T-600-18115 Non-woven Fabric for middle frame L
040G-58162435A P/N LABEL FOR MANUAL PE BAG

040G-581689-4A

041G--68508--A control card
052G---1150--C
052G---2191--A PAPER TAPE
055G--23522
E08902 089G-17356C553 AUDIO CABLE 1800MM COMLINK
089G-17356G553 AUDIO CABLE 1800MM GREATLAND 2nd source
E08903 089G-728CAA-DB SINGAL CABLE 1800MM COMLINK
089G-728HAA-DB SINGAL CABLE 1800MM HONGLIN 2nd source

E08901 089G214A15N-HL

089G214A15N-JR AC POWER CORD 1500MM 2nd source

092GB1JX1A3DGC

0M1G-130--6120 SCREW M3X6
0M1G1030--6-47-CR3 screw
0M1G1730--5120 screw
0M1G3030--4120 SCREW FOR PANEL
0Q1G-130--6120 SCREW (T3X6)
0Q1G-330--8-47-CR3 SCREW

E317 317GARFM006CHH RF MODULE CBIP-X

SP01 378G0060622YAA

E098 398GRABD7NCACC REMOTE AOC RL81D chinese

708GDA03-WP-1A AOC 40(2100)
044G6000--4-6B SPACE PAPER
F07G1180--M108 Wooden Pallet 1180*1086
F07G1194--M118 Wooden Pallet 1194*1180
F44G1140-ZP105 PAPER BOARD
F44G1160-ZP114 PAPER BOARD
Q44G9005205 CONNER PAPER
Q45G--77--5 PE PACKING (Y1900241)
Q50G---4-10 TIE (Y1900221)
Q52G---1185-99 big carton tape for aoc
7250L-0484A Conductive tape, Black, 14*25*0.1mm
7250L-0484B Conductive tape, Black, 20*35*0.1mm

E750 750SMT230W3FB1N100 PANEL LM230WF3-S2FB

BARCODE LABEL FOR 1

(58x35mm)

黑色防静电胶带 INSULATING TAPE

氢氟醚 HFE3400

POWER CORD 1500MM CHINA

HONGLIN

BATTERY 1.5V BATTERY FOR LR03

Changhong

SPK 8 OHM 6W 84*23*34mm 100mm

SUNLINK

52

2436L-3229C LM230WF3-S2FB-K31
3110T-1040A EGI , 0.5T,LM230WFA-S2Z2
3550S-1466D AL7um,PET75um,438.3*37.2*0.1
3850L-0088A ID, YUPO, 78X37
6091L-2369C LM230WF3-S2FB

3022L-1928A

TORAY, TDF127, T0.145,

LM230WF3-S2D2

3022L-2236A LU963 , Kolon
3034L-1201A T6D6, Toray
3551L-0791C LM230WF3-S2FB, 'E' type
3550B-1104E GALVALUME, 0.8T, 'E' type(2nd tooling)
4296L-0284C KE951+Nitto 5000NS, black, 4x4x2
6916L-1247A LG INNOTEK, 8520E(YR), 48ea
5153L-0120A 05010HR-H10H , YEON-HO

LGIT LED,Top View,2ea(LED Chip Q'TY

6915L-0512A

per PKG), 8520E

PKG,BM215WF4-T2G2

6920L-0307A 520.6 x 4.5 x 1.0

7250L-2289A

PD-25TT, 519.6*3.9*0.25, Thermal

Conductivity

3850L-0151A BL, YUPO, 77X21
4975L-0630A LM230WF3-S2D2
4974L-1103A PC,ENTIRE,ETR-1010,V0 , BLACK
4974L-1104A PC,ENTIRE,ETR-1010,V0 , BLACK

7250L-2251A

3M, 4734-64B, Black, 520.2*5*0.64,

Fixing

7250L-2251B 3M, 4734-64B, Black, 297*5*0.64, Fixing

7250L-2251C

3M, 4734-64B, Black, 513.8*4*0.64,

Fixing

5151L-0316A LM230WF3-S2D2

3953L-0160J

3953L-0160K

5150L-0831A

7250L-0853E

E2436L 6925L-0054A
6925L-0047A

TORAY, E60L, 3M 1363-60,

288.1*1.5*0.188, LM230WF3-SSA1

TORAY, E60L, 3M 1363-60,

489.0*1.5*0.188, LM230WF3-SSA1

PMMA, Flat, T2.0,

Printing,LM230WF3-S2D2

NITTO, 5000NS, White, 60*8*0.16,

Fixing
LM230WF3(SJF1，S2F2/S2F6/S2FB)
LM230WF3(SJF1，S2F2/S2F6/S2FB)

6060L-3238A LM230WF3-SJF1-K31
6061L-2629A LM230WF3-SJF1-K31

LS0608MEH3-C6LX, LUSEM, 720, 6BIT,

0ILUL-0285A

EPI PGC, C_B, R/TP, 35MM, 5PF,

UPILEX, ENG

6308L-5261A

LSBXSPKHXAX6-02300T26,

530.1*300.9, LGC, S, B, X, S, P, K, H, X,

53

2nd source

A, X6, 02300, Top, 26

LSXXSPKHXAX6-02300B26,

6308L-5262A

512.4*289.4, LGC, S, X, X, S, P, K, H, X,

A, X6, 02300, Bottom, 26

6884L-0090A

6884L-0034A

6884L-0152A

6884L-0153A

6884L-0053A

CP12941-20YA, SONY,

1.5MMX300MM, 20UM

CP5420ISL, SONY, L=1.5MMX300M,

T=20

AC-11600-14, HITACHI, 300MX1.5MM,

14UM

(AC-11600-14, HITACHI, 300MX2.0MM,

14UM)

CP2420ISL,L=1.5MMX300M, T=18UM,

SONY

2nd source

2nd source

2nd source

2nd source

7752L-0004A KTEM-UV3000, KEC
7752L-0005A (HC-305, HI-CHEMICAL) 2nd source

6871L-3250B

C122,C345,C347,C348,C

354,C74,C85

0CH2102K562 1NF 50V K X 1608 R/TP

Source, Single, None-C/SKD,

LM230WF3-SJF1-K31, Single Side

C350,C351,C353 0CH2104K562 0.1UF 50V K X7R 1608 R/TP
C100 0CH2153K562 15nF, K, 50V, X7R, 0.9mm, 1608, R/TP
C343 0CH2473H562 47nF, K, 25V, X7R, 0.9mm, 1608, R/TP

C81 0CH2474D572

C5,C6,C7 0CH2A-0004A

C346 0CH2A-0007A

C50 0CH2A-0008A

C102,C103,C340,C41,C8

8,C89,C90

0CH2A-0013A

0.47uF, K, 10V, X5R, 0.95mm, 1608,

R/TP
MLCC ** 10uf，

K,10V,X5R,1.8mm,3216,R/TP

1U F, 10 Volt, K PER, X5R(JB), 1608

R/TP, T=0.9(MAX)
MLCC ** 4.7uf，

K,25V,X5R,0.95mm,3216,R/TP
MLCC ** 10uf，

K,25V,X5R,1.8mm,3216,R/TP

C110,C355,C51,C87 0CH2A-0015A 1uF, K, 25V, X5R, 0.9mm, 1608, R/TP

C181,C183,C217,C218,C

219,C220,C221,C227,C3

0CH2A-0030A 1uF, K, 10V, X5R, 0.55mm, 1005, R/TP

12,C322,C332,C342

C71,C94 0CH2A-0072A

C349 0CH2A-0073A

MLCC ** 10uf，

K,10V,X5R,1.35mm,2012,R/TP

0.1uF, K, 16V, X7R, 0.55mm, 1005,

R/TP

C120,C121,C82 0CH2A-0088A 3.3nF, K, 50V, X7R, 0.9mm, 1608, R/TP

C170,C171,C172,C173,C

174,C180,C182,C311,C3

0CH2A-0091A 1uF, K, 25V, X5R, 0.6mm, 1005, R/TP

21,C331,C341
C80 0CH2A-0148A 10UF, K, 10V, X5R, 0.9mm, 1608, R/TP
C52,C53 0CH2A-0164A 0.47UF, K, 25V, X5R, 0.95mm, 1608,

54

R/TP

C35,C36 0CH5121K412 120PF, J, 50V, 1608, R/TP, 0.9mm
D3,D8 0DHZL-0008B BAV99-7-05-F, DIODES, SOT-23, R/TP
ZD1 0DHZL-0076A SDZ3V3D, AUK, SOD-323, R/TP
D1 0DHZL-0095A RB050M-30, ROHM, PMDU, R/TP
D10 0DHZL-0131A SDB0740, AUK, SOT-23, R/TP
D11 0DHZL-0142A SD05, SEMTECH, SOD323, R/TP
F1 0FSLO-0013A F0603HI3000V032T, AEM, Ceramic

U1 0ISGL-0008C

M24C04-RDW, STmicroeletronics, 4K,

5ms, TSSOP, R/TP, 8

SM4043, SILICON MITUS, MNT, VDD

BOOST + VGH BOOST + VGL C/P +

US1 0ISML-0024A

VCC BUCK + L/S + OPAMP +

DISCHARGING + GPM + PVCOM, QFN,

R/TP, 48

TL2358EP, TLI, LVDS, 6/8, 2, EPI, 6,

UC1 0ITLL-0083A

3/4, DRD, SGIP, AFRC, DGA, SD, SM,

SFA, Z-INV, ESD, LOWELL13, MLF, TR,

48

DP8L18F-100M, COIL MASTER, 10uH,

L1 0LCAA-0039A

M=20%, 1.9A, 114m Ohm, 8.1x6.8x1.8,

R/TP

CMI-DOP3910NH-6R8M, COIL

L2,L3 0LCAA-0089A

MASTER, 6.8 UH, M=20%, 0.9 A, 0.26

OHM, 3.9X3.9X1 (MM), R/TP

R232 0RH0000B622 0 ohm, 1/16W, 1005, 5%, R/TP

R101,R105,R130,R200,R

203,R205,R248,R250,R2

60,R261,R267,R268,R60,

0RH0000C622 0 OHM 1/10W 0603 0.05R MAX

R65,R82,R90
R85 0RH0102C422 10 OHM 1/10W 0603 1%
R259,R279 0RH0221C622 2.2 OHM 1/10W 0603 5%

R263,R264,R265,R266,R

269,R270,R271,R272,R2

0RH0472C422 47 OHM 1/10W 0603 1%

73,R274,R275,R276
R262 0RH1000B422 100 ohm, 1/16W, 1005, 1%, R/TP
R104,R2,R3,R56 0RH1000C422 100 OHM 1/10W 0603 1%
R254 0RH1001C422 1K OHM 1/10W 0603 1%
R16,R30,R55 0RH1002C422 10K OHM 1/10W 0603 1%
R172,R181 0RH1003C422 100K OHM 1/10W 0603 1%
R253 0RH1102C422 11K OHM 1/10W 0603 1%
R186 0RH1202C422 12K OHM 1/10W 0603 1%
R111 0RH1302C422 13K OHM 1/10W 0603 1%
R180 0RH1501C422 1.5K OHM 1/10W 0603 1%
R121 0RH1502C422 15K OHM 1/10W 0603 1%
R170 0RH1503C422 150K ohm, 1/16W, 1608, 1%, R/TP
R61 0RH1601C422 1.6K OHM 1/10W 0603 1%

55

R93 0RH1801C422 1.8K OHM 1/10W 0603 1%
R183,R256 0RH2001C422 2K OHM 1/10W 0603 1%
R106,R252 0RH2002C422 20K OHM 1/10W 0603 1%
R103 0RH2201C422 2.2K OHM 1/10W 0603 1%
R123 0RH2203C422 220K ohm, 1/16W, 1608, 1%, R/TP
R13,R14 0RH2401C422 2.4K OHM 1/10W 0603 1%
R280,R80 0RH3002C422 30K OHM 1/10W 0603 1%
R9 0RH3300C422 330 ohm, 1/16W, 1608, 1%, R/TP
R120 0RH3301C422 3.3K OHM 1/10W 0603 1%
R187 0RH3902C422 39K OHM 1/10W 0603 1%
R87 0RH4301C422 4.3K OHM 1/10W 0603 1%
R15 0RH4700C422 470 OHM 1/10W 0603 1%
R110,R86 0RH4702C422 47K OHM 1/10W 0603 1%
R257 0RH5100C422 510 OHM 1/10W 0603 1%
R100,R185,R188,R91 0RH5101C422 5.1K OHM 1/10W 0603 1%
R171,R70 0RH5102C422 51K OHM 1/10W 0603 1%
R102 0RH5602C422 56K OHM 1/10W 0603 1%
R229,R230 0RH5603C422 560K ohm, 1/16W, 1608, 1%, R/TP
R81 0RH6202C422 62K OHM 1/10W 0603 1%
R89 0RH7501C422 7.5K OHM 1/10W 0603 1%
R122,R249,R255,R92 0RH8201C422 8.2K OHM 1/10W 0603 1%
R88 0RH9100C422 910 OHM 1/10W 0603 1%
R251,R64 0RH9101C422 9.1K OHM 1/10W 0603 1%

FL35,FL36 6200C-0014A

BLM18EG601SN1D, MURATA, 0.35

Ohm, 1.6X0.8, R/TP

FL1,FL2,FL37 6200L-J015A BLM18PG300SN1D
RT1 6322L-0012A 22K, +-3%, -, 0.21 MA, 3950, 1005, R/TP
CN1 6630L-0180A IS100-L30O-C23, UJU, 30PIN, 1.0MM

6870S-1617A

LM230WF3-SSB1-KL1, 2L, 0.6,

428.3*27.0, 6, J, Source, HF, Single Side

6884L-0061A CP20631-35YA, 2.0MMX300M, SONY
6884L-0044B DP2252KSL(2.0MMX300M), SONY 2nd source
6884L-0044C AC-9825R-45(2.0MMX300M), HITACHI 2nd source

6884L-0083A

CP21831-35YA, SONY, 2.0 X 300M,

35UM

2nd source

6884L-0174A EMA8888E, LGIT, 300M, 75 ΜM 2nd source
7526L-0001A DS 103, NC Chem., UV

7250L-0484P

HWASUNG SEALING, STN1026WR(P),

Gray, 12*30*0.11, Electric Conductivity

756TXDCB01D0010000 MCU ASSY
SMTF-U402 100TAMGD006DTX AOC T2369M FLASH -- NA

U402 356G223300200A

IC FLASH W25Q32FVSSIG 32M SOP-8

WINBOND

A33E1429--1-1C0100 LENS
A33E1490AED-1L0100 STAND_REAR
A34E3136AED-3L0100 MIDDLE_FRAME

56

A34E3137AED-4L0100 REAR COVER
A34E3138AED-1L0100 COVER_HINGE
A34E3139AED-1L0100 STAND_FRONT
A34T3135-OPZ2L0100 BEZEL
AM1G1740-10225-CR3 screw
CBPFC3QCX2 CONVERSION BOARD
040G-45762412B CBPC LABEL

C614,C615,C640 067G315M1016KV EC 100UF 20% 35V 8*7

SW4001,SW4004,SW400

5,SW4006,SW4007

077G602S-3A-HJ TACT SW 4P 5.85 200g TSDBYC2202

077G602S-3A-CJ TACT SW 4P 5.85 200g TDVC-4-NP 2nd source
CN103 088G-78F114VCL RCA JACK 2P YELLOW CL
088G-78F114VYG RCA JACK 2P YELLOW YCG 2nd source
CN107 088G-78F121XCL RCA JACK 4P CL
088G-78F121XYG RCA JACK 4P WHITE/RED YCG 2nd source
CN102 088G-78F135XCL RCA JACK 6P CL
088G-78F135XYG RCA JACK 6P GREEN/BLUE/RED YCG 2nd source
CN104 088G302F3G1VCL PHONE JACK 3P GREEN CL
088G302F3G1VYG PHONE JACK 3P GREEN YCG 2nd source
CN101 088G302G7B1ACL PHONE JACK 7P BLACK CL

088G302G7B1AQS

PHONE JACK 7P BLACK

QIANGSHENG

2nd source

CN106 088G352F6B3ACL USB CONN TYPE A 6PIN BLACK CL
088G352F6B3AYG USB CONN TYPE A 6PIN BLACK YCG 2nd source

CN105 088G353FFF3XCL

088G353FFF3XDL

D-SUB CONN WITH SCREW 15P

BLUE CL

D-SUB CONN WITH SCREW 15P

BLUE DLK

2nd source

TU101 094G-PALALL-7L TUNER CHINA DT21CN-2-E TCL
CN601 311GW200A04ABX WAFER 4P 2.0mm XINYA
311GW200A04ABL WAFER 4P 2.0MM XIANGLONG 2nd source
CN701 311GW250B13BBX WAFER 13P 2.5MM XINYA

709T57890XM001 COMSUPTIVE ASS'Y
052G---2191--A PAPER TAPE
055G--23520 IPA
055G--23524 WELDING FLUX WITHOUT PB
Q49G--51100

唯特偶 GW2066 水基型清洁剂 Cleaner
Q55G-100622 TIN STICK(SAC0507)
Q55G-100625 TIN STICK_LOW ARGENTUM
Z40G0002ALL01A

SFIS Label 35mm*9mm（主板）
SMTC01 SMTFC3QCX2 MAIN BOARD FOR SMT
SMTFC3QCX2WB MAIN BOARD FOR SMT WB 2nd source

U703 056G-563143--C

U101 056G-563224

IC LDO G1084PT43U 5A ADJ TO-252

GMT

IC LDO AP2114H-3.3TRG1 1A/3.3V

SOT-223 BCD

57

056G-563149

U702 056G-563515

U701 056G-563X04

U602 056G-616516

U404,U405 056G-7SB157--F

Q102,Q402,Q404,Q405,Q

602

057G-417517

057G-417512

D502,D503,Q101,Q403,Q

408,Q601,Q702,Q703,Q7

057G-417518

04,Q705,Q706,Q707

057G-417511

Q701 057G-763940

IC LDO G903T63UF 0.6A/3.3V SOT-223

GMT

IC LDO AZ1117D-3.3TRE/G1 1A/3.3V

TO-252 BCD

IC DC/DC APW7323KAI-TRG 3.2A 5V

SOP-8P ANPEC

IC AUDIO APA2176AQBITRG 0.27W

TQFN3X3-16 ANPEC

IC NC7SB3157P6X MAA06A SC-70

FAIRCHIL

TRA LMBT3906LT1G -0.2A/-40V

SOT-23 LRC

TRA MMBT3906 0.2A/40V SOT-23

BLUE ROCKET

TRA LMBT3904LT1G 0.2A/40V

SOT-23 LRC

TRA MMBT3904 0.2A/40V SOT-23

BLUE ROCKET

MOSFET AO3401A 4.2A/30V SOT-23

AOS

2nd source

2nd source

2nd source

R146,R448,R449,R454,R

455,R515,R516,R517,R5

18,R519,R520,R521,R52

2,R523,R524,R525,R526,

061G0402000-JF

RST CHIPR MAX0R05 1/16W

FENGHUA

R527,R528,R529,R530,R

602,R605

R601,R701 061G0402000-JI

R427 061G0402000-JY

R461,R462,R609,R610,R

616,R621,R623,R626

061G0402100-JF

TEST ONLY RST 0402 0.05R MAX

1/16W TA-I

RST CHIPR 0 OHM +-5% 1/16W

YAGEO

RST CHIPR 10 OHM +-5% 1/16W 0402

FENGHUA
R721 061G04021001FI RST 0402 1K 1% 1/16W TA-I

R622 061G04021003FT

R401,R604 061G0402101-JF

R101,R501,R510,R513,R

514,R705

R143,R145,R458,R460,R

464,R613,R625

061G0402101-JI

061G0402101-JY

R405 061G0402102-JF

R434,R702,R711,R712 061G0402102-JI

RST CHIPR 100 KOHM +-1% 1/16W

0402 TZAI YUAN

RST CHIPR 100 OHM +-5% 1/16W 0402

FENGHUA

RST CHIPR 100 OHM +-5% 1/16W 0402

TA-I

RST CHIPR 100 OHM +-5% 1/16W 0402

YAGEO

RST CHIPR 1 KOHM +-5% 1/16W 0402

FENGHUA

RST CHIPR 1 KOHM +-5% 1/16W 0402

TA-I
R704,R707,R709 061G0402102-JY RST CHIPR 1 KOHM +-5% 1/16W 0402

58

YAGEO

R726 061G0402103-JF

RST CHIPR 10 KOHM +-5% 1/16W

0402 FENGHUA

R136,R137,R441,R443,R

476,R611,R612,R618,R6

27,R628,R629,R713,R71

061G0402103-JI

RST CHIPR 10 KOHM +-5% 1/16W

0402 TA-I

4,R722

R116,R117,R120,R121,R

506,R507

061G0402103-JT

R144,R436,R728 061G0402103-JY

R409,R413,R416,R418 061G0402104-JF

R439,R720 061G0402104-JI

R403,R428 061G0402105-JF

R118,R119,R123,R124 061G0402123-JF

RST CHIPR 10 KOHM +-5% 1/16W

0402 TZAI YUAN

RST CHIPR 10 KOHM +-5% 1/16W

0402 YAGEO

RST CHIPR 100 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 100 KOHM +-5% 1/16W

0402 TA-I

RST CHIPR 1 MOHM +-5% 1/16W 0402

FENGHUA

RST CHIPR 12KOHM +-5% 1/16W

FENGHUA
R717 061G04021242FT RST 0402 12.4K 1% 1/16W TZAI YUAN

R603,R606 061G0402201-JF

RST CHIPR 200 OHM +-5% 1/16W 0402

FENGHUA
R531 061G0402201-JI RST 0402 200R 5% 1/16W
R103 061G0402221-JI RST 0402 220R 5% 1/16W

R131 061G0402222-JF

061G0402222-JY

R406 061G0402223-JF

R719 061G04022401FI

R624 061G04022702FF

R730 061G0402273-JF

R102,R104,R106,R111,R

113

R122,R126,R127,R129,R

133,R135

061G0402330-JF

061G0402330-JI RST 0402 33R 5% 1/16W

RST CHIPR 2.2 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 2.2 KOHM -5% 1/16W

0402 YAGEO

RST CHIPR 22 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 2.4 KOHM +-1% 1/16W

0402 TA-I

RST CHIPR 27 KOHM +-1% 1/16W

0402 FENGHUA

RST CHIPR 27 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 33 OHM +-5% 1/16W

FENGHUA

R475 061G0402332-JI RST 0402 3.3K 5% 1/16W

R114 061G0402333-JF

R731 061G04024300FF

RST CHIPR 33 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 430 OHM +-1% 1/16W 0402

FENGHUA
R456,R457 061G04024701FF RST 0402 4.7K 1% 1/16W FENGHUA
R404 061G0402472-JF RST CHIPR 4.7 KOHM +-5% 1/16W

2nd source

59

0402 FENGHUA

R141,R142,R419,R420,R

421,R422,R423,R424,R4

31,R442,R459,R463,R47

061G0402472-JI

RST CHIPR 4.7 KOHM +-5% 1/16W

0402 TA-I

7,R710,R716,R723,R727

R473,R502,R504,R508,R

509,R511,R512,R729

061G0402473-JI

R105 061G0402473-JY

RST CHIPR 47 KOHM +-5% 1/16W

0402 TA-I

RST CHIPR 47 KOHM +-5% 1/16W

0402 YAGEO
R138,R139 061G04024998FT RST CHIP R 4.99ohm 1/16W +/-1%
R407,R435 061G0402510-JF RST CHIP 51R 1/16W 5% FENGHUA
R140 061G0402511-JI RST 0402 510R 5% 1/16W
R132,R134 061G0402680-JI RST 0402 68R 5% 1/16W

R410,R412,R415 061G0402680-JY

R715 061G04027501FI

FB408 061G0603000-JF

R607,R608 061G0603101-JF

R503,R505 061G0603102-JY

RST CHIPR 68 OHM +-5% 1/16W 0402

YAGEO

RST CHIPR 7.5 KOHM +-1% 1/16W

0402 TA-I

RST CHIPR MAX 0R05 1/10W

FENGHUA

RST CHIPR 100 OHM +-5% 1/10W 0603

FENGHUA

RST CHIPR 1 KOHM +-5% 1/10W 0603

YAGEO
R402 061G06031472FY RST CHIPR 14.7KOHM 1/10W YAGEO
R414 061G06031501FI RST 0603 1.5K 1% 1/10W TA-I
R411 061G06034301FI RST 0603 4.3K 1% 1/10W
R408 061G06037151FI RST 0603 7.15K 1% 1/10W TA-I

R107,R108,R109,R110,R

112,R115

061G0603750-JY

R417 061G06037500FF

RST CHIPR 75 OHM +-5% 1/10W

YAGEO

RST CHIPR 750 OHM +-1% 1/10W

FENGHUA
R125,R128,R130 061G06037509FI RST 0603 75R 1% 1/10W

R438 061G08050004JT

RST CHIPR 0 OHM +-5% 1/8W 0805

TZAI YUAN
R718 061G1206229-JY RST CHIPR 2.2R 5% 1/4W YAGEO

C451,C452 065G040210131J---A

C404,C619,C639 065G040210232K---A

C107,C121 065G040210232K---T

C132,C133,C440,C441,C

445,C446

065G040210232K---Y

C720 065G040210332K---Y

C141,C437,C442,C444,C

448,C601,C701,C707,C7

065G040210412K---F

MLCC 0402 100pF +-5% 50V NPO

SAMSUNG

MLCC 0402 1000pF +-10% 50V X7R

SAMSUNG

MLCC 0402 1000pF +-10% 50V X7R

TAIYO YUDEN

MLCC 0402 1000pF +-10% 50V X7R

YAGEO

MLCC 0402 10nF +-10% 50V X7R

YAGEO

MLCC 0402 0.1uF +-10% 16V X7R

FENGHUA

60

14,C724

C101,C103,C125,C128,C

134,C137,C412,C416,C4

17,C418,C419,C420,C42

1,C422,C423,C424,C427,

065G040210412K---Y

MLCC 0402 0.1uF +-10% 16V X7R

YAGEO

C428,C429,C434,C435,C

510,C715,C716

C104,C131,C405 065G0402105A5K---T

MLCC 0402 1uF +-10% 10V X5R TAIYO

YUDEN
C605,C609 065G040215232K---Y CAP CHIP 0402 1.5NF 50V X7R
C406,C409,C411,C414 065G040218131J---F CAP 0402 180PF 5% 50V NP0

C436 065G040222031J---A

C108 065G040222031J---T

C140 065G040222322K---F

MLCC 0402 22pF +-5% 50V NPO

SAMSUNG

MLCC 0402 22pF +-5% 50V NPO TAIYO

YUDEN

CAP 0402 22NF 10% 25V X7R

FENGHUA
C425,C430 065G040227031J---F CAP 0402 27PF 5% 50V NP0

C136 065G040233031J---F

C623,C626,C630,C637 065G040233131J---T

C113,C114,C118,C119 065G040247131J---A

C102,C105,C106,C110,C

117,C120,C122,C407,C4

065G040247312K---A

08,C410,C449

MLCC 0402 33pF +-5% 50V NPO

FENGHUA

MLCC 0402 330pF +-5% 50V NPO

TAIYO YUDEN

MLCC 0402 470PF +-5% 50V NPO

SAMSUNG

MLCC 0402 47nF +-10% 16V X7R

SAMSUNG

C433 065G040247505M---M CAP 0402 4.7UF 20% 6.3V X5R

C135 065G040256031J---A

C613,C618,C638 065G060310432K---Y

C725 065G060310512K---M

C443,C604,C606,C607,C

712,C718

065G060310512K---T

C413,C415,C426,C431 065G060310605M---M

C616,C622,C633,C635 065G060322422K---T

C401 065G060322422K---Y

C130,C402,C403,C610 065G060322515K---A

C111,C112,C115,C116 065G0603225A5K---M

MLCC 0402 56pF +-5% 50V NPO

SAMSUNG

MLCC 0603 0.1uF +-10% 50V X7R

YAGEO

MLCC 0603 1uF +-10% 16V X7R

MURATA

MLCC 0603 1uF +-10% 16V X7R TAIYO

YUDEN

MLCC 0603 10uF +-20% 6.3V X5R

MURATA

MLCC 0603 0.22uF +-10% 25V X7R

TAIYO YUDEN

MLCC 0603 0.22uF +-10% 25V X7R

YAGEO

MLCC 0603 2.2uF +-10% 16V X5R

SAMSUNG

MLCC 0603 2.2uF +-10% 10V X5R

MURATA
C709 065G0603475A5K---M MLCC 0603 4.7uF +-10% 10V X5R

61

MURATA

C705 065G080510432K---F

C631,C632 065G080510532K---A

C109,C602,C611,C710 065G0805106A5K---A

C127 065G0805106A5K---T

C621,C624,C629,C634 065G080547432K---A

C717,C719 065G1206226A5K---A

MLCC 0805 0.1uF +-10% 50V X7R

FENGHUA

MLCC 0805 1uF +-10% 50V X7R

SAMSUNG

MLCC 0805 10uF +-10% 10V X5R

SAMSUNG

MLCC 0805 10uF +-10% 10V X5R

TAIYO YUDEN

MLCC 0805 0.47uF +-10% 50V X7R

SAMSUNG

MLCC 1206 22uF +-10% 10V X5R

SAMSUNG

C126,C129,C438,C450,C

708,C711,C713,C721,C7

067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3

22
FB101 071G-56D102-MA CHIP BEAD 1000ohm 0805 1A
FB701 071G-56G301-DA CHIP BEAD 0805 300R 25% 4A
071G-56G301-MA CHIP BEAD 0805 300OHM 4A 2nd source
FB409,FB603 071G-56K121--M CHIP BEAD

071G-56K121-TA

CHIP BEAD 120R/6000mA

HCB2012KF-121T60

2nd source

FB401 071G-59A121-TA CHIP BEAD 120R/3000mA

071G-59A121--M

FB402,FB403,FB404,FB4

05,FB406,FB407

071G-59C600-TA

CHIP BEAD 0603 120R 25%

1608E121T3R0-LF

CHIP BEAD 0603 60R 25% 600mA

FCM1608CF-600T06 TAI-TECH

2nd source

071G-59C600--M CHIP BEAD 60 OHM 0603 600mA 2nd source
FB102,FB601,FB602 071G-59G301--M CHIP BEAD 0603 300R 25% 200mA

071G-59G301-TA

CHIP BEAD 300OHM 200mA

FCM1608KF-301T02

2nd source

L101,L102 073G--6310910M CHIP INDUCTOR 1UH 10% 0.6R 25mA

L103,L104 073G--63229-TA

L701 073G253S-68--H

CHIP INDUCTOR 2.2uH 10%

FCI1608F-2R2K

SMD CHOKE 2.2uH +-30% 0.031R

2.04A

CN501,CN502 088G-34021A-VA HDMI HEADER 21P VAST
088G-34021A-VD HDMI HEADER 21P DLK 2nd source

X401 093G-22SX02-YC

CRYSTAL YC 49U/SMD 24MHz 20PPM

18PF YC

ZD101,ZD102,ZD103,ZD

104,ZD105,ZD106,ZD107

,ZD108,ZD109,ZD110,ZD

111,ZD112,ZD113,ZD114

,ZD115,ZD116,ZD117,ZD

093G-64S500-SU

DIODE ESD MLVG04025R0QV05BP

INPAQ

118,ZD401,ZD402,ZD403

,ZD501,ZD502,ZD503,ZD

62

504,ZD505,ZD506,ZD507
CN403 311GW125F40ACX WAFER 40P 1.25MM XINYA
311GW125F40ACH WAFER 40P 1.25mm HR 2nd source
CN401 311GW200A10ADJ WAFER 10P 2.0MM JINGSHI
CN406 311GW200B03ADH WAFER 3P 2.0MM HR

U401 356G0568128019

U601 356G0616028147

U704 356G0667023

U402 356G223300200A

Q401 357G0763030014

057G-763-79

L601,L602,L603,L604 373G253S089H01

D401 393G006433P0HF

IC SCALER MST6931XP-Z1-VB

EPLQFP-128 MSTAR

IC AUDIO AD52580-QG28NAT 15W

E-TSSOP 28L ESMT

IC Power Switch APL3511CBI-TRG

SOT23-5 150C ANPEC

IC FLASH W25Q32FVSSIG 32M SOP-8

WINBOND

MOSFET MTP9435BDYAQ8 -8.4A -30V

SOP-8-6 Cystek

MOSFET AO4449 -7A/-30V SOIC-8

AOS

SMD CHOKE 22UH 20% 2.2A 73.3mΩ

SPI755WCCL-220 Dadon

DIODE HF ?BAV99_R1_00001 0.5A

100V SOT-23 PANJIT

2nd source

709T57890XS001 COMSUMPTIVE ASS'Y
052G---2191--A PAPER TAPE
055G--23520 IPA
055G-100610
Q05G6054--1
Q09G6012--1
Q52G6026--7

E715 715G5789M01000004K

715G5789M01000004X

锡膏 TIN CREAM W/O PB

接料带 SHEET

铜扣 PIN

擦网纸 Mesh Printting Paper

MAIN PCB FR4 DS 193*125*1.6mm 3 连

扳 景旺

MAIN PCB FR4 DS 193*125*1.6mm 3 连

扳 华新

2nd source

X12G8001--1----BGP HEAT PAD
HS401 X90G8013--1 HEAT SINK

F40G270I615-3A Rating LABEL FOR TV CH
F40GKA01624-3A CEL LABEL FOR TV 1.09_0.5
F40GKA01624-4A
F40GKA01624-5A

AOC TV 唯一序列号 label(50*15mm)

AOC TV 售后标签（40*8mm)

F40GTV03615-5A T2369 IO BACK LABEL(CH)
F40GTV03615-6A T2369 IO Side LABEL(CH)
F41G23M1615-4A T2369Z Chinese manual for MTV

F95G-900-1D901

WIRE HARNESS 1P-1P 50mm

GREATLAND
F95G-900-1X901 WIRE HARNESS 1P-1P 50mm XINYA 2nd source

ECN8104 F95G176H10N372

FFC CABLE 10PIN 260MM P0.5MM

HONGLIN

63

F95G176J10N372

F95G176X10N372

ECN701 F95G801313D400

F95G801313X400

F95G801313T400

ECN601 F95G8014-4D162

F95G8014-4X162

ECN401 F95G801410D165

F95G801410X165

FFC CABLE 10PIN 260MM P0.5MM

KOTL

FFC CABLE 10PIN 260MM P0.5MM

WENXIN

WIRE HARNESS 13P-13P 100MM

GREATLAND

WIRE HARNESS 13P-13P 100MM

XINYA

WIRE HARNESS 13P-13P 100MM

DIY

WIRE HARNESS 4P-2P+2P

50+230mm GREATLAND

WIRE HARNESS 4P-2P 2P 50 230mm

XINYA

WIRE HARNESS 10P-5P 380MM

GREATLAND

WIRE HARNESS 10P-5P 380MM

XINYA

2nd source

2nd source

2nd source

2nd source

2nd source

2nd source

F95G801410T165 WIRE HARNESS 10P-5P 380MM DIY 2nd source

ECN403 F95G801840D322

LVDS CABLE 30P-40P 300mm

GREATLAND

F95G801840T322 LVDS CABLE 30P-40P 300mm DIY 2nd source
F95G801840X322 LVDS CABLE 30P-40P 300mm XINYA 2nd source
IRPFCXE8 IR BOARD
SMTI01 SMTIRPFCXE8 IR BOARD FOR SMT
SMTIRPFCXE8WB IR BOARD FOR SMT WB 2nd source

R203 061G0603000-JF

RST CHIPR MAX 0R05 1/10W

FENGHUA
R201 061G0603153-JY RST CHIPR 15KOHM 1/10W YAGEO

R205 061G0603471-JF

061G0603471-JY

C201 065G060310432K---F

LED201 081G--14-24-GP

081G--14-24-EL

RST CHIPR 470 OHM +-5% 1/10W 0603

FENGHUA

RST CHIPR 470 OHM -5% 1/10W

0603 YAGEO

MLCC 0603 0.1uF +-10% 50V X7R

FENGHUA

CHIP LED BLUE/RED

GPTD1210BRC-D GUANGPU

CHIP LED BLUE/DARK RED

EVERHIGHT

2nd source

2nd source

CN201 311GW125D05ACX WAFER 5P 1.25mm XINYA
033G8032-5F--S--HR WAFER 5P 1.25MM HR 2nd source

U201 356GS927057

E715 715G5943R01000004S

IC IR RECEIVER IRM-H938M3/TR2 38

KHZ 6V EVERLIGHT

IR PCB FR4 DS 46X8.15X1.6MM 60 联

板 三照
P33E0477--2-1C0100 LENS_IR
P34E1447-OP-1L0100 BASE

64

PLTVCD513UXD1 POWER BOARD 715G5804
040G-45762412B CBPC LABEL

IC9102 056G-139--8

IC PHOTO COUPLER PS2561DL1-1

RENESAS
NR9902 061G--58005--W RST NTCR 5 OHM 3A THINKING
C9901 063G107K474AUS---A CAP X2 0.47uF 10% 305V BULK ( B )

C9103 065G--1K22293S

C9902,C9903 065G306K4712B3

FB9904,FB9909 071G--55-21-H1

FB9901,FB9902 071G--55906--H

CAP CER 2.2NF 10% 1KV R TAPING

TDK

Y1 CAP 470pF +-10% 250VAC CD

SERIES TDK

BEAD 6.0*10 700R 25%

BF-I60100R-706B DADON

BEAD 6.0*9.2 510R MIN

BF-I60090C-794 DADON
L9901 073G-174192--L LINE FILTER 30MH MIN LF-013589-2

L8102 073G-253214--H

CHOKE COIL 47uH +-10% L470R HA

DADON
F9901 084G--41-15--L FUSE 3.15A 250V 0215 3.15MXEP
CN9901 087G-50147C-HC AC socket V/T 2P DB-8-01 H=14mm

D9108,D9109 093G--60334

D9111,D9113 093G--60335-HF

SCHOTTKY SR506-44 5A 60V

DO-201AD TSC

DIODE SCHOTTKY SR515-04 X0G 5A

150V DO-201AD TSC
CN9901_1 0Q1G-340--8140 SCREW 4.0x8.0
CN8104 311GF050H10ABL FFC CONN 10P 0.5mm XIANGLONG
CN9904 311GW250B13BBX WAFER 13P 2.5MM XINYA
RV9901 361G0046561KZW VARISTOR 560V 10% THINKING

C9101,C9102 367G215X470PKZ002S

L9101,L9102 373G0253247H00

T9101 380GL19P048H00

BD9101 393G0050460A05

D8101 393G0060A0400T

EC 47UF 20% 450V 12.5*36 2000 hr

420mA PW2W470MLT1236DLRV

CHOKE COIL 3UH 15% DR8*8 5A

Dadon

X'FMR 800uH 10% 20uH EFD30

BCK-13029-HA Dadon

BRIDGE GBL08-07 X0 4A 800V GBL

TSC

DIODE SCHOTTKY SR310-29 X0

3A/100V DO-201AD TSC
705TXC57044 Q9101 ASS'Y
Q9101_1 0M1G-930--8120 SCREW

Q9101 357G0667650002

MOSFET TK5A65D 5A 650V TO220F

Toshiba
HS9101 Q90G0219--2 HEAT SINK

709G5804-QM001 CONSUMPTIVE ASS""Y
052G---2191--A PAPER TAPE
055G--23520 IPA

055G--23524--A

WELDING FULX WITHOUT Pb 无锡助

焊剂

65

Q49G--51100

唯特偶 GW2066 水基型清洁剂 Cleaner
Q51G---6--4509 GLUE_RTV
Q55G-100622 TIN STICK(SAC0507)
Q55G-100625 TIN STICK_LOW ARGENTUM
PLCD513UXD1SMT POWER BOARD FOR SMT

IC9103 056G-158501

IC8501 056G-700-34

IC AS431AN-E1 150mA/40V SOT23

AAC

IC LED DRIVER PF7001S SOP-14

Powerforest
Q8101 057G-763958 MOSFET AO4482L 6A/100V SO-8 AOS

R8103,R9142,R9143 061G0805000-JT

R9131 061G0805102-JT

R8106,R9111,R9124 061G0805103-JT

R9114 061G0805104-JT

RST CHIPR 0 OHM +- 5% 1/8W TZAI

YUAN

RST CHIPR 1K OHM +- 5% 1/8W

TZAI YUAN

RST CHIPR 10 KOHM +-5% 1/8W 0805

TZAI YUAN

RST CHIPR 100KOHM +- 5% 1/8W

TZAI YUAN
R8111 061G08051302FT RST CHIP 13K 1/8W 1%
R9123 061G08051502FT RST 0805 15K 1/8W 1% TAZIYUAN
R8119 061G0805154-JT RST CHIP 150K 1/8W 5% TZAI YUAN

R8102,R9125 061G08051803FT

R8108 061G0805201-JT

R8104 061G0805220-JT

RST CHIPR 180 KOHM +-1% 1/8W

0805 TZAI YUAN

RST CHIPR 200 OHM +-5% 1/8W 0805

TZAI YUAN

RST CHIPR 22OHM +-5% 1/8W TZAI

YUAN
R8105 061G0805229-JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R9110 061G0805330-JT

CHIPR 0805 33 OHM +-5% 1/8W TZAI

YUAN
R9122 061G08053301FT RST CHIP 3K3 1/8W 1%
R8117 061G08053901FT RST CHIP 3K9 1/8W 1%

R9121 061G0805471-JT

RST CHIPR 470OHM +-5% 1/8W TZAI

YUAN
R9141 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W
R8101 061G08055102FT RST CHIP 51K 1/8W 1%

R9126 061G08059311FT

JR901,JR902,JR903,JR9

04

061G1206000-JT

R8110,R8116 061G12061003FT

RST CHIPR 9.31 KOHM +-1% 1/8W

0805 TZAI YUAN

RST CHIPR MAX0R05 1/4W TZAI

YUAN

RST CHIPR 100K +-1% 1/4W TZAI

YUAN
R8113 061G12061809FT RST 1206 18R 1% 1/4W

R9115,R9116,R9117,R91

18,R9119,R9120,R9138,

R9139,R9140

061G1206220-JT

CHIPR 1206 22 OHM +-5% 1/4W TZAI

YUAN

R9113 061G1206221-JT RST CHIPR 220 OHM +-5% 1/4W TZAI

66

YUAN

R9129 061G1206471-JT

RST 1206 470 OHM +-5% 1/4W TZAI

YUAN
R9108 061G1206479-JT RST 1206 4.7R 5% 1/4W

R9101,R9102,R9103 061G1206682-JT

R9104,R9105,R9106,R91

07

061G12068202FT

C8108,C8114,C9124 065G080510332K---Y

C8103,C8104,C8105,C81

09,C9104,C9110,C9112,

065G080510432K---Y

C9114,C9115,C9119

C9106 065G080522131J---Y

C9107,C9123 065G080522232K---Y

C9117 065G080522432K---Y

C8110 065G080547131J---Y

C9108 065G120610272K---Y

RST CHIPR 6.8 KOHM +-5% 1/4W

TZAI YUAN

RST CHIPR 82KOHM +-1% 1/4W TZAI

YUAN

MLCC 0805 10nF +-10% 50V X7R

YAGEO

MLCC 0805 0.1uF +-10% 50V X7R

YAGEO

MLCC 0805 220pF +-5% 50V NPO

YAGEO

MLCC 0805 2200pF +-10% 50V X7R

YAGEO

MLCC 0805 0.22uF +-10% 50V X7R

YAGEO

CAP CHIP 0805 470P 50V NP0 +/-5%

YAGEO

MLCC 1206 1000PF +-10% 500V X7R

YAGEO
D8103,D8104,D8106 093G--6433S DIODE Switching BAV99 SEMTECH
IC9101 356G0379007217 IC AC/DC PF6200 S SOP-7 Powerforest

R9109 361G08051809FY

R8121,R8122,R8123,R81

25

361G08059108FT

D8102,D9104 393G006432S0HF

ZD9104 393G039SA2400T

ZD9105,ZD9106 393G039SA2800T

RST 0805 18R 1% 1/8W

RC0805FR-0718RL YAGEO

RST 0805 9.1 ohm 1% 1/8W

SMD08059R1F TZAI YUAN

DIODE SWITCHING 100V 0.15A

1N4148W PANJIT

DIODE ZENER BZT52-B6V8 6.8V

0.41W SOD-123 PANJIT

ZENER BZT52-B36 36V SOD123

PANJIT
PLCD513UXD1AI POWER BOARD FOR AI
CN9901 006G--31500 EYELET

C9101,C9102,C9901,L99

01,RV9901,T9101

Q8102,Q8103,Q8104,Q8

105,Q8107,Q9102

006G--31502 1.5MM RIVET

057G-417513--T TRA 2N3904 TO-92 LANJIAN

R8118 061G-60210552T--TZ RST CFR 1M 1/6W 5%
R8107 061G152M10852T--SY RST MOF 0R1 5% 2W

R9112 061G152M43852T--SY

R9130 061G152M47152T--SY

RST MOFR 0.43 OHM +-5% 2WS

FUTABA

RST MOFR 470 OHM +-5% 2WS

FUTABA

67

R9901 061G212Y10552T--SY

RST MGFR 1MOHM +-5% 1/2W

FUTABA
C9126 065G--1K10193T CAP CER 100PF 10% 1KV R TDK
C9908 065G306K10123R CAP Y1 100PF 10% 250V Y5P TDK

C8113 067G-5151018KT

C8101,C9109,C9111,C91

13,C9116,C9121,C9122

067G-5153314HT---A

EC 100UF 20% 63V

EV1J101MPN1012RSU

EC 330UF 20% 25V

HSP331M1EG07VM6HTAP5
C9105 067G-5154707KB EC 47UF 20% 50V 6.3*11
FB9905 071G--55-29 FERRITE BEAD
ZD9101 093G--39A0852T DIODE ZENER GDZJ18B PANJIT

D9103,D9105 093G--6026T52T

DIODE RECTIFIER FR107 AO

1A/1000V TSC

FB9903,FB9906,FB9907,

FB9908,J902,J903,J904,J

905,J906,J907,J908,J909

,J911,J912,J914,J915,J9

095G--90-23 JUMPER WIRE

16,J917,J918,J919,J920,

J921,J922,J923,J924,J92

5,J926

E715 715G5804P0DW200010

GND1,GND2 Q09G601500100100RJ

PWR PCB FR1 CTI>600 SS

127*182*1.6mm 2 连扳

料带端子
Q01G700100A003 Hand_screw
Q02G7071090001
Q11G701017000L

BOLT（M3X9MM，主板下方）

power 板上支撑钉

Q12G6082--3 FOOT PAD
Q15G1405101 Hinge_bkt
Q36T-600-28--10 Non-woven Fabric for rear cover
Q36T-600-30--1 Non-woven Fabric for middle frame D
Q36T-600-37-14--GP Non-woven Fabric for middle frame R
Q36T-600-49--6 Non-woven Fabric for BZE
Q37G0307013 HINGE
Q40G0001624-4A PALLET LABEL
Q40G000200132B

AOC TV CH 惠民 LABEL
Q45G2010M0201A pe bag for manual
Q45G8801-TV004 PE PACKINGx290x195x0.04
Q45G8801-TV012 P.E. BAGx120x80x0.04
Q45G88010TV033

底座及支架 PE 袋（280*350）
Q45G88010TV037 PROTECT BAG
Q45G99010TV037

整机 EPE 袋(540*680)
Q52G---1185 3M TAPE
Q52G1501-TV--7---W INSULATING SHEET
Q52G18010TV133 INSULATING SHEET
X01G8000--7 SCREW Q3x12
X02G8008--1 SCREW-STOPPER

68

X15T8192201 BKT_VESA
X15T8673101 BKT_BASE
X15T8682101 BKT_HOLDER
X15T8683101 BKT_IO
X40G0001624-2A
X41G78DV61509A Warranty card for China
X44GDA031010SY EPS
X44GDA032010SY EPS
X44GDA03301EPE EPS
X44GDA0361502A Carton for T2369M Sliver CH

装螺丝 PE bag label 55*18mm

69

T2369Z E23CG1NDBQA7NNF.LF

点位 组件 对象描述 备注
001G6021--1 screw
017G-3DG--3-FT 3D GLASSES DL1008
036T-600-18115 Non-woven Fabric for middle frame L
040G-58162435A P/N LABEL FOR MANUAL PE BAG

040G-581689-4A

041G--68508--A control card
052G---1150--C
052G---2191--A PAPER TAPE
055G--23522
E08902 089G-17356C553 AUDIO CABLE 1800MM COMLINK
089G-17356G553 AUDIO CABLE 1800MM GREATLAND 2nd source
E08903 089G-728CAA-DB SINGAL CABLE 1800MM COMLINK
089G-728HAA-DB SINGAL CABLE 1800MM HONGLIN 2nd source

E08901 089G214A15N-HL

089G214A15N-JR AC POWER CORD 1500MM 2nd source

092GB1JX1A3DGC

0M1G1030--6-47-CR3 screw
0M1G1730--5120 screw
0M1G3030--4120 SCREW FOR PANEL
0Q1G-130--6120 SCREW (T3X6)
0Q1G-330--8-47-CR3 SCREW

E317 317GARFM006CHH RF MODULE CBIP-X

SP01 378G0060622YAA

398GRABD7NCACC REMOTE AOC RL81D chinese
708GDA03-WP-1A AOC 40(2100)
044G6000--4-6B SPACE PAPER
F07G1180--M108 Wooden Pallet 1180*1086
F07G1194--M118 Wooden Pallet 1194*1180
F44G1140-ZP105 PAPER BOARD
F44G1160-ZP114 PAPER BOARD
Q44G9005205 CONNER PAPER
Q45G--77--5 PE PACKING (Y1900241)
Q50G---4-10 TIE (Y1900221)
Q52G---1185-99 big carton tape for aoc
7250L-0484A Conductive tape, Black, 14*25*0.1mm
7250L-0484B Conductive tape, Black, 20*35*0.1mm
E750 750DMT230WAZB1N100 PANEL LM230WFA-S2ZB
2436L-3235C LM230WFA-S2ZB-K31
3110T-1040A EGI , 0.5T,LM230WFA-S2Z2
3550S-1466D AL7um,PET75um,438.3*37.2*0.1

BARCODE LABEL FOR 1

(58x35mm)

黑色防静电胶带 INSULATING TAPE

氢氟醚 HFE3400

POWER CORD 1500MM CHINA

HONGLIN

BATTERY 1.5V BATTERY FOR LR03

Changhong

SPK 8 OHM 6W 84*23*34mm 100mm

SUNLINK

70

3850L-0088A ID, YUPO, 78X37
6091L-2369C LM230WF3-S2FB

3022L-1928A

TORAY, TDF127, T0.145,

LM230WF3-S2D2

3022L-2236A LU963 , Kolon
3034L-1201A T6D6, Toray
3551L-0791C LM230WF3-S2FB, 'E' type
3550B-1104E GALVALUME, 0.8T, 'E' type(2nd tooling)
4296L-0284C KE951+Nitto 5000NS, black, 4x4x2
6916L-1247A LG INNOTEK, 8520E(YR), 48ea
5153L-0120A 05010HR-H10H , YEON-HO

LGIT LED,Top View,2ea(LED Chip Q'TY

6915L-0512A

per PKG), 8520E

PKG,BM215WF4-T2G2

6920L-0307A 520.6 x 4.5 x 1.0

7250L-2289A

PD-25TT, 519.6*3.9*0.25, Thermal

Conductivity

3850L-0151A BL, YUPO, 77X21
4975L-0630A LM230WF3-S2D2
4974L-1103A PC,ENTIRE,ETR-1010,V0 , BLACK
4974L-1104A PC,ENTIRE,ETR-1010,V0 , BLACK

7250L-2251A

3M, 4734-64B, Black, 520.2*5*0.64,

Fixing

7250L-2251B 3M, 4734-64B, Black, 297*5*0.64, Fixing

7250L-2251C

3M, 4734-64B, Black, 513.8*4*0.64,

Fixing

5151L-0316A LM230WF3-S2D2

3953L-0160J

3953L-0160K

5150L-0831A

7250L-0853E

6925L-0046A

TORAY, E60L, 3M 1363-60,

288.1*1.5*0.188, LM230WF3-SSA1

TORAY, E60L, 3M 1363-60,

489.0*1.5*0.188, LM230WF3-SSA1

PMMA, Flat, T2.0,

Printing,LM230WF3-S2D2

NITTO, 5000NS, White, 60*8*0.16,

Fixing
LM230WFA(SJZ2，S2Z4/S2Z8/S2ZB)

6060L-3163A LM230WFA-SJZ2-K31
6061L-2576A LM230WFA-SJZ2-K31

LS0608MEH3-C6LX, LUSEM, 720, 6BIT,

0ILUL-0285A

EPI PGC, C_B, R/TP, 35MM, 5PF,

UPILEX, ENG

LSXXSPKFXAX5-02300T27,

6308L-5265A

530.1*300.9, LGC, S, X, X, S, P, K, F, X,

A, X5, 02300, Top, 27

LSBXSPKFXAX6-02300B27,

6308L-5268A

512.4*289.4, LGC, S, B, X, S, P, K, F, X,

A, X6, 02300, Bottom, 27

71

FLH5XXXNAX5-0230006,

6711L-0134A

528.084*299.266, F, LGC, H, 5, X, XX,

N, A, X5, 02300, 06

6884L-0090A

6884L-0034A

6884L-0152A

6884L-0153A

6884L-0053A

CP12941-20YA, SONY,

1.5MMX300MM, 20UM

CP5420ISL, SONY, L=1.5MMX300M,

T=20

AC-11600-14, HITACHI, 300MX1.5MM,

14UM

(AC-11600-14, HITACHI, 300MX2.0MM,

14UM)

CP2420ISL,L=1.5MMX300M, T=18UM,

SONY

2nd source

2nd source

2nd source

2nd source

7752L-0004A KTEM-UV3000, KEC
7752L-0005A (HC-305, HI-CHEMICAL) 2nd source

6871L-3250B

C122,C345,C347,C348,C

354,C74,C85

0CH2102K562 1NF 50V K X 1608 R/TP

Source, Single, None-C/SKD,

LM230WF3-SJF1-K31, Single Side

C350,C351,C353 0CH2104K562 0.1UF 50V K X7R 1608 R/TP
C100 0CH2153K562 15nF, K, 50V, X7R, 0.9mm, 1608, R/TP
C343 0CH2473H562 47nF, K, 25V, X7R, 0.9mm, 1608, R/TP

C81 0CH2474D572

C5,C6,C7 0CH2A-0004A

C346 0CH2A-0007A

C50 0CH2A-0008A

C102,C103,C340,C41,C8

8,C89,C90

0CH2A-0013A

0.47uF, K, 10V, X5R, 0.95mm, 1608,

R/TP
MLCC ** 10uf，

K,10V,X5R,1.8mm,3216,R/TP

1U F, 10 Volt, K PER, X5R(JB), 1608

R/TP, T=0.9(MAX)
MLCC ** 4.7uf，

K,25V,X5R,0.95mm,3216,R/TP
MLCC ** 10uf，

K,25V,X5R,1.8mm,3216,R/TP

C110,C355,C51,C87 0CH2A-0015A 1uF, K, 25V, X5R, 0.9mm, 1608, R/TP

C181,C183,C217,C218,C

219,C220,C221,C227,C3

0CH2A-0030A 1uF, K, 10V, X5R, 0.55mm, 1005, R/TP

12,C322,C332,C342

C71,C94 0CH2A-0072A

C349 0CH2A-0073A

MLCC ** 10uf，

K,10V,X5R,1.35mm,2012,R/TP

0.1uF, K, 16V, X7R, 0.55mm, 1005,

R/TP

C120,C121,C82 0CH2A-0088A 3.3nF, K, 50V, X7R, 0.9mm, 1608, R/TP

C170,C171,C172,C173,C

174,C180,C182,C311,C3

0CH2A-0091A 1uF, K, 25V, X5R, 0.6mm, 1005, R/TP

21,C331,C341
C80 0CH2A-0148A 10UF, K, 10V, X5R, 0.9mm, 1608, R/TP

C52,C53 0CH2A-0164A

0.47UF, K, 25V, X5R, 0.95mm, 1608,

R/TP

72

C35,C36 0CH5121K412 120PF, J, 50V, 1608, R/TP, 0.9mm
D3,D8 0DHZL-0008B BAV99-7-05-F, DIODES, SOT-23, R/TP
ZD1 0DHZL-0076A SDZ3V3D, AUK, SOD-323, R/TP
D1 0DHZL-0095A RB050M-30, ROHM, PMDU, R/TP
D10 0DHZL-0131A SDB0740, AUK, SOT-23, R/TP
D11 0DHZL-0142A SD05, SEMTECH, SOD323, R/TP
F1 0FSLO-0013A F0603HI3000V032T, AEM, Ceramic

U1 0ISGL-0008C

M24C04-RDW, STmicroeletronics, 4K,

5ms, TSSOP, R/TP, 8

SM4043, SILICON MITUS, MNT, VDD

BOOST + VGH BOOST + VGL C/P +

US1 0ISML-0024A

VCC BUCK + L/S + OPAMP +

DISCHARGING + GPM + PVCOM, QFN,

R/TP, 48

TL2358EP, TLI, LVDS, 6/8, 2, EPI, 6,

UC1 0ITLL-0083A

3/4, DRD, SGIP, AFRC, DGA, SD, SM,

SFA, Z-INV, ESD, LOWELL13, MLF, TR,

48

DP8L18F-100M, COIL MASTER, 10uH,

L1 0LCAA-0039A

M=20%, 1.9A, 114m Ohm, 8.1x6.8x1.8,

R/TP

CMI-DOP3910NH-6R8M, COIL

L2,L3 0LCAA-0089A

MASTER, 6.8 UH, M=20%, 0.9 A, 0.26

OHM, 3.9X3.9X1 (MM), R/TP

R232 0RH0000B622 0 ohm, 1/16W, 1005, 5%, R/TP

R101,R105,R130,R200,R

203,R205,R248,R250,R2

60,R261,R267,R268,R60,

0RH0000C622 0 OHM 1/10W 0603 0.05R MAX

R65,R82,R90
R85 0RH0102C422 10 OHM 1/10W 0603 1%
R259,R279 0RH0221C622 2.2 OHM 1/10W 0603 5%

R263,R264,R265,R266,R

269,R270,R271,R272,R2

0RH0472C422 47 OHM 1/10W 0603 1%

73,R274,R275,R276
R262 0RH1000B422 100 ohm, 1/16W, 1005, 1%, R/TP
R104,R2,R3,R56 0RH1000C422 100 OHM 1/10W 0603 1%
R254 0RH1001C422 1K OHM 1/10W 0603 1%
R16,R30,R55 0RH1002C422 10K OHM 1/10W 0603 1%
R172,R181 0RH1003C422 100K OHM 1/10W 0603 1%
R253 0RH1102C422 11K OHM 1/10W 0603 1%
R186 0RH1202C422 12K OHM 1/10W 0603 1%
R111 0RH1302C422 13K OHM 1/10W 0603 1%
R180 0RH1501C422 1.5K OHM 1/10W 0603 1%
R121 0RH1502C422 15K OHM 1/10W 0603 1%
R170 0RH1503C422 150K ohm, 1/16W, 1608, 1%, R/TP
R61 0RH1601C422 1.6K OHM 1/10W 0603 1%
R93 0RH1801C422 1.8K OHM 1/10W 0603 1%

73

R183,R256 0RH2001C422 2K OHM 1/10W 0603 1%
R106,R252 0RH2002C422 20K OHM 1/10W 0603 1%
R103 0RH2201C422 2.2K OHM 1/10W 0603 1%
R123 0RH2203C422 220K ohm, 1/16W, 1608, 1%, R/TP
R13,R14 0RH2401C422 2.4K OHM 1/10W 0603 1%
R280,R80 0RH3002C422 30K OHM 1/10W 0603 1%
R9 0RH3300C422 330 ohm, 1/16W, 1608, 1%, R/TP
R120 0RH3301C422 3.3K OHM 1/10W 0603 1%
R187 0RH3902C422 39K OHM 1/10W 0603 1%
R87 0RH4301C422 4.3K OHM 1/10W 0603 1%
R15 0RH4700C422 470 OHM 1/10W 0603 1%
R110,R86 0RH4702C422 47K OHM 1/10W 0603 1%
R257 0RH5100C422 510 OHM 1/10W 0603 1%
R100,R185,R188,R91 0RH5101C422 5.1K OHM 1/10W 0603 1%
R171,R70 0RH5102C422 51K OHM 1/10W 0603 1%
R102 0RH5602C422 56K OHM 1/10W 0603 1%
R229,R230 0RH5603C422 560K ohm, 1/16W, 1608, 1%, R/TP
R81 0RH6202C422 62K OHM 1/10W 0603 1%
R89 0RH7501C422 7.5K OHM 1/10W 0603 1%
R122,R249,R255,R92 0RH8201C422 8.2K OHM 1/10W 0603 1%
R88 0RH9100C422 910 OHM 1/10W 0603 1%
R251,R64 0RH9101C422 9.1K OHM 1/10W 0603 1%

FL35,FL36 6200C-0014A

BLM18EG601SN1D, MURATA, 0.35

Ohm, 1.6X0.8, R/TP

FL1,FL2,FL37 6200L-J015A BLM18PG300SN1D
RT1 6322L-0012A 22K, +-3%, -, 0.21 MA, 3950, 1005, R/TP
CN1 6630L-0180A IS100-L30O-C23, UJU, 30PIN, 1.0MM

6870S-1617A

LM230WF3-SSB1-KL1, 2L, 0.6,

428.3*27.0, 6, J, Source, HF, Single Side

6884L-0061A CP20631-35YA, 2.0MMX300M, SONY
6884L-0044B DP2252KSL(2.0MMX300M), SONY 2nd source
6884L-0044C AC-9825R-45(2.0MMX300M), HITACHI 2nd source

6884L-0083A

CP21831-35YA, SONY, 2.0 X 300M,

35UM

2nd source

6884L-0174A EMA8888E, LGIT, 300M, 75 ΜM 2nd source
7526L-0001A DS 103, NC Chem., UV

7250L-0484P

HWASUNG SEALING, STN1026WR(P),

Gray, 12*30*0.11, Electric Conductivity

756TXCCB01D0030000 MCU ASSY
SMTF-U402 100TAMGD003DTX AOC T2369Z FLASH V0.01

U402 356G223300200A

IC FLASH W25Q32FVSSIG 32M SOP-8

WINBOND

A33E1429--1-1C0100 LENS
A33E1490AED-1L0100 STAND_REAR
A34E3136AED-3L0100 MIDDLE_FRAME
A34E3137AED-4L0100 REAR COVER

74

A34E3138AED-1L0100 COVER_HINGE
A34E3139AED-1L0100 STAND_FRONT
A34T3135BPVZ2L0100 BEZEL
AM1G1740-10225-CR3 screw
CBPFC3QCX2 CONVERSION BOARD
040G-45762412B CBPC LABEL

C614,C615,C640 067G315M1016KV EC 100UF 20% 35V 8*7

SW4001,SW4004,SW400

5,SW4006,SW4007

077G602S-3A-HJ TACT SW 4P 5.85 200g TSDBYC2202

077G602S-3A-CJ TACT SW 4P 5.85 200g TDVC-4-NP 2nd source
CN103 088G-78F114VCL RCA JACK 2P YELLOW CL
088G-78F114VYG RCA JACK 2P YELLOW YCG 2nd source
CN107 088G-78F121XCL RCA JACK 4P CL
088G-78F121XYG RCA JACK 4P WHITE/RED YCG 2nd source
CN102 088G-78F135XCL RCA JACK 6P CL
088G-78F135XYG RCA JACK 6P GREEN/BLUE/RED YCG 2nd source
CN104 088G302F3G1VCL PHONE JACK 3P GREEN CL
088G302F3G1VYG PHONE JACK 3P GREEN YCG 2nd source
CN101 088G302G7B1ACL PHONE JACK 7P BLACK CL

088G302G7B1AQS

PHONE JACK 7P BLACK

QIANGSHENG

2nd source

CN106 088G352F6B3ACL USB CONN TYPE A 6PIN BLACK CL
088G352F6B3AYG USB CONN TYPE A 6PIN BLACK YCG 2nd source

CN105 088G353FFF3XCL

088G353FFF3XDL

D-SUB CONN WITH SCREW 15P

BLUE CL

D-SUB CONN WITH SCREW 15P

BLUE DLK

2nd source

TU101 094G-PALALL-7L TUNER CHINA DT21CN-2-E TCL
CN601 311GW200A04ABX WAFER 4P 2.0mm XINYA
311GW200A04ABL WAFER 4P 2.0MM XIANGLONG 2nd source
CN701 311GW250B13BBX WAFER 13P 2.5MM XINYA

709T57890XM001 COMSUPTIVE ASS'Y
052G---2191--A PAPER TAPE
055G--23520 IPA
055G--23524 WELDING FLUX WITHOUT PB
Q49G--51100

唯特偶 GW2066 水基型清洁剂 Cleaner
Q55G-100622 TIN STICK(SAC0507)
Q55G-100625 TIN STICK_LOW ARGENTUM
Z40G0002ALL01A

SFIS Label 35mm*9mm（主板）
SMTC01 SMTFC3QCX2 MAIN BOARD FOR SMT
SMTFC3QCX2WB MAIN BOARD FOR SMT WB 2nd source

U703 056G-563143--C

U101 056G-563224

IC LDO G1084PT43U 5A ADJ TO-252

GMT

IC LDO AP2114H-3.3TRG1 1A/3.3V

SOT-223 BCD
056G-563149 IC LDO G903T63UF 0.6A/3.3V SOT-223 2nd source

75

GMT

U702 056G-563515

U701 056G-563X04

U602 056G-616516

U404,U405 056G-7SB157--F

Q102,Q402,Q404,Q405,Q

602

057G-417517

057G-417512

D502,D503,Q101,Q403,Q

408,Q601,Q702,Q703,Q7

057G-417518

04,Q705,Q706,Q707

057G-417511

Q701 057G-763940

IC LDO AZ1117D-3.3TRE/G1 1A/3.3V

TO-252 BCD

IC DC/DC APW7323KAI-TRG 3.2A 5V

SOP-8P ANPEC

IC AUDIO APA2176AQBITRG 0.27W

TQFN3X3-16 ANPEC

IC NC7SB3157P6X MAA06A SC-70

FAIRCHIL

TRA LMBT3906LT1G -0.2A/-40V

SOT-23 LRC

TRA MMBT3906 0.2A/40V SOT-23

BLUE ROCKET

TRA LMBT3904LT1G 0.2A/40V

SOT-23 LRC

TRA MMBT3904 0.2A/40V SOT-23

BLUE ROCKET

MOSFET AO3401A 4.2A/30V SOT-23

AOS

R146,R448,R449,R454,R

455,R515,R516,R517,R5

18,R519,R520,R521,R52

2,R523,R524,R525,R526,

061G0402000-JF

RST CHIPR MAX0R05 1/16W

FENGHUA

R527,R528,R529,R530,R

602,R605

R601,R701 061G0402000-JI

R427 061G0402000-JY

R461,R462,R609,R610,R

616,R621,R623,R626

061G0402100-JF

TEST ONLY RST 0402 0.05R MAX

1/16W TA-I

RST CHIPR 0 OHM +-5% 1/16W

YAGEO

RST CHIPR 10 OHM +-5% 1/16W 0402

FENGHUA
R721 061G04021001FI RST 0402 1K 1% 1/16W TA-I

R622 061G04021003FT

R401,R604 061G0402101-JF

R101,R501,R510,R513,R

514,R705

R143,R145,R458,R460,R

464,R613,R625

061G0402101-JI

061G0402101-JY

R405 061G0402102-JF

R434,R702,R711,R712 061G0402102-JI

R704,R707,R709 061G0402102-JY

RST CHIPR 100 KOHM +-1% 1/16W

0402 TZAI YUAN

RST CHIPR 100 OHM +-5% 1/16W 0402

FENGHUA

RST CHIPR 100 OHM +-5% 1/16W 0402

TA-I

RST CHIPR 100 OHM +-5% 1/16W 0402

YAGEO

RST CHIPR 1 KOHM +-5% 1/16W 0402

FENGHUA

RST CHIPR 1 KOHM +-5% 1/16W 0402

TA-I

RST CHIPR 1 KOHM +-5% 1/16W 0402

YAGEO

2nd source

2nd source

76

R726 061G0402103-JF

RST CHIPR 10 KOHM +-5% 1/16W

0402 FENGHUA

R136,R137,R441,R443,R

476,R611,R612,R618,R6

27,R628,R629,R713,R71

061G0402103-JI

RST CHIPR 10 KOHM +-5% 1/16W

0402 TA-I

4,R722

R116,R117,R120,R121,R

506,R507

061G0402103-JT

R144,R436,R728 061G0402103-JY

R409,R413,R416,R418 061G0402104-JF

R439,R720 061G0402104-JI

R403,R428 061G0402105-JF

R118,R119,R123,R124 061G0402123-JF

RST CHIPR 10 KOHM +-5% 1/16W

0402 TZAI YUAN

RST CHIPR 10 KOHM +-5% 1/16W

0402 YAGEO

RST CHIPR 100 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 100 KOHM +-5% 1/16W

0402 TA-I

RST CHIPR 1 MOHM +-5% 1/16W 0402

FENGHUA

RST CHIPR 12KOHM +-5% 1/16W

FENGHUA
R717 061G04021242FT RST 0402 12.4K 1% 1/16W TZAI YUAN

R603,R606 061G0402201-JF

RST CHIPR 200 OHM +-5% 1/16W 0402

FENGHUA
R531 061G0402201-JI RST 0402 200R 5% 1/16W
R103 061G0402221-JI RST 0402 220R 5% 1/16W

R131 061G0402222-JF

061G0402222-JY

R406 061G0402223-JF

R719 061G04022401FI

R624 061G04022702FF

R730 061G0402273-JF

R102,R104,R106,R111,R

113

R122,R126,R127,R129,R

133,R135

061G0402330-JF

061G0402330-JI RST 0402 33R 5% 1/16W

RST CHIPR 2.2 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 2.2 KOHM -5% 1/16W

0402 YAGEO

RST CHIPR 22 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 2.4 KOHM +-1% 1/16W

0402 TA-I

RST CHIPR 27 KOHM +-1% 1/16W

0402 FENGHUA

RST CHIPR 27 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 33 OHM +-5% 1/16W

FENGHUA

2nd source

R475 061G0402332-JI RST 0402 3.3K 5% 1/16W

R114 061G0402333-JF

R731 061G04024300FF

RST CHIPR 33 KOHM +-5% 1/16W

0402 FENGHUA

RST CHIPR 430 OHM +-1% 1/16W 0402

FENGHUA
R456,R457 061G04024701FF RST 0402 4.7K 1% 1/16W FENGHUA

R404 061G0402472-JF

RST CHIPR 4.7 KOHM +-5% 1/16W

0402 FENGHUA

77

R141,R142,R419,R420,R

421,R422,R423,R424,R4

31,R442,R459,R463,R47

061G0402472-JI

RST CHIPR 4.7 KOHM +-5% 1/16W

0402 TA-I

7,R710,R716,R723,R727

R473,R502,R504,R508,R

509,R511,R512,R729

061G0402473-JI

R105 061G0402473-JY

RST CHIPR 47 KOHM +-5% 1/16W

0402 TA-I

RST CHIPR 47 KOHM +-5% 1/16W

0402 YAGEO
R138,R139 061G04024998FT RST CHIP R 4.99ohm 1/16W +/-1%
R407,R435 061G0402510-JF RST CHIP 51R 1/16W 5% FENGHUA
R140 061G0402511-JI RST 0402 510R 5% 1/16W
R132,R134 061G0402680-JI RST 0402 68R 5% 1/16W

R410,R412,R415 061G0402680-JY

R715 061G04027501FI

FB408 061G0603000-JF

R607,R608 061G0603101-JF

R503,R505 061G0603102-JY

RST CHIPR 68 OHM +-5% 1/16W 0402

YAGEO

RST CHIPR 7.5 KOHM +-1% 1/16W

0402 TA-I

RST CHIPR MAX 0R05 1/10W

FENGHUA

RST CHIPR 100 OHM +-5% 1/10W 0603

FENGHUA

RST CHIPR 1 KOHM +-5% 1/10W 0603

YAGEO
R402 061G06031472FY RST CHIPR 14.7KOHM 1/10W YAGEO
R414 061G06031501FI RST 0603 1.5K 1% 1/10W TA-I
R411 061G06034301FI RST 0603 4.3K 1% 1/10W
R408 061G06037151FI RST 0603 7.15K 1% 1/10W TA-I

R107,R108,R109,R110,R

112,R115

061G0603750-JY

R417 061G06037500FF

RST CHIPR 75 OHM +-5% 1/10W

YAGEO

RST CHIPR 750 OHM +-1% 1/10W

FENGHUA
R125,R128,R130 061G06037509FI RST 0603 75R 1% 1/10W

R438 061G08050004JT

RST CHIPR 0 OHM +-5% 1/8W 0805

TZAI YUAN
R718 061G1206229-JY RST CHIPR 2.2R 5% 1/4W YAGEO

C451,C452 065G040210131J---A

C404,C619,C639 065G040210232K---A

C107,C121 065G040210232K---T

C132,C133,C440,C441,C

445,C446

065G040210232K---Y

C720 065G040210332K---Y

C141,C437,C442,C444,C

448,C601,C701,C707,C7

065G040210412K---F

14,C724

MLCC 0402 100pF +-5% 50V NPO

SAMSUNG

MLCC 0402 1000pF +-10% 50V X7R

SAMSUNG

MLCC 0402 1000pF +-10% 50V X7R

TAIYO YUDEN

MLCC 0402 1000pF +-10% 50V X7R

YAGEO

MLCC 0402 10nF +-10% 50V X7R

YAGEO

MLCC 0402 0.1uF +-10% 16V X7R

FENGHUA

78

C101,C103,C125,C128,C

134,C137,C412,C416,C4

17,C418,C419,C420,C42

1,C422,C423,C424,C427,

065G040210412K---Y

MLCC 0402 0.1uF +-10% 16V X7R

YAGEO

C428,C429,C434,C435,C

510,C715,C716

C104,C131,C405 065G0402105A5K---T

MLCC 0402 1uF +-10% 10V X5R TAIYO

YUDEN
C605,C609 065G040215232K---Y CAP CHIP 0402 1.5NF 50V X7R
C406,C409,C411,C414 065G040218131J---F CAP 0402 180PF 5% 50V NP0

C436 065G040222031J---A

C108 065G040222031J---T

C140 065G040222322K---F

MLCC 0402 22pF +-5% 50V NPO

SAMSUNG

MLCC 0402 22pF +-5% 50V NPO TAIYO

YUDEN

CAP 0402 22NF 10% 25V X7R

FENGHUA
C425,C430 065G040227031J---F CAP 0402 27PF 5% 50V NP0

C136 065G040233031J---F

C623,C626,C630,C637 065G040233131J---T

C113,C114,C118,C119 065G040247131J---A

C102,C105,C106,C110,C

117,C120,C122,C407,C4

065G040247312K---A

08,C410,C449

MLCC 0402 33pF +-5% 50V NPO

FENGHUA

MLCC 0402 330pF +-5% 50V NPO

TAIYO YUDEN

MLCC 0402 470PF +-5% 50V NPO

SAMSUNG

MLCC 0402 47nF +-10% 16V X7R

SAMSUNG

C433 065G040247505M---M CAP 0402 4.7UF 20% 6.3V X5R

C135 065G040256031J---A

C613,C618,C638 065G060310432K---Y

C725 065G060310512K---M

C443,C604,C606,C607,C

712,C718

065G060310512K---T

C413,C415,C426,C431 065G060310605M---M

C616,C622,C633,C635 065G060322422K---T

C401 065G060322422K---Y

C130,C402,C403,C610 065G060322515K---A

C111,C112,C115,C116 065G0603225A5K---M

C709 065G0603475A5K---M

MLCC 0402 56pF +-5% 50V NPO

SAMSUNG

MLCC 0603 0.1uF +-10% 50V X7R

YAGEO

MLCC 0603 1uF +-10% 16V X7R

MURATA

MLCC 0603 1uF +-10% 16V X7R TAIYO

YUDEN

MLCC 0603 10uF +-20% 6.3V X5R

MURATA

MLCC 0603 0.22uF +-10% 25V X7R

TAIYO YUDEN

MLCC 0603 0.22uF +-10% 25V X7R

YAGEO

MLCC 0603 2.2uF +-10% 16V X5R

SAMSUNG

MLCC 0603 2.2uF +-10% 10V X5R

MURATA

MLCC 0603 4.7uF +-10% 10V X5R

MURATA

79

C705 065G080510432K---F

C631,C632 065G080510532K---A

C109,C602,C611,C710 065G0805106A5K---A

C127 065G0805106A5K---T

C621,C624,C629,C634 065G080547432K---A

C717,C719 065G1206226A5K---A

MLCC 0805 0.1uF +-10% 50V X7R

FENGHUA

MLCC 0805 1uF +-10% 50V X7R

SAMSUNG

MLCC 0805 10uF +-10% 10V X5R

SAMSUNG

MLCC 0805 10uF +-10% 10V X5R

TAIYO YUDEN

MLCC 0805 0.47uF +-10% 50V X7R

SAMSUNG

MLCC 1206 22uF +-10% 10V X5R

SAMSUNG

C126,C129,C438,C450,C

708,C711,C713,C721,C7

067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3

22
FB101 071G-56D102-MA CHIP BEAD 1000ohm 0805 1A
FB701 071G-56G301-DA CHIP BEAD 0805 300R 25% 4A
071G-56G301-MA CHIP BEAD 0805 300OHM 4A 2nd source
FB409,FB603 071G-56K121--M CHIP BEAD

071G-56K121-TA

CHIP BEAD 120R/6000mA

HCB2012KF-121T60

2nd source

FB401 071G-59A121-TA CHIP BEAD 120R/3000mA

071G-59A121--M

FB402,FB403,FB404,FB4

05,FB406,FB407

071G-59C600-TA

CHIP BEAD 0603 120R 25%

1608E121T3R0-LF

CHIP BEAD 0603 60R 25% 600mA

FCM1608CF-600T06 TAI-TECH

2nd source

071G-59C600--M CHIP BEAD 60 OHM 0603 600mA 2nd source
FB102,FB601,FB602 071G-59G301--M CHIP BEAD 0603 300R 25% 200mA

071G-59G301-TA

CHIP BEAD 300OHM 200mA

FCM1608KF-301T02

2nd source

L101,L102 073G--6310910M CHIP INDUCTOR 1UH 10% 0.6R 25mA

L103,L104 073G--63229-TA

L701 073G253S-68--H

CHIP INDUCTOR 2.2uH 10%

FCI1608F-2R2K

SMD CHOKE 2.2uH +-30% 0.031R

2.04A

CN501,CN502 088G-34021A-VA HDMI HEADER 21P VAST
088G-34021A-VD HDMI HEADER 21P DLK 2nd source

X401 093G-22SX02-YC

CRYSTAL YC 49U/SMD 24MHz 20PPM

18PF YC

ZD101,ZD102,ZD103,ZD

104,ZD105,ZD106,ZD107

,ZD108,ZD109,ZD110,ZD

111,ZD112,ZD113,ZD114

,ZD115,ZD116,ZD117,ZD

093G-64S500-SU

DIODE ESD MLVG04025R0QV05BP

INPAQ

118,ZD401,ZD402,ZD403

,ZD501,ZD502,ZD503,ZD

504,ZD505,ZD506,ZD507

80

CN403 311GW125F40ACX WAFER 40P 1.25MM XINYA
311GW125F40ACH WAFER 40P 1.25mm HR 2nd source
CN401 311GW200A10ADJ WAFER 10P 2.0MM JINGSHI
CN406 311GW200B03ADH WAFER 3P 2.0MM HR

U401 356G0568128019

U601 356G0616028147

U704 356G0667023

U402 356G223300200A

Q401 357G0763030014

057G-763-79

L601,L602,L603,L604 373G253S089H01

D401 393G006433P0HF

IC SCALER MST6931XP-Z1-VB

EPLQFP-128 MSTAR

IC AUDIO AD52580-QG28NAT 15W

E-TSSOP 28L ESMT

IC Power Switch APL3511CBI-TRG

SOT23-5 150C ANPEC

IC FLASH W25Q32FVSSIG 32M SOP-8

WINBOND

MOSFET MTP9435BDYAQ8 -8.4A -30V

SOP-8-6 Cystek

MOSFET AO4449 -7A/-30V SOIC-8

AOS

SMD CHOKE 22UH 20% 2.2A 73.3mΩ

SPI755WCCL-220 Dadon

DIODE HF ?BAV99_R1_00001 0.5A

100V SOT-23 PANJIT

2nd source

709T57890XS001 COMSUMPTIVE ASS'Y
052G---2191--A PAPER TAPE
055G--23520 IPA
055G-100610
Q05G6054--1
Q09G6012--1
Q52G6026--7

E715 715G5789M01000004K

715G5789M01000004X

锡膏 TIN CREAM W/O PB

接料带 SHEET

铜扣 PIN

擦网纸 Mesh Printting Paper

MAIN PCB FR4 DS 193*125*1.6mm 3 连

扳 景旺

MAIN PCB FR4 DS 193*125*1.6mm 3 连

扳 华新

2nd source

X12G8001--1----BGP HEAT PAD
HS401 X90G8013--1 HEAT SINK

F40G270I615-3A Rating LABEL FOR TV CH
F40GKA01624-3A CEL LABEL FOR TV 1.09_0.5
F40GKA01624-4A
F40GKA01624-5A

AOC TV 唯一序列号 label(50*15mm)

AOC TV 售后标签（40*8mm)

F40GTV03615-5A T2369 IO BACK LABEL(CH)
F40GTV03615-6A T2369 IO Side LABEL(CH)
F41G23M1615-4A T2369Z Chinese manual for MTV

F95G-900-1D901

WIRE HARNESS 1P-1P 50mm

GREATLAND
F95G-900-1X901 WIRE HARNESS 1P-1P 50mm XINYA 2nd source

ECN8104 F95G176H10N372

F95G176X10N372

FFC CABLE 10PIN 260MM P0.5MM

HONGLIN

FFC CABLE 10PIN 260MM P0.5MM

WENXIN

2nd source

81

F95G176J10N372

ECN701 F95G801313D400

F95G801313X400

F95G801313T400

ECN601 F95G8014-4D162

F95G8014-4X162

ECN401 F95G801410D165

F95G801410X165

FFC CABLE 10PIN 260MM P0.5MM

KOTL

WIRE HARNESS 13P-13P 100MM

GREATLAND

WIRE HARNESS 13P-13P 100MM

XINYA

WIRE HARNESS 13P-13P 100MM

DIY

WIRE HARNESS 4P-2P+2P

50+230mm GREATLAND

WIRE HARNESS 4P-2P 2P 50 230mm

XINYA

WIRE HARNESS 10P-5P 380MM

GREATLAND

WIRE HARNESS 10P-5P 380MM

XINYA

2nd source

2nd source

2nd source

2nd source

2nd source

F95G801410T165 WIRE HARNESS 10P-5P 380MM DIY 2nd source

ECN403 F95G801840D322

LVDS CABLE 30P-40P 300mm

GREATLAND

F95G801840T322 LVDS CABLE 30P-40P 300mm DIY 2nd source
F95G801840X322 LVDS CABLE 30P-40P 300mm XINYA 2nd source
IRPFCXE8 IR BOARD
SMTI01 SMTIRPFCXE8 IR BOARD FOR SMT
SMTIRPFCXE8WB IR BOARD FOR SMT WB 2nd source

R203 061G0603000-JF

RST CHIPR MAX 0R05 1/10W

FENGHUA
R201 061G0603153-JY RST CHIPR 15KOHM 1/10W YAGEO

R205 061G0603471-JF

061G0603471-JY

C201 065G060310432K---F

LED201 081G--14-24-GP

081G--14-24-EL

RST CHIPR 470 OHM +-5% 1/10W 0603

FENGHUA

RST CHIPR 470 OHM -5% 1/10W

0603 YAGEO

MLCC 0603 0.1uF +-10% 50V X7R

FENGHUA

CHIP LED BLUE/RED

GPTD1210BRC-D GUANGPU

CHIP LED BLUE/DARK RED

EVERHIGHT

2nd source

2nd source

CN201 311GW125D05ACX WAFER 5P 1.25mm XINYA
033G8032-5F--S--HR WAFER 5P 1.25MM HR 2nd source

U201 356GS927057

E715 715G5943R01000004S

IC IR RECEIVER IRM-H938M3/TR2 38

KHZ 6V EVERLIGHT

IR PCB FR4 DS 46X8.15X1.6MM 60 联

板 三照
P33E0477--2-1C0100 LENS_IR
P34T1447BPV-1L0100 BASE
PLTVCD513UAP9 POWER BOARD
040G-45762412B CBPC LABEL

82

IC9102 056G-139--8

IC PHOTO COUPLER PS2561DL1-1

RENESAS
NR9902 061G--58005--W RST NTCR 5 OHM 3A THINKING
C9901 063G107K474AUS---A CAP X2 0.47uF 10% 305V BULK ( B )

C9103 065G--1K22293S

CAP CER 2.2NF 10% 1KV R TAPING

TDK
C9908 065G306K1012B3 CAP Y1 100pF +-10% 250VAC TDK
C9906,C9907 065G306K2212B3 CAP Y1 220pF +-10% 250VAC Y5P TDK

C9902,C9903 065G306K4712B3

FB9904,FB9909 071G--55-21-H1

FB9901,FB9902 071G--55906--H

Y1 CAP 470pF +-10% 250VAC CD

SERIES TDK

BEAD 6.0*10 700R 25%

BF-I60100R-706B DADON

BEAD 6.0*9.2 510R MIN

BF-I60090C-794 DADON
L9901 073G-174192--L LINE FILTER 30MH MIN LF-013589-2

L8102 073G-253214--H

CHOKE COIL 47uH +-10% L470R HA

DADON
F9901 084G--41-15--L FUSE 3.15A 250V 0215 3.15MXEP
CN9901 087G-50147C-HC AC socket V/T 2P DB-8-01 H=14mm

D9108,D9109 093G--60334

D9111,D9113 093G--60335-HF

SCHOTTKY SR506-44 5A 60V

DO-201AD TSC

DIODE SCHOTTKY SR515-04 X0G 5A

150V DO-201AD TSC
CN9901_1 0Q1G-340--8140 SCREW 4.0x8.0
CN8104 311GF050H10ABL FFC CONN 10P 0.5mm XIANGLONG
CN9904 311GW250B13BBX WAFER 13P 2.5MM XINYA
RV9901 361G0046561KZW VARISTOR 560V 10% THINKING

C9101,C9102 367G215X470PKZ002S

L9101,L9102 373G0253247H00

T9101 380GL19P048H00

BD9101 393G0050460A05

D8101 393G0060A0400T

EC 47UF 20% 450V 12.5*36 2000 hr

420mA PW2W470MLT1236DLRV

CHOKE COIL 3UH 15% DR8*8 5A

Dadon

X'FMR 800uH 10% 20uH EFD30

BCK-13029-HA Dadon

BRIDGE GBL08-07 X0 4A 800V GBL

TSC

DIODE SCHOTTKY SR310-29 X0

3A/100V DO-201AD TSC
705TAD93015 Q9101 ASS'Y
Q9101_1 0M1G-930--8120 SCREW

Q9101 357G0667A11

MOSFET STF6N65K3 5.4A 650V 30W

TO-220FP ST
HQ9101 Q90G0219--2 HEAT SINK

709G5804-QM001 CONSUMPTIVE ASS""Y
052G---2191--A PAPER TAPE
055G--23520 IPA

055G--23524--A

WELDING FULX WITHOUT Pb 无锡助

焊剂

83

Q49G--51100

唯特偶 GW2066 水基型清洁剂 Cleaner
Q51G---6--4509 GLUE_RTV
Q55G-100622 TIN STICK(SAC0507)
Q55G-100625 TIN STICK_LOW ARGENTUM
PLCD513UAP9SMT POWER BOARD FOR SMT

IC9103 056G-158501

IC8501 056G-700-34

IC AS431AN-E1 150mA/40V SOT23

AAC

IC LED DRIVER PF7001S SOP-14

Powerforest
Q8101 057G-763958 MOSFET AO4482L 6A/100V SO-8 AOS

R8103,R9142,R9143 061G0805000-JT

R9131 061G0805102-JT

R8106,R9111,R9124 061G0805103-JT

R9114 061G0805104-JT

RST CHIPR 0 OHM +- 5% 1/8W TZAI

YUAN

RST CHIPR 1K OHM +- 5% 1/8W

TZAI YUAN

RST CHIPR 10 KOHM +-5% 1/8W 0805

TZAI YUAN

RST CHIPR 100KOHM +- 5% 1/8W

TZAI YUAN
R8111 061G08051302FT RST CHIP 13K 1/8W 1%
R9123 061G08051502FT RST 0805 15K 1/8W 1% TAZIYUAN
R8119 061G0805154-JT RST CHIP 150K 1/8W 5% TZAI YUAN

R8102,R9125 061G08051803FT

R8108 061G0805201-JT

R8104 061G0805220-JT

RST CHIPR 180 KOHM +-1% 1/8W

0805 TZAI YUAN

RST CHIPR 200 OHM +-5% 1/8W 0805

TZAI YUAN

RST CHIPR 22OHM +-5% 1/8W TZAI

YUAN
R8105 061G0805229-JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R9110 061G0805330-JT

CHIPR 0805 33 OHM +-5% 1/8W TZAI

YUAN
R9122 061G08053301FT RST CHIP 3K3 1/8W 1%
R8117 061G08053901FT RST CHIP 3K9 1/8W 1%

R9121 061G0805471-JT

RST CHIPR 470OHM +-5% 1/8W TZAI

YUAN
R9141 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W
R8101 061G08055102FT RST CHIP 51K 1/8W 1%

R9126 061G08059311FT

JR901,JR902,JR903,JR9

04

061G1206000-JT

R8110,R8116 061G12061003FT

RST CHIPR 9.31 KOHM +-1% 1/8W

0805 TZAI YUAN

RST CHIPR MAX0R05 1/4W TZAI

YUAN

RST CHIPR 100K +-1% 1/4W TZAI

YUAN
R8113 061G12061809FT RST 1206 18R 1% 1/4W

R9115,R9116,R9117,R91

18,R9119,R9120,R9138,

R9139,R9140

061G1206220-JT

CHIPR 1206 22 OHM +-5% 1/4W TZAI

YUAN

R9113 061G1206221-JT RST CHIPR 220 OHM +-5% 1/4W TZAI

84

YUAN

R9129 061G1206471-JT

RST 1206 470 OHM +-5% 1/4W TZAI

YUAN
R9108 061G1206479-JT RST 1206 4.7R 5% 1/4W

R9101,R9102,R9103 061G1206682-JT

R9104,R9105,R9106,R91

07

061G12068202FT

C8108,C8114,C9124 065G080510332K---Y

C8103,C8104,C8105,C81

09,C9104,C9110,C9112,

065G080510432K---Y

C9114,C9115,C9119

C9106 065G080522131J---Y

C9107,C9123 065G080522232K---Y

C9117 065G080522432K---Y

C8110 065G080547131J---Y

C9108 065G120610272K---Y

RST CHIPR 6.8 KOHM +-5% 1/4W

TZAI YUAN

RST CHIPR 82KOHM +-1% 1/4W TZAI

YUAN

MLCC 0805 10nF +-10% 50V X7R

YAGEO

MLCC 0805 0.1uF +-10% 50V X7R

YAGEO

MLCC 0805 220pF +-5% 50V NPO

YAGEO

MLCC 0805 2200pF +-10% 50V X7R

YAGEO

MLCC 0805 0.22uF +-10% 50V X7R

YAGEO

CAP CHIP 0805 470P 50V NP0 +/-5%

YAGEO

MLCC 1206 1000PF +-10% 500V X7R

YAGEO
D8103,D8104,D8106 093G--6433S DIODE Switching BAV99 SEMTECH
IC9101 356G0379007217 IC AC/DC PF6200 S SOP-7 Powerforest

R9109 361G08051809FY

R8121,R8122,R8123,R81

25

361G08059108FT

D8102,D9104 393G006432S0HF

ZD9104 393G039SA2400T

ZD9105,ZD9106 393G039SA2800T

RST 0805 18R 1% 1/8W

RC0805FR-0718RL YAGEO

RST 0805 9.1 ohm 1% 1/8W

SMD08059R1F TZAI YUAN

DIODE SWITCHING 100V 0.15A

1N4148W PANJIT

DIODE ZENER BZT52-B6V8 6.8V

0.41W SOD-123 PANJIT

ZENER BZT52-B36 36V SOD123

PANJIT
PLCD513UAP9AI POWER BOARD FOR AI
CN9901 006G--31500 EYELET

C9101,C9102,C9901,L99

01,RV9901,T9101

Q8102,Q8103,Q8104,Q8

105,Q8107,Q9102

006G--31502 1.5MM RIVET

057G-417513--T TRA 2N3904 TO-92 LANJIAN

R8118 061G-60210552T--TZ RST CFR 1M 1/6W 5%
R8107 061G152M10852T--SY RST MOF 0R1 5% 2W

R9112 061G152M43852T--SY

R9130 061G152M47152T--SY

RST MOFR 0.43 OHM +-5% 2WS

FUTABA

RST MOFR 470 OHM +-5% 2WS

FUTABA

85

R9901 061G212Y10552T--SY

RST MGFR 1MOHM +-5% 1/2W

FUTABA
C9126 065G--1K10193T CAP CER 100PF 10% 1KV R TDK

C8113 067G-5151018KT

C8101,C9109,C9111,C91

13,C9116,C9121,C9122

067G-5153314HT---A

EC 100UF 20% 63V

EV1J101MPN1012RSU

EC 330UF 20% 25V

HSP331M1EG07VM6HTAP5
C9105 067G-5154707KB EC 47UF 20% 50V 6.3*11
FB9905 071G--55-29 FERRITE BEAD
ZD9101 093G--39A0852T DIODE ZENER GDZJ18B PANJIT

D9103,D9105 093G--6026T52T

DIODE RECTIFIER FR107 AO

1A/1000V TSC

FB9901,FB9902,FB9903,

FB9906,FB9907,J902,J90

3,J904,J905,J906,J907,J

908,J909,J911,J912,J914

095G--90-23 JUMPER WIRE

,J915,J916,J917,J918,J9

19,J920,J921,J922,J923,

J924,J925,J926,J928

E715 715G5804P0CW20001S

GND1,GND2 Q09G601500100100RJ

PWR PCB FR1 CTI>600 SS

127*182*1.6mm

料带端子
Q01G700100A003 Hand_screw
Q02G7071090001
Q11G701017000L

BOLT（M3X9MM，主板下方）

power 板上支撑钉

Q12G6082--3 FOOT PAD
Q15G1405101 Hinge_bkt
Q36T-600-28--10 Non-woven Fabric for rear cover
Q36T-600-30--1 Non-woven Fabric for middle frame D
Q36T-600-37-14--GP Non-woven Fabric for middle frame R
Q36T-600-49--6 Non-woven Fabric for BZE
Q37G0307013 HINGE
Q40G0001624-4A PALLET LABEL
Q40G000200132B

AOC TV CH 惠民 LABEL
Q45G2010M0201A pe bag for manual
Q45G8801-TV004 PE PACKINGx290x195x0.04
Q45G8801-TV012 P.E. BAGx120x80x0.04
Q45G88010TV033

底座及支架 PE 袋（280*350）
Q45G88010TV037 PROTECT BAG
Q45G99010TV037

整机 EPE 袋(540*680)
Q52G---1185 3M TAPE
Q52G1501-TV--7---W INSULATING SHEET
Q52G18010TV133 INSULATING SHEET
X01G8000--7 SCREW Q3x12
X02G8008--1 SCREW-STOPPER
X15T8192201 BKT_VESA

86

X15T8673101 BKT_BASE
X15T8682101 BKT_HOLDER
X15T8683101 BKT_IO
X40G0001624-2A
X41G78DV61509A Warranty card for China
X44GDA031010SY EPS
X44GDA032010SY EPS
X44GDA03301EPE EPS
X44GDA0361501A Carton for T2369Z Gold CH

装螺丝 PE bag label 55*18mm

87
