Safety
National Conventions
The following subsections des cribe not ational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTIO N indicates e ither potenti al da mage to hardw are or lo ss of da ta a nd tells y ou how to av oid th e
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.
5
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equippe d with a three-pronged grounded plug, a plug with a third (grounding) pin. T his plu g will
fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,
have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the
safety purpose of the grounded plug.
Unplug the unit during a light ning stor m or w hen it w ill not be used for lon g period s of ti me. T his w ill protect th e
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between100-240V~, Min.5A
The wall socket shall be installed near the equipment and shall be easily accessible.
6
Installation
Leave at lease this space
around the set
10cm
4 英寸
10cm
4 英寸
11 7/8英寸
10cm
4 英寸
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause ser iou s d am age t o this product. Use only a cart, s tand, tripod, bracket, or t able recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the moni tor on a wall or shelf, use a mounting kit approved by the manufa cture r and fol low the kit
instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on
the stand:
Installed with stand
7
Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning clo t h sh oul d no t b e too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
8
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
9
Setup
CD Manual Warranty card Base Power Cable
DP cable Dual-Link DVI Cable HDMI cable Analog cable
Monitor
Contents in Box
Not all signal cables (Analog, DVI, DP and HDMI cables) will be provided for all countries and regions. Please
check with the local dealer or AOC branch office for confirmation.
10
Setup Stand & Base
Please setup or remove the base following the steps as below.
Setup:
Remove:
11
Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
You are able to adjust the monitor as below:
Tilt angle:-2°~21.5°
NOTE:
Do not adjust the viewing angle over 21.5 degrees in order to avoid damage.
12
Connecting the Monitor
Cable Connections In Back of Monitor and Computer:
1 Power
2 DVI Dual-Link
3 HDMI
4 Display Port
5 D-SUB
6 Earphone
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
3 (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
4 (Optional–Requires a video card with DP port) –Connect one end of the DP cabl e to the back of the monitor
and connect the other end to the computer’s DP port.
5 Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer's
D-Sub port.
6 Turn on your monitor and computer.
7 Video content supporting resolution:
(1) VGA: 1920 x1080@60Hz (Maximum)
(2) DVI Dual-Link: 2560x1440@60Hz (Maximum)
(3) HDMI/DP: 2560x1440@75Hz (Maximum)
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
13
Free-Sync function
1. Free-Sync function is working with DP/HDMI
2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting
www.AMD.com
AMD Radeon RX 400 系列
AMD Radeon R9 300 系列 （370 series except）
AMD Radeon R9 Fury X
AMD Radeon R9 Nano
AMD Radeon R7 360
AMD Radeon R9 295X2
AMD Radeon R9 290X
AMD Radeon R9 290
AMD Radeon R9 285
AMD Radeon R7 260X
AMD Radeon R7 260
14
Adjusting
Setting Optimal Resolutio n
Windows 10
For Windows 10:
• Right click START.
• Click "CONTROL PANEL".
• Click "DISPLAY".
15
• Click on the "Change display settings" button.
• Set the resolution SLIDE-BAR to Optimal preset resolution.
16
Windows 8
For Windows 8:
• Right click and click All apps at the bottom-right of the screen.
• Set the "View by" to "Category".
• Click "Appearance and Personalization".
17
• Click "DISPLAY".
• Set the resolution SLIDE-BAR to Optimal preset resolution
18
Windows 7
For Windows 7:
• Click START.
• Click "CONTROL PANEL".
• Click "Appearance".
• Click "DISPLAY".
19
• Click on the "Change display settings" button.
• Set the resolution SLIDE-BAR to Optimal preset resolution
20
Hotkeys
1 Source/Auto/Exit
2 Game Mode/<
3 Image switch/Volume/>
4 Menu/Enter
5 Power
Power
Press the power button to turn on/off the monitor.
Source/ Auto/ Exit
When the OSD is closed, press Source/Auto/Exit button will be Source hot key function. When the OSD is closed,
press Source/Auto/Exit button continuously about 2 second to do auto configure (Only for the source with D-Sub).
Game mode/<
When there is no OSD, press ”<” key to open game mode function, then press ”<” or “>” key to select game mode
(FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.
Image switch/Volume/>
When there is no OSD, pr es s t his butt o n to ope n volume function, then press ”<” or “>” key to adjustment earphone
volume(only for the source with HDMI or DP)
When there is no OSD, press this button continuously to change wide image ration/4:3/1:1/17” (4:3)/19” (4:3)/19”
(5:4) /19”W(16:10)/21.5”W(16:9)22”W(16:10)/23”W(16:9)/23.6”W(16:9)/24”W(16:9) /27”W and so on.
21
OSD Setting
Basic and simple instruction on the control keys.
1) Press the MENU-button to activate the OSD window.
2) Press< or >to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate it . press< or >to navigate through the sub-menu functions. On ce t he desir e d
function is highlighted, press MENU-button t o activate it.
3) Press< or >to change the settings of the selected function. Press AUTO –button to exit. If you want to adjust
any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the O SD, press an d hold the MENU-button while the mo nitor is of f and then pres s
POWER-button to turn the monitor on. To un-lock the OSD - press and hold the MENU-button while the
monitor is off and then press POWER-button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) ECO modes (except Standard mode), DCR, DCB mode and Picture Boost, for these four states that only one
state can exist.
22
Luminance
1. Press MENU-button to display menu.
2. Press Left or Right to select
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit
(Luminance), and press MENU-button to enter.
.
Contrast 0-100 Contrast from Digital-register.
Brightness 0-100 Backlight Adjustment
Eco mode
Gamma
DCR
Standard
Text
Internet
Game
Movie
Sports
Gamma1 Adjust to Gamma 1
Gamma2 Adjust to Gamma 2
Gamma3 Adjust to Gamma 3
Off Disable dynamic contrast ratio
On
Standard Mode
Text Mode
Internet Mode
Game Mode
Movie Mode
Sports Mode
Enable dynamic contrast ratio
23
Image Setup
1. Press MENU-button to display menu.
2. Press Left or Right to select (Image Setup), and press MENU-button to enter.
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit.
Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise
Sharpness 0-100 Adjust picture sharpness
H. Position 0-100 Adjust the horizontal position of the picture.
V. Position 0-100 Adjust the vertical position of the picture.
24
Color Setup
1. Press MENU-button to display menu.
2. Press Left or Right to select (Color Setup), and press MENU-button to enter.
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit
Color Temp.
DCB Mode
DCB Demo On or off Disable or Enable Demo
.
Warm Recall Warm Color Temperature from EEPROM.
Normal Recall Normal Color Temperature from EEPROM.
Cool Recall Cool Color Temperature from EEPROM.
sRGB Recall SRGB Color Temperature from EEPROM.
Red Red Gain from Digital-register
User
Full Enhance on or off Disable or Enable Full Enhance Mode
Nature Skin on or off Disable or Enable Nature Skin Mode
Green Field on or off Disable or Enable Green Field Mode
Sky-blue on or off Disable or Enable Sky-blue Mode
AutoDetect on or off Disable or Enable AutoDetect Mode
Green Green Gain Digital-register.
Blue Blue Gain from Digital-register
25
Picture Boost
1. Press MENU-button to display menu.
2. Press Left or Right to select
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit
Bright Frame on or off Disable or Enable Bright Frame
Frame Size 14-100 Adjust Frame Size
Brightness 0-100 Adjust Frame Brightness
Contrast 0-100 Adjust Frame Contrast
H. position 0-100 Adjust Frame horizontal Position
V. position 0-100 Adjust Frame vertical Position
(Picture Boost), and press MENU-button to enter .
.
Note:
Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.
26
OSD Setup
Break reminder if the user continuously work for more
1. Press MENU-button to display menu.
2. Press Left or Right to select
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit
Language Select the OSD language
Timeout 5-120 Adjust the OSD Timeout
DP Capability
H. Position 0-100 Adjust the horizontal position of OSD
V. Position 0-100 Adjust the vertical position of OSD
Transparence 0-100 Adjust the transparence of OSD
Break Reminder
Notes:
If the DP video content supports DP1.2, please select DP1.2 for DP Capability; otherwise, please select DP1.1
.
(OSD Setup), and press MENU-button to enter.
1.1/1.2
on or off
please be noted that only DP1.2 support free sync
function
than 1hrs
27
Game Setting
For playing FPS (first Person Shooters) games.
Improves dark theme black level details.
For playing RTS (Real Time Strategy). Improves the
image quality.
For playing Racing games, Provides fastest response
time and high color saturation.
Shadow Control Default is 50, then end-user can adjust
to increase contrast f or cl ear p ict ur e.
adjusting from 50 to0 for clear picture
Game Color will provide 0-20 level for adjusting gray
level to better picture detail
1. Press MENU-button to display menu.
2. Press Left or Right to select
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit
Game Mode
Shadow Control 0-100
Game Color
.
(Game setting), and press MENU-button to enter.
FPS
RTS
Racing
Gamer 1 User’s preference settings saved as Gamer 1.
Gamer 2 User’s preference settings saved as Gamer 2.
Gamer 3 User’s preference settings saved as Gamer 3.
off No optimization by Smart image game
from 50 to 100 or 0
1. If picture is too dark to be saw the detail clearly,
adjusting from 50 to100 for clear picture..
2. If picture is too white to be saw the detail clearly,
0-20
Weak
Low Blue Mode
Overdrive
Medium
Strong
Off
Weak
Medium
Strong
Off
Decrease blue light wave by controlling color
temperature
Adjust the response time.
28
Extra
1. Press MENU-button to display menu.
2. Press Left or Right to select
3. Press Left or Right to select submenu, and press MENU-button to enter.
4. Press Left or Right to adjust.
5. Press AUTO-button to exit
Input Select
Auto Config yes or no Auto adjust the picture to default
Off timer 0-24hrs Select DC off time
Image Ratio
.
AUTO/D-SUB/DVI/HDMI/DP Select Input Signal Source
Wide
1:1
4:3
17” (4:3)
19” (4:3)
19” (5:4)
19”W (16:10)
21.5”W (16:9)
(Extra), and press MENU-button to enter.
Select image ratio for display.
22”W (16:10)
23”W (16:9)
23.6”W (16:9)
24”W (16:9)
27”W (16:9)
DDC-CI yes or no Turn ON/OFF DDC-CI Support
Reset Yes or no Reset the menu to default
29
Exit
1. Press MENU-button to display menu.
2. Press Left or Right to select (Exit), and press MENU-button to enter.
3. Press AUTO-button to exit
Exit Exit the main OSD
.
LED Indicator
Status LED Color
Full Power Mode White
Active-off Mode Orange
30
Driver
Monitor Driver
Windows 10
• Star t Windows® 10
• Right click START.
• Click "Control Panel".
• Click on the "Display" icon.
31
• Click on the" Change display settings" button
• Click the" Advanced Settings" button.
32
• Click the "Monitor" tab and then click the "Properties" button.
• Click the "Driver" tab.
• Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Dr iv er... “and then
click the "Browse my computer for driver software" button.
33
• Select "Let me pick from a list of device drivers on my computer".
• Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory:
X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive).
• Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
• Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk
drive.
• Close all open windows and remove the CD.
• Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
34
Windows 8
• Star t Windows® 8
• Right click and click All apps at the bottom-right of the screen.
• Click on the "Control Panel" icon
• Set the "View by" to "Large icons" or "Small icons".
35
• Click on the "Display" icon.
• Click on the "Change display settings" button.
• Click the "Advanced Settings" button.
36
• Click the "Monitor" tab and then click the "Properties" button.
• Click the "Driver" tab.
• Open the "Update Driver Software-Generic PnP Moni tor" window by clicking on "Update Driver ..."and then
click the "Browse my computer for driver software" button.
37
• Select "Let me pick from a list of device drivers on my computer".
• Click the "Have Disk" b utton . C lick on the "Browse" button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
• Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
• Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk
drive.
• Close all open windows and remove the CD.
• Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
38
Windows 7
• Star t Windows® 7
• Click on the "Start" button and then click on "Control Panel".
• Click on the "Display"icon.
• Click on the "Change display settings" button.
39
• Click the "Advanced Settings" button.
Click the "Monitor" tab and then click the "Properties" button.
•
• Click the "Driver" tab.

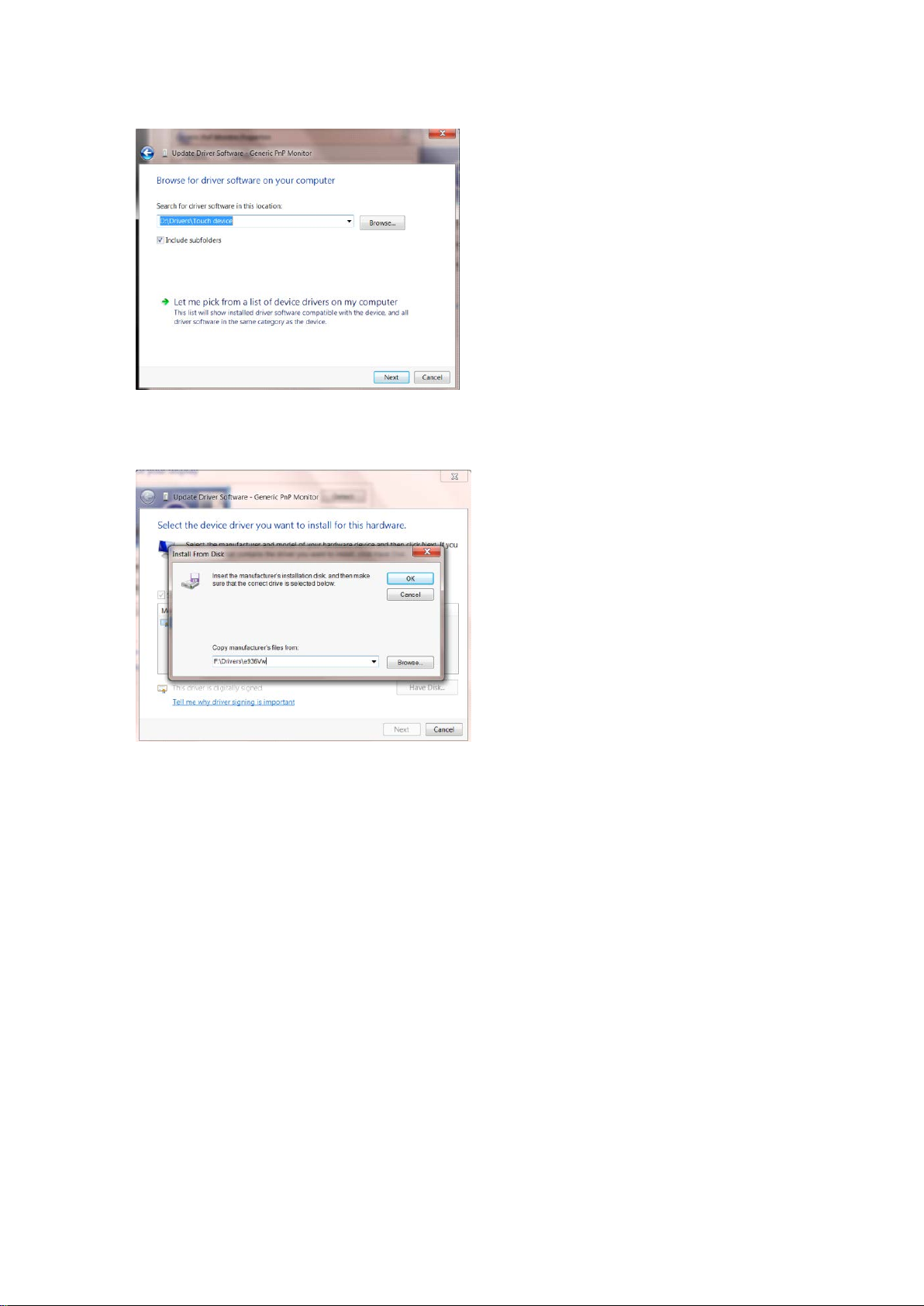

• Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... "and
then click the "Browse my computer for driver software" button.
40
• Select "Let me pick from a list of device drivers on my computer".
• Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory:
X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive).
• Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
• Select your monitor model and click the" Next" button. The files will be copied from the CD to your hard disk
drive.
• Close all open windows and remove the CD.
• Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
41
i-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on
screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation
guide. The software Supported operating systems: Windows 10, Windows 8, Windows 7.
42
e-Saver
Welcome to use AOC e -Saver monitor power management software! The AOC e-Saver features Smart Shutdown
functions for your monitors, allows your monitor to timely shu tdown when PC unit is at any status (On, Off, Sleep or
Screen Saver); the actual shutdown time depends on your preferences (see example below).
Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to
complete software installation.
Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your
monitor to automatically shutdown. The example above illustrated:
1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.
You can click “RESET” to set the e-Saver to its default settings like below.
43
Screen+
Welcome to “Screen+” software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop
into different panels, and each panel displays a different window. You only need to drag the window to a
corresponding panel when you want to access it. It supports multiple monitor display to make your task easier.
Please follow the installation software to insta ll it. The software Supported operating systems: Windows 10，
Windows 8,Windows 7.
44
Troubleshoot
Move electrical devices that may cause electrical interference as far away
your are using.
BLUE)
Problem & Question
Power LED Is Not ON
No images on the screen
Picture Is Fuzzy & Has
Ghosting Shadowing Problem
Possible Solutions
Make sure the power butt on is ON and t he Pow er C ord is pro perly co nnected
to a grounded power outlet and to the monitor.
Is the power cord connected properly?
Check the power cord connection and power supply.
Is the cable connected correc tly?
(Connected using the D-s ub c able)
Check the DB-15 cable connection.
(Connected using the DVI cable)
Check the DVI cable connection.
* DVI input is not available on every model.
If the power is on, reboot the computer to see the initial screen (the login
screen), which can be seen.
If the initial screen (the login screen) appears, boot the computer in the
applicable mode (the saf e mod e for Windows ME/XP/2000) and th en cha ng e
the frequency of the video card.
(Refer to the Setting the Optimal Resolution)
If the initial screen (the login screen) does not appear, contact the Service
Center or your dealer.
Can you see "Input Not Supported" on the screen?
You can see this message when the signal from the video card exceeds the
maximum resolution and frequency that the monitor can handle properly.
Adjust the maximum resolution and frequency that the monitor can handle
properly.
Make sure the AOC Monitor Drivers are installed.
Adjust the Contrast and Brightness Controls.
Press to auto adjust.
Make sure you are not using an extension cable or switch box. We
recommend plugging the monitor directly to the video card output connector
on the back .
Picture Bounces, Flickers Or
Wave Pattern Appears In The
Monitor Is Stuck In Active
Off-Mode"
Missing one of the primary
colors (RED, GREEN, or
Screen image is not centered
or sized properly
Picture has color defects
(white does not look white)
Horizontal or vertical
disturbances on the screen
from the monitor as possible.
Use the maximum refresh rate your monitor is capable of at the resolution
The Computer Power Switch should be in the ON position.
The Computer Video Card should be snugly fitted in its slot.
Make sure the monitor's video cable is properly connected to the computer.
Inspect the monitor's video cable and make sure no pin is bent.
Make sure your computer is operational by hitting the CAPS LOCK key on
the keyboard while observing the CAPS LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS LOCK key.
Inspect the monitor's video cable and make sure that no pin is damaged.
Make sure the monitor's video cable is properly connected to the computer.
Adjust H-Position and V-Position or press hot-key (AUTO).
Adjust RGB color or select desired color temperature.
Use Windows 95/98/2000/ME/XP shut-down mode to adjust CLOCK and
FOCUS.
Press to auto-adjust.
45
Specification
Panel
Model
Driving system
Viewable Image Size
Pixel pitch
Video
Separate Sync.
Display Color
Others
Horizontal scan range
30k - 99kHz(D-SUB/ DVI-Dual-Link)
30k-114kHz(HDMI/DP)
Horizontal scan Size(Maximum)
Vertical
50-76Hz(D-SUB/ DVI-Dual-Link)
48-76Hz(HDMI/DP)
Vertical Scan Size(Maximum)
Optimal preset resolution
1920x1080@60Hz(D-SUB)
2560x1440@60Hz (DVI-Dual-Link\HDMI\DP)
Plug & Play
Input Connector
I
Output Connector
Power Source
Power Consumption
Power saving
Off timer
Physical
Characteristics
Connector Type
Signal Cable Type
Dimensions & Weight:
Height(with Base)
Width
Depth
Weight(Monitor only)
7kg
Envi
Temperature
Non-Operating
-25°~ 55°
Humidity
Altitude
General Specification
name Q3279VWF
TFT Color LCD
80.2 cm dia gonal
nput Video Signal Analog: 0.7Vp-p(standard), 75 OHM, TMDS
0. 273 mm (H) x 0. 273 mm (V)
R, G, B Analog lnterface
H/V TTL
10.7 Color
698.88mm
scan range
393.12mm
VESA DDC2B/CI
VGA /DVI Dual-Link /HDMI /DP
Earphone out
100-240VAC, 50/60Hz, 1.5A
Typical(Brightness = 90,Contrast = 50) 44W
Max.(brightness = 100, contrast =100) ≤51W
ronmental
≤0.5W
0~24 hrs
VGA\DVI Dual-Link\HDMI\DP \Earphone out
Detachable
729.6mm
533mm
153.2mm
Operating 0°~ 50°
Operating 10% ~ 85% (non-condensing)
Non-Operating 5% ~ 93% (non-condensing)
Operating 0~ 5000 m (0~ 16404ft )
Non-Operating 0~ 12192m (0~ 40000ft )
46
Preset Display Modes
HORIZONTAL
FREQUENCY(kHz)
VERTICAL
FREQUENCY(Hz)
75
75
60 HD
60
STANDARD RESOLUTION
VGA
VGA
VGA
SVGA
SVGA
SVGA
SVGA
XGA
XGA
XGA
SXGA
SXGA
WXGA+
WSXGA
FHD
WQHD For DVI、HDMI、DP
640x480@60Hz
640x480@72Hz
640x480@75Hz
800x600@56Hz
800x600@60Hz
800x600@72Hz
800x600@75Hz
1024x768@60Hz
1024x768@70Hz
1024x768@75Hz
1280x1024@60Hz
1280x1024@75Hz
1440x900@60Hz
1680x1050@60Hz
1920x1080@60Hz
1280x960@60HZ
2560x1440@60Hz
31.469
37.861
37.5
35.156
37.879
48.077
46.875
48.363
56.476
60.023
63.981
79.976
55.935
65.290
67.5
60
88.787
59.94
72.809
56.25
60.317
72.188
60.004
70.069
75.029
60.02
75.025
59.887
59.954
59.951
WQHD For HDMI、DP
IBM MODE DOS
IBM MODE DOS 720x400@70HZ 31.469
MAC MODE VGA
MAC MODE SVGA 832x624@75Hz 49.725 74.551
MAC MODE XGA 1024x768@75Hz 60.241 74.927
2560x1440@75Hz 111.028 74.968
640x350@70HZ
640x480@67Hz
31.469
35.000
70.087
70.087
66.667
47
Pin Assignments
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
3
TMDS data 2/4 Shield
15
Ground (for+5V)
7
DDC Data
19
TMDS data 0/5 Shield
15-Pin Color Display Signal Cable
Pin Number
15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable
Video-Red
Video-Green
Video-Blue
N.C.
Detect Cable
GND-R
GND-G
GND-B
+5V
Ground
N.C.
DDC-Serial data
H-sync
V-sync
DDC-Serial clock
24-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 TMDS data 2－ 13 TMDS data 3＋
2
4 TMDS data 4－ 16 Hot Plug Detect
5 TMDS data 4＋ 17 TMDS data 0－
6 DDC Clock 18
8 N.C. 20 TMDS data 5－
9 TMDS data 1－ 21 TMDS data 5＋
10
11 TMDS data 1/3 Shield 23 TMDS Clock +
12 TMDS data 3－ 24 TMDS Clock －
TMDS data 2＋
TMDS data 1＋
14
22 TMDS Clock Shield
＋5V Power
TMDS data 0＋
48
Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
Pin No. Signal Name
Pin No. Signal Name
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_ Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_ Lane 3 (p) 13 CONFIG1
4 ML_ Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_ Lane 2 (p) 16 GND
7 ML_ Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_ Lane 1 (p) 19 Return DP_PWR
10 ML_ Lane 0 (n) 20 DP_PWR
49
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional
information about its display capabilities.
The DDC2B is a bi-directional data c hannel ba sed on the I 2C pr otocol. T he host can req ue st ED ID informat ion over
the DDC2B channel.
50
Regulation
FCC Notice
FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular inst al lat ion. I f this equ ipm ent doe s
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE :
The changes or modification s not expressly approved by the party responsible f or compl iance could void the user's
authority to operate the equipment.
Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this
equipment. It is the respon sib il itie s of the user to correct such interference. It is the responsibility of the user to
correct such interference.
51
WEEE Declaration
Disposal of Waste Equipment by Users in Private Household in the European Union.
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other
household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
RoHS Declaration
This product complies with all implemented RoHS type regulations worldwide, including but not limited to, EU,
Korea, Japan, US States (e.g. California), Ukraine, Serbia, Turkey, Vietnam and India.
We continue to monitor, influence and develop our processes to comply with upcoming proposed RoHS type
regulations, including but not limite d to, Braz il, Argentina, Canada.
52
E-Waste Declaration for India
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other
household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment . The separate collection
and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more information about E
-waste please visit
http://www.aocindia.com/ewaste.php and to know where you can drop off your waste equipment for recycling in
India please contact on below given contact details.
Helpline number: 080-6788-6788 / 080-3323-1313 (Monday to Saturday, 10 a.m. to 6 p.m.)
Centralized E-waste collection center
Address: TPV Technology India Private Limited,
59, Maheswari Nagar, 1st Main Road,Mahadevapura Post,
Whitefield Road, Bangalore, Karnataka, PIN: 560048,
Tel: 080-3023-1000
E-mail: serviceindia@aoc.com
Reduction in the use of hazardous substances (India)
This pro duct complies with the “E-Waste (Management) Rules, 2016” CHAPTER V, rule 16, sub-rule (1) . Whereas
New Electrical and Electronic Equipment and their components or consumables or parts or spares do not contain
Lead, Mercury, Cadmium, Hexavalent Chromium, polybrominated biphenyls and polybrominated diphenyl ethers
beyond a maximum concentration value of 0.1% by weight in homogenous materials for lead, mercury, hexavalent
chromium, polybrominated biphenyls and polybrominated diphenyl ethers and of 0.01% by weight in homogenous
materials for cadmium. except of exemptions set in Schedule 2 of the Rule.
53
EPA Energy Star
ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and
Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy
efficiency. (FOR EPA CERTIFIED MODELS)
EPEAT Declaration
EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop
computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and
consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to
secure market recognition for efforts to reduce the environmental impact of its products.
AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well
as landfill protection, AOC announces the launch of AOC monitor’s packaging recycling program. This program is
designed to help you discard of your monitor carton and filler materials properly. If a local recycling center is not
available, AOC will recycle the packaging material for you, including foam filler and carton. AOC Display solution
will only recycle AOC monitor packaging. Please refer to the following website address:
North America
http://us.aoc.com/aoc-corporation/?page=environmental-impact
Germany
http://aoc-europe.com/de/content/environment
Brazil
http://www.aoc.com.br/pg/embalagem-verde
(FOR EPEAT CERTIFIED MODELS)
54
Service
Warranty Statement for Europe
LIMITED THREE-YEAR WARRANTY*
For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from
defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase.
During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or
rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the
proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.
If the product appears to be defective, please contact y our lo cal deal er or refer to th e serv ic e and support se cti on
on
www.aoc-europe.com for the warranty instructions in your country. The freight cost for the warranty is pre-paid
by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product
and deliver to the AOC Certified or Authorized Service Center under the following condition:
• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to
protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
AOC International (E uro pe) B.V . will pay the return shippin g charges within one of the countries specified within this
warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the
transportation of product across international borders. This includes the international border within the European
Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection
fee.
* This limited warranty does not cover any losses or damages that occur as a result of:
• Damages during transport due to improper packaging
• Improper installation or maintenance other then in accordance with AOC’s user manual
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or
Authorized Service Center
• Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquake and terrorist attacks
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other
irregularities
This limited warranty does not cover any of the product firmware or hardware that you or any third party have
modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.
55
All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.
If your warranty has ex pired, you still have a cces s to all av ailable s ervice o ptions , but y ou will be re spons ible f or the
cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service
Center will provide you with an estimate of service costs before receiving your authorization to perform service.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ) ARE LIMITED IN DURATION TO A
PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER
PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC
INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND
EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON
CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE
OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT
SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR
FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM
COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE
MEMBER COUNTRIES OF THE EUROPEAN UNION.
Information in this document is subject to change without notice. For more information, please visit:
http://www.aoc-europe.com
56
Warranty Statement for Middle East and Africa (MEA)
And
The Commonwealth of Independent States (CIS)
LIMITED ONE to THREE YEARS WARRANTY*
For AOC LCD Monitors sold within the Middle East and Africa (MEA) and the Commonwealth of Independent
States (CIS), AOC International (Europe) B.V. warrants this product to be free from defects in material and
workmanship for a period of One (1) to Three (3) years from the manufacture date depending on sale country.
During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center)Warranty Support at
an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or
rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,
the warranty will be calculated from the manufacture date identified from the product ID serial number, but the total
warranty will be Fifteen (15) months to Thirty Nine (39) months from MFD (manufacture date) depending on sale
country. Warranty will be considered for exceptional cases that are out of warranty as per the product ID serial
number and for such exceptional cases; Original Invoice/Proof Of Purchase Receipt is mandatory.
If the product appears to be defective, please contact your AOC authorized dealer or refer to the service and
support section on AOC’s website for the warranty instructions in your country:
• Egypt:
• CIS Central Asia:
• Middle East:
• South Africa:
• Saudi Arabia:
Please ensure you provide a dated proof of purchase along with the product and deliver to the AO C Authorized
Service Center or Dealer under the following condition:
• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
* This limited warranty does not cover any losses or damages that occur as a result of:
• Damages during transport due to improper packaging
• Improper installation or maintenance other then in accordance with AOC’s user manual
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application
http://aocmonitorap.com/egypt_eng
http://aocmonitorap.com/ciscentral
http://aocmonitorap.com/middleeast
http://aocmonitorap.com/southafrica
http://aocmonitorap.com/saudiarabia
protects your monitor well enough during transport).
57
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or
Authorized Service Center
• Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquakes and terrorist attacks
• Excessive or inadequate heating or air conditioning or electrical powers failure s, surg es, or other
irregularities
This limited warranty does not cover any of the product firmware or hardware that you or any third party have
modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.
All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.
If your warranty has ex pired, you still have a cces s to all av ailable s ervice o ptions , but y ou will be re spons ible f or the
cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified, Authorized Service
Center or dealer will provide you with an estimate of service costs before receiving your authorization to perform
service.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ) ARE LIMITED IN DURATION TO A
PERIOD OF ONE (1) to THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF
CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS
PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE
SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER
BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED
THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO
EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE
OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM
COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE
MEMBER COUNTRIES OF THE EUROPEAN UNION.
Information in this document is subject to change without notice. For more information, please
visit:
http://www.aocmonitorap.com
58
AOC International (Europe) B.V.
Prins Bernhardplein 200 / 6
T el: +31 (0)20 504 6962 • Fax: +31 (0)20 5046933
th
floor, A msterdam, The Netherlands
AOC PIXEL POLICY
ISO 9241-307 CLASS 1
July 25th, 2013
AOC strives to deliver the highest quality products. We use some of the industry’s most advanced manufacturing
processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT monitor panels
used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free
from pixel defects, but AO C guar antees th at any mo nitor with an una ccept a ble numb er of defects will be repaired or
replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable
defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects
on a TFT monitor panel must exceed these acceptable levels.
Pixels and Sub Pixel Definition
A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. When all
sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When all are dark, the
three colored sub pixels together appear as a single black pixel.
Types of Pixel Defects
Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or “on”
Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or “off”.
ISO 9241-307
Pixel Defect Class
Classe 1 1 1
AOC International (Europe) B.V.
Defect Type
1Bright Pixel
Defect Type 2
Black Pixel
Defect Type 3
Bright Sub pixel
2
1
0
+
+
+
Defect Type 4
Black Sub pixel
1
3
5
59
Warranty Statement for North & South America (excluding Brazil)
WARRANTY STATEMENT
for AOC Color Monitors
Including those Sold within North America as Specified
Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of
three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer
purchase. During this period, EPI ( EPI is the abbreviation of Envision Peripherals, Inc. ) will, at its option, either
repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except
as *stated below. The parts or product that are replaced become the property of EPI.
In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center
closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI
Authorized Service Center. If you cannot deliver the product in person:
Pack it in its original shipping container (or equivalent)
Put the RMA number on the address label
Put the RMA number on the shipping carton
Insure it (or assume the risk of loss/damage during shipment)
Pay all shipping charges
EPI is not responsible for damage to inbound product that was not properly packaged.
EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is
not responsible for any costs associated with the transportation of product across international borders. This
includes the international borders of the countries within this warranty statements.
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free
number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty.
* This limited warranty does not cover any losses or damages that occur as a result of:
Shipping or improper installation or maintenance
Misuse
Neglect
Any cause other than ordinary commercial or industrial application
Adjustment by non-authoriz ed source
Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center
Improper environment
Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities
This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third
party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.
60
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ) ARE LIMITED IN DURATION TO A
PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL
FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR
IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY
NOT APPLY TO YOU.
EPI OBLIGAT IONS AND Y OUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HER E .
EPI’ LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER
THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE
BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF
PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION
MAY NOT APPL Y TO YOU. AL THOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
In the United States of America, this limited warranty is only valid for Products purchased in the Continental United
States, A laska, and Hawaii.
Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.
Information in this document is subject to change without notice.
For more details, please visit:
USA: http://us.aoc.com/support/warranty
ARGENTINA: http://ar.aoc.com/support/warranty
BOLIVIA: http://bo.aoc.com/support/warranty
CHILE: http://cl.aoc.com/support/warranty
COLOMBIA: http://co.aoc.com/warranty
COSTA RICA: http://cr.aoc.com/support/warranty
DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty
ECUADOR: http://ec.aoc.com/support/warranty
EL SALVADOR : http://sv.aoc.com/support/warranty
GUATEMALA: http://gt.aoc.com/support/warranty
HONDURAS: http://hn.aoc.com/support/warranty
NICARAGUA: http://ni.aoc.com/support/warranty
PANAMA: http://pa.aoc.com/support/warranty
PARAGUAY: http://py.aoc.com/support/warranty
PERU: http://pe.aoc.com/support/warranty
URUGUAY: http://pe.aoc.com/warranty
VENEZUELA: http://ve.aoc.com/support/warranty
IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty
61
PERIOD
NO CHARGE
CHARGES
EASE PROGRAME
Only for AOC branded monitors sold within the continental United States.
All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at
any time during the first three months, AOC will provide a replacement monitor within 72 hours after
you are approved for our program. If your monitor qualifies for the EASE program, AOC will pay for
freight both ways.
Step 1:Phone our TECH Department at 888.662.9888
Step 2:Fill out and return EASE registration forms by mail or fax.
Step 3:We will issue a Return Authorization Number upon verification into the program.
Step 4:A monitor will be advance shipped to your location.
Step 5:We will issue a UPS Call Tag to pick up the defective unit.
Step 6:Please review the following chart to see your EASE program qualifications.
WARRANTY
COVERAGE AT
CUSTOMER
Within the first three months of
purchase: Covered by EASE
Between 4 months – 1 Year
Between 1 Year - 3 Years: Covered
by standard limited warranty
- New AOC mo n i t o r
- Call tag dispatched an d r eturn
freightcharges via UPS
- All Parts & Labor Including CRT
Tube & LCD Panel
- Parts & Labor (excluding CRT Tube
& LCD Panel)
- None*
- UPS Return Freight to AOC
- UPS Return Freight to AOC
*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the
defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the
defective unit arrives at the AOC service center.
www.aocmonitor.com
62
TCO Document
(FOR TCO CERTIFIED MODELS)
Loading...
