AOC A2258P User Manual

LCD Monitor User Manual
A2258P
W
www.aoc.com
©2013 AOC. All Rights Reserved.
TABLE OF CONTENT
SAFETY ....................................................................................................................................2
National Conventions ....................................................................................................................2
Power ................................................................................................................................................ 3
Installation ........................................................................................................................................ 4
Cleaning ............................................................................................................................................ 5
Other.................................................................................................................................................6
SETUP ....................................................................................................................................... 7
Contents in Box ..............................................................................................................................7
Adjusting Viewing Angle .................................................................................................................7
Connecting the Monitor ............................................................................................................... 8
ADJUSTING ............................................................................................................................ 9
Setting Optimal Resolution ..........................................................................................................9
OPERATING INSTRUCTIONS ....................................................................................... 12
Hotkeys .......................................................................................................................................... 12
OSD Setting .................................................................................................................................. 13
LED Indicator ............................................................................................................................... 20
STARTING WITH ANDROID .......................................................................................... 21
Customizing your Home Screen .............................................................................................. 22
Viewing the Apps Gallery ........................................................................................................... 22
Browsing the Internet ................................................................................................................. 22
Using the On-screen Keyboard ................................................................................................ 23
Connecting to Network ............................................................................................................ 23
Adjusting the Settings for Android .......................................................................................... 24
DRIVER ................................................................................................................................. 26
Monitor Driver ............................................................................................................................ 26
i-Menu ............................................................................................................................................ 33
e-Saver ............................................................................................................................................ 34
Screen+ .......................................................................................................................................... 36
TECHNICAL SUPPORT (FAQ) ....................................................................................... 37
Troubleshoot ................................................................................................................................ 37
Error Message & Possible Solution .......................................................................................... 38
APPENDIX ........................................................................................................................... 39
Plug and Play ................................................................................................................................. 39
Specifications ................................................................................................................................ 40
Touch Screen Specifications ...................................................................................................... 40
Preset Display Modes ................................................................................................................. 41
Pin Assignments ............................................................................................................................ 42
REGULATION ..................................................................................................................... 43
FCC Notice .................................................................................................................................. 43
WEEE Declaration ....................................................................................................................... 44
WEEE Declaration for India ...................................................................................................... 44
EPEAT Declaration ..................................................................................................................... . 45
SERVICE ................................................................................................................................ 46
Warranty Statement for Europe .............................................................................................. 46
Warranty Statement for North & South America (excluding Brazil) .............................. 48
1

SAFETY

NATIONAL CONVENTIONS

The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.
2

POWER

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 19V, 3.42A
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter (Output 19Vdc) which have UL,CSA listed license (Only for monitors with power adapter). Manufacturers:
1) TPV ELECTRONICS(FUJIAN) CO., LTD model: ADPC1965
2) SHENZHEN HONOR ELECTRONICS CO., LTD. / model: ADS-65LSI-19-1 19065G
3

INSTALLATION

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or with the stand:
Installed on the wall
11 7/8 inches
30cm
4 inches
10cm
Installed with stand
4 inches
10cm
4 inches
10cm
11 7/8 inches
30cm
4 inches
10cm
Leave at least this space around the set.
4 inches
10cm
Leave at least this space around the set.
4
4 inches
10cm

CLEANING

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
5

OTHER

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.
6

SETUP

CONTENTS IN BOX

1. LCD Monitor
2. CD Manual
3. Power Cord
4. Power Adapter
5. D-SUB cable
6. Audio cable
7. USB Cable (upstream)
8. Keyboard
9. Mouse
NOTE
• Not all signal cables (D-SUB, Audio, and USB cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

ADJUSTING VIEWING ANGLE

• For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor’s angle to your own preference.
• Hold the stand so you will not topple the monitor when you change the monitor’s angle.
• You are able to adjust the tilted angle to 20° or 62°.
20° 62°
NOTE
• Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
7

CONNECTING THE MONITOR

Cable Connections In Back of Monitor and Computer:
10 9
11
8 7 6 5
1. USB port 7. RJ45 (10/100Mbps)
2. USB port 8. Power input
3. Earphone out 9. SD
4. Audio In 10. USB port
5. D-SUB Signal input 11. USB port
6. HDMI Signal input
1 2 3 4
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port.
3. Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer’s HDMI port.
4. Turn on your monitor and computer.
5. Video content supporting resolution: VGA / HDMI: 1920 x 1080/60Hz (Maximum)
If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting on page 37.
8

ADJUSTING

SETTING OPTIMAL RESOLUTION

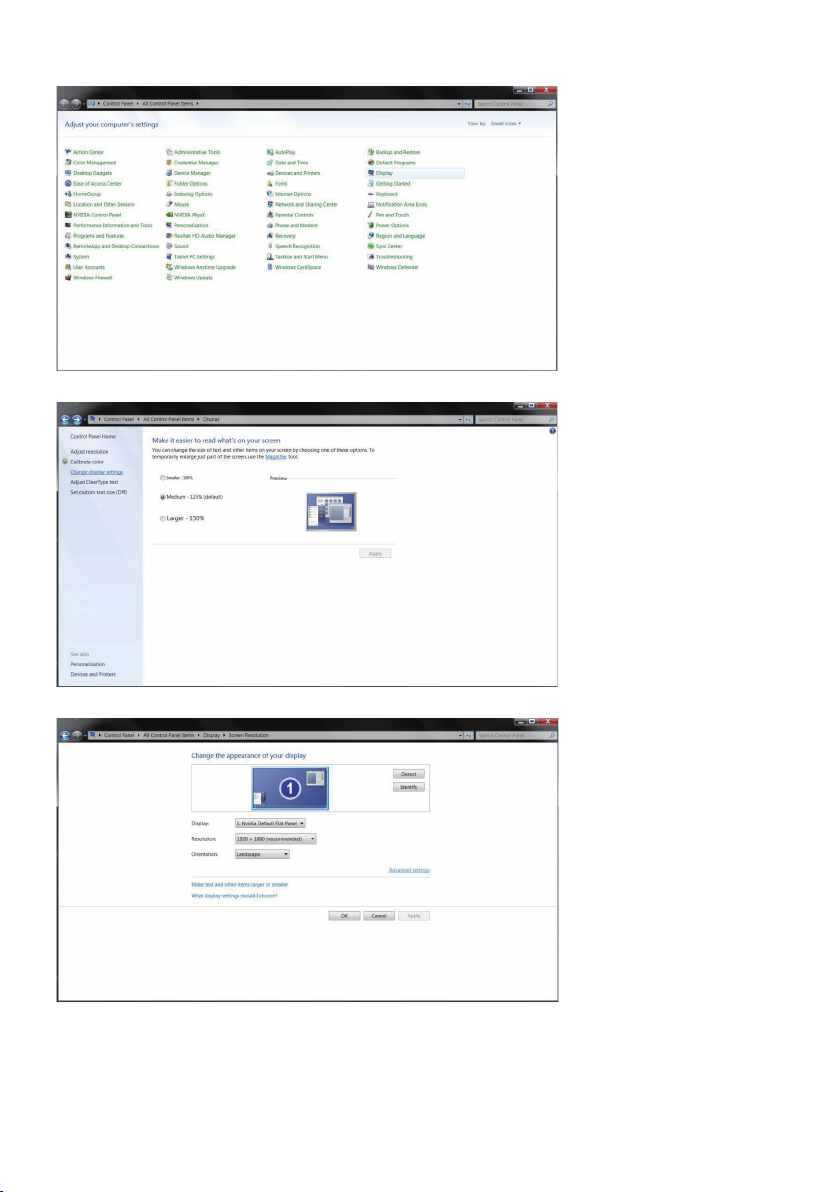

Windows Vista

1. Click START.
2. Click CONTROL PANEL.
3. Click Appearance and Personalization.
4. Click Personalization.
9
5. Click Display Settings.
6. Set the resolution SLIDE-BAR to 1920x1080.

Windows 8

1. Right click and click All apps at the bottom-right of the screen.
2. Set the “View by” to “Category”.
10
3. Click Appearance and Personalization.
4. Click DISPLAY.
5. Set the resolution SLIDE-BAR to 1920x1080.

Windows ME/2000

1. Click START.
2. Click SETTINGS.
3. Click CONTROL PANEL.
4. Double click DISPLAY.
5. Click SETTINGS.
6. Set the resolution SLIDE-BAR to 1920x1080.
11

OPERATING INSTRUCTIONS

HOTKEYS

• Connect the power cord and the video cable.
• Press the POWER key to turn on the monitor. The power indicator will light up.
1
7
For menu control
1. MENU/ENTER 4. AUTO / EXIT
2. + / up 5. SOURCE
3. - / down / Eco Mode 6. BACK for Android
2 3 4 5
6
NOTE
• Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed at the factory.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed
with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.
• Do not scratch the screen with hard things, it may cause permanent damage.
• Don’t leak liquid into monitor which will result in the damage of component.
12

OSD SETTING

Basic and simple instruction on the control keys.
Luminance Image Setup Color Setup Picture Boost OSD Setup ExitExtra
Contrast 50
Brightness 50
Eco mode Standard
1. Press the (menu) key to display the control menu.
2. Press (up) or (down) to navigate through the menu items. Once the desired item is
highlighted, press the (ENTER) key to activate it. If there is a sub-menu, press (up) or
(down) to navigate through the sub-menu functions.
3. Press (up) or (down) to change the settings of the selected function. Press (EXIT) to exit. If you want to adjust any other function, repeat steps 2-3.
NOTE
• If the product has only one signal input, the item of “Input Select” is disabled.
• If the product screen size is 4:3 or input signal resolution is native resolution, the item of “Image Ratio” is
disabled.
• One of DCR, Color Boost, and Picture Boost functions is activated; the other two functions are turned off accordingly.
Gamma Gamma 1
DCR Off
i−Care Off
13

Luminance

Luminance Image Setup Color Setup Picture Boost OSD Setup ExitExtra
Contrast 50
Brightness 50
Eco mode Standard
1. Press (menu) to display menu.
2. Press or to select (Luminance), and press (ENTER) to enter.
3. Press or to select submenu, and press (ENTER) to enter.
4. Press or to adjust.
5. Press (EXIT) to exit.
Main Menu Sub Menu Item Description
Brightness 0-100 Backlight Adjustment. Contrast 0-100 Contrast from Digital-register.
Gamma Gamma 1
DCR Off
i−Care Off
Standard Standard Mode.
Text Text Mode.
Luminance
Eco mode
Gamma
DCR
Internet Internet Mode.
Internet Game Mode.
Movie Movie Mode.
Sports Sports Mode.
Gamma 1 Adjust to Gamma 1. Gamma 2 Adjust to Gamma 2. Gamma 3 Adjust to Gamma 3. Off Disable dynamic contrast ratio.
On Enable dynamic contrast ratio.
14
