User Operating Manual

A110-E

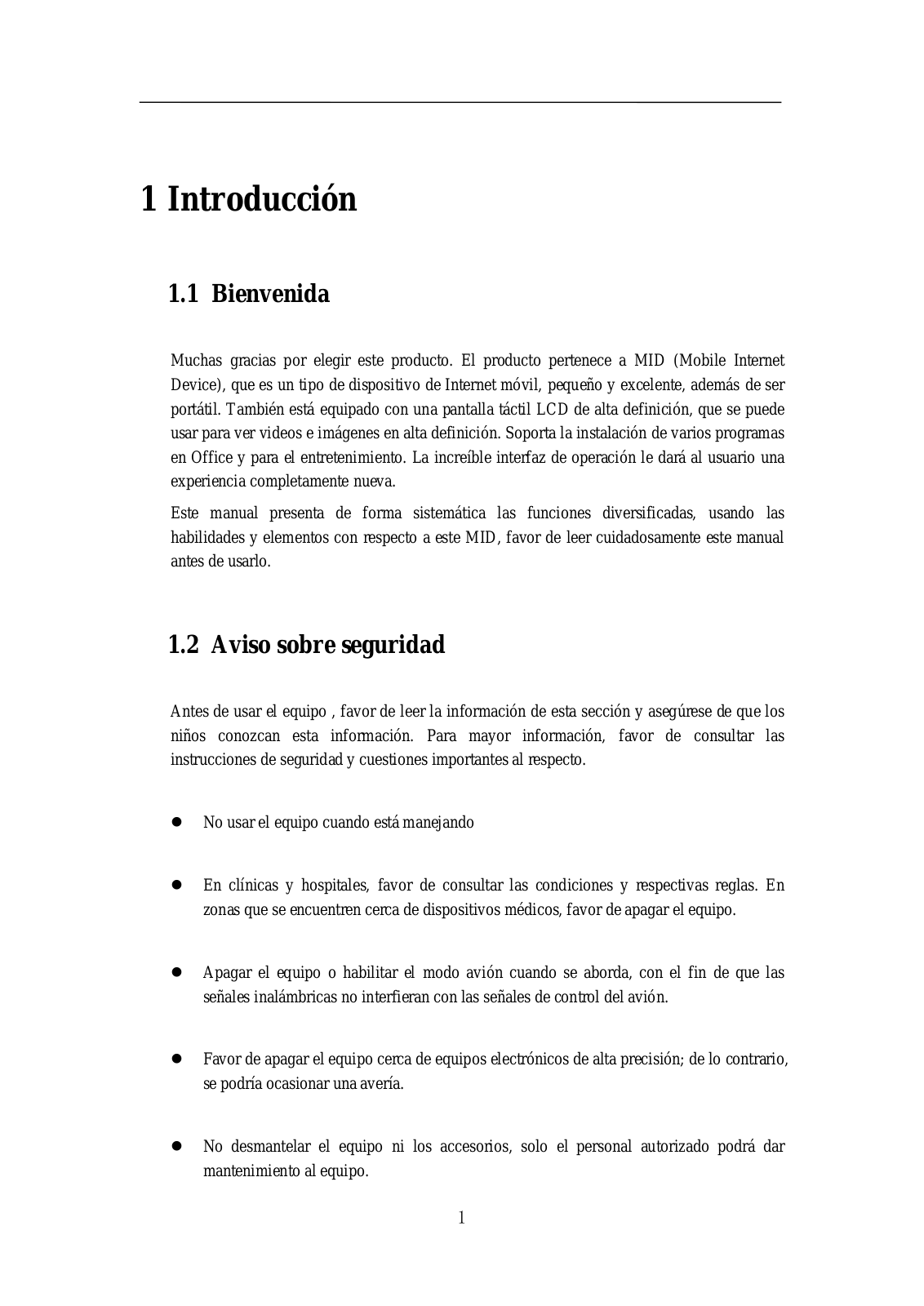

1 Introduction

1.1 Acknowledgements

Many thanks for you choosing this product. The product belongs to MID(Mobile Internet Device), which is a kind of mobile internet device, delicate, small and exquisite, and also portable. It is also equipped with a piece of touch LCD of high definition, which can be used to watch vedios and pictures of high definition. It supports installation of multiple application programs on office and entertainment. The fantastic operation interface will give you a brand-new user experience.

This manual systematically introduces diversified functions, using skills and matters needing attention of this MID, please read this manual carefully before using it.

1.2 Safety Notice

Before using MID, please read information in this section, and make your children learn about the information. About more detailed information, please refer to safety instructions and matters needing attention.

Please don’t use MID when you are driving, for fear of hindering safe driving.

In medical places, please observe relevant stipulations and regulations. And in regions near the medical devices, please shut down MID.

Please shut down MID or enable the airplane mode when boarding, so that the wireless signals will not interfere control signal of the airplane.

Please shut down MID neighboring electronic equipments with high accuracy, otherwise, breakdown of electronic equipments may be brought about.

Please don’t dismantle the MID and its accessories on yourself, and only the authorized agency can maintain this MID.

1

Please keep MID far away from magnetic equipment, radiation from MID will erase information stored on the magnetic equipment.

Please don’t use MID in places with high temperature and inflammable gas (such as nearby gas station).

Please put MID and its accessories in places beyond children’s touch, please don’t let children use MID without supervision.

During using of this MID, please observe related laws and regulations, respect privacy and legitimate rights of others.

Please strictly abide by relevant explanations in this manual when using USB data line, otherwise, MID or personal computer may be damaged.

Please don’t use the MID in humid environment such as bathroom, etc., and the MID being soaked or rinsed by liquid must be avoided.

1.3 Abbreviation/term

Abbreviation/term	Full name		Explanations
MID	Mobile Internet Device		Mobile internet terminal
WIFI	Wireless Fidelity		Wireless Local Area Network
			based on IEEE 802.11 a/b/g/n
TF	Trans Flash		Alternate name Micro SD,
			super miniature storage card
HDMI	High Definition		High definition multi-media
	Multimedia Interface		interface

2

2 Brief introduction for MID product

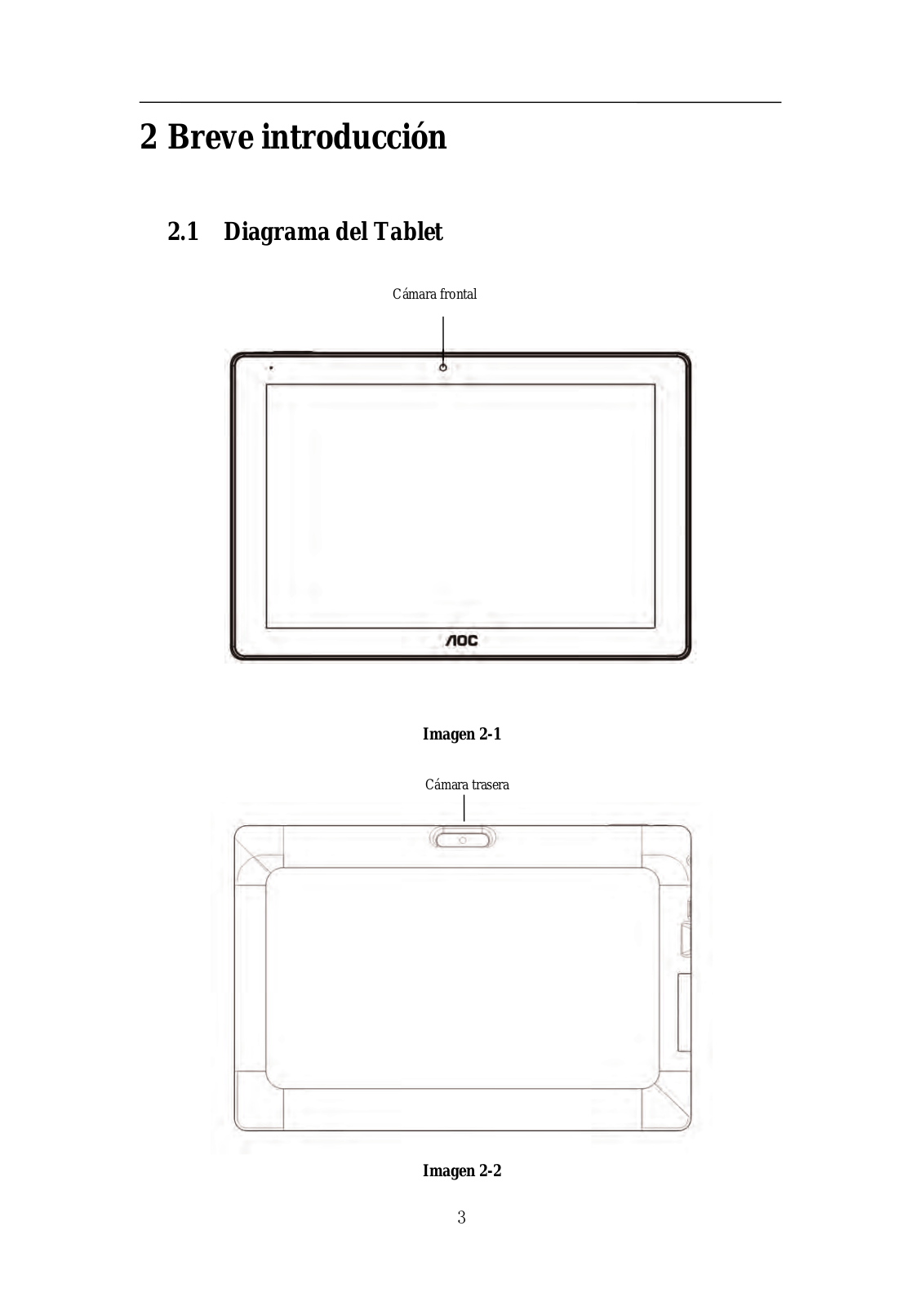

2.1 Diagram for MID complete machine

Front camera

Figure 2-1

Rear camera

Figure 2-2

3

Figure 2-3

Figure 2-4

2.2 Introduction to accessories of MID

Packing list

The following articles are included in your packing box of MID:  Complete machine of MID

Power adaptor

USB connecting line

Quick Start Guide

Warranty card

4

2.3 MID state and notice

Icon graph for notification

When a prompt message shows on your notice panel, please click the column box and slide on the screen with your finger to open the notice list. Click options needing to check to see detailed information. Then you may click the message box and slide upwards to close the message window. The following are iconography for icons in status bar:

	Mail notice		Mute
	Gmail notice		Without SD card
	Computer and MID are		Uploading/Downloading
	connected through USB line
	Events waiting to be done		Downloading finished
	Alarm clock opening		General notice (for example:
			synchronous error)
	Playing music		In data synchronism
	Insufficient space of SD card		More
	WIFI service is connected,		Battery symbol
	network is available
	Airplane mode		Charging
	Bluetooth is already connected

5

3 Quick start

3.1 Key function

Descriptions for key function:

Power key	 Press this key for a long time to start up
	 Under starting up state, press this key for a long time to pop up
	shutdown option
	 Under starting up state, press this key to close the screen
	 Under starting up state or when breakdown appears, press the
	power key for 7 seconds to make your device to restart
Multitask	 Press this key to browse tasks which have been opened
key
Return key	 Press this key to return the last operating step or the previous
	operating interface
Homepage	 Press this key to return back main function interface from any
key	interface

3.2 Starting up and turning off

Starting up

Press the power key for 3 seconds, you can see the starting up picture. After the system is started, the machine enters into screen lock state, please unlock according to direction indication of sliding icon on the interface.

Turning off

1 After pressing the power key for a long time, the shutdown option will pop up.

2 Click Power off.

3.3 Unlocking and closing of the screen

The machine will close automatically when the screen is left unused

1 After the screen being left unused for a period of time, the machine will close screen automatically, so as to save battery power.

2 Under screen on state, press the power key, the screen will close immediately.

6

Prompt: if you want to inquire how to set turn-off time of screen, please refer to chapter 9.1.

Turning on under screen off state

If the screen is in off state, you can unlock the screen by pressing power key for a short time or the return key for a long time. After opening, the screen will enter lock state, press “lock” icon by your finger and slide up, the screen will be unlocked, press “camera” icon and slide leftwards, you can enter the camera function.

Figure 3-1

3.4 Use of touch screen

Operating mode in MID

There are various ways to skim the main screen, menu and application program, etc. on your MID.

Click to select

When you want to use screen keyboard entry, and you want to select items on the homepage interface such as application program, you only use your finger to click.

Press on

If you want to unlock the available option of a certain item (such as textbox or interlinkage in the webpage), or move shortcut on the homepage interface and menu of main program, only press the item.

7

Slide quickly or slide

Quick sliding or sliding means doing rapid vertical or horizontal drag movement by using finger on the picture.

Drag

Before you starting to drag, you must press it with your finger and impose a certain pressure, and don’t loosen the finger before dragging to the wanted position.

Rotate

Aiming at most of pictures, only turn the MID in side direction, the screen direction can be shifted from cross direction to vertical direction. For example, when you input characters, watch cinema, etc.

3.5 Homepage interface

All application programs on the machine will be displayed on the main menu screen. You may use application program, shortcut and user-defined mode to set wallpaper of your homepage interface

Google Search

Notice bar

Wallpaper

Application program

Figure 3-2

8

Skill: in any application programs, you can press homepage key to return homepage interface.

Custom homepage interface

Change desktop wallpaper

1.Press blank region on the homepage interface to pop up the menu.

2.When the menu popping up, choose source of homepage interface wallpaper you want to change.

3.After clicking source of wallpaper, click picture you want, and then select “setting wallpaper”.

Figure 3-3

Figure 3-4

9

3.6 USB connection

Storage setting of MID

Follow steps below uploading / downloading files via USB cable connection.

Figure 3-5

Figure 3-6

10

Copy the document to storage card

1.Connect MID and computer together with USB cable. Notice bar will indicate connection.

2.Select ‘Transfer files (MTP)’

3.Make sure your computer have installed MTP drive if it is Windows xp; Windows 7 ,Windows 10 or above will auto install MTP drive..

4.Open your computer, in my computer, examine content in “A110-E”.

5.Find the document you want to copy, copy it to “Internal storage”.

6.After completion of copying, click “safely remove hardware” in taskbar of your computer to unload.

7.For Apple Macintosh – Download from internet the free “Android File Transfer” Application or similar.

Content of MID storage device

1.NAND FLASH storage device, space for MID to store document itself.

2.TF removable memory card.

3.The two above-mentioned storage devices both can be visited through connection with your computer with USB.

Attention: when your MID is connected with USB cable, if you start up USB storage device, you will cannot visit the memory card through MID, if you want to visit memory card in MID, only disconnect USB cable.

3.7 Memory card

Copy the document to storage card

You can transmit document between MID and computer, such as music and picture, etc. If you want to see documents in MID, only click the file manager to look through content in the SD card.

Delete documents on the storage card of MID

1.Find document you want to delete.

2.Press the document name you need to delete, a file menu will pop up.

3.Click Delete.

11

Removing storage card when the MID is in starting up state

If need to remove storage card under starting up state of MID, you must unload the storage card firstly, for fear of failure or damage of the storage card.

1.Select settings of apk list.

2.Click Storage&USB.

3.Find SD card under Portable storage.

4.Click to uninstall the SD card.

4 Connection Establishment

4.1 WIFI Connection

Your MID can be connected onto Wi-Fi network to connect the operation:

1.On the homepage interface, click and select the menu key and pop up the menu setting;

2.Click and select the System Settings;

3.Click Wi-Fi and open Wi-Fi switch;

4.After opening Wi-Fi, the searched Wi-Fi network can be scanned automatically from the equipment in the windows on the right.

5.Select the Wi-Fi network required to be connected, if the password is added, pop up the password input windows and input the corresponding password.

6.Click the Connection

12

Click here and select	Advanced Wifi setting option
WIFI network

	Figure 4-1
4.2	Bluetooth Connection
Functions of Bluetooth:
1.	You can exchange the files between two Bluetooth. You can exchange the files with
	other computers, mobile phones and PDA.

2.You can synchronously exchange pims data with mobile phones, PDA and laptop to support the Bluetooth( data of outlook E-mail address).

3.You can You can exchange the electronic name card with mobile phones, PDA and laptop to support the Bluetooth.

4.You can connect the keyboard, mouse and joystick to support the Bluetooth.

Application of Bluetooth (Figure 4-2)

1.Setting procedure of entering into Bluetooth: set ->Bluetooth set, open the Bluetooth equipment

2.Name of equipment: you can randomly change the name of Bluetooth for your MID by pressing Menu key.

3.Detectability: open this function by clicking the place for name of Bluetooth, which indicates that your MID Bluetooth can be searched by other Bluetooth equipments, this

13
