AOC 936Sw+ Service Manual

SERVICE MANUAL

维 修 手 册

客户/品牌 机种名

AOC

936Sw+

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

A00 Oct.-13-2010 Initial Release 936Sw+ T8ACM5ND6WA3QNE

2

目录

1. 技术规格 -------------------------------------------------------------------------------------------------------------- 4

1.1 一般规格 --------------------------------------------------------------------------------------------------------- 4

1.2 工厂预设模式 --------------------------------------------------------------------------------------------------- 5

2. 操作说明 -------------------------------------------------------------------------------------------------------------- 6

2.1控制面板 --------------------------------------------------------------------------------------------------------- 6

2.2接口说明 --------------------------------------------------------------------------------------------------------- 9

2.3 OSD 菜单调整 ------------------------------------------------------------------------------------------------- 10

3. 工厂模式调整 -------------------------------------------------------------------------------------------------------- 28

4. 故障处理流程 -------------------------------------------------------------------------------------------------------- 29

4.1 主板 --------------------------------------------------------------------------------------------------------------- 29

4.2 电源板 ------------------------------------------------------------------------------------------------------------ 32

4.3 按键板 ------------------------------------------------------------------------------------------------------------ 34

5. 电气方框图 ----------------------------------------------------------------------------------------------------------- 35

5.1主板 --------------------------------------------------------------------------------------------------------------- 35

5.2电源板 ------------------------------------------------------------------------------------------------------------ 36

6. 线路图 ----------------------------------------------------------------------------------------------------------------- 37

6.1主板 --------------------------------------------------------------------------------------------------------------- 37

6.2电源板 ------------------------------------------------------------------------------------------------------------ 42

7. 机器拆装图 ----------------------------------------------------------------------------------------------------------- 44

8. ISP 和 DDC 烧录 SOP --------------------------------------------------------------------------------------------- 48

9. 料件清单 -------------------------------------------------------------------------------------------------------------- 49

3

1. 技术规格

1.1 一般规格

LCD 面板

分辨率

产品代码

驱动系统 TFT 彩色 LCD

可视尺寸 47.0cm 对角

像素间距

视频 R, G, B 模拟接口

独立同步 行 /场 TTL

显示颜色 16.7M 色彩

点时钟

水平扫描范围

水平扫描尺寸（最大）

垂直扫描范围

垂直扫描尺寸（最大）

预设的最佳分辨率

预设的最高分辨率

即插即用

输入连接器 D-Sub 15 针

936Sw+

0.3mm(H) x 0.3mm(V)

85.5MHz

30 kHz - 80 kHz

409.8mm

55 Hz - 75 Hz

230.4mm

1366x768 (60 Hz)

1366x768 (60 Hz) )

VESA DDC2B/CI

物理 特性

输入视频信号 模拟： 0.7Vp-p（标准），75 OHM

电源

功率消耗

连接器类型 15- 针 Mini D-Sub

信号电缆类型 可分离

高度 (含底座)

宽度

尺寸和重

深度

量

重量（仅显示器）

重量（含包装）

工作时

温度

非工作时

工作时 10% - 85%（非凝露）

湿度

非工作时 5% - 80%（非凝露）

工作时

海拔高度

非工作时

100-240VAC, 50/60Hz

正常工作< 25W

离机 < 1 W

358.66mm

463.14mm

186mm

3.63 kg

5.02kg

0°- +40°

-20°- +60°

0~3000m (0~10000 ft)

0~5000m (0~15000 ft)

4

1.2 工厂预设模式

标准 解析度 水平频率（KHz） 垂直频率（Hz）

VGA 640×480 @60Hz DMT 31.469 59.94

VGA 640×480 @67Hz MAC 35 66.667

VGA 640×480 @72Hz DMT 37.861 72.809

VGA 640×480 @75Hz DMT 37.5 75

Dos-mode 720×400 @70Hz DOS 31.469 70.087

SVGA 800×600 @56Hz DMT 35.156 56.25

SVGA 800×600 @60Hz DMT 37.879 60.317

SVGA 800×600 @72Hz DMT 48.077 72.188

SVGA 800×600 @75Hz DMT 46.875 75

SVGA 832×624 @75Hz 49.725 74.55

XGA 1024×768 @60Hz DMT 48.363 60.004

XGA 1024×768 @70Hz DMT 56.476 70.069

XGA 1024×768 @75Hz DMT 60.023 75.029

WXGA 1366×768 @60Hz DMT 47.765 59.85

5

2. 操作说明

2.1 控制面板

外部控制

电源：按电源键打开或关闭显示器.

6

4:3 或宽屏/向上：

按此键切换 4：3 或宽屏模式，当输入信号的分辨率是宽屏时，此键没有作用，当主菜单或子菜单被激活时，在 OSD

菜单中此按键是向上功能键或者是增加数值。

自动调整 /向下：当没有 OSD 菜单时，按自动调整快捷键启动自动调整功能。

7

1. 电源

2.D-Sub

为保护显示器，请在连接前关闭电脑和显示器。

1. 将电源适电缆连接到监视器后部的 AC-In 端口。

2. 将 15-针 D-Sub 电缆的一端连接到监视器后部，另一端连接到计算机的 D-Sub 端口。

3. 打开显示器和计算机的电源。

如果监视器显示一个图像，则说明安装完毕。如果不显示图像，请参见故障排除

。

8

2.2 接口说明

管脚号 信号电缆的 15 针一端

1

2

3

4 N.C.

5

6 GND-R

7 GND-G

8 GND-B

9 +5V

10

11 N.C.

12

13

14

15

视频 - 红色

视频 - 绿色

视频 - 蓝色

检测电缆

接地

DDC- 串行数据

H- 同步

V- 同步

DDC- 串行时钟

9

2.3 OSD 菜单调整

基本按键操作说明

动态对比度

亮度情景模式 ---动态对比度,标准，文本，网络，游戏，电影，运动

10

标准

文本

网络

11

游戏

电影

运动

备注：当情景模式不是在标准模式时，对比度和亮度不能被调节，当DCR打开时，对比度、亮度、情景模式和伽玛都不

能调节。

12

全色增强

自然肤色

色彩增强---全色增强，自然肤色，蔚蓝风景，绿茵场景，自动检测，演示，关闭，退出

蔚蓝风景

13

绿茵场景

自动检测

演示

14

关闭

退出

备注：

全色增强：整个色彩饱和度被增强，适合于动态图片。

自然肤色：适合于肖像。

绿茵场景：适合于大片绿色场景。

蔚蓝风景：适合于天空或海洋。

自动检测：适合于户外或花园。

演示：屏幕分成两部分对比。

15

亮度

对比度

明亮度---亮度，对比度，伽玛，退出

伽玛

16

退出

备注：当情景模式不适在标准模式时，对比度和亮度不能被调节，当 DCR 打开时，对比度、亮度、情景模式和伽玛都

不能调节。

时钟

相位

图像设置----时钟，相位，水平位置，垂直位置, 退出

17

水平位置

垂直位置

退出

备注：当输入信号源是数字信号如DVI 或DVI时，图像设置没有作用。

18

红

绿

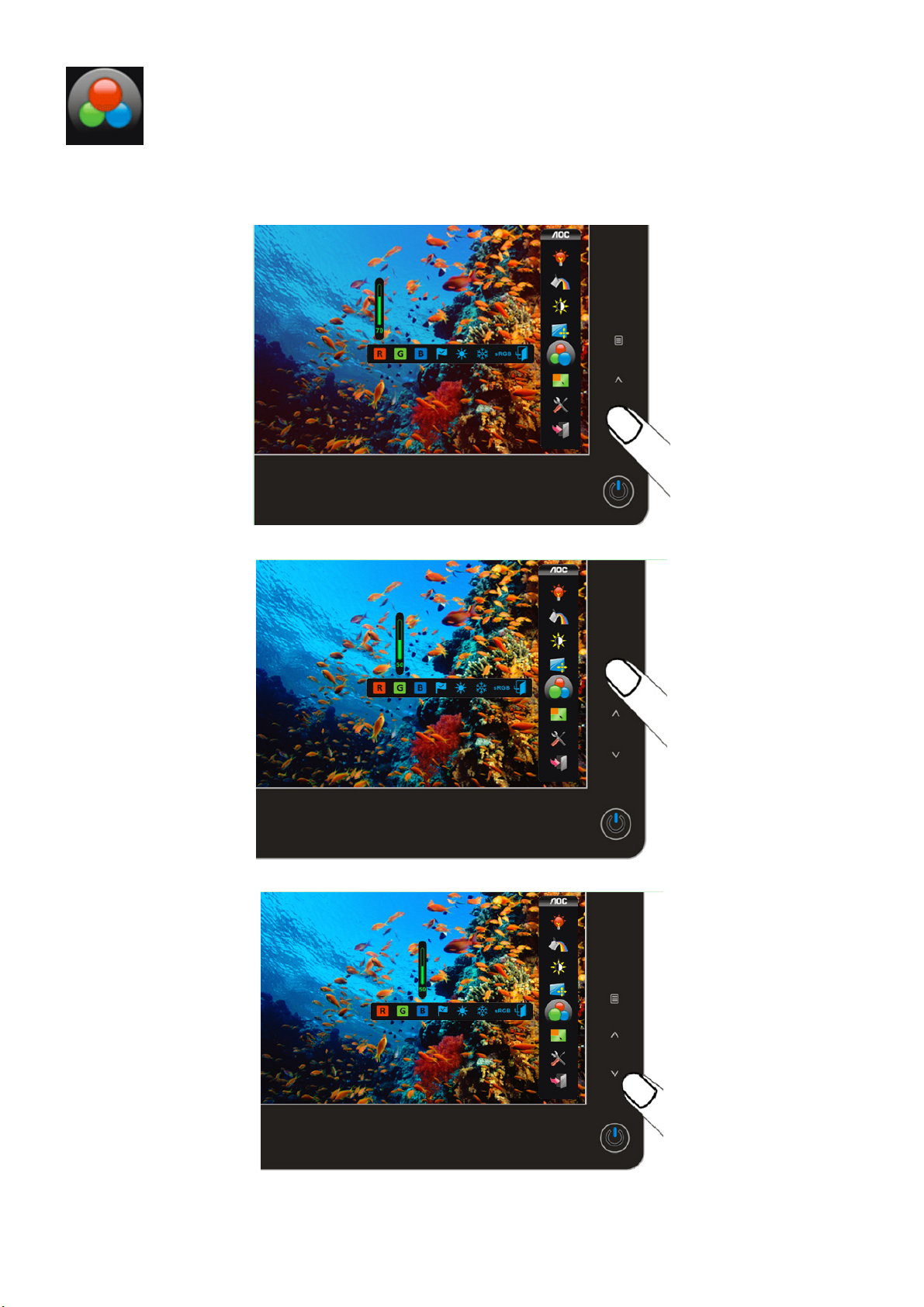

色温----红，绿，蓝，正常色温，暖色温，冷色温，sRGB,退出

蓝

19

正常色温

暖色温

冷色温

20

sRGB

退出

备注： 当选择三 RGB 色温时，对比度、亮度、亮度情景模式、伽玛等模式不能调整。

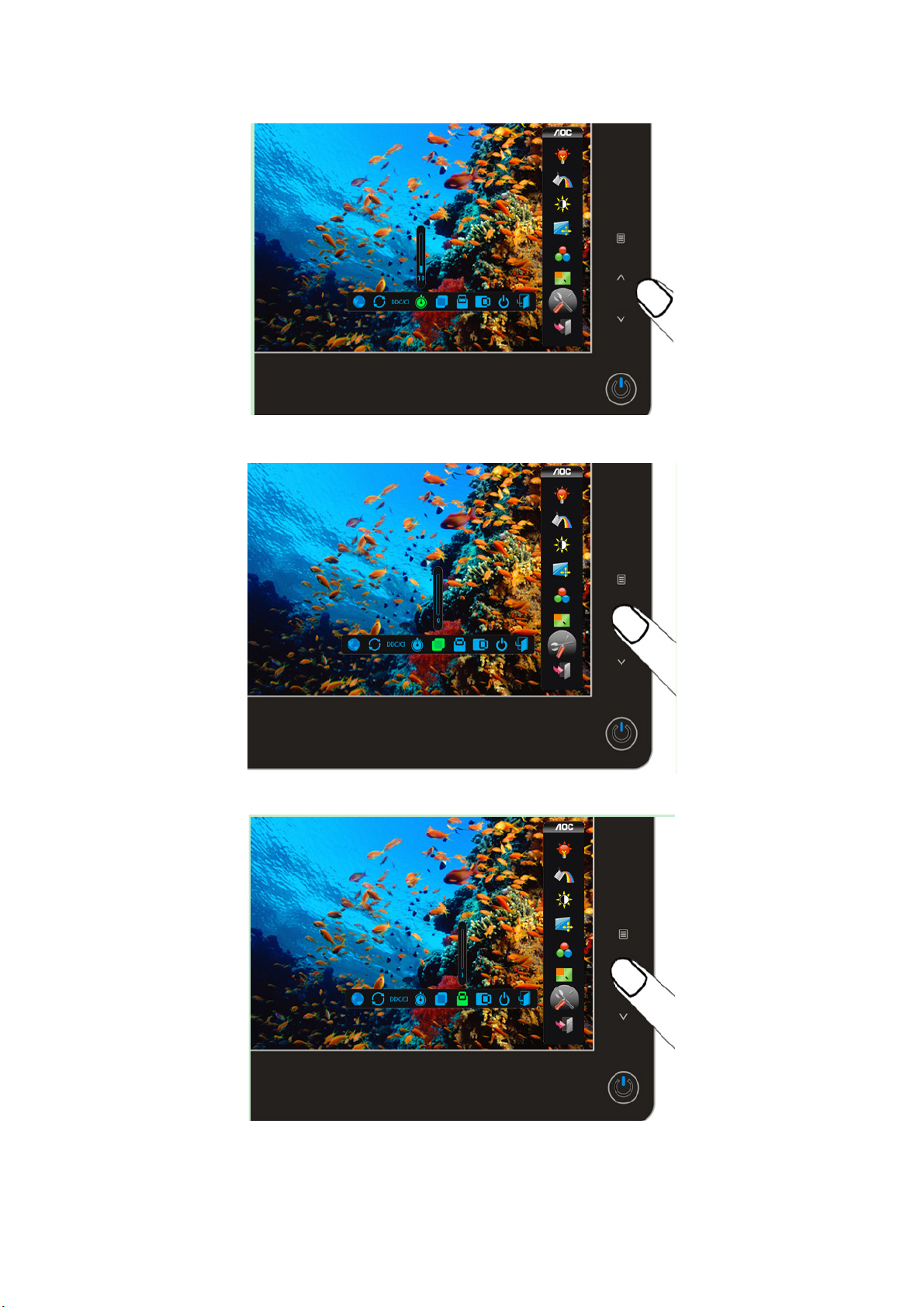

窗口增量---垂直位置，水平位置，对比度，亮度，窗口尺寸，增亮，退出

垂直位置

21

水平位置

对比度

亮度

22

窗口尺寸

增亮

退出

备注：当DCR、色彩增强、窗口增强中有一个被激活，其他两个功能将被关闭。

23

语言

重置

其它：语言，重置， DDC-CI, 显示时间，透明度，垂直位置，水平位置，定时关机，退出

DDC-CI

24

显示时间

透明度

垂直位置

25

水平位置

定时关机

退出

26

退出

状态 LED 颜色

开机模式 蓝色

离机模式 橙色

27

3. 工厂模式调整

进入工厂模式方法：

先按“电源”键关机，然后在按^(上)和ˇ(下)键的同时,按“电源”键开机，最后按“菜单”键，这时工厂模式菜单将出现在屏幕

的左上方。

a.基本调整:

设置对比度

设置亮度

为 50。

为 90。

b.增益调整:

调整9300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择9300K进行R G B增益调整

x = 283±30, y = 297 ±30,

调整7300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择7300K进行R G B增益调整

x = 302 ±30, y = 318 ±30,

调整6500K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313±30, y = 329 ±30,

调整sRGB色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 sRGB 进行 R G B 增益调整

x = 313±30, y = 329 ±30,

c.调整完毕直接关闭电源。

28

4. 故障处理流程

4.1 无供电

无供电

按下电源键看画面是否正常

NG

重新插插头然后检查 AC:100-240V 是否正常?

OK

NG

检查升压板部分和交流电源输入

检查 U404 Vout=3.3V; Q410 Vc=1.8V

OK

NG

检查或更换 CN404，U404,Q410

检查 X401 晶振是否正常

OK

NG

更换 X401

更换 U401

29

无画 (LED 橙色)

无画

检查信号线

OK

更换信号线

检查 U404 Vout=3.3V; Q410 Vc=1.8V

OK

检查 X401 震荡波是否正常

NG

OK

检查 CN101 的 HS/VS 是否正常

NG

OK

更换 CN404，U404,Q410

更换 X401

检查相关回路

更换 U401

30

白屏

白屏

检查 Q404 的基极是否为

低电平

NG

检查 X401 的晶振是否正

常

NG

OK

检查 Q405 是否损坏或

CN405 虚焊

NG

OK

检查相关元件

OK

检查 U401 复位电路是否

正常

NG

OK

更换 U401

更换 X401

检查相关元件

更换 PA NEL

31

4.2 电源板

死机

检测交流电 100V or 240V 是否正常？

OK

NG

检测 AC 输入

检测 C907 (+)的电压大小

OK

NG

检测 BD901 回路和 F902 回路

检测 U901 第 8 脚电压是否正常？

NG

OK

检测启动电阻或更换 U901

检测二次启动电压是否正常？

OK

NG

1) 检测 U901

2) 检测 D904 回路

检测 U901 第 5 脚的 PWM 波形

NG

OK

检测 U901

检测 D902,D906

32

无背光

检测 C811(+)电压是否为 14.5

NG

OK

检测 Adapter 回路

检测 ON/OFF 信号

NG

检测 U801 第 9 脚是否为 14.5V

OK

检测主板

NG

检测 U801 第 11,14 脚的 PWM 波形

OK

更换 U801

NG

OK

更换 U801

检测 Q803

NG

OK

更换 Q803

检测 T801

OK

NG

更换 T801

检查接口或灯管,反馈和保护回路

33

4.3 按键板

OSD 画面不稳定及不可调整

OSD 画面不稳定及不可调整

按键板是否连接正常

OK

按键开关是否正常

OK

NG

连接好按键板

NG

替换按键开关

按键板是否正常

OK

检查主板

NG

替换按键板

34

5 电气方框图

(

5.1 主板

Crystal

14.31818MHz

(X401)

Panel Interface

(CN405)

FLASH IC

MX25L2026MI-12G

U402)

Scalar IC TSUM1PLR-LF

（Include ADC,OSD,MCU）

(U401)

EEPROM

M24C02

(U405)

D-Sub Connector

Key Control Interface

(CN409)

(CN101)

35

5.2 电源板

t

t

(

AC input

EMI filter

Bridge
Rectifier
and Filter

Start Resistor

(R908)

Transformer

(T901)

Rectifier
diodes

14.5V

5V

Lamp

Output

Circui

Feedback

Circui

PWM Control

LD7576

U901)

Transformer

(T801)

Power Switch

(Q901)

Photo coupler

(U902)

MOSFET

(Q803)

PWM Control

AM9000ES

(U801)

Feedback

Circuit

Regulator

(U903)

14.5V

DIM

ON/OFF

36

6. 线路图

6.1 主板

715G3244 1

TSUM1PFR SCHEMATIC

CMVCC1

CMVCC1

VCC3.3

CMVCC

DSUB_5V

XGA/SXGA

DSUB_5V

02.Input

VCC1. 8

VCC3. 3

DSUB_5V

VCC3. 3

CMVCC1

VCC1. 8

VCC3. 3

CMVCC

CMVCC1

DSUB_R+

DSUB_R-

DSUB_G+

DSUB_G-

DSUB_SOG

DSUB_B+

DSUB_B-

DSUB_H

DSUB_V

DDC1_SDA

DDC1_SCL

DET_CABLE

EDID _CTRL

on_BACKLIGH T

Mut e

Volume#

PANEL_ID #DSUB_5V

Adj_BACKLIGH T

VCTRL

DSUB_R+
DSUB_R­DSUB_G+
DSUB_G­DSUB_SOG
DSUB_B+
DSUB_B­DSUB_H
DSUB_V
DDC1_SDA
DDC1_SCL
DET_CABLE

EDID _CTRL

on_BACKLIGH T

Mut e
Volume#
PANEL_ID #

Adj_BACKLIGH T

VCTRL

LVDS OUTPUT

VCC1. 8

VCC1. 8

VCC3. 3

CMVCC

CMVCC1

PA[0.. 1]

PA[4.. 9]

PB[0.. 9]

PPWR_ON #

VCC3. 3

PA[0.. 1]

PA[4.. 9]

PB[0.. 9]

CMVCC

CMVCC1

PA[0..1]

CMVCC

PA[4..9]

PB[0..9]

PPWR_ON #

CMVCC

05.Power

03.Scalar

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3324-I-X-X-6-090105

01.Top

37

04.Output

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

OTS R-series

715G3244-I

37Tuesday , January 06, 2009

of

Rev

称爹

A

F

称爹

>

<

DDC1_SCL5

DDC1_SDA5

R120

R121

R110

R113

D403

U405

Q407

R472

R473

R474

R475

R476

C434

R120

NC/ 10K 1/16W 5%

DDC1_SCL

DDC1_SDA

GND POWER

EDID internal

10K 1/16W 5%

10K 1/16W 5%

100R 1/16W 5%

100R 1/16W 5%

NC

NC

NC

NC

NC

NC

NC

NC

NC

VCC3.3

VCC3.3 7

R121

NC/10K 1/ 16W 5%

R110
NC/ 100R 1/16W 5%

R113
NC/ 100R 1/16W 5%

DGND

EDID external

NC

NC

NC

NC

BAV70

M24C02-WMN6TP

2N3904S-RTK/PS

4K7 1/16W 5%

4K7 1/16W 5%

4K7 1/16W 5%

47R 1/16W 5%

47R 1/16W 5%

0.22uF

DSUB_SCL

DSUB_SDA

H_Sy nc
V_Sync

15

14

13

12

11

DSUB_SDA

DSUB_SCL

VGA_G+

VGA_R+

R101 0R05 1/10W 5%

R105

2K2 1/16W 5%

CN101

DB15

10
5

DSUB_5V

9
4
8
3
7
2
6
1

17 16

U103
AZC199-04S

1

I/O1

I/O4

2

GND

VDD

3 4

I/O2 I/O3

U102
AZC199-04S

1

I/O1

I/O4

2

GND

VDD

3 4

I/O2 I/O3

DSUB_SCL
DSUB_SDA

R106
2K2 1/16W 5%

VGA_B­VGA_B+
VGA_G-

RLZ5.6B

VGA_G+
VGA_R­VGA_R+

6

H_Sy nc

5

V_Sync

6
5

R475 47R 1/16W 5%
R476 47R 1/16W 5%

DDC1_SDA
DDC1_SCL

ZD103

VGA_B+

C102

22pF

VGA_PLUG

R102 100R 1/16W 5%
R103 100R 1/16W 5%

C103

22pF

DSUB_5V

ZD104
RLZ5.6B

R472

4K7 1/16W 5%

DSUB_5V 5

CMVCC1

2

R474

R473

4K7 1/16W 5%

DSUB_H 5
DSUB_V 5

VGA_B+

VGA_B-

VGA_G+

VGA_G-

VGA_R+

VGA_R-

DSUB_5V

1

3

8

4K7 1/16W 5%

7
6

M24C02-WMN6TP

FB102

1 2

BEAD

FB103

1 2

BEAD

FB101

1 2

BEAD

D403

BAV70

U405

1

A0

VCC

2

A1

WP

3

A2

SCL

45

VSSSDA

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

R107

75R 1/16W 5%

R112

75R 1/16W 5%

R116

75R 1/16W 5%

C434

0.22uF16V

Q407
LMBT3904LT1G

G3244-G-X-X-6-090105

02.Input

VGA_PLUG

CMVCC1

C104

5pF/50V

C108

5pF/50V

C111

5pF/50V

100R 1/16W 5%

R118
10K 1/16W 5%

R122

R104

100R 1/16W 5%

R108

100R 1/16W 5%

R109

390 OHM 1/16W

R111

100R 1/16W 5%

R114

100R 1/16W 5%

R115

100R 1/16W 5%

R117

CMVCC1 5

NC

R123 4K7 1/16W 5%

OEM MOD EL Size

TPV MOD EL

PCB NAME

Sheet

C101

0.047uF

C105

0.047uF

C106

0.047uF

C107

0.047uF

C109

0.047uF

C110

0.047uF

C113

0.047uF

DET_CABLE 5

EDID _CTRL

AOC 836S

715G3244-I

47Tuesday, January 06, 2009

of

DSUB_B+ 5

DSUB_B- 5

DSUB_SOG 5

DSUB_G+ 5

DSUB_G- 5

DSUB_R+ 5

DSUB_R- 5

Rev

称爹

B

F

<

称爹

>

38

SST

For user data, WB, EDID,
HDCP are saved in

Eon

Flash.

SST

Befor AOC ID2007 OSD

010A

020A

For ID2008 ID2009

Eon

020

For All model

VCC3.3

C408

0.22uF16V

R408

10K 1/16W 5%

CMVCC1

CMVCC17

CMVCC7

According to MST's
request, reserve another
RST circuit.

CN408

6
5
4
3
2
1

NC/CONN

CN409

7
6
5
4
3
2
1

TOUCH POWER

CONN

10uF/50V

CMVCC

C430

NC/10uF/50V

NC/10K 1/16W 5%

ZD404

NC/UDZSNP5.6B

C410

+

U402

U402

U402

+

R421

1 2

U402

1

CS#

2

DO

HOLD#

3

WP

WP#

4 5

VSS DI

EN25F20-100GCP

R417

10K 1/16W 5%

R460

NC

R483

0R05 1/16W

R427

3.9K OHM 1/ 16W

C413
NC/0.1uF /16V

ZD402

NC/UDZSNP5.6B

8

VCC

7
6

CLK

C411 47pF

C412 47pF

VCC3.3

C414
NC/0.1uF /16V

ZD403

NC/UDZSNP5.6B

1 2

Near to Connect

DSUB_R+3
DSUB_R-3
DSUB_G+3
DSUB_G-3
DSUB_SOG3
DSUB_B+3
DSUB_B-3
DSUB_H3
DSUB_V3
DDC1_SDA3
DDC1_SCL3

AVDD

R403 390 OHM 1/16W

R456 0R05 1/16W
R457 0R05 1/16W

R405 100R 1/16W 5%

0R05 1/16W

X401

14.31818MHz

0R05 1/16W

1 2

LED_ORANGE/TOUCH VCC

R484

NC

R428

3.9K OHM 1/16W

KEY1
KEY2
POWER_KEY#
LED_GRN/BLUE
LED_ORANGE/TOUCH VCC

C415

NC/ 0.1uF/16V

1 2

LED_ORANGE/TOUCH VCC

0.1uF/ 16V

R401

R402

C416

0.1uF/ 16V

C401

U401

13

RIN0P

12

RIN0M

10

GIN0P

9

GIN0M

11

SOGIN0

8

BIN0P

7

BIN0M

16

HSYNC0

17

VSYNC 0

18

DDCA_SDA/RS232_TX

19

DDCA_SCL/rs232_RX

4

REXT

15

REFP

14

REFM

21

SDO

22

SCZ

23

SCK

24

SDI

28

GPIO_P27/PWM1

54

RST

1

XIN

2

XOU T

31

MODE [0]

32

MODE [1]

R404

NC/10K 1/16W 5%

VCC3.3

AVDD

6

AVDD_ADC

GND

R463 NC
R464 NC

R478 NC

R461 NC/0R05 1/16W
R462 NC/0R05 1/16W

C417

R407
10K 1/16W 5%

NC/ 0.1uF/16V

FB404

NC/150 OHM

FB405

TOUCH POWER

150 OHM

ZD401

NC/RLZ5.6B

VCC3.3

51

VDDP

LVDS

GND

GND

5

29573

TSUM1PFR-LF

C433

1uF 10V

VCC1.8

30

53

VDDC

VDDC

LVBCKP
LVBCKM

GPIO_P15/ PWM0
PWM2/GPIO_P24

GPIO_P12

PWM1/GPIO_P25

GPIO_P00/ SAR1
GPIO_P01/ SAR2

GPIO_P06
GPIO_P07

PWM0/GPIO_P26

GPIO_P13
GPIO_P14

GPIO_P10/I2C_MCL
GPIO_P11/I2C_MDA

CN406

1
2
3
4
5
6
7
8

NC/CONN

CN402

1
2
3
4
5
6

NC/CONN

CN407

1
2
3
4
5
6
7

NC/CONN

52

VCTRL

LVA3P

LVA3M

LVA2P

LVA2M

LVA1P

LVA1M

LVA0P

LVA0M

LVB3P

LVB3M

LVB2P

LVB2M

LVB1P

LVB1M

LVB0P

LVB0M

RSTN

PA0

33

PA1

34

PA4

35

PA5

36

PA6

37

PA7

38

PA8

39

PA9

40

PB0

41
42

PB1

43

PB2
PB3

44

PB4

45
46

PB5

47

PB6

48

PB7
PB8

49

PB9

50

R424 NC

20
27

55
56

R411 100R 1/ 16W 5%

58

R412 100R 1/ 16W 5%

59

R414 10K 1/16W 5%

60

R410 1K 1/16W 5%

61

R418 NC/100R 1/16W 5%

62
63
64

R419 NC/100R 1/16W 5%

Max condition for LED:

1. Vcc = 3.3 V

2. Current = 12 mA
FW need to be modified.

26
25

R413 100R 1/ 16W 5%

LED_G/B

PA[0..1]

PA[4..9]

PB[0..9]

KEY2
KEY1

LED_G/B
LED_O

CMVCC1

R467

R466

2K2 1/16W 5%

LED_O

0R05 1/10W 5%

23

Q403

1

LMBT3906LT1G

R469

1K 1/16W 5%

R470

0R05 1/10W 5%

Q402
LMBT3906LT1G

When use touch
Key,GPIO_P07 as
to control touch
key VCC

VCTRL 7

PA[0..1] 5

PA[4..9] 5

PB[0..9] 5

R425

NC

on_BACKLIGH T 7
adj_BACKLIGH T 7

Volume# 7

Mute 7

PPWR_ON# 6
DET_CABLE 4

LED_GRN/BLUE

R468 200 OHM 1/16W

CMVCC1

R481

NC/0R 05 1/16W

VCC3.3

R482 0R05 1/16W

LED_ORANGE/TOUCH VCC

R471 0R 1/16W 5%

FB401

300OHM

C403

0.1uF/ 16V

C406

0.1uF/ 16V

For RSTN detect
function

CMVCC7

NC/AO3401

NC/0.1uF /16V

R455

NC

EE_WP

Without NVRAM

NC

NC

NC

NC

NC

NC

NC

NC

AVDD

C404

0.1uF/16V

C407

0.1uF/16V

CMVCC

Q401

C409

U403

8
7
6

NC/M24C 04-WMN6TP

OEM MOD EL Size

TPV MOD EL

PCB NAME

CMVCC1

R458

NC/10K 1/16W 5%

R459

R406

NC/6K8 1/16W 5%

VCC

NC
WC
SCL

VSSSDA

Sheet

NC/47K 1/16W 5%

R409

NC/10K 1/16W 5%

VCC3.3

C429

NC

1
2

E1

3

E2

45

When NVRAM is used,
POWER_KEY# and PANEL_ID#
will not be used at same
time.

R425, C418 depend on
case.

PANEL_ID# and POWER_KEY#
could be optional.

AOC 836S

715G3244-I

of

57Sunday, May 31, 2009

C

Rev

F

称爹

>

<

称爹

EDID_C TRL

PANEL_ID # 7

R454

R453

NC

NC

VCC3.3

VCC1.8

VCC3.37

VCC1.87

EE_WP

C418

NC

R485 0R05 1/ 16W

R426 NC/100R 1/16W 5%

R420 NC/100R 1/16W 5%

R451 NC

MSCL
MSDA

MSDAR452 NC

POWER_KEY #

MSCL

For NVRAM

U403

M24C04-WMN6TP

0.22uF16V

C419

R424

100R 1/16W 5%

R451

100R 1/16W 5%

100R 1/16W 5%

R452

R453

10K 1/16W 5%

R454

10K 1/16W 5%

10K 1/16W 5%

R455

R426

R420

NC

NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

NC or 100R 1/16W 5%

NC or 100R 1/16W 5%

G3244-G-X-X-6-090105

03.Scalar

39

PA[0. .1]5

PA[4. .9]5

PB[0. .9]5

PA[0. .1]

PA[4. .9]

PB[0. .9]

PA0
PA1

PA4
PA5
PA6
PA7
PA8
PA9

PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9

R477

NC/150R 1/ 4W 5%

PANEL_VC C

R434

330 OHM 1/4W

3

D

1

G

AO3401L

CN403

1
2

C420

0.1uF /16V

PA0
PA1
PB2
PB3
PA4
PA5

PA6
PA7

PA8 PA6
PA9
PB0
PB1
PB2

2

S

PB3

PB4
PB5
PB6
PB7
PB8
PB9

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

PA1
PB3
PA5
PA7

PB1
PB3
PB5
PB7
PB9

PANEL_VC C

CN 405

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29

CONN

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30

PA0
PB2
PA4

PA8PA9
PB0
PB2
PB4
PB6
PB8

2006-11-7 Add pull up 4K7 to MVCC

R435

4K7 1/16W 5%

PPWR_ON#5

PPWR_ON#

R433

10K 1/16W 5%

R436

100K 1/16W 5%

Q404
PMBS3906

絬 隔 瓜 絪 腹

Key Component

CMVCC

C419

0.1uF /16V

123

4

Q411

SSS

Q405
AO3401

T P V ( Top Victory Electronics Co . , Ltd. )

G3244-G-X-X-6-090105

04.Output

Date

G

D

5

DDD

876

120OHM

NC/AO4411

FB402

40

NC/CONN

CMVCC 7

PANEL_VC C

C421

+

100uF/ 25V

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

AOC 836S

715G3244-I

of

67Sunday , May 31, 2009

Rev

称爹

<

A

F

称爹

>

2008/01/14
BAT99 : If 0.05A,VF=1.0V
BAV70 : If 0.05A,VF=1.0V
It's need to use Low Dropout Regulator.

CN404

9
8
7
6
5
4
3
2
1

CONN

BKLT-VBRI

CMVCC5, 6

CMVCC
CMVCC
BKLT-VBRI
BKLT-EN
C_PANEL_I NDEX
Volume
Mute

VCC3.3

R441

1K 1/16W 5%

CMVCC

R442

100R 1/16W 5%

NC/0 OHM 1/3W

D402

R450 NC

NC(R 0402)

DSUB_5V

2

3

PANEL_ID # 5

adj_BACKLIGH T 5

1

CMVCC1

D401
NC/ BAV99

R449

NC

Volume

DSUB_5V 2

CMVCC1 5

Mut e 5

VCC3. 3

R446

NC

Q408
NC/ LMBT3904LT1G

BKLT-EN

C425

NC

VCC3. 3

R447

NC/10K 1/16W 5%

R448
NC/ 4K7 1/16W 5%

VCC3. 3CMVCC1

R437

R465

10K 1/16W 5%

NC

Q406

LMBT3904LT1G

Volume# 5

VCC3.3

R440

4K7 1/16W 5%

R439

10K 1/16W 5%

on_BACKLIGH T 5

CMVCC1

+

VCC3. 3

R480

2.2 OHM 2W

R479
NC/0R05 1/4W 5%

Q410
KN2907AS

VCTRL5

MVCC

C426

100uF/25V

C428

0.1uF/ 16V

FB403 NC

VIN

VOUT

ADJ(GND)

U404
AP1117D33L-13

3
2
1

C422

0.1uF/ 16V

U404 can use package 223 or 252.

Q409
KN2907AS

VCC3. 3

+

C427

100uF/25V

C432

0.1uF/ 16V

VCC1.8

+

C423

100uF/25V

VCC3.3 4, 5

VCC1. 8 5

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G3244-G-X-X-6-090105

05.Power

絬 隔 瓜 絪 腹

Key Component

OEM MODEL Size

TPV MO DEL

PCB NAME

Sheet

AOC 836S

715G3244-I

77Sunday , May 31, 2009

of

Rev

称爹

B

F

称爹

>

<

41

6.2 电源板

715G2892P01019001C

BD901

KBP208G

2

R900

620K OHM 1/4W

C902

1000PF/250VAC

!

!

1

+

-

4

!

C909
NC/0. 22uF/275V

L901

3

142

30mH

R901

620K OHM 1/4W

!

C908

0.47uF/ 275V

C903

1000PF/250VAC

3

CN901
SOCKET

3

!

R902

620K OHM 1/4W

NR901
NTCR

!

F902
FUSE

12

R931

R929 100 OH M 1/4W

R930 100 OH M 1/4W

R903 100 OH M 1/4W

C937

0.01uF/ 2KV

NC

R932
NC

!

R933
NC

D908
NC/IN4148

C927

0.047uF
R934
NC

C915

C907

+

!

100UF450V

1000PF/250VAC

R921
NC/ 100K 1/10W 1%

C938

U901

1

CT

HV

2

COMP

NC

3

CS

VCC

4 5

GNDOUT

LD7576

C914
470pF

!

8
7
6

C912

0.1uF/ 25V

1500PF2KV

R908
10K OHM 1/4W +-5%

C913

+

22uF/50V

D907
IN4148

R917
10R 1/4W 5%

10K 1/10W 1%

R923
220 OHM 1/4W

R918

C911

D904
FR103

R906
100KOHM +-5% 2WS

!

D903

FR107

R913

1.5 OHM 1/4W +-5%

!

Q901
FMA07N65GX

12

FB901
BEAD

R924

0.39 OHM 2W +-5%

U902

PC123X2YFZ OF

C900

0.0022UF

!

T901
POWER X'FMR

6

5

4
2

1

43

12
11

7
8

10
9

12

U903
KIA431A-AT/P

R919
150R 1/8W 5%

R920
1K 1/10W 1%

C924

0.1uF/ 16V

R928
1K 1/10W 1%

R909 100 OH M 1/4W

R910 100 OH M 1/4W

R912 100 OH M 1/4W

D905 NC/31DQ06FC3

!

CN902

MUTE

9
8

ON/OF F

VOL

7
6
5
4
3
2
1

DIM

Wire Harnes s

HS1
HEAT SINK(Q901)

1
2

HS3
HEAT SINK(D 906_5V/2.5A)

1
2

HS2
NC/H EAT SINK(D906_5V/4A)

1
2

GND1
GND

1
2

+5V

C926

0.1uF/ 16V

D901
NC/SR 5150

1 2

D902
SB5150

1 2

2

1

2008-12-01

C916

0.001uF

2008-11-22

C917

0.001uF

+

D906

3

FMW-2156

2008-12-01

C921

+

NC

T P V ( Top Victory Electronics Co . , Ltd. )

G2892-1-3-X-1-090204

絬 隔 瓜 絪 腹

Key Component

01.POWER

Date

C918

+

1000uF 25V

1000uF/16V
C925

C920

+

1000uF 25V

2008-12-01

L907

C923

0.001uF

ZD901
MTZJ T-72 16B

1 2

R905
470R 1/10W 5%

R907
1K 1/10W 1%

R916

3.65K OHM 1% 1/10W

F903

NC

2008-12-01

R904
220 OHM 2W

Q904

KTD1028

L906

C922

+

470uF 16V

R935
NC

NC

C931

+

NC

936SW/2036S

OEM MOD EL Size

PWPC9921MHD 1

TPV MODEL

715G2892-F-3

PCB NAME

Sheet

of

23Wednesday , February 04, 2009

R914

43.2K OHM 1% 1/4W

R925

2.43K OHM 1% 1/10W

2008-12-01

+5V1

F801
0R05 1/4W 5%

F901

FUSE

Custom

Rev

称爹

+14.5V

+5V

1

ODM MODEL

42

+14.5V

DIM

ON/OF F

R817

10K 1/10W 5%

R811

10K 1/10W 5%

C809

0.001uF

20K 1/10W 1%

RJ805

0R05 1/4W 5%

C810

R809

100K 1/10W 5%

C808

C807

0.01uF

R810

1uF 16V

0.0039uF/16V

8 9
7
6
5
4
3
2
1

OV2

LI2

LI1

C811

+

470uF 25V

0.1uF50V

MPS10091

DBRT VIN
EN
FSET
FT
COMP
LI2
LI1
OV2

U801

REF

R805

C814

R816

10 OHM +-5% 1/10W

C815

C806

0.047uF

10

BT

11

TG

12

SW

13

VCC

14

BG

15

GND

16

OV1

OV1

R813

3.3 OHM +-5% 1/10W

C805

REF

1uF 16V

R812

3.3 OHM +-5% 1/10W

RJ807

0R05 1/4W 5%

RJ803

0R05 1/4W 5%

1uF 25V

R815

10 OHM +-5% 1/10W

4
3
2
1

R814

10 OHM +-5% 1/10W

G2
S2
G1
S1

P8008HV

T801

6

POWER X'FMR

C813

2N2 50V

Q803

5

D2

6

D2

7

D1

8

D1

C812

2N2 50V

3
4

1 8

OV2

7

OV1

10K 1/10W 5%

10K 1/10W 5%

10K 1/10W 5%

C801

LI1

REF

R806
10K 1/10W 5%

C803

10pF3KV

10pF3KV

C802

0.0033uF/50V

LI2

C804

0.0033uF/50V

RJ804
0R05 1/4W 5%

BAW56

2

1

R807

R808

2K 1/10W 5%

D803

0R05 1/4W 5%

RJ806
0R05 1/4W 5%

2K 1/10W 5%

R803

R801
412 OHM 1/10W

3

RJ801

R804

0R05 1/4W 5%

R802
412OHM 1/10W

RJ802

CN801

1
2

CONN

CN802

1

CONN

2

43

T P V ( Top Victory Electronics Co . , Ltd. )

G2892-1-3-X-1-090204

絬 隔 瓜 絪 腹

Key Component

02.INVERTER

Date

936SW/2036S

OEM MODEL Size

TPV MOD EL

PWPC9921MHD1

715G2892-F-3

PCB NAME

33Wednesday , February 04, 2009

of

Sheet

Custom

1

Rev

ODM MOD EL

称爹

7. 机器拆装图

1.将机器放于 EPE 垫上。

2.将机器面朝下放平，使用小十字起或专用工具按住后壳 Push 处卡勾下支架。

3.将机器正面朝上放平顶部朝向自己怀里。

44

4.用手在前框标签方位掰开前框

5.以前框 USB 接口一边为中心掰开 3 侧，然后停止下前框，注意：按键板一侧不做掰开动作，不可蛮力拉扯前框，以
免按键板脱落。

6.机器翻至背面从 USB 口方向着手，一手按压住 Panel 一手拉开后壳。

45

7.拆机过程中注意按键板一边前框后壳最后分离开。

注意 ：最后开

7.依次拆开按键板连接 PIN（A&B），灯管线(C&D)，撕开铝箔（E&F）、拔下 FFC PIN（G），主板故障时取下六角螺丝（H）。

8.将前框从 Panel 面移开。用螺丝刀把锁附铁盘和 Panel 的螺丝松开分别取下，然后将 panel 和铁盘分离开。

46

9.视维修初步判定的故障区域，对 A、B、C、D、E 处的螺丝进行拆卸取下相应的组件进行维修。取 POWER 板时要先拆
下 AC 铁片。

10.维修 KEY BOARD 时使用小一字工具将其与前框剥离取下。

47

8. ISP 和 DDC 烧录 SOP

请登陆 ftp://cs.tpv.com.cn/ 到各相应的文件夹下载各相应平台的烧录 SOP。

账号: TPVSQZ
密码: TPVZGDLSQZ20090707

注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。

48

9. 料件清单

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

T8ACM5ND6WA3QNE

点位 组件 对象描述 备注

026G 800504 H BARCODE
040G 58162435A P/N LABEL FOR MANUAL PE BAG
052G 1186 SMALL TAPE
052G 1208 A ALUMINIUM TAPE
052G 1211 B Tasma aluminiowa
052G 1211550 ALUMINUM FOIL TAPE
052G 2191 A PAPER TAPE

E08902 089G 715HAAE01 SIGNAL CABLE
E08901 089G414A15N HL POWER CORD
E09503 095G8014 7TE11 HARNESS 7P(2008)-6P(1615) 450

0D1G1030 8120 screw
0M1G 130 5120 SCREW
705GH934024 18.5"LCD STAND-BASE ASS'Y

E750 750GAC185WA313N000 PANEL CLAA185WA03 AL7 FZ CPT
E750 750GAC185WA323N000 PANEL CLAA185WA03 AN8 FZ CPT 2nd Source

H40G 18N61536A 936Sw+ PRC ID LABEL
H40G 58161569A USB LABEL
H40G 58169017A CEL-1 LABEL
H40G 58261524A BASIC VISTA-R LABEL
H40G 58261571A 936SW+ PRC CARTON LABEL
H41G7800615 7H OC WARRANTY BOOKLIST
H41G780061580B QSG
H44G8018101 EPS 936S
H44G8018201 EPS 936S
H44G8018615 7B 936SW+ CARTON
H45G 77 6 PE PACKING
H45G 87 18 23 PE BAG FOR MONITOR
H70G200961545B 936SW+ CD MANUAL
KEPC8QR3 KEY BOARD
PWPCA921MHD2 POWER BOARD
Q15G0413102 MAIN FRAME
Q34G0558AEDB1B0100 bezel L185WA-936
Q34G0559AEDA1S0100 rearcover L185WA-936
Q45G 76 28 H A PE BAG FOR MANUAL
Q45G 76 28V13 A PE BAG
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 big carton tape for aoc
Q85G0118101 AOC 936S AC SHIELD

E09501 S95G80183H92 HARNESS 30P-30P 140MM

USB9HA1 USB BOARD
USBAHA5 USB BOARD
0Q1G1040 8120 SCREW
Q01G6064 1 NO-SUGGEST screw
Q34G0560AED 1S0100 AOC-836 stand_front
Q34G0561AED 1S0100 AOC-936 stand_rear
Q34G0562AED 2S0130 AOC-936 base
Q37G0133011 AOC 936S HINGE
756GHACB A1043 MAIN BOARD-CBPCAM5A1H2

SMTCA-U402 100GAMC8011W11 MCU ASS'Y-056G1133137

CN409 033G3802 7B Y W WAFER
CN404 033G3802 9B Y W WAFER

49

040G 45762412B CBPC LABEL

R480 061G152M22964L RST MOFR 2.2ohm +-5% 2WS

CN101 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW

X401 093G 22 53 YC Crystal 14.31818MHz/32PF 49U/S YC

CN405 311GW200C30ABL WAFER 2.0mm 2*15P

A33G0564 2 1L0100 Key-Guide
H52G1201 1 3M DOUBLE FACE TAPE

GND1 009G6005 1 GROUND TERMINAL
CN802 033G8021 2E L CONNECTOR 3.5MM 2P
CN801 033G8021 2E L CONNECTOR 3.5MM 2P

040G 45762412B CBPC LABEL

U902 056G 139 3A PC123Y22FZOF SHARP

NR901 061G 5810X RST NTCR 8 OHM +-20% 4A P=7.5mm

C908 063G107K2246S1 X2 CAP 0.22UF K 275VAC
C937 065G 2M103 3B 0.01uF 2KV 20% Y5U
C801 065G 3J5096ET 5PF 5% SL 3KV
C803 065G 3J5096ET 5PF 5% SL 3KV
C902 065G305M1022BP CAP Y2 1000PF M 250VAC
C903 065G305M1022BP CAP Y2 1000PF M 250VAC
C900 065G306M2222BP 2200PF 20%
C925 067G215P1023AV CAP 105C 1000UF M 16V
C918 067G215P1024AV CAP 105C 1000UF M 25V
C920 067G215P1024AV CAP 105C 1000UF M 25V
C811 067G215P4714AV CAP 105C 470UF M 25V
C922 067G215S4713KV

EC 105℃ CAP 470UF M 16V
C907 067G215Z10115A CAP 105C 100UF M 450V
L901 073G 174 65 H2 LINE FILTER 30mH MIN
L906 073G 253191 H IND CHOKE 1.1uH DADON
T901 080GL17T 47 N X'FMR 600uH YUVA-1080
T801 080GL22T 1 H1 X'FMR INVERTER 72uH

CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND

D902 093G 60335 DIODE SR515 5A/150V DO-201AD

CN902 095G 825 9T518 HARNESS 9P-9P 120MM

705GQ857021 Q901 ASS'Y
705GQ893027 D906 ASS'Y
PWA921MHD2SMT POWER BOARD FOR SMT

BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON
CN511 033G3802 5 BH L CONNECTOR 5PIN
CN512 088G 352 2 XH USB CONN

715G2663 2 USB BOARD PCB
CN501 033G3802 5B Y L CONNECTOR 5P 2.0
CN502 088G 351 2B XH USB CONN

E09508 095G8014 5DH09 HARNESS 5P(PH)-5P(PLUG) 180MM

C410 067G 2151007RT 105C 10UF M 50V
C426 067G 3051014KT EC 100uF 25V PF 6.3x11mm
C423 067G 3051014KT EC 100uF 25V PF 6.3x11mm
C421 067G 3051014KT EC 100uF 25V PF 6.3x11mm
C427 067G 3051014KT EC 100uF 25V PF 6.3x11mm
U401 056G 562702 IC TSUM1PLR-LF LQPF-64 MSTAR
U404 056G 563 52 IC AP1117D33G-13 TO252-3L DIODES
U102 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U405 056G1133 34 M24C02-WMN6TP
U402 056G1133137 IC MX25L2026MI-12G SOP-8
Q404 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q409 057G 417 22 T TRA KN2907AS -60V/-0.6A SOT-23
Q410 057G 417 22 T TRA KN2907AS -60V/-0.6A SOT-23

50

Q402 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
Q403 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
Q406 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q407 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q405 057G 763 1 AO3401 SOT23 BY AOS
R471 061G0402000 RST CHIP MAX 0R05 1/16W
R485 061G0402000 RST CHIP MAX 0R05 1/16W
R483 061G0402000 RST CHIP MAX 0R05 1/16W
R482 061G0402000 RST CHIP MAX 0R05 1/16W
R457 061G0402000 RST CHIP MAX 0R05 1/16W
R456 061G0402000 RST CHIP MAX 0R05 1/16W
R402 061G0402000 RST CHIP MAX 0R05 1/16W
R401 061G0402000 RST CHIP MAX 0R05 1/16W
R442 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R413 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R412 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R411 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R405 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R115 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R114 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R111 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R108 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R104 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R103 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R102 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R469 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R441 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R410 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R439 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R437 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R433 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R417 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R414 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R408 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R407 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R118 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R436 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W
R468 061G0402201 RST CHIP 200R 1/16W 5%
R105 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W
R106 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W
R466 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W
R109 061G0402390 0F RST CHIP 390R 1/16W 1%
R403 061G0402390 0F RST CHIP 390R 1/16W 1%
R428 061G0402392 RST CHIP 3.9K 1/16W 5%
R427 061G0402392 RST CHIP 3.9K 1/16W 5%
R475 061G0402470 RST CHIPR 47 OHM +-5% 1/16W
R476 061G0402470 RST CHIPR 47 OHM +-5% 1/16W
R123 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R435 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R440 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R472 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R473 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R474 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R107 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

51

R101 061G0603000 RST CHIP MAX 0R05 1/10W
R467 061G0603000 RST CHIP MAX 0R05 1/10W
R470 061G0603000 RST CHIP MAX 0R05 1/10W
R434 061G1206331 RST CHIPR 330 OHM +-5% 1/4W
D402 061G2010000 NO-SUGGEST RST CHIP MAX 0 OHM 3/4W
C432 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C428 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C422 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C420 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C419 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C416 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C407 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C406 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C404 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C403 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C401 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C433 065G0402105 A5 NO-SUGGEST CAP 0402 1UF K 10V X5R
C103 065G0402220 31 CHIP 22PF 50V NPO
C102 065G0402220 31 CHIP 22PF 50V NPO
C408 065G0402224 17 NO-SUGGEST MLCC 0402 0.22UF Z 16V Y5V
C434 065G0402224 17 NO-SUGGEST MLCC 0402 0.22UF Z 16V Y5V
C411 065G0402470 31 MLCC 0402 CAP 47PF J 50V NPO
C412 065G0402470 31 MLCC 0402 CAP 47PF J 50V NPO
C113 065G0402473 12 CHIP 0.047uF 16V X7R
C110 065G0402473 12 CHIP 0.047uF 16V X7R
C109 065G0402473 12 CHIP 0.047uF 16V X7R
C107 065G0402473 12 CHIP 0.047uF 16V X7R
C106 065G0402473 12 CHIP 0.047uF 16V X7R
C105 065G0402473 12 CHIP 0.047uF 16V X7R
C101 065G0402473 12 CHIP 0.047uF 16V X7R
C104 065G0402509 31 CHIP 5pF 50V NPO
C108 065G0402509 31 CHIP 5pF 50V NPO

C111 065G0402509 31 CHIP 5pF 50V NPO
FB405 071G 56G151 A CHIP BEAD 150 OHM
FB402 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB401 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB101 071G 59K190 B 19 OHM BEAD
FB102 071G 59K190 B 19 OHM BEAD
FB103 071G 59K190 B 19 OHM BEAD

D403 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

ZD103 093G 39GA01 T RLZ5.6B
ZD104 093G 39GA01 T RLZ5.6B

715G3244 1 MAIN BOARD PCB

CN001 033G8034 6H H X WAFER 1.0mm SMT 6P

U001 056G 669 10 IC CG7246AM QFN-16(COL)

R012 061G0603000 RST CHIP MAX 0R05 1/10W

R009 061G0603000 RST CHIP MAX 0R05 1/10W

R008 061G0603000 RST CHIP MAX 0R05 1/10W

R001 061G0603000 RST CHIP MAX 0R05 1/10W

R002 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R005 061G0603561 RST CHIPR 560 OHM +-5% 1/10W

R006 061G0603561 RST CHIPR 560 OHM +-5% 1/10W

R007 061G0603561 RST CHIPR 560 OHM +-5% 1/10W

R004 061G0603561 RST CHIPR 560 OHM +-5% 1/10W

C001 065G0603102 31 CHIP 1000PF 50V NPO

C002 065G0603225 A5 CHIP 2.2uF 10V X5R

LED001 081G15BY 2 GP LED GPTD1204BOC1-A GP

52

ZD004 093G 39S 34 T UDZSNP5.6B ROHM
ZD005 093G 39S 34 T UDZSNP5.6B ROHM

715G3371 2 KEY BOARD PCB

Q901 057G 667924 MOSFET SMK0965F

HS1 090G6064 1 HEAT SINK

0M1G 930 8120 SCREW

HS3 090G6084 1 GP HEAT SINK

D906 093G1506 2 FMW-2156

0M1G 930 8120 SCREW
U901 056G 379128 IC LD7576 GS SOP-8
U801 056G 379154 IC AM9000ES SOIC-16
Q803 057G 763 92 FET P8008HV 4A/80V SOP-8
R819 061G0603000 FF RST CHIPR MAX0R01 1/10W FENGHUA
R818 061G0603000 FF RST CHIPR MAX0R01 1/10W FENGHUA
R816 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R815 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R814 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R920 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R907 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R928 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R918 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R809 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W
R805 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R806 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R807 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R808 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R811 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R817 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R803 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
R804 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
R810 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W
R925 061G0603243 1F NO-SUGGEST RST CHIPR 2.43 KOHM +-1% 1/10
R813 061G0603339 RST CHIPR 3.3 OHM +-5% 1/10W
R916 061G0603365 1F RST CHIPR 3.65 KOHM +-1% 1/10W
R801 061G0603430 0F RST CHIPR 430 OHM +-1% 1/10W
R802 061G0603430 0F RST CHIPR 430 OHM +-1% 1/10W
R905 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R919 061G0805151 RST CHIPR 150 OHM +-5% 1/8W

RJ802 061G1206000 RST CHIP MAX 0R05 1/4W
RJ801 061G1206000 RST CHIP MAX 0R05 1/4W

F801 061G1206000 RST CHIP MAX 0R05 1/4W

RJ807 061G1206000 RST CHIP MAX 0R05 1/4W
RJ806 061G1206000 RST CHIP MAX 0R05 1/4W
RJ805 061G1206000 RST CHIP MAX 0R05 1/4W
RJ804 061G1206000 RST CHIP MAX 0R05 1/4W
RJ803 061G1206000 RST CHIP MAX 0R05 1/4W

R903 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R909 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R910 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R912 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R929 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R930 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R908 061G1206103 NO-SUGGEST RST CHIPR 10 KOHM +-5% 1/4W
R913 061G1206159 NO-SUGGEST RST CHIPR 1.5 OHM +-5% 1/4W
R917 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R923 061G1206221 NO-SUGGEST RST CHIPR 220 OHM +-5% 1/4W
R812 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN

53

R914 061G1206432 2F NO-SUGGEST RST CHIPR 43.2 KOHM +-1% 1/4W
R900 061G1206624 NO-SUGGEST RST CHIPR 620 KOHM +-5% 1/4W
R901 061G1206624 NO-SUGGEST RST CHIPR 620 KOHM +-5% 1/4W
R902 061G1206624 NO-SUGGEST RST CHIPR 620 KOHM +-5% 1/4W
C923 065G0603102 32 1000PF +-10% 50V X7R
C915 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R
C810 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R
C926 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R
C924 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R
C912 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R
C808 065G0603105 17 1UF 16V Y5V
C805 065G0603105 17 1UF 16V Y5V
C914 065G0603471 32 CHIP 470PF 50V X7R
C809 065G0805102 32 CHIP 1000P 50VX7R 0805
C815 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R
C814 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C802 065G0805222 31 NO-SUGGEST MLCC 0805 2200PF J 50V NPO
C804 065G0805222 31 NO-SUGGEST MLCC 0805 2200PF J 50V NPO
C812 065G0805222 32 NO-SUGGEST CAP CHIP 0805 2200PF 50V X7R
C813 065G0805222 32 NO-SUGGEST CAP CHIP 0805 2200PF 50V X7R
C807 065G0805392 31 CHIP 3900PF 50V X7R 0805
C927 065G0805473 32 CHIP 0.047UF 50V X7R
C806 065G0805473 32 CHIP 0.047UF 50V X7R
C916 065G1206102 72 NO-SUGGEST CHIP 1000PF 500V X7R
C917 065G1206102 72 NO-SUGGEST CHIP 1000PF 500V X7R
D803 093G 64 38 P BAW56

PW9A21SHD2AI POWER BOARD FOR AI
C503 065G0603104 12 CER2 0603 X7R 16V 100N P
C501 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO
C502 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO

FB501 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

715G3501 2 USB BOARD PCB

CN901 006G 31500 EYELET

U903 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC
Q904 057G 530503 T 2SD1207T
R906 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA
R924 061G152M39852T SY RST MOF 0.39R 5% 2W
R904 061G152M47152T SY RST MOFR 470 OHM +-5% 2WS
C911 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P
C913 067G215Y2207KT

CAP 105℃ 22UF M 50V KINGNICHI

FB901 071G 55 29 FERRITE BEAD

F901 084G 56 4W FUSE 4A 250V
F902 084G 56 4W FUSE 4A 250V

ZD901 093G 3916752T MTZJ T-72 16B

D903 093G 6026T52T RECTIFIER DIODE FR107
D904 093G 6038T52T FR103 AO
D907 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

J804 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J806 095G 90 23 JUMPER WIRE
J807 095G 90 23 JUMPER WIRE
J808 095G 90 23 JUMPER WIRE
J822 095G 90 23 JUMPER WIRE
J901 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE

54

J906 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J909 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J921 095G 90 23 JUMPER WIRE
J810 095G 90 23 JUMPER WIRE
J811 095G 90 23 JUMPER WIRE
J809 095G 90 23 JUMPER WIRE
J803 095G 90 23 JUMPER WIRE
J802 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE

715G2892P01019001C POWER BOARD PCB

55
