SERVICE MANUAL
维 修 手 册
客户/品牌 机种名
AOC 931Sn
1
变更说明
版本 发布日期 变更说明 对外机种名 对内机种名
T89GHDNDW5A3NNE
A00 Jan.-14-2010 Initial Release 931Sn
T89CHDNDW5A4NNE
T89AHDNDW5A4NNE
2
目录
1. 技术规格-------------------------------------------------------------------------------------------------------------- 4
1.1 一般规格 --------------------------------------------------------------------------------------------------------- 4
1.2 工厂预设模式 --------------------------------------------------------------------------------------------------- 5
2. 操作说明-------------------------------------------------------------------------------------------------------------- 6
2.1控制面板--------------------------------------------------------------------------------------------------------- 6
2.2接口说明--------------------------------------------------------------------------------------------------------- 7
2.3 OSD 菜单调整 -------------------------------------------------------------------------------------------------8
3. 工厂模式调整-------------------------------------------------------------------------------------------------------- 11
4. 故障处理流程-------------------------------------------------------------------------------------------------------- 12
4.1 主板--------------------------------------------------------------------------------------------------------------- 12
4.2 电源板------------------------------------------------------------------------------------------------------------ 15
4.3 按键板------------------------------------------------------------------------------------------------------------ 17
5. 电气方框图----------------------------------------------------------------------------------------------------------- 18
5.1主板--------------------------------------------------------------------------------------------------------------- 18
5.2电源板------------------------------------------------------------------------------------------------------------ 19
6. 线路图----------------------------------------------------------------------------------------------------------------- 20
6.1主板--------------------------------------------------------------------------------------------------------------- 20

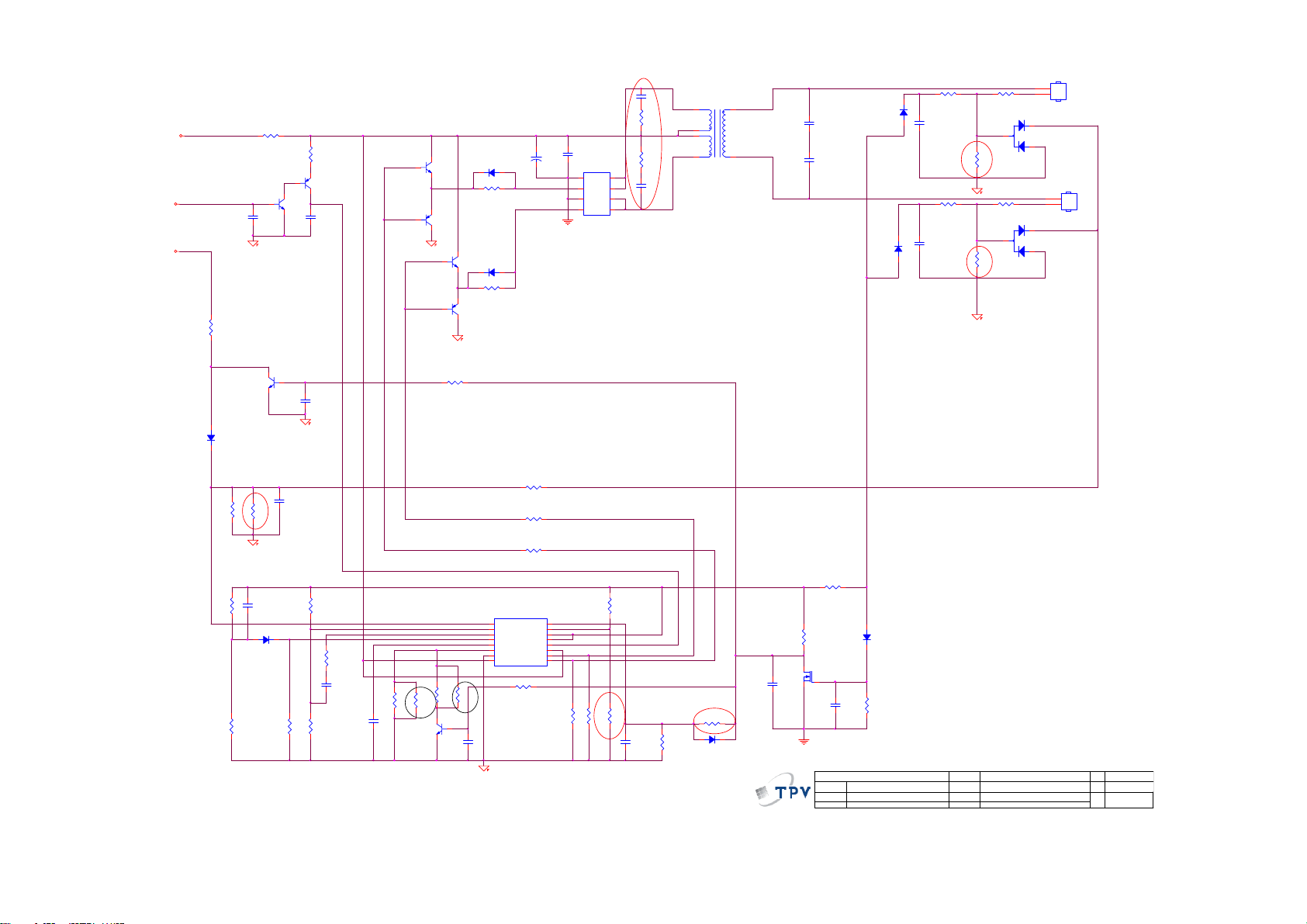

6.2电源板------------------------------------------------------------------------------------------------------------ 24
7. 料件清单-------------------------------------------------------------------------------------------------------------- 26
3
1.技术规格
1.1 一般规格
LCD 面板
分辨率
产品代码
驱动系统 TFT 彩色 LCD
可视尺寸 47.0cm 对角
像素间距
视频 R, G, B 模拟接口
独立同步 行 /场 TTL
显示颜色 16.7M 色彩
点时钟
水平扫描范围
水平扫描尺寸（最大）
垂直扫描范围
垂直扫描尺寸（最大）
预设的最佳分辨率
预设的最高分辨率
即插即用
输入连接器 D-Sub 15 针
931Sn
0.3mm(H) x 0.3mm(V)
85.5 MHz
30 kHz - 81 kHz
409.8mm
55 Hz - 75 Hz
230.4mm
1366 x 768 (60 Hz)
1366 x 768 (60 Hz)
VESA DDC2B/CI
物理 特性
输入视频信号 模拟： 0.7Vp-p（标准），75 OHM
电源
功率消耗
连接器类型 15- 针 Mini D-Sub
信号电缆类型 可分离
尺寸和重量：
高度 (含底座)
宽度
深度
重量（仅监视器）
重量（含包装）
温度
工作时
非工作时
湿度：
100-240VAC, 50/60Hz
开机 < 25 W
离机 < 1 W
357.9 mm
455.2mm
219.7mm
3.53kg
4.86 kg
0°- +40°
-20°- +60°
环境
工作时 10% - 85%（非凝露）
非工作时 5% - 80%（非凝露）
海拔高度
工作时
非工作时
4
0~3000m (0~10000 ft)
0~5000m (0~15000 ft)
1.2 工厂预设模式
标准 分辨率 水平频率(kHZ) 垂直频率(Hz)
VGA 640 x 480 @60Hz 31.469 59.94
VGA 640 x 480 @67Hz 35 66.667
VGA 640 x 480 @72Hz 37.861 72.809
VGA 640 x 480 @75Hz 37.5 75
Dos-mode 640 x 400 @70Hz 31.469 70.087
Dos-mode 720 x 400 @70Hz 31.469 70.087
SVGA 800 x 600 @56Hz 35.156 56.25
SVGA 800 x 600 @60Hz 37.879 60.317
SVGA 800 x 600 @72Hz 48.077 72.188
SVGA 800 x 600 @75Hz 46.875 75
Mac-mode 832 x 624 @75Hz 49.725 74.5
XGA 1360 x 768 @60Hz 47.712 60.015
XGA 1024 x 768 @60Hz 48.363 60.004
XGA 1024 x 768 @70Hz 56.476 70.069
XGA 1024 x 768 @72Hz 57.5 72.074
XGA 1024 x 768 @75Hz 60.023 75.029
XGA 1024 x 768 @75Hz 60.241 74.927
WSXGA 1366 x 768 @60Hz 47.765 59.85
5
2.操作说明
2.1 控制面板
外部控制
按电源开关即可开关显示器。其它功能按键位于前面板下方 。通过调节这些功能键可得到您需要的画面。
* 接好电源线。
* 将信号线接到 PC 机显卡。
* 打开显示器把开关打到开机位置，电源指示灯亮。
1 亮度情景模式(动态对比度) / -
2 4:3/宽屏切换 /+
3 电源开关
4 自动调整 / 退出
5 菜单键/选择
6
2.2 接口说明
管脚号 信号电缆的 15 针一端 管脚号 信号电缆的 15 针一端
1 视频 - 红色 9 +5V
2 视频 - 绿色 10 接地
3 视频 - 蓝色 11 接地
4 接地 12 DDC- 串行数据
5 检测电缆 13 H- 同步
6 GND-R 14 V- 同步
7 GND-G 15 DDC- 串行时钟
8 GND-B
7
2.3 OSD 菜单调整
• 按 MENU 按钮激活 OSD 窗口。
• 按 + 或 - 浏览这些功能。 如果想要调整的功能突出显示，按 MENU 按钮激活它。如果所选的功能包含有
子菜单，再按一下 + 或 - 可以浏览到子菜单功能。如果想要调整的功能突出显示，按 MENU 按钮激活它。
• 按 + 或 - 更改所选功能的设置。要退出和保存，请选择退出功能。
• 如果您想调整其它任何功能，请重复步骤 2-3 。
• OSD 锁定功能： 要锁定 OSD ，请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器。 要解
锁 OSD ，请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器 。
• 亮度情景模式及动态对比度热键： 在画面没有 OSD 时，连续按此热键可选择不同的亮度情景应用模式及打
开动态对比度功能。
• 4:3 及宽屏画面切换热键 : 在画面没有 OSD 时, 连续按此键可进行 4:3 或宽屏显示模式切换(如果产品屏幕尺
寸是 4:3 或者输入信号的分辨率是宽屏模式时, 此键无作用)。
• 自动调整快捷键: 当没有 OSD 菜单时, 按自动调整快捷键可启动自动调整功能。
功能控制说明.
明亮度 调整数值 说明
亮 度 0-100 调整显示亮度
对比度 0-100 调整显示对比度
Eco Mode
标准
节能
8
正常使用模式
文本应用模式
网络
网络应用模式
游戏
电影
运动
游戏应用模式
观赏电影应用模式
观赏户外运动模式
伽玛 1 调整为伽玛值 1
伽玛
伽玛 2 调整为伽玛值 2
伽玛 3 调整为伽玛值 3
关闭
关闭动态对比度
DCR
开启
开启动态对比度
图象设置
时钟 0-100 调整图片时钟以降低垂直线噪声
相位 0-100 调整图片相位以降低水平线噪声
水平位置 0-100 调整图片的水平位置
垂直位置 0-100 调整图片的垂直位置
色温
暖色 6500K 设置为暖色温
正常 7300K 设置为正常色温
冷色 9300K 设置为冷色温
sRGB 设置为 sRGB
红 微调红色色温
用户设定
绿 微调绿色色温
蓝 微调蓝色色温
色彩增强
全色增强 关闭/开启 开启或关闭全色增强模式
自然肤色 关闭/开启 开启或关闭自然肤色模式
绿茵场景 关闭/开启 开启或关闭绿色增强模式
蔚蓝风景 关闭/开启 开启或关闭蓝色增强模式
自动检测 关闭/开启 开启或关闭自动增强模式
演示 关闭/开启 开启或关闭左画面演示
窗口增亮
窗口尺寸 14-100 调整窗口尺寸大小
亮 度 0-100 调整窗口亮度
9
对比度 0-100 调整窗口增强对比度
水平位置 0-100 调整水平窗口位置
垂直位置 0-100 调整垂直窗口位置
增亮 关闭/开启 开启或关闭增亮窗口
OSD 设置
水平位置 0-100 调整 OSD 水平位置
垂直位置 0-100 调整 OSD 垂直位置
显示时间 5-120 调整 OSD 显示时间
透明度 0-100 调整 OSD 透明度
语言 选择 OSD 语言
其它
LED 指示灯
输入选择
模拟 选择输入为模拟信号源
自动调整 是或者否 自动调整画面
画面比例 宽屏或 4:3 选择宽屏或 4:3 显示格式
DDC-CI 是或者否 打开/关闭 DDC-CI 支持
定时关机 0~24 小时 设定显示器关机时间
显示信息 显示输入信号信息
重置
重置 是或者否 恢复到出厂设置
退出
退出 退出 OSD
状态 LED 颜色
开机模式 绿色或蓝色
离机模式 橙色或红色
10
3.工厂模式调整
进入工厂模式方法：
机器应处于开机状态，关断输入的220V电源，按住Menu键，然后接通电源，工厂模式菜单将位于屏的左上角。
a.基本调整:
设置对比度 为 50。
设置亮度
为 90。
b.增益调整:
调整9300K色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择9300K进行R G B增益调整
x = 283 ±30, y = 297 ±30, Y = 180 ±30 cd/m
调整7300K色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择7300K进行R G B增益调整
x = 302 ±30, y = 318 ±30, Y = 180 ±30 cd/m
调整6500K色温
2
2
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择 6500K 进行 R G B 增益调整
x = 313 ±30, y = 329 ±30, Y = 180 ±30 cd/m
调整sRGB色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择 sRGB 进行 R G B 增益调整
x = 313 ±30, y = 329 ±30, Y = 180 ±30 cd/m
c.调整完毕直接关闭电源。
2
2
11
4.故障处理流程
4.1 主板
无供电
无供电
按下电源键看画面是否正常
NG
重新插插头然后检查 AC:100-240V 是否正常?
OK
检查 U404 Pin2=3.3V; U405 Pin2=1.8V
OK
检查 X401 晶振是否正常
OK
NG
NG
NG
检查适配器及升压板部分和交流电源输入
检查或更换 CN404,U404,U405
更换 X401
更换 U401
12
无画 (LED 橙色)
无画
检查信号线
G
OK
检查 U404 Pin2=3.3V; U405 Pin2=1.8V
OK
N
检查 X401 震荡波是否正常
OK
检查 CN101 的 HS/VS 是否正常
OK
NG
更换 U401
更换信号线
更换 CN404,U404,U405
更换 X401
检查相关回路
13
白屏
白屏
检查 Q404 的基极是否
为低电平
OK
检查 FB402 是否损坏或
CN403 虚焊
OK
NG
更换 PA NEL
NG
检查相关元件
检查 X401 的晶振是否正常
OK
NG
检查 U401 复位电路是否正常
NG
OK
更换 U401
更换 X401
检查相关元件
14
4.2 电源板
死机
检测交流电 100V or 240V 是否正常？
OK
检测 C907 (+)的电压大小
OK
检测 IC901 第 8 脚电压是否正常？
OK
检测二次启动电压是否正常？
OK
NG
NG
NG
NG
检测 AC 输入
检测全桥整流回路和 F901 回路
检测 R904, R932 或更换 IC901
1) 检测 IC901
2) 检测 D903 回路
检测 IC901 第 5 脚的 PWM 波形
NG
OK
检测 D905,D906,D907,Q901,IC903,ZD902
检测 IC901
15
无背光
检测 C802(+)电压是否为 12V
NG
OK
检测 ON/OFF 信号
NG
OK
检测 IC801 第 12 脚是否为 12V
NG
OK
检测 IC801 第 9/10 脚的 PWM 波形
检测 Adapter 回路
检测主板
更换 IC801
NG
OK
检测 T801 的输出
NG
OK
检查接口或灯管,反馈和保护回路
检测 Q802
更换 T801
16
4.3 按键板
OSD 画面不稳定及不可调整
OSD 画面不稳定及不可调整
OK
按键板是否连接正常
OK
按键开关是否正常
OK
NG
连接好按键板
NG
替换按键开关
按键板是否正常
OK
检查主板
NG
替换按键板
17
5.电气方框图
5.1 主板
FLASH ROM
SST25LF020A
(U402)
EEPROM
M24C04
(U406)
Crystal 24.576MHz
(X401)
Scalar IC HX6803-A000LAG
(Include ADC, OSD, MCU)
D-Sub Connector
(CN101)
(U401)
Panel Interface
(CN403)
Key Control Interface
(CN408)
18
5.2 电源板
(
EMI filter
Output
Circuit
Bridge
Rectifier,Filter
Start Circuit
(R904,R932)
PWM Control IC
LD7575A PS
Transformer
(T801)
Transformer
(T901)
Power Switch
(Q901)
Rectifier diodes
MOSFET
(Q802)
12V
5V
Regulator
(IC903)
12V
Lamp
Feedback
Circuit
PWM Control IC
TL494IDR
IC801)
ON/OFF
DIM
19
6.线路图
6.1 主板
H_Sync
R101 80 OHM
V_Sy nc
R105
2K2 1/16W 5%
R110
DDC1_SCL3
DDC1_SDA3
DDC1_SCL
DDC1_SDA
100R 1/ 16W 5%
R113
100R 1/16W 5%
DSUB_SCL VGA_PLUG
DSUB_SDA
CN101
10
5
15
9
4
14
8
3
13
7
2
12
6
1
11
DB15
17 16
R106
2K2 1/16W 5%
DSUB_5V
B_GND
VGA_B+
G_GND
VGA_G+
R_GND
VGA_R+ VGA_G+
ZD103
UDZSNP5.6B
C102
22pF
1 2
R102 1K 1/16W 5%
R103 1K 1/16W 5%
C103
22pF
DSUB_5V
ZD104
UDZ SNP5.6B
1 2
DSUB_5V 5
DSUB_H 3
DSUB_V 3
VGA_B+
B_GND
G_GND
R122
CHIP BEAD
R123
CHIP BEAD
R107
75R 1/16 W 5%
R112
75R 1/16 W 5%
C121
10pF
C120
10pF
R104
390R 1/16W 5%
R109
390 OHM 1/16W
R111
390R 1/16W 5%
C101
0.047uF
C106
0.047uF
C107
0.047uF
DSUB_B+ 3
DSUB_SOG 3
DSUB_G+ 3
GND POWER DGND
DSUB_SDA
DSUB_SCL
VGA_G+
VGA_R+ VGA_B+
U103
1
I/O1
2
GND
I/O23I/O3
AZC099-04S
U102
1
I/O1
2
GND
I/O23I/O3
AZC099-04S
VDD
VDD
I/O4
I/O4
H_Sync
6
5
V_Sync
4
6
5
4
5V_ESD
候綼
ESD_5V
候綼
C115
NC
U103
C114
NC
U101
C118
0.1uF/16V
CMVCC15
CMVCC1
U101
1
A0
VCC
2
A1
WP
3
A2
SCL
VSS4SDA
M24C02-WMN6TP
5V_ESD
8
7
6
5
FB104
300 OHM
4K7 1/16W 5%
EDID_WP
DDC1_SCL
DDC1_SDA
20
VGA_R+
R_GND
2
R119
R124
CHIP BEAD
DSUB_5V
1
DSUB_5V 5
D105
BAV70
3
R120
10K 1/16W 5%
絬 隔 瓜 絪 腹
Key Component
R121
10K 1/16W 5%
T P V ( Top Victory Electronics Co . , Ltd. )
G2681-1-4-X-1-090921
02.Input
Date
R116
75R 1/16 W 5%
R115
390R 1/16W 5%
C122
10pF
DET_CABLE3
OEM MODEL
TPV MO DEL
PCB NAME
Sheet
C110
0.047uF
VCC3.3
VCC3.3 3,5
R118
1K 1/16W 5%
R125
VGA_PLUG
4K7 1/16W 5%
TBD
AOC 931SN D
G2681-1-4
25Monday, Septem ber 21, 2009
of
DSUB_R+ 3
EDID _WP
Q410
2N3904S-RTK/PS
Size
Rev
称爹
B
<
称爹
>
VCC3.32,5
VCC1.85
CMVCC
VCC3.3
C408
0.22uF16V
R453
1K 1/16W 5%
R454
1K 1/16W 5%
NC
POWER_ON_LATCH
POWER_ON_LATCH Setting
SPI-Flash
Spansion(2M)
SST-010A
PMC,MXIC(1M)
PMC,MXIC(2M)
SST-020A
FB405
1 2
BEAD
FB406
1 2
C442
10uF/10V
VCC1.8
1 2
220OHM
C456
1uF/16V
Q412
R482
10K 1/16W 5%
SPI_WP#
VCC3.3
R452NCR451
R455
BEAD
VCC3IO
FB409
RST
2N3904S-RTK/PS
8
VDD
7
HOLD#
3
WP#
VSS4SDI
SST25LF020A-33-4C-SAE
NC
CSNSDO SCK
R456
1K 1/16W 5%
CSN
SDO
0
0
0
1
1
0
1
1
0
0
1
0
C438
0.1uF/16V
C441
10uF/10V
SDO
SCK
SCK
U402
CE#
0
0
0SST-010
0
1
0
VDDA_AD
VDDP_AD
VDDDP_AD
C406
0.1uF/16V
2
1
6
5
VSSA_AD
C433
0.1uF/16V
C403
0.1uF/16V
C439
0.1uF/16V
C404
0.1uF/16V
VCCK
SDI
CSN
SCK
SDO
C407
0.1uF/16V
C437
0.1uF/16V
VSSP_AD
VSSP_AD
VDDDP_AD
VCCLVP
VCC3IO
VCCK
VCCP
2
32
VCCP(1.8V)
VCCK(1.8V)
SDO
CSN
SCK
SDI
C412
33pF
R428
3.9K OHM 1/16W
KEY1
KEY2
POWER_KEY #
LED_GRN/BLUE
LED_ORANGE
C415
0.1uF/16V
6
B
7
G
8
SOG
9
R
11
HSYNC
12
VSYNC
17
DDCA_SDA/RS232_TX/GPIO17
18
DDCA_SCL/RS232_RX/GPIO18
4
VREF(1.25V )
14
FILT
22
SDO
23
CSN
24
SCK
25
SDI
62
TSTMD
63
RST_N
64
XTAL_ O UT
1
XTAL_ I N
R487
C416
10K 1/16W 5%
0.1uF/16V
HX6803-A000LAG
VSSA_AD
5
VSSA_AD
VCC3.3
DSUB_B+2
DSUB_G+2
DSUB_SOG2
DSUB_R+2
DSUB_H2
DSUB_V2
DDC1_SDA2
DDC1_SCL2
綼
IC PIN
VCCLVPVCCP
C436
0.1uF/16V
CN408
6
5
4
3
2
1
CONN
CN409
7
6
5
4
3
2
TOUCH_POWER
1
NC/CONN
IC PIN
綼
VCC3.3
GND
10K 1/16W 5%
GND
C405 0.01uF/ 25V
VDDP_AD
0.1uF/16V
R450
5K1 OHM 1/16W 5%
C455
10uF/10V
R421
3.9K OHM 1/16W
C413
0.1uF/16V
C401
0.1uF/16V
C402
4.7uF/16V
R402
1K6 OHM 1/16W 5%
C409
GND
R427
C414
0.1uF/16V
Near to Connect
VREF
R468 NCVCC3.3
R469 0R05 1/ 16W
RST
R401
XTAL_OUT
1M 1/16W 5%
X40 1
24.576MHz
C411
33pF
GND
X1 GROUNG
SHIELDING
VCC3.3
30
54
41
52
VCCK(1.8V)
VCC3IO(3.3V)
VCC3IO(3.3V)
VCCLVP(1.8V)
LVDS
USRD_MSCL/GPIO16
USRD_MSDA/GPIO15
VSSP_AD
GNDIO
GNDIO
15
31
53
VSSP_AD
GNDIO
GNDIO
GND
R463 NC
R464 NC
R485 NC/ 1K
R486 NC/1K 1/16W 5%
R488
C417
10K 1/16W 5%
0.1uF/16V
FB404
TOUCH_POWER
NC
ZD401
NC/UDZSNP5.6B
1 2
VDDA_AD
VDDP_AD
16
10
VDDP_AD(3.3V)13VDDA_AD(3.3V)
VDDDP_AD(3.3V)
LVBCKP
LVBCKN
PWMB/GPIO10
PWMC/GPI O11
PWMD/GPI O12
GPIO06
GPIO05
GPIO04/PWMC
GPIO03/PWMB
GPIO02/R S232_RX
GPIO01/RS232 _TX
GPIO00/PWMD
C445
NC
LVA3P
LVA3N
LVA2P
LVA2N
LVA1P
LVA1N
LVA0P
LVA0N
LVB3P
LVB3N
LVB2P
LVB2N
LVB1P
LVB1N
LVB0P
LVB0N
33
34
35
36
37
38
39
40
42
43
44
45
46
47
48
49
50
51
55
SAR0
56
SAR1
57
SAR2
58
59
60
3
61
29
28
27
26
19
21
20
U401
PA0
PA1
PA4
PA5
PA6
PA7
PA8
PA9
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
R411 100R 1/16W 5%
R412 100R 1/16W 5%
R420 100R 1/16W 5%
R419 NC/61G0402101
R418 NC /61G0402101
USRD_MSCL
USRD_MSDA
CN406
1
2
3
4
5
6
7
8
NC/CONN
CN402
1
2
3
4
5
6
NC/CONN
CN407
1
2
3
4
5
6
7
NC/CONN
SPI_WP#
UDP_WP
PA[0..1]
PA[4..9]
PB[0..9]
AC_DET
adj_BACKLIGHT 5
on_Panel 4
絬 隔 瓜 絪 腹
Key Component
PA[0..1] 4
PA[4..9] 4
PB[0..9] 4
KEY2
KEY1
Mute 5
Volume# 5
DET_CABLE 2
on_BACKLIGHT 5
R415 4K7 1/16W 5%
R416 4K7 1/16W 5%
R480 NC
R490 NC/61G0402101
R471 100R 1/ 16W 5%
R472 100R 1/16W 5%
R473
T P V ( Top Victory Electronics Co . , Ltd. )
Date
VCC3.3
R460
10K 1/16W 5%
100R 1/16W 5%
G2681-1-4-X-1-090921
03.Scaler
10K 1/16W 5%
R407
POWER_KEY #
PANEL_ID# 7
USER DATA
R461
10K 1/16W 5%
CMVCC
CMVCC5
R465
6K8 1/16W 5%
AC_DET
POWER_KEY #
VCC3.3 VCC3.3
OEM MOD EL
TPV MOD EL
PCB NAME
R467 10K 1/16W 5%
R466
C450
0R05 1/16W
0.1uF/16V
VCC3.3
R457
10K 1/16W 5%
SPI_WP#
R404
Q402
PMBS3906
R462
10K 1/16W 5%
Sheet
10K 1/16W 5%
R414
LED_GRN/BLUE
120R 1/16W 5%
C444
0.22UF 10V
U406
1
8
NC
VCC
7
2
E1
WC
3
6
E2
SCL
5
VSS4SDA
M24C04-WMN6TP
TBD
AOC 931SN D
G2681-1-4
of
35Monday, Sept ember 21, 2009
Q401
PMBS3906
R410
120R 1/16W 5%
Size
Rev
称爹
LED_ORANGE
Custom
称爹
>
<
21
3
D
PANEL_VC C
on_Panel3
1
G
AO3401L
4K7 1/16W 5%
2
S
R435
on_Panel
PA[0.. 1]3
PA[4.. 9]3
C446
NC/ 65G0402104 15
PA[0. .1]
PA[4.. 9]
R433
10K 1/16W 5%
R436
51K OHM 1/16W
Q404
PMBS3906
PA0
PA1
PA4
PA5
PA6
PA7
PA8
PA9
C419
0.1uF/ 16V
C447
NC
R481
47K 1/16W 5%
Q405
AO3401
PB[0.. 9]3
FB402
120OHM
PB[0.. 9]
VCC3. 3D 5
PA1
PB3
PA5 PA4
PA7
PA9
PB1
PB3
PB7
PB9
PANEL_VC C
C421
+
100UF25V
CMVCCD 5
Ripple Current NG
PANEL_VC C
R434
330 OHM 1/4W
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7 PB2
PB8
PB9
CN403
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
CONN
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
LVDS OUTPUT
C420
0.1uF /16V
PA0
PA1
PB2
PB3
PA4
PA5
PA6
PA7
PA8
PA9
PB0
PB1
PB3
PB4
PB5
PB6
PB7
PB8
PB9
PA0
PB2
PA6
PA8
PB0
PB2
PB4PB5
PB6
PB8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
CN405
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
G2681-1-4-X-1-090921
04.Out put
22
OE M MODE L
TPV MODEL
PCB NAME
Sheet
NC/ 33G801930F C H JS
TBD
AOC 931SN D
G2681-1-4
of
45Monday, September 21, 2009
Size
Rev
称爹
<
A4
称爹
>
CN404
CONN
ESD_5V
ESD_5V 2
CMVCC1 2
CMVCC 3
CMVCC1
CMVCCD 4
R449
NC
Mut e 3
PANEL_ID#
FB407 300 OHM
CMVCC
9
8
7
6
5
4
3
2
1
CMVCC
CMVCC
BKLT_VBRI
BKLT_EN
Volume
Mut e
D402
SR24
R491 NC
D403
BAT54C
VCC3.3 VCC3.3
R437
C425
NC
10K 1/16W 5%
R478 NC
Q406
2N3904S-RTK/PS
BKLT_EN
R440
4K7 1/16W 5%
R439
10K 1/16W 5%
on_BACKLIGH T 3
DSUB_5V
DSUB_5V2
CMVCC1
1
2
D401
NC/ BAV70//93G 64 42 P
3
R438
3.3 OHM 2W
C431
0.1uF/ 16V
VI3VO
C424
+
100uF M 16V
U405
2
4
VO
GND
1
C432
0.1uF/ 16V
VCC1.8
+
C423
100uF M 16V
VCC1.8 3
BKLT_VBRI
R476
0R05 1/16W
VCC3.3
R441
1K 1/16W 5%
Q411
2N3904S-RTK/PS
R477
4K7 1/16W 5%
R475
10K 1/16W 5%
adj_BACKLIGH T 3
VCC3.3 VCC3.3
R446
Volume
NC/ 10K 1/16W 5%
Q408
2N3904S-RTK/PS
R448
4.7K 1/16W
R447
NC
Volume# 3
CMVCC1
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
MVC C
+
C426
100uF M 16V
G2681-1-4-X-1-090921
05.POWER
C428
0.1uF/ 16V
U404
3
VIN
AP1117E33LA
1
2
3
VOUT
VSS
4
1
4
U403
ADJ(GND)
VOUT
VIN
NC/ AP1117D33LA
2
OEM MODEL
TPV MO DEL
PCB NAME
Sheet
VCC3.3D
FB408 NC,71G 56Z60 1
VCC3.3
VCC3.3 2,3
+
C422
0.1uF/ 16V
C427
100uF M 16V
TBD
931SN D
G2681-1-4
of
55Monday, September 21, 2009
VCC3.3D 4
Size
Rev
称爹
B
称爹
>
<
23
6.2 电源板
!
2
BD901
KBP208G
0.22UF
!
C902
1000pF
!
0.22UF
!
680K OHM 1/4W
R900
680K OHM 1/4W
NR901
NTCR
!
t
CN901
SOCKET
87G 501 32 S
1
+
-
4
C904
2
1
C908
R902
!
VAR901
Varistor
N.C
3
3
4
C901
1000pF
L901
30mH
!
12
3
!
!
!
!
R901
680K OHM 1/4W
!
!
R915
100K OHM 1% 1/8W
0.01uF
!
F901
FUSE
+
C907
82uF 450V
C938
NC
C911
0.1uF
IC901
1
RT
2
COMP
3
CS
VCC
GND4OUT
LD7575A PS
C928
GND1
GND
1
2
HS2
HEAT SINK(D906_Q90G6263-6)
1
2
HS3
HEAT SINK(Q901_Q90G6263-6)
1
2
R904
10K OHM 1/4W
R932
10K OHM 1/4W
8
HV
7
NC
6
5
R905
NC
R906
NC
R907
NC
D903
LL4148
R910
10R 1/4W
ZD905
RLZ18B
R912
220 OHM 1/4W
C909
470pF/25V
HS5
SHIELD(H 85G0002-1)
1
2
+
D901
FR103
C903
22uF/50V
1 2
C906
1500pF2KV
R938
10K 1/8W
R908
100KOHM + -5% 2WS
D900
FR107
R909
5.1 OHM 1/4W
!
Q901
2SK2645-54MR
R914
0.47 OHM +- 5% 2WS
4
5
6
2
1
!
C900
3300pF 250V
!
T901
POWER X'FMR
43
9
10
7
8
11
12
12
IC902
PC123X2YFZOF
IC903
AZ431AZ-AE1
R918
100 OHM 1/4W
R919
100 OHM 1/4W
R920
100 OHM 1/4W
R921
R922
NC
R923NC
R961 100 OH M 1/4W
R962 100 OH M 1/4W
R935 100 OH M 1/4W
C924
0.1uF
C912
0.001uF
2
1
3
D906
FCH 10U10
D907 NC
NC
D905 31D Q06FC3
C929
0.001uF
R925
1K 1/8W
R926
1K 1/10W 1%
C925
NC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
C917
680uF/25V
C910
NC
+
+
C918
680uF/25V
L905
NC
NC
C939
+
NC
C940
+
1000uF16V
G2852-3-4-X-6-090818
2.POWER
L904
1.0uH
+
C922
470PF50V
+
C921
R948
NC
Q904
NC
L903
1.0uH
R924
150R 1/8W
ZD922
RLZ5.1B
D916
LL4148
R942
1K 1/10W 1%
2.43K OHM 1% 1 /10W
R930
ZD923
NC
1 2
OEM MODEL
TPV MODEL
PCB NAME
Sheet
R946
150 OHM 2W
Q903
PMBS3904
1 2
R947
NC
R952
NC
ZD921
RLZ13B
1 2
R940
R927
3.6K OHM 1% 1/ 10W
PWPC9821GHD 1 A
715G2852-3-4
24Tuesday, August 18, 2009
33K 1/10W
D915
LL4148
VOL
MUTE
+5V
DIM
ON/OF F
0.1uF
F19S
of
C932
C915
470uF/16V
C931
0.001uF
+
1 2
R943
470R 1/8W
R939
1K 1/8W
NC
Size
Rev
称爹
ZD902
RLZ13B
F902
NC
F904
F903
NC
F905
0 OHM 1/4W
C930
0.1uF
CN902
1
2
3
4
5
6
7
8
9
10
CONN
Custom
ODM MODEL
+12V
+5V1
+5V
24
ON/OFF
1
2
D801
BAV99
D802
BAV99
CONN
CN801
2
1
1
2
CONN
CN802
2
1
C839
1500PF/50V
R855
+12V
DIM
F801
0 OHM 1/4W
Q805
PDTC144WK
C807
0.1uF/25V
R804
100R 1/8W
Q808
PDTA144WK
C825
0.1uF/25V
PMBS3904
Q804
PMBS3906
C802
Q801
23
1
Q811
PMBS3904
D810
NC
R839
22R 1/8W
D811
NC
470PF50V
C824
+
0.1uF
Q802
AM9945N-T1-PF
1
S
2
G
3
S
4
G
15R 1/4W
R856
15R 1/4W
8
D
7
C838
D
1500PF/50V
6
D
5
D
POWER X'FMR
6
3
4
T801
R817
7
C801
30pF/3KV
81
C803
30pF/3KV
D807
LL4148
D805
LL4148
C819
0.0022uF
C823
0.0022uF
10K 1/10W 1%
R828
10K 1/10W 1%
R821
1K 1/8W
3
R801
1K5 1/10W 1%
R822
1K 1/8W
3
R814
1K5 1/10W 1%
D817
LL4148
6K8 1/10W
10K 1/10W 1%
R827
1K 1/10W 1%
R851
R830
NC
R820
R802
8.2K 1/10W 1%
C822
1uF/25V
D812
LL4148
10K 1/10W 1%
Q806
PMBS3904
C842
0.01uF
R863
C835
NC
R832
10K 1/10W 1%
R831
1K 1/8W
R823
0R05 1/10W 5%
C821
0.1uF/25V
51K OHM 1% 1/8W
R810
C820
220pF50V
Q812
23
PMBS3906
1
R853
68K 1/10W
R861
NC
R865NCR864
Q807
N.C
新增
R850
22R 1/8W
R841
68K OHM 1% 1/10W
R829
22R 1/8W
R825
22R 1/8W
R837
47K 1/8W
R824
1K 1/10W 1%
R807
10K 1/10W 1%
R808
10K 1/10W 1%
C845
2.2uF/16V
R862
1M 1/10W 5%
R803
680K 1/10W
D814
LL4148
C834
0.1uF/25V
G2852-3-4-X-6-090818
3.INVERTER
D806
LL4148
R835
1M 1/10W 5%
OEM MODEL
F19S
TPV MODEL
PWPC9821GHD 1 A
PCB NAME
715G2852-3-4
34Tuesday, August 18, 2009
Sheet
of
Size
Custom
Rev
ODM MODEL
称爹
R818
1K 1/10W 1%
Q809
RK7002
C846
NC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
TL494IDR
IC801
1
1IN+
2
1IN-
3
FEEDBACK
4
DTC
5
CT
6
RT
7
GND
8
C1
NC
穝糤
C817
NC
OUTPUT CTRL
R854
NC
16
2IN+
15
2IN-
14
REF
13
12
VCC
11
C2
10
E2
9
E1
R826
1K 1/8W
25
7.料件清单
注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。
T89GHDNDW5A3NNE
点位 组件 对象描述 备注
026G 800504 H BARCODE
040G 58162435A P/N LABEL FOR MANUAL PE BAG
052G 1150 C INSULATING TAPE
052G 1186 SMALL TAPE
052G 1207 A
052G 1211 B
052G6019 1 INSULATING TAPE
E08902 089G 715HAAE01 SIGNAL CABLE
E08901 089G414A15N HL POWER CORD 1.5M
E09502 095G8014 6TE01 HARNESS 6P-6P 160MM
095G8018 3XH55 HARNESS 30P-30P 140MM
0D1G1730 8120 SCREW
0M1G1740 12120 SCREW 42-D021241
705GH934056 18.5 STAND ASS'Y
E750 750GLG185W1C14N000 PANEL LM185WH1-TLC1 WH LGD
H15G0023501 MAIN FRAME
H40G 18N61535B 931Sn PRC ID LABEL
H40G 58169017A CEL-1 LABEL
H40G 58261511B CARTON LABEL
H40G 58261546A BASIC SILVE LABEL
Conductive Tape 45mm *25mm *0.08mm (单导）
Conductive Tape 85mm *40mm *0.09mm (单导)
H41G7800615 7F WARRANTY BOOKLIST
H41G780061592A 931SwI QSG BLACK
H44G9903615 2C 931Sn CARTON
H45G 77 6 PE PACKING
H45G 87 1 4H A EPE COVER
H70G200961522C CD MANUAL
J44G9903101 EPS CUSHION
J44G9903201 EPS CUSHION
KEPC9HAC KEY BAORD
PWPC9821GHD1 POWER BAORD
Q33G0188AED 1L0100 key pad
Q33G0189 1 1C0100 LENS
Q34G0358BBM 1B0100 LOGO LOOP
Q34G0452AEDD2B0130 Bezel
Q34G0453ABJA4B0100 REAR COVER18.5"
26
Q34G0455AED 1B0100 STAND COVER
Q45G 76 28 H A PE BAG FOR MANUAL
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 big carton tape for aoc
0Q1G1030 8120 SCREW
Q01G6022 2 SCREW
Q34G0360AED 1B0130 BASE
Q34G0454AED 1B0100 STAND
Q37G0101011 HINGE(AOC 831Sw)
756GH9CB A4028 MAIN BOARD-CBPC9HDA1HA
U402 056G1133 81 SST25LF020A-33-4C-SAE
SMTCR-U402 100GAHG8005W11 MCU ASS'Y056G1133 81
CN408 033G3802 6B Y W WAFER
CN404 033G3802 9B Y W WAFER
CN403 033G8027 30 H WAFER 30P 2.0MM RIGHT ANGLE
040G 45762412B CBPC LABEL
R438 061G152M33964L RST MOFR 3.3 OHM +-5% 2WS
CN101 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW
X401 093G 2258B J NXS24.576AC20F-KAB11
CN001 033G3802 6H L CONNECTOR 6PIN
SW005 077G 602 1A CJ TACT SWITCH
SW004 077G 602 1A CJ TACT SWITCH
SW003 077G 602 1A CJ TACT SWITCH
SW002 077G 602 1A CJ TACT SWITCH
SW001 077G 602 1A CJ TACT SWITCH
LED001 081G 122CT GH
Φ3 黄蓝双色弯脚型 LED
CN802 033G8021 2E F WAFER
CN801 033G8021 2E F WAFER
040G 45762412B CBPC LABEL
IC902 056G 139 3A IC PC123Y22FZ0F
NR901 061G 58080 WT 8 OHM NCT
C908 063G107K224 UM X2 CAP 0.22uF K 275VAC
C904 063G107K224 UM X2 CAP 0.22uF K 275VAC
C801 065G 3J3006ET 30PF 5% SL 3KV TDK
C803 065G 3J3006ET 30PF 5% SL 3KV TDK
C901 065G305M1022BP Y2 1000PF M 250VAC Y5P
C902 065G305M1022BP Y2 1000PF M 250VAC Y5P
C900 065G306M3322BP 3300PF 20%
C907 067G 40Z82015K EC 82uF M 450V 18*35mm
C802 067G215D4714KV
E.C 105℃ CAP 470UF M 25V ED SERIES
27
C940 067G215P1023XV
CAP 105℃ 1000UF M 16V
C922 067G215P4714AV
CAP 105℃ 470UF M 25V
C918 067G215P6814XV CAP 105C 680UF M 25V
C917 067G215P6814XV CAP 105C 680UF M 25V
C915 067G215S4713KV
EC 105℃ CAP 470UF M 16V
L904 073G 253 91 V1 CHOKE COIL 1.1uH
L903 073G 253 91 V1 CHOKE COIL 1.1uH
L901 073L 174 40 HG GBQM4.778.391
CN901 087G 501 32 S AC SOCKET
D905 093G 60519 DIODE SR560 5A/60V DO-27 SECOS
CN902 095G 82510TE12 HARNESS 10P-9P 120MM
705GQ857020 Q901 ASS'Y
705GQ893028 D906 ASS'Y
PW9821MHD3SMT POWER BOARD FOR SMT
T801 S80GL17T40V Transformer
T901 S80GL19T26V Transformer ASS'Y
R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS
BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON
C424 067G 3051013PB
C427 067G 3051013PB
C426 067G 3051013PB
C423 067G 3051013PB
EC 105℃ 100uF M 16V 5*11mm
EC 105℃ 100uF M 16V 5*11mm
EC 105℃ 100uF M 16V 5*11mm
EC 105℃ 100uF M 16V 5*11mm
C421 067G 3151014KB EC 100uF M 25V 6.3*11
U405 056G 56327A IC AP1117E18LA SOT223-3L ANACHIP
U404 056G 563514 IC AZ1117H-3.3TRG1 1A/3.3V SOT223
U102 056G 662 13 IC AZC099-04S SOT23-6L
U103 056G 662 13 IC AZC099-04S SOT23-6L
U401 056G1126 48 IC HX6803-A000LAG LQFP-64
U406 056G1133 32 IC M24C04-WMN6TP SO8
U101 056G1133 34 M24C02-WMN6TP
U402 056G1133 81 SST25LF020A-33-4C-SAE
Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q404 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q412 057G 417 12 T KEC 2N3904S-RTK/PS
Q411 057G 417 12 T KEC 2N3904S-RTK/PS
Q410 057G 417 12 T KEC 2N3904S-RTK/PS
Q406 057G 417 12 T KEC 2N3904S-RTK/PS
Q405 057G 763 1 A03401 SOT23 BY AOS(A1)
R466 061G0402000 RST CHIP MAX 0R05 1/16W
28
R469 061G0402000 RST CHIP MAX 0R05 1/16W
R476 061G0402000 RST CHIP MAX 0R05 1/16W
R473 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R472 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R471 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R420 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R412 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R411 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R113 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R110 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R441 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R103 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R102 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R456 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R455 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R453 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R118 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R488 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R487 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R482 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R475 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R467 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R462 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R461 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R460 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R457 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R439 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R437 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R433 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R421 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R407 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R404 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R121 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R120 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R401 061G0402105 RST CHIPR 1MOHM +-5% 1/16W
R410 061G0402121 RST CHIP 120R 1/16W 5%
R414 061G0402121 RST CHIP 120R 1/16W 5%
R402 061G0402162 RST CHIP 1K6 1/16W 5%
R105 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W
R106 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W
29
R109 061G0402390 0F RST CHIP 390R 1/16W 1%
R104 061G0402391 JF RST CHIP 390R 1/16W 5% FENGHUA
R111 061G0402391 JF RST CHIP 390R 1/16W 5% FENGHUA
R115 061G0402391 JF RST CHIP 390R 1/16W 5% FENGHUA
R427 061G0402392 RST CHIP 3.9K 1/16W 5%
R428 061G0402392 RST CHIP 3.9K 1/16W 5%
R477 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R440 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R435 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R416 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R415 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R125 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R481 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R450 061G0402512 RST CHIP 5K1 1/16W 5%
R436 061G0402513 RST CHIP 51K 1/16W 5%
R465 061G0402682 RST CHIP 6K8 1/16W 5%
R107 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R434 061G1206331 RST CHIPR 330 OHM +-5% 1/4W
C121 065G0402100 31 CAP 0402 10PF J 50V NPO
C122 065G0402100 31 CAP 0402 10PF J 50V NPO
C120 065G0402100 31 CAP 0402 10PF J 50V NPO
C405 065G0402103 32 0.01uF +-10% 16V X7R
C419 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C420 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C422 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C428 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C431 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C432 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C433 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C436 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C437 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C438 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C439 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C450 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C118 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C401 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C403 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
30
C404 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C406 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C407 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C409 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C413 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C414 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C415 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C416 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C417 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C447 065G0402105 A5 CAP 0402 1UF K 10V X5R
C103 065G0402220 31 CHIP 22PF 50V NPO
C102 065G0402220 31 CHIP 22PF 50V NPO
C408 065G0402224 17 CAP CER 0.22UF -20%-80%
C444 065G0402224 A5 MLCC 0402 CAP 0.22UF K 10V X5R
C411 065G0402330 31 CHIP CAP 0402 33pF J 50V NPO
C412 065G0402330 31 CHIP CAP 0402 33pF J 50V NPO
C110 065G0402473 12 CHIP 0.047uF 16V X7R
C107 065G0402473 12 CHIP 0.047uF 16V X7R
C106 065G0402473 12 CHIP 0.047uF 16V X7R
C101 065G0402473 12 CHIP 0.047uF 16V X7R
C456 065G0805105 22 CAP CHIP 0805 1uF K 25V X7R
C455 065G0805106 A7 CHIP 10uF 10V Y5V 0805
C442 065G0805106 A7 CHIP 10uF 10V Y5V 0805
C441 065G0805106 A7 CHIP 10uF 10V Y5V 0805
C402 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
FB407 071G 56G301 EA
BEAD 300 欧
FB402 071G 56K121 M CHIP BEAD
FB104 071G 59G301 CHIP BEAD 300OHM
R123 071G 59K190 B 19 OHM BEAD
R124 071G 59K190 B 19 OHM BEAD
R122 071G 59K190 B 19 OHM BEAD
FB406 071G 59K190 B 19 OHM BEAD
FB405 071G 59K190 B 19 OHM BEAD
R101 071G 59K800 CHIP BEAD 80 OHM FCM1608K-800
FB409 071G 59S221 M CHIP BEAD 0603 220ohm+-25% 2A
D403 093G 60505 DIO SIG SM BAT54C(PHSE)R
D105 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
ZD103 093G 39S 34 T UDZSNP5.6B ROHM
ZD104 093G 39S 34 T UDZSNP5.6B ROHM
D402 093G2004 2 DIODE SR24
31
715G2681 1 4 MAIN BOARD PCB
R003 061G0603000 RST CHIP MAX 0R05 1/10W
R005 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R002 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
R004 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
J001 061G1206000 RST CHIP MAX 0R05 1/4W
J002 061G1206000 RST CHIP MAX 0R05 1/4W
715G2991 2 KEY BOARD PCB
Q901 057G 667 51 FET 2SK4101LS 7A/650V TO-220FI(LS)
0M1G 930 8120 SCREW
HS3 Q90G6263 6 HEAT SINK
D906 093G 60267 SP10100
0M1G 930 8120 SCREW
HS2 Q90G6263 6 HEAT SINK
IC801 056G 379 22 IC TL494IDR SOIC-16
IC901 056G 379107 IC LD7575A PS SOP-8
Q804 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
Q812 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
Q801 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q806 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q807 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q811 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q903 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q809 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q808 057G 760 4A DTA144WN3/S SOT-23
Q805 057G 760 5A DTC 144WN3/S SOT-23
Q802 057G 763 6 AO4828 SOIC-8 BY AOS
R823 061G0603000 RST CHIP MAX 0R05 1/10W
R942 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R926 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R827 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R824 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R818 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R863 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R832 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R828 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R820 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R817 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R808 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R807 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
32
R862 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R801 061G0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W
R814 061G0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W
R930 061G0603243 1F RST CHIPR 2.43K OHM +-1% 1/10W
R940 061G0603330 2F RST CHIPR 33K OHM +-1% 1/10W
R927 061G0603360 1F RST CHIPR 3.6K OHM +-1% 1/10W
R861 061G06034753FF RST CHIPR 475KOHM +-1% 1/10W FENGHUA
R851 061G0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W
R841 061G0603680 2F RST CHIPR 68K OHM +-1% 1/10W
R853 061G0603683 RST CHIPR 68K OHM +-5% 1/10W
R854 061G0603683 RST CHIPR 68K OHM +-5% 1/10W
R803 061G0603684 RST CHIPR 680 KOHM +-5% 1/10W
R802 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
JR902 061G0805000 RST CHIP MAX 0R05 1/8W
R822 061G0805100 1F RST CHIPR 1K OHM +-1% 1/8W
R821 061G0805100 1F RST CHIPR 1K OHM +-1% 1/8W
R831 061G0805100 1F RST CHIPR 1K OHM +-1% 1/8W
R915 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R804 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R939 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R826 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R925 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R938 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R924 061G0805151 RST CHIPR 150 OHM +-5% 1/8W
R850 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R839 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R829 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R825 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R943 061G0805471 RST CHIPR 470 OHM +-5% 1/8W
R837 061G0805473 RST CHIPR 47K OHM +-5% 1/8W
R810 061G0805510 2F RST CHIPR 51K OHM +-1% 1/8W
JR801 061G1206000 RST CHIP MAX 0R05 1/4W
F801 061G1206000 4 RST CHIP MAX 0R05 1/4W
F905 061G1206000 4 RST CHIP MAX 0R05 1/4W
R910 061G1206100 RST CHIPR 10 OHM +-5% 1/4W
R918 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R919 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R920 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R935 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R961 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
33
R962 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R904 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R932 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R856 061G1206150 RST CHIPR 15 OHM +-5% 1/4W
R855 061G1206150 RST CHIPR 15 OHM +-5% 1/4W
R912 061G1206221 RST CHIPR 220 OHM +-5% 1/4W
R909 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W
R900 061G1206684 RST CHIPR 680K OHM +-5% 1/4W
R901 061G1206684 RST CHIPR 680K OHM +-5% 1/4W
R902 061G1206684 RST CHIPR 680K OHM +-5% 1/4W
C932 065G0603102 32 1000PF +-10% 50V X7R
C842 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R
C834 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R
C825 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R
C821 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R
C807 065G0603104 22 CAP CHIP 0603 0.1UF K 25V X7R
C823 065G0603222 32 CHIP 2200PF 50V X7R
C819 065G0603222 32 CHIP 2200PF 50V X7R
C928 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R
C824 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R
C911 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R
C924 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R
C930 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R
C931 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R
C822 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C838 065G0805152 31 1.5nF/50V
C839 065G0805152 31 1.5nF/50V
C820 065G080522131G CAP CHIP 0805 220PF G 50V NPO
C845 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10%
C909 065G0805471 31 CHIP 470PF 50V NPO
C929 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R
C912 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R
D802 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D801 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
ZD922 093G 39GA26 T ZENER DIODE RLZ5.1B SEMTECH
ZD921 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH
ZD902 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH
ZD905 093G 39GA31 T ZENER DIODE RLZ18B SEMTECH
D812 093G 64S522SEM LL4148
D805 093G 64S522SEM LL4148
34
D806 093G 64S522SEM LL4148
D807 093G 64S522SEM LL4148
D916 093G 64S522SEM LL4148
D814 093G 64S522SEM LL4148
D817 093G 64S522SEM LL4148
D903 093G 64S522SEM LL4148
D915 093G 64S522SEM LL4148
709G2852 HS001 CONSUMPTIVE ASS'Y
PW8521VYD2AI POWER BOARD FOR AI
052G 2191 A PAPER TAPE
CN901 006G 31500 EYELET
IC903 056G 158 10 T IC AS431AZTR-E1 TO-92
R946 061G152M15152T RST MOFR 150 OHM +-5% 2WS
R914 061G152M47852T RST MOFR 0.47 OHM +-5% 2WS
C906 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P
C903 067G 2152207NT KY50VB22M-TP5 5*11
F901 084G 56 3 B FUSE 3.15A 250V
D900 093G 6026T52T RECTIFIER DIODE FR107
D901 093G 6038T52T FR103
J903 095G 90 23 C JUMP WIRE
J901 095G 90 23 C JUMP WIRE
J813 095G 90 23 C JUMP WIRE
J812 095G 90 23 C JUMP WIRE
J811 095G 90 23 C JUMP WIRE
J809 095G 90 23 C JUMP WIRE
J807 095G 90 23 C JUMP WIRE
J806 095G 90 23 C JUMP WIRE
J805 095G 90 23 C JUMP WIRE
J904 095G 90 23 C JUMP WIRE
J906 095G 90 23 C JUMP WIRE
J907 095G 90 23 C JUMP WIRE
J908 095G 90 23 C JUMP WIRE
J909 095G 90 23 C JUMP WIRE
J910 095G 90 23 C JUMP WIRE
J911 095G 90 23 C JUMP WIRE
J912 095G 90 23 C JUMP WIRE
J914 095G 90 23 C JUMP WIRE
J804 095G 90 23 C JUMP WIRE
J803 095G 90 23 C JUMP WIRE
J802 095G 90 23 C JUMP WIRE
35
J801 095G 90 23 C JUMP WIRE
709G2852 HA001 CONSUMPTIVE ASS'Y
715G2852 3 4 POWER BOARD PCB
095G 90 23 JUMPER WIRE
36
Loading...
