LCD Monitor User Manual

24B2XD/24B2XDA/27B2DA

Safety ................................................................................................................................................................................... 1

National Conventions ................................................................................................................................................ 1

Power ........................................................................................................................................................................ 2

Installation ................................................................................................................................................................. 3

Cleaning .................................................................................................................................................................... 4

Other ......................................................................................................................................................................... 5

Setup .................................................................................................................................................................................... 6

Contents in Box ......................................................................................................................................................... 6

Setup Stand & Base .................................................................................................................................................. 7

Adjusting Viewing Angle ............................................................................................................................................ 8

Connecting the Monitor ............................................................................................................................................. 9

Wall Mounting.......................................................................................................................................................... 10

Adaptive-Sync function ............................................................................................................................................11

Adjusting ............................................................................................................................................................................. 12

Hotkeys ................................................................................................................................................................... 12

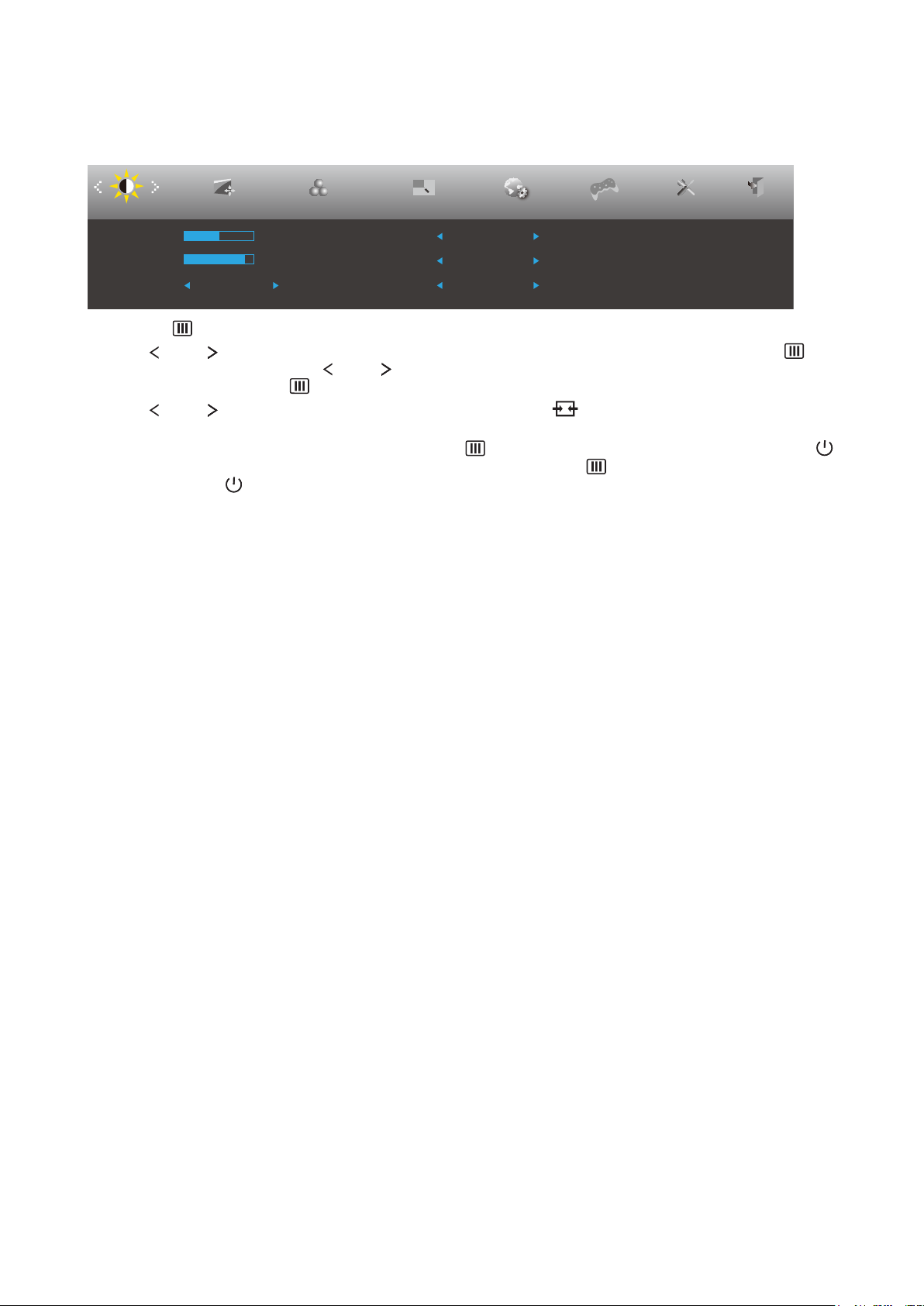

OSD Setting ............................................................................................................................................................ 14

Luminance ................................................................................................................................................... 15

Image Setup ................................................................................................................................................ 16

Color Setup .................................................................................................................................................. 17

Picture Boost ............................................................................................................................................... 18

OSD Setup ................................................................................................................................................... 19

Game Setting ............................................................................................................................................... 20

Extra ............................................................................................................................................................ 21

Exit ............................................................................................................................................................... 22

LED Indicator .......................................................................................................................................................... 23

Troubleshoot ....................................................................................................................................................................... 24

Specication ....................................................................................................................................................................... 25

General Specication .............................................................................................................................................. 25

Preset Display Modes ............................................................................................................................................. 28

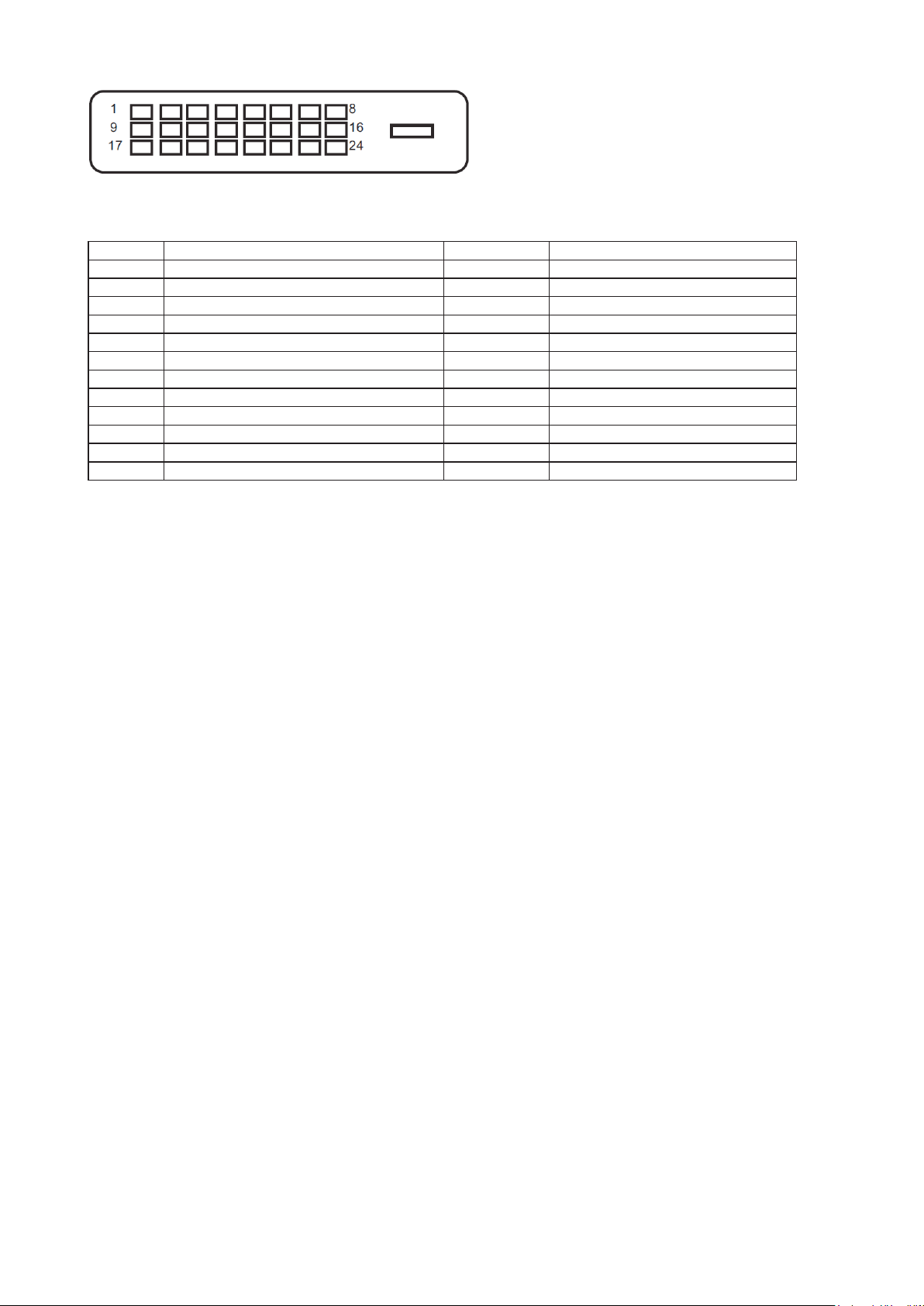

Pin Assignments ...................................................................................................................................................... 30

Plug and Play .......................................................................................................................................................... 32

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These

blocks are notes, cautions, and warnings, and they are used as follows:

NOTE:

CAUTION:

problem.

WARNING:

may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specic presentation of the

warning is mandated by regulatory authority.

A NOTE indicates important information that helps you make better use of your computer system.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the

type of power supplied to your home, consult your dealer or local power company.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the

monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in re or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate congured

receptacles marked between 100-240V AC, Min. 5A.

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Only for monitors with power adapter).

Manufacturers:TPV ELECTRONICS(FUJIAN) CO., LTD

Model: ADPC1925EX(19VDC,1.31A)

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a

person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by

the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use

mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a re or electric

shock. Never spill liquids on the monitor.

Do not place the front of the product on the oor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit

instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence

overheating may cause a re or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the

stand:

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent

which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it

will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a

Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

IThe power cords shall be safety approved. For Germany, it shall be H03VV-F, 3G, 0.75 mm2, or better. For other

countries, the suitable types shall be used accordingly.

IExcessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to

maximum increases the earphones and headphones output voltage and therefore the sound pressure level.

Setup

CD Manual Warranty card

Monitor

Base

Power Cable Adapter HDMI Cable DVI Cable VGA Cable Audio Cable

Contents in Box

Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch

o󰀩ce for conrmation.

Setup Stand & Base

24B2XD

24B2XDA/27B2DA

24B2XD

24B2XDA/27B2DA

Please setup or remove the base following the steps as below.

Setup:

Remove:

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own

preference.

Hold the stand so you will not topple the monitor when you change the monitor’s angle.

You are able to adjust the monitor as below:

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

24B2XD 24B2XDA/27B2DA

1. HDMI

2. DVI

3. Analog (D-Sub 15-Pin VGA cable)

4. Audio in

5. Earphone

6. Power

Connect to PC

1. Connect the power cord to the back of the display rmly.

2. Turn o󰀨 your computer and unplug its power cable.

3. Connect the display signal cable to the video connector on the back of your computer.

4. Plug the power cord of your computer and your display into a nearby outlet.

5. Turn on your computer and display.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

To protect equipment, always turn o󰀨 the PC and LCD monitor before connecting.
